Ancuța Cristina Raclariu-Manolică
Quentin Mauvisseau
Hugo J. de Boer- 1Stejarul Research Centre for Biological Sciences, National Institute of Research and Development for Biological Sciences, Piatra Neamț, Romania
- 2Natural History Museum, University of Oslo, Oslo, Norway
Herbal medicines and preparations are widely used in healthcare systems globally, but concerns remain about their quality and safety. New herbal products are constantly being introduced to the market under varying regulatory frameworks, with no global consensus on their definition or characterization. These biologically active mixtures are sold through complex globalized value chains, which create concerns around contamination and profit-driven adulteration. Industry, academia, and regulatory bodies must collaborate to develop innovative strategies for the identification and authentication of botanicals and their preparations to ensure quality control. High-throughput sequencing (HTS) has significantly improved our understanding of the total species diversity within DNA mixtures. The standard concept of DNA barcoding has evolved over the last two decades to encompass genomic data more broadly. Recent research in DNA metabarcoding has focused on developing methods for quantifying herbal product ingredients, yielding meaningful results in a regulatory framework. Techniques, such as loop-mediated isothermal amplification (LAMP), DNA barcode-based Recombinase Polymerase Amplification (BAR-RPA), DNA barcoding coupled with High-Resolution Melting (Bar-HRM), and microfluidics-based methods, offer more affordable tests for the detection of target species. While target capture sequencing and genome skimming are considerably increasing the species identification resolution in challenging plant clades, ddPCR enables the quantification of DNA in samples and could be used to detect intended and unwanted ingredients in herbal medicines. Here, we explore the latest advances in emerging DNA-based technologies and the opportunities they provide as taxa detection tools for evaluating the safety and quality of dietary supplements and herbal medicines.
Introduction
Herbal products play a crucial role in healthcare systems worldwide, but their quality and safety raise concerns (Zhang et al., 2012; Ekor, 2014). Over the past few years, there has been a steady rise in the use of commercial herbal products (Garcia-Alvarez et al., 2014; Smith et al., 2021), and a diverse range of new dietary supplements and herbal medicines continue to enter the market under very heterogenous regulatory frameworks (Thakkar et al., 2020). Globally, there is no consensus regarding the definition and characterization of these herbal products that often come from a great variety of local and traditional practices. Numerous commercial terms, including herbal or botanical drugs, traditional or herbal medicines, natural health products, and dietary or food supplements (Alostad et al., 2020), are being used to describe these products.
Commercial herbal products are biologically active mixtures, with complex and variable contents, making it difficult to assess their quality and safety using conventional analytical methods (Zhang et al., 2012; Shipkowski et al., 2018; Heinrich et al., 2022). These products have globalized value chains, creating additional concerns such as responsible sourcing of raw plant materials and sustainable supply (Booker et al., 2012; Heinrich et al., 2019). While specific quality issues are strictly monitored for certain categories of herbal products classified as “medicines” in some jurisdictions (Thakkar et al., 2020), “supplements” typically have less rigorous premarket and post-marketing regulations, leaving room for safety issues (Posadzki et al., 2013; Heinrich, 2015; Teschke and Eickhoff, 2015; Steinhoff, 2019). Nevertheless, the research community, along with some regulatory authorities and Pharmacopoeias, is making significant contributions and proposing innovative strategies to identify and authenticate botanicals and their derived preparations, ensuring quality control (Simmler et al., 2018; Fitzgerald et al., 2019; Durazzo et al., 2021; Heinrich et al., 2022).
Due to the high demand and increasing prices for herbal preparations, supply chains for raw plant materials are sometimes unable to keep up, leading to accidental contamination or intentional adulteration for economic gain (Ichim, 2019; Ichim et al., 2020; Ichim and Booker, 2021; Gafner et al., 2023). Traditional approaches for botanical identification and quality control, including botanical taxonomy, macroscopic and microscopic examination, and phytochemical analysis to detect specific characteristics or compounds have been reviewed previously (Upton et al., 2019; Klein-Junior et al., 2021). However, as discussed by Gafner et al. (2023), fraudulent operators are aware of these identification assays and have found ways to deceive them. Unethical adulteration practices, combined with natural complexity and potential human errors, have a significant impact on the quality of botanical products (Heinrich, 2015). Furthermore, non-compliant physical labels and false online claims of herbal products pose additional safety hazards (You et al., 2022; Jordan et al., 2023).
Given the current circumstances, it is recommended to adopt innovative and alternative testing approaches to ensure the quality control of herbal products (Simmler et al., 2018; Thakkar et al., 2020; Abraham and Kellogg, 2021). In recent years, high-throughput sequencing (HTS) methods have revolutionized our ability to provide insights into the total species diversity in DNA mixtures. After two decades of remarkable progress, the concept of standard DNA barcoding has significantly expanded. This article discusses the latest advancements in emerging DNA barcoding-based technologies and the potential opportunities they offer as taxa detection tools for evaluating the safety and quality of dietary supplements and herbal medicines (See Figure 1 and Table 1).

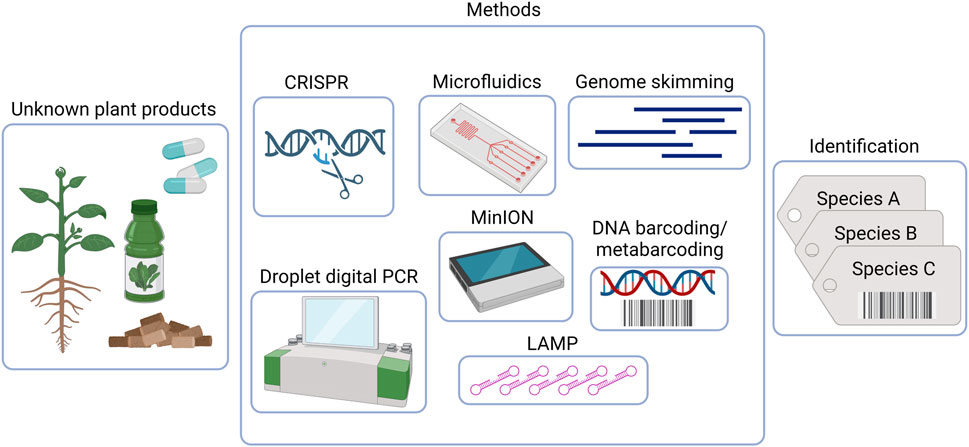

FIGURE 1. DNA-based methods for quality control and monitoring of herbal preparations. Created with BioRender.com.

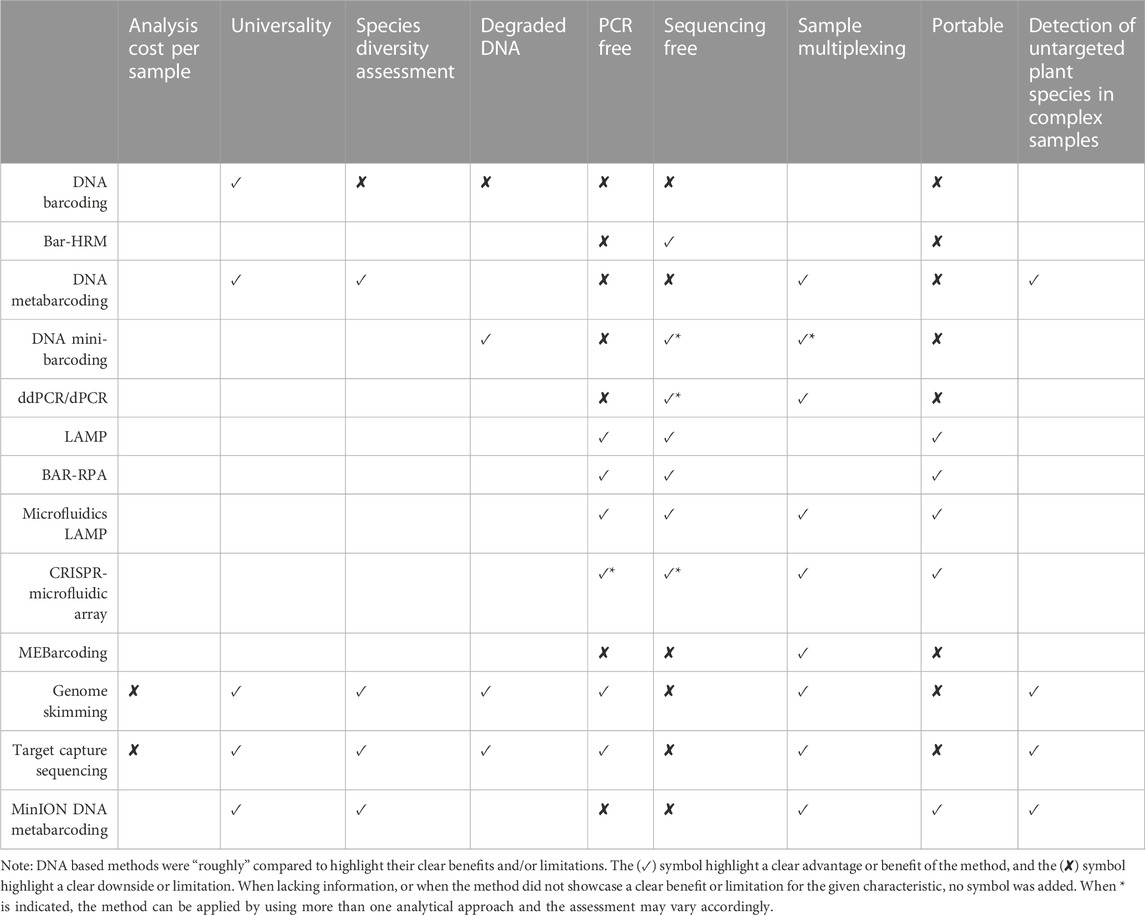

TABLE 1. Comparison of the DNA-based methods for quality control and monitoring of herbal preparations.
State-of-the-art—DNA barcoding
DNA barcoding is an identification system that uses short and standardized regions of the genome, known as “barcodes”, as advocated by Hebert et al. (2003). The concept is straightforward—when a DNA barcode is obtained from a taxonomically unknown specimen, a computational algorithm compares it against a reference database containing reference sequences with known taxonomy to identify the targeted barcode. The technique operates on the assumption that the level of intraspecific genetic divergence is lower than the interspecific genetic divergence, forming a cut-off threshold, the “barcoding gap” (Meyer and Paulay, 2005). A query sequence is considered to be distinct from a reference sequence if the difference is above this threshold (Hebert et al., 2003; Meyer and Paulay, 2005). Different loci from chloroplast and nuclear genomes (e.g., trnH-psbA, rbcL, matK, ycf5, ITS2) have been proposed for medicinal plant DNA barcoding (Chen et al., 2010).
The application of DNA barcoding has been a significant breakthrough for both the research community and industry, enabling it to address a range of questions that were previously impossible to answer. Standardized DNA barcoding protocols have been proposed for the identification of plant material by Pharmacopeias around the world, including the Chinese, United States, Japanese, and British Pharmacopoeias (Howard et al., 2009; Kreuzer et al., 2019; Ha et al., 2022; Wu and Shaw, 2022). The utility of DNA barcoding to detect adulteration has been shown in studies on herbal products derived from Ginkgo biloba L. (Little, 2014a), Actaea racemosa L. (Baker et al., 2012), and species belonging to the genera Senna and Cassia (Seethapathy et al., 2014), among others (Ghorbani et al., 2015; Hart et al., 2016). It has been applied also to detect common adulterants of endangered species used in herbal medicines (e.g., genus Panax) (Zuo et al., 2011; Wallace et al., 2012), and to identify species with a high toxic or allergenic potential present in marketed herbal products (Wallace et al., 2012; Seethapathy et al., 2014; Wang et al., 2017). While DNA barcoding is particularly useful for molecular identification and traceability of raw materials (Galimberti et al., 2013), this method is not always effective in detecting species substitution or adulteration in mixed DNA samples and with high levels of DNA degradation (Raclariu et al., 2018). DNA barcoding does not have the capacity to screen for chemical compounds, thus has no capacity to test the presence of toxic constituents or synthetic substances that may be present within the herbal products.
DNA barcoding coupled with high-resolution melting (Bar-HRM)
Bar-HRM is a cost-effective, sequence-independent technique that rapidly and accurately authenticates crude herbal materials post-PCR. Initially developed by Jaakola et al. (2010) for the authentication of berries, it has since been extensively applied to identify herbal medicines (Sun et al., 2016). Unlike DNA barcoding which utilizes specific and standardized genomic regions as genetic barcodes to differentiate species, HRM detects sequence variations by analyzing DNA melting curves. Combined, they enable rapid and accurate species identification, particularly in complex environmental samples where morphological methods may be challenging. For instance, Kalivas et al. (2014) used Bar-HRM combined with ITS2 barcode to identify Sideritis species, while Song et al. (2016) discriminated Artemisa species and authenticated commercial products in China. Using rbcL Bar-HRM primers, Osathanunkul and Madesis (2019) differentiated edible and poisonous ginseng species, Osathanunkul et al. (2015) authenticated medicinal Acanthaceae species commonly used in Thailand and Tungphatthong et al. (2021) tested various Bar-HRM barcodes to identify Mitragyna speciosa (Korth.) Havil., a species prohibited in Thailand.
DNA metabarcoding
DNA metabarcoding is a cutting-edge technique that combines the traditional concept of DNA barcoding with high-throughput sequencing (HTS), allowing for the identification of multiple taxa from complex mixtures and matrices containing DNA from different sources (Taberlet et al., 2012; Raclariu et al., 2018). In the field of herbal product authentication, DNA metabarcoding has a significant advantage over traditional DNA barcoding due to its ability to identify many species from complex mixtures and matrices at any stage of processing or production (de Boer et al., 2015; Raclariu et al., 2018). It is highly effective in assessing total species diversity in processed/finished products, in post-marketing control and pharmacovigilance, and has been successfully applied in several studies to reveal a disturbing prevalence of adulteration (Ichim, 2019). The use of undeclared plant fillers or accidental substitution materials is among the suspected causes of the high number of adulterated commercial products (Coghlan et al., 2012; Coghlan et al., 2015; Ivanova et al., 2016; Raclariu et al., 2017; Seethapathy et al., 2019). In some cases, DNA metabarcoding identified species protected by the Convention on International Trade in Endangered Species of Wild Fauna and Flora (CITES) (Coghlan et al., 2015; de Boer et al., 2017), and a multi-locus DNA metabarcoding method has been developed to detect these species (Arulandhu et al. (2017). Additionally, DNA metabarcoding allows the detection of species with high toxicity and allergenic potential in herbal products (Cheng et al., 2014; Speranskaya et al., 2018; Anthoons et al., 2021; Frigerio et al., 2021).
Current research gaps
DNA metabarcoding is an extremely sensitive technique, capable of identifying trace amounts of contamination, such as a single grain of pollen (Polling et al., 2022). However, the quantification of abundance is complicated by a range of factors that can lead to false positive detections. These can include contamination, adulteration, amplification bias, sequencing errors, and errors in reference databases used for taxonomic assignment (Hawkins et al., 2015). To minimize the risk of false positive detections, biological and technical replicates should be used, and strict bioinformatics filtering criteria should be applied (Ficetola et al., 2015). On the other hand, degraded DNA caused by harvesting, drying, storage, transportation, and processing (Novak et al., 2007), difficulties in DNA extraction due to the presence of pharmaceutical excipients (Costa et al., 2015), poor primer fit and amplification biases (Piñol et al., 2015), stochasticity due to low DNA concentrations (Giguet-Covex et al., 2014), or incomplete reference databases may lead to false negative results. To overcome these challenges and to ensure the quality of the DNA barcoding procedure, the use of reference standards as positive controls for DNA extraction and PCR is highly recommended (Sgamma et al., 2017). Moreover, the use of a positive control library based on synthetic DNA molecules (gBlocks) has been shown to be a good strategy (Sgamma et al., 2018; Howard et al., 2020a; Howard et al., 2020b).
Current developments and horizon scan
DNA mini-barcoding
DNA mini-barcoding is an efficient identification method target short (≤200–300 bp) DNA regions that have the capacity to overcome some limitations of conventional DNA barcoding related to DNA fragmentation in herbal ingredients and processed products (Meusnier et al., 2008; Little, 2014b). The approach has a significant species identification potential in samples that contain degraded DNA and/or more than one species (Gao et al., 2019). Various strategies have been applied to develop specific mini-barcodes to be used for species identification in herbal products. Howard et al. (2009) proposed species-specific DNA mini-barcodes to discriminate Hypericum perforatum L. from other closely related Hypericum spp., and these are able to detect even low amounts of targeted DNA. The use of multiplex DNA metabarcoding of multiple mini-barcode loci has shown promising taxon identification potential in complex samples with heavily degraded DNA, and such approaches are applicable to monitor the illegal trade of endangered plant and animal species used in traditional medicines (Arulandhu et al., 2017). Yu et al. (2020) used specific mini-barcodes targeting chloroplast sequences combined with metabarcoding for qualitative and quantitative estimation of Senna obtusifolia (L.) H. S. Irwin and Barneby in processed herbal products.
Droplet digital PCR (ddPCR) and digital PCR (dPCR)
Droplet digital PCR (ddPCR) and digital PCR (dPCR) are powerful techniques that allow to detect and quantify DNA or RNA molecules in a sample. Following the partition of a sample into thousands of nanoliter-sized droplets or partition (using either emulsion or microfluidic-based approaches), a fluorescence reading of each droplet/partition allows accurate detection and quantification of low-level target DNA, even in the presence of inhibitors in complex samples. Compared to quantitative PCR, ddPCR offers numerous benefits, including higher sensitivity and precision, as well as an absolute measure of nucleic acid concentration without the need for standard curves (Hindson et al., 2011; Pinheiro et al., 2012; Hindson et al., 2013). Fit-for-purpose approaches are increasingly used to quantify DNA targets at low levels in various applications (Pinheiro et al., 2012), with ddPCR being used to identify and quantify animal species in meat and meat products (Floren et al., 2015). ddPCR has been applied to herbal product authentication, and several studies highlighted its potential. Yu et al. (2020), Yu et al. (2022) developed assays targeting respectively Panax ginseng C.A.Mey. (ginseng), Oryza sativa L. (rice), and Glycine max (L.) Merr. (soybean), to enable their detection and quantification in complex mixtures, and Xu et al. (2022) detected and quantified low levels of adulterants, i.e., Mu Tong (Akebia quinata (Houtt.) Decne.) and Aristolochia manshuriensis Kom., which contain several aristolochic acids, which are known carcinogens able to cause kidney toxicity. Unlike qPCR which is sensitive to inhibition and only provides relative quantification, ddPCR enables absolute quantitative evaluations from low amounts of the target DNA even in the presence of chemical and protein contaminants or inhibitors (Techen et al., 2014; Taylor et al., 2017).
Loop-mediated isothermal amplification (LAMP)
Loop-mediated isothermal amplification (LAMP) was first introduced as an alternative to PCR-based methods by Notomi et al. (2000) and amplifies target-specific DNA sequences under isothermal conditions without significant interference from a non-target template. Compared to PCR-based methods, LAMP is more sensitive and specific (Craw and Balachandran, 2012), does not require expensive equipment or special molecular techniques (Li et al., 2016), and can enable on-site analysis (Kogovšek et al., 2015; Sillo et al., 2018; Köppel et al., 2019). These advantages have led to the rapid adoption of LAMP in various fields, including food safety testing for foodborne pathogens (Niessen et al., 2013; Law et al., 2014; Zhong and Zhao, 2018), genetically modified organisms (Singh et al., 2019), and food allergens such as Pistacia vera L. (pistachio), Glycine max (L.) Merr. (soybean), and Arachis hypogaea L. (peanut) (Sheu et al., 2018; Allgöwer et al., 2020; Mao et al., 2020). Li et al. (2016) reviewed the potential of LAMP for identifying raw medicinal plant materials and proposed a practical Standard Operating Procedure (SOP) for utilizing LAMP in herbal authentication. LAMP has been used for identifying and authenticating medicinal plants such as Curcuma longa L., Catharanthus roseus (L.) G. Don., Hedyotis diffusa Willd., Zingiber officinale Roscoe, and Taraxacum formosanum Kitam. (Sasaki and Nagumo, 2007; Chaudhary et al., 2012; Li et al., 2013; Chaudhary and Khan, 2014; Lai et al., 2015). While Zhao et al. (2016) developed ITS2-specific LAMP primers targeting Crocus sativus L. (saffron) to enable simple and sensitive differentiation from adulterants, Fochi et al. (2022) developed a LAMP-based diagnostic protocol for the authentication of food supplements made from the edible fungus Grifola frondosa (Dicks.) Gray (“Maitake”). This was successfully tested on commercial products, demonstrating its potential for routine inspections at any level of the production chain.
DNA barcode-based recombinase polymerase amplification (BAR-RPA)
DNA barcode-based Recombinase Polymerase Amplification (BAR-RPA) is a technique that uses recombinase, polymerase, and single-stranded binding proteins (SBB) to rapidly amplify genetic markers in as little as 15–20 min under a constant temperature of 37°C–42°C. Without the need for thermocyclers, this innovative approach can replace the traditional PCR technique’s unwinding chain process (Piepenburg et al., 2006; Lobato and O’Sullivan, 2018). Tian et al. (2017) developed a BAR-RPA assay to authenticate Traditional Chinese Medicine (TCM) products containing Wu Zhi Mao Tao, the roots of Ficus hirta Vahl. a valuable medicine and food ingredient found in China and effectively identified Gelsemium elegans (Gardner and Chapm.) Benth, a neurotoxic species often used as an adulterant in Wu Zhi Mao Tao.
Microfluidics-based methods
Microfluidics, also known as a “laboratory on a chip,” is an advanced system that manipulates small amounts of fluid flowing in microscale channels with multidisciplinary applications (Whitesides, 2006). This system can integrate complex nucleic acid detection processes on a single chip with reduced operational time, low-cost consumption of samples and reagents, high capacity for multiplexing assays, and portability (Chen et al., 2022; Gao et al., 2022; Li et al., 2023). A variety of microfluidic devices have been developed for the rapid and efficient detection of foodborne pathogens, allergens, toxins, heavy metals, pesticide residues, additives, and other chemical and physical contaminants (Weng and Neethirajan, 2017; Chandrasekaran et al., 2022; Li et al., 2023). While recent research advances and typical microfluidic chip technologies have been summarized in Li et al. (2023), Jia et al. (2022) discussed the potential opportunities that microfluidic technology offers for pharmaceutical analysis, such as drug quality control, drug screening, and precision medicine.
Microfluidics and loop-mediated isothermal amplification (microfluidics-based LAMP)
Fang et al. (2010) introduced the microLAMP (μLAMP) system, integrating nucleic acid LAMP into an 8-channel microfluidic chip, enabling the quantitative detection of pathogens in just an hour using a low amount of extracted DNA. Similarly, Sun et al. (2015) developed an 8-chamber lab-on-chip system that can detect and quantify Salmonella spp. in food samples. This platform performs on-chip sample preparation using magnetic beads and loop-mediated isothermal amplification (LAMP) for bacterial detection and can analyze eight Salmonella-spiked buffered peptone water (BPW) enriched pork meat samples within 40 min with a low Limit Of Detection (LOD) of 50 cells per test. Yuan et al. (2018) developed a colorimetric LAMP microfluidic chip-based method for detecting the allergen genes of Arachis hypogaea L. (peanut), Sesamum indicum L. (sesame), and Glycine max (L.) Merr. (soybean). The method has been successfully tested for various commercial foods (biscuits and candies), but could also be transferred to testing herbal products and dietary supplements.
Clustered regularly interspaced short palindromic repeats (CRISPR)-microfluidic array
The development of Clustered Regularly Interspaced Short Palindromic Repeats (CRISPR) based biosensors has revolutionized the rapid detection of nucleic acids, allowing for faster diagnosis of infectious pathogens (Kellner et al., 2019; Li et al., 2021a) and identification of DNA or miRNAs from cancer cells (Li et al., 2021b). These biosensors have been further advanced through their integration with microfluidic platforms (Chen et al., 2022), with recent progress in this area reviewed by Li et al. (2022). Notably, Li et al. (2022) successfully developed a CRISPR-microfluidic array that enabled the identification of single-copy DNA mini barcodes, allowing for highly sensitive and specific discrimination of closely related Datura (Solanaceae) species.
Microfluidic enrichment barcoding (MEBarcoding)
Gostel et al. (2020) proposed the Microfluidic Enrichment Barcoding (MEBarcoding) technique for plant high-throughput DNA barcoding. This innovative approach allows for the amplification of 48 DNA samples and hundreds of PCR primer pairs in a single thermal cycling protocol, using the Fluidigm Access Array. In their study, the authors successfully tested 96 samples using rbcL, matK, trnH-psbA, and ITS1 and 2 as barcode loci. The authors emphasized that MEBarcoding provides an efficient and viable alternative to traditional PCR and Sanger sequencing, particularly when a new barcode marker needs to be used to rapidly construct a customized reference library.
Genome skimming (shallow pass shotgun sequencing)
Genome skimming is a technique that utilizes high-throughput sequencing (HTS) to sequence the genome at low coverage for the assembly of organellar genomes and nuclear ribosomal DNA sequences (Straub et al., 2012), allowing the capture of commonly used DNA barcoding markers (Coissac et al., 2016; Hollingsworth et al., 2016). High-throughput sequencing with the purpose of genome assembly requires high quality DNA, but for several genome skimming approaches, lower-quality DNA will suffice (Dodsworth, 2015). Such skimming approaches are sufficient to extract and assemble organelles genomes or identify species through k-mer analysis. Genome skimming has been successful in producing the entire nuclear genome of a 43-year-old Arabidopsis thaliana (L.) Heynh. herbarium specimen and the nuclear genome sequence of 80-year-old fungi (Staats et al., 2013), and recovered rDNA and plastid genome sequences of 80-year-old herbarium specimen using low concentrations of degraded material (Zeng et al., 2018). It has also been used in herbal product authentication to overcome the limitations of standard DNA barcoding and metabarcoding (Wu and Shaw, 2022). For instance, (Handy et al., 2021), compared the performance of DNA metabarcoding, genome skimming, and HPLC-UV analysis to authenticate 20 commercially available dietary supplements containing Echinacea. They found that genome skimming was more effective than DNA metabarcoding for species-level authentication within the Echinacea genus. However, the high operational cost of genome skimming currently limits its application (Manzanilla et al., 2022). Despite this limitation, the PCR-free approach of genome skimming bypasses some of the constraints of conventional barcoding, particularly concerning the limited number of barcodes used and the degraded DNA often present in herbal products (Wu and Shaw, 2022). For instance, Xin et al. (2018) performed shotgun sequencing of the Chinese herbal medicine Longdan Xiegan Wan and authenticated the raw material and products using ITS2, psbA-trnH, and matK sequences.
Target capture sequencing
Target capture sequencing is a cost-effective alternative for genome subsampling, enabling high-throughput sequencing (HTS) of preselected nuclear loci (Gnirke et al., 2009; Andermann et al., 2019). This method has been successfully used to retrieve hundreds of genes from highly degraded DNA in herbarium specimens (Hart et al., 2016; Brewer et al., 2019) and in plant clades where traditional DNA barcoding has limited resolution (Widhelm et al., 2019; Woudstra et al., 2021). Universal target capture tools have improved the phylogenomic resolution at the species level of several plants (Johnson et al., 2019; McDonnell et al., 2021). For example, Manzanilla et al. (2022) used target capture genomic barcoding to identify and establish the geographic origin of the medicinal plant species, Anacyclus pyrethrum (L.) Lag., listed as Vulnerable on the IUCN Red List of Threatened Species. Although both target capture and genome skimming of plastomes resulted in similar numbers of reads per sample, target capture outperformed the latter. Despite its efficacy in handling low-quality DNA samples, the cost of target capture sequencing impedes its routine application for identifying commercialized plant species, as discussed for genome skimming. However, Woudstra et al. (2021) designed an RNA-bait panel targeting 189 low-copy nuclear genes that allows for accurate molecular identification of species from the genus Aloe L. This is particularly useful for the conservation and sustainable use of Aloe-derived products, as many Aloe species are regulated by the Convention on International Trade of Endangered Species (CITES). Additionally, Le et al. (2022) captured 353 nuclear markers using 319 individuals to evaluate the genetic diversity within cultivated and wild populations of Panax vietnamensis Ha and Grushv, an endemic and threatened ginseng species in Vietnam.
MinION-based DNA metabarcoding
The MinION DNA sequencer, a portable device from Oxford Nanopore Technologies (ONT), has the ability to sequence individual DNA molecules as they pass through biological nanopores under an applied electrical field (Loman and Watson, 2015). Although the high error rate of MinION is currently a limiting factor, it is a promising technology for fast detection that can significantly reduce sequencing costs. To date, there are no reports on the use of MinION for herbal product authentication. However, Voorhuijzen-Harink et al. (2019) developed and evaluated a MinION-based DNA metabarcoding protocol using full-length DNA barcodes cytb and COI to identify fish species in two experimental mixtures. The performance was compared to Illumina MiSeq sequencing, and both technologies achieved the correct identification of all expected species with no false positive detections.
Discussion
Over the last two decades, DNA-based methods have made a significant contribution to the quality control of the commercialization chain of herbal products. Early studies demonstrated the potential of the method and highlighted issues related to adulteration as well as the sensitivity of the technique (de Boer et al., 2015; Parveen et al., 2016; Sgamma et al., 2017; Ichim, 2019). The advent of DNA metabarcoding has provided additional tools for authenticating taxa in herbal products and assessing species diversity in complex herbals (Coghlan et al., 2015; Ivanova et al., 2016; Raclariu et al., 2017; Raclariu et al., 2018; Seethapathy et al., 2019). However, both DNA barcoding and DNA metabarcoding have limitations (Raclariu et al., 2018). One of these is the inability to detect negatives, which makes it challenging to determine whether an ingredient is absent or its DNA is undetectable (Novak et al., 2007; Costa et al., 2015; Raclariu et al., 2018). Additionally, false positives can occur, resulting in the detection of species that might be present in trace amounts in the production process or contaminations from environmental DNA (Ficetola et al., 2015). Recent research in DNA metabarcoding has focused on developing methods for quantifying herbal product ingredients, yielding meaningful results in a regulatory framework. Techniques, such as LAMP, BAR-RPA, and Bar-HRM, have made DNA-based methods more affordable as they require less costly equipment. Calibrated approaches of Bar-HRM also enable relative quantification of ingredients (Kalivas et al., 2014; Song et al., 2016; Osathanunkul and Madesis, 2019; Tungphatthong et al., 2021). Similarly, microfluidics-based methods offer tailored tests for the detection of target species at a potentially low cost (Li et al., 2023). Genomic barcoding approaches, such as target capture sequencing and genome skimming, are increasing the species identification resolution of DNA-based methods, enabling the distinction at an unprecedented scale of closely related species and even populations (Handy et al., 2021; Woudstra et al., 2021; Le et al., 2022; Manzanilla et al., 2022). Although many of these technologies are still at a proof-of-concept stage, it is challenging to predict which methods will find a role in routine quality control applications. One of the most promising of these is perhaps ddPCR, which enables the absolute quantification of DNA in samples and could be used to calibrate and quantify the amount of DNA from both intended and unwanted ingredients (Taylor et al., 2017; Xu et al., 2022; Yu et al., 2022). It is important to bear in mind that most of these tools yield specific and complementary data. Finding the right tool or tools to answer the specific research, monitoring or regulatory question at hand is key to harnessing the power of this expanding toolbox of DNA-based molecular methods.
Author contributions
ACR-M, QM, and HdB wrote and revised the manuscript. All authors read and approved the submitted version of the manuscript.
Funding
This research was funded by the Ministry of Research, Innovation and Digitalization, CNCS–UEFISCDI, project number PN-III-P1-1.1-PD-2019-0522, within PNCDI III (for ACR-M).
Conflict of interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Publisher’s note
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
