REVIEW article

Front. Pharmacol., 05 October 2022
Sec. Ethnopharmacology
This article is part of the Research Topic Herbal Medicines for Gastrointestinal and Hepatic Diseases - Novel Pharmacological and Toxicological approaches, Volume I View all 16 articles

Herbal therapies in gastrointestinal and hepatic disorders: An evidence-based clinical review

Yongfang Yao,,&#x;Yongfang Yao1,2,3Murad Habib&#x;Murad Habib4Hajra Fazeelat Bajwa&#x;Hajra Fazeelat Bajwa5Anina Qureshi&#x;Anina Qureshi6Rameesha Fareed&#x;Rameesha Fareed7Reem Altaf&#x;Reem Altaf8Umair Ilyas&#x;Umair Ilyas7Yongtao Duan
Yongtao Duan1*Muhammad Abbas
Muhammad Abbas7*
  • 1Henan Provincial Key Laboratory of Children’s Genetics and Metabolic Diseases, Children’s Hospital Affiliated to Zhengzhou University, Zhengzhou University, Zhengzhou, Henan, China
  • 2Ministry of Education of China, Key Laboratory of Advanced Drug Preparation Technologies, Zhengzhou University, Zhengzhou, Henan, China
  • 3Medical School, Huanghe Science and Technology University, Zhengzhou, Henan, China
  • 4Department of Paediatric Surgery, The Children’s Hospital, Pakistan Institute of Medical Sciences, Islamabad, Pakistan
  • 5Islamabad Medical & Dental College, Islamabad, Pakistan
  • 6Margalla College of Pharmacy, Margalla Institute of Health Sciences, Rawalpindi, Pakistan
  • 7Riphah Institute of Pharmaceutical Sciences, Riphah International University, Islamabad, Pakistan
  • 8Department of Pharmacy, Iqra University Islamabad Campus, Islamabad, Pakistan

The gastrointestinal tract (GIT) and the liver constitute the major organs of the human body. Indeed, the very survival of the human body depends on their proper functioning. Because the GIT is a huge and complex organ system, the maintenance of proper GIT and liver health is an arduous task. GIT disturbances such as diarrhea, stomach ache, flatulence, constipation, nausea, and vomiting are very common, and they contribute to a significant burden on the healthcare system. Pharmacies are full of over-the-counter pharmacological drugs to alleviate its common conditions. However, these drugs do not always prove to be fully effective and patients have to keep on living with these ailments without a proper and long-term solution. The aim of this review article is to present a practical reference guide to the role of herbal medicines in dealing with gastrointestinal and hepatic disorders, which is supported by systematic reviews and evidence-based trials. People have depended on herbal medications for centuries for the treatment of various ailments of the GIT, liver, and other organ system problems. Recently, this trend of incorporating herbal medication for the treatment of various diseases in both developing and developed countries have surged. Many people continue to use herbal medications, even though substantial data about their efficacy, uses, and toxicological effects do not exist. In addition, while herbal medicines have enormous benefits in both the prevention and the treatment of medical ailments, they can also have toxicological effects. It is, therefore, of the utmost importance that appropriate time, energy, and resources are spent on the development of ethnopharmacology. In addition, herbal products should be classified in a pattern similar to pharmacological medications, including their uses, side effects, mechanism of action, efficacy, and so on.

Introduction

The gastrointestinal tract (GIT) is one of the largest and most functionally vital organ systems of the human body. It consists of many components, including the alimentary canal, salivary glands, the pancreas, and the liver (Hu et al., 2022). All these organ systems within the GIT work in collaboration to bring about the process of digestion, absorption, and excretion after the food is ingested through the mouth (Hornbuckle et al., 2008). GIT discomfort is a very common problem and many people prefer to use herbal ingredients to alleviate these disorders (Campanella et al., 2022). Common GIT disorders such as nausea, vomiting, diarrhea, irritable bowel disease, and so on have all been effectively treated with the use of herbal medicines (Campanella et al., 2022). Functional GIT disorders—namely, gastroesophageal reflux disease, dyspepsia, and functional constipation—have not been completely understood through anatomical and biochemical models, and their complete treatment through allopathic medicines has not proven to be possible (Langmead and Rampton, 2001). Meanwhile, herbal medicines are widely used in many parts of the world to treat these disorders as an alternative (Langmead and Rampton, 2001). The liver is an integral organ of the GIT and herbal medicines are being researched to be used to treat many ailments of the liver, such as hepatitis and clotting problems. However, this research is still in the preliminary stages and several chemicals in these herbal medicines can be hazardous to health (Kim et al., 2020). The objective of this study is to make use the principles of ethnopharmacology to accentuate and understand the advantages of the herbal medicines in the treatment and prevention of GIT and liver diseases. Along with the uses, the toxicological effects of these medicines are also included in this study.

Pre-clinical and clinical studies of herbal products in the management of GIT and liver diseases

GIT disorders contribute a major burden of diseases in the global healthcare system. A GIT disorder as common as diarrhea is one of the leading causes of mortality worldwide (Stickel and Schuppan, 2007). Although there are effective pharmacological drugs to treat most GIT ailments, a surging trend of resorting to more traditional forms of treatment (i.e., through herbal medication) has been noticed recently (Centers for Disease Control and Prevention, 2015).

Because significant pre-clinical and clinical research do not exist when it comes to the scientific effectiveness of herbal medicines, it is important to gather whatever scientific data that is available to substantiate the use of herbal medicines to treat different pathologies. The role of herbal medicines as the major treatment choice is extremely common in developing countries (Balick, 1996). According to research conducted by Tangjitman et al. (2015) in Thailand on the use of plant products for the treatment of various GIT ailments, various plants species and their different parts are used in Thailand to treat common GIT and liver problems, including diarrhea, flatulence, gastric ulcers, stomach ache, hemorrhoids, jaundice, and so on (Bodeker et al., 1997). Table 1 summarizes the use of different plant species for different GIT problems, along with their informant consensus factor (ICF) in this research (Bodeker et al., 1997; Tangjitman et al., 2015).

TABLE 1
www.frontiersin.org

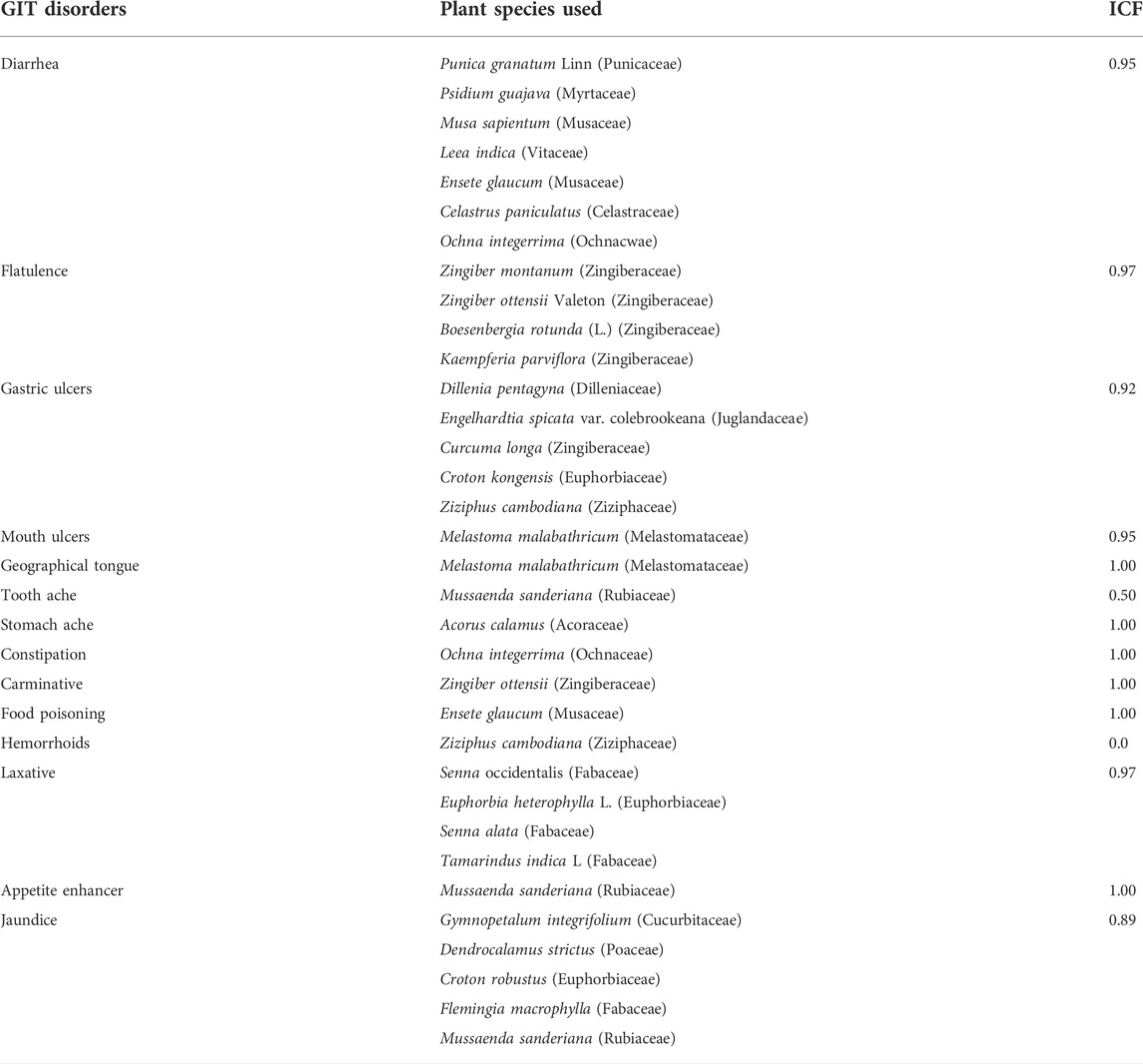

TABLE 1. The use of plant species for GIT problems, along with their informant consensus factor (ICF).

It is generally believed that homeopathic or herbal medicines are without any considerable side effects and that they can be consumed without any fear of dangerous consequences on the body. However, this is far from the truth. Only a limited number of studies have been done on herbal products, which are also mostly inconclusive but list several side effects associated with these herbal medications. Table 2 lists a number of side effects of the plant species that are used in the treatment of GIT disorders (Tangjitman et al., 2015).

TABLE 2
www.frontiersin.org

TABLE 2. A number of side effects of the plant species used for different GIT disorders (Tangjitman et al., 2015).

Many herbal agents have been researched because of their potential use in the treatment of functional GIT disorders. For example, Kim et al. (2020) studied many herbal agents to identify their uses in the treatment of GIT diseases, such as STW-5 (Iberogast, liquid preparation of nine herbs), Mentha x Piperita (Lamiaceae), Rikkunshito (oral dried preparation of eight herbs), DA-9701 (Motilitone, a newer herbal drug from the seeds of Pharbitis nil Choisy (Convolvulaceae), and Corydalis tuber (Papaveraceae). These herbal medicines have been shown to treat GIT functional disorders such as irritable bowel disease, functional dyspepsia, gastroesophageal reflux disease, and constipation and used as analgesia and anti-spasmodics (Kim et al., 2020).

The liver receives most of its blood supply from the GIT’s circulation (Ebrahimi et al., 2020), so abnormalities affecting other areas of the GIT can have a huge implication on liver functionality and anatomy. Nonalcoholic fatty liver disease (NAFLD) is a highly prevalent condition, predominantly in people with obesity, diabetes, and hypertension. This disease has quite a dangerous sequela as it leads to nonalcoholic steatohepatitis (NASH). This eventually results in liver cirrhosis (the end-stage liver disease), which has no other treatment than liver transplant (Kim and Park, 2019; Xiao et al., 2019; Yan et al., 2020).

Various herbal medicines have been tested for use in the treatment of hepatic disorders, such as rhein, from Rheum palmatum L. (Polygonaceae), Huanglian Jiedu extract, Sho-saiko-to Juzen-taiho-to, and bofutsushosan, which are effective against NAFLD and NASH (Kim and Park, 2019; Xiao et al., 2019; Yan et al., 2020). Other herbal preparations have shown promising results in the treatment of liver ailments, such as like Phyllanthus L. (Phyllanthaceae), Silybum marianum (Asteraceae, milk thistle), Glycyrrhiza glabra (Fabaceae), and Liv 52 (mixture of herbs) (Dočkalová et al., 2018).

Coon and Ernst conducted a systematic review of the use of herbal medicines in chronic hepatitis C (Xiao et al., 2019). The authors cited 14 randomized clinical trials in view of the combined use of herbal products and interferon-alpha during antiviral treatment. Although there is difficulty in extrapolation and interpretation of results because of different methodological limits of the considered studies, the authors found that several herbal products and supplements (i.e., vitamin E, thymic extract, zinc, traditional Chinese medicine, Glycyrrhiza glabra, and oxymatrine) could exert potential virological and biochemical effects in the treatment of chronic hepatitis C infection because of a greater clearance of HCV-RNA and normalization of liver enzymes.

Novel in vitro assays for the identification of potentially active compounds for the treatment of gastric and hepatic cancer

The cancers of GIT are very common throughout the world (Rasool et al., 2013; Abbas et al., 2017). Gastric and hepatic cancers are the leading causes of death across the world, gastric cancer being the fifth main cause of demise worldwide according to the World Health Organization (Rawla and Barsouk, 2019; Yang et al., 2022).

Gastric cancers are a group of complex cancers that require a multidisciplinary approach to be treated. The conventional mechanism to treat them requires surgical intervention, followed by radiological and chemotherapeutic treatment (Lelisho et al., 2022). Even after all these interventions, end stage cancers lead to death of patients in a very short time period. These interventions also have a toll on the psychological health of the patients, along with physical debility. Recently, attention toward research on herbal medications to treat gastric and other GIT cancers has significantly increased. Various phytochemicals (i.e., the active biochemical compounds present in plants used for health purposes) are being used and researched in GIT oncotherapy (Choudhari et al., 2020). Table 3 lists several phytochemicals, their anticancer characteristics, and their active compounds (Nakonieczna et al., 2020).

TABLE 3
www.frontiersin.org

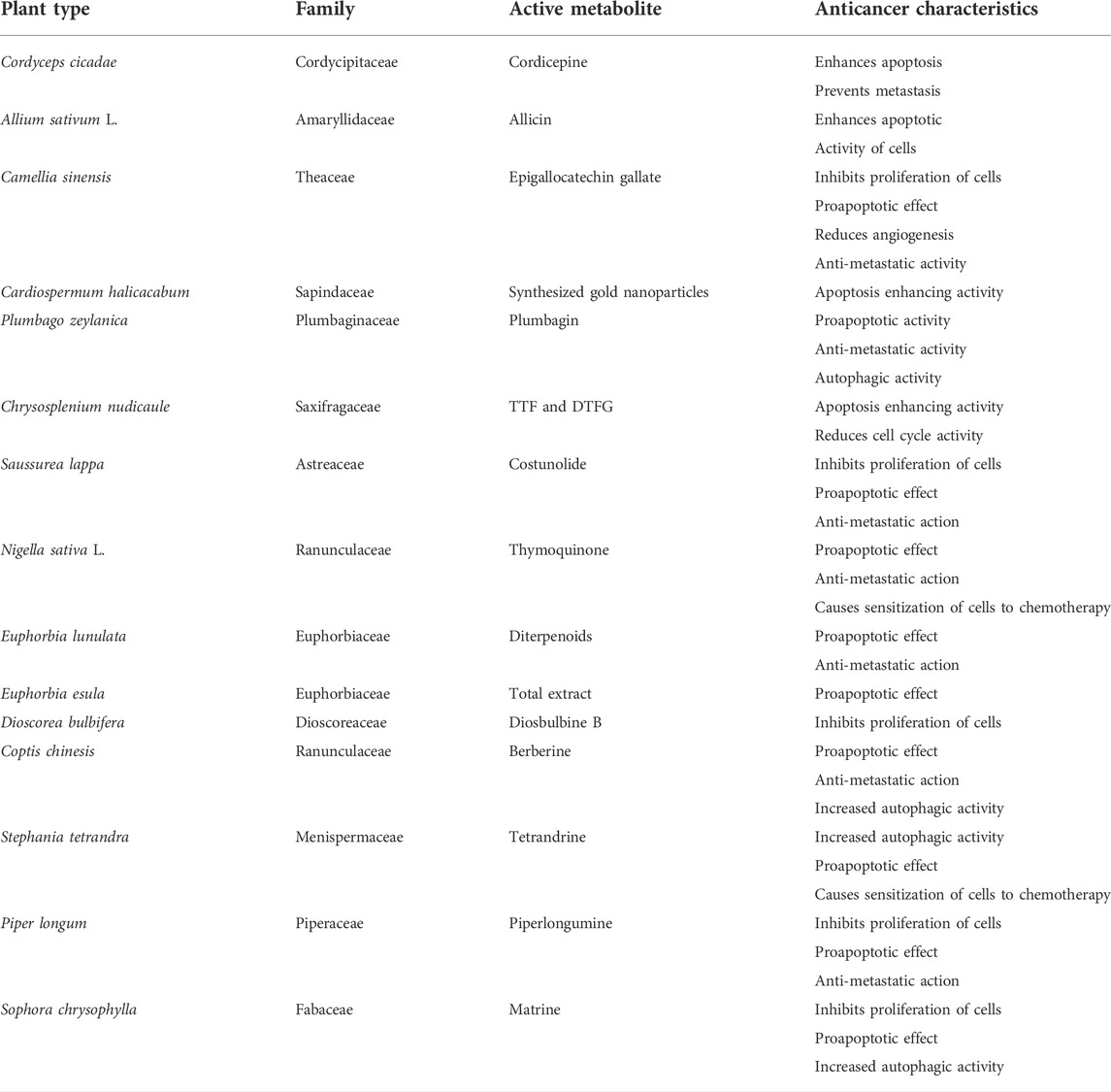

TABLE 3. A number of phytochemicals with their active compounds and anticancer characteristics (Nakonieczna et al., 2020).

Hepatocellular carcinoma has an exponentially increasing incidence with a high mortality rate (Fattovich et al., 2004). The trend of using herbal medications for the treatment of hepatic diseases is not a new concept. The use of herbal products to enhance the pharmacological and surgical treatment of liver cancer is widely studied and experimented upon. Herbal compounds such as Curcuma longa (Zingiberaceae), Resveratrol, Silybum marianum L. (Asteraceae), and Tanshinone have shown apoptotic and anti-proliferative effects, along with down-regulation of different compounds involved in metastatic cell growth and the arrest of the cell cycle at various stages (Lin et al., 2004).

Beneficial and toxicological effects of herbal drugs in the light of ethnopharmacology

A number of the advantages of herbal medicines in the treatment of different pathologies of GIT and the liver have already been discussed (Carmona and Pereira, 2013). Some of the more general benefits of herbal medicines in enhancing the GIT system include how phytochemicals such as phytohemagglutinin (lectin) are involved in helping the gut to mature by stimulating intestinal growth (Mukonowenzou et al., 2021). The mechanism of action of this herbal drug was understood when administered to a rat’s gut, and it was shown to increase the number of crypts in the rat’s GIT (Mukonowenzou et al., 2021). Sangild et al. (2013) studied the importance of early-gut maturation and found that it enhances immunity, which protects children against lethal diseases such as necrotizing enterocolitis and post-weaning diarrhea.

Some of the toxicological effects of herbal medicines have been described earlier and it was shown that they can have hazardous effects. One of the common and note-worthy side effects of herbal medicines is their interaction with pharmacological drugs that are con-concurrently being consumed by the patients. Another important cause of the toxicological effects of herbal medicines is that the patients mostly use them as a self-medication tool. They tend to get them through unqualified practitioners and use them improperly without proper knowledge of their use (Fatima and Nayeem, 2016). A number of herbal medicines are reported to cause major hepatic dysfunctions such as acute hepatitis, hepatic failure, hepatorenal syndrome, and liver toxicity, particularly Valeriana officinalis (Valerianaceae), Piper methysticum G. (Piperaceae), Cimicifuga racemose (Ranunculaceae), Scutellaria baicalensis (Lamiaceae), Larrea tridentate (DC) (Zygophyllaceae), and Stephaniae sinica (Menispermaceae) (Licata et al., 2013; Quan et al., 2020).

Conclusion

There is an ever-increasing trend toward the use of herbal medicines in both the developed and developing countries. Herbal medicines use natural products that are found in herbs and we know that many allopathic drugs contain these natural products in a refined manner. Although herbal medicines do exhibit some toxic effects, they can be very efficacious in treating a number of life-threatening conditions. However, unlike allopathic drugs, there is no authentic data available on their use, efficacy, toxicity, and side effects. Whenever a new pharmacological drug is introduced in the market, a large volume of information is made publicly available. Similarly, the herbal products that are in common use should be properly studied and experimented upon, and comprehensive data about their pharmacological aspects should be made publicly available.

There is this common myth that herbal medications have no to minimal side effects, so many people tend use them without any proper research and consultation. This can have very dangerous implications.

Future implications

The fact that many herbal medicines have proven to be extremely beneficial against many life-threatening ailments means that it is very important to study them deeply in future. Special emphasis on the advancement of ethnopharmacology can prove to be a vital and excessively advantageous step toward the therapeutic realm of medicine. Future studies should be focused on placebo controlled, randomized, double-blind clinical trials, herbal product quality and standard criteria for diagnosis, treatment, outcome, and assessment of adverse herb reactions. This approach will provide insight into the risk and benefit profiles, which will hopefully be positive for at least some treatment modalities of herbal protagonists of modern herbal therapies. We can best face these promising challenges of pragmatic modern medicine by bridging the gap between the two medicinal cultures. This would be a tremendously prudent decision that will prove to enhance our existing healthcare system in the future.

Author contributions

MA conceived and designed the study. YY, RF, RA, UI, and YD performed the literature search and data extraction. HB and MH drafted the manuscript. AQ, RF, and UI revised the final manuscript. All authors read and approved the final manuscript.

Funding

This work was supported by the Riphah International University (ORIC-21-22/FPS-51).

Conflict of interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Publisher’s note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors, and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.

References

Abbas, M., Habib, M., Naveed, M., Karthik, K., Dhama, K., Shi, M., et al. (2017). The relevance of gastric cancer biomarkers in prognosis and pre-and post-chemotherapy in clinical practice. Biomed. Pharmacother. 95, 1082–1090. doi:10.1016/j.biopha.2017.09.032

PubMed Abstract | CrossRef Full Text | Google Scholar

Balick, M. J. (1996). Transforming ethnobotany for the new millennium. Ann. Mo. Botanical Gard. 83, 58–66. doi:10.2307/2399968

CrossRef Full Text | Google Scholar

Bodeker, G. C., Bhat, K. K. S., Burley, J., and Vantomme, P. (1997). Medicinal plants for forest conservation and health care. Rome (Italy): FAO.

Google Scholar

Campanella, A., Sorino, P., Bonfiglio, C., Mirizzi, A., Franco, I., Bianco, A., et al. (2022). Effects of weight change on all causes, digestive system and other causes mortality in southern Italy: A competing risk approach. Int. J. Obes. 46 (1), 113–120. doi:10.1038/s41366-021-00954-8

CrossRef Full Text | Google Scholar

Carmona, F., and Pereira, A. M. S. (2013). Herbal medicines: Old and new concepts, truths and misunderstandings. Rev. Bras. Farmacogn. 23 (2), 379–385. doi:10.1590/s0102-695x2013005000018

CrossRef Full Text | Google Scholar

Centers for Disease Control and Prevention (2015). Diarrhea: Common illness, global Killer. U.S. Department of Health and Human Services, 2021.

Google Scholar

Choudhari, A. S., Mandave, P. C., Deshpande, M., Ranjekar, P., and Prakash, O. (2020). Phytochemicals in cancer treatment: From preclinical studies to clinical practice. Front. Pharmacol. 10, 1614. doi:10.3389/fphar.2019.01614

PubMed Abstract | CrossRef Full Text | Google Scholar

Dočkalová, H., Horký, P., Zeman, L., and Skládanka, J. (2018). Influence of milk thistle pressed parts on rats liver histology. Potravinárstvo 12 (1). doi:10.5219/864

CrossRef Full Text | Google Scholar

Ebrahimi, F., Torbati, M., Mahmoudi, J., and Valizadeh, H. (2020). Medicinal plants as potential hemostatic agents. J. Pharm. Pharm. Sci. 23, 10–23. doi:10.18433/jpps30446

PubMed Abstract | CrossRef Full Text | Google Scholar

Fatima, N., and Nayeem, N. (2016). “Toxic effects as a result of herbal medicine intake,” in Toxicology-new aspects to this scientific conundrum (London, UK: InTech Open), 193–207.

CrossRef Full Text | Google Scholar

Fattovich, G., Stroffolini, T., Zagni, I., and Donato, F. (2004). Hepatocellular carcinoma in cirrhosis: Incidence and risk factors. Gastroenterology 127 (5), S35–S50. doi:10.1053/j.gastro.2004.09.014

PubMed Abstract | CrossRef Full Text | Google Scholar

Hornbuckle, W. E., Simpson, K. W., and Tennant, B. C. (2008). Gastrointestinal function. Clin. Biochem. Domest. Animals, 413–457.

CrossRef Full Text | Google Scholar

Hu, Q., Liao, W., Zhang, Z., Shi, S., Hou, S., Ji, N., et al. (2022). The hepatoprotective effects of plant-based foods based on the “gut–liver axis”: A prospective review. Crit. Rev. Food Sci. Nutr., 25. 1–27. doi:10.1080/10408398.2022.2064423

CrossRef Full Text | Google Scholar

Kim, K., and Park, K.-I. (2019). A review of antiplatelet activity of traditional medicinal herbs on integrative medicine studies. Evidence-Based Complementary Altern. Med. 2019, 7125162. doi:10.1155/2019/7125162

PubMed Abstract | CrossRef Full Text | Google Scholar

Kim, Y. S., Kim, J. W., Ha, N. Y., Kim, J., and Ryu, H. S. (2020). Herbal therapies in functional gastrointestinal disorders: A Narrative review and clinical implication. Front. Psychiatry 11, 601. doi:10.3389/fpsyt.2020.00601

PubMed Abstract | CrossRef Full Text | Google Scholar

Langmead, L., and Rampton, D. S. (2001). Review article: Herbal treatment in gastrointestinal and liver disease--benefits and dangers. Aliment. Pharmacol. Ther. 15 (9), 1239–1252. doi:10.1046/j.1365-2036.2001.01053.x

PubMed Abstract | CrossRef Full Text | Google Scholar

Lelisho, M. E., Seid, A. A., and Pandey, D. (2022). A case study on modeling the time to recurrence of gastric cancer patients. J. Gastrointest. Cancer 53 (1), 218–228. doi:10.1007/s12029-021-00684-0

PubMed Abstract | CrossRef Full Text | Google Scholar

Licata, A., Macaluso, F. S., and Craxì, A. (2013). Herbal hepatotoxicity: A hidden epidemic. Intern. Emerg. Med. 8 (1), 13–22. doi:10.1007/s11739-012-0777-x

PubMed Abstract | CrossRef Full Text | Google Scholar

Lin, L.-W., Sun, Y., He, Y. M., Gao, S. D., Xue, E. S., Lin, X. D., et al. (2004). Percutaneous intratumoral injection of traditional Chinese herbal compound medicine Star-99 in treatment of hepatocellular carcinoma of mice. Hepatobiliary Pancreat. Dis. Int. 3 (1), 49–54.

PubMed Abstract | Google Scholar

Mukonowenzou, N. C., Adeshina, K. A., Donaldson, J., Ibrahim, K. G., Usman, D., and Erlwanger, K. H. (2021). Medicinal plants, phytochemicals, and their Impacts on the maturation of the gastrointestinal Tract. Front. Physiol. 12, 1123. doi:10.3389/fphys.2021.684464

CrossRef Full Text | Google Scholar

Nakonieczna, S., Grabarska, A., and Kukula-Koch, W. (2020). The potential anticancer activity of Phytoconstituents against gastric cancer—a review on in vitro, in vivo, and clinical studies. Int. J. Mol. Sci. 21 (21), 8307. doi:10.3390/ijms21218307

CrossRef Full Text | Google Scholar

Quan, N. V., Dang Xuan, T., and Teschke, R. (2020). Potential hepatotoxins found in herbal medicinal products: A systematic review. Int. J. Mol. Sci. 21 (14), 5011. doi:10.3390/ijms21145011

CrossRef Full Text | Google Scholar

Rasool, S., Kadla, S. A., Rasool, V., and Ganai, B. A. (2013). A comparative overview of general risk factors associated with the incidence of colorectal cancer. Tumour Biol. 34 (5), 2469–2476. doi:10.1007/s13277-013-0876-y

PubMed Abstract | CrossRef Full Text | Google Scholar

Rawla, P., and Barsouk, A. (2019). Epidemiology of gastric cancer: Global trends, risk factors and prevention. Prz. Gastroenterol. 14 (1), 26–38. doi:10.5114/pg.2018.80001

PubMed Abstract | CrossRef Full Text | Google Scholar

Sangild, P. T., Thymann, T., SchMidtM., , Stoll, B., Burrin, D. G., and Buddington, R. K. (2013). Invited review: The preterm pig as a model in pediatric gastroenterology. J. Anim. Sci. 91 (10), 4713–4729. doi:10.2527/jas.2013-6359

PubMed Abstract | CrossRef Full Text | Google Scholar

Stickel, F., and Schuppan, D. (2007). Herbal medicine in the treatment of liver diseases. Dig. Liver Dis. 39 (4), 293–304. doi:10.1016/j.dld.2006.11.004

PubMed Abstract | CrossRef Full Text | Google Scholar

Tangjitman, K., Wongsawad, C., Kamwong, K., Sukkho, T., and Trisonthi, C. (2015). Ethnomedicinal plants used for digestive system disorders by the Karen of northern Thailand. J. Ethnobiol. Ethnomed. 11 (1), 27–13. doi:10.1186/s13002-015-0011-9

PubMed Abstract | CrossRef Full Text | Google Scholar

Xiao, J., Wang, F., Wong, N. K., He, J., Zhang, R., Sun, R., et al. (2019). Global liver disease burdens and research trends: Analysis from a Chinese perspective. J. Hepatol. 71 (1), 212–221. doi:10.1016/j.jhep.2019.03.004

PubMed Abstract | CrossRef Full Text | Google Scholar

Yan, T., Yan, N., Wang, P., Xia, Y., Hao, H., Wang, G., et al. (2020). Herbal drug discovery for the treatment of nonalcoholic fatty liver disease. Acta Pharm. Sin. B 10 (1), 3–18. doi:10.1016/j.apsb.2019.11.017

PubMed Abstract | CrossRef Full Text | Google Scholar

Yang, Jianqing, Pan, Guangdong, Guan, Linjing, Liu, Zhipeng, Wu, Yongrong, Liu, Zhen, et al. (2022). The burden of primary liver cancer caused by specific etiologies from 1990 to 2019 at the global, regional, and national levels. Cancer Med. 11 (5), 1357–1370.

PubMed Abstract | CrossRef Full Text | Google Scholar

Keywords: ethnopharmacology, herbal medication, GIT, liver, treatment

Citation: Yao Y, Habib M, Bajwa HF, Qureshi A, Fareed R, Altaf R, Ilyas U, Duan Y and Abbas M (2022) Herbal therapies in gastrointestinal and hepatic disorders: An evidence-based clinical review. Front. Pharmacol. 13:962095. doi: 10.3389/fphar.2022.962095

Received: 05 June 2022; Accepted: 05 September 2022;
Published: 05 October 2022.
