Abstract
Currently, many people are afflicted by cerebral diseases that cause dysfunction in the brain and perturb normal daily life of people. Cerebral diseases are greatly affected by cerebral metabolism, including the anabolism and catabolism of neurotransmitters, hormones, neurotrophic molecules and other brain-specific chemicals. Natural medicines (NMs) have the advantages of low cost and low toxicity. NMs are potential treatments for cerebral diseases due to their ability to regulate cerebral metabolism. However, most NMs have low bioavailability due to their low solubility/permeability. The study is to summarize the better bioactivity, cerebral metabolism and pharmacokinetics of NMs and its advanced version. This study sums up research articles on the NMs to treat brain diseases. NMs affect cerebral metabolism and the related mechanisms are revealed. Nanotechnologies are applied to deliver NMs. Appropriate delivery systems (exosomes, nanoparticles, liposomes, lipid polymer hybrid nanoparticles, nanoemulsions, protein conjugation and nanosuspensions, etc.) provide better pharmacological and pharmacokinetic characteristics of NMs. The structure-based metabolic reactions and enzyme-modulated catalytic reactions related to advanced versions of NMs alter the pharmacological activities of NMs.
Introduction
Cerebral diseases are usually caused by abnormal cerebral metabolism (anabolism and catabolism) of neurotransmitters, hormones, neurotrophic molecules, and other brain-specific chemicals (Graf et al., 2013). Alzheimer’s disease (AD), depression, cerebral injury and brain tumors are four major brain pathologies that induced by aberrant cerebral metabolism. AD is mainly caused by neuroinflammation (Angeloni et al., 2019), loss of neurons, and the accumulation of phosphorylated tau protein and amyloid plaques (Aβ) in the brain (Karch and Goate, 2015). AD has affected over 50 million people worldwide (Najm et al., 2020), leading to the progressive and irreversible loss of memory and other cognitive functions in patients (Nho et al., 2020). Depression results from dysregulated release of neurotransmitters. Depression has been found to occur in 14.8% of males and 14.1% of females worldwide (Kyu et al., 2018). It has become the third leading cause of disability (Corriger and Pickering, 2019). Traumatic brain injury (TBI) remains a common cause of disability and death worldwide (VanItallie, 2019) and leads to increased neuroinflammation (Karve et al., 2016). TBI is always accompanied by secondary injuries such as spastic cerebral palsy (Enslin et al., 2020), attention deficit hyperactivity disorder (Narad et al., 2018) and cerebral ischemia (Kaur and Sharma, 2018). Glioma, a malignant glial tumor, is the most common tumor in the central nervous system. Glioma has a higher rate of mortality than other tumors (Anjum et al., 2017) and is the second leading cause of death among central nervous system diseases (Bilmin et al., 2019). Targeting uncontrolled tumor proliferation in the brain (Shah and Kochar, 2018) by inhibiting tumor growth or engendering tumor apoptosis would be the most potent gliomas treatment.
Natural medicines (NMs) are known for their high availability, clear efficacy, and low toxicity and economic cost (Yang et al., 2020). Some NMs have been proven to have positive effects by regulating cerebral metabolism to ameliorate brain diseases. However, most NMs that affect cerebral metabolism (NMCs) have low solubility, low permeability and poor pharmacokinetic characteristics. Hence, loading NMCs with advanced drug delivery systems such as exosomes, nanoparticles and liposomes, provides ways to solve this problem.
Here, the relationships between NMCs found through available databases and cerebral metabolism are investigated. The solubility, permeability, molecular structure and molecular weight characteristics of various NMCs are presented. Drug delivery systems that enhance the pharmacokinetic and pharmacodynamic characteristics features of NMCs are reviewed. The structure-based in-vivo metabolic reactions modulated by metabolic enzymes and metabolites of NMCs are summarized.
Effects of NMCS on Cerebral Metabolism
NMCs have effects on neurotransmitters. Neurotransmitters are chemicals released by axons to transfer information between neurons. Because of the substantial and unique roles neurotransmitters play in brain function, targeting neurotransmitter metabolism is considered a potent approach to treat neurological and psychiatric disorders (Hyman, 2005). Artemisinin, cannabidiol, geniposide and ginsenoside Rb1 are neuroprotective agents (Supplementary Table S1) (Liu W. et al., 2015; Watt and Karl, 2017; Zhao J. et al., 2018; Qiang et al., 2018). They treat AD and traumatic cerebral injuries and attenuate secondary injuries by inhibiting nitric oxide (NO) release. NO is a gas neurotransmitter. NO regulates the release of proinflammatory molecules, interacts with reactive oxygen species (ROS), promotes the formation of reactive nitrogen species (RNS), and ultimately causes cellular death (a hallmark of many neurodegenerative diseases and cerebral injuries) (Asiimwe et al., 2016). Evodiamine, icariin, curcumin and ferulic acid mitigate depressive symptoms by raising the levels of serotonin, norepinephrine, monoamine or dopamine (He et al., 2018; Jin et al., 2019; Sasaki et al., 2019; Fusar-Poli et al., 2020; Xie et al., 2020; Zhao et al., 2020; Xu et al., 2021). Baicalin controls symptoms of attention deficit hyperactivity disorder (ADHD) by increasing dopamine levels. Dysfunction of catecholamine and particular dopamine neuronal systems is considered a cause of ADHD (Zhou et al., 2019).
NMCs have effects on hormones. NMCs such as ferulic acid and icariin effectively relieve depressive-like behavior by decreasing the concentrations of corticosterone, adrenocorticotropic hormone (ACTH) and cortisol, which are also called the primary stress hormones. These NMs treat stress-induced depression caused by impaired regulation of the hypothalamic-pituitary-adrenal (HPA) axis (Jin et al., 2019; Zheng et al., 2019).
NMCs have effects on neurotrophic molecules. Neurotrophic molecules (also called neurotrophic factors) are molecules (mostly proteins) derived from neurons that facilitate the survival/differentiation of neurons (Unsicker, 2013). They are composed of neurotrophins, neuroregulatory cytokines, the fibroblast growth factor (FGF) family, the transforming growth factor-β (TGF-β) family, the insulin-like growth factor (IGF) family and other growth factors, such as vascular endothelial growth factor (VEGF). The metabolism of neurotrophic molecules affects the brain metabolism and thus affects neurodegenerative diseases and cerebral injuries.
NMCs have effects on neurotrophins. Neurtrophins are proteins that regulate the survival, growth and programmed cell death of neurons (Unsicker, 2013). Nerve growth factor (NGF) and brain-derived neurotrophic factor (BDNF) are two neurtrophins that play critical physiological roles in peripheral/central nervous system function. NGF and BDNF signaling also regulate neuropathic pain through receptors such as tropomyosin receptor kinase A (TrkA) and B (TrkB) (Khan and Smith, 2015). NMCs such as baicalin, curcumin and ferulic acid augment the levels of BDNF or the receptor TrkB to assuage depressive-like behaviors (Liu et al., 2017; Lu et al., 2019; Sasaki et al., 2019; Fusar-Poli et al., 2020), since depressive patients in the clinic are always found to have reduced BDNF levels in the peripheral system (Liu et al., 2017). Rutin mitigates cerebral ischemia injury by activating estrogen receptor-mediated BDNF-TrkB/NGF-TrkA signaling (Liu et al., 2018), and chlorogenic acid mitigates ischemic injury by increasing the level of NGF in brain tissue (Miao et al., 2017). Oleandrin has a neuroprotective effect in antitumor treatment by enhancing BDNF (Garofalo et al., 2017).
NMCs have effects on neuroregulatory cytokines. Neuroregulatory cytokines such as interleukin-6 (IL-6), ciliary neurotrophic factor (CNTF), leukemia inhibitory factor (LIF), cardiotrophin-1 and cardiotrophin-2 (CT-1 and CT-2), oncostatin-M and neuropoietin are useful in the treatment of neurodegenerative diseases and trauma (Unsicker, 2013). Anti-inflammatory cytokines prohibit the inflammation process, while pro-inflammatory cytokines promote the inflammation cascade (Boshtam et al., 2017). Artemisinin, cannabidiol, oxymatrine and geniposide treat AD by decreasing the expression of IL-6 (Liu et al., 2015b; Watt and Karl, 2017; Qiang et al., 2018; Chen Y. et al., 2019). Overexpression of proinflammatory cytokines provokes neurodegeneration induced by activated microglia, which are thought to clear the Aβ protein. Accordingly, accumulated Aβ leads to neuroinflammation, neuronal synapse loss and eventually AD (Kaur et al., 2019). The proinflammatory cytokines are released after middle cerebral artery occlusion (MCAO) catalyzed by focal cerebral ischemia/reperfusion (I/R) damages of blood brain barrier, cerebral edema and acute inflammation. Salvianolic acid B relieves cerebral injury by reducing IL-6 expression (Fan et al., 2018) Leonurine, baicalin, geniposide and ferulic acid (Jia et al., 2017; Zhao Y. et al., 2018; Guo et al., 2019; Zheng et al., 2019) reduce IL-6 expression to treat depression (Kim et al., 2016).
NMCs have effects on TGF-β and VEGF. TGF-β is involved in the development, differentiation, angiogenesis, apoptosis and survival of body cells. Anomalous expression or dysregulation of TGF-β leads to neurodegenerative disease, cancers, and so on (Cabello-Verrugio, 2018). TGF-β may act as a pro- or anti-inflammatory cytokine in different contexts. Salvianolic acid B increases TGF-β (acting as an anti-inflammatory factor) to palliate depressive-like behaviors in depressive patients (Zhang et al., 2016), whereas icariin reduces TGF-β (acting as a proinflammatory factor) to treat cerebral ischemia (Jin et al., 2019). VEGF is essential for vascular and nervous system development, and tanshinone IIA activates VEGF to prompt angiogenesis, axon growth, and neuronal survival and to protect nerve cells and resist apoptosis after brain damage (Zhang W. et al., 2017). Leonurine augments VEGF expression, which is conducive to the formation of nuclear factor erythroid 2-related factor 2 (Nrf-2), to treat cerebral ischemic stroke (Xie et al., 2019).
NMCs have effects on other brain-specific chemicals. These chemicals usually participate in regulating neurotransmitters, hormones, and neuroregulatory cytokines to modulate cerebral metabolism. In the treatment of AD, tanshinone IIA, ginsenoside Rd, cannabidiol, oxymatrine, cholic acid, vitamin A, puerarin, icariin, geniposide and curcumin prevent and ameliorate AD by diminishing Aβ deposition and tau protein phosphorylation (Liu et al., 2015a; Karch and Goate, 2015; Zeng J. et al., 2017; Tang and Taghibiglou, 2017; Watt and Karl, 2017; Yan et al., 2017; Yao et al., 2017; Chen Z. et al., 2019; Jin et al., 2019; Majid et al., 2019; He et al., 2020; Fu et al., 2021). Cannabidiol disrupts the Wnt/β-catenin pathway to inhibit tau protein phosphorylation (Watt and Karl, 2017). Ginsenoside Rd, salvianolic acid B and icariin can also treat AD by increasing the expression of α-secretase and soluble amyloid precursor protein alpha (sAPPα), which are negatively related to Aβ formation, or by decreasing the expression of β-secretase, γ-secretase, BACE1, sAPPβ, and amyloid precursor protein (APP), which stimulates Aβ production (Tang et al., 2016; Yan et al., 2017; Jin et al., 2019). Rhynchophylline treats AD by inhibiting erythropoietin-producing hepatocellular A4 (EphA4), which is key in synaptic loss and dysfunction and mediates Aβ (Fu et al., 2021). Capsaicin and salvianolic acid B inhibit AD by inhibiting glycogen synthase kinase 3 beta (GSK-3β), leading to a decrease in inflammatory signaling molecules and preventing tau hyperphosphorylation (Tang et al., 2016; Xu et al., 2017). Neuronal apoptosis plays crucial roles in AD treatment. Tanshinone IIA and ginsenoside Rb1 are AD medicines that upregulate the ratio of Bcl-2 (an antiapoptosis protein) to Bax (a proapoptotic protein) and downregulate caspase-3 (an effector of the main initiator in the apoptotic pathway) (Wang C. et al., 2018; He et al., 2020). Butylphthalide inhibits mitogen-activated protein kinases (MAPKs), which accelerate brain tissue apoptosis, to treat AD (Song et al., 2017). Tanshinone IIA prevents AD by preventing the abnormal expression of glucose regulated protein 78 (GRP78), eukaryotic initiation factor 2-alpha (eIF2α), inositol-requiring enzyme 1α (IRE1α) and activating transcription factor 6 (ATF6) to prevent endoplasmic reticulum (ER) stress, which would induce apoptosis and eventually AD through the CCAAT/enhancer-binding protein homologous protein (CHOP) and c-Jun N-terminal kinase (JNK) pathways, which are also hindered by tanshinone IIA (He et al., 2020). Geniposide activates the GLP-1R/AKT signaling pathway, which exerts neuroprotective effects against AD and depression by preventing apoptosis and inflammatory processes and promoting neurite outgrowth (Liu W. et al., 2015; Zhao J. et al., 2018). Moreover, as mentioned before, the proinflammatory process accelerates AD and the associated deterioration. Artemisinin, tetrandrine, cannabidiol, oxymatrine, and geniposide directly reduce the expression of proinflammatory cytokines such as IL-6, IL-1β, IL-17A, and TNF-α (Liu et al., 2015b; Watt and Karl, 2017; Qiang et al., 2018; Chen Y. et al., 2019; Ren et al., 2021) to control AD. Nuclear factor kappa-light-chain-enhancer of activated B cells (NF-κB), which is suppressed by artemisinin, tetrandrine, cannabidiol, and scutellarein (Watt and Karl, 2017; Qiang et al., 2018; Huang et al., 2019; Ren et al., 2021), and cyclooxygenase, which is impeded by geniposide (Liu et al., 2015b), are always involved in the control of proinflammatory cytokines and inflammatory responses to promote AD. Artemisinin reduces the expression of MyD88, a transducer in the proinflammatory pathway, to alleviate AD (Qiang et al., 2018). Artemisinin and geniposide suppress Toll-like receptor 4 (TLR4) to inhibit the NF-κB and MAPK signaling pathways to ameliorate AD (Liu W. et al., 2015; Qiang et al., 2018). Capsaicin restores the PI3K/AKT signaling pathway to treat T2D-induced AD, since damage to brain insulin signaling might cause AD (Xu et al., 2017). Cannabidiol inhibits S100 calcium-binding protein B (S100B), inducible nitric oxide synthase (iNOS) and glial fibrillary acidic protein (GFAP) to reduce reactive gliosis induced by Aβ (Watt and Karl, 2017).
Leonurine, salvianolic acid B, baicalin, geniposide, and ferulic acid (Zhang et al., 2016; Jia et al., 2017; Zhao Y. et al., 2018; Guo et al., 2019; Zheng et al., 2019) decrease the proinflammatory cytokines IL-1β and TNF-α or increase the antiinflammatory factors IL-10 and TGF-β to assuage depressive-like behavior. Leonurine and curcumin inhibit NF-κB (Jia et al., 2017; Fusar-Poli et al., 2020). Baicalin reduces TLR4 while augmenting the PI3K/AKT/FoxO1 pathway to mitigate depression (Guo et al., 2019). Icariin and curcumin decrease the level of corticotropin-releasing factor (CRF), a protein that leads to the release of cortisol and monoamine oxidase A and B and catalyzes the metabolism of norepinephrine, serotonin, and dopamine (Gu et al., 2017; Jin et al., 2019; Fusar-Poli et al., 2020). Icariin also restores the glucocorticoid receptor (GR) and serotonin 1A receptor levels, facilitating antidepressive behavior by improving HPA axis function (Jin et al., 2019). Baicalin and ferulic acid increase the levels of synaptic proteins, including postsynaptic density protein 95 and synapsin I, which are inactivated in depressive patients (Liu et al., 2017; Lu et al., 2019).
In addition to leading to AD and depression, the proinflammatory process also contributes to TBI and secondary injuries. Ginsenoside Rb1, salvianolic acid B, and icariin directly decrease the levels of proinflammatory factors, such as IL-1β and TNF-α (Zhao J. et al., 2018; Fan et al., 2018; Jin et al., 2019). Tanshinone IIA suppresses p-NF-κB, p-p38MAPK and iNOS to mitigate SCP (Zhang X. et al., 2017). Ginsenoside Rb1 decreases iNOS, and evodiamine and icariin reduce NF-κB to treat cerebral injury (Zhao et al., 2014; Zhao J. et al., 2018; Jin et al., 2019). Icariin also inhibits the degradation of NF-κB light polypeptide gene enhancer in B-cells inhibitor alpha (IκB-α, an inhibitor of NF-κB), and increases peroxisome proliferator-activated receptor-alpha (PPARα) and peroxisome proliferator-activated receptor-gamma (PPARγ) to upregulate antiinflammatory cytokines and downregulate proinflammatory factors (Morotti et al., 2017; Jin et al., 2019). Leonurine upregulates Nrf-2, which improves oxidative stress in cerebral ischemic stroke and benefits brain tissues by increasing VEGF levels (Xie et al., 2019). Ginsenoside Rb1 inhibits high-mobility group box 1 (HMGB1), a proinflammatory mediator, to disrupt the inflammatory signals (Zhao Y. et al., 2018). Tanshinone IIA activats the PI3K/AKT/mTOR pathway to protect HT-22 cells from oxidative stress injury (Zhu et al., 2017). Ginsenoside Rb1 is neuroprotective against cerebral ischemia by activating the P-AKT/P-mTOR signaling pathway and inhibiting the P-PTEN protein, which is an inhibitor of the PI3K/AKT signaling pathway (Guo et al., 2018). Rutin boosts the levels of estrogen receptor alpha and beta (ERα and ERβ), which modulate the growth, survival and metabolism of cells by regulating downstream targets and activating the BDNF-TrkB and NGF-TrkA signaling pathways, to mitigate cerebral ischemia injury (Liu et al., 2018). Chlorogenic acid increases hypoxia-inducible factor alpha (HIF-1α), which is neuroprotective against cerebral ischemia reperfusion injury by regulating erythropoietin (EPO), VEGF, glucose transporter 1 (GLUT-1) and adrenomedullin (ADM) (Miao et al., 2017). Evodiamine upregulates pAkt and pGSK3β by activating the AKT/GSK signaling pathway to exert anti-inflammatory effects against cerebral ischemia (Zhao et al., 2014). Salvianolic acid B reduced GFAP, ionized calcium-binding adaptor molecule 1, and caspase-3 to suppress astrocyte activation, which diminishes brain cell apoptosis (Fan et al., 2018).
Regarding glioma treatment, Δ9-tetrahydrocannabinol binds to G protein-coupled cannabinoid receptors 1 and 2 (CB1, CB2) to stimulate MAPK and endoplasmic reticulum stress-related pathways to reduce tumor growth (Scott et al., 2014). Salvianolic acid B stimulated intracellular ROS production and eventually caused apoptotic cell death in glioma U87 cells (Wang et al., 2013). Flavokawain B activated the ATF4-DDIT3-TRIB3-AKT-mTOR-RPS6KB1 signaling pathway in human glioblastoma multiforme cells to promote autophagy in glioma cells (Wang J. et al., 2018).
Although some of the mechanisms of effects of NCMs on these diseases remain unclear, and animal experiments are mainly performed for these NCMs, they have shown remarkable impact on the mitigation and prevention of AD, depression, TBI and its following injuries, and glioma.
Solubility, Permeability and Structural Properties of NMCS
NMC absorption is largely contingent on solubility and permeability. Usually, higher solubility and permeability results in better absorption (Zeng M. et al., 2017; Mo et al., 2018; Yang et al., 2020). The dose number (D0) and oil-in-water partition coefficient (Log p) numerically represent the solubility and permeability, respectively. The D0 and Log p of a drug determine its biopharmaceutical classification in the Biopharmaceuticals Classification System (BCS) (Yang et al., 2020).
Most NMCs belong to BCS II, III, or IV, which tend to include drugs with low solubility, permeability, or both (Supplementary Table 2) (Charalabidis et al., 2019). NMCs with relatively low solubility, such as some terpenes, alkaloids, acids and esters, vitamins, flavonoids and phenylpropanoids, belong to BCS II, while NMCs with low permeability, such as other alkaloids, flavonoids, glycosides and phenylpropanoids, belong to BCS III. In addition, flavonoids such as puerarin and glycosides such as icariin belong to BCS IV since they have low solubility/low permeability. Obviously, NMCs with limited absorption would lead to further consequences such as poor pharmacokinetic properties and metabolism. Suitable drug delivery systems for NMCs are required to fix this dilemma.
Improved Pharmacokinetics and Bioactivity of NMC Delivery Systems
The blood-brain barrier (BBB) helps to establish and maintain the microenvironment of the central nervous system (CNS) (Tsou et al., 2017; Liebner et al., 2018). The BBB only allows essential nutrients and certain molecules, such as O2, CO2, glucose and ethanol to enter (Tsou et al., 2017; Battaglia et al., 2018; Sharma et al., 2019). In the treatment of CNS diseases, it is a major challenge to make enough drug to across the BBB and achieve an effective concentration in the brain. NMC drug delivery systems (NMC-DDSs) have been developed to facilitate drug transport across the BBB and accumulation in the brain and to improve their efficacy in the CNS (Tables 1, 2) (Auffinger et al., 2013; Battaglia et al., 2018). The main NMC-DDSs include exosomes, nanoparticles, liposomes, lipid polymer hybrid nanoparticles (LPHNPs), nanoemulsions, protein conjugation and nanosuspensions.
TABLE 1
| Drug | DDS | Administration route | Advantage | Main excipient | Preparation method | Characterization | References | |||
|---|---|---|---|---|---|---|---|---|---|---|
| Particle size (nm) | Zeta potential (mV) | EE (%) | DL (%) | |||||||
| Artemisinin | Nanostructured lipid carrier | — | Increase water solubility, site specificity, selective targeting, efficient penetration, glioma cell distribution and internalization, and effective delivery | Transferrin | Solvent evaporation method | 145 ± 12.5 | 24.3 ± 1.5 | 82.3 ± 7.3 | — | Emami et al. (2018) |
| Tanshinone IIA | Nanoparticle | i.v. | Prolong circulation time, increase plasma concentration, and have better brain delivery efficacy | Cationic albumin | Double emulsion/solvent evaporation method | 122 ± 16 | −17.8 ± 1.6 | 85.6 ± 3.2 | 5.86 ± 0.8 | Liu et al. (2013) |
| Nanoemulsion | i.v. | Prolong in vitro and vivo circulation time, and enhance the bioavailability | Tetramethylpyrazine | Shear stirring method | 32.5 | −2.78 | 95.26 | — | Chen Y et al. (2019) | |
| Nanoparticle | i.v. | Better delivery efficacy | Cationic bovine serum albumin | Emulsification and solvent evaporation method | 118 ± 14 | −19.6 ± 1.4 | 83.2 ± 2.6 | 5.69 ± 0.6 | Liu et al. (2013) | |
| Capsaicin | Nanoparticle | i.v. | Be able to cross the blood-brain barrier and inhibit the growth of U251 cells | mPEG-PCL | Solvent diffusion method | 121.3 ± 2.5 | −9.1 ± 2.8 | 96 ± 5.1 | 9.4 ± 2.3 | Jiang et al. (2015) |
| Salvianolic acid B | Nanoparticle | Brain injection | Sustain and prolong the in vitro release | Poly (ethyl-cyanoacrylate) coated with Tween 80 | Emulsion polymerization method | 288 ± 1.00 | −8.38 ± 3.87 | — | — | Grossi et al. (2017) |
| Nanoparticle | Brain injection | Sustain and prolong the in vitro release | Poly (ethyl-cyanoacrylate) | Emulsion polymerization method | 205 ± 2.00 | −7.18 ± 2.84 | 98.70 ± 0.45 | 53.3 ± 0.24 | Grossi et al. (2017) | |
| Rutin | Lipid polymer hybrid nanoparticle | i.v. | Higher rutin bioavailability | Tween 80 coated PEG | Single-step nanoprecipitation technique | 272.50 ± 3.39 | −5.03 ± 0.18 | 64.32 ± 1.11 | — | Ishak et al. (2017) |
| Lipid polymer hybrid nanoparticle | i.v. | Higher rutin bioavailability | TPGS coated PEG | Single-step nanoprecipitation technique | 203.00 ± 2.20 | −2.52 ± 0.52 | 74.23 ± 2.14 | — | Ishak et al. (2017) | |
| Lipid polymer hybrid nanoparticle | i.v. | Higher rutin bioavailability | Solutol HS 15 coated PEG | Single-step nanoprecipitation technique | 232.4 ± 4.01 | −1.76 ± 0.33 | 68.06 ± 1.50 | — | Ishak et al. (2017) | |
| Nanoparticle | i.v. | Higher bioavailability; enhanced neurobehavioral activity, histopathology and reduced infarction volume effects | Chitosan | Ionic gelation method | 92.28 ± 2.96 | 31.04 ± 1.91 | 84.98 ± 4.18 | 39.48 ± 3.16 | Ahmad et al. (2016a) | |
| Baicalin | Liposome | i.v. | Prolong the retention time in vivo, and increase the drug-concentration in the brain | — | Reverse evaporation method | 160–190 | −5.7 | 42 ± 1 | — | Li et al. (2018) |
| Cationic solid lipid nanoparticle | i.v. | Improve uptake of Baicalin | OX26 antibody | Emulsion evaporation–solidification at low temperature method | 47.68 ± 1.65 | −0.533 ± 0.115 | 83.03 ± 0.01 | 2.90 ± 0.01 | Liu et al. (2015b) | |
| Curcumin | Nanosuspension | i.v. | Improve the biodistribution of curcumin in the brain | TPGS | Probe sonicator technique | 199 ± 2.5 | −15.2 ± 3.3 | — | — | Dibaei et al. (2019) |
| Nanosuspension | i.v. | Improve the biodistribution of curcumin in the brain | Tween 80 | High-pressure homogenizer technique | 193 ± 8 | −12.9 ± 1.7 | — | — | Dibaei et al. (2019) | |
| Nanoparticle | i.n. | Enhance bioavailability | PNIPAM | Free radical polymerization | 92.46 ± 2.8 | −16.2 ± 1.42 | 84.63 ± 4.2 | 39.31 ± 3.7 | Ahmad et al. (2016b) | |
| Exosome | i.v. | Enhance solubility, bioavailability, and stability and increase drug penetration across the BBB | — | — | 117.4 ± 10.5 | −4.9 | 84.8 | 15.1 | Wang H et al. (2019) | |
| Exosome | i.v. | Improve safety and efficiency | c (RGDyK) peptide | — | 145 | −26.1 | — | — | Tian et al. (2018) | |
| Exosome | i.v. | Increase drug penetration across the BBB | Superparamagnetic iron oxide | — | 122.7 ± 6.5 | −24.1 ± 2.2 | — | — | Jia et al. (2018) | |
| Rhynchophylline | Nanoparticle | i.v. | Better solubility and bioavailability and prolong circulation time | mPEG-PLGA | Nanoprecipitation method | 145.2 | — | 60 | 10.3 | Xu et al. (2020) |
Characteristics of NMCs-DDS.
Abbreviations: c(RGDyK) peptide, cyclo(Arg-Gly-Asp-D-Tyr-Lys) peptide; DL, drug loading; EE, encapsulation efficiency; i.n., intranasal injection; i.p., intraperitoneal injection; i.v., intravenous injection; mPEG-PCL, methoxy polyethylene glycol-poly(caprolactone); PNIPAM, ploly-N-isopropylacrylamide; Solutol HS 15, polyethylene glycol-15-hydroxy stearate; TPGS, D-a-Tocopherol polyethylene glycol 1000 succinate; Tween 80, polyethylene glycol sorbitan monooleate.
Note: — refers to not reported.
TABLE 2
| NMCs | Formulation | Administration route | Dosage (mg/kg) | Animal (number) | Pharmacokinetics parameters | References | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| AUC0-t (μg·h·ml−1) | AUC0-∞ (μg·h·ml−1) | Cmax (μg·ml−1) | Tmax (h) | t1/2 (h) | MRT0-t (h) | MRT0-∞ (h) | Cl (L/h·kg) | ||||||
| Tanshinone IIA | Nanoparticle | i.v. | 10 | Rats (6) | — | 4.83 ± 0.49 | — | 0.54 | 8.29 ± 1.37 | — | 7.96 ± 0.68 | 0.31 ± 0.06 | Liu et al. (2013) |
| Nanoemulsion | i.v. | 5 | Rats (6) | 4.55 (0–6 h) | 8.03 | 3.52 ± 0.75 | — | 5.77 | 1.96 (0–6 h) | 7.35 | — | Chen Y et al. (2019) | |
| Nanoparticle | i.v. | 10 | Rats (10) | — | 4.71 ± 0.58 | — | — | 8.17 ± 1.28 | — | 7.89 ± 0.74 | 0.28 ± 0.05 | Liu et al. (2013) | |
| Capsaicin | Nanoparticle | i.v. | — | — | — | — | — | — | — | — | — | — | Jiang et al. (2015) |
| Salvianolic acid B | Nanoparticle | i.p. | — | — | — | — | — | — | — | — | — | — | Grossi et al. (2017) |
| Nanoparticle | i.p. | — | — | — | — | — | — | — | — | — | — | Grossi et al. (2017) | |
| Rutin | Tween 80-lipid polymer hybrid nanoparticle | i.v. | 5 | Rats (6) | 1.14 ± 0.27a (0–48 h) | 1.59 ± 0.56a | 0.57 ± 0.13b | 0.25 ± 0.00 | — | — | 4.41 ± 1.18 | — | Ishak et al. (2017) |
| TPGS-lipid polymer hybrid nanoparticle | i.v. | 5 | Rats (6) | 1.11 ± 0.31a (0–48 h) | 1.80 ± 0.41a | 0.67 ± 0.34b | 1.17 ± 0.42 | — | — | 6.26 ± 4.25 | — | Ishak et al. (2017) | |
| Solutol HS 15-lipid polymer hybrid nanoparticle | i.v. | 5 | Rats (6) | 1.31 ± 0.53a (0–48 h) | 1.50 ± 0.47a | 0.66 ± 0.33b | 1.17 ± 0.44 | — | — | 3.52 ± 0.78 | — | Ishak et al. (2017) | |
| Nanoparticle | i.n. | 10 | Rats (6) | 0.35 (0–24 h) | — | 1.45 | 2.00 | 43.68 ± 11.63 | — | — | — | Ahmad et al. (2016a) | |
| Nanoparticle | i.v. | 10 | Rats (6) | 8.50 E-02 (0–24 h) | — | 0.39 | 2.00 | 39.01 ± 7.41 | — | — | — | Ahmad et al. (2016b) | |
| Baicalin | Liposome | i.v. | 18 | Rats (5) | 88.27 (0–8 h) | 103.61 | 52.48 ± 8.18 | — | 3.17 | 2.33 (0–6 h) | 3.84 | 2.91 ± 0.25c | Li et al. (2018) |
| Cationic solid lipid nanoparticle | i.v. | 4.42 | Rats (3) | — | 2.68E-02 | 2.32E-02 | 0.94 ± 0.43 | — | — | — | — | Liu et al. (2015b) | |
| Curcumin | TPGS-nanosuspension | i.v. | 10 | Rats (6) | 0.89 (0–6 h) | 0.96 | 1.12 | 0.50 | 1.45 ± 0.180 | 0.61 ± 0.050 (0–6 h) | — | 0.011 ± 0.001d | Dibaei et al. (2019) |
| Tween 80-nanosuspension | i.v. | 10 | Rats (6) | 1.79 (0–6 h) | 1.87 | 1.31 | 0.75 | 1.94 ± 0.292 | 0.76 ± 0.194 (0–6 h) | — | 0.006 ± 0.001d | Dibaei et al. (2019) | |
| PNIPAM- Nanoparticle | i.n. | 0.1 | Rats (6) | 2.43e (0–24 h) | — | 2.36 E-03 | 1.00 | 7.70 | — | — | — | Ahmad et al. (2016a) | |
| Exosome | i.v. | 0.4 | Rats (3) | 9.03 (0–24 h) | — | 0.91 | — | 9.02 | — | — | 3.67 E-02 | Wang X et al. (2019) | |
| cRGD-Exosome | i.v. | — | — | — | — | — | — | — | — | — | — | Tian et al. (2018) | |
| RGE-Exosome-SPION | i.v. | — | — | — | — | — | — | — | — | — | — | Jia et al. (2018) | |
| Rhynchophylline | Tween 80- Nanoparticle | i.v. | 1 | Rats (6) | — | 0.41 | 0.67 | — | 1.48 | — | — | 1.94 | Xu et al. (2020) |
| Pharmacokinetic characteristics of NMC-DDS.
Abbreviations: cRGD, cyclo(Arg-Gly-Asp-D-Tyr-Lys)-conjugated; i.n., intranasal injection; i.p., intraperitoneal injection; i.v., intravenous injection; PNIPAM, ploly-N-isopropylacrylamide; RGE, neuropilin-1-targeted peptide; Solutol HS 15, polyethylene glycol-15-hydroxy stearate; SPION, superparamagnetic iron oxide nanoparticles; TPGS, D-a-Tocopherol polyethylene glycol 1000 succinate; Tween 80, polyethylene glycol sorbitan monooleate.
Note: — refers to data not reported.
mg·g−1·h.
mg·g−1.
ml/(min·kg).
(mg/kg)/(ng/ml)/h.
(ng·min/ml).
Exosomes are cell-derived nanovesicles (Kojima et al., 2018), currently considered to be specific secretory vesicles for intercellular communication (Milane et al., 2015). Exosomes can disrupt the intact BBB by transcytosis (Morad et al., 2019), easily penetrate the BBB and safely delivers therapeutic drugs (Zhu et al., 2019). In addition, exosomes might have targeting capabilities after cell source selection and membrane modification (Zhu et al., 2019). Curcumin-primed exosomes secreted by mouse macrophage cells were fabricated to prevent neuronal death and alleviate AD symptoms (Wang H. et al., 2019). Curcumin-primed exosomes led to curcumin acumination 6.5 times higher than that of free curcumin in the brain, 2.5 times higher in the liver and 2.0 times higher in the lung (Wang X et al., 2019). Curcumin and superparamagnetic iron oxide nanoparticles were loaded into exosomes and conjugated with neuropilin-1-targeted peptide by click chemistry to obtain glioma-targeting exosomes with imaging and therapeutic functions (Jia et al., 2018). Compared with free exosomes, target ligand-modified exosomes markedly improved the brain targeting and circulation time of curcumin in the body (Jia et al., 2018). A functional ligand, (cyclo (Arg-Gly-Asp-D-Tyr-Lys) peptide, was conjugated with the bioorthogonal copper-free azide alkyne cyclo-addition (click chemistry) method to form mesenchymal stromal cell-derived exosomes to deliver curcumin to the brain (Tian et al., 2018).
The mechanism by which nanoparticles penetrate the BBB is still not very clear. Currently, the relative theories are listed as follows (Morad et al., 2019; Akel et al., 2021; Alotaibi et al., 2021; Han and Jiang, 2021; Hou et al., 2022): 1) The phagocytosis of nanoparticles by cerebral vascular endothelial cells allows the drug to be released and diffused into the brain; 2) The adsorption of capillary walls prolongs the residence time of drugs in the brain, thereby increases the amount of drugs entering the brain; 3) Nanoparticles open the tight junctions of capillary epithelial cells, and drugs penetrate into the brain from the open gaps; 4) The effect of some modifications of nanoparticles such as polysorbate 80, can efficiently inhibit the efflux pump p-gp glycoprotein. Rutin-encapsulated chitosan nanoparticles were fabricated via an ionic gelation method. After nasal administration, the Cmax, t1/2 and AUC in the brain of these nanoparticles were 6-, 1- and 7.3-fold higher than those of free rutin, respectively, the drug targeting efficiency increased by 2.3-fold, and the therapeutic effect increased accordingly (Ahmad et al., 2016b). Poly-N-isopropylacrylamide nanoparticles containing curcumin, demethoxycurcumin and bisdemethoxycurcumin were prepared by free radical polymerization. These nanoparticles increased the Cmax, t1/2 and AUC of the three drugs in the brain by approximately 4-, 9- and 5-fold, respectively (Ahmad et al., 2016a). A biodegradable methoxy polyethylene glycol-poly (caprolactone) amphiphilic block copolymer was used to prepare nanoparticle-loaded capsaicin for targeted treatment of glioma. These nanoparticle s had satisfactory slow-release features (Jiang et al., 2015). Rhynchophylline-loaded methoxy poly (ethylene glycol)-poly (DL-lactide-co-glycolic acid) nanoparticles coupled with Tween 80 were used for brain-targeted delivery (Xu et al., 2020).
Liposomes are nontoxic and have good biocompatibility and biodegradability (Pattni et al., 2015). Their phospholipid bilayer structure made them compatible with the lipid layer of the BBB and helped the drug enter the brain (Pattni et al., 2015; Agrawal et al., 2017). In addition, liposomes can be modified with different substances to achieve the ability to cross the BBB. By attaching lipid molecules to neurotransmitters, the resulting neurotransmitter lipidoids can be incorporated into drug-encapsulating liposomes, and give the liposomes ability to penetrate the BBB (Ma et al., 2020). There are various apolipoproteins in plasma that can cross the BBB, and one of the clearance mechanisms of Aβ protein in the brain is through the lipid binding of various apolipoproteins (such as ApoE, ApoA1 and ApoJ). When the receptor-binding region is exposed, it is mediated by the corresponding receptor on the BBB to the periphery. Because the related receptors can be transported in both directions, the peripheral ligands can also be transported to the brain, so that the drug can be transported to the brain to play a role (Zhang et al., 2019). Liposomes improved the lipophilicity of baicalin and further improved its pharmacokinetics in the brain. The Cmax and AUC values of MCAO rats administered with baicalin-loaded liposomes were significantly greater than those of rats administered with baicalin; moreover, the MRT increased 2.14-fold, the t1/2 increased 2.87-fold, and the renal clearance rate decreased 8.08-fold. The pharmacokinetic parameter improvements led to prolonged retention time and enhanced therapeutic efficacy (Li et al., 2018).
LPHNPs are highly scalable, biodegradable nanocarriers composed of a layer of lipid-coated polymeric cores (polylactic-co-glycolic acid, polyglutamic acid, polylysine, PEG, etc.) (Dehaini et al., 2016; Ishak et al., 2017; Mukherjee et al., 2019). LPHNPs combined with liposomes and nanoparticles have advantages. Rutin delivered by LPHNPs coated with three surfactants, Tween 80, D-α-tocopheryl polyethylene glycol 1000 succinate (TPGS) and Soluted H55 had 160-, 98- and 159-fold higher bioavailability than free rutin, respectively (Ishak et al., 2017).
Nanoemulsions are nanosized droplets with high surface areas (Espinoza et al., 2019), so they have been used to solve drug solubility and stability problems (Bonferoni et al., 2017). The nanoemulsion mainly delivers drugs to the brain by adding excipients that increase BBB permeability or inhibit efflux proteins. The oil-in-water nanoemulsions for codelivery of tanshinone IIA and tetramethylpyrazine had the ability to pass through the BBB and target the brain. The AUCs of tanshinone IIA/tetramethylpyrazine or tanshinone IIA nanoemulsions were 6.98- and 5.83-fold higher than those of tanshinone IIA solution, respectively. The MRTs of two formers (117.68 and 123.29 min) were much longer than the latter (56.66 min). The t1/2 of the two nanoemulsions were 7.8- and 6.48-fold longer than that of the solution (Chen Z. et al., 2019). The resveratrol nanoemulsion was prepared by adding non-ionic surfactants Pluronic and Cremophor EL as emulsifier. The nanoemulsion was administered through nose to target the brain for AD treatment. The nanoemulsion increased the intracranial concentration of resveratrol by ∼87% and the AUC value by ∼92% (Kotta et al., 2021).
Proteins such as specific receptors (e.g., transferrin receptor) (Emami et al., 2018; Johnsen et al., 2018) and transporters expressed on the luminal side of brain endothelial cells help drugs cross the BBB through receptor-mediated endocytosis (Zuchero et al., 2016; Johnsen et al., 2018). Transferrin-coupled nanoliposomes were prepared to deliver artemisinin to the brain in a targeted manner (Emami et al., 2018). OX26 monoclonal antibody-conjugated cationic solid lipid nanoparticles were fabricated to improve baicalin distribution within the brain. The AUC and Cmax values of baicalin nanoparticles were 11.08- and 7.88-fold higher than those of baicalin solution, respectively (Liu et al., 2015). Bovine serum albumin-conjugated cationic PEGylated nanoparticles containing tanshinone IIA had a 3.4-, 2.95- and 2.37-fold higher AUC, t1/2 and MRT than free tanshinone IIA, respectively (Liu et al., 2013).
Tween 80 and TPGS were separately used to coat on the surface of curcumin nanosuspensions by physical adsorption using a high-pressure homogenizer and a probe sonicator. The curcumin delivered by the nanosuspensions had almost 2-fold higher bioavailability than free curcumin (Dibaei et al., 2019).
Metabolic Pathway and Metabolic Enzymes
It is vital to review the reactions and metabolites of NMCs (Supplementary Table 3). Most NMs are metabolized through chemical reactions by enzymes, which can cause them to become more active, less active, inactive, innocuous, or even noxious (Mo et al., 2018). Sometimes multiple metabolites are formed simultaneously, further experiments for the metabolism of NCMs are still needed.
In NMC metabolism, phase I reactions are involved in oxidation, reduction, and hydrolysis and are mediated by enzymes such as cytochrome P450 enzymes. Nonpolar functional groups on NMCs are changed into polar molecules (Iyanagi, 2007). Reactions in phase I include the followied chemical reaction (Eq. 1):
Oxidation reactions result in the addition of oxygen or the removal of hydrogen and encompass hydroxylation, dehydrogenation, and demethylation, among which hydroxylation is the most common reaction. Hydroxylation involves the addition of hydroxyl groups to aromatics, alkanes, or cycloalkanes. In the case of tanshinone IIA, two hydroxyl groups are directly added to the parent drug molecule, and the metabolite has been shown to be favorable in treating AD (Liang et al., 2019). Under catalysis by the metabolic enzyme CYP3A4, Δ9-tetrahydrocannabinol is oxidized to 8α (or β)-OH-Δ9-tetrahydrocannabinol, and further oxidized to 8-keto-Δ9-tetrahydrocannabinol (Dinis-Oliveira, 2016). The alkyl side chain of capsaicin is oxidized to a hydroxyl chain (Rollyson et al., 2014). Each phenyl group of evodiamine is oxidized to hydroxyl groups (Wang Y. et al., 2018). The metabolic enzymes CYP3A4 and CYP2E1 are the primary enzymes that hydroxylate butylphthalide (Diao et al., 2013; Diao et al., 2015). Additionally, dehydrogenation of hydroxyl groups to carbonyl groups or alkyl groups to alkenyl groups is found in NMC metabolism. The hydroxyl group on the cyclohexane of cholic acid is dehydrogenated to a carbonyl group by the enzyme CYP3A4 (Funabashi et al., 2020); the hydroxyl side chain of vitamin A is oxidized to a carbonyl group (Libien et al., 2017), and vitamin A was oxidized to all-trans-retinoic acid by retinal dehydrogenases (Clugston and Blaner, 2014). Leonurine is demethylated, which converts the methoxy group to a hydroxyl group (Zhu et al., 2014). Conversely, the addition of hydrogen or the removal of oxygen results in increased reduction reactions. Hydrogenation occurs to salvianolic acid B and ferulic acid when a double carbon is broken due to the addition of hydrogen (Wang et al., 2016; Zhang et al., 2022). Dehydroxylation entails the removal of hydroxyl groups, to further reduce the reduced metabolites of Salvianolic acid B (Zhang et al., 2022). The alkenyl group of ferulic acid is reduced to an alkyl group (Zhao et al., 2015); oxymatrine is reduced by CYP3A4 to matrine (Liu et al., 2015b). In hydrolysis, when reacting with water, compound bonds are broken to produce two compounds: one is bound with hydrogen cleaved from water molecules, and the other is bound with hydroxide. Ginsenoside Rb1 and Rd and puerarin are deglycosylated to lose one or two glucose molecules (Shang et al., 2017; Zhang et al., 2021); baicalin undergoes deglycosylation to form baicalein (Wang et al., 2017). Capsaicin is hydrolyzed to vanillylamine in the liver and skin (Rollyson et al., 2014); rutin undergoes hydrolysis to form metabolites such as quercetin and 3,4-dihydroxytoluene, 3,4-dihydroxyphenylacetic acid and 3,4-dihydroxybenzoic acid (Morales et al., 2018); and chlorogenic acid is hydrolyzed into caffeic acid and quinic acid by esterase (Choi et al., 2018). Geniposide is hydrolyzed to genipin through β-glucuronidase (Zhang W. et al., 2017).
In phase II reactions, NMCs undergo conjugation reactions, including glucuronidation, glycosylation, methylation, sulfonation, sulfation, cysteine conjugation, glucuronide conjugation and glucopyranoside conjugation, through metabolic enzymes such as UDP-glucuronosyltransferases (UGTs), sulfotransferases (SULTs), glutathione S-transferases (GSTs) (Iyanagi, 2007). Tanshinone IIA, geniposide, Δ9-tetrahydrocannabinol and puerarin undergo glucuronidation, which attaches a glucuronide (Dinis-Oliveira, 2016; Zhang X. et al., 2017; Shang et al., 2017; Liang et al., 2019). Salvianolic acid B, rutin, scutellarein, baicalin and puerarin are conjugated with methyl groups via methyltransferase (Shi et al., 2015; Gimenez-Bastida et al., 2017; Shang et al., 2017; Wang et al., 2017; Zhang et al., 2022). Leonurine, geniposide, and puerarin undergo sulfonation by SULTs (Zhu et al., 2014; Zhang W. et al., 2017; Shang et al., 2017); ferulic acid also needs SULTs to undergo sulfation (Wang et al., 2016). Conjugation of glucuronide to evodiamine (Wang C. et al., 2018) or glucopyranoside to baicalin (Wang et al., 2017) also occurs in phase II reactions.
Conclusion and Future Prospect
NMCs have appealing benefits as cerebral disease-treating drugs due to their effects on the metabolism of neurotransmitters, hormones, neurotrophic molecules, and other brain-specific chemicals in addition to their low cost, low toxicity, and obvious efficacy. Although the bioavailability/absorption of most NMCs is unsatisfactory, appropriate delivery systems such as novel nanosystems including exosomes, nanoparticles, LPHNPs, nanoemulsions, protein conjugation and nanosuspensions, provide better pharmacological and pharmacokinetic characteristics for NMCs. In addition, the structure-based metabolic reactions of NMCs, which produce more active, less active, inactive, innocuous, or even noxious metabolites, alter the pharmacological activities of NMCs (Figure 1). NMCs commonly undergo oxidation, reduction, hydrolysis and conjugation reactions, and metabolic enzymes such as cytochrome P450 enzymes, UGTs, and SULTs are needed in some cases. However, the metabolism and pharmacokinetics data for NMCs are still very limited.

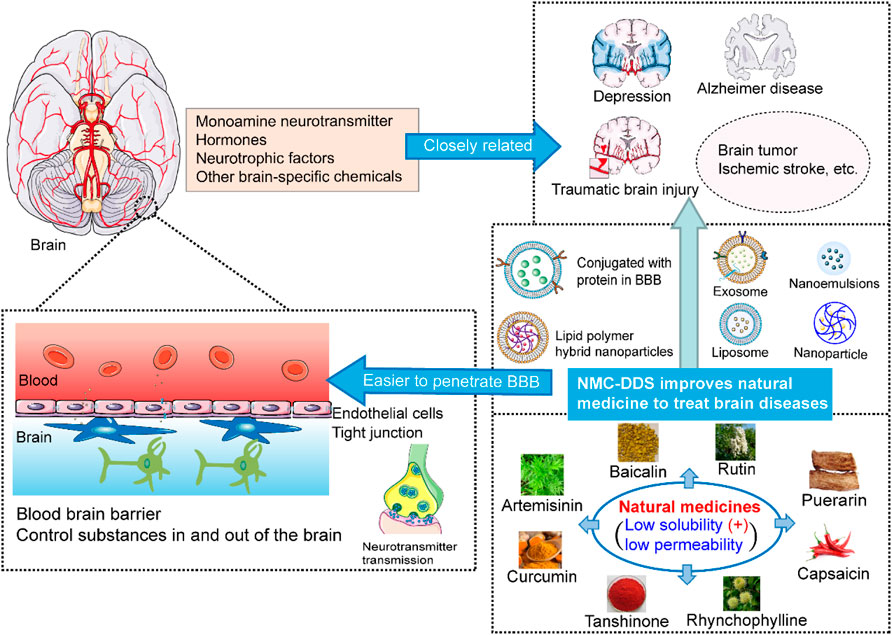

FIGURE 1
In order to achieve clinical transformation of NMCs and overcome the key challenges ahead, the scientists may focus on the formulation prescription, industrial preparation, stability investigation and toxicity evaluation in the future. Since most of the current pharmacokinetic/pharmacological studies are based on animal experiments, more clinical evidence is needed for further application. NMCs are effective in cerebral-related disorders. They are strong candidates for clinical therapy of cerebral diseases. There have been some progress by now. GV-971 is a sodium oligomannate, which is derived from marine algae. GV-971 was first approved in China for marketing as a drug to mitigate AD. GV-971 (Syed, 2020) inhibits Aβ accumulation and decreases Aβ aggregates toxicity (Wang et al., 2020). Also, in support of the theory of the association between gut dysbiosis and AD, GV-971 ameliorates gut dysbiosis and suppresses neuroinflammation to improve cognition in AD (Wang H et al., 2019). Although debates exist about this drug, it is expected to have good prospects due to the safety and tolerance data obtained from phase III clinical trial evidence (Wang et al., 2020).
Statements
Author contributions
JX, CZ, TW, DH, JY and ZY reviewed the literature and drafted the article. LL and JZ conceived, supervised and revised the article. All authors approved the final version.
Funding
This work was partially supported by grants from National Natural Science Foundation of China (30973645), Chongqing Association of Science and Technology (2020-11), Chongqing Education Committee (CYS20212).
Conflict of interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Publisher’s note
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
Supplementary material
The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fphar.2022.937075/full#supplementary-material
Glossary
- ACTH
Adrenocorticotropic hormone
- Aβ
Amyloid plaques
- AD
Alzheimer’s disease
- ADM
Adrenomedullin
- APP
Amyloid precursor protein
- ATF6
Activating transcription factor 6
- AUC
Area under the plasma concentration-time curve
- BBB
Blood-brain barrier
- BCS
Biopharmaceutics classification system
- BDNF
Brain-derived neurotrophic factor
- CB1
Cannabinoid receptor 1
- CB2
Cannabinoid receptor 2
- CHOP
CCAAT/enhancer-binding protein homologous protein
- Cl
Clearance
- Cmax
Maximum plasma
- CNS
Central nervous system
- CNTF
Ciliary neurotrophic factor
- CRF
Corticotropin-releasing factor
- CT-1
Cardiotrophin-1
- CT-2
Cardiotrophin-2
- D0
Dose number
- eIF2α
Eukaryotic initiation factor 2-alpha
- EphA4
Erythropoietin-producing hepatocellular A4
- EPO
Erythropoietin
- ER
Endoplasmic reticulum
- ERα
Estrogen receptor alpha
- ERβ
Estrogen receptor beta
- FGF
Fibroblast growth factor
- GFAP
Glial fibrillary acidic protein
- GLUT-1
Glucose transporter 1
- GR
Glucocorticoid receptor
- GRP78
Glucose regulated protein 78GSK-3β
- GSK-3β
Glycogen synthase kinase 3 beta
- GSTs
Glutathione S-transferases
- HIF-1α
Hypoxia-inducible factor alpha
- HMGB1
High-mobility group box 1
- HPA
Hypothalamic-pituitary-adrenal
- IGF
Insulin-like growth factor
- IκB-α
B-cells inhibitor alpha
- IL-6
Interleukin-6
- iNOS
Inducible nitric oxide synthase
- I/R
Ischemia/reperfusion
- IRE1α
Inositol-requiring enzyme 1α
- JNK
c-Jun N-terminal kinase
- LIF
Leukemia inhibitory factor
- Log P
Oil-in-water partition coefficient
- LPHNPs
Lipid polymer hybrid nanoparticles
- MAPKs
Mitogen-activated protein kinases
- MCAO
Middle cerebral artery occlusion
- NF-κB
Nuclear factor kappa-light-chain-enhancer of activated B cells
- NGF
Nerve growth factor
- NMCs
Natural medicines that affect cerebral metabolism
- NMs
Natural medicines
- Nrf-2
Nuclear factor erythroid 2-related factor 2
- PPARα
Peroxisome proliferator-activated receptor-alpha
- PPARγ
Peroxisome proliferator-activated receptor-gamma
- sAPPα
Soluble amyloid precursor protein alpha
- SULTs
Sulfotransferases
- S100B
S100 calcium-binding protein B
- TBI
Traumatic brain injury
- TGF-β
Transforming growth factor-β
- TLR4
Toll-like receptor 4
- TPGS
D-α-tocopheryl polyethylene glycol 1000 succinate
- TrkA
Tropomyosin receptor kinase A
- TrkB
Tropomyosin receptor kinase B
- UGTs
UDP-glucuronosyltransferases
- VEGF
Vascular endothelial growth factor
References
1
AgrawalM.AjazuddinTripathiD. K.TripathiD. K.SarafS.SarafS.AntimisiarisS. G.et al (2017). Recent Advancements in Liposomes Targeting Strategies to Cross Blood-Brain Barrier (Bbb) for the Treatment of Alzheimer's Disease. J. Control Release260, 61–77. 10.1016/j.jconrel.2017.05.019
2
AhmadN.AhmadI.UmarS.IqbalZ.SamimM.AhmadF. J. (2016a). Pnipam Nanoparticles for Targeted and Enhanced Nose-To-Brain Delivery of Curcuminoids: Uplc/Esi-Q-Tof-Ms/Ms-Based Pharmacokinetics and Pharmacodynamic Evaluation in Cerebral Ischemia Model. Drug Deliv.23 (7), 2095–2114. 10.3109/10717544.2014.941076
3
AhmadN.AhmadR.NaqviA. A.AlamM. A.AshafaqM.SamimM.et al (2016b). Rutin-Encapsulated Chitosan Nanoparticles Targeted to the Brain in the Treatment of Cerebral Ischemia. Int. J. Biol. Macromol.91, 640–655. 10.1016/j.ijbiomac.2016.06.001
4
AkelH.CsókaI.AmbrusR.BocsikA.GrófI.MészárosM.et al (2021). In Vitro Comparative Study of Solid Lipid and Plga Nanoparticles Designed to Facilitate Nose-To-Brain Delivery of Insulin. Int. J. Mol. Sci.22 (24), 13258. 10.3390/ijms222413258
5
AlotaibiB. S.BuabeidM.IbrahimN. A.KharabaZ. J.IjazM.NoreenS.et al (2021). Potential of Nanocarrier-Based Drug Delivery Systems for Brain Targeting: A Current Review of Literature. Int. J. Nanomedicine16, 7517–7533. 10.2147/IJN.S333657
6
AngeloniC.BarbalaceM. C.HreliaS. (2019). Icariin and its Metabolites as Potential Protective Phytochemicals against Alzheimer's Disease. Front. Pharmacol.10, 271. 10.3389/fphar.2019.00271
7
AnjumK.ShaguftaB. I.AbbasS. Q.PatelS.KhanI.ShahS. A. A.et al (2017). Current Status and Future Therapeutic Perspectives of Glioblastoma Multiforme (Gbm) Therapy: A Review. Biomed. Pharmacother.92, 681–689. 10.1016/j.biopha.2017.05.125
8
AsiimweN.YeoS. G.KimM. S.JungJ.JeongN. Y. (2016). Nitric Oxide: Exploring the Contextual Link with Alzheimer's Disease. Oxid. Med. Cell Longev.2016, 7205747–7205810. 10.1155/2016/7205747
9
AuffingerB.MorshedR.TobiasA.ChengY.AhmedA. U.LesniakM. S. (2013). Drug-Loaded Nanoparticle Systems and Adult Stem Cells: A Potential Marriage for the Treatment of Malignant Glioma?Oncotarget4 (3), 378–396. 10.18632/oncotarget.937
10
BattagliaL.PancianiP. P.MuntoniE.CapucchioM. T.BiasibettiE.De BonisP.et al (2018). Lipid Nanoparticles for Intranasal Administration: Application to Nose-To-Brain Delivery. Expert Opin. Drug Deliv.15 (4), 369–378. 10.1080/17425247.2018.1429401
11
BilminK.KujawskaT.GriebP. (2019). Sonodynamic Therapy for Gliomas. Perspectives and Prospects of Selective Sonosensitization of Glioma Cells. Cells8 (11), 1428. 10.3390/cells8111428
12
BonferoniM. C.SandriG.RossiS.UsaiD.LiakosI.GarzoniA.et al (2017). A Novel Ionic Amphiphilic Chitosan Derivative as a Stabilizer of Nanoemulsions: Improvement of Antimicrobial Activity of Cymbopogon Citratus Essential Oil. Colloids Surf. B Biointerfaces152, 385–392. 10.1016/j.colsurfb.2017.01.043
13
BoshtamM.AsgaryS.KouhpayehS.ShariatiL.KhanahmadH. (2017). Aptamers against Pro- and Anti-inflammatory Cytokines: A Review. Inflammation40 (1), 340–349. 10.1007/s10753-016-0477-1
14
Cabello-VerrugioC. (2018). Role of Transforming Growth Factor Family of Peptides in Health and Diseases. Curr. Protein Pept. Sci.19 (12), 1136–1137. 10.2174/138920371912180926125239
15
CharalabidisA.SfouniM.BergströmC.MacherasP. (2019). The Biopharmaceutics Classification System (Bcs) and the Biopharmaceutics Drug Disposition Classification System (Bddcs): Beyond Guidelines. Int. J. Pharm.566, 264–281. 10.1016/j.ijpharm.2019.05.041
16
ChenY.QiZ.QiaoB.LvZ.HaoY.LiH. (2019). Oxymatrine Can Attenuate Pathological Deficits of Alzheimer's Disease Mice through Regulation of Neuroinflammation. J. Neuroimmunol.334, 576978. 10.1016/j.jneuroim.2019.576978
17
ChenZ.WangZ.GuZ. (2019). Bioinspired and Biomimetic Nanomedicines. Acc. Chem. Res.52 (5), 1255–1264. 10.1021/acs.accounts.9b00079
18
ChoiW. G.KimJ. H.KimD. K.LeeY.YooJ. S.ShinD. H.et al (2018). Simultaneous Determination of Chlorogenic Acid Isomers and Metabolites in Rat Plasma Using Lc-Ms/Ms and its Application to a Pharmacokinetic Study Following Oral Administration of Stauntonia Hexaphylla Leaf Extract (Yra-1909) to Rats. Pharmaceutics10 (3), 143. 10.3390/pharmaceutics10030143
19
ClugstonR. D.BlanerW. S. (2014). Vitamin a (Retinoid) Metabolism and Actions: What We Know and what We Need to Know about Amphibians. Zoo. Biol.33 (6), 527–535. 10.1002/zoo.21140
20
CorrigerA.PickeringG. (2019). Ketamine and Depression: A Narrative Review. Drug Des. Devel Ther.13, 3051–3067. 10.2147/DDDT.S221437
21
DehainiD.FangR. H.LukB. T.PangZ.HuC. M.KrollA. V.et al (2016). Ultra-Small Lipid-Polymer Hybrid Nanoparticles for Tumor-Penetrating Drug Delivery. Nanoscale8 (30), 14411–14419. 10.1039/c6nr04091h
22
DiaoX.DengP.XieC.LiX.ZhongD.ZhangY.et al (2013). Metabolism and Pharmacokinetics of 3-N-Butylphthalide (Nbp) in Humans: The Role of Cytochrome P450s and Alcohol Dehydrogenase in Biotransformation. Drug Metab. Dispos.41 (2), 430–444. 10.1124/dmd.112.049684
23
DiaoX. X.ZhongK.LiX. L.ZhongD. F.ChenX. Y. (2015). Isomer-Selective Distribution of 3-N-Butylphthalide (Nbp) Hydroxylated Metabolites, 3-Hydroxy-Nbp and 10-Hydroxy-Nbp, across the Rat Blood-Brain Barrier. Acta Pharmacol. Sin.36 (12), 1520–1527. 10.1038/aps.2015.64
24
DibaeiM.RouiniM. R.SheikholeslamiB.GholamiM.DinarvandR. (2019). The Effect of Surface Treatment on the Brain Delivery of Curcumin Nanosuspension: In Vitro and In Vivo Studies. Int. J. Nanomedicine14, 5477–5490. 10.2147/IJN.S199624
25
Dinis-OliveiraR. J. (2016). Metabolomics of Δ9-tetrahydrocannabinol: Implications in Toxicity. Drug Metab. Rev.48 (1), 80–87. 10.3109/03602532.2015.1137307
26
EmamiJ.YousefianH.SadeghiH. (2018). Targeted Nanostructured Lipid Carrier for Brain Delivery of Artemisinin: Design, Preparation, Characterization, Optimization and Cell Toxicity. J. Pharm. Pharm. Sci.21 (1s), 225s–241s. 10.18433/jpps30117
27
EnslinJ. M. N.RohlwinkU. K.FigajiA. (2020). Management of Spasticity after Traumatic Brain Injury in Children. Front. Neurol.11, 126. 10.3389/fneur.2020.00126
28
EspinozaL. C.Silva-AbreuM.ClaresB.Rodríguez-LagunasM. J.HalbautL.CañasM. A.et al (2019). Formulation Strategies to Improve Nose-To-Brain Delivery of Donepezil. Pharmaceutics11 (2), 64. 10.3390/pharmaceutics11020064
29
FanY.LuoQ.WeiJ.LinR.LinL.LiY.et al (2018). Mechanism of Salvianolic Acid B Neuroprotection against Ischemia/Reperfusion Induced Cerebral Injury. Brain Res.1679, 125–133. 10.1016/j.brainres.2017.11.027
30
FuW. Y.HungK. W.LauS. F.ButtB.YuenV. W.FuG.et al (2021). Rhynchophylline Administration Ameliorates Amyloid-β Pathology and Inflammation in an Alzheimer's Disease Transgenic Mouse Model. ACS Chem. Neurosci.12 (22), 4249–4256. 10.1021/acschemneuro.1c00600
31
FunabashiM.GroveT. L.WangM.VarmaY.McFaddenM. E.BrownL. C.et al (2020). A Metabolic Pathway for Bile Acid Dehydroxylation by the Gut Microbiome. Nature582 (7813), 566–570. 10.1038/s41586-020-2396-4
32
Fusar-PoliL.VozzaL.GabbiadiniA.VanellaA.ConcasI.TinacciS.et al (2020). Curcumin for Depression: A Meta-Analysis. Crit. Rev. Food Sci. Nutr.60 (15), 2643–2653. 10.1080/10408398.2019.1653260
33
GarofaloS.GrimaldiA.CheceG.PorziaA.MorroneS.MainieroF.et al (2017). The Glycoside Oleandrin Reduces Glioma Growth with Direct and Indirect Effects on Tumor Cells. J. Neurosci.37 (14), 3926–3939. 10.1523/jneurosci.2296-16.2017
34
Giménez-BastidaJ. A.ZielinskiH.PiskulaM.ZielinskaD.Szawara-NowakD. (2017). Buckwheat Bioactive Compounds, Their Derived Phenolic Metabolites and Their Health Benefits. Mol. Nutr. Food Res.61 (7), 1600475. 10.1002/mnfr.201600475
35
GrafW. D.KekatpureM. V.KosofskyB. E. (2013). Prenatal-Onset Neurodevelopmental Disorders Secondary to Toxins, Nutritional Deficiencies, and Maternal Illness. Handb. Clin. Neurol.111, 143–159. 10.1016/B978-0-444-52891-9.00014-2
36
GrossiC.GuccioneC.IsacchiB.BergonziM. C.LuccariniI.CasamentiF.et al (2017). Development of Blood-Brain Barrier Permeable Nanoparticles as Potential Carriers for Salvianolic Acid B to Cns. Planta Med.83 (5), 382–391. 10.1055/s-0042-101945
37
GuF.ChauhanV.ChauhanA. (2017). Monoamine Oxidase-A and B Activities in the Cerebellum and Frontal Cortex of Children and Young Adults with Autism. J. Neurosci. Res.95 (10), 1965–1972. 10.1002/jnr.24027
38
GuoL. T.WangS. Q.SuJ.XuL. X.JiZ. Y.ZhangR. Y.et al (2019). Baicalin Ameliorates Neuroinflammation-Induced Depressive-like Behavior through Inhibition of Toll-like Receptor 4 Expression via the Pi3k/Akt/Foxo1 Pathway. J. Neuroinflammation16 (1), 95. 10.1186/s12974-019-1474-8
39
GuoY.WangL. P.LiC.XiongY. X.YanY. T.ZhaoL. Q.et al (2018). Effects of Ginsenoside Rb1 on Expressions of Phosphorylation Akt/Phosphorylation Mtor/Phosphorylation Pten in Artificial Abnormal Hippocampal Microenvironment in Rats. Neurochem. Res.43 (10), 1927–1937. 10.1007/s11064-018-2612-x
40
HanL.JiangC. (2021). Evolution of Blood-Brain Barrier in Brain Diseases and Related Systemic Nanoscale Brain-Targeting Drug Delivery Strategies. Acta Pharm. Sin. B11 (8), 2306–2325. 10.1016/j.apsb.2020.11.023
41
HeQ.LiuJ.LanJ. S.DingJ.SunY.FangY.et al (2018). Coumarin-Dithiocarbamate Hybrids as Novel Multitarget Ache and Mao-B Inhibitors against Alzheimer's Disease: Design, Synthesis and Biological Evaluation. Bioorg Chem.81, 512–528. 10.1016/j.bioorg.2018.09.010
42
HeY.RuganzuJ. B.LinC.DingB.ZhengQ.WuX.et al (2020). Tanshinone Iia Ameliorates Cognitive Deficits by Inhibiting Endoplasmic Reticulum Stress-Induced Apoptosis in App/Ps1 Transgenic Mice. Neurochem. Int.133, 104610. 10.1016/j.neuint.2019.104610
43
HouQ.ZhuL.WangL.LiuX.XiaoF.XieY.et al (2022). Screening On-Chip Fabricated Nanoparticles for Penetrating the Blood-Brain Barrier. Nanoscale14 (8), 3234–3241. 10.1039/d1nr05825h
44
HuangX. W.XuY.SuiX.LinH.XuJ. M.HanD.et al (2019). Scutellarein Suppresses Aβ-Induced Memory Impairment via Inhibition of the NF-Κb Pathway In Vivo and In Vitro. Oncol. Lett.17 (6), 5581–5589. 10.3892/ol.2019.10274
45
HymanS. E. (2005). Neurotransmitters. Curr. Biol.15 (5), R154–R158. 10.1016/j.cub.2005.02.037
46
IshakR. A. H.MostafaN. M.KamelA. O. (2017). Stealth Lipid Polymer Hybrid Nanoparticles Loaded with Rutin for Effective Brain Delivery - Comparative Study with the Gold Standard (Tween 80): Optimization, Characterization and Biodistribution. Drug Deliv.24 (1), 1874–1890. 10.1080/10717544.2017.1410263
47
IyanagiT. (2007). Molecular Mechanism of Phase I and Phase Ii Drug-Metabolizing Enzymes: Implications for Detoxification. Int. Rev. Cytol.260, 35–112. 10.1016/S0074-7696(06)60002-8
48
JiaG.HanY.AnY.DingY.HeC.WangX.et al (2018). Nrp-1 Targeted and Cargo-Loaded Exosomes Facilitate Simultaneous Imaging and Therapy of Glioma In Vitro and In Vivo. Biomaterials178, 302–316. 10.1016/j.biomaterials.2018.06.029
49
JiaM.LiC.ZhengY.DingX.ChenM.DingJ.et al (2017). Leonurine Exerts Antidepressant-like Effects in the Chronic Mild Stress-Induced Depression Model in Mice by Inhibiting Neuroinflammation. Int. J. Neuropsychopharmacol.20 (11), 886–895. 10.1093/ijnp/pyx062
50
JiangZ.WangX.ZhangY.ZhaoP.LuoZ.LiJ. (2015). Effect of Capsaicin-Loading Nanoparticles on Gliomas. J. Nanosci. Nanotechnol.15 (12), 9834–9839. 10.1166/jnn.2015.10313
51
JinJ.WangH.HuaX.ChenD.HuangC.ChenZ. (2019). An Outline for the Pharmacological Effect of Icariin in the Nervous System. Eur. J. Pharmacol.842, 20–32. 10.1016/j.ejphar.2018.10.006
52
JohnsenK. B.BakM.KempenP. J.MelanderF.BurkhartA.ThomsenM. S.et al (2018). Antibody Affinity and Valency Impact Brain Uptake of Transferrin Receptor-Targeted Gold Nanoparticles. Theranostics8 (12), 3416–3436. 10.7150/thno.25228
53
KarchC. M.GoateA. M. (2015). Alzheimer's Disease Risk Genes and Mechanisms of Disease Pathogenesis. Biol. Psychiatry77 (1), 43–51. 10.1016/j.biopsych.2014.05.006
54
KarveI. P.TaylorJ. M.CrackP. J. (2016). The Contribution of Astrocytes and Microglia to Traumatic Brain Injury. Br. J. Pharmacol.173 (4), 692–702. 10.1111/bph.13125
55
KaurD.SharmaV.DeshmukhR. (2019). Activation of Microglia and Astrocytes: A Roadway to Neuroinflammation and Alzheimer's Disease. Inflammopharmacology27 (4), 663–677. 10.1007/s10787-019-00580-x
56
KaurP.SharmaS. (2018). Recent Advances in Pathophysiology of Traumatic Brain Injury. Curr. Neuropharmacol.16 (8), 1224–1238. 10.2174/1570159x15666170613083606
57
KhanN.SmithM. T. (2015). Neurotrophins and Neuropathic Pain: Role in Pathobiology. Molecules20 (6), 10657–10688. 10.3390/molecules200610657
58
KimY. K.NaK. S.MyintA. M.LeonardB. E. (2016). The Role of Pro-inflammatory Cytokines in Neuroinflammation, Neurogenesis and the Neuroendocrine System in Major Depression. Prog. Neuropsychopharmacol. Biol. Psychiatry64, 277–284. 10.1016/j.pnpbp.2015.06.008
59
KojimaR.BojarD.RizziG.HamriG. C.El-BabaM. D.SaxenaP.et al (2018). Designer Exosomes Produced by Implanted Cells Intracerebrally Deliver Therapeutic Cargo for Parkinson's Disease Treatment. Nat. Commun.9 (1), 1305. 10.1038/s41467-018-03733-8
60
KottaS.Mubarak AldawsariH.Badr-EldinS. M.AlhakamyN. A.MdS. (2021). Coconut Oil-Based Resveratrol Nanoemulsion: Optimization Using Response Surface Methodology, Stability Assessment and Pharmacokinetic Evaluation. Food Chem.357, 129721. 10.1016/j.foodchem.2021.129721
61
KyuH. H.AbateD.AbateK. H.AbayS. M.AbbafatiC.AbbasiN.et al (2018). Global, Regional, and National Disability-Adjusted Life-Years (Dalys) for 359 Diseases and Injuries and Healthy Life Expectancy (Hale) for 195 Countries and Territories, 1990–2017: A Systematic Analysis for the Global Burden of Disease Study 2017. Lancet392 (10159), 1859–1922. 10.1016/s0140-6736(18)32335-3
62
LiN.FengL.TanY.XiangY.ZhangR.YangM. (2018). Preparation, Characterization, Pharmacokinetics and Biodistribution of Baicalin-Loaded Liposome on Cerebral Ischemia-Reperfusion after I.V. Administration in Rats. Molecules23 (7), 1747. 10.3390/molecules23071747
63
LiangS.WangZ.YuanJ.ZhangJ.DaiX.QinF.et al (2019). Rapid Identification of Tanshinone IIA Metabolites in an Amyloid-Β1-42 Induced Alzherimer's Disease Rat Model Using UHPLC-Q-Exactive Qrbitrap Mass Spectrometry. Molecules24 (14), 2584. 10.3390/molecules24142584
64
LibienJ.KupersmithM. J.BlanerW.McDermottM. P.GaoS.LiuY.et al (2017). Role of Vitamin a Metabolism in Iih: Results from the Idiopathic Intracranial Hypertension Treatment Trial. J. Neurol. Sci.372, 78–84. 10.1016/j.jns.2016.11.014
65
LiebnerS.DijkhuizenR. M.ReissY.PlateK. H.AgalliuD.ConstantinG. (2018). Functional Morphology of the Blood-Brain Barrier in Health and Disease. Acta Neuropathol.135 (3), 311–336. 10.1007/s00401-018-1815-1
66
LiuH.ZhongL.ZhangY.LiuX.LiJ. (2018). Rutin Attenuates Cerebral Ischemia-Reperfusion Injury in Ovariectomized Rats via Estrogen-Receptor-Mediated Bdnf-Trkb and Ngf-Trka Signaling. Biochem. Cell Biol.96 (5), 672–681. 10.1139/bcb-2017-0209
67
LiuX.AnC.JinP.LiuX.WangL. (2013). Protective Effects of Cationic Bovine Serum Albumin-Conjugated Pegylated Tanshinone Iia Nanoparticles on Cerebral Ischemia. Biomaterials34 (3), 817–830. 10.1016/j.biomaterials.2012.10.017
68
LiuY. M.HuC. Y.ShenJ. D.WuS. H.LiY. C.YiL. T. (2017). Elevation of Synaptic Protein Is Associated with the Antidepressant-like Effects of Ferulic Acid in a Chronic Model of Depression. Physiol. Behav.169, 184–188. 10.1016/j.physbeh.2016.12.003
69
Liu WW.LiG.HölscherC.LiL. (2015). Neuroprotective Effects of Geniposide on Alzheimer's Disease Pathology. Rev. Neurosci.26 (4), 371–383. 10.1515/revneuro-2015-0005
70
LiuZ.ZhaoH.ShuL.ZhangY.OkekeC.ZhangL.et al (2015a). Preparation and Evaluation of Baicalin-Loaded Cationic Solid Lipid Nanoparticles Conjugated with Ox26 for Improved Delivery across the Bbb. Drug Dev. Ind. Pharm.41 (3), 353–361. 10.3109/03639045.2013.861478
71
LiuZ.LiuW.ShiJ.ZhuL.DongL.LuoF.et al (2015b). Reductive Metabolism of Oxymatrine Is Catalyzed by Microsomal Cyp3a4. Dddt, 5771. 10.2147/dddt.S92276
72
LuY.SunG.YangF.GuanZ.ZhangZ.ZhaoJ.et al (2019). Baicalin Regulates Depression Behavior in Mice Exposed to Chronic Mild Stress via the Rac/Limk/Cofilin Pathway. Biomed. Pharmacother.116, 109054. 10.1016/j.biopha.2019.109054
73
MaF.YangL.SunZ.ChenJ.RuiX.GlassZ.et al (2020). Neurotransmitter-Derived Lipidoids (Nt-Lipidoids) for Enhanced Brain Delivery through Intravenous Injection. Sci. Adv.6 (30), eabb4429. 10.1126/sciadv.abb4429
74
MajidN.SiddiqiM. K.KhanA. N.ShabnamS.MalikS.AlamA.et al (2019). Biophysical Elucidation of Amyloid Fibrillation Inhibition and Prevention of Secondary Nucleation by Cholic Acid: An Unexplored Function of Cholic Acid. ACS Chem. Neurosci.10 (11), 4704–4715. 10.1021/acschemneuro.9b00482
75
MiaoM.CaoL.LiR.FangX.MiaoY. (2017). Protective Effect of Chlorogenic Acid on the Focal Cerebral Ischemia Reperfusion Rat Models. Saudi Pharm. J.25 (4), 556–563. 10.1016/j.jsps.2017.04.023
76
MilaneL.SinghA.MattheolabakisG.SureshM.AmijiM. M. (2015). Exosome Mediated Communication within the Tumor Microenvironment. J. Control Release219, 278–294. 10.1016/j.jconrel.2015.06.029
77
MoJ.YangR.LiF.ZhangX.HeB.ZhangY.et al (2018). Scutellarin Protects against Vascular Endothelial Dysfunction and Prevents Atherosclerosis via Antioxidation. Phytomedicine42, 66–74. 10.1016/j.phymed.2018.03.021
78
MoradG.CarmanC. V.HagedornE. J.PerlinJ. R.ZonL. I.MustafaogluN.et al (2019). Tumor-Derived Extracellular Vesicles Breach the Intact Blood-Brain Barrier via Transcytosis. ACS Nano13 (12), 13853–13865. 10.1021/acsnano.9b04397
79
MoralesA. M.MukaiR.MurotaK.TeraoJ. (2018). Inhibitory Effect of Catecholic Colonic Metabolites of Rutin on Fatty Acid Hydroperoxide and Hemoglobin Dependent Lipid Peroxidation in Caco-2 Cells. J. Clin. Biochem. Nutr.63 (3), 175–180. 10.3164/jcbn.18-38
80
MorottiA.CrivellaroS.PanuzzoC.CarràG.GuerrasioA.SaglioG. (2017). IκB-α: At the Crossroad between Oncogenic and Tumor-Suppressive Signals. Oncol. Lett.13 (2), 531–534. 10.3892/ol.2016.5465
81
MukherjeeA.WatersA. K.KalyanP.AchrolA. S.KesariS.YenugondaV. M. (2019). Lipid-Polymer Hybrid Nanoparticles as a Next-Generation Drug Delivery Platform: State of the Art, Emerging Technologies, and Perspectives. Int. J. Nanomedicine14, 1937–1952. 10.2147/IJN.S198353
82
NajmR.RaoA.HuangY. (2020). Too Much Tau in Interneurons Impairs Adult Hippocampal Neurogenesis in Alzheimer's Disease. Cell Stem Cell26 (3), 297–299. 10.1016/j.stem.2020.02.004
83
NaradM. E.KennellyM.ZhangN.WadeS. L.YeatesK. O.TaylorH. G.et al (2018). Secondary Attention-Deficit/Hyperactivity Disorder in Children and Adolescents 5 to 10 Years after Traumatic Brain Injury. JAMA Pediatr.172 (5), 437–443. 10.1001/jamapediatrics.2017.5746
84
NhoK.NudelmanK.AllenM.HodgesA.KimS.RisacherS. L.et al (2020). Genome-Wide Transcriptome Analysis Identifies Novel Dysregulated Genes Implicated in Alzheimer's Pathology. Alzheimers Dement.16 (9), 1213–1223. 10.1002/alz.12092
85
PattniB. S.ChupinV. V.TorchilinV. P. (2015). New Developments in Liposomal Drug Delivery. Chem. Rev.115 (19), 10938–10966. 10.1021/acs.chemrev.5b00046
86
QiangW.CaiW.YangQ.YangL.DaiY.ZhaoZ.et al (2018). Artemisinin B Improves Learning and Memory Impairment in Ad Dementia Mice by Suppressing Neuroinflammation. Neuroscience395, 1–12. 10.1016/j.neuroscience.2018.10.041
87
RenD.FuY.WangL.LiuJ.ZhongX.YuanJ.et al (2021). Tetrandrine Ameliorated Alzheimer's Disease through Suppressing Microglial Inflammatory Activation and Neurotoxicity in the 5xfad Mouse. Phytomedicine90, 153627. 10.1016/j.phymed.2021.153627
88
RollysonW. D.StoverC. A.BrownK. C.PerryH. E.StevensonC. D.McNeesC. A.et al (2014). Bioavailability of Capsaicin and its Implications for Drug Delivery. J. Control Release196, 96–105. 10.1016/j.jconrel.2014.09.027
89
SasakiK.IwataN.FerdousiF.IsodaH. (2019). Antidepressant-Like Effect of Ferulic Acid via Promotion of Energy Metabolism Activity. Mol. Nutr. Food Res.63 (19), e1900327. 10.1002/mnfr.201900327
90
ScottK. A.DalgleishA. G.LiuW. M. (2014). The Combination of Cannabidiol and Δ9-tetrahydrocannabinol Enhances the Anticancer Effects of Radiation in an Orthotopic Murine Glioma Model. Mol. Cancer Ther.13 (12), 2955–2967. 10.1158/1535-7163.MCT-14-0402
91
ShahV.KocharP. (2018). Brain Cancer: Implication to Disease, Therapeutic Strategies and Tumor Targeted Drug Delivery Approaches. Recent Pat. Anticancer Drug Discov.13 (1), 70–85. 10.2174/1574892812666171129142023
92
ShangZ.XinQ.ZhaoW.WangZ.LiQ.ZhangJ.et al (2017). Rapid Profiling and Identification of Puerarin Metabolites in Rat Urine and Plasma after Oral Administration by Uhplc-Ltq-Orbitrap Mass Spectrometer. J. Chromatogr. B Anal. Technol. Biomed. Life Sci.1068-1069, 180–192. 10.1016/j.jchromb.2017.10.038
93
SharmaG.SharmaA. R.LeeS. S.BhattacharyaM.NamJ. S.ChakrabortyC. (2019). Advances in Nanocarriers Enabled Brain Targeted Drug Delivery across Blood Brain Barrier. Int. J. Pharm.559, 360–372. 10.1016/j.ijpharm.2019.01.056
94
ShiZ. H.LiN. G.WangZ. J.TangY. P.DongZ. X.ZhangW.et al (2015). Synthesis and Biological Evaluation of Methylated Scutellarein Analogs Based on Metabolic Mechanism of Scutellarin In Vivo. Eur. J. Med. Chem.106, 95–105. 10.1016/j.ejmech.2015.10.039
95
SongF. X.WangL.LiuH.WangY. L.ZouY. (2017). Brain Cell Apoptosis Inhibition by Butylphthalide in Alzheimer's Disease Model in Rats. Exp. Ther. Med.13 (6), 2771–2774. 10.3892/etm.2017.4322
96
SyedY. Y. (2020). Sodium Oligomannate: First Approval. Drugs80 (4), 441–444. 10.1007/s40265-020-01268-1
97
TangM.TaghibiglouC. (2017). The Mechanisms of Action of Curcumin in Alzheimer's Disease. J. Alzheimers Dis.58 (4), 1003–1016. 10.3233/JAD-170188
98
TangY.HuangD.ZhangM. H.ZhangW. S.TangY. X.ShiZ. X.et al (2016). Salvianolic Acid B Inhibits Aβ Generation by Modulating BACE1 Activity in SH-Sy5y-APPsw Cells. Nutrients8 (6). 10.3390/nu8060333
99
TianT.ZhangH. X.HeC. P.FanS.ZhuY. L.QiC.et al (2018). Surface Functionalized Exosomes as Targeted Drug Delivery Vehicles for Cerebral Ischemia Therapy. Biomaterials150, 137–149. 10.1016/j.biomaterials.2017.10.012
100
TsouY. H.ZhangX. Q.ZhuH.SyedS.XuX. (2017). Drug Delivery to the Brain across the Blood-Brain Barrier Using Nanomaterials. Small13 (43), 1701921. 10.1002/smll.201701921
101
UnsickerK. (2013). Neurotrophic Molecules in the Treatment of Neurodegenerative Disease with Focus on the Retina: Status and Perspectives. Cell Tissue Res.353 (2), 205–218. 10.1007/s00441-013-1585-y
102
VanItallieT. B. (2019). Traumatic Brain Injury (Tbi) in Collision Sports: Possible Mechanisms of Transformation into Chronic Traumatic Encephalopathy (Cte). Metabolism100S, 153943. 10.1016/j.metabol.2019.07.007
103
WangC.YueF.AiG.YangJ. (2018). Simultaneous Determination of Evodiamine and its Four Metabolites in Rat Plasma by Lc-Ms/Ms and its Application to a Pharmacokinetic Study. Biomed. Chromatogr.32 (7), e4219. 10.1002/bmc.4219
104
WangJ.QiQ.ZhouW.FengZ.HuangB.ChenA.et al (2018). Inhibition of Glioma Growth by Flavokawain B Is Mediated through Endoplasmic Reticulum Stress Induced Autophagy. Autophagy14 (11), 2007–2022. 10.1080/15548627.2018.1501133
105
WangY.LiY.YangW.GaoS.LinJ.WangT.et al (2018). Ginsenoside Rb1 Inhibit Apoptosis in Rat Model of Alzheimer's Disease Induced by Aβ1-40. Am. J. Transl. Res.10 (3), 796–805.
106
WangH.SuiH.ZhengY.JiangY.ShiY.LiangJ.et al (2019). Curcumin-primed Exosomes Potently Ameliorate Cognitive Function in AD Mice by Inhibiting Hyperphosphorylation of the Tau Protein through the AKT/GSK-3β Pathway. Nanoscale11 (15), 7481–7496. 10.1039/c9nr01255a
107
WangX.SunG.FengT.ZhangJ.HuangX.WangT.et al (2019). Sodium Oligomannate Therapeutically Remodels Gut Microbiota and Suppresses Gut Bacterial Amino Acids-Shaped Neuroinflammation to Inhibit Alzheimer's Disease Progression. Cell Res.29 (10), 787–803. 10.1038/s41422-019-0216-x
108
WangL.HuangS.ChenB.ZangX. Y.SuD.LiangJ.et al (2016). Characterization of the Anticoagulative Constituents of Angelicae Sinensis Radix and Their Metabolites in Rats by Hplc-Dad-Esi-It-Tof-Msn. Planta Med.82 (4), 362–370. 10.1055/s-0035-1558309
109
WangT.JiangH.CaoS.ChenQ.CuiM.WangZ.et al (2017). Baicalin and its Metabolites Suppresses Gluconeogenesis through Activation of Ampk or Akt in Insulin Resistant Hepg-2 Cells. Eur. J. Med. Chem.141, 92–100. 10.1016/j.ejmech.2017.09.049
110
WangT.KuangW.ChenW.XuW.ZhangL.LiY.et al (2020). A Phase II Randomized Trial of Sodium Oligomannate in Alzheimer's Dementia. Alz Res. Ther.12 (1), 110. 10.1186/s13195-020-00678-3
111
WangZ. S.LuoP.DaiS. H.LiuZ. B.ZhengX. R.ChenT. (2013). Salvianolic Acid B Induces Apoptosis in Human Glioma U87 Cells through P38-Mediated Ros Generation. Cell Mol. Neurobiol.33 (7), 921–928. 10.1007/s10571-013-9958-z
112
WattG.KarlT. (2017). In Vivo Evidence for Therapeutic Properties of Cannabidiol (Cbd) for Alzheimer's Disease. Front. Pharmacol.8, 20. 10.3389/fphar.2017.00020
113
XieX.LiY.ZhaoD.FangC.HeD.YangQ.et al (2020). Oral Administration of Natural Polyphenol-Loaded Natural Polysaccharide-Cloaked Lipidic Nanocarriers to Improve Efficacy against Small-Cell Lung Cancer. Nanomedicine29, 102261. 10.1016/j.nano.2020.102261
114
XieY. Z.ZhangX. J.ZhangC.YangY.HeJ. N.ChenY. X. (2019). Protective Effects of Leonurine against Ischemic Stroke in Mice by Activating Nuclear Factor Erythroid 2‐related Factor 2 Pathway. CNS Neurosci. Ther.25 (9), 1006–1017. 10.1111/cns.13146
115
XuD.QiuC.WangY.QiaoT.CuiY. L. (2021). Intranasal Co-Delivery of Berberine and Evodiamine by Self-Assembled Thermosensitive In-Situ Hydrogels for Improving Depressive Disorder. Int. J. Pharm.603, 120667. 10.1016/j.ijpharm.2021.120667
116
XuR.WangJ.XuJ.SongX.HuangH.FengY.et al (2020). Rhynchophylline Loaded-Mpeg-Plga Nanoparticles Coated with Tween-80 for Preliminary Study in Alzheimer's Disease. Int. J. Nanomedicine15, 1149–1160. 10.2147/IJN.S236922
117
XuW.LiuJ.MaD.YuanG.LuY.YangY. (2017). Capsaicin Reduces Alzheimer-Associated Tau Changes in the Hippocampus of Type 2 Diabetes Rats. Plos One12 (2), e0172477. 10.1371/journal.pone.0172477
118
YanX.HuG.YanW.ChenT.YangF.ZhangX.et al (2017). Ginsenoside Rd Promotes Non-amyloidogenic Pathway of Amyloid Precursor Protein Processing by Regulating Phosphorylation of Estrogen Receptor Alpha. Life Sci.168, 16–23. 10.1016/j.lfs.2016.11.002
119
YangJ.LiK.HeD.GuJ.XuJ.XieJ.et al (2020). Toward a Better Understanding of Metabolic and Pharmacokinetic Characteristics of Low-Solubility, Low-Permeability Natural Medicines. Drug Metab. Rev.52 (1), 19–43. 10.1080/03602532.2020.1714646
120
YaoY.ChenX.BaoY.WuY. (2017). Puerarin Inhibits β amyloid Peptide 142 induced Tau Hyperphosphorylation via the Wnt/β catenin Signaling Pathway. Mol. Med. Rep.16 (6), 9081–9085. 10.3892/mmr.2017.7702
121
ZengJ.ChenL.WangZ.ChenQ.FanZ.JiangH.et al (2017). Marginal Vitamin A Deficiency Facilitates Alzheimer's Pathogenesis. Acta Neuropathol.133 (6), 967–982. 10.1007/s00401-017-1669-y
122
ZengM.YangL.HeD.LiY.ShiM.ZhangJ. (2017). Metabolic Pathways and Pharmacokinetics of Natural Medicines with Low Permeability. Drug Metab. Rev.49 (4), 464–476. 10.1080/03602532.2017.1377222
123
ZhangF. X.CuiS. S.YuanY. L.LiC.LiR. M. (2022). Dissection of the Potential Anti-Diabetes Mechanism of Salvianolic Acid B by Metabolite Profiling and Network Pharmacology. Rapid Commun. Mass Spectrom.36 (1), e9205. 10.1002/rcm.9205
124
ZhangJ. Q.WuX. H.FengY.XieX. F.FanY. H.YanS.et al (2016). Salvianolic Acid B Ameliorates Depressive-like Behaviors in Chronic Mild Stress-Treated Mice: Involvement of the Neuroinflammatory Pathway. Acta Pharmacol. Sin.37 (9), 1141–1153. 10.1038/aps.2016.63
125
ZhangW.CaoY. A.XiaJ.TianL.YangL.PengC. S. (2017). Neuroprotective Effect of Tanshinone Iia Weakens Spastic Cerebral Palsy through Inflammation, P38mapk and Vegf in Neonatal Rats. Mol. Med. Rep.10.3892/mmr.2017.8069
126
ZhangX.LiuS.PiZ.LiuZ.SongF. (2017). Simultaneous Quantification Method for Comparative Pharmacokinetics Studies of Two Major Metabolites from Geniposide and Genipin by Online Mircrodialysis-UPLC-MS/MS. J. Chromatogr. B Anal. Technol. Biomed. Life Sci.1041–1042, 11–18. 10.1016/j.jchromb.2016.12.010
127
ZhangX.ChenS.DuanF.LiuA.LiS.ZhongW.et al (2021). Prebiotics Enhance the Biotransformation and Bioavailability of Ginsenosides in Rats by Modulating Gut Microbiota. J. Ginseng Res.45 (2), 334–343. 10.1016/j.jgr.2020.08.001
128
ZhangZ.GuanJ.JiangZ.YangY.LiuJ.HuaW.et al (2019). Brain-Targeted Drug Delivery by Manipulating Protein Corona Functions. Nat. Commun.10 (1), 3561. 10.1038/s41467-019-11593-z
129
ZhaoJ.LiY.HeD.HuX.LiK.YangQ.et al (2020). Natural Oral Anticancer Medication in Small Ethanol Nanosomes Coated with a Natural Alkaline Polysaccharide. ACS Appl. Mater Interfaces12 (14), 16159–16167. 10.1021/acsami.0c02788
130
Zhao JJ.LiuS.HuX.ZhangY.YanS.ZhaoH.et al (2018). Improved Delivery of Natural Alkaloids into Lung Cancer through Woody Oil-Based Emulsive Nanosystems. Drug Deliv.25 (1), 1426–1437. 10.1080/10717544.2018.1474970
131
ZhaoY.LiH.FangF.QinT.XiaoW.WangZ.et al (2018). Geniposide Improves Repeated Restraint Stress-Induced Depression-like Behavior in Mice by Ameliorating Neuronal Apoptosis via Regulating Glp-1r/Akt Signaling Pathway. Neurosci. Lett.676, 19–26. 10.1016/j.neulet.2018.04.010
132
ZhaoT.ZhangX.ZhaoY.ZhangL.BaiX.ZhangJ.et al (2014). Pretreatment by Evodiamine Is Neuroprotective in Cerebral Ischemia: Up-Regulated pAkt, pGSK3β, Down-Regulated NF-Κb Expression, and Ameliorated BBB Permeability. Neurochem. Res.39 (8), 1612–1620. 10.1007/s11064-014-1356-5
133
ZhaoX.YangD. H.XuF.HuangS.ZhangL.LiuG. X.et al (2015). The In Vivo Absorbed Constituents and Metabolites of Danshen Decoction in Rats Identified by Hplc with Electrospray Ionization Tandem Ion Trap and Time-Of-Flight Mass Spectrometry. Biomed. Chromatogr.29 (2), 285–304. 10.1002/bmc.3275
134
ZhengX.ChengY.ChenY.YueY.LiY.XiaS.et al (2019). Ferulic Acid Improves Depressive-like Behavior in Prenatally-Stressed Offspring Rats via Anti-inflammatory Activity and Hpa Axis. Int. J. Mol. Sci.20 (3), 493. 10.3390/ijms20030493
135
ZhouR.WangJ.HanX.MaB.YuanH.SongY. (2019). Baicalin Regulates the Dopamine System to Control the Core Symptoms of Adhd. Mol. Brain12 (1), 11. 10.1186/s13041-019-0428-5
136
ZhuQ.LingX.YangY.ZhangJ.LiQ.NiuX.et al (2019). Embryonic Stem Cells-Derived Exosomes Endowed with Targeting Properties as Chemotherapeutics Delivery Vehicles for Glioblastoma Therapy. Adv. Sci. (Weinh)6 (6), 1801899. 10.1002/advs.201801899
137
ZhuQ.ZhangJ.YangP.TanB.LiuX.ZhengY.et al (2014). Characterization of Metabolites of Leonurine (Scm-198) in Rats after Oral Administration by Liquid Chromatography/Tandem Mass Spectrometry and Nmr Spectrometry. Sci. World J.2014, 11. 10.1155/2014/947946
138
ZhuY.TangQ.WangG.HanR. (2017). Tanshinone Iia Protects Hippocampal Neuronal Cells from Reactive Oxygen Species through Changes in Autophagy and Activation of Phosphatidylinositol 3-Kinase, Protein Kinas B, and Mechanistic Target of Rapamycin Pathways. Curr. Neurovasc Res.14 (2), 132–140. 10.2174/1567202614666170306105315
139
ZucheroY. J.ChenX.Bien-LyN.BumbacaD.TongR. K.GaoX.et al (2016). Discovery of Novel Blood-Brain Barrier Targets to Enhance Brain Uptake of Therapeutic Antibodies. Neuron89 (1), 70–82. 10.1016/j.neuron.2015.11.024
Summary
Keywords
cerebral metabolism, natural medicines, pharmacokinetics, pharmacodynamics, delivery systems
Citation
Xie J, Zhong C, Wang T, He D, Lu L, Yang J, Yuan Z and Zhang J (2022) Better Bioactivity, Cerebral Metabolism and Pharmacokinetics of Natural Medicine and Its Advanced Version. Front. Pharmacol. 13:937075. doi: 10.3389/fphar.2022.937075
Received
05 May 2022
Accepted
27 May 2022
Published
27 June 2022
Volume
13 - 2022
Edited by
Zipeng Gong, Guizhou Medical University, China
Reviewed by
Yan Xie, Shanghai University of Traditional Chinese Medicine, China
Yao Fu, Sichuan University, China
Qingxiang Guan, Jilin University, China
Updates
Copyright
© 2022 Xie, Zhong, Wang, He, Lu, Yang, Yuan and Zhang.
This is an open-access article distributed under the terms of the Creative Commons Attribution License (CC BY). The use, distribution or reproduction in other forums is permitted, provided the original author(s) and the copyright owner(s) are credited and that the original publication in this journal is cited, in accordance with accepted academic practice. No use, distribution or reproduction is permitted which does not comply with these terms.
*Correspondence: Jingqing Zhang, 13308300303@cqmu.edu.cn
†These authors have contributed equally to this work
This article was submitted to Drug Metabolism and Transport, a section of the journal Frontiers in Pharmacology
Disclaimer
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article or claim that may be made by its manufacturer is not guaranteed or endorsed by the publisher.
