Lanzhu Zhou
Jun Wu†- Department of Otorhinolaryngology Head and Neck Surgery, The First Affiliated Hospital of Bengbu Medical College, Bengbu, China
Laryngeal carcinoma is the most common head and neck malignancy globally, and chemotherapy is still the most common treatment for this type of carcinoma. Monotherapy has become powerless because of the lack of drugs in the anticancer agent library, the difficult process of new drug discovery, and the widespread drug resistance. Combination therapy with two agents, in particular Chinese herbal medicines with chemotherapy drugs, is a potential alternative to chemotherapy alone. However, combination therapy faces difficulties in delivering multiple drugs to tumor tissue in a precise ratio. Here, a cocktail polymeric prodrug micelle (PHPPM) was developed using an oxidation and reduction dual-responsive polymeric paclitaxel (PTX) and polymeric honokiol (HK) prodrugs. Both of them were obtained by covalently conjugating the drug to dextran via diselenium bonds. Following optimization and characterization, the PHPPM with the precise mass ratio of PTX and HK was obtained, enabling ratiometric drug loading, synchronized drug release in response to tumor high-level reactive oxygen species and glutathione environment, long blood circulation, and high tumor accumulation. This co-delivery system can effectively inhibit laryngeal carcinoma growth in vitro and in vivo. Codelivery of chemotherapy agents and Chinese herbal medicine with a precise ratio and controlled release of the two drugs at the tumor site provides an effective approach to clinical therapy for other laryngeal carcinomas.
Introduction
Laryngeal carcinoma is the most common head and neck malignancy globally (Kumar et al., 2018). In 2020, over 180,000 new cases of laryngeal carcinoma were diagnosed, with approximately 100,000 new deaths (Sung et al., 2021). Surgery, chemotherapy, and radiotherapy are commonly used to treat laryngeal carcinoma in clinical practice today (Wu et al., 2020). Among them, chemotherapy remains one of the most common strategies for laryngeal treatment because of its superior efficacy (Bonomi et al., 2018). However, the efficacy of monotherapy with a single drug was greatly hindered by toxic side effects and drug resistance (Meng et al., 2021). Through the synergistic effect of two drugs, combination chemotherapy has been shown to significantly improve anticancer efficacy and reduce side effects when two or more therapeutic drugs with different acting sites and mechanisms of anticancer activity are used simultaneously.
In recent years, attention has been increasingly paid to combining Chinese herbal medicines with chemotherapy drugs that can result in a synergistic response that may eliminate the tumor while reducing side effects (Fu et al., 2018; Dasari et al., 2022). Honokiol (HK), a traditional Chinese medicine isolated from Magnolia Officinalis, showed anticancer, antidepressant, antioxidant, and anti-inflammatory effects (Lin et al., 2007; Dikalov et al., 2008; Xu et al., 2008). Studies have shown that HK can inhibit the growth of laryngeal, liver, colon, lung, breast, and brain cancer (Banik et al., 2019). Moreover, HK has been shown to significantly improve the treatment effects of traditional chemotherapy drugs, such as paclitaxel (PTX) and doxorubicin (Wang et al., 2017; Zou et al., 2018). Moreover, combining HK with traditional chemotherapy agents may be an effective strategy for treating laryngeal carcinoma. However, the poor water solubility of both PTX and HK made it difficult to use these two drugs together in clinical practice. Moreover, because of the different pharmacokinetics and biodistribution of the individual drugs, co-delivery of different drugs to tumor sites at the precise drug dosages is difficult to accomplish, resulting in unmatched dosage combinations that make it difficult to achieve efficient synergistic therapy or even cause antagonism (Li et al., 2020). In addition, the overlapping toxicity of different agents with co-administration also poses a challenge to combination chemotherapy.
Nanotechnology-based drug delivery systems have helped solve some of the problems mentioned above. Nano formulations can effectively increase solubility, tumor targeting, pharmacokinetics, and biodistribution, as well as reduce the side effects of chemotherapeutic agents (Cai et al., 2020; Zeinali et al., 2020; Wang D et al., 2021). Nano-drug delivery systems, in particular, can simultaneously deliver multiple drugs to the same focal point at a predetermined drug ratio (Zhang et al., 2020). Various nano-drug delivery systems for cancer combination therapy have been developed to date. Many have been applied in clinical trials, such as Trilimus, a nano-drug delivery system prepared by encapsulating paclitaxel, 17-N-allylamino-17-demethoxygeldanamycin (17-AAG), and rapamycin in poly (ethylene glycol)-block-poly (D,L-lactic acid) (PEG-b-PLA) formed micelles (Zhang et al., 2016).
Polymeric prodrug micelles (PPM) are prepared by covalently linking drugs to biocompatible polymers with smart bonds to form amphiphilic polymers that can then form core-shell micelles in an aqueous solution. They have gathered a lot of attention in the current nanomedicine world (Su et al., 2018; Zhang et al., 2019; Hu et al., 2020). Thus, PPM possesses the advantages of polymer micelles and prodrug strategies, such as high drug-loading capability, significantly reduced premature agent release in the blood circulation, and good bionic characteristics (Huang et al., 2018; Ibrahim et al., 2019; Wang Y et al., 2021). The PPM can control drug release in response to tumor microenvironment, such as high glutathione (GSH), high reactive oxygen species (ROS), and low pH, when the drugs are linked by a diselenide bond, disulfide bond, or ester bond (Tabatabaei Rezaei et al., 2016; Taresco et al., 2018; Zhuang et al., 2018; Sui et al., 2019; Zuo et al., 2020; Fu et al., 2021). Among these stimuli, GSH has been demonstrated to be abundant in the cytoplasm of cancer cells (∼10 mM) but absent in the extracellular environment (2–20 µM) (Tu et al., 2021). In addition, it has been reported that the ROS level in cancer cells was 1,000-fold higher than in normal tissue (Mollazadeh et al., 2021). Thus, GSH and ROS constitute two appropriate triggers for drug release.
Dextran (DEX), a natural polysaccharide, has the advantages of facile functionalization, excellent water solubility, low toxicity, biodegradability, and good biocompatibility (Chen et al., 2020). Moreover, the use of DEX as a drug carrier is more stable and adsorb fewer nonspecific proteins than PEG (Li et al., 2017). These advantages indicate that DEX is an ideal candidate for designing and preparing DEX-based drug delivery systems, especially PPM. Hence, we designed and prepared a GSH/ROS dual-responsive cocktail PPM (PHPPM) co-delivery paclitaxel and honokiol for the laryngeal carcinoma combination therapy (Figure 1). The PHPPM comprises of a precise ratio of GSH/ROS-responsive PTX (PTX-SeSe-DEX) and HK (HK-SeSe-DEX) polymeric prodrugs. The PTX-SeSe-DEX and HK-SeSe-DEX were fabricated by conjugating PTX or HK to DEX through diselenide bonding. The diselenide bond can be cleavable by intracellular over-produced ROS and GSH to release PTX and HK, which may kill cancer with a synergistic effect after being internalized by cancer cells.

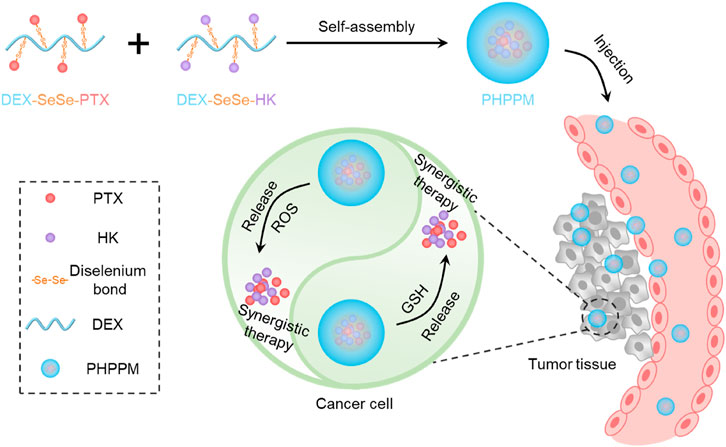

FIGURE 1. Schematic illustration of the fabrication of paclitaxel and honokiol co-loaded cocktail polymeric prodrug micelles (PPM), and intracellular glutathione/reactive oxygen species (ROS) dual-responsive drug release for precise combination therapy.
Materials and Methods
The details of chemicals and reagents, instruments, cell culture, and animals are provided in supporting information.
Synthesis of SeSe-PTX and SeSe-HK
According to a previous report, diacid anhydride of 3,3′-diselenodipropionicacid (DSPA) was prepared before synthesizing of SeSe-PTX and SeSe-HK (Sun et al., 2019). In brief, 10 mmol of DSPA was mixed with 10 ml of acetic anhydride and stirred at 30°C under the protection of nitrogen gas (N2). The mixture was mixed with 15 ml of methylbenzene after a 2 h reaction, and then the solvent was removed under reduced pressure. After three repetitions, a crude anhydride product was obtained, which was immediately dissolved in 50 ml of anhydrous dichloromethane. Afterwards, PTX (10 mmol) and 4-dimethylaminopyridine (DMAP, 1 mmol) were added to the mixture. The reaction was maintained at 30°C in an N2 atmosphere for 2 h. The mixture was dried under reduced pressure, and the product obtained was purified by silica gel column chromatography with methyl alcohol: dichloromethane (1:20) to obtain SeSe-PTX (yield: 76.7%). The same preparation method was used to obtain SeSe-HK (yield: 68.2%). The products were measured by 1H NMR.
Synthesis of Dextran-SeSe-PTX and Dextran-SeSe-HK
N,N′-carbonyldiimidazole (CDI) catalysis synthesized DEX-SeSe-PTX and DEX-SeSe-HK. To prepare DEX-SeSe-PTX, SeSe-PTX (3 mmol) was reacted with CDI (4 mmol) in 30 ml of anhydrous dichloromethane under N2 protection at 30°C for 4 h. The solvent was then removed under reduced pressure to yield CDI-SeSe-PTX. Thereafter, CDI-SeSe-PTX was mixed with DEX (0.3 mmol) in formamide. The mixture was vigorously stirred at room temperature for 48 h under N2 protection. After the reaction was completed, the mixture was extensively dialyzed (molecular weight cut-off (MWCO): 3.5 kDa) in 70% (v/v) methyl alcohol for 48 h and distilled water for 48 h. To obtain DEX-SeSe-PTX, the solution was lyophilized and stored at −20°C in an N2 atmosphere for further use. Moreover, DEX-SeSe-HK was also obtained using the same protocol. 1H NMR was used to confirm the structure of drug conjugations.
The drug conjugation rate (DCR) was measured using the high-performance liquid chromatography (HPLC) method and calculated using the following equation:
Polymeric Prodrug Micelle Preparation
The dialysis method was used to prepare PPM. In brief, 20 mg of DEX-SeSe-PTX and 10 mg of DEX-SeSe-HK were dissolved in 5 ml of dimethyl sulfoxide (DMSO) using sonication, followed by dialysis (MWCO 3.5 kDa) against deionized water at 4°C for 16 h in the dark. The solution was then filtered through a 0.45 μm membrane and lyophilized to get redox-sensitive PTX and HK co-loaded PPM, denoted as PHPPM. The same method was used to prepare PPM formed by DEX-SeSe-PTX (named PPPM) and PPM formed by DEX-SeSe-HK (HPPM).
In summary, the HPLC method measured the drug loading capability (DLC) of PTX and HK. To calculate the DLC, the following formula was used:
Moreover, coumarin-6 loaded PPMs were prepared. In brief, 20 mg of DEX-SeSe-PTX, 10 mg of DEX-SeSe-HK, and 0.5 mg of coumarin-6 were dissolved in 5 ml of DMSO, and the solution was dialyzed (MWCO 3.5 kDa) against deionized water at 4°C for 16 h in the dark. The solution was then filtered through a 0.45 μm membrane and lyophilized to obtain PHPPM loaded with coumarin-6. Likewise, the same method was used to make coumarin-6 loaded PPPM and HPPM.
Stability Evaluation
Fresh prepared PPMs were dispersed in either phosphate-buffered saline (PBS, pH 7.4) with or without 10% of fetal bovine serum (FBS). Furthermore, the cocktail PPM solution was cultured at 37°C with some shaking. Dynamic light scattering (DLS) measured the size of PPMs at predetermined time points (0, 4, 8, 12, 24, 36, or 48 h).
In vitro Drug Release
The PHPPM drug release was evaluated by the classical dialysis method. The release medium was PBS (pH 7.4) buffer with 1% (m/v) of Tween80 and various concentrations of GSH (0, 1, and 10 mM) or hydrogen peroxide (H2O2) (0, 1, and 10 mM).
The PHPPM (including 2.0 mg of PTX and 1.0 mg of HK) was dissolved in 1 ml of PBS before being placed in a dialysis bag (MWCO 3.5 kDa). The dialysis bag was immediately immersed in 99 ml of release media and maintained at 37°C with some shaking. At pre-set time intervals, 2 ml of release medium outside the bag was withdrawn, and 2 ml of fresh release media was added. The released amount of PTX and HK was detected using the HPLC method presented in the supporting information.
Cellular Uptake
Approximately 1 × 104 of Hep-2 cells were seeded into a well of a six-well plate and incubated overnight when cell growth was approximately 70–80%. Thereafter, cells were incubated with coumarin-6 loaded PHPPM, PPPM, or HPPM with 500 ng/ml of coumarin-6. After being incubated for 1 or 4 h, the cells were washed three times with cold PBS, fixed with 4% formaldehyde, stained with 4′,6-diamidino-2-phenylindole, and observed under a fluorescence microscope (Leica DMI6000B, Germany).
Cytotoxicity
Hep-2 cells were seeded at a density of 5 × 103 cells per well in 96-well plates. After a 24 h culture period, the medium was replaced with 150 μl of free drug or PPMs dispersed medium and incubated for another 48 h. Thereafter, 20 μl of MTT solution was added to each well and cultured for another 4 h. Moreover, the medium was replaced with 100 μl of DMSO to dissolve the formazan. In conclusion, the absorbance of each well was measured using a BioTek microplate reader.
Pharmacokinetics and Biodistribution
SD rats were used as an animal model to test the pharmacokinetics. In general, SD rats were given a single intravenous injection of free PTX, free HK, and PHPPM at the drug concentration of 10 mg/kg. At pre-set time points, 200 µl of blood was collected from the orbit of each mouse. The plasma was then obtained by centrifuging the blood samples at 3,000 rpm at 4°C for 10 min. After that, 200 µl of acetonitrile and 200 µl of dichloromethane were added to an equal plasma volume to extract the PTX or HK. After centrifugation, the supernatant was collected, concentrated, re-dissolved in methanol, and subjected to HPLC to measure the free drug or conjugation drug.
Male BALB/c mice were used as animal models in the biodistribution study, with subcutaneous human laryngeal carcinoma Hep-2 cells tumor xenografts injected at 1 × 106 cells. The mice were randomly divided into three groups (n = 3) when the tumor volume reached approximately 500 mm3 and treated with free PTX, HK, or 2/1PHPPM at a 10 mg/kg drug concentration. Mice were sacrificed after being treated for 12 h. The major organs, including the heart, liver, spleen, lung, kidneys, and tumor, were collected, washed in PBS, and weighed. In summary, the tissues were homogenized in PBS, and the free drug or drug conjugation was extracted with acetonitrile and dichloromethane, and analyzed using HPLC.
Hemolysis Analysis
Fresh blood obtained from healthy SD rats was stored in heparinized tubes. Furthermore, 1 ml of fresh blood was centrifugated at 1,200 rpm for 3 min to separate the red blood cells, then re-dispersed in PBS. Then, 50 µl of re-dispersed red blood cells were added to PPMs solutions at different drug concentrations (0.5, 1, 2.5, 5, 10, 15, or 20 μg/ml). Under the same conditions, red blood cells were mixed with distilled water and PBS (pH 7.4) as positive and negative controls, respectively. Each sample was incubated at 37°C for 4 h after gently shaking, and the absorbance of the supernatant was measured using a BioTek microplate reader at a wavelength of 540 nm. The hemolysis rate was calculated using the following formula:
ODs, ODn, and ODp are the absorbance (optical density, OD) of the sample, PBS, and water groups, respectively.
In vivo Antitumor Evaluation
The Hep-2 tumor-bearing mice model was created by injecting 150 μl of Hep-2 cell suspension (2 × 106 cells per mice) into the right armpit of the mice. When the tumor volume reached 50–80 mm3, mice were randomly divided into eight groups, five mice each. Moreover, the mice were treated with PBS, PTX, HK, PTX + HK, PHPPM, PPPM, or HPPM at a dose of 6 mg/kg of PTX or 3 mg/kg of HK. These drug formulations were injected into the tail vein on days 0, 3, and 6. The width and length of the tumor and the mouse weight were recorded every 3 days. The following formula was used to calculate tumor volume:
On day 15, the tumor tissues were harvested, washed, and weighed. The tumor suppression rate (TSR) based on the weight of the extracted tumor was calculated using the following equation:
Statistical Analysis
The student’s t-test was used to analyze the significant differences between the two groups using origin software 2021b. p < 0.05 was considered statistically significant.
Results and Discussion
Polymeric Prodrug Synthesis and Characterization
The redox-sensitive polymeric prodrugs DEX-SeSe-PTX and DEX-SeSe-HK were fabricated through a two-step esterification reaction, and the synthetic routes are presented in Supplementary Figure S1. Diacid anhydride of 3,3′-diselenodipropionicacid (DSPA) was prepared and used instead of DSPA because of the high reactivity of anhydride with hydroxyl groups (Bao et al., 2014). As a result, the formation of the byproduct could be drastically reduced. PTX or HK was reacted with the diacid anhydride of DSPA to obtain the SeSe-PTX and SeSe-HK, respectively. The products were confirmed using 1H NMR. As shown in Figure 2A, the chemical shifts of DSPA were assigned in the range of δ2.5–3.0 ppm in the spectrums of SeSe-PTX and SeSe-HK, indicating that these two prodrugs were successfully prepared. In comparison to the PTX spectrum, the 2ʹ-CH proton peak in SeSe-PTX was 5.6 ppm, whereas it was 4.7 ppm in the PTX spectrum, suggesting that the esterification reaction between DSPA and PTX occurred at the 2ʹ-hydroxyl of PTX.

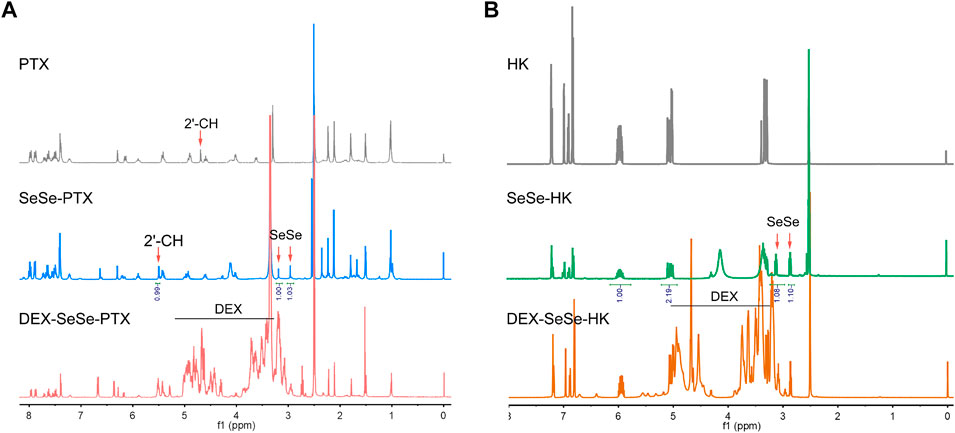

FIGURE 2. Characterization of polymeric prodrugs. (A–B) 1H nuclear magnetic resonance spectrums of parent drugs and polymeric prodrugs in dimethyl sulfoxide-d6: (A) paclitaxel (PTX), SeSe-PTX, and DEX-SeSe-PTX spectrums; (B) honokiol (HK), SeSe-HK, and DEX-SeSe-HK spectrums.
Furthermore, SeSe-PTX and SeSe-HK were conjugated to DEX to obtain DEX-SeSe-PTX and DEX-SeSe-HK. 1H NMR and UV spectrum confirmed that the conjugation was successful. As presented in Figure 2B, the signals of the benzene ring of PTX and HK could be observed in the spectrums of DEX-SeSe-PTX and DEX-SeSe-HK, respectively, demonstrating that both prodrugs were successfully synthesized. The DCR of DEX-SeSe-PTX, and DEX-SeSe-HK were determined to be (4.78 ± 0.38) % and (7.58 ± 0.43) %, respectively, using HPLC by a standard curve method (Supplementary Figure S2).
The critical micelle concentration (CMC) of DEX-SeSe-PTX and DEX-SeSe-HK was 21.2 μg/ml and 26.9 μg/ml, respectively, using the Nile red as the fluorescence probe (Supplementary Figure S3). The low CMC value suggests that both prodrugs that formed PPMs might have good dilution stability in the blood circulation.
Polymeric Prodrug Micelles Preparation and Characterization
PPMs with similar nano-properties and precisely controlled drug loading are critical for combination therapy because of the customizable prescription and predictable in vivo fate. The amphiphilicity of DEX was conferred by conjugating hydrophobic PTX or HK to its side, allowing these two polymeric prodrugs to self-assemble into PPMs in water solution. The two-drug-loaded cocktail PPM and single-drug-loaded PPM were produced by the simple dialysis method to investigate the influence of single- or double-drug loading on the physicochemical properties of the yielded PPMs. The single PTX- or HK-loaded PPMs were denoted as PPPM and HPPM, respectively, while the double-drug-loaded cocktail PPM was denoted as PHPPM. As shown in Figures 3A,B, both PPPM and HPPM had a similar size of approximately 100 nm, a narrow polydispersity index (PDI, approximately 0.25), and a spherical shape.

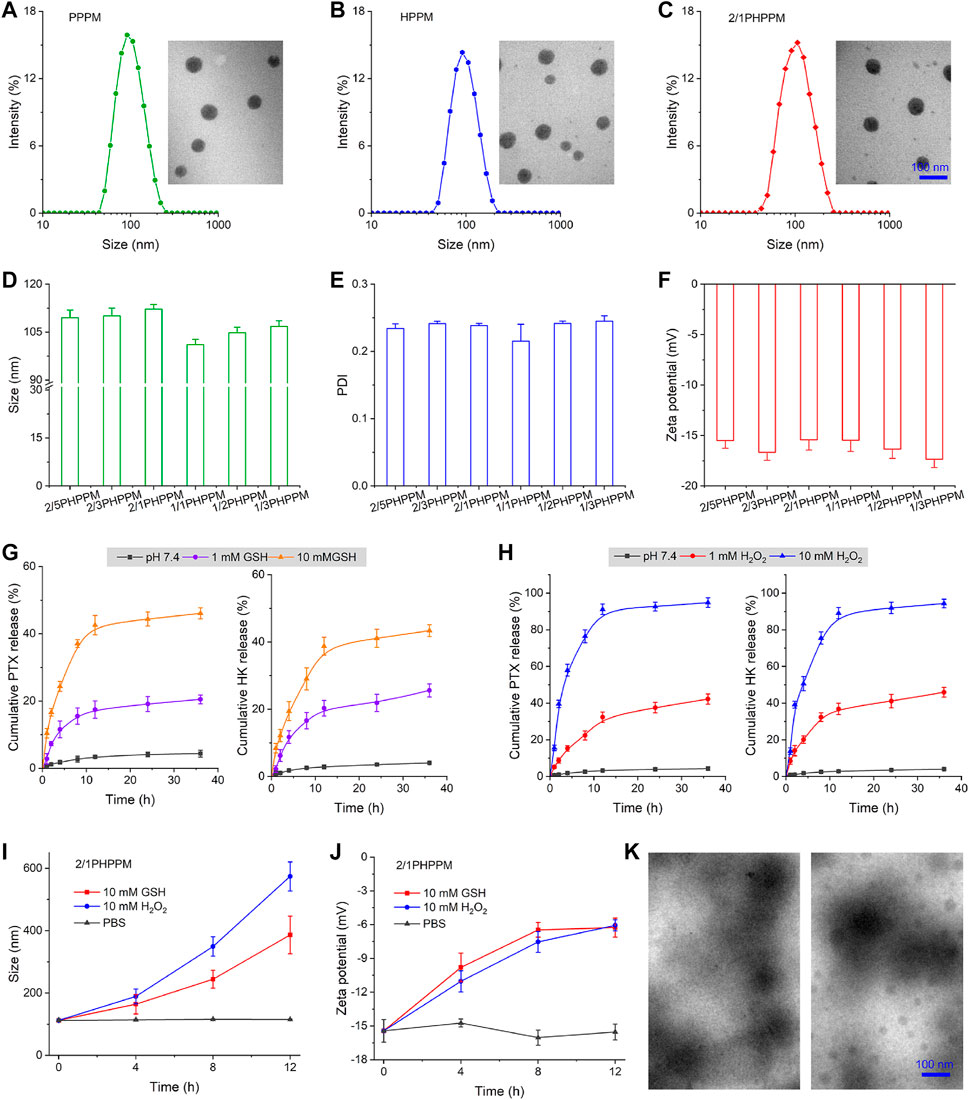

FIGURE 3. Preparation and characterization of PPMs. (A–C) the hydrodynamic particle size and transmission electron microscopy (TEM) images of PPPM (A), HPPM (B), and 2/1PHPPM (C). (D–F) Size (D), polydispersity index (E), and zeta potential (F) of PHPPMs with different polymeric paclitaxel (PTX) and honokiol (HK) ratios. (G–H) the cumulative release of PTX and HK from 2/1PHPPM in the presence of different concentrations of glutathione (GSH) (G) or hydrogen peroxide (H2O2) (H). (I–J) the changes in size (I) and zeta potential (J) of 2/1HPPPM following incubation with 10 mM GSH or H2O2 for 0, 4, 8, and 12 h. (K) transmission electron microscope images of 2/1HPPPM following incubation with 10 mM GSH or H2O2 for 12 h. Data are represented as the mean ± standard deviation, n = 3.
Moreover, different mass ratios of PTX and HK were used to achieve drug loading, demonstrating the ability of independently tunable drug ratios. The mass ratios of PTX and HK, set at 2/5, 2/3, 2/1, 1/1, 1/2, and 1/3 (Supplementary Table S1), were used to denote the cocktails PPMs. Hydrodynamic particle size, size distribution, and zeta potential characterize these PPMs. As presented in Figures 3C–F, all of the PHPPMs had a moderate size (100–120 nm) with a narrow distribution (0.20–0.25) and a moderate zeta potential (−15 to −20 mV). The presented PHPPM transmission electron microscopy (TEM) images of 2/1PHPPM also showed that the PHPPMs were spherical and roughly uniform in size (Figure 3C). Moreover, the stability of PPMs was evaluated by monitoring changes in particle size of PPMs over time in PBS or PBS with 10% FBS at 37°C. As shown in Supplementary Figure S4, the HPPM, PPPM, and 2/1PHPPM were stable under normal conditions, evidenced by no obvious changes in particle size for all PPMs during the 48 h incubation period. Furthermore, the hemolysis rate of PPPM, HPPM, and PHPPM was <5% at drug concentrations ranging from 0.5 μg/ml to 20 μg/ml (Supplementary Figure S5), suggesting that these PPMs were biocompatible (Tsai, 2019; Singh et al., 2020; Tong et al., 2020).
Redox-Triggered Drug Release
Selenium, an essential trace element for humans, exhibit remarkable protective or inhibitory effects against various cancers, including head and neck neoplasm, breast cancer, and colon cancer (Li and Xu, 2020; Liu et al., 2020). Selenium-containing compounds have unique bond energy, which gives C–Se or Se–Se covalent bonds a dynamic character and makes them responsive to mild stimuli, like GSH and H2O2, because of the specific electronegativity and atomic radius of selenium (Wei et al., 2020).
The in vitro drug release behavior of 2/1PHPPM was investigated using the dialysis method to prove this process. As illustrated in Figure 3G, in the presence of GSH, an improved and sustained drug release behavior of 2/1PHPPM was observed. When 2/1PHPPM was incubated with 1 mM GSH for 36 h, approximately 20 and 25% of PTX and HK were released. Increasing the GSH concentration to 10 mM with the same time scale elicits approximately 46% of PTX and 43% of HK release.
Moreover, the diselenium bond-based polymeric prodrug cocktail was also shown in H2O2-sensitive drug release (Figure 3H). Selenium bonds may oxidize to form selenone or hydrophilic selenoxide groups after incubation with H2O2, accelerating the hydrolysis of adjacent ester bonds and releasing the drug from the polymer prodrugs (Wei et al., 2020). When HKPPM was exposed to 10 mM H2O2, it displayed a rapid drug release behavior. At 36 h, the cumulative release of PTX and HK was approximately 95 and 94%, respectively.
In particular, the release of PTX and HK was almost non-existent in blank media, demonstrating a good stability of the cocktail PPM. The excellent stability of the cocktail PPM reveals that it will not prematurely release its payloads during blood circulation. At the same time, its responsiveness to GSH and H2O2 bestows the ability rapidly and selectively releases a large amount of PTX and HK inside cancer cells, ultimately killing them.
Using GSH and ROS to remove the hydrophobic drug could transform the hydrophobic core of PPMs into hydrophilic one, resulting in the disassembly of PPMs. DLS and TEM measured the changes in size, zeta potential, and morphology of 2/1HPPPM to confirm this phenomenon. The hydrodynamic particle size of 2/1HPPPM rapidly increased from 100 nm to over 400 nm following incubation with 10 mM GSH or 10 mM H2O2, as shown in Figure 3I, indicating the disassembly of 2/1HPPPM. Moreover, after being treated with GSH or H2O2, the zeta potential of 2/1HPPPM was reduced (Figure 3J). Furthermore, TEM results showed that when GSH and H2O2 were added to 2/1HPPPM, they disintegrated quickly (Figure 3K).
Cellular Uptake Investigation
PPMs internalized by human laryngeal carcinoma Hep-2 cells were observed using a fluorescence microscope. Coumarin-6 was used as the fluorescence probe. Figure 4 shows the green fluorescence of coumarin-6 that can be observed in the cytoplasm after 1 h of incubation with PPMs. In contrast, whereas a 4 h assay showed a higher fluorescence intensity in the cells, the time-dependent fluorescence intensity increases in cells demonstrated that the three PPMs could be effectively internalized by cells. Because of their similar surface properties and particle sizes, the fluorescence intensity in 2/1PHPPM, HPPM, and PPPM treated cells is not significantly different, suggesting that these PPMs exhibit a similar cellular uptake.
FIGURE 4. Fluorescence images of Hep-2 cells after 1 or 4 h of treatment with coumarin-6 labeled PHPPM, HPPM, and PPPM.
Screening for the Optimal Drug Combinations and Application in Polymeric Prodrug Micelle
The current study aimed to co-deliver PTX and HK to tumor cells to effectively kill cancer cells. The most important factor in achieving this goal is determining the best drug-to-drug ratio for combination therapy. The synergistic cytotoxicity of PTX and HK was tested against Hep-2 cells to find the best drug-to-drug ratio for anticancer efficacy. The combination index (CI) was used to measure the combined effect of drugs, including their antagonistic (CI > 1), synergistic (n < 1), and additive effect (CI = 1) (Chou, 2018). Chou and Talalay’s formula was used to calculate the CI: CI50 = A1/A150 + B1/B150 (Chou, 2010; Banerjee et al., 2021). where A1 and B1 are the 50% inhibitory concentration (IC50) values of drug A and drug B, respectively; and A1x and B1x are drug A and drug B in the combination group at the IC50 value. The MTT method was used to determine the IC50 value of PTX and HK against Hep-2 cells after 48 h. As shown in Figures 5A,B, the IC50 values of PTX and HK against Hep cells were 4.2 and 17.4 μg/ml, respectively. The efficacy level dose contour of PTX and HK was plotted to measure the synergistic region of drugs based on their IC50 values (Figure 5C). The cytotoxicity of eight fixed-dose combinations of PTX and HK against Hep-2 cells was measured using the MTT method to screen for the optimal molar ratio of PTX and HK. The combinatory molar ratio of PTX and HK was 2:1, and the combination of PTX and HK exhibited a remarkable inhibition effect against Hep-2 cells, with the lowest IC50 and CI50 values (Figures 5D,E).
FIGURE 5. Combination dose screening. (A–B) inhibition of different concentrations of polymeric paclitaxel (PTX) (A) and honokiol (HK) (B) on Hep-2 cells after 48 h. IC50 (50% of maximal inhibition) of PTX and HK were 4.2 μg/ml and 17.4 μg/ml, respectively. (C) pharmacodynamical synergy and antagonistic PTX and honokiol HK regions. (D–E) the IC50 (D) and combination index50 (CI50) (E) of different ratios of PTX and HK in the synergy area against Hep-2 cells. (F–G) the IC50 (F) and CI50 (G) cocktails of PPM against Hep-2 cells with different drug loading ratios of PTX and HK.
Hep-2 cells were treated with a series of cocktail PPMs prepared as described above, and the surviving cells were measured using the MTT method to check whether the 2:1 mass ratios of PTX and HK in the free drug could be applied to PPMs. Similar to free drug combinations, 2/1PHPPMs with a loaded drug mass ratio (PTX/HK) of 2:1 showed the highest cytotoxicity (lowest IC50 value) and the best synergistic effect (lowest CI50 value) (Figures 5F,G), suggesting that the optimal drug combinations dose for cocktail PPMs can be easily screened using free drugs. Thus, the 2/1PHPPM was used in the following experiments. While the synergistic effect was conserved in both the free drug combination group and the prepared PHPPM group, only the latter can ensure simultaneous delivery of the two drugs to cancer cells in a precise ratio in vitro and in vivo.
Pharmacokinetics and Biodistribution
The blood circulation and tissue distribution of 2/1PHPPM were measured. First, the pharmacokinetic profiles of a free PTX, HK, and 2/1PHPPM were performed in SD rats following intravenous administration to investigate the blood circulation of different drug formulations. As shown in Figure 6A, both free drugs are rapidly cleared from the blood, with the concentrations of PTX and HK in blood being only 0.64 μg/ml and 0.36 μg/ml, respectively, 4 h post-injection. By contrast, DEX-modification significantly enhances the blood circulation time of PHPPMs. The drug concentration in plasma was approximately 6.5 μg/ml 12 h post-injection. These results suggested that 2/1PHPPM was safe and could be applied to treat cancer (Ma et al., 2021).

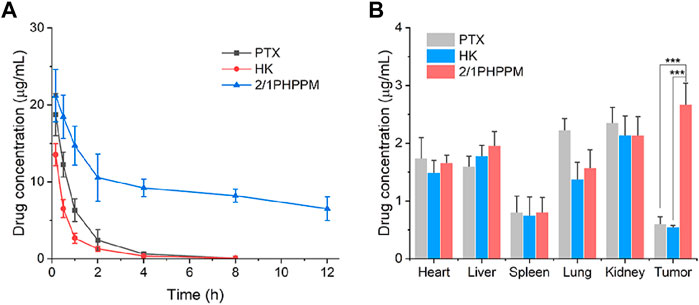

FIGURE 6. Blood circulation (A) and in vivo biodistribution (B) of paclitaxel, honokiol, and 2/1PHPPM. Data are represented as mean ± standard deviation, n = 3. ***p < 0.001.
The long blood circulation of cocktail PPM contributes to its accumulation in tumor tissue through the enhanced permeability and retention (EPR) effect (Borresen et al., 2018). The biodistribution of 2/1PHPPM and free drug combination in Hep-2 tumor-bearing mice was investigated to confirm this process. Twelve hours after the injection, the tumor tissue and other major organs were excised and homogenized for drug detection. As shown in Figure 6B, free PTX and free HK accumulated highly in the kidneys, heart, and liver but not in the tumor tissue. 2/1PHPPM showed more drug accumulation at the tumor site than free drug groups. The concentration of 2/1PHPPM in tumor tissue was 3.82- and 4.31-fold higher than that of free PTX and HK, respectively. These results showed that the cocktail PPMs could enrich tumors via the EPR effect.
Synergistic Antitumor Effects of Cocktail Polymeric Prodrug Micelle in Vivo
Considering the excellent synergistic cancer cell inhibitory effects, high bioavailability, and optimal tumor tissue accumulation of the cocktail PPM, the antitumor efficiency of 2/1PHPPM was further evaluated in vivo in Hep-2 tumor-bearing mice. When the tumor volume reached approximately 100 mm3, the mice were divided into seven groups (n = 5): PBS, PTX, HK, PTX + HK, 2/1PHPPM, PPPM, and HPPM. Tumor volume change curves, tumor weights at day 15, and TSR are presented in Figures 7A–C. On day 15, the tumor volume and weight in the PBS group were approximately 685 mm3 and 1.2 g, respectively. When compared to the PBS group, free PTX and HK showed a weak tumor inhibition effect with a TSR of 37.2% and 25.8%, respectively. Although the in vitro anticancer efficacy of the PTX + HK group was higher than that of PTX and HK alone, the in vivo tumor suppression efficacy of the PTX + HK group was not significantly different than that of monotherapy. This is because the pharmacokinetics of the two drugs are incompatible, preventing them from reaching tumor tissue in the prescribed proportions. As expected, 2/1PHPPM groups showed the best tumor inhibitory effect, with a TSR of 81.3%, compared to the other groups. This was because of tumor accumulation in a precise combination ratio and synergistic antitumor effects of PTX and HK. Moreover, there was no remarkable change in the body weight of mice, indicating that the developed 2/PHPPM had little systematic toxicity (Figure 7D).

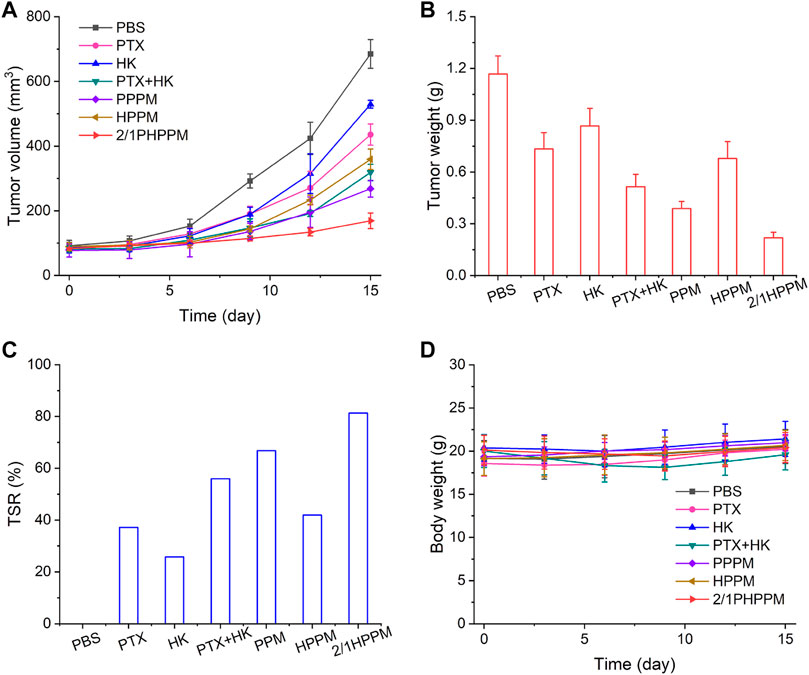

FIGURE 7. In vivo tumor suppression efficiency of different drug formulations. (A–C) time-dependent tumor volume changes (A), tumor weight (B), tumor suppression rate at day 15 (C), and time-dependent mice body weight changes (D) in mice from different groups over 15 days (n = 5). Data are represented as mean ± standard deviation.
Conclusion
A GSH/ROS dual responsive cocktail PPM co-assembled by PTX and HK polymeric prodrug for suppressing the growth of laryngeal carcinoma was successfully prepared in this study. Both drugs can be loaded ratiometrically in the cocktail PPM, delivered to tumor tissue for quantitative combination, and synchronized drug release intracellular in vivo. These advantages endowing the cocktail PPM effectively inhibited tumor growth in vitro and in vivo. The redox-responsive cocktail PPM with precise drug loading may have a high clinical potential for treating laryngeal carcinoma.
Data Availability Statement
The original contributions presented in the study are included in the article/Supplementary Material. Further inquiries can be directed to the corresponding author.
Ethics Statement
The animal study was reviewed and approved by the institutional animal care and use committees of the Bengbu Medical College.
Author Contributions
This project was conceptually designed by WL. The majority of the experiments, data analysis and interpretation, and manuscript writing were performed by LZ, JW, and WL, assisted by ZS. All authors discussed the results and commented on the manuscript. All authors contributed to the article and approved the submitted version.
Funding
This work was supported by an Anhui University Natural Science Fund Project under Grant (NO. KJ 2020A0590).
Conflict of Interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Publisher’s Note
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors, and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
Supplementary Material
The supplementary material for this article can be found online at https://www.frontiersin.org/articles/10.3389/fphar.2022.934632/full#supplementary-material
