Immunoadjuvant Nanoparticles as Trojan Horses for Enhanced Photo-Immunotherapy in the Treatment of Triple-Negative Breast Cancer

Treatment of triple-negative breast cancer (TNBC) faces great challenges due to high invasiveness and poor prognosis. Therefore, effective treatment methods are urgently needed to control primary tumors and suppress distant tumors. Herein, we employed glycated chitosan (GC), a polysaccharide macromolecular immunoadjuvant, to construct a self-assembly GC@ICG nanoparticle which is accessible to tumor cells for synergistic cancer treatment based on the combination of phototherapy and immunotherapy. In this strategy, the self-associated synthesis of spherical GC@ICG significantly improved the stability of ICG and endowed GC with Trojan Horses in tumor cells to enhance tumor immunogenicity. A bilateral 4T1 tumor-bearing mouse model was established to evaluate the therapeutic outcomes and specific host antitumor immune response. Finally, GC@ICG-based phototherapy can directly eliminate primary tumors and resist the progression of untreated distant tumors. In addition, compared to the treatment of L + GC + ICG, GC@ICG-based phototherapy was evidenced to suppress lung metastasis and enhance infiltration of CD8⁺ T cells in untreated distant tumors. Therefore, this design shows promise in addressing the challenges of the treatment of TNBC.

Introduction

Breast cancer (BC) is the most common malignant cancer among women. It is estimated that female breast cancer has overtaken lung cancer for the first time as the most commonly diagnosed cancer globally, accounting for 11.7% of the new cases in 2020 (Sung et al., 2021). The 5-year relative survival rate of female patients with localized breast tumors was 99%, whereas it was only 28% for those with distant breast tumors (Siegel et al., 2021). Triple-negative breast cancer (TNBC) is a highly heterogeneous subtype of breast cancer, and the median overall survival of patients with metastatic tumors was approximately 1 year (Waks and Winer, 2019). TNBC was characterized by the lack of three receptors, including estrogen receptor (ER), progesterone receptor (PR), and human epidermal growth factor 2 (Her 2) (Garrido-Castro et al., 2019; Hwang et al., 2019). In clinic, chemotherapy followed by surgery has been the mainstream therapeutic strategy for the treatment of TNBC, while its inherent rapid metastasis and early recurrence could result in an unsatisfactory prognosis (Poggio et al., 2018; Yin et al., 2020). Recent progress has been made in immunotherapy for a variety of malignancies, such as leukemia, melanoma, and bladder cancer, while the poor immunogenicity presented by TNBC would develop immune surveillance escape and lead to undesirable therapeutic outcomes (Hucks and Rheingold, 2019; Weiss et al., 2019; van Puffelen et al., 2020; Wang et al., 2020). Therefore, it is imperative to improve the host immune response and promote the elimination of both primary and distant tumors.

Photo-immunotherapy (PIT), a novel oncological treatment that combines phototherapy and immunotherapy, can achieve a synergistic photothermal immune effect and induce a specific antitumor immune response to eliminate the primary tumors and prevent distant tumors (Zhou B et al., 2018; Wang et al., 2019; Wang et al., 2021; Liu et al., 2022). It is reported that mono-photothermal therapy enables inducing immunogenic cell death by raising the temperature of targeted tumors to an appropriate range and facilitating the release of damage-associated molecular patterns (DAMPs) (Sato et al., 2018; Huang et al., 2021). However, the host immunity induced by mono-phototherapy is inadequate to provide an effective control of distant metastases (Gordon et al., 2017; Nam et al., 2018; Hu et al., 2021). In recent years, immunoadjuvant has attracted much attention due to the ability of immune response enhancement (Chen et al., 2016; Ng et al., 2018). In a clinical trial of PIT for advanced breast cancer patients, glycated chitosan (GC) was introduced as an immunoadjuvant to amplify the immune response induced by indocyanine green (ICG)-based phototherapy. Notably, among the eight patients available for PIT evaluation, complete response was achieved in one patient, partial response was achieved in four patients, stable disease was achieved in one patient, and progressive disease was observed in two patients. Furthermore, lung, lymph node, and liver metastases were significantly decreased in several patients (Li et al., 2011). Although ICG is an FDA-approved near-infrared (NIR) photosensitizer for clinical uses, the aggregation at the high concentration and rapid clearance rate limit the further application of ICG (Chen et al., 2013; Wang et al., 2018). Moreover, the high molecular weight makes GC, a polysaccharide formed by attaching galactose molecules to the chitosan molecules, only disperse slowly extracellularly (Zhou et al., 2012). Thus, allowing drugs to enter cells more efficiently and making the residence time of ICG in tumors longer show the prospect of obtaining a better photothermal effect and tumor immune response.

Herein, amphiphilic 5β-cholanic acid-modified GC (GC-5βCA) and ICG were assembled to form GC@ICG nanoparticles for synergistic treatment of TNBC. Specifically, GC@ICG particles could ideally mimic the Trojan Horses to deliver GC and ICG into tumor cells to ablate primary tumors. Furthermore, a specific antitumor immune response was induced and amplified to suppress the distant tumors, resulting in an excellent antitumor effect (Scheme 1). In this study, the antitumor effect and immune response were investigated in vitro and in vivo.

SCHEME 1

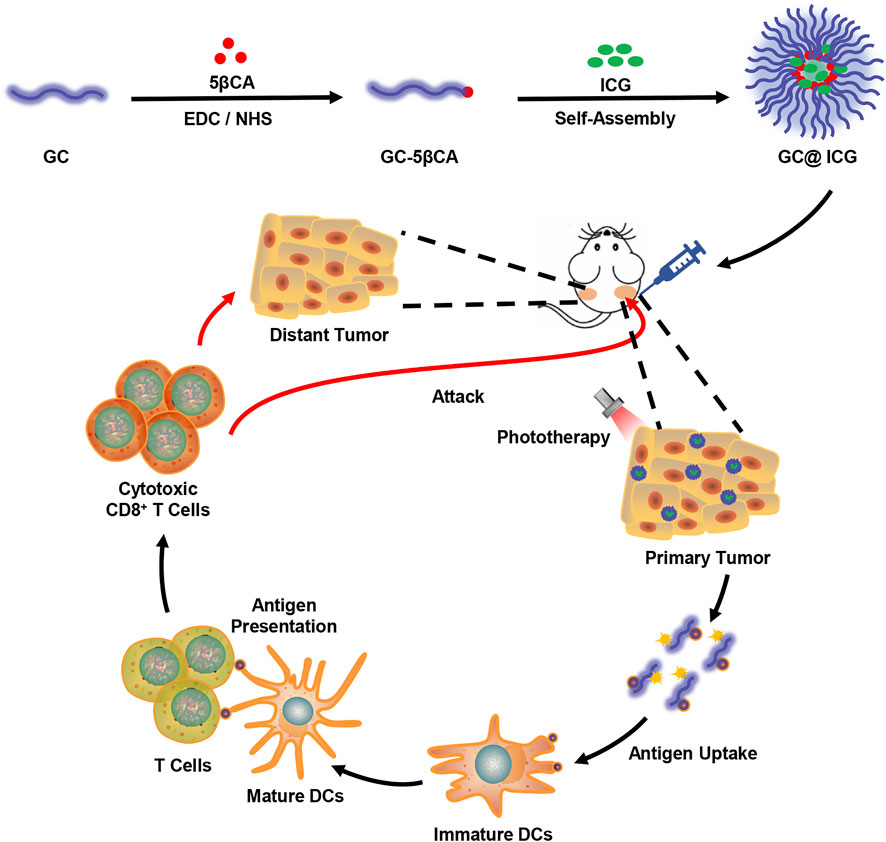

SCHEME 1. Schematic illustration showing GC@ICG-based photo-immunotherapy for triple-negative breast cancer.

Materials and Methods

Preparation of GC@ICG

In order to synthesize GC@ICG nanoparticles, 5βCA (8 mg) was dissolved in methanol, followed by 40 µl of EDC and NHS. The mixture reacted at ambient temperature for 30 min (pH 6–6.5). Then, GC (1.3 ml 1% GC dispersed in 50% methanol and 50% deionized water) was added to the polymer solution (pH 7–7.5). After stirring at an ambient temperature condition for 24 h, the resulting solution dialyzed (molecular weight cut-off = 50 kDa) for 72 h to remove nonbinding 5βCA and excess EDC/NHS. Next, ICG (1 mg/ml, 700 µl) was administered in the prepared solution, and the solution was sonicated three times using an ultrasound apparatus (JY88-IIN, Scientz, China) for 2 min each. Finally, GC@ICG was centrifuged for 20 min to remove excess ICG, and the precipitate was re-suspended in deionized water for further use.

Characterization of GC@ICG

For FTIR spectra acquisition, the freeze-dried samples were mixed with potassium bromide powder (KBr) and pressed into a thin film, and then a Fourier transform infrared spectroscopy (FTIR, Frontier, PerkinElmer, US) was used to collect FTIR spectra of our samples. The morphology and size of the GC@ICG were examined using SEM (S-3000N, Hitachi, Japan). Dynamic light scattering (Zetasiaer Nano ZSE, Malvern, United Kingdom) was used to measure the average diameter and size distribution of nanoparticles. UV-vis absorption spectra were detected by a UV-visible spectrometer (Evolution 220, Thermo Fisher, United States). The photothermal images were performed by an infrared thermal camera (226S, FOTRIC, Shanghai, China).

Cell Culture

4T1 cells, murine mammary tumor cells, were cultured in RPMI-1640 (Gibco) medium containing 10% fetal bovine serum and 1% penicillin and streptomycin at 37 °C under 5% CO₂.

In order to collect bone marrow dendritic cells (DCs), the femurs and tibiae of BALB/C female mice were collected, and surrounding muscle tissues were thrown away. RPMI-1640 medium without FBS was used to wash the bone marrow to prepare cell suspension. Then, 10% FBS was added to the medium and incubated for 2 h under 5% CO₂. Subsequently, the supernatant was removed, and RPMI-1640 medium (10% FBS, 20 ng/mL GM-CSF (PeproTech, NJ, United States)) was re-added for further culture.

Determination of Cell Cytotoxicity

The CCK-8 (Dojindo, Kumamoto, Japan) assay was used to assess the cytotoxic effect of GC@ICG NPs. Briefly, 4T1 cells were placed into 96-pore plates and incubated for 10 h (37°C, 5% CO₂), followed by the addition of GC@ICG at different concentrations (ICG 0.3, 1, and 3 μg/ml; corresponding GC 10, 33.3, and 100 μg/ml, respectively) and irradiated with or without an 808-nm laser at 0.8 W/cm² for 2 min, respectively. Cells were washed three times with buffer after 24 h and incubated with 10 µL CCK-8 at 37 °C for 2 h. Then, the absorbance at 450 nm was measured by a microplate reader (AMR-100, Allsheng, Hangzhou, China).

For subcellular localization analysis, 4T1 cells were cultured in a glass-bottom cell culture dish and incubated at 37 °C for 12 h. Then, cells were incubated with GC@ICG-FITC for 6 h and then stained with LysoTracker Red (lysosome indicator, Invitrogen, NY, United States) and Hoechst 33342 (nucleus indicator, Invitrogen) according to the supplier’s instructions. Images were taken with a confocal laser scanning microscope (FV3000, OLYMPUS, Japan).

For ROS generation analysis, 4T1 cells were seeded in a 24-well plate at a density of 5×10⁵ cells for each well, and GC@ICG was incubated with the cells for 12 h. After irradiation by the 808-nm laser (0.8 W/cm²) for 5 min, the ROS in 4T1 cells were stained with 2′,7′-dichlorofluorescin diacetate (DCFH-DA, Invitrogen, United States), and the fluorescence intensity was analyzed by fluorescence microscope (MD43-N, Mshot, Guangzhou, China).

For cell death analysis, 4T1 cells were placed into 24-well plates and cultured at 37°C for 10 h. Then, 4T1 cells were co-cultured with or without GC@ICG for 12 h, followed with or without 808 nm laser irradiation (0.8 W/cm² for 5 min). Then, calcein acetoxymethyl ester (calcein-AM, Invitrogen)/propidium iodide (PI, 5 μg/ml, Sigma-Aldrich) was added 1 hour after laser irradiation and then detected by fluorescence microscope.

For evaluation of DC maturation, DCs were incubated with tumor cells for 12 h. Then, the treated cells were stained with anti-mouse PE-CD86 and FITC-CD11c (BioLegend, United States) and detected by flow cytometry (CytoFLEX, Beckman Coulter, CA, United States).

Establishment of Animal Model and In Vivo Treatment

BALB/C female mice at 6–8 weeks were obtained from the Guangdong Medical Laboratory Animal Center. Animal handling procedures follow the guidelines of the Regional Ethics Committee for Animal Experiments. In order to establish a bilateral breast tumor model, 1.2 × 10⁵ and 0.8 × 10⁵ 4T1 cells were subcutaneously implanted into the left and right breast areas of the mice, respectively. When the primary tumor volume reached 200 mm³, the mice were assigned into five groups randomly (n = 3), including control, L, GC@ICG, L + GC + ICG, and L + GC@ICG groups. In order to study the photothermal effect of GC@ICG, the mice in the L + GC + ICG and L + GC@ICG groups were injected with 100 µL of the mixture of GC and ICG, and GC@ICG (GC 1%, ICG 20 μg/ml), respectively. Then, the mice were anesthetized, and primary tumors were irradiated with an 808-nm laser (0.8 W/cm²). The temperature of the tumor surface was recorded by an infrared thermal imaging camera. The tumor volumes and body weights of the mice were recorded for 7 days.

Immunofluorescence Assay

Tumors were collected and fixed with 4% paraformaldehyde and cut into 5 μm thick sections. FITC anti-mouse CD8a antibody, PE anti-mouse CD25, and FITC anti-mouse CD206 (MMR) antibody (BioLegend) were used to stain samples. Then, they were analyzed by fluorescence microscopy.

Statistical Analysis

All measurements were performed in biological triplicate, and the data are presented as mean ± SD. ANOVA was used for evaluation. The p-value < 0.05 was determined as significant and all significant values were performed as follows: ∗p < 0.05, ∗∗p < 0.01, and ^#p < 0.05.

Results and Discussion

Preparation and Characterization of GC@ICG

GC@ICG particles were constructed via one step, assisted self-assembly procedures (Figure 1A). In order to enable GC with self-assembly functionality, 5βCA was introduced to be covalently attached to GC, thus producing polymeric amphiphiles, as mentioned in the previous report (Ryu et al., 2020). FTIR was adopted to prove the formation of GC-5βCA. As shown in Figure 1B, the absorption peak at 1727 cm⁻¹ in the spectrum of 5βCA was attributed to the characteristic absorption of C=O stretching in carboxylic groups, and this absorption disappeared in GC-5βCA due to the formation of the amide bond. In the spectrum of GC-5βCA, the peaks that appeared at around 1,071 and 1,652 cm⁻¹ were attributed to the characteristic absorptions of C-OH and N-H stretching, respectively. Particularly, the band at 1,562 cm⁻¹ was attributed to amide absorption, indicating the successful binding of the 5βCA carboxylic acid group to the GC amino group through the amide bond (Girard et al., 2011; Lou et al., 2016; Fatouh et al., 2021). Upon contact with an aqueous environment, GC-5βCA spontaneously form nanoparticles with the encapsulation of ICG, named GC@ICG. Then, the morphology of GC@ICG was characterized by SEM. As revealed by the images, the GC@ICG showed spherical morphology with good dispersion and uniformity (Figure 1C). The hydrodynamic diameter of GC@ICG was larger than that measured by SEM (207.8 ± 11.2 nm), which may be attributed to the hydrophilicity and surface charge of GC (Figures 1D,E). Such size is conducive to cellular uptake and tumor accumulation (Foroozandeh and Aziz, 2018). Then, the optical property was studied. As shown in Figure 2A, GC@ICG solution had a high absorption peak of around 822 nm with a broad absorption shoulder. Compared to pure ICG, GC@ICG exhibited a redshift of about 40 nm in UV-visible spectroscopy. This could be attributed to the encapsulation of ICG molecules within GC@ICG nanoparticles, which remarkably affected their microenvironment. Then, the photothermal properties of GC@ICG were further explored by detecting the temperature change under the laser irradiation of 808 nm. The results in Figure 2B showed that, under the condition of the same concentration of ICG, GC@ICG could cause a more dramatic temperature increase than that of free ICG with the increase of laser irradiation time. GC@ICG reached 67.4°C in 120 s, while ICG could only reach a maximum of 46.8°C, which showed a more efficient photothermal conversion performance of GC@ICG. As a photosensitizer approved for medical application, ICG suffers from its drawbacks of aqueous instability and photodegradation, limiting its use in vitro and in vivo (Hu et al., 2019). We hope that these defects can be circumvented in the constructed GC@ICG. In order to determine the stability of GC@ICG, absorption spectra of the ICG and GC@ICG at different times and different pH conditions were measured. As shown in Figures 2C,D, the absorbance of ICG dropped 77.8% within 10 days, while almost no change in the absorption of GC@ICG was observed within the same time. In order to further determine the stability of GC@ICG in different microenvironments in vivo, three buffers representing the pH of different microenvironments were selected—pH 7.4 for normal tissue, pH 6.5 for tumor microenvironment, and pH 5.5 for lysosomes—and the absorption properties of ICG and GC@ICG were measured (Saftig and Klumperman, 2009; Qiu and Xia, 2020; Yang et al., 2021). The absorption of dissociative ICG changed greatly in different pHs (Figure 2E), while the absorption spectra of GC@ICG showed negligible change in any of the three buffers (Figure 2F). Together, these results suggested that the GC@ICG we constructed had good photothermal conversion performance and stability, which is necessary for treating the tumor in vivo.

FIGURE 1

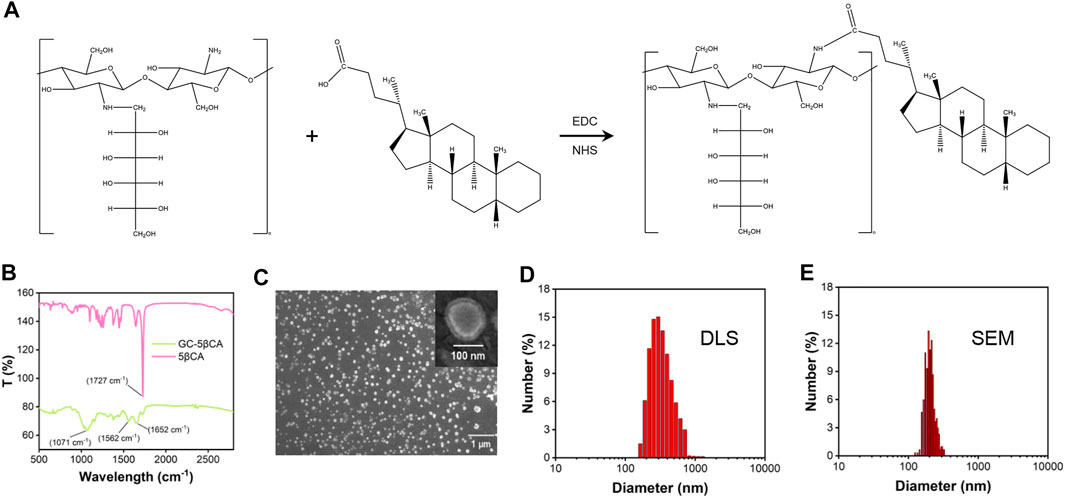

FIGURE 1. Characterization of GC@ICG. (A) Chemical structure of GC-5βCA conjugate. (B) The FTIR spectra of GC-5βCA and 5βCA. (C) SEM images of GC@ICG. Scale bar: 1 μm. Inset is enlarged image. Scale bar: 100 nm. (D) Size distribution of GC@ICG by DLS (E) Size distribution calculated from the SEM image.

FIGURE 2

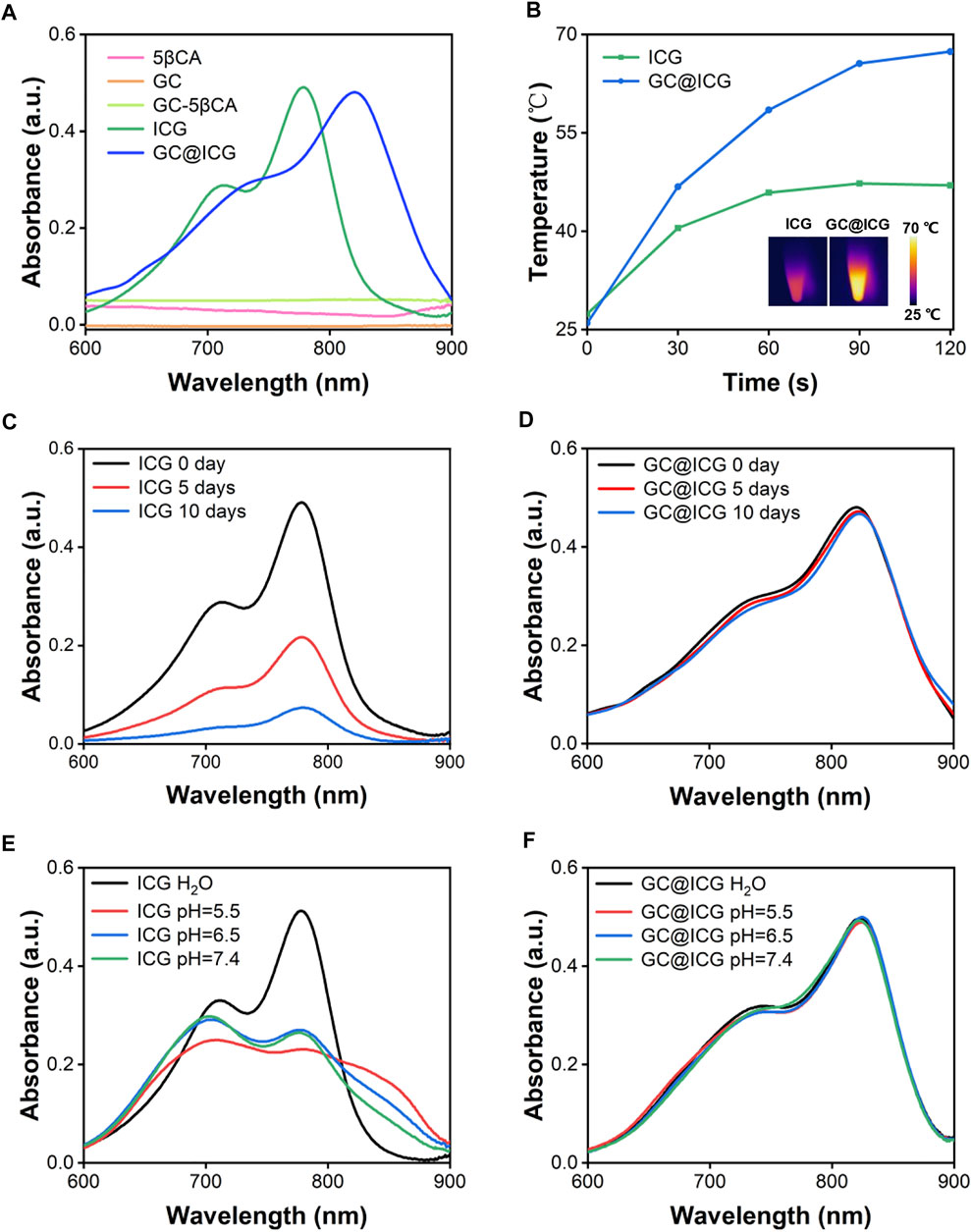

FIGURE 2. Absorption spectra of ICG and GC@ICG at different times and aqueous solutions. (A) UV-vis-NIR absorption spectra of ICG, GC@ICG, GC, 5βCA, and GC-5βCA. (B) Temperature curves of ICG and GC@ICG solution under 808 nm laser irradiation with a power density of 0.8 W/cm² for 120 s. Inset: near-infrared thermal images of ICG and GC@ICG after laser irradiation for 120 s. Absorption spectra of ICG (C) and GC@ICG (D) at different times (0, 5, and 10 days). Absorption spectra of ICG (E) and GC@ICG (F) in different aqueous solutions (pH 5.5, 6.5, 7.4 and H₂O).

Cell Effects of GC@ICG Under NIR Laser Irradiation

The cytotoxicity of GC@ICG under laser irradiation was determined by the CCK-8 method. 4T1 tumor cells were co-cultured with different concentrations of GC@ICG and irradiated with an 808-nm laser. The results indicated that GC@ICG showed almost no toxicity on 4T1 cells, indicating the high biocompatibility of GC@ICG. Meanwhile, the cell viability was 43.27% when co-cultured with GC@ICG (ICG 3 μg/ml) and 808 nm irradiation, indicating its photo-activated cytotoxicity (Figures 3A,B). Then, the capability of GC@ICG into cells was evaluated by FITC functionalized GC@ICG (GC@ICG-FITC) and incubating GC@ICG-FITC or GC-FITC with 4T1 cells in culture media, which were monitored by confocal laser scanning microscopy. Previous studies have shown that nanoparticles with a diameter of 200–300 nm could enter cells through different pathways and be trafficked to lysosomes (Behzadi et al., 2017; Vtyurina et al., 2021). Therefore, LysoTracker, a lysosome-specific red fluorescent probe, was used to judge the successful entry of GC@ICG into cells. According to the results of co-staining experiments, compared to GC-FITC, which can only slowly disperse extracellularly, co-localization between GC@ICG and LysoTracker was largely matched, exhibiting its ability to enter cells and that endocytosis was the pathway for the cellular internalization of GC@ICG (Figure 3C). The ROS-producing capacity of GC@ICG in 4T1 cells was evaluated by staining cells with DCFH-DA as the ROS probe. As shown in Figure 3D, cells treated with L + ICG and L + GC@ICG showed green fluorescence, indicating the generation of ROS. Particularly, the L + GC@ICG group exhibited significantly higher fluorescence intensity compared with the L + ICG group, showing that GC@ICG under laser irradiation could enhance endogenous oxidative stress than free ICG under laser irradiation. Then, the viability of 4T1 cells in different treatment groups was evaluated by calcein-AM/PI double staining, and the results demonstrated that most of the cells were stained with PI in the group of L + GC@ICG, indicating the killing effect of GC@ICG in cells under NIR light irradiation. In contrast, almost no dead cells were detected in other groups (Figure 3E). These results may be because the GC@ICG nanoparticles can enter cells directly, thus having a more effective killing effect on cells. It is reported that apoptotic tumor cells could stimulate the antitumor immune response (Feng et al., 2003; Ahmed and Tait, 2020). However, weak tumor cell immunogenicity is a barrier in immunotherapy. Using immunoadjuvants to enhance the specific immune response of the antigen is one of the breakthroughs to solve this problem. To our knowledge, GC is a potent immunoadjuvant used in laser immunotherapy to induce and enhance antitumor immune responses (Zhou F et al., 2018; Qi et al., 2020). Therefore, we further determined the immunological effects of GC@ICG on DCs by analyzing the upregulation of CD86, highly expressed on the surface of DCs, CD86 expression and cytokine release are typical markers of DC maturation. Flow cytometry was used to measure the upregulation of CD86 on DCs stimulated by treated tumor cells. As shown in Figure 3F, compared to the control group, tumor cells treated with L + GC@ICG could significantly promote the maturation of DCs. The expression of TNF-α was also upregulated in the group of L + GC@ICG (Figure 3G). Overall, these results indicated the photothermal effect of GC@ICG under NIR laser and the immune stimulation of the cells. Furthermore, the ability of GC@ICG to enter cells allowed it to be considered an “endogenous antigen” to be recognized by antigen presenting cells when a tumor cell dies, thereby enhancing tumor cell destruction and antitumor immune response.

FIGURE 3

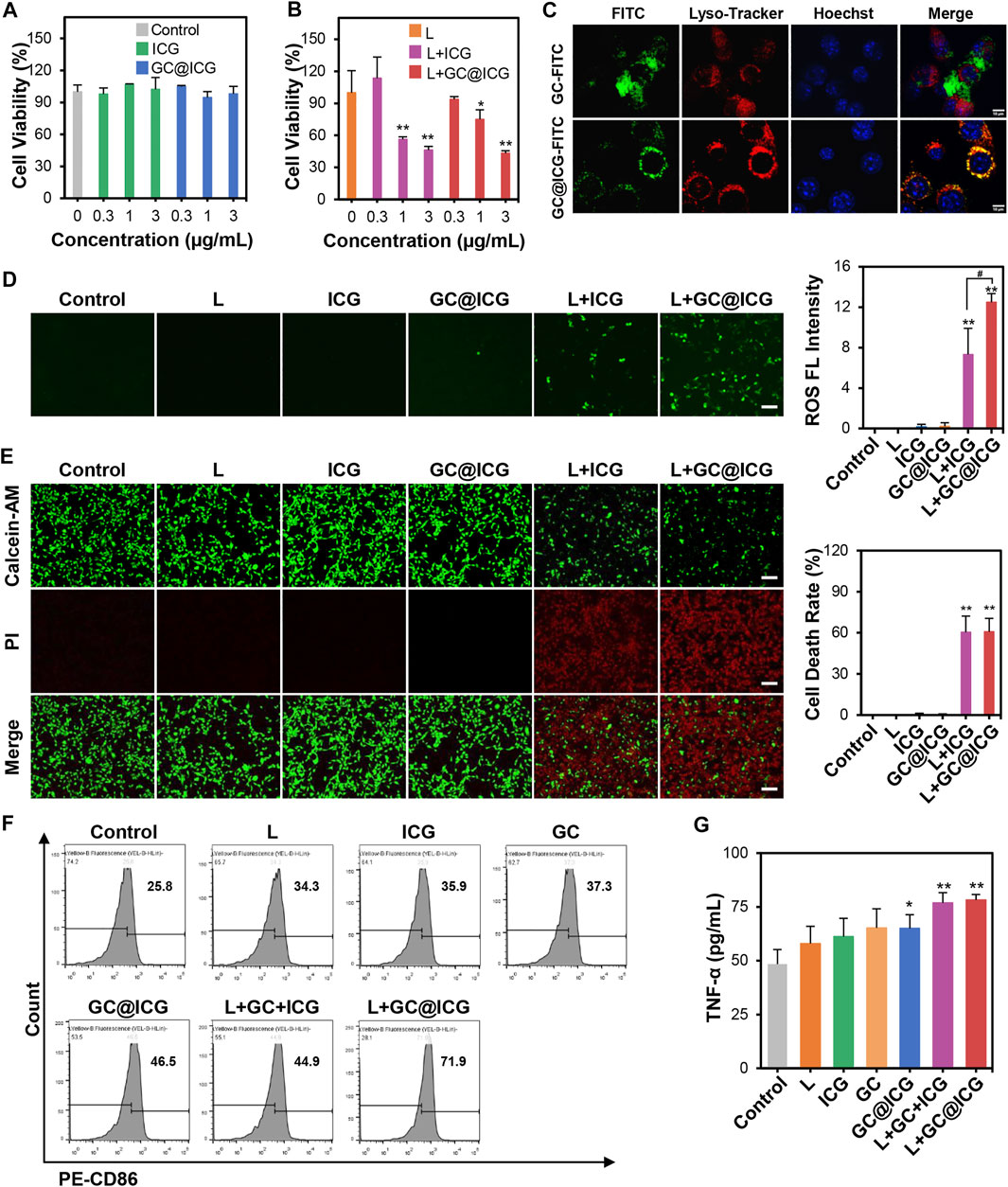

FIGURE 3. Immunogenic tumor cell death induced by GC@ICG NPs based phototherapy. Cell viability of 4T1 cells after incubation with different concentrations of ICG (0.3, 1, and 3 μg/ml) without (A) or with (B) 808 nm at 0.8 W/cm² for 5 min (n = 3, ∗p < 0.05, ∗∗p < 0.01). (C) Fluorescence images of intracellular localization of GC and GC@ICG in 4T1 cells. Scale bar: 10 μm. (D) Fluorescence images of ROS production in 4T1 cells stained with DCFH-DA (a ROS probe, green). Scale bar: 100 μm. Bar graph demonstrated ROS fluorescence intensity (n = 3, ∗∗p < 0.01 and ^#p < 0.05 vs. indicated groups). (E) Fluorescence images of 4T1 cells stained with calcein-AM/PI for cell death evaluation after different treatments. Live cells: green, calcein-AM. Dead cells: red, PI. Scale bar: 100 μm. Bar graph demonstrated percentage of cell death rate (n = 3, ∗∗p < 0.01). (F) Flow cytometric analysis of CD86 expression on the surface of DCs with different treatments. (G) ELISA analysis of TNF-α released from DCs stimulated by GC and GC@ICG (n = 3, ∗p < 0.05, ∗∗p < 0.01).

In Vivo Effect of GC@ICG-Based Phototherapy

Having proved the killing effect and immune promotion effect of GC@ICG on tumor cells at the cellular level, we next sought to study the in vivo PIT treatment efficacy of GC@ICG in mice. According to the treatment schedule illustrated in Figure 4A, the therapeutic effect of GC@ICG-based phototherapy was evaluated. First, mice bearing 4T1 breast tumors were established by injecting tumor cells into the breast of both sides of BALB/C female mice. Then, the mice were randomly assigned into five different groups, including control, L, GC@ICG, L + GC + ICG, and L + GC@ICG groups (n = 3). The temperature of the tumor surface under the laser irradiation with an 808-nm laser of 0.8 W/cm² for 10 min was recorded by an infrared thermal imaging camera. The results suggested that the L + GC@ICG group had a higher temperature rise rate and reached the maximum temperature of 56.7°C within 1 min. However, the surface temperature of mice in the group of L and L + GC + ICG only increased to 36°C and 51.2°C, respectively, demonstrating the excellent photothermal effect of GC@ICG in vivo (Figures 4B,C). Tumor volumes and body weights of the mice were recorded daily during the treatment, and all tested mice were sacrificed after 7 days of treatment. It was observed that GC@ICG could apparently inhibit the development of 4T1 tumors under laser irradiation on both sides and the primary tumor eventually disappeared completely after treatment. Additionally, the primary tumors of the mice in the L + GC + ICG group were also completely ablated, while the scabs at the tumor sites affected the measured value. However, mice treated with laser irradiation alone exhibited only a slight inhibition effect on tumors, and mice treated with GC@ICG alone showed a similar tumor growth rate to that of untreated mice, without any observed inhibition effect (Figures 4D–F). As shown in Figure 4G, neither death nor significant weight change in mice was observed within 7 days after treatment, indicating that our treatment strategy had excellent biosafety. Hematoxylin and eosin (H&E) staining of lung tissue slices demonstrated that the strongest inhibition effect of metastasis was obtained with the combination therapy of GC@ICG and 808 nm laser irradiation (Figure 5A). Meanwhile, the CD8 immunohistochemical staining of distant tumor slices showed that the L + GC + ICG and L + GC@ICG groups exhibited the infiltration of CD8⁺ T cells, while the expression of CD8 in the L + GC@ICG group was significantly higher than that in the L + GC + ICG group, which proved that compared with the simple mixture of ICG and GC, the corresponding stimulation of GC@ICG to the immune system was obviously stronger (Figure 5B). Meanwhile, regulatory T cells (Tregs, marked by CD25) and M2 macrophage (marked by CD206) significantly decreased in distant tumors after L + GC@ICG treatment, indicating the decreased immunosuppression in the tumor microenvironment (Figures 5C,D). This further demonstrated the great advantages of GC@ICG nanoparticles over other GC-based systems in terms of photo-immunotherapy.

FIGURE 4

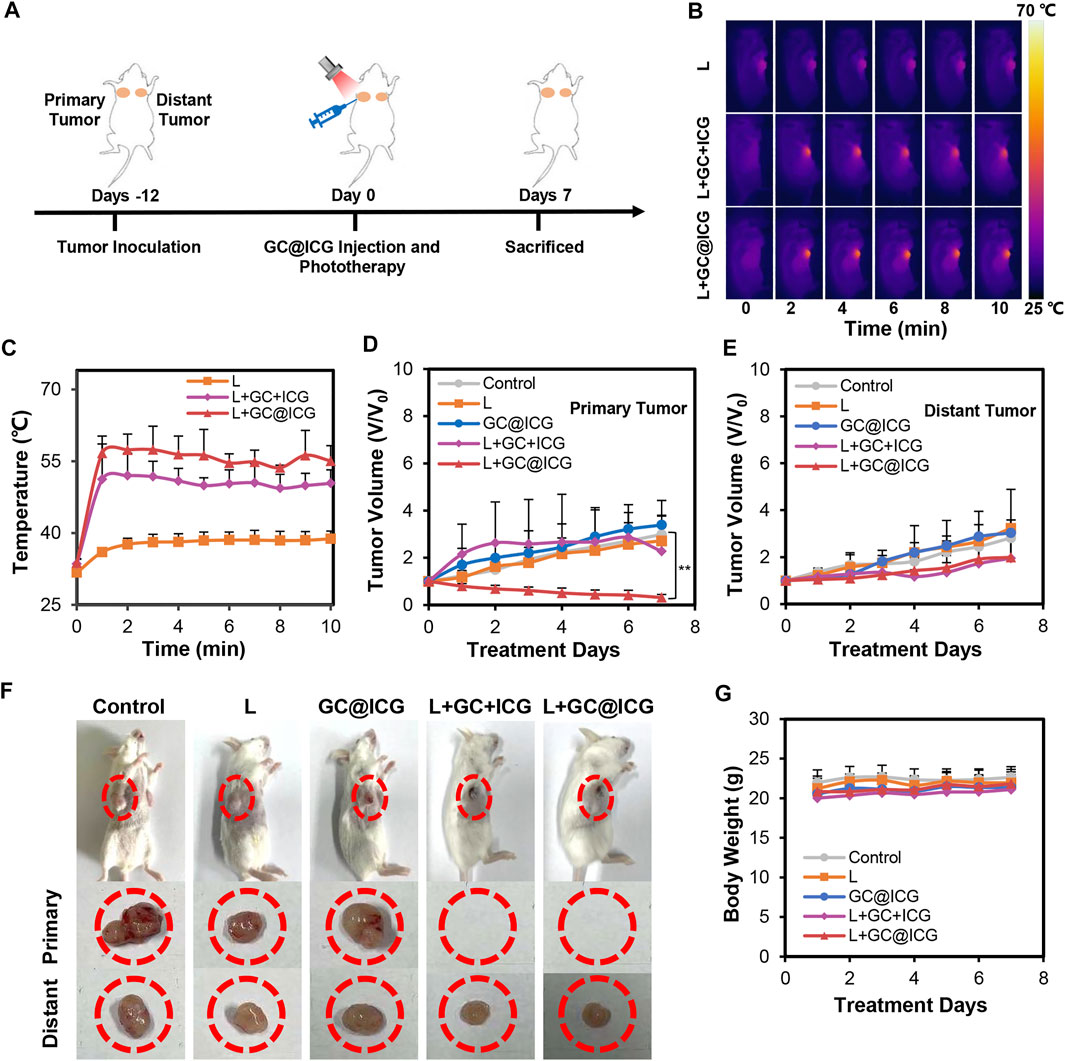

FIGURE 4. In vivo antitumor effect of GC@ICG-based phototherapy. (A) Schematic illustration of the timeline of the animal experiment for GC@ICG-based phototherapy. (B) Near-infrared thermal images of mice during 808 nm laser irradiation at 0.8 W/cm² for 10 min. (C) Temperature elevations on primary tumor surface during laser irradiation based on infrared thermal imaging. Time-dependent tumor growth curves of primary (D) (n = 3, ∗∗p < 0.01) and distant tumors (E). (F) Photographs of mice with different treatments (from left to right: control; L; GC@ICG; L + GC + ICG; L + GC@ICG). (G) The change of body weights of mice after different treatments.

FIGURE 5

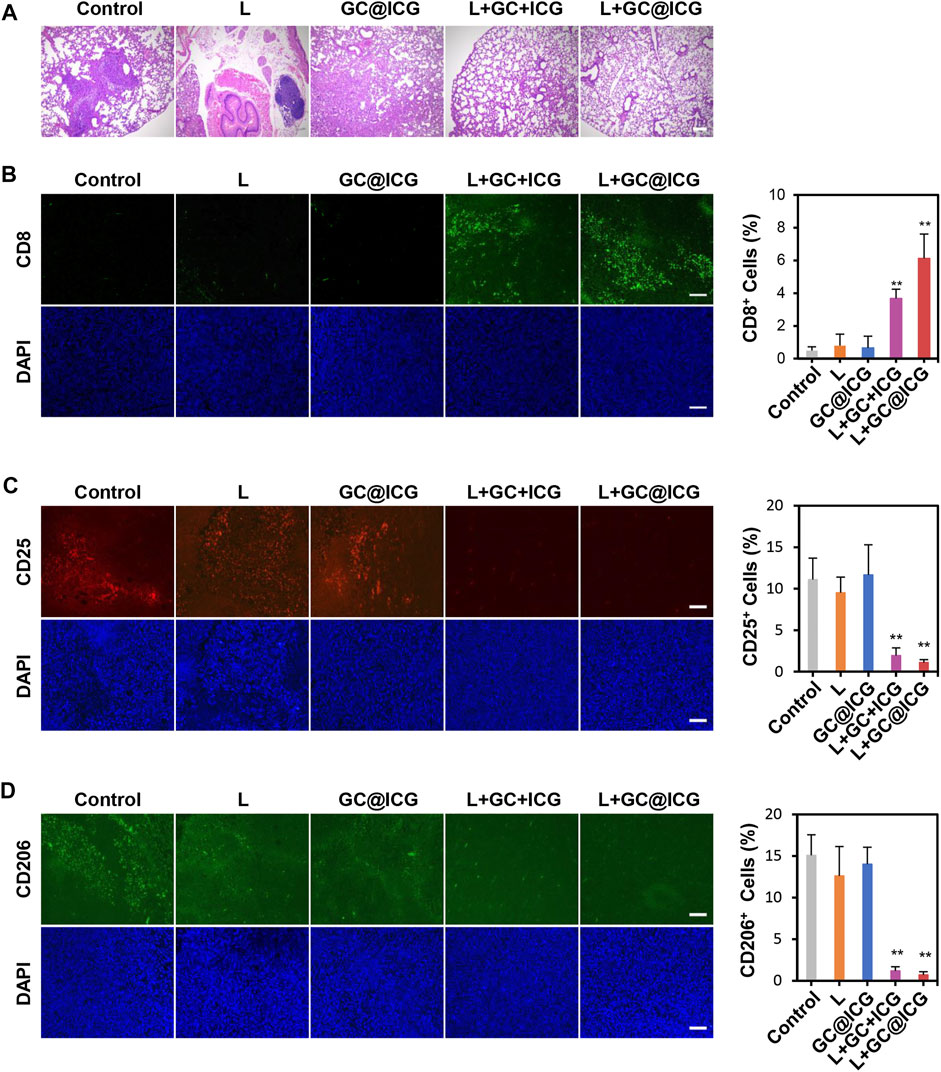

FIGURE 5. Abscopal effect of GC@ICG-based phototherapy. (A) H&E staining images of lungs collected from mice after different treatments. Scale bar: 200 μm. Immunofluorescence images of the excised distant tumor stained with anti-CD8a (B), anti-CD25 (C), and anti-CD206 (D). Bar graphs showed the number of CD8⁺, CD25⁺, and CD206⁺ cells infiltrated in distant tumors. Scale bar: 100 μm (n = 3, ∗∗p < 0.01).

Conclusion

In summary, we developed a self-assembled nanoparticle GC@ICG for photo-immunotherapy of TNBC. The self-assembled GC@ICG nanoparticles can act as “Trojan Horses” to deliver GC into tumor cells efficiently. Laser-induced temperature rise can cause cell death and release DAMPs, antigens, and GC@ICG. When DC recognizes DAMPs, GC can further stimulate DC as an immune stimulator and enhance the host antitumor immune response. Inhibited primary tumors and distant tumors were achieved by taking advantage of the above-mentioned excellent properties of GC@ICG, indicating an extraordinary therapeutic effect. Therefore, the oncotherapy strategy we constructed is a promising candidate for tumor treatment, which will provide a new approach for clinical application in cancer diagnosis and treatment in the future.

Data Availability Statement

The original contributions presented in the study are included in the article further inquiries can be directed to the corresponding authors.

Ethics Statement

The animal study was reviewed and approved by the Animal Welfare and Ethics Review Committee of Hainan University.

Author Contributions

JW, FL, and FZ designed the manuscript. JW and SW performed the experiments and analyzed the data. FZ, FL, SL, JW, and SW verified all the original data in the manuscript. FZ, LF, SL, and JW helped optimize the drafting of the manuscript. The manuscript was edited and reviewed by all authors.

Funding

This work was supported by grants from the National Natural Science Foundation of China (82171990) and the Hainan Province Key Area R&D Program (ZDYF2021SHFZ094).

Conflict of Interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Publisher’s Note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors, and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
