Borimas Hanboonkunupakarn
Joel Tarning2,3- 1Department of Clinical Tropical Medicine, Faculty of Tropical Medicine, Mahidol University, Bangkok, Thailand
- 2Mahidol Oxford Tropical Medicine Research Unit, Faculty of Tropical Medicine, Mahidol University, Bangkok, Thailand
- 3Centre for Tropical Medicine and Global Health, Nuffield Department of Medicine, University of Oxford, Oxford, United Kingdom
- 4The Royal Society of Thailand, Bangkok, Thailand
The emergence of artemisinin resistance is a major obstacle to the global malaria eradication/elimination programs. Artemisinin is a very fast-acting antimalarial drug and is the most important drug in the treatment of severe and uncomplicated malaria. For the treatment of acute uncomplicated falciparum malaria, artemisinin derivatives are combined with long half-life partner drugs and widely used as artemisinin-based combination therapies (ACTs). Some ACTs have shown decreased efficacy in the Southeast Asian region. Fortunately, artemisinin has an excellent safety profile and resistant infections can still be treated successfully by modifying the ACT. This review describes the pharmacological properties of ACTs, mechanisms of artemisinin resistance and the potential changes needed in the treatment regimens to overcome resistance. The suggested ACT modifications are extension of the duration of the ACT course, alternating use of different ACT regimens, and addition of another antimalarial drug to the standard ACTs (Triple-ACT). Furthermore, a malaria vaccine (e.g., RTS,S vaccine) could be added to mass drug administration (MDA) campaigns to enhance the treatment efficacy and to prevent further artemisinin resistance development. This review concludes that artemisinin remains the most important antimalarial drug, despite the development of drug-resistant falciparum malaria.
Introduction
Artemisinin remains the most important antimalarial drug despite the development of partial drug resistant Plasmodium falciparum parasites in Southeast Asia (Dondorp et al., 2009; Ashley et al., 2014), and emerging partial resistance in East-Africa (Uwimana et al., 2020; Balikagala et al., 2021; Uwimana et al., 2021). It is the fastest acting antimalarial drug available in the market, and plays a key role in the treatment of uncomplicated and severe malaria. Artemisinin-based combination therapy (ACT), given orally for 3 days, is the first-line therapy recommended in the treatment of uncomplicated P. falciparum malaria. Parenteral artesunate is the first line treatment for severe malaria, and should be continued until the patient is well enough to receive oral medication. While the world is aiming to eliminate malaria, artemisinin resistance threatens this objective. This review aims to describe the pharmacological properties of ACTs, the mechanism of artemisinin resistance and the potential changes needed in the treatment regimens to fight resistance.
Pharmacokinetic-pharmacodynamic properties of ACTs
Artemisinin is a short acting but very potent antimalarial drug. It has a short terminal elimination half-life of approximately 1–3 h, resulting in undetectable drug levels within 10 h of drug administration (Tarning et al., 2012; Kloprogge et al., 2015). This pharmacokinetic property demands daily dosing to achieve effective treatment. However, a relatively high degree of recrudescence was seen with short courses of daily monotherapy (<7 days), due to artemisinin-induced dormancy in P. falciparum infections (Peatey et al., 2021). Artemisinin is no longer recommended to be used as monotherapy, except for parenteral treatment of severe malaria. In ACTs, artemisinin is responsible for eliminating the majority of the parasite biomass during the first days of treatment, while residual partner drug concentrations kill the remaining parasites to prevent recrudescence (Figure 1). The partner drug concentrations must be maintained above the minimal inhibitory concentration (MIC) until the infection has been cleared for successful chemotherapy. If the drug concentrations fall below the MIC value before the infection is cleared, parasites could multiply and result in a recrudescent infection (Figure 1).

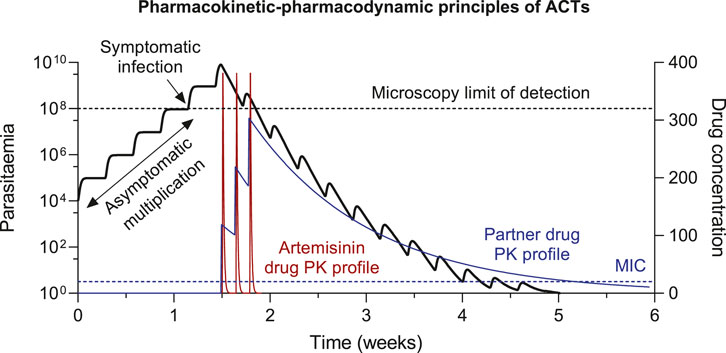

FIGURE 1. Pharmacokinetic-pharmacodynamic (PK-PD) principles of ACT treatment. The minimal inhibitory concentrations (MIC) is the lowest antimalarial drug concentration that will inhibit the visible growth of the parasites, resulting in parasite elimination at drug concentrations >MIC and parasite growth at drug concentrations <MIC.
This time period, after drug administration, where residual drug concentrations are maintained above the MIC value is also referred to as post-treatment prophylaxis. Novel infections emerging from the liver during this time-period will be eliminated and therefore prevent reinfections to be established. The suppression of novel infections associated with long-lasting ACTs are utilized during the prevention of malaria (i.e., prophylactic treatment, seasonal malaria chemotherapy (SMC), intermittent preventive treatment (IPT)). The duration of post-treatment prophylactic effect depends on both the terminal elimination half-life of the drug and the susceptibility of the parasite to the drug, which determines the MIC. ACTs containing a partner drug with a long terminal elimination half-life can be used effectively in the prevention of malaria. The most promising combination is dihydroartemisinin-piperaquine, due to the long biological half-life of piperaquine (20–30 days), which allows monthly treatment to prevent malaria (Hoglund et al., 2017; Chotsiri et al., 2019).
Parasite drug resistance is the result of genetic changes that confers reduced drug susceptibility. This allows a mutated parasite to multiply when exposed to otherwise suppressive drug concentrations. Such a survival advantage, compared to wildtype parasites, would quickly be selected for during high drug pressure in a region, allowing the drug resistant strain to spread. Genetic mutations are by definition random events, and the absolute number of genetic mutations during an infection is therefore expected to increase with increasing parasitemia. Thus, de novo drug resistance is more likely to arise in patients with high parasitemia. The probability of drug resistance development would therefore be higher in patients with hyperparasitemia (>1012 parasites), compared to patients with uncomplicated acute symptomatic infections (108–1012 parasites), compared to patients with asymptomatic infections (<108 parasites). When/if such an event occurs, exposure to another drug with a different mechanism of action would eliminate the mutated parasite and prevent the drug resistant parasite to establish a patent infection. This is the main reason why combination therapies prevent drug resistance development. The ideal combination of drugs would be two (or more) highly potent compounds with different mechanisms of action, and matching pharmacokinetic properties (i.e., similar terminal elimination half-lives). This would allow drug concentrations to be maintained above the MIC value for a similar duration of time in order to prevent emerging resistant parasites to establish a patent infection.
The artemisinin class of drugs (i.e., artesunate, artemether, and dihydroartemisinin) is the most potent and rapidly acting antimalarials on the market. Artemisinin commonly result in approximately 103–104-fold reduction in parasitemia per parasite life-cycle of 48 h, while the marketed ACT partner drug is less potent, resulting in approximately 101–103-fold reduction in parasitemia per parasite life-cycle of 48 h. It would be highly advantageous with novel partner drugs that are more potent than the currently available antimalarials. This rapid reduction in parasitemia associated with ACT reduces the likelihood of resistance development. However, decades of preceding artemisinin-based monotherapy resulted in the development of artemisinin-resistant parasites in Cambodia, which is now widespread throughout mainland Southeast Asia, resulting in a slower parasite clearance of P. falciparum Kelch13-mutated parasites compared to wildtype parasites (Ariey et al., 2014; Ashley et al., 2014; Kagoro et al., 2022; Zhu et al., 2022). Artemisinin resistance has now also emerged in India (Chakrabarti et al., 2019; Das et al., 2019), in South America (Mathieu et al., 2021), and on the African continent in Uganda and Rwanda (Uwimana et al., 2020; Balikagala et al., 2021; Uwimana et al., 2021). Artemisinin-resistant infections are defined as patients showing a parasite clearance half-life above 5 h, at standard dosing (i.e., <103-fold reduction in parasitemia per life-cycle) (Dondorp et al., 2009). This results in a substantially higher parasite biomass to be eliminated by the partner drug in ACTs, and as a consequence, multi-drug resistant parasites have now developed in Southeast Asia with reduced drug susceptibility towards both artemisinin and its partner drug (Amaratunga et al., 2016). We and others have suggested to use longer duration ACT courses and triple ACTs (TACTs) in the fight against multi-drug resistant malaria. The additional third drug would be selected to match the pharmacokinetic properties of the existing ACT partner drug (e.g., dihydroartemisinin-piperaquine + mefloquine). TACTs have shown excellent treatment efficacy in regions of multi-drug resistant malaria, and they are likely to protect against further drug resistance development (van der Pluijm et al., 2020; Peto et al., 2022).
ACT-related elimination of a malaria infection results in an exponential decay of parasites. The time it takes to clear an infection is dependent on two variables (1) starting parasitemia and (2) rate of decline (Figure 2). Thus, it takes a longer time to clear an infection with high admission parasitemia (hyperparasitemia) compared to an infection with low admission parasitemia (asymptomatic). Similarly, it takes a longer time to clear resistant infections (slower rate of decline) compared to drug susceptible infections (higher rate of decline). Therefore, it is substantially higher risk for resistant development and more difficult to treat symptomatic patients compared with asymptomatic patients. Increased drug pressure in malaria elimination campaigns, resulting from mass-drug-administrations or screen-and-treat strategies, might not increase the risk of resistance development, when using high-quality drugs administered according to standard guidelines. Most individuals receiving these treatments would be asymptomatic patients, with very low levels of parasitemia. Their infections could be treated relatively quick. The low starting parasitemia and the relatively short duration of infection, would make these individuals far less likely to develop antimalarial drug resistance.

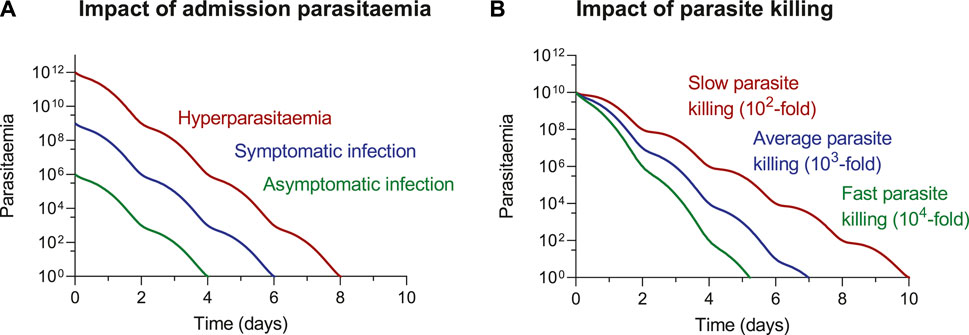

FIGURE 2. ACT-related elimination of a malaria infection, illustrating the impact of (A) starting parasitaemia and (B) rate of parasite decline on time to clearing an infection. The impact of parasitaemia (A) is illustrated assuming a 103-fold reduction in parasitaemia every parasite lifecycle of 48 h. The impact of parasite decline (B) is illustrated assuming an admission parasitaemia of 1010 parasites.
Mechanisms of artemisinin resistance
Artemisinin resistance was first reported in Cambodia (Dondorp et al., 2009; Ashley et al., 2014), and have now spread throughout the Greater Mekong Subregion (GMS) (Imwong et al., 2020). Clinical artemisinin resistance can be detected by several in vitro susceptibility tests, i.e., the trophozoite inhibition maturation assay (TMI) with an IC50 value >5 ng/ml (Chotivanich et al., 2014); and the ring survival assay (RSA) with a parasite survival rate ≥1% (Witkowski et al., 2013a; Witkowski et al., 2013b; Davis et al., 2020). Molecular studies have demonstrated that mutations in the P. falciparum Kelch 13 (PfK13) gene are associated with a prolonged clinical parasite clearance (Ariey et al., 2014). The PfK13 protein is involved in the endocytosis of hemoglobin, which is required for parasite growth in red cells. The strong association between PfK13 mutant alleles, in vitro parasite survival rate (TMI and RSA), and in vivo parasite clearance half-life indicate that PfK13 mutations are an important molecular marker of artemisinin resistance (Wang et al., 2015; Thuy-Nhien et al., 2017; Sá et al., 2018; Chhibber-Goel and Sharma, 2019; Das et al., 2019; Zhang et al., 2019; Miotto et al., 2020; Siddiqui et al., 2020). PfK13 contains six β-propeller Kelch domains and mutations in this region, particularly the C580Y mutation, has been used in the surveillance of artemisinin resistance in the GMS. However, artemisinin resistance (i.e., prolonged parasites clearance half-life) has also been reported without PfK13 mutations in clinical isolates from Cambodia (Mukherjee et al., 2017) and India (Das et al., 2021).
The following mechanisms have been proposed to explain the development of artemisinin resistance; 1) reduced ring stage drug susceptible compared to the mature stages (Wang et al., 2018; Intharabut et al., 2019), 2) enhanced adaptive responses against oxidative stress and protein damage (Mok et al., 2015), 3) lower levels of ubiquitinated proteins, resulting in enhanced cell stress response and delayed cell death (Dogovski et al., 2015; Tilley et al., 2016), 4) an elevation of a lipid phosphatidylinositol-3-phosphate (PI3P) as a result of the reduced binding between P. falciparum phosphatidylinositol-3-kinase (PfPI3K) and mutated PfK13 (Mbengue et al., 2015; Suresh and Haldar, 2018), 5) other unknown mechanisms protecting the infected red cell from proteopathy (Rocamora et al., 2018), and 6) better adherence to host receptors and remodeling of the infected red cell membrane by vesicle amplification to avoid splenic removal (Bhattacharjee et al., 2018).
Dormant P. falciparum parasites after artemisinin exposure have been reported in vitro (Teuscher et al., 2010) and in vivo (Peatey et al., 2021). This has raised the concern over the potential association of the artemisinin-induced dormant parasites and the development of drug resistance as found in other microbes (Lewis, 2007). Besides, a study on P. falciparum infection in the Aotus monkey model showed little effect of PfK13 mutations in the recrudescent frequency after artemisinin treatment (Sa et a., 2018). This could be a result of dormant parasites or the differences between humans and monkeys in host-parasite relationships. The possibility of artemisinin-induced dormancy emphasizes the importance of partner drugs in ACTs.
Immunity is also suggested to play important roles in the emergence and spreading of antimalarial resistance. Non-immune people almost always become ill when they are first infected with malaria. Therefore, young children in endemic areas are the main group that suffers from the infection; many develop severe malaria and die. With repeated exposure, people can acquire immunity against malaria although the immunity is slowly developed and wanes after a few years if not constantly exposed to the infection. This naturally acquired antibody-mediated immunity can lower parasitemia due to its effect on blood-stage parasites (Marsh and Kinyanjui, 2006), and reduce transmission due to its effect on gametocytes and sporozoites (John et al., 2005 and John et al., 2008; Bousema and Drakeley, 2011). Therefore, the risk of severe infection and death are lower in older children and adults in malaria endemic areas. Interestingly, it has been noticed that although antimalarial resistance can be found worldwide, the origin of resistance is typically in low transmission areas. Chloroquine resistance in Plasmodium falciparum appeared in Thailand (Harinasuta et al., 1962) just 2 years before Colombia (Moore and Lanier, 1961) during late 1950s, both of which were low transmission areas. The resistance continuously spread across Southeast Asia to India and arrived Africa in 1978 (Campbell et al., 1979; Fogh et al., 1979). This route of spreading the resistant genotype was later confirmed by genetic microsatellite analysis (Wootton et al., 2002). Decades later, the history has repeated itself with sulfadoxine-pyrimethamine resistance (Roper et al., 2004) and now with artemisinin resistance.
Suggested explanations of this phenomenon have been proposed recently (Ataide et al., 2017; Whitlock et al., 2021). A multinational study of artemisinin resistance in Southeast Asia demonstrated that faster parasite clearance time was associated with higher immunity levels, suggesting that patients with low immunity are more likely to develop, harbor and transmit mutant parasites (Ataide et al., 2017). A multiscale, agent-based model by Whitlock et al. also provided supportive findings, showing that high host immunity, as acquired in high transmission setting, slowed the evolution of resistance. However, once the resistance becomes common in the parasite population, it will be maintained at a high prevalence (Whitlock et al., 2021).
With global malaria elimination programs, malaria transmission and thus host immunity will be lower in many areas, resulting in greater risk of emergence and expansion of artemisinin-resistant P. falciparum infections.
Multi-drug resistant parasites have now emerged as a consequence of widespread artemisinin resistance, resulting in high failure rates of the ACT dihydroartemisinin-piperaquine in western Cambodia and nearby regions such as northeast Thailand and southern Vietnam (Amato et al., 2017; Witkowski et al., 2017; van der Pluijm et al., 2019). In India, longitudinal Plasmodium falciparum isolates from across the country showed decreased in vitro artemisinin-sensitivity as early as 2012 (Chakrabarti et al., 2019) and declining clinical efficacy of artesunate-sulfadoxine-pyrimethamine has been reported (Mishra et al., 2014; Das et al., 2021). Artemisinin is the most important antimalarial drug and remains a critical tool for malaria elimination and eradication programs worldwide. It is crucial to understand where resistance occurs geographically and the different resistance mechanisms and parasite-host interactions associated with reduced drug susceptibility. Clinical studies and epidemiological surveillance are needed for the containment of artemisinin resistance. Identifying the clinical efficacy of available drugs and combinations, and developing new antimalarial compounds with novel mechanisms of action is needed urgently.
Potential modifications of artemisinin-based treatments for increased efficacy
Although resistance to artemisinin and its derivatives has emerged among P. falciparum in various regions (Ashley et al., 2014), ACTs are still the main stay of falciparum malaria treatment. Several researchers have explored various ways to improve the use of artemisinin to maximize its benefits. Modification of existing antimalarial regimens has been considered as the quickest way to improve the treatment outcome. Potential modifications include a prolonged ACT course, alternate use of different ACT regimens, and triple ACTs. Combining a malaria vaccine and an ACT in mass drug administration (MDA) campaigns in low transmission settings have been suggested to accelerate the elimination of falciparum malaria.
Prolonged treatment course
Several studies have suggested that extending ACTs to 5–6 days could increase the effectiveness of ACTs. While the 3-day ACTs are the first-line therapy recommended by the WHO in treating uncomplicated falciparum malaria, parasites are potentially exposed to artemisinin for only one full parasite life cycle during the treatment course (White, 1997), which might not be enough for effective treatment of resistant parasites (White, 1997; Walker and Sullivan, 2017). Pharmacokinetic modelling of artemether-lumefantrine showed substantially increased exposure with a prolonged duration of treatment (Tarning et al., 2009). Pharmacological modelling, based on dihydroartemisinin-piperaquine, suggested that ACT effectiveness in the treatment of artemisinin resistant infections, could be improved if treatment duration was extended from 3 to 5 days (Kay et al., 2015). Results from a murine malaria model suggested that artemisinin’s cytocidal activity was enhanced when extending the treatment duration to cover 3 asexual life-cycles compared to 1 life-cycle with similar total dose (Walker and Sullivan, 2017). While these results were promising, it raised concerns related to the safety of prolonged exposure to long half-life partner drugs. Recently, a 5-day regimen of artemether-lumefantrine was demonstrated to be well tolerated and safe when treating uncomplicated falciparum malaria in pregnant and non-pregnant women in Africa (Onyamboko et al., 2020) and in adult non-pregnant patients in an area of emerging artemisinin resistance in Myanmar (Tun et al., 2018). Additional information on other ACT regimens is needed to support this modification. Furthermore, in a real-life setting, prolonged treatment courses are likely to result in poorer patient compliance, which is needed to be evaluated before implementation.
Increased frequency of ACT administration has been explored and debated. A mathematical modelling approach predicted that increasing the frequency of artesunate administration to twice daily would be beneficial in treating artemisinin-resistant parasites (Saralamba et al., 2011). However, data from a randomized clinical trial in uncomplicated malaria showed that parasite clearance half-life was not statistically accelerated when using twice-daily artesunate (Das et al., 2013). This discrepancy between clinical data and the model prediction was suggested to be a potential reduction of artemisinin sensitivity among other stages of parasites besides the ring stage activity that was the main driver of artemisinin resistance in the model. Additional clinical data are needed to support this practice.
The alternate use of different antimalarial regimens
There is evidence suggesting that parasites can regain the sensitivity to an antimalarial after the drug pressure has been lifted for some time. In 1993, Malawi withdrew chloroquine and started to use sulfadoxine-pyrimethamine for the treatment of malaria due to the poor clinical efficacy of chloroquine at that time. The molecular marker of chloroquine resistance in falciparum malaria, Pf CRT, gradually declined after the withdrawal and was undetectable by 2001. In 2005, a randomized control trial in more than 200 children with uncomplicated falciparum malaria in Malawi was performed to compare the efficacy between chloroquine and sulfadoxine–pyrimethamine. The study revealed that the efficacy of chloroquine was almost 100%, while the efficacy of sulfadoxine-pyrimethamine was below 50% (Laufer et al., 2006).
A similar situation was found in Cambodia with artesunate-mefloquine (ASMQ) (Leang et al., 2013). ASMQ was the first-line ACT used in Cambodia for the treatment of drug-resistance P. falciparum malaria. The non-fixed co-blistered formulation was introduced in 2000 and used at a national scale until 2008. Overall, country-wide therapeutic efficacy studies (TES) during 2001–2004 showed >90% treatment efficacy, i.e., 28-day PCR-corrected rates of adequate clinical and parasitological response (ACPR) (Denis et al., 2006). However, 28-day ACPR in Western Cambodia, the epicentre of antimalarial drug resistance, showed borderline results in 2001 and nearly 20% failure rates of ASMQ were reported from this region in 2004 (Rogers et al., 2009). This resulted in the replacement of ASMQ with dihydroartemisinin-piperaquine (DP) as first-line therapy in 2008. However, already in 2010, poor clinical efficacy of DP was reported in Western Cambodia (Leang et al., 2015). In the same year, a small study by Leang and coworkers (2013) demonstrated an improvement of ASMQ in Cambodia only after 2 years of withdrawal of the combination from the country. On the other hand, a randomized controlled trial comparing DP, ASMQ and a 4-day artemether-lumefantrine (AL) regimen in pregnant women with uncomplicated malaria on the Thailand-Myanmar border demonstrated that DP was the only drug that had satisfactory efficacy for P. falciparum malaria in this area (Saito et al., 2021). These data support the approach of alternate use of different antimalarial combination therapies. Further studies are needed to propose an optimal drug rotation schedule and the timing of each rotation, and to evaluate if it is programmatically feasible to rotate ACT regimens.
In many Sub-Saharan countries artesunate-amodiaquine and artemether-lumefantrine are the main recommended ACTs for treating uncomplicated falciparum malaria. Several alternative ACT regimens are also available. A recent systematic review and meta-analysis on the efficacy of ACTs used in Sub Saharan Africa from 2010 to 2020 reports an overall high success rate in the treatment of malaria using artesunate-amodiaquine, artemether-lumefantrine, and dihydroartemisinin-piperaquine in this region (Marwa et al., 2022). With the emergence of partial artemisinin-resistant P. falciparum in east Africa (Uwimana et al., 2020; Balikagala et al., 2021; Uwimana et al., 2021), regular surveillance of ACTs efficacy is critical and the availability of several ACTs in the region would be beneficial if properly used.
Triple artemisinin-based combination therapy
Combination therapies have become a common practice in the treatment of various diseases, both infectious and non-infectious. In 2013, more than 10,000 clinical trials related to the investigation of combination therapies were registered in the US alone (Rationalizing combination therapies, 2017). There are several rationales behind this approach. Using multiple drugs with different mechanisms of action can increase treatment efficacy by targeting multiple components of the organism and reduce the dose of the individual drugs for a more acceptable side effect profile. There might also be pharmacological interactions between the drugs resulting in the additive or synergistic treatment effects. For infectious diseases, combination therapy has shown to also delay or prevent the development of drug-resistant microbes (Mouton, 1999).
The primary aim of the design of ACTs were to increase treatment efficacy and prevent the development of artemisinin resistant P. falciparum parasites. Triple artemisinin-based combination therapies (TACTs) were suggested to treat multi-drug resistant falciparum malaria treatment, by adding a second slowly eliminated partner drug to a standard ACT. Mefloquine and amodiaquine were proposed to be paired with piperaquine and lumefantrine, respectively, based on their potentially counterbalancing resistance mechanisms and similar pharmacokinetic profiles. A study in healthy adult Thai volunteers showed that DP + mefloquine was safe and well tolerated (Hanboonkunupakarn et al., 2019).
A multicentre randomised controlled trial involving 1,100 patients with uncomplicated P. falciparum malaria from 8 countries demonstrated that DP + mefloquine and AL + amodiaquine were safe, well-tolerated and had excellent efficacy compared to their corresponding standard ACT. As all of these drugs are already in the market, these TACTs can be readily available treatment options for uncomplicated falciparum malaria, especially in the GMS where artemisinin and partner-drug resistance are increasingly reported. The use of TACTs in areas where drug resistance has not yet been found might also delay the emergence of drug resistance (van der Pluijm et al., 2020). However, transient increased serum creatinine was found in patients treated with AL + amodiaquine compared to that of other treatment regimens. Additional studies on the renal safety of this TACT is needed to clarify the finding in order to support the use of this combination therapy.
ACT in combination with malaria vaccine in MDA efforts to eliminate malaria
Plasmodium falciparum transmission in Southeast Asia has markedly decreased over the last 2 decades (World Health Organization, 2021). However, the current mainstay of the malaria control program (i.e., vector control, early diagnosis, and effective antimalarial treatment) are unlikely to eliminate P. falciparum malaria without an additional strategy to clear the infectious reservoir in asymptomatic populations, especially in the GMS. Mass drug administration (MDA) has been considered as a potential intervention to reduce the infectious reservoir in asymptomatic populations and thus accelerate malaria elimination (Poirot et al., 2013; World Health Organization, 2015).
A cluster-randomised trial using 3 monthly rounds of 3-day DP MDA in GMS where artemisinin-resistant P. falciparum is prevalent has shown promising but transient results. P. falciparum prevalence and incidence was significantly decreased in MDA villages compared to control villages. Around 90% of asymptomatic P. falciparum infections, including those with artemisinin-resistant and piperaquine-resistant parasites, were cleared after MDA. However, the infections returned during the follow-up period, but lower than baseline levels, due to the spread of residual infections and the reintroduction of parasites from other areas (von Seidlein et al., 2019). This is in fact a predictable result as the protection from drug level and immunity wanes over time. Therefore, the effectiveness of MDAs depends on good community engagement, continuous support for village health workers, proper drug selection for the MDA area, and control of malaria reintroduction.
Mathematical models suggested that mass implementation of a malaria vaccine, even one with a temporary effect, in combination with basic malaria control measures could enhance the interruption of parasite transmission. Thus, combining mass vaccination and mass drug administration could lead to a permanent interruption of transmission (Tun et al., 2017). RTS,S/AS01 is currently the only malaria vaccine that has passed a phase 3 trial and it has been used in immunization programs for African children in limited areas under the evaluation of WHO. This vaccine provides short-term partial protection against uncomplicated and severe malaria (RTS,S Clinical Trials Partnership et al., 2011; RTS,S Clinical Trials Partnership et al., 2012). Interestingly, the vaccine showed more protective effect in children living in lower transmission settings than in higher transmission settings (RTS,S Clinical Trials Partnership, 2015). A recent study in healthy adult Thai volunteers demonstrated that the RTS,S/AS01 vaccine was safe and immunogenic in this population and not affected by the concomitant administration of DP and primaquine, which are antimalarials commonly used in MDA (von Seidlein et al., 2020). These data support the use of ACTs in combination with malaria vaccine RTS,S/AS01 in MDA to accelerate P. falciparum elimination in Asia. However, further large-scale evaluations in the GMS are needed.
Conclusion
This review provides an overview of artemisinin resistance, focusing both on clinical and laboratory aspects. The current efficacy of artemisinin-based combination treatments in areas of multi-drug resistant malaria and the widespread emergence of artemisinin resistance, emphasize the importance of global malaria eradication/elimination programs. In-depth understanding of the pharmacological properties of antimalarials and resistant mechanisms is crucial in the use of modified ACTs in the fight against malaria. The potential modifications included three methods to improve the efficacy; 1) prolonged ACT treatment course, which is easy to apply with existing regimens but concerns have been raised on possible side effects of the long half-life drugs and patient compliance; 2) alternate sequential use of different ACT regimens in a region, which can also be applied with existing regimens but additional information are needed on optimal drug rotation timing; and 3) triple ACTs, which has additional benefits over the first two methods of increased efficacy and the ability to delay the development of drug resistance but drug-drug interaction data are needed to support the global implementation of TACTs. Another potential use of ACTs is in combination with malaria vaccine in MDA efforts to accelerate the elimination of malaria in low transmission setting.
Author contributions
Conceptualization, BH and KC; Writing—Original Draft Preparation, BH, JT, SP, and KC; Writing—Review and Editing, BH, JT, SP, and KC; Visualization, BH, JT, SP, and KC; Supervision, SP; Project Administration, KC. All authors have read and agreed to the published version of the manuscript.
Funding
The Mahidol Oxford Tropical Medicine Research Unit (MORU) is supported by the Wellcome Trust [220211]. The APC was funded by the Faculty of Tropical Medicine, Mahidol University and Mahidol University.
Conflict of interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Publisher’s note
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
References
RTS, S Clinical Trials Partnership Agnandji, S. T., Lell, B., Fernandes, J. F., Abossolo, B. P., Methogo, B. G., et al. (2012). A phase 3 trial of RTS, S/AS01 malaria vaccine in african infants. N. Engl. J. Med. 367, 2284–2295. doi:10.1056/NEJMoa1208394
RTS, S Clinical Trials Partnership Agnandji, S. T., Lell, B., Soulanoudjingar, S. S., Fernandes, J. F., Abossolo, B. P., et al. (2011). First results of phase 3 trial of RTS, S/AS01 malaria vaccine in African children. N. Engl. J. Med. 365, 1863–1875. doi:10.1056/NEJMoa1102287
Amaratunga, C., Lim, P., Suon, S., Sreng, S., Mao, S., Sopha, C., et al. (2016). Dihydroartemisinin-piperaquine resistance in Plasmodium falciparum malaria in Cambodia: A multisite prospective cohort study. Lancet. Infect. Dis. 16, 357–365. doi:10.1016/S1473-3099(15)00487-9
Amato, R., Lim, P., Miotto, O., Amaratunga, C., Dek, D., Pearson, R. D., et al. (2017). Genetic markers associated with dihydroartemisinin-piperaquine failure in Plasmodium falciparum malaria in Cambodia: A genotype-phenotype association study. Lancet. Infect. Dis. 17, 164–173. doi:10.1016/S1473-3099(16)30409-1
Ariey, F., Witkowski, B., Amaratunga, C., Beghain, J., Langlois, A. C., Khim, N., et al. (2014). A molecular marker of artemisinin-resistant Plasmodium falciparum malaria. Nature 505, 50–55. doi:10.1038/nature12876
Ashley, E. A., Dhorda, M., Fairhurst, R. M., Amaratunga, C., Lim, P., Suon, S., et al. (2014). Spread of artemisinin resistance in Plasmodium falciparum malaria. N. Engl. J. Med. 371, 411–423. doi:10.1056/NEJMoa1314981
Ataide, R., Ashley, E. A., Powell, R., Chan, J. A., Malloy, M. J., O'Flaherty, K., et al. (2017). Host immunity to Plasmodium falciparum and the assessment of emerging artemisinin resistance in a multinational cohort. Proc. Natl. Acad. Sci. U. S. A. 114 (13), 3515–3520. doi:10.1073/pnas.1615875114
Balikagala, B., Fukuda, N., Ikeda, M., Katuro, O. T., Tachibana, S. I., Yamauchi, M., et al. (2021). Evidence of artemisinin-resistant malaria in Africa. N. Engl. J. Med. 385, 1163–1171. doi:10.1056/NEJMoa2101746
Bhattacharjee, S., Coppens, I., Mbengue, A., Suresh, N., Ghorbal, M., Slouka, Z., et al. (2018). Remodeling of the malaria parasite and host human red cell by vesicle amplification that induces artemisinin resistance. Blood 131, 1234–1247. doi:10.1182/blood-2017-11-814665
Bousema, T., and Drakeley, C. (2011). Epidemiology and infectivity of Plasmodium falciparum and Plasmodium vivax gametocytes in relation to malaria control and elimination. Clin. Microbiol. Rev. 24 (2), 377–410. doi:10.1128/CMR.00051-10
Campbell, C. C., Chin, W., Collins, W. E., Teutsch, S. M., and Moss, D. M. (1979). Chloroquine-resistant Plasmodium falciparum from east Africa: Cultivation and drug sensitivity of the Tanzanian I/CDC strain from an American tourist. Lancet (London, Engl. 2 (8153), 1151–1154. doi:10.1016/s0140-6736(79)92383-3
Chakrabarti, R., White, J., Babar, P. H., Kumar, S., Mudeppa, D. G., Mascarenhas, A., et al. (2019). Decreased in vitro artemisinin sensitivity of Plasmodium falciparum across India. Antimicrob. Agents Chemother. 63, e00101–19. doi:10.1128/AAC.00101-19
Chhibber-Goel, J., and Sharma, A. (2019). Profiles of Kelch mutations in Plasmodium falciparum across South Asia and their implications for tracking drug resistance. Int. J. Parasitol. Drugs Drug Resist. 11, 49–58. doi:10.1016/j.ijpddr.2019.10.001
Chotivanich, K., Tripura, R., Das, D., Yi, P., Day, N. P., Pukrittayakamee, S., et al. (2014). Laboratory detection of artemisinin-resistant Plasmodium falciparum. Antimicrob. Agents Chemother. 58, 3157–3161. doi:10.1128/AAC.01924-13
Chotsiri, P., Zongo, I., Milligan, P., Compaore, Y. D., Somé, A. F., Chandramohan, D., et al. (2019). Optimal dosing of dihydroartemisinin-piperaquine for seasonal malaria chemoprevention in young children. Nat. Commun. 10, 480. doi:10.1038/s41467-019-08297-9
Das, D., Tripura, R., Phyo, A. P., Lwin, K. M., Tarning, J., Lee, S. J., et al. (2013). Effect of high-dose or split-dose artesunate on parasite clearance in artemisinin-resistant falciparum malaria. Clin. Infect. Dis. 56, e48–e58. doi:10.1093/cid/cis958
Das, S., Kar, A., Manna, S., Mandal, S., Mandal, S., Das, S., et al. (2021). Artemisinin combination therapy fails even in the absence of Plasmodium falciparum kelch13 gene polymorphism in Central India. Sci. Rep. 11, 9946. doi:10.1038/s41598-021-89295-0
Das, S., Manna, S., Saha, B., Hati, A. K., and Roy, S. (2019). Novel pfkelch13 gene polymorphism associates with artemisinin resistance in Eastern India. Clin. Infect. Dis. 69, 1144–1152. doi:10.1093/cid/ciy1038
Davis, S. Z., Singh, P. P., Vendrely, K. M., Shoue, D. A., Checkley, L. A., McDew-White, M., et al. (2020). The extended recovery ring-stage survival assay provides a superior association with patient clearance half-life and increases throughput. Malar. J. 19, 54. doi:10.1186/s12936-020-3139-6
Denis, M. B., Tsuyuoka, R., Poravuth, Y., Narann, T. S., Seila, S., Lim, C., et al. (2006). Surveillance of the efficacy of artesunate and mefloquine combination for the treatment of uncomplicated falciparum malaria in Cambodia. Trop. Med. Int. Health 11, 1360–1366. doi:10.1111/j.1365-3156.2006.01690.x
Dogovski, C., Xie, S. C., Burgio, G., Bridgford, J., Mok, S., McCaw, J. M., et al. (2015). Targeting the cell stress response of Plasmodium falciparum to overcome artemisinin resistance. PLoS Biol. 13, e1002132. doi:10.1371/journal.pbio.1002132
Dondorp, A. M., Nosten, F., Yi, P., Das, D., Phyo, A. P., Tarning, J., et al. (2009). Artemisinin resistance in Plasmodium falciparum malaria. N. Engl. J. Med. 361, 455–467. doi:10.1056/NEJMoa0808859
Fogh, S., Jepsen, S., and Effersøe, P. (1979). Chloroquine-resistant Plasmodium falciparum malaria in Kenya. Trans. R. Soc. Trop. Med. Hyg. 73, 228–229. doi:10.1016/0035-9203(79)90220-7
Hanboonkunupakarn, B., van der Pluijm, R. W., Hoglund, R., Pukrittayakamee, S., Winterberg, M., Mukaka, M., et al. (2019). Sequential open-Label study of the safety, tolerability, and pharmacokinetic interactions between dihydroartemisinin-piperaquine and mefloquine in healthy Thai adults. Antimicrob. Agents Chemother. 63, e00060–19. doi:10.1128/AAC.00060-19
Harinasuta, T., Migasen, S., and Bunnag, D. (1962). “Chloroquine resistance in Plasmodium falciparum in Thailand,” in UNESCO 1st Regional Symposium on Scientific Knowledge of Tropical Parasites, Singapore, 5–9 November, 1962. (University of Singapore), 148–153.
Hoglund, R. M., Workman, L., Edstein, M. D., Thanh, N. X., Quang, N. N., Zongo, I., et al. (2017). Population pharmacokinetic properties of piperaquine in falciparum malaria: An individual participant data meta-analysis. PLoS Med. 14, e1002212. doi:10.1371/journal.pmed.1002212
Imwong, M., Dhorda, M., Myo Tun, K., Thu, A. M., Phyo, A. P., Proux, S., et al. (2020). Molecular epidemiology of resistance to antimalarial drugs in the greater Mekong subregion: An observational study. Lancet. Infect. Dis. 20, 1470–1480. doi:10.1016/S1473-3099(20)30228-0
Intharabut, B., Kingston, H. W., Srinamon, K., Ashley, E. A., Imwong, M., Dhorda, M., et al. (2019). Tracking Resistance to Artemisinin CollaborationArtemisinin resistance and stage dependency of parasite clearance in falciparum malaria. J. Infect. Dis. 219, 1483–1489. doi:10.1093/infdis/jiy673
John, C. C., Moormann, A. M., Pregibon, D. C., Sumba, P. O., McHugh, M. M., Narum, D. L., et al. (2005). Correlation of high levels of antibodies to multiple pre-erythrocytic Plasmodium falciparum antigens and protection from infection. Am. J. Trop. Med. Hyg. 73, 222–228. doi:10.4269/ajtmh.2005.73.222
John, C. C., Tande, A. J., Moormann, A. M., Sumba, P. O., Lanar, D. E., Min, X. M., et al. (2008). Antibodies to pre-erythrocytic Plasmodium falciparum antigens and risk of clinical malaria in Kenyan children. J. Infect. Dis. 197, 519–526. doi:10.1086/526787
Kagoro, F. M., Barnes, K. I., Marsh, K., Ekapirat, N., Mercado, C., Sinha, I., et al. (2022). Mapping genetic markers of artemisinin resistance in Plasmodium falciparum malaria in Asia: A systematic review and spatiotemporal analysis. Lancet. Microbe 3, e184–e192. doi:10.1016/S2666-5247(21)00249-4
Kay, K., Hodel, E. M., and Hastings, I. M. (2015). Altering antimalarial drug regimens may dramatically enhance and restore drug effectiveness. Antimicrob. Agents Chemother. 59, 6419–6427. doi:10.1128/AAC.00482-15
Kloprogge, F., McGready, R., Phyo, A. P., Rijken, M. J., Hanpithakpon, W., Than, H. H., et al. (2015). Opposite malaria and pregnancy effect on oral bioavailability of artesunate - a population pharmacokinetic evaluation. Br. J. Clin. Pharmacol. 80, 642–653. doi:10.1111/bcp.12660
Laufer, M. K., Thesing, P. C., Eddington, N. D., Masonga, R., Dzinjalamala, F. K., Takala, S. L., et al. (2006). Return of chloroquine antimalarial efficacy in Malawi. N. Engl. J. Med. 355, 1959–1966. doi:10.1056/NEJMoa062032
Leang, R., Ros, S., Duong, S., Navaratnam, V., Lim, P., Ariey, F., et al. (2013). Therapeutic efficacy of fixed dose artesunate-mefloquine for the treatment of acute, uncomplicated Plasmodium falciparum malaria in Kampong Speu, Cambodia. Malar. J. 12, 343. doi:10.1186/1475-2875-12-343
Leang, R., Taylor, W. R., Bouth, D. M., Song, L., Tarning, J., Char, M. C., et al. (2015). Evidence of Plasmodium falciparum malaria multidrug resistance to artemisinin and piperaquine in western Cambodia: Dihydroartemisinin-piperaquine open-label multicenter clinical assessment. Antimicrob. Agents Chemother. 59, 4719–4726. doi:10.1128/AAC.00835-15
Lewis, K. (2007). Persister cells, dormancy and infectious disease. Nat. Rev. Microbiol. 5, 48–56. doi:10.1038/nrmicro1557
Marsh, K., and Kinyanjui, S. (2006). Immune effector mechanisms in malaria. Parasite Immunol. 28, 51–60. doi:10.1111/j.1365-3024.2006.00808.x
Marwa, K., Kapesa, A., Baraka, V., Konje, E., Kidenya, B., Mukonzo, J., et al. (2022). Therapeutic efficacy of artemether-lumefantrine, artesunate-amodiaquine and dihydroartemisinin-piperaquine in the treatment of uncomplicated Plasmodium falciparum malaria in sub-saharan Africa: A systematic review and meta-analysis. PloS one 17 (3), e0264339. doi:10.1371/journal.pone.0264339
Mathieu, L. C., Singh, P., Monteiro, W. M., Magris, M., Cox, H., Lazrek, Y., et al. (2021). Kelch13 mutations in Plasmodium falciparum and risk of spreading in Amazon basin countries. J. Antimicrob. Chemother. 76, 2854–2862. doi:10.1093/jac/dkab264
Mbengue, A., Bhattacharjee, S., Pandharkar, T., Liu, H., Estiu, G., Stahelin, R. V., et al. (2015). A molecular mechanism of artemisinin resistance in Plasmodium falciparum malaria. Nature 520, 683–687. doi:10.1038/nature14412
Miotto, O., Sekihara, M., Tachibana, S. I., Yamauchi, M., Pearson, R. D., Amato, R., et al. (2020). Emergence of artemisinin-resistant Plasmodium falciparum with kelch13 C580Y mutations on the island of New Guinea. PLoS Pathog. 16, e1009133. doi:10.1371/journal.ppat.1009133
Mishra, N., Kaitholia, K., Srivastava, B., Shah, N. K., Narayan, J. P., Dev, V., et al. (2014). Declining efficacy of artesunate plus sulphadoxine-pyrimethamine in northeastern India. Malar. J. 13, 284. doi:10.1186/1475-2875-13-284
Mok, S., Ashley, E. A., Ferreira, P. E., Zhu, L., Lin, Z., Yeo, T., et al. (2015). Drug resistance. Population transcriptomics of human malaria parasites reveals the mechanism of artemisinin resistance. Science 347, 431–435. doi:10.1126/science.1260403
Moore, D. V., and Lanier, J. E. (1961). Observations on two Plasmodium falciparum infections with an abnormal response to chloroquine. Am. J. Trop. Med. Hyg. 10, 5–9. doi:10.4269/ajtmh.1961.10.5
Mouton, J. W. (1999). Combination therapy as a tool to prevent emergence of bacterial resistance. Infection 27 (2), S24–S28. doi:10.1007/BF02561666
Mukherjee, A., Bopp, S., Magistrado, P., Wong, W., Daniels, R., Demas, A., et al. (2017). Artemisinin resistance without pfkelch13 mutations in Plasmodium falciparum isolates from Cambodia. Malar. J. 16, 195. doi:10.1186/s12936-017-1845-5
Onyamboko, M. A., Hoglund, R. M., Lee, S. J., Kabedi, C., Kayembe, D., Badjanga, B. B., et al. (2020). A randomized controlled trial of three- versus five-day artemether-lumefantrine regimens for treatment of uncomplicated Plasmodium falciparum malaria in pregnancy in Africa. Antimicrob. Agents Chemother. 64, e01140–19. doi:10.1128/AAC.01140-19
Peatey, C., Chen, N., Gresty, K., Anderson, K., Pickering, P., Watts, R., et al. (2021). Dormant Plasmodium falciparum parasites in human infections following artesunate therapy. J. Infect. Dis. 223, 1631–1638. doi:10.1093/infdis/jiaa562
Peto, T. J., Tripura, R., Callery, J. J., Lek, D., Nghia, H., Nguon, C., et al. (2022). Triple therapy with artemether–lumefantrine plus amodiaquine versus artemether–lumefantrine alone for artemisinin-resistant, uncomplicated falciparum malaria: An open-label, randomised, multicentre trial. Lancet Infect. Dis. 22, 867–878. doi:10.1016/S1473-3099(21)00692-7
Poirot, E., Skarbinski, J., Sinclair, D., Kachur, S. P., Slutsker, L., and Hwang, J. (2013). Mass drug administration for malaria. Cochrane Database Syst. Rev. 2013 (12), CD008846. doi:10.1002/14651858.CD008846.pub2
Author Anonymous, (2017). Rationalizing combination therapies. Nat. Med. 23, 1113. doi:10.1038/nm.4426
Rocamora, F., Zhu, L., Liong, K. Y., Dondorp, A., Miotto, O., Mok, S., et al. (2018). Oxidative stress and protein damage responses mediate artemisinin resistance in malaria parasites. PLoS Pathog. 14, e1006930. doi:10.1371/journal.ppat.1006930
Rogers, W. O., Sem, R., Tero, T., Chim, P., Lim, P., Muth, S., et al. (2009). Failure of artesunate-mefloquine combination therapy for uncomplicated Plasmodium falciparum malaria in southern Cambodia. Malar. J. 8, 10. doi:10.1186/1475-2875-8-10
Roper, C., Pearce, R., Nair, S., Sharp, B., Nosten, F., and Anderson, T. (2004). Intercontinental spread of pyrimethamine-resistant malaria. Science 305 (5687), 1124. doi:10.1126/science.1098876
RTS,S Clinical Trials Partnership (2015). Efficacy and safety of RTS,S/AS01 malaria vaccine with or without a booster dose in infants and children in Africa: Final results of a phase 3, individually randomised, controlled trial. Lancet 386, 31–45. doi:10.1016/S0140-6736(15)60721-8
Sá, J. M., Kaslow, S. R., Krause, M. A., Melendez-Muniz, V. A., Salzman, R. E., Kite, W. A., et al. (2018). Artemisinin resistance phenotypes and K13 inheritance in a Plasmodium falciparum cross and Aotus model. Proc. Natl. Acad. Sci. U. S. A. 115, 12513–12518. doi:10.1073/pnas.1813386115
Saito, M., Carrara, V. I., Gilder, M. E., Min, A. M., Tun, N. W., Pimanpanarak, M., et al. (2021). A randomized controlled trial of dihydroartemisinin-piperaquine, artesunate-mefloquine and extended artemether-lumefantrine treatments for malaria in pregnancy on the Thailand-Myanmar border. BMC Med. 19 (1), 132. doi:10.1186/s12916-021-02002-8
Saralamba, S., Pan-Ngum, W., Maude, R. J., Lee, S. J., Tarning, J., Lindegårdh, N., et al. (2011). Intrahost modeling of artemisinin resistance in Plasmodium falciparum. Proc. Natl. Acad. Sci. U. S. A. 108, 397–402. doi:10.1073/pnas.1006113108
Siddiqui, F. A., Boonhok, R., Cabrera, M., Mbenda, H., Wang, M., Min, H., et al. (2020). Role of Plasmodium falciparum Kelch 13 protein mutations in P. falciparum populations from Northeastern Myanmar in mediating artemisinin resistance. mBio 11, e01134–19. doi:10.1128/mBio.01134-19
Suresh, N., and Haldar, K. (2018). Mechanisms of artemisinin resistance in Plasmodium falciparum malaria. Curr. Opin. Pharmacol. 42, 46–54. doi:10.1016/j.coph.2018.06.003
Tarning, J., Kloprogge, F., Piola, P., Dhorda, M., Muwanga, S., Turyakira, E., et al. (2012). Population pharmacokinetics of artemether and dihydroartemisinin in pregnant women with uncomplicated Plasmodium falciparum malaria in Uganda. Malar. J. 11, 293. doi:10.1186/1475-2875-11-293
Tarning, J., McGready, R., Lindegardh, N., Ashley, E. A., Pimanpanarak, M., Kamanikom, B., et al. (2009). Population pharmacokinetics of lumefantrine in pregnant women treated with artemether-lumefantrine for uncomplicated Plasmodium falciparum malaria. Antimicrob. Agents Chemother. 53, 3837–3846. doi:10.1128/AAC.00195-09
Teuscher, F., Gatton, M. L., Chen, N., Peters, J., Kyle, D. E., and Cheng, Q. (2010). Artemisinin-induced dormancy in Plasmodium falciparum: Duration, recovery rates, and implications in treatment failure. J. Infect. Dis. 202, 1362–1368. doi:10.1086/656476
Thuy-Nhien, N., Tuyen, N. K., Tong, N. T., Vy, N. T., Thanh, N. V., Van, H. T., et al. (2017). K13 propeller mutations in Plasmodium falciparum populations in regions of malaria endemicity in Vietnam from 2009 to 2016. Antimicrob. Agents Chemother. 61, e01578–16. doi:10.1128/AAC.01578-16
Tilley, L., Straimer, J., Gnädig, N. F., Ralph, S. A., and Fidock, D. A. (2016). Artemisinin action and resistance in Plasmodium falciparum. Trends Parasitol. 32, 682–696. doi:10.1016/j.pt.2016.05.010
Tun, K. M., Jeeyapant, A., Myint, A. H., Kyaw, Z. T., Dhorda, M., Mukaka, M., et al. (2018). Effectiveness and safety of 3 and 5 day courses of artemether-lumefantrine for the treatment of uncomplicated falciparum malaria in an area of emerging artemisinin resistance in Myanmar. Malar. J. 17, 258. doi:10.1186/s12936-018-2404-4
Tun, S., von Seidlein, L., Pongvongsa, T., Mayxay, M., Saralamba, S., Kyaw, S. S., et al. (2017). Towards malaria elimination in savannakhet, Lao PDR: Mathematical modelling driven strategy design. Malar. J. 16, 483. doi:10.1186/s12936-017-2130-3
Uwimana, A., Legrand, E., Stokes, B. H., Ndikumana, J. M., Warsame, M., Umulisa, N., et al. (2020). Emergence and clonal expansion of in vitro artemisinin-resistant Plasmodium falciparum kelch13 R561H mutant parasites in Rwanda. Nat. Med. 26, 1602–1608. doi:10.1038/s41591-020-1005-2
Uwimana, A., Umulisa, N., Venkatesan, M., Svigel, S. S., Zhou, Z., Munyaneza, T., et al. (2021). Association of Plasmodium falciparum kelch13 R561H genotypes with delayed parasite clearance in Rwanda: An open-label, single-arm, multicentre, therapeutic efficacy study. Lancet. Infect. Dis. 21, 1120–1128. doi:10.1016/S1473-3099(21)00142-0
van der Pluijm, R. W., Imwong, M., Chau, N. H., Hoa, N. T., Thuy-Nhien, N. T., Thanh, N. V., et al. (2019). Determinants of dihydroartemisinin-piperaquine treatment failure in Plasmodium falciparum malaria in Cambodia, Thailand, and Vietnam: A prospective clinical, pharmacological, and genetic study. Lancet. Infect. Dis. 19, 952–961. doi:10.1016/S1473-3099(19)30391-3
van der Pluijm, R. W., Tripura, R., Hoglund, R. M., Pyae Phyo, A., Lek, D., Ul Islam, A., et al. (2020). Triple artemisinin-based combination therapies versus artemisinin-based combination therapies for uncomplicated Plasmodium falciparum malaria: A multicentre, open-label, randomised clinical trial. Lancet 395, 1345–1360. doi:10.1016/S0140-6736(20)30552-3
von Seidlein, L., Hanboonkunupakarn, B., Jittamala, P., Pongsuwan, P., Chotivanich, K., Tarning, J., et al. (2020). Combining antimalarial drugs and vaccine for malaria elimination campaigns: A randomized safety and immunogenicity trial of RTS, S/AS01 administered with dihydroartemisinin, piperaquine, and primaquine in healthy Thai adult volunteers. Hum. Vaccin. Immunother. 16, 33–41. doi:10.1080/21645515.2019.1643675
von Seidlein, L., Peto, T. J., Landier, J., Nguyen, T. N., Tripura, R., Phommasone, K., et al. (2019). The impact of targeted malaria elimination with mass drug administrations on falciparum malaria in Southeast Asia: A cluster randomised trial. PLoS Med. 16, e1002745. doi:10.1371/journal.pmed.1002745
Walker, L. A., and Sullivan, D. J. (2017). Impact of extended duration of artesunate treatment on parasitological outcome in a cytocidal murine malaria model. Antimicrob. Agents Chemother. 61, e02499–16. doi:10.1128/AAC.02499-16
Wang, J., Huang, Y., Zhao, Y., Ye, R., Zhang, D., and Pan, W. (2018). Introduction of F446I mutation in the K13 propeller gene leads to increased ring survival rates in Plasmodium falciparum isolates. Malar. J. 17, 248. doi:10.1186/s12936-018-2396-0
Wang, Z., Wang, Y., Cabrera, M., Zhang, Y., Gupta, B., Wu, Y., et al. (2015). Artemisinin resistance at the China-Myanmar border and association with mutations in the K13 propeller gene. Antimicrob. Agents Chemother. 59, 6952–6959. doi:10.1128/AAC.01255-15
White, N. J. (1997). Assessment of the pharmacodynamic properties of antimalarial drugs in vivo. Antimicrob. Agents Chemother. 41, 1413–1422. doi:10.1128/AAC.41.7.1413
Whitlock, A., Juliano, J. J., and Mideo, N. (2021). Immune selection suppresses the emergence of drug resistance in malaria parasites but facilitates its spread. PLoS Comput. Biol. 17 (7), e1008577. doi:10.1371/journal.pcbi.1008577
Witkowski, B., Amaratunga, C., Khim, N., Sreng, S., Chim, P., Kim, S., et al. (2013a). Novel phenotypic assays for the detection of artemisinin-resistant Plasmodium falciparum malaria in Cambodia: In-vitro and ex-vivo drug-response studies. Lancet. Infect. Dis. 13, 1043–1049. doi:10.1016/S1473-3099(13)70252-4
Witkowski, B., Duru, V., Khim, N., Ross, L. S., Saintpierre, B., Beghain, J., et al. (2017). A surrogate marker of piperaquine-resistant Plasmodium falciparum malaria: A phenotype-genotype association study. Lancet. Infect. Dis. 17, 174–183. doi:10.1016/S1473-3099(16)30415-7
Witkowski, B., Khim, N., Chim, P., Kim, S., Ke, S., Kloeung, N., et al. (2013b). Reduced artemisinin susceptibility of Plasmodium falciparum ring stages in Western Cambodia. Antimicrob. Agents Chemother. 57, 914–923. doi:10.1128/AAC.01868-12
Wootton, J. C., Feng, X., Ferdig, M. T., Cooper, R. A., Mu, J., Baruch, D. I., et al. (2002). Genetic diversity and chloroquine selective sweeps in Plasmodium falciparum. Nature 418 (6895), 320–323. doi:10.1038/nature00813
World Health Organization (2015). Mass drug administration, mass screening and treatment and focal screening and treatment for malaria. Geneva: World Health Organization.
Zhang, J., Li, N., Siddiqui, F. A., Xu, S., Geng, J., Zhang, J., et al. (2019). In vitro susceptibility of Plasmodium falciparum isolates from the China-Myanmar border area to artemisinins and correlation with K13 mutations. Int. J. Parasitol. Drugs Drug Resist. 10, 20–27. doi:10.1016/j.ijpddr.2019.04.002
Keywords: Plasmodium falciparum, drug resistance, pharmacokinetics, pharmacodynamic, mechanism of resistance, artemisinin-based combination therapies
Citation: Hanboonkunupakarn B, Tarning J, Pukrittayakamee S and Chotivanich K (2022) Artemisinin resistance and malaria elimination: Where are we now?. Front. Pharmacol. 13:876282. doi: 10.3389/fphar.2022.876282
Received: 15 February 2022; Accepted: 22 August 2022;
Published: 23 September 2022.
Edited by:
Rafael V. C. Guido, University of São Paulo, BrazilReviewed by:
Deus Ishengoma, National Institute of Medical Research, TanzaniaRoberto Rudge Moraes Barros, Federal University of São Paulo, Brazil
Copyright © 2022 Hanboonkunupakarn, Tarning, Pukrittayakamee and Chotivanich. This is an open-access article distributed under the terms of the Creative Commons Attribution License (CC BY). The use, distribution or reproduction in other forums is permitted, provided the original author(s) and the copyright owner(s) are credited and that the original publication in this journal is cited, in accordance with accepted academic practice. No use, distribution or reproduction is permitted which does not comply with these terms.
*Correspondence: Kesinee Chotivanich, bm9rQHRyb3BtZWRyZXMuYWM=
