Traditional Chinese Medicine Qingre Huoxue Treatment vs. the Combination of Methotrexate and Hydroxychloroquine for Active Rheumatoid Arthritis: A Multicenter, Double-Blind, Randomized Controlled Trial

Traditional Chinese medicine (TCM) has been used successfully to treat rheumatoid arthritis (RA). Qingre Huoxue treatment (Qingre Huoxue decoction (QRHXD)/Qingre Huoxue external preparation (QRHXEP)) is a therapeutic scheme of TCM for RA. To date, there have been few studies comparing the efficacy and safety of QRHXD and conventional synthetic disease-modifying antirheumatic drugs (csDMARDs) for the treatment of active RA. This was investigated in a multicenter, double-blind, randomized controlled trial involving 468 Chinese patients with active RA [disease activity score (DAS)-28 > 3.2] treated with QRHXD/QRHXEP (TCM group), methotrexate plus hydroxychloroquine [Western medicine (WM) group], or both [integrative medicine (IM) group]. Patients were followed up for 24 weeks. The primary outcome measure was the change in DAS-28 from baseline to 24 weeks. The secondary outcome measures were treatment response rate according to American College of Rheumatology 20, 50, and 70% improvement criteria (ACR-20/50/70) and the rate of treatment-related adverse events (TRAEs). The trial was registered at ClinicalTrials.gov (NCT02551575). DAS-28 decreased in all three groups after treatment (p < 0.0001); the score was lowest in the TCM group (p < 0.05), while no difference was observed between the WM and IM groups (p > 0.05). At week 24, ACR-20 response was 73.04% with TCM, 80.17% with WM, and 73.95% with IM (based on the full analysis set [FAS], p > 0.05); ACR-50 responses were 40.87, 47.93, and 51.26%, respectively, (FAS, p > 0.05); and ACR-70 responses were 20.87, 22.31, and 25.21%, respectively, (FAS, p > 0.05). Thus, treatment efficacy was similar across groups based on ACR criteria. On the other hand, the rate of TRAEs was significantly lower in the TCM group compared to the other groups (p < 0.05). Thus, QRHXD/QRHXEP was effective in alleviating the symptoms of active RA—albeit to a lesser degree than csDMARDs—with fewer side effects. Importantly, combination with QRHXD enhanced the efficacy of csDMARDs. These results provide evidence that QRHXD can be used as an adjunct to csDMARDs for the management of RA, especially in patients who experience TRAEs with standard drugs.

Clinical Trial Registration: ClinicalTrials.gov, identifier NCTNCT025515.

Introduction

Rheumatoid arthritis (RA) is the most common autoimmune inflammatory arthritis in adults. RA has significant negative impacts on the ability of patients to perform daily activities—including work and home tasks—and health-related quality of life, and increases the risk of mortality (Singh et al., 2016). The incidence of RA is about 1% globally (van der Woude and van der Helm-van Mil, 2018) and 0.28–0.40% in China (Chinese Rheumatology Association, 2018), with no fewer than five million people in China living with the disease. In traditional Chinese medicine (TCM), clinical manifestations of active RA such as joint swelling and tenderness, morning stiffness, and local skin redness constitute a “damp-heat-stasis syndrome” that is similar to the active period of RA [i.e., disease activity score (DAS)-28 > 3.2]. TCM has been used successfully to treat RA. Specifically, Qingre Huoxue decoction (QRHXD) may prevent bone destruction by modulating inflammation, and short-term application of a cream prepared from Tripterygium wilfordii—the source of a QRHXEP component—was shown to be an effective and safe adjunctive treatment (Jiang et al., 2012; China Association of Chinese Medicine, 2017; Jiao et al., 2019). Oral Chinese medicines were found to relieve joint symptoms with minimal adverse reactions in combination with topical formulations for improved disease control (Xing et al., 2020).

The goals of RA treatment are to achieve disease remission or low disease activity and ultimately control the disease, reduce the disability rate, and improve patients’ quality of life (Smolen et al., 2020). Conventional synthetic disease-modifying antirheumatic drugs (csDMARDs) are the first-line treatment for RA in China and elsewhere (Singh et al., 2016; Chinese Rheumatology Association, 2018; Lau et al., 2019; Smolen et al., 2020). Methotrexate (MTX) is the anchor drug (Pincus et al., 2003) while hydroxychloroquine (HCQ) is mainly used in combination treatment regimens (95%) (Zhang et al., 2013); the utilization rates of these drugs are 55.9 and 30.4%, respectively, (Jin et al., 2017). However, MTX and HCQ have adverse effects such as gastrointestinal discomfort (e.g., nausea and diarrhea) (Giraud et al., 2020), hepatitis, interstitial pneumonitis, cytopenias, and retinopathy (Abbasi et al., 2019); as such, the vast majority of RA patients in China are willing to receive TCM treatment (Lu et al., 2019).

Qingre Huoxue treatment (QRHXD plus QRHXEP) is a therapeutic scheme of TCM for RA that have been routinely used in clinical practice for at least 40 years at Guang’anmen Hospital, China Academy of Chinese Medical Sciences. However, there have been few blinded trials systematically comparing the efficacy and safety of Qingre Huoxue treatment and csDMARDs in RA treatment. Thus, the aim of this investigation was to evaluate the effects of Qingre Huoxue treatment vs. MTX plus HCQ in patients with active RA.

Materials and Methods

Trial Design

This multicenter, double-blind, randomized controlled clinical trial has been registered at ClinicalTrials.gov (NCTNCT02551575). The study was conducted in accordance with the principles outlined in the Declaration of Helsinki, Good Clinical Practice Guidelines of the International Conference on Harmonization, and local regulatory requirements. This study followed CONSORT. The protocol was approved by the ethics committee at Guang’anmen Hospital, China Academy of Chinese Medical Sciences (no. 2013EC122). A study period of 24 weeks was selected based on pilot clinical trials.

Participants

Men and women aged 18–65 years were considered for enrollment if they met the American College of Rheumatology (ACR) criteria for RA (Arnett et al., 1988; Lu and Jiao, 1996; Aletaha et al., 2010) as well as TCM criteria for the diagnosis of RA “damp-heat-stasis syndrome” (Zheng, 2002) (Supplementary Material). The trial was conducted at 16 hospitals. An independent committee monitored the trial for safety and scientific integrity. The inclusion criteria were as follows: 1) DAS-28 score > 3.2; 2) patients were taking csDMARDs for at least 3 months at a stable dose, and continued the same treatment for the duration of the present study; and 3) patients voluntarily participated in the study and signed an informed consent form. Exclusion criteria were as follows: 1) patients with skin burst or allergies; 2) patients with cancer or other malignant diseases such as cardiovascular, hematopoietic, liver, or kidney disease or psychopathy; 3) patients with active or chronic infection, including HIV, hepatitis C virus, hepatitis B virus, or tuberculosis; 4) treatment with Tripterygii, glucocorticoid, or biologic DMARDs in the prior 3 months; 5) previous treatment with MTX or HCQ; and 6) patients with retinopathy. Patients who met the following criteria were not allowed to continue receiving the therapy as part of the study, but were followed up until the end of the trial: 1) patients who experienced intolerable adverse events (AEs), complications, or physiologic changes, and had discontinued the study drug for more than 14 days; 2) patients who demonstrated poor compliance (the number and course of medication were not between 80 and 120%); 3) patients who were unwilling to continue participating in the study or were lost to follow-up; and 4) patients who used a nonprescribed range of combined medications that could affect the efficacy and safety assessments.

Treatment

Eligible patients obtained sequence numbers from the trial coordinator and were allocated to 1 of the 3 following groups by computer-generated sequence randomization: 1) TCM group (TCM plus MTX and HCQ placebos); 2) Western medicine (WM) group (12.5 mg MTX once weekly plus 200 mg HCQ twice daily combined with TCM placebo); and 3) integrative medicine (IM) group (TCM combined with 12.5 mg MTX once weekly plus 200 mg HCQ twice daily). MTX and HCQ tablets were obtained from Shanghai Xinyi Pharmaceutical Co. (Shanghai, China) and Shanghai Zhongxi Pharmaceutical Co. (Shanghai, China), respectively, and were taken orally. TCM Qingre Huoxue treatment for RA “damp-heat-stasis syndrome” with QRHXD and QRHXEP optimized by the Guang’anmen Hospital China Academy of Chinese Medical Sciences were used in this study. QRHXD was processed into granules that were packaged in a tin foil bag by Sichuan New Green Pharmaceutical Technology Development Co. (Chengdu, China). QRHXEP was processed into a gel formulation and packaged in a plastic tube at Guang’anmen Hospital China Academy of Chinese Medical Sciences (batch no. 15011303). QRHXD was taken twice daily—at breakfast and 0.5 h after dinner—for 24 weeks (1 bag boiled in water for each dose). QRHXEP was applied topically once daily 1 h after dinner for 12 weeks [20 g (1 stick) daily in weeks 1–4 and 10 g (half a stick) daily in weeks 5–12] to the skin surface of affected joints, while avoiding the face and temporomandibular joint.

QRHXD has 12 components including animal drug wugong (Centipede [4 g]) and the botanical drugs species or TCM plant preparations tufuling (Smilax glabra Roxb [30 g]), yinhua (Lonicera japonica Thunb [30 g]), huangqi (Astragalus mongholicus [30 g]), chaocangzhu (bran-fried Atractylodes chinensis [15 g]), huangbo (Phellodendron amurense [9 g]), chishao (Paeonia lactiflora [15 g]), bixie (Dioscoreae hypoglaucae rhizoma [15 g]), danshen (Salvia miltiorrhiza [15 g]), ezhu (Curcuma zedoaria [9 g]), qingfengteng (Sinomenium acutum (Thunb.) [15 g]), and fengfang (Nidus vespae [5 g]). The granules were packaged as 10-g bags, with each bag containing 96 g of crude product. QRHXEP is composed of six botanical drugs including leigongteng (T. wilfordii [120 g]), chuanxiong (Ligusticum wallichii [60 g]), baizhi (Angelica dahurica [60 g]), dahuang (Rheum officinale [30 g]), ruxiang (Boswellia carterii [30 g]), and bohe (Fructus forsythiae [30 g]), as well as the resin moyao (Myrrh [30 g]) and mineral mangxiao (Mirabilite [120 g]). T. wilfordii, R. officinale, and A. dahurica were refluxed in a volume of 75% ethanol eight times the combined weight of the three components for 1 h. The extracts were combined and filtered, and the ethanol was separated from the filtrate and set aside with the residue stored in another container. L. wallichii, B. carterii, and myrrh were added to a volume of water 6 times the combined weight of the three components and the volatile oils were extracted for 8 h, and the liquid was filtered and set aside. The residues of L. wallichii, B. carterii, and Myrrh were combined with those of T. wilfordii, R. officinale, and A. dahurica; Mirabilite was added along with a 6 × volume of water. The mixture was decocted for 1 h and filtered; the filtrate was combined with the extract liquids that had been set aside, concentrated to a relative density of 1.055–1.075 (75°C), and filtered through a 100-mesh sieve and set aside. F. forsythiae was steam-distilled and frozen, and partially decapitated to obtain 0.3 ml peppermint oil. The volatile oils extracted from L. wallichii, B. carterii, and Myrrh were combined with the peppermint oil and ethyl benzoate and dissolved in ethanol. Carboxymethyl cellulose sodium and glycerol were added with stirring. Water was then added to the concentrated extract liquid up to a weight of 1,000 g with continuous stirring until a gel was obtained. The names of the TCM ingredients in Chinese and English are listed in Supplementary Material.

QRHXD placebo granules were composed of lactose, starch, edible colorant, and bitter taste agents packaged in a tin foil bag identical to the one containing QRHXD granules and had the same color, texture, taste, and smell as the actual medicine. The QRHXEP placebo gel was prepared from viscous agent with cane sugar color added so that it had the same color, texture, and smell as the actual QRHXEP gel. The MTX and HCQ placebo tablets were composed of lactose, starch, carboxymethyl starch sodium, and magnesium stearate and had the same color, texture, taste, and smell as the actual drugs.

The quality of the TCM granules and gel was evaluated according to the 2005 Chinese pharmacopoeia (Chinese Pharmacopoeia Commission, 2005). Before the start of the trial, the TCM granules and gel were tested for heavy metals, microbial contamination, and residual pesticides, and were determined to meet the safety standards in China. Laboratory personnel were blinded to the identity of the TCM granules and gel. QRHXD and QRHXEP and their placebos were prepared by the same manufacturer. The medicines were distributed to the 16 study sites from the same source.

Measurements

The patients were observed for 24 weeks. The primary outcome measure was the change in DAS-28 from baseline to week 24, and the secondary outcome measures were ACR-20, ACR-50, and ACR-70 (ACR criteria for 20, 50, and 70% improvement, respectively), which were evaluated at week 24. DAS-28 was based on erythrocyte sedimentation rate (ESR), 28 tender and swollen joint counts (TJC and SJC, respectively), general health (GH; patient assessment of disease activity according to a 100-mm visual analogue scale with 0 = best and 100 = worst), and levels of acute phase reactant (ESR [mm/h]), and was calculated as 0.56 × √(TJC28) + 0.28 × √(SJC28) + 0.014×GH + 0.70 × ln(ESR) (Wells et al., 2009). The ACR-20/50/70 response was defined as ≥ 20%/50%/70% improvement in both the TJC and SJC and ≥ 20%/50%/70% improvement in three of the five other core measures (resting pain, patient’s global assessment, physician’s global assessment, Health Assessment Questionnaire [HAQ] score, and ESR/C-reactive protein ratio) (Felson et al., 1995). Physical function was assessed at baseline and at week 24 with the HAQ (Bruce and Fries, 2005). Safety was assessed based on routine blood and urine tests, liver (alanine aminotransferase and aspartate aminotransferase) and renal (blood urea nitrogen and creatinine) function, electrocardiogram, and treatment-related (TR)AEs at week 24.

Sample Size

The sample size was determined by the primary outcome. Assume that the ratio of the three groups is 1:1:1, using a two-sided test with a significance level (α) of 0.05 and a power (1-β) of 0.90, and the required sample size is estimated by SAS 9.4 software for 129 cases in each group. Allowing for a dropout of about 20%, and the TCM group, WM group and the IM group each required 156 cases, a total of 468 cases.

Statistical Analysis

Intention-to-treat (ITT) approach was performed using in all of analyses. Continuous data was presented as mean (SD), and categorical data was presented as numbers and/or percentages. A one-way ANOVA or Kruskal–Wallis rank test combined with the t or Wilcoxon rank test for post hoc testing was used in analyzing the continuous data. The chi-square or Fisher exact test was used in analyzing the categorical data. The Kruskal–Wallis test combined with the Wilcoxon rank test for post hoc testing was used in analyzing the ordinal data. A one-way ANOVA or Kruskal–Wallis rank test combined with the t or Wilcoxon rank test for post hoc testing was used in analyzing difference value (change before and after the treatment) among three groups. For this three-arm clinical study (groups TCM, WM, and IM), we care about whether there are differences in the efficacy of the three groups. Therefore, after completing the difference test for the three groups, it is necessary to further conduct multiple comparisons between the three groups. In order to avoid false positive results, it is necessary to adjust the test level in the multiple comparison. The Bonferroni method is one of the classic methods for the test level adjustment. The processing method is as follows: the accepted test level is divided by the times of multiple comparisons, and then used as the adjusted test level for multiple comparisons. In this paper, it is necessary to complete the pairwise comparison between the three groups, TCM-WM, TCM-IM, and WM-IM, the test level is adjusted to 0.0167 (0.05/3). That is, the analysis method for two independent samples is used to test the differences between the TCM-WM, TCM-IM, and WM-IM groups. At this time, only when p < 0.0167, the difference is considered to be statistically significant. This method can effectively control the generation of false positive results. Statistical analyses were performed using SAS v9.4 software (SAS Institute, Cary, NC, United States).

Results

Phytochemical Analysis

Preparation and assay methods of QRHXD and QRHXEP are based on the Pharmaceutical standards of the Ministry of Health of the People’s Republic of China (Pharmacopoeia of the people’s Republic of China [2010]). The chemical profiling of QRHXD and QRHXEP was detected using LC/MS/MS method, and the details were provided in Supplementary Material.

Study Participants

Subjects were recruited at 16 medical research centers nationwide (Supplementary Material) from November 2013 to November 2015; the 24-week clinical observation period for all patients was completed in May 2016. A total of 522 patients were screened and 468 were enrolled (156 per group); treatment was discontinued for 109 patients (TCM group, n = 40; WM group, n = 33; IM group, n = 36) and 8 cases were excluded (TCM group, n = 3; WM group, n = 2; IM group n = 3) (Figure 1). There were no significant differences in baseline characteristics between the three groups (Table 1).

FIGURE 1

FIGURE 1. Flowchart of patient selection and treatment group allocation.

TABLE 1

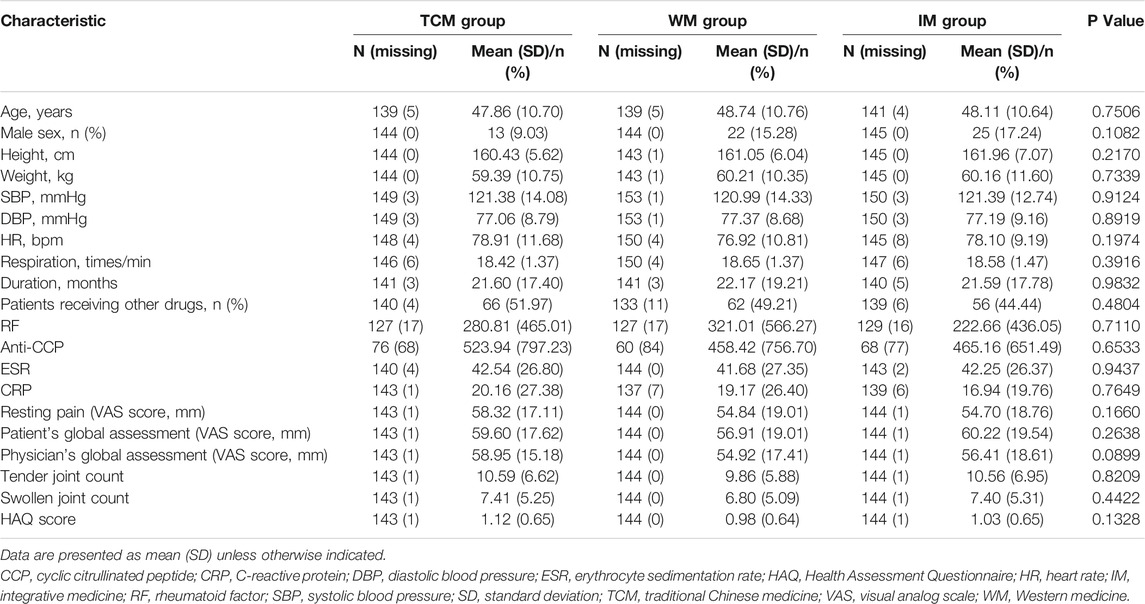

TABLE 1. Baseline characteristics of the study population (analysis based on full analysis set or safety set).

Primary Outcome Measure (Disease Activity Score-28)

There was no significant difference in DAS-28—the primary outcome measure—among the three groups at baseline (Tables 2, 3). At week 24, DAS-28 was decreased in all three groups compared to the baseline score (p < 0.0001). The rank order of DAS-28 at week 24 was IM < WM < TCM (p < 0.05) (Tables 4, 5); the score was decreased to 4.20 ± 1.56 in the TCM group, 3.58 ± 1.28 in the WM group, and 3.39 ± 1.27 in the IM group (all p < 0.0001 vs. baseline). The difference value of DAS-28 (i.e., change in score from baseline to week 24) was greater in the IM (2.10 ± 1.12) and WM (2.24 ± 1.40) groups than in the TCM group (1.60 ± 1.17) (p < 0.05), while no difference was observed between the former two groups (p > 0.05) (Figure 2).

TABLE 2

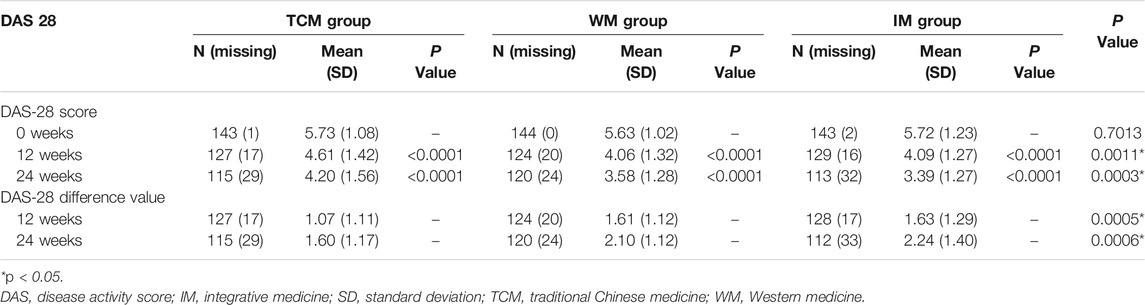

TABLE 2. Distribution of DAS-28 scores and their decline in patients (analysis based on full analysis set).

TABLE 3

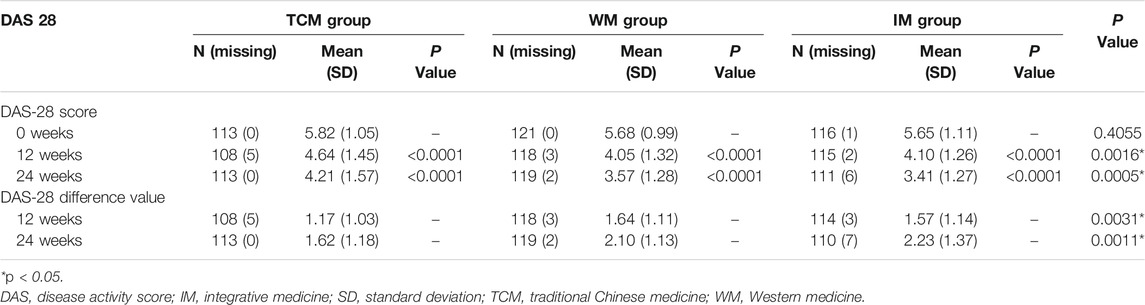

TABLE 3. Distribution of DAS-28 scores and their decline in patients (analysis based on per protocol set).

TABLE 4

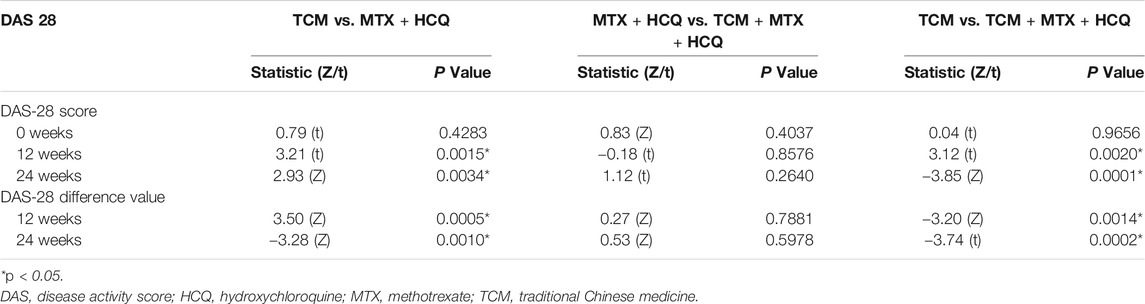

TABLE 4. Comparisons of the decline in DAS-28 score between treatment groups (analysis based on full analysis set).

TABLE 5

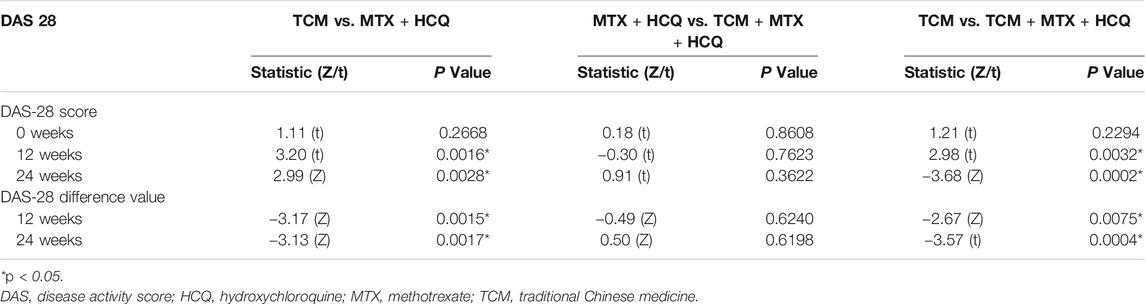

TABLE 5. Comparisons of the decline in DAS-28 score between treatment groups (analysis based on per protocol set).

FIGURE 2

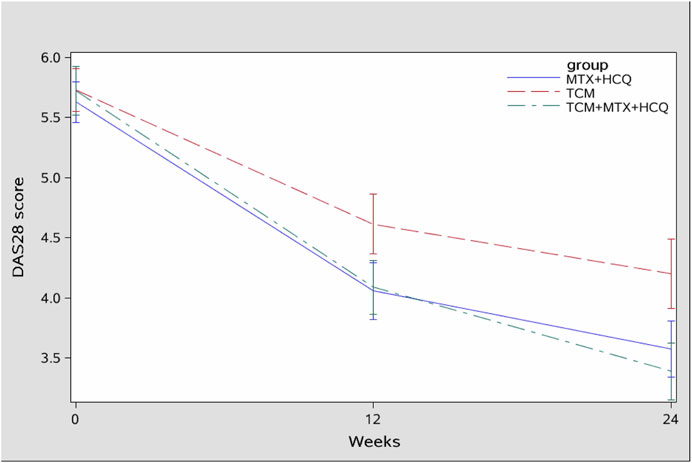

FIGURE 2. Change in DAS-28 score (full analysis set). TCM, TCM group; MTX+HCQ, WM group; TCM+MTX+HCQ, IM group.

Secondary Outcome Measures

American College of Rheumatology-20/50/70

There was no significant difference in ACR-20, ACR-50, and ACR-70 between the three groups at 24 weeks (p > 0.05) based on the full analysis set (FAS) (Tables 6, 7). ACR-20 and ACR-70 responses at 12 weeks were lower in the TCM group than in the WM and IM groups (p < 0.05). There was no significant difference in ACR-50 between the WM and IM groups at 12 weeks (p > 0.05). At 24 weeks, there were no differences in ACR responses among the TCM, WM, and IM groups (ACR-20: 73.04, 80.17, and 73.95%, respectively, p = 0.3764; ACR-50: 40.87, 47.93, and 51.26%, respectively, p = 0.2674; ACR-70: 20.87, 22.31, and 25.21%, respectively, p = 0.7218).

TABLE 6

TABLE 6. ACR-20, ACR-50, and ACR-70 measurements (analysis based on full analysis set).

TABLE 7

TABLE 7. ACR-20, ACR-50, and ACR-70 measurements (analysis based on per protocol set).

Based on the per protocol set (PPS), ACR-20 response at 12 weeks was significantly lower in the TCM group than in the WM and IM groups (p < 0.05) (Tables 8, 9). There was no significant difference in ACR-50 and ACR-70 between the latter two groups at 12 weeks (p > 0.05). Similarly, at 24 weeks there were no differences in ACR responses among the TCM, WM, and IM groups (ACR-20: 73.45, 80.00, and 74.36%, respectively, p = 0.4431; ACR-50: 40.71, 48.33, and 51.28%, respectively, p = 0.2540; ACR-70: 20.35, 22.50, and 24.79%, respectively, p = 0.7237).

TABLE 8

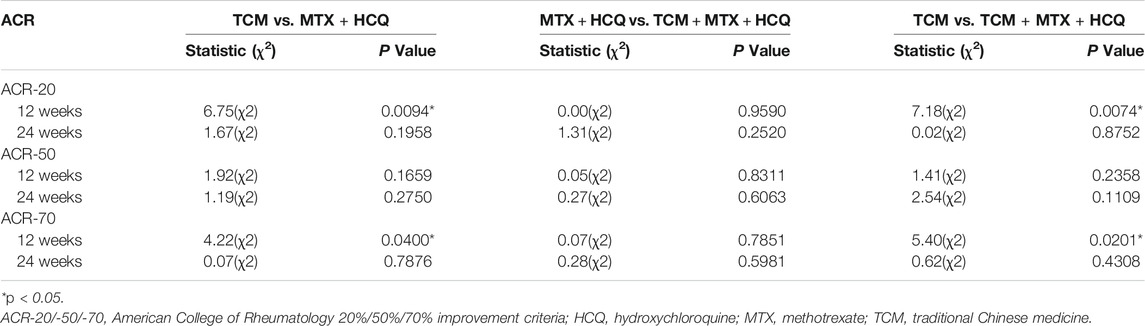

TABLE 8. Comparisons of ACR-20, ACR-50, and ACR-70 standard remission between treatment groups (analysis based on full analysis set).

TABLE 9

TABLE 9. Comparisons of ACR-20, ACR-50, and ACR-70 standard remission between treatment groups (analysis based on per protocol set).

Safety

No patients died during the study period. More patients in the WM group (n = 12) discontinued treatment because of TRAEs than in the IM (n = 3) and TCM (n = 2) groups (p < 0.05) (Tables 10, 11). Fewer patients in the TCM group reported gastrointestinal discomfort (n = 4) compared to the WM group (n = 18) and IM group (n = 16) (p < 0.05). Nausea occurred in one patient treated with TCM compared to eight patients in the WM group and 10 in IM the group (p < 0.05). Bacteriuria was also reported at a lower rate in patients treated with TCM (n = 8 vs. 20 with WM and 19 with IM) (p < 0.05). There was no significant difference in the frequency of other TRAEs among the groups. The overall rate of TRAEs was lower in the TCM group than in the other two groups (p < 0.05).

TABLE 10

TABLE 10. Adverse events (analysis based on safety set).

TABLE 11

TABLE 11. Laboratory parameters (analysis based on safety set).

Discussion

The pathogenesis of RA is unknown. The aims of currently recommended treatments are mainly to reduce inflammation, suppress disease activity and delay progression, and prevent bone deformity. RA is classified as “Bi syndrome” in TCM, which refers to a group of diseases involving joint and muscle pain such as RA, osteoarthritis, soft tissue damage, etc. The philosophy of TCM is to maintain overall health and intervene at early stages of disease to prevent progression. However, there is no professional term of “active RA” in TCM. Joint swelling and pain caused by inflammation in RA is considered to be related to dampness, heat, and stasis, which are similar to the active (inflammatory) period of RA (Liu and Jiang, 2020). Therefore, we take the internationally recognized disease activity evaluation standard DAS-28 > 3.2 as the objective identification of RA “damp-heat-stasis syndrome”.

The results of this study demonstrate that TCM treatment is both effective and safe for the treatment of active RA compared to csDMARDs. DAS-28 at 24 weeks was lower in patients treated with QRHXD alone than in those treated with MTX plus HCQ; thus, Qingre Huoxue treatment did not have the expected therapeutic advantage over standard RA treatments. However, it is worth noting that the score was lower in the IM group than in the WM group at the end of the treatment period, suggesting that QRHXD can enhance the efficacy of csDMARDs. It was previously reported that QRHXD is suitable for the treatment of “damp-heat-stasis” as it delayed disease activity by reducing inflammation and potentially conferred bone protection (Jiang et al., 2012). In line with the comprehensive treatment approaches used in TCM, patients received QRHXD and QRHXEP during the active period of RA. QRHXEP should not be ignored in efficacy assessments; however, as a topical formulation, its effects begin to decline after about 4 weeks and last only 12 weeks; thus, by the end of the 24-week study period, QRHXD was likely responsible for the observed therapeutic effects of TCM.

In order to standardize the evaluation of “damp-heat-stasis syndrome”, we used DAS-28 > 3.2 to define the active period of RA. DAS-28 (Prevoo et al., 1995), which is based on a count of 28 swollen and tender joints and ranges from 0 to 9.4, can be used to objectively evaluate a patient’s response to treatment (Fransen and van Riel, 2009). The European League Against Rheumatism response criteria combine the DAS-28 score at the time of evaluation with the change in DAS-28 score between two time points, which is a more useful measure of treatment response (van Gestel et al., 1998). Combining DAS-28 score and ACR-20/50/70 can provide more information on the therapeutic benefit of TCM for the treatment of RA beyond its effect on joints (He et al., 2007; He et al., 2008; He et al., 2014).

This is the first registered randomized controlled trial investigating the efficacy and safety of TCM Qingre Huoxue treatment compared to csDMARDs in active RA. Given the large sample size and the involvement of numerous medical centers, the results are representative of the Chinese population. We found that the TCM Qingre Huoxue treatment improved DAS-28 from baseline to week 24, whether it was administered alone or in combination with MTX and HCQ. In the FAS, ACR-20 was 73.04%, ACR-50 was 40.87%, and ACR-70 was 20.87% with TCM Qingre Huoxue treatment at 24 weeks; the TCM efficacy at the end of the study was only slightly lower than that observed in the WM and IM groups. In this study, we found that Qingre Huoxue treatment can improve DAS-28 score and ACR-20/50/70 by improving joint tenderness, joint swelling, ESR and CRP. According to other studies (He et al., 2007; He et al., 2014), ACR-20 and ACR-50 responses with WM treatment were higher at 24 weeks than in the TCM group. Whether a therapeutic advantage of TCM over MTX and HCQ will be revealed with a longer follow-up period remains to be determined. At 24 weeks, ACR-20/50/70 was similar in patients treated with QRHXD alone to in those treated with MTX plus HCQ. In clinical practice, we often use QRHXD as a prescription for RA patients from active stage to remission stage, whether a longer follow-up might show further benefit for QRHXD treatment can only be answered with such a longer study.

In our study, subjects in the WM group received a combination the csDMARDs MTX and HCQ (Singh et al., 2016). In China, most rheumatologists choose to use two kinds of csDMARDs combined with drugs in the treatment of active RA patients, and MTX alone is only used for RA patients with mild condition. The combination of MTX and HCQ is the most commonly used prescription. Therefore, MTX + HCQ is more representative in China. With this treatment, DAS-28 score in the FAS decreased and ACR-20/50/70 responses were 80.17, 47.93, and 22.31%, respectively, at 24 weeks, which is in line with results obtained in other studies (O’Dell et al., 2002; Hua et al., 2020; Zhang et al., 2020). In one study, an ACR-20 of 71.4% was reported after 24 weeks with MTX treatment alone, which was lower than the response achieved with the combination of MTX and HCQ (Westhovens et al., 2021). In our study, there were no differences in ACR-20/50/70 among the three groups at 24 weeks.

The TCM group had the lowest rate of TRAEs. Patients in the WM group were more likely to discontinue treatment due to TRAEs, and reported significantly higher rates of gastrointestinal discomfort (e.g., nausea) and bacteriuria along with the IM group compared to patients treated with TCM. These data suggest that TCM is more suitable for RA patients with poor gastrointestinal function or urinary tract bacterial infection, especially as the use of TCM did not increase the risk of infections (Table 10).

Conclusion

The results of this study provide evidence that Qingre Huoxue treatment (QRHXD plus QRHXEP) is effective for the treatment of patients with active RA, with a better safety profile than MTX and HCQ. While the efficacy of QRHXD alone was lower than that of the two csDMARDs, combining QRHXD with MTX and HCQ yielded the greatest improvement in disease activity. The efficacy of QRHXD alone was similar to that of MTX + HCQ in achieving ACR-20/50/70. Thus, QRHXD is a useful adjunct that should be considered as a viable option in the management of RA.

Data Availability Statement

The original contributions presented in the study are included in the article/Supplementary Material, further inquiries can be directed to the corresponding authors.

Ethics Statement

The studies involving human participants were reviewed and approved by the ethics committee at Guang’anmen Hospital, China Academy of Chinese Medical Sciences. The patients/participants provided their written informed consent to participate in this study.

Author Contributions

QJ and CZ designed the study. X-PT, JW, JL, Q-CH, WL, Y-FF, D-YH, YL, M-LG, Q-JW, SC, Z-BL, YW, Y-MX, J-LZ, C-YZ, LM, and X-CW performed the experiments. Feng Tian and W-XL analyzed the data. XG and W-XL wrote the manuscript. All authors read and approved the final version of the manuscript for publication.

Funding

This study was supported by the National Key Research and Development Program (No. 2018YFC1705202; “Clinical Cohort and Efficacy Evaluation Study of Traditional Chinese Medicine in the Treatment of Rheumatoid Arthritis”) and the Chinese National Science and Technology Support Program (No. 2013BAI02B06; “Study on the Regularity of TCM Disease and Syndromes and Comprehensive Treatment of Rheumatoid Arthritis”).

Conflict of Interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

The handling editor declared a shared affiliation with several of the authors XG WL XT JW YX CZ, and QJ at time of review.

Acknowledgments

We thank Feng Tian at Beijing CreateMed Medicine Technology Co. (Beijing, China) for assistance with statistical analyses and manuscript preparation.

Supplementary Material

The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fphar.2021.679588/full#supplementary-material
