Catherine Z. Chen1*
Paul Shinn1Zina Itkin1
Richard T. Eastman1Robert Bostwick2Lynn Rasmussen2Ruili Huang1Min Shen1Xin Hu1Kelli M. Wilson1
Brianna M. Brooks1Hui Guo1Tongan Zhao1Carleen Klump-Thomas1Anton Simeonov1
Samuel G. Michael1Donald C. Lo1
Matthew D. Hall1
Wei Zheng1*- 1National Center for Advancing Translational Sciences, Rockville, MD, United States
- 2Southern Research, Birmingham, AL, United States
Drug repurposing is a rapid approach to identify therapeutics for the treatment of emerging infectious diseases such as COVID-19. To address the urgent need for treatment options, we carried out a quantitative high-throughput screen using a SARS-CoV-2 cytopathic assay with a compound collection of 8,810 approved and investigational drugs, mechanism-based bioactive compounds, and natural products. Three hundred and nineteen compounds with anti-SARS-CoV-2 activities were identified and confirmed, including 91 approved drugs and 49 investigational drugs. The anti-SARS-CoV-2 activities of 230 of these confirmed compounds, of which 38 are approved drugs, have not been previously reported. Chlorprothixene, methotrimeprazine, and piperacetazine were the three most potent FDA-approved drugs with anti-SARS-CoV-2 activities. These three compounds have not been previously reported to have anti-SARS-CoV-2 activities, although their antiviral activities against SARS-CoV and Ebola virus have been reported. These results demonstrate that this comprehensive data set is a useful resource for drug repurposing efforts, including design of new drug combinations for clinical trials for SARS-CoV-2.
Introduction
The coronavirus disease 2019 (COVID-19) pandemic caused by severe acute respiratory syndrome coronavirus 2 (SARS-CoV-2) has become a global health crisis. As of September 17, 2020, the global case report stands at 30 million, with a death toll of 942,989 (Dong et al., 2020). Only remdesivir, an investigational drug developed for Ebola virus, has been recently approved for treatment of hospitalized COVID-19 patient, though its therapeutic efficacy is mild (Eastman et al., 2020). Since an effective vaccine is currently unavailable for COVID-19, drug repurposing has received significant attention in the rapid search to fill this unmet therapeutic need.
The requirement of biosafety level 3 (BSL-3) containment laboratories for handling SARS-CoV-2 has limited the number of high throughput screening (HTS) laboratories that are capable of carrying out large scale compound screens using live SARS-CoV-2. Despite these challenges, several drug repurposing screens have been carried out using live SARS-CoV-2, showing promising results (Dittmar et al., 2020; Ellinger et al., 2020; Riva et al., 2020; Touret et al., 2020). Here we report a screening campaign against a collection of 8,810 approved and investigational drugs, mechanism-based bioactive compounds, and natural products, carried out in quantitative HTS (qHTS) format (Inglese et al., 2006). Compounds were screened at four concentrations in a SARS-CoV-2 cytopathic effect (CPE) assay in Vero E6 cells that were selected for high ACE2 expression, with an accompanying cytotoxicity counter-assay. The primary screen yielded 319 hits with confirmed anti-SARS-CoV-2 activity. The primary screening data have been made publicly available on the National Center for Advancing Translational Sciences (NCATS) OpenData Portal (https://opendata.ncats.nih.gov/covid19/index.html) (Brimacombe et al., 2020). We intend this manuscript as a companion to guide investigators in utilizing that data, and to present further details of qHTS with the SARS-CoV-2 CPE assay, including identification of top annotated hits.
Materials and Methods
Compounds and Compound Libraries
All compound libraries were assembled internally at NCATS. The NCATS pharmaceutical collection (NPC) contains 2,678 compounds, covering drugs approved by US FDA and foreign health agencies in European Union, United Kingdom, Japan, Canada, and Australia, as well as some clinical trialed experimental drugs (Huang et al., 2019). The NCATS Mechanism Interrogation Plate (MIPE) 5.0 library contains 2,480 mechanism based bioactive compounds, targeting more than 860 distinct mechanisms of action (Lin et al., 2019). The NCATS Pharmacologically Active Chemical Toolbox (NPACT) is a library of mechanistically defined molecules and natural products (5,099 compounds). Other small custom NCATS collections were also screened: anti-infective (752 compounds), kinase inhibitors (977 compounds), epigenetic modulators (335 compounds). A commercially available autophagy-focused screening library (Cayman #23537) was analyzed and 29 compounds that were not already present in our collections were purchased. All compounds were dissolved in DMSO to make 10 mM stock solutions, unless solubility was limiting, and was diluted four times at 1:5 ratio for the primary screens, and at 1:3 ratio for follow up assays at eight concentrations.
CPE Assay
A SARS-CoV-2 CPE assay was conducted in the BSL3 facilities at the contract research organization Southern Research (Birmingham, AL). Briefly, compounds were titrated in DMSO and acoustically dispensed into 384-well assay plates at 60 nL/well at NCATS, and provided to Southern Research. Cell culture media (MEM, 1% Pen/Strep/GlutaMax, 1% HEPES, 2% HI FBS) was dispensed at 5 µL/well into assay plates, and incubated at room temperature to allow for compound dissolution. Vero E6 African green monkey kidney epithelial cells (selected for high ACE2 expression) were inoculated with SARS-CoV-2 (USA_WA1/2020) at a multiplicity of infection (MOI) of 0.002 in media, and quickly dispensed into assay plates as 25 µL/well. The final cell density was 4,000 cells/well. Assay plates were incubated for 72 h at 37°C, 5% CO2, and 90% humidity. CellTiter-Glo (30 µL/well, Promega #G7573) was dispensed into the assay plates. Plates were incubated for 10 min at room temperature. Luminescence signal was measured on Perkin Elmer Envision or BMG CLARIOstar plate readers. An ATP content cytotoxicity counter-assay was conducted using the same protocol as the CPE assay, without the addition of SARS-CoV-2 virus.
Data Analysis
Results from the primary screen and confirmation screens were processed at NCATS using a software developed in-house (Wang et al., 2010). For the CPE assay, raw plate data were normalized with DMSO-only wells as 0% CPE rescue (negative signal control), and no-virus control wells as 100% CPE rescue (positive signal control). For the cytotoxicity assay, raw plate data were normalized with DMSO-only wells as 100% viability (positive signal control), and cells treated with hyamine (benzethonium chloride) control compound as 0% viability (negative signal control). The half-maximum effective values (EC50) and percent efficacy were obtained by fitting the concentration-response titration data to a four-parameter Hill equation. Compounds with >55% efficacy were selected for cherry-pick confirmation. The concentration-response curves of re-tested compounds were also plotted using GraphPad Prism 9 (GraphPad Software Inc., San Diego, CA). Results in the figures are expressed as mean ± standard deviation (SD).
Results
High Throughput Screening With SARS-CoV-2 CPE Assay
Our aims were two-fold in initiating this program. The first was to identify active compounds that may provide opportunities for repurposing, or identify mechanistic targets of interest. The second was to create a complete HTS reference dataset that can be shared openly with the scientific community for study of disease pathology and new therapeutics development. The CPE reduction assay format has been widely employed to screen for antiviral agents due to its ease of scalability for HTS (Heaton, 2017). In this assay, viral infection kills host cells, and the cell viability is used as a surrogate readout for viral infection and replication. In other words, compounds with anti-viral activities rescue cells from the cytopathic effect of SARS-CoV-2 (a gain-of-signal assay).
A total of 9,952 compounds were tested in the primary screen, but due to the overlapping composition of the libraries, a significant number of compounds were tested multiply. A total of 8,810 unique compounds in six compound libraries were tested in the primary screen including the NCATS Pharmaceutical Collection (NPC), NCATS Mechanism Interrogation Plate (MIPE), NCATS Pharmacologically Active Chemical Toolbox (NPACT), Epigenomic library, Autophagy library, and anti-infective library. These compounds contain 1,345 approved drugs (by the FDA, EMA, DPD), 751 compounds approved outside of those countries, 1,067 investigational drugs (tested in clinical trials), 1,057 pre-clinical compounds (tested in animals), and 4,472 bioactive compounds (tool compounds) (Figure 1A). By their mechanisms of action and clinical applications, these compounds are divided into diverse groups (Figure 1B).

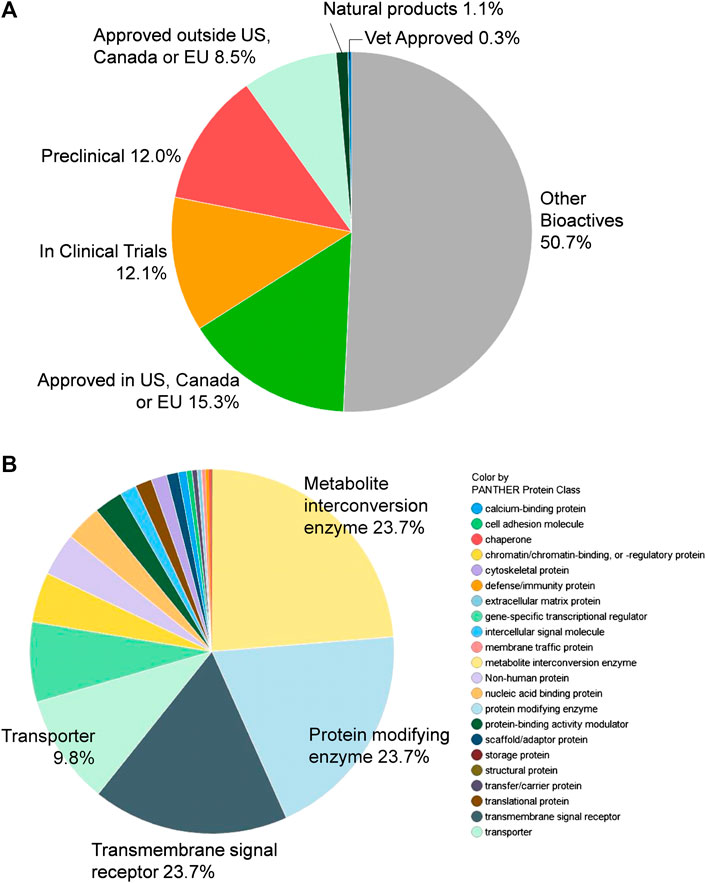

FIGURE 1. Compound library description. (A) By approval status: approved drugs (FDA and others), tested in clinical trials, or preclinical. (B) By mechanism of action.
The CPE assay performed well in the primary screen, with an average Z’ factor of 0.83 over 133 plates, from three batched runs (Figure 2A). Remdesivir concentration-response was included as a control for each screening run, and yielded consistent EC50 values of 4.56, 4.42 and 7.28 µM (Figure 2B). Using the criteria of >55% efficacy, 380 compounds were selected as the primary screen hits, out of which, 319 compounds were confirmed using 8-point, 1:3 titration, in duplicate. Among these primary hits, 89 of 319 had previously reported activity against SARS-CoV-2, including reports of live virus assays, enzymatic assays, or virtual screening, while 230 were novel hits from this qHTS (Table 1, Supplementary Table S1). In the following sections, these newly identified SARS-CoV-2 CPE-protective compounds are further descriped.

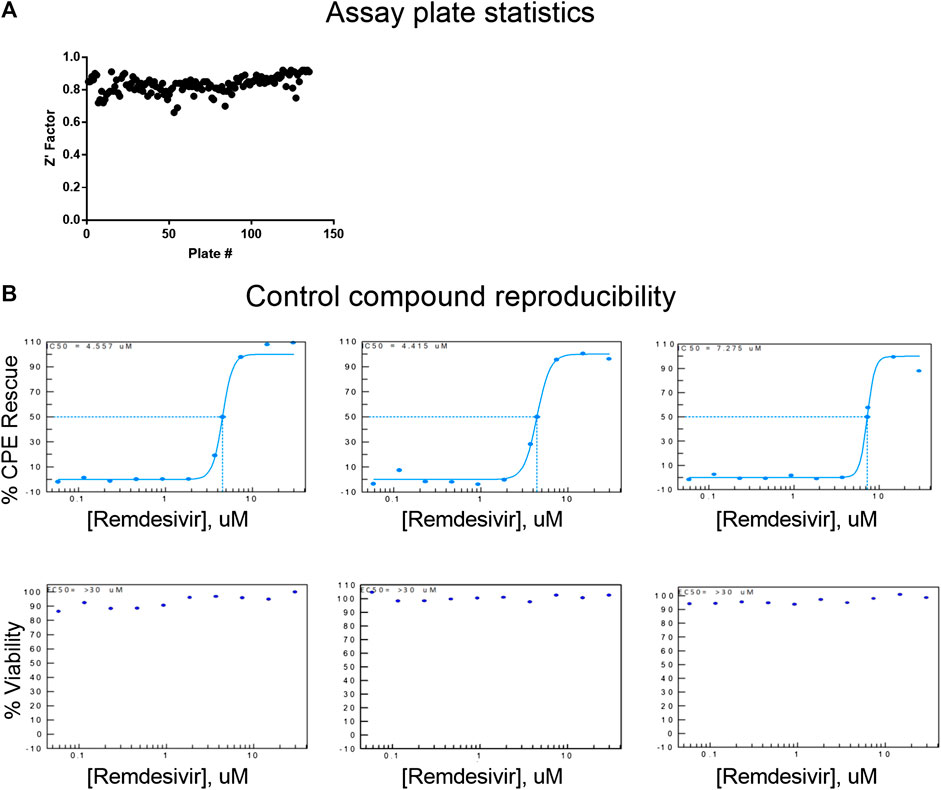

FIGURE 2. Assay reproducibility. (A) Assay plate statistics showing Z′ factors across all 133 384-well plates in the primary screen. (B) Concentration-response curve fittings for remdesivir in four independent runs for primary screens and hit confirmation. EC50 values of 4.56, 4.42, 7.28, and 5.17 µM of remdesivir in the CPE assay demonstrate day-to-day reproducibility of the assay.
TABLE 1. Top confirmed anti-SARS-CoV-2 compounds.
91 Approved Drugs and 49 Investigational Drugs Protected Against Cytopathic Effect of SARS-CoV-2 Infection
There were 56 top confirmed hits with EC50 values of ≤10 µM and efficacy values of greater than 80% in the CPE assay, and with greater than 10-fold selectivity index (SI) between cytotoxicity and CPE assays (Table 1, Figure 3). When grouped by mechanism of action targets, 19 compounds were GPCR modulators, eight were host protease inhibitors, five were kinase modulators, and three were autophagy modulators (Figure 3). Interestingly, in the 56 top hits, remdesivir is only one that has a viral target as a known primary mechanism, whereas the known mechanisms of action of the other compounds are directed against host targets.

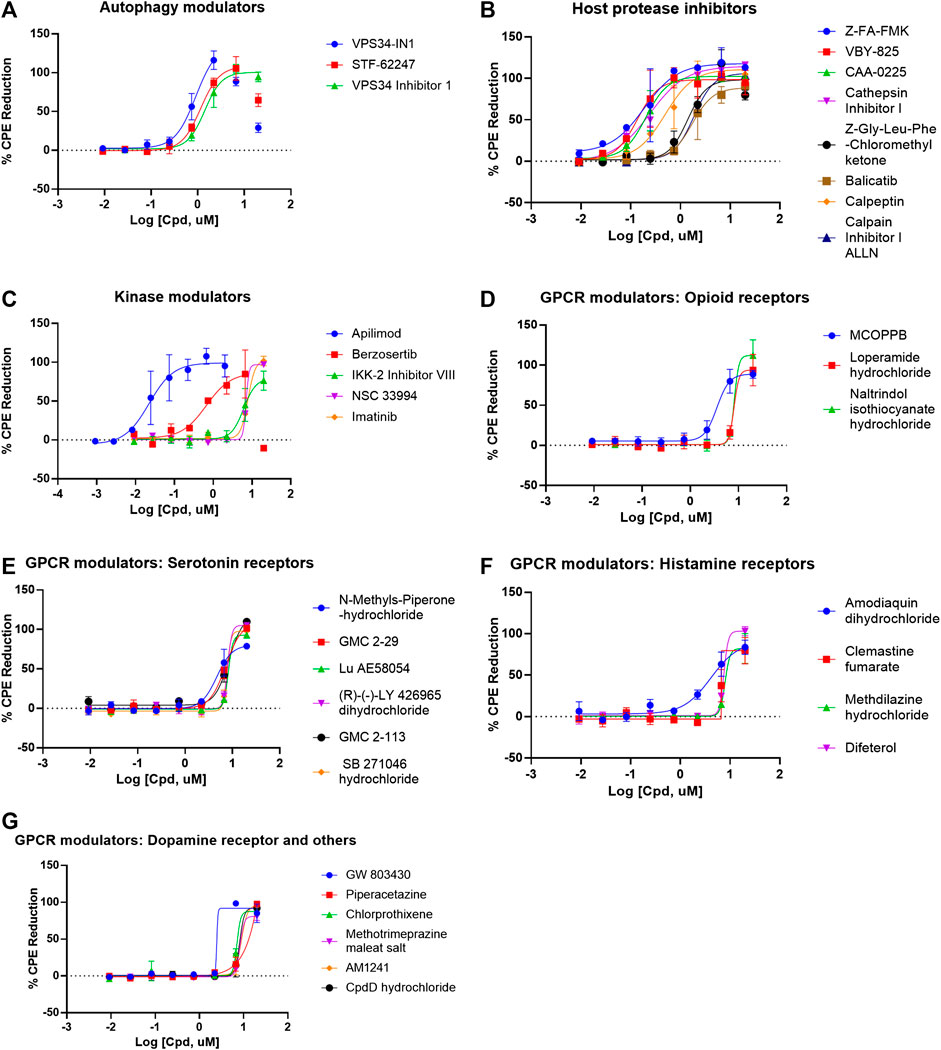

FIGURE 3. Compounds concentration-response curves in the CPE assay. (A) Autophagy modulators, (B) host protease inhibitors, (C) kinase modulators, (D) opioid receptor modulators, (E) serotonin receptor modulators, (F) histamine receptor modulators, and (G) dopamine and other GPCR receptor modulators. Berzosertib, VPS34-IN1, and STF-62247 showed bell-shaped concentration-responses due to cytotoxicity. No other compounds caused any reduction in viability in the cytotoxicity assay.
There have been several previous drug repurposing screens reported for SARS-CoV-2 in 2D cell culture infection models (Dittmar et al., 2020; Ellinger et al., 2020; Jeon et al., 2020; Riva et al., 2020; Touret et al., 2020; Weston et al., 2020). These screens had some compound overlap with our qHTS screen, particularly for the FDA approved drugs. We performed a literature search of our confirmed compounds and previous reports were noted in Table 1 and Supplementary Table S1. Three of the top 56 hits were novel and FDA approved. These hits are chlorprothixene, methotrimeprazine, and piperacetazine, which showed 10 µM potencies in the CPE assay. In order for a drug to be efficacious in vivo, the in vivo exposure at the site of infection (e.g. drug plasma concentration) would need to be higher than the in vitro potency (e.g. EC50). To help guide compound prioritization, the reported clinical plasma pharmacokinetic values of the top confirmed hits are summarized in Table 2. Of the top approved drugs that are active against SARS-CoV-2 in the CPE assay, only amiodarone HCl showed lower EC50 value in the CPE assay than plasma Cmax, whereas, remdesivir and imatinib showed EC50 values that were within 2-fold of plasma Cmax (Table 2).

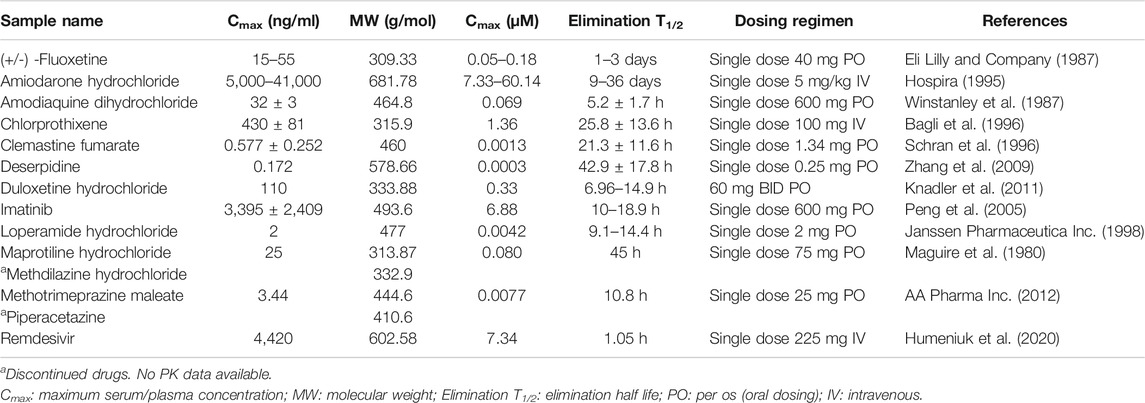

TABLE 2. Reported human pharmacokinetic properties of FDA-approved top hits.
Four drugs approved outside of the US were also identified as novel compounds with anti-SARS-CoV-2 effects: difeterol, rescimetol, melitracen HCl, and proglumetacin. Furthermore, we identified 7 novel clinical trial drugs with anti-SARS-CoV-2 activities: N-methylspiperone HCl, Lu AE58054 HCl, balicatib, berzosertib, JTV519 hemifumarate, DMP 777, and dexanabinol. In addition to the above novel hits, four drugs, approved by the FDA and elsewhere, methdilazine, maprotiline HCl, deserpidine, and flunarizine, were previously reported in virtual screens against SARS-CoV-2 targets without supporting biological data. Here, we report their activities against SARS-CoV-2 infection. In addition, we have confirmed 53 approved drugs with anti-SARS-CoV-2 effects that were reported previously (Table 1 and Supplementary Table S1). Together, our results demonstrate a comprehensive set of 91 approved drugs and 49 investigational drugs with anti-SARS-CoV-2 activity that can be considered for design of new clinical trials, especially drug combination therapies, to increase and improve treatment options for COVID-19.
Discussion
In contrast to the other reported drug repurposing screens for SARS-CoV-2 using a single drug concentration in the primary screens (Dittmar et al., 2020; Ellinger et al., 2020; Jeon et al., 2020; Riva et al., 2020; Touret et al., 2020; Weston et al., 2020), we have used a quantitative HTS (qHTS, concentration-response) method (Inglese et al., 2006) where four compound concentrations were used in the primary screen instead of a single compound concentration. We also assessed the cytotoxicity of each compound against Vero E6 cells (without virus infection) in parallel with the SARS-CoV-2 CPE screening. The concentration-response for each compound used in the primary screen can improve identification of positive hits, especially compounds with biphasic actions (bell-shaped curves) or screening errors. In addition, NCATS has more inclusive compound collections with drugs approved by regulatory agencies outside of the US, such as Canada, Europe and Japan, that were not previously screened in SARS-CoV-2 assays. We also screened a set of investigational drugs that have human clinical data for drug properties such as the mechanism(s) of action, pharmacokinetics, and drug toxicity, which could be leveraged to speed up drug development. The other bioactive compounds screened have drug targets and mechanisms of action that may be useful for further studies of disease pathophysiology and for potential drug development.
We identified 319 compounds with activity against SARS-CoV-2 CPE from a qHTS of 8,810 unique compounds. Among the top 56 hits identified with <10 µM EC50 values and >80% efficacies, the anti-SARS-CoV-2 activity of 37 of them has not been reported elsewhere. Of these novel top hits, three were FDA approved drugs with novel anti-SARS-CoV-2 activity. Chlorprothixene is a dopamine receptor antagonist, a classic antipsychotic agent approved for treatment of schizophrenia (Schrijver et al., 2016). Methotrimeprazine, also named as levomepromazine, is another tricyclic antipsychotic agent approved for psychotic disorders including schizophrenia, and manic-depressive syndromes (Sivaraman et al., 2010). Both chlorprothixene and methotrimeprazine were previously found to inhibit the SARS-CoV replication with EC50s around 10 µM (Barnard et al., 2008). Piperacetazine is also an older tricyclic antipsychotic drug approved for treatment of schizophrenia (Eslami Shahrbabaki et al., 2018). The antiviral effect of piperacetazine was found previously to block the Ebola viral entry with the EC50 of 9.68 µM (Kouznetsova et al., 2019).
We also confirmed the anti-SARS-CoV-2 activity of five compounds that were reported as virtual screening hits but had yet to be confirmed experimentally, including methdilazine by an AI prediction algorithm (Grzybowski et al., 2020), GMC 2-113 by a virtual screen of RNA dependent RNA polymerase (RdRP) (Dwivedy et al., 2020), maprotiline by a main protease docking (Chauhan, 2020), deserpidine by a NPS-16 docking (Jiang et al., 2020), and flunarizine by a spike protein docking screen (Chernyshev, 2020). Our data supports the utility of these emerging technologies and the field of AI for advancing drug development.
For in vitro screens of antiviral compounds, molecular target (mechanism) based assays and phenotypic assays are two major approaches. Common targets are viral enzymes such as viral protease, DNA and RNA polymerases, reverse transcriptase, and integrase. Development of assays targeting viral enzymes rely on viral enzyme expression, purification, assay development, and validation (Shyr et al., 2020). Alternatively, phenotypic assays involving live-virus infection are readily executed once the viruses are isolated from patients and viral replication in appropriate host cells is established. A common live virus infection assay is the measurement of CPE in virus infected host cells. There are two possibilities (fates) for the host cells after viral infection, including cytopathic infection (i.e. death of host cells) and persistent infection (Heaton, 2017). The CPE effect can be readily measured by the ATP content cell viability assay, which is robust and amenable for HTS. Due to the nature of the CPE assay, compounds that suppress CPE can act against any part of the virus infection cycle, including the binding of virus to the host cell receptor, entry into host cells, virus replication, viral assembly/budding, and virus reinfection of adjacent cells.
It is worth briefly reflecting on the limitations of the drug repurposing assay approach. A number of small molecules of interest for treating COVID-19 that are currently in clinical trials were not hits in our assay. For example, the TMPRSS2 inhibitors camostat and nafamstat are protease inhibitors approved in Japan for treating pancreatitis, and known to inhibit TMPRSS2 (Shrimp et al., 2020). While TMPRSS2 is reported to be a mediator of SARS-CoV-2 cell entry, Vero E6 cells do not express TMPRSS2, so this class of compound are not active in the Vero E6 assay. The drug efflux transporter P-glycoprotein (P-gp) can reduce cellular concentrations of test agents, and as a kidney epithelial cell line, Vero E6 cells likely expresses significant P-gp concentrations, which would reduce activity of P-gp substrates (Robey et al., 2018). Remdesivir itself is a substrate of Pgp (EMA, 2020), and is weaker against SARS-CoV-2 in assays using Vero E6 cells (EC50 > 1 µM) compared with Calu-3 or Huh7 cell lines (EC50 > 50 nM) (Stanford University, 2020). These examples highlight the need for careful interpretation and critical follow-up studies after initial high-throughput screening analyses. Furthermore, the list of compounds presented here are confirmed hits in a SARS-CoV-2 CPE assay, and will require considerable follow up work to determine their feasibility for translation to clinical use. A possible pipeline for follow up could be testing in more physiologically relevant 2D human cells using orthogonal assays, and 3D human in vitro respiratory tissue models. These results would require confirmation in animal efficacy models, as well as evaluation of human PK and tolerability of these compounds. Additionally, the hits identified in this screen could be further tested in pair-wise matrix combinations to identify synergistic combinations for potential cocktail treatments (Shinn et al., 2019).
Importantly, the comprehensive primary screen datasets of this study for approved and investigational drugs, and mechanism-based bioactive compounds have been made publicly available in real-time on the NCATS OpenData Portal (https://opendata.ncats.nih.gov/covid19/index.html) (Brimacombe et al., 2020). These datasets provide a wealth of quality live-virus data that is freely available to the research community for future studies and data mining with the aim of offering new therapeutics to treat COVID-19 patients efficiently and safely (Zhu et al., 2020a; Huang et al., 2020).
Data Availability Statement
The datasets presented in this study can be found in online repositories. The names of the repository/repositories and accession numbers can be found in the article/Supplementary Material. Primary screen data can be found at http://opendata.ncats.nih.gov. Secondary screen data are uploaded in PubChem AIDs 1508605 and 1508606. All other data are available upon request.
Author Contributions
PS, ZI, and RTE prepared the assay ready plates. RB and LR conducted the CPE and cytotoxicity assays. PS, CK‐T, KMW, and SGM curated the compound libraries. CZC and MDH designed the experiments. CZC, BMB, and WZ wrote the manuscript. RH, MS, XH, HG, and TZ performed data analysis and data uploads. All authors provided critical reading of the manuscript.
Funding
This work was supported by the Intramural Research Program of National Center for Advancing Translational Sciences, National Institutes of Health, Bethesda, MD, United States.
Conflict of Interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Supplementary Material
The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fphar.2020.592737/full#supplementary-material.
References
AA Pharma Inc (2012). Methotrimeprazine Maleate Tablets [Prescribing Information] [Online]. https://www.aapharma.ca/downloads/en/PIL/Methoprazine_PI.pdf Accessed 16 9, 2020).
Bagli, M., Rao, M. L., Hoflich, G., Kasper, S., Langer, M., Barlage, U., et al. (1996). Pharmacokinetics of chlorprothixene after single intravenous and oral administration of three galenic preparations. Arzneimittelforschung 46 (3), 247–250.
Barnard, D. L., Day, C. W., Bailey, K., Heiner, M., Montgomery, R., Lauridsen, L., et al. (2008). Is the anti-psychotic, 10-(3-(dimethylamino)propyl)phenothiazine (promazine), a potential drug with which to treat SARS infections?. Antivir. Res 79 (2), 105–113. doi:10.1016/j.antiviral.2007.12.005
Beigel, J. H., Tomashek, K. M., Dodd, L. E., Mehta, A. K., Zingman, B. S., Kalil, A. C., et al. (2020). Remdesivir for the treatment of Covid-19 - preliminary report. N. Engl. J. Med 383 (19), 1813–1826. doi:10.1056/NEJMoa2007764
Brimacombe, K. R., Zhao, T., Eastman, R. T., Hu, X., Wang, K., Backus, M., et al. (2020). An OpenData portal to share COVID-19 drug repurposing data in real time. bioRxiv 19, 5046. doi:10.1101/2020.06.04.135046
Castaldo, N., Aimo, A., Castiglione, V., Padalino, C., Emdin, M., and Tascini, C. (2020). Safety and efficacy of Amiodarone in a patient with COVID-19. JACC (J. Am. Coll. Cardiol.) Case Rep 2 (9), 1307–1310. doi:10.1016/j.jaccas.2020.04.053
Chauhan, N. (2020). Possible drug candidates for COVID-19. ChemRxiv 98, 5231. doi:10.26434/chemrxiv.11985231.v1
Chernyshev, A. (2020). Pharmaceutical targeting the envelope protein of SARS-CoV-2: the screening for inhibitors in approved drugs. ChemRxiv 28, 542. doi:10.26434/chemrxiv.12286421.v1
Dittmar, M., Lee, J. S., Whig, K., Segrist, E., Li, M., Jurado, K., et al. (2020). Drug repurposing screens reveal FDA approved drugs active against SARS-Cov-2. bioRxiv 16, 1042. doi:10.1101/2020.06.19.161042
Dong, E., Du, H., and Gardner, L. (2020). An interactive web-based dashboard to track COVID-19 in real time. Lancet Infect. Dis 20 (5), 533–534. doi:10.1016/S1473-3099(20)30120-1
Dwivedy, A., Mariadasse, R., Ahmed, M., Kar, D., Jeyakanthan, J., and Biswal, B. K. (2020). In silico characterization of the NiRAN domain of RNA-dependent RNA polymerase provides insights into a potential therapeutic target against SARS-CoV2. OSF Preprints 31, 219. doi:10.31219/osf.io/wd6zu
Eastman, R. T., Roth, J. S., Brimacombe, K. R., Simeonov, A., Shen, M., Patnaik, S., et al. (2020). Remdesivir: a review of its discovery and development leading to emergency use authorization for treatment of COVID-19. ACS Cent. Sci 6 (5), 672–683. doi:10.1021/acscentsci.0c00489
Eli Lilly and Company (1987). Prozac: Highlights of Prescribing Information [Online]. https://www.accessdata.fda.gov/drugsatfda_docs/label/2011/018936s091lbl.pdf. Accessed 169, 2020).
Ellinger, B., Bojkova, D., Zaliani, A., Cinatl, J., Claussen, C., Westhaus, S., et al. (2020). Identification of inhibitors of SARS-CoV-2 in-vitro cellular toxicity in human (Caco-2) cells using a large scale drug repurposing collection. Res. Sq 23, 951. doi:10.21203/rs.3.rs-23951/v1
Eslami Shahrbabaki, M., Dehnavieh, R., Vali, L., and Sharafkhani, R. (2018). Chlorpromazine versus piperacetazine for schizophrenia. Cochr. Datab. Syst. Rev 10, CD011709. doi:10.1002/14651858.CD011709.pub2
Grzybowski, B., Grynkiewicz, G., Szymkuć, S., Molga, K., Wołos, A., Gajewska, E. P., et al. (2020). Suggestions for second-pass anti-COVID-19 drugs based on the Artificial Intelligence measures of molecular similarity, shape and pharmacophore distribution. ChemRxiv 84, 690. doi:10.26434/chemrxiv.12084690.v2
Heaton, N. S. (2017). Revisiting the concept of a cytopathic viral infection. PLoS Pathog 13 (7), e1006409. doi:10.1371/journal.ppat.1006409
Hospira, (1995). Amiodaron HCl injection for intravenous use: highlights of prescribing information https://www.accessdata.fda.gov/drugsatfda_docs/label/2013/075955s015lbl.pdf.
Huang, R., Xu, M., Zhu, H., Chen, C. Z., Lee, E. M., He, S., et al. (2020). Massive-scale biological activity-based modeling identifies novel antiviral leads against SARS-CoV-2. bioRxiv 22, 3578. doi:10.1101/2020.07.27.223578
Huang, R., Zhu, H., Shinn, P., Ngan, D., Ye, L., Thakur, A., et al. (2019). The NCATS pharmaceutical collection: a 10-year update. Drug Discov. Today 24 (12), 2341–2349. doi:10.1016/j.drudis.2019.09.019
Humeniuk, R., Mathias, A., Cao, H., Osinusi, A., Shen, G., Chng, E., et al. (2020). Safety, tolerability, and pharmacokinetics of Remdesivir, an antiviral for treatment of COVID‐19, healthy subjects. Clin. Transl. Sci 383(19), 1813–1826. doi:10.1111/cts.12840
Ianevski, A., Yao, R., Fenstad, M. H., Biza, S., Zusinaite, E., Reisberg, T., et al. (2020). Potential antiviral options against SARS-CoV-2 infection. Viruses 12 (6), 642. doi:10.3390/v12060642
Inglese, J., Auld, D. S., Jadhav, A., Johnson, R. L., Simeonov, A., Yasgar, A., et al. (2006). Quantitative high-throughput screening: a titration-based approach that efficiently identifies biological activities in large chemical libraries. Proc. Natl. Acad. Sci. USA 103 (31), 11473–11478. doi:10.1073/pnas.0604348103
Janssen Pharmaceutica Inc. (1998). Imodium Capsules [Package Insert]. https://www.accessdata.fda.gov/drugsatfda_docs/label/2016/017694s052lbl.pdf. Accessed 16 9, 2020).
Jeon, S., Ko, M., Lee, J., Choi, I., Byun, S. Y., Park, S., et al. (2020). Identification of antiviral drug candidates against SARS-CoV-2 from FDA-approved drugs. Antimicrob. Agents Chemother 64 (7), e00819. doi:10.1128/AAC.00819-20
Jiang, Y., Liu, L., Manning, M., Bonahoom, M., Lotvola, A., and Yang, Z.-Q. (2020). Repurposing therapeutics to identify novel inhibitors targeting 2'-O-Ribose Methyltransferase Nsp16 of SARS-CoV-2. ChemRxiv 25, 2965. doi:10.26434/chemrxiv.12252965.v1
Knadler, M. P., Lobo, E., Chappell, J., and Bergstrom, R. (2011). Duloxetine. Clin. Pharmacokinet 50 (5), 281–294. doi:10.2165/11539240-000000000-00000
Kouznetsova, J., Sun, W., Martínez-Romero, C., Tawa, G., Shinn, P., Chen, C. Z., et al. (2019). Identification of 53 compounds that block Ebola virus-like particle entry via a repurposing screen of approved drugs. Emerg. Microb. Infect 3 (1), 1–7. doi:10.1038/emi.2014.88
Lin, G. L., Wilson, K. M., Ceribelli, M., Stanton, B. Z., Woo, P. J., Kreimer, S., et al. (2019). Therapeutic strategies for diffuse midline glioma from high-throughput combination drug screening. Sci. Transl. Med 11 (519), eaaw0064. doi:10.1126/scitranslmed.aaw0064
Ma, C., Sacco, M. D., Hurst, B., Townsend, J. A., Hu, Y., Szeto, T., et al. (2020). Boceprevir, GC-376, and calpain inhibitors II, XII inhibit SARS-CoV-2 viral replication by targeting the viral main protease. Cell Res 30 (8), 678–692. doi:10.1038/s41422-020-0356-z
Maguire, K. P., Norman, T. R., Burrows, G. D., and Scoggins, B. A. (1980). An evaluation of maprotiline intravenous kinetics and comparison of two oral doses. Eur. J. Clin. Pharmacol 18 (3), 249–254. doi:10.1007/bf00563007
Morales-Ortega, A., Bernal-Bello, D., Llarena-Barroso, C., Frutos-Pérez, B., Duarte-Millán, M. Á., García de Viedma-García, V., et al. (2020). Imatinib for COVID-19: a case report. Clin. Immunol 218, 108518. doi:10.1016/j.clim.2020.108518
Ou, X., Liu, Y., Lei, X., Li, P., Mi, D., Ren, L., et al. (2020). Characterization of spike glycoprotein of SARS-CoV-2 on virus entry and its immune cross-reactivity with SARS-CoV. Nat. Commun 11 (1), 1620. doi:10.1038/s41467-020-15562-9
Peng, B., Lloyd, P., and Schran, H. (2005). Clinical pharmacokinetics of imatinib. Clin. Pharmacokinet 44 (9), 879–894. doi:10.2165/00003088-200544090-00001
Riva, L., Yuan, S., Yin, X., Martin-Sancho, L., Matsunaga, N., Pache, L., et al. (2020). Discovery of SARS-CoV-2 antiviral drugs through large-scale compound repurposing. Nature 586 (7827), 113–119. doi:10.1038/s41586-020-2577-1
Robey, R. W., Pluchino, K. M., Hall, M. D., Fojo, A. T., Bates, S. E., and Gottesman, M. M. (2018). Revisiting the role of ABC transporters in multidrug-resistant cancer. Nat Rev Cancer 18 (7), 452–464. doi:10.1038/s41568-018-0005-8
Ryu, Y. B., Park, S.-J., Kim, Y. M., Lee, J.-Y., Seo, W. D., Chang, J. S., et al. (2010). SARS-CoV 3CLpro inhibitory effects of quinone-methide triterpenes from Tripterygium regelii. Bioorg. Med. Chem. Lett 20 (6), 1873–1876. doi:10.1016/j.bmcl.2010.01.152
Schran, H. F., Petryk, L., Chang, C.-T., O'Connor, R., and Gelbert, M. B. (1996). The pharmacokinetics and bioavailability of clemastine and phenylpropanolamine in single-component and combination formulations. J. Clin. Pharmacol 36 (10), 911–922. doi:10.1002/j.1552-4604.1996.tb04758.x
Schrijver, E. J. M., de Graaf, K., de Vries, O. J., Maier, A. B., and Nanayakkara, P. W. B. (2016). Efficacy and safety of haloperidol for in-hospital delirium prevention and treatment: a systematic review of current evidence. Eur. J. Intern. Med 27, 14–23. doi:10.1016/j.ejim.2015.10.012
Shinn, P., Chen, L., Ferrer, M., Itkin, Z., Klumpp-Thomas, C., McKnight, C., et al. (2019). High-throughput screening for drug combinations. Bioinform. Drug Discov 28, 11–35. doi:10.1126/scitranslmed.aaw0064
Shrimp, J. H., Kales, S. C., Sanderson, P. E., Simeonov, A., Shen, M., and Hall, M. D. (2020). An enzymatic TMPRSS2 assay for assessment of clinical candidates and discovery of inhibitors as potential treatment of COVID-19. ACS Pharmacol. Transl. Sci 3 (5), 997–1007. doi:10.1021/acsptsci.0c00106
Shyr, Z. A., Gorshkov, K., Chen, C. Z., and Zheng, W. (2020). Drug discovery strategies for SARS-CoV-2. J. Pharmacol. Exp. Therapeut 375 (1), 127–138. doi:10.1124/jpet.120.000123
Sivaraman, P., Rattehalli, R. D., and Jayaram, M. B. (2010). Levomepromazine for schizophrenia. Cochr. Datab. Syst. Rev 10, CD007779. doi:10.1002/14651858.CD007779.pub2
Stanford University (2020). Coronavirus antiviral research database https://covdb.stanford.edu/search/?compound=Remdesivir&target=Polymerase. Accessed Aug 5, 2020).
Touret, F., Gilles, M., Barral, K., Nougairède, A., van Helden, J., Decroly, E., et al. (2020). In vitro screening of a FDA approved chemical library reveals potential inhibitors of SARS-CoV-2 replication. Sci. Rep 10 (1), 70143. doi:10.1038/s41598-020-70143-6
Vatansever, E. C., Yang, K., Kratch, K. C., Drelich, A., Cho, C.-C., Mellot, D. M., et al. (2020). Targeting the SARS-CoV-2 main protease to repurpose drugs for COVID-19. bioRxiv 11, 2235. doi:10.1101/2020.05.23.112235
Vitner, E. B., Avraham, R., Achdout, H., Tamir, H., Agami, A., Cherry, L., et al. (2020). Antiviral activity of Glucosylceramide synthase inhibitors against SARS-CoV-2 and other RNA virus infections. bioRxiv 10, 3285. doi:10.1101/2020.05.18.103283
Wang, Y., Jadhav, A., Southal, N., Huang, R., and Nguyen, D. T. (2010). A grid algorithm for high throughput fitting of dose-response curve data. Curr. Chem. Genom 4, 57–66. doi:10.2174/1875397301004010057
Weston, S., Coleman, C. M., Haupt, R., Logue, J., Matthews, K., and Frieman, M. B. (2020). Broad anti-coronaviral activity of FDA approved drugs against SARS-CoV-2 in vitro and SARS-CoV in vivo. bioRxiv 84, 82. doi:10.1101/2020.03.25.008482
Winstanley, P., Edwards, G., Orme, M., and Breckenridge, A. (1987). The disposition of amodiaquine in man after oral administration. Br. J. Clin. Pharmacol 23 (1), 1–7. doi:10.1111/j.1365-2125.1987.tb03002.x
Zhang, H., Zhong, D., Zhang, Z., Dai, X., and Chen, X. (2009). Liquid chromatography/tandem mass spectrometry method for the quantification of deserpidine in human plasma: application to a pharmacokinetic study. J. Chromatogr. B 877 (27), 3221–3225. doi:10.1016/j.jchromb.2009.06.005
Zhu, H., Chen, C. Z., Sakamuru, S., Simeonov, A., Hall, M. D., Xia, M., et al. (2020a). Mining of high throughput screening database reveals AP-1 and autophagy pathways as potential targets for COVID-19 therapeutics arXiv 2007.12242v1
Zhu, W., Xu, M., Chen, C. Z., Guo, H., Shen, M., Hu, X., et al. (2020b). Identification of SARS-CoV-2 3CL protease inhibitors by a quantitative high-throughput screening. ACS Pharmacol. Transl. Sci 5, 1008–1016. doi:10.1021/acsptsci.0c00108
Keywords: COVID-19, cytopathic effect, drug repurposing and discovery, HTS, SARS-CoV-2
Citation: Chen CZ, Shinn P, Itkin Z, Eastman RT, Bostwick R, Rasmussen L, Huang R, Shen M, Hu X, Wilson KM, Brooks BM, Guo H, Zhao T, Klump-Thomas C, Simeonov A, Michael SG, Lo DC, Hall MD and Zheng W (2021) Drug Repurposing Screen for Compounds Inhibiting the Cytopathic Effect of SARS-CoV-2. Front. Pharmacol. 11:592737. doi: 10.3389/fphar.2020.592737
Received: 07 August 2020; Accepted: 04 November 2020;
Published: 25 January 2021.
Edited by:
Rafael Maldonado, Pompeu Fabra University, SpainReviewed by:
Shuofeng Yuan, The University of Hong Kong, Hong KongYan Wu, Sun Yat-sen University, China
Copyright © 2021 Chen, Shinn, Itkin, Eastman, Bostwick, Rasumussen, Huang, Shen, Hu, Wilson, Brooks, Guo, Zhao, Klump-Thomas, Simeonov, Michael, Lo, Hall and Zheng. This is an open-access article distributed under the terms of the Creative Commons Attribution License (CC BY). The use, distribution or reproduction in other forums is permitted, provided the original author(s) and the copyright owner(s) are credited and that the original publication in this journal is cited, in accordance with accepted academic practice. No use, distribution or reproduction is permitted which does not comply with these terms.
*Correspondence: Catherine Z. Chen, Catherine.chen@nih.gov; Wei Zheng, wzheng@mail.nih.gov
