Development and validation of nomogram models for predicting immune-related adverse events in recurrent and metastatic nasopharyngeal carcinoma patients treated with PD-L1 inhibitors

Objective: To predict the incidence of immune-related Adverse Events (irAEs) in patients with recurrent or metastatic Nasopharyngeal Carcinoma (NPC) treated with Programmed Death-Ligand 1 (PD-L1) inhibitors, this study developed and validated nomogram models incorporating demographic, clinical, and biological variables.

Methods: Data from 153 NPC patients were analyzed, incorporating variables including age, sex, Body Mass Index (BMI), clinical stage, and biomarkers. Predictive models were constructed using multivariable logistic regression, Least Absolute Shrinkage and Selection Operator (LASSO) regression, and Ridge regression. The models’ performance was evaluated using Receiver Operating Characteristic (ROC) curves, calibration curves, and Decision Curve Analysis (DCA). Internal validation was conducted through k-fold cross-validation.

Results: Independent predictors of irAEs included PD-L1, Free Thyroxine (FT4), Sodium (Na), and lymphocyte counts. Of the three models, the stepwise regression model performed best, with an area under the curve (AUC) of 0.78. Calibration curves showed a strong correlation between predicted and observed outcomes, and DCA demonstrated high clinical utility.

Conclusion: The nomogram models effectively predict irAEs in NPC patients treated with PD-L1 inhibitors. Early identification of patients with elevated PD-L1, abnormal FT4, Na, or irregular lymphocyte counts allows for closer monitoring and personalized treatment, potentially improving outcomes. Further research is required to confirm these findings across other cancer types and therapies.

Introduction

NPC is prevalent in southern China, Southeast Asia, and North Africa, with nonkeratinizing differentiated and undifferentiated carcinoma being the dominant pathological subtype and often associated with Epstein–Barr Virus (EBV) infection (1). At the time of diagnosis, most NPC patients are already in the advanced stages of the disease, with approximately 10% presenting with distant metastases. Recurrent or distant metastasis, either at initial diagnosis or following treatment, remains the primary cause of treatment failure in patients with NPC (2). Several clinical studies have confirmed the efficacy of combining immunotherapy with chemotherapy for the first-line treatment of recurrent and metastatic NPC, as well as the effectiveness of immunotherapy as a second-line or later treatment. However, most studies report response rates ranging between 20% and 30%, with some patients experiencing severe adverse reactions (3). These irAEs can range from mild to life-threatening and affect various organs and systems, including the skin, gastrointestinal tract, lungs, and endocrine glands. Failure to detect and manage severe irAEs can lead to long-term damage or even treatment discontinuation. This highlights the clinical importance of monitoring and identifying biomarkers associated with irAEs to mitigate potential harm.

Recent studies have highlighted peripheral blood biomarkers in assessing and predicting the efficacy of and adverse reactions to immunotherapy (4). Research across various cancers, including non-small cell lung cancer, metastatic renal cancer, osteosarcoma, melanoma, and head and neck squamous cell carcinoma, has demonstrated that specific changes in peripheral blood indices—namely the neutrophil-to-lymphocyte ratio (NLR), platelet-to-lymphocyte ratio (PLR), platelet-to-albumin ratio (PAR), lymphocyte-to-monocyte ratio (LMR), hemoglobin (HB), absolute lymphocyte count (ALC), absolute neutrophil count (ANC), and nutritional status—can significantly influence treatment efficacy and the occurrence of irAEs (2, 3, 5). However, research on biomarkers for predicting the efficacy and irAEs, especially in NPC, is limited. The POLARIS-02 study revealed that baseline plasma EBV DNA titers and their dynamic changes were significantly correlated with Progression-Free Survival (PFS), Overall Survival (OS), and Durable Clinical Benefit (DCB, defined as PFS ≥6 months) in patients with advanced NPC undergoing immunotherapy. We plan to develop a comprehensive predictive model specifically for NPC patients treated with PD-L1. This model incorporates some biomarkers to improve the prediction of irAEs, enabling clinicians to more effectively manage the risks associated with immunotherapy.

Method

Data source

This study used data from an open-label, multicenter phase 2 clinical trial conducted between 2017 and 2019 at 42 hospitals in China involving 153 patients with NPC (Supplementary Figure 1). The inclusion criteria required patients to have recurrent or metastatic nonkeratinizing NPC, have failed at least two lines of chemotherapy, and meet the following conditions: being over 18 years old, having an Eastern Cooperative Oncology Group (ECOG) performance status of 0–1, and a life expectancy of at least 12 weeks. Patients with prior immunotherapy treatments, central nervous system metastasis, or active autoimmune diseases were excluded from the study. The trial followed ethical guidelines, and all participants provided written informed consent. Blood samples were taken at baseline stages to analyze biomarkers, and irAEs were monitored and graded according to established clinical guidelines throughout the study.

Patients in this study received KL-A167, a PD-L1 inhibitor, at a fixed dose of 900 mg via intravenous infusion every two weeks. Treatment was continued until one of the following occurred: confirmed disease progression, unacceptable toxicity, or withdrawal of informed consent. The decision to confirm Progressive Disease (PD) was based on repeat evaluations performed at least four weeks after the initial assessment, at the investigator’s discretion. For patients who discontinued treatment due to reasons other than documented disease progression, tumor assessments were conducted until PD, initiation of a new antitumor therapy, loss to follow-up, or death. No dose reductions of KL-A167 were permitted, and treatment was permanently discontinued if irAEs did not resolve to grade 0–1 within 12 weeks following the last dose. IrAEs were monitored from screening through the treatment period and up to 30 days after the withdrawal visit. This study primarily aimed to develop predictive models for identifying patients at risk of irAEs, thus enabling more effective early interventions and improving clinical outcomes.

Variables

In this study, we collected demographic data, including age, sex, and Body Mass Index (BMI), along with clinical characteristics, namely clinical stage, liver metastasis status, smoking history, and alcohol consumption history. Baseline biological indicators encompassed blood and immune parameters, including Red Blood Cell (RBC), Hemoglobin (HGB), Platelet (PLT), White Blood Cell (WBC), NLR, PLR, and EBV DNA, as well as liver and kidney function, lipid levels, thyroid function, and other laboratory data. Continuous variables were converted into categorical variables on the basis of cutoff values determined via the "cutoff" package in R. We used the Akaike Information Criterion (AIC) to select the most influential variables, which were then included in the logistic regression analysis. The primary goal of the study was to assess the type and severity of immune-related adverse events (irAEs) that occur in NPC patients during follow-up.

The study incorporated a range of demographic, clinical, and biological variables, each selected for its clinical significance and potential association with immune-related adverse events (irAEs). All variables were initially treated as continuous; where necessary, cutoff values were derived using ROC curve analysis to enhance predictive accuracy. This methodological approach ensured that variable definitions were not only statistically robust but also clinically relevant.

Construction of the nomogram

Three nomogram prediction models were constructed via different variable selection methods. Initially, univariate logistic regression analysis was performed, and variables with p values < 0.2 were included in the multivariate logistic regression analysis. For each variable, the version (continuous or categorical) with the smaller AIC value was selected (6). Multivariate logistic regression analysis identified Na (≤ 140.05", "> 140.05"), FT4, and PD_L1 as independent risk factors. The first prediction model was developed by selecting variables on the basis of univariate logistic regression analysis, where those with p values < 0.05 were included in the multivariate analysis. Variables with p values < 0.1 from the multivariate analysis were subsequently used to construct the model (7). For the second prediction model, we applied bidirectional stepwise regression to select the most significant variables. Finally, the third prediction model combined univariate logistic regression analysis with LASSO regression (8). Here, the LASSO method was used with a penalty factor (α) to filter out overlapping variables, which were then incorporated into the final model (9).

Model performance and validation

The internal validation of this study was conducted via k-fold cross-validation, and the performance of the models was assessed through ROC curves, DCA curves, and calibration curves (10). The ROC curve was employed to evaluate the model's discriminative ability, with the area under the curve (AUC) reflecting the accuracy of the predictions. Calibration curves were used to assess the agreement between the predicted probabilities and the actual outcomes, ensuring the model's reliability. DCA was utilized to estimate the clinical "net benefit" of the predictive model in comparison with the default strategies of treating all patients or treating none, thereby providing valuable insights into the practical application of the model in clinical decision-making.

Statistical analysis

Candidate predictors were identified through univariate analysis (P < 0.10), followed by LASSO regression for feature selection. Significant variables were further refined using multivariable logistic regression to construct the final nomogram model. Although our dataset contains fewer than 200 variables, the ratio of predictors to observations still poses a risk of overfitting. LASSO regression was applied to eliminate less informative variables by shrinking coefficients to zero, while Ridge regression was employed to reduce collinearity and improve model stability. The data analysis was performed via R software version 4.4.1. The R packages “dplyr (version 1.1.4)”, “survival” (version 3.3-1), “glm” (version 4.4.1), “rms” (version 6.8-1), “pROC” (version 1.18.5), and “ggplot2” (version 3.5.1) were used to develop and evaluate the model. The statistical significance of the two-sided p value was set at ≤ 0.05.

Results

Baseline characteristics

This study included 153 patients divided into two groups on the basis of the occurrence of irAEs: 105 patients did not experience irAEs, whereas 48 patients did. The baseline characteristics of these patients are summarized in Table 1. The two groups did not significantly differ in terms of age, BMI, ECOG performance status, sex, smoking and alcohol history, tumor stage, lymph node stage, or liver metastasis. Overall, the baseline characteristics of the patients in this study were predominantly male patients, with higher ECOG performance scores, no liver metastasis, and all patients receiving standard treatment protocols, including chemotherapy and/or radiotherapy. The differences in the distributions of all the baseline characteristics between the two groups were not statistically significant (all p > 0.05).

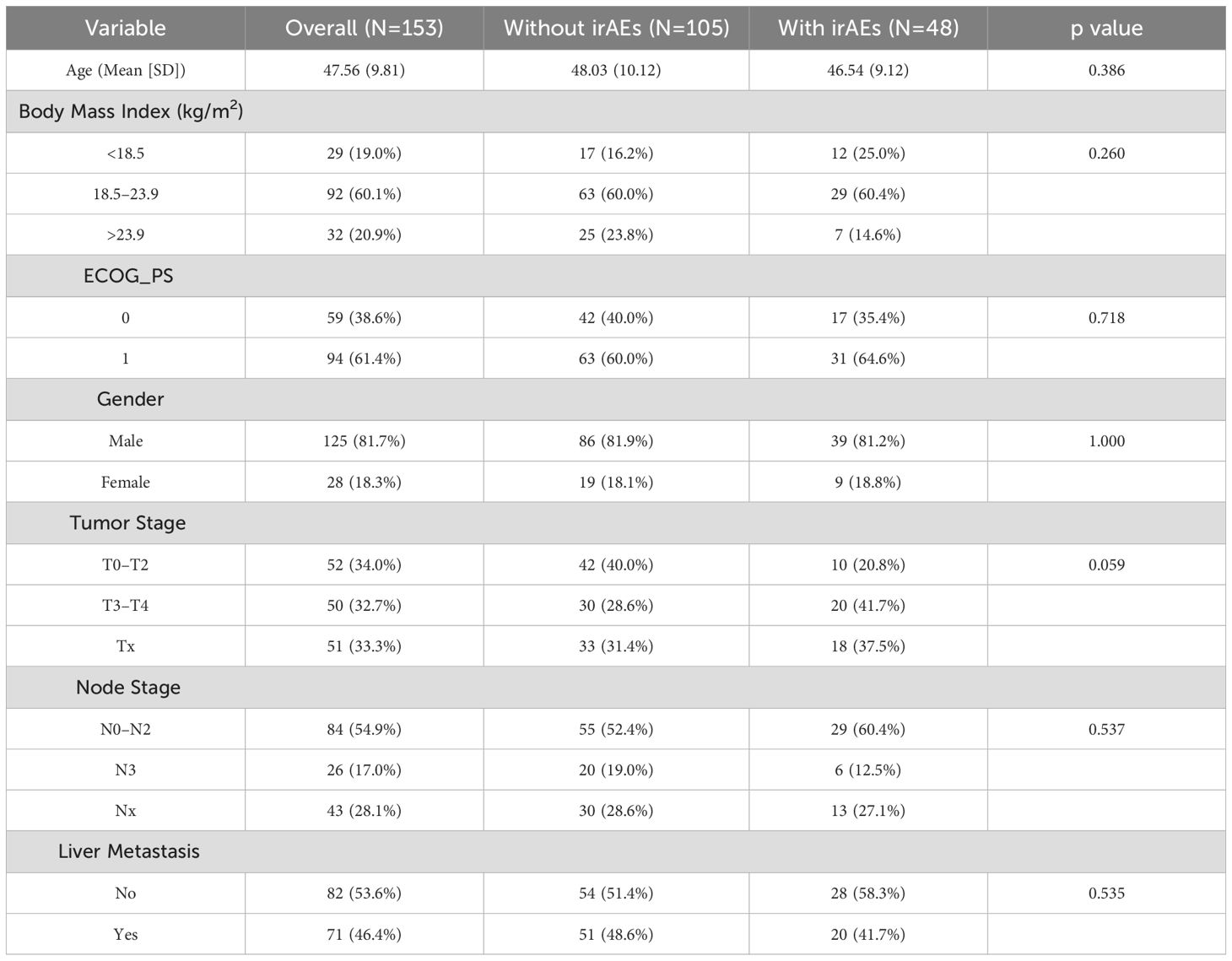

Table 1

Table 1. Baseline characteristics of patients with and without immune-related adverse events (irAEs).

Occurrence of irAEs

In this study, 153 patients were analyzed, 48 (31.3%) of whom experienced irAEs (Table 2). The most common irAEs were endocrine-related and occurred in 20.9% (32 patients), followed by digestive system-related (7.8%, 12 patients) and cardiac-related events (6.5%, 10 patients). The majority of irAEs were mild, with 27.4% (42 cases) being grade 1–2. However, 3.9% (6 patients) were Grade 3 or higher, indicating more severe reactions. Endocrine irAEs were exclusively grade 1–2, whereas some cardiac (2 cases), digestive (3 cases), and hematologic (2 cases) irAEs progressed to grade 3 or higher. Other less frequent irAEs included dermatologic events, fatigue, and renal and metabolic disorders, most of which were mild (1.3% to 3.9%). These findings underscore the prevalence of mild irAEs but highlight the potential for more serious events, particularly in the cardiac, digestive, and hematologic systems, warranting close clinical attention (Supplementary Figure 2).

Table 2

Table 2. Incidence and severity of immune-related adverse events (irAEs) among patients.

Univariate and multivariate logistic regression analyses

In this study, we first conducted univariate logistic regression analysis on each numerical variable. ROC curves were used to determine the optimal cutoff values, allowing us to convert these numerical variables into categorical variables. We then compared the AIC values of the continuous and categorical versions of the same variable, selecting the one with the lower AIC for further logistic regression analysis. Variables with a p value < 0.2 in the univariate analysis were subsequently included in the multivariate logistic regression analysis. The final results of both the univariate and multivariate logistic regression analyses are presented in the above table. In the multivariate analysis, variables with a p value < 0.05 were considered independent risk factors associated with the occurrence of irAEs during PD-L1 treatment. Specifically, the odds ratio (OR) for PD-L1 was 0.432 (95% CI: 0.188–0.993, p = 0.048), indicating that PD-L1 may play a significant independent role in the development of irAEs. Additionally, the dichotomized variables for FT4, Na, and lymphocyte count were also significant in the multivariate analysis. The OR for FT4 was 0.921 (95% CI: 0.851–0.996, p = 0.040), that for Na was 2.461 (95% CI: 1.109–5.459, p = 0.027), and that for the lymphocyte count was 2.768 (95% CI: 1.052–7.285, p = 0.039). These findings suggest that, in addition to PD-L1, FT4, Na, and lymphocyte count may also be potential factors influencing the occurrence of irAEs (Table 3). In summary, this study systematically selected and analyzed variables through regression analysis, identifying PD-L1 and several other important biomarkers as independent factors for irAEs.

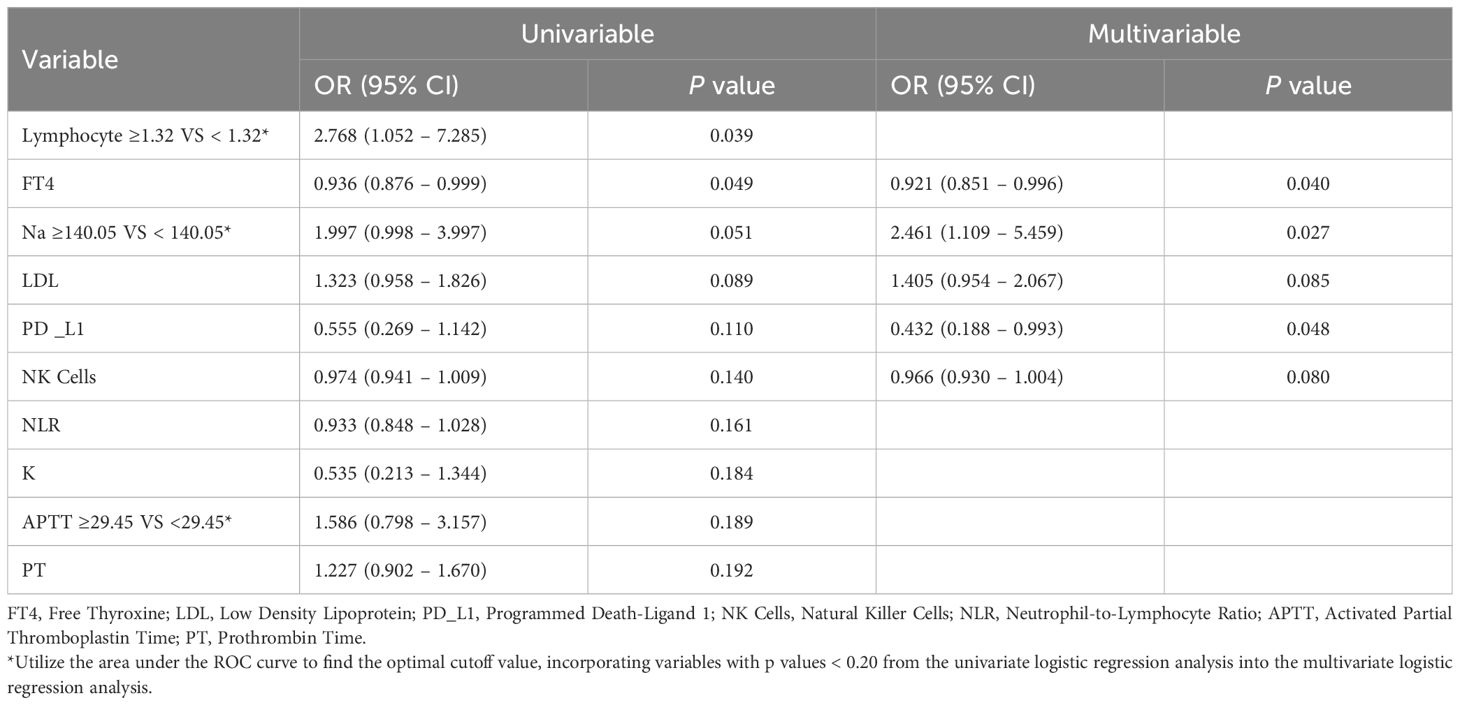

Table 3

Table 3. Univariate and multivariate logistic regression analyses of factors associated with immune-related adverse events (irAEs).

Construction of predictive models

In this study, we employed different methods to select variables and construct three logistic regression models to predict irAEs. First, we developed the first nomogram model by selecting variables from the multivariate logistic regression analysis with p values less than 0.1. These variables included FT4, Na binary, Low-Density Lipoprotein (LDL), PD_L1, Natural Killer Cells (NK cells), and Potassium (K) (Figure 1A). For the second model, we utilized a stepwise regression approach. We constructed a comprehensive model containing various potential influencing factors and applied forward, backward, and bidirectional stepwise regression methods to filter the variables. The selected variables for this model included the Cluster of Differentiation 4/8 Ratio (CD4/CD8), lymphocyte count, Na binary, FT4, Prothrombin Time (PT), LDL, PLT binary, Triglycerides (TG), and NK cells (Figure 1B). The third model was built via least absolute shrinkage and selection operator (LASSO) and ridge regression techniques (Figure 2A). These methods introduce regularization terms to reduce model complexity and mitigate the risk of overfitting. LASSO regression, through L1 regularization, enabled variable selection, whereas ridge regression, through L2 regularization, smoothed the variable coefficients (Figure 2B). Cross-validation was employed to determine the optimal lambda value, ultimately leading to the selection of key predictive variables, including lymphocyte count, FT4, Na-binary, LDL, NK cells, PD-L1, NLR, K, and PT (Figure 1C). These variables were then used to construct the final nomogram.

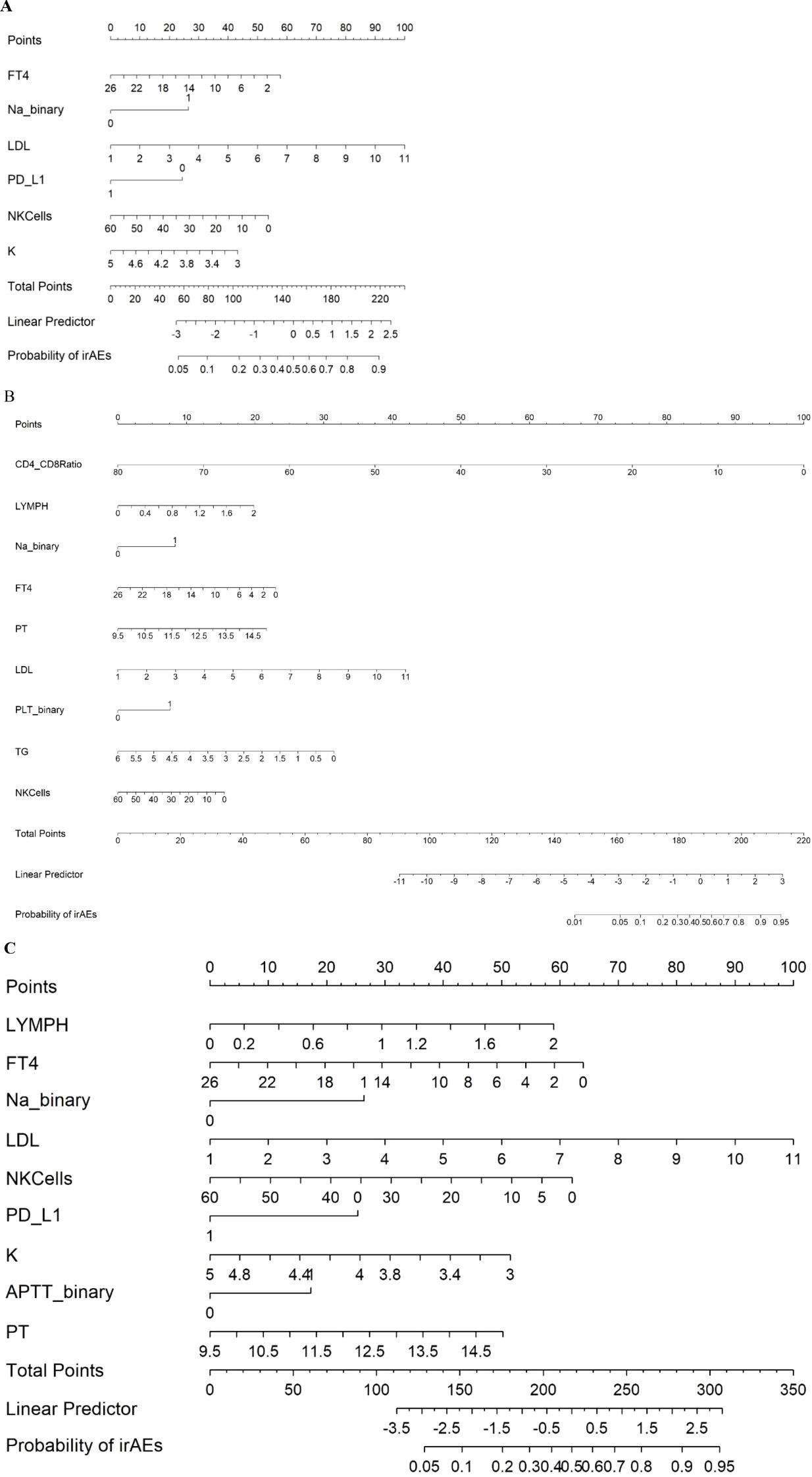

Figure 1

Figure 1. Nomogram predicting irAEs using Model 1 (A), Model 2 (B), and Model 3 (C), FT4 (Free Thyroxine): pmol/L. Na_binary (Sodium): Binary variable with a cutoff of 140 mmol/L. LDL (Low-Density Lipoprotein): mmol/L. PD_L1 (Programmed Death-Ligand 1): Binary variable (0 = negative, 1 = positive). NKCells (Natural Killer Cells): cells/µL. K (Potassium): mmol/L. CD4_CD8 Ratio (CD4/CD8 Ratio). LYMPH (Lymphocytes): ×10⁹/L. PT (Prothrombin Time): seconds. PLT_binary (Platelets): Binary variable with a cutoff of 208 ×10⁹/L.TG (Triglycerides): mmol/L. APTT_binary (Activated Partial Thromboplastin Time): Binary variable with a cutoff of 29.4 seconds.

Figure 2

Figure 2. Regularization Path (A) and Cross-Validation (B) for LASSO and Ridge Regression Models.

Model performance validation

In this study, owing to the relatively small sample size of only 153 cases, we opted for k-fold cross-validation instead of the holdout method for internal validation (11). This approach provides performance metrics for the three different models. Specifically, the first model had an ROC value of 0.627, with a sensitivity of 0.955 and a specificity of 0.300; the second model had an ROC value of 0.706, with a sensitivity of 0.877 and a specificity of 0.305; and the third model had an ROC value of 0.671, with a sensitivity of 0.867 and a specificity of 0.355 (Figure 3A). To further assess the performance of these models, we also used ROC curves, DCA (Figure 3B), and calibration curves (Figure 3C) (12). The second model achieved an area under the ROC curve (AUC) of 0.78, indicating moderate predictive ability. While this level of discrimination suggests potential clinical utility, it is not ideal, and further refinement of the model is warranted. Future studies with larger external datasets may help optimize its predictive performance (13). T The inclusion criteria he DCA curves further demonstrated the net benefits of the three models across different thresholds, with the second model also showing greater clinical utility (14). Finally, calibration curves were used to evaluate the agreement between the predicted probabilities and actual outcomes, and all the models exhibited good calibration (15). Notably, the second model had the smallest deviation between the bias-corrected curve and the ideal curve. In conclusion, on the basis of the results of the k-fold cross-validation and the evaluation through various curves, the second model demonstrated the best performance in distinguishing and predicting the occurrence of irAEs, making it the most clinically valuable among the three models.

Figure 3

Figure 3. Performance Evaluation of Predictive Models for irAEs (A: ROC Curves, B: Decision Curve Analysis, C: Calibration Curves).

Discussion

For patients with recurrent or metastatic NPC, traditional treatments, including radiotherapy and chemotherapy, often fail to achieve long-term disease control, leading researchers to explore alternative therapeutic strategies (16). In recent years, Immune Checkpoint Inhibitors (ICIs) particularly those targeting Programmed Death 1 (PD-1) and PD-L1, have emerged as promising options for the treatment of various cancers, including NPC (17). These inhibitors work by reversing the immunosuppressive effects in the tumor microenvironment, thus reactivating the immune system’s T cells to combat tumor growth (18). While some patients have demonstrated substantial clinical benefits from ICIs, the overall objective response rates (ORRs) remain modest, typically approximately 20–30% according to most studies (5). Moreover, the unpredictable and sometimes severe nature of irAEs presents additional challenges, highlighting the need for biomarkers to predict irAEs early in clinical practice (19).

Research has demonstrated that blood biomarkers, including the NLR and PLR, are significantly associated with the efficacy and adverse effects of ICIs (20). In non-small cell lung cancer, elevated NLR have been linked to poorer responses to immunotherapy and a greater risk of irAEs (4, 21). Similarly, studies have shown that in melanoma patients, higher NLR and PLR are associated with worse clinical outcomes and a greater incidence of irAEs (22). In gastric cancer, a low LMR has also been identified as a potential biomarker for predicting the occurrence of irAEs (23). Furthermore, in head and neck squamous cell carcinoma, higher serum Albumin (ALB) levels are correlated with a lower risk of irAEs, which may be related to the role of nutritional status in regulating the immune system (24). However, research on predicting irAEs in NPC remains limited.

This study included 153 patients with recurrent or metastatic NPC treated with PD-L1 inhibitors. Through systematic analysis, we explored factors associated with the occurrence of irAEs and developed a nomogram model to predict the occurrence. The results revealed that approximately 31.3% of patients experienced irAEs during treatment, with the highest incidence rates observed in endocrine-, digestive-, and cardiac-related adverse events, at 20.9%, 7.8%, and 6.5%, respectively. Specifically, the severity of most irAEs was classified as Grade 1 or 2, accounting for 87.5% (42/48) of all irAEs. However, 12.5% (6/48) of patients experienced severe irAEs of grade 3 or higher, particularly in the cardiac and digestive systems. These findings are consistent with the irAEs occurrence reported in other cancer, underscoring the need for special attention to specific system-related irAEs in NPC patients (25–27). This finding also highlights that irAEs in certain systems can progress to more severe degrees, aligning with current reports on irAEs in cancer immunotherapy (28). In the univariate logistic regression analysis, we initially identified several variables that might be associated with the occurrence of irAEs and converted these numerical variables into binary categories for further analysis. The multivariate logistic regression analysis ultimately identified PD-L1 (OR = 0.432, 95% CI: 0.188–0.993, p = 0.048), FT4 (OR = 0.921, 95% CI: 0.851–0.996, p = 0.040), Na (OR = 2.461, 95% CI: 1.109–5.459, p = 0.027), and lymphocyte count (OR = 2.768, 95% CI: 1.052–7.285, p = 0.039) as independent predictors. These findings suggest that these biomarkers play crucial roles in the occurrence of irAEs and could serve as potential indicators for predicting irAEs in clinical practice (25, 29, 30). On the basis of these independent predictors, we constructed three different nomogram models via multivariate logistic regression, LASSO regression, and ridge regression techniques (31). Among these models, the second model, which selected the most relevant variables through a stepwise regression method, demonstrated the best predictive performance. Internal validation revealed that the second model achieved an area under the ROC curve (AUC) of 0.78, with a sensitivity of 0.877 and a specificity of 0.305, indicating good predictive ability. Additionally, DCA was used to evaluate the clinical net benefit of the model, with the results showing that the second model exhibited high clinical utility across different thresholds. Finally, calibration curve analysis validated the accuracy of the model, with the second model showing the smallest deviation between the predicted probabilities and observed outcomes, indicating high calibration and reliability. Further KM survival curve analysis revealed that patients who experienced irAEs had better PFS, suggesting that the occurrence of irAEs may be associated with a better treatment response (Figure 4). These findings provide important guidance for clinical management.

Figure 4

Figure 4. Progression-free survival (PFS) and Overall survival (OS) in patients with and without irAEs.

Compared with existing irAEs prediction models, most prior studies have focused on the analysis of a single biomarker, namely the NLR or the PLR. These studies typically assess the correlation between a single indicator and the occurrence of irAEs (32, 33). However, the limitation of this approach lies in the fact that a single biomarker often cannot fully capture the complex biological state of a patient, which may restrict its predictive power. In this study, we adopted a comprehensive approach, utilizing multivariate logistic regression, LASSO regression, and ridge regression to systematically identify multiple biomarkers closely associated with the occurrence of irAEs and constructed different multivariable prediction models. After comparing the predictive performance of the three models, our study highlights the unique roles of biomarkers, including PD-L1, FT4, Na, and lymphocyte count, which are less frequently considered together in the prediction of irAEs in NPC (34). By integrating these indicators, we can more accurately identify patients who are at greater risk of developing severe irAEs, thereby providing more effective guidance for clinical treatment. Additionally, our predictive models demonstrated good performance in internal validation, especially the second model, which achieved an area under the ROC curve (AUC) of 0.78—significantly greater than that of several previous models based on single biomarkers (10). In contrast, the AUCs of the prediction models in previous studies typically ranged from 0.6--0.7, indicating that their predictive capabilities may not be sufficient for widespread clinical application (21). By incorporating the LASSO and ridge regression techniques, our models effectively reduce the problem of overfitting, enhancing their stability and generalizability. These advantages make our models more clinically valuable in predicting the risk of irAEs in NPC patients undergoing immunotherapy. Moreover, our predictive models are not limited to predicting the occurrence of irAEs; they also explore the potential mechanisms behind these adverse events through multivariate analysis. For instance, a decrease in PD-L1 expression may be significantly associated with the occurrence of irAEs-a finding that is consistent with research in other cancer types but is reported for the first time in NPC patients (25, 28). Additionally, changes in FT4 and Na levels may play important roles in the development of irAEs, providing new insights for further investigations into the biological mechanisms of these adverse events (30, 35).

Our study demonstrates that the developed nomogram provides moderate predictive accuracy for irAEs in NPC patients. While the model’s performance metrics support its potential clinical use, its practical applicability must also be considered. The second model, which incorporates a broader range of clinical and laboratory parameters, requires more detailed input, potentially increasing time consumption. However, once key variables are obtained, the calculation process is relatively fast and can be performed using readily available statistical software or online tools. Future integration into electronic medical records (EMRs) could further enhance accessibility and ease of use in clinical settings. Additionally, automated computation within a user-friendly interface could minimize workload for clinicians, increasing the model’s real-world applicability.

Despite the significant progress made in predicting irAEs, this study has several limitations. First, A key limitation of our study is the relatively small sample size, with only 153 patients, which may limit the generalizability of the model. However, given the rarity of PD-L1 inhibitor-treated recurrent or metastatic NPC cases, obtaining a large sample size is challenging. Future research should involve larger sample sizes, preferably from multiple centers, to validate the model's applicability and reliability in a broader population. Second, this study focused primarily on NPC patients treated with PD-L1 inhibitors, so the model’s applicability to other ICIs or different cancer types remains to be validated. Additionally, the study employed k-fold cross-validation for internal validation, which performs well with small sample sizes but lacks external validation. Thus, future studies should conduct external validation in independent cohorts to ensure the broad clinical applicability of the model. Finally, the mechanisms underlying irAEs are complex and may be influenced by various factors. This study did not encompass all potential influencing factors, indicating a need for future research to integrate more biological and clinical data to further refine and optimize the predictive model.

Conclusion

This study systematically analyzed 153 patients with recurrent metastatic NPC who were treated with PD-L1 inhibitors and successfully developed and validated three nomogram models for predicting the occurrence of irAEs. The results identified PD-L1, FT4, Na, and lymphocyte count as factors in predicting irAEs. Among the models, the second model demonstrated the best predictive performance, significantly enhancing both the accuracy and clinical utility of irAEs prediction. While the developed nomogram demonstrates promising predictive performance for irAEs in advanced NPC patients, further external validation is necessary to ensure its broader applicability. Future research should focus on validating the model in larger, multi-center cohorts and evaluating its potential utility across different malignancies.

Data availability statement

The raw data supporting the conclusions of this article will be made available by the authors, without undue reservation.

Ethics statement

The studies involving humans were approved by the Ethics Committee on Clinical Trial, West China Hospital of Sichuan UniversityAffiliation: West China Hospital, Sichuan University. The studies were conducted in accordance with the local legislation and institutional requirements. The participants provided their written informed consent to participate in this study.

Author contributions

ML: Formal Analysis, Software, Writing – original draft. ZL: Methodology, Software, Writing – review & editing. SH: Software, Writing – review & editing. YP: Methodology, Software, Writing – review & editing. SX: Software, Writing – review & editing. JG: Data curation, Writing – review & editing. YQ: Data curation, Writing – review & editing. YW: Writing – review & editing. YC: Writing – review & editing. PA: Writing – review & editing. XP: Writing – review & editing.

Funding

The author(s) declare that financial support was received for the research, authorship, and/or publication of this article. This study was funded by Sichuan Kelun-Biotech Biopharmaceutical Co., Ltd.(Chengdu, China), and also supported in part by China National Major Project for New Drug Innovation (2017ZX09304015). Sichuan Kelun-Biotech Biopharmaceutical Co., Ltd. was not involved in the study design, collection, analysis, interpretation of data, the writing of this article, or the decision to submit it for publication.

Conflict of interest

Authors JG, YQ and YW were employed by the company Sichuan Kelun-Biotech Biopharmaceutical Co. Ltd.

The remaining author declares that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Generative AI statement

The author(s) declare that no Generative AI was used in the creation of this manuscript.

Publisher’s note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.

Supplementary material

The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fonc.2025.1539514/full#supplementary-material

Glossary

NPC: Nasopharyngeal Carcinoma

irAEs: Immune-related Adverse Events

PD-L1: Programmed Death-Ligand 1

ICIs: Immune Checkpoint Inhibitors

PFS: Progression-Free Survival

OS: Overall Survival

DCB: Durable Clinical Benefit

AEs: Adverse Events

ECOG: Eastern Cooperative Oncology Group

cHL: Classical Hodgkin Lymphoma

AHCT: Allogeneic Hematopoietic Cell Transplantation

ROC: Receiver Operating Characteristic

AUC: Area Under the Curve

DCA: Decision Curve Analysis

NLR: Neutrophil-to-Lymphocyte Ratio

PLR: Platelet-to-Lymphocyte Ratio

LMR: Lymphocyte-to-Monocyte Ratio

PAR: Platelet-to-Albumin Ratio

LASSO: Least Absolute Shrinkage and Selection Operator

Ridge: Ridge Regression

AIC: Akaike Information Criterion

KM: Kaplan-Meier

FT4: Free Thyroxine

Na: Sodium

K: Potassium

LDL: Low-Density Lipoprotein

TG: Triglycerides

PT: Prothrombin Time

APTT: Activated Partial Thromboplastin Time

EBV DNA: Epstein-Barr Virus DNA

PD: Progressive Disease

AP: Alkaline Phosphatase

CI: Confidence Interval

LR: Logistic Regression

RO: Radiation Oncology

TT: Thyroid Test

HGB: Hemoglobin

PLT: Platelet

WBC: White Blood Cell

RBC: Red Blood Cell

NK Cells: Natural Killer Cells

CD4/CD8: Cluster of Differentiation 4/8 Ratio
