- 1Department of Gastroenterology and Alimentary Tract Surgery, Tampere University Hospital, Tampere, Finland
- 2Faculty of Medicine and Health Technology, Tampere University, Tampere, Finland
- 3Department of Internal Medicine, School of Medicine, University of Eastern Finland, Kuopio, Finland
Objectives: Detection of volatile organic compounds (VOCs) from bodily fluids with field asymmetric waveform ion mobility spectrometry (FAIMS) and related methods has been studied in various settings. Preliminary results suggest that it is possible to detect prostate, colorectal, ovarian and pancreatic cancer from urine samples. In this study, our primary aim was to differentiate pancreatic cancer from pancreatitis and benign tumours of the pancreas by using bile samples obtained during endoscopic retrograde cholangiopancreatography (ERCP). Secondarily, we aimed to differentiate all pancreatic region malignancies from all other kinds of benign causes of biliary obstruction.
Methods: A bile sample was successfully aspirated from 94 patients during ERCP in Tampere University Hospital. Hospital and patient records were prospectively followed up for at least two years after ERCP. Bile samples were analysed using a Lonestar chemical analyser (Owlstone, UK) using an ATLAS sampling system and a split-flow box. Diagnoses and corresponding data from the analyses were matched and divided into two subcategories for comparison. Statistical analysis was performed using linear discriminant analysis, support vector machines, and 5-fold cross-validation.
Results: Pancreatic cancers (n=8) were differentiated from benign pancreatic lesions (n=9) with a sensitivity of 100%, specificity of 77.8%, and correct rate of 88%. All pancreatic region cancers (n=19) were differentiated from all other kinds of benign causes of biliary obstruction (n=75) with corresponding values of 21.1%, 94.7%, and 80.7%. The sample size was too small to try to differentiate pancreatic cancers from adjacent cancers.
Conclusion: Analysing bile VOCs using FAIMS shows promising capability in detecting pancreatic cancer and other cancers in the pancreatic area.
Introduction
Detection of volatile organic compounds (VOCs) from bodily fluids with field asymmetric waveform ion mobility spectrometry (FAIMS) and similar methods has demonstrated extensive capabilities in VOC analyses. Promising results have been reported in the detection from urine of pancreatic cancer, prostate cancer, bladder tumours, colorectal cancer, ovarian cancer, non-alcoholic fatty liver disease and urinary tract infection pathogens (1–11). Exhaled breath has been used for the detection of pancreatic, breast, lung and colorectal cancer as well as COVID-19 (12, 13). Moreover, faecal VOCs have been studied in the context of inflammatory bowel disease, colorectal cancer and infectious diarrhoea (14–16). Methods based on the same principles have also been used in the intraoperative analysis of diathermy smoke to detect cancerous tissue on resection margins (17, 18).
Pancreatic cancer diagnostics is a notoriously challenging topic as the majority of cases are detected at either a locally advanced or metastatic stage of the disease. Nowadays the diagnosis is mainly based on high radiation dose computed tomography. However, when a pancreatic mass is detected in an imaging test, it may be challenging to assess if the finding is malignant or benign as radiological findings of both aetiologies can mimic each other (19). This may complicate the clinical decision-making whether to swiftly resect the mass or to opt for alternative modalities and tissue sampling. Either way, a significant proportion of patients with pancreatic cancer or other biliary obstruction require preoperative biliary drainage, which is often performed in endoscopic retrograde cholangiopancreatography (ERCP). This procedure also enables gathering brushings and biopsies in the pancreatic region for diagnostic aid, but their sensitivity in reaching a definitive diagnosis remains low (20, 21). Currently, endoscopic ultrasound fine-needle aspiration (EUS-FNA) is the gold standard for obtaining pancreatic tissues (22, 23). Furthermore, diagnostic ERCP has a potential risk of pancreatitis. Regardless, analysis of bile VOCs could offer new opportunities for the diagnostic issue. So far, only one study (24) has been presented on using bile VOCs for differentiating between pancreatic cancer and chronic pancreatitis.
Our primary aim in this study was to differentiate malignant and benign causes of biliary obstruction using a bile sample obtained in an ERCP. Firstly, our aim was to differentiate pancreatic adenocarcinoma from all kinds of benign lesions of the pancreas. Secondly, we aimed to differentiate all pancreatic region malignancies from all kinds of benign causes of biliary obstruction.
Materials and methods
Data collection
One hundred and nine patients undergoing ERCP for any reason in Tampere University Hospital (TAUH) between October 2017 and January 2019 were recruited. Ethical approval was obtained from TAUH (R17072) and the patients gave written consent. A bile sample of 1-2 millilitres was successfully aspirated from the bile duct during ERCP from 94 patients. Bile samples in separate cuvettes were immediately frozen to -20°C in TAUH, from which they were transferred to an ultra-low temperature freezer (-70°C) in a laboratory of Tampere University.
All samples were analysed in January 2019 on four consecutive days using Lonestar chemical analyser (Owlstone, UK), employing an ATLAS sampling system and a split-flow box. Samples were warmed up to room temperature prior to analysis. Samples were diluted by pipetting 0.5 millilitres of bile and adding 4.5 millilitres of sterilized water. Flow settings MFC1 = 500, MCF=200 and MFC3 = 2200 were used. Each sample took 120 seconds to scan. We ran two scans with sterilized water between each bile sample for cleaning purposes. Each sample was measured in 26,112 points, at 51 values of the dispersion field (DF) from 0% to 100%, and 512 values of the compensation voltage (CV) from -6.0 V to 5.9937 V. Parts of the measurement space, containing only noise, were removed to focus on the relevant information (Figure 1). The selected data contains 9036 points per sample, 36 DF values from 30% to 100%, and 251 values of CV from -4.3805 V to 1.4873 V. The FAIMS system was left in continuous scanning mode with a sterilized water sample every night to reduce carry-over effects. Positive mode compensation voltage sweep curve representing background smell was aimed at under 35%.
![www.frontiersin.org](https://www.frontiersin.org/files/Articles/918539/fonc-12-918539-HTML/image_m/fonc-12-918539-g001.jpg)

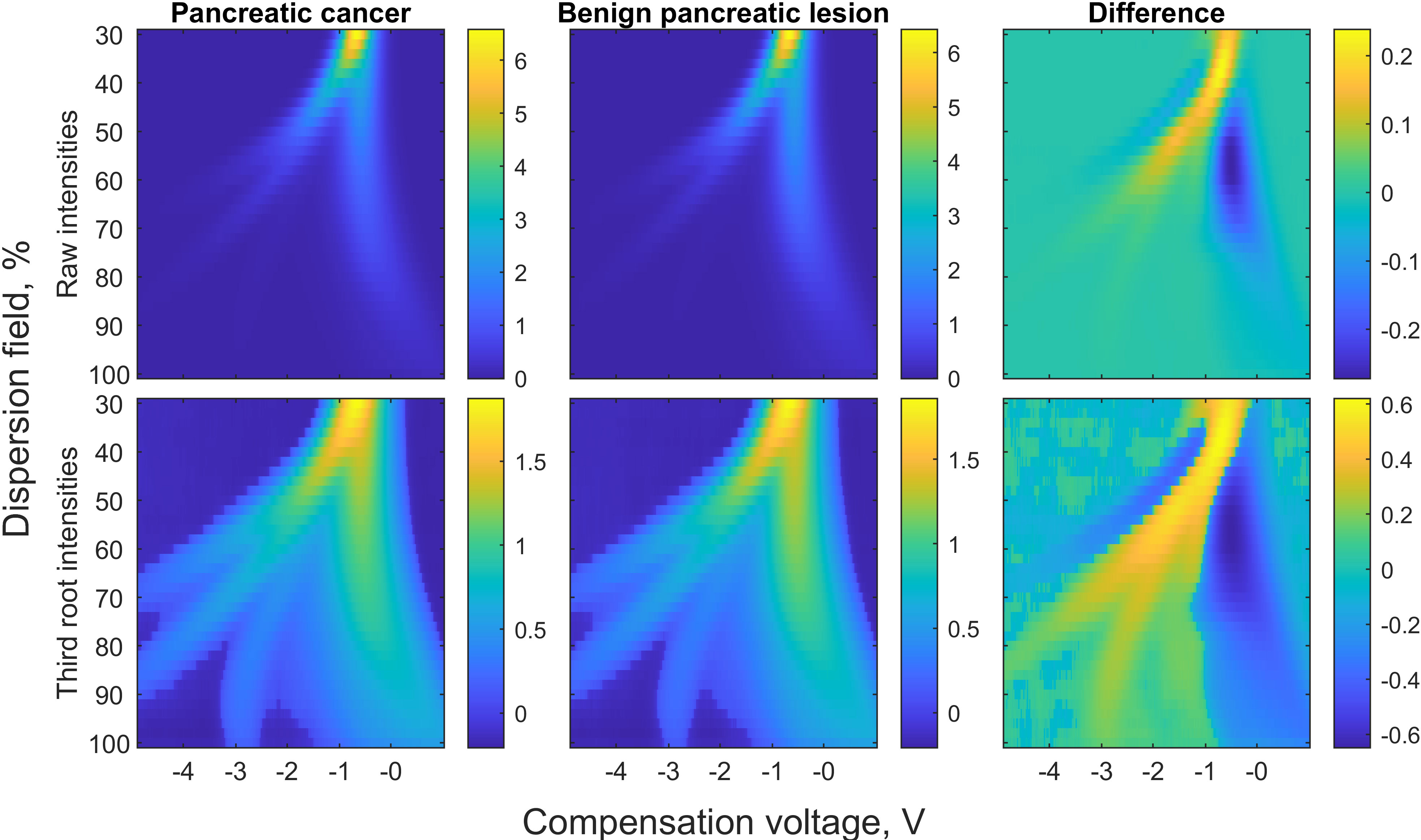

Figure 1 FAIMS spectra of bile in pancreatic cancer and benign pancreatic lesion groups and their differences. In the first row, water molecules bend far left in the electric field, while indistinguishable molecules composing the background spike bend to the far right. Discriminative molecules are found between these two. In the second row, the differences are accentuated by calculating third roots.
Patient records were followed up until August 2021. Data on patients’ age, sex, primary diagnosis at the time of the procedure, specified diagnosis and possible death during the follow-up period were gathered. The specified diagnosis was obtained by re-evaluating the primary diagnosis at the time of ERCP against possible subsequent findings and events. The diagnosis to be used in statistical analysis was updated, for example if the primary diagnosis was nonspecific and the patient was diagnosed with cancer shortly after the ERCP. The diagnosis was also updated if another cancer was discovered and had likely already been present at the time of ERCP, as even more distant cancers are known to affect bodily fluid smell profiles, as discussed below. The diagnosis changed from benign to malignant in ten patients during the follow-up period. In nine out of those ten patients, the more specific diagnoses also affected the final analysis. More detailed information about adjusted diagnoses is presented in Table 1. Conclusive diagnoses were sorted into 11 categories presented in detail in Table 2.
Statistical analysis
Data were analysed by a statistician using MATLAB R2021b (MathWorks Inc, Natick, MA, USA). FAIMS data were used to train classification methods in order to meet the objectives of this study. Linear discriminant analysis (LDA) and support-vector machine (SVM) were utilised for classification (25, 26). Both methods were cross-validated with leave-one-out (LOO) and 5-fold cross-validations (27, 28) and the data were weighted (with the inverse class size) to compensate for the imbalance in the number of patients in the classes. In cross validation a subset of the data is left out as a test set and the classifiers are identified using the rest of the data. In LOO one data point at a time is left out as a test data and in 5-fold one the data set is devided into 5 groups and one group at a time is left as test data. The results are classifiations of the test sets. The FAIMS (spectral images) were smoothed with 3 by 15 sliding window to reduce local measurement noise. The best discriminating locations (pixels in the spectral image) of the data space were identified by two-sided Wilcoxon rank-sum test. The most significant pixels (Bonferroni corrected p-value below 0.05) were selected for classification.
In our primary research question, benign pancreatic lesions were taken to be acute pancreatitis, chronic pancreatitis and benign cystic lesions (such as intraductal papillary mucinous neoplasm; IPMN), while pancreatic cancer was explicitly defined as pancreatic adenocarcinoma. In our secondary research question, primary sclerosing cholangitis, cholangitis, cholecystitis, gallstones, biliary duct stones, benign strictures, adenomas, pancreatic cystic lesions, acute and chronic pancreatitis were taken to be benign causes of biliary obstruction. In our research material, all malignant diagnoses consisted of pancreatic adenocarcinomas, cholangiocarcinoma, duodenal carcinomas and other cancerous metastases in the pancreatic region. Pathology categorizations used in the final analysis are listed in Table 2.
Results
The study population consisted of 109 patients with a median age of 64 years (range of 16 - 91 years), and 56% of them were men. Of the 94 bile samples collected, in 17 the indication for ERCP was a known PSC, while the remainder underwent ERCP because of acute biliary obstruction. Details of demographics, sample sizes, follow-up times and altered primary diagnoses are presented in Tables 1–3.
LDA classification model with 5-fold cross-validation was the most accurate statistical method in the differentiation of pancreatic lesions. Pancreatic adenocarcinomas (n = 8) were differentiated from benign pancreatic lesions (n = 9) with a sensitivity of 100%, specificity of 77.8% and correct rate of 88.2%. Data suggesting a present malignancy acquired by FAIMS could have improved the outcomes in half of pancreatic cancer patients. Differences in FAIMS spectra of pancreatic cancer and benign pancreatic lesion samples are presented in Figure 1.
SVM classification model with 5-fold cross-validation was discovered to be the most accurate method in differentiating between all kinds of benign causes of biliary obstruction. All pancreatic region malignancies (n = 19) were differentiated from benign causes (n = 75) with a sensitivity of 21.1%, specificity of 94.7% and correct rate of 80.7%.
Discussion
Differentiating pancreatic cancer from other pathologies and healthy controls utilising analysis of VOCs from bodily fluids with FAIMS and related methods has been reported in a few studies with promising results (1–5). So far, only one study has been published on bile VOCs in which pancreatic cancer was differentiated from chronic pancreatitis (24). Our novel discovery was that pancreatic cancer can be differentiated from various malignant and benign causes of biliary obstruction by analysing bile VOCs with FAIMS.
Differentiating pancreatic cancer from both acute and chronic pancreatitis proved to work well, with high sensitivity and specificity. This is a notable finding as it has (earlier) been reported that acute and chronic pancreatitis produce VOCs somewhat similar to those in cancer (1, 2). In contrast to our study, the above-mentioned result was from analysing urine VOCs, which may explain the finding. Moreover, a broader approach to identify general characteristics differentiating between all malignancies and benign causes proved to be more challenging. This more general approach as the second aim of the study proved to be decidedly insensitive. This finding was somewhat anticipated as pathogenetic mechanisms, and presumably also VOC profiles, vary greatly between the diseases included. However, at the same time, false negatives were infrequent in differentiating between all kinds of benign causes and all kinds of malign causes of biliary obstruction.
Analysis of VOCs is based on the principle that occasionally specific molecules are expressed in different levels in different disease states. Biomarkers like this can include various tumour-specific antigens, cell-type-specific peptides and metabolic products of the tissue itself or bacteria (29, 30). We hypothesise that altered microbiome in pancreatic cancer may contribute to a distinct smell pattern detectable by FAIMS, as an altered microbiome has been noted as a risk factor in pancreatic cancer (31). Pancreatic cancer has also been associated in several studies with oral microbiota composition (32–34). The presence of microbiota in the pancreas itself and their effect on carcinogenesis is a timely research topic, as similar findings have been discovered in multiple gastrointestinal cancers (35). However, as bile passes through the pancreas, potential biomarkers for pancreatic cancer, including metabolic products of bacteria, may be more prevalent in bile than in other bodily fluids (36). On the other hand, only tumors located at the head of the pancreas potentially lead to biliary obstruction. Therefore, pancreatic juice might work even better in detecting all kinds of pancreatic disorders. In 2017 Ren et al. reported higher quantities of intratumoural bacteria in pancreatic cancer patients who developed biliary obstruction requiring biliary stenting than in patients who did not require such intervention (37). A significant increase in intrapancreatic bacterial DNA content in cancer patients has also been noted in a study by Pushalkar et al. in 2018 (38). However, intrapancreatic bacteria are known to be linked to normal, inflammatory and malignant states, and no microbiota capable of differentiating between these have so far been found (39–41).
Another probable explanation may lie in polyamine metabolism. Polyamines are strongly smelling molecules secreted into bodily fluids and working as VOCs, making them interesting biochemical markers for cancer, especially as profiles constructed of multiple biomarkers (42–46). Certain polyamines are known to be present in pancreatic cancer, but on the other hand, the same kind of polyamine profile is also related to various inflammatory states, such as pancreatitis (1). In one study a combination of urinary polyamines has recently been linked to pancreatic cancer (47). However, it is unknown which VOCs are specific to pancreatic cancer (1). In conclusion, a vast quantity of potential factors explaining our results require extensive further research, as definite factors behind VOC profile changes are yet to be explored.
The primary strength of our study is the relatively long follow-up time, which verified the diagnoses used in the statistical analysis. A fact worth mentioning is the novelty of our method, as only one study on bile VOCs has so far been published. Our results support the recent finding by Navaneethan and colleagues (24), but with longer follow-up time and by including both acute and chronic pancreatitis as differences. That study, however, used a mass spectrometer, of which an assay is capable of detecting only 22 different VOCs. In contrast to our method, FAIMS is capable of nearly exhaustive analysis of VOCs present in bile: each sample was measured in 26,112 datapoints per sample, that were further reduced to 9036 datapoints per sample to be used in statistical analysis, as explained above in Materials and methods. Moreover, mass spectrometry is a rather expensive and complicated method for routine diagnostics. FAIMS is also significantly more time efficient, as one scan and subsequent cleaning protocol take only a few minutes to complete.
The primary weakness is the small sample size. This affected the size of the pancreatic cancer group in particular. Because of the limitation, we were also unable to try to differentiate pancreatic cancer from adjacent cancers, which could have been an intriguing research question. Nevertheless, the reported results can be considered statistically significant due to the validation methods used LOO and 5-fold. This finding, however, needs to be confirmed in a more extensive setting in the future. The second weakness of our study is related to the nature of ERCP. As an invasive procedure with a risk of complications, ERCP is only performed in the presence of a definite clinical indication. This may have caused biases in study population selection. At the same time, it also constitutes a practical issue and imposes limitations on bile-based diagnostics in general.
In this study, the follow-up times were a good demonstration of the demand for this kind of supportive diagnostic method in clinical practice. This applies especially to situations where there is a known lesion in the pancreas, but its histopathological nature is unclear. In our material, working diagnoses changed from benign to malignant in 10.6% of patients in an average of three months. Many of the histopathological diagnoses were only obtained in the operation to resect the unknown lesion in the pancreatic region. After reviewing patient records retrospectively, a malignancy suggesting a FAIMS result at the time of sample collection could have improved the clinical outcomes in half of our patients diagnosed with pancreatic cancer. In one-fourth of our pancreatic cancer patients, substantial diagnostic delay (up to 14 months) or further investigations (needle biopsy, endoscopies, imaging studies) could have been avoided. The fact that a substantial proportion of patients with pancreatic cancer require ERCP for biliary stenting or decompression emphasizes the attractiveness of confirming the result and studying bile VOCs as a diagnostic aid more profoundly in the future, as patients undergoing ERCP for biliary obstruction could possibly benefit from routine quantitative analysis of bile utilising FAIMS.
We showed that patients with pancreatic cancer could be differentiated from patients with benign pancreatic lesions with a sensitivity of 100% and specificity of 77.8%. Analysing bile VOCs using FAIMS shows promising capability in the detection of pancreatic cancer and other cancers in the pancreatic area.
Data availability statement
The raw data supporting the conclusions of this article will be made available by the authors, without undue reservation.
Ethics statement
The studies involving human participants were reviewed and approved by Tays Expert Responsibility Area Ethics Committee. The patients/participants provided their written informed consent to participate in this study.
Author contributions
VT was responsible for study design, general coordination, laboratory work and manuscript writing in close cooperation with SN. Significant part of the work with FAIMS device and laboratory work performed by AR and SN. AA, AS and YV worked as endoscopists gathering samples and also participated in initial study design. PK was responsible for statistical analysis. NO and JL were the professors directing and guiding whole research project. All authors contributed to the article and approved the submitted version.
Funding
This work was supported by State Research Funding (VTR), Finland, and the Sigrid Juselius Foundation, Finland. They have no involvement in the study design, data collection, data analysis, manuscript preparation or publication decisions. The FAIMS device used is owned by NO’s study group and we were permitted to use it gratuitously.
Acknowledgments
We thank Pekka Kumpulainen for the statistical analyses, research assistants Estefania Alvarez, Laura Matikka and Katriina Hietanen and research coordinator Satu Järvinen (Tampere University Hospital) for archive management and Virginia Mattila for proofreading.
Conflict of interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Publisher’s note
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
References
1. Nissinen SI, Roine A, Hokkinen L, Karjalainen M, Venäläinen M, Helminen H, et al. Detection of pancreatic cancer by urine volatile organic compound analysis. Anticancer Res (2019) 39(1):735. doi: 10.21873/anticanres.13081
2. Arasaradnam RP, Wicaksono A, O’Brien H, Kocher HM, Covington JA, Crnogorac-Jurcevic T. Noninvasive diagnosis of pancreatic cancer through Detection of volatile organic compounds in urine. Gastroenterology (2018) 154(3):485–4875.e1. doi: 10.1053/j.gastro.2017.09.054
3. Daulton E, Wicaksono AN, Tiele A, Kocher HM, Debernardi S, Crnogorac-Jurcevic T, et al. Volatile organic compounds (VOCs) for the non-invasive detection of pancreatic cancer from urine. Talanta (2021) 221:121604. doi: 10.1016/j.talanta.2020.121604
4. Princivalle A, Monasta L, Butturini G, Bassi C, Perbellini L. Pancreatic ductal adenocarcinoma can be detected by analysis of volatile organic compounds (VOCs) in alveolar air. BMC Cancer (2018) 18(1):529. doi: 10.1186/s12885-018-4452-0
5. Navaneethan U, Parsi MA, Lourdusamy D, Grove D, Sanaka MR, Hammel JP, et al. Volatile organic compounds in urine for noninvasive diagnosis of malignant biliary strictures: A pilot study. Digestive Dis Sci (2015) 60(7):2150–57. doi: 10.1007/s10620-015-3596-x
6. Roine A, Saviauk T, Kumpulainen P, Karjalainen M, Tuokko A, Aittoniemi J, et al. “Rapid and accurate detection of urinary pathogens by mobile IMS-based electronic nose: A proof-of-Principle study.” PloS One (2014) 9(12):e114279-. doi: 10.1371/journal.pone.0114279
7. Roine A, Veskimäe E, Tuokko A, Kumpulainen P, Koskimäki J, Keinänen T, et al. Detection of prostate cancer by an electronic nose: A proof of principle study. J Urol (2014) 192(1):230–35. doi: 10.1016/j.juro.2014.01.113
8. Arasaradnam R, McFarlane M, Daulton E, Westenbrink E, O’Connell N, Wurie S, et al. Non-invasive distinction of non-alcoholic fatty liver disease using urinary volatile organic compound analysis: Early results. J Gastrointestinal Liver Dis (2015) 24(2):197–201. doi: 10.15403/jgld.2014.1121.242.ury
9. Heers H, Gut JM, Hegele A, Hofmann R, Boeselt T, Hattesohl A, et al. Non-invasive detection of bladder tumors through volatile organic compounds: A pilot study with an electronic nose. Anticancer Res (2018) 38(2):833. doi: 10.21873/anticanres.12291
10. Mozdiak E, Wicaksono AN, Covington JA, Arasaradnam RP. Colorectal cancer and adenoma screening using urinary volatile organic compound (VOC) detection: Early results from a single-centre bowel screening population (UK BCSP). Techniques Coloproctol (2019) 23(4):343–51. doi: 10.1007/s10151-019-01963-6
11. Niemi RJ, Roine AN, Eräviita E, Kumpulainen PS, Mäenpää JU, Oksala N. FAIMS analysis of urine gaseous headspace is capable of differentiating ovarian cancer. Gynecologic Oncol (2018) 151(3):519–245. doi: 10.1016/j.ygyno.2018.09.016
12. Oakley-Girvan I, Davis SW. Breath based volatile organic compounds in the detection of breast, lung, and colorectal cancers: A systematic review. Cancer Biomarkers (2018) 21:29–39. doi: 10.3233/CBM-170177
13. Chen H, Qi X, Zhang L, Li X, Ma J, Zhang C, et al. COVID-19 screening using breath-borne volatile organic compounds. J Breath Res (2021) 15(4). doi: 10.1088/1752-7163/ac2e57
14. Chan DK, Leggett CL, Wang KK. Diagnosing gastrointestinal illnesses using fecal headspace volatile organic compounds. World J Gastroenterol (2016) 22(4):1639–495. doi: 10.3748/wjg.v22.i4.1639
15. Bosch S, Dion SJ, Wintjens AW, Kuijvenhoven J, van der Hulst R, Stokkers P, et al. The faecal scent of inflammatory bowel disease: Detection and monitoring based on volatile organic compound analysis. Digestive Liver Dis (2020) 52(7):745–52. doi: 10.1016/j.dld.2020.03.007
16. Bosch S, Berkhout DJ, Larbi I b, de Meij TG, de Boer NK. Fecal volatile organic compounds for early detection of colorectal cancer: Where are we now? J Cancer Res Clin Oncol (2019) 145(1):223–345. doi: 10.1007/s00432-018-2821-3
17. Karjalainen M, Kontunen A, Saari S, Rönkkö T, Lekkala J, Roine A, et al. The characterization of surgical smoke from various tissues and its implications for occupational safety. PloS One (2018) 13(4):e0195274. doi: 10.1371/journal.pone.0195274
18. Sutinen M, Kontunen A, Karjalainen M, Kiiski J, Hannus J, Tolonen T, et al. Identification of breast tumors from diathermy smoke by differential ion mobility spectrometry. Eur J Surg Oncol (2019) 45(2):141–46. doi: 10.1016/j.ejso.2018.09.005
19. Tokar JL, Walia R. Diagnostic evaluation of solid pancreatic masses. Curr Gastroenterol Rep (2013) 15(10):3475. doi: 10.1007/s11894-013-0347-z
20. Lee JH, Ahmed O. Endoscopic management of pancreatic cancer. Surg Oncol Clinics North America (2019) 28(1):147–595. doi: 10.1016/j.soc.2018.07.002
21. McGuigan A, Kelly P, Turkington RC, Jones C, Coleman HG, McCain RS. Pancreatic cancer: A review of clinical diagnosis, epidemiology, treatment and outcomes. World J Gastroenterol (2018) 24(43):4846–61. doi: 10.3748/wjg.v24.i43.4846
22. Dumonceau J-M, Deprez P, Jenssen C, Iglesias-Garcia J, Larghi A, Vanbiervliet G, et al. Indications, results, and clinical impact of endoscopic ultrasound (EUS)-guided sampling in gastroenterology: European society of gastrointestinal endoscopy (ESGE) clinical guideline – updated January 2017. Endoscopy (2017) 49(07):695–714. doi: 10.1055/s-0043-109021
23. Lisotti A, Frazzoni L, Fuccio L, Serrani M, Cominardi A, Bazzoli F, et al. Repeat EUS-FNA of pancreatic masses after nondiagnostic or inconclusive results: Systematic review and meta-analysis. Gastrointestinal Endoscopy (2020) 91(6):1234–1241.e4. doi: 10.1016/j.gie.2020.01.034
24. Navaneethan U, Spencer C, Zhu X, John J, Vargo DG, Dweik RA. Volatile organic compounds in bile can distinguish pancreatic cancer from chronic pancreatitis: A prospective observational study. Endoscopy (2021) 53(07):732–365. doi: 10.1055/a-1255-9169
25. Fisher RA. The use of multiple measurements in taxonomic problems. Ann Eugenics (1936) 7(2):179–88. doi: 10.1111/j.1469-1809.1936.tb02137.x
26. Scholkopf B, Smola A. Learning with kernels: Support vector machines, regularization, optimization and beyond, adaptive computation and machine learning. Cambridge, MA: The MIT Press (2002).
28. Bishop CM. Pattern recognition and machine learning. Jordan M, Kleinberg J, Schölkopf B, editors. Springer Science+Business Media, LLC (2006). doi: 10.1117/1.2819119
29. Matsumura K, Opiekun M, Oka H, Vachani A, Albelda SM, Yamazaki K, et al. Urinary volatile compounds as biomarkers for lung cancer: A proof of principle study using odor signatures in mouse models of lung cancer. PloS One (2010) 5(1):e8819. doi: 10.1371/journal.pone.0008819
30. Netzker T, Shepherdson EMF, Zambri MP, Elliot MA. Bacterial volatile compounds: Functions in communication, cooperation, and competition. Annu Rev Microbiol (2020) 74(1):409–30. doi: 10.1146/annurev-micro-011320-015542
31. McAllister F, Khan MdAW, Helmink B, Wargo JA. The tumor microbiome in pancreatic cancer: Bacteria and beyond. Cancer Cell (2019) 36(6):577–79. doi: 10.1016/j.ccell.2019.11.004
32. Fan X, Alekseyenko A v, Wu J, Peters BA, Jacobs EJ, Gapstur SM, et al. Human oral microbiome and prospective risk for pancreatic cancer: A population-based nested case-control study. Gut (2018) 67(1):120–27. doi: 10.1136/gutjnl-2016-312580
33. Farrell JJ, Zhang L, Zhou H, Chia D, Elashoff D, Akin D, et al. Variations of oral microbiota are associated with pancreatic diseases including pancreatic cancer. Gut (2012) 61(4):582–885. doi: 10.1136/gutjnl-2011-300784
34. Michaud DS, Izard J, Wilhelm-Benartzi CS, You D-H, Grote VA, Tjønneland A, et al. Plasma antibodies to oral bacteria and risk of pancreatic cancer in a Large European prospective cohort study. Gut (2013) 62(12):1764–70. doi: 10.1136/gutjnl-2012-303006
35. Duijster JW, Franz E, Neefjes J, Mughini-Gras L. Bacterial and parasitic pathogens as risk factors for cancers in the gastrointestinal tract: A review of current epidemiological knowledge. Front Microbiol (2021) 12:790256. doi: 10.f3389/micb.2021.790256
36. Klimczak T, Kaczka K, Klimczak J, Tyczkowska-Sieroń E, Tyczkowska A. Primary bacterial culture of bile and pancreatic juice in tumor related jaundice (TROJ) - is ascending cholangitis always our fault? Scandinavian J Gastroenterol (2018) 53(12):1569–74. doi: 10.1080/00365521.2018.1542454
37. Ren Z, Jiang J, Xie H, Li A, Lu H, Xu S, et al. Gut microbial profile analysis by MiSeq sequencing of pancreatic carcinoma patients in China. Oncotarget (2017) 8(56):95176–91. doi: 10.18632/oncotarget.18820
38. Pushalkar S, Hundeyin M, Daley D, Zambirinis CP, Kurz E, Mishra A, et al. The pancreatic cancer microbiome promotes oncogenesis by induction of innate and adaptive immune suppression. Cancer Discovery (2018) 8(4):403–16. doi: 10.1158/2159-8290.CD-17-1134
39. Thomas RM, Jobin C. Microbiota in pancreatic health and disease: The next frontier in microbiome research. Nat Rev Gastroenterol Hepatol (2020) 17(1):53–645. doi: 10.1038/s41575-019-0242-7
40. Thomas RM, Gharaibeh RZ, Gauthier J, Beveridge M, Pope JL, Guijarro M v, et al. Intestinal microbiota enhances pancreatic carcinogenesis in preclinical models. Carcinogenesis (2018) 39(8):1068–78. doi: 10.1093/carcin/bgy073
41. Geller LT, Michal B-R, Tal D, Jonas Oliver H, Noam S, Deborah N, et al. Potential role of intratumor bacteria in mediating tumor resistance to the chemotherapeutic drug gemcitabine. Science (2017) 357(6356):1156–60. doi: 10.1126/science.aah5043
42. Häkkinen MR, Roine A, Auriola S, Tuokko A, Veskimäe E, Keinänen TA, et al. Analysis of free, mono- and diacetylated polyamines from human urine by LC–MS/MS. J Chromatogr B (2013) 941:81–9. doi: 10.1016/j.jchromb.2013.10.009
43. Deng L, Ismond K, Liu Z, Constable J, Wang H, Alatise OI, et al. Urinary metabolomics to identify a unique biomarker panel for detecting colorectal cancer: A multicenter study. Cancer Epidemiol Biomarkers Prev (2019) 28(8):1283–915. doi: 10.1158/1055-9965.EPI-18-1291
44. Venäläinen MK, Roine AN, Häkkinen MR, Vepsäläinen JJ, Kumpulainen PS, Kiviniemi MS, et al. Altered polyamine profiles in colorectal cancer. Anticancer Res (2018) 38(6):36015. doi: 10.21873/anticanres.12634
45. Phanstiel O IV. An overview of polyamine metabolism in pancreatic ductal adenocarcinoma. Int J Cancer (2018) 142(10):1968–765. doi: 10.1002/ijc.31155
46. Teti D, Visalli M, McNair H. Analysis of polyamines as markers of (Patho)Physiological conditions. J Chromatogr B (2002) 781(1):107–49. doi: 10.1016/S1570-0232(02)00669-4
Keywords: VOC, pancreatic cancer, biliary obstruction, FAIMS, bile, ERCP, pancreatitis, cholangiocarcinoma
Citation: Teränen V, Nissinen S, Roine A, Antila A, Siiki A, Vaalavuo Y, Kumpulainen P, Oksala N and Laukkarinen J (2022) Bile-volatile organic compounds in the diagnostics of pancreatic cancer and biliary obstruction: A prospective proof-of-concept study. Front. Oncol. 12:918539. doi: 10.3389/fonc.2022.918539
Received: 13 April 2022; Accepted: 31 October 2022;
Published: 21 November 2022.
