Diagnostic value of [68Ga]Ga-FAPI-04 in patients with colorectal cancer in comparison with [18F]F-FDG PET/CT

Purpose: This study aimed to compare the diagnostic performance of [⁶⁸Ga]Ga-FAPI-04 PET/CT and [¹⁸F]F-FDG PET/CT in primary and metastatic colorectal cancer (CRC) lesions.

Methods: This single-center preliminary clinical study (NCT04750772) was conducted at the Peking University Cancer Hospital & Institute and included 61 participants with CRC who underwent sequential evaluation through PET/CT with [¹⁸F]F-FDG and [⁶⁸Ga]Ga-FAPI-04. Their PET/CT images were analysed to quantify the uptake of the two tracers in the form of maximum standardised uptake (SUV_max) values and target-to-background ratio (TBR), which were then compared using Wilcoxon’s signed-rank test. The final changes in the tumour–node–metastasis (TNM) stage of all participants were recorded.

Results: Of all the participants, 21 were treatment naïve and 40 had been previously treated. In primary CRC lesions, the average TBRs of [⁶⁸Ga]Ga-FAPI-04 and [¹⁸F]F-FDG were 13.3 ± 8.9 and 8.2 ± 6.5, respectively. The SUV_max of [⁶⁸Ga]Ga-FAPI-04 in signet-ring/mucinous carcinomas (11.4 ± 4.9) was higher than that of [¹⁸F]F-FDG (7.9 ± 3.6) (P = 0.03). Both median SUV_max in peritoneal metastases and TBR in liver metastases of [⁶⁸Ga]Ga-FAPI-04 were higher than those of [¹⁸F]F-FDG (5.2 vs. 3.8, P < 0.001; 3.7 vs. 1.9, P < 0.001, respectively). Compared with [¹⁸F]F-FDG PET/CT, clinical TNM staging based on [⁶⁸Ga]Ga-FAPI-04 PET/CT led to upstaging and downstaging in 10 (16.4%) and 5 participants (8.2%), respectively. Therefore, the treatment options were changed in 13 participants (21.3%), including 9 with additional chemo/radiotherapy and/or surgery and others with avoidance or narrowed scope of surgery.

Conclusion: [⁶⁸Ga]Ga-FAPI-04 showed potential as a novel PET/CT tracer to detect lymph nodes and distant metastases, which improved CRC staging, thus prompting the optimisation or adjustment of treatment decisions.

1. Introduction

Colorectal cancer (CRC) was reported as the fifth most common cause of cancer-related deaths in the United States in 2022 (1). At diagnosis, 22% of patients with CRC have metastases, and 50% develop metastases during their lifetime. The overall 5-year survival of patients with CRC largely depends on the stage at presentation, varying from 80%–90% in the early stages to 13% in the advanced stage (2, 3). Currently, the key challenge is to establish optimal treatment plans according to the patients’ disease stage. Optimal imaging for CRC is crucial for accurate initial staging and the selection of primary therapy as well as during follow-up examinations for the accurate and timely detection of local recurrence and/or metastasis.

Non-invasive molecular imaging novel PET tracers is being increasingly used in the field of clinical oncology. Flourine-18 fluorodeoxyglucose ([¹⁸F]F-FDG) PET/CT, which uses altered glucose metabolism in cancer cells, is a valuable imaging modality in CRC management (4, 5). Compared with the routinely recommended conventional imaging modalities, [¹⁸F]F-FDG PET/CT can reflect cancer cells activity and the whole-body tumour burden. However, [¹⁸F]F-FDG PET/CT has several limitations, including low specificity, inability to detect small-volume lesions and lack of isotope uptake in mucinous and signet-ring cell carcinomas (6, 7). Tumour microenvironment imaging beyond the detection of tumour metabolism is a novel approach to elucidate in vivo tumour biology, with potential translational implications in clinical oncology. Fibroblast-activation protein (FAP) is a membrane-anchored peptidase that is highly expressed in cancer-associated fibroblasts (CAFs) in >90% of epithelial tumours, including CRC, and contributes to disease progression and worsening prognosis in various cancers (8–11). Several recently developed quinolone-based FAP inhibitors (FAPIs) coupled to chelators, including gallium-68 (⁶⁸Ga)-labelled FAPI, are advantageous in staging and restaging many cancers, including peritonitis carcinomatosis, compared with [¹⁸F]F-FDG PET/CT (9–11). Koerber et al. (12) and Pang et al. (13) reported the avidity of [⁶⁸Ga]Ga-FAPI in PET/CT imaging of CRC, supporting the potential use of FAP-targeted imaging in advanced CRC. We hypothesised that [⁶⁸Ga]Ga-FAPI-04 PET/CT could contribute to CRC staging than conventional [¹⁸F]F-FDG PET/CT. Thus, we assessed the avidity of [⁶⁸Ga]Ga-FAPI-04 in patients with CRC to compare the clinical impact of [⁶⁸Ga]Ga-FAPI-04 PET/CT on tumour–node–metastasis (TNM) staging with that of standard-of-care [¹⁸F]F-FDG PET/CT imaging in participants with primary and recurrent/metastatic CRC.

2. Materials and methods

2.1. Participants

This preliminary clinical trial was approved by our Institutional Review Board (no. 2019KT95) and registered on ClinicalTrials.gov (NCT04750772). Written informed consent was obtained from all participants who were consecutively recruited from the study institution. The inclusion criteria were as follows: age >18 years, histologically confirmed CRC referral to the Nuclear Medicine Department for both [¹⁸F]F-FDG and [⁶⁸Ga]Ga-FAPI-04 PET/CT scans for staging or restaging to aid optimal clinical decision making and provision of written informed consent. Pregnant or lactating women and those with severe liver or kidney dysfunction were excluded. The final cohort comprised 61 participants with CRC. The diagnosis was confirmed through surgery in 25 participants and through endoscopic biopsy in others. All suspicious metastatic lesions were confirmed by histopathology or follow-up for 3–6 months. Histopathology was served as a gold standard reference for the confirmation of the imaging findings by the means of rebiopsy or surgery. If pathological diagnosis was not applicable, conventional imaging (such as CT and MRI, etc.) follow-up for anatomical abnormalities of lesions was performed. Lesions were diagnosed of malignant based on any of the following follow-up criteria: 1) typical malignant features demonstrated by other imaging, especially the contrast-enhanced CT/MRI referred to as the first-line imaging. 2) posttreatment shrinkage or expansion of a suspicious lesion on follow-up imaging indicating improvement or progression, periodic plain CT/MRI scan used as the second-line imaging. 3) Density changes of lesions, such as cortical breakthrough for bone metastases. The finial observation of significant malignant features of suspicious lesions was the follow-up imaging end-point. The study flowchart of participant enrolment is presented in Supplementary Figure 1.

2.2. Synthesis of [¹⁸F]F-FDG and [⁶⁸Ga]Ga-FAPI-04

[¹⁸F]F-FDG was manufactured in accordance with the standard method described by our laboratory using the coincidence [¹⁸F]F-FDG synthesis module. The FAPI precursor (DOTA-FAPI-04) was purchased from Huayi Technology Co., Ltd. (China), and synthesis and radiolabelling of [⁶⁸Ga]Ga-FAPI-04 were performed as previously described (14). The radiochemical purity exceeded 95% for both [¹⁸F]F-FDG and [⁶⁸Ga]Ga-FAPI-04. The final products underwent sterility testing before administration via intravenous injection.

2.3. PET/CT imaging

All enrolled participants underwent routine [¹⁸F]F-FDG PET/CT and subsequent [⁶⁸Ga]Ga-FAPI-04 PET/CT within 1 week. All participants fasted for at least 6 h before [¹⁸F]F-FDG PET/CT, and a blood glucose level of <10 mmol/L was confirmed before tracer injection. Contrastingly, participants on a normal diet were intravenously injected with 1.85–2.96 MBq/kg [⁶⁸Ga]Ga-FAPI-04 and underwent imaging using a hybrid PET/CT scanner (Biograph mCT Flow 64; Siemens Healthineers USA, Knoxville, TN, USA) after approximately 1 h. The acquisition was commenced in 6–8 bed positions (1 min/bed) covering the area between the top of the skull and upper thigh. Non-contrast-enhanced CT was performed using 100-mA modulation at 120 kV with a 3-mm slice thickness for attenuation correction and anatomical localisation. All data were transferred to the Syngo MultiModality Workplace (version VE40F; Siemens Healthineers) and reconstructed using the ordered subset expectation maximum algorithm to construct display images in the coronal, axial and sagittal planes.

2.4. Safety

Vital parameters, including blood pressure, heart rate, temperature and respiration rate, of all participants were carefully monitored during the examination. Any abnormal symptoms (e.g. allergy) were addressed as soon as possible.

2.5. Image analysis

All the images were reviewed by two groups of physicians with at least 10 years of experience in nuclear medicine and radiology. The physicians in group 1 (X.C. and M.W.) and group 2 (X.L. and X.W.) independently reviewed the [¹⁸F]F-FDG and [⁶⁸Ga]Ga-FAPI-04 PET/CT images, respectively. Reference information from the other group and all other images and clinical data, including CT, MRI, endoscopic and pathological results, were absent. All differing opinions were interpreted and discussed within the groups until a consensus was reached. The inter-reader agreement within the two groups was expressed using the κ value.

Visual assessment was performed, and positive uptake was defined as focal tracer uptake exceeding background uptake. Circular volumes of interest within tumour lesions and healthy tissues were used to quantify radiotracer biodistribution. Tracer uptake was quantified using maximum standardised uptake (SUV_max) values, which was measured by drawing regions of interest around the tumours on transaxial slices that were automatically adapted to a three-dimensional volume of interest with the system software at an 80% isocontour. The normal organs were evaluated using a 1–2-cm-diameter circular sphere. Primary lesions, lymph nodes and distant metastases were analysed. The lymph nodes were classified according to their location as cervical–supraclavicular, thoracic, abdominal and pelvic. The target-to-background ratios (TBRs) of the primary lesions; lymph nodes; and liver, lung, bone and peritoneal metastatic tumours were calculated (the normal transverse colon without physiological uptake, blood pool of the aorta, normal liver tissue, normal lung tissue, L5 and normal mesenterium were used as backgrounds, respectively).

We used TNM classification based on the National Comprehensive Cancer Network (NCCN) guidelines (15, 16). In all participants, changes in the TNM stage, metastases localisation and previous oncologic or radio-oncologic management history were recorded.

2.6. Statistical analyses

All statistical analyses were performed using SPSS 23.0 (IBM, Armonk, NY, USA). Inter-reader agreement was evaluated using Kappa test. The uptakes of positive lesions in [¹⁸F]F-FDG and [⁶⁸Ga]Ga-FAPI-04 PET/CT were compared using Wilcoxon’s signed-rank test. SUV_max and TBR were the main parameters for evaluating the two PET/CT scans, and normally distributed and skewed variables were expressed as means (95% confidence intervals) and medians (ranges), respectively. A two-tailed P value of <0.05 was considered statistically significant.

3. Results

3.1. Participant characteristics

Table 1 summarises the clinical characteristics of the 61 participants. The median age of the participants was 62 (range, 32–81) years, and 42 (68.9%) participants were men. The most common histologic grade was moderate differentiation in 35 (57.4%) participants, whereas 8 (13.1%) and 7 (11.5%) participants had mucinous/signet-ring cell carcinoma and adenocarcinoma with a mucinous component, respectively. Overall, 21 (34.4%) participants underwent PET/CT for initial assessment and staging; the remaining 40 (65.6%) underwent PET/CT for restaging or therapeutic evaluation.

TABLE 1

Table 1 Participants’ characteristics.

3.2. Safety

All participants tolerated [⁶⁸Ga]Ga-FAPI-04 PET/CT without any complications. No signs of drug-related side effects were reported during the entire observation period of >5 h.

3.3. Distribution

The inter-reader agreement between groups 1 and 2 was nearly perfect, and the κ value was >0.8 (Supplementary Tables 1–4). SUV_max was determined for normal tissues/organs and primary tumours after [⁶⁸Ga]Ga-FAPI-04 and [¹⁸F]F-FDG PET/CT, which were sequentially performed for all the participants. [⁶⁸Ga]Ga-FAPI-04 activity was significantly lower than [¹⁸F]F-FDG activity in several normal organs (P < 0.001), especially the brain (SUV_max, 0.3 ± 0.2 vs. 10.0 ± 2.8, P < 0.001) and liver (SUV_max, 1.4 ± 0.4 vs. 2.9 ± 0.5, P < 0.001), leading to significantly high TBRs of >2 in both organs (P < 0.001). Further, [⁶⁸Ga]Ga-FAPI-04 uptake was higher than [¹⁸F]F-FDG uptake in the salivary and thyroid glands and the pancreas (P < 0.001 for all). The detailed distribution of [¹⁸F]F-FDG and [⁶⁸Ga]Ga-FAPI-04 uptakes is presented in Figure 1.

FIGURE 1

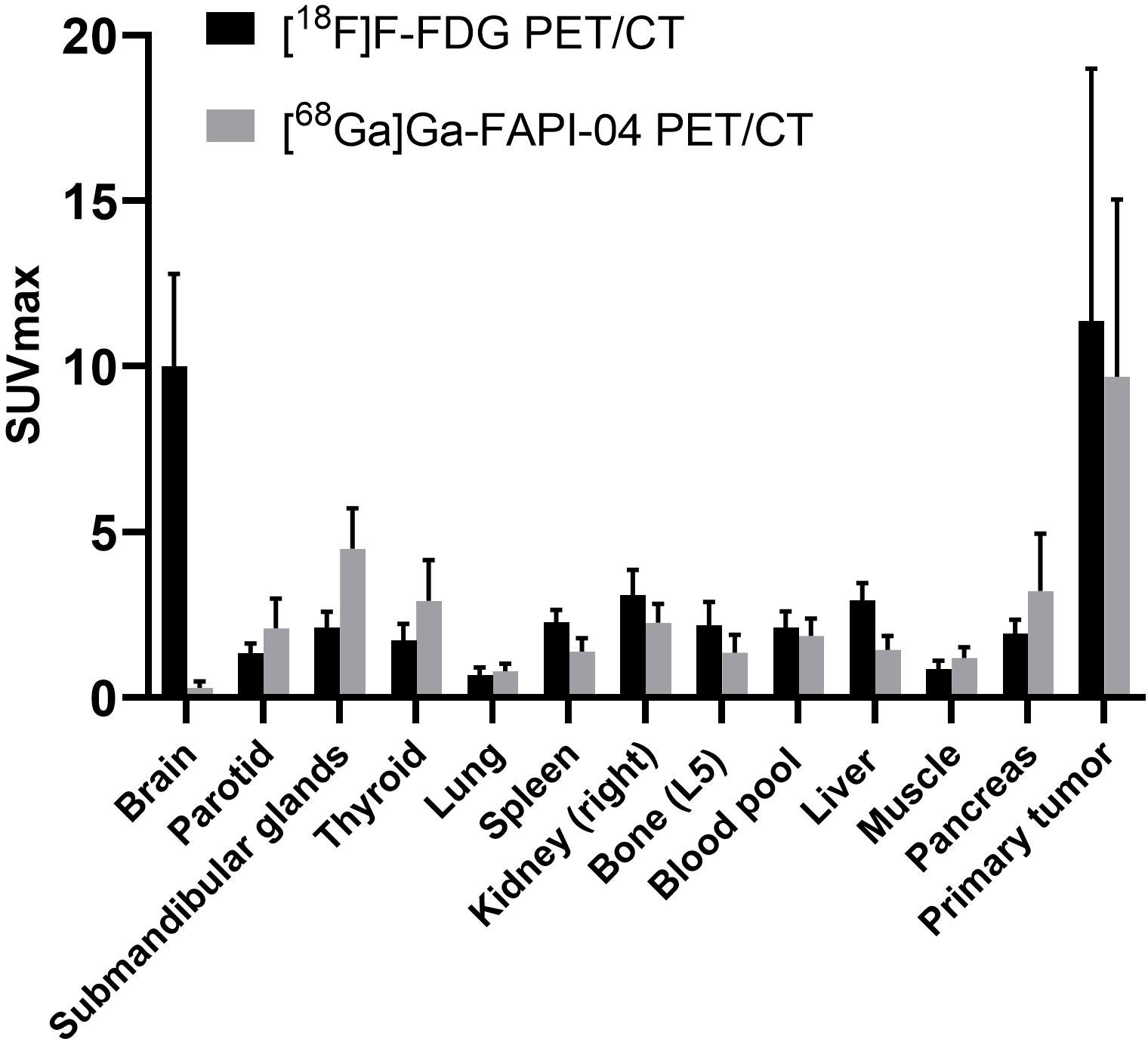

Figure 1 PET-based biodistribution analysis of 61 participants evaluated using [⁶⁸Ga]Ga-FAPI-04 PET/CT and [¹⁸F]F-FDG PET/CT 1 h after tracer injection.

3.4. Primary tumours

The histopathological data of the primary tumours were available for all treatment-naïve participants (n = 21) and for those who received neoadjuvant treatment (n = 15). Only 1 of these 36 participants had two primary lesions. Therefore, 37 primary lesions were measured. The sensitivity was 100% (37/37) for both [⁶⁸Ga]Ga-FAPI-04 and [¹⁸F]F-FDG PET/CT. The average SUV_max and median SUV_max (range) of all primary lesions were 9.7 ± 5.4 and 9.7 (2.0–25.5), respectively, on [⁶⁸Ga]Ga-FAPI-04 PET/CT and 11.4 ± 7.6 and 10.3 (2.4–35.1), respectively, on [¹⁸F]F-FDG PET/CT (P = 0.09). The average TBR of all 37 primary lesions was significantly higher on [⁶⁸Ga]Ga-FAPI-04 PET/CT than on [¹⁸F]F-FDG PET/CT (13.3 ± 8.9 and 8.2 ± 6.5, respectively; P < 0.001). The average SUV_max values for [⁶⁸Ga]Ga-FAPI-04 and [¹⁸F]F-FDG were 12.3 ± 4.6 and 14.1 ± 7.3, respectively, in the treatment-naïve group (P = 0.21) and 5.9 ± 4.1 and 7.4 ± 6.5, respectively, in the neoadjuvant radio-chemotherapy group (P = 0.18). The average TBR of the treatment-naïve lesions was significantly higher on [⁶⁸Ga]Ga-FAPI-04 PET/CT than on [¹⁸F]F-FDG PET/CT (17.6 ± 8.5 vs. 10.5 ± 7.2, P = 0.002), whereas the average TBR was not different between the imaging modalities for the post-treatment lesions (7.0 ± 5.0 vs. 5.0 ± 3.4, P = 0.061).

The analysis of treatment-naïve primary tumours revealed that the avidity of [⁶⁸Ga]Ga-FAPI-04 (11.4 ± 4.9) was significantly higher than that of [¹⁸F]F-FDG (7.9 ± 3.6) in signet-ring/mucinous carcinomas (P = 0.03; Figure 2). Additionally, [⁶⁸Ga]Ga-FAPI-04 uptake was significantly lower than [¹⁸F]F-FDG uptake in poorly differentiated carcinomas (average SUV_max, 12.7 ± 3.7 vs. 18.1 ± 4.1; P = 0.04). There was also a significant difference in the SUV_max of primary lesions between [⁶⁸Ga]Ga-FAPI-04 and [¹⁸F]F-FDG PET/CT among well-differentiated and moderately differentiated carcinomas (average SUV_max, 10.8 ± 3.0 vs. 16.2 ± 8.6; P = 0.025). Although the uptake of [⁶⁸Ga]Ga-FAPI-04 was higher in poorly differentiated carcinomas (12.7 ± 3.7) than in moderately-well differentiated carcinomas (10.8 ± 3.0), no significant difference was noted between them (P = 0.074). Interestingly, in the neoadjuvant chemotherapy group, there was no significant difference in the SUV_max of primary lesions between [⁶⁸Ga]Ga-FAPI-04 and [¹⁸F]F-FDG PET/CT among all carcinoma types (P = 0.182).

FIGURE 2

Figure 2 Images of a 49-year-old man with rectal mucinous carcinoma for staging. (A) Mean intensity projection images of [⁶⁸Ga]Ga-FAPI-04 PET/CT scan. (B–D) Axial CT, PET and fused images of [⁶⁸Ga]Ga-FAPI-04 PET/CT scan. (E–G) Axial CT, PET and fused images of [¹⁸F]F-FDG PET/CT scan. (H) Mean intensity projection images of [¹⁸F]F-FDG PET/CT scan. Compared with [¹⁸F]F-FDG PET/CT, [⁶⁸Ga]Ga-FAPI-04 PET/CT exhibits the primary lesion (hollow black and red arrows) and suspicious lymph nodes (hollow black and blue arrows) more clearly because of the higher tracer uptake. The SUV_max of primary lesions was 14.6 for [⁶⁸Ga]Ga-FAPI-04 and 4.4 for [¹⁸F]F-FDG PET/CT. The [⁶⁸Ga]Ga-FAPI-04 PET/CT images also depict more intense tracer uptake in suspicious lymph nodes than [¹⁸F]F-FDG PET/CT images, with SUV_max values of 5.6–6.0 and 1.5–2.0, respectively.

3.5. Changes in TNM stage

Compared with staging based on [¹⁸F]F-FDG PET/CT, [⁶⁸Ga]Ga-FAPI-04 PET/CT revealed additional findings in 34 of the 61 participants, which led to changes in staging in 15 participants. Particularly, 6 (28.6%) of the 21 treatment-naïve participants were upstaged and 2 (9.5%) were downstaged (Table 2).

TABLE 2

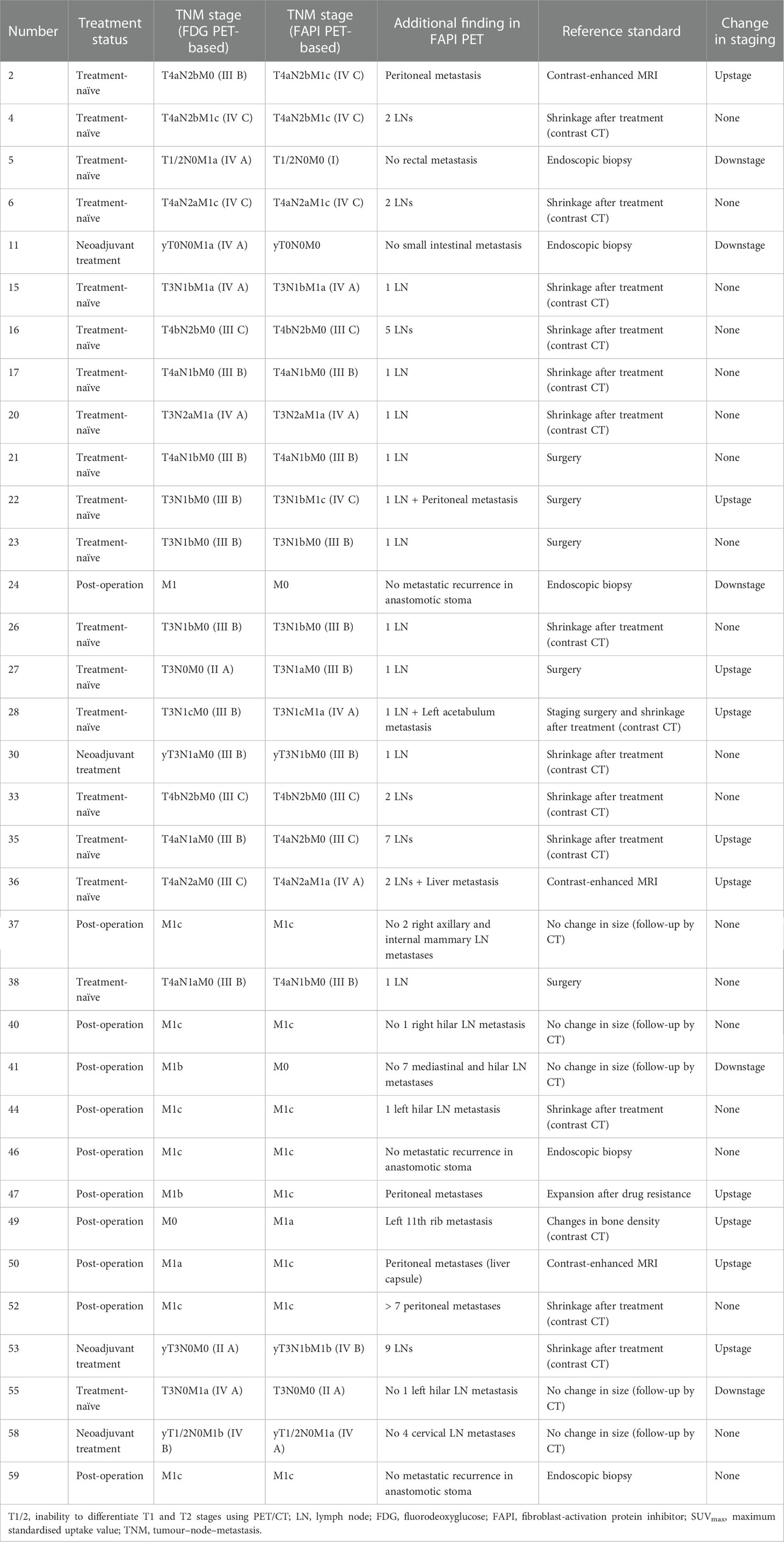

Table 2 Comparison of FDG PET-based and FAPI PET-based TNM staging of 34 CRC participants with additional findings.

Among all participants who were upstaged based on [⁶⁸Ga]Ga-FAPI-04 PET/CT findings (10/61, 16.4%), the changes were based on the detection of new or additional distant metastases in one or more organ systems. All additional findings were confirmed through biopsy or surgery (10/34, 29.4%) or through other conventional imaging modalities (24/34, 70.6%). Moreover, in 16 participants, new lymph node metastases were detected but did not lead to changes in the stage (Table 2). The median uptake of [⁶⁸Ga]Ga-FAPI-04 was higher than that of [¹⁸F]F-FDG in both abdominal (6.4 vs. 4.2, P < 0.001) and pelvic lymph nodes (4.6 vs. 2.7, P < 0.001; Table 3, Figure 3). The TBRs of both abdominal (3.5 vs. 2.1, P < 0.001) and pelvic lymph nodes (2.9 vs. 1.2, P < 0.001) were also significantly higher in [⁶⁸Ga]Ga-FAPI-04 PET/CT images than in [¹⁸F]F-FDG PET/CT images. However, the median uptake (3.0 vs. 4.7, P < 0.001) and TBR (1.4 vs. 2.4, P < 0.001) of [⁶⁸Ga]Ga-FAPI-04 were lower than those of [¹⁸F]F-FDG in thoracic lymph nodes (Table 3).

TABLE 3

Table 3 Comparison of [¹⁸F]F-FDG and [⁶⁸Ga]Ga-FAPI-04 uptake in colorectal tumour sites.

FIGURE 3

Figure 3 Images of a 64-year-old woman with colon cancer for staging. (A) Mean intensity projection images of [⁶⁸Ga]Ga-FAPI-04 PET/CT scans. (B–D) Axial fused images of suspicious lymph nodes at different levels of the body in [⁶⁸Ga]Ga-FAPI-04 PET/CT. (E–G) Axial fused images of suspicious lymph nodes at different levels of the body in [¹⁸F]F-FDG PET/CT. (H) Mean intensity projection images of [¹⁸F]F-FDG PET/CT scan. [⁶⁸Ga]Ga-FAPI-04 uptake (blue arrows in B–D) was higher than [¹⁸F]F-FDG uptake (blue arrows in E–G) in both the diaphragmatic and retroperitoneal metastatic lymph nodes, with SUV_max values of 5.9–12.0 and 3.4–4.3, respectively.

Imaging with [⁶⁸Ga]Ga-FAPI-04 PET/CT led to upstaging based on the detection of peritoneal and bone metastases in four and two participants, respectively (Table 2). In all 20 participants, the SUV_max (5.2 vs. 3.8, P < 0.001) and TBR (6.9 vs. 3.8, P < 0.001) of [⁶⁸Ga]Ga-FAPI-04 were higher than those of [¹⁸F]F-FDG in peritoneal metastases (Table 3). Compared with the [¹⁸F]F-FDG PET/CT images, the peritoneal metastases were clearly visible in the [⁶⁸Ga]Ga-FAPI-04 PET/CT images (Figures 4, 5). There was no significant difference in SUV_max between [⁶⁸Ga]Ga-FAPI-04 and [¹⁸F]F-FDG in positive lung lesions (P = 0.484), but the TBR of [⁶⁸Ga]Ga-FAPI-04 was significantly lower than that of [¹⁸F]F-FDG (P = 0.017; Table 3).

FIGURE 4

Figure 4 Images of a 64-year-old woman with rectal cancer for staging. (A) Mean intensity projection images of [⁶⁸Ga]Ga-FAPI-04 PET/CT scan. (B–D) Axial CT, PET and fused images of [⁶⁸Ga]Ga-FAPI-04 PET/CT scan. (E–G) Axial CT, PET and fused images of [¹⁸F]F-FDG PET/CT scan. (H) Mean intensity projection images of [¹⁸F]F-FDG PET/CT scan. Pelvic peritoneal carcinoma is distinctly observed in [⁶⁸Ga]Ga-FAPI-04 PET/CT images (blue arrows in b–d) because of intensive tracer uptake (SUV_max 5.5). Conversely, little [¹⁸F]F-FDG (SUV_max 1.1) uptake results in the small lesion being hardly detectable (blue arrows in E–G).

FIGURE 5

Figure 5 Images of a 60-year-old woman with colon cancer and metastatic peritoneal carcinoma for restaging after treatment. (A) Mean intensity projection images of [⁶⁸Ga]Ga-FAPI-04 PET/CT scans. (B–D) Axial fused images of metastatic peritoneal carcinomas at different body levels in [⁶⁸Ga]Ga-FAPI-04 PET/CT. (E–G) Axial fused images of metastatic peritoneal carcinomas at different body levels in [¹⁸F]F-FDG PET/CT. (H-h) Mean intensity projection images of [¹⁸F]F-FDG PET/CT scan. [⁶⁸Ga]Ga-FAPI-04 uptake (blue arrows in B–D) was higher than the [¹⁸F]F-FDG uptake (blue arrows in E–G) in peritoneal carcinomas, and SUV_max values for [⁶⁸Ga]Ga-FAPI-04 and [¹⁸F]F-FDG PET/CT were 4.6–8.8 and 3.1–3.5, respectively.

Although there was no significant difference in the SUV_max of [⁶⁸Ga]Ga-FAPI-04 and [¹⁸F]F-FDG in positive liver lesions (3.9 vs. 4.6, P = 0.951), the number of positive liver lesions detected using [⁶⁸Ga]Ga-FAPI-04 PET/CT was higher than that detected by [¹⁸F]F-FDG PET/CT because of the lower background SUV_max of [⁶⁸Ga]Ga-FAPI-04. Further, 30 positive liver lesions detected using [⁶⁸Ga]Ga-FAPI-04 PET/CT were confirmed as metastases through surgery/biopsy and other imaging modalities. Only 16 of these positive liver lesions were detected by [¹⁸F]F-FDG PET/CT (53.3%, 16/30). The TBR of [⁶⁸Ga]Ga-FAPI-04 was significantly higher than that of [¹⁸F]F-FDG (3.7 vs. 1.9, P < 0.001), and the liver metastases were clearly visible in [⁶⁸Ga]Ga-FAPI-04 PET/CT images and finally demonstrated using contrast-enhanced MRI (Figure 6). Table 3 presents the detailed comparison of liver metastases detected using [⁶⁸Ga]Ga-FAPI-04 and [¹⁸F]F-FDG PET/CT.

FIGURE 6

Figure 6 Images of a 63-year-old man with colon cancer for staging. (A) Mean intensity projection images of [⁶⁸Ga]Ga-FAPI-04 PET/CT scans. (B–D) Axial CT, PET and fused images of [⁶⁸Ga]Ga-FAPI-04 PET/CT scan. (E–G) Axial CT, PET and fused images of [¹⁸F]F-FDG PET/CT scan. (H) Mean intensity projection images of [¹⁸F]F-FDG PET/CT scan. (I, F) Images of contrast-enhanced MRI, T2WI (delay phase) and DWI (b = 1000). The suspicious metastatic lesion in the right liver lobe is clearly visible in [⁶⁸Ga]Ga-FAPI-04 PET/CT images (blue arrows in A–D; SUV_max 5.0) but absent in [¹⁸F]F-FDG PET/CT images. Its presence was confirmed by contrast-enhanced MRI (blue arrows in I, J).

The final staging changes in 15 participants were verified based on the reference standards; thus, 13 participants’ treatment options were changed from their pre-examination or originally planned regimens based on the changed stage. Chemo/radiotherapy and/or surgery was added in nine participants (#2, #22, #28, #35, #47, #49, #50, #53 and #55), and surgery was avoided or its scope was narrowed in the other participants (#5, #11, #24 and #41).

4. Discussion

FAP is an excellent target for tumour stroma, and ⁶⁸Ga-FAPIs, as newer imaging tracers, present a promising alternative to [¹⁸F]F-FDG. This preliminary clinical study investigated the avidity of [⁶⁸Ga]Ga-FAPI-04 in CRC and explored the potential utility of [⁶⁸Ga]Ga-FAPI-04 PET/CT as the sole imaging modality for assessing primary and recurrent/metastatic CRC. Our analyses indicated that [⁶⁸Ga]Ga-FAPI-04 PET/CT improved tumour staging in patients with CRC owing to favourable tumour/background activity and low tracer uptake in the gastrointestinal tract. Moreover, signet-ring/mucinous carcinomas accumulated more [⁶⁸Ga]Ga-FAPI-04 than [¹⁸F]F-FDG, whereas FAPI avidity was lower than FDG avidity in poorly differentiated carcinomas.

As key constituents of the tumour stroma, CAFs can support the immunosuppressive microenvironment, tumour cell growth, progression and metastatic potential. Expressed by CAFs, FAP is an attractive diagnostic and therapeutic target (8, 10, 17). [⁶⁸Ga]Ga-FAPI-04 PET/CT is characterised by high tumour/background activity and is more sensitive than [¹⁸F]F-FDG PET/CT for identifying primary gastrointestinal carcinoma lesions (12, 13).

The origin, number and distribution of FAP-expressing CAFs and the number of FAP molecules per cell may differ among tumours. Mona et al. (18) reported a strong correlation between tumour [⁶⁸Ga]Ga-FAPI-46 uptake intensity and histopathological FAP expression in colon cancer. We expected variations in intra-tumoural tracer distribution in treatment-naïve patients with specific histopathologic types of CRC. In this study, we demonstrated additional FAP expression in signet-ring/mucinous carcinomas, which normally exhibit low [¹⁸F]F-FDG uptake (6, 7, 19). The results revealed that [⁶⁸Ga]Ga-FAPI-04 PET/CT would have a lower false-negative rate than [¹⁸F]F-FDG PET/CT in detecting primary and metastatic CRC lesions. Although Solano-Iturri et al. (20) reported that CRC tissues with poor differentiation exhibited a higher percentage of FAP staining than those with moderately-well differentiation, the poorly differentiated carcinomas exhibited moderately higher [⁶⁸Ga]Ga-FAPI-04 uptake without significant differences between these subtypes in our study. Moreover, we found that poorly differentiated carcinomas exhibited significantly lower [⁶⁸Ga]Ga-FAPI-04 uptake than [¹⁸F]F-FDG uptake, although this subtype showed avidity for both [⁶⁸Ga]Ga-FAPI-04 and [¹⁸F]F-FDG.

The TNM classification provides standard guidelines to classify the extent of cancer metastasis. The degree of tumour progression and invasion at the time of surgical resection as well as patient outcomes are estimated on the basis of this staging system for CRC. This study demonstrated that [⁶⁸Ga]Ga-FAPI-04 PET/CT could detect both primary tumours and metastases arising from CRC. The sensitivity was 100% for both [⁶⁸Ga]Ga-FAPI-04 and [¹⁸F]F-FDG PET/CT, and no significant differences in SUV_max were found between [⁶⁸Ga]Ga-FAPI-04 and [¹⁸F]F-FDG PET/CT images in both treatment-naïve and post-treatment lesions. However, the average TBR of treatment-naïve lesions was significantly higher on [⁶⁸Ga]Ga-FAPI-04 PET/CT than on [¹⁸F]F-FDG PET/CT. This result was consistent with the recently study reported by Halil et al. (21). Thus, [⁶⁸Ga]Ga-FAPI-04 PET/CT might be more advantageous than [¹⁸F]F-FDG PET/CT to improve detecting efficiency in T stage.

The superiority of [¹⁸F]F-FDG PET/CT is evident in the detection of lymph node and distant metastases in CRC, and the detection of additional metastases can significantly change treatment plans (22, 23). However, several studies demonstrated that the detection of metastatic regional nodes was low/moderate using [¹⁸F]F-FDG PET/CT, illustrating the limitations of this method (24, 25). Several studies suggested that CRC commonly harbours CAF-expressing FAP. Sugai et al. (26) suggested that high FAP expression is correlated with lymph node metastasis in submucosal invasive CRC. Solano-Iturri et al. (20) observed a significant positive correlation between FAP expression in primary CRC tumours and their corresponding local and distant metastases. Thus, this study examined the reliability of [⁶⁸Ga]Ga-FAPI-04 PET/CT for detecting metastatic CRC lesions. Our results showed that [⁶⁸Ga]Ga-FAPI-04 PET/CT identified additional findings in 41 metastatic and 15 inflammatory lymph nodes of 24 participants with CRC and improved the N staging in these participants. Additionally, [⁶⁸Ga]Ga-FAPI-04 uptake was higher than [¹⁸F]F-FDG uptake in abdominal and pelvic lymph nodes. However, cervical–supraclavicular and thoracic FDG-avid inflammatory/age-related lymph nodes were FAPI-negative.

According to the M stage, the early detection of isolated metastases in the liver or other sites often improves survival following radical resection (27). Owing to moderate FDG uptake in the liver, [¹⁸F]F-FDG PET/CT was not the first choice for identifying liver metastasis. Our data revealed that the hepatic background intensity was significantly lower in [⁶⁸Ga]Ga-FAPI-04 PET/CT than that in [¹⁸F]F-FDG PET/CT, corroborating the findings of previous studies (9, 11, 21). The TBR values of liver metastases were higher in [⁶⁸Ga]Ga-FAPI-04 than those in [¹⁸F]F-FDG PET/CT in this study. Thus, FAPI-imaging might be advantageous for patients with suspected liver metastases, resulting in a potentially high detection rate. In this study, the smallest lesion detected had a diameter of approximately 0.7 cm. However, Halil et al. (21) found that both the SUV_max and TBR values of liver metastases were signifcantly higher in [¹⁸F]F-FDG than those in [⁶⁸Ga]Ga-FAPI-04 PET/CT. We believe that this issue can be clarified with future studies involving larger and homogeneous cohorts. Reportedly, the peritoneum is another common site of CRC metastasis (28), and the degree of peritoneal metastasis determines the choice of treatment (23, 29). The detection rate of peritoneal metastasis using [¹⁸F]F-FDG PET/CT is not high, primarily because of intestinal inflammatory uptake, small lesions and other factors, including rare pathological types. [⁶⁸Ga]Ga-FAPI-04 is an active fibroblast-targeted imaging agent, and the development of peritoneal metastases is primarily because of active fibroblasts (28), which is supported by the significantly higher [⁶⁸Ga]Ga-FAPI-04 uptake in peritoneal metastatic lesions compared with [¹⁸F]F-FDG uptake observed in this study. This result was also consistent with the previous studies (13, 21).

In addition, we found that [⁶⁸Ga]Ga-FAPI-04 uptake was significantly higher than [¹⁸F]F-FDG uptake in the uterus, which may be attributed to the presence of active fibroblasts in the uterus (30); this suggests that the SUV_max of lesions (primary or/and metastatic lesions) located in the pelvic area is affected by high [⁶⁸Ga]Ga-FAPI-04 uptake, a potential limitation of [⁶⁸Ga]Ga-FAPI-04 PET/CT imaging.

This study has several limitations. First, the cohort size was small, and the number of participants with brain and bone metastases was low. Second, the cohort was heterogeneous and included participants with different treatment statuses, which could have affected the SUV_max values of lesions. Third, the period of follow-up was set to 3–6 months based on previous experience. Although most of lesions could be observed obvious changes indicating their benign or malignant features, a few lesions might be taken longer to be followed up. Lastly, we could not pathologically confirm all suspicious lesions without considering ethics; thus, neither accurate sensitivity nor specificity could be established. Future studies with larger and homogeneous cohorts are warranted to provide a more comprehensive analysis of the utility of [⁶⁸Ga]Ga-FAPI-04 PET/CT in CRC.

5. Conclusion

[⁶⁸Ga]Ga-FAPI-04 PET/CT has several obvious advantages over [¹⁸F]F-FDG PET/CT, including the detection of lymph nodes and distant metastases, thereby improving the staging of patients with CRC. This improved staging is helpful for the timely revision of clinical treatment strategies and improvement of patients’ prognoses. Additionally, patients might feel more comfortable during [⁶⁸Ga]Ga-FAPI-04 PET/CT as it does not require fasting.

Data availability statement

The original contributions presented in the study are included in the article/Supplementary Material. Further inquiries can be directed to the corresponding authors.

Ethics statement

The studies involving human participants were reviewed and approved by Institutional Review Board of Beijing Cancer Hospital (no. 2019KT95). The patients/participants provided their written informed consent to participate in this study.

Author contributions

XL, XW, ZY, and AW contributed to the study conception and design. Synthesis of tracer and image acquisition were performed by SW and YZ. XL, YL, XC, MW, and HZ processed and analysed the data. The first draft of the manuscript was written by XL. XW, ZY, and AW reviewed and revised the manuscript. All authors read and approved the final manuscript.

Funding

This work was financially supported by the National Natural Science Foundation of China (no. 82071957 and 82171980), Beijing Hospitals Authority Clinical Medicine Development of special funding support (code: XMLX202120), Beijing Hospitals Authority Dengfeng Project (DFL20191102).

Acknowledgments

The authors gratefully acknowledge all participants.

Conflict of interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Publisher’s note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.

Supplementary material

The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fonc.2022.1087792/full#supplementary-material
