Rui Liao
Lei Liu1†- 1Department of Hepatobiliary Surgery, The First Affiliated Hospital of Chongqing Medical University, Chongqing, China
- 2Department of Hepatobiliary Surgery, The People’s Rongchang Hospital, Chongqing, China
Circular RNAs (circRNAs) are newly classified noncoding RNA (ncRNA) members with a covalently closed continuous loop structure that are involved in immune responses against hepatitis B virus (HBV) infections and play important biological roles in the occurrence and pathogenesis of HCC progression. The roles of circRNAs in HBV-associated HCC (HBV-HCC) have gained increasing attention. Substantial evidence has revealed that both tissue and circulating circRNAs may serve as potential biomarkers for diagnostic, prognostic and therapeutic purposes. So far, at least four circRNA/miRNA regulatory axes such as circRNA_101764/miR-181, circRNA_100338/miR-141-3p, circ-ARL3/miR-1305, circ-ATP5H/miR-138-5p, and several circulating circRNAs were reported to be associated with HBV-HCC development. Notably, TGF/SMAD, JAK/STAT, Notch and Wnt/β-catenin signaling pathways may play pivotal roles in this HBV-driven HCC via several circRNAs. Moreover, in non-HBV HCC patients or HCC patients partially infected by HBV, numerous circRNAs have been identified to be important regulators impacting the malignant biological behavior of HCC. Furthermore, the role of circRNAs in HCC drug resistance has become a focus of research with the aim of reversing chemoresistance and immune resistance. Herein, we review the molecular biology of circRNAs in HBV-HCC and their potential in therapeutic strategies.
Introduction
Hepatocellular carcinoma (HCC), mainly induced by hepatitis B (HBV) or C viral (HCV) infection and accounting for the bulk of primary liver cancers, ranks as the fourth most common cause of cancer-related death globally in 2018 and has a notably poor prognosis (1). Unfortunately, most HCC patients are diagnosed at advanced disease stages and miss the opportunity for curative resection. Although some locoregional therapy approaches (e.g., radiofrequency ablation, RFA; transcatheter arterial chemoembolization, TACE; transcatheter arterial infusion, TAI), several approved systemic therapies (such as sorafenib, lenvatinib, and cabozantinib), and immunotherapy can partially improve the outcomes of these patients, the long-term outcomes are still generally poor (2, 3). Therefore, exploring the molecular biology of valuable biomarkers for early diagnosis of HCC and therapeutic strategies against HCC is extremely important. Circular RNAs (circRNAs) are newly classified noncoding RNA (ncRNA) members that form a covalently closed continuous loop structure and are more stable than linear mRNAs (4). Many studies have indicated that host circRNAs are involved in immune responses against HBV infection. To date, dozens of circRNAs have been reported to play important biological roles in the occurrence and pathogenesis of HCC progression (5), and they are closely related to immune responses against HBV infection and regulation of HCC tumorigenesis, including self-sustenance in growth signals, cell proliferation, angiogenesis, cell apoptosis, and tumor metastasis. In this review, we discuss the molecular biology underlying HBV-associated HCC (HBV-HCC) and thereby provide insight into the role of circRNAs in therapeutic strategies.
General Features of circRNAs
Unlike conventional linear splicing of RNAs, circRNAs are generated from back-splicing of exons, introns, or both, which prevents them from being degraded by RNA exonucleases or RNase R. Back-splicing in circRNA synthesis occurs both cotranscriptionally and posttranscriptionally and is favored by a high rate of transcription elongation (4). Additionally, alternative back-splicing events, in particular N6-methyladenosine (m6A) modification, can occur and produce multiple circRNA isoforms (6). Hence, circRNAs have a longer half-life and more inherent stability than linear mRNAs. There are three types of circRNAs: circular exonic circRNAs (EcircRNAs), circular intronic RNAs (ciRNAs) and exon-intron circRNAs (EIciRNAs) (6). EcircRNAs are abundant in the cytoplasm, constitute the majority of circRNAs and serve as miRNA sponges. However, ciRNAs and EIciRNAs are predominantly nuclear and may modulate gene transcription and posttranscription modification (7). Exosomal circRNAs has been recognized as a potentially effective way to clear or degrade circRNAs (8). circRNAs have been found to be involved in various biological functions, including microRNA (miRNA) and protein sponging, transcriptional and protein regulation, and alternative splicing modulation, and can act as protein translation templates (7). Moreover, many studies have revealed that circRNAs can contribute to cell growth, angiogenesis, unlimited replicative potential, and cancer invasion and metastasis by acting as different miRNA sequesters or sponges and directly targeting protein-coding genes (7).
Molecular Biology Relationship Between circRNAs and hepatitis B Virus
At present, it is impossible to completely eliminate HBV infection in the human body due to the persistence of covalently closed circular DNA (cccDNA) in the nuclei of infected hepatocytes (9). Recent evidence has shown that viruses can encode a repertoire of circRNAs (10). In accordance with the pivotal roles in the biogenesis and functions of circRNAs during virus infection, the novel mechanisms underlying the pathogenesis and progression of chronic hepatitis B (CHB) involving circRNAs are slowly being validated. To identify hepatic circRNAs associated with chronic hepatitis B (CHB), Zhou et al. performed RNA sequencing using liver biopsies from untreated CHB patients and found that a total of 99 dysregulated circRNAs were correlated with CHB. CHB-related circRNA-miRNA-mRNA pathway analysis hinted that hsa_circ_0000650 regulated transforming growth factor-β2 (TGFβ2) by sponging miR-6873-3p (11). Moreover, circRNAs regulate HBV replication by mediating host-virus interactions. It was found that viral-derived circRNAs are produced during HBV replication and are regulated by the host DHX9 (DEAH-box helicase 9) protein, which did not affect the levels of HBV DNA. Therefore, in HBV infection, the RNA binding factor DHX9 may function as a crucial regulator of viral-derived circRNAs or viral proteins (12). Furthermore, circRNAs induce an antiviral immune response. An in vitro study (13) revealed a high hsa_circ_0004812 expression level in CHB patients and HBV-infected hepatoma cells. The knockdown of hsa_circ_0004812 promoted IFN-α/β expression to inhibit viral replication. The overexpression of hsa_circ_0004812 stimulated HBV-induced immunosuppression through the circ_0004812/miR-1287-5p/Follistatin-related protein (FSTL) 1 axis, which promoted FSTL1 expression by inhibiting miR-1287-5p. However, due to our presently poor understanding of their expression, regulation and biological function, further investigations are needed to determine the potential mechanisms behind the different circRNA regulation patterns associated with HBV infection.
Roles of circRNAs in HBV-HCC
Among circRNA/miRNA interaction networks, at least five circRNA/miRNA regulatory axes might contribute to CHB development, including hepatitis B, inflammatory mediator regulation of transient receptor potential (TRP) channels, T cell receptor, TGF-β and MAPK signaling pathways (14). Obviously, these signaling pathways are closely involved in the development of HCC, including cell proliferation, apoptosis, migration, and invasion and so on. However, there are a few mechanistic studies, especially in HBV-HCC, on other circRNA/miRNA regulatory axes. Therefore, the information about the detailed mechanisms of circRNA/miRNA regulatory axes is limit. Here, we systematically summarize the literature on other validated circRNA/miRNA/target gene axes associated with HBV-HCC (Figure 1 and Table 1).

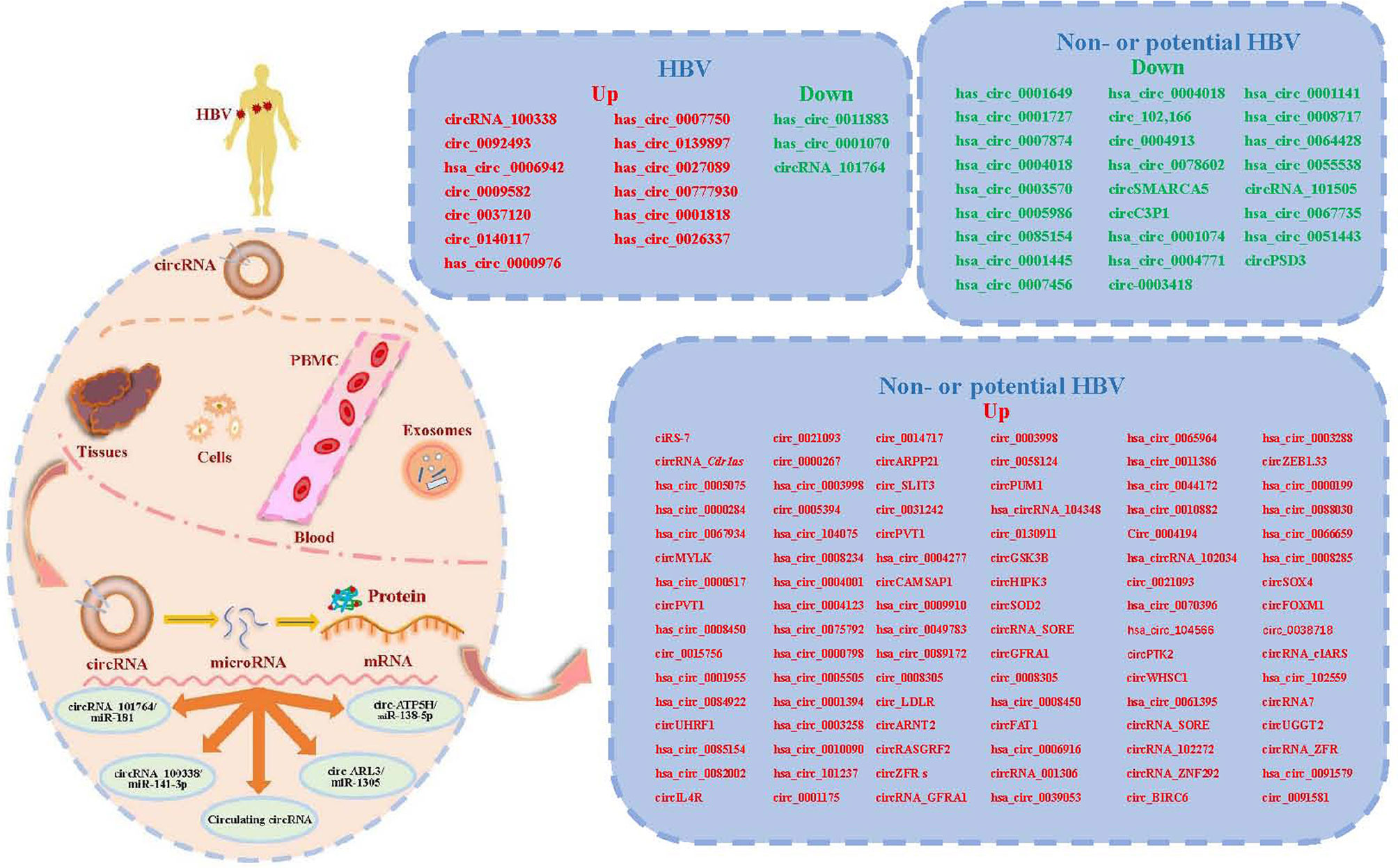

Figure 1 A summary diagram of circular RNAs (circRNAs) involved in circRNA-microRNA (miRNAs)-mRNA axis in hepatocellular carcinoma (HCC) with or without hepatitis B virus (HBV). CircRNAs can be found in liver tissues, cells, serum, plasma, peripheral blood mononuclear cells (PMBC) and exosomes. Most circRNAs can act as miRNA sponges or sequesters. CircRNAs may function as sponges or decoys for proteins and thereby regulate their activity. At least four reported circRNA/miRNA regulatory axes and several circulating circRNAs might contribute to the development of chronic hepatitis B (CHB) related HCC. We list the validated circRNAs on the right of this figure.
Table 1 Overview of the identified circular RNA in HBV associated hepatocellular carcinoma.
circRNA_101764/miR-181
circRNA/miRNA interaction networks were constructed to predict the function of these circRNAs in CHB. Increased evidence from circRNA microarrays has confirmed that circRNA-miRNA-mRNA networks based on specific functional circRNAs may facilitate hepatocarcinogenesis in HBV-HCC. For example, bioinformatics analyses of a circRNA microarray from three HCC and paired adjacent nontumorous tissues indicated 24 upregulated and 23 downregulated differentially expressed circRNAs (HCC vs nontumors, fold change>2.0 and P<0.05) (21). Then, 3 upregulated (hsa_circRNA_102814, 100381, and 103489) and 3 downregulated (hsa_circRNA_101764, 100327, and 103361) miRNAs were verified by qRT-PCR. Of them, hsa_circRNA_101764, coexpressed with the miR-181 family, was the largest node in the circRNA/microRNA coexpression network (21). By activating epigenetic upregulation of miR-181, HBV-encoded X antigen (HBx) could promote “stemness” in the pathogenesis of HCC (22). GO analysis of this circRNA microarray revealed that genes in the PI3K-Akt signaling pathway were the most abundant target genes involved in circRNA/miRNA interactions (21). The PI3K-Akt signaling pathway has already been verified to include oncogenes that functionally contribute to hepatocarcinogenesis by inducing malignant transformation of hepatocytes (23). Hence, circRNA_101764/miR-181/PI3K may play an important role in the cell network during HBV-HCC hepatocarcinogenesis.
circRNA_100338/miR-141-3p
Another circRNA microarray of HBV-HCC performed by Huang et al. (15) identified a total of 189 significantly upregulated and 37 downregulated circRNAs. Of note, circRNA_100338, which is significantly more highly expressed in HCC tissue than in paired pericancerous tissue, is closely correlated with HBV-HCC metastatic progression and consequently the cumulative survival rate. In silico and experimental analyses suggested that miR-141-3p is a direct target of circRNA_100338 to regulate the gene expression necessary for HCC carcinogenesis (15). On the other hand, this study also found that metastasis suppressor 1 (MTSS1) is very likely a potential target of miR-141-3p, which may act as an oncogene and a driver of metastasis in HBV-HCC through a potential circRNA_100338-miR141-3p-MTSS1 interaction pathway. As a tumor inhibitor in HCC, miR 141 can suppress HCC cell growth, invasion and metastasis by directly targeting TGFβR1 (24), sperm-associated antigen 9 (25), hepatocyte nuclear factor-3β (26), T lymphoma invasion and metastasis 1 (27) and their downstream signaling cascade. In a study employing an orthotopic nude mouse model and cell lines (28), downregulation of MTSS1 decreased the invasion potential of HBV-HCC in vitro and averted the extent of lung metastasis in vivo. Based on these findings, circRNA_100338/miR-141-3p/MTSS1 could be used as a prediction biomarker for HBV-HCC patient outcomes and as a potential therapeutic target.
circ-ARL3/miR-1305
circ-ARL3, also known as hsa_circ_0092493, was reported to be significantly upregulated in HBV-positive HCC cells and tissues (16). A circRNA expression profile in HBV+ HepG2.2.15 cells and their parental HBV− HepG2 cells found 22 upregulated and 63 downregulated circRNAs. Among them, circ-ARL3 had the greatest differential expression, which was positively associated with positive HBsAg test results, larger tumor size and advanced clinical stage. The upregulation of circ-ARL3 is attributed to N6-methyladenosine (m6A) modification induced by HBx protein (16). Importantly, circ-ARL3 serves as a molecular sponge of miR-1305, antagonizing the inhibitory effects of miR-1305 in a cohort of target oncogenes (16), including WNT2 (29), ubiquitin-conjugating enzyme E2 T (UBE2T) (30), double minute 2 homolog (MDM2) (31), transforming growth factor-beta2 (TGF-β2) (32), and RNA Polymerase III Subunit G (POLR3G) (33), thereby facilitating HBV-HCC progression. Wei et al. demonstrated that miR-1305 targeted ubiquitin-conjugating enzyme E2T (UBE2T) to suppress the Akt signaling pathway and then prevented the self-renewal and tumorigenicity of cancer stem cells in HCC (30). Therefore, circ-ARL3/miR-1305 is a critical carcinogenic signaling pathway involved in the primary pathogenesis of HBV-HCC.
circ-ATP5H/miR-138-5p
circ-ATP5H, also known as hsa_circ_0006942, is expressed at high levels in HBV+ HCC tissues and cells (17). circ-ATP5H knockdown prevented HBV DNA replication and hindered HBsAg and HBeAg expression in HBV-positive cells. Moreover, circ-ATP5H sponges miR-138-5p to upregulate tumor necrosis factor alpha-induced protein 3 (TNFAIP3) (17). Several recent studies have revealed that miR-138-5p plays a pivotal regulatory role in HCC by mediating a series of biological processes, including chemoresistance, cell proliferation, cell migration, invasion, metastasis and tumorigenesis (34, 35). Furthermore, TNFAIP3 has already been identified as an important regulator of HBV DNA replication and of cell proliferation and apoptosis in HBV-HCC (36). Thus, circ-ATP5H may play an important role in HBV-HCC development and progression by modulating the miR-138-5p/TNFAIP3 axis.
Circulating circRNA
In addition to circRNAs expressed in tissues and cells, some circulating circRNAs have been demonstrated to be involved in HBV-HCC occurrence. In a microarray-based high-throughput screening of HBV-HCC-related circulating circRNAs, stratified risk score analysis verified that circ_0009582, circ_0037120 and circ_0140117 were candidate circulating fingerprints for distinguishing HCC patients from those with chronic hepatitis and healthy people (18). Zhu et al. investigated plasma circRNAs in 10 HBV-HCC patients and 5 HBV-related liver cirrhosis patients using a microarray to screen differentially expressed circRNAs (20). A total of 157 upregulated and 161 downregulated circRNAs were found. Of them, hsa_circ_0027089 exhibited the highest significance and further distinguished HCC patients from cirrhosis patients and healthy participants. A large-scale, multicenter study also employed a microarray and qPCR to explore plasma circRNAs increased in HBV HCC patients (19). They identified a plasma circRNA panel (CircPanel) containing three circRNAs (hsa_circ_0000976, hsa_circ_0007750 and hsa_circ_0139897) that could detect HBV-HCC. Although there have been few in-depth mechanistic studies of circulating circRNAs, these findings provide evidence that these circRNAs might participate in HBV-HCC progression.
circRNAs in Non-HBV and Potential HBV-HCC
In this review, we have mainly focused on the roles of circRNAs in HBV-HCC. However, to date, in non-HBV HCC patients or HCC patients partially infected by HBV, numerous circRNAs have been reported to be important regulators impacting the malignant biological behavior of tumors. Additionally, in some research, although HBV-HCC was not the focus of the studies, the majority of the HCC population had HBV infection. We also found that the expression and roles of some circRNAs in HCC have been inconsistently reported, such as circRNA-103809 (37–39). Functionally, circRNA activations are closely associated with cancer cell proliferation, cycle progression, cell apoptosis, migration, invasion and Epithelial-mesenchymal transition (EMT) during HCC process. Herein, we also summarize the relationship between circRNAs and non-HBV or potential HBV-HCC from biological function to clinical significance. Whether these circRNAs can be biomarkers for the diagnosis of HBV-HCC patients and prognosis determination should be evaluated in the future (Table 2).
Table 2 Summary of circular RNA in non- and potential HBV infected hepatocellular carcinoma population.
Undoubtedly, virally-encoded circRNAs (vcircRNAs) have different mechanisms and effects in the regulation of signaling pathways involved in viral infection and oncogenesis between HBV-HCC and non-HBV HCC (157). Nevertheless, the vcircRNA research is in signaling pathways regulation where many puzzles remain to be solved. HBV_circ_1, a recently identified HBV-encoded circRNA, is derived by the intronless pgRNA, which is produced via the homologous recombination of the inverted repeat sequences at both 3′ and 5′ ends of the pgRNA, promoting viral replication (12, 158). Particularly, herpesviruses cannot express antigenic viral proteins during the latency in order to escape the host immune surveillance. Due to immunogenicity lack, circRNAs is likely an ideal strategy for the viruses to regulate themselves and the host environment (157). Therefore, we hypothesize various innate and adaptive immune-associated pathways enhance the chronic viral infection and viral replication, and finally tumor initiation. More efforts are warranted to investigate the pathways involved immunoevasion of foreign circRNAs in HBV-HCC.
Animal Model for circRNAs Study
Various circRNAs are expressed in serum, plasm, liver tissues, liver tumors, liver cancer cells and exosomes. Also, several tumor-bearing mouse models transplanted with circRNAs were used to analyze the detailed mechanisms in HCC development. For example, HCCLM3 cells with or without reduced circUHRF1 were injected into the male NOD/SCID mouse. And then, NK cells were injected intravenously through the tail vein when the tumor reached a volume of approximately 100 mm3. The implantation of circUHRF1 knockdown cells resulted in sensitivity to anti-PD1 therapy and overall survival improvement (48). In another experiment, C57BL/6 mice implanted with Hep1–6-circMET cells had a larger tumor burden compared to the controls. Importantly, these experiments showed that the density of tumor-infiltrating CD8+ lymphocytes in tumors injected with Hep1–6-control cells was significantly higher (49). A xenograft assays using female BALB/c mice subcutaneously injected HepG2 cells with or without transfection of circ_0008305 siRNA found that downregulation of circ_0008305 repressed HCC tumor growth in vivo (105). These circRNAs behaved in tumor-bearing mice could help us further understand the mechanisms in HCC development in depth.
Several Critical Cell Signaling Pathways Regulated by circRNAs in HBV-HCC
Importantly, the interplay between circRNAs and miRNAs for the regulation of different signaling cascades has enabled us to develop a better understanding of the mechanism of HBV-HCC development (159). For example, A differential expression of the circulating miRNAs from 50 patients diagnosed with chronic HBV infection and hepatic fibrosis based on Scheuer’s staging criteria found the majority of the target genes of the identified miRNAs affected hepatic fibrosis via the TGF−/Smad, Wnt, MAPK, Jak/STAT and VEGF pathways (160). As a tumor suppressor, circSMAD2 can remarkably impede TGF/SMAD signaling and epithelial to mesenchymal transition (EMT) by inhibiting microRNA-9 (161). Overexpressed circSMAD2 inhibited migratory and invasive potential of HCC cells and considerably reduced TGFβ1-CircSMAD2 sponging for miR-629 (162). Notably, hsa_circ_0000517 regulated SMAD6 expression through competing endogenous RNA (ceRNA) for miR-326. Up-regulation of AMAD6 overturned the inhibitory impacts of miR-326 mimics on cell proliferation, colony formation, migration, and invasion of HCC cells (112).
Notch signaling pathway facilitates HBV cccDNA transcription via triggering PKA-phospho-cAMP response element-binding protein (CREB) cascade and is regulated by E3 ubiquitin ligase-modulation of the Notch intracellular domain (163). Meanwhile, studies have shown that NOTCH pathway is involved in different steps of carcinogenesis of HCC. Hsa_circ_0005986 was associated with chronic hepatitis B infection history. Both hsa_circ_0005986 and Notch1 were targets of miR-129-5p, and that hsa_circ_0005986 knockdown decreased the expression level of Notch1 and accelerated cell proliferation by facilitating the G0/G1 to S phase transition of HepG2 and Huh7 cells (154). In SMMC-7721 cells, high expression of circ-CDYL could promote distinguished rise of survivin and HIF1AN expression levels, and enhance the interactions between NOTCH2 and HIF1AN in SMMC-7721 cells (56).
In recent years, series of studies have provided evidence that the JAK/STAT signaling pathway is closely related to the occurrence and development of liver fibrosis and HCC caused by HBV (164). Some experiments have documented that H3K27ac and H3K4me3 expression modification (active gene transcription hallmarkers), and circSOD2 expression were further increased after histone writer EP300 and WDR5 binding to circSOD2 promoter. On one side, CircSOD2 could promote cell growth, migration, and tumor growth of liver cancer. On the other side, circSOD2 acted as a sponge on miR-502-5p and rescued DNMT3a expression, which could inhibit SOCS3 expression and accelerate JAK2/STAT3, SOCS3 downstream signaling pathway activation. In a feedback way, activated STAT3 regulated circSOD2 expression (79). Circ-LRIG3 worked with EZH2 and STAT3 together and facilitated EZH2-induced STAT3 methylation and activation. In turn, activated STAT3 could positively respond to circ-LRIG3 promoter to facilitate circ-LRIG3 transcription activity. Finally, Circ-LRIG3 promoted malignant biological behavior of HCC cell (165). In additional, circ9119 targeted JAK1/STAT3 in HepG2/Huh-7 cells by competitively binding miR-26a, resulting in less proliferation of HCC cells and increasing apoptosis after circ9119 silence (166).
The Wnt/β-catenin signaling pathway has a key role of the modulation of immune responses and in the orchestration of a chronic low-level inflammation state favoring HCC development infected by HBV (167). Of note, circβ-catenin has higher expression in liver cancer tissues than that in adjacent normal tissues. Also, circβ-catenin could affect a wide spectrum of Wnt pathway-related genes. 370-amino acid β-catenin isoform can activate the Wnt pathway by antagonizing GSK3β-induced β-catenin phosphorylation and degradation. In the nude mice injected with circβ-catenin-silenced Huh7 cells, tumors were smaller in size and had a marked reduction in the pulmonary metastatic lesions (120). Similarly, tumor growth was remarkably reduced in mice transplanted with circFBLIM1-silenced Huh7 cancer cells. Here, circFBLIM1 acted as a sponge for miR-338 and promoted HCC progression via targeting LRP6 (129). In sorafenib-resistant HCC cells, circRNA-SORE sequestered miR-660–3p and miR-103a-2-5p-mediated targeting of Wnt2b and β-catenin pathway and inducing sorafenib resistance. This was involved in an increased level of N6-methyladenosine (m6A) at a specific adenosine in circRNA-SORE (67).
Therapeutic Strategies for HBV-HCC Involving circRNAs
Given the association of different circRNA expression patterns with HBV-HCC, emerging evidence indicates that both tissue and circulating circRNAs may serve as potential biomarkers for diagnostic, prognostic and therapeutic purposes (Table 1).
circRNA Diagnostic Biomarkers in HBV-HCC
Currently, effective biomarkers for early and accurate diagnosis of HBV-HCC are still lacking. As classic diagnostic biomarkers, α-fetoprotein (AFP), AFP-L3, and desgamma-carboxyprothrombin (DCP) are only modestly beneficial in diagnosis of HCC. Due to their higher stability and abundance in HCC, circRNAs may be perfect diagnostic indicators, especially in AFP-normal HCC patients. Combined with AFP, three circulating circRNAs (circ_0009582, circ_0037120 and circ_0140117) were reported to have higher sensitivity and specificity as potential diagnostic biomarkers for predicting HBV-HCC occurrence (18). The risk score analysis with the ROC curve in the training set and validation set showed values of 0.988 and 0.955, respectively. According to a circRNA microarray analysis, Zhu et al. (20) found that plasma hsa_circ_0027089 exhibited the highest significance and further distinguished HBV-HCC patients from non-HCC patients. The combination of hsa_circ_0027089 and AFP had better sensitivity but poorer specificity in HBV-HCC than in cirrhotic, healthy and non-HCC patients. Yu et al. built an HBV-HCC diagnostic model, CircPanel, containing three circRNAs (hsa_circ_0000976, hsa_circ_0007750 and hsa_circ_0139897). In addition, CircPanel+AFP was calculated as Logit = −2.152 + 3.321 × CircPanel+2.241 × AFP. They found that both CircPanel and CircPanel+AFP showed a higher accuracy than AFP alone in distinguishing individuals with HBV-HCC from those with non-HCC liver disease. Furthermore, both CircPanel and CircPanel+AFP performed well in detecting small HCC lesions (≤3 cm) and AFP-negative HBV-HCC, indicating the high diagnostic value of hsa_circ_0000798 in HBV-HCC (19).
circRNA Prognostic Biomarkers in HBV-HCC
To date, dozens of noncoding RNAs (ncRNAs) have been reported to have essential roles in HCC progression and to be potential prognostic biomarkers of HBV-HCC. For example, a miRNA panel including seven miRNAs provided high diagnostic accuracy for HBV-HCC (168). circRNAs are newly classified endogenous ncRNA members that have been identified as outcome predictors for patients with HBV-HCC in some studies. Huang et al. (169) revealed that an elevated circRNA-100338/miR-141-3p/RHEB axis was involved in activation of the mTOR signaling pathway in HCC. Clinical specimen analysis indicated that circRNA-100338 was upregulated in HCC tissues, which also showed an increased RHEB RNA level. Correlation analysis of RHEB expression with the clinicopathological parameters of HBV-HCC patients suggested that circRNA-100338 was an indicator of poor prognosis in HBV-HCC. Clinically, high expression of circ-ARL3 was observed in HBV+ HCC tissues compared to HBV−HCC tissues. circ-ARL3 expression was positively associated with HBsAg+ status, and in HBV-HCC patients, a high circ-ARL3 expression level was related to a shorter survival time than observed in patients with a low circ-ARL3 expression level (16), verifying its ability to predict the prognosis of patients with HBV-HCC.
circRNA Therapeutic Biomarkers in HBV-HCC
Recently, some circRNAs have been demonstrated to regulate gene expression via circRNA-miRNA-mRNA interaction networks to facilitate HBV-HCC hepatocarcinogenesis and thus might be useful in guiding HCC treatment decisions. In addition to being diagnostic and prognostic biomarkers, these circRNAs can also be used as targets for HCC clinical intervention. As mentioned above, the crucial antagonistic roles of circRNA_100338 and miR-141-3p in the regulation of metastatic potential in HBV-HCC have been confirmed (15). Based on computational analyses followed by experimental verification, circRNA_100338 can directly interact with miR-141-3p in the context of HCC, thus mediating downstream gene regulation in HCC. This indicates that circRNA_100338 could potentially be used as a target in HBV-HCC clinical treatments. Rao et al. (16) found that knockdown of circ-ARL3 suppressed HBV-positive cell proliferation and invasion, whereas these effects were inhibited by silencing of miR-1305, suggesting that the circ-ARL3/miR-1305 regulatory axis exists in HCC cells and may be a promising treatment target for patients with HBV-HCC. Additionally, Jiang et al. (17) found that circ-ATP5H was remarkably expressed in HBV-HCC tissues compared to adjacent noncancer tissues (P<0.0001). Moreover, the expression level of circ-ATP5H was significantly increased in HBV-specific cells compared to HCC cells. These results suggest that circ-ATP5H could be a new biomarker for HBV-HCC treatment.
Roles of circRNA in HCC Drug Resistance
At present, chemotherapy and immunotherapy agents for advanced HCC are greatly limited by drug resistance, leading to cancer relapse and intractable tumors. Mechanistically, the efflux of hydrophobic cytotoxic drugs by cancer cells and induced cell apoptosis contribute to this resistance (170). Recently, the role of circRNAs in HCC drug resistance has become a focus of research in this field (Table 3). For instance, circ_0003418 not only exerts an antitumorigenic role in HCC but also facilitates the sensitivity of HCC cells to cisplatin by restraining the Wnt/β-catenin pathway (136). Similarly, the circRNA_101505 expression level is decreased in cisplatin-resistant HCC tissues and cell lines, and circRNA_101505 can sensitize HCC cells to cisplatin by promoting the miR-103/oxidored-nitro domain-containing protein 1 (NOR1) pathway (147). In contrast, circARNT2 is significantly upregulated in HCC tissues and cell lines and facilitates HCC progression in vivo. This circRNA suppresses the sensitivity of HCC cells to cisplatin through the miR-155-5p/PDK1 pathway (107). circRNA_102272 may facilitate HCC cisplatin resistance by regulating the miR-326-RUNX2 axis (88). Similarly, silencing of circ_0031242 can mitigate cisplatin resistance while enhancing cisplatin sensitivity. circ_0031242 can also suppress cell viability, migration, and invasion and promote the apoptosis of cisplatin-resistant HCC cells by directly interacting with miR-924 and modulating POU3F2 expression (100). Resistance to doxorubicin, another chemotherapy agent, can be enhanced in HCC cells by the circ_0003998/miR-218-5p/EIF5A2 axis (90). Notably, acquisition of sorafenib resistance is a primary limitation of sorafenib-based chemotherapy. circRNA-SORE hampers YBX1 nuclear interaction with the E3 ubiquitin ligase PRP19 and thus blocks PRP19-mediated YBX1 degradation, which mediates sorafenib resistance in HCC cells (66). circFN1 was demonstrated to mediate sorafenib resistance in HCC cells by sponging miR-1205 and promoting E2F1 expression (90). A mechanistic study of circRNA-SORE found that it sequestered miR-103a-2-5p and miR-660-3p by acting as a microRNA sponge, thereby activating the Wnt/β-catenin pathway and inducing sorafenib resistance (83). Additionally, some patients who receive immune checkpoint therapy do not show a durable or gratifying response. In 2020, two studies showed that dysregulation of certain circRNAs in HCC contributes to immunosuppression. Zhang et al. reported that tumor-derived exosomal circUHRF1 induced natural killer cell exhaustion by upregulating the expression of TIM-3 via degradation of miR-449c-5p, thereby driving resistance to anti-PD1 immunotherapy in HCC patients (48). Another study found that circMET promoted HCC progression by inducing epithelial to mesenchymal transition and enhancing immunosuppression and anti-PD1 therapy resistance through regulation of the miR-30-5p/Snail/dipeptidyl peptidase 4 (DPP4)/CXCL10 axis (49). Although there are few studies on the molecular function of circRNAs in chemotherapy and immunotherapy agents, especially for HBV-HCC, the mechanisms and roles of circRNAs in drug resistance must be mined to advance HBV-HCC treatment, which may offer better approaches to reverse chemoresistance and immune resistance.
Table 3 Deregulation and roles of circular RNAs in drug resistance of hepatocellular carcinoma.
Conclusion and Perspectives
With the rapid development of advanced experimental techniques, including next-generation sequencing technology and bioinformatics tools, allowing the characterization of novel molecular biology circRNAs associated with HBV-HCC, circRNAs are being increasingly identified and attracting increasing attention from researchers worldwide. CHB-related circRNA-miRNA-mRNA pathway analyses have revealed that dysregulated circRNAs are correlated with CHB and regulate HBV replication. As multifaceted regulators, circRNAs contribute to regulation of gene expression and signaling pathways and to translation of proteins directly via the miRNA-mRNA axis. Therefore, circRNAs induce aberrant functions in the tumor microenvironment and can become novel biomarkers for HBV-HCC diagnosis, prognosis determination and treatment response. Recently, an increasing number of circRNAs have been found to participate in HCC drug resistance, and the involved molecular biology mechanisms are gradually being revealed. However, knowledge of the emerging functions of circRNAs in drug resistance or other aspects of HCC development is only the tip of the iceberg, and their roles in HBV-HCC are still unclear. In the future, targeting dysregulated endogenous circRNAs may be a promising way to reverse drug resistance. circRNAs from a potential RNA virus may act as new tumor antigens for HBV-HCC vaccines and oncolytic viruses to activate or induce antitumor immunity. Further in-depth translational research and clinical trials are urgently needed and may ultimately open potential approaches for antitumor therapy for HBV-HCC.
Author Contributions
RL and PH performed the majority of the writing, prepared the figures and tables. LL and JZ performed data accusation and writing. XW performed data accusation. All authors contributed to the article and approved the submitted version.
Funding
This study was supported by Science and Technology Research Program of Chongqing Municipal Education Commission (No. KJQN201800416), Basic and Advanced Research Project of Science and Technology Commission of Chongqing Municipality (No. cstc2018jcyjAX0162), and Science and Health Joint Research Project of Chongqing Municipality (2020GDRC013).
Conflict of Interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
