Cellulose degradation products and high ionic strength enhance the retardation of strontium in hydrated cement paste

The present concept for the disposal of some low- and all intermediate-level radioactive waste in the United Kingdom involves grouting with cement in steel drums and placement in a geological facility. The vaults would then be backfilled with low strength, high porosity cement-based materials designed to promote a pervasive, alkaline environment in which many of the radioactive species present are sparingly soluble. This work investigates the interaction of strontium with such a backfill under both diffusive and advective conditions given the potential significance of the fission product ⁹⁰Sr. An important characteristic of the United Kingdom waste inventory is the abundance of organic compounds, including cellulosic materials; consequently, the experiments were repeated with products of alkaline cellulose degradation. Additional experiments were performed at high ionic strength simulating anticipated changes in the salinity of the groundwater. The effective diffusivity (D_e) of strontium in the absence of the organic compounds ranged between 5.5 × 10⁻¹¹ and 8.5 × 10⁻¹¹ m² s⁻¹, with a distribution coefficient (R_d) of between 2.8 × 10⁻³ and 3.1 × 10⁻³ m³ kg⁻¹. The presence of organic compounds and/or an increase of ionic strength enhanced the retardation of strontium. The results indicate that the retention of strontium by hydrated cement paste occurs via a reversible ion exchange mechanism rather than mineralisation and is promoted by decalcification of the calcium silicate hydrate phases.

Introduction

Strontium-90 is a medium-lived (t_1/2 = 28.8 years), pure beta emitter (E_max = 545.9 (14) keV, 100%), generated during nuclear fission in high yield (6%) (Wallace et al., 2012). Cementitious materials are considered good candidates for the retention of ⁹⁰Sr, because of the close chemical similarities between Ca and Sr. However, owing to the relatively high solubility of Sr(OH)₂ (solubility product K_sp = 3.2 × 10⁻⁴; Ciliberto et al., 2008) in comparison with Ca(OH)₂ (portlandite, K_sp = 6.45 × 10⁻⁶; Duchesne and Reardon, 1995), retention of Sr by a cementitious matrix is less likely to be controlled by solubility restrictions (Atkins and Glasser, 1992). Fuhrmann et al. (1989) reported that leaching of Sr from Portland cement paste with 5 wt% sodium sulphate is controlled by exchange and diffusion processes rather than by mineral dissolution. A later study by Tits et al. (2004), looking into interactions with a specific cementitious phase, calcium silicate hydrate (CSH), also concluded that co-precipitation processes do not contribute to the retention of Sr²⁺ by CSH phases. However, partial substitution of Ca atoms by Al in the structure of tobermorite (a crystalline form of CSH) has been shown to cause an increase in Sr retention and reduced leachability of Sr from ordinary Portland cement (OPC) (Shrivastava and Verna, 1995; Shrivastava and Shrivastava, 2000, 2001).

The comprehensive study presented by Atkins and Glasser (1992) established that the majority (more than 99%) of any Sr added to cementitious matrices is retained by substitution of Ca in hydrate phases. They believed that calcium (sulfo-) aluminate phases (AF_t and C₃AH₆) are responsible for most of the Sr retention, followed to a lesser extent by CSH. Thus, Shiner et al. (2022) found lower diffusivities of Sr in OPC and low pH-OPC formulations (50%wt OPC +50%wt colloidal silica) when compared with model systems based in alite (3CaO·SiO₂ or C3S in cement chemistry notation) or alite with colloidal silica alone (Table 1). The authors attributed the reduced mobility of Sr to the presence of ettringite (AF_t) in the OPC systems and the ability of Sr to substitute Ca in the crystal lattice. Nevertheless, since CSH is the most abundant cementitious mineral, constituting 50 wt% in hydrated Portland cement paste (Gaona et al., 2011), much attention has been focussed on studying the uptake of Sr by this phase (Tits et al., 2004; Tits et al., 2006; Wieland et al., 2008; Youssef et al., 2014; Dezerald et al., 2015; Kittnerová et al., 2020) as well as by its crystalline analogue (tobermorite) (Ma et al., 1996; Coleman et al., 2006; Tits et al., 2006; Tsutsumi et al., 2014; Yarusova et al., 2014; Youssef et al., 2014). Tits et al. (2006) concluded that the uptake of Sr by CSH phases can be described by a Sr²⁺-Ca²⁺ ion exchange, as they observed a decrease of Sr²⁺ retention with an increase in the Ca:Si ratio of the CSH. The authors concluded that those experimental results could be explained by the competition between Ca²⁺ and Sr²⁺ ion for sorption sites (Tits et al., 2006). Further work carried out by Wieland et al. (2008) on the uptake of ⁹⁰Sr by hydrated sulphate resistant Portland cements found that, in addition to the Sr²⁺-Ca²⁺ exchange mechanism, isotopic exchange of radio-strontium with non-radioactive Sr carrier also has a significant effect. The structural model used to explain the EXAFS (extended X-ray absorption fine structure) patterns of Sr bound in both a CSH phase and cement pastes, suggests that CSH controls the Sr uptake in the latter (Wieland et al., 2008).

TABLE 1

TABLE 1. Summary of the effective diffusivity (D_e) values and distribution coefficients (R_d) obtained by fitting the through-diffusion experiments for Sr in NRVB with the GoldSim model and comparison with literature values from diffusion and/or leaching studies

Atomistic modelling studies have been carried out with the aim of determining the nature of the exchange sites occupied by Sr in the CSH phases as well as the effect of substitution by ⁹⁰Sr (Youssef et al., 2014) and transmutation into ⁹⁰Y and ⁹⁰Zr (Dezerald et al., 2015) on the mechanical properties of the gel. The simulations indicated that substitution is favoured on both the interlayer and polyhedral sites of the CSH; however, the former positions are slightly more stable (Youssef et al., 2014; Dezerald et al., 2015). It was determined that, although substitution by ⁹⁰Y was energetically favourable, this is not the case for ⁹⁰Zr, and more importantly, the formation of stable ⁹⁰Zr interferes with the silicon layers, damaging the mechanical properties of the CSH (Dezerald et al., 2015).

A study by Merz et al. (1987) reported that Sr was retained in the gel pores of hydrated cement pastes and concrete, since there was no evidence of any specific strontium-containing mineral. They concluded that the cementitious matrix acted merely as a physical barrier for Sr migration and that the porosity of the matrix was the most important factor controlling its leachability. This conclusion agrees with research conducted by Johnston and Wilmot (1992) who reported a decrease in Sr leaching from sulphate resistant Portland cement paste, with the addition of increasing amounts of silica fume, or from OPC after the addition of 4% zeolite; in each case, the silicates reduced pore and capillary volumes (El-Kamash et al., 2006). A hypothesis that reconciles concepts of both physical and chemical retention is that the addition of pozzolanic/Si-rich materials to cement not only reduces its porosity but also boosts the amount of SiO₂, which in turn will increase the formation rate of CSH available for Sr uptake (Putero et al., 2013).

The present concept for the disposal of long-lived low- and intermediate-level radioactive waste (LLW/ILW) in the United Kingdom involves conditioning the waste in a cementitious matrix and disposing of it in a geological facility, backfilled with a bespoke formulation, such as Nirex Reference Vault Backfill (NRVB) (Nuclear Decommissioning Authority, 2010a). The purpose of the backfill is to condition incoming groundwater to alkaline pH, thereby limiting the solubility of many safety-relevant radionuclides. In addition to pH buffering, the backfill material has been designed with a high porosity to allow the release of gas generated in the disposal facility through inter alia decay, radiolysis, chemical reactions, metal corrosion and microbial processes. The cementitious matrix is also intended to furnish a reactive surface to promote retardation of radionuclides by adsorption, incorporation and co-precipitation (Nuclear Decommissioning Authority, 2010a). Anthropogenic organic ligands present in the LLW/ILW, including cellulose degradation products (CDP), may compromise retardation by the hydrated cement paste, either by increasing the solubility of the radionuclides themselves or by modifying the properties of the cementitious matrix (Keith-Roach, 2008; Ochs et al., 2014; Wieland., 2014). The aim of the present work is to investigate the diffusion of Sr through intact monoliths of NRVB and assess the effect of CDP on retardation by this material. Additional experiments were included to evaluate the role of increasing ionic strength on the system as well as the behaviour of Sr under advective flow; the latter simulating re-saturation of the geological disposal facility post closure.

Experimental

Through–diffusion

The through-diffusion experiments were carried out in a radial configuration, adapting the methodology developed by Markovaara-Koivisto et al. (2008) for the diffusion of radionuclides through crystalline rock. This methodology has been used previously with successful results for investigating Cs⁺, I⁻ (Felipe-Sotelo et al., 2014), Cl⁻ (van Es et al., 2015), Ni²⁺ (Felipe-Sotelo et al., 2016), Se (Hinchliff et al., 2016), Tc (Isaacs et al., 2020), U and Th (Felipe-Sotelo et al., 2017) diffusion through NRVB specimens. A full description of the preparation of the blocks and the NRVB-equilibrated water and CDP solution can be found in Felipe-Sotelo et al. (2014) (compositions of the solutions are summarised in Table S1 in Supplementary Information). In the case of the experiments carried out in the presence of CDP, the blocks of NRVB were pre-equilibrated in the CDP mixture for a period of 30 or 50 days. Sr diffusion was investigated at two concentrations; at tracer level where only ⁹⁰Sr (Perkin-Elmer, 14 kBq as Sr(NO₃)₂ equivalent to an initial concentration of 1.9 × 10⁻⁸ mol dm⁻³) was added to the central well of the NRVB blocks, and at higher carrier levels where, in addition to 25 kBq of ⁹⁰Sr, the central wells in the blocks were spiked with 0.15 mol dm⁻³ inactive Sr(NO₃)₂ (99+%, for analysis, Acros Organics). The latter is sufficient to ensure a total concentration in solution of 10⁻³ mol dm⁻³ (C_max), assuming homogenous distribution of the Sr in the total solution volume of system (200 cm³ external solution +25 cm³ pore volume +1.5 cm³ well). The activity of ⁹⁰Sr in the solution in contact with the NRVB blocks was determined after ⁹⁰Y ingrowth (pure β emitter with a maximum energy of 2.28 MeV and half-life of 64.1 h), by liquid scintillation counting (LSC, TRI-CARB 2500 TR Liquid Scintillation Counter, Packard) in the energy range between 250 and 800 keV. The statistical validity of the measurements was ensured by counting each sample for enough time to satisfy the 2σ criterion (targeted value 10,000 counts). Aliquots of 1 cm³ of solution were mixed with 10 cm³ of LSC cocktail (Gold Star Multipurpose Liquid Scintillation Cocktail, Meridian) before analysis. Aliquots taken from the diffusion experiments were not replaced by fresh solution.

In addition to the above, where the NRVB blocks were kept in contact with either with NRVB-equilibrated water or CDP solutions, a series of experiments was carried out using gluconic acid as a surrogate for isosaccharinic acid (ISA), the main component of the CDP mixture and often assumed to be the key complexant (Glaus et al., 2008; Glaus and Van Loon, 2008). Although some researchers have expressed concern about the suitability of gluconic acid as an analogue for ISA (Dudás et al., 2017), gluconic acid is also of relevance as it can be used as plasticiser in concrete admixtures (Glaus et al., 2006). The aim of the diffusion experiments in the presence of gluconic acid was to differentiate the effect of the organic compound from the influence of ionic strength, which might also affect retardation when using a CDP mixture, as the solutions of gluconate in NRVB equilibrated water presented a lower ionic strength than the CDP solutions (Table S1). For this purpose, a solution of 2.6 × 10⁻³ mol dm⁻³ d-gluconolactone (C₆H₁₂O₇, the lactone form of gluconic acid with no counter ions present, 99%, Acros Organics) was added to the NRVB-equilibrated water to form gluconate and reach a total organic carbon (TOC) concentration of 187 ppm C, equivalent to the TOC concentration measured in the CDP mixture. As for the experiments carried out in the presence of CDP, the NRVB blocks were pre-equilibrated in the gluconate solution for a minimum period of 30 days before spiking with 12.6 kBq of ⁹⁰Sr (no carrier added) in the central well at the start of the diffusion assays. The ⁹⁰Sr diffusion experiments at high ionic strength were carried out following two experimental approaches. In the first set of experiments the ionic strength of the solution in contact with the NRVB blocks was increased by addition of NaCl and KCl (50:50) to a total chloride concentration of 0.1 mol dm⁻³ (both 99+%, for Analysis, Acros Organics), and the blocks were left to pre-equilibrate for a minimum of 30 days before the addition in the central well of a 12.2 kBq ⁹⁰Sr spike (no carrier). The second experimental approach attempted to simulate the intrusion of hypersaline groundwater into the GDF, so for this purpose an ionic strength gradient was generated through the cement, by loading a slurry of NaCl and KCl (0.66 g NaCl and 0.84 g of KCl) together with 12.2 kBq ⁹⁰Sr into the central well of the NRVB block (no carrier), before submerging it in the cement equilibrated water. Assuming complete equilibration of the NaCl and KCl through the cement-water system, the final concentration expected in solution was 0.1 mol dm⁻³. All diffusion experiments were carried out in duplicate, and all the blocks were kept in a glove box under N₂-atmosphere to prevent carbonation.

Advection

The migration experiments under advective conditions were carried out in a radial configuration, using the advection rig described in Felipe-Sotelo et al. (2016); the experimental set-up allowed the direct injection of Sr into the central well of the NRVB block. The solution (either NRVB-equilibrated water or CDP) was contained in a N₂-pressurised vessel, maintaining radial flow of solution through the block under CO₂-free conditions. For the advection tests, experiments were carried out only at tracer levels of ⁹⁰Sr; the activities injected in the system ranged between 12.3 and 12.4 kBq. The solution eluted from the blocks was collected by means of fraction collector (Frac-920, GE Healthcare), and breakthrough of ⁹⁰Sr was determined by LSC as described above.

Autoradiography

At the end of the through-diffusion and advection experiments, the migration profiles and distribution of Sr within the NRVB blocks were visualised by autoradiographic imaging of the ⁹⁰Sr. The hydrated cement monoliths were cut using a diamond-edged circular saw to expose the centre of the blocks. The flat surfaces were then placed onto Eu²⁺-doped BaFBr storage phosphor autoradiographic plates (Fuji BAS MP 2025, 20 cm × 25 cm) and exposed from 5 h to 5 days depending on the activity of the sample. The plates were developed using a scanning laser-beam (Auto RAD, Packard Cyclone) and the images processed using ImageQuant (version 4) and ImageJ (U.S. National Institutes of Health).

Modelling

Full description of the use of the GoldSim simulations for the diffusion experiments can be found in Felipe-Sotelo et al. (2014). The experimental data were fitted adjusting the R_d (distribution coefficient) to the data at steady state, followed by the D_e (effective diffusion coefficient) to fit the breakthrough and the initial shape of the curve. The two parameters were then readjusted iteratively to minimise the lack-of-fit (LOF, Felipe-Sotelo et al. (2014)). For the advection experiments presented here, the diffusive mass flow rate of a radionuclide between cells was supplemented with an advective mass flow rate. The radionuclide mass flow rate was calculated as the product of the concentration of the radionuclide in the fluid in the cell and the fluid flow rate. The fluid flow rate between cells was kept equal to the measured rate of flow from the cement block and there is therefore conservation of fluid mass. Dispersion occurs in advective flow regimes and a good first approximation for one dimensional transport through a relatively homogeneous medium is that the dispersivity is 10% of the total length of the pathway (Gelhar et al., 1992). As much of the literature relevant to advection is concerned with large scale geological features or industrial processes, it should be noted that the equations used by GoldSim are conventional and scalable. The linked cells in the model exhibit a degree of numerical dispersion that is a function of the number of cells. In particular, the equivalent numerical dispersivity is equal to half the length of 1 cell. By representing the cementitious block with 5 cells numerical dispersivity has been introduced to the model that is equivalent to 10% of the radius of the NRVB block. The diffusion and advection simulation methods described above are mass conservative and assume that NRVB is homogenous and isotropic with regard to transport properties.

Results

Through—diffusion

Figure 1 shows the results of diffusion through NRVB with and without CDP at tracer level (Figure 1A) and with addition of Sr carrier (Figure 1B). In the absence of organics and at tracer level only, breakthrough of Sr occurred after 20 days, followed by a linear increase in concentration over the following 70 days, before stabilising after 250 days, with 50% of the original ⁹⁰Sr spike still retained in the NRVB. In the presence of CDP at Sr tracer levels (Figure 1A) breakthrough commenced after 25 days, reaching a plateau after 236 days with 60% of the ⁹⁰Sr retained on the NRVB. For the experiments using inactive Sr carrier, breakthrough and ⁹⁰Sr retention were similar in the absence of organics to the tracer tests; however, with addition of the CDP, retention decreased in comparison with the tracer experiments, going from 60 to 45%.

FIGURE 1

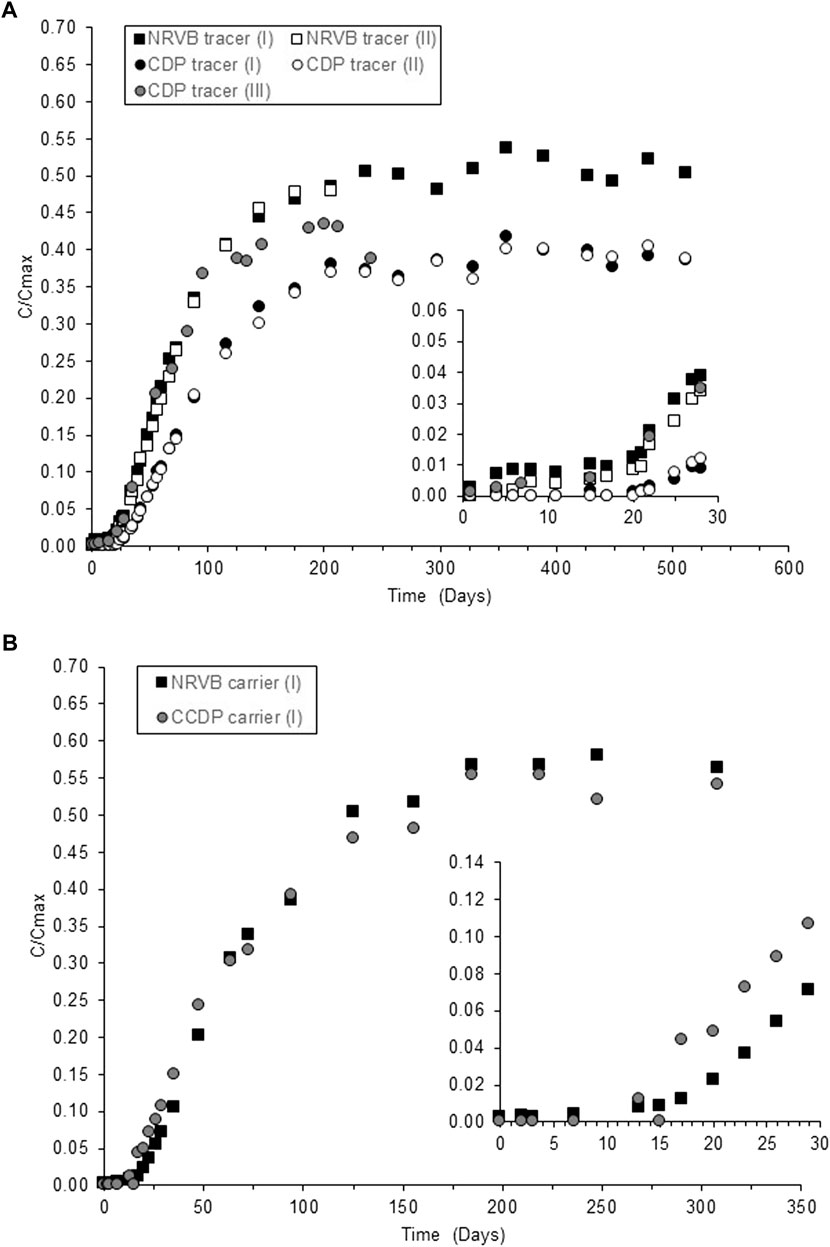

FIGURE 1. Breakthrough curves of Sr through NRVB blocks with and without CDP; (A) at tracer and (B) carrier levels. C/Cmax represents the ratio between the measured concentration in solution C, and the calculated Cmax, assuming homogenous distribution of the Sr in the total solution volume of the system. Note that for (I) and (II) the pre-equilibration time in the CDP solution before the diffusion experiments was 30 and 50 days for experiment (III).

Diffusion experiments using tracer levels of ⁹⁰Sr in the presence of gluconate are shown in Figure 2; breakthrough of ⁹⁰Sr occurred after 19 days, reaching a stable concentration in solution after approximately 180 days. The retention of ⁹⁰Sr by the NRVB was 60% of the total activity originally added to the blocks.

FIGURE 2

FIGURE 2. Breakthrough curves of Sr through NRVB blocks in the presence of 2 × 10⁻³ M gluconate at ⁹⁰Sr tracer levels. C/Cmax represents the ratio between the measured concentration in solution C, and the calculated Cmax, assuming homogenous distribution of the Sr in the total solution volume of the system.

For those experiments in which the ionic strength of the solution in contact with the NRVB was increased by addition of 0.1 mol dm⁻³ NaCl:KCl (50:50), the diffusion curves through the NRVB blocks at tracer levels of ⁹⁰Sr (Figure 3) show breakthrough of Sr after 25 days, followed by a linear increase in the concentration over a period of 62 days, and it can be observed that the diffusion rate slows down after 102 days. The diffusion experiments in an ionic strength gradient were slower and breakthrough was only observed after 42–51 days, depending on the replicate. The increment of the concentration in solution slows down after approximately 115 days, although more data are needed for confirmation. In both cases, retention of ⁹⁰Sr by the block increased to 60–70% of the activity initially added.

FIGURE 3

FIGURE 3. Breakthrough curves through NRVB blocks at ⁹⁰Sr tracer levels in the presence of 0.1 M NaCl + KCl (50:50) added to the NRVB equilibrated water (solution) or added into the block well (gradient). C/Cmax represents the ratio between the measured concentration in solution C, and the calculated Cmax, assuming homogenous distribution of the Sr in the total solution volume of the system.

The autoradiography images show that, for all the experiments (Figure 4 and Supplementary Figure S1), ⁹⁰Sr was homogeneously distributed within the NRVB matrix, regardless of the total concentration of Sr (tracer vs. carrier) or the presence of organic compounds. There is, however, evidence that some of the ⁹⁰Sr (tracer level) in the gluconate experiments has remained in the central well. Only in the case of the CDP experiments was the activity retained by the blocks higher than in the organic-free experiments, matching the analyses of the solutions (Figure 4).

FIGURE 4

FIGURE 4. Autoradiography images for the distribution of ⁹⁰Sr within the NRVB blocks corresponding to the through-diffusion experiments at tracer level (no carrier added): (A) in the absence of CDP and (B) in the presence of CDP. Shine from residual ⁹⁰Sr in the wells of the blocks can obscure details present in the matrix. Consequently, the well in one-half of each block (fragment located on the left) was plugged with shielding material (modelling clay) resulting in its black appearance in the images.

Advection

For the two replicate advection experiments carried out without addition of organic compounds and at tracer levels, breakthrough of ⁹⁰Sr was observed after elution of 50 cm³ of NRVB–equilibrated solution (Figure 5), which corresponds to approximately twice the pore volume of the NRVB blocks. The elution profiles in Figure 5 are not complete, as the intention was for some of the ⁹⁰Sr to remain in the blocks in order to observe its distribution within the cementitious matrix by autoradiographic imaging. An overlap of the breakthrough curves (rising profiles and elution tails) was observed in the absence of organic compounds, notwithstanding fluctuation at the maxima of the elution curves due to malfunction of the fraction collector. Note that the two replicate experiments were carried out on the same specimen.

FIGURE 5

FIGURE 5. (A) Breakthrough curves through NRVB blocks for ⁹⁰Sr under advective conditions with and without CDP and (B) cumulative recoveries of the ⁹⁰Sr during the advection experiments.

Clear differences were observed when compared with the elution of ⁹⁰Sr in the presence of CDP. Breakthrough of the radionuclide occurs sooner when organic compounds are present, after the elution of 42 cm³ of solution, the profile presents a flatter maximum and more elongated elution tail (Figure 5A). However, when comparing the cumulative recoveries of ⁹⁰Sr from the NRVB blocks (Figure 5B), it is clear that most of the radionuclide is retained by the solid in the presence of CDP. Further, a lower cumulative recovery was calculated after the same volume of solution had eluted from the blocks (63% vs. 75% recovery, after 250 cm³ solution). The flat-topped peaks and long tails suggest that dispersion is significant for all experiments, although potentially more pronounced for those with CDP. However, more data would be required to confirm this.

Despite the differences in breakthrough volumes, the retardation behaviour in the advection tests generally corresponds with the results of the diffusion experiments. Differences in breakthrough volume could be due to minor differences in the dimensions of the NRVB blocks or the central well.

The autoradiographic images of the distribution of ⁹⁰Sr after advection through NVRB in the absence of CDP (Supplementary Figure S2A) show accumulation of the radionuclide in a ring on the outer surface of the block, while the rest of the specimen remains clear of any trace of radioactivity. Only a small residual amount could be detected on the inner walls of the injection well. However, in the presence of CDP, the autoradiography images show higher activity within the cementitious matrix (Supplementary Figure S2B) when similar volumes of solution (200–250 cm ³) had been flushed through the NRVB blocks, consistent with the higher dispersion and sorption.

Discussion

Through—diffusion

The results from the through-diffusion experiments were fitted with a GoldSim model (full details regarding the conceptual model and its numerical representation are given in Felipe-Sotelo et al., 2014); the effective diffusivity values (D_e) and distribution coefficients (R_d) are presented in Table 1. The apparent diffusion coefficients (D_a) for a reactive chemical species can be calculated from the effective diffusion attenuated by the R_d and the total porosity (ɛ), therefore D_e = ɛR_dD_a (Shackelford and Moore, 2013). For all experiments D_e values were lower than for tritiated water (HTO, 0.13–0.17 × 10⁻⁹ m² s⁻¹) used as conservative tracer through NRVB under similar experimental conditions (Felipe-Sotelo et al., 2014). As observed in Figure 1 and Table 1, the addition of a high concentration of Sr (carrier level) did not result in significant changes in the diffusivity values; however, it reduced retention, which translates to a slight decrease in the distribution coefficients from 3.0 × 10⁻³ to 2.4 × 10⁻³ m³ kg⁻¹, which correspond to site capacity saturation at the experimental concentrations used. This could be explained in terms of the partial saturation of the solid and corresponding reduction in the sites available for the retention of Sr²⁺ either by Sr²⁺-Ca²⁺ ion exchange (Tits et al., 2006) or isotopic exchange (Wieland et al., 2008). The diffusivity values reported in the literature (Table 1) present a variation of seven orders of magnitude, and in general they seem to show a relationship with the porosity of the hydrated cement paste, i.e. the lower the porosity the lower the diffusivity parameter. Note that the values obtained here for NRVB, in the absence of CDP, fit very well with those previously calculated by Atkinson et al. (1989) for backfill material described in their study as lime grout (3.9 × 10⁻¹¹ m² s⁻¹); this is due to the fact that both backfill materials present a high fractional porosity (approx. 60% as reported by Atkinson et al. (1989), and 55% for NRVB in Nuclear Decommissioning Authority (2010b)). It must be noted that differences in tortuosity and constrictivity between these two materials have not been considered.

From the results in Figure 1, it can be concluded that CDP increase the adsorption of Sr to NRVB, although this effect is reduced in the presence of high concentrations of Sr (i.e. with Sr carrier). The enhanced retardation of Sr in the presence of the CDP could be explained in this ternary system by the retention of the organic species onto the surface of the NRVB, contributing to the immobilisation of Sr by complexation to the organic moiety. Retention of ISA on the surface of cements has been reported previously (Van Loon and Glaus, 1998) as has complexation of Ca by ISA (Vercammen et al., 1999). Owing to the similarities between Ca and Sr, analogous interaction between the CDP and Sr would be expected. However, the fact that the effect of CDP disappears at higher concentrations of Sr suggests that there are other factors affecting the diffusion of Sr in the presence of the organics, such as the ionic strength, background levels (and availability) of Sr in the NRVB and CDP mixture.

In order to differentiate the effect of the organic compound from the influence of ionic strength, the tracer diffusion experiments were repeated with gluconate, an analogue of ISA (Pallagi et al., 2014), at similar TOC levels as in the original CDP mixture. Comparison of the curves in Figure 1A and Figure 2 shows that breakthrough of Sr in the presence of gluconate was slightly faster than with the CDP (19 vs. 25 days), which resulted in higher diffusivity values (7.5 × 10⁻¹¹ vs. 13 × 10⁻¹¹ m² s⁻¹); however, the relative retention of ⁹⁰Sr by the NRVB was the same for both sets of experiments, approx. 60%. The increase in diffusivity would indicate that the higher background levels of Sr in the CDP mixtures may have played a role over the time required for breakthrough. The higher concentration of background Sr in the CDP solution (Table S1) would result in an initial overall influx of Sr in the NRVB block. Thus, migration of the ⁹⁰Sr tracer would not start until the Sr concentration gradient between the block and the surrounding solution had subsided. This would suggest that longer equilibration times (more than 30 days) between the NRVB blocks and the CDP solution would be required to obtain reliable and reproducible results. This was also confirmed by an additional experiment in the presence of CDP at ⁹⁰Sr tracer levels, when the NRVB block was pre-equilibrated with the CDP solution for a period of 50 days before the spiking with ⁹⁰Sr (Figure 1A, where profiles (I) and (II) correspond to 30-day equilibration and (III) represents the 50-day equilibration experiment).

It is obvious from the results presented in Figure 3 that an increase in the ionic strength, either by addition of salts to the solution in contact with the blocks or by creation of a salinity gradient through the blocks causes a marked reduction in the rate of diffusion through the NRVB as well as increased retention. Johnston and Wilmot (1992) investigated the sorption and diffusion of Sr²⁺ in sulphate resistant Portland cement with and without the addition of silica fume in saline groundwater (0.23 mol dm⁻³ Na⁺, 0.85 mol dm⁻³ Cl⁻), reporting R_d values in the range 0.1 × 10⁻³ to 0.19 × 10⁻³ m³ kg⁻¹, one order of magnitude lower than the values obtained here. The authors obtained lower distribution coefficients for Sr than expected in comparison with Cs, which was attributed to the high ionic strength of the groundwater (Johnston and Wilmot, 1992). Unfortunately, the authors did not repeat the experiments at lower ionic strength with the same cement formulation to confirm this hypothesis.

It should be highlighted that the effect of an increase in ionic strength is analogous to that observed following the addition of CDP or gluconate. From the work of Tits et al. (2004) and Wieland et al. (2008) it can be concluded that CSH is the solid phase that controls the uptake of Sr²⁺. Moreover, Tits et al. (2006) made two observations which relate to the present work: 1) Sr uptake onto CSH increases as the Ca:Si ratio in the CSH decreases and 2) the distribution coefficient of Sr onto CSH increases in artificial cement water in comparison to alkali-free solutions. In the current study, organic compounds, either CDP or gluconate, increased the retention of Sr by NRVB. This could be due to the formation of ternary complexes (cement paste-CDP-Sr), where the organic compounds in the CDP interact with both the surface of the cement and the Sr. Despite previous studies reporting little affinity of isosaccharinic or gluconic acids for Sr in alkaline solutions (Evans et al., 2012), the hypothesis of the formation ternary complexes in the CDP-Sr-NRVB system would require further investigation. However, even in the case of limited or no formation of ternary complexes, it is possible that the retention of the CDPs on the cement grout could cause changes of its surface properties. Thus, Tasi et al. (2021) reported that retention of the ISA on the hardened cement paste resulted in alteration of the zeta potential.

Another possible explanation for the effect of the CDP is that the organic compounds complex with Ca in the CSH, effectively reducing the Ca:Si ratio and promoting ion-exchange of Sr on the CSH phases. The effect of a reduction in Ca:Si ratio on the retardation of Sr has been explained by Iwaida et al. (2000) in terms of changes in the zeta potential of the CSH phase. As the Ca:Si ratio decreases the zeta potential changes from positive to negative values, corresponding to the dominant groups on the CSH surface changing from ≡SiOCaOH₂⁺ or ≡SiOCa⁺ to ≡SiO⁻; the latter promoting retention of Sr²⁺ by electrostatic adsorption. This also tallies with the hypothesis postulated by Pointeau et al. (2008) when attempting to explain the potential effect of CDP and ISA on the uptake of anionic species by cement pastes, as the formation of Ca-organic species in solution enhances the global negative charge at the surface of the CSH particles, reducing the uptake onto the cement pastes. Similar observations were reported with regards the effect of CDP on the uptake of I⁻ (Felipe-Sotelo et al., 2014) and Cl⁻ (van Es et al., 2015) by NRVB.

An increase in ionic strength acts in the same direction as the presence of the organic compounds, increasing the retardation of Sr; Putero and Rosita (2013) point out that saline water accelerates degradation of the cement pastes owing to the following reaction:

$Ca{\left(OH\right)}_2+2NaCl\to 2NaOH+CaC{l}_2(1)$

This decalcification generates soluble CaCl₂ thereby reducing the Ca:Si ratio in the solid and leading to the degradation of the CSH gel (Liu et al., 2014). It can be inferred that decalcification due to high ionic strength caused the increase in Sr retardation by NRVB in the presence of 0.1 mol dm⁻³ NaCl/KCl solution in the current work. These observations also seem to be in agreement with the work by Gashier et al. (2014), who reported that the introduction of Sr (as Sr(NO₃)₂) into 9:1 blast furnace slag:OPC blends resulted in inhibition of Portlandite formation and an increase of the leaching rate of Ca²⁺.

In the case of CDP mixtures, which contain not only organic compounds but also show higher ionic strengths than pure cement-equilibrated waters, it is not possible to establish which of the two effects predominates. The experimental evidence along with data from previous studies suggests that the effects operate in the same direction and may well be additive.

Advection

The results obtained for the migration of ⁹⁰Sr under advective conditions tend to confirm the effect of CDP observed during diffusion, with an increased retardation of the radionuclide in the presence of the organic compounds. Modelling of the advection profiles resulted in a diffusivity value of 4.4 × 10⁻¹¹ m² s⁻¹ and a distribution coefficient of 2.7 × 10⁻³ m³ kg⁻¹. However, the predicted elution profile does not fit well with the experimental values (Figure 6A); the breakthrough and peak concentration appear too early and the model shows higher dispersion (flatter and wider peak) than the experimental curve. When the same parameters were employed to model advection in the presence of CDP, the predicted curve matched the general shape of the peak very well (Figure 6B), although the cumulative elution of Sr for the model (area under the curve) was higher than observed experimentally. It was necessary to restrict the total inventory of ⁹⁰Sr (assuming 23% of the ⁹⁰Sr had precipitated or was in some way bound to the NRVB) to reproduce theoretically the advection data (also shown on Figure 6B). This reinforces the conclusion from the diffusion experiments that the organic compounds increase the retardation of Sr by NRVB.

FIGURE 6

FIGURE 6. Breakthrough curves through NRVB blocks for ⁹⁰Sr under advective conditions and fitted GoldSim model advection profiles; (A) with NRVB-equilibrated water and (B) with CDP.

Conclusion

The presence of CDP and/or an increase in ionic strength cause enhanced retention of Sr by the candidate repository backfill, NRVB. The effect could be explained by decalcification of the CSH phase that is primarily responsible for Sr retention. The results obtained here support a hypothesis of Ca ion-exchange as the main mechanism responsible for retardation of Sr. However, the fact that retention is reduced by the addition of carrier concentrations of Sr (non-active) would suggest that isotopic exchange with the intrinsic Sr already present in the cement paste may also play a role in the retention of ⁹⁰Sr. The reduced retardation at high concentrations is most likely explained by saturation of the retention sites. Slightly higher diffusivity values were obtained in the presence of gluconate (D_e = 13 × 10⁻¹¹ m² s⁻¹), which suggest that the background level of Sr in the CDP solutions in comparison with NRVB-equilibrated water could have affected the diffusion process. Both diffusion and advection experiments show enhanced retardation with CDP and provide similar diffusivity and distribution coefficients for Sr onto NRVB, D_e = 5.5 × 10⁻¹¹ - 8.5 × 10⁻¹¹ m² s⁻¹ and R_d = 2.8 × 10⁻³–3.1 × 10⁻³ m³ kg⁻¹, in the absence of organic ligands.
