Unsupervised layer-wise feature extraction algorithm for surface electromyography based on information theory

Feature extraction is a key task in the processing of surface electromyography (SEMG) signals. Currently, most of the approaches tend to extract features with deep learning methods, and show great performance. And with the development of deep learning, in which supervised learning is limited by the excessive expense incurred due to the reliance on labels. Therefore, unsupervised methods are gaining more and more attention. In this study, to better understand the different attribute information in the signal data, we propose an information-based method to learn disentangled feature representation of SEMG signals in an unsupervised manner, named Layer-wise Feature Extraction Algorithm (LFEA). Furthermore, due to the difference in the level of attribute abstraction, we specifically designed the layer-wise network structure. In TC score and MIG metric, our method shows the best performance in disentanglement, which is 6.2 lower and 0.11 higher than the second place, respectively. And LFEA also get at least 5.8% accuracy lead than other models in classifying motions. All experiments demonstrate the effectiveness of LEFA.

Introduction

Feature engineering is an important component of pattern recognition and signal processing. Learning good representations from observed data can help reveal the underlying structures. In recent decades, feature extraction methods (He et al., 2016; Howard et al., 2017; Hassani and Khasahmadi, 2020; Zbontar et al., 2021) have drawn considerable attention. Due to the high cost of obtaining labels, supervised learning methods suffer from data volume limitations. Unsupervised learning methods therefore becomes critical for feature extraction. Most of these are based on probabilistic models, such as maximum likelihood estimation (Myung, 2003), maximum a posteriori probability estimation (Richard and Lippmann, 1991), and mutual information (MI) (Thomas and Joy, 2006). Methods such as principal component analysis (PCA) (Abdi and Williams, 2010), linear discriminant analysis (Izenman, 2013), isometric feature mapping (Tenenbaum et al., 2000), and Laplacian eigenmaps (Belkin and Niyogi, 2003) are widely used owing to their good performance, high efficiency, flexibility, and simplicity. Other algorithms are based on reconstruction errors or generative criteria, such as autoencoders (Bengio et al., 2013) and generative adversarial networks (GANs) (Goodfellow et al., 2014). Occasionally, the reconstruction error criterion also has a probabilistic interpretation.

In recent years, deep learning has become a dominant method of representation learning, particularly in the supervised case. A neural network simulates the mechanism of hierarchical information processing in the brain and is optimized using the back propagation (BP) algorithm (LeCun et al., 1988). Because several feature engineering tasks are unsupervised, that is, no label information is available in the real situation and collecting considerable labeled data is expensive, methods to discover the feature representation in an unsupervised case have been significantly developed in recent years. MI maximization (Bell and Sejnowski, 1995) and minimization criteria (Matsuda and Yamaguchi, 2003) are powerful tools for capturing salient features of data and disentangling these features. In particular, variational autoencoder (VAE) (Kingma and Welling, 2013) based models and GAN have exhibited effective applications in disentangled representations. There are two benefits of learning disentangled representations. First, models with disentangled representations are more explainable (Bengio et al., 2013; Liu et al., 2021). Second, disentangled representations make it easier and more efficient to manipulate training-data synthesis. However, the backpropagation algorithm still requires a high amount of computation and data.

To extract features information in SEMG signal data, we propose a Layer-wise Feature Extraction Algorithm (LFEA) based on information theory in the unsupervised case, which includes a hierarchical structure to capture disentangled features. In each layer, we split the feature into two independent blocks, and ensure the information separation between the blocks via information constraint, which we called Information Separation Module (ISM). Moreover, to ensure the expressiveness of the representation without losing crucial information, we propose the Information Representation Module (IRM) to enable the learned representation to reconstruct the original signal data. Meanwhile, redundant information would affect the quality of the representation and thus degrade the effectiveness of downstream tasks, for which Information Compression Module (ICM) is proposed to reduce the redundant and noisy information. In terms of the optimization algorithm, our back-propagation process is only performed in a single layer and not back propagated throughout the network, which can greatly reduce the amount of computation while having no effect on the effectiveness of our method. Regarding the experiments, we have made improvement and strengths in terms of motion classification and representation disentanglement over the traditional methods of surface electromyography (SEMG). Especially, on NinaPro database 2 (DB2) dataset, our approach gets a significant 4% improvement in the motion classification, and better model stability.

This manuscript is organized as follows. In Section 2, we introduce the related work. The proposed method LFEA is described in Section 3. We present the numerical results in Section 4. Section 5 gives the conclusion of this manuscript.

Related work

Disentangled representation

The disentanglement problem has played a significant role, particularly because of its better interpretability and controllability. The VAE variants construct representations in which each dimension is independent and corresponds to a dedicated attribute. β-VAE (Higgins et al., 2016) adds a hyperparameter to control the trade-off between compression and expression. An analysis of β-VAE by Burgess et al. (2018) is provided, and the capacity term is proposed to obtain a better balance of the reconstruction error. Penalizing the total correlation term to reinforce the independence among representation dimensions was proposed in Factor VAE (Kim and Mnih, 2018) and β-TCVAE (Chen et al., 2018). FHVAE (Hsu et al., 2017) and DSVAE (Yingzhen and Mandt, 2018) constructed a new model architecture and factorized the latent variables into static and dynamic parts. Cheng et al. (2020b) described a GAN model using MI. Similar to our study, Gonzalez-Garcia et al. (2018) proposed a model to disentangle the attributes of paired data into shared and exclusive representations.

Information theory

Shannon’s MI theory (Shannon, 2001) is a powerful tool for characterizing good representation. However, one major problem encountered in the practical application of information theory is computational difficulties in high-dimensional spaces. Numerous feasible computation methods have been proposed, such as Monte Carlo sampling, population coding, and the mutual information neural estimator (Belghazi et al., 2018). In addition, the information bottleneck (IB) principle (Tishby et al., 2000; Tishby and Zaslavsky, 2015; Shwartz-Ziv and Tishby, 2017; Jeon et al., 2021) learns an informative latent representation of target attributes. A variational model to make IB computation easier was introduced in variational IB (Alemi et al., 2016). A stair disentanglement net was proposed to capture attributes in respective aligned hidden spaces and extend the IB principle to learn a compact representation.

Surface electromyography signal feature extraction

With the development of SEMG signal acquisition technology, the analysis and identification of SEMG signals has also drawn the attention of researchers.

As machine learning has demonstrated excellent feature extraction capabilities in areas such as images and speech, it can also be a good solution for recognizing SEMG signals. The basic motivation was to construct and simulate neural networks for human brain analysis and learning. Deep neural networks can extract the features of SEMG signals while effectively avoiding the absence of valid information in the signal and improving the accuracy of recognition. Xing et al. (2018) used a parallel architecture model with five convolutional neural networks to extract and classify SEMG signals. Atzori et al. (2016) used a convolutional network to classify an average of 50 hand movements from 67 intact subjects and 11 transradial amputees, achieving a better recognition accuracy than traditional machine learning methods. Zhai et al. (2017) proposed a self-calibrating classifier. This can automatically calibrate the original classifier. The calibrated classifier also obtains a higher accuracy than the uncalibrated classifier. In addition, He et al. (2018) incorporated a long short-term memory network (Hochreiter and Schmidhuber, 1997) into a multilayer perceptron and achieved better classification of SEMG signals in the NinaPro DB1 dataset.

As stated, deep learning methods can help overcome the limitations of traditional methods and lead to better performance of SEMG. Furthermore, deep-learning methods can provide an extensive choice of models to satisfy different conditional requirements.

Method

Preliminary

Information theory is commonly used to describe stochastic systems. Among the dependency measurements, mutual information (MI) was used to measure the correlation between random variables or factors. Given two random variables X and Z, the MI is defined as follows:

$$I(X;Z)=E_{p(x,z)}\left[\log \frac{p(x,z)}{p(x)p(z)}\right](1)$$

Regarding the data processing flow as a Markov chain X→Z→Y, the information bottleneck (IB) principle desires that the useful information in the input X can pass through the ‘bottleneck’ while the noise and irrelevant information are filtered out. The IB principle is expressed as follow:

$$\mathit{min}{\mathrm{R}}_{\mathit{IB}}=I(X;Z)-\mathrm{\beta }I(Z;Y)(2)$$

where, β is the tradeoff parameter between the complexity of the representation and the amount of relevant essential information.

Framework

The diagram of our proposed Layer-wise Feature Extraction Algorithm (LFEA) is illustrated in Figure 1. Our algorithm aims to learn a representation that satisfies three main properties: “Compression,” “Expression” and “Disentanglement.” To this end, three key information process modules are introduced, including the information compression module (ICM), information expression module (IEM), and information separation module (ISM) in each layer.

FIGURE 1

Figure 1. The diagram of Layer-wise Feature Extraction Algorithm (LFEA). LEFA contains three core modules: Information Compression Module (ICM), Information Expression Module (IEM) and Information Separation Module (ISM), to ensure compression, expression and disentanglement of representation, respectively.

In the ICM, input sⁱ⁻¹ of layer i is compressed into hⁱ (s⁰ = X). In the IEM, zⁱ as part of hⁱ is constrained to represent the original input X. In the ISM section, sⁱ and zⁱ are irrelevant. The parameters of the ICM and IEM in layer i are denoted as ϕⁱ and θⁱ. The data information flow can be expressed as follows:

$$h^i\sim q_{{\mathrm{\varphi }}^i}\left(h^i|s^{i-1}\right),(3)$$

$$h^i=(z^i,s^i),(4)$$

$$\tilde{X}\sim p_{{\mathrm{\theta }}^i}\left(\tilde{X}|z^i\right),(5)$$

where, s⁰ = X, and $q_{{\mathrm{\varphi }}^i}$ and $p_{{\mathrm{\theta }}^i}$ are the condition distributions with ϕⁱ and θⁱ for hⁱ and $\tilde{X}$. In following sections, we describe these three modules in detail.

Information compression module

According to (3), hⁱ is the hidden representation of sⁱ⁻¹. To ensure information ‘compression,’ the optimal representation of sⁱ⁻¹ should forget redundant information altogether, that is, hⁱ represents sⁱ⁻¹ with the lowest bits. Formally, the objective in the i-th layer to be minimized is as follows:

$$min{L}_{ICM}\triangleq I_{{\mathrm{\varphi }}^i}(S^{i-1};H^i)(6)$$

Due to intractability of mutual information, optimizing L_ICM with gradient methods directly is not feasible. We therefore derived the upper bound of L_ICM with the variational inference method and get decomposition as follows:

$$I_{{\mathrm{\varphi }}^i}(S^{i-1};H^i)=E_{q_{{\mathrm{\varphi }}^i}(s^{i-1},h^i)}\left[\log \frac{q_{{\mathrm{\varphi }}^i}\left(h^i|{\mathrm{s}}^{i-1}\right)p\left(h\right)}{q_{{\mathrm{\varphi }}^i\left(h^i\right)}p\left(h\right)}\right]=L_{\mathit{ICM}}^{\mathit{upper}}-D_{\mathit{KL}}(q_{{\mathrm{\varphi }}^i}\left(h^i\right)||p\left(h\right)),(7)$$

where, p(h) is the prior, and $L_{\mathit{ICM}}^{\mathit{upper}}$ is the upper bound of L_ICM defined as follows:

$$L_{\mathit{ICM}}^{\mathit{upper}}=E_{q_{{\mathrm{\varphi }}^i}\left(s^{i-1}\right)}\left[D_{\mathit{KL}}(q_{{\mathrm{\varphi }}^i}(h^i|{\mathrm{s}}^{i-1})||p\left(h\right))\right],D_{\mathit{KL}}(P,Q)={\text{E}}_{\text{P}}\left[\log \frac{\text{p}}{\text{q}}\right].(8)$$

Information expression module

With the ICM guaranteeing the information compression, LFEA also need to ensure the expressiveness of the representation to the data. We therefore propose the information expression module (IEM). To ensure sufficient information to reconstruct the original data X, we maximize the MI between and Zⁱ in i-th layer, that is,

$$\mathbf{\text{m}}ax{\mathbf{\text{L}}}_{\mathbf{I}EM}\triangleq {\mathbf{\text{I}}}_{{\mathrm{\varphi }}^i,{\mathrm{\theta }}^{\mathbf{i}}}({\mathbf{\text{z}}}^{\mathbf{i}};X)(9)$$

For L_IEM, we can obtain a lower bound using the variational approximation method as follows:

$$L_{\mathit{IEM}}\ge L_{\mathit{IEM}}^{\mathit{lower}}-D_{\mathit{KL}}(p\left(x\right)||p_{{\mathrm{\theta }}^i}(x)),(10)$$

where, $p_{{\mathrm{\theta }}^i}(x)$

$$L_{\mathit{IEM}}^{\mathit{lower}}=E_{p(\text{x})}\left[E_{q_{{\mathrm{\varphi }}^i}\left(z^i|x\right)}\log p_{{\mathrm{\theta }}^i}(x|z^i)\right](11)$$

can be viewed as the reconstruction loss.

Information separation module

To achieve disentanglement of representations (Independent of each block z¹,z²,…, zⁿ in Z), we further introduce the information separation module (ISM) in each layer. In i-th layer, the principle of ISM is to ensure that there is no intersection information between zⁱ and sⁱ, that is,

$$\mathbf{\text{m}}ax{\mathbf{\text{L}}}_{\mathbf{I}SM}\triangleq {\mathbf{\text{I}}}_{{\mathrm{\varphi }}^i}({\mathbf{\text{z}}}^{\mathbf{i}};{\mathbf{\text{s}}}^{\mathbf{i}})=D_{\mathit{KL}}(q_{{\mathrm{\varphi }}^i}(h^i)||q_{{\mathrm{\varphi }}^i}(z^i)q_{{\mathrm{\varphi }}^i}(s^i)).(12)$$

In practice, the products of $q_{{\mathrm{\varphi }}^i}(z^i)$ and $q_{{\mathrm{\varphi }}^i}(s^i)$ are not analytical in nature. We introduce discriminator $\widehat{D}(.)$ (see Figure 2) to distinguish samples from the joint distribution and the product of the marginal distribution, that is,

$$L_{\mathit{ISM}}\approx L_{\mathit{IEM}}^e=E_{q_{{\mathrm{\varphi }}^i}\left(h^i\right)}[log\frac{D(.)}{1-D(.)}].(13)$$

FIGURE 2

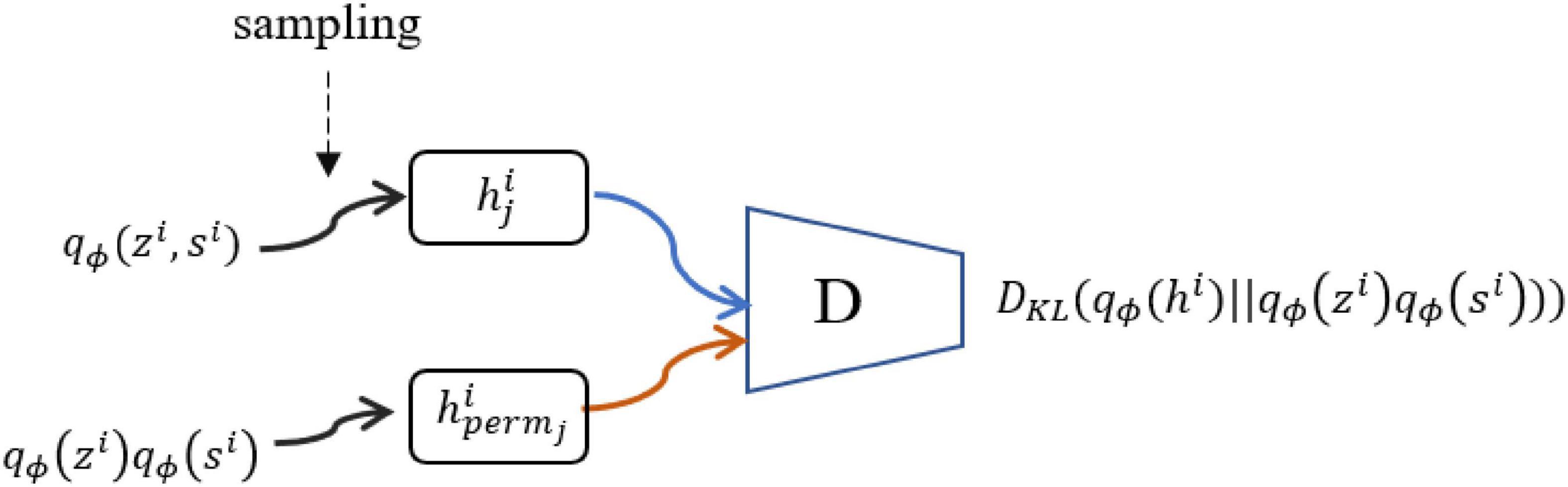

Figure 2. Discriminator D(.). To compute and optimize L_ISM, we need an additional discriminator as shown in Eq. (13).

Algorithm optimization

As presented above, our model contains three modules: ICM, IEM, and ISM. However, during optimization, the back-propagation algorithm is computationally intensive and potentially problematic when training deep networks, so we propose a layer-wise training step. After training one layer of the network, we fix the parameters of the trained layers and only train the next layer in the next step. Finally, we can obtain the final model after training all the layers. Such optimization design allows for training parameters at the bottom layers without bac-propagation from the top layers, avoiding the problems that often occur with deep network optimization, like vanishing and exploding gradient.

Numerical results

Dataset

In our experiments, we used the NinaPro* DB2 dataset and DB5 dataset. Atzori et al. (2014); Gijsberts et al. (2014) as the benchmark to perform numerical comparisons. NinaPro is a standard dataset for the gesture recognition of sparse multichannel SEMG signals. The SEMG signals in DB2 were obtained from 40 subjects and included 49 types of hand movements (see Figure 3).

FIGURE 3

Figure 3. Movements in NinaPro DB2. (A) Isometric, isotomic hand configurations. (B) Basic movements of the wrist. (C) Grasps and functional movements. (D) Single and multiple fingers force measurement patterns. (E) Rest position. Available from: http://ninapro.hevs.ch/node/123.

Detailed attribute information of the five subjects in NinaPro DB2 is shown in Table 1. The original SEMG signal was processed through sliding windows, and the size of the sample data used in the experiment was (200,12). Figure 4 shows 20 processed data points.

TABLE 1

Table 1. Subject attribute information of NinaPro DB2 dataset.

FIGURE 4

Figure 4. Sample data image.

DB1 consists of 11 subjects and the data set of each subject contains three types of gestures, which are Exercise A, Exercise B, and Exercise C. Exercise A includes 12 basic movements of fingers (see Figure 5). Exercise B includes 17 movements. Exercise C includes 23 grasping and functional movements.

FIGURE 5

Figure 5. 12 basic movements signal of fingers in Exercise A.

We preprocessed the dataset with the digital filter to cutoff frequency and sliding window to split signal, which follows He et al. (2018).

Model setting

In the following experiments, we used four layers model. The loss function is as follows:

$$\min L\triangleq {\mathbf{\text{L}}}_{\mathbf{I}CM}^{\mathbf{u}pper}-\mathrm{\lambda }{\mathbf{\text{L}}}_{\mathbf{I}EM}^{\mathbf{l}ower}+\mathrm{\beta }{\mathbf{\text{L}}}_{\mathbf{I}SM},$$

Detail parameters are listed in Table 2.

TABLE 2

Table 2. Detail parameters for LFEA.

Results

First, we used total correlation (TC) as the quantitative metric for the quality of the disentanglement of the representation. TC is defined as follows:

$$\mathit{TC}(z^1,z^2,z^3,z^4)=E_{p(z^1,z^2,z^3,z^4)}\left[\mathit{log}\frac{p(z^1,z^2,z^3,z^4)}{p\left(z^1\right)p\left(z^2\right)p\left(z^3\right)p\left(z^4\right)}\right].$$

The TC was estimated using a three-like algorithm (Cheng et al., 2020a). A low TC score indicated that the representation had less variance. MIG metric (Chen et al., 2018) is another disentanglement metric; the higher the value, the more disentangled representation is. We compared the quality of disentanglement among PCA, β-VAE, VAE, and HFEA. Table 3 shows the comparison results on TC score and MIG metric. In TC score and MIG metric, HFEA has the best performance, which is 6.2 lower and 0.11 higher than the second place, respectively.

TABLE 3

Table 3. Results of TC score.

Furthermore, in Figure 6, we visualize the distribution of z¹,z²,z³, and z⁴, respectively in a two-dimensional space based on t-distributed stochastic neighbor embedding. We can find that the variance of representation decreases with deeper layers, which indicates that the deeper networks learn more robust representations.

FIGURE 6

Figure 6. Feature distribution in layer 1–4 with (A–D).

Classification results on NinaPro DB2 dataset is described in Table 4. Our method is based on LFEA and SVM and the feature Z used in SVM is computed by LFEA.

$$Z=(z^1,z^2,z^3,z^4)$$

TABLE 4

Table 4. Classification results on NinaPro DB2 dataset.

The methods used for comparison include LSTM + CNN (He et al., 2018), k-nearest neighbor (KNN), support vector machine (SVM), random forest, and convolutional neural network (CNN) (Atzori et al., 2016). In all experiments, our method was second best in all methods and only 0.2% lower than the best. What is more, our method showed more stable results (2.3% fluctuations) than others.

Discrimination results for Exercise A, Exercise B, and Exercise C in DB1 and DB2 is shown in Figures 7, 8, respectively. For each exercise, we compare feature combinations from layer 1–4. Detail feature combinations is described in Table 5. Tables 6–8 list the classification accuracy with different feature combinations for DB1, respectively.

FIGURE 7

Figure 7. Feature discrimination results for DB1.

FIGURE 8

Figure 8. Feature discrimination results for DB2.

TABLE 5

Table 5. Feature combinations.

TABLE 6

Table 6. Classification results with different feature combinations for Exercise A.

TABLE 7

Table 7. Classification results with different feature combinations for Exercise B.

TABLE 8

Table 8. Classification results with different feature combinations for Exercise C.

Discrimination value in Tables 6–8 measures the representation capability of feature in each layer. The higher the value, the better the feature representation ability. In Exercise A, C4 obtains the highest discrimination value, which means feature z³ plays the most import role in Exercise A. Similarly, feature z² makes little difference in Exercise A.

Conclusion

In this manuscript, we propose an Unsupervised Layer-wise Feature Extraction Algorithm (LFEA) to perform the sEMG signal processing and downstream classification tasks. The model contains three core modules: Information Compression Module (ICM), Information Expression Module (IEM) and Information Separation Module (ISM), that ensure that the learning representation is compact, informative and disentangled. We further use a layer-wise optimization procedure to reduce the computation cost and avoid some optimization problem, like vanishing and exploding gradient. Experimentally, we also verify that the untangling effect and downstream classification tasks give better results.

In the future, we hope to combine the advantages of supervised and unsupervised to build a semi-supervised learning framework that can be adapted to more scenarios.

Data availability statement

The original contributions presented in this study are included in the article/supplementary material, further inquiries can be directed to the corresponding author.

Author contributions

ML and ZL contributed to the conception and design of the study. FZ organized the database. JG performed the statistical analysis. ML and ST wrote the first draft of the manuscript. All authors contributed to the manuscript revision, read, and approved the submitted version.

Funding

This study was supported by the National Key R&D Program of China (2021YFA1000401) and the National Natural Science Foundation of China (U19B2040).

Conflict of Interest

ML, ST, JG, and FZ were employed by Information Science Academy, China Electronics Technology Group Corporation.

The remaining author declares that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Publisher’s note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
