REVIEW article

Front. Hum. Neurosci., 31 March 2015
Sec. Sensory Neuroscience

A critical review of the neuroimaging literature on synesthesia

  • 1Centre de Recherche Cerveau et Cognition, Université de Toulouse and Centre National de la Recherche Scientifique, Toulouse, France
  • 2Grenoble Institut des Neurosciences, Institut National de la Santé et de la Recherche Médicale U836 and Université Grenoble Alpes, Grenoble, France

Synesthesia refers to additional sensations experienced by some people for specific stimulations, such as the systematic arbitrary association of colors to letters for the most studied type. Here, we review all the studies (based mostly on functional and structural magnetic resonance imaging) that have searched for the neural correlates of this subjective experience, as well as structural differences related to synesthesia. Most differences claimed for synesthetes are unsupported, due mainly to low statistical power, statistical errors, and methodological limitations. Our critical review therefore casts some doubts on whether any neural correlate of the synesthetic experience has been established yet. Rather than being a neurological condition (i.e., a structural or functional brain anomaly), synesthesia could be reconsidered as a special kind of childhood memory, whose signature in the brain may be out of reach with present brain imaging techniques.

Introduction

Synesthesia may be defined as the subjective phenomenon of additional experiences that sometimes, but not always, involves mixing sensory modalities: in some people, perceptual, emotional, or internally generated stimulation evokes sensory, representational, cognitive, or affective “synesthetic” experiences (Macpherson, 2007; Hupé et al., 2012b; Simner, 2012; Chun and Hupé, 2013a). Synesthetic associations are supplementary, arbitrary, idiosyncratic, and usually have an involuntary feel (they are not evoked at will and are not chosen, contrary to metaphors). They usually cannot be suppressed, so they are also often described as automatic (in a weak sense) or inevitable (Ward, 2013). Examples of types of synesthesia that fulfill this definition include not only canonical varieties like colored hearing, but also colored letters and numbers (graphemes), sequence-space (including number-lines: Galton, 1883), and personifications of numbers and letters (Flournoy, 1893). These three most frequent types are found in 1–10% of the population (Simner et al., 2006; Chun and Hupé, 2013a). We do not consider the experiences of mirror-touch (Blakemore et al., 2005) and ticker tape (where speech is experienced as subtitled in the mind’s eye) as types of synesthesia because in both cases associations are not arbitrary (Chun and Hupé, 2013a). Color is the most frequent additional experience (Day, 2005).

The present consensus is “that synesthesia is neither imagination nor is it metaphorical thinking, instead it has a neural basis” (Rothen et al., 2012). But what are the neural correlates of synesthesia? The subjective experience of synesthetic colors could activate brain regions normally responsible for the perception of real colors differently from when non-synesthetes just imagine or remember colors. Such neural activation could be due to extra neuronal connections, in particular from neighboring regions (cross-activation theory), or from a difference in neuronal transmission (disinhibited feedback theory). Several studies also suggested more distributed neuronal differences resulting in different brain network properties in synesthetes. In his thorough review on synesthesia, Ward states that “candidate neural mechanisms of synesthesia all have something in common insofar as they are believed to reflect differences in connectivity relative to the neurotypical brain. Moreover, these differences are typically assumed to lie at the cortical level, reflecting the complex nature of the inducer/concurrent” (Ward, 2013). This echoes a former statement by Blake et al. (2005) on grapheme-color synesthesia: “Virtually all neural models of synesthesia propose that it arises from an atypical pattern of connectivity between form processing and color processing centers of the brain,” with the difference in connectivity being structural or functional. In either case, the experience of synesthesia should induce neural activity in the regions normally involved in the experience of the concurrent (the induced association). That is, color centers should be activated when grapheme-color synesthetes read achromatic letters or words (the inducers), imagine them or listen to them.

Rouw et al. (2011) reviewed the studies that have searched for the neural correlates of synesthesia. They gathered the data interpretations proposed in neuroimaging studies on synesthesia, in search of an emergent consistent pattern. The logic behind such a meta-analysis is correctly based on the assumption that when effect sizes are small, they should not reach significance in every study because of sampling error, especially when tested groups are small, as is the case in the field of synesthesia. However, meta-analyses may be biased when the reported “significant” results are questionable. A quantitative meta-analysis of this magnetic resonance imaging (MRI) literature (e.g., Yarkoni et al., 2011) would require not only that similar protocols were used (that was not the case), but also to have access to effect sizes at each voxel, in order to include also the studies that did not find significant results. While several initiatives promote data sharing in open data sources (e.g., Poline et al., 2012; Keator et al., 2013; Sternberg et al., 2013), currently, in most studies information is given only about the coordinates of voxels that pass an arbitrary, often disputable, statistical threshold.

Here, we followed an approach quite different from usual meta-analyses of MRI data, adopting a systematic skeptical point of view in order to first deconstruct the results from the interpretation proposed by their authors, and then evaluate every dataset with similar and robust criteria. We therefore reexamined all studies that have searched for the neural correlates of synesthesia. In contrast to prevailing consensus within the synesthesia literature, and to the conclusion of Rouw et al. (2011), our analysis casts some doubt on whether any cortical marker of synesthesia has yet been discovered, and we suggest, based on the present data, that synesthesia may be not due to some brain alteration. We could therefore reconsider synesthetic associations as simply memories of a special kind. The neural correlates of synesthesia may be difficult to identify as long as detecting the signature of memory contents in the brain remains beyond the reach of current brain imaging techniques.

Part 1 is devoted to functional studies, where we review in particular the empirical evidence in support of color centers being activated in color synesthesia. Part 2 reviews the available evidence in favor of structural brain differences between synesthetes and controls. We reviewed studies on developmental synesthesia, not acquired synesthesia. We tried to be as exhaustive as possible, including the few EEG studies on the subject. The paper is organized around color-induced synesthesia, because of its large dominance in the literature. Additionally, we reviewed the few studies on other types on synesthesia. A critical summary of each cited study appears in the Appendix. A companion paper contains a methodological explanation of the statistical issues that guided our reading and interpretation of each paper (Hupé, 2015); readers not familiar with the subtleties of statistical inference or MRI methods are invited to consult it.

Part 1. Functional Neural Correlates of Synesthesia

Several studies have looked for the neural correlates of the synesthetic experience (Figure 1A). The question is: “what brain areas are uniquely activated when an individual has a synesthetic experience?” (Blake et al., 2005). Finding the answer is not straightforward, because the neural correlates of the synesthetic experience need to be dissociated from the neural correlates of the inducer. There are three complementary ways to resolve this question: (1) Compare the brain activity of synesthetes and non-synesthetes to the same stimuli (Figure 1B); (2) Compare the brain activity in synesthetes for similar stimuli that induce or do not induce synesthesia (Figure 1C); (3) Compare the brain activity of synesthetes for synesthetic versus non-synesthetic experiences that are similar (e.g., synesthetic vs. real colors: Figure 1D). At least two of these comparisons (three possible combinations) should be convergent in order to identify a candidate area as a neural substrate of the synesthetic experience. For example [comparisons (1) and (2), Section 1.1. below], if an area is found to be differently activated in synesthetes and controls (Figure 1B), it would remain to be shown that the differential activity is directly related to the synesthetic experience (Figure 1C) and not to secondary characteristics, such as differences in attention, emotion, or imagery. These characteristics may need to be included to fully describe the synesthetic experience but they are not specific to the experience of synesthesia.

FIGURE 1
www.frontiersin.org

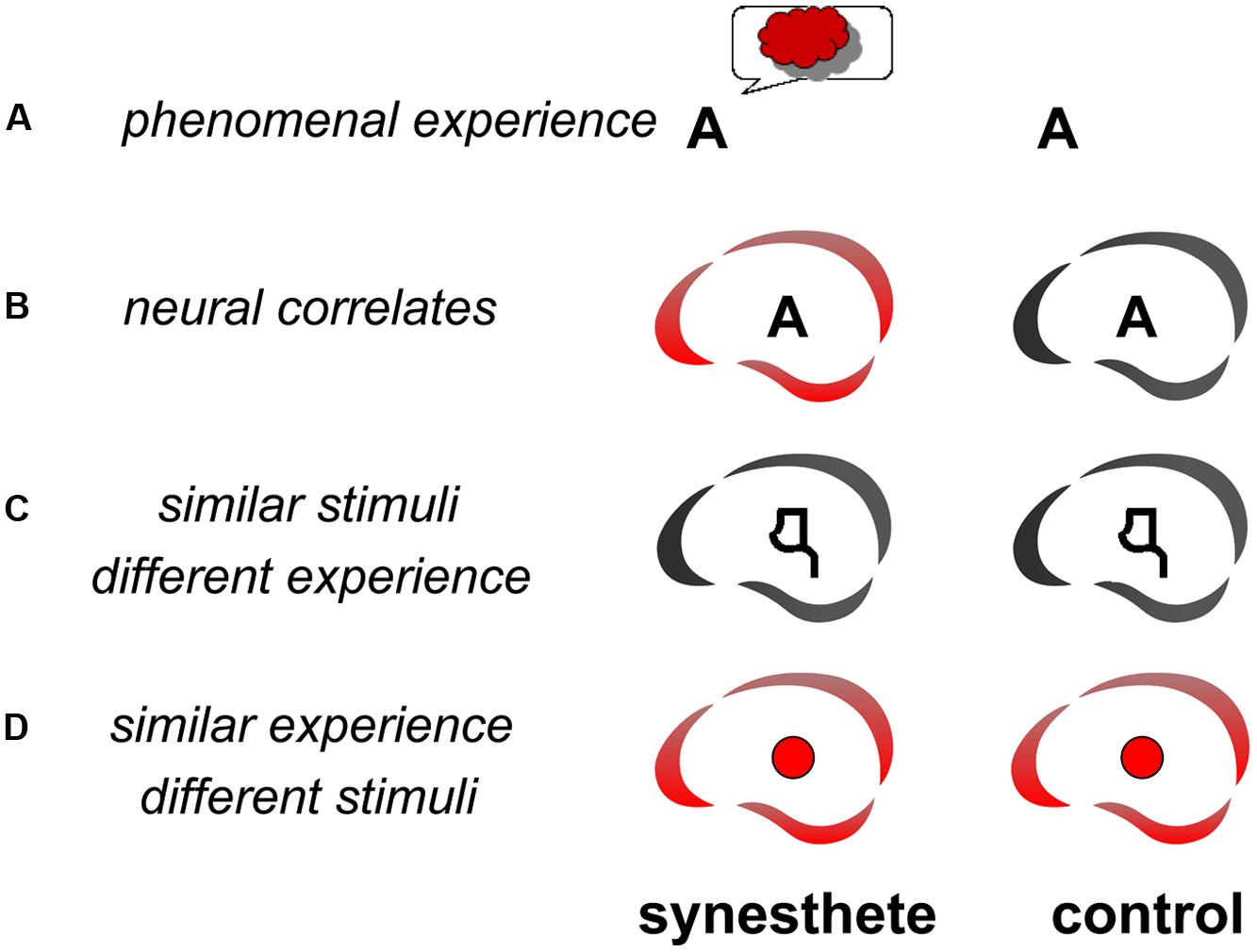

FIGURE 1. Methodology for searching the functional neural correlates of synesthesia. The letter A may trigger the experience of red for a synesthete but not a control subject (A). In order to isolate the neural correlates (represented as the brain icon of the CerCo lab logo) of this experience, one may compare the brain activations of synesthetes and controls to this stimulus (B). To ensure that any observed difference is due to the synesthetic experience, one may compare the same subjects for similar activations that do not trigger any synesthetic experience, like pseudo-letters or false fonts (C). In such a control experiment, the stimuli are therefore “similar” to those triggering the synesthetic experience, but the phenomenal experience is “different” than the synesthetic experience. One may also compare the activation by synesthetic and real colors (D).

Most studies used functional magnetic resonance imaging (fMRI) and tested grapheme-color synesthesia, sometimes considered as colored hearing when the stimuli (words) are presented in the auditory modality. Our main question is whether any functional correlate of the synesthetic experience has been identified yet. Our secondary question is whether these functional correlates are the same as those involved in a comparable non-synesthetic experience (e.g., are color centers activated when synesthetes experience colors for achromatic stimuli?).

1.1. Synesthetes vs. Controls for Stimuli Inducing Synesthesia or Not (13 Studies)

We identified one PET and eight fMRI studies that compared groups of grapheme-color synesthetes and controls (Table 1, first section). The synesthetic experience of color was elicited either by letters presented visually (Hubbard et al., 2005a; Rouw and Scholte, 2007, 2010; van Leeuwen et al., 2010; Sinke et al., 2012; O’Hanlon et al., 2013; Tomson et al., 2013) or by words presented in the auditory modality (Paulesu et al., 1995; Gaschler-Markefski et al., 2011). We shall also report in this section the results of four more studies on different types of synesthesia (Table 1, second section: Bor et al., 2007; Tang et al., 2008; Jones et al., 2011; Neufeld et al., 2012a). We did not include here three other fMRI studies that tested groups of synesthetes and controls but did not report the statistical comparison between both groups (Table 1, first section: Nunn et al., 2002; Gray et al., 2006; Rich et al., 2006). These studies are considered in Section 1.2.

TABLE 1
www.frontiersin.org

TABLE 1. Functional correlates of synesthesia.

Hypothesis free analysis of group studies for colored synesthesia (nine studies)

First we evaluate the nine group studies of colored synesthesia without making any hypothesis about where in the brain differences should be observed (Table 1, column “Hypothesis free”). We consider differences as significant only when statistical procedures to control the risk of false positives among multiple comparisons over the whole brain were applied, or when applying two-tailed tests for region of interest (ROI) analyses. Differences between synesthetes and controls when comparing the responses to synesthetic and control stimuli survived these strict criteria in only three studies (green check marks in Table 1). Group sizes (synesthetes/controls) in the studies that did not find significant differences were 6/6 (Paulesu et al., 1995), 6/6 (Hubbard et al., 2005a), 19/19 (van Leeuwen et al., 2010), 6/7 (Gaschler-Markefski et al., 2011), 18/18 (Sinke et al., 2012), and 16/15 (Tomson et al., 2013). Results in the three studies that found significant differences were not consistent. Different statistical contrasts were used and no single anatomical region was common to any two studies, despite the fact that the induced synesthetic experience always involved color. A synthesis of the results reported in these three studies is as follows.

Rouw and Scholte (2007, 2010) compared synesthetes and controls for the contrast between graphemes (digits, letters, or symbols) that elicited strong or weak synesthetic colors and graphemes that did not. This contrast may correspond to the activation by synesthetic colors only in synesthetes. They measured greater activation for synesthetes in four regions in their 2007 study and in three regions in their 2010 study (no region showed greater activation in controls than in synesthetes in either study). These regions did not seem to overlap even though the 2010 study (42 synesthetes against 19 controls) included all subjects of their 2007 study (18 synesthetes against 18 controls). The only significant difference between synesthetes and controls observed in the visual cortex in 2007 (in the fusiform gyrus, therefore close to color regions), was not found in the 2010 study. Rouw and Scholte performed only group comparisons. They did not report whether the blood-oxygen-level-dependent (BOLD) signal for synesthetes was significantly stronger for synesthetic than non-synesthetic graphemes in any of these regions, or in any region at all. The general difference between synesthetes and controls (corresponding to an interaction effect) could be due in part to weaker responses to non-eliciting graphemes in synesthetes than in controls, a result not easily interpretable (the experimental design supposed that non-synesthetic graphemes were perceived similarly in synesthetes and non-synesthetes and induced similar brain activity).

Using a similar protocol (graphemes and false-fonts), O’Hanlon et al. (2013) tested all possible interaction effects between group (13 synesthetes vs. 11 controls) and stimuli. They identified 14 brain regions with significant interaction effects, none of which had a stronger response to graphemes in synesthetes, but two with a stronger activation in controls (none in the visual cortex; they also observed group differences for false-fonts).

Hypothesis free analysis (four additional studies)

Two studies compared a control group with a single synesthete, one [Daniel Tammet (DT)] for complex mental images evoked by numbers (Bor et al., 2007) and the other for tastes experienced with words (Jones et al., 2011). Bor et al. (2007) detected significant differences in BOLD signal between DT and 14 controls only in the frontal cortex (tested during a digit span task, with no control condition comparable to other studies). When comparing the BOLD signal for “tasty” and “tasteless” words, Jones et al. (2011) found a significant difference between a synesthete and 10 controls only in the precuneus. However, this region was not significantly more activated by tasty than tasteless words in the whole brain analysis when performed in the synesthete alone. Note that classical statistical models may not be appropriate when comparing one subject to a group: the results critically depend on the construction of the group and may require very large control groups (e.g., Nocchi et al., 2008).

Tang et al. (2008) and Neufeld et al. (2012a) compared non-synesthetes to, respectively, a group of 10 synesthetes with number form and a group of 14 tone-color synesthetes, but they did not include any control stimulus. Tang et al. (2008) focused on interaction effects for different tasks that all involved synesthetic stimuli. When contrasting numbers that evoked number lines to baseline in the group of synesthetes alone (they did not report the comparison with controls), these stimuli did not evoke any significant response in the posterior intraparietal sulcus (IPS), the region previously argued to be involved in spatial processing (Hubbard et al., 2005b). Neufeld et al. (2012a) measured a stronger activation to tones for synesthetes compared to controls in the left inferior parietal cortex (they performed conservative voxelwise statistics with additional cluster extent threshold), but this activation lacked specificity (tones were contrasted against baseline). Rouw and Scholte (2010) had also reported a significant cluster in the parietal cortex. It was, however, 10 times larger and the MNI coordinates of the cluster centers in the two studies were several centimeters apart (Table 2); the cluster extent statistics used by Rouw and Scholte do not indicate, anyway, where the difference is within the cluster (see Hupé, 2015: third section “Pitfalls of MRI statistics”).

TABLE 2
www.frontiersin.org

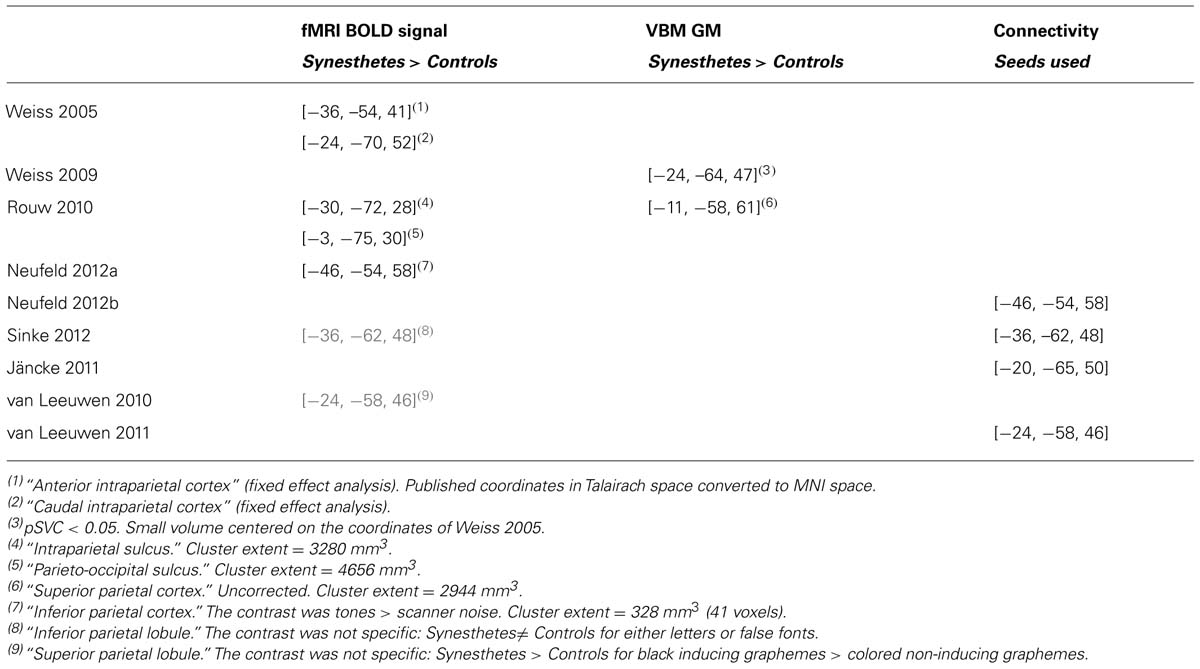

TABLE 2. MNI XYZ coordinates (mm) of left parietal regions.

Conclusion of the hypothesis free analysis

Among 12 studies (out of 13: Tang et al., 2008, did not report this comparison) that tested whether differences exist between synesthetes and controls for synesthetic stimuli, only six observed significant differences, most of them in the frontal and parietal cortex, with no consistency across results. The three group studies (out of nine) that reported significant interactions between participant type (synesthete vs. non-synesthete) and stimulus type (synesthesia inducing vs. control) computed cluster extent statistics apparently using state-of-the-art methods. However, they did not seem to apply optimal parameters. Rouw and Scholte (2007, 2010) used a low cluster-forming threshold (z = 2.3) and O’Hanlon et al. (2013) smoothed their data only slightly [7 mm full width at half maximum (FWHM)], tested a small size population (13 synesthetes and 11 controls), and did not specify how they computed Monte Carlo simulations in order to set the significance threshold. These choices may lead to a high rate of false positives1 (Silver et al., 2011) and could explain the inconsistencies in brain regions and direction of effect. O’Hanlon et al. (2013) also reported stronger responses to letters in non-synesthetes (possibly corresponding to deactivation by synesthetic colors in synesthetes) that were not systematically tested in the other studies.

Since stimuli were designed to trigger a concurrent sensory experience specifically in synesthetes, the most surprising result across these 13 studies was the absence of significant difference (with the possible exception of Rouw and Scholte, 2007) between synesthetes and controls in the visual cortex (or gustatory cortex or posterior IPS), especially in the regions thought to be involved in the experience of the concurrent, which was color in 10 studies (retinotopic area V4 and anterior regions of the fusiform gyrus), at least when exploring the data with no a priori hypothesis.

Hypothesis driven analysis

The absence of significant difference is of course not the proof of the absence of difference, especially when considering that these studies had low power. But nine of these studies also documented the responses measured in the regions of the concurrent experience (mostly color regions; for the four other studies, only whole brain analysis was performed: Rouw and Scholte, 2007, 2010; Sinke et al., 2012; Tomson et al., 2013; see Table 1, column “Hypothesis driven”). As explained in (Hupé, 2015: second Section “Common mistakes with statistical inference,” paragraph 4), if adjusting the statistical threshold by making a specific hypothesis (that some activation should be observed within a given region, e.g., a color region), the observed results cannot validate the hypothesis made to obtain them (that would be circular reasoning). The only inference in such a study could concern where in this region activation is the most likely (if one accepts the hypothesis). But exploring data at a lenient threshold in several studies may reveal consistent effects whose size is too small to reach significance in each study.

Two studies obtained results compatible with the involvement of color regions in synesthesia. Hubbard et al. (2005a) measured a stronger BOLD response in retinotopically defined V4 for six synesthetes, compared to six controls, when contrasting characters to false fonts. This difference was just significant (p < 0.05) with a one-tailed test. van Leeuwen et al. (2010) measured the difference in BOLD response to inducing and non-inducing graphemes within a color ROI in the anterior fusiform gyrus that was previously obtained by contrasting colored versus black letters [the peak activation was “within 5 mm of the reported anatomical location of anterior visual area V4α”; they corrected the statistical risk for the number of comparisons in the ROI, using a “Small Volume Correction” (SVC) procedure]. The response to synesthetic stimuli was stronger in 19 synesthetes compared to 19 controls (cluster of 21 voxels in the right fusiform gyrus, pSVC = 0.052).

Six studies found no significant differences. Using PET, Paulesu et al. (1995) observed no statistical difference (uncorrected p > 0.05) between 6 synesthetes and 6 controls when contrasting words to tones at the Talairach coordinates of V4 as defined by Zeki et al. (1991). van Leeuwen et al. (2010) also measured, in their second experiment (adaptation protocol), the difference in BOLD response to inducing and non-inducing graphemes within their color ROI. They used a different sequence of stimuli but the same subjects. They no longer observed any significant difference between participants. In visual cortex ROIs (occipital lobe and fusiform gyrus), Gaschler-Markefski et al. (2011) did not observe stronger BOLD response in six synesthetes compared to seven controls for color-inducing words, compared to tones (uncorrected p > 0.05, one-tailed test). The ROI analysis by Neufeld et al. (2012a) using the V4 coordinates of McKeefry and Zeki (1997) did not reveal any difference (the statistical threshold was not reported). Bor et al. (2007) similarly reported that all p-values were above 0.1 for their ROI analyses, including V4 (coordinates from Nunn et al., 2002). With their word-taste synesthete, Jones et al. (2011) compared the response to “tasty” and “tasteless” words in the left anterior insula (“taste” ROI) and found no significant difference between the synesthete and the 10 controls (pSVC > 0.05). Tang et al. (2008) did not observe any significant activation at a lenient threshold (voxelwise uncorrected p < 0.001) in the posterior IPS, when contrasting numbers to baseline in their group of 10 number-line synesthetes.

Finally, one study reported a result in the opposite direction to the experimental hypothesis that synesthetes should show greater activation in sensory areas related to their concurrent experience. O’Hanlon et al. (2013) compared the BOLD responses to graphemes and false-fonts in 13 synesthetes and 11 controls, in ROIs based on structural gray matter (GM) differences, four of them in visual regions (left lateral occipital cortex/fusiform gyrus, occipital cortex/fusiform gyrus bilaterally, and right lingual gyrus). The interaction between stimulus type and participant group was significant in the left occipital fusiform/lingual gyrus (uncorrected p = 0.034), with a weaker response to letters than false fonts, which was also weaker in synesthetes than controls (p = 0.141).

Conclusion of the hypothesis driven analysis

Using a priori hypotheses that synesthetic experience should correlate with sensory activation in the brain regions that are associated with corresponding non-synesthetic perceptual sensation, only 2/9 studies (Hubbard et al., 2005a; van Leeuwen et al., 2010) suggested the involvement of color regions in synesthesia. We should also recall that Rouw and Scholte (2007) measured greater activation in the right fusiform gyrus for synesthetic graphemes in 18 synesthetes compared to 18 controls (whole brain analysis). Anatomical location was, however, not consistent across these three studies. The center of gravity of the significant cluster reported by Rouw and Scholte (2007) was 1.5 cm lateral to typical V4 coordinates (probed by Hubbard et al., 2005a) and 1.8 cm away from the peak coordinates by van Leeuwen et al. (2010). Rouw and Scholte (2007) and van Leeuwen et al. (2010) did not report whether the contrast between synesthetic and non-synesthetic graphemes revealed any significant activation when considering only the group of synesthetes. In the study by Hubbard et al. (2005a), responses were significantly stronger for graphemes than false fonts all over the retinotopic areas of the visual cortex and for both synesthetes and controls, while O’Hanlon et al. (2013) observed no brain region showing stronger responses to graphemes; if anything, responses to false fonts were stronger. Under the Null hypothesis, “significant” effects are expected from time to time when strict control over the rate of false positives is not applied. This is quite precisely what we observe, with no systematic pattern of significant effect regarding the direction of the effect (when tested), as well as no anatomical overlap.

1.2. Does the Experience of Synesthetic Colors Involve Color Centers? Real vs. Synesthetic Colors (10 Studies, Including Two Studies From the Previous Section)

The studies presented below compared the brain activity in synesthetes for colored stimuli vs. stimuli inducing synesthetic colors (see Table 1, column “Real colors”).

Overlap of significant activation (six studies)

These studies tested whether there was any activation overlap when contrasting colored against achromatic stimuli and when contrasting synesthetic and control stimuli. Five studies did not find any overlap; one study had an ambiguous result.

Three studies performed whole-brain analyses. In a single-case study, Weiss et al. (2001) did not observe any overlap for colored and synesthetic visual stimuli. Nunn et al. (2002) observed stronger activation for heard words than tones in the left infero-temporal cortex of 10 synesthetes. They also found activation by colored Mondrians at about the same coordinates but in another group of subjects (non-synesthetes). However, they did not observe any significant activation by colored Mondrians in this area in a group of six synesthetes. Gray et al. (2006) measured a bilateral activation by colored Mondrians in another group of eight synesthetes; again, there was no overlap with the activation by heard words.

Three more studies constrained their analysis to regions of the visual cortex involved in the processing of real colors and, therefore, had more power. Weiss et al. (2005) defined an ROI in the fusiform gyrus, of 10 mm radius, around the peak activation measured for real colors in nine synesthetes. The most significant voxel, from a contrast between synesthesia inducing vs. non-inducing letters, reached only pSVC = 0.073 and was 9 mm away from the peak activation by real colors. Rich et al. (2006) observed a similar result within a larger ROI defined in seven synesthetes, with left activation by synesthetic letters 2 cm away from V4 coordinates (pSVC = 0.008). Note that the control stimulus was not very specific (squares). Sperling et al. (2006) compared the activation by real colors and letters within retinotopic V4 in four synesthetes (single-subject studies). In two of them, they identified a few V4 voxels that responded significantly (compared to baseline) to colored Mondrians, as well as to letters inducing synesthetic colors. Response to letters inducing gray/transparent (not colored) experiences was weaker than to inducing letters, possibly significantly so (ambiguous report of the results).

ROI analysis (two studies)

Only two studies so far measured the average BOLD responses to inducing letters and false fonts in retinotopic V4 (Hubbard et al., 2005a; Hupé et al., 2012b), as well as in retinotopic areas V1, V2, V3, and V3a. Hubbard and colleagues observed in six synesthetes a significantly stronger response to letters, as well as to colored Mondrians, in all retinotopic areas (except V3a). Hupé and colleagues obtained similar results in 10 synesthetes; they also measured the average responses to letters and false fonts in individual ROIs of maximal response to colored Mondrians and found no significant difference.

Adaptation protocol (two studies)

The main issue for the interpretation of all previous studies is the necessary comparison to a control stimulus that does not elicit any synesthetic color. However, such a stimulus also differs by other properties. Adaptation protocols are not facing this problem. Adaptation (repetition/suppression) to stimuli with synesthetic and real colors can happen only if both experiences share neural correlates. van Leeuwen et al. (2010) measured the BOLD responses to letters followed by a colored square whose color was the same as or different than the synesthetic color of the letter. No adaptation was observed for congruent stimuli within six color ROI (where they had observed adaptation or strong responses to colored stimuli). Hupé et al. (2012c) obtained a similar Null result in the regions of maximal response to colored stimuli as well as in retinotopic areas.

Conclusion: synesthetic colors in color centers

Among 10 studies, only the three (if including Sperling et al., 2006) that performed retinotopic mapping observed stronger responses to both colored stimuli (than to gray stimuli) and to letters inducing synesthetic colors (than to false fonts). These results are compatible (but see the following discussion section) with the coding of both real and synesthetic colors in retinotopic areas, in particular V4 (but not in color centers), even though real and synesthetic colors do not seem to depend on the same neurons (no adaptation across colored and synesthetic stimuli). The other studies did not observe any overlap of activation for synesthetic and real colors.

1.3. Comparison of Synesthetes and Non-Synesthetes to the Same Stimuli (Inducing Colors Only in Synesthetes). are Differences Observed in Color Regions? (Four EEG Studies)

Four EEG group studies (Schiltz et al., 1999; Beeli et al., 2008; Goller et al., 2008; Jäncke et al., 2012) compared the signals in synesthetes and controls for stimuli inducing synesthetic colors (Table 1, third section). Three of them used auditory stimuli and tested if stronger activation was observed over the visual cortex of synesthetes. Results were variable and not fully consistent even within each study. Jäncke et al. (2012) designed a particularly clever mismatch negativity task (MMN) to dissociate the magnitude of tone deviance from the magnitude of deviance evoked by synesthetic colors. Unfortunately, they did not manage to find synesthetes having associations tuned enough to this subtle design (please refer to the Appendix, Functional studies: EEG, MEG, for details and explanations).

Discussion (Part 1)

Among 25 studies, we did not find any clear correlate of synesthetic colors. A few significant differences (in six studies) between synesthetes and controls were reported in the frontal and parietal cortex (whole brain analysis). When restricting the analysis to the visual cortex only a few results (in five studies) were compatible with the involvement of color regions in synesthesia.

Parietal cortex?

A popular claim is the involvement of parietal regions in synesthesia. Even though parietal cortex is usually not considered as involved in color experience, its role was justified for the binding process involved in synesthetic associations. This was first suggested by Weiss et al. (2005) who observed a strong BOLD signal for graphemes inducing colors in a small group of 9 synesthetes only in the left anterior and caudal IPS (fixed effect analysis). This weak result gained support from two TMS studies (Esterman et al., 2006; Muggleton et al., 2007) that measured a reduction in synesthetic Stroop interference when TMS was applied over the posterior parietal cortex. The weak effect of these underpowered studies (two and five synesthetes) was, however, obtained only on the right side. Only two other fMRI studies, which contrasted synesthetes and controls, measured significant activation for synesthetic stimuli in the left parietal cortex (Rouw and Scholte, 2010; Neufeld et al., 2012a). The peak coordinates of the clusters among the three fMRI studies were all at least 2 cm apart (Table 2) and the activations lacked specificity: Neufeld et al. (2012a) contrasted tones against the implicit baseline and for Rouw and Scholte (2010), visual stimuli were not matched between the 42 synesthetes and 19 controls tested. Moreover, activations in nearby regions (though mostly on the right side) were reported for contrasts not directly related to the experience of synesthetic colors (see Table 2: van Leeuwen et al., 2010; Sinke et al., 2012). Finally, it is not clear to what aspect of the synesthetic experience these correlates may relate. Parietal areas and parieto-frontal networks are known to be involved in many tasks involving attention. Since the conscious experience of synesthetic colors does require paying attention to the stimulus (Chiou and Rich, 2014, for a review), the specificity of these activations may be difficult to disentangle from attention effects.

The problem of “control” stimuli

In order to isolate the neural correlates of synesthetic colors, all but two (adaptation) studies had to contrast the responses of inducing stimuli to non-inducing stimuli. Stronger activation was expected for inducing stimuli only in synesthetes, due to the additional synesthetic experience. Hubbard et al. (2005a) and Hupé et al. (2012b) measured such an effect in synesthetes in retinotopic areas. However, Hubbard et al. (2005a) had a similar (though weaker) result for control subjects (Hupé et al., 2012b, did not test control subjects), while other studies (van Leeuwen et al., 2010; Tomson et al., 2013) observed stronger activation to false fonts in both synesthetes and controls, interpreted as related to stimulus novelty.

We should insist on the difficulty of comparing synesthetes and controls, especially when using synesthetic material. Synesthetes may pay more attention to stimuli inducing synesthetic experience, which are much more interesting to synesthetes than controls. Synesthetic associations also involve some emotional content – many synesthetes report enjoying experiencing the synesthetic color of letters, and they report pleasure or disgust when seeing letters whose synesthetic color they particularly like or dislike. This additional emotional reaction, which in a sense belongs to the synesthetic experience, may not only involve the emotional network, but also induce emotion-related physiological responses. Modifications in heart rate and respiratory rate strongly influence the BOLD signal rooted to hemodynamic variations. Moreover, physiological modifications such as blinks have widespread effects not homogenous over the brain (Hupé et al., 2012a). These variables can be measured in the scanner but were never included as cofactors in the reported group comparison analyses. These possible nuisance factors make it problematic to derive inferences from widespread differences observed between synesthetes and controls in regions a priori not related to the synesthetic experience, like in the study by Rouw and Scholte (2010), as long as these differences are not replicated.

Retinotopic areas (V1 to V4) are involved in the processing of low- to mid-level visual features. The stronger activation observed across these areas for inducing letters and colored stimuli is unlikely to correspond to the neural correlates of the experience of synesthetic or real colors. On one hand, the visual expertise required for color constancy mechanisms (Bartels and Zeki, 2000) may well be achieved in the ventral stream beyond V4 (Brouwer and Heeger, 2009; Conway and Tsao, 2009; Hupé et al., 2012b,c), as well as the visual expertise for reading letters (Dehaene and Cohen, 2011). On the other hand, visual attention strongly modulates the BOLD signal within retinotopic areas (e.g., Silver et al., 2007; Watanabe et al., 2011), making any comparison of activation for different stimuli difficult to interpret.

Individual variability between synesthetes

Synesthetes do not all describe their synesthetic experience the same way. Individual differences are certainly an important source of variability that could explain the absence of any observed correlate of synesthetic colors, especially in underpowered studies. Measuring individual differences could help overcome the ambiguity of contrasting synesthetic stimuli to not-so-comparable stimuli. Subjective reports were classified by Flournoy (1893) as belonging to six possible categories, along a strength scale, from hallucination-like experiences and projections to mental images and thought or felt (or even negative, like “5 cannot be red”) experiences. Using questionnaires, several studies classified synesthetes as either “projectors” or “associators” or used a projector/associator scale. The phenomenological quality of synesthetic associations is, however, difficult to capture with such a questionnaire, which does not always correlate with objective measures like the strength of synesthetic priming effects (Gebuis et al., 2009), and which often produces variable responses when synesthetes are retested (Edquist et al., 2006; Hupé et al., 2012b). Objective measures were also proposed to try to capture the different strengths of synesthetic association. Hubbard et al. (2005a) measured the performance of synesthetes in a visual search task, where synesthetic colors should help finding the target (Ramachandran and Hubbard, 2001). Projector-like synesthetes (based on subjective reports) seemed to have higher performances than associators (in fact, several studies have failed to find that synesthetes performed really better than controls on such a task, e.g., Edquist et al., 2006; Rothen and Meier, 2009, or that this task could differentiate synesthetes: Ward et al., 2010; Hupé, 2012; Rich and Karstoft, 2013; see Chiou and Rich, 2014 for a review). Others measured interferences in Stroop-type tests (Hupé et al., 2012b; Rich and Karstoft, 2013; Ruiz and Hupé, 2015).

Several fMRI studies took individual variability into account to qualify their results. For example, Sperling et al. (2006) had results possibly compatible with the involvement of V4 in synesthesia in only 2/4 synesthetes. They commented that this could be due to differences in phenomenology. These two synesthetes reported perceiving a completely colored screen in their mind’s eye when seeing an inducing letter, while the mind’s eye colored image was much smaller for the two other synesthetes (this contingency is of course anecdotal given the low number of subjects). However, Rouw and Scholte (2007) did not find any significant correlation between the score to the Projector/Associator questionnaire and the BOLD signal in any region where they had observed a stronger response for synesthetes than controls (see their Table S3: positive and negative trends across the 18 synesthetes, all p > 0.3, one-tailed tests). In their 2010 study on their larger group of 42 synesthetes, Rouw and Scholte did not report the result of the correlations in “significant regions,” unfortunately. However, when categorizing synesthetes as projectors or associators based on the questionnaire, they did not observe any difference between the groups in these regions. van Leeuwen et al. (2010) performed a similar comparison using the same questionnaire (19 synesthetes). They also found no difference between groups in color regions. Hubbard et al. (2005a) did not observe any correlation between the BOLD responses in V4 and performance in the visual search task in their small sample of six synesthetes (p = 0.82, our computation; their claimed “brain-behavior correlations” referred to the results of a crowding task; please refer to the Appendix for a thorough discussion of their study). Hupé et al. (2012b) even observed negative trends between the BOLD signals in retinotopic and color areas and performance on the synesthetic Stroop task (nine synesthetes). These two results disqualify the differences between letters and false fonts observed in retinotopic areas as possibly due to synesthetic colors.

Taking individual variability into account has so far not helped in revealing the neural bases of synesthetic colors. These negative results are, however, not conclusive as long as we are not sure that individual variability is correctly captured by either questionnaires or psychophysics tests.

Part 2. Structural Correlates of Synesthesia

The main question is whether synesthetic experience comes from structural brain alterations. Structural alterations were explored using MR imaging in two ways: (1) Structural morphometry to investigate whether synesthesia would be associated with local changes of brain tissue volume [gray matter (GM) and white matter (WM)] or fractional anisotropy (FA) modifications and (2) Connectivity to explore whether synesthesia would be associated with abnormal connections between specific areas. If correlations were found between synesthesia and structural changes, it would remain to be evaluated whether these changes could explain the experience of synesthesia.

2.1. Is the Experience of Synesthesia Related to Structural Changes?

We identified eleven studies (Table 3). Two MR modalities were used for searching for structural differences between synesthetes and controls: diffusion tensor imaging (DTI, seven studies) for probabilistic fiber tractography and FA analysis, and T1-weighted MR imaging (eight studies) for voxel-based morphometry (VBM) analysis or cortical surface analysis, to identify atrophy or presence of tissue expansion (GM and WM) between groups of subjects (four studies explored both). The synesthetic experience was color in all studies. It was elicited by graphemes (Rouw and Scholte, 2007, 2010; Jäncke et al., 2009; Weiss and Fink, 2009; Hupé et al., 2012b; Melero et al., 2013; O’Hanlon et al., 2013; Whitaker et al., 2014), by tones (Hänggi et al., 2008, one “multiple” synesthete who had also interval-taste synesthesia), by tones or graphemes (Banissy et al., 2012), or by tones or music (Zamm et al., 2013). One important question is, therefore, whether structural changes may affect the function of color centers.

TABLE 3
www.frontiersin.org

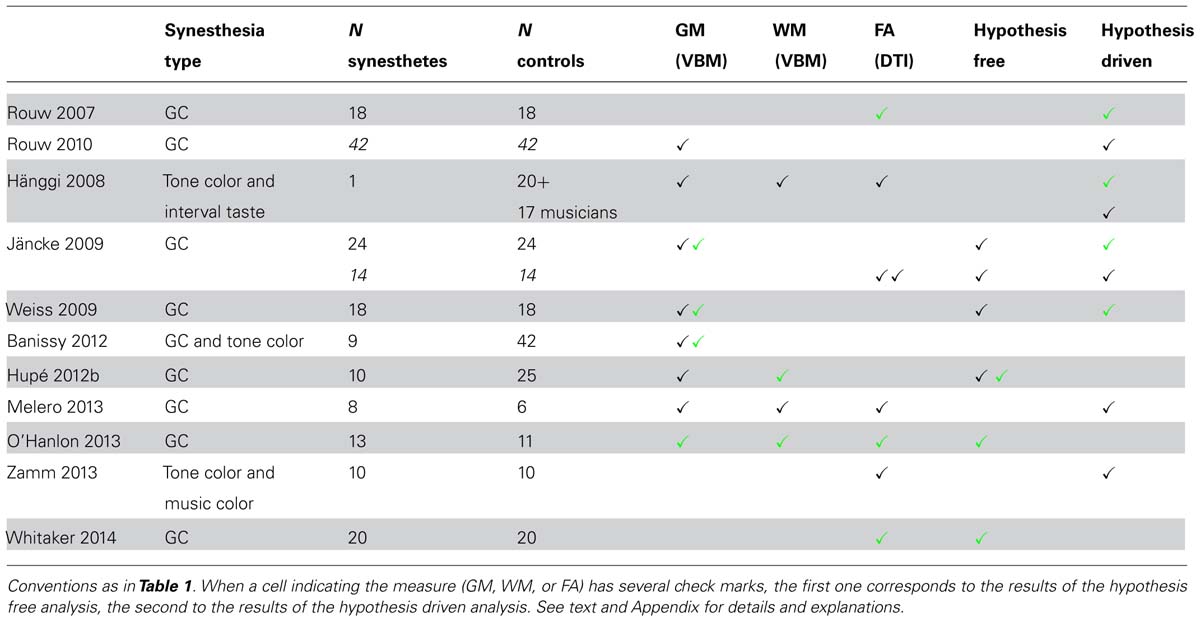

TABLE 3. Structural correlates of synesthesia, morphometry.

Hypothesis free analysis (six studies: five VBM studies, three DTI studies)

Five studies used VBM and computed statistics corrected at the whole-brain level2 (Jäncke et al., 2009; Weiss and Fink, 2009; Banissy et al., 2012; Hupé et al., 2012b; O’Hanlon et al., 2013). Three of them (Jäncke et al., 2009; Weiss and Fink, 2009; Hupé et al., 2012b) included a whole brain measure as a covariate. In the other two studies (Banissy et al., 2012; O’Hanlon et al., 2013), differences could be due to a combination of local and global modifications (local GM volume and global brain volume).

No significant GM differences were found in synesthetes compared to controls in four studies [but Jäncke et al. (2009) as well as, apparently, Weiss and Fink (2009), did not test whether controls could have larger values]. Group sizes (synesthetes/controls) were 24/24 (Jäncke et al., 2009), 18/18 (Weiss and Fink, 2009), 10/25 (Hupé et al., 2012b), and 9/42 (Banissy et al., 2012). Only O’Hanlon et al. (2013; 13 synesthetes and 11 controls) reported larger GM values in synesthetes in nine regions.

Although both gray and WM volumes can be assessed using VBM, few explored WM differences for grapheme-color synesthesia, probably because DTI imaging, with adequate computation, is presently more adapted than T1-weighted imaging. Hupé et al. (2012b) reported WM increase in the retrosplenial cortex (bilaterally) and in the left superior temporal sulcus (STS). O’Hanlon et al. (2013) reported larger WM values in synesthetes in six regions.

Three studies used DTI and computed statistics on FA corrected at the whole-brain level (Jäncke et al., 2009; O’Hanlon et al., 2013; Whitaker et al., 2014). Jäncke et al. (2009; 14 synesthetes and 14 controls) found no difference; O’Hanlon et al. (2013; 13 synesthetes and 11 controls) observed increased FA in 14 regions, and Whitaker et al. (2014; 20 synesthetes and 20 controls) found only regions with lower FA.

Conclusion of the hypothesis free analysis

Only two studies found large differences between synesthetes and controls. O’Hanlon et al. (2013) observed larger GM, WM and FA values in synesthetes, while Whitaker et al. (2014) observed only lower FA in synesthetes. The widespread differences as well as the lack of consistency of the results suggest that these results are false positives due to methodological issues. Indeed, both studies used inadequate statistical models (please refer to Appendix, Structural studies: Structural morphometry studies). Moreover, they did not include covariates, the study by O’Hanlon et al. (2013) was underpowered, and Whitaker et al. (2014) measured DTI images along six directions only. Hupé et al. (2012b) reported just significant WM differences in two small regions. Their study was, however, underpowered (10 synesthetes only). Therefore, there is no strong evidence so far of any structural difference between synesthetes and controls, in particular for GM, and no observed difference around color centers. WM differences have been hardly (correctly) studied at this level yet.

Hypothesis driven or exploratory analysis (eight studies: five VBM studies, four DTI studies, one single-case study)

Similarly to functional results, the absence of significant difference is of course not the proof of the absence of difference, especially when considering the small number of studies and their low power (in particular for WM studies, either using VBM or DTI).

Five VBM studies (three already included in the previous section) explored GM differences in the fusiform gyrus and in the caudal IPS. They all reported differences between synesthetes and controls, either in the fusiform gyrus or the left caudal intraparietal cortex, or both. However, in all of them, these differences were small and not the largest measured, among many possible false positive differences. There were also key methodological differences making the comparison of results difficult. Two studies did not include brain size as a cofactor (Rouw and Scholte, 2010; Banissy et al., 2012). Two studies were underpowered (Banissy et al., 2012; Melero et al., 2013). Only two studies (Jäncke et al., 2009; Weiss and Fink, 2009) used a comparable and sound methodology with reasonably sized groups (of 24 and 18 subjects respectively), while Rouw and Scholte (2010) tested the largest groups (of 42 subjects) to date. The results in the left fusiform gyrus were not consistent (increase observed by Jäncke et al., 2009, decrease by Rouw and Scholte, 2010, no difference for Weiss and Fink, 2009). Both Weiss and Fink (2009) and Rouw and Scholte (2010) reported differences in the left caudal IPS. However, Weiss and Fink (2009) identified a small cluster, presumably in hIP3 (human intraparietal area 3), while Rouw and Scholte (2010) measured GM difference in hIP2. Moreover, this difference was part of a large cluster (almost 3 cm3) of larger GM in synesthetes, whose center of gravity was 2 cm away from the coordinates reported by Weiss and Fink (2009), suggesting the absence of overlap (Table 2; note that even if there was some overlap it may not be conclusive because Rouw and Scholte computed cluster extent statistics that do not allow any inference about where the difference is within this large cluster). Jäncke et al. (2009) and Weiss and Fink (2009) both measured larger GM in the right fusiform gyrus, using similar methodology. However, the small cluster reported by Weiss and Fink (2009) was more posterior and at least 2 cm away from the clusters reported by Jäncke et al. (2009). Finally, both Banissy et al. (2012; nine synesthetes vs. 42 controls) and Melero et al. (2013; eight synesthetes vs. six controls) did not observe any difference in the right fusiform and left IPS ROIs defined by Weiss and Fink (2009). There is, therefore, no consistency across the results of these five studies.

Only Melero et al. (2013) explored WM difference at a lenient, exploratory threshold. Their study was underpowered and the analysis suboptimal. However, it is worth noting that they measured no difference in the fusiform gyrus or in the IPS, as well as no difference in the retrosplenial cortex and the STS, where Hupé et al. (2012b) had observed higher local WM volume after family-wise error (FWE) correction.

Four DTI studies (two already included in the previous section) explored FA differences using liberal thresholds or a priori hypotheses. Rouw and Scholte (2007) identified four possible regions (p < 0.0025, minimal extent = 40 mm3) with larger FA in a group of 18 synesthetes (compared to 18 controls), one of them in the right inferior temporal cortex (the closest GM difference, 7.5 mm away, was one of the clusters reported by Jäncke et al., 2009). With a similar methodology, however, Jäncke et al. (2009) did not replicate this result on groups of 14 subjects, even at a much more liberal threshold (p < 0.01, minimal extent 30 mm3). With a weaker methodology and small groups, Melero et al. (2013) also did not replicate this result at a lenient threshold. Zamm et al. (2013) compared 10 music-color synesthetes to 10 controls. They measured FA only in WM pathways that pass through both temporal and occipital regions. They did not find any difference in the ILF (inferior longitudinal fasciculus), which connects the occipital and temporal cortices. Rouw and Scholte (2007) had indeed observed that their higher FA observed in the right inferior temporal cortex of synesthetes was close to the ILF. Zamm et al. (2013) reported a slight increase in the right IFOF (inferior frontal-occipital fasciculus), which connects the occipital and frontal cortices.

In a thorough single-case study, Hänggi et al. (2008) compared a single subject who had synesthetic experiences triggered by tones or music intervals to controls, measuring WM and GM with VBM, as well as FA with DTI. Since this synesthete was a professional musician and had also perfect pitch, they had a control group of professional musicians, some of them with perfect pitch. They did not try to correct for multiple comparisons but a consistent pattern of results emerged across all their analyses. This synesthete had larger values of WM and FA in areas involved in the processing of the inducing stimuli (auditory area). However, these differences could be related to absolute pitch rather than synesthesia since the critical comparison with musicians with absolute pitch was not conclusive.

Conclusion of the hypothesis driven or exploratory analysis

Using liberal statistical thresholds or a priori hypotheses, there was no consistent result across studies. Therefore, there is no evidence so far of any structural difference between synesthetes and controls, in particular in regions supposed to code the synesthetic experience (color). The empirical data in favor of the Null hypothesis is, however, weak, except for GM differences. WM has been studied with VBM in only three group studies, and not appropriately (methodological issues, or too small samples, or both). Seven studies used DTI, but three of them made questionable choices for their analysis; one was a single-subject study. Among the remaining three studies, only one reported results corrected for multiple comparisons (but without indicating the procedure). In addition, the accuracy of FA maps depends on the DTI acquisition scheme. The lower the number of directions, the noisier the estimations at the voxel level (Ni et al., 2006; Giannelli et al., 2009). The studies reported here used different but overall small numbers of directions (< = 32). The study of possible WM differences in synesthesia using structural morphometry is, therefore, still in its infancy.

2.2. Is the Experience of Synesthesia Related to Connectivity Changes?

Eight studies assessed connectivity changes (Table 4). Brain connectivity was used to compare synesthetes vs. controls with structural MRI (one study), functional MRI (four studies), and EEG recordings (two studies). One additional fMRI study compared different models in a population of synesthetes only. Synesthetes were the grapheme-color type in all but one study (auditory-visual synesthetes, also inducing colors). Most studies were interested in discovering whether synesthesia was either due to connectivity changes between the regions (of the fusiform gyrus for grapheme-color synesthesia) coding the inducer and the concurrent (cross-activation theory), or due to a difference of neuronal transmission (disinhibited feedback theory), possibly more widespread.

TABLE 4
www.frontiersin.org

TABLE 4. Structural correlates of synesthesia, connectivity.

Hypothesis free analysis (four studies)

Four studies targeted brain connectivity using very different signals (structural MRI, EEG, and fMRI). By analyzing cortical thickness, Hänggi et al. (2011) observed differences of connectivity between 24 synesthetes and 24 controls. Synesthetes had reduced small-world architecture, corresponding to hyperconnectivity at the local level, though not within the fusiform gyrus as predicted by the cross-activation theory. Jäncke and Langer (2011) measured functional signals with EEG, during rest. They computed correlations within the source space of electrical signals and for different frequency bands. Contrary to Hänggi et al. (2011), they did not find any general difference in global connectivity between 12 synesthetes and 13 controls. Using fMRI during resting state and audio or audiovisual stimulation, Tomson et al. (2013) also did not find any difference of global network metrics between 20 synesthetes and 19 controls. Volberg et al. (2013) measured both local and distant synchrony between EEG electrodes after the presentation of inducing and non-inducing graphemes in seven synesthetes. They obtained results in favor of the disinhibited feedback theory of synesthesia, in particular a decreased long-range coupling within the theta range starting at 280 ms, compatible with a decrease of inhibition for inducing letters in synesthetes: this theta decrease was followed indeed at 400 ms by an increase of local synchrony in the beta band, supposedly involving the left fusiform gyrus.

Conclusion of the hypothesis free analysis

Overall, no consistent difference in functional connectivity was observed between synesthetes and controls. The major reported differences were based on the indirect measure of local cortical thickness (Hänggi et al., 2011). It is not clear what can be inferred from covariations in cortical thickness, and what exact relation they have with functional connectivity. Moreover, such connectivity measures require that they are not biased by thickness differences between synesthetes and controls. Many local differences were, however, present between both groups that may have biased all the statistics of connectivity to an unknown degree. Results based on the analysis of phase coherence of EEG signals during stimulation favored the disinhibited feedback theory of synesthesia (Volberg et al., 2013). The results were, however, not reliable because of the low number of subjects and the absence of systematic comparison with the control group. Both these results and those by Hänggi et al. (2011) were explicitly not compatible with the cross-activation theory of synesthesia.

Hypothesis driven analysis (six studies, including two studies from the previous section)

Jäncke and Langer (2011) measured the degree of functional connectivity between the EEG sources of 84 anatomical areas (12 synesthetes). Given the high number of possible comparisons, they reported uncorrected effects and insisted on regions for which they had a priori hypotheses. Synesthetes had higher values than controls in the parietal cortex but not in the fusiform gyrus.

Dovern et al. (2012) performed an independent component analysis (ICA) on resting-state functional MRI data in 12 synesthetes and 12 controls. They analyzed the functional connectivity between seven intrinsic connectivity networks (ICNs) potentially relevant to grapheme-color synesthesia (involving the visual cortex, the auditory cortex, or the intraparietal cortex). They found two connections significantly stronger in synesthetes, between both the medial and lateral visual networks and the fronto-parietal network. They also computed correlations between the BOLD time course in bilateral V4 and each brain voxel. No difference between synesthetes and controls survived correction for multiple comparisons.

Using fMRI, Neufeld et al. (2012b) and Sinke et al. (2012) analyzed functional connectivity in 14 tone-color and 18 grapheme-color synesthetes, respectively (compared to as many controls), during stimulation inducing synesthetic colors. They computed correlations between BOLD time-courses using seed areas in the left inferior parietal cortex (both studies) and the auditory cortex (Neufeld et al., 2012b) or regions of the visual cortex (Sinke et al., 2012). They did not find any stronger functional connectivity between the visual and auditory cortex in tone-color synesthetes, and no increased connectivity in grapheme-color synesthetes when using the seed functionally defined as responding to visual letters. Both results brought evidence against the cross-activation theory as well as against the possible involvement of color areas in color synesthesia. In both studies, there was some evidence in favor of the involvement of the left inferior parietal cortex, bringing support to the disinhibited feedback theory.

Tomson et al. (2013) analyzed fMRI data of 20 synesthetes using a similar ROI based strategy. They did not find any evidence for the involvement of parietal regions, even without any correction for multiple comparisons. They considered some of their results as compatible with increased local connectivity within the visual cortex, in particular between regions potentially coding colors and graphemes. Their results were, therefore, more in favor of the cross-activation theory than the disinhibited feedback theory.

van Leeuwen et al. (2011) used dynamic causal modeling (DCM) to test two predefined models corresponding to both theories in 15 synesthetes, using fMRI. They found no strong preference across all synesthetes for either the bottom–up (cross-activation) or the top–down (disinhibited feedback) model. However, the bottom–up model was better for the 10 projectors of the group while the top–down model was better for the five associators. Among projectors, the six mental screen projectors (also called strong associators) had intermediate preferences between both models.

Conclusion of the hypothesis driven analysis

These six studies relied on a priori information for the definition of nodes or seeds for connectivity analyses, in order to test the implication of color and parietal (binding) regions in color synesthesia. Four studies found evidence against connectivity changes involving color areas (cross-activation theory), one found some evidence, and one suggested that the cross-activation theory applies only to projector synesthetes (van Leeuwen et al., 2011). The other studies did not try to classify their synesthetes using questionnaires. Since associators are more frequent among grapheme-color synesthetes, the dependence of connectivity on individual differences is compatible with the first four but not the fifth study (Tomson et al., 2013), the only one that was compatible with a role of color centers. All but one (Tomson et al., 2013) study found some evidence in favor of the role of the parietal cortex. However, these studies relied on very different methods to evaluate its role. Critically, they did not use any consistent method to define the seeds or nodes for connectivity analysis. Tested parietal regions were up to several centimeters apart (Table 2) and the measured increases of connectivity involved different regions (and signals) across all studies. A similar comment applies to the definition of color regions: the lack of evidence in favor of their role might be due to the inadequate definition of color seeds.

Discussion (Part 2)

Among 19 studies, we did not find any clear evidence of structural brain alterations in synesthetes, either local differences or differences in connectivity, at least when considering the data with no a priori.

Data heterogeneity

This negative result is based on a very heterogeneous set of data, most studies testing different modalities and performing different analyses, due to the complexity and the absence of standard among all possible analyses. Even for similar studies, for example VBM, the measure was not always comparable among studies: generally, the volume of brain tissues is related to the whole brain volume (larger brains contain larger tissue volume). One way to account for this confound is to use total intracranial volume as cofactor. This was apparently not done and could introduce a bias in some studies (Rouw and Scholte, 2010; Banissy et al., 2012; O’Hanlon et al., 2013). In our study, for example (Hupé et al., 2012b), there was no difference in brain size between the groups of synesthetes and controls (p = 0.55). However, when not using brain size as a cofactor, the largest difference in WM measured in the right retrosplenial cortex was just significant (uncorrected p = 0.026). With brain size as a cofactor it reached p < 10-10 and thus could survive the correction for multiple comparisons.

Statistical models used were also different across studies and were not equally optimal. These models were inspired by those used in fMRI, even though the properties of the underlying signals are quite different. The application of the random field theory, already delicate for fMRI, may be even more problematic for structural data, especially for cluster extent statistics. White matter tracts, constructed based on FA (DTI studies), are not random fields. The problem of multiple comparisons may, therefore, be even more difficult to handle for structural than for fMRI studies. For connectivity analyses, the number of possible comparisons is even larger (Jäncke and Langer, 2011), since it may include all possible combinations between tens or 100s of seeds or nodes, which themselves can be defined in many different ways. “Generic” solutions like false discovery rate (FDR) or permutations are not suitable because FDR depends crucially on the definition of the family of tests (which is typically unknown for the present exploratory studies) and not much inference is permitted by permutation tests (beyond the lack of exchangeability) in the absence of other, parametric, information (see Hupé, 2015: third section “Pitfalls of MRI statistics”).

Brain behavior correlations

We are not able to identify the causal chain between potential structural differences and behavior. Like for genetic association studies, we may need to perform comparisons between groups of hundreds or thousands of subjects to assess whether an observed significant correlation does indeed suggest causality (Ioannidis, 2005a,b). Put simply, observed structural differences between two small groups of synesthetes and controls may be related to random differences that exist between any two groups of people, rather than synesthesia, given the very large number of potential individual differences that may have a morphometric counterpart. As a first obvious difference, recruitment procedures between synesthetes (most self-referred, some of them participated in several studies) and controls were different in most studies reported here. Covariates related, for example, to personality or cognitive abilities could be measured and included as covariates in the analysis (Chun and Hupé, 2013b). Tens of such measures are easily collected, meaning that ten times more subjects should be tested to overcome the curse of dimensionality. This simple thought experiment shows that all structural studies that looked for differences between synesthetes and controls were severely underpowered.

Hypothesis-guided studies

Most studies presented here used an alternative strategy to get around the problem of multiple variables and comparisons: they tested precise models using additional information. For example, since color was the synesthetic concurrent in all studies, searching structural differences specifically involving color networks was legitimate. The structural results suggesting the involvement of the fusiform gyrus were not consistent and most connectivity results argued against its role. However, these analyses faced the major problem of identification of “color networks” in individual subjects. Most studies used ROI based on functional localizers (sometimes poorly related to color processing itself) or on coordinates from the literature, with no guaranty that the most relevant brain tissues were compared between synesthetes and controls. More structural results exist in favor of the role of the parietal cortex in synesthesia. However, the a priori hypothesis concerning its functional role in synesthesia is not grounded (see Part I). The structural evidence was, in fact, poorly characterized and there was no consistency across studies about the precise anatomical location of which part of the parietal cortex was supposed to be involved. The lack of any clear-cut result about the functional correlates of synesthetic colors (see Part I) makes the structural comparisons between synesthetes and controls (both positive and negative results) based on such results inconclusive.

Individual variability between synesthetes

With or without a priori information, if correlations were found between synesthesia and structural changes, it would remain to be evaluated whether these changes could explain the experience of synesthesia. Similarly to functional results, the measure of individual differences about the experience of synesthesia is a powerful tool to test whether potential differences are related to synesthesia. Only few structural studies measured individual differences and computed related correlations in the regions where they had found potential differences from controls. Rouw and Scholte (2007) measured a positive correlation between FA in the right inferior temporal cortex (where FA was larger in synesthetes than controls) of 18 synesthetes and scores on the Projector/Associator questionnaire. The result, however, was statistically weak and the computation of the score questionable (see Appendix, Structural studies: Structural morphometry studies). Weiss and Fink (2009) did not find any correlation between the projector/associator scale and local GM volume in the fusiform gyrus or the IPS of 18 synesthetes. Hupé et al. (2012b) observed no correlation between local WM volume in the retrosplenial cortex and the strength of color associations measured in nine synesthetes with Stroop-like tasks. Zamm et al. (2013) measured a significant correlation between FA in the right IFOF and the consistency of synesthetic associations of 10 synesthetes. Dovern et al. (2012) also reported a correlation between the consistency scores of 12 synesthetes and the connection strength of the lateral visual ICN with the auditory ICN. In both cases, the correlation was, however, statistically weak (few subjects, multiple comparisons), and the measure poorly differentiated synesthetes from controls. van Leeuwen et al. (2011) measured a correlation between the projector/associator scale of 15 synesthetes and preference for either the top–down or the bottom–up model. There was, however, no comparison with a control group to assess whether any of these models was related to synesthesia.

Similarly to functional results, taking individual variability into account is promising but did not reveal consistent results across studies. Different measures were computed. An objective, consensual measure of individual variability is still lacking. There is no evidence so far that the experience of synesthesia comes from structural brain alterations.

Conclusion

We did not find any clear-cut empirical evidence so far about the neural correlates of the subjective experience of synesthesia. We did not find any structural or functional anomaly in the brain of synesthetes that could explain synesthesia. In our view, most published studies to date show, in fact, that the brains of synesthetes are functionally and structurally similar to the brains of non-synesthetes.

MRI Research in Cognitive Neuroscience: The Example of Synesthesia

Yet, most published synesthesia papers described here claimed to have found neural correlates of synesthesia. Almost all these claims were unsupported due to statistical errors, questionable methodological choices, or low statistical power. We described these problems in (Hupé, 2015). We reported detailed explanations for each study in the Appendix. These problems are not specific to synesthesia research (e.g., Celle et al., 2015), and several studies have warned that misuse of statistical inference based on null hypothesis significance tests (NHSTs), low power, publication bias and pressure for rapid publication, are endemic to psychology and neuroscience (e.g., Meehl, 1967; Ioannidis, 2005b; Button et al., 2013; Ioannidis et al., 2014). These problems are aggravated in cognitive neuroscience using MRI because of the cost of the experiments and the complexity of image processing pipelines and statistical analysis procedures. As long as the neural code of mental states and cognitive operations has not been cracked, cognitive neuroscience is fated to look for correlations between cognitive processes, which are often difficult to control properly, and indirect measures of brain activity or structural features produced by brain imaging techniques. The control of the false positive risk across multiple comparisons is an ill-posed problem within the context of NHST. Twenty years ago, an elegant solution for the analysis of PET and fMRI images was proposed based on the random field theory. However, this theory provides only an approximate solution and, to be valid, requires that many conditions be met (Nichols and Hayasaka, 2003). These conditions are difficult to verify and seem to have sometimes been forgotten with the accessibility of end-user software. For structural and functional connectivity analysis, we observed an even wider diversity of analysis pipelines (Carp, 2012), with almost no two studies using the same procedure. We came across very ingenious methods using powerful mathematical tools, but we found no gold standard. Group analyses of individual brains, which are inherently different, are, in any case, problematic. We are not sure that the current tools allow us to correctly study subtle brain mechanisms, such as those involved in synesthesia, in analyses based on a reasonable (low) number of subjects.

The Neural Bases of Synesthesia: Alternative Models

The majority of published studies focalized on specific brain areas. Indeed, for grapheme-color synesthesia, activation of color centers due to cross-activation or feedback (due to either functional or structural differences between synesthetes and controls) seemed the only logical possibility, which was already proposed in the XIXth century (review by Suarez de Mendoza, 1890). As long as no other mechanism is proposed, methodological critiques of “positive” results in favor of such a hypothesis may remain unconvincing. Alternative propositions involve global changes within distributed cortical networks, but this emergent field has not yet reached maturity, both in terms of validation of the methodology and theoretical interpretation.

Synesthesia is often described as a neurological condition: the cause of synesthesia would be a structural or functional anomaly in the brain of synesthetes. Findings of functional or structural differences in synesthetes have often been interpreted to support such a view. Note, however, that functional results do not necessarily speak to whether synesthesia is a neurological condition or not. Synesthetes do have a different subjective experience than non-synesthetes when confronted with their idiosyncratic synesthetic material, a different subjective experience that must be reflected in the brain (where else?). The question at stake is whether we possess the methodological and theoretical tools to observe it. In any case, if none of the proposed structural or functional differences should be confirmed, this would speak against synesthesia being a neurological condition. But, then, what could be the nature of synesthesia?

In the early 2000s, the neurological hypothesis was often contrasted against a memory hypothesis. Chiou and Rich (2014) argued, indeed, that the experience of synesthetic colors more closely resembles color memory than color perception. Since synesthetic associations appear during childhood, they may just be a special kind of childhood memory – special because these memories are deprived from their autobiographical context. But in that case, one should be able to trace back the origin of these souvenirs. For grapheme-color synesthesia, usual suspects were colored alphabets and toys (Calkins, 1893), widely used since the XIXth century when grapheme-color synesthesia was first described. In an ambitious endeavor, Rich et al. (2005) collected 136 alphabet books that a sample of 150 synesthetes could have had access to during their childhood. Most of these books did not use color, and synesthetic colors matched those of one of the alphabets for only one synesthete. Such a result seemed to rule out the memory hypothesis. However, Witthoft and Winawer (2006) reported a single case where the color magnets present during the childhood of a synesthete did match the synesthetic colors. They later managed to discover ten other similar examples (Witthoft and Winawer, 2013). Such evidence shows that the “choice” of colored associations could be triggered by the child’s environment. The question, then, is why this is not the case for the majority of synesthetes. The explanation could lie in the creative mind of children. Ward and Simner (2003) had detailed the precise phonemic associations of a lexical-gustatory synesthete. They showed that the taste of words was influenced by very fine-grained phonemic properties, like allophony. However, they could trace back the origin of many associations between phonemes and tastes to food words (see also Simner and Haywood, 2009), not necessarily via direct semantic links (“bar” tasted like milk chocolate) but also via more complex links, for example lexical-phonological (“Virginia” tasted like vinegar). By such recursive phonemic or semantic associations, the final repertory of word-taste associations lost its obvious link to food words and looked arbitrary. Grapheme-color synesthetes seem to experience as well a period of progressive construction of associations (Simner et al., 2009; Simner and Bain, 2013). Children may pick up color choices from the different sources that they may encounter over time (colored alphabets, colored toys with letters, colored printed material, etc...), and modify them over time until they eventually stabilize, at least to a certain degree (Simner, 2012). According to this scenario, in most cases, we should not find a single origin of the specific associations between graphemes and colors. Similar explanations were proposed for sequence-space synesthesia (Price and Pearson, 2013), which could result from “extensively rehearsed associations, established for example via normal processes of visuospatial imagery” (Price and Mattingley, 2013). If synesthetic associations are memories of a special kind, the neural correlates of synesthesia may be difficult to identify as long as detecting the signature of memory contents in the brain is out of reach.

Conflict of Interest Statement

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Acknowledgments

Research funded by Agence Nationale de Recherche ANR-11-BSH2-010. We thank Mark C. Price and Charlotte A. Chun for helpful comments.

Footnotes

  1. ^ We also considered that cluster extent statistics, though widely used, may not fully control the risk of false positives and may face an overfitting issue. See Hupé (2015): third section “Pitfalls of MRI statistics.”
  2. ^ Other whole brain, hypothesis-free analyses that did not report statistics corrected for family-wise error (FWE) are considered as exploratory, and are treated together with hypothesis driven analyses.
  3. ^ One could argue that the stronger response to letters than false fonts for this synesthete is all the more convincing because the developing coloring of false-fonts should have weakened the contrast for synesthetic colors. Such reasoning would however be based on the assumption that any difference between letters and false fonts is due to synesthetic colors, which is contrary to the null hypothesis that any difference between the two conditions is due to random noise. Cross-validation methods should either be systematic or based on observations independent of the tested results.
  4. ^ Rouw and Scholte (2010) also compared projectors (n = 16) and associators (n = 26). The classification was based on whether the mean score to the PA questionnaire was above or below zero (their bimodal distribution, shown in their Figure 1, would rather suggest that synesthetes should have been classified as projectors for scores above 2: n = 11). While synesthetic color association is stronger in projectors (Dixon et al., 2004; Ward et al., 2007), increased BOLD signal for inducing letters was observed in associators and not projectors, in a large, bilateral region in the parahippocampal and temporal fusiform gyrus (2.6 cm3 on the left and 5.1 cm3 on the right). They did not report the correlations between the PA score and the BOLD signal in the three regions more active in synesthetes than controls, suggesting that they did not find any correlation, like in their 2007 study.
  5. ^ http://afni.nimh.nih.gov/
  6. ^ They wrote “significant voxels passed a voxelwise statistical threshold (t = 17.19, p < 0.0005, n = 22).” The t-value is surprisingly high. In Student’s t-tables, when p < 0.0005 for d.o.f. = 21, t is about 4. Moreover, they report t-values while performing a 2*2 ANOVA, and they indicate this threshold for both main and interaction effects.
  7. ^ Some of the values in their Table 1 seem to lack consistency. In each ROI, beta and t-values for each predictor (color and gray) against baseline as well as the contrast between both predictors are displayed. For the color mapping experiment, these values are mostly consistent (e.g., colored Mondrian, t = 3.51, gray Mondrian, t = 0.29, colored-gray, t = 3.49). For color–grapheme synesthesia, there is no such consistency (e.g., color-inducing letters, t = 3.82, gray-inducing letters, t = 3.56, but colored-gray: t = 3.82; when t-values are similar for two predictors, it is unlikely that the contrast between them be significant).
  8. ^ The significance of clusters identified when thresholding the images at uncorrected p < 0.001 was evaluated with a False Discovery Rate (FDR) procedure. The tables reported all clusters and indicated which ones survived the FDR correction. The critical result reported here was obtained for the “Task by Group interaction,” for which no table was provided. Tang et al. (2008) also wrote that there was no significant “Conflict × Group interaction,” which seems to us contradictory with the significant effects reported when contrasting the two ordinal tasks (conflict vs. non-conflict).
  9. ^ Note that in the study by Muggleton et al. (2007) statistical significance, reached only at the right parieto-occipital site but similar at the other sites, was only assessed over the group of five subjects, which we consider as statistically not valid ([1-Sample size]). Moreover, the significant result (p ∼= 0.04) corresponded to Wilcoxon W = 2.03, while the difference between the sham and no TMS was discarded on the basis of W = 1.75, and the effect of TMS was yet compared against these collapsed two control conditions ([2 – Accepting the Null]). Like in most studies of synesthetic Stroop tasks, summary measures were the average of response times and, therefore, probably unreliable (response times distributions are skewed – see Hupé, 2015: first section “Background: Statistical Inference and NHST,” in particular footnote 1).
  10. ^ http://fsl.fmrib.ox.ac.uk/fsl/fslwiki/TBSS
  11. ^ https://surfer.nmr.mgh.harvard.edu/
  12. ^ http://www.mccauslandcenter.sc.edu/mricro/mricron/
  13. ^ Curiously, the average number of edges in groups with permuted labels was lower than the number of edges in both the actual control and synesthete groups (see their Figure 3), in both the first rest and the audio conditions. If subjects presented random variations within each group, the distribution of values for randomly permuted samples should have been centered between the values for controls and synesthetes. Since a single sparsity value was computed in each group (real or permuted) by concatenating the time series of all subjects, this probably means that in both controls and synesthetes the actual sparsity value was driven by the specific combination of the data of a few subjects, a result impossible to interpret.
