Jing Cheng
Yijing Jiang2†
Ting Rao
Yihan Yang- 1First School of Clinical Medicine, Fujian University of Traditional Chinese Medicine, Fuzhou, China
- 2Affiliated Rehabilitation Hospital of Fujian University of Traditional Chinese Medicine, Fuzhou, China
- 3School of Rehabilitation Medicine, Fujian University of Traditional Chinese Medicine, Fuzhou, China
Objective: To systematically evaluate the efficacy and safety of repetitive transcranial magnetic stimulation (rTMS) on language function in patients with non-fluent aphasia post-stroke.
Methods: We selected randomized clinical trials (RCT) that involved stroke patients with non-fluent aphasia, whose intervention was rTMS vs. no therapy or other therapy. Two researchers autonomously reviewed the literature based on the specified criteria for inclusion and exclusion and completed the process of data extraction, data verification, and quality evaluation. Meta-analysis was performed using RevMan 5.41 and Stata MP 172, while the assessment of risk of bias was carried out utilizing the Risk of Bias version 2 tool (RoB2)3.
Results: The meta-analysis involved 47 RCTs, encompassing 2,190 patients overall. The indexes indicated that rTMS has the potential to decrease the severity of non-fluent aphasia in stroke patients, including improvement of the capability of repetition, naming, and spontaneous language. The determination of BDNF in the serum of patients was also increased. In addition, rTMS reduced the likelihood of depression in stroke patients.
Conclusion: To summarize the relevant studies, rTMS has significant effects on improving the language abilities of stroke patients suffering from non-fluent aphasia, including the abilities of repetition, naming, and spontaneous language.
Introduction
Stroke remains a primary cause of mortality and morbidity globally (1, 2). Approximately 38% of adult stroke victims are subsequently diagnosed with aphasia (3, 4), which further worsens the prognosis for these patients. The severity of aphasia is useful in predicting the functional autonomy of patients, as well as their short-term and long-term recovery outcomes following a stroke (5, 6). Patients suffering from post-stroke aphasia (PSA) exhibit significantly elevated mortality rates and poorer functional outcomes compared to those without the condition (7). Therefore, rehabilitation therapy after a stroke places a paramount emphasis on the restoration of language function.
Non-fluent aphasia (NFA), frequently observed in individuals recovering from stroke, results from damage to areas encompassing the left inferior frontal gyrus (IFG-L), namely Broca’s area, along with transcortical motor, global, and mixed transcortical aphasia (8, 9). Patients with NFA may exhibit notable impairments in language production, poor sentence repetition, poor verbal agility, and errors in sentence construction (9–11). Traditional speech and language therapies (SLTs) rarely lead to the complete restoration of linguistic functions. Therefore, it is clear that patients with NFA after stroke require more adjunctive and enhancing therapies (12).
Repetitive transcranial magnetic stimulation (rTMS) utilizes magnetic fields to elicit electrical currents within targeted areas of brain. This technique modulates cortical excitability in both the stimulated areas and distant regions by delivering consistent stimuli at extremely short intervals. This process helps restore inter-hemispheric balance and allows for precise control of stimulation parameters (frequency and location), significantly affecting the functional brain network (13). rTMS induces long-lasting neuroplastic changes and facilitates network-related brain reconstruction (14). Theta-burst stimulation (TBS), an advanced form of rTMS, is subdivided into intermittent theta-burst stimulation (iTBS) and continuous theta-burst stimulation (cTBS) (15). Different rTMS stimulation frequencies yield varied effects on cerebral cortex activity: high-frequency stimulation (≥5 Hz) and iTBS enhance local neuronal excitability, whereas low-frequency stimulation (≤1 Hz) and cTBS reduce it (16).
Martin et al. (17) first reported to support language recovery, yet conclusive findings are elusive, and influenced by various factors. An important consideration is whether SLT should be paired with rTMS. Several studies suggested that when employed as a standalone therapy, rTMS holds promise in producing language improvements in PSA (6, 18–20). On the contrary, the suggestion that rTMS could prime the brain for behavioral therapy, implying that it should be integrated with SLT, is met with challenges. Heterogeneity in SLT types and intensities among recent studies used alongside rTMS (21–24) contribute to the complexity of this argument. It is challenging to precisely define the individual contributions of rTMS and SLT and assess their collective impact on PSA rehabilitation that rTMS could offer a unique, complementary approach to treating aphasia. Current research into PSA rehabilitation has used rTMS to modulate interhemispheric interaction.
Numerous randomized controlled trials (RCTs) (25) suggest that rTMS may aid in the reconstruction and recovery of language abilities in individuals with PSA. Six systematic reviews (25–30) evaluated the impact of rTMS on PSA, with most reaching inconsistent conclusions or having loose exclusion criteria; the types of aphasia in patients were also ambiguously defined. Georgiou et al. (31) utilized the AMSTAR 2 tool to evaluate the quality of systematic reviews of RCTs focusing on the effectiveness of rTMS in aphasia rehabilitation following stroke before July 2017 and found that the quality of these studies was generally low. Another meta-analysis (32) identified the types of NFA in stroke patients, but the included literature was outdated. Consequently, we conducted a systematic review to furnish evidence-based information regarding the application of rTMS in treating NFA following a stroke. This involved analyzing a large number of studies and more relevant outcome indices, to identify new research directions.
Methods
This systematic review adheres to the guidelines set forth by the Preferred Reporting Items for Systematic Reviews and Meta-Analyses (PRISMA) guidelines (33). And the study protocol has been officially registered in PROSPERO (ID CRD42023434714).
Our PICO question was: in stroke patients with NFA, does rTMS, as compared to the absence of therapy or alternative treatments, reduce the severity of aphasia in patients, including naming, spontaneous language, and repetition abilities?
Search strategy
We searched nine commonly used electronic databases: PubMed, Cochrane Library, Embase, Web of Science, SinoMed, OVID, the China National Knowledge Infrastructure (CNKI), China Science and Technology Journal Database (VIP), and Wanfang Data for RCTs of rTMS for stroke patients with NFA. Furthermore, relevant systematic evaluations and reference lists of included studies were searched manually to ensure the comprehensiveness of included studies. Keywords were determined after preretrieval: repetitive transcranial magnetic stimulation, rTMS, TBS, stroke, cerebrovascular accident, aphasia, non-fluent aphasia, and post-stroke aphasia. The final literature search was conducted on January 8, 2024, using neither language nor publication date restrictions.
Inclusion and exclusion criteria
Inclusion criteria (1) study design: RCTs; (2) study population: individuals with NFA following a clinical diagnosis of stroke; (3) interventions: In addition to the interventions applied to the control group, the experimental group underwent rTMS. Alternatively, the experimental group received rTMS, whereas the control group received sham-rTMS. For studies encompassing more than two groups, the groups fulfilling the inclusion criteria were also included; (4) the outcome indicators ought to incorporate at least one metric of aphasia assessment, such as Western Aphasia Battery (WAB), Aphasia Battery of Chinese (ABC), China Rehabilitation Research Center Standard Aphasia Examination (CRRCAE), and Boston Naming Test (BNT).
Exclusion criteria: (1) duplicate studies or data cannot be extracted; (2) case studies, animal experimental studies, or reviews; (3) the unavailability of full text even after contacting the author via email.
Study selection and data extraction
Endnote X9 was utilized for document organization and deduplication. Two reviewers independently conducted literature screening, data extraction, and cross-verification according to predetermined inclusion and exclusion criteria. Any discrepancies between the reviewers were resolved by achieving a consensus with an unbiased third-party researcher. The process of extracting data entailed gathering details regarding the title, first author, publication year, the number of patients, diagnostic criteria, intervention and control protocols, rTMS parameters (e.g., stimulation site, frequency, intensity, and duration), outcome measures, any reported adverse events and follow-up duration.
Risk-of-bias
Risk of bias assessment for the studies included was carried out utilizing the RoB2 tool (34). Two researchers evaluated the risk of bias independently, with any discrepancies being resolved by a third researcher.
Statistical analysis
Meta-analysis was conducted utilizing Revman 5.4 software. The mean differences (MD) along with the 95% confidence interval (CI) were employed for statistical analysis, and the standardized mean difference (SMD) was used when using different measurement methods or units. Statistically significant differences were indicated by p < 0.05, and the magnitude of heterogeneity was quantified using I2. I2 shows the proportion of heterogeneity in the total variation of effect size based on the Student–Newman–Keuls test, ranging from 0 to 100%. I2 ≤ 50% was deemed as an indication of low heterogeneity, employing the fixed-effects model for Meta-analysis; I2 > 50% was considered a clear indication of significant heterogeneity, utilizing the random-effects model.
Results
Search results
The initial search returned 1,244 articles. Following the removal of duplicate articles, 607 studies were left, and 59 studies remained upon reviewing the titles and abstracts. Finally, 47 studies were included after a rigorous evaluation of the full-text articles (Supplementary Figure S1).
Characteristics of included studies
Out of the 48 studies (4, 23, 35–80), 37 studies (35–37, 39–49, 51, 52, 54–66, 68, 69, 72–74, 76, 78, 79) had reported diagnostic criteria for stroke and 35 (4, 35–39, 41–53, 55, 57–60, 62–65, 67–70, 74, 76, 77) for aphasia. In 43 studies (4, 23, 35–52, 54–65, 67–76, 78, 80), the age of the patient was reported as mean ± standard deviation, while two studies (53, 66) reported specific age information for each patient, and the age range was reported in two studies (77, 79). Except for two studies (50, 59) that failed to disclose the post-stroke time, the mean course of disease for patients in the other 44 studies (4, 23, 35–49, 51, 52, 54–58, 60–65, 67–80) ranged from 6.9 days to 4.46 years, and two studies (53, 66) reported specific course of disease for each patient. Of the total studies, 39 studies (4, 35–43, 45–48, 51–55, 58–70, 72–74, 77–80) specifically reported that the patients were right-handed, whereas the remaining 9 studies (23, 44, 49, 50, 56, 57, 71, 75, 76) failed to furnish this information. Duration of the intervention in 45 studies (4, 23, 35, 36, 38–40, 42–46, 48–80) spanned from 2 to 4 weeks, except for 2 studies (37, 41) with an intervention duration of 30 days and one (47) with 8 weeks. Regarding the content of the intervention, five studies (49, 50, 59, 71, 80) used rTMS or sTMS alone, and the remaining studies also had aphasia treatment components including SLT, acupuncture, and electroacupuncture (EA). Patients were followed up after treatment in 15 studies (4, 39, 40, 53, 57, 66, 67, 70–74, 77, 78, 80), ranging from 30 days to 12 months.
Adverse events were mentioned in 10 studies (4, 40, 42, 45, 51, 57, 60, 61, 73, 77). Six studies (4, 40, 42, 45, 60, 73) reported headache; three (40, 45, 51) reported dizziness; adverse effects of epilepsy seizures were seen in two studies (61, 77). One study (57) documented the occurrence of adverse events such as disorientation, injuries resulting from falls, and aspiration caused by dysphagia among both control and experimental participants, the ratio of aspiration was the highest in the experimental group (3 cases), and the control group (11 cases), which revealed that the combination of rTMS and speech training could reduce the complications and improve the therapeutic efficiency.
Regarding the NFA type, 16 studies (23, 37, 41, 42, 44, 45, 47–49, 54, 56, 57, 61, 74, 78, 79) included patients with Broca aphasia. Four studies (36, 53, 63, 64) included patients with global aphasia, and 5 studies (39, 43, 72, 73, 76) reported on the number of patients with different types of aphasia. The aphasia types of patients in the three studies (43, 72, 73) were global, Broca’s, and transcortical motor aphasia, and Wang’s (73) study included patients with mixed transcortical aphasia. In addition to the intervention received by the control group, the experimental group in one study (48) received high-frequency TMS (HF-rTMS) on the IFG-L. One study (67) performed bilateral cerebral pulse stimulation, with HF-rTMS (> 1 Hz) stimulating the left cerebral Broca area and low-frequency TMS (≤1 Hz) (LF-rTMS) stimulating the right Broca area; three studies (38, 46, 56) stimulated the right inferior frontal gyrus (IFG-R) with 0.5 Hz. Of the 40 studies with a frequency of 1 Hz, except for one study (53) in which the stimulation site was the right superior temporal gyrus, the stimulation site was the IFG-L. Three of these studies (32, 66, 80) further stimulated Brodmann 45 (pars triangularis) at the site of the IFG-R partition. Three studies (43, 58, 77) proceeded theta burst stimulation (TBS) on patients, one (77) conducted passive cTBS on the cerebellum in patients of the experimental group, and the other two (43, 58) conducted iTBS on the IFG-L. The critical characteristics of the included studies have been summarized in Table 1.
Table 1. Basic characteristics of the included studies.
Methodological quality
The outcomes of the risk-of-bias assessments conducted for each included study are shown in Supplementary Figures S2A,B.
Potential publication bias across the included studies was evaluated based on Egger’s tests in Stata MP 17, with a significance level set at p < 0.1 (Supplementary Table S1).
Meta-analysis
A total of 12 studies were excluded from this meta-analysis due to the following reasons. Specifically, the outcomes of two studies (71, 73) were shown as bar graphs, and two (66, 74) were presented as line charts rather than specific values. Individual outcome indicators in four studies (56, 58, 67, 74) could not be integrated with other studies. Zheng’s (77) date was unacquirable. Data in three studies (62–64) of Zhu was described by Median and quartile which could not be counted. Finally, a total of 35 studies were included.
Aphasia quotient
Fifteen studies (23, 36–38, 41, 42, 44, 46, 51, 52, 57, 59, 61, 65, 75) involving 960 patients assessed aphasia quotient (AQ) in patients after rTMS stimulation. The random-effects model was utilized due to significant heterogeneity across the studies (I2 = 78%). Global language ability of the rTMS-treated group exhibited a substantial improvement in comparison to the control group [p < 0.00001] (Figure 1). Subgroup analysis was conducted according to the stroke stages of patients after removing a study (50) with unidentified stroke duration and another study (75) that patients were in the sequelae stage. The random-effects model was employed for the following studies: three studies (37, 41, 44) with patients in the acute phase [SMD = 1.41, 95% CI (0.91, 1.91), p < 0.00001, I2 = 78%] and 11 studies (23, 36, 38, 42, 46, 51, 52, 57, 59, 61, 65) with patients in the recovery stage [p < 0.00001, I2 = 77%] (Figure 2). Upon conducting sensitivity analysis, the removal of two studies (36, 57) from the subgroup of recovery, the following outcomes were observed: 9 studies (23, 38, 42, 46, 51, 52, 59, 61, 65) of recovery subgroup [p < 0.00001, I2 = 0%] (Figure 3). The findings suggest that rTMS has the potential to enhance the overall language abilities of stroke patients during both acute and recovery phases.
Figure 1. Aphasia quotient after rTMS.
Figure 2. Aphasia quotient after rTMS subgroup analysis according to different stroke stages.
Figure 3. Aphasia quotient of stroke patients in the recovery stage (sensitivity analysis).
Repetition
Twenty-two studies (23, 36–39, 41–44, 46, 48–52, 55, 59, 61, 65, 68, 69, 75) involving 1,228 patients assessed repetition ability in patients after rTMS treatment. The random-effects model was utilized due to significant heterogeneity across the studies (I2 = 85%). Repetition ability of rTMS-treated group exhibited a substantial improvement in comparison to the control group [p < 0.00001] (Figure 4). Subgroup analysis was conducted according to the stroke stages of patients after removing a study (50) with unidentified stroke duration. The random-effects model was employed for the following studies: four studies (37, 41, 44, 59) with patients in the acute stage [p < 0.00001, I2 = 84%]. The fixed-effects model was employed for the following studies: 14 studies (23, 36, 38, 39, 42, 43, 46, 48, 49, 51, 52, 55, 61, 65) with patients in the recovery stage [p < 0.00001, I2 = 41%] and three studies (68, 69, 75) with patients in the sequelae stage [p = 0.005, I2 = 0%] (Figure 5). These findings suggest that rTMS enhance repetition abilities in patients across various stages of stroke recovery. Notably, beyond immediate benefits, rTMS appears to exert medium- to long-term effects on language improvement. For individuals with NFA post-stroke, the positive effects of rTMS on speech enhancement persisted for up to 12 months (66).
Figure 4. Repetition capability after rTMS.
Figure 5. Repetition capability after rTMS subgroup analysis according to different stroke stages.
Naming
Twenty-two (23, 36–38, 41–44, 46, 48–52, 55, 59–61, 65, 68, 69, 75) studies involving 1,229 patients evaluated naming ability in patients after rTMS. The random-effects model was utilized due to significant heterogeneity across the studies (I2 = 86%). Naming ability of the rTMS-treated group exhibited a substantial improvement in comparison to the control group [p < 0.00001] (Figure 6). Subgroup analysis was conducted according to the stroke stages of patients after removing a study (50) with unidentified stroke duration. The random-effects model was employed for the following studies: four studies (37, 41, 44, 59) with patients in the acute stage [p < 0.00001, I2 = 83%]. The fixed-effects model was employed for the following studies: 14 studies (23, 36, 38, 42, 43, 46, 48, 49, 51, 52, 55, 59, 61, 65) with patients in the recovery stage of [p < 0.00001, I2 = 1%] and three studies (68, 69, 75) with patients in the sequelae stage [p = 0.0003, I2 = 0%] (Figure 7). Naming is among the most challenging functions for stroke patients with NFA to regain. The restoration of naming capabilities necessitates the involvement of extensive neural networks, and rTMS has been shown to facilitate the recovery of these abilities across various stages of stroke, primarily by enhancing the connectivity among pertinent brain areas (65).
Figure 6. Naming capability after rTMS.
Figure 7. Naming capability after rTMS subgroup analysis according to different stroke stages.
Spontaneous language
Seventeen studies (4, 23, 36–38, 41, 42, 44, 46, 48, 50–52, 55, 59, 61, 65) involving 1,046 patients assessed spontaneous language ability in patients after rTMS stimulation. The random-effects model was utilized due to significant heterogeneity across the studies (I2 = 67%). Spontaneous language ability of the rTMS-treated group exhibited a substantial improvement in comparison to the control group [p < 0.00001] (Figure 8). Subgroup analysis was conducted according to the stroke stages of patients after removing a study (50) with unidentified stroke duration and another study (75) that patients were in the sequelae stage. The random-effects model was employed for the following studies: four studies (37, 41, 44, 59) with patients in the acute stage [p < 0.00001, I2 = 64%]. The fixed-effects model was utilized for the following studies: 11 studies (23, 36, 38, 42, 46, 48, 51, 52, 55, 61, 65) with patients in the recovery stage [p < 0.00001, I2 = 0%] (Figure 9). These results suggested that rTMS ameliorated spontaneous language capability in patients in acute and recovery stages. Acupuncture therapy constitutes a significant component of complementary and alternative medicine, which has potential therapeutic effects in the treatment of PSA (81). The combined therapeutic application of acupuncture and rTMS on NFA has demonstrated a markedly superior efficacy compared to monotherapy. Specifically, the overall effectiveness of combining 1 Hz rTMS with acupuncture for NFA reached 96.66%, strongly associated with enhanced blood flow velocity and perfusion in the left middle cerebral artery (MCA) (44). Interaction between various acupuncture techniques and rTMS frequencies in producing distinct clinical outcomes warrants further investigation.
Figure 8. Spontaneous language capability after rTMS.

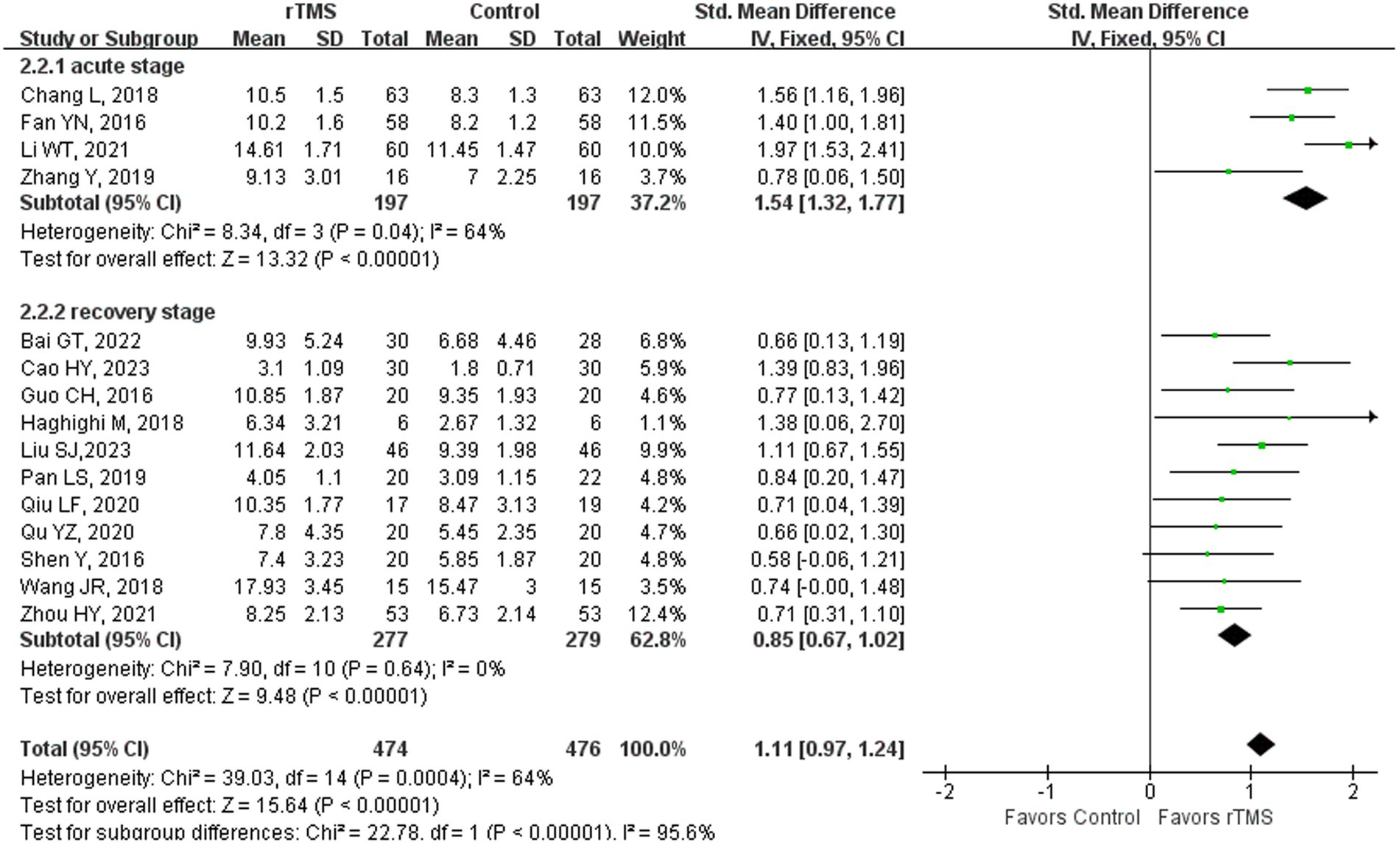

Figure 9. Spontaneous language capability after rTMS subgroup analysis according to different stroke stages.
BDNF
Two studies (43, 65) involving 103 patients assessed the concentration of brain-derived neurotrophic factor (BDNF) within patients. The fixed-effects model was utilized due to low heterogeneity across the studies (I2 = 0%). The rTMS-treated group exhibited a substantial enhancement in serum BDNF concentration in comparison to the control group [p < 0.00001] (Figure 10). The findings indicated that rTMS has the potential to elevate the concentration of BDNF in the serum of stroke patients.
Figure 10. BDNF after rTMS.
Mood
Two studies (48, 49) involving 84 patients used the Hamilton Depression Scale (HAMD) to evaluate the effects of rTMS on mood in stroke patients. The fixed-effects model was utilized due to low heterogeneity across the studies (I2 = 0%). The HAMD score of rTMS group was notably lower in comparison to the control group [p = 0.0005] (Figure 11). The findings indicated that rTMS had potential to ameliorate the depression of these patients.
Figure 11. HAMD after rTMS.
Discussion
Numerous research groups, including those led by Naeser, Hamilton, Heiss, and Thiel, have showcased the effectiveness of rTMS in the treatment of PSA through significant studies. Despite their contributions, these studies were excluded from the review for various reasons. Hamilton’s research indicated that rTMS offers sustained enhancements in picture naming and fluency in patients with NFA. However, limitations included the absence of a control group in one study (82) and crossover of sham group participants to actual rTMS treatment in another (71). Heiss and Thiel observed a delayed beneficial impact of LF-rTMS on the right pars triangularis (R IFG pr) in enhancing naming ability in subacute PSA patients, yet these individuals were not suffering from NFA (83–87). The Naeser team reported improvements in Phrase Length and picture naming on the BNT following the suppression of the posterior R IFG pr through the application of LF-rTMS in NFA patients. Nevertheless, the exclusion was due to the absence of control groups not comprised of stroke patients, rendering it impossible to extract and cross-reference assessment data (88–93).
The present study aimed to provide an updated overview of the current evidence about the efficacy of rTMS in treating NFA. Firstly, this review found that rTMS could improve NFA in stroke patients, evidenced by increased aphasia quotient (AQ) scores in the rTMS group. AQ is an indicator of aphasia severity and serves as a metric for assessing aphasia improvement (94). Subgroup analysis revealed that rTMS significantly enhanced repetition and naming abilities in stroke patients at various stages. Additionally, spontaneous language improvement was noted in both acute and recovery phase patients, although the effects in the sequelae stage require further investigation. In our pursuit to examine studies focusing on the impact of rTMS on language skills, we discovered that several of these studies provided valuable insights beyond our initial scope. Interestingly, this exploration led us to understand that depression alleviation and the increase of BDNF may also benefit from rTMS. Admittedly, these findings are only based on 2 studies (each), and further research is necessary.
Stroke damages brain regions responsible for language expression and auditory comprehension, leading to aphasia, which in turn worsens functional outcomes (95). Aphasia improvement is linked to the rebalancing of activity between the perilesional ipsilateral and contralateral hemispheres, making rTMS a promising method for promoting language recovery (5, 96). The meta-analysis primarily focused on single-site and LF-rTMS stimulation, uncovering a notable association between the activation level of the IFG-R and patients’ fluency (97). Lefaucheur et al. (16) proposed Level B evidence supporting the utilization of LF-rTMS on the IFG-R in patients suffering from NFA, especially when combined with SLT. Both HF-rTMS and LF-rTMS applied to one hemisphere, have demonstrated effectiveness in treating NFA (13). HF-rTMS enhances cerebral cortex excitability and revives bilateral cerebral hemisphere function by stimulating local neurons in the language center (98). However, HF-rTMS can cause intracranial hemorrhage and epilepsy, leading to its limited use in clinical and research settings. In one study (67), bilateral hemispheric stimulation (LF-rTMS applied to the right unaffected Broca’s area and HF-rTMS targeting the left affected Broca’s area) led to significant language function improvements, including repetition, naming, word comprehension, and fluency. These improvements were observed immediately after treatment and lasted for 2 months. Similarly, Vuksanović et al. (99) observed that the integration of cTBS applied to the right hemisphere with iTBS targeting the left, followed by 45 min of SLT, improved various language functions.
Aphasia, a neural network disorder, involves changes in the brain’s functional connections. The reinstatement of the language network structure and function is crucial for restoring language abilities in individuals with aphasia (100). Regional homogeneity (Reho) analysis revealed that in aphasia patients, the activation of the IFG-L and left cuneiform lobe was lower compared to normal subjects, and there was a reduction in the functional connection between the left medial temporal gyrus (MTG-L) and superior temporal gyrus (STG-L) (101). rTMS has been demonstrated to enhance the functional connections between the bilateral frontal lobes and the left temporal lobe (35). Lin et al. (69) investigated the relationship between functional connectivity in language-related regions and language performance. The LF-rTMS group demonstrated significant functional connectivity remodeling, which fostered positive changes in brain plasticity. This aligns with the theory of improving the “Inter-hemispheric competition pattern” (102). Therefore, imaging analysis holds a crucial role in comprehensively assessing disruption and remodeling of the language network following a stroke.
Regarding the risk of bias, Egger’s test results indicated that publication bias was not significant in the language domains such as repetition and overall language proficiency (p > 0.1). However, there was a significant presence of bias in naming and spontaneous speech categories (p < 0.1). Of the seven domains assessed by RevMan 5.4, the domain of random sequence generation exhibited the highest risk of bias.
The review also indicated that rTMS can enhance linguistic functions by increasing serum BDNF levels. BDNF, the most abundant neurotrophin in the cerebrum and predominantly found in the forebrain, is closely associated with cognitive and language functions. It plays a crucial role in facilitating the neuroplasticity process in PSA patients (65). LF-rTMS (43) and iTBS (65) have been shown to elevate BDNF levels in the peripheral serum of the rTMS group, reflecting changes in brain BDNF concentration. Post-stroke depression (PSD) affects 30–60% of stroke survivors (103), which also relates to the language performance of stroke patients (10). Recognized as an effective treatment for depression, rTMS is supported by level A evidence (16). The meta-analysis demonstrated that both LF-rTMS and HF-rTMS significantly reduced depression scores and improved mood in the meta-analysis. Our findings indicate that lower HAMD scores correlate with better linguistic function performance. In conclusion, notable improvements in mood or serum BDNF from rTMS in NFA patients positively influence linguistic functions.
Limitations and future directions
Recognition of numerous constraints is essential in this systematic review. Firstly, the high proportion of Chinese literature may cause some publication bias. Secondly, clinical and methodological heterogeneity among the included literature may influence overall results, including the age of patients and varied rTMS treatment regimens. Thirdly, owing to restrictions on article length, only some meta-analysis findings were reported. In the future, we can discuss the therapeutic effects of different dosages of rTMS and different rTMS approaches, and design accurate rTMS parameters according to aphasia types, combined with functional imaging technology to further explore the related mechanisms.
Conclusion
Collectively, the reviewed literature provides compelling support for the utilization of rTMS as a viable non-pharmacological intervention aiding in the recovery of non-fluent aphasia post-stroke, including the ability of repetition, naming, and spontaneous language which may be accompanied by the improvement of serum BDNF and alleviation in depression in patients.
