Abstract
Brain-Computer Interfaces (BCIs) are devices designed for establishing communication between the central nervous system and a computer. The communication can occur through different sensory modalities, and most commonly visual and auditory modalities are used. Here we propose that BCIs can be expanded by the incorporation of olfaction and discuss the potential applications of such olfactory BCIs. To substantiate this idea, we present results from two olfactory tasks: one that required attentive perception of odors without any overt report, and the second one where participants discriminated consecutively presented odors. In these experiments, EEG recordings were conducted in healthy participants while they performed the tasks guided by computer-generated verbal instructions. We emphasize the importance of relating EEG modulations to the breath cycle to improve the performance of an olfactory-based BCI. Furthermore, theta-activity could be used for olfactory-BCI decoding. In our experiments, we observed modulations of theta activity over the frontal EEG leads approximately 2 s after the inhalation of an odor. Overall, frontal theta rhythms and other types of EEG activity could be incorporated in the olfactory-based BCIs which utilize odors either as inputs or outputs. These BCIs could improve olfactory training required for conditions like anosmia and hyposmia, and mild cognitive impairment.
Introduction
This perspective article is motivated by our interest in an electroencephalography (EEG)-based BCI that incorporates olfaction. Such a BCI could be used for rehabilitation of patients with impaired olfactory function like patients affected by COVID-19 where one of the clinical symptoms is a sudden deterioration of olfaction, with a greater impact on odor detection threshold than on odor identification (Le Bon et al., 2021). EEG is potentially a useful tool for assessing olfactory processing in humans and adding this information to a BCI control loop. Yet, chemosensory event-related potentials (ERPs) are not as prominent as the commonly used mismatch-negativity and P300 responses in the visual and auditory domains, so it is challenging to analyze them. Analyzing odor-induced changes in EEG rhythms is an alternative to using ERPs. Thus, Schriever et al. (2017) analyzed the induced EEG-power changes during the interval 200–2,000 ms after aroma onset in the frequency band 2–6 Hz, and found that these EEG patterns were informative to distinguish people with olfactory impairments from healthy individuals. Those particular time-frequency parameters were chosen based on the previous studies on the chemosensory responses to trigeminal and olfactory nerve stimulation (Huart et al., 2012).
When designing an olfactory-based BCI, it is important to account for respiration, which is a critical component of olfactory processing in animals (Adrian, 1942; Hobson, 1967; Fontanini et al., 2003; Kepecs et al., 2006; Rojas-Líbano et al., 2014; Frederick et al., 2016; Moberly et al., 2018) and in humans determines the periods when odors are processed and memorized, and affects functional brain connectivity, including effects on non-olfactory areas (Fontanini and Bower, 2006; Arshamian et al., 2018; Corcoran et al., 2018; Perl et al., 2019; Kluger and Gross, 2021; Kluger et al., 2021). Although the respiratory cycle is critical for the analysis of EEG activity in this context, respiratory sensors (Johnson et al., 2006; Merritt et al., 2009; Karacocuk et al., 2019; De Fazio et al., 2021) are often missing in the studies of olfactory processing, with some notable exceptions (Haehner et al., 2011; Noguchi et al., 2011; Wang et al., 2014; Zelano et al., 2016). Overall, notwithstanding the progress made in the investigations of how cortical and subcortical activity is related to the respiratory cycle (Kluger and Gross, 2021; Watanabe et al., 2023), more research is needed for better understanding of how respiration and olfaction are integrated.
Olfactory training (OT), where several odors are actively sniffed by a patient on a daily schedule, is an established approach to olfactory rehabilitation (Hummel et al., 2009; Pekala et al., 2016; Sorokowska et al., 2017; Addison et al., 2021). Adding a BCI approach to OT could be a potentially useful tool to improve rehabilitation (Placidi et al., 2015; Zhang et al., 2021; Ninenko et al., 2022). In such a BCI system, neural patterns occurring during processing of odors are decoded from brain recordings and presented to the user as feedback based on an appropriate sensory modality. Yet, it is critical for implementing this type of BCI that neural responses to odors are well-understood and properly decoded. Currently, it is not well-understood how olfactory processing could be incorporated in the design of a BCIs. In particular, it is not understood which brain signals should be sampled and how they should be analyzed and translated into commands that are transmitted to external devices that assist patients with olfactory disabilities (Alonso-Valerdi et al., 2015). This contrasts with the situation with the most successful BCI implementations that rely on user interaction with visual, auditory or somatosensory stimuli. Accordingly, we propose that incorporating olfaction in BCIs should be explored as a potentially powerful way to modulate brain activity.
Our research program on the olfactory BCIs is based on three considerations. First, we suggest that BCIs that interact with an olfactory environment could be useful for neural technologies targeting emotions and relaxation. Second, we suggest that EEG recordings are suitable for decoding olfaction-representing neural activity, such as modulations of EEG rhythms and P300 responses to odors and/or images that match these odors. Third, we reason that the operation of different types of BCIs could be enhanced by adding odors that enrich the sensory stimuli, for example, adding odors to a virtual environment.
Theta activity and olfactory processing
To substantiate our idea of an olfactory-based BCI, here we present our results obtained in a study where theta activity changes were detected in participants who perceived and discriminated odors.
The involvement of theta oscillations in olfactory processing has been extensively studied in animals (Bressler and Freeman, 1980; Buonviso et al., 2006; Kepecs et al., 2006; Kay et al., 2009; Rojas-Líbano et al., 2014). In humans, theta oscillations have been linked to odor processing (Jiang et al., 2017) and working memory for odors (Yang et al., 2021). The involvement of beta and gamma oscillations in olfactory processing has been demonstrated in numerous studies in animals (Adrian, 1942; Rosero and Aylwin, 2011; Lockmann et al., 2018) and in humans, as well (Jung et al., 2006; Iravani et al., 2020, 2021; Yang et al., 2022).
In our experiments, we observed changes in the frontal EEG theta power when healthy participants inhaled different odorants and perceived them (Figure 1A) and when they compared two consecutively presented odors and reported whether or not they were different (Figure 1B).

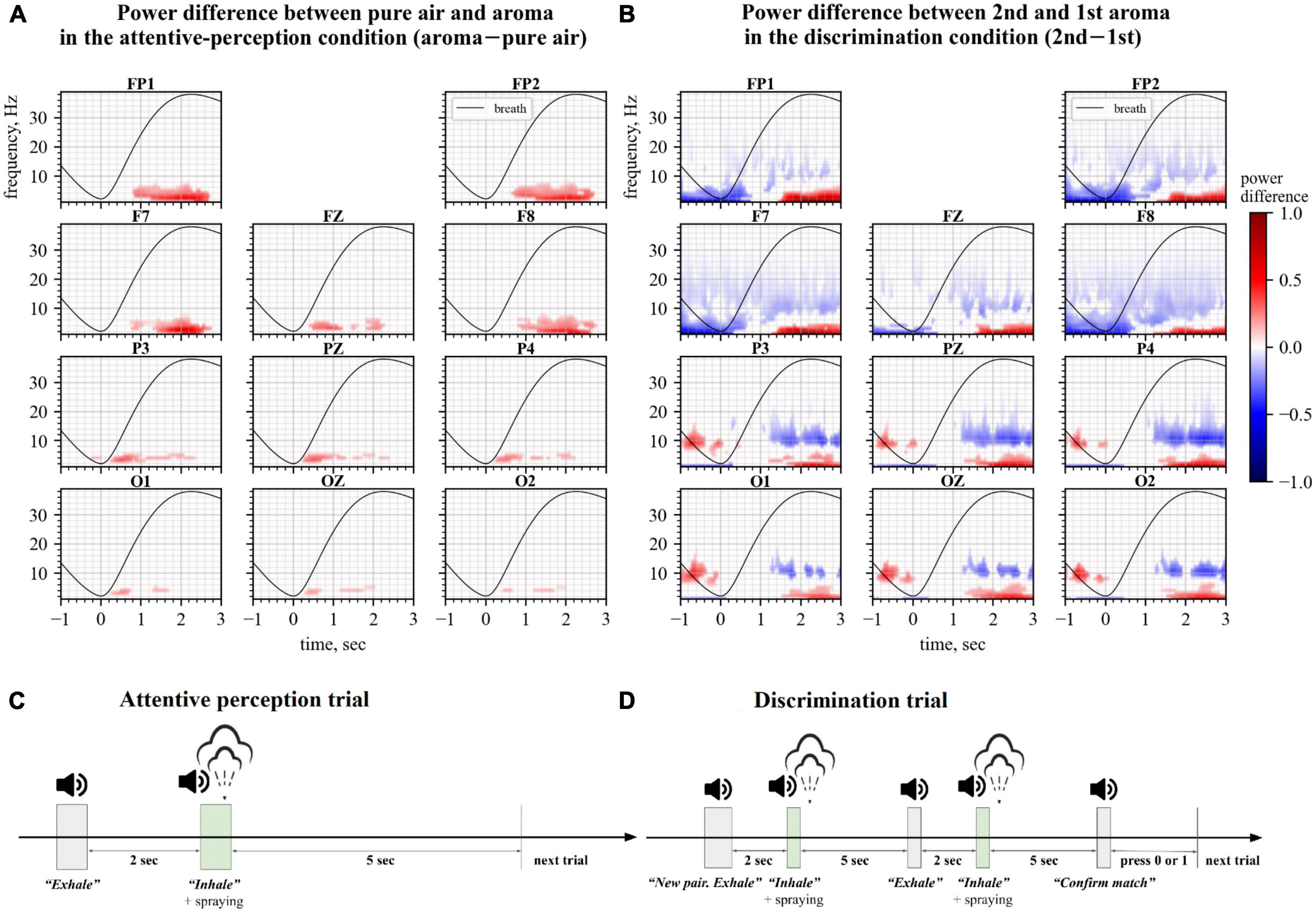

FIGURE 1
An experimental setup for an olfactory-based BCI
In our experimental setup, participants were comfortably seated in front of an Aroma Shooter§ diffuser (Aromajoin Corporation, Kyoto, Japan) T mounted 20 cm from the participant’s nose. The diffuser was equipped with six aroma cartridges, namely caramel, grass, orange, pine, smoke, and mint scents (identification numbers S-SW4, S-GN1, N-CT1, N-WD7, S-IM16, and N-HB21, respectively). During the experiment, participants were asked to keep their eyes open. Respiration was measured with a nasal thermometric breath sensor TRSens (MKS, Moscow, Russia).
Electroencephalography data were collected using an NVX-36 amplifier (MKS, Moscow, Russia). Twenty two EEG channels were recorded according to the international “10–20” system with the sampling frequency of 250 Hz using Ag/AgCl electrodes lubricated by an electrode gel. The ground lead was attached to the FCz site. Two reference electrodes were placed on the left and right earlobes. The electrode impedance was kept below 15 kΩ.
Thirteen healthy participants were recruited (six males and seven females; 24.1 ± 5.8 years old, mean ± SD) who performed tasks that required perceiving and discriminating odors. Experiments were approved by the local Ethics Committee of the Skolkovo Institute of Science and Technology, Moscow. The participants gave informed consent to participate in the study. The participants did not have a history of neurological diseases and reported having no significant changes in the sense of smell in the previous 6-months period. All participants were confirmed to be normosmic using the sniffin’ sticks test with 12 items (SST-12).
The participants were native Russian speakers. Accordingly, during the experimental trials, verbal commands were given in Russian using computer audio.
Perception and discrimination tasks
During the first experimental condition, called attentive perception, participants familiarized themselves with the set of aromas. The condition consisted of 100 trials where their respiration was guided by the commands “Exhale” and “Inhale.” The command “Exhale” was given prior to odor delivery, and the command “Inhale” was issued after an odor was sprayed by the Aroma Shooter§ diffuser using a 0.5 s long spray (Figure 1C). The participants were explained that no odor would be delivered in some trials, and half of the trials were odorless. The participants were instructed to pay attention to their olfactory perceptions, but they were not required to name or discriminate the odors being presented. The participants were not given any information regarding the names of the odors.
During the second experimental condition, called discrimination, participants were required to discriminate odors. This condition included 40–60 trials (median 50 trials), each consisting of the following sequence of steps: (1) an auditory command “New pair”; (2) the commands “Exhale” and “Inhale” followed by a 0.5 s long spray of the first odorant from the diffuser; (3) a 5 s period for the odor to dissipate; (4) the commands “Exhale” and “Inhale” followed by a 0.5 s spray of the second odorant; (5) the command “Confirm match” after which the participant pressed “1” or “0” on the keyboard to report that the first and the second odorants were identical or different, respectively (Figure 1D). The number of trials with the identical odorants in the pair was equal to the number of trials with different odorants.
Analyses of EEG responses
EEG data were split into 4 s long epochs for processing. Each epoch started 1 s before the beginning of the inhale and ended 3 s after it. The beginning of the inhale was determined based on the measurements from the breath sensor. Each epoch was z-score standardized prior to the time-frequency analysis. Time-frequency analysis of the epochs was performed using the Morlet continuous wavelet transform (CWT) with the initial spread of the Gaussian wavelet set at 2.5/πω0 (where ω0 is the central frequency of the wavelet). CWT was applied to a single epoch in the 1–40 Hz frequency band. To calculate event-related spectral perturbations (ERSPs), average time-frequency maps were calculated for the absolute values of the signal. Cluster-level statistical permutation test (Maris and Oostenveld, 2007) with Kruskal-Wallis H-statistic as the test statistic was applied to all collected epochs to compare time-frequency maps for odor and no-odor trials of the Random condition and the first and second odorants of the Matrix condition. For the detected statistically significant clusters, average power across all electrodes was calculated for each epoch. Verification of distribution normality was carried out using D’Agostino-Pearson test, non-parametric tests were used in case of deviations from normality. We compared the sets of average cluster powers for each participant using Mann-Whitney-Wilcoxon test with Bonferroni correction (Figures 2A, B), and also compared averaged across trials cluster powers for each participant using t-test for paired samples (Figures 2C, D).

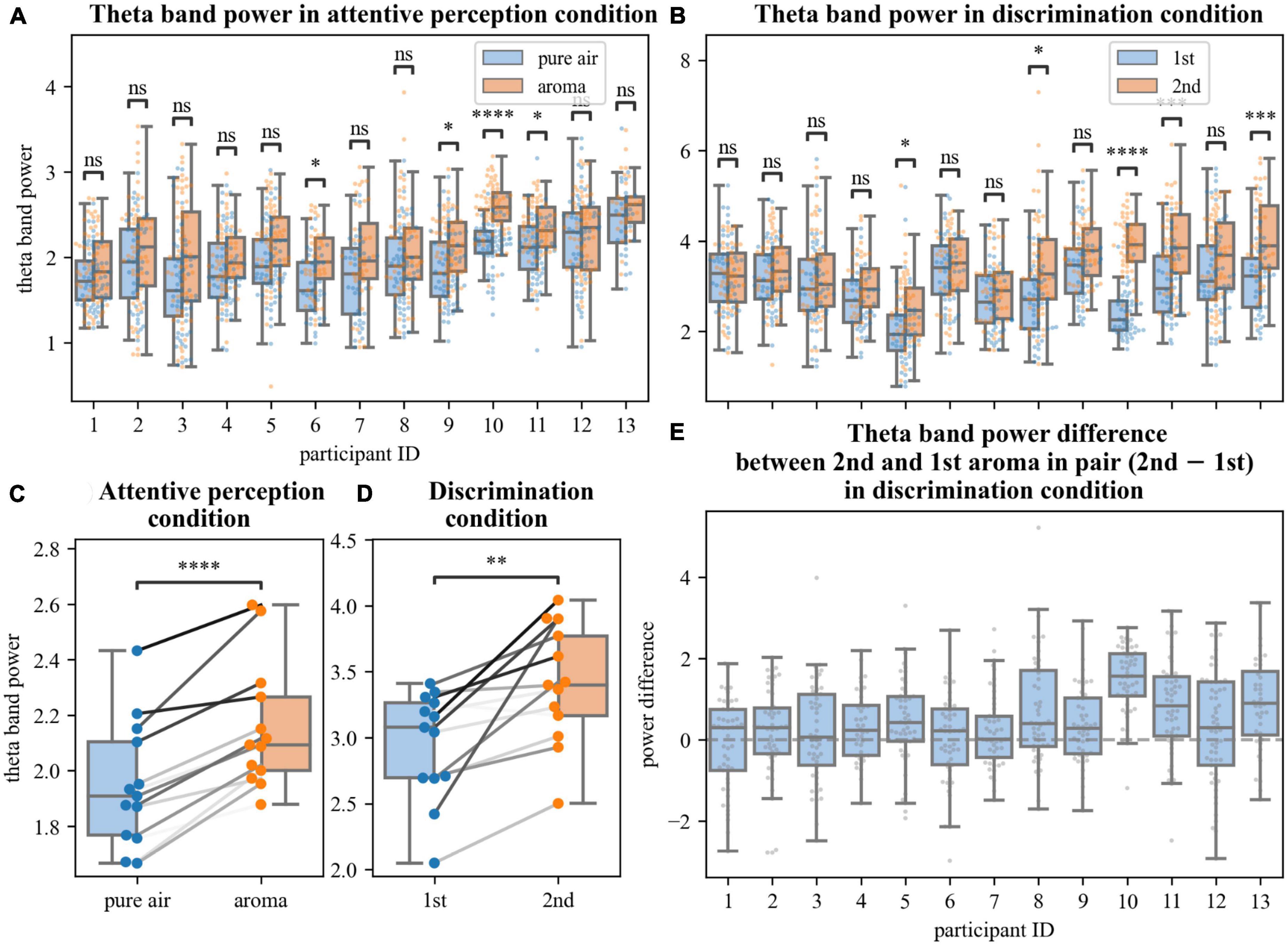

FIGURE 2
A cluster-level statistical permutation test was applied to compare CWT time-frequency maps of the odor and no-odor trials for the attentive-perception exercise. We found a significant increase in the frontal theta-range activity during the odor presentation trials as compared to the no-odor trials (cluster-level statistical permutation test, p-value = 0.03). This increase occurred during the interval from 1.5 to 2.5 s relative to the inhale onset (Figure 1A). We calculated and averaged across trials mean power in the statistically significant theta-range cluster and found a statistically significant difference in the mean theta power when the odor and no-odor trials were compared. A 10.5% increase in the theta power was observed in odor trials on average (no deviations from normality; t-test paired samples, p-value = 5.615e–06, t-statistic = –7.691; Figure 2C).
We compared CWT time-frequency maps for the first and second odors epochs of the discrimination condition. We found a significant increase in the frontal theta activity and besides the changes in the theta activity, we found a slight decrease in beta power during the second odor (cluster-level statistical permutation test, p-value = 0.1, Figure 1B). The calculated and averaged across trials mean power in the theta-range cluster was statistically significantly higher during the second odor (no deviations from normality; t-test paired samples, p-value = 2.340e–03; t-statistic = –3.843; Figure 2D) with a 14.2% increase on average.
Discussion
Here we proposed developing an olfactory-based BCI. As the first step toward such a system, we constructed an experimental setup where subjects perceived and discriminated consecutively presented odors while their EEG activity was sampled. Under these experimental conditions, we found a significant increase in the frontal theta power during the period when healthy participants inhaled odorants as compared to inhaling air without any odorants for all participants (Figures 1A, 2A, C). We also found a significant increase in the theta power when the participants compared two consecutively presented odorants and reported whether or not they were different (Figures 1B, 2B, D, E). These EEG changes are suitable for decoding characteristics of olfactory processing using a BCI.
The correlations of the theta power with, firstly, the presence/absence of aroma and, secondly, cognitive load provide the opportunity to use the theta power as an objective EEG-based metric for a machine learning model used in a BCI. The model can be adjusted to give an objective score to estimate the threshold of perception of a smell and the level of focus to an olfactory task. We suppose that changes in theta power during the odor perception throughout the long-term olfactory rehabilitation process may also be a monitored metric to control rate and degree of olfactory system recovery.
These results could be extended to building an olfactory-based BCI where frontal theta-power changes related to perceived odors are converted into an output signal (e.g., visual feedback). Thus, there may be a BCI-based training of olfactory system where the participant’s task will be to focus on perceived aromas and produce the most significant visual feedback (for example, circle with size or/and transparency defined by the power of theta response during the odor perception). Conversely, frontal theta-power could be converted into an olfactory neurofeedback where odor type and intensity represent changes in the EEG so that, for example, the bigger the theta power during the odor perception the smaller amount of aroma will be sprayed in the next iteration. Such BCIs could be useful for rehabilitation of people with olfactory disabilities. Additionally, rehabilitation of age-related mild cognitive impairment is also a potential field of application.
Statements
Data availability statement
The raw data supporting the conclusions of this article will be made available by the authors, without undue reservation.
Ethics statement
The studies involving human participants were reviewed and approved by Local Ethics Committee of the Skolkovo Institute of Science and Technology. The patients/participants provided their written informed consent to participate in this study.
Author contributions
VB contributed to constructing the experimental setup and writing the software. MM, AB, and ML equally contributed to the development of the experiment design, data collection and analysis, and writing of the manuscript. All authors contributed to the article and approved the submitted version.
Funding
This work was supported by the Russian Science Foundation under grant no. 21-75-30024.
Conflict of interest
VB was employed by VIBRAINT RUS LLC, the company that developed the software that implemented olfactory exercises. He only contributed to constructing the experimental setup and writing the software but did not conduct the experiments and data analysis, which assured that VB and the company had no influence on the reported results. The remaining authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Publisher’s note
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
References
1
AddisonA. B.WongB.AhmedT.MacchiA.KonstantinidisI.HuartC.et al (2021). Clinical olfactory working group consensus statement on the treatment of postinfectious olfactory dysfunction.J. Allergy Clin. Immunol.1471704–1719. 10.1016/j.jaci.2020.12.641
2
AdrianE. D. (1942). Olfactory reactions in the brain of the hedgehog.J. Physiol.100459–473.
3
Alonso-ValerdiL. M.Salido-RuizR. A.Ramirez-MendozaR. A. (2015). Motor imagery based brain–computer interfaces: An emerging technology to rehabilitate motor deficits.Neuropsychologia79354–363.
4
ArshamianA.IravaniB.MajidA.LundströmJ. N. (2018). Respiration modulates olfactory memory consolidation in humans.J. Neurosci.3810286–10294. 10.1523/JNEUROSCI.3360-17.2018
5
BresslerS. L.FreemanW. J. (1980). Frequency analysis of olfactory system EEG in cat, rabbit, and rat.Electroencephalogr. Clin. Neurophysiol.5019–24. 10.1016/0013-4694(80)90319-3
6
BuonvisoN.AmatC.LitaudonP. (2006). Respiratory modulation of olfactory neurons in the rodent brain.Chem. Senses31145–154. 10.1093/chemse/bjj010
7
CorcoranA. W.PezzuloG.HohwyJ. (2018). Commentary: Respiration-entrained brain rhythms are global but often overlooked.Front. Syst. Neurosci.12:25. 10.3389/fnsys.2018.00025
8
De FazioR.StabileM.De VittorioM.VelázquezR.ViscontiP. (2021). An overview of wearable piezoresistive and inertial sensors for respiration rate monitoring.Electronics10:2178. 10.3390/electronics10172178
9
FontaniniA.BowerJ. M. (2006). Slow-waves in the olfactory system: An olfactory perspective on cortical rhythms.Trends Neurosci.29429–437. 10.1016/j.tins.2006.06.013
10
FontaniniA.SpanoP.BowerJ. M. (2003). Ketamine-xylazine-induced slow (< 1.5 Hz) oscillations in the rat piriform (olfactory) cortex are functionally correlated with respiration.J. Neurosci.237993–8001. 10.1523/JNEUROSCI.23-22-07993.2003
11
FrederickD. E.BrownA.BrimE.MehtaN.VujovicM.KayL. M. (2016). Gamma and beta oscillations define a sequence of neurocognitive modes present in odor processing.J. Neurosci.367750–7767. 10.1523/JNEUROSCI.0569-16.2016
12
HaehnerA.GruenewaldG.DiBenedettoM.HummelT. (2011). Responses to olfactory and intranasal trigeminal stimuli: Relation to the respiratory cycle.Neuroscience175178–183. 10.1016/j.neuroscience.2010.11.038
13
HobsonJ. A. (1967). Respiration and EEG Synchronization in the Frog.Nature213988–989. 10.1038/213988a0
14
HuartC.LegrainV.HummelT.RombauxP.MourauxA. (2012). Time-Frequency analysis of chemosensory event-related potentials to characterize the cortical representation of odors in humans.PLoS One7:e33221. 10.1371/journal.pone.0033221
15
HummelT.RissomK.RedenJ.HähnerA.WeidenbecherM.HüttenbrinkK.-B. (2009). Effects of olfactory training in patients with olfactory loss.Laryngoscope119496–499. 10.1002/lary.20101
16
IravaniB.ArshamianA.OhlaK.WilsonD. A.LundströmJ. N. (2020). Non-invasive recording from the human olfactory bulb.Nat. Commun.11:648. 10.1038/s41467-020-14520-9
17
IravaniB.SchaeferM.WilsonD. A.ArshamianA.LundströmJ. N. (2021). The human olfactory bulb processes odor valence representation and cues motor avoidance behavior.Proc. Natl. Acad. Sci. U.S.A.118:e2101209118. 10.1073/pnas.2101209118
18
JiangH.SchueleS.RosenowJ.ZelanoC.ParviziJ.TaoJ. X.et al (2017). Theta oscillations rapidly convey odor-specific content in human piriform cortex.Neuron94207.e4–219.e4. 10.1016/j.neuron.2017.03.021
19
JohnsonB. N.RussellC.KhanR. M.SobelN. (2006). A comparison of methods for sniff measurement concurrent with olfactory tasks in humans.Chem. Senses31795–806. 10.1093/chemse/bjl021
20
JungJ.HudryJ.RyvlinP.RoyetJ.-P.BertrandO.LachauxJ.-P. (2006). Functional significance of olfactory-induced oscillations in the human amygdala.Cereb. Cortex161–8. 10.1093/cercor/bhi090
21
KaracocukG.HöflingerF.ZhangR.ReindlL.LauferB.MollerK.et al (2019). Inertial Sensor-based respiration analysis.IEEE Trans. Instrum. Meas684268–4275. 10.1109/TIM.2018.2889363
22
KayL. M.BeshelJ.BreaJ.MartinC.Rojas-LíbanoD.KopellN. (2009). Olfactory oscillations: The what, how and what for.Trends Neurosci.32207–214. 10.1016/j.tins.2008.11.008
23
KepecsA.UchidaN.MainenZ. F. (2006). The sniff as a unit of olfactory processing.Chem. Senses31167–179. 10.1093/chemse/bjj016
24
KlugerD. S.GrossJ. (2021). Respiration modulates oscillatory neural network activity at rest.PLoS Biol.19:e3001457. 10.1371/journal.pbio.3001457
25
KlugerD. S.BalestrieriE.BuschN. A.GrossJ. (2021). Respiration aligns perception with neural excitability.eLife10:e70907. 10.7554/eLife.70907
26
Le BonS.-D.PisarskiN.VerbekeJ.PrunierL.CavelierG.ThillM.-P.et al (2021). Psychophysical evaluation of chemosensory functions 5 weeks after olfactory loss due to COVID-19: A prospective cohort study on 72 patients.Eur. Arch. Otorhinolaryngol.278101–108. 10.1007/s00405-020-06267-2
27
LockmannA. L. V.LaplagneD. A.TortA. B. L. (2018). Olfactory bulb drives respiration-coupled beta oscillations in the rat hippocampus.Eur. J. Neurosci.482663–2673. 10.1111/ejn.13665
28
MarisE.OostenveldR. (2007). Nonparametric statistical testing of EEG- and MEG-data.J. Neurosci. Methods164177–190. 10.1016/j.jneumeth.2007.03.024
29
MerrittC. R.NagleH. T.GrantE. (2009). Textile-based capacitive sensors for respiration monitoring.IEEE Sens. J.971–78. 10.1109/JSEN.2008.2010356
30
MoberlyA. H.SchreckM.BhattaraiJ. P.ZweifelL. S.LuoW.MaM. (2018). Olfactory inputs modulate respiration-related rhythmic activity in the prefrontal cortex and freezing behavior.Nat. Commun.9:1528. 10.1038/s41467-018-03988-1
31
NinenkoI.KleevaD.BukreevN.GritsenkoG.LebedevM. (2022). “Brain-computer interface for olfaction: Detecting olfactory related EEG components,” in Proceedings of the 2022 Fourth international conference neurotechnologies and neurointerfaces (CNN), (Piscataway, NJ: IEEE), 108–110. 10.1109/CNN56452.2022.9912520
32
NoguchiD.SugimotoS.BannaiY.OkadaK. (2011). “Time characteristics of olfaction in a single breath,” in Proceedings of the SIGCHI conference on human factors in computing systems CHI ’11, (New York, NY: Association for Computing Machinery), 83–92. 10.1145/1978942.1978956
33
PekalaK.ChandraR. K.TurnerJ. H. (2016). Efficacy of olfactory training in patients with olfactory loss: A systematic review and meta-analysis.Int. Forum Allergy Rhinol.6299–307. 10.1002/alr.21669
34
PerlO.RaviaA.RubinsonM.EisenA.SorokaT.MorN.et al (2019). Human non-olfactory cognition phase-locked with inhalation.Nat. Hum. Behav.3501–512. 10.1038/s41562-019-0556-z
35
PlacidiG.AvolaD.PetraccaA.SgallariF.SpezialettiM. (2015). Basis for the implementation of an EEG-based single-trial binary brain computer interface through the disgust produced by remembering unpleasant odors.Neurocomputing160308–318. 10.1016/j.neucom.2015.02.034
36
Rojas-LíbanoD.FrederickD. E.EgañaJ. I.KayL. M. (2014). The olfactory bulb theta rhythm follows all frequencies of diaphragmatic respiration in the freely behaving rat.Front. Behav. Neurosci.8:214. 10.3389/fnbeh.2014.00214
37
RoseroM. A.AylwinM. L. (2011). Sniffing shapes the dynamics of olfactory bulb gamma oscillations in awake behaving rats.Eur. J. Neurosci.34787–799. 10.1111/j.1460-9568.2011.07800.x
38
SchrieverV. A.HanP.WeiseS.HöselF.PellegrinoR.HummelT. (2017). Time frequency analysis of olfactory induced EEG-power change.PLoS One12:e0185596. 10.1371/journal.pone.0185596
39
SorokowskaA.DrechslerE.KarwowskiM.HummelT. (2017). Effects of olfactory training: A meta-analysis.Rhinology5517–26. 10.4193/Rhino16.195
40
WangJ.SunX.YangQ. X. (2014). Methods for olfactory fMRI studies: Implication of respiration.Hum. Brain Mapp.353616–3624. 10.1002/hbm.22425
41
WatanabeT.ItagakiA.HashizumeA.TakahashiA.IshizakaR.OzakiI. (2023). Observation of respiration-entrained brain oscillations with scalp EEG.Neurosci. Lett.797:137079. 10.1016/j.neulet.2023.137079
42
YangA. I.DikecligilG. N.JiangH.DasS. R.SteinJ. M.SchueleS. U.et al (2021). The what and when of olfactory working memory in humans.Curr. Biol.314499–4511. 10.1016/j.cub.2021.08.004
43
YangQ.ZhouG.NotoT.TemplerJ. W.SchueleS. U.RosenowJ. M.et al (2022). Smell-induced gamma oscillations in human olfactory cortex are required for accurate perception of odor identity.PLoS Biol.20:e3001509. 10.1371/journal.pbio.3001509
44
ZelanoC.JiangH.ZhouG.AroraN.SchueleS.RosenowJ.et al (2016). Nasal respiration entrains human limbic oscillations and modulates cognitive function.J. Neurosci.3612448–12467. 10.1523/JNEUROSCI.2586-16.2016
45
ZhangX.-N.MengQ.-H.ZengM.HouH.-R. (2021). Decoding olfactory EEG signals for different odor stimuli identification using wavelet-spatial domain feature.J. Neurosci. Methods363:109355. 10.1016/j.jneumeth.2021.109355
