Crystal polymorphism in fragment-based lead discovery of ligands of the catalytic domain of UGGT, the glycoprotein folding quality control checkpoint

None of the current data processing pipelines for X-ray crystallography fragment-based lead discovery (FBLD) consults all the information available when deciding on the lattice and symmetry (i.e., the polymorph) of each soaked crystal. Often, X-ray crystallography FBLD pipelines either choose the polymorph based on cell volume and point-group symmetry of the X-ray diffraction data or leave polymorph attribution to manual intervention on the part of the user. Thus, when the FBLD crystals belong to more than one crystal polymorph, the discovery pipeline can be plagued by space group ambiguity, especially if the polymorphs at hand are variations of the same lattice and, therefore, difficult to tell apart from their morphology and/or their apparent crystal lattices and point groups. In the course of a fragment-based lead discovery effort aimed at finding ligands of the catalytic domain of UDP–glucose glycoprotein glucosyltransferase (UGGT), we encountered a mixture of trigonal crystals and pseudotrigonal triclinic crystals—with the two lattices closely related. In order to resolve that polymorphism ambiguity, we have written and described here a series of Unix shell scripts called CoALLA (crystal polymorph and ligand likelihood-based assignment). The CoALLA scripts are written in Unix shell and use autoPROC for data processing, CCP4-Dimple/REFMAC5 and BUSTER for refinement, and RHOFIT for ligand docking. The choice of the polymorph is effected by carrying out (in each of the known polymorphs) the tasks of diffraction data indexing, integration, scaling, and structural refinement. The most likely polymorph is then chosen as the one with the best structure refinement R_free statistic. The CoALLA scripts further implement a likelihood-based ligand assignment strategy, starting with macromolecular refinement and automated water addition, followed by removal of the water molecules that appear to be fitting ligand density, and a final round of refinement after random perturbation of the refined macromolecular model, in order to obtain unbiased difference density maps for automated ligand placement. We illustrate the use of CoALLA to discriminate between H3 and P1 crystals used for an FBLD effort to find fragments binding to the catalytic domain of Chaetomium thermophilum UGGT.

1 Introduction

There is an urgent medical need to develop novel antiviral drugs, as exemplified by the recent Ebola, Zika, and SARS-CoV-2 outbreaks (Pardi and Weissman, 2020). In particular, an FDA-approved host-targeting broad-spectrum antiviral could revolutionize the treatment of existing and newly emerging viruses (Dwek et al., 2022). Recent works elucidating the structures of key endoplasmic reticulum (ER) enzymes assisting the folding of viral glycoproteins have opened new avenues for identifying novel antivirals (Caputo et al., 2016; Roversi et al., 2017; Warfield et al., 2020).

Host-targeting broad-spectrum antivirals are a possibility because many viruses hijack the same host enzymes during their life cycle (Oksenych and Kainov (2022). For example, the envelope glycoproteins of many viruses are exquisitely dependent on calnexin-mediated folding, a process enabled by the action of the ER endoplasmic reticulum enzyme UDP–Glc glycoprotein glucosyltransferase (UGGT) and the ER alpha glucosidases I and II (D’Alessio et al., 2010). ER alpha glucosidases I and II usher client proteins in and out of the calnexin cycle, which is part of the glycoprotein folding quality control in the ER, whilst UGGT plays a key role in retaining misfolded glycoproteins in the ER for a “second chance” at folding correctly (Hammond et al., 1994).

One of the more advanced strategies for host-targeting broad-spectrum antiviral drug development is focusing on iminosugars as active site inhibitors of the ER alpha glucosidases (Alonzi et al., 2017; Tyrrell et al., 2017). However, as carbohydrate mimics, iminosugar inhibitors of the ER alpha glucosidases have some undesired off-target effects, as they also inhibit certain other carbohydrate processing enzymes within the human host (Sayce et al., 2016). A new class of molecules inhibiting host glycoprotein folding enzymes that viruses depend upon would have great potential for antiviral therapy (Karade et al., 2021). To complement a programme of development of new allosteric ER alpha glucosidase inhibitors with fewer off-target effects, we endeavoured to investigate the potential of UGGT, the major calnexin cycle misfold sensor (Trombetta et al., 1989), as a novel antiviral target (Tax et al., 2019). Currently, no UGGT inhibitors are known other than the product UDP (Trombetta and Helenius, 1999) and the UDP–glucose analogue UDP-2-deoxy-2-fluoro-D-glucose (U2F), neither of which is selective for UGGT.

One effective strategy to broaden the knowledge of the chemical space of a given protein target is fragment-based lead discovery (FBLD), a sequence of experiments enabling the extraction of ligands of a chosen target macromolecule from a chemical library (Ciulli et al., 2006; Murray and Blundell, 2010; Chen et al., 2015; Müller et al., 2022). Whenever crystals of the target macromolecule reliably diffract to near-atomic resolution, single-crystal X-ray crystallography is one of the main techniques successfully used for FBLD (Ciulli et al., 2006; Murray and Blundell, 2010; Radoux et al., 2016; Müller et al., 2022).

We recently determined crystal structures of the ER glycoprotein folding quality control checkpoint enzyme, the UDP-Glc glycoprotein glucosyltransferase of Chaetomium thermophilum (CtUGGT) (Roversi et al., 2017). As well as a potential drug target against viruses (Dalziel et al., 2014), UGGT could be a target for compounds rescuing slightly misfolded and yet active glycoprotein mutants in certain instances of congenital rare disease (Amara et al., 1992) and against some cancers (Tax et al., 2019). We set out to find small-molecule ligands for this target via X-ray crystallography FBLD.

We could not crystallise the GT24 catalytic domain of human UGGT—so we used crystals of the GT24 catalytic domain of CtUGGT (hereinafter CtUGGT_GT24) instead. The sequence of this fungal UGGT has about 70% similarity and 60% identity to the ones of the same domain of the two human UGGT isoforms (UGGT1 and UGGT2, see Figure 1) so that any ligands found with the crystals of CtUGGT would likely bind the human enzymes too—paving the way to a medicinal chemistry program towards modulators of human UGGT activity. In order to avoid fragments that would bind to the UDP–Glc pocket (and would then likely have some off-target affinity for a number of human glucosyltransferases using the same co-factor (Albesa-Jové and Guerin, 2016), the crystals used for the FBLD study were grown in the presence of Ca²⁺ and UDP–Glc (hereinafter CtUGGT_GT24^UDP−Glc).

FIGURE 1

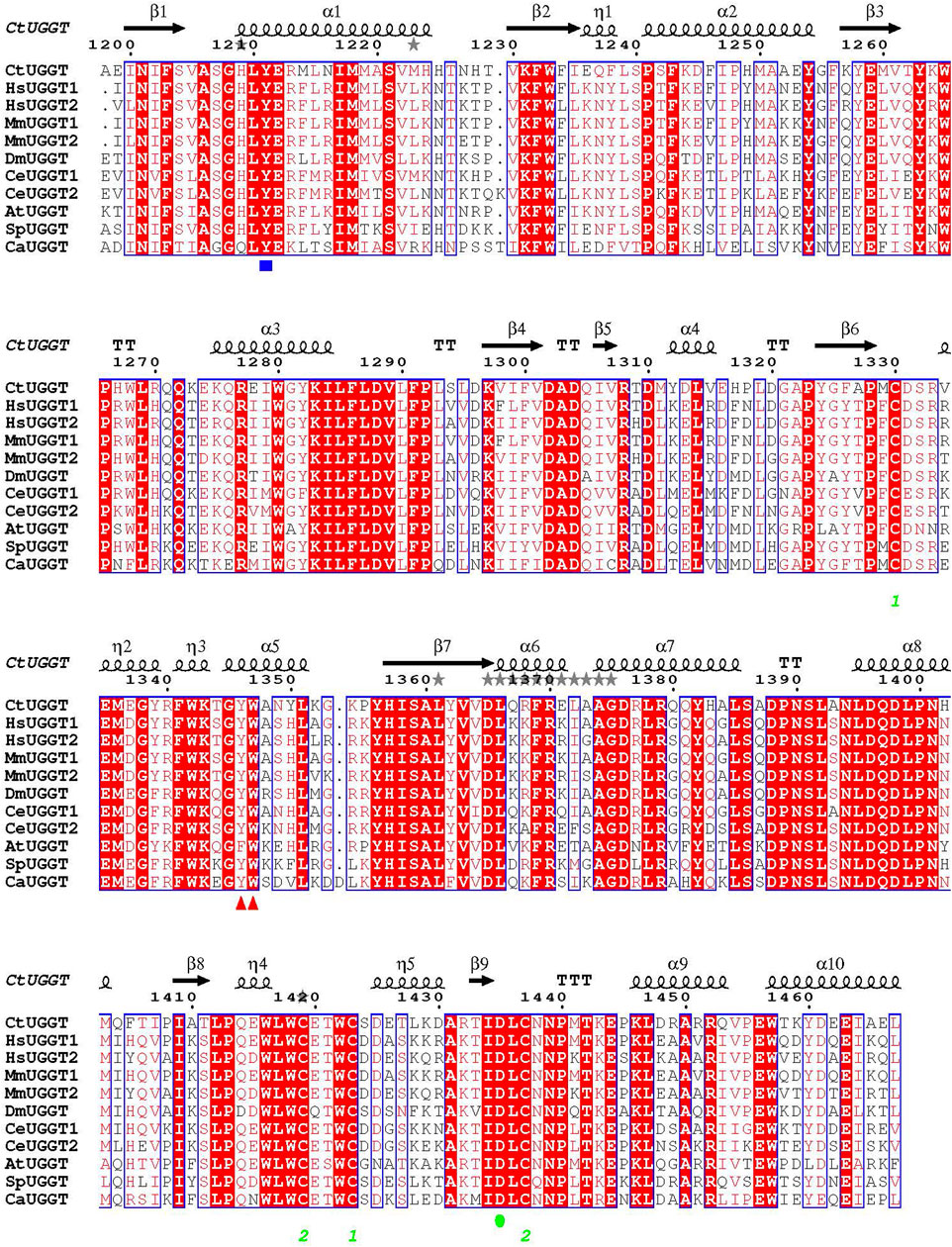

FIGURE 1. Sequence alignment of GT24 domains of a few eukaryotic UGGTs. Ct: Chaetomium thermophilum; Hs: Homo sapiens; Mm: Mus musculus; At: Arabidopsis thaliana; Ce: Caenorhabditis elegans; Dm: Drosophila melanogaster; Sp: Schizosaccharomyces pombe; Ca: Candida albicans. The CtUGGT D1302 and D1304 residues coordinating the catalytic Ca²⁺ ion are completely conserved across these sequences. Red triangles mark the CtUGGT ¹³⁴⁶WY¹³⁴⁷ clamp. A blue square marks the position of CtUGGT Y1211 (coordinating the UDP–Glc uracyl ring). A green circle marks the position of CtUGGT D1435 (coordinating the Ca²⁺ ion).

The CtUGGT_GT24^UDP−Glc crystals turned out to belong to two different polymorphs. Crystal polymorphism refers to the growth of crystals of the same compound belonging to different crystal forms. Each of the crystal forms for the same compound is referred to as one of its crystal polymorphs. All polymorphs contain the same molecule, but each polymorph has its own distinct crystal lattice and/or space group symmetry and/or asymmetric unit contents (Buerger, 1936a; Buerger, 1936b). A number of different polymorphs can grow from a few related crystallisation conditions—or even from crystallisation solutions that are nominally the same but experience slight stochastic variations in variables such as temperature, rate of evaporation, and impurities (Jurnak, 1985; Carter et al., 1994; Zabara et al., 2011; Yekwa et al., 2017).

The occurrence of crystal polymorphism during FBLD efforts is not uncommon. For example, in a recent crystallographic screening project, 364 diffraction datasets were collected each from a crystal individually soaked with one compound from a library; of these, 16 crystals belonged to the orthorhombic P2₁2₁2₁ space group instead of the common monoclinic P2₁ form; the two unit cells were also closely related (Schiebel et al., 2016). It is of note that systematic exploration of crystal polymorphism prior to FBLD can be of great advantage: the best diffracting polymorph can be selected, and various lattices expose different potential drug-binding sites (Vera et al., 2013). Unfortunately, implementation of polymorph assignment in automated FBLD data processing pipelines still leaves some to be desired.

For example, the XCE FBLD X-ray data processing pipeline used at Diamond Light Source (Krojer et al., 2017; Collins et al., 2018; Douangamath et al., 2021; Pearce et al., 2022) decides on the crystal polymorph using a comparison of point group symmetry and cell (ignoring the information encoded by the known polymorph atomic models), or it leaves polymorph attribution to manual intervention on the part of the user. The FBLD efforts at the BESSY and MAXIV synchrotrons use FragMAXapp for data processing (Lima et al., 2021); at EMBL Grenoble, the CRIMS suite is a large-scale, automated fragment screening pipeline enabling evaluation of libraries of over 1,000 fragments (Cornaciu et al., 2021); the IspyB system used at some synchrotrons allows for data integration and storage in alternative lattices in parallel, specifically to address the possibility of multiple polymorphs (Monaco et al., 2013); the FBLD efforts at the Swiss Light Source (SLS) rely on the FFCS processing pipeline (Kaminski et al., 2022). Regrettably, none of these FBLD data processing systems has a mechanism in place for automated polymorph assignment.

Overall, current implementations of the FBLD discovery process can be plagued by space group and cell ambiguity, especially if the polymorphs at hand are variations of the same lattice and, therefore, difficult to tell apart from their morphology and/or their apparent crystal lattices and point groups.

In order to expedite the analysis of the CtUGGT_GT24^UDP−Glc FBLD X-ray diffraction datasets, we have written and described here a series of Unix shell scripts called CoALLA (crystal polymorph and ligand likelihood-based Assignment). The CoALLA scripts are written in Unix shell and use autoPROC (Vonrhein et al., 2011) for data processing, CCP4-Dimple/REFMAC5 (Murshudov et al., 2011; Winn et al., 2011; Keegan et al., 2015) and BUSTER (Blanc et al., 2004; Bricogne et al., 2017) for refinement, and RHOFIT (Vonrhein et al., 2011) for ligand placement.

Unique to CoALLA is the implementation of the choice of the polymorph, which is effected by carrying out diffraction data indexing, integration, scaling, and structural refinement in each of the possible polymorphs. The most likely polymorph is then chosen based on the best structure refinement statistics.

2 CtUGGT_GT24^UDP−Glc crystal structure

The crystals of CtUGGT_GT24^UDP−Glc used for the FBLD effort belonged to the space group H3 (with cell edges a = b = 118.8 Å  and c = 68.8 Å  (cyan cell in Figures 2A,B, PDB ID 6FSN)) with one molecule per asymmetric unit. The crystals likely capture a conformation of UDP–Glc following initial binding to the protein: the co-factor’s ribose ring points towards the solvent (Figure 3A). The uracyl ring O4 atom accepts a hydrogen bond from the main chain NH of S1207, and its N₃ atom donates one hydrogen bond to the main chain O of the same residue (top of Figure 3A). Half of the coordination sphere of the Ca²⁺ ion in the CtUGGT_GT24 active site is occupied by the side chains from D1302 and D1304 belonging to the UGGT conserved ¹³⁰²DAD¹³⁰⁴ motif) and the side chain of the conserved D1435; the remaining three sites are occupied by an O atom from the β phosphate of UDP–Glc, the O2′ atom of the Glc ring, and a water molecule (Figure 3A).

FIGURE 2

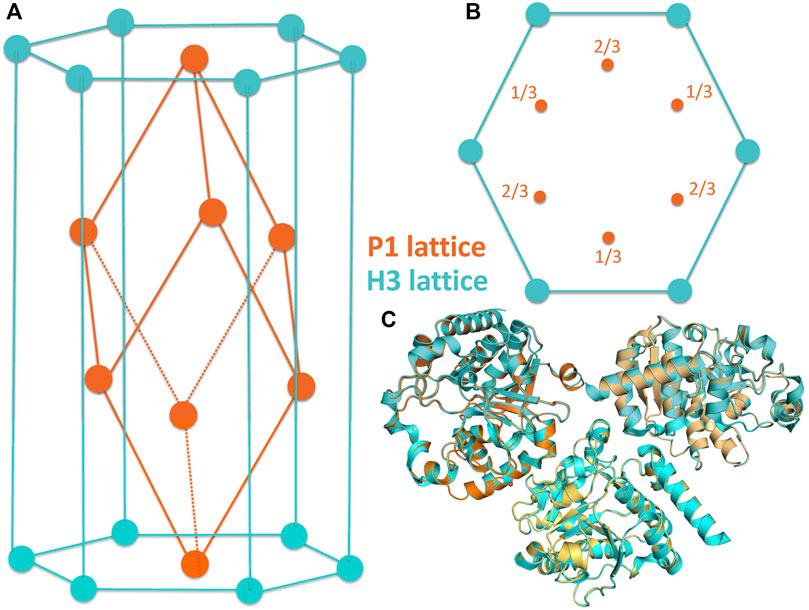

FIGURE 2. (A,B) Related crystal symmetries and lattices of the H3 (cyan) and P1 (orange) crystal forms of the CtUGGT_GT24 crystals. (C)The molecule in the asymmetric unit of the H3 crystal is shown, together with two of its symmetry mates (cyan), in cartoon representation. This portion of the H3 lattice has been overlaid onto the asymmetric unit of the P1 crystals (three chains, painted orange, light orange, and yellow-orange; also in cartoon representation) by superposing the “A” of the H3 crystal to the “A” chain in the P1 crystal.

FIGURE 3

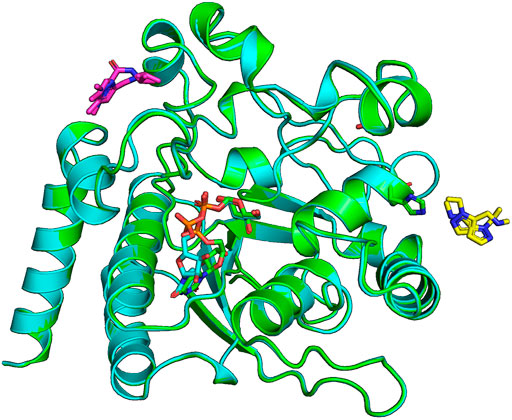

FIGURE 3. CtUGGT_GT24^UDP−Glc  and CtUGGT_GT24^5M−8OH−Q crystal structures. (A) CtUGGT_GT24^UDP−Glc (PDB ID 6FSN). Protein atoms in stick representation; C cyan (but UDP–Glc C magenta), O red, N blue, P orange. H-bonds and Ca-coordination bonds are in yellow dashed lines. At the top, the residues coordinating the uracyl ring: the side chain of CtUGGT Y1211 and the main chain of S1207. At the bottom, the Ca²⁺ ion is a green sphere, and its coordinating water molecules are red spheres. The side chains of residues D1302, D1304, and D1435 coordinate the Ca²⁺. Three more coordination sites are taken up by the β phosphate, the O2′ atom of its Glc ring, and a water molecule. The uracyl O4 atom accepts an H-bond from the S1207 main chain NH. (B) Zoom onto the CtUGGT ¹³⁴⁶YW¹³⁴⁷ clamp (C atoms in cyan) binding 5M-8OH-Q (C atoms in green). The 8OH-quinoline ring inserts and is sandwiched between the aromatic side chains of the conserved residues ¹³⁴⁶YW¹³⁴⁷. The two aromatic side chains stabilise the quinoline ring, forming an aromatic trimer; the 8-OH group of the quinoline also establishes an H-bond to the side chain of ¹⁴⁰²H. Representative distances to interacting residues are in green dashed lines. Only two of the many morpholine ring placements are shown. The unbiased Fo–Fc map is represented as a grey mesh at a 2.0 σ contour level. PDB ID: 7ZXW.

2.1 Fragment-soaked CtUGGT_GT24^UDP−Glc crystal index in related P1 or H3 lattices

To discover CtUGGT_GT24 ligands by FBLD, 768 CtUGGT_GT24^UDP−Glc crystals were soaked with as many compounds, and X-ray diffraction datasets were collected from each soaked crystal (see Table 1). During the initial analysis of these X-ray diffraction datasets, we discovered that, upon soaking, crystal symmetry was sometimes lowered to P1, with three molecules in the asymmetric unit of a pseudo-rhombohedral primitive cell (orange cell in Figures 2A,B, PDB ID 7ZLU) of dimensions a = 66.3 Å, b = 72.7 Å, c = 72.7 Å, α = 111.2°, β = 107.7°, and γ = 107.7°. This cell is a distortion of the R3 primitive rhombohedral cell, which for the CtUGGT_GT24^UDP−Glc H3 crystals used for the soaks, would have lattice parameters a = b = c = 72.32 Å  and α = β = γ = 110.43°. The three molecules in the P1 crystal asymmetric unit are related by an NCS threefold axis equivalent to the H3 crystallographic threefold axis. The two packings are difficult to distinguish (see Figure 2C), and often a soaked CtUGGT_GT24^UDP−Glc X-ray diffraction dataset can index in both the H3 and P1 lattices, depending, for example, on the program used for indexing or the parameters of the automated indexing algorithm.

TABLE 1

TABLE 1. Summary of the FBLD effort on CtUGGT_GT24.

The CtUGGT_GT24 FBLD datasets were initially processed through the XCE workflow tool (Krojer et al., 2017). Space group assignment in the XCE workflow relies on automated data processing taking place during automated data collection on the Diamond I04-1 beamline (Douangamath et al., 2021), but the decision about the possible space group and cell of a certain dataset is made without consulting available models. In essence, the initial XCE automated decision regarding the space group is based on X-ray diffraction scaling statistics and the cell and point group of the dataset. For example, XCE reads the PDB header of each declared polymorph and determines the point group and unit cell volume. Then, once processing each fragment-soaked dataset, if the MTZ point group is identical to the one of a reference polymorph and the unit cell volume is similar (within 12%, but this can be tuned), it assumes that they belong to the same crystal form. XCE also allows for the detection of unexpected crystal forms for a subset of the collected crystals: in the presence of different polymorphs, discrepancies between the reference files provided and some of the datasets arise—either in terms of the space groups and/or the unit cells’ volumes or because of high R_Rfree values after initial refinement. In the presence of crystal polymorphism, a certain degree of manual curation is, therefore, needed to run XCE successfully.

When faced with processing hundreds of datasets belonging to different and yet related crystal forms, we reasoned that from a Bayesian statistical standpoint (Bricogne, 1997), the best way of deciding on the correct crystal polymorph is the one that consults all the available data. In this conceptual framework, the likelihood of a certain dataset belonging to one of the known polymorphs can be best evaluated by refining, in turn, each known polymorphic structure against the dataset processed in that symmetry/cell and then choosing the one with the best refinement R_free statistic.

3 Results on the CtUGGT_GT24 FBLD effort

More than 1,200 CtUGGT_GT24 crystals were grown, and 768 of them were soaked with as many compounds of the DSi-Poised Library (Diamond-SGC-iNext, ex DSPL, https://www.diamond.ac.uk/Instruments/Mx/Fragment-Screening/Fragment-Libraries/DSi-Poised-Library.html).

Each compound was at a concentration of 500 mM in deuterated DMSO; 40 nl of compound stock solution was dispensed by the Echo robot onto each 200-nl drop, making the final compound concentration 83 mM in 20% DMSO.

Automated data collection was carried out on 692 soaked crystals, but only 493 scaled datasets were obtained, spanning the resolution range of 1.72–11.4 Å. The majority of datasets diffracted to 3.5 Å  resolution or better, see Figure 5A.

Only for 439 of these 493 datasets, a structure could be successfully refined in either H3 or P1 or both. Table 1 reports the overall counts, while Figures 5A,B report a few statistics for the 439 diffraction datasets that refined better either in H3 (390 datasets) or P1 (49 datasets).

On average, H3 crystals diffract better than P1 ones: $<$^H3Resolution$>$ = 2.53 Å  and $<$^P1Resolution$>$ = 3.62 Å (Figure 5A). Indeed, the scaling statistics are on average better in H3 than in P1: $<$^H3R_meas$>$ = 0.171 and $<$^P1R_meas$>$ = 0.341 (Figure 5B).

None of the 39 P1 crystals revealed any bound fragments. The P1 2.05 Å  structure of a co-crystal of the CtUGGT_GT24  domain with the UDP–Glc analogue (and UGGT inhibitor) UDP-2-deoxy-2-fluoro-D-glucose (U2F) was obtained after the FBLD effort and is available at the Protein Databank (https://www.rcsb.org) as PDB ID 7ZLU.

Three of the H3-soaked crystals turned out to contain density for a bound CtUGGT_GT24 ligand.

3.1 Fragment x0441

A CtUGGT_GT24^UDP−Glc crystal soaked in (1-(1-ethyl-1H-pyrazol-5-yl)-N-methylmethanamine (SMILES string CCN1N=CC=C1CNC, “fragment x0441”) shows density for the ligand at a crystal contact, but the binding site is not particularly conserved: CtUGGT Y1350, H1402, Q1381, and M1403 (which in HsUGGT1 corresponds to H1406, N1458, Q1437, and M1459) (Figures 1, 4). The pose is rather ambiguous at this resolution (2.44 Å). This site, in the context of the full-length UGGT molecule, faces the UGGT central saddle and is proximal to the putative binding site of the first GlcNAc of the UGGT client’s glycan (close to CtUGGT H1402, which is HsUGGT1 N1508).

FIGURE 4

FIGURE 4. Ligands x0441 and x0763 bind to surface pockets of the CtUGGT_GT24 domain. The crystal structures of CtUGGT_GT24^UDP−Glc soaked in compounds x0441 and x0763 are painted in green and cyan cartoon representation, respectively. The molecule of UDP–Glc in the catalytic pocket of each structure is represented in sticks (its C atoms also in green and cyan for the x0441 and x0763 soaked crystal structure, respectively; N atoms in blue, O atoms in red, and P atoms in orange). Two partially overlapping poses of compound x0673 are represented in sticks with magenta C atoms. Two partially overlapping poses of compound x0441 are represented in sticks with yellow C atoms, next to CtUGGT_GT24 residue H1042, also represented in sticks.

3.2 Fragment x0763

The CtUGGT_GT24^UDP−Glc crystal soaked in (1,3-dimethyl-N-(propan-2-yl)-1H-pyrazole-5-carboxamide (SMILES string CC(C)NC(=O)C=1C=C(C)N(C)N1, “fragment x0763”) also showed residual electron density for the ligand (in two orientations), this time in a conserved pocket: CtUGGT T1442, M1441, R1333, R1452, and E1444 (which in HsUGGT1 corresponds to T1498, M1497, R1389, R1508, and E1500) (Figures 1, 4). The pocket is not far from the putative binding site for the C-branch of the client glycoprotein glycan (CtUGGT M1336, Y1339, and M1441 or HsUGGT1 M1392, Y1395, and M1507), but the interactions of the fragment with the GT domain are weak—perhaps because the binding site is at a crystal contact.

3.3 Fragment x0248: CtUGGT_GT24^5M−8OH−Q crystal structure

The best hit of the FBLD effort was 5-[(morpholin-4-yl)methyl]quinolin-8-ol (SMILES string C1COCCN1CC2=C3C=CC=NC3=C(C=C2)O, “fragment x0248,” henceforth 5M-8OH-Q), a crystal soaked with which diffracted to 2.25 Å  (PDB ID 7ZXW). Diffraction data from this crystal process in H3 with R_meas^H3 = 0.323 and in P1 with R_meas^P1 = 0.206. The CCP4-Dimple/REFMAC5 R_frees are R_free^H3 = 0.227 and R_free^P1 = 0.2537.

The compound binds to a conserved patch on the surface of the CtUGGT_GT24  domain, about 15 Å  away from the UDP–Glc binding site (Figure 3B). The morpholine ring is partially disordered in the crystal, but one of its ring placements is 4.2 Å  from the conserved ¹³⁹⁶DQD¹³⁹⁸ motif coordinating the Glc ring of UDP–Glc; the ligand also causes a displacement of the side chain of CtUGGT_GT24  ¹³⁴⁶Y. Through this displacement, the 8OH-quinoline ring inserts and is sandwiched between the aromatic side chains of the conserved residues ¹³⁴⁶YW¹³⁴⁷—which we propose to call the “YW clamp.” The two aromatic side chains stabilise the quinoline ring, forming an aromatic trimer (Lanzarotti et al., 2020); the 8-OH group of the quinoline also establishes an H-bond to the side chain of ¹⁴⁰²H (Figure 3B).

Tables 2, 3 report the crystallographic data and refinement statistics for the CtUGGT_GT24^UDP−Glc and CtUGGT_GT24^5M−8OH−Q crystal structures.

TABLE 2

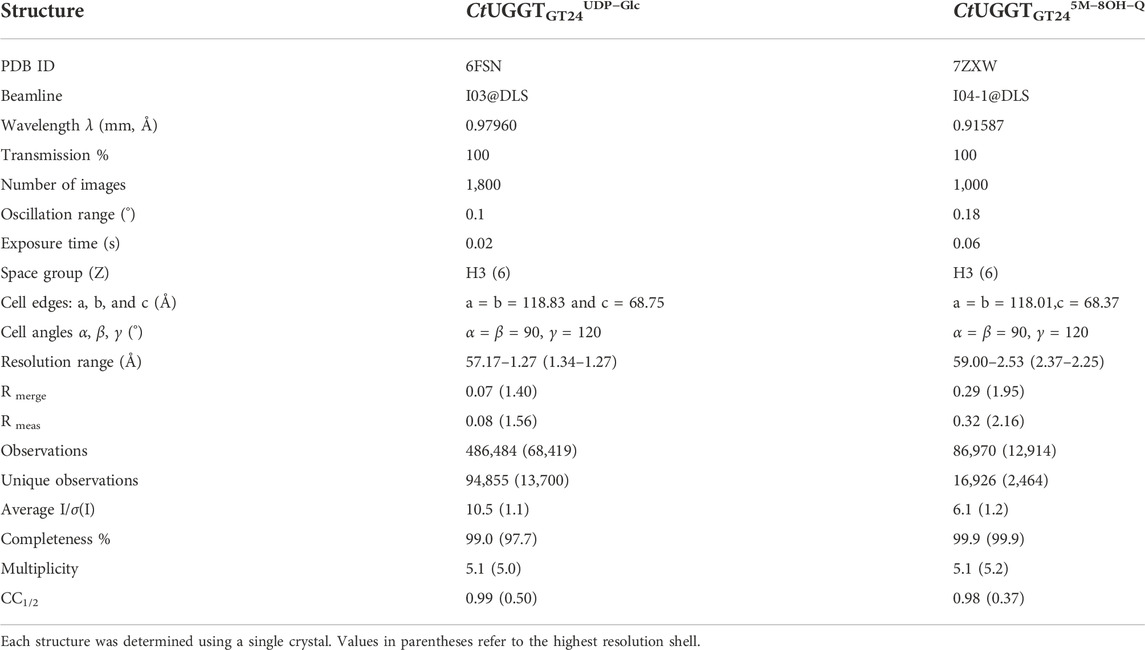

TABLE 2. X-ray data collection parameters and data processing statistics for CtUGGT_GT24 crystal structures.

TABLE 3

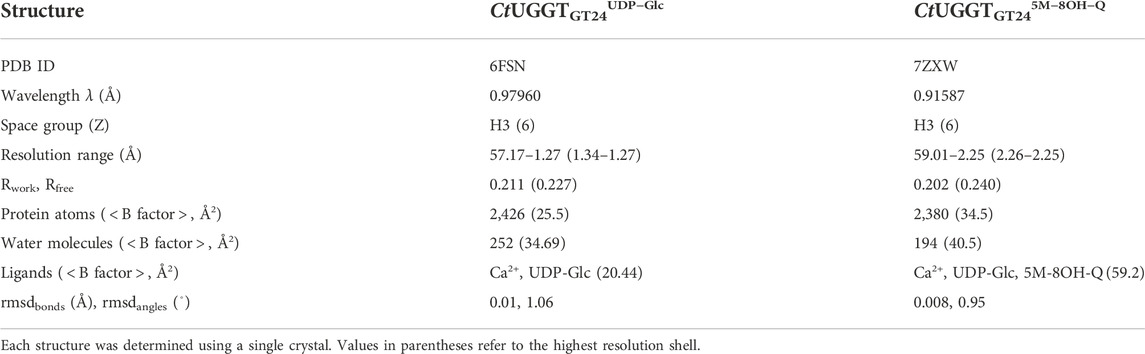

TABLE 3. Refinement statistics for CtUGGT_GT24 crystal structures. All structures contain a Ca⁺ ion coming from the protein solution.

4 Discussion

In the course of an X-ray crystallography FBLD effort aimed at the discovery of molecules binding the catalytic domain of Chaetomium thermophilum UGGT (CtUGGT_GT24), we encountered crystal polymorphism: the majority of CtUGGT_GT24  crystals belonged to space group H3, but some crystals lowered their symmetry to an equivalent P1 pseudo-rhombohedral lattice. The space group and lattice ambiguity was tricky to resolve by the automated FBLD data processing algorithm—which essentially did not commit to a specific polymorph and left the polymorph choice to the user. However, how is such a choice best implemented in an automated and reliable fashion?

First, if the coordinates of enough indexing spots are gathered, the reciprocal cell parameters can be rather precise. Errors in the reciprocal lattice choice can then be estimated by the differences between reciprocal cell parameters that would differ in the two reciprocal lattices being compared. For example, for the CtUGGT_GT24 crystals described in this study, b* and c* would be identical in R3 but differ in P1.

In cases where alternative lattices are pseudo-equivalent and symmetry/cell changes are such that the volume of the asymmetric unit increases/decreases, a discriminating criterion between polymorphs can be based on indexing quality or average intensity of classes of reflections that are systematically extinct in one polymorph and allowed in another one. For example, if indexing and integration of a lattice-centred dataset are carried out in a primitive lattice, the data will appear pseudo-lattice-centred, with more reflections in the primitive than in the lattice-centred space group, and the question that will help discriminate the space groups is then how strong are the additional reflections only allowed in the primitive cell polymorph compared to those that are present in both polymorphs. The values of the fractional mean intensity of the additional reflections, perhaps as a function of resolution, would help discriminate between a truly centred lattice and a pseudo-centred one.

In the general case in which the polymorphs have equivalent lattices but different symmetries, or unrelated lattices altogether, a polymorph choice based on indexing quality (or average intensity of classes of reflections) may not be so straightforward.

A second class of statistics that may be conceivably used for polymorph discrimination are scaling statistics, but each commonly evaluated scaling statistic risks opening a different can of worms if chosen as the basis for polymorph discrimination. For example, R_merge has been shown to privilege lower-symmetry space groups, and R_meas was introduced to discriminate between space groups with different scaling multiplicities (Diederichs and Karplus, 1997; Karplus and Diederichs, 2015). Unfortunately, a robust estimation of R_meas requires data multiplicity—and so does the estimation of CC_1/2 (Karplus and Diederichs, 2015): both scaling statistics are strongly dependent on random (i.e., photon-counting) errors and may not discriminate very well between low-signal but correct symmetry and high-signal but wrong symmetry. Data multiplicity will be high enough for reliable polymorph choice (in the presence of polymorphs of low symmetry) only if more than half a reciprocal sphere of data is collected and/or a data collection strategy is followed—both of which are uncommon practices in most FBLD efforts. For example, in P1, two (or more) datasets of 180^◦ each, with a large kappa offset, would be needed. Data of this kind may not be always available for low-symmetry space group FBLD datasets, thus ruling out the implementation of strategies based on statistics like R_meas or CC_1/2 or those where the error model comes into play, like average I/σ(I) and its sister statistic, asymptotic I/σ(I)_asympt (ISa) (Diederichs, 2010). Supplementary Figure S1 illustrates scatter plots of outer shell I/σ(I), outer shell CC_1/2, I/σ(I)_asympt (ISa), and R_meas separately for CtUGGT_GT24  datasets that had lower R_free in H3 or P1. None of these data processing-based statistics would lead to polymorph choice in overall agreement with the R_free one.

We decided to test a polymorph choice strategy that would consult the known H3 and P1 atomic structures, and for each dataset use both of them individually in refinement against the diffraction data (processed in that symmetry), in order to resolve the H3 vs. P1 decision, which would then have the advantage of being based on all the prior information available (Jaynes, 1968).

Polymorph choice based on refinement statistics of course has its own risks/drawbacks. First, reliable refinements in all possible polymorphs depend on the availability of a structural model of good quality for each of them. Second, when the lattices of the polymorphs at hand are related, to properly compare R_free values, the free set of reflections should be chosen consistently: for example, the free set of a lower-symmetry polymorph should be a symmetry expansion of the pseudo-equivalent higher-symmetry one. Finally, the standard error of an R value is (roughly) inversely related to the square root of the number of reflections. So how big does a difference of R_free values have to be so that it is statistically significant? A statistical test would be needed to judge if the improvement on R_free warrants the choice of the lower-symmetry space group over the higher-symmetry one.

More generally, we are aware that, strictly speaking, the use we make of R_free is not what the statistic was invented for (Brunger, 1992), that is, discrimination between alternative models in view of one set of diffraction structure factor amplitudes. In the case of polymorph choice, the single set of data to account for are the diffraction images, while the alternative models to be tested against the diffraction data comprise lattice parameters (including the orientation matrix) and space group symmetry as well as the usual atomic model parameters.

The best approach to the problem would, therefore, require a single integrated piece of software that refines two classes of parameters against unprocessed X-ray diffraction images: the first class of parameters are the ones traditionally refined during X-ray data processing, and the second class are the parameters traditionally refined during macromolecular refinement. To be most useful for the purpose of polymorph choice, such a program would likely need to deal at least with some of the correlations between parameters belonging to either class (Roversi and Tronrud, 2021). Each refinement of the atomic structures of one of the possible polymorphs directly against the diffraction images would compute a R_free, a free likelihood or another model comparison metric, (Babcock et al., 2018) and presumably enable the choice of the best polymorph as the one that uses only as few parameters as are needed to fit the signal but not the noise in the data, and no more.

Rather than a statistically solid (and likely time-consuming!) solution to the problem of polymorph choice in FBLD, we have aimed here at the implementation and testing of a simple protocol that would nevertheless choose polymorphs by consulting the information in the available atomic models. The scripts implementing the automated polymorph choice processed each of the 493 CtUGGT_GT24 datasets both in H3 and in P1, enabling 439 structural refinements to take place in either or both space groups. For the 156 datasets that were refined in both H3 and P1, the polymorph choice was then based on the symmetry giving the lower R_free. For each dataset, in each polymorph, our scripts inherit the free set of reflections from the reference dataset in that polymorph so that the choice of free sets for a pair of related-lattice polymorphs can be made consistently once and for all before running the refinements on which the polymorph choice is based. Unsurprisingly, analysis of the distributions of R_meas and R_free over these datasets reveals that in both polymorphs, the dispersion of the latter statistic is sharper than the one of the former (see Figure 5B), supporting the choice of the polymorph based on R_free rather than R_meas. The best hit was a CtUGGT_GT24  2.2 Å  H3 crystal soaked in 5M-8OH-Q. The molecule is bound to a conserved patch on the surface of the protein. The compound is now the starting point for a medicinal chemistry programme that will develop more potent and selective UGGT inhibitors.

FIGURE 5

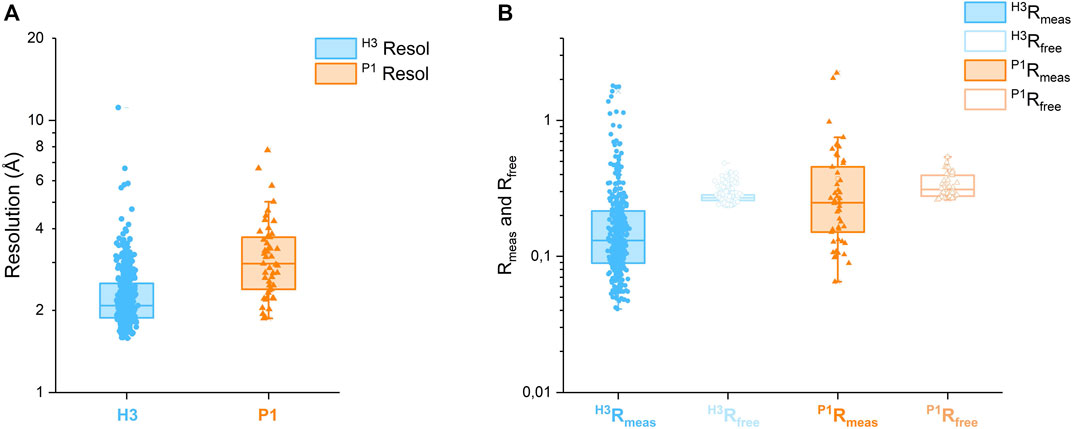

FIGURE 5. (A) Box plots of resolution for 390 CtUGGT_GT24 FBLD datasets, which refined better in H3, and 49 datasets, which refined better in P1. (B) Box plots of R_meas and R_free for the same CtUGGT_GT24 FBLD datasets. Both the resolution and R scales are logarithmic.

As to the generality/feasibility of our strategy, it is true that its computational requirements scale linearly with the number of possible polymorphs. For a given dataset and n possible polymorphs, all our approach requires is full data integration, scaling, and refinement in each polymorph. Synchrotron high-throughput automated data processing pipelines run such a series of steps many times per dataset already: for example, at some synchrotrons, the IspyB system (Monaco et al., 2013) enables data reduction and storage of each dataset at least three times: with xia2 and xia2. multiplex (Winter et al., 2013; Gildea et al., 2022), DIALS (Winter et al., 2022), and autoPROC (Vonrhein et al., 2011), run with a variety of defaults and making use of programs such as XDS (Kabsch, 2010) and/or toolkits such as CCTBX (Grosse-Kunstleve et al., 2002). Each of these data processing strands is then completed by a structural refinement. One of the reasons for this “redundancy” is indeed related to the possibility that different data processing algorithms may choose different polymorphs, thus alerting the user to the possibility of alternative symmetries/lattices. As we do not know of examples of fragment-based lead discovery efforts encountering more than n = 3 polymorphs, one possible solution to make a strategy equivalent to the one we suggest and yet retain generality and feasibility would be commitment to one of the currently implemented data processing pipelines and its repetition for each of n possible polymorphs. In most cases, if n is not large, such an approach would not add much extra time, and it would still systematically sample all possible polymorphs.

Whichever the best solution, implementation of automated polymorph assignment will be an important step towards the realisation of the full potential of crystal polymorphism in FBLD (Vera et al., 2013). It is our hope that with minimal tweaks, existing pipelines for FBLD data processing can be modified to implement ideas similar to the ones we have described here, when discriminating between polymorphs which are related and, therefore, difficult to distinguish on the basis of cell parameters, diffraction data apparent point group, and scaling statistics alone.

5 Materials and methods

5.1 CtUGGT_GT24 cloning, protein expression, and purification

The C-terminally 6xHis-tagged CtUGGT_GT24 construct corresponding to CtUGGT residues 1,187–1,473 was successfully amplified by PCR starting from the CtUGGT–pHLSec vector (Roversi et al., 2017) using primers CtUGGT_GT24_Fwd: ggt​tgc​gta​gct​gaa​acc​ggt​GAG​GCA​ACC​AAG​TCC​GTG and CtUGGT_GT24_Rev: gat​ggt​ggt​gct​tgg​tac​cTT​CCC​TCA​CTC​TCC​TCG​C.

The amplified insert was identified by agarose gel electrophoresis (about 900 bp) and purified from the gel.

Following purification of the PCR products, the CtUGGT_GT24  insert was assembled into the AgeI/KpnI linearised pHLSec vector (Aricescu et al., 2006) via ligation-independent cloning (aka Gibson assembly). After transformation and plating, E. coli colonies containing the desired construct were identified by colony PCR through identification by agarose gel electrophoresis of the correct size. CtUGGT–pHLsec DNA plasmid purification from the correctly identified colonies was carried out via DNA miniprep and the resulting plasmid DNA sent for sequencing for confirmation of the desired DNA construct.

The maxiprepped CtUGGT–pHLsec DNA plasmid was transfected into HEK293F cells following the protocol used for CtUGGT (Roversi et al., 2017). Purification was achieved by IMAC on an Åkta FPLC system, followed by gel filtration chromatography, after which the proteins were identified by SDS-PAGE. The final buffer was 20 mM HEPES pH 7.4, 50 mM NaCl, and 1 mM CaCl₂.

5.2 CtUGGT_GT24 co-crystallization with UDP-Glc

All crystals were grown at 18°C in sitting drops by the vapour diffusion method, set up with a mosquito liquid handling robot (TTP Labtech). Crystallisation drops had an initial volume of 200 nl. The volume ratio of protein to precipitant was either 1:1 or 2:1.

Crystals of CtUGGT_GT24^UDP−Glc grew in 1 week in a 1:1 mixture of CtUGGT at 6 mg/ml, 2 mM CaCl₂, and 5 mM UDP–Glc and a number of Morpheus screen conditions (Gorrec, 2009, Gorrec, 2015).

The best crystals came from a crystal grown in Morpheus screen condition 2–9 containing 0.12 M ethylene glycol, 0.1 M buffer system 3 pH 8.5, and 30% v/v precipitant mix 1 (Gorrec, 2009; Gorrec, 2015).

5.3 CtUGGT_GT24^UDP−Glc  crystal growth for FBLD

A 96-well deep well block was prepared with 500 μl in each well: 257.5 μl of Morpheus precipitant mix 1 (40% v/v PEG 500 MME; 20% w/v PEG 20000); 25.8 μl of 1 M Bicine (buffer system 3 acid component); 24.3 μl of 1 M Tris (buffer system 3 basic component); 192.4 μl of MilliQ Water. The Hydra robot at the Research Complex in Harwell was first used to transfer 25 μl of the crystallisation solution from the deep well block to each mother liquor well of six MRC 3-well crystallisation plates. Vapour diffusion experiments were set up at the Research Complex in Harwell in six MRC 3-well crystallisation plates—using a mosquito robot equipped with an anti-evaporation cover with 60% controlled humidity in order to avoid drying up of the crystallisation drops during deposition. A total of 6 × 96 × 3 = 1728 drops were set up. The CtUGGT_GT24 protein at a concentration of 6.5 mg/ml, in the presence of 1 mM CaCl₂ and 5 mM UDP–Glc), was mixed in protein: mother liquor proportions 1.35:1 (drops a and c) and 2:1 (drop d) in drops of total volume 200 nl, and the crystals were left to grow at 18°C. In less than a week, about two-thirds of the experiments yielded crystals.

5.4 CtUGGT_GT24^UDP−Glc crystal soaking for FBLD

Prior to the fragment-based lead discovery effort, 50 of the CtUGGT_GT24^UDP−Glc crystals were soaked in 0, 5, 10, 15, 20, and 30% DMSO and diffraction tested; no significant deterioration of the diffraction quality was observed. The space group prior to soaking is H3, one molecule per asymmetric unit, with cell edges a = b = 119 Å, and c = 69 Å.

All CtUGGT_GT24^UDP−Glc crystal drops were imaged, and the best crystals were marked for soaking with the Echo robot at the Xchem facility attached to beamline I04-1 at the Diamond Light Source (Collins et al., 2017; Douangamath et al., 2021). 768 compounds of the DSi-Poised Library (Diamond-SGC-iNext, ex DSPL https://www.diamond.ac.uk/Instruments/Mx/Fragment-Screening/Fragment-Libraries/DSi-Poised-Library.html) and compound stock solutions at a concentration of 500 mM in deuterated DMSO were each soaked into a crystal drop: 40 nl of the compound was dispensed by the Echo robot (Collins et al., 2017) onto each 200-nl drop, making the final compound concentration 83 mM in 20% DMSO. The soaked crystals were left incubating for a variable time between 2 and 4 h. 692 crystals were fished and cryocooled with the aid of the SGC Shifter Robot (Wright et al., 2021).

5.5 CtUGGT_GT24^UDP−Glc soaked crystal X-ray diffraction for FBLD

Automated data collection was carried out on 596 soaked crystals. Automated loop centring failed about 6% of the time, and about 50 crystals were re-measured with optical centring. The symmetry is sometimes lowered by soaking, the crystal can in this case index in space group P1 with three molecules in the asymmetric unit of a pseudo-rhombohedral cell of dimensions a = 66.3 Å b = 72.7 Å c = 72.7 Å, alpha = 111.2°, beta = 107.7°, and gamma = 107.7°. This cell is related to the one of the rhombohedral setting of the H3 crystals, a = b = c = 72.32 Å  and α = β = γ = 110.43°.

5.6 CtUGGT_GT24^UDP−Glc X-ray data processing, model refinement, and ligand fitting for FBLD

Data processing, model refinement, and ligand fitting were carried out with the purpose-written shell script pipeline CoALLA. In order to decide on the correct symmetry, each dataset was indexed and integrated both in H3 and in P1 using the autoPROC suite of programmes; for each dataset, refinement of the protein model was carried out in both the H3 and P1 form in autoBUSTER, with the space group giving rise to the lower Rfree being chosen as the correct one for the calculation of the Fo–Fc map. The SMILES string for each compound was fed together with the refined model and phases in order to attempt docking the ligand using rhofit. The best hits were listed by ranking the rhofit score and/or CC and the hits inspected in Coot.

5.6.1 Data processing and polymorph assignment

In order to run CoALLA, all possible polymorphs must be known; moreover, two reference files must be available for each polymorph: one X-ray diffraction dataset with experimental structure factor amplitudes [in mtz format (Winn et al., 2011)] and its corresponding structure coordinates (in PDB format).

The CoALLA pipeline initially processes the diffraction data in each and every one of the polymorphs listed in input, using the data processing suite autoPROC Vonrhein et al. (2011).

The resolution of the data processed in each polymorph is initially chosen by autoPROC using the autoPROC command flag -M HighResCutOnCChalf, which by default sets the maximum resolution so that CC_1/2 in the outer shell is no lower than 0.30.

At the indexing stage, in order to ensure consistent indexing across all FBLD datasets belonging to the same polymorph, the autoPROC command line flag -ref <reference dataset>—is used, enforcing the same indexing choice as the reference diffraction dataset for the polymorph being tested. If the reference cell dimensions differ significantly from any of the autoindexed ones, autoPROC may be unable to refine a reference-based indexing solution that fits the data: the reference dataset indexing choice is then enforced only after autoPROC indexing/integration by a run of CCP4-pointless (Evans, 2011) with the keyword TOLERANCE 10¹. At this stage, the reference dataset R_free flags are also inherited for each polymorph (using CCP4-CAD) and are kept for all subsequent calculations for the dataset in that polymorph.

The PanDDA pipeline (Pearce et al., 2017a; Pearce et al., 2017b; Pearce et al., 2017c) in use at Diamond Light Source beamline I04-1 Douangamath et al. (2021)—where the data were collected—uses CCP4-Dimple/REFMAC5 (Murshudov et al., 2011; Winn et al., 2011; Keegan et al., 2015) as its refinement engine (see Figure 6). At the initial stage of deciding on the correct polymorph, it seemed natural to exploit the fast refinement capabilities of CCP4-Dimple. After data processing in all polymorphs, the hypothesis that the data belong to a certain polymorph is tested in CoALLA by running structural refinement in CCP4-Dimple (Winn et al., 2011; Keegan et al., 2015) against the data processed in each polymorph in turn.

FIGURE 6

FIGURE 6. CoALLA flow diagram.

In each polymorph, the CoALLA scripts run two CCP4-Dimple refinements of the reference model against the dataset as processed in that polymorph: a rigid body refinement first, followed by a full atomic one. In order to be able to compare the R_frees of models refined in different polymorphs, all CCP4-Dimple refinements are run in CoALLA up to the best common maximum resolution limit across all polymorphs, which the scripts obtain for each polymorph by harvesting the resolution limit from the relevant autoPROC output file (see Figure 6).

Once a CCP4-Dimple refinement of the structure has run for each polymorph, the polymorph with the best CCP4-Dimple refinement R_free is chosen as the most likely one to continue the analysis. It is at this stage that CoALLA improves on automated polymorph choices based on data processing only: the available information about the structures of the polymorphs is added to the one present in the diffraction data to single out the most likely polymorph.

5.6.2 BUSTER structure refinements

The structures are then refined in BUSTER starting from the CCP4-Dimple output file, with automated NCS restraints and external restraints to the reference structure (Smart et al., 2012), command line keywords—target <ref.pdb>—autoncs).

The first BUSTER refinement is run with the -L command line flag: this turns on automated water updating. Waters initially also fill volumes where potential ligands are located, but the water atoms around residual difference density are then removed at the last BUSTER refinement cycle. This procedure enables water-building without deteriorating the quality of the difference density in putative ligand regions.

At this stage, CCP4-PDBSET is run on the BUSTER-refined model (with keyword NOISE) in order to introduce positional noise in the coordinates resulting from the refinement previously described—including any waters that survived the pruning at the end of the previous BUSTER refinement with automated water addition. The positional noise introduced by CCP4-PDBSETat this stage ought to wipe out any “memory” of the waters that may have been refined (and then were removed) in putative ligand pockets. A second BUSTER refinement (without water addition) is then run starting from the CCP4-PDBSET shaken model. The 2Fo–Fc and Fo–Fc density maps necessary for ligand identification and docking are computed at the end of this BUSTER  refinement.

5.6.3 RHOFIT ligand placement

Automatic interpretation of crystal residual difference density fully automates the placement of ligands, providing an unbiased alternative to manual ligand placement, especially for data of low to medium resolution (Langer et al., 2008; Carolan and Lamzin, 2014; Echols et al., 2014; Wlodek et al., 2006). Algorithms can take into account protein–ligand interactions as well as fit to the map (Mooij et al., 2006).

The RHOFIT program (Smart et al., 2014) is used within the CoALLA pipeline to find the best placements in all the BUSTER  refined maps.

Data availability statement

The datasets presented in this study can be found in online repositories. The names of the repository/repositories and accession number(s) can be found at: http://www.wwpdb.org/, 6fsn http://www.wwpdb.org/, 7zxw.

Author contributions

PR, ATC, and NZ conceived the study. PR, CBL, and SV cloned the CtUGGT_GT24 construct. PR, JDLC, RI, and SV prepared the CtUGGT_GT24 protein. PR, RI, and JDLC grew the CtUGGT_GT24 crystals. PR, RI, ATC, BD, MH, and NZ carried out fragment-based lead discovery effort. ATC and PR wrote the CoALLA scripts. RI, ATC, BD, MH, GM, and PR analysed data. All authors contributed to the writing of the manuscript.

Funding

The work was funded by the Glycobiology Endowment and by two University of Oxford Confidence in Concept Schemes, grant references MRC–MC_PC_15029 and MRC–MC_PC_16056 (to NZ). PR was the recipient of an LISCB Wellcome Trust ISSF award, grant reference 204801/Z/16/Z and a Wellcome Trust Seed Award in Science, grant reference 214090/Z/18/Z. RI was the recipient of a Sardinian Regional Government PhD scholarship. AC was funded by a Wellcome Trust 4-Year Studentship reference 097300/Z/11/Z. NZ is a Fellow of Merton College, Oxford.

Acknowledgments

Tobias Krojer, Anthony Bradley, Patrick Collins, Alice Douangamath, Jose Brandao-Neto, Frank Von Delft, and all the staff of the I04-1 beamline at the Diamond Light Source helped with sample preparation and data collection. Conor Wild gave insightful comments on our choice of R_free as a model comparison statistic. Constantina Foutinou helped with the preparation of the manuscript. Tobias Krojer, José A. Marquez, and Justyna A. Wojdyla kindly commented on the availability of automated polymorph choice algorithms in current implementations of FBLD data processing pipelines. Kay Diederichs kindly discussed the suitability of various statistics to compare scaling of a dataset in different symmetries. The authors thank the reviewers for helpful suggestions on the first submitted version of the manuscript.

Conflict of interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Publisher’s note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors, and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.

Supplementary material

The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fmolb.2022.960248/full#supplementary-material. The CoALLA shell script will be available from the corresponding authors upon request.

Footnotes

¹Note that in Phenix-based FBLD pipelines, models are mapped to the same frame of reference as an isomorphous structure. The CoALLA algorithm choice of enforcing indexing to the polymorph’s reference dataset has the advantage that simple rigid-body refinement of the reference structure against the data processed in the chosen polymorph is enough to commit to consistent origin choices for all crystals belonging to a certain polymorph, without the need for any molecular replacement steps and/or origin reconciliation.
