Aplospojaveedins A–C, unusual sulfur-containing alkaloids produced by the endophytic fungus Aplosporella javeedii using OSMAC strategy

Three sulfur-containing alkaloids aplospojaveedins A–C (1–3) with a hitherto undescribed carbon skeleton comprising octahy-dronaphthalene, α, β-unsaturated lactam and glycine-cysteine moieties were isolated from Aplosporella javeedii. Their structures were elucidated by 1D and 2D NMR spectroscopy, HR-MS, X-ray diffraction analysis, DFT-NMR and TDDFT-ECD calculations. A plausible biosynthetic pathway and putative targets are described. The blind docking suggested that 1–3 may have functional effects on several putative targets such as the GPCR cannabinoid receptor 2 or the integrin α5β1 complex.

Introduction

During the discovery of new pharmaceutical agents from nature, microorganisms have repeatedly proved to be prolific producers of structurally novel and bioactive compounds that inspire drug discovery (Newman and Cragg, 2020; Zhao et al., 2023). In particular, sulfur-containing natural products, such as the well-known penicillin, gliotoxin, and calicheamicins, have often attracted the attention of researchers because of their novel molecular architectures and interesting bioactivities (Hai et al., 2021; Vasilchenko et al., 2023). Recent discoveries further expanded the chemical diversities of sulfur-containing natural products. For example, the first case of noremestrin featuring a sulfur-bearing 15-membered macrocyclic lactone was isolated from Emericella sp. (Chen et al., 2024) Neogrisemycin, a trisulfide-bridged angucycline, was obtained from Streptomyces albus (Cao et al., 2023). Heterologous expression of a biosynthetic gene cluster in Streptomyces sp. SCSIO 40020 led to the production of eight new thiazole-containing compounds, in which grisechelin F is distinguished by the presence of a salicylic acid moiety (Liu et al., 2024).

In our ongoing investigation of bioactive new natural products, an underexplored endophytic fungus Aplosporella javeedii, which was derived from the Chinese medicinal plant Orychophragmus violaceus, was investigated (Medicinal Plant Images Database, 2024). In a previous study, a culture of A. javeedii on solid rice medium yielded polyketides, sesterterpenes and macrolides (Gao et al., 2020a; Gao et al., 2020b), whereas addition of NaNO₃ or monosodium glutamate to rice medium caused the accumulation of new cytotoxic lactam derivatives that were hitherto undetected (Gao et al., 2020c). We now report that addition of NaI to the culture medium elicited the accumulation of biogenetically very different compounds which feature a hitherto undescribed carbon skeleton and contain the biogenetic building blocks octaketide, alanine, L-cysteine, and glycine (Figure 1). These compounds were not detected when NaI was absent or when adding other halogen salts to the medium thereby indicating the power of this OSMAC approach. Herein we report the structural elucidation of these new sulfur-containing alkaloids and propose a plausible biogenetic pathway. Furthermore, putative targets of these compounds are predicted by molecular chemoinformatic approaches.

Figure 1

Figure 1. Structures of new alkaloids isolated from A. javeedii.

Materials and methods

General experimental procedures

A Perkin-Elmer-241 MC polarimeter was used for measuring optical rotations. HPLC experiments were performed using a Dionex UltiMate-3400SD system equipped with a LPG-3400SD pump and a photodiode array DAD 3000RS detector as well as a Eurosphere-10 C₁₈ (125 × 4 mm, Knauer) column. Detection wavelengths were set at 235, 254, 280, and 340 nm. The following program and gradient was applied for analysis: (MeOH, 0.1% HCOOH in H₂O): 0 min, (10% MeOH); 5 min (10% MeOH); 35 min (100% MeOH); 45 min (100% MeOH). A Merck Hitachi Chromaster HPLC system with UV detector L7400, pump L7100 and column Eurosphere-100 C₁₈ (300 × 8 mm, Knauer) column were used for semi-preparative HPLC analysis. A Finnigan LCQ Deca mass spectrometer was used for electrospray ionization mass spectrometry (ESI-MS). A UHR-QTOF maxis 4G mass spectrometer (Bruker Daltonics) was used for HRESIMS analysis. 1D and 2D NMR spectra were recorded on Bruker Avance III HD 800, 750 MHz, and Bruker ARX 600 NMR spectrometers. A J-810 spectropolarimeter was used for ECD spectra analysis. Sephadex LH-20, silica gel 90C₁₈-reversed phase RP-18 and silica gel 60 M (40–63 μm, Macherey-Nagel) were employed for column chromatography. TLC was done using TLC plates precoated with silica gel 60 F₂₅₄ (Merck) and was detected under UV detection at 254 and 366 nm or was sprayed with anisaldehyde reagent. Distilled or spectral-grade solvents were used for column chromatography and spectroscopic measurements, respectively.

Fungal material and fermentation

The endophytic fungus Aplosporella javeedii (GenBank accession number: MN720704) was isolated from fresh and healthy stem tissue of the Chinese medicinal herb Orychophragmus violaceus (L.) O. E. Schul (Brassicaceae), which was collected close to Beijing, China. Fungal isolation, purification, and identification were carried out according to a standard protocol that was described previously (Kjer et al., 2010). The fungal strain (ID code ZGB-B) is kept in the Institute of Pharmaceutical Biology and Biotechnology, Heinrich Heine University, Duesseldorf, Germany. Fungal control cultivations were done in two 1 L Erlenmeyer flasks on solid rice medium (100 g rice and 110 mL demineralized water). OSMAC experiments were performed in 16 1 L Erlenmeyer flasks on solid rice medium containing 3.5% NaI (100 g rice, 110 mL demineralized water and 3.5 g NaI) each. Cultivation media were autoclaved at 121°C for 20 min. After cooling to room temperature, the fungal strain was transferred from agar plates onto the solid media under sterile conditions. Fermentation was conducted at room temperature under static conditions for around 20 days for control cultivation and for 30 days for NaI OSMAC experiments. The experiments were terminated once the fungus had completely overgrown the media.

Extraction and isolation

Solid media containing the fungal cultures were cut into small pieces and extracted with 800 mL EtOAc per flask under continuous shaking for 12 h. Following filtration, the extracts were evaporated to dryness. The total amount of the obtained brown crude extract from 3.5% NaI OSMAC cultures was 16.5 g. The crude extract was then subjected to silica gel vacuum liquid column chromatography (VLC), and eluted with solvents of increasing polarity (n-hexane, EtOAc, CH₂Cl₂, and MeOH). In total, 12 fractions (V1 to V12) were obtained. Fraction V9 (1.75 g) was subjected to a Sephadex LH-20 column and eluted with 100% MeOH to give eight subfractions (V9-S1 to V9-S8). Subfraction V9-S3 was then submitted to a RP-18 vacuum liquid chromatography column and eluted with 10% aqueous MeOH - 100% MeOH to yield 6 subfractions (V9-S3-RP1 to V9-S3-RP6). Subfraction V9-S3-RP4 was purified by semi-preparative HPLC using a gradient of MeCN and H₂O (15:85 to 50:50) containing 0.1% HCOOH to give 3 (2.1 mg). Subfraction V9-S3-RP5 was purified by semi-preparative HPLC using a gradient of MeCN and H₂O (30:70 to 50:50) containing 0.1% HCOOH to give 1 (6.1 mg). Fraction V10 (0.83 g) was subjected to a Sephadex LH-20 column and eluted with 100% MeOH to give six subfractions (V10-S1 to V10-S6). Subfraction V10-S3 was then purified by semi-preparative HPLC using a gradient of MeCN and H₂O (40:60) containing 0.1% HCOOH to give 2 (6.7 mg).

Aplospojaveedin A (1): Colorless crystal; [α]²⁴_D -102 (c 0.25, MeOH); UV (MeOH) λ_max 208, 255 and 317 nm; ¹H and ¹³C NMR data, see Table 1; Supplementary Table S1; HRESIMS [M + H]⁺ m/z 502.2366 (calcd for C₂₆H₃₆N₃O₅S 502.2370).

Table 1

Table 1. ¹H and ¹³C NMR data of compounds 1–3 in DMSO-d₆.

Aplospojaveedin B (2): Colorless oil; [α]²⁴_D -62 (c 0.25, MeOH); UV (MeOH) λ_max 206, 265 and 321 nm; ¹H and ¹³C NMR data, see Table 1; Supplementary Table S1; HRESIMS [M + H]⁺ m/z 502.2363 (calcd for C₂₆H₃₆N₃O₅S 502.2370).

Aplospojaveedin C (3): Colorless oil; [α]²⁴_D -83 (c 0.25, MeOH); UV (MeOH) λ_max 203, 240 and 301 nm; ¹H and ¹³C NMR data, see Table 1; Supplementary Table S1; HRESIMS [M + H]⁺ m/z 502.2370 (calcd for C₂₆H₃₆N₃O₅S 502.2370).

X-ray crystallographic analysis of aplospojaveedin A (1)

Suitable single-crystals of 1 were carefully selected under a polarizing microscope and mounted on a loop. Data collection: Kappa APEX2 Duo CCD diffractometer with a microfocus source and multi-layer mirror monochromator for Cu–Kα radiation (λ = 1.54178 Å) at 140(2) K; ω-scans. Data collection and cell refinement with APEX2 (2006), data reduction with SAINT (Bruker) (SAINT, 2006). The structures were solved by direct methods (SHELXT-2015) (Sheldrick, 2008), refinement was done by full-matrix least squares on F² using the SHELXL-2017 program suite (Sheldrick, 2008), empirical (multi-scan) absorption correction with SADABS (Bruker) (Sheldrick, 1996). All non-hydrogen atom positions were refined with anisotropic temperature factors. Hydrogen atoms for aromatic CH, aliphatic CH, CH₂ and CH₃ groups were positioned geometrically (C–H = 0.95 Å for aromatic and olefinic CH, 1.00 Å for aliphatic CH, 0.99 for CH₂ and 0.98 Å for CH₃,) and refined using a riding model (AFIX 43 for aromatic CH, AFIX 13 for aliphatic CH, AFIX 23 for CH₂ and AFIX 137 for CH₃), with U_iso(H) = 1.2U_eq(CH, CH₂) and U_iso(H) = 1.5U_eq(CH₃). The protic hydrogen atoms for the OH and NH group were found and refined freely with U_iso(H) = 1.5U_eq(O,N). Graphics were drawn with DIAMOND (Version 4) (Brandenburg, 2023). The structural data for this paper has been deposited with the Cambridge Crystallographic Data Center (CCDC-number 2295373 for 1). These data can be obtained free of charge via www.ccdc.cam.ac.uk/data_request/cif.

ECD and NMR calculations

Mixed torsional/low-mode conformational searches were carried out by means of the Macromodel 10.8.011 software using the Merck Molecular Force Field (MMFF) with an implicit solvent model for CHCl₃ applying a 21 kJ/mol energy window (MacroModel, 2015). Geometry re-optimizations of the resultant conformers [B3LYP/6–31 + G(d,p) level in vacuo and ωB97X/TZVP PCM/MeOH], DFT-NMR [mPW1PW91/6–311 + G(2d,p)] and TDDFT-ECD calculations [B3LYP/TZVP, BH&HLYP/TZVP, CAM-B3LYP/TZVP and PBE0/TZVP all with PCM/MeOH] were performed with the Gaussian 09 package (Frisch et al., 2013). Computed NMR shift data were corrected with I = 185.6277 and S = −1.0175 for MeOH and I = 185.2853 and S = −1.0267 for DMSO (CHESHIRE CCAT, 2019; Pierens, 2014). ECD spectra were generated as sums of Gaussians with 3,000 cm⁻¹ widths at half height, using dipole-velocity-computed rotational strength values (Stephens and Harada, 2010). Boltzmann distributions were estimated from the B3LYP and the ωB97X energies. Visualization of the results was performed by the MOLEKEL software package (Varetto, 2009).

Ligand-based target prediction

Potential new targets were predicted based on the similarity to ligands already known to bind to those targets using the SwissTargetPrediction¹ and the SuperPred webserver² using default parameters. Targets, monomers and complexes, predicted by both webservers were subsequently extracted and used for further investigation.

Blind docking to predicted targets

For the molecular docking, the three compounds 1–3 were drawn and converted into a 3D structure with Maestro in a protonated and deprotonated form (Maestro, 2020). The protonated and deprotonated compounds were subsequently docked over the whole structure of all predicted targets utilizing a combination of AutoDock (Goodsell et al., 1996) as a docking engine and the DrugScore2018 distance-dependent pair-potentials (Dittrich et al., 2019) as an objective function. Experimentally resolved structures of the potential targets were preferred unless domains were missing or the resolution of a complete experimental structure was >3.1 Å, more than double that of a C-C bond length (Lide, 2004). The experimental structures with PDB IDs 1PIN (Ranganathan et al., 1997), 4PXZ (Zhang et al., 2014), 5F1A (Lucido et al., 2016), 7CX2 (Qu et al., 2021), 7F5N (Singh et al., 2021), 7NWL (Schumacher et al., 2021), 7VDP (Daniels et al., 2022), 7VFX (Chen et al., 2022), 7VL9 (Shao et al., 2022), 8GUR (Li et al., 2023), and 8HDO (Cai et al., 2022) were used for the predicted monomers, and the structures 1UNL (Mapelli et al., 2005), 1 W98 (Honda et al., 2005), 6UJA (Campbell et al., 2020), and 7NWL (Schumacher et al., 2021), were used for the predicted complexes. All co-crystallized proteins that were not the target and all other molecules except divalent ions in integrins were deleted from the structures prior to docking. For all other targets, the 4^th version of their AlphaFold2 (Jumper et al., 2021) model was used. During docking, default parameters were used, except for the RMSD cutoff used in clustering, which was set to 2.0 Å (Ranganathan et al., 1997; Sotriffer et al., 2002; Lide, 2004). Binding modes were considered valid if they were located in the binding pocket and contained in the largest cluster, which comprised at least 20% of all docking poses. To gain a finer overview of potential binding poses, all binding poses of each ligand were also visually evaluated in Pymol (Schrödinger, 2010).

Results and discussion

Aplospojaveedins A (1) was obtained as colorless crystals, with UV absorptions at λ_max 208, 255 and 317 nm. Its molecular formula was established as C₂₆H₃₅O₅N₃S on the basis of a prominent pseudomolecular ion peak at m/z 502.2366 [M + H]⁺ in the HRESIMS spectrum, indicating 11 degrees of unsaturation. The NMR spectra of 1 were recorded in DMSO-d₆ (Table 1) and in CD₃OD (Supplementary Table S1). The former solvent revealed two nitrogen-bearing protons at δ_H 8.66 (s, NH-20) and 8.27 (t, NH-27), three olefinic protons at δ_H 5.54 (br d, H-1), 5.32 (ddd, H-2), and 5.03 (q, H-13), as well as four methyl signals at δ_H 1.52 (Me-22), 1.43 (d, Me-14), 1.36 (s, Me-15) and 0.87 (d, Me-11). The ¹³C NMR spectrum of 1 displayed four carbonyl carbons at δ_C 196.6 (C-16), 171.9 (C-26), 171.1 (C-29), 167.0 (C-21) and six olefinic carbons at δ_C 174.9 (C-18), 135.3 (C-12), 132.3 (C-1), 128.1 (C-2), 123.0 (C-17), and 122.5 (C-13), accounting for seven degrees of unsaturation. Thus, compound 1 was suggested to bear a tetracyclic ring skeleton. In COSY spectrum (Figure 2), the correlations of H-1/H-2/H-3/H-4/H-5/H₂-6/H₂-7/H-8/H₂-9/H-10, and between H-5/H-10, H-8/Me-11, indicated the existence of an octahydronaphthalene ring with a double bond at C-1/C-2 and a methyl group at C-8. The COSY correlation between H-13 and Me-14, together with the HMBC correlations from Me-15 to C-12, C-13 and C-3, confirmed the attachment of a but-2-en-2-yl group at C-3. Furthermore, the HMBC correlations from NH-20 to C-16, C-17, C-18, C-19, C-21 and from H-4 to C-16 indicated the presence of an α, β-unsaturated lactam and its linkage with the above mentioned octahydronaphthalene ring via carbonyl group C-16. According to the molecular formula, two additional nitrogen atoms and a sulfur atom must reside in the remaining substructure. The presence of a glycine-cysteine moiety was supported by the COSY correlations between NH-27/H₂-28 (δ_H 3.80), H-24/H₂-25, together with the HMBC correlations from H₂-28 to C-29, and from H-24, H₂-25, NH-27 and H₂-28 to C-26. Moreover, the HMBC correlations from H-24 to C-19, from H₂-25 to C-18, and from Me-22 to C-18 and C-19, along with the HMBC correlations from Me-22 to N-20 and N-23 in ¹H-¹⁵N-HMBC confirmed the linkage between C-19/N-23 and C-18/S-25 to form the fourth ring in 1. Thus, the planar structure of 1 was elucidated as shown.

Figure 2

Figure 2. Key COSY and HMBC correlations of compound 1.

Compound 1 contains two isolated blocks of chirality: an octahydronaphthalene and a tetrahydropyrrolo [3,2-b][1,4] thiazin-6(2H)-one moiety with five and two chirality centers, respectively. The relative configurations in the isolated blocks were established by ROESY but the two blocks could not be correlated. An E configuration was assigned for the double bond between C-12 and C-13 due to the ROESY correlation between H-3 and H-13. The ROESY relationships between H-3/H-4, H-4/H-6b (δ_H 0.68), H-6b/H-10, H-10/H-4, H-10/H-8 suggested that these protons are present on the same face of the octahydronaphthalene moiety whereas the ROESY correlations between H-5 and H-6a (δ_H 1.75) established that these latter protons are on the opposite face of the ring. In the heterocyclic moiety, ROESY correlations between Me-22/H-25a (δ_H 3.08), H-24/H-25b (δ_H 3.05) as well as the coupling constants between H-24/H-25ab (²J_H-24/H-25a = 11.5 Hz, ²J_H-24/H-25b = 5.6 Hz) suggested that H-24 adopted axial orientation and Me-22 and H-24 are on opposite faces of the ring (Supplementary Figure S60).

To determine the absolute configuration, compound 1 was crystallized in methanol, and a single-crystal X-ray diffraction analysis was performed. Compound 1 crystallizes in the non-centrosymmetric orthorhombic space group (necessary for a chiral molecule) P2₁2₁2₁.The absolute configuration of compound 1 is (3R, 4S, 5R, 8R, 10S, 19R, 24R) (Figure 3). The asymmetric unit contains a molecule of 1 together with a water molecule of crystallization. In the solid state the O-H and N-H groups are engaged in inter-molecular hydrogen bonding (Supplementary Figure S1; Supplementary Table S5).

Figure 3

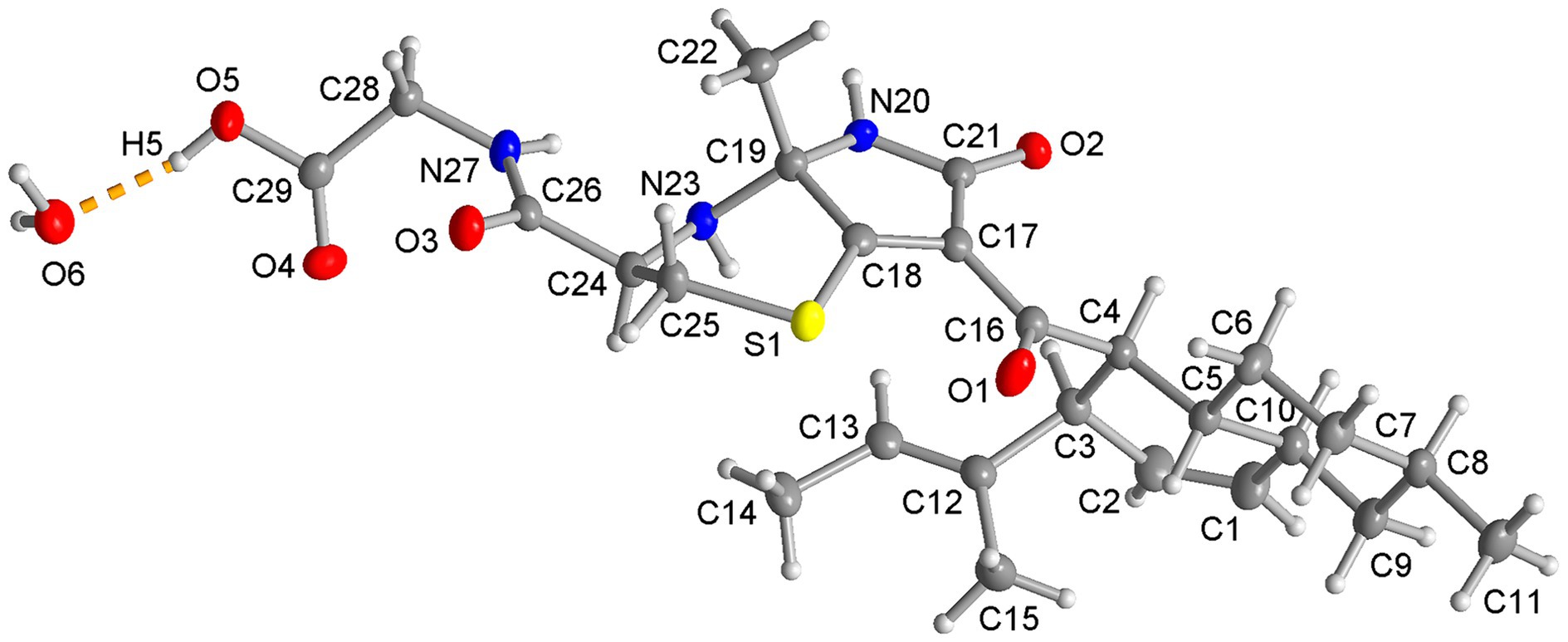

Figure 3. Molecular structure of compound 1 from the single crystal X-ray structure. (50% thermal ellipsoids, H atoms with arbitrary radii. The atom numbering is the same as in Figure 1. Compound 1 crystallizes with a water molecule, shown here with the hydrogen bond from the carboxyl group as a dashed orange line).

To elucidate the absolute configuration of 1 independently and test the combination of TDDFT-ECD (Superchi et al., 2018; Mándi and Kurtán, 2019) and DFT-NMR methods to assign isolated blocks of chirality (Li et al., 2020; Kovács et al., 2023), MMFF conformational searches were applied on stereoisomers (3R,4S,5R,8R,10S,19R,24R)-1, (3R,4S,5R,8R,10S,19R,24S)-1, (3R,4S,5R,8R,10S,19S,24R-1) and (3R,4S,5R,8R,10S,19S,24S)-1. The computed 199, 126, 99 and 154 initial conformers were re-optimized at the B3LYP/6–31 + G(d,p) and the ωB97X/TZVP PCM/MeOH levels. ¹³C NMR chemical shift data computed for the low-energy (≥ 1% Boltzmann populated) 7, 9, 10 and 7 B3LYP conformers were corrected for DMSO and MeOH and then compared with the experimental ¹³C NMR chemical shifts (Supplementary Tables S6, S7). The DMSO results showed better agreement for the (3R,4S,5R,8R,10S,19S,24S) and (3R,4S,5R,8R,10S,19R,24R) stereoisomers than for the other two, which confirmed cis-(19R*,24R*) relative configuration of the C-19 and C-24 substituents but the two isolated blocks could not be correlated. It is noteworthy that the presence of the sulfur heavy atom in the vicinity of chirality centers and the coordinating DMSO or MeOH solvent molecules can have a relatively large impact on the chemical shifts (Sikandar et al., 2023).

TDDFT-ECD calculations were performed at various levels of theory on the low-energy (≥ 1% Boltzmann population) 11, 9, 5 and 11 ωB97X conformers of the four stereoisomers, which indicated that the ECD spectrum was governed by the C-19 chirality center above 240 nm. The (3R,4S,5R,8R,10S,19R,24R) and (3R,4S,5R,8R,10S,19R,24S) stereoisomers reproduced equally well the experimental ECD spectrum of 1, while the (3R,4S,5R,8R,10S,19S,24R) and (3R,4S,5R,8R,10S,19S,24S) stereoisomers gave a mismatch in this region (Figure 4; Supplementary Figures S2–S4). Below 240 nm, all four computed stereoisomers reproduced the intense negative Cotton effect (CE), which suggested that this region was determined by the (4S) chirality center of the octahydronaphthalene moiety. Thus, ECD transitions above 240 nm reported the AC of C-19 chirality center of the heterocyclic scaffold, while the C-4 chirality center of the octahydronaphthalene moiety was reflected in the intense CE below 240 nm. Thus, combined with the known relative configuration of the isolated blocks, TDDFT-ECD calculations allowed determining the absolute configuration of 1 as (3R,4S,5R,8R, 10S,19R,24R), which corroborates the result of X-ray analysis.

Figure 4

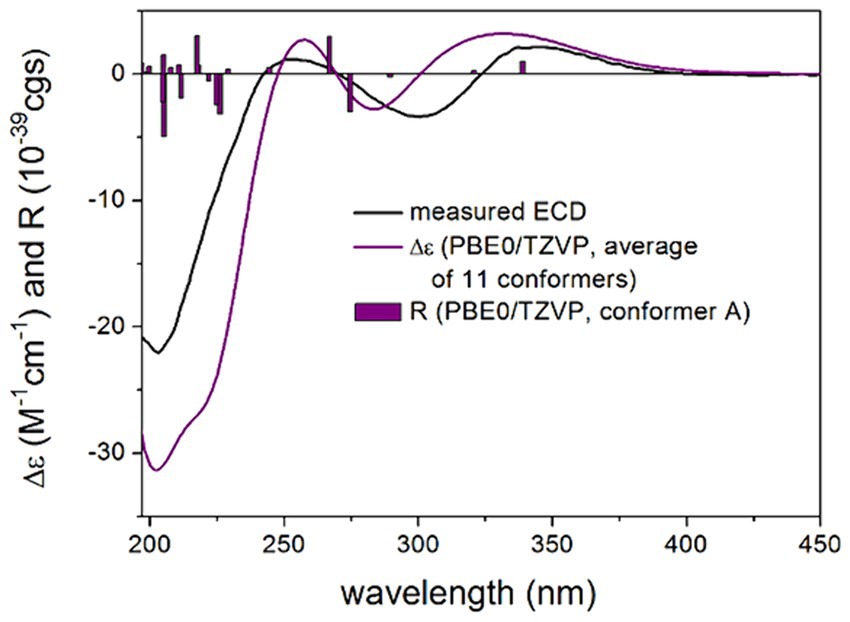

Figure 4. Experimental ECD spectrum of compound 1 in MeOH (black line) compared with the calculated PBE0/TZVP PCM/MeOH spectrum of (3R,4S,5R,8R,10S,19R,24R)-1. Level of DFT optimization: ωB97X/TZVP PCM/MeOH. Bars represent the rotational strength values of conformer A.

Compound 2 shared the same molecular formula as 1 as deduced from HRESIMS. The planar structure of 2 was confirmed to be identical to that of 1 after detailed analysis of the 2D NMR spectra of 2. The obvious differences of NMR data between 1 and 2 were the chemical shifts for H-24 and H-25a which differed by +0.55 and + 0.26 ppm in 2 when compared to 1. Further differences were observed with regard to the coupling constants between H-24 and H-25ab, suggesting a different configuration of 2 compared to 1 in the nitrogen containing moiety. In the ROESY spectrum of 2, the correlations from Me-22 (δ_H 1.58) to H-24 (δ_H 3.99) and H-25α (δ_H 3.34) indicated that they were present on the same face of the ring, whereas Me-22 and H-24 were on the opposite side of the ring in 1 (Supplementary Figure S61).

For the configurational assignment of 2, the computed ¹³C DFT-NMR and TDDFT-ECD data of four stereoisomers of 2 were compared with the experimental data. The ¹³C DFT-NMR results compared to the experimental data of 2 showed a preference for the cis-(19R*,24R*) relative configuration over the trans-(19S*,24R*) one, which contradicted the experimental ROE results (Supplementary Tables S8, S9). Above 260 nm, a broad positive ECD band was measured at about 310 nm, which was reproduced well by the computed TDDFT-ECD of the stereoisomers (3R,4S,5R,8R,10S,19S,24R)-2 and (3R,4S,5R,8R,10S,19S,24S)-2, while the stereoisomers (3R,4S,5R,8R,10S,19R,24R)-2 and (3R,4S,5R,8R,10S,19R,24S)-2 gave a mismatch, allowing elucidation of the (19S) absolute configuration. All four stereoisomers reproduced the negative ECD transitions below 260 nm, which confirmed that the C-4 chirality center and hence the octahydronaphthalene moiety had the same absolute configuration as that of 1 (Figure 5; Supplementary Figures S5–S7). The negative highest wavelength n-π* transition above 350 nm could be well estimated by the (3R,4S,5R,8R,10S,19S,24R)-2, while it could not be reproduced by the stereoisomer (3R,4S,5R,8R,10S,19S,24S)-2 in accordance with the experimental ROE results. The combination of TDDFT-ECD calculations and experimental ROE data determined the absolute configuration of 2 as (3R,4S,5R,8R,10S,19S,24R).

Figure 5

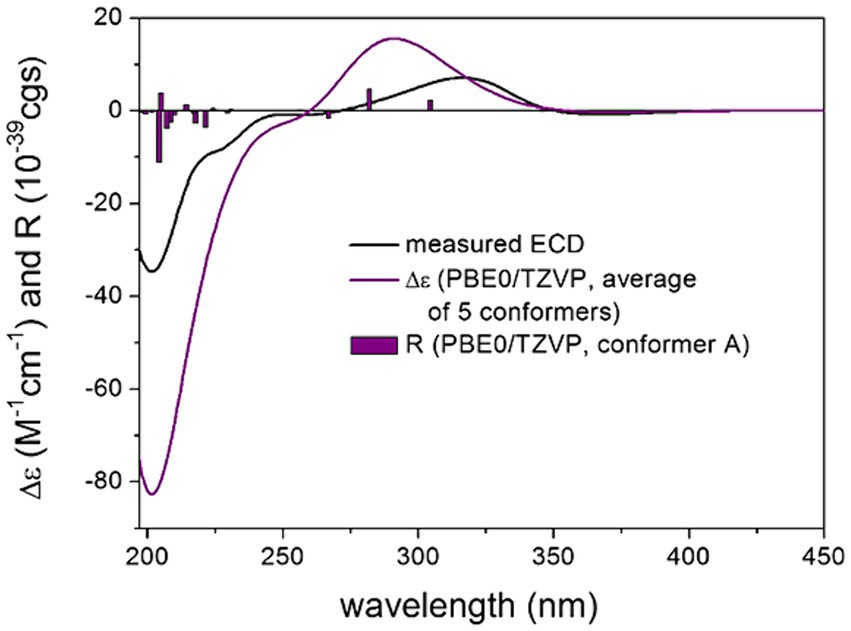

Figure 5. Experimental ECD spectrum of compound 2 in MeOH (black line) compared with the calculated PBE0/TZVP PCM/MeOH spectrum of (3R,4S,5R,8R,10S,19S,24R)-2. Level of DFT optimization: ωB97X/TZVP PCM/MeOH. Bars represent the rotational strength values of conformer A.

The molecular formula of 3 was the same as for compounds 1 and 2 based on the HRESIMS data. The ¹H and ¹³C NMR data of the octahydronaphthalene ring in 1, 2 and 3 were likewise very similar, suggesting that they shared the same substructure. However, significant differences were found for chemical shifts for C-17 and C-19 (−24.9 and − 10.3 ppm, respectively) in 3 when compared to 2. In addition, H-25ab showed HMBC correlations to C-19 in 3 instead of to C-18 as in compounds 1 and 2, indicating exchange of the positions of S and NH in 3. Thus, the planar structure of 3 was elucidated as shown. The ROESY relationship between Me-22 (δ_H 1.78) and H-24 (δ_H 4.53) suggested they were on the same side of the ring (Supplementary Figure S62).

The above DFT-NMR and TDDFT-ECD protocols were performed on four stereoisomers of 3 by changing the configuration of the C-19 and C-24 chirality centers; (3R,4S,5R,8R,10S,19R,24R)-3, (3R,4S,5R,8R,10S,19R,24S)-3, (3R,4S,5R,8R,10S,19S,24R) -3 and (3R,4S,5R,8R,10S,19S,24S)-3. The comparison of the computed and experimental ¹³C NMR chemical shifts showed a clear preference for the trans-(19S*,24R*) relative configuration of the heterocyclic moiety in line with the experimental ROE results (Supplementary Tables S10, S11). TDDFT-ECD calculations of the stereoisomers (3R,4S,5R,8R,10S,19S,24R)-3 and (3R,4S,5R,8R,10S,19S,24S)-3 gave acceptable agreement with the experimental ECD spectrum of 3, while stereoisomers (3R,4S,5R,8R,10S,19R,24R)-3 and (3R,4S,5R,8R,10S,19R,24S)-3 gave a mismatch (Figure 6; Supplementary Figures S8–S10). The combination of experimental ROE data, ¹³C DFT-NMR and TDDFT-ECD calculations allowed determining the absolute configuration of 3 as (3R,4S,5R,8R,10S,19S,24R).

Figure 6

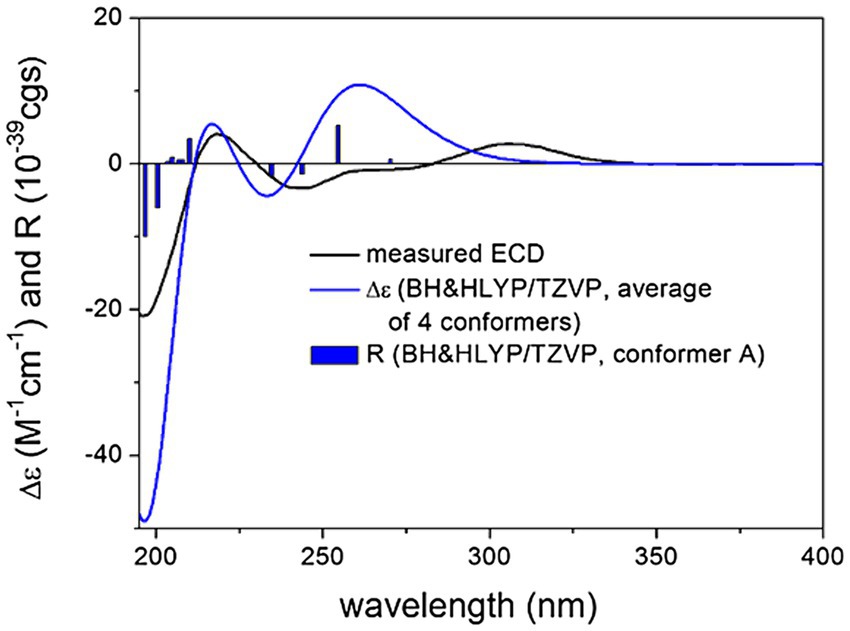

Figure 6. Experimental ECD spectrum of compound 3 in MeOH (black line) compared with the calculated BH&HLYP/TZVP PCM/MeOH spectrum of (3R,4S,5R,8R,10S,19S,24R)-3. Level of DFT optimization: ωB97X/TZVP PCM/MeOH. Bars represent the rotational strength values of conformer A.

Compounds 1–3 show limited structural similarities to known fungal constituents including equisetin (Phillips et al., 1989), phomasetin (Singh et al., 1998), and Ascosalipyrrolidinone A (Osterhage et al., 2000). However, in compounds 1–3, the substituents on the octahydronaphthalene moiety are different from those present in known compounds. Furthermore, 1–3 show significant differences in the alkaloid part, implying that the former compounds feature a distinctive novel skeleton. A plausible biogenetic pathway for the formation of 1–3 involves iterative hybrid polyketide synthases–non ribosomal peptide synthetases (PKS–NRPS) with the following key steps (Supplementary Figure S59), which can be partially referenced from the known biogenetic pathway of equisetin (Fisch, 2013). Intermediate B was built from an octaketide and an alanine moiety. The beta carbon of the lactam ring in intermediate B was attacked either by S atom of the cysteine moiety to form 1 and 2 or by N atom of the cysteine moiety to give 3.

To identify potential targets for the three compounds 1–3, we used the target prediction software packages SwissTargetPrediction (Daina et al., 2019) and SuperPred (Nickel et al., 2014). Targets identically predicted by both approaches (Supplementary Tables S2–S4) were subjected to blind docking experiments individually (“inverse docking”). These probe ligand binding across the whole receptor to unravel whether potential binding sites of compounds 1–3 are similar to known binding sites.

The blind docking revealed a high propensity of the compounds to bind to two different sites: The orthosteric binding site of G-protein coupled receptors (GPCRs) and domains similar to the β-propeller domain found in integrins (Figures 7A,B) (Campbell and Humphries, 2011). A few binding poses in the orthosteric binding pocket in the GPCR adenosine receptor A_2B and the cannabinoid CB₂ (Figure 7A) receptor address transmembrane helices (TMs) 3 and 6 and in the chemokine receptor CCR1 TM 6. Such poses, which might be suitable for an agonist (A_2B, CB₂) or antagonist (all), were identified for all compounds. However, the number of poses identified in the orthosteric binding pockets was too small to count as valid binding poses (see Methods for criteria). In the GPCRs A_2B and formyl peptide receptor 1 (FPR1) (Figure 7C), binding modes at the extracellular loop 2 + 3 (EL2 + 3), a potential allosteric binding site (Peeters et al., 2012), were additionally identified. For the integrin α₅β₁ complex, binding modes of the compounds inside the β-propeller (Figure 7B) or the β-propeller-like domain of Kelch-like ECH-associated protein 1 were identified (Figure 7D). In the X-ray crystal structure of cyclin-dependent kinase 5 (CDK5), a binding mode of deprotonated compound 1 at the position of the co-crystallized R-roscovitine (Figure 7E) was identified. Despite this target being found for compound 3 in the ligand similarity-based screening only, the high similarity to compound 1 still renders CDK5 a viable higher-priority target for compound 1. In the X-ray crystal structure of mitotic rotamase Pin1 (Peptidyl-prolyl cis-trans isomerase NIMA-interacting 1), a binding mode of deprotonated compound 3 at the position of the co-crystallized proline (Figure 7F) was identified.

Figure 7

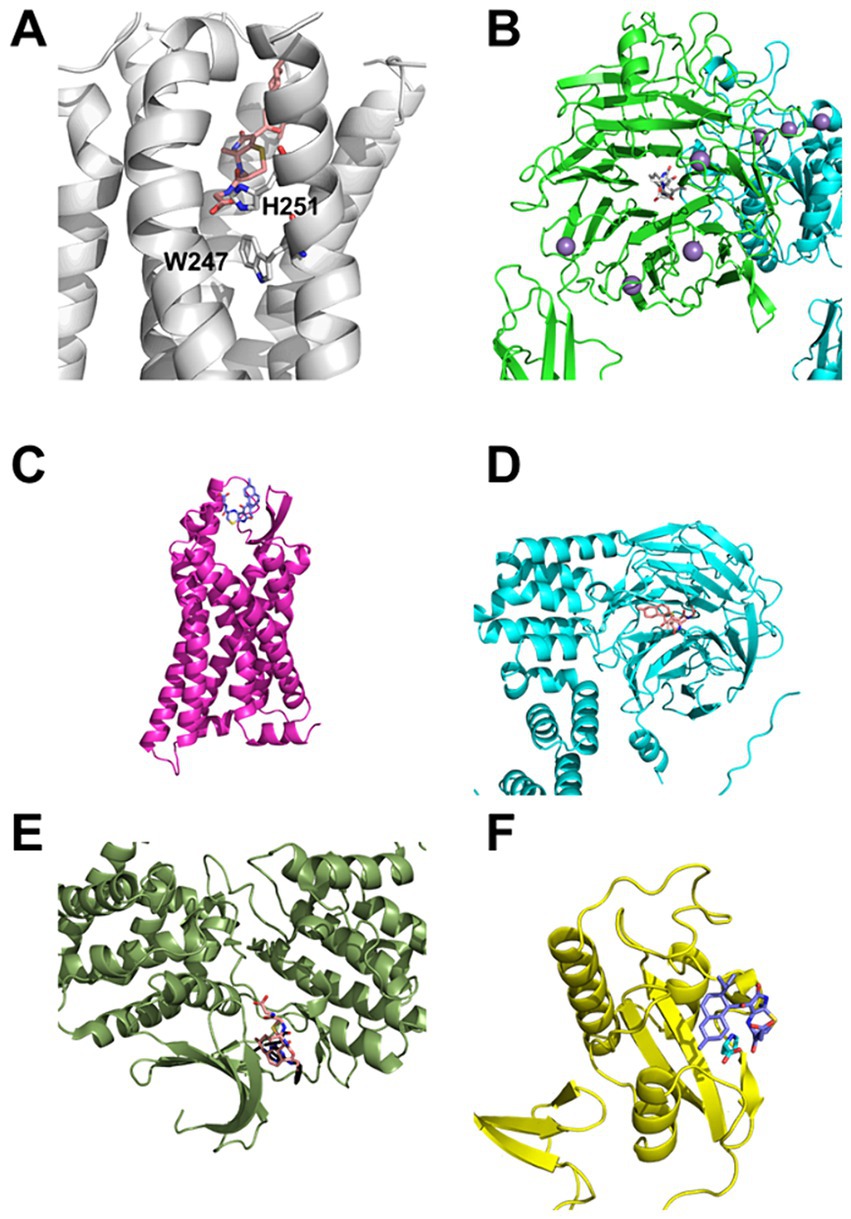

Figure 7. Selected, biologically putatively relevant, predicted binding modes of compound 1 (salmon), 2 (gray), and 3 (navy) in predicted targets. (A) Binding mode of compound 1 in the adenosine receptor A_2B (white). TMs 3 and 6 are addressed by the compound, which forms a salt bridge to H251, located in a position important for the activation of GPCRs above the functionally relevant W247. (B) Binding mode of compound 2 in the integrin α₅β₁ complex (green and blue, respectively). The compound binds to the β-propeller domain of integrin α₅. (C) Binding mode of compound 3 at the EL2 + 3 of the formyl peptide receptor 1 (pink). This binding mode may convey an allosteric effect. (D) Binding mode of compound 1 in the β-propeller-like domain of the Kelch-like ECH-associated protein 1 (blue). (E) Binding mode of compound 1 at the binding site of R-roscovitine (shown in addition in black) in the cyclin-dependent kinase 5 (forest green). (F) Binding mode of compound 3 in the proline (shown in addition in cyan) binding site of the mitotic rotamase Pin1 (yellow).

We predicted a diverse set of potential targets for compounds 1–3 based on a search for chemically and structurally similar ligands. Accordingly, proteins known to bind ligands similar to compounds 1–3 were suggested as potential targets for the respective compounds. The set of potential targets is structurally diverse, including GPCRs, integrins, kinases, and histone deacetylases. Despite the high structural similarity of, e.g., the epimeric compounds 1 and 2, varying targets were identified for all three compounds. To counteract potential biases of the screening methods and to identify targets that are more likely to be influenced by the compounds, a blind docking of all compounds to all potential targets identically identified by both screening methods was conducted (“inverse docking”). The blind docking suggested several putative targets for all three compounds, e.g., the GPCR cannabinoid receptor 2 or the integrin α₅β₁ complex; the predicted compound binding might functionally impact these targets.

Note, however, that computational target prediction (Katsila et al., 2016) and inverse docking (Vasseur et al., 2015) are considered challenging. Further investigations could thus consider compute-intensive molecular simulations of free ligand binding (Gohlke et al., 2013a; Kaiser et al., 2023) to confirm the predicted binding modes, long-time molecular simulations to probe functional effects (Gohlke et al., 2013b), or experimental validation of the putative agonistic or antagonistic activity of compounds 1–3 with a higher priority toward those targets.

Conclusion

In summary, compounds 1–3 represent a new family of alkaloids comprising octahydronaphthalene, α, β-unsaturated lactam and glycine-cysteine moieties. The combination of X-ray diffraction analysis, DFT-NMR, and TDDFT-ECD calculations aided by ROE correlations could efficiently handle the configurational assignment of two isolated blocks of chirality in compounds 1–3. The unusual skeleton of the new compounds that were induced by addition of NaI to solid rice medium during fermentation of the endophytic fungus Aplosporella javeedii implies an interesting biosynthetic mechanism that is of value for further investigation.

Data availability statement

The datasets presented in this study can be found in online repositories. The names of the repository/repositories and accession number(s) can be found in the article/Supplementary material.

Author contributions

YG: Investigation, Writing – original draft. MF: Formal analysis, Investigation, Writing – review & editing. NT: Data curation, Investigation, Writing – review & editing. DW: Data curation, Software, Writing – original draft. CJ: Data curation, Software, Writing – review & editing. AM: Data curation, Software, Writing – original draft. TK: Data curation, Software, Writing – review & editing. RH: Data curation, Software, Writing – review & editing. KS: Data curation, Investigation, Writing – original draft. LvG: Data curation, Investigation, Writing – original draft. RK: Data curation, Investigation, Writing – review & editing. JK: Data curation, Software, Writing – original draft. CG: Data curation, Software, Writing – original draft. HG: Data curation, Software, Writing – review & editing. B-GW: Formal analysis, Writing – review & editing. PP: Methodology, Project administration, Supervision, Writing – review & editing. ZL: Funding acquisition, Methodology, Project administration, Supervision, Writing – review & editing.

Funding

The author(s) declare that financial support was received for the research, authorship, and/or publication of this article. The Bruker diffractometer was funded by the Deutsche Forschungsgemeinschaft (DFG, German Research Foundation) under grant INST 208/589–1. TK and AM are grateful the National Research Development and Innovation Office (grant nos. K-138672 and FK-134653) for financial support. The CPU time from the Governmental Information Technology Development Agency (KIFÜ) is gratefully acknowledged. This work was supported in part by the Deutsche Forschungsgemeinschaft [DFG, German Research Foundation; 270650915/GRK 2158 (to HG, RK, PP)]. HG is grateful for computational support and infrastructure provided by the “Zentrum für Informations-und Medientechnologie” (ZIM) at the Heinrich Heine University Düsseldorf and the computing time provided by the John von Neumann Institute for Computing (NIC) to HG on the supercomputer JUWELS at Jülich Supercomputing Center (JSC; user ID: VSK33). ZL thanks Hunan Provincial Natural Science Foundation of China (2022JJ40286), the Changsha Municipal Natural Science Foundation (kq2202257), and Intra Institutional Open Fund of School of Medicine, Hunan Normal University (KF2022001) for support.

Acknowledgments

We thank the CeMSA@HHU (Center for Molecular and Structural Analytics@Heinrich Heine University) for recording the mass-spectrometric and the NMR-spectroscopic data.

Conflict of interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Publisher’s note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.

Supplementary material

The Supplementary material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fmicb.2024.1458622/full#supplementary-material
