- 1Department of Civil and Environmental Engineering, The Hong Kong University of Science and Technology, Kowloon, Hong Kong SAR, China
- 2Division of Life Science and Centre for Chinese Medicine, The Hong Kong University of Science and Technology, Kowloon, Hong Kong SAR, China
- 3State Key Laboratory of Marine Pollution, School of Energy and Environment, City University of Hong Kong, Kowloon, Hong Kong SAR, China
- 4Department of Biology, The University of Western Ontario, London, ON, Canada
Introduction: Plant growth-promoting rhizobacteria (PGPR) and elevated CO2 (eCO2) have demonstrated their individual potential to enhance plant yield and quality through close interaction with rhizosphere microorganisms and plant growth. However, the efficacy of PGPR under eCO2 on rhizosphere microbiome and, ultimately, plant yield and active ingredient accumulation are not yet fully understood.
Methods: This study investigated how the medicinal plant Pseudostellaria heterophylla (P. heterophylla) and its rhizosphere microbes respond to PGPR (Bacillus subtilis and Pseudomonas fluorescens) at eCO2 (1,000 ppm).
Results and Discussion: It was found that the yield and active ingredient polysaccharides accumulation in the tuber of P. heterophylla were significantly increased by 38 and 253%, respectively. This promotion has been associated with increased root development and changes in the indigenous microbial community. Metagenomics analysis revealed a significant reduction in pathogenic Fusarium abundance in the rhizosphere. Potential biocontrol bacteria Actinobacteria and Proteobacteria were enriched, especially the genera Bradyrhizobium and Rhodanobacter. The reshaping of the rhizosphere microbiome was accompanied by the upregulation of biological pathways related to metabolite biosynthesis in the rhizosphere. These modifications were related to the promotion of the growth and productivity of P. heterophylla. Our findings highlighted the significant role played by PGPR in medicinal plant yield and active ingredient accumulation when exposed to eCO2.
1 Introduction
Administration of plant growth-promoting rhizobacteria (PGPR) is an important and environmentally friendly method to achieve sustainable crop production (Bhattacharyya and Jha, 2012; Gray and Smith, 2005; Lugtenberg and Kamilova, 2009). The mechanisms associated with plant promotion commonly reported include direct promotion via the production of phytohormones and/or mobilization of nutrients in the soil, such as phosphorus (Liu et al., 2016; Richardson et al., 2009), and indirect promotion via inducing systemic resistance to biotic and/or abiotic stress (Akbar et al., 2022). While an increasing number of studies identified that biological amendments modified the composition and functionality of the rhizosphere microbial community, resulting in enhanced plant growth and health (Deng et al., 2022; Guo et al., 2024; Tao et al., 2023). The specific way in which PGPR affect soil microbiome varies depending on the PGPR strains, plant species, and environmental factors.
Recently, studies have revealed that the native rhizobacteria (Sun et al., 2022), fungi (Tao et al., 2023), and predatory protists (Guo et al., 2024) can be recruited of PGPR and cooperate as partners to enhance plant development (Sun et al., 2022; Zhang et al., 2023). These changes in indigenous organisms are indirectly influenced by elevated atmospheric CO2 (eCO2) (Kohler et al., 2009; Williams et al., 2018; Zytynska et al., 2020). Studies showed that the effects of eCO2 on microorganisms in the rhizosphere had large variability, and can be both positive (Jin et al., 2022) and negative (Li et al., 2022). Microbial growth, including bacteria, fungi, arbuscular mycorrhizal fungi, and actinomycetes can be stimulated under eCO2 (Lee and Kang, 2016). However, the high eCO2 may suppress the soil microbes and reduce their biomass (Xiao et al., 2017). These opposite effects happened through plant-mediated and soil-mediated mechanisms (Paterson et al., 1997; Montealegre et al., 2002). The phenotypic traits of PGPR related to plant growth, such as hormone indole-3-acetic acid secretion in Pseudomonas strains, are changed under 1,000 ppm conditions, contributing to establishing a developed root system that efficiently absorbs water nutrients from the soil (Sun et al., 2022; Tarnawski et al., 2006; Yu et al., 2016). The influenced root growth and rhizodeposition, in turn, potentially manipulate the indigenous microbial populations and activities (Redondo-Gómez et al., 2022; Sadowsky and Schortemeyer, 1997; Zak et al., 2000). The effects of eCO2 on microbes are also linked to the soil nutrient availability. For instance, under eCO2, reduced soil nitrogen availability resulting from enhanced plant nutrient uptake led to a decrease in microbial biomass (Butterly et al., 2016). Increased microbial biomass under eCO2 was associated with increased dissolved organic carbon in the soil (Hu et al., 2020). The functionality of recruited microorganisms is associated with competitive interactions (Wei et al., 2015) and secondary metabolism manipulation in the soil (Zhang et al., 2023). For example, bacteria strains with the ability to produce 6-hydroxypentadecanedioic acid (Cai et al., 2021) and antibiotics (Zhang et al., 2022), as well as the ability to increase peptide synthetase gene abundance (Deng et al., 2022) were enriched to protect against pathogen invasion. However, despite the understanding that PGPR and elevated CO2 are manipulations that can influence the composition and functioning of rhizosphere microbiomes for plant growth. It is unclear if these manipulations could enhance treatment efficacy or not when plants grow in a changing climate scenario. Regarding this, a better understanding of how additive PGPR impacts plant root development and indigenous soil microbiomes under eCO2 conditions is necessary to support more effective application strategies to improve host plant development.
The tuberous root of Pseudostellaria heterophylla (P. heterophylla) Rupr. & Maxim, also known as crown prince ginseng, has been a common traditional Chinese medicine for nearly 300 years. The below-ground tubers contain bioactive components, and tuber extractions are the most used materials for treating coronavirus disease 2019 in clinical practices (Alam et al., 2021; Ren et al., 2021; Wu et al., 2019). However, the tubers of P. heterophylla have a high incidence of Fusarium wilt infection, a disease caused by the soil pathogen Fusarium oxysporum (Chen et al., 2021; Liu et al., 2020). Fusarium wilt poses an ever-increasing threat to agriculture, causing significant declines in plant yields, such as banana, tomato, and medicinal plants, ranging from 20 to 90% annually (Strange and Scott, 2005; Tao et al., 2023; Yuan et al., 2022). As PGPR plays an essential role in pathogen control, they manipulate microbial resource competition networks (Wei et al., 2015), bacterial community diversity (Hu et al., 2016), and organism interactions (Huo et al., 2018). Although these studies revealed the importance of PGPR in pathogen suppression, how PGPR impacts the fungal genera Fusarium species presence under eCO2 and how these manipulations influence active ingredient accumulation in medicinal plants remains largely unknown.
The objectives of this study include (1) to investigate the differences in plant trait indicators; (2) to study the differences in soil microbiome composition and biological pathways; and (3) to reveal the relationship between plants and soil microbiome. P. heterophylla was grown in two separate chambers and inoculated with two types of PGPR strains (Bacillus subtilis and Pseudomonas fluorescens) under ambient CO2 and eCO2 conditions, respectively. The growth and productivity of P. heterophylla were monitored and evaluated by measuring its shoot, root, tuber yield, and active ingredient content. We first monitored the composition and diversity of the indigenous bacterial communities and the density of wilt pathogen Fusarium in the rhizosphere. Based on these results, we conducted the analysis to identify the changes in the key metabolites’ biosynthesis biological pathways related to the microbial community shift.
2 Materials and methods
2.1 Plant material and growth conditions
The experiments were conducted in two climate-controlled chambers in the Department of Civil and Environmental Engineering at The Hong Kong University of Science and Technology (HKUST) (22.3°N 114.2°E), from January to May 2022. The study used the P. heterophylla cultivar as the experiment plant material. Seed tubers were surface sterilized with 5% (v/v) sodium hypochlorite and washed four times with sterilized distilled water. The washed seed tubers were sown in a pot (8 cm diameter, 17 cm depth) filled with 1.7 kg soil collected from Bijie, Guizhou Province, China (Kong et al., 2021). Soil water condition (60% field capacity) was monitored with soil moisture probes and tensiometers (Ng et al., 2022a). The pots were watered every 2 days with deionized water. The basic physicochemical properties of soil are summarized in Table 1.
The growth conditions are presented in Supplementary Figure S1. One of the chambers was set with an elevated CO2 concentration (eCO2), and the other was maintained at the average ambient CO2 concentration (aCO2). CO2 was supplied to the chamber via a compressed CO2 tank connected to a pipe within the chamber at the beginning of the experiments. Both chambers were set to a long-day photoperiod of 16 h:8 h, light: dark, at 23.5 ± 3°C. The light intensity was set to 79.198 mW/nm, and the relative humidity was maintained at 60 ± 10% (Chen et al., 2021).
2.2 Experiment treatments
The experiments were conducted in two independent chambers, one with eCO2 1,000 ± 50 ppm (IPCC, 2022 predicted level) monitored and controlled using a remote sensor and an environmental controller (BETC-B2, Netherlands). The other one was with aCO2 concentration of approximately 400 ppm. In each chamber, plants were performed with 3 treatments: control groups (CK), a B. subtilis-inoculated group (BS), and a P. fluorescens-inoculated group (PF). All treatments were CK group grown under aCO2 (aCK) and eCO2 (eCK), BS group grown under aCO2 (aBS) and eCO2 (eBS), PF group grown under aCO2 (aPF) and eCO2 (ePF), respectively. To conduct the PGPR inoculation, the bacterial strains B. subtilis subsp. (GDMCC 1.372) and P. fluorescens Migula (GDMCC 1.782) were selected based on our previous study, and their beneficial traits were assessed (Ng et al., 2022b). The bacteria cultures were grown on nutrient agar for routine use and were maintained in Luria-Bertani broth with 15% glycerol at −80°C for long-term storage. The inoculated volume was 15 mL/pot of diluted PGPR solution at a concentration of 10^8 CFU/mL in the BS and PF groups during plant growth at 186-h intervals to ensure their colonization (Yadav et al., 2014). Due to the BS and PF inoculants being diluted with 0.9% NaCl solution, the same volume of 0.9% NaCl solution was inoculated into the CK group at the same frequency as the BS and PF groups. Each treatment contained 3 pots, and each pot contained 16 seed tubers at the beginning of the cultivation. During cultivation, the tuber production of P. heterophylla varied among individual plants. After harvest, the plants that exhibited tuber formation were counted into the replicates (12–19). Plants that did not form tubers and those that died due to reasons, such as germination failure and disease during the 150-day cultivation period were excluded from the count.
2.3 Plant growth, productivity, and disease incidence
To evaluate the growth changes in P. heterophylla, the shoot characteristics, including leaf area, number of leaves per plant, and shoot height, were monitored at five different time points after its germination: 60, 75, 90, 105, and 120 days. The leaf area was obtained with the software Image J (Abràmoff et al., 2004). Leaves numbers were counted and shoot height was measured with a ruler. Furthermore, we measured the photosynthetic parameters with the three fully expanded uppermost leaves of each plant. Stomatal conductance (gs) and soil plant analysis development (SPAD) were measured using a Leaf Porometer (SC-1, United States) and a chlorophyll meter (SLY-C, China), respectively. After 150 days of growth, plants were harvested and washed with deionized water (Supplementary Figure S2). Then, the dry weights of shoot, root, and tubers were recorded to calculate the ratio of shoot dry weight to height (W/Hshoot), specific root length (SRL), tuber dry biomass, and harvest index (HI) based on Equations 1–4, respectively (Roberts, 2020; Bell and Fischer, 1994):
The maximum widths and lengths of the tubers were measured to present the morphology according to Hong Kong Chinese Materia Medica Standard (2020).
To assess the tuber quality, extraction and analysis of the active compounds comprised of polysaccharides (Hong Kong Chinese Materia Medica Standard, 2020), saponins (Ng et al., 2022a), and heterophyllin B (Zheng et al., 2019) were conducted. All tuber samples were dried at 65°C up to dryness via the oven-drying method and crushed to powder. To measure the polysaccharides, 0.5 g of the tuber powder was extracted with 30 mL of Milli-Q water in a water bath for 60 min. The polysaccharides content was measured using the anthrone-sulfuric acid colorimetric method at 625 nm with a UV–visible spectrophotometer (Lambda 950, Perkin Elmer, United States). To measure the saponins content, 0.1 g of dried powder was extracted with 40 mL methanol at 60°C for one hour. The saponin content was estimated using ginsenoside Rb1 as the reference standard. The absorbance of the solution was measured at 560 nm using a UV–visible spectrophotometer (Lambda 950, Perkin Elmer, United States). To measure the heterophyllin B content, 0.5 g of dried powder was ultrasonicated in 25 mL of ethanol for 45 min and filtered through a membrane (0.45 μm). high-performance liquid chromatography (HPLC) analysis was performed on a 1,200 series HPLC system (Agilent, United States). The one-point external standard method was used to calculate the content of heterophyllin B.
To calculate the disease incidence, the number of P. heterophylla tubers with wilt observation of disease symptoms, including wilting and dry brown rot, and the total number of P. heterophylla tubers after harvest in each treatment were counted. Each plant had one tuber, thus, the total number of tubers was 12–19 in all treatments. Disease calculation follows the below Equation 5.
2.4 Quantification of coupled effects
To assess the coupled effects of PGPR and eCO2, the independent action concept is used (Lasch et al., 2020). This method is applied to components with different modes of action, so the coupling effects can be calculated from the response of the individual components (Foucquier and Guedj, 2015). In the current study, the predicted effects’ values were calculated with Equation 6 (Alassane-Kpembi et al., 2017):
A is the effects of PGPR, and B is the effects of eCO2. The combination index (CI) is used to distinguish the different effects. CI is defined in Equation 7:
The empirical threshold of CI < 0.9 is set as the threshold indicates synergistic effects (synergism in PGPR and eCO2). 0.9 ≤ CI ≤ 1.1 is set to indicate the additive effects, and CI > 1.1 is set to indicate antagonistic effects (Chou, 2006).
2.5 Soil sampling, DNA extraction, and metagenome sequence analysis
To collect the rhizosphere soil, P. heterophylla plants were carefully uprooted from each pot. The rhizosphere soil was obtained by gently shaking off loosely attached soil around the roots and collecting the soil tightly attached to the roots (Akbar et al., 2022). Subsequently, the collected soil samples were then homogenized by pot. Each treatment had three pots, and therefore, the rhizosphere soil sample had three replicates per treatment. The soil samples were sieved through a 2-mm mesh, and a portion of each sample was stored at −80°C for total DNA extraction. The remaining soil was air-dried and used for nutrient and indole-3-acetic-acid (IAA) determination following Ng et al. (2022b) and Yan et al. (2022). The total DNA extraction was performed using an E.Z.N.A. Soil DNA Kit (Omega Bio-tek, Norcross, GA, United States). The quality of extracted soil DNA was assessed with a NanoDrop 2000 Spectrophotometer (Thermo Scientific, Waltham, MA, United States).
Metagenome sequence analysis was conducted at the Beijing Genomics Institute (BGI, Hong Kong, China). The DNA from each sample was fragmented, end-repaired, and adenylated. Adaptors were then ligated to the ends of the fragments, and a polymerase chain reaction (PCR) was carried out to amplify the product. The PCR product was then subjected to circularization, and single-stranded circular DNA molecules were produced via rolling cycle amplification. These were loaded onto patterned nanoarrays and sequenced using combinatorial Probe-Anchor Synthesis. All the raw data were trimmed using SOAPnuke v.1.5.2, and the trimmed reads were mapped to the host genome to remove host-originated reads (only for samples of host origin). High-quality reads were assembled using MEGAHIT software, and contigs with lengths less than 200 bp were discarded. Genes were predicted using MetaGeneMark, and redundant genes were removed using CD-HIT with identity and coverage cutoffs of 95 and 90%, respectively. Salmon software was used for quantification. Moreover, annotation information was generated by aligning the protein sequences of genes against a functional database (like KEGG) using DIAMOND. Taxonomic annotation was assigned based on the Kraken LCA algorithm, and Bracken software was used to generate the taxonomic and functional abundance profiles. Wilcoxon’s rank sum test was used to determine the features with significantly differential abundances across groups, and differentially enriched KEGG pathways were identified using reporter scores. Statistical analysis of the Wilcoxon rank test and the Kruskal-Wallis H test were performed using the R project.
2.6 Statistical analysis
The normality of the soil physicochemical properties data and plant-associated data was analyzed and represented as the mean with standard deviation. Statistical analysis was conducted using the software package SPSS version 20.0. Differences between mean values of soil physicochemical properties and plant-associated parameters were assessed via a two-way analysis of variance (ANOVA) followed by post hoc comparisons using the least significant difference (LSD) test (Yang et al., 2022). Significance was assessed at the 95% confidence interval (p < 0.05). Microbial composition and diversity results were analyzed in the RStudio (Version 2023.06.1). The alpha diversity was quantified by the Shannon, Chao1, and Simpson indices using the relative abundance profiles at the species level with the R package “vegan” (Oksanen et al., 2019). The beta diversity was presented with principal coordinate analysis (PCoA) based on the Bray-Curtis distance. The permutational multivariate analysis of variance, function adonis, transformed data by Bray-Curtis, permutation = 999 (PERMANOVA) was used to analyze the differences in the microbial community profiles with the “vegan” package (Zhang et al., 2023). Mantel test was performed using the “vegan” package in R to determine correlations between plant–soil factors and rhizosphere microbial communities. Spearman’s correlation analysis of dominant bacterial genera and biological pathways in the rhizosphere was performed using the “psych” package in R (Zhang et al., 2023). Random Forest analysis was used to disentangle the potential main predictors of Fusarium pathogen, harvest index, and active compound contents (Ding et al., 2022).
3 Results
3.1 Plant photosynthesis performance, shoot, and root development
The photosynthesis performance of P. heterophylla was significantly affected by eCO2 treatment and eCO2 coupled with BS treatment. With the elevation of CO2, the stomatal conductance (gs) showed a pronounced increase in treatments at eCO2 conditions, especially at 105 and 120 days (Figure 1A). The gs describes the rate of gas exchange (e.g., CO2 uptake) and functions as the measure of stomatal opening in response to environmental conditions. Greater gs indicates the photosynthesis rate is higher. Although inoculating PGPR also increased the gs than control treatments, the differences were not significant. Higher gs values were observed in the eBS treatments from 75 days to 120 days. Soil plant analysis development (SPAD) measures leaf chlorophyll concentrations and larger values indicating higher leaf photochemical efficiency. The eCK and eBS treatments at 120 days exhibited larger SPAD values than aCK (Figure 1B). Shoot development including leaf area, leaf number, and shoot height was increased by PGPR and/or eCO2 (Figure 1C; Supplementary Figure S3). The leaf area showed a remarkable increase from 60 to 75 days of plant development. It increased by 20–25% at 120 days in eCK, eBS, and ePF treatments, thereby surpassing other treatments during this period (Figure 1C). PGPR coupled with eCO2 enhanced the shoot development, with higher shoot height and larger ratio of shoot dry weight to height (W/Hshoot) were observed at 75 and 105 days (Figure 1D). Compared to aCK, W/Hshoot increased by 70 and 26% at eCK (p < 0.05) and eBS, respectively. The root development, especially the specific root length (SRL), was improved under eCO2 (Figure 1E).
![www.frontiersin.org](https://www.frontiersin.org/files/Articles/1426893/fmicb-15-1426893-HTML/image_m/fmicb-15-1426893-g001.jpg)

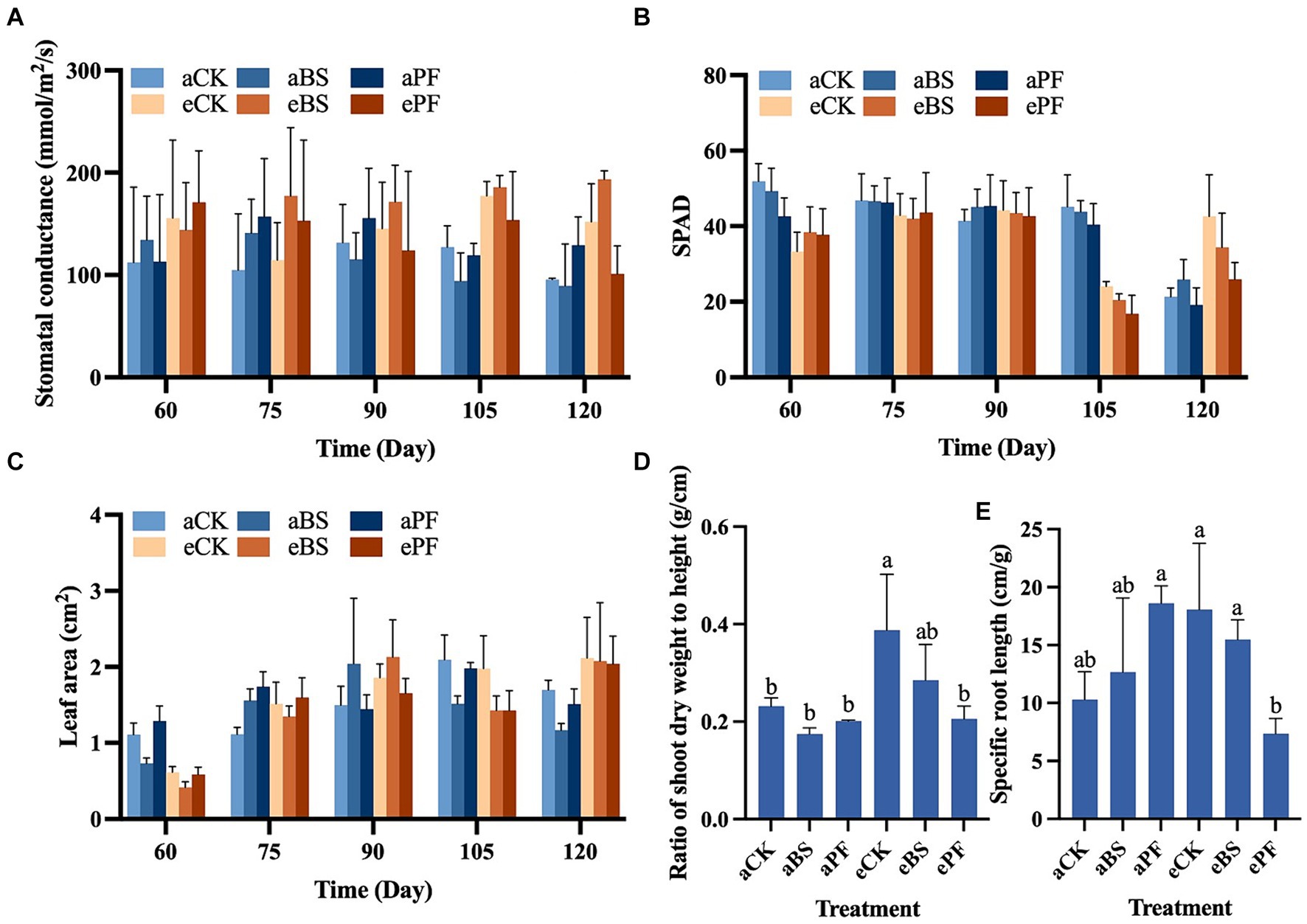

Figure 1. Growth traits for P. heterophylla individuals cultivated with inoculation of PGPR (B. subtilis and P. fluorescens) under different atmospheric CO2 levels (ambien: 400 ppm, elevated: 1000 ppm) at 60, 75, 90, 105, and 120 days of development. (A) Stomatal conductance. (B) Soil plant analysis development (SPAD). (C) Leaf area. (D) Ratio of shoot dry weight to height. (E) Specific root length. Bars represent the mean with standard deviation (n = 12–19). Different letters on the top of each bar indicate the significance of differences among treatments (p < 0.05).
3.2 Plant productivity and disease incidence
The productivity of P. heterophylla was described by yield (tuber biomass and harvest index) and tuber quality (the contents of the active ingredients) (Figure 2). Compared to aCK, the tuber dry biomass significantly increased by 7, 36, and 38% in aBS, eCK, and ePF, respectively. Additionally, the harvest index showed enhancements ranging from 5 to 24% in PGPR and eCO2-treated groups. The ePF had plants with the largest tuber dry biomass at 213 mg/plant, as well as the highest harvest index at 0.77 (Figures 2A,B). Taken together, the results showed that the yield of P. heterophylla was enhanced the most in the ePF treatment.
![www.frontiersin.org](https://www.frontiersin.org/files/Articles/1426893/fmicb-15-1426893-HTML/image_m/fmicb-15-1426893-g002.jpg)

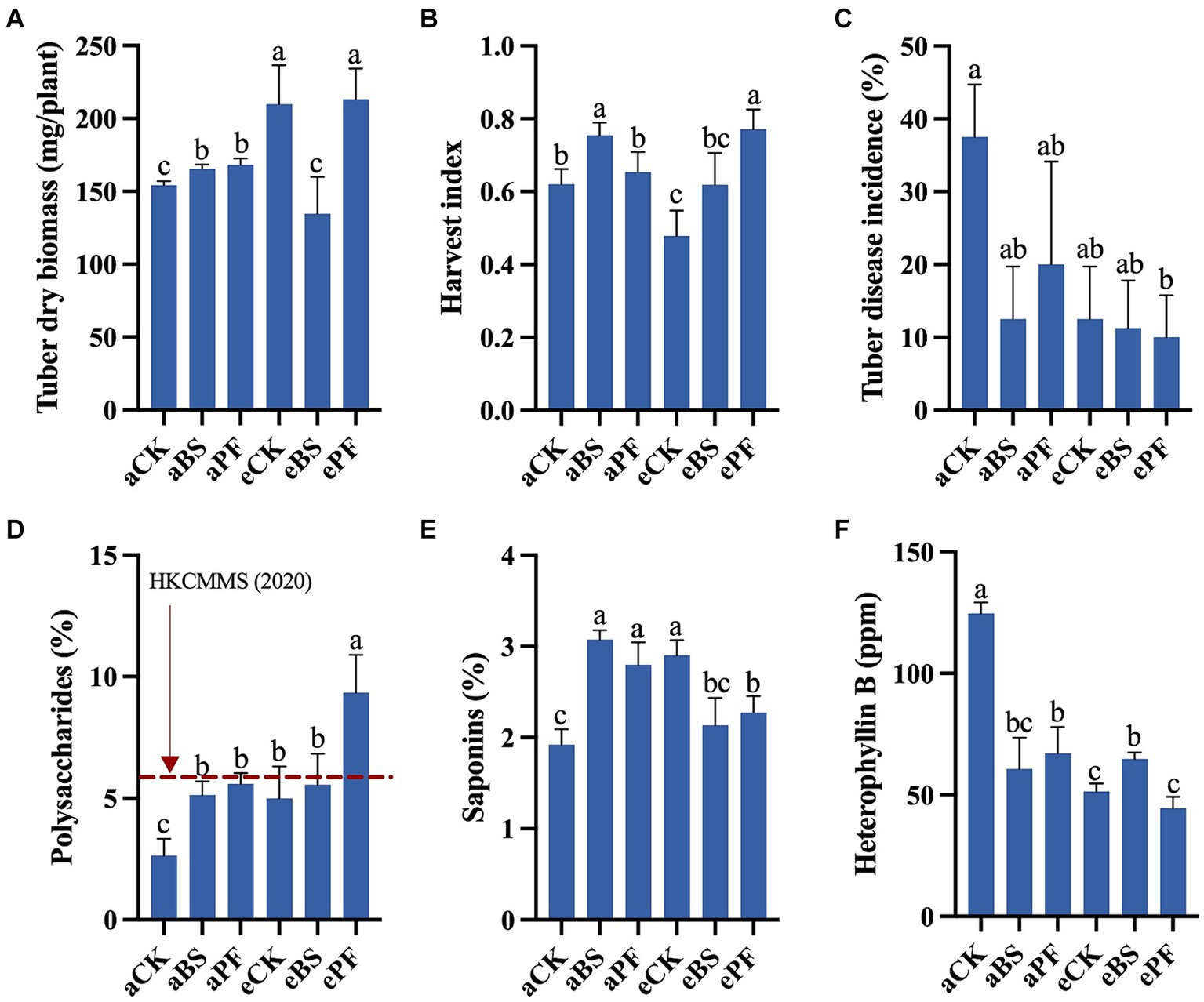

Figure 2. Tuber yield, quality, and disease incidence of P. heterophylla with different treatments. (A) Tuber dry biomass. (B) Harvest index. (C) Tuber disease incidence. (D) Proportion of polysaccharides in tubers. (E) Proportion of saponins in tubers. (F) Proportion of heterophyllin B in tubers. Bars represent the mean with standard deviation (n = 12–19). Different letters on the top of each bar indicate the significance of differences among treatments (p < 0.05).
Compared to aCK, the proportions of polysaccharides were significantly increased from 2.65 to 9.35%, with a 253% increase (Figure 2D). The highest polysaccharide content was found in ePF, at 9.3% (g/g), which is over 5 times higher than the content found in tubers grown in Anhui Province (1.62%, g/g) (Deng et al., 2018). The percentages of saponins were significantly increased by 60, 46, 51, and 19% in aBS, aPF, eCK, and ePF, respectively, compared to aCK (Figure 2E). The aBS showed the highest saponins content of 3.1% (g/g), which is nearly 7 times higher than the content found in tubers grown in Fujian Province (Ma et al., 2018). As for the heterophyllin B, applying PGPR and eCO2 decreases its percentages by 46–64% relative to aCK (Figure 2F). Overall, the polysaccharides and saponins proportions were positively increased with PGPR and eCO2, while heterophyllin B proportion in tubers was negatively decreased.
Inoculating with PGPR and/or elevation of CO2 reduced tuber disease incidence by 46.7 to 73.3% compared to the control group (Figure 2C). Although the PGPR or eCO2 resulted in a lower tuber disease incidence than aCK, the difference was not significant. The most significant decrease in tuber disease incidence was found in the ePF treatment with a significant 73.3% reduction (p < 0.05). The relative abundance of F. oxysporum in the rhizosphere showed similar trends as the disease incidence (Figure 3).
![www.frontiersin.org](https://www.frontiersin.org/files/Articles/1426893/fmicb-15-1426893-HTML/image_m/fmicb-15-1426893-g003.jpg)

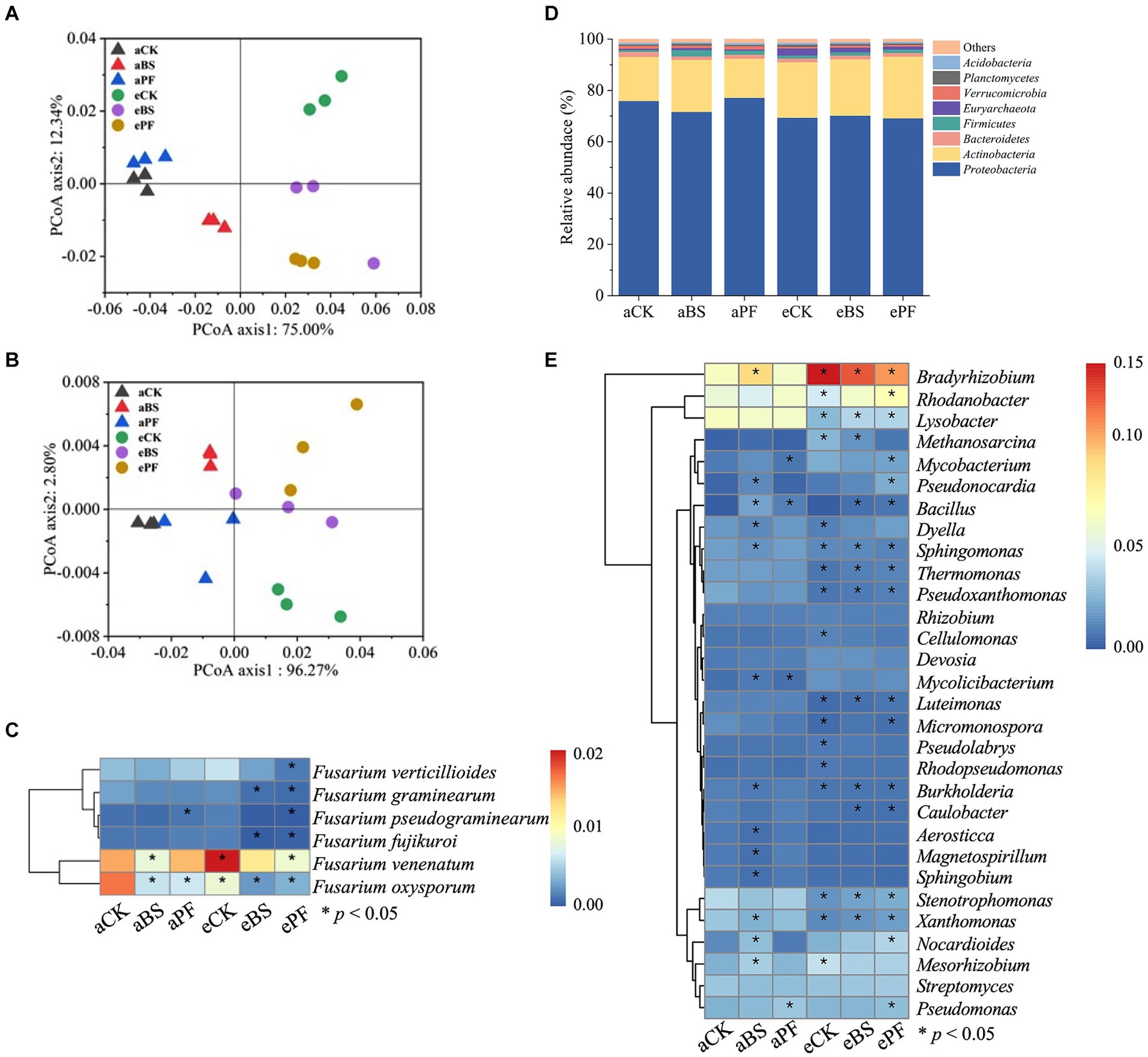

Figure 3. The structure and composition of soil microbiome. PCoA was used to visualize the dissimilarity of (A) bacterial and (B) fungal compositions. (C) Relative abundance of fungus Fusarium. Relative abundance of bacterial communities at the (D) genus level and (E) phylum level. The asterisks in the boxes of the heatmaps (C,E) indicate the significance of differences among treatments (p < 0.05).
3.3 Structure and composition of the indigenous microbial community
PCoA results of the beta diversity showed that the untreated group, i.e., aCK, was clearly separated from other treatments (Figure 3A), suggesting PGPR and eCO2 influenced the indigenous bacterial community, but the fungal community change was less evident (Figure 3B). Similar to the Chao 1 index, the elevation of CO2 only increased the alpha diversity of bacterial community (Supplementary Table S2). The fungus Fusarium associated with wilt disease showed a marginal decrease in density in response to PGPR and eCO2 application. As depicted in Figure 3C, compared with aCK, the relative abundance of F. oxysporum significantly decreased by 57, 57, and 45% in aBS, aPF, and eCK, respectively. Moreover, its abundance was further decreased in eBS and ePF, with a 78 and 72% reduction being observed instead, relative to aCK.
Within the composition of bacterial communities, at the phylum level (Figure 3D), Proteobacteria and Actinobacteria were the most dominant across all treatments. Compared to aCK, the application of PGPR and eCO2 significantly increased the relative abundance of Actinobacteria by 18–40%, except for the aPF treatment. The dominant bacterial genera were also altered by applying PGPR and eCO2 (Figure 3E). The relative abundances of Bradyrhizobium, Rhodanobacter, and Mesorhizobium were significantly higher in the PGPR coupling with eCO2 treatments. The relative abundances of Lysobacter and Stenotrophomonas were significantly lower in the PGPR coupling with eCO2 treatments.
3.4 Changes in metabolites biosynthesis biological pathways in indigenous microbiome
KEGG biological pathway analysis revealed major transcriptional alterations in different pathways (Figure 4). Spearman correlation analysis showed that soil microbial components were correlated to biological pathways prominence in the rhizosphere (Figure 4A; Supplementary Figure S6). The fungus Fusarium and dominant bacterial genera were significantly related to antibiotics biosynthesis pathways and secondary metabolisms pathways (p < 0.01). The application of PGPR and eCO2 upregulated the pathways associated with antibiotic biosynthesis, including tetracycline, clavulanic acid, macrolides, and various alkaloids. The normalized abundance of genes in the tetracycline biosynthesis and biosynthesis of various alkaloids were significantly increased by 17–36% in eBS and ePF, compared to aCK (Figure 4B). In contrast to antibiotic biosynthesis, the plant-pathogen interaction and biosynthesis of various other secondary metabolite pathways were downregulated, suggesting relieved pathogen stress and decreased production of some phytohormones.
![www.frontiersin.org](https://www.frontiersin.org/files/Articles/1426893/fmicb-15-1426893-HTML/image_m/fmicb-15-1426893-g004.jpg)

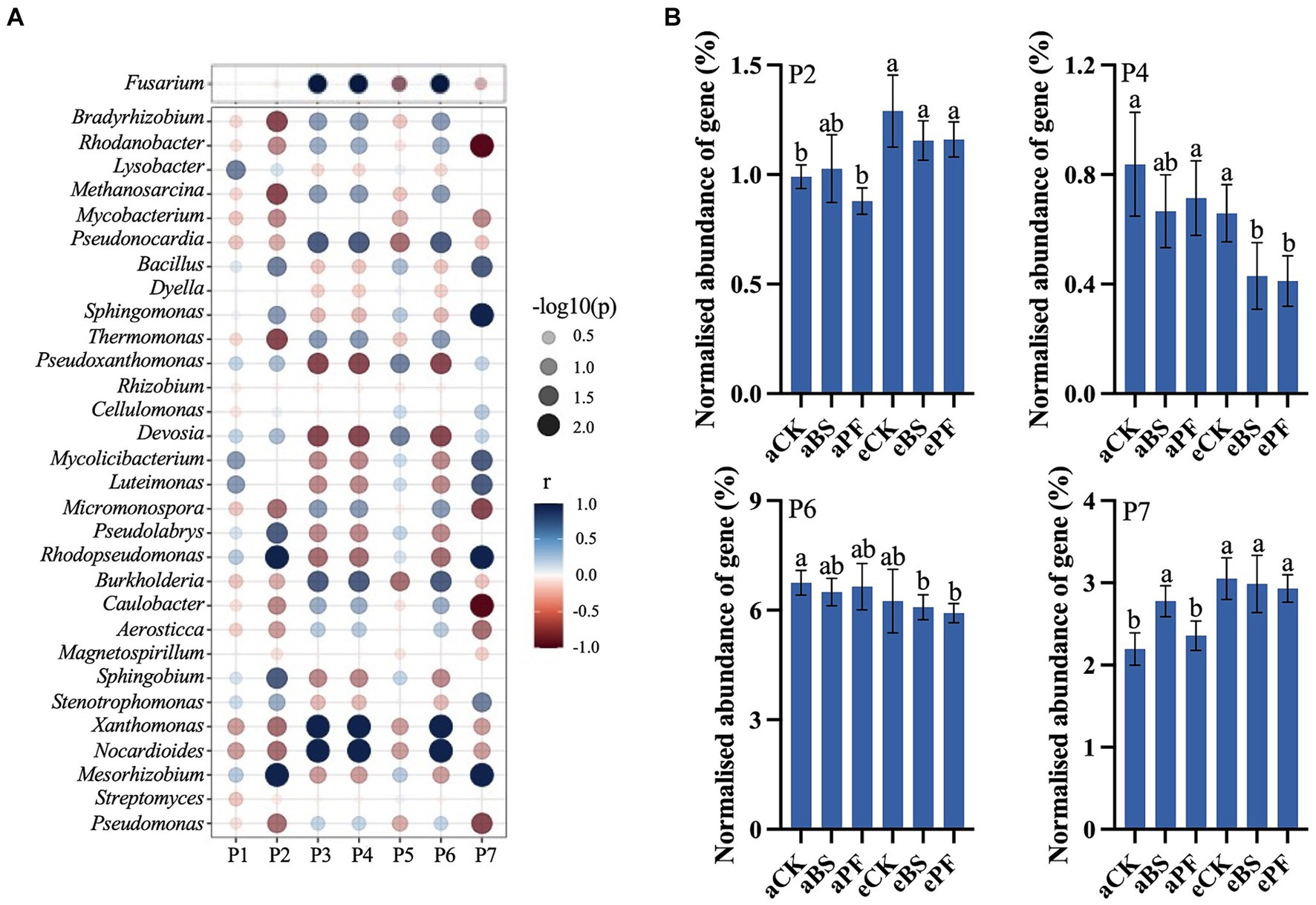

Figure 4. (A) Spearman correlation between soil microbes and biological pathways. (B) KEGG analysis of the normalized abundance of genes in response to PGPR and eCO2. P2: Biosynthesis of various alkaloids. P4: Biosynthesis of various other secondary metabolites. P6: Plant-pathogen interaction. P7: Tetracycline biosynthesis. Bars in (B) represent the mean with standard deviation (n = 3). Different letters on the top of each bar indicate the significance of differences among treatments (p < 0.05).
3.5 Relationship between plant and indigenous microbiome
The Mantel test results showed the relationships in the plant–soil network. Plant characteristics were connected to soil microbial components and soil physicochemical properties (Figure 5A). The abundance of Fusarium pathogen was negatively related to the harvest index and root development. The abundance of inoculated PGPR was positively related to rhizosphere IAA. Pearson’s correlation analyses showed that rhizosphere IAA was a crucial factor affecting root development, harvest index and the proportions of active compounds. Total organic carbon was positively related to root biomass, tuber biomass, and the content of polysaccharides. Additionally, soil bioavailable phosphorus was also related to root growth.
![www.frontiersin.org](https://www.frontiersin.org/files/Articles/1426893/fmicb-15-1426893-HTML/image_m/fmicb-15-1426893-g005.jpg)

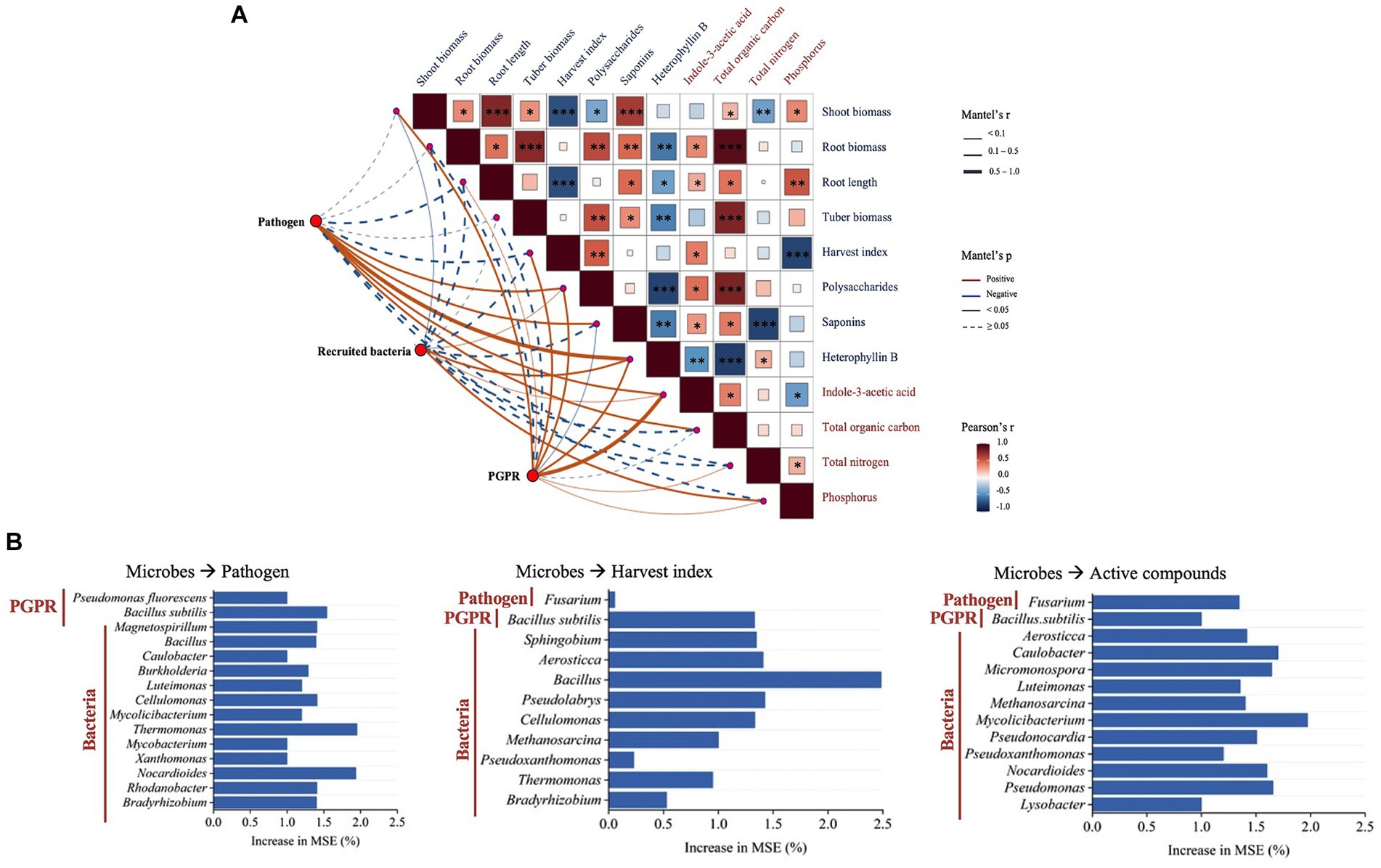

Figure 5. (A) Mantel test of the relationship between plant characteristics, rhizosphere microbial community components, and soil properties. The asterisks in the box *, **, and *** represent significant differences at the 0.05, 0.01, and 0.001 levels, respectively. (B) Random Forest analysis of predictors importance [percentage of increase in mean square error (MSE)] of rhizosphere microbes as drivers for the Fusarium pathogen, harvest index, and active compound contents in the tubers of P. heterophylla. Higher MSE% values imply more important predictors.
The Random Forest model results showed that rhizosphere microbial components were important predictors for the Fusarium pathogen presence, tuber harvest index, and active compound contents (Figure 5B). Two types of PGPR and thirteen recruited bacteria genera as the main microbial predictors of the Fusarium pathogen abundance in the rhizosphere. Among nine bacteria genera selected for predicting harvest index, Bacillus was the most significant indicator. Regarding the active compound contents, Fusarium and eleven bacteria genera were identified as potential microbial predictors.
Pearson correlation analysis revealed that the tuber yield was positively related to root length in all treatments except for aBS and eBS (Supplementary Figure S7). Instead, strong positive correlations among the photosynthetic parameters and tuber yield were found in aBS and eBS treatments. In aCK treatments, tuber quality was positively correlated to the leaf area, W/Hshoot, and root development. A positive relation was found between the content of polysaccharides and root development in treatments at aCO2 conditions. While polysaccharides contents showed a positive correlation with leaf area in eBS and ePF treatments.
4 Discussion
4.1 Coupled effects of PGPR and eCO2 on plant growth and productivity
To quantify the coupled effects of two environmental manipulations (PGPR and eCO2) on plant growth and productivity, we used the independent action concept by calculating the combination index (CI) (Table 2). Empirical thresholds of the CI < 0.9, 0.9 ≤ CI ≤ 1.1, and CI > 1.1 are set to indicate synergistic effects (synergism), additive effects, and antagonistic effects (antagonism), respectively (Chou, 2006; Lasch et al., 2020). Applying PGPR and eCO2 together showed an additive effect (CI: 0.98) in the increased tuber yield (dry biomass and harvest index) (Table 2), with the dry biomass of tubers in this study approximately 1.5 times higher than that of a previous study (Ng et al., 2022a). This can be attributed to the promoted root development in ePF, as a strong positive correlation was found between tuber yield and root development (Figure 5; Supplementary Figure S7). The ratio of root length to dry weight (specific root length, SRL) provides a ratio of a standard unit of acquisition (root length) to resource investment (biomass) (Kramer-Walter et al., 2016; Poorter and Ryser, 2015). It characterizes economic aspects of the root system and is indicative of environmental changes, such as elevated CO2 concentrations (Ostonen et al., 2007). In Figure 1E, the results showed the SRL of P. heterophylla increased slightly under eCO2, suggesting enhanced nutrient uptake. This observation was different from Ostonen et al. (2017) reported that there was a decrease in the SRL of trees. The reason may be that root development varies from species to species, and it relies on growth conditions, root order, and root locations (Crookshanks et al., 1998). Moreover, PGPR inoculation significantly increased IAA in the rhizosphere, which was significantly correlated with average root length (p < 0.01) (Supplementary Figure S4). IAA induces vascular differentiation in the root system and enhances root development, contributing to nutrient and water uptake for plant vigor (Tarnawski et al., 2006). This finding was consistent with the results of another bacteria strain, P. stutzeri XL272, which stimulated cucumber growth through IAA production (Sun et al., 2022). The harvest index illustrates biomass allocation. A higher harvest index in aBS and ePF indicated more efficient resource allocation to the economically valuable part (tuber), potentially increasing profitability. The increased harvest index can be attributed to the improvement in shoot and root development with the application of PGPR and/or eCO2. Higher allocation of resources to root biomass may result in reduced resource allocation to above-ground shoots (Poorter and Ryser, 2015). Changes in the ratio of shoot dry weight to height (W/Hshoot) describe the response of plant morphology under different growth conditions. For example, P. heterophylla showed a larger W/Hshoot under higher CO2 conditions (Figure 1D), suggesting elevated CO2 improved plants lateral growth more than vertical growth (Wu et al., 2004).
The content of active compounds in medicinal crops is crucial for their curative properties (Wei et al., 2020). However, little attention has been given to understanding how these qualities are affected by growth conditions and microorganisms. This study revealed that the proportion of three active compounds: polysaccharides, saponins, and heterophyllin B, were significantly influenced (Table 2). The synergistic promotion (CI: 0.81) of polysaccharides content in ePF was significant. The promotion may be due to the increased leaf area (Figure 1C), leading to higher photosynthesis and more carbohydrate accumulation in tubers (Burlak et al., 2013). Additionally, root dry weight and average root length showed increases in PGPR and eCO2-treated groups (Supplementary Figure S3), which may enhance transpiration and partially mitigate the negative effects of eCO2. The transpiration process drives increased carbohydrate transport to the tuber (Sun et al., 2022).
In contrast to polysaccharides, an antagonistic effect (CI: 1.1) of PGPR coupling with eCO2 on the increased saponins and heterophyllin B over aCK was found. Their contents were negatively correlated with total nitrogen and total organic carbon in the soil and were affected by microbial components. This observation was in agreement with a previous study conducted by Xu et al. (2024) that identified the significant role of microbial communities in regulating soil nutrients. Developing a denser network of root hairs and lateral roots in eBS and ePF (Section 3.1) helped improve nutrient absorption ability. However, the higher uptake of microelements, such as Cu and Mn, negatively affected saponin biosynthesis (Wei et al., 2020; Ng et al., 2022a). Heterophyllin B is a cyclic octapeptide whose formation needs nitrogen-contained precursors. The downregulation of the biological pathways, like the biosynthesis of amino acids and various secondary metabolites, may influence its formation (Zheng et al., 2019; Ruan et al., 2023).
Tuberization is a complex process involving interaction between various genetic, biochemical, and environmental factors (Singh et al., 2015). Plants without tuber formation may be due to the varied temperatures during growth, which is one of the most significant factors that affect tuber formation. Besides, the condition factors, such as photoperiod, light (intensity and quality), mineral nutrition, water availability and pathogens can influence tuberization (Abelenda et al., 2014). In addition, at the beginning of the cultivation, some of the seed tubers failed to germinate, which may lead to an increased death rate. Moreover, the survival rate of plants excluding disease ranged from 58 to 75% (Supplementary Figure S9), which probably implied that a high rate of plants died because of disease. Additionally, PGPR inoculants significantly increased the maximum width of tubers under aCO2 conditions (p < 0.05) (Supplementary Table S1), suggesting the tuber shape changed from elongated to ellipsoid. This may be due to the changes in the ATP/ADP translocator, which is the only protein dominant in the tuber morphology (Fernie and Willmitzer, 2001).
4.2 Suppression of fusarium pathogen by biocontrol bacteria in the rhizosphere
In this study, aCK had the highest abundance of the pathogen fungus Fusarium, which has a strong predictive importance for wilt incidence and crop quality (the content of nutrients and active ingredients) reduction (Guo et al., 2022; Tao et al., 2023). As a result, the tubers in aCK show wilting and dry brown rot, and its polysaccharides and saponins contents were lower than tubers of other treatments (Supplementary Figure S5). However, after applying PGPR and eCO2, the Fusarium density, in particular F. oxysporum, significantly decreased. It has been demonstrated that reductions of Fusarium indicated a relieved pathogen threat to plants, leading to a decrease in wilt disease incidence (Deng et al., 2022). The decrease in disease incidences and pathogen densities is associated with the PGPR inoculation and elevation of CO2. The disease-suppressive function of PGPR and eCO2 is related to interactions between pathogenic fungus F. oxysporum and bacteria. Previous studies showed that the abundance of dominant bacteria families potentially contributed to the pathogen abundance in the rhizosphere of tomato plants (Deng et al., 2022). Our results enforce the suppression potential of the bacterial communities recruited in soils. They also complement previous findings indicating that bacterial functions related to metabolite biosynthesis pathways can effectively increase plant health and quality by reducing pathogenic fungi in various plant-pathogen systems (Guo et al., 2024; Wei et al., 2015). This suppressed growth of Fusarium is in line with research that showed the inhibitory effects of probiotic agents on F. oxysporum growth in other herbal plants, e.g., American ginseng (Boulahouat et al., 2023; Dukare et al., 2021; Liu et al., 2020) and tomato plants (Guo et al., 2024). Different from previous research, the decrease in Fusarium density was higher under eCO2 conditions. Previous studies revealed the possible mechanism of PGPR against disease pathogens was reshaping the indigenous microbiome composition and function (Deng et al., 2022; Wu et al., 2021). Specifically, the beneficial strains, mostly Pseudomonas poae, were recruited into the rhizosphere of P. heterophylla to resist Fusarium wilt (Yuan et al., 2022). However, our study found no significant variance in the relative abundance of Pseudomonas poae among all treatments (Supplementary Figure S9). It is instead identified that the relative abundance of the dominant phylum Actinobacteria and the genera, e.g., Rhodanobacter, Bradyrhizobium, and Mesorhizobium, is increased in response to PGPR and eCO2 treatments (Figure 3). As reported by Huo et al. (2018) and Palaniyandi et al. (2013), Actinobacteria and Rhodanobacter are prolific antibiotic producers in soil and can produce functioning metabolites, like antibiotics, to suppress pathogen growth. As such, it can be said that applying PGPR at eCO2 recruits indigenous biocontrol bacteria, which can contribute to the suppression of Fusarium pathogens.
4.3 Regulation of metabolites biosynthesis biological pathway to reshape microbial community
The role of PGPR coupling with eCO2 in rhizosphere microbial communities has been investigated using microbial analysis (Yu et al., 2016). To further examine the biocontrol mechanisms at the molecular level, this study takes advantage of metagenomic analyses to characterize the transcriptional outcomes of microbe interactions in the soil. It was found that distinct gene expression profiles were present in the PGPR and eCO2 treatments compared to the control. The biological pathways related to functioning metabolite biosynthesis significantly correlated with the abundance of Fusarium and indigenous dominant bacterial genera (Figure 4). This agrees with studies conducted by Sun et al. (2022) and Deng et al. (2022), which concluded that metabolic interactions play a significant role in reshaping the rhizosphere microbiome. With KEGG analysis, previous studies identified microbial agents against Fusarium disease in watermelons and tomatoes by manipulating metabolic pathways related to the synthesis of lignin, acid, and antibiotics (Cai et al., 2021; Zhang et al., 2022). Consistently, this study found that four typical pathways of antibiotic biosynthesis (tetracycline, alkaloids, macrolides, and clavulanic acid) were upregulated, two of which were significant, namely tetracycline and alkaloids. Rhizobacteria Actinobacteria has evolved an excellent ability to produce tetracycline, and Pseudomonas can produce alkaloids, which has been demonstrated by previous research (Klapper et al., 2016; Lozano et al., 2019; van der Heul et al., 2018). Applying PGPR coupled with eCO2 significantly increased the abundance of Actinobacteria and Pseudomonas, strengthening our findings that PGPR coupled with eCO2 contributes to the biosynthesis of antibiotics by recruiting biocontrol bacteria. Thus, Fusarium pathogen growth can be suppressed by the above biocontrol bacteria via upregulating antibiotic biosynthesis in the PGPR and eCO2 treatments. This was further demonstrated by the decreased abundance of Fusarium in Figure 3. Akbar et al. (2022) reported that the plant-pathogen interaction is a significant player in mediating the plant immune response against invading pathogens. The relieved pathogen stress led to a downregulated plant-pathogen interaction, suggesting a decreased pathogen infection in plants following the application of PGPR coupled with eCO2. By creating a favorable and healthy rhizosphere, the growth and productivity of P. heterophylla, including yield and quality, in PGPR and eCO2-treated groups were enhanced more effectively.
The structure and composition of rhizosphere microbial communities are crucial for plant growth and health (Wei et al., 2019). The individual effects of PGPR or eCO2 on microbial communities have already been well-studied (Gray and Smith, 2005; Kohler et al., 2009; Šibanc et al., 2014; Yilmaz and Karik, 2022). However, the response patterns of microbial communities to interactions between different manipulations (e.g., CO2 elevation and PGPR inoculation) remain largely unknown. P. fluorescens coupled with eCO2 slightly decreased the alpha index, reducing species richness and evenness (Supplementary Table S2). These changes were not observed when PGPR or eCO2 treatments were administered separately, in which bacterial diversity was either unaffected or increased (Berg et al., 2020; Finkel et al., 2020; Jia et al., 2023). This might be due to plants in soil inoculated with PGPR at eCO2 favoring certain bacterial species over others, as observed in Figure 3. This favor was also found in other plant species, such as barley (Zytynska et al., 2020), Leymus chinensis (Li et al., 2022), and Brassica napus (Mamet et al., 2022). Bacteria that best contributed to plant growth in the rhizosphere were greatly favored in this environment and, as such, were grown in greater abundances, leading to lower bacterial diversity. To bridge links between plant physiology and microbial activities under eCO2, molecular signaling evaluations, including the role of osmolytes and reactive oxygen species, should also be explored. Additionally, further study should incorporate data on plant physiological parameters that would provide valuable insights into the mechanisms of plant-microbe interactions.
5 Conclusion
In summary, this study evaluated the coupled effects of different environmental manipulations on plant growth and productivity as well as the rhizosphere microbiome within a medicinal plant cultivation system. We provided evidence that increased root development and indigenous beneficial bacteria were associated with plant productivity (yield and active ingredient accumulation) in response to PGPR under eCO2. Specifically, the recruitment of biocontrol bacteria probably is effective in inhibiting the growth of the pathogenic fungus Fusarium. The increase in these probiotics was accompanied by the upregulation of biological pathways related to the biosynthesis of secondary metabolites, which may contribute to the suppression of Fusarium. These findings highlighted the importance of PGPR under eCO2 in improving active ingredient accumulation in medicinal plants. The balanced interaction between rhizosphere probiotics and Fusarium pathogen could be facilitated by the combined environmental manipulations, demonstrating the potential for sustainable agriculture practices. However, further studies on in vitro investigations of Fusarium and field applications with long-term cultivation are still needed.
Data availability statement
The datasets presented in this study can be found in online repositories. The names of the repository/repositories and accession number(s) can be found at: https://www.ncbi.nlm.nih.gov/, PRJNA1083094.
Author contributions
CN: Funding acquisition, Resources, Supervision, Writing – review & editing. WY: Formal analysis, Investigation, Visualization, Writing – original draft. YX: Methodology, Resources, Writing – review & editing. KT: Methodology, Resources, Supervision, Writing – review & editing. JT: Writing – review & editing.
Funding
The author(s) declare that financial support was received for the research, authorship, and/or publication of this article. This work was supported by the National Natural Science Foundation of China (51778166), Ministry of Science and Technology of the People’s Republic of China (2012CB719805), Areas of Excellence Scheme provided by the Research Grants Council of the Hong Kong SAR, China (AoE/E-603/18).
Acknowledgments
We would like to express our gratitude to Roy Tang for his helpful guidance and discussions throughout the active compounds measurements.
Conflict of interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
The author(s) declared that they were an editorial board member of Frontiers, at the time of submission. This had no impact on the peer review process and the final decision.
Publisher’s note
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
Supplementary material
The Supplementary material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fmicb.2024.1426893/full#supplementary-material
