Broad bean paste is a popular condiment in Asian countries. Leaves of Vitex negundo Linn. were used extensively in China during the koji-making of broad bean paste. Spreading V. negundo leaves on raw broad beans during fermentation was able to facilitate the rapid growth of fungi to form mature koji. We isolated two strains of fungi from mature koji, and four strains of bacteria from the rotten broad beans resulting from a failed attempt. According to microbial activity assays, two polymethoxylated flavones, 5-hydroxy-3,6,7,8,3′,4′-hexamethoxy flavone (HJ-1) and 5,4′-dihydroxy-3,6,7,8,3′-pentamethoxy flavone (HJ-2) were isolated from V. negundo leaves, and the fungal growth promotion and inhibition of bacterial growth of these two compounds were found to improve the production of broad bean koji. This study reveals the compounds present in V. negundo leaves with bioactivity against important microbes in koji manufacture, and provides a theoretical basis for the application of V. negundo in broad bean paste production.
1 Introduction
Broad bean paste is a traditional condiment, and has been popular in China and other Asian countries for hundreds of years, with the annual consumption of broad bean paste in China alone exceeding 800,000 t (Yu et al., 2022; Zhao et al., 2023). The main ingredients of broad bean paste are usually broad beans (Vicia faba L.) and chili. The paste is formed by a natural fermentation process in the presence of various microorganisms in three main stages (Zhao et al., 2022). In the first stage, the koji is made using broad beans. The sauce fermentation stage then occurs in the presence of salt, and finally chili is added for the post-fermentation stage (Niu et al., 2018). The initial fermentation of the raw broad beans to make koji is a critical process in the production, and its success is directly related to the quality of broad bean paste. This is because koji is made by the action of the extracellular enzymatic system of the constituent fungi. The correct fungi must be present, and the conditions in the raw bean paste must be conducive to their growth (Tang et al., 2020; Ding et al., 2022; Li et al., 2023). Chemical substances able to regulate the growth of these fungi remain unidentified.
Vitex negundo Linn. is a small aromatic plant with five foliolate leave pattern from Verbenaceae and widely distributed around the world, as China, Japan, and South America (Zheng et al., 2012). The plant of V. negundo is widely used for the koji-making process of broad bean paste in China (as Hebei, Liaoning, and Sichuan province, etc.), and Sichuan have a longer history of using V. negundo to make koji. To make the koji, broad beans are peeled and briefly soaked, and then the beans are covered with and encased in the V. negundo leaves, after which they are allowed to ferment naturally. The fermentation lasts for 3–7 days, until the surface of the beans is covered with yellowish-green fungal hyphae, which marks the completion of the koji formation (Tang et al., 2020; Li et al., 2021). Using the V. negundo leaves in this process is believed to shorten the required fermentation time and can improve the success of the koji by controlling the microbial growth during fermentation. However, the mechanism underlying this effect and the active constituents responsible remain unclear.
The objectives of this study were to investigate potential interactions between chemical substances in V. negundo leaves and microorganisms during the formation of broad bean koji using chromatographic separation, nuclear magnetic resonance (NMR) spectroscopy analyses, strain isolation, and bioactivity assay. We identified two polymethoxylated flavones from V. negundo which were able to promote fungal growth and inhibit bacterial growth, and which improve the success of the formation of broad bean koji.
2 Materials and methods
2.1 Materials and chemicals
Vitex negundo Linn. and Vicia faba L. (broad bean) were used in this study. V. negundo plants were collected from the areas close to Fuxin City and Sichuan City, China, in August 2021, and were identified by Professor Bo Qu. Voucher specimens of V. negundo were made and are stored at the College of Bioscience and Biotechnology, Shenyang Agricultural University, under the numbers SYNUB015940–SYNUB015942. Raw broad beans were purchased from Chengdu (Sichuan, China) in September 2021. All analytical reagents were purchased from Sinopharm Chemical Reagent Co., Ltd (Shanghai, China).
2.2 Production of broad bean koji and the effect of V. negundo on the production process
Raw broad beans (100 g) were peeled and soaked in 200 mL clean water for 30 min. The wet beans were then placed in a sterile culture dish lined with 200 g fresh V. negundo leaves on the bottom. A further 200 g of fresh V. negundo leaves were used to cover these broad beans and to completely encase them. After that, the beans were incubated at 25°C. Any visible changes in the broad beans were noted, and the time taken for the koji to form (the appearance of yellowish-green fungal hyphae on the beans surface) was recorded. A moistened sterile gauze was applied to the broad beans instead of the V. negundo leaves but used in the same way in the koji-making process as a control. All experiments were conducted in triplicate.
2.3 Isolation and identification of fungi responsible for broad bean koji
In order to isolate the fungal strains important for the formation of broad bean koji, potato dextrose agar (PDA) medium was used to isolate the dominant fungal strains in the koji. The broad bean koji with the best fermentation state was selected, and its surface mycelium was scraped using a sterile loop and inoculated onto PDA medium. We used both molecular biological methods and morphological observation to purify the dominant fungal strains in broad bean koji following a previously described method (Jia et al., 2022). The purified strains were cultivated in PDA medium at 28°C for 72 h to allow the mycelium to grow, and the mycelium was then collected and ground in liquid nitrogen. Genomic DNA was then extracted from the mycelium using an Ezup Column Fungi Genomic DNA Purification Kit (Sangon Co., Shanghai, China). The primers ITS1 and ITS4 were used to amplify the ITS region of each of the isolated fungal strains. The obtained PCR fragments were sequenced by Sangon (Shanghai, China) and were compared with those of known species available in the NCBI database. A neighbor-joining phylogenetic tree was constructed using the generated ITS sequences in MEGA version 7.0.
2.4 Isolation and identification of bacteria in the rotten broad beans resulting from failure of the koji
The bacteria in the broad beans that had rotted as a result of failure of the koji-making process were isolated according to a previous method with some modifications (Niu et al., 2018). Briefly, the 1 g sample of rotten broad bean was used and mixed well with 10 mL sterile distilled water to acquire a bacterial suspension. The suspension was then diluted for 105 times. Then, 0.2 mL of this dilution was spread over solid Luria-Bertani (LB) medium supplemented with 50 μg/ml of nystatin. After cultivation at 37°C for 24–72 h, colonies were isolated and purified according to their morphological characteristics. The genomic DNA of the isolated bacterial strains was extracted and the 16s rDNA was amplified using PCR with the universal primers 27F and 1492R. The PCR products were sequenced (Sangon, Shanghai, China) and identified using BLAST searches of the NCBI database. Finally, a neighbor-joining phylogenetic tree was constructed in MEGA version 7.0.
2.5 Petroleum ether and methanol extraction of chemicals from V. negundo leaves
A total of 5 kg fresh V. negundo leaves were subjected to a cold petroleum ether immersion extraction. The extraction was carried out over 24 h and was repeated three times. The resulting solution was evaporated to dryness at 40°C in a rotary evaporator. Then these leaves were dried in a cool place and subjected three times to methanol extraction. The resulting solution was evaporated to dryness at 50°C in a rotary evaporator.
2.6 The effect of V. negundo extracts on bacteria and fungi
Six strains of bacteria were chosen to test the biological activity of the petroleum ether and methanol extractions. The bacterial strains included Staphylococcus aureus, Bacillus subtilis, B. wiedmannii cdxj-1, Pseudomonas putida cdxj-2, B. albus cdxj-3, and B. aerius cdxj-4. The S. aureus and B. subtilis were acquired from the Agricultural Culture Collection of China. Four strains, B. wiedmannii cdxj-1, P. putida cdxj-2, B. albus cdxj-3, and B. aerius cdxj-4, were isolated from the rotten broad beans from the failed koji. The petroleum ether and methanol extracts of V. negundo leaves were each dissolved in methanol to a maximum concentration of 0.5% (v/v). The extracts were tested based on a previously described method (Jia et al., 2022). The 96 well plates were placed in 37°C thermostatic culture, and the absorbance at OD625 was recorded with a spectrophotometer every twelve hours. Finally, the growth promotion/inhibition ratio (%) was calculated according to the formula [OD625 (negative control)–OD625 (test group)| /OD625 (negative control)] * 100. If inhibitory activity was indicated, the half-maximal inhibitory concentration (IC50) was analyzed using SPSS 22.0.
Two strains of fungi were used to conduct the activity bioassay of the extractions. The fungi chosen were Rhizopus sp. CD-1 and Aspergillus sp. CD-3, both of which were derived from high-quality broad bean koji. The experiment was carried out as previously described with some slight modifications (Yang et al., 2022). The extract was dissolved in methanol and added to a 96-well plate, and the final chemical concentration set to 512–16 μg/mL through twofold serial dilutions. Pure methanol was used as a control. The absorbance at 600 nm (OD600) of All cultures was measured every 12 h.
2.7 Isolation and identification of chemical substances in the V. negundo petroleum ether extract
The petroleum ether extract (120 g) was passed through a silica gel column and eluted using various solutions with different polarity (dichloromethane/acetone: 1:0, 9:1, 4:1, and 1:1). Four fractions were obtained: Fr.1–Fr.4. Based on its biological activity, Fr.3 (40 g) was selected for further investigation. Fr.3 was subjected to chromatography on an MCI gel column with methanol/water (6:4, 7:3, 8:2, 9:1, and 10:0) gradient elution. Five fractions (Fr.3-1–Fr.3-5) were obtained and tested for their biological activity. Based on the results of the biological activity assays, Fr.3-1 was selected for further investigation. A total of 18 g Fr.3-1 was subjected to repeated chromatography on a silica gel column and a sephadex LH-20 column, and was finally purified using semi-preparative HPLC (Agilent 1260; X-bridge BEH C18 OBDTM Prep Column 130A, 5 μm, 10 mm × 250 mm; methanol in water; 3 mL/min) to obtain two compounds, named compound HJ-1 (260 mg) and compound HJ-2 (220 mg). The chemical structure of these two compounds was determined using nuclear magnetic resonance (NMR). Spectroscopic analysis of purified compounds was described as follow.
Spectra data of 5-hydroxy-3,6,7,8,3′,4′-hexamethoxy flavone (HJ-1) yellow crystals, 1H NMR (600 MHz, methanol-d4) δ: 7.88 (dd, J = 8.5, 1.9 Hz, 1H, H-6′), 7.81 (d, J = 1.9 Hz, 1H, H-2′), 7.14 (d, J = 8.5 Hz, 1H, H-5′), 4.06 (s, 3H, 7-OCH3), 3.93 (s, 3H, 4′-OCH3), 3.92 (s, 3H, 3′-OCH3), 3.89 (s, 3H, 6-OCH3), 3.88 (s, 3H, 8-OCH3), 3.85 (s, 3H, 3-OCH3). 13C NMR (150 MHz, methanol-d4) δ: 179.5 (C-4), 156.0 (C-2), 154.9 (C-7), 153.1 (C-4′), 150.4 (C-3′), 147.5 (C-5), 144.6 (C-9), 139.9 (C-3), 128.5 (C-6), 128.2 (C-8), 124.5 (C-1′), 123.5 (C-6′), 112.6 (C-5′), 112.4 (C-2′), 111.5 (C-10), 62.4 (6-OCH3), 61.9 (7-OCH3), 60.9 (8-OCH3), 60.6 (3-OCH3), 56.5 (2C, 3′, 4′-OCH3).
Spectra data of 5,4′-dihydroxy-3,6,7,8,3′-pentamethoxy flavone (HJ-2) yellow crystals, 1H NMR (600 MHz, chloroform-d) δ: 12.39 (s, 1H, 5-OH), 7.79 (dd, J = 10.4, 1.9 Hz, 1H, H-6′), 7.26 (s, 1H, H-2′), 7.07 (d, J = 8.3 Hz, 1H, H-5′), 6.03 (s, 1H, 4′-OH), 4.11 (s, 3H, 7-OCH3), 3.99 (s, 3H, 3′OCH3), 3.96 (s, 3H, 6-OCH3), 3.95 (s, 3H, 8-OCH3), 3.88 (s, 3H, 3-OCH3). 13C NMR (150 MHz, chloroform-d) δ: 179.2 (C-4), 155.9 (C-2), 152.9 (C-7), 149.1 (C-5), 148.5 (C-4′), 146.4 (C-3′), 144.8 (C-9), 138.6 (C-3), 136.1 (C-6), 132.8 (C-8), 122.9 (C-6′), 122.6 (C-1′), 114.7 (C-5′), 110.8 (C-2′), 107.4 (C-10), 62.1 (6-OCH3), 61.7 (7-OCH3), 61.2 (8-OCH3), 60.1 (3-OCH3), 56.0 (3′-OCH3).
2.8 The biological activities of compounds HJ-1 and HJ-2 isolated from V. negundo toward bacteria and fungi
Assays of biological activity toward several strains of bacteria and fungi were conducted using the purified compounds HJ-1 and HJ-2. Six strains of bacteria (Staphylococcus aureus, Bacillus subtilis, B. wiedmannii cdxj-1, P. putida cdxj-2, B. albus cdxj-3, and B. aerius cdxj-4) and two strains of fungi (Rhizopus sp. CD-1 and Aspergillus sp. CD-3) were tested. The effects of the two compounds were analyzed following the method described above.
2.9 Quantification of the compounds HJ-1 and HJ-2 in fresh V. negundo leaves
A 0.5 g sample of fresh V. negundo leaves was subjected to extraction for 45 min in an ultrasonic bath in the presence of 4 mL methanol. The extraction was repeated twice. The samples were centrifuged at 8,000 rpm for 10 min, and the supernatants were collected and evaporated to dryness. The extractions were re-dissolved in 1 mL methanol and used for HPLC (Agilent 1260) analysis. All experiments were repeated three times. HPLC working conditions were as follows: 10 μL extraction was added to an Eclipse XDB-C18 column (5 μm, 4.6 × 250 mm). The column temperature was maintained at 35°C and the compounds were monitored at 210 nm and 254 nm. The flow rate was maintained at 1 mL/min, and (A) water and (B) methanol were used as the mobile phase (0–30 min: linear 5–95% of B, 30–40 min, isocratic 95% of B).
The pure compounds HJ-1 and HJ-2 were dissolved in methanol, and a series of solutions of different concentrations (1,000, 600, 400, 200, 100, and 50 μg/mL) was generated. Standard curves were established from the HPLC analysis. The calibration curve equations for HJ-1 and HJ-2 were y = 0.0767x–28.5981 (tR, 29.28 min; R2 = 0.997), y = 0.0358x–6.0384 (tR, 27.70 min; R2 = 0.997), respectively.
2.10 Statistical analysis
All data were analyzed using SPSS 22.0 and graphics were created in GraphPad Prism. If the data followed a normal distribution, an independent-samples t-test was used for comparison between the two groups. Differences were considered to be statistically significant at P < 0.05.
3 Results
3.1 The use of V. negundo leaves promotes the formation of broad bean koji
To investigate the effect of V. negundo leaves on the formation of broad bean koji, visible changes in the broad beans were recorded and the time taken for the koji to form was measured (Figures 1A–D). The control groups, which were treated with a moistened gauze, took an average of seven days for the koji to form. The group treated with V. negundo leaves formed koji in an average of five days, which was obviously shorter than the control group. The formation rate of broad bean koji was superior to control after using V. negundo leaves (Figures 1C, D). Thus, we found that V. negundo leaves significantly promoted the formation of broad bean koji.
Figure 1. The process of making broad bean koji, and the microorganisms isolated from broad bean koji. (A–D) The koji-making process: raw soaked and peeled broad beans were laid in a sterile culture dish (A), the beans were completely covered with V. negundo leaves (B), example of a mature broad bean koji from the V. negundo treatment group (C), the mature koji from the control group treated with a moistened sterile gauze (D). (E–H) Two strains of fungi isolated from broad bean koji made using V. negundo leaves, including the colony morphology of Rhizopus sp. CD-1 (E) and Aspergillus sp. CD-3 (F) and the germinating spores of Rhizopus sp. CD-1 (G) and Aspergillus sp. CD-3 (H). (I–L) Four strains of bacteria isolated from the rotten broad beans from failed koji, including B. wiedmannii cdxj-1 (I), P. putida cdxj-2 (J), B. albus cdxj-3 (K), and B. aerius cdxj-4 (L).
3.2 Isolation and identification of the dominant fungi in broad bean koji
Two strains of fungi (CD-1 and CD-3) were acquired from mature broad bean koji, and the colony morphology of these two strains is shown (Figures 1E–H). According to morphological observations (Figures 1E, G) and sequence alignment, the fungus CD-1 was identified as belonging to Rhizopus sp. (sequence similarity 99%) and was named Rhizopus sp. CD-1. The phylogenetic placement of Rhizopus sp. CD-1 was established based on 15 fungal DNA sequences from the NCBI database (Supplementary Figure 1). ITS sequence analysis suggested that the strain CD-3 shared 98% similarity with Aspergillus sp. (Figures 1F, H), and CD-3 was named Aspergillus sp. CD-3. The phylogenetic placement of Aspergillus sp. CD-3 was established based on 15 fungal DNA sequences from the NCBI database (Supplementary Figure 2).
3.3 Isolation and identification of the dominant bacteria in the rotten broad beans resulting from failed koji
Rotten beans were selected for isolation of the bacteria responsible for spoilage in failed koji. Four strains of bacteria (cdxj-1, cdxj-2, cdxj-3, and cdxj-4) were obtained from the rotten beans (Figures 1I–L). From comparison with the sequences in the NCBI database, we found that cdxj-1 shared 99.93% sequence similarity with Bacillus wiedmannii, and it was named B. wiedmannii cdxj-1 (Supplementary Figure 3). The sequence of cdxj-2 shared 100% similarity with Pseudomonas putida, and was therefore named P. putida cdxj-2 (Supplementary Figure 4). The strains cdxj-3 and cdxj-4 shared sequence similarities of 99.93 and 99.79% with B. albus and B. aerinus, respectively, and were named B. albus cdxj-3 and B. aerius cdxj-4 (Supplementary Figures 5, 6).
3.4 Petroleum ether and methanol extractions of V. negundo leaves inhibit bacterial growth
The biological activities of the petroleum ether and methanol extractions were tested on six strains of bacteria.
The petroleum ether extraction (PEE) showed various degrees of inhibition activity against the six test strains of bacteria. The growth of B. wiedmannii cdxj-1 was significantly inhibited after co-culture with 256 μg/mL PEE at 48 h (Figure 2A). Inhibition of B. wiedmannii cdxj-1 reached a peak at 72 h, with an inhibition rate of 88.95 ± 5.27%, and an IC50 value of 255.52 ± 58.12 μg/mL. P. putida cdxj-2 was only moderately inhibited by PEE, with a maximum inhibition rate of 40.60 ± 4.01% following 72 h treatment with concentrations of 512 μg/mL and an IC50 value of 1,213.92 ± 271.75 μg/mL (Figure 2B). A slight inhibitory effect of 46.59 ± 3.72% was observed in B. albus cdxj-3 following 72 h treatment with PEE at 512 μg/mL, with IC50 value of 2,331.89 ± 1,339.23 μg/mL (Figure 2C). Following 36 h of co-culture with PEE at 256 μg/mL, PEE exhibited evident inhibitory activity against B. aerius cdxj-4, with the inhibition rate reaching 90.13 ± 2.52% under PEE concentrations of 512 μg/mL at 72 h. The IC50 value was 184.31 ± 66.86 μg/mL (Figure 2D). S. aureus was found to be only slightly inhibited by PEE at the concentration of 512 μg/mL, with an inhibition rate of 45.38 ± 3.85% at 24 h (Figure 2E). PEE had a weak inhibitory effect against B. subtilis, with an inhibition rate of 36.32 ± 5.38% at 512 μg/mL, at 48 h (Figure 2F), and with the inhibitory effect gradually weakening as the test concentration decreased.

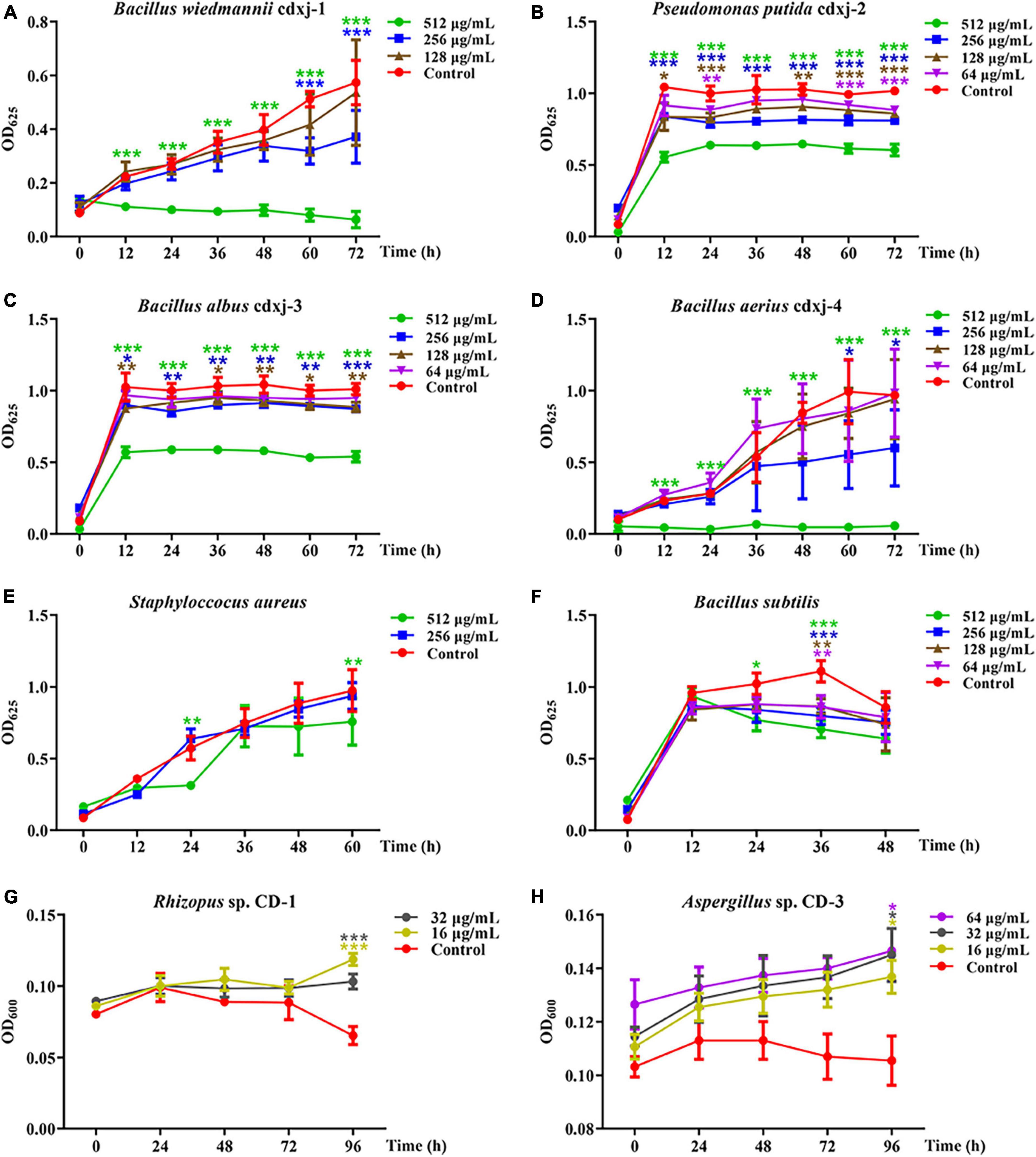

Figure 2. The biological activities of the petroleum ether extract of Vitex negundo leaves toward different strains of bacteria and fungi. (A–F) The petroleum ether extract of V. negundo leaves inhibits the growth of several strains of bacteria, including B. wiedmannii cdxj-1 (A), P. putida cdxj-2 (B), B. albus cdxj-3 (C), B. aerius cdxj-4 (D), S. aureus (E), and B. subtilis (F). (G,H) The petroleum ether extract of V. negundo leaves promotes the growth of certain species of fungi, including Rhizopus sp. CD-1 (G) and Aspergillus sp. CD-3 (H). Triple asterisks indicate significant differences between the control group and other treatments, ***p < 0.001, **p < 0.05, *p < 0.01.
The methanol extract (ME) of V. negundo leaves demonstrated inhibitory activity against B. wiedmannii cdxj-1, with an inhibition rate of 71.03 ± 8.09% at 512 μg/mL after 72 h (Supplementary Figure 7A). In contrast, the growth of P. putida cdxj-2 and B. albus cdxj-3 co-cultured with ME did not differ from that of the control (Supplementary Figures 7B, C). B. aerius cdxj-4 was sensitive to ME, and its growth was visibly inhibited by 256 μg/mL ME at 36 h (Supplementary Figure 7D). After 72 h of co-culture with ME, Bacillus sp. cdxj-4 inhibition rates reached 31.32 ± 10.55% and 87.24 ± 11.67% at 256 μg/mL and 512 μg/mL, respectively. ME weakly inhibited the growth of S. aureus at a concentration of 512 μg/mL at 60 h, with an inhibition rate of 66.33 ± 1.99% (Supplementary Figure 7E). ME did not have an effect on the growth of B. subtilis (Supplementary Figure 7F).
These results suggested that certain chemical substances in V. negundo have significant antibacterial activities, and are particularly effective against the bacteria from the rotten broad beans responsible for failed koji. These bioactive chemicals were more effectively extracted by petroleum ether than by methanol.
3.5 The petroleum ether extract of V. negundo leaves shows growth-promoting activity toward certain fungal strains
Because the extraction of V. negundo compounds with petroleum ether (PEE) had a greater effect against six strains of bacteria than the methanol extraction, we decided to continue our experiments with the PEE. PEE was tested on the fungi Rhizopus sp. CD-1 and Aspergillus sp. CD-3 isolated from high quality broad bean koji. The germination of Rhizopus sp. CD-1 spores was promoted by co-culture for 72 h with PEE (Figure 2G), and when cultured for 96 h, the promotion rates were 77.13 ± 14.29% and 58.93 ± 24.09% at PEE concentrations of 16 and 32 μg/mL, respectively. PEE was also able to promote the germination of Aspergillus sp. CD-3 (Figure 2H). Three different concentrations (16, 32, and 64 μg/mL) were able to promote the growth of this fungus, with promotion rates of 29.70 ± 5.89%, 30.96 ± 12.99%, and 29.86 ± 8.24% at 96 h, respectively. Hence, PEE can promote the germination of both Rhizopus sp. CD-1 and Aspergillus sp. CD-3 spores, with the effect on the germination of Rhizopus sp. CD-1 being stronger than on that of Aspergillus sp. CD-3. These results demonstrate that the chemical components in the PEE played a role in inhibition of harmful bacteria and promotion of the germination of necessary fungal spores during the production of broad bean koji.
3.6 Fraction 3 from the V. negundo petroleum ether extraction demonstrates bacterial inhibitory and fungal promotional activities
The petroleum ether extract of V. negundo leaves exhibited better activity toward the target microorganisms than the methanol extract, and we therefore used the PEE in further experiments. The PEE was initially separated on a silica gel column to obtain four fractions, Fr.1–Fr.4. Fr.1–Fr.4 were used in microbial activity assays to assess their performance toward six strains of bacteria and two strains of fungi. Fr.3 was found to inhibit bacterial growth and to promote fungal growth.
Within 60 h of co-cultivation, Fr.3 showed significant inhibitory activity against B. wiedmannii cdxj-1 at a concentration of 32 μg/mL, and the inhibitory effect was gradually enhanced with increasing concentrations of Fr.3 (Figure 3A), with the inhibition rate at 72 h reaching 94.54 ± 2.78% at a concentration of 512 μg/mL. The IC50 value was 86.46 ± 15.74 μg/mL. P. putida cdxj-2 was weakly inhibited by Fr.3 (Figure 3B), and 512 μg/mL Fr.3 only resulted in an inhibition rate of 24.42 ± 3.16% at 72 h. Similarly, Fr.3 also showed a certain degree of inhibitory activity toward the growth of B. albus cdxj-3 (Figure 3C), with an inhibition rate of 36.71 ± 2.66% at 72 h and at 512 μg/mL. The antibacterial activity of Fr.3 against Bacillus sp. cdxj-4 was significant (Figure 3D). Fr.3 began to show inhibitory activity against B. aerius cdxj-4 after co-cultivation for 36 h, at 32 μg/mL. At 72 h, the most significant inhibitory effects appeared with an IC50 value of 45.84 ± 9.50 μg/mL, and the inhibitory rates ranged from 38.08 ± 8.43% to 93.29 ± 3.00% at 32–512 μg/mL. The growth of S. aureus was also obviously inhibited by Fr.3 at a concentration of 512 μg/mL and at 72 h, with an inhibition rate of 95.03 ± 1.97% (Figure 3E). The antibacterial activity of Fr.3 against B. subtilis was clear, and delayed the logarithmic growth phase of B. subtilis at 64 μg/mL (Figure 3F). Within 48 h, B. subtilis growth was almost halted at a Fr.3 concentration of 128 μg/mL, and at a concentration of 512 μg/mL, Fr.3 exhibited an inhibitory rate of 86.03 ± 8.47% and an IC50 value of 115.08 ± 87.08 μg/mL at 72 h.

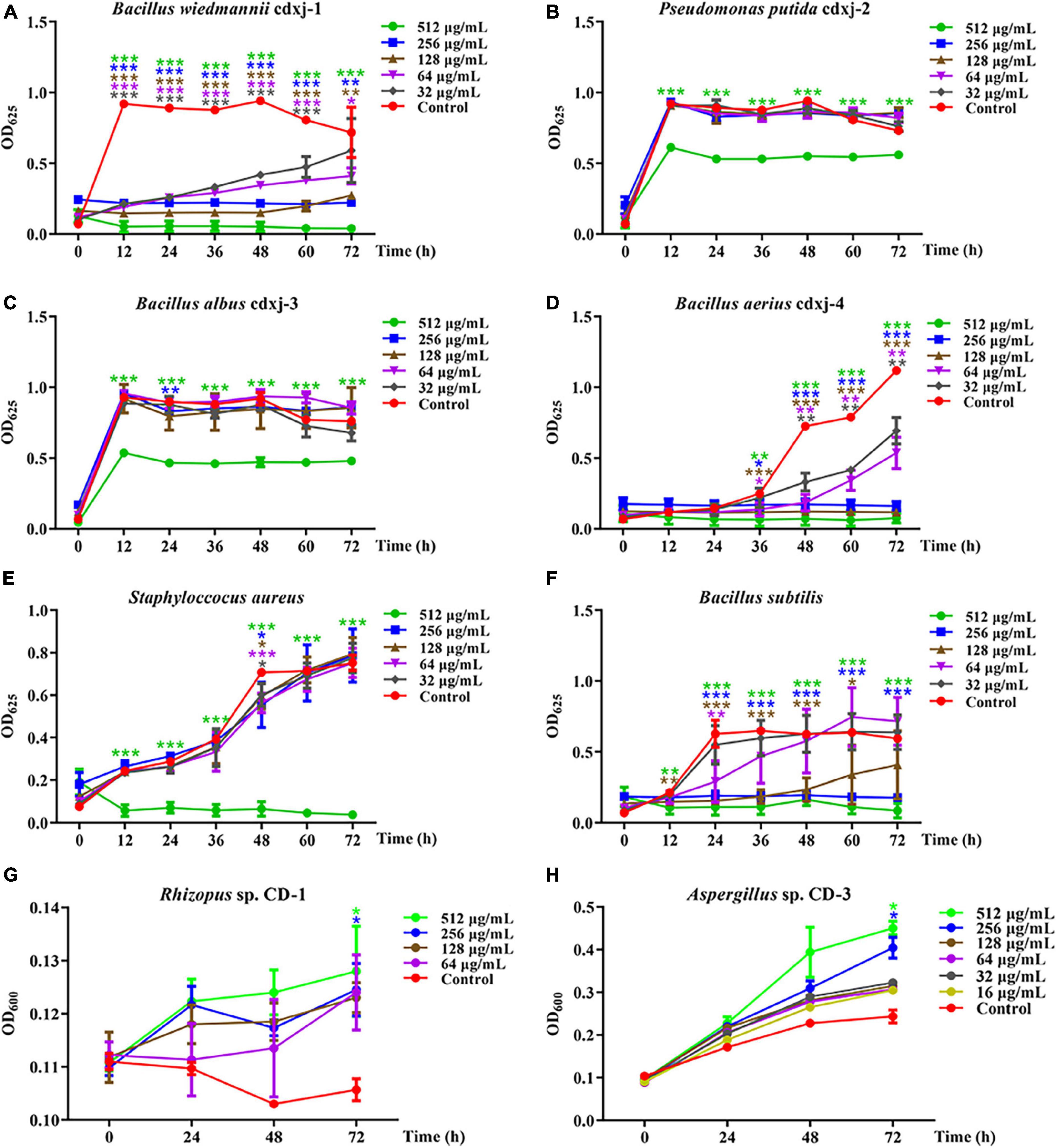

Figure 3. The biological activity of extract Fr.3 from Vitex negundo leaves toward bacteria and fungi. (A–F) Fr.3 inhibits the growth of several bacterium strains, including B. wiedmannii cdxj-1 (A), P. putida cdxj-2 (B), B. albus cdxj-3 (C), B. aerius cdxj-4 (D), S. aureus (E), and B. subtilis (F). (G,H) Fr.3 promotes the growth of the fungi Rhizopus sp. CD-1 (G) and Aspergillus sp. CD-3 (H). Triple asterisks indicate significant differences between the control group and other treatments, ***p < 0.001, **p < 0.05, *p < 0.01.
Furthermore, Fr.3 promoted the germination of Rhizopus sp. CD-1 spores at the tested concentration range of 16–512 μg/mL, with the promotional effect being gradually enhanced with increases in concentration and time (Figure 3G). At 72 h, Fr.3 promotion rates of Rhizopus sp. CD-1 spore germination were 13.25 ± 7.70% and 10.41 ± 6.66% at 512 μg/mL and 256 μg/mL, respectively. The promotional activity of Fr.3 toward Aspergillus sp. CD-3 was very obvious at 16–512 μg/mL (Figure 3H). At 256 μg/mL, the promotion rates reached 57.56 ± 14.51% at 72 h.
These results suggested that the active substances in V. negundo are present in Fr.3, and that these compounds are able to promote the formation of broad bean koji. Therefore, Fr.3 was subjected to further and more detailed study.
3.7 Two prominent chemical substances from V. negundo inhibit certain bacterial strains and promote fungal spore germination
Chromatographic separation and nuclear magnetic resonance (NMR) spectroscopy analyses were conducted (Supplementary Figures 9–16), and the compounds HJ-1 and HJ-2 were isolated from Fr.3 of the petroleum ether extract of V. negundo leaves. To confirm the function of two compounds in the manufacture of broad bean koji, these two compounds were tested for biological activity toward the six study strains of bacteria (S. aureus, B. subtilis, B. wiedmannii cdxj-1, P. putida cdxj-2, B. albus cdxj-3, B. aerius cdxj-4) and two strains of fungi (Rhizopus sp. CD-1, and Aspergillus sp. CD-3).
HJ-1 had antibacterial activities against B. wiedmannii cdxj-1 at concentrations of 128 μg/mL concentrations at 48 h, and displayed remarkable inhibitory activity with a suppression rate of 27.99 ± 13.10% at 512 μg/mL, at 72 h (Figure 4A). Moreover, HJ-1 was also able to inhibit the growth of P. putida cdxj-2, particularly at concentrations of 512 μg/mL. After 48 h, the inhibition rates of HJ-1 at concentrations of 512 μg/mL, 256 μg/mL and 128 μg/mL against P. putida cdxj-2 were 22.09 ± 1.54%, 9.11 ± 3.53% and 17.79 ± 6.74%, respectively (Figure 4B). HJ-1 exhibited significant growth inhibition activity against B. aerius cdxj-4 between 36–72 h, and the inhibition rate of HJ-1 at 128 μg/mL toward Bacillus sp. cdxj-4 was 90.84 ± 1.55% at 72 h (Figure 4D). Nevertheless, HJ-1 had no obvious inhibitory activity against the bacterial strains B. albus cdxj-3, S. aureus or B. subtilis (Figures 4C, E, F).

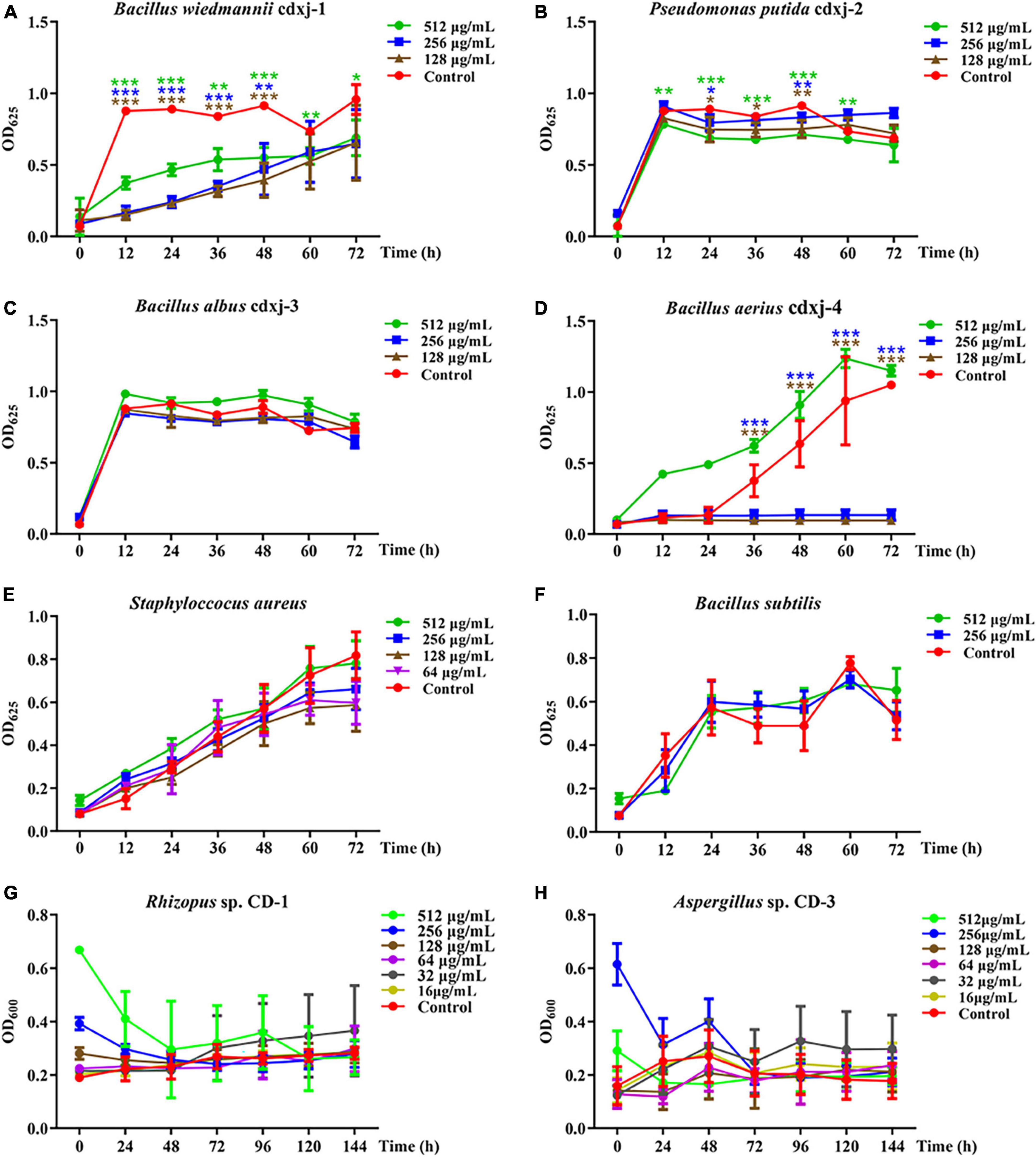

Figure 4. The biological activity of compound HJ-1 from Vitex negundo toward bacteria and fungi. (A–F) Compound HJ-1 inhibits the growth of certain strains of bacteria, including B. wiedmannii cdxj-1 (A), P. putida cdxj-2 (B), B. albus cdxj-3 (C), B. aerius cdxj-4 (D), S. aureus (E), and B. subtilis (F). (G,H) Compound HJ-1 promotes the growth of certain fungi, including Rhizopus sp. CD-1 (G) and Aspergillus sp. CD-3 (H). Triple asterisks indicate significant differences between the control group and other treatments, ***p < 0.001, **p < 0.05, *p < 0.01.
HJ-1 had no inhibitory effect on either of the two fungal strains isolated from broad bean koji, Rhizopus sp. CD-1 and Aspergillus sp. CD-3 (Figures 4G, H). However, after 48 h, Aspergillus sp. CD-3 spores could be observed germinating in the group co-cultured with HJ-1, while no spores germinated in the control group (Supplementary Figure 8A). The OD values did not change significantly between the control and HJ-1 co-culture group. Therefore, HJ-1 is thought to promote the conidial germination of Aspergillus sp. CD-3.
HJ-2 had obvious inhibitory activity against B. wiedmannii cdxj-1 (Figure 5A). At 48 h, 128 μg/mL of HJ-2 had an inhibition rate of 55.73 ± 8.77%, and an IC50 value of 209.09 ± 76.17 μg/mL. The growth inhibition activity of HJ-2 was weak toward P. putida cdxj-2, with inhibition rates of only 33.83 ± 14.67% following co-culture with 512 μg/mL HJ-2 at 48 h (Figure 5B). Similarly, the growth of B. albus cdxj-3 was inhibited only weakly by HJ-2 in high concentrations (512 μg/mL), with an inhibitory rate of 35.07 ± 13.99% at 72 h (Figure 5C). Interestingly, HJ-2 showed strong growth inhibition activity against B. aerius cdxj-4 (Figure 5D). After treatment for 36 h, 128 μg/mL of HJ-2 began to inhibit B. aerius cdxj-4, and reached the most powerful inhibitory effect at 72 h, with an inhibition rate of 88.86 ± 0.66% and an IC50 value of 394.88 ± 14.52 μg/mL. HJ-2 displayed little growth inhibitory activity against S. aureus (Figure 5E). Moreover, HJ-2 also exhibited a remarkable inhibitory effect against B. subtilis (Figure 5F). Within 48 h of treatment, HJ-2 at concentrations of 256 μg/mL and 512 μg/mL both effectively delayed the logarithmic growth phase of B. subtilis. The inhibitory activity of HJ-2 was most obvious at 24 h, with inhibition rates of 72.02 ± 2.02%, 50.72 ± 11.47%, and 33.73 ± 8.55% at 512 μg/mL, 256 μg/mL, and 128 μg/mL, respectively.

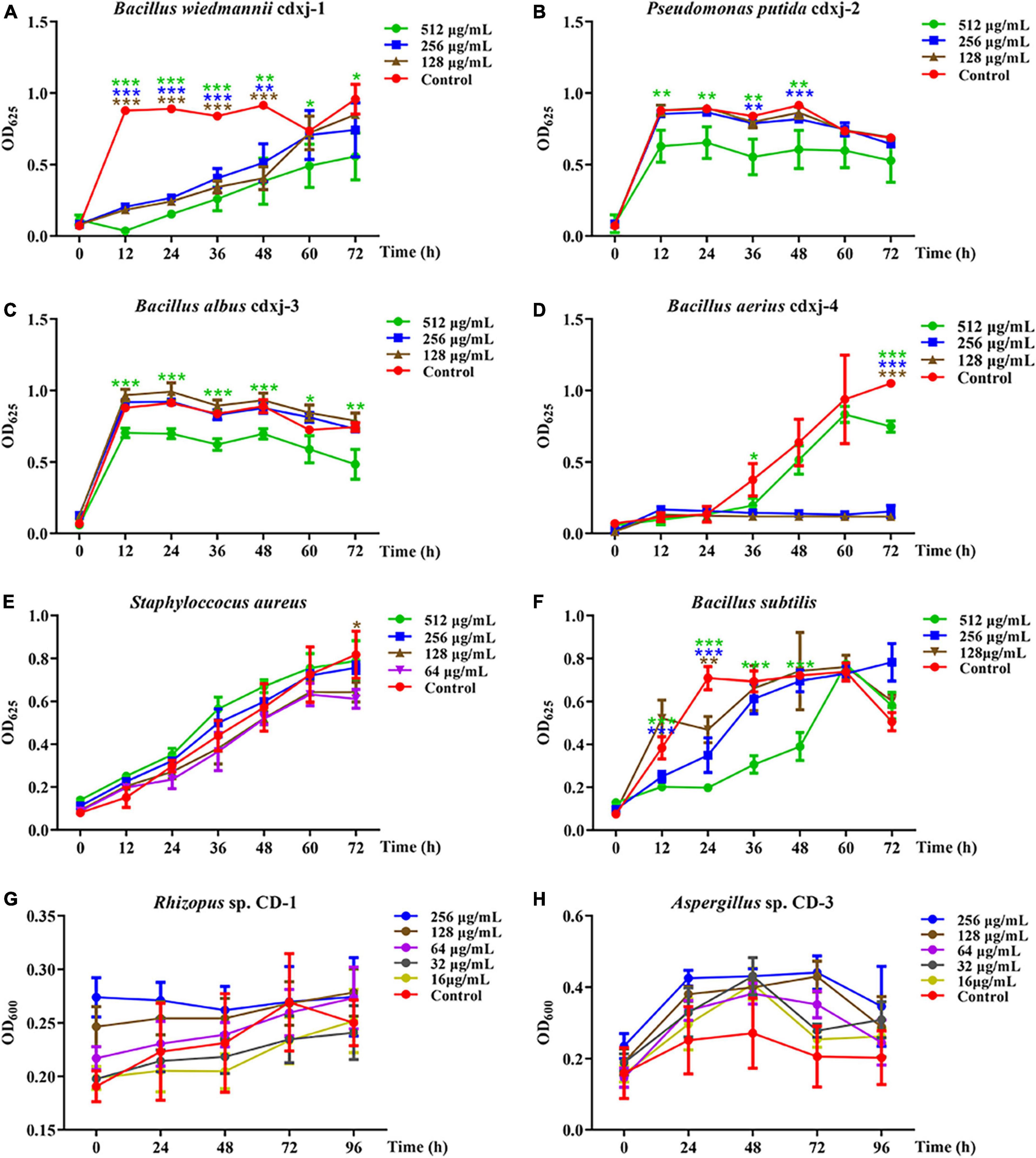

Figure 5. The biological activity of compound HJ-2 from Vitex negundo toward bacteria and fungi. (A–F) Compound HJ-2 inhibits the growth of certain strains of bacteria, including B. wiedmannii cdxj-1 (A), P. putida cdxj-2 (B), B. albus cdxj-3 (C), B. aerius cdxj-4 (D), S. aureus (E), and B. subtilis (F). (G,H) Compound HJ-2 promotes the growth of certain fungi, including Rhizopus sp. CD-1 (G) and Aspergillus sp. CD-3 (H). Triple asterisks indicate significant differences between the control group and other treatments, ***p < 0.001, **p < 0.05, *p < 0.01.
HJ-2 exhibited no inhibitory activity toward the growth of the fungi Rhizopus sp. CD-1 and Aspergillus sp. CD-3 (Figures 5G, H). Under an optical microscope, germinated spores of Aspergillus sp. CD-3 were observed following co-culture for 48 h with HJ-2 (Supplementary Figures 8B, C), in contrast to the control, where very few spores germinated. The OD value of the treatments did not change significantly. Thus, HJ-2 is able to promote the germination of Aspergillus sp. CD-3 spores.
These results demonstrated that the two polymethoxylated flavones HJ-1 and HJ-2 are active components of V. negundo leaves, and can inhibit the growth of certain bacterial strains and promote the growth of certain fungi during the formation of broad bean koji.
3.8 Quantification of HJ-1 and HJ-2 in fresh V. negundo leaves
The concentrations of HJ-1 and HJ-2 in fresh V. negundo leaves were determined using a quantitative HPLC analysis (Figure 6A). The concentration of HJ-1 in fresh V. negundo leaves was found to be 363.95 ± 57.74 μg/g FW, while the concentration of HJ-2 in fresh V. negundo leaves was 425.09 ± 42.58 μg/g FW (Figure 6B).

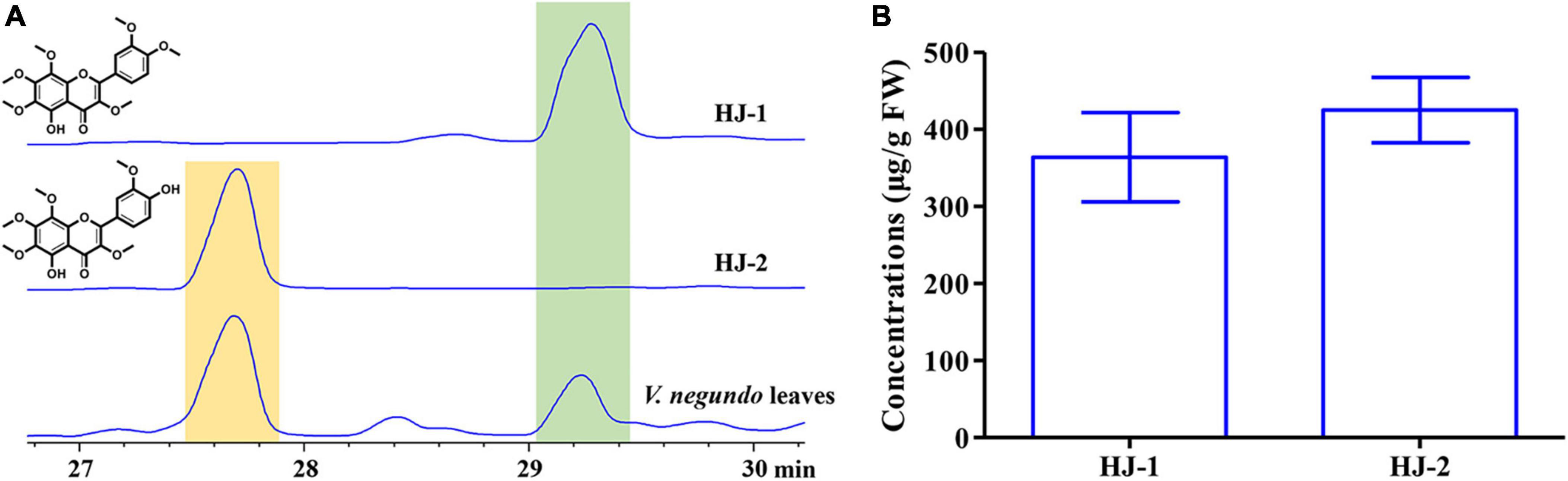

Figure 6. Qualitative and quantitative analyses of compounds HJ-1 and HJ-2 isolated from the fresh leaves of V. negundo. (A) Qualitative analyses of compounds HJ-1 and HJ-2 using HPLC at 210 nm. (B) Quantitative analyses of compounds HJ-1 and HJ-2.
4 Discussion
4.1 V. negundo leaves are able to promote the fermentation process during the manufacture of broad bean koji
Broad bean paste is a popular traditional fermented food in Asia and worldwide, and has excellent nutritional value (Zhao et al., 2021; Yu et al., 2022). However, the traditional fermentation method to make broad bean koji is extremely long and difficult (Li et al., 2019). V. negundo Linn. (Verbenaceae) is widely used to make broad bean koji in Sichuan, China, but the efficacy of V. negundo in this process has not been substantiated until now, and the responsible compounds have not to date been identified. In this study, we investigated the manufacture of broad bean koji using V. negundo leaves. We found that covering the fermenting beans with V. negundo leaves effectively promoted the fermentation process, which was observably beneficial for the generation of koji. Moreover, the success rate was higher and the probability of decay and deterioration was reduced compared with control. These results provide a scientific basis for the application of V. negundo leaves in the production of broad bean koji.
4.2 Microorganisms play an essential role in the manufacture of broad bean koji
Broad bean koji is formed through the natural fermentation of various microorganisms (Zhao et al., 2022). The techniques of broad bean koji manufacture differ between regions. However, microorganisms always play significant metabolic roles in the process, and can have a significant impact on the quality of the resulting paste. The formation of color, shape of high-quality, flavor and the rate of deterioration are dependent on these organisms, with Aspergillus oryzae being of particular importance (Liu et al., 2020; Lin et al., 2021; Yang Y. et al., 2021). A. oryzae is typically the dominant strain in the koji-making process, although certain other fungal taxa have also been found, including Saccharomycetales, Issatchenkia, Cladosporium, Rhizopus sp., and Sterigmatomyces (Feng et al., 2007; Yang M. L. et al., 2021). In this study, we isolated two dominant fungi from the mature koji generated using V. negundo leaves during the fermentation. The fungi were identified as Rhizopus sp. CD-1 and Aspergillus sp. CD-3, which is consistent with the results of previous research, and indicates that V. negundo leaves can promote the fermentation of the koji but do not change the dominant species or dominant strains involved in the process. Moreover, four dominant strains of bacteria were obtained from failed koji, and were identified as Bacillus wiedmannii cdxj-1, Pseudomonas putida cdxj-2, B. albus cdxj-3, and B. aerius cdxj-4. These strains have also been found in food or rotting food in past studies. Especially P. putida cdxj-2, P. putida was discovered being the predominant spoilage organisms in many spoiled foods, such as it was dominant bacteria of spoiled chicken breast meat in previous studies (Zhao et al., 2019; Duan et al., 2020; Kumar et al., 2023). Hence, it is significant to promote these fungal growth and inhibit these bacterial growth to improve the effect on making koji of broad bean paste.
4.3 Polymethoxylated flavones are responsible for the effects of V. negundo on koji-making microorganisms
Secondary metabolites are an important medium for plants to interact with the outside world and exercise their functions (Bennett and Wallsgrove, 1994; Piasecka et al., 2015; Li et al., 2017). They have a wide range of biological activities (Vaishnav and Demainb, 2010; Liu et al., 2023), and some metabolites are used in functional foods or dietary supplements by virtue of their effects on the growth and fermentation of microorganisms, to serve as natural preservatives, or to prevent foods from oxidative deterioration (Sanchez Maldonado et al., 2015). In this study, we investigated secondary metabolites in V. negundo leaves based on their biological activities. The chemical substances present in V. negundo leaves were extracted using petroleum ether or methanol extractions, and were then co-cultured with the isolated fungi and bacteria. We found that these extractions from V. negundo leaves demonstrated inhibitory activity against the growth of bacteria, and could also promote the growth of the target fungi. And petroleum ether extract of V. negundo leaves displayed more significant activities toward microorganisms, and inhibition rate could reach 90% against bacteria at 512 μg/mL and 256 μg/mL. In addition, their petroleum ether extract had good promotion rates to fungi Rhizopus sp. CD-1 and Aspergillus sp. CD-3. Hence, petroleum ether extract was subjected to isolation according to activity, and two compounds HJ-1 and HJ-2 were obtained.
Two polymethoxylated flavones, HJ-1 and HJ-2 were found to be the compounds responsible for this bioactivity, and were identified using NMR. Previous studies have identified other flavonoids with observable antibacterial activity (Tim Cushnie and Lamb, 2011; Farhadi et al., 2019), including alpinumisoflavone and burttinone from Erythrina caffra Thunb., which have significant inhibitory activity against both Gram-positive and Gram-negative bacteria (Chukwujekwu et al., 2011). In addition, some flavonoids have been shown to promote fungal spore germination, for example, the flavonoids quercetin and rutin, which are able to promote spore germination in Rhizophagus irregularis (Lidoy et al., 2022).
HJ-1 and HJ-2 both showed good inhibitory activity against certain bacterial strains, and both were able to promote spore germination in Rhizopus sp. CD-1 and Aspergillus sp. CD-3. The concentrations of HJ-1 and HJ-2 in fresh V. negundo leaves were found to be 363.95 ± 57.74 and 425.09 ± 42.58 μg/g, respectively, which was well within their effective concentrations when interacting with the tested microorganisms. These results indicated that the two polymethoxylated flavones HJ-1 and HJ-2 were the active components in V. negundo leaves and that these compounds were able to effectively improve the manufacturing process of broad bean koji. We believe that this work will provide the basis for a large number of applications of V. negundo leaves in the production of broad bean paste.
5 Conclusion
Two dominant fungal strains were obtained from mature broad bean koji made using V. negundo leaves, Rhizopus sp. CD-1 and Aspergillus sp. CD-3. Four dominant bacterial strains were obtained from rotten beans resulting from failed koji, B. wiedmannii cdxj-1, P. putida cdxj-2, B. albus cdxj-3, and B. aerius cdxj-4. The effects of secondary metabolites of V. negundo on the growth of two fungi and six bacteria were investigated, and the petroleum ether extract of V. negundo was found to effectively promote fungal growth and inhibiting that of the bacteria. Two flavonoid compounds, HJ-1 and HJ-2, were isolated from V. negundo leaves using column chromatography, spectral identification and activity assays. HJ-1 and HJ-2 were able to inhibit the growth of several strains of bacteria and promote the spore germination of the two isolated fungal strains. HJ-1 and HJ-2 are therefore considered to be the active substances in V. negundo responsible for the observed promotion of the broad bean koji fermentation process. This study revealed the active compounds in V. negundo leaves and their effects toward various microorganisms important in the broad bean koji process, and established a scientific basis for the use of V. negundo in broad bean koji production.
Data availability statement
The datasets presented in this study can be found in online repositories. The names of the repository/repositories and accession number(s) can be found in this article/Supplementary material.
Author contributions
JL: Conceptualization, Formal analysis, Investigation, Methodology, Software, Supervision, Validation, Visualization, Writing – original draft, Writing – review & editing. YX: Data curation, Formal analysis, Investigation, Writing – original draft. JY: Conceptualization, Data curation, Resources, Writing – original draft. LB: Data curation, Formal analysis, Investigation, Software, Writing – original draft. JH: Investigation, Methodology, Project administration, Resources, Software, Validation, Writing – original draft, Writing – review & editing. SL: Conceptualization, Data curation, Formal analysis, Funding acquisition, Investigation, Methodology, Project administration, Resources, Supervision, Validation, Writing – original draft, Writing – review & editing.
Funding
The authors declare that financial support was received for the research, authorship, and/or publication of this article. This research was financially supported by the National Key R&D Program (2023YFC2604500 and 2023YFC2604501), and the National Natural Science Foundation of China (32370416).
Acknowledgments
Our sincere thanks go to Prof. Bo Qu for helping with the identification of the study plant.
Conflict of interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Publisher’s note
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
Supplementary material
The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fmicb.2024.1401436/full#supplementary-material
