Size-fractionated N2 fixation off the Changjiang Estuary during summer

Recent evidence has shown active N₂ fixation in coastal eutrophic waters, yet the rate and controlling factors remain poorly understood, particularly in large estuaries. The Changjiang Estuary (CE) and adjacent shelf are characterized by fresh, nitrogen-replete Changjiang Diluted Water (CDW) and saline, nitrogen-depletion intruded Kuroshio water (Taiwan Warm Current and nearshore Kuroshio Branch Current), where N₂ fixation may be contributed by different groups (i.e., Trichodesmium and heterotrophic diazotrophs). Here, for the first time, we provide direct measurement of size-fractionated N₂ fixation rates (NFRs) off the CE during summer 2014 using the ¹⁵N₂ bubble tracer method. The results demonstrated considerable spatial variations (southern > northern; offshore > inshore) in surface and depth-integrated NFRs, averaging 0.83 nmol N L⁻¹ d⁻¹ and 24.3 μmol N m⁻² d⁻¹, respectively. The highest bulk NFR (99.9 μmol N m⁻² d⁻¹; mostly contributed by >10 μm fraction) occurred in the southeastern East China Sea, where suffered from strong intrusion of the Kuroshio water characterized by low N/P ratio (<10) and abundant Trichodesmium (up to 10.23 × 10⁶ trichomes m⁻²). However, low NFR (mostly contributed by <10 μm fraction) was detected in the CE controlled by the CDW, where NO_x concentration (up to 80 μmol L⁻¹) and N/P ratio (>100) were high and Trichodesmium abundance was low. The >10 μm fraction accounted for 60% of depth-integrated bulk NFR over the CE and adjacent shelf. We speculated that the present NFR of >10 μm fraction was mostly supported by Trichodesmium. Spearman rank correlation indicated that the NFR was significantly positively correlated with Trichodesmium abundance, salinity, temperature and Secchi depth, but was negatively with turbidity, N/P ratio, NO_x, and chlorophyll a concentration. Our study suggests that distribution and size structure of N₂ fixation off the CE are largely regulated by water mass (intruded Kuroshio water and CDW) movement and associated diazotrophs (particularly Trichodesmium) and nutrient conditions.

1. Introduction

Diazotrophs convert N₂ into bioavailable ammonia (NH₃) catalyzed by the enzyme nitrogenase (nifH), which substantially relieves nitrogen limitation for primary production over most of the surface ocean (Zehr, 2011). N₂ fixation is an important new bioavailable nitrogen source and thereby is crucial to marine nitrogen biogeochemical cycle and biological pump function (Falkowski, 1997; Capone et al., 2008). Diazotrophs in marine environment include filamentous cyanobacteria (Trichodesmium and diatom-diazotroph associations [DDAs]), unicellular cyanobacteria (UCYN-A, -B, and -C), bacteria, and archaea. Trichodesmium and DDAs (Richelia/Calothrix) are conventionally recognized as the major contributors to marine N₂ fixation (Capone et al., 1997; Sohm and Webb, 2011; Karl et al., 2012). However, Zehr et al. (2001) reported that N₂ fixation rate (NFR) of unicellular cyanobacteria can equal or exceed that of Trichodesmium at station ALOHA in subtropical North Pacific. Thereafter, accumulating evidence during the last two decades have shown unicellular cyanobacteria and noncyanobacterial diazotrophs (particularly proteobacteria) to be more widespread and actively N₂ fixing in marine environments than previously thought (Zehr et al., 2001; Montoya et al., 2004; Moisander et al., 2010; Turk-Kubo et al., 2022).

Unicellular diazotrophs fix N₂ not only in warm ocean, but also in low-temperature (<20°C) temperate, subpolar and polar open seas (Moisander et al., 2010; Shiozaki et al., 2020; Messer et al., 2021; Turk-Kubo et al., 2022). Furthermore, active N₂ fixation of unicellular diazotrophs was observed in estuaries (Bentzon-Tilia et al., 2014), oxygen minimum zones (Hamersley et al., 2011), and even eutrophic coastal waters (Li et al., 2019, 2020) and upwelling (Wen et al., 2017). Because of light requirement, Trichodesmium and DDAs fix N₂ limited in the euphotic zone during daylight that highly associated with photosynthesis (Breitbarth et al., 2008; Zhu et al., 2022). Unlike them, unicellular diazotrophs, particularly noncyanobacterial diazotrophs, are thought to fix N₂ utilized organic carbon in the cold, twilight zone and even dark conditions other than in the euphotic zone (Montoya et al., 2004; Bentzon-Tilia et al., 2014; Turk-Kubo et al., 2022). Recent studies revealed more contribution of unicellular diazotrophs to N₂ fixation in some regions characterized by depleted dissolved iron (dFe), such as the South China Sea (Chen et al., 2013; Wu et al., 2018), tropical and subtropical offshore Pacific (Bonnet et al., 2009, 2018; Kitajima et al., 2009; Shiozaki et al., 2014b; Zhang et al., 2019), and eastern Indian Ocean (Shiozaki et al., 2014a; Wu et al., 2022), because of the higher requirement and acquisition for Fe in nifH and photosynthetic enzymes complex of Trichodesmium compared to unicellular cyanobacteria (Berman-Frank et al., 2007). According to this ecological trade-offs, unicellular diazotrophs usually dominate under dFe-depletion conditions relative to Trichodesmium (Sohm and Webb, 2011; Bonnet et al., 2018; Wen et al., 2022). Additionally, heterotrophic diazotrophs likely dominate the diazotrophic community and actively fix N₂ in coastal eutrophic waters (Bentzon-Tilia et al., 2014; Li et al., 2019, 2020), which may be facilitated by fresh bioavailable dissolved organic carbon from non-diazotrophic phytoplankton (Li et al., 2019). Therefore, the unicellular diazotrophs greatly broaden the N₂ fixation domain worldwide and can support a significant fraction of nitrogen budget (Zehr et al., 2001; Montoya et al., 2004; Moisander et al., 2010).

Exploring composition and NFR of diazotrophs will deepen the understanding in contributors and flux of N₂ fixation. However, direct measurement of NFR in coastal waters, particularly in large estuaries, contributed by filamentous cyanobacteria and unicellular diazotrophs is still lacking. Size-fractionated ¹⁵N₂ tracer incubations for N₂ fixation are widely adopted to roughly distinguish the contribution of large-sized (>10 μm) filamentous cyanobacteria (mainly Trichodesmium and DDAs) and small-sized (<10 μm) unicellular diazotrophs (mainly UCYN-A, -B, -C and proteobacteria), despite the controversy (Bonnet et al., 2009; Benavides et al., 2016). The incubation results of size-fractionated NFRs substantially confirm their niche-specific adaptation to different nutrient conditions, such as dFe-replete Kuroshio (Chen et al., 2013), Solomon Sea (Bonnet et al., 2015) and Melanesian archipelago waters (Bonnet et al., 2018) and dFe-depleted Coral Sea (Bonnet et al., 2015), South China Sea (Chen et al., 2013), and South Pacific gyre (Bonnet et al., 2018).

The Changjiang Estuary (CE) and adjacent East China Sea (ECS) and southern Yellow Sea are primarily characterized by eutrophic, low-salinity Changjiang Diluted Water (CDW) and oligotrophic, warm, saline nearshore Kuroshio Branch Current (NKBC; modified Kuroshio subsurface water) and Taiwan Warm Current (TWC; a mixture of the intruded Kuroshio water and the Taiwan Strait water) (Figure 1A). Although nitrogen repletion and low temperature (<20°C) in the CE restrain the growth of Trichodesmium and N₂ fixation (Zhang et al., 2012; Jiang et al., 2018, 2023), relatively high NFR (3.37 nmol N L⁻¹ d⁻¹) was observed during spring (Lin et al., 2013), likely contributed by unicellular diazotrophs, particularly heterotrophic diazotrophs. Conversely, abundant Trichodesmium (Jiang et al., 2018, 2019) and extremely high NFR (up to 62 nmol N L⁻¹ d⁻¹; Zhang et al., 2012; Shiozaki et al., 2015; Wu et al., 2018) occurred in the Kuroshio, which largely enhanced N₂ fixation in the ECS (Jiang et al., 2023). These results showed that NFR in the ECS was highly associated with Trichodesmium, probably indicating a high contribution of Trichodesmium to N₂ fixation. The contribution of filamentous cyanobacteria to N₂ fixation in the ECS during summer was conservatively estimated to be >60% according to their densities in euphotic zone (Jiang et al., 2023). However, Wu et al. (2018) found that unicellular diazotrophs contributed more N₂ fixation than Trichodesmium at two stations near the ECS Kuroshio using the acetylene reduction assay. This controversy warrants further direct measurement of size-fractionated NFR in the CE and adjacent ECS.

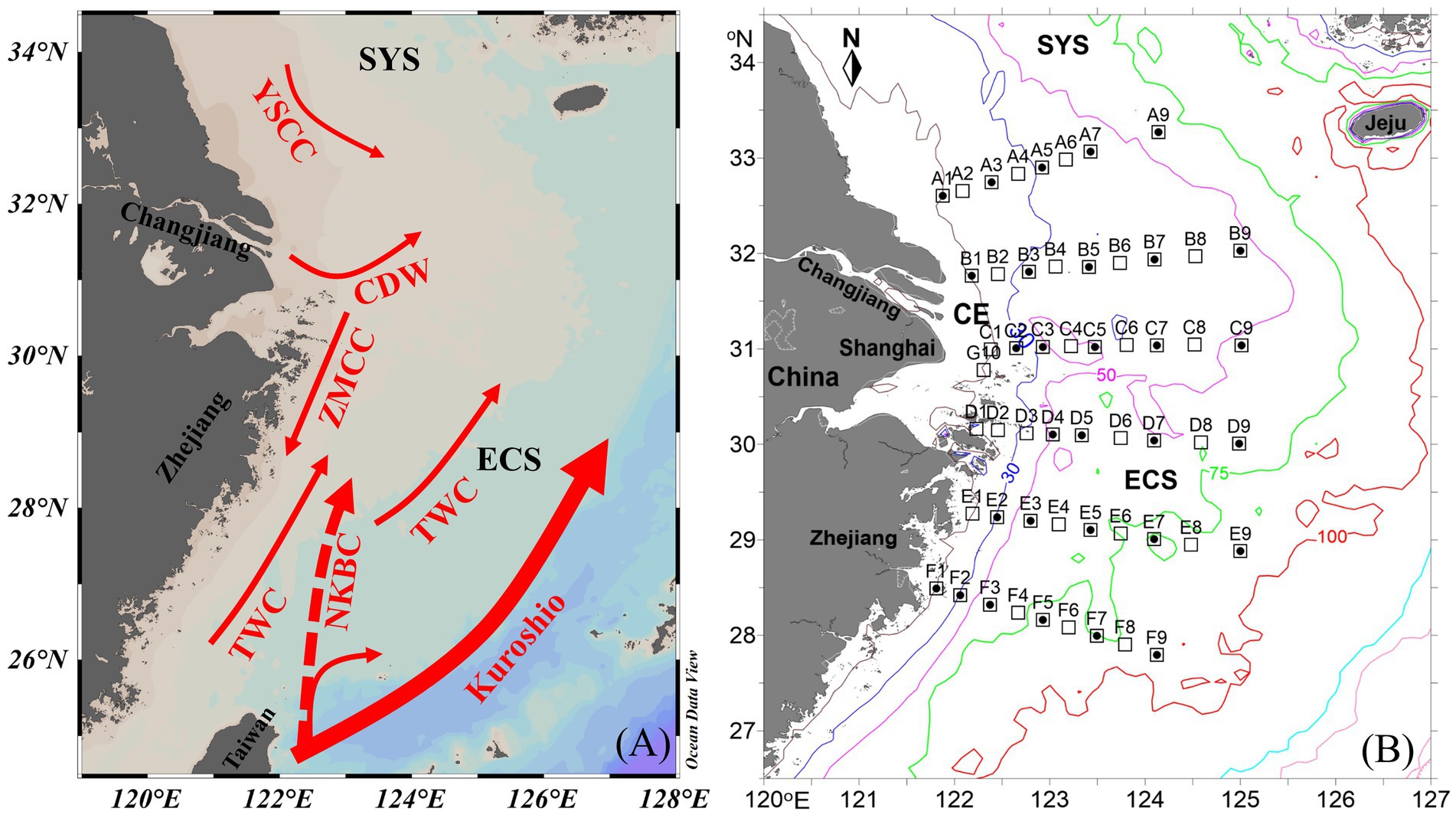

FIGURE 1

Figure 1. (A) Circulation pattern and (B) sampling stations off the Changjiang Estuary (CE) during summer. Solid circle, N₂ fixation rate (NFR) measured stations; ECS, east China sea; SYS, southern yellow sea; CDW, Changjiang Diluted Water; ZMCC, Zhemin coastal current; YSCC, yellow sea coastal current; TWC, Taiwan warm current; NKBC: nearshore Kuroshio branch current.

To address this gap, size-fractionated incubations for N₂ fixation were conducted off the CE during summer 2014 using the ¹⁵N₂ bubble method. Trichodesmium abundance and physicochemical properties were also determined synchronously. For the first time, we provide data on size-fractionated NFRs off the CE, which is useful for understanding relative contribution of filamentous and unicellular diazotrophs to N₂ fixation and the driving forces.

2. Materials and methods

2.1. Cruises and sampling stations

A cruise on the CE and adjacent shelf was conducted aboard the R/V Zhehaihuanjian during August 2014. A total of 6 transects (A–F) and 53 stations were set (Figure 1B). NFRs were measured at 4–5 stations along each transect.

2.2. Sample collection and analysis

Vertical profiles of temperature, salinity, density (σ_t), turbidity, and depth were measured in situ at all stations applying a SBE 917 Plus CTD recorder. The stratification index of the water column was defined as Δσ_t = bottom density − surface density (Huang and Russell, 1994). Secchi depth was determined using a Secchi disk. Seawater samples from 2 to 7 depths (2, 10, 20, 30, 50, 75 m, bottom) at each station (<100 m) were collected by 12-L Niskin bottles mounted on a rosette sampler for analysis of nutrients, nitrogen isotopes, chlorophyll a, and Trichodesmium. NO_x (NO₃⁻ + NO₂⁻) and dissolved inorganic phosphorus (DIP) were measured using a continuous-flow analyzer (Skalar San⁺⁺). Water samples (100 mL) for chlorophyll a analysis were filtered onto 0.7-μm GF/F filters using low vacuum pressure. After extraction in 90% acetone for 24 h at −20°C, chlorophyll a concentrations were determined using a Turner Design Fluorometer. Trichodesmium samples were also collected vertically from the bottom to the surface by using a 76-μm mesh net (0.1 m² in mouth acreage) at a tow speed of 0.5 m s⁻¹. The net was fitted with a digital flow meter (model 438,115, Hydro-Bios, Germany) to estimate the total volume of seawater passing through it. All net-and water-collected samples were preserved in 4% formalin, and the sedimentation and concentration processes used are described in Jiang et al. (2017, 2018). To sink the trichomes, glacial acetic acid was added (final concentration of 1%) to collapse the gas vesicles in the Trichodesmium cells before the sedimentation process (Detoni et al., 2016; Jiang et al., 2018). Colonial and free trichomes of Trichodesmium were enumerated using a Leica DMI3000B fluorescence microscope.

2.3. Incubation and measurement N₂ fixation rate (NFR)

The NFR was measured using the ¹⁵N₂ bubble method (Montoya et al., 1996; Zhang et al., 2012) rather than the dissolution method (Mohr et al., 2010), because of the time limitation and extremely high environmental (e.g., salinity, turbidity, and nutrients) gradients among stations and layers under domination of upper fresh, eutrophic CDW and deeper saline, oligotrophic NKBC, and TWC water. According to the PAR in the water column, seawater for the NFR incubation was collected from 5 depths that corresponded to 100, 50, 33, 10, and 1% of surface irradiance using Niskin bottles. Duplicate water samples were filled bubble free into 580-mL transparent glass bottles. After filling, 1 ml of 99 at% ¹⁵N₂ (Cambridge Isotope Laboratories) was spiked with a septum using an Agilent gastight syringe, with the pressure across the septum balanced by another syringe. To facilitate the equilibration of the ¹⁵N₂ gas bubble, each bottle was gently shaken for 3 min before incubation. Incubations were placed in deck-board incubators covered with neutral-density screens to adjust light densities (100, 50, 33, 10, and 1% of natural sea-surface irradiance) and cooled with continuously circulating surface seawater. After 24 h, each incubated sample was prefiltered through a 10-μm pore size Millipore nylon membrane (47 mm diameter) and then by a precombusted (4 h at 450°C) GF/F filter (25 mm diameter). The particles collected on the GF/F filters were of the <10 μm fraction. The particles collected on the Millipore membranes were transferred to another GF/F filters by repeated washing and rinsing with deionized water and thus were of the >10 μm fraction (Zhang et al., 2019). However, few particles might retain on the Millipore membranes, resulting in potential error in measuring NFRs of bulk and > 10 μm fraction. These filter samples were immediately stored at −20°C for further analysis. Natural ¹⁵N abundance (‰) in particulate organic nitrogen (PON) was measured for calculating the ¹⁵N enrichment during incubation. The filters for PON and ¹⁵N measurements were dried at 60°C and pelletized in tin capsules. The PON concentration and isotopic ratios of ¹⁵N:¹⁴N were measured using a Flash 2000 elemental analyzer coupled to a Thermo Finnigan Delta Plus isotope ratio mass spectrometer. The reproducibility of δ¹⁵N-PON measurements was typically better than 0.2‰. The NFRs and their detection limits (minimum quantifiable rates; 0.03–0.70 nmol N L⁻¹ d⁻¹) were calculated following Montoya et al. (1996). The bulk NFR was obtained by adding NFRs of >10 μm and < 10 μm fractions. Depth-integrated NFR at each station was calculated by trapezoidal integration over the sampling depths in the euphotic zone.

2.4. Data analysis and statistical tests

Depth-integrated densities (DIDs) of their trichomes were estimated by trapezoidal integration over the sampling depths. Net-collected samples are prone to result in an underestimation of the Trichodesmium density due to the easy loss of free trichomes, while colonies can be easily missed in water-collected samples because of the very limited volume (1 l). Therefore, we corrected total DID of Trichodesmium using water-collected DID of free trichomes and net-collected DID of colonial trichomes (Jiang et al., 2018). Spearman rank correlation or regression analysis between NFRs (bulk and >10 μm fractions) and environmental variables and Trichodesmium abundance was performed using SPSS 20.0. Figures depicting the distribution of environmental variables, Trichodesmium density, and NFR were constructed using ODV 4.

3. Results

3.1. Physicochemical conditions

Sea surface temperature ranged from 24.3 to 29.5°C. The eutrophic CDW extended southeasterly, resulting in low salinity (<31) and high turbidity (>10 NTU), concentrations of NO_x (>20 μmol L⁻¹), DIP (>0.5 μmol L⁻¹) and chlorophyll a, and NO_x/DIP ratio (>100) on the surface in the CE and Zhejiang coastal waters (Figure 2). The isohaline 31 on the surface crossed 32°N and the isohaline 33 on the bottom approached to 32°N, indicating strong intrusions of the NKBC and TWC water into the northern part of the CE. High stratification (with stratification index >10 kg m⁻³) was observed in Zhejiang coastal waters, because of upper warm, low-salinity CDW and deeper cold, high-salinity Kuroshio intrusion water. Relatively abundant DIP (up to 0.1 μmol L⁻¹) and low NO_x/DIP ratio (<10) were observed in the southeastern ECS along with the Kuroshio intrusion path, indicating a strong nitrogen limitation. Secchi depth ranged from 1.5 to 14.5 m with an average of 8.2 ± 3.6 m, which showed higher water clarity in the southern ECS than in the CE. The surface PAR off the CE was high (>2000 μmol photons m⁻² s⁻¹) at noon on the sunny day. The vertical profiles of temperature and salinity along transects C and E showed upward isotherm and isohaline (Figure 3), indicating a marked upwelling due to strong incursions of the NKBC and TWC. Nitrogen limitation was observed in the subsurface water column, where NO_x/DIP ratio was low (<15) because of domination of the NKBC and TWC water.

FIGURE 2

Figure 2. Distribution of physicochemical parameters off the CE. SST, sea surface temperature; SBT, sea bottom temperature; SSS, sea surface salinity; SBS, sea bottom salinity; SI, stratification index; NO_x, (NO₃⁻ + NO₂⁻); DIP, dissolved inorganic phosphorus.

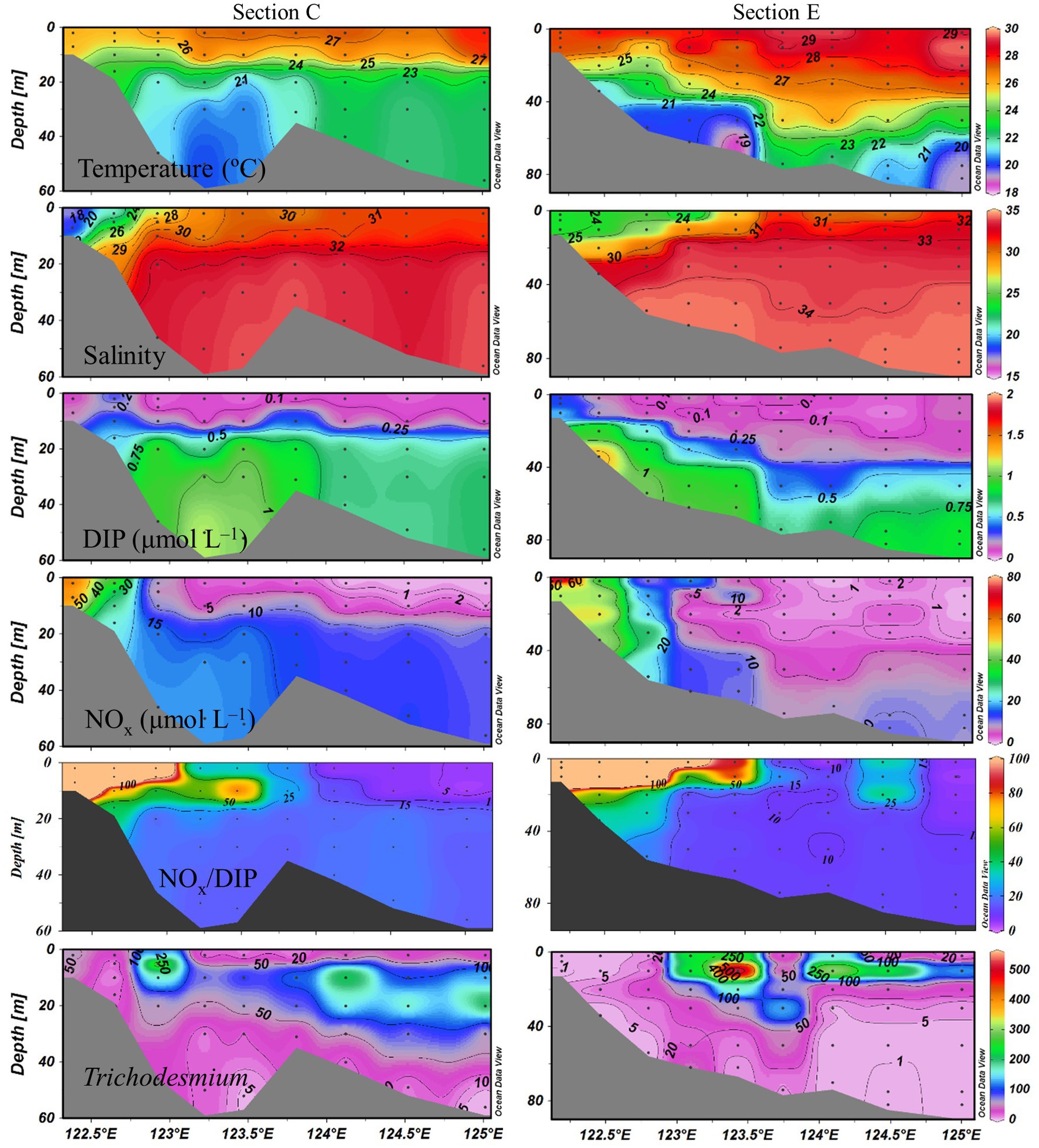

FIGURE 3

Figure 3. Vertical profiles of physicochemical parameters and Trichodesmium abundances (trichomes L⁻¹) along transects C and E.

3.2. Trichodesmium abundance

Trichodesmium was abundant in the southeastern ECS (with the highest DID of 10.23 × 10⁶ trichomes m⁻²) and in the eastern ECS away from the CE (Figure 4). The distribution of Trichodesmium abundance in the upper 20 m water column was contrary to the distribution of NO_x concentration. Notably, abundant Trichodesmium in the 10–30 m water column extended tongue-shapely from the southeastern ECS (Kuroshio) to the CE. Moreover, relative high abundance of Trichodesmium was observed on the bottom of the CE. Figure 3 shows obvious subsurface (10–30 m depth) maximum of Trichodesmium abundance along transects C and E. Figure 5 confirms that Trichodesmium densities were higher at 10, 20, and 30 m depths than on the surface and at 30, 50, and 75 m depths, with average densities of 82.4, 78.4, 29.3, 25.1, 23.9, 11.9, and 3.9 trichomes L⁻¹, respectively.

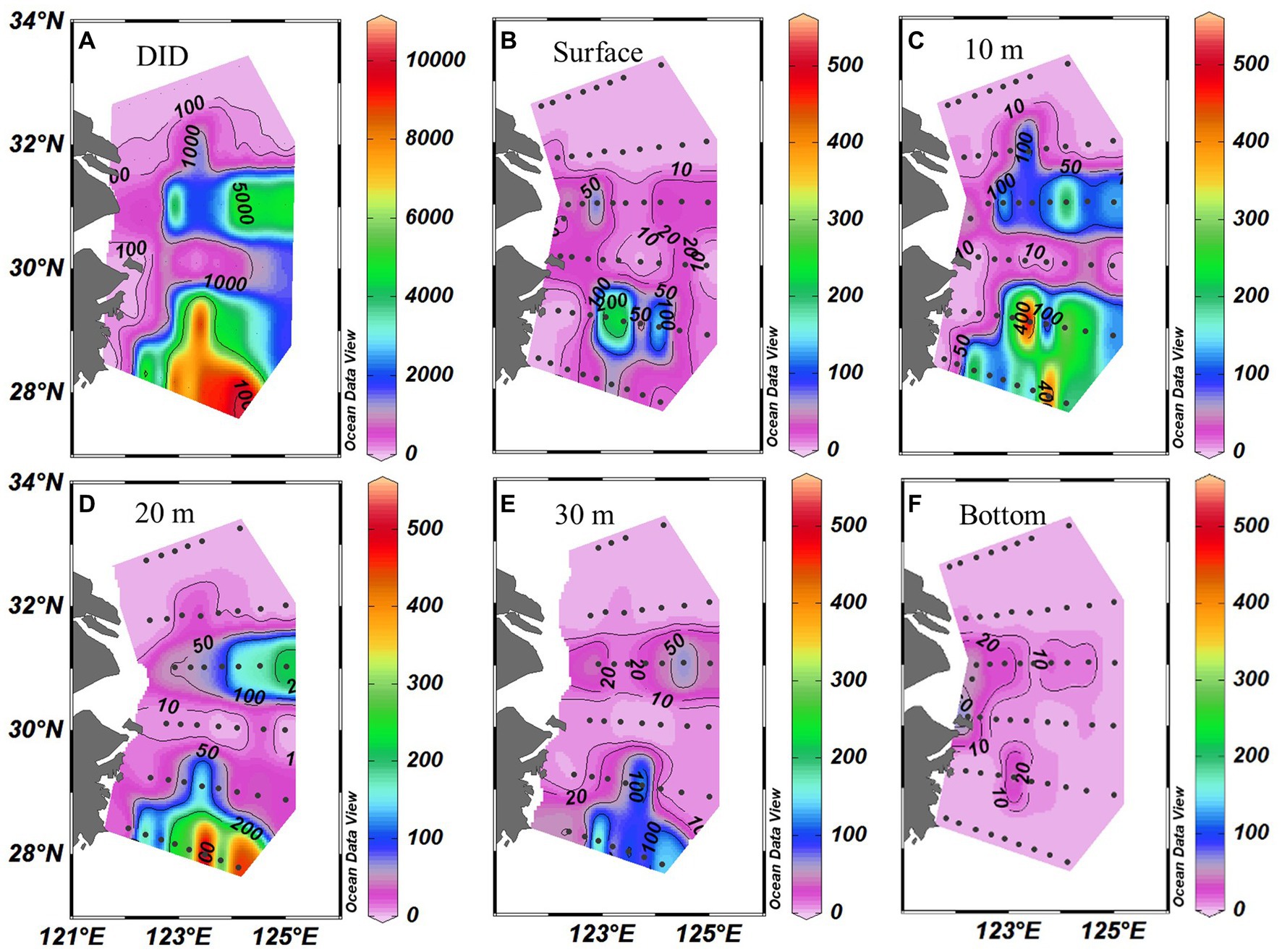

FIGURE 4

Figure 4. Distribution of Trichodesmium (A) DIDs (Depth-integrated density; ×10³ trichomes m⁻²) and (B–F) densities (trichomes L⁻¹) at different depths off the CE.

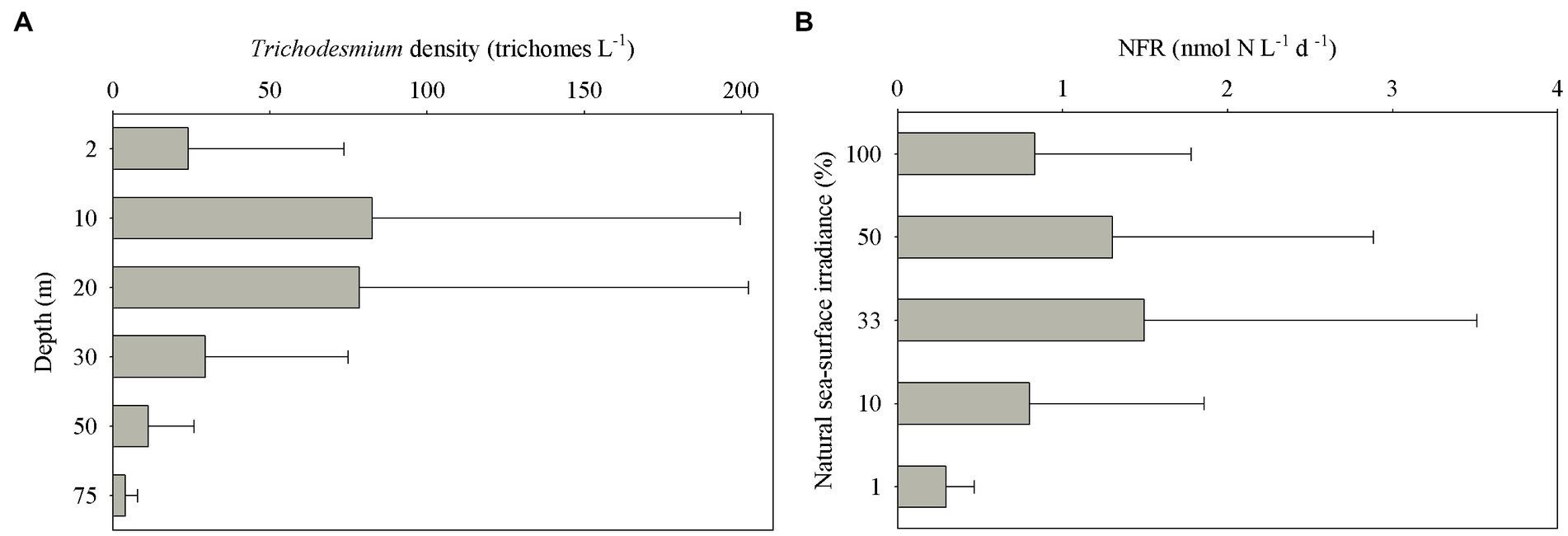

FIGURE 5

Figure 5. Vertical distribution of (A) Trichodesmium densities at different depths and (B) N₂ fixation rates (NFRs) at different light intensity off the CE.

3.3. Size-fractionated NFR

The average bulk NFR off the CE during summer was 24.3 ± 30.7 μmol N m⁻² d⁻¹. The average NFRs of >10 and < 10 μm fractions were 14.7 ± 22.1 and 9.6 ± 11.2 μmol N m⁻² d⁻¹, respectively, indicating a high contribution (60%) of >10 μm diazotrophs to N₂ fixation. Figure 6 shows higher NFRs in the offshore and southern parts than in the inshore and northern parts. The highest bulk NFR (99.9 μmol N m⁻² d⁻¹) occurred in the southeastern ECS, which largely contributed by >10 μm fraction. The NFR distribution of >10 μm and <10 μm fractions was consistent with the bulk NFR distribution. The bulk NFRs at 100, 50, 33, 10, and 1% of natural sea-surface irradiance were 0.83, 1.30, 1.50, 0.80, and 0.31 nmol N L⁻¹ d⁻¹, respectively (Figure 5).

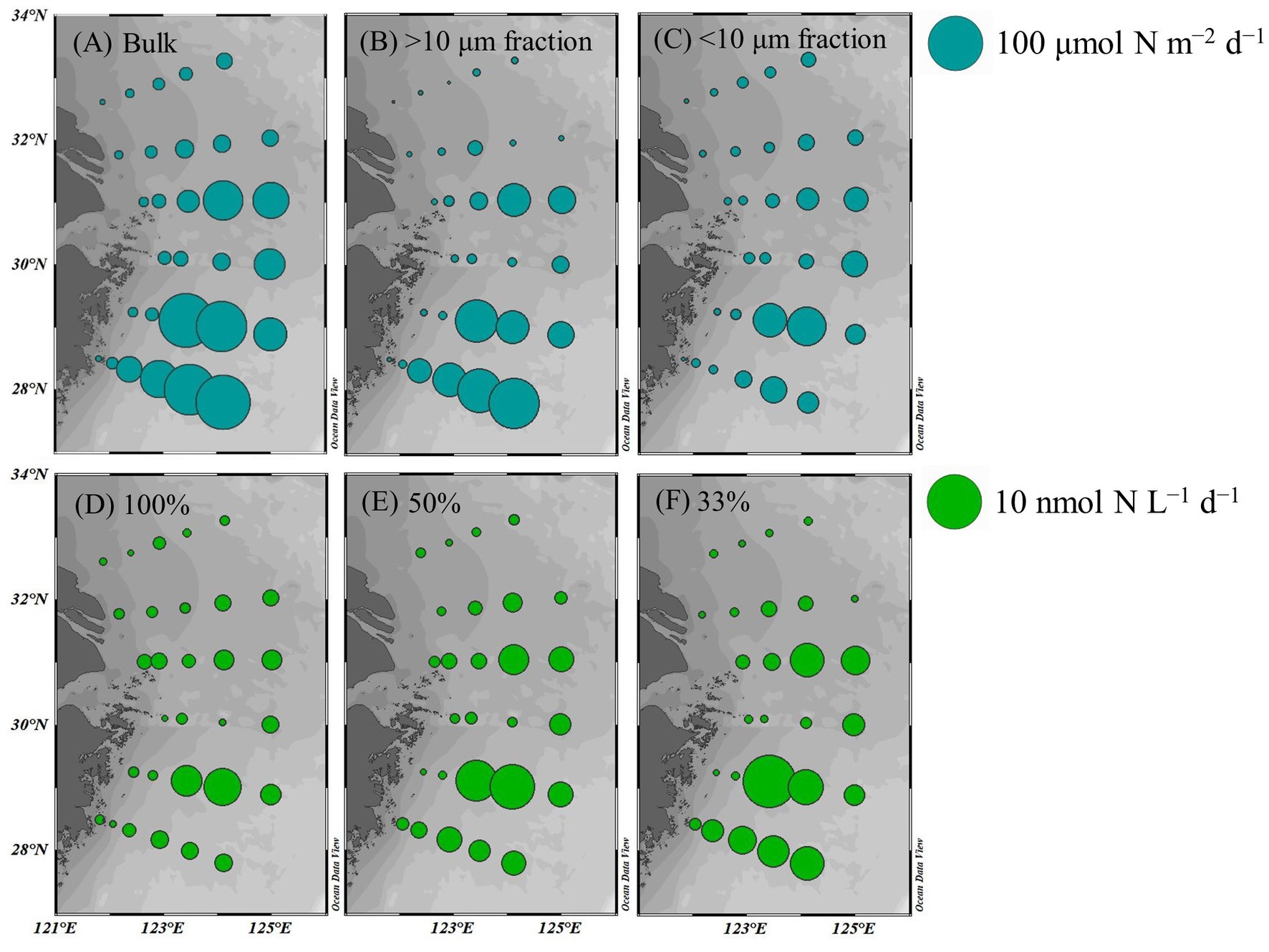

FIGURE 6

Figure 6. Spatial distribution of NFRs (A–C) in the euphotic zone (depth-integrated NFR; μmol N m⁻² d⁻¹) and (D–F) at different light intensities (nmol N L⁻¹ d⁻¹) off the CE. A: bulk NFR; B: NFR of >10 μm fraction; C: NFR of <10 μm fraction; D: 100% surface irradiance; E: 50% surface irradiance; F: 33% surface irradiance.

3.4. Relationship analysis

Spearman rank correlation showed that the surface and depth-integrated NFRs were significantly (p < 0.01) positively correlated with temperature, salinity, and Secchi depth, but was negatively with turbidity, NO_x, and NO_x/DIP ratio (Table 1). Notably, NFR of >10 μm fraction significantly (p < 0.05) positively correlated with stratification index, but non-significant positive correlation between NFR of <10 μm fraction and stratification index was found. The surface and depth-integrated NFRs were significantly (p < 0.001) positively correlated with surface density and DID of Trichodesmium, respectively. Figure 7 confirms high correlation coefficient (>0.7) between NFRs (particularly >10 μm fraction) and Trichodesmium densities.

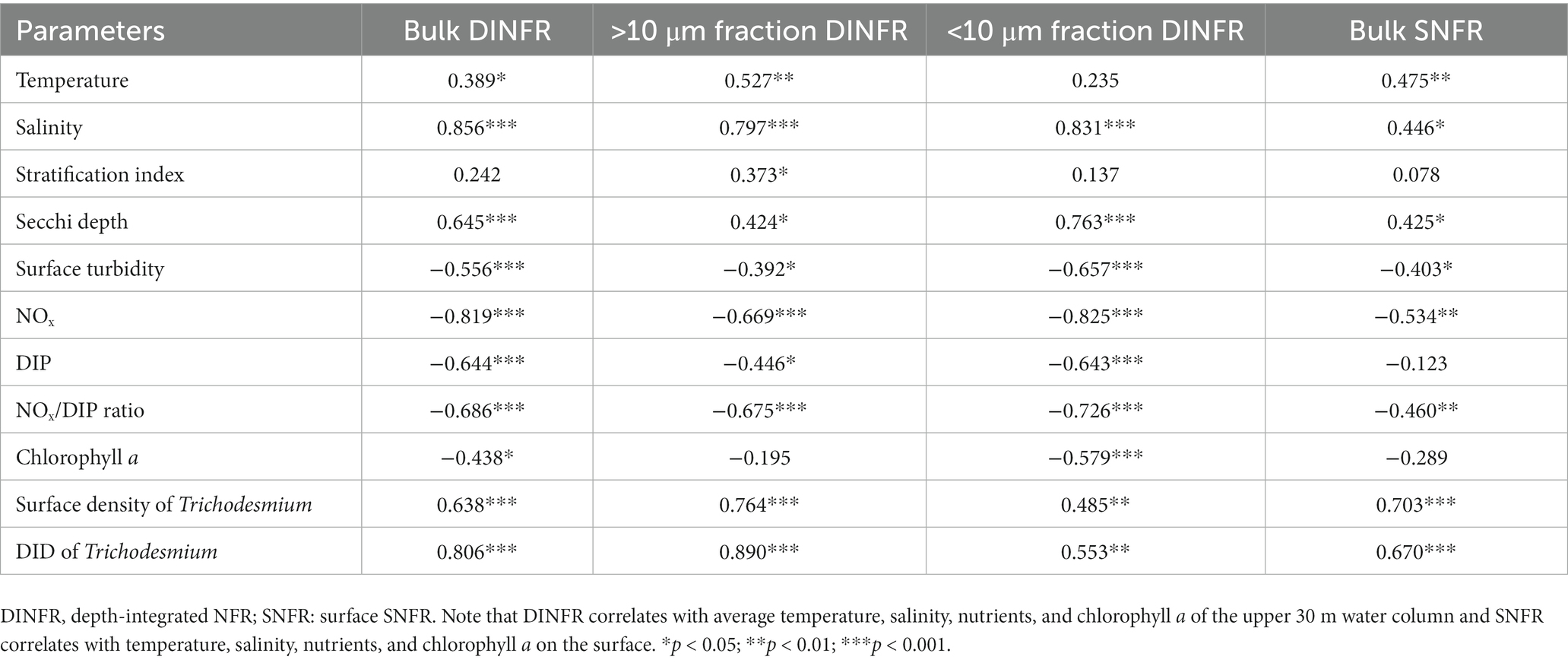

TABLE 1

Table 1. Spearman rank correlation between N₂ fixation rates (NFRs) and physicochemical factors and Trichodesmium density off the CE during summer.

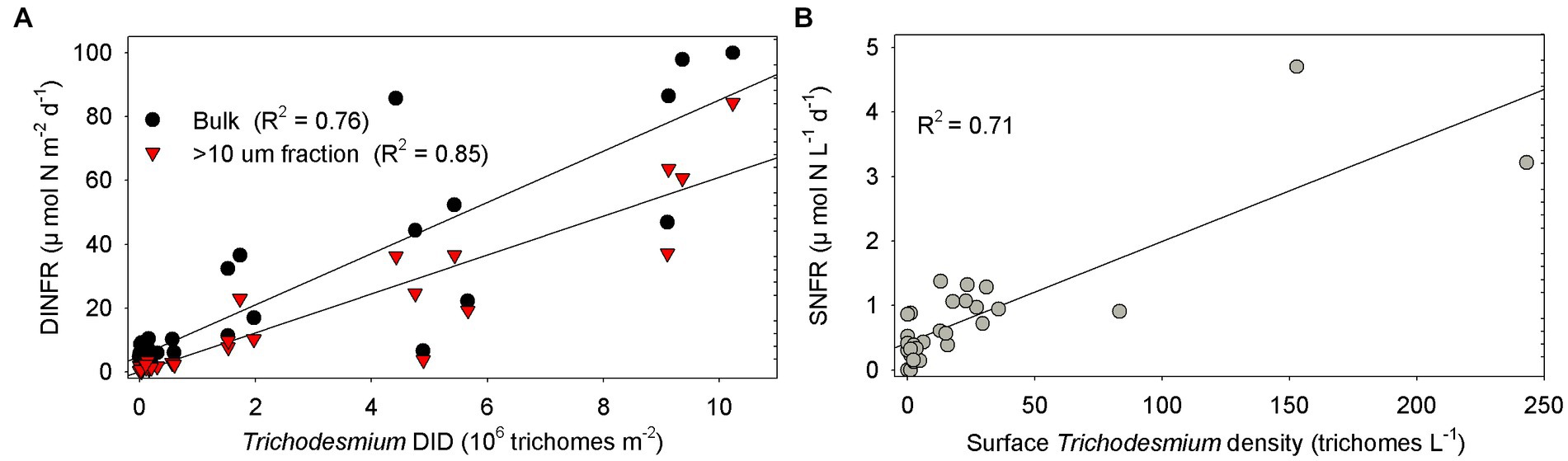

FIGURE 7

Figure 7. Correlation between NFRs (bulk and > 10 μm fraction) and Trichodesmium densities (A) in the water column (DID) and (B) on the surface off the CE. DINFR: depth-integrated NFR; SNFR: surface NFR.

4. Discussion

4.1. Comparison of size-fractionated NFR

For the first time, we report the direct measurement of size-fractionated NFRs off the CE using ¹⁵N₂ isotope tracer. With the development and improvement of isotope ratio mass spectrometry technique, NFRs are currently measured using the ¹⁵N₂ isotope tracer method instead of acetylene reduction method during the past two decades, because of the advantages in sensitivity and operability (Montoya et al., 1996; Sohm and Webb, 2011). NFRs in the ECS were almost measured using the ¹⁵N₂ isotope tracer method (Zhang et al., 2012; Shiozaki et al., 2015; Jiang et al., 2023), except for Wu et al. (2018) who used the acetylene reduction method. Therefore, our measured data of NFRs off the CE is well comparable to the previous results. Notably, the present NFRs obtained using the ¹⁵N₂ bubble method may underestimate due to the insufficient dissolution of ¹⁵N₂ gas injected (Mohr et al., 2010; Li et al., 2023). However, the level of underestimation of this method is thought to be low in Trichodesmium-dominant waters, because Trichodesmium can float to the top of the bottle and directly use the added ¹⁵N₂ gas (Großkopf et al., 2012). Additionally, because the equilibration between the injected ¹⁵N₂ gas and seawater usually increases over time, the 24-h incubation will likely minimize the artifact of insufficient dissolution of ¹⁵N₂ gas (Wannicke et al., 2018; Li et al., 2023). The present NFRs seem unlikely to be overestimated due to ¹⁵N contamination, since Cambridge ¹⁵N₂ gas has been observed to has minimal levels of ¹⁵N-ammonium contamination equivalent to rates of < 0.02 nmol N L⁻¹ d⁻¹ that are below our detection limits (Dabundo et al., 2014). The measurement of size-fractionated NFRs has been widely adopted, including the South China Sea, Mediterranean Sea, Southern California Bight, Coral Sea, Kuroshio, western Pacific, and North Atlantic (references shown in Table 2).

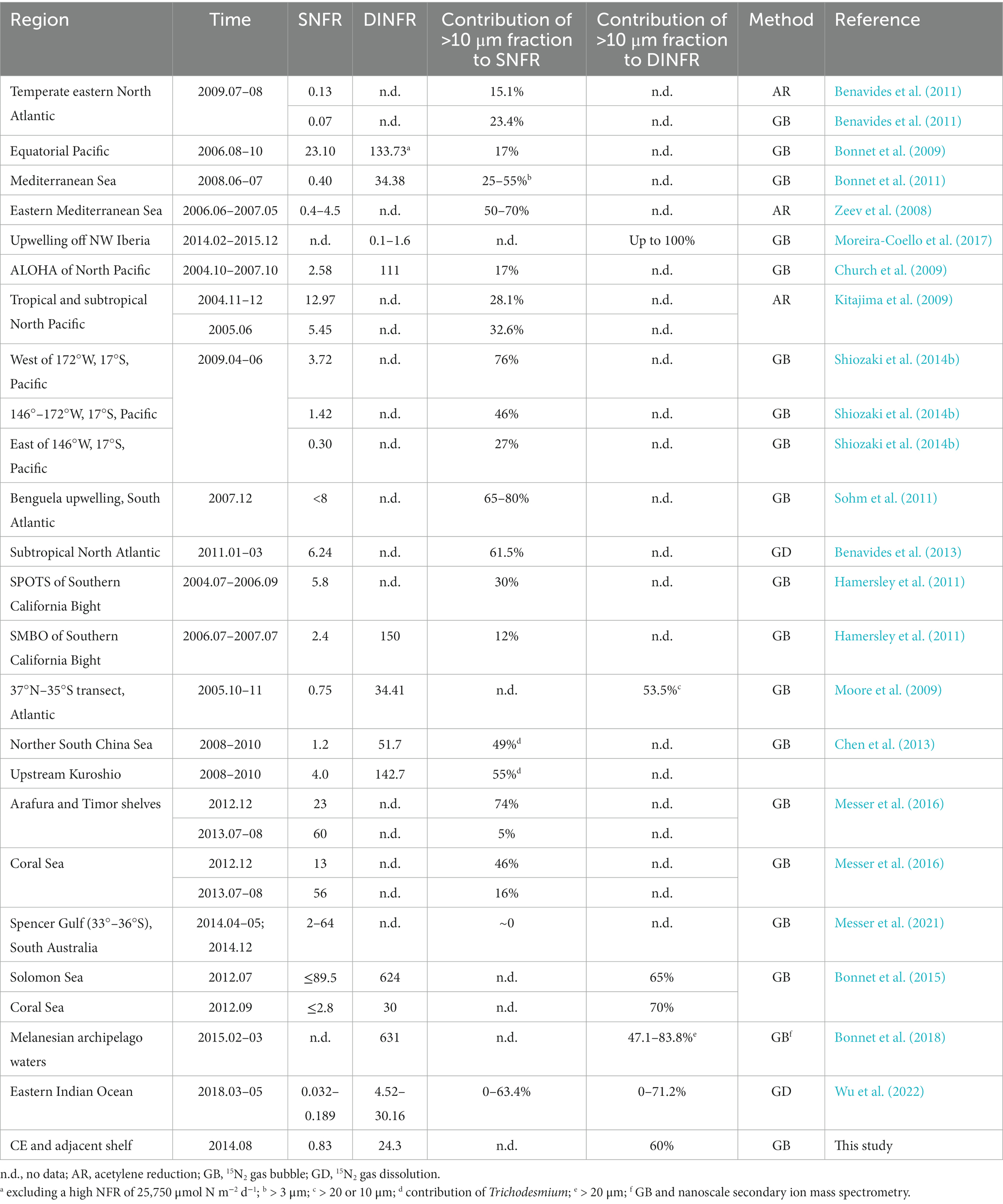

TABLE 2

Table 2. Comparison of size-fractionated surface (nmol N L⁻¹ d⁻¹) and depth-integrated (μmol N m⁻² d⁻¹) NFRs off the CE and in other global seas.

The present average surface (0.83 nmol N L⁻¹ d⁻¹) and depth-integrated (24.3 μmol N m⁻² d⁻¹) NFRs off the CE were comparable to those (0.70 nmol N L⁻¹ d⁻¹ and 41 μmol N m⁻² d⁻¹) reported in the ECS shelf (Zhang et al., 2012). However, these measured NFRs were lower than our previous measurement (1.54 nmol N L⁻¹ d⁻¹ and 89.8 μmol N m⁻² d⁻¹) in the ECS (including the Kuroshio mainstream) during summer 2013 (Jiang et al., 2023). The NFRs were also substantially lower those measured in the ECS near Japan (28 nmol N L⁻¹ d⁻¹ and 170 μmol N m⁻² d⁻¹) and the Kuroshio (5.61 nmol N L⁻¹ d⁻¹ and 199 μmol N m⁻² d⁻¹) (Shiozaki et al., 2015). These inconsistent results were attributed to the present study that limited in the CE and adjacent shelf, but did not cover the ECS outer shelf and the Kuroshio mainstream where NFRs were high. Earlier measurement demonstrated significantly higher NFR in the Kuroshio than in the ECS coastal waters (Zhang et al., 2012; Jiang et al., 2023).

Our measured NFRs were comparable to those measured in the Mediterranean Sea (Zeev et al., 2008; Bonnet et al., 2011), Bay of Bengal (Saxena et al., 2020), and a meridional transect in Atlantic (Moore et al., 2009), and higher than those reported in upwelling off NW Iberia (Moreira-Coello et al., 2017), temperate eastern North Atlantic (Benavides et al., 2011), and Eastern Indian Ocean (Wu et al., 2022), but lower than those measured in the northern South China Sea (Lu et al., 2018), upstream Kuroshio (Chen et al., 2013), Southern California Bight (Hamersley et al., 2011), Solomon Sea, Coral Sea, Arafura and Timor shelves (Bonnet et al., 2015; Messer et al., 2016), and tropical and subtropical Pacific and Atlantic (Bonnet et al., 2009, 2018; Church et al., 2009; Kitajima et al., 2009; Wen et al., 2022). Table 2 shows that the present contribution (60%) of >10 μm fraction to N₂ fixation off the CE was comparable to those detected in the Benguela upwelling, upstream Kuroshio, eastern Mediterranean Sea, Arafura and Timor shelves (in December), tropical western South Pacific, and subtropical North Atlantic, but were higher than those measured in the South China Sea, Southern California Bight, Coral Sea, upwelling off NW Iberia, temperature Spencer Gulf of South Australia, temperate eastern North Atlantic, tropical and subtropical North Pacific, and eastern Indian Ocean. These results suggested that N₂ fixation were largely contributed by >10 μm fraction (presumably Trichodesmium; see discussion below) in the subtropical and tropical seas near mainland/islands or suffered from strong dust inputs where dFe was abundant.

4.2. Main contributors to N₂ fixation

Our direct measured size-fractionated NFR indicated that >10 μm fraction accounted for 60% of bulk NFR, suggesting that N₂ fixation was most likely to be contributed by large-sized filamentous cyanobacteria. It is widely recognized that NFR of >10 μm fraction in warm ocean is generally contributed by Trichodesmium and DDAs (Capone et al., 1997; Sohm and Webb, 2011). This contribution was comparable to our conservative estimation (>60%) by filamentous cyanobacteria in the ECS including the Kuroshio mainstream (Jiang et al., 2023), but was inconsistent with a previous direct measurement (<40%) at two stations of the ECS outer shelf near the Kuroshio using the acetylene reduction assay (Wu et al., 2018). This different contribution was attributed to the large difference of Trichodesmium abundance between the present and previous observations. Wu et al. (2018) reported that the density of Trichodesmium at station PN04 was below 80 and 15 trichomes L⁻¹ on the surface and subsurface, respectively, which were much lower than our observed density in the upper 30 m water column (Figure 4). Particularly in the southeastern ECS (near their measured stations), the present highest density of Trichodesmium was 524 trichomes L⁻¹. Other previous studies found high surface densities (>2000 trichomes L⁻¹) of Trichodesmium in the ECS outer shelf and Kuroshio mainstream (Shiozaki et al., 2015; Jiang et al., 2018, 2019).

We speculated that Trichodesmium was the main contributor to N₂ fixation away from the CE, particularly in the eastern and southeastern ECS where high NFR was consistent with abundant Trichodesmium (Figures 4, 6). Our pervious investigation showed that DDAs usually limited in the Kuroshio mainstream but sparsely occurred off the CE during summer (Jiang et al., 2019). DDAs were also rarely observed in phytoplankton samples obtained synchronously (unpublished data) and previously (Jiang et al., 2015, 2019) from the CE and adjacent shelf. Similarly, DDAs were not detected in the south of Jeju Island of the ECS using nifH gene PCR amplification (Shiozaki et al., 2018). Few unicellular diazotrophs might retain on the 10 μm filters associated with >10 μm fraction. For example, the UCYN-B, recognized as Crocosphaera, lives freely (Zehr et al., 2001), colonially (Foster et al., 2013), and also in symbiosis with the diatoms (Carpenter and Janson, 2001). The colonial or symbiotic UCYN-B could also be associated with >10 μm fraction. Noncyanobacterial diazotrophs were found to be attached to large-sized particles [references in Turk-Kubo et al. (2022)]. However, previous molecular studies showed that the dominance of unicellular cyanobacteria diazotrophs decreased from the Kuroshio upstream to downstream and even did not occur in the ECS shelf mixed water (Shiozaki et al., 2018; Cheung et al., 2019), suggesting relatively low probability of unicellular cyanobacteria diazotrophs associated with >10 μm fraction and low contribution of them to N₂ fixation off the CE. Table 1 shows that NFR was significantly (p < 0.001) positively correlated with Trichodesmium density. High correlation coefficient (R² = 0.85) between NFR of >10 μm fraction and Trichodesmium density is also found in Figure 7A. These results confirmed that N₂ fixation away from the CE (particularly southeastern ECS) was largely contributed by Trichodesmium.

Figure 6 shows that <10 μm fraction contributed largely (>50%) to bulk NFR in the CE, particularly in the southern part of the southern Yellow Sea (up to 90%). This finding indicated that unicellular diazotrophs were the main contributors to N₂ fixation therein. Earlier study demonstrated that heterotrophic diazotrophs (Gammaproteobacteria) were dominant in coastal waters of the southern Yellow Sea using real-time PCR and clone library analysis of nifH genes (Zhang et al., 2015). Molecular detection of nifH gene revealed that unicellular cyanobacteria diazotrophs had low abundance and even did not occur on the ECS shelf, while proteobacteria presented conversely (Shiozaki et al., 2018; Cheung et al., 2019). Our unpublished data of pyrosequencing based on nifH gene during summer 2016 confirmed that proteobacteria overwhelmingly dominated the unicellular diazotrophs at all stations in the CE, but unicellular cyanobacteria diazotrophs rarely detected. Similarly, recent high-throughput sequencing showed that proteobacteria and other heterotrophic unicellular diazotrophs were the main N₂ fixer in eutrophic Daya Bay (Li et al., 2019) and estuaries (Bentzon-Tilia et al., 2014), which occasionally fixed N₂ at significant rates (>10 nmol N L⁻¹ d⁻¹). During spring 2009, relatively active N₂ fixation (3.37 nmol N L⁻¹ d⁻¹) was detected in the CE, where temperature averaged at 18.1°C (Lin et al., 2013). Because the growth and N₂ fixation of Trichodesmium are dramatically inhibited at low temperature (<20°C; Breitbarth et al., 2007), unicellular diazotrophs appeared to contribute mostly to spring N₂ fixation in the CE. These findings suggested that N₂ fixation probably largely contributed by proteobacteria in the CE and adjacent waters except the eastern and southeastern ECS. Therefore, size-fractionated NFR data is useful to roughly distinguish the relative importance of filamentous and unicellular diazotrophs to N₂ fixation off the CE.

4.3. Controlling factors of size-fractionated NFR

Overall, macro-nutrient stoichiometry indicated that nitrogen shifted across the river plume and upwelling from repletion (NO_x/DIP ratio > 100) in the CE and Zhejiang coast to deficiency (NO_x/DIP ratio < 10) in offshore waters, particularly in the southeastern ECS controlled by the Kuroshio intrusion water (Figure 2). Consequently, NFR was high (up to 100 μmol N m⁻² d⁻¹) in the nitrogen-depleted southeastern ECS, but was low (<6 μmol N m⁻² d⁻¹) in the nitrogen-replete CE and Zhejiang coast (Figure 6). This spatial distribution pattern was consistent with previous reports (Zhang et al., 2012; Jiang et al., 2023), which was closely correlated with water mass movement and associated physical properties (e.g., temperature, salinity and turbidity) and Trichodesmium density, in addition to NO_x/DIP. During summer, the shoreward, northward intrusions of oligotrophic, saline TWC, and NKBC strengthen under prevailing southwestern monsoon, which transports abundant Trichodesmium off the CE (Jiang et al., 2017, 2018, 2019). However, eutrophic CDW enhances and dominates the CE and strong upwelling occurs along Zhejiang coast, where NO_x concentration (up to 80 μmol L⁻¹) and NO_x/DIP ratio (>100) were extremely high (Figures 2, 3). Additionally, relatively abundant dFe (0.47–10.01 nmol L⁻¹) was observed in the offshore ECS, because of riverine/atmospheric inputs as well as intrusion of NKBC (Zhang et al., 2022). Figures 4, 6 show abundant Trichodesmium and relatively high NFR in the southeastern ECS along the NKBC intrusion, but low Trichodesmium density and NFR in the CE characterized by high NO_x concentration, NO_x/DIP ratio and turbidity. Table 1 confirms that NFRs (bulk and > 10 μm fraction) were significantly positively correlated with temperature, salinity, Secchi depth, and Trichodesmium abundance, but was negatively with NO_x concentration, NO_x/DIP ratio, and turbidity. Regression analysis showed high correlation between NFRs (particularly >10 μm fraction) and Trichodesmium densities (Figure 7). Remarkably, circulation pattern and associated marco-and micro-nutrient conditions profoundly influence N₂ fixation off the CE. Our previous studies demonstrated that the Kuroshio intrusion significantly enhanced Trichodesmium abundance and N₂ fixation in the ECS through providing appropriate nutrient (N deficiency, abundant DIP and available dFe) environments (Jiang et al., 2018, 2019, 2023). These results suggested that spatial variation in NFR off the CE are largely regulated by Trichodesmium abundance and nutrient conditions (particularly NO_x/DIP ratio) under movement of the intruded Kuroshio water and CDW.

The subsurface (~5–20 m depth) NFRs under 33% (1.50 nmol N L⁻¹ d⁻¹) and 50% (1.30 nmol N L⁻¹ d⁻¹) of surface irradiance were much higher than those on the surface and in the deeper water column (Figure 5), highly corresponding to the vertical distribution of Trichodesmium abundance (Figure 3). Similar results of measured NFRs were usually observed in the ECS (Zhang et al., 2012; Shiozaki et al., 2015) and other seas (Shiozaki et al., 2018; Wu et al., 2022). These findings suggested that the growth and N₂ fixation of diazotrophs on the surface off the CE were limited by extremely high solar irradiance (>2000 μmol photons m⁻² s⁻¹ on the sunny day) during summer, while PAR (100–250 μmol photons m⁻² s⁻¹) on the subsurface was favored by diazotrophs. For example, both laboratory and field experiments demonstrated that growth and N₂ fixation of Trichodesmium were light saturated at ~200 μmol quanta m⁻² s⁻¹ (Breitbarth et al., 2008; Lu et al., 2018). In addition, the water mass movement and physicochemical conditions were suitable to growth, accumulation and N₂ fixation of diazotrophs in the subsurface. The upper nitrogen-replete CDW and deeper nitrogen-depletion, P-replete TWC (modified Kuroshio subsurface water), and NKBC water dominated the CE and adjacent shelf, where subsurface water column was characterized by low concentration of NO_x and high concentration of DIP (low NO_x/DIP ratio) and appropriate temperature and salinity (Figure 3). Earlier studies found that abundant Trichodesmium off the CE was transported by the Kuroshio and TWC intrusions, which shaped spatial distribution and N₂ fixation of filamentous diazotrophs (Shiozaki et al., 2015; Jiang et al., 2017, 2018, 2023). Moreover, NFR of >10 μm fraction was significantly positively correlated with stratification index (Table 1), indicating that Trichodesmium benefited from this strong halocline. Therefore, the vertical distribution of N₂ fixation off the CE was regulated by Trichodesmium, irradiance, nutrients and stratification.

Notably, measurable NFRs were detected in the CE (controlled by the eutrophic CDW) and Zhejiang coastal waters (also characterized by strong upwelling) despite high NO_x concentration and NO_x/DIP ratio (Figures 2, 6). Several studies have also observed active N₂ fixation in coastal eutrophic waters, including estuaries (Bentzon-Tilia et al., 2014), bays (Li et al., 2019, 2020), and upwelling (Wen et al., 2017). Li et al. (2019) hypothesized that active N₂ fixation (with the maximum NFR of 4.51 nmol N L⁻¹ h⁻¹) in Daya Bay was facilitated by fresh bioavailable dissolved organic carbon from non-diazotrophic phytoplankton. Algal bloom with high concentration of chlorophyll a (~10 μg L⁻¹) in the CE might supply abundant fresh dissolved organic carbon for heterotrophic diazotrophs and thereby was conducive to N₂ fixation. Changjiang inputs huge freshwater and associated nutrients, which forms massive amount of nitrogen-replete CDW, resulting in relatively low NFR (<0.5 nmol N L⁻¹ d⁻¹) in the CE (Figure 6). From 1980s to 2000s, dissolved inorganic nitrogen and N/P ratio in the CE have increased significantly with exacerbating land-use change and urbanization (Jiang et al., 2014; Zhang et al., 2020). However, nitrogen flux from Changjiang reduced and dissolved inorganic nitrogen concentration and N/P ratio in the CE decreased since 2010, because of comprehensive environmental protection and improvement of Changjiang (Wang et al., 2020). In addition, surface warming and associated stratification enhancement are conducive to growth of Trichodesmium (Table 1; Jiang et al., 2018). We expect that N₂ fixation will contribute more importantly to nitrogen budget and biogeochemical processes off the CE in the future.

5. Conclusion

The present study provides the first direct measurement of size-fractionated NFRs off the CE during summer using the ¹⁵N₂ bubble tracer method despite possible underestimation of NFR. Our results showed that >10 μm fraction accounted for 60% of bulk NFR. Measurable NFR was detected in the CE controlled by the CDW where was characterized by nitrogen repletion and low-density of Trichodesmium. In addition, abundant Trichodesmium and active N₂ fixation were observed in the southeastern ECS because of the Kuroshio intrusion. We hypothesize that the present NFRs of >10 μm and <10 μm fractions were contributed by Trichodesmium and proteobacteria, respectively. We concluded that spatial distribution of NFR off the CE was largely regulated by water mass (intruded Kuroshio water and CDW) movement and associated diazotrophs (particularly Trichodesmium) and nutrient conditions. However, further studies need to be performed on diazotrophic composition using molecular sequencing and N₂ fixation using the ¹⁵N₂ dissolution tracer assay.

Data availability statement

The raw data supporting the conclusions of this article will be made available by the authors, without undue reservation.

Author contributions

ZJ collected and analyzed the samples, developed the method, and wrote, reviewed, and edited the original draft of this manuscript. YZ analyzed the NFR data and conducted statistical test. ZS was responsible for the figure depiction and partial statistical analysis. HZ helped to perform the NFR incubation experiment and provided the chlorophyll a data. FZ provided the physical data. XY and QC developed the research design and revised the manuscript. JC provided nutrient data. JZ reviewed and edited this manuscript. All authors contributed to the article and approved the submitted version.

Funding

This work was funded by the National Natural Science Foundation of China (41876198 and 42076134), Scientific Research Fund of the Second Institute of Oceanography, MNR (JG2311), Zhejiang Provincial Natural Science Foundation of China (LR22D060001), National Key Research and Development Program of China (2021YFC3101702), Key R&D Program of Zhejiang (2022C03044), and Project of Long-term Observation and Research Plan in the Changjiang Estuary and Adjacent East China Sea (LORCE; SZ2001).

Acknowledgments

We thank the captain and crew onboard the R/V Zhehaihuanjian. Y. Tang is thanked for his assistance in collecting water samples. J. Cao is thanked for analyzing the PON and ¹⁵N abundance.

Conflict of interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Publisher’s note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
