Characterization and Fitness Cost of Tn7100, a Novel Integrative and Conjugative Element Conferring Multidrug Resistance in Haemophilus influenzae

A multidrug-resistant (MDR) strain of Haemophilus influenzae, Hi-228, with phenotypic resistance toward ampicillin, cefotaxime, chloramphenicol, gentamicin, and azithromycin, was isolated in Oslo, Norway. The strain was part of a clonal outbreak (2016–2017) comprising five ST143 strains with identical resistotypes. Hi-228 carries a novel integrative and conjugative element (ICE), Tn7100, contributing to this remarkable and previously unreported MDR profile. Tn7100 contains the following resistance genes: bla_TEM−1B, catA2, aac(6′)-Im, aph(2″)-Ib, mef (E), and mel. The latter four are previously unreported or rarely reported in H. influenzae. In this study, we investigated the genetic environment, mechanisms of transfer, impact on phenotypic susceptibility, and fitness cost of this ICE. We found that Tn7100 has an overall structure similar to the previously described ICE Tn6686, with bla_TEM−1B and catA2 carried by Tn3 and Tn10, respectively. The major difference between Tn7100 and Tn6686 is that Tn7100 lacks tet(B) but carries the resistance gene pairs aac(6′)-Im and aph(2″)-Ib and mef (E) and mel. The gene pairs are located on the novel transposable elements Tn7470 and Tn7471, which have high sequence identities to a plasmid in Enterobacterales and an ICE in streptococcal species, respectively. Tn7100 does circularize and is transferable, however, at a low frequency. Head-to-head competition experiments showed that uptake of Tn7100 reduces bacterial fitness. Our study shows that MDR strains are capable of clonal spread and that the H. influenzae supragenome comprises an increasingly wide range of transferable resistance genes, with evidence of transfer from unrelated genera. The findings offer a glimpse into the genome dynamics of H. influenzae, highlighting the importance of rational antibiotic usage to contain antimicrobial resistance and the emergence of MDR strains in this important pathogen.

Introduction

Haemophilus influenzae is a Gram-negative bacterium colonizing the respiratory tract in humans and causing both invasive and non-invasive infections. Non-encapsulated (non-typeable) H. influenzae (NTHi) frequently causes eye, ear, sinus, and respiratory tract infections, including complicating infections in cystic fibrosis and exacerbations in chronic obstructive pulmonary disease (COPD). In fact, H. influenzae is one of the most common causes of exacerbations in COPD. H. influenzae also has the potential to cause septic pneumonia and meningitis, with a particularly high risk in infants, immunocompromised, and elderly people (Van Eldere et al., 2014). Several reports suggest that the incidence of invasive NTHi disease in the general population is increasing, and Norway and Sweden have the highest incidence rates in Europe (ECDC, 2019).

The emergence and spread of beta-lactam-resistant strains with transferable beta-lactamases and/or alterations in penicillin-binding protein 3 (PBP3) has eliminated aminopenicillins and threatens extended-spectrum cephalosporins, as safe empiric therapeutic options in severe H. influenzae infections (Van Eldere et al., 2014). Accordingly, ampicillin-resistant H. influenzae was added to the WHO priority pathogen list for research and development of new and effective antibiotics in 2017 (WHO, 2017). The situation is further complicated by the dissemination of multidrug-resistant (MDR) H. influenzae with acquired resistance to the most suitable non-beta-lactam agents such as trimethoprim-sulfamethoxazole, tetracyclines, quinolones, chloramphenicol, and/or macrolides (Pfeifer et al., 2013; Kuo et al., 2014; Skaare et al., 2014; Seyama et al., 2017; Hegstad et al., 2020).

Integrative and conjugative elements (ICEs) are self-transmissible mobile genetic elements ranging from ~20 to >500 kb in size. They primarily reside in the chromosome of one bacteria but can excise, circularize, and transfer to another bacteria (Wozniak and Waldor, 2010; Johnson and Grossman, 2015). Horizontal gene transfer by ICEs is an important mechanism for the dissemination of antibiotic resistance between bacteria, and ICEs may carry a wide range of resistance genes mediating resistance to most types of antibiotics (Juhas et al., 2007b; Li et al., 2016; Partridge et al., 2018; Botelho and Schulenburg, 2020; Hegstad et al., 2020; Nikolaou et al., 2020). ICEHin1056 has promoted bacterial diversity and adaptation in H. influenzae by becoming an efficient vector of antibiotic resistance (Mohd-Zain et al., 2004; Juhas et al., 2007b). Conjugation of this ICE is enabled by the type IV secretion system (T4SS), and ICEHin1056, as well as other ICEs, integrate site-specifically into the tRNA^Leu gene in H. influenzae (Dimopoulou et al., 2002; Juhas et al., 2007a; Hegstad et al., 2020).

Several novel ICEs conferring MDR phenotypes were recently described in H. influenzae (Hegstad et al., 2020), underlining the ability of this organism to acquire a variety of antibiotic resistance genes and possibly transfer them to related or unrelated genera within the bacterial community. The extent and molecular mechanisms of MDR development in H. influenzae are incompletely understood, and more studies are needed.

In this study, we investigated the resistance mechanisms of the MDR H. influenzae strain Hi-228, expressing phenotypic resistance toward ampicillin, cefotaxime, chloramphenicol, gentamicin, and azithromycin. We identified and characterized a novel ICE, Tn7100, containing four resistance-associated transposons with six different resistance genes, including four genes that are previously unreported or rarely reported in H. influenzae. To determine the clinical importance of this ICE, we described its genetic structure and environment, ability to transfer, as well as the impact on phenotypic susceptibility, and bacterial fitness.

Materials and Methods

Bacterial Isolates

Hi-228 was isolated from a non-hospitalized child with an upper respiratory tract infection in Oslo, Norway, in January 2017. Routine susceptibility testing at the primary laboratory (Fürst) revealed a cefotaxime gradient minimum inhibitory concentration (MIC) of 2 mg/L, and the isolate was sent to the Department of Microbiology, Vestfold Hospital Trust (VHT) for confirmatory testing according to EUCAST recommendations (Leclercq et al., 2013). The isolate was included in an ongoing nationwide study on cefotaxime-resistant H. influenzae and characterized with determination of broth microdilution (BMD) MICs and whole-genome sequencing. Multilocus sequence typing (MLST) showed that Hi-228 belonged to ST143. An MDR phenotypic profile was revealed, with matching alterations in PBP3 and six acquired resistance genes (Table 1). As preliminary analyses suggested the presence of a novel ICE, we designed this study to investigate further the molecular basis, transferability, and fitness cost of the acquired resistance mechanisms. All personal data were anonymized before inclusion in this study.

TABLE 1

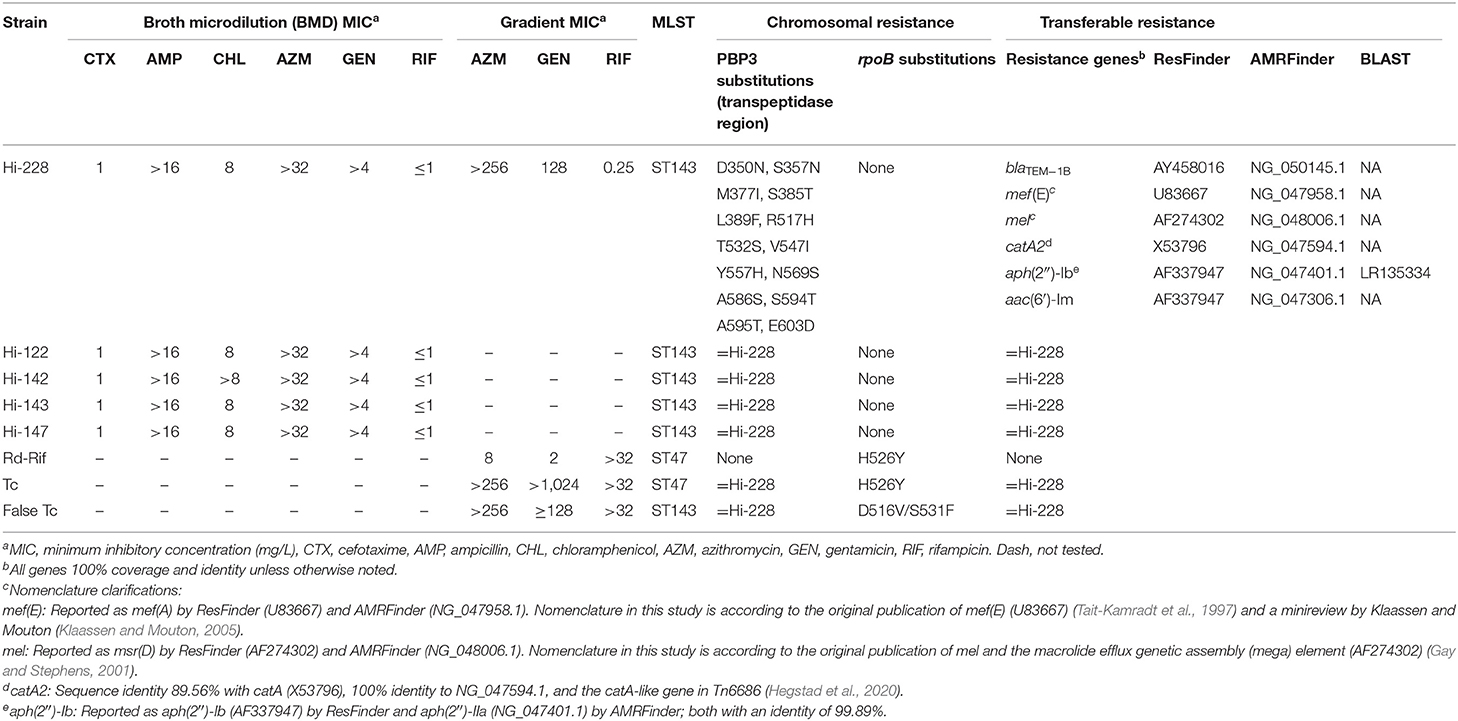

Table 1. Characteristics of Hi-228, Hi-122, Hi-142, Hi-143, Hi-147, recipient strain (Rd-Rif), true transconjugants (Tc), and false transconjugants (Tc).

Four additional ST143 isolates (Hi-122, Hi-142, Hi-143, and Hi-147) with phenotypic and genotypic MDR profiles identical to Hi-228, isolated at the same primary laboratory between June 2016 and January 2017, were included for supplemental phylogenetic analyses to investigate whether the five strains constituted a clonal outbreak.

A rifampicin-resistant spontaneous mutant of H. influenzae Rd (CCUG 18800, ST47) was used as recipient strain (Rd-Rif) in conjugation experiments (Hegstad et al., 2020).

Pure cultures were kept frozen at −80°C in Microbank vials (Pro-Laboratory Diagnostics, Canada).

Study Design

Supplementary Figure S1 gives an overview of the study design.

Ion Torrent Sequencing

Whole-genome sequencing (Ion Torrent) was performed on all clinical isolates and seven colonies from selective agar plates in conjugation experiments. In brief, colonies were cultured on chocolate agar overnight before they were transferred to 500 μl low-TE buffer. DNA was extracted using Qiasymphony SP, the DSP DNA mini kit, and the blood protocol (Qiagen, Germany). Extracted DNA was quantified using Qubit (Thermo Fisher Scientific, USA). Notably, 200 ng DNA was used for library generation using Library Builder and The Ion Xpress™ Plus Fragment Library Kit for the AB Library Builder™ System (Thermo Fisher Scientific). Preparation of template and chip loading was performed using Ion 510™ & Ion 520™ & Ion 530™ Kit-Chef, and 30 pM was sequenced in the S5™ XL System (Thermo Fisher Scientific).

PacBio SMRT Sequencing

Hi-228 was cultured on chocolate agar overnight, and a single colony was transferred to brain heart infusion (BHI) broth and grown overnight in a CO₂ atmosphere. Genomic DNA was extracted using the Promega Wizard Genomic DNA Purification Kit (Promega, USA) and lysozyme (Sigma Aldrich Norway AS). This resulted in a concentration of 250 ng/μl (Qubit) and a 260/280 ratio of 1,862 (GenQuant 1300). Whole-genome sequencing was performed by the Norwegian Sequencing Centre (Oslo, Norway) using the Single-Molecule Real-Time (SMRT) sequencing technology of Pacific Biosciences. The library was prepared using the Pacific Biosciences protocol for Multiplexed Microbial Libraries Using SMRTbell® ExpressTemplate Prep Kit 2.0. DNA was sheared to 12–16 kb fragments using g-tubes from Covaris. Samples were pooled during library prep in (more or less) equimolar. The final library was size-selected using BluePippin with an 8 kb cutoff. The library was sequenced on one 8M SMRT cell on Sequel II instrument using Sequel II Binding kit 2.0 and Sequencing chemistry version 2.0. Loading was performed by diffusion, movie time: 30 h, pre-extension time: 2 h. Of note, 43.5 Gb of library bases were produced. Reads were demultiplexed using Demultiplex Barcodes pipeline using SMRT Tools (SMRT Link version 7.0.0.63985, SMRT Tools version 7.0.0.63823). A minimum barcode score of 26 was used. Reads were assembled using the Microbial Assembly pipeline on SMRT Link (version 9.0.0.92188). Assembly was run using 3 Mb as the expected genome size.

Bioinformatic Analyses

The overall quality of the raw Ion Torrent reads was examined using AfterQC version 0.9.6 (Chen et al., 2017), prior to as well as after trimming. Quality trimming was performed with Trimmomatic version 0.39 (Bolger et al., 2014), and assembly of trimmed reads was performed using SPAdes version 3.14.1 (Bankevich et al., 2012). The reads were trimmed with a sliding window set to 4, PHRED20, and bases below read length 15 were discarded.

Phylogenetic analysis with conventional and core-genome multi-locus sequence typing (MLST and cgMLST) (Meats et al., 2003) was performed using Ridom SeqSphere+ version 8.0 (Ridom GmbH, Münster, Germany) using the five clinical strains investigated in this study together with a collection of 213 clinical isolates of H. influenzae from Norway and Sweden (BioProject PRJEB49398¹). The analysis was based on 1,782 columns, using the reference sequence H. influenzae Rd KW20 (GCA_000027305.1²) as seed genome, and the recommended option for the handling of missing values (pairwise ignore)³ and MST cluster distance threshold set to 25.

Acquired resistance genes were detected using AMRFinder (Feldgarden et al., 2019) and ResFinder (Bortolaia et al., 2020) with 75% identity/coverage thresholds. A BLAST search was performed for hits with identity below 100%. The presence of a putative ICE was investigated by uploading the assembled contigs to ICEfinder⁴.

To explore whether the resistance genes in Hi-228 were located on an ICE, the assembled contigs were imported into Geneious Prime version 2020.0.1 (Kearse et al., 2012). The six genes of interest (Table 1), as well as the previously described ICE Tn6686 (MN106411), (Hegstad et al., 2020) were used to create a custom database for annotation of genes (minimum BLAST identity 80%). Contigs with annotations were extracted and sorted. The presence and structure of a tentative ICE were visualized by alignment of the extracted contigs and Tn6686 (MN106411) with MAUVE version 1.1.1 (Darling et al., 2004). A BLAST search was performed to investigate the origin of two large insertions not present in Tn6686. Based on the best match, we added annotations from transposon Tn6822 in Streptococcus pneumoniae (MT489699) and plasmid p49969 in Citrobacter freundii (CP070545) to the custom database.

Finally, the presence and structure of a novel ICE (assigned Tn7100) were confirmed by annotation of the PacBio sequence with Prokka version 1.14.6 and default parameters with the addition of proteins flag, using the custom database. A comparison of the closed sequence of Tn7100 with Tn6686 and ICEHin1056 (GenBank accession number MN106411 and AJ627386, respectively) was visualized using Easyfig 2.2.2 (Sullivan et al., 2011).

Antimicrobial Susceptibility Testing

The BMD MIC was determined according to EUCAST recommendations (EUCAST, 2021), using in-house produced Mueller-Hinton Fastidious (MH-F) broth (Oxoid, Thermo Fisher Scientific) and custom MIC panels (Sensititre NONAG7) (Thermo Fisher Scientific), designed to separate between strains with wild type and acquired resistance. Supplemental testing with gradient diffusion tests (Liofilchem, Italy) on MH-F agar (Oxoid) was performed to determine exact MICs for azithromycin, gentamicin, and rifampicin for Hi-228, Rd-Rif, and colonies from conjugation experiments.

Agar Plates

We used plates containing Columbia agar base (Becton Dickinson Norway AS) supplemented with 15 mg/L NAD (BioNor Laboratories AS, Norway) and 15 mg/L hemin (Sigma Aldrich Norway AS), as well as chocolate agar plates (Oxoid).

Selective agar plates were Columbia agar plates containing rifampicin (10 mg/L) (rif plates) and rifampicin (10 mg/L) + azithromycin (30 mg/L) (rif+azm plates). The plates were incubated at 35°C, 5% CO₂ for 24 or 48 h before colony counting.

Conjugation Experiments

To determine whether Tn7100 is transferable, mating was performed using the method described by Hegstad et al. (2020). Serial dilutions were plated onto rif plates and rif+azm plates for 48 h to determine the viable counts and number of recipients and transconjugants. Mean values for conjugation frequency (number of transconjugants/number of recipients) and its standard error were calculated. Results were obtained from three biological replicates, initiated on separate days.

Real-Time PCR and Sequencing of PCR Product

Circularization of Tn7100 in Hi-228 was analyzed by real-time PCR using primers directed outward from the integrated ICE (Table 2). The PCR product was sequenced to confirm the expected joined right and left end sequences and to determine the correct end of Tn7100. The PCR product was purified from agarose gel using the Zymoclean Gel DNA Recovery Kit (Zymo Research, USA) and sequenced at Eurofins Genomics.

TABLE 2

Table 2. PCR primers and probes used in this study.

To determine whether we had true transconjugants, a representative number of colonies (n = 87) from selective agar plates (rif+azm) were analyzed by real-time PCR with the detection of marker genes (Table 2). Colonies were cultured on chocolate agar overnight before they were dissolved and frozen in 500 μl low TE-buffer (Thermo Fisher Scientific). DNA was extracted using QIAsymphony and the “DSP DNA Mini kit” (Qiagen). For all PCR analyses using probes, we utilized the DNA Process Control Kit (Roche Diagnostics, Germany) and the following PCR settings: preincubation for 30 s at 95°C and amplification at 95°C for 5 s and 60°C for 30 s. For PCR analyses without probes, we utilized the LightCycler® FastStart DNA Master^PLUS SYBR Green I Kit (Roche Diagnostics, Germany) and the following PCR settings: preincubation at 95°C for 10 min and amplification at 95°C for 10 s, 55°C for 20 s, and 72°C for 30 s, with subsequent melting curve from 65 to 97°C using a heating rate of 0.1°C/s.

Growth Kinetics

To assess the impact of Tn7100 on bacterial fitness, the exponential growth rates of transconjugant and recipient were determined. Suspensions of BHI supplemented with 2 mg/L NAD and 10 mg/L hemin (sBHI) with an optical density of 1.0 McFarland were prepared for transconjugant and recipient. A total of 500 μl of the two suspensions were diluted in 499.5 ml sBHI. The bacterial suspensions were shaken at 200 rpm at 37°C. Using a spectrophotometer (GeneQuant 1300, GE Healthcare) growth was measured by absorbance at OD_600nm by adding samples of 500 μl bacterial suspensions to spectrophotometer cuvettes (Brand) at given intervals for 810 min (first measurement after 60 min and subsequently every 30 min). Growth rates (r) were determined using GrowthRates version 3.0 (Hall et al., 2014). Calculations were based on OD₆₀₀ values in the interval 330 min to 600 min, where growth was observed to be exponential. The fitness of the transconjugant was calculated as relative growth rate = r_{transconjugant}/r_recipient. Results were obtained from three biological replicates, initiated on separate days.

Head-to-Head Competition Experiments

To further assess the impact of Tn7100 on bacterial fitness, head-to-head competition assays were carried out between transconjugant and recipient (Rd-Rif). Notably, 5 μl saline suspension of the recipient (1.0 McFarland) was mixed with equal amounts of transconjugant (1.0 McFarland) in 4.99 ml sBHI. The mixture was incubated at 37°C with continuous shaking (200 rpm). Every 24 h for 3 days, 5 μl of the mixture was diluted 1,000 times in fresh sBHI before re-incubation. The number of colony-forming units (CFUs) of recipients and transconjugants was determined before incubation (N₀) and at every 24 h (N₂₄, N₄₈, and N₇₂); at each time point, 50 μl of the solution was withdrawn, diluted, and plated on selective agar plates (rif and rif+azm). The selection coefficient was calculated as s = b/ln(1/d) with b (=slope) obtained from regressing the natural logarithm of the ratio (CFU_{transconjugant}/CFU_recipient) over time points, and d as dilution factor at each transfer (in this study, 1:1,000) (Levin et al., 2000). Relative fitness was calculated as w = 1 + s, where the fitness of the recipient strain equals 1 (Kloos et al., 2021). For the determination of relative competitive fitness, results were obtained from four biological replicates.

At the end of the experiment, colonies (n = 10) from a selective agar plate (rif + azm) were collected for real-time PCR analysis to verify ICE stability.

Statistical Analyses

Statistical analyses were performed using SPSS version 26. Samples were verified for normality using the Shapiro-Wilk test. One-sample comparisons were performed using student t-tests, two-sided. Significance levels are indicated as: p-value ^* <0.05; ^** <0.01; ^*** <0.001.

Data Availability

Tn numbers for the novel ICE (Tn7100) and transposable elements (Tn7470 and Tn7471) were achieved from the Transposon Registry (Tansirichaiya et al., 2019). The whole-genome sequence of Hi-228 (PacBio) has been deposited in the European Nucleotide Archive (ENA) at EMBL-EBI under accession number OW727395 and BioProject accession number PRJEB52501⁵. Tn7100, Tn7470, and Tn7471 have been deposited under the same BioProject and accession numbers OW736085, OW736566, and OW737369, respectively.

Ethics

All personal data in this study were anonymous. The clinical strains were recruited from an ongoing study approved by the Regional Committees for Medical and Health Research Ethics in Norway (reference number 2018/1558) and the Norwegian Data Protection Services (reference number 232381).

Results

Characterization of Five Clinical MDR Strains Comprising a Clonal Outbreak in Oslo, Norway 2016–2017

The five clinical strains (Hi-122, Hi-142, Hi-143, Hi-147, and Hi-228) investigated in this study had the same, previously unreported, MDR profile with resistance toward cefotaxime and high-level resistance to ampicillin, chloramphenicol, gentamicin, and azithromycin (Table 1). Phylogenetic analysis with cgMLST showed that these strains were part of a clonal outbreak in Oslo, Norway in the period June 2016–January 2017 (Supplementary Figure S2). Resistance determinants causative for the MDR profile in these strains were found to be substitutions in PBP3 and the following acquired resistance genes: bla_TEM−1B, catA2, aac(6′)-Im, aph(2″)-Ib, mef (E), and mel (see Table 1 for detailed presentation).

Characterization of the Novel ICE Tn7100, Carrying Four Transposons With Six Genes Conferring Resistance to Beta-Lactams, Phenicols, Aminoglycosides, and Macrolides

Bioinformatic analyses revealed that bla_TEM−1B, catA2, aac(6′)-Im, aph(2″)-Ib, mef (E), and mel in Hi-228 were located on a novel, 73.601-bp ICE, assigned Tn7100.

Pairwise BLAST revealed that the overall structure of Tn7100 was similar to that of Tn6686, with bla_TEM−1B and catA2 carried by Tn3 and Tn10, respectively (Figure 1) (Hegstad et al., 2020). The major difference was that Tn7100 lacked tet(B) but carried four additional resistance determinants located on two large insertions, representing 7.3 and 10.7% of the total length of Tn7100, respectively. The insertions met the criteria for novel transposable elements (Tansirichaiya et al., 2019) and were assigned Tn7470 (5,380 bp, accession OW736566) and Tn7471 (7,903 bp, accession OW737369).

FIGURE 1

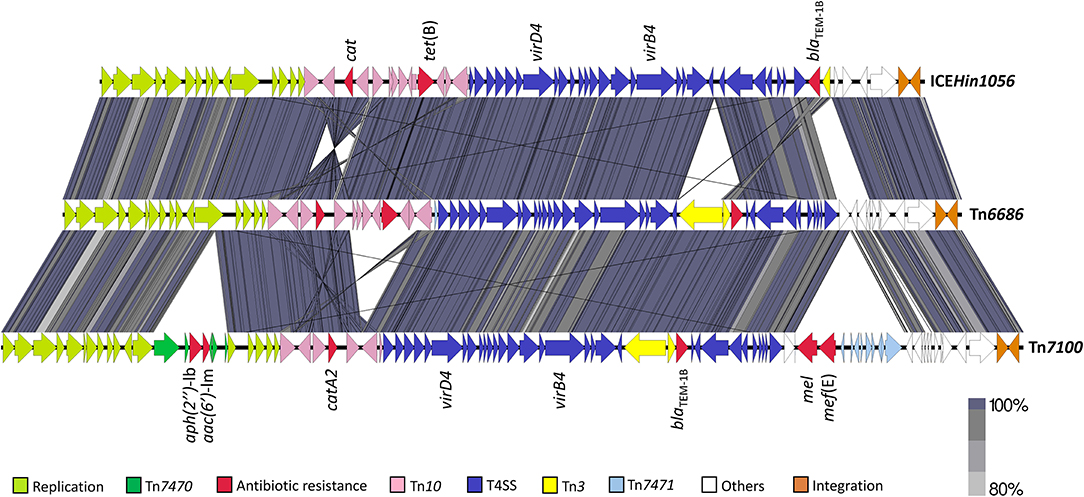

Figure 1. Pairwise comparison of Tn7100 with Tn6686 (MN106411) and comparison of Tn6686 with ICEHin1056 (AJ627386). The gray/purple bands represent the forward and reverse matches. Transposable elements, functional regions, and antibiotic resistance determinants are indicated by colored arrows. T4SS, type IV secretion system.

The aminoglycoside resistance genes aac(6′)-Im and aph(2″)-Ib were located 43 nucleotides apart on Tn7470 (Figure 2). This transposon was inserted in topB, encoding DNA topoisomerase III (accession QEA08733). Tn7470 also encoded a recombinase and a TnpW family transposase and was flanked by 6-bp inverted repeats with homology to topB, typical for transposons (Hallet and Sherratt, 1997). The transposon had a 99.96% identity with a fragment of plasmid p49969 (accession CP070545) in C. freundii strain CF49969 (Kraftova et al., 2021), except that one gene upstream of the transposase in p49969, encoding a MobA/MobL family protein, was lacking in Tn7470. The location of the transposon in topB was similar in Tn7100 and p49969, with one nucleotide difference in each flanking repeat.

FIGURE 2

Figure 2. Schematic presentation of the transposable element Tn7470, representing 7.3% of Tn7100. Refer to Figure 1 for location on Tn7100. Tn7470 consists of a 5,380-bp insertion in the topB gene encoding DNA topoisomerase III (light green) (QEA08733), with the insertion site consisting of 6-bp inverted repeats (bold). Tn7470 carries the aminoglycoside resistance genes aph(2″)-Ib and aac(6′)-Im (red arrows) and encodes a recombinase (rec) and a TnpW family transposase (tnp) and three hypothetical proteins (h) (green arrows). Tn7470 shares 99.96% identity with an insertion in topB in plasmid p49969 (CP070545) from Citrobacter freundii strain CF49969 but differs from p49969 by lacking a 1,319-bp fragment encoding a MobA/MobL family protein (mob). The location of Tn7470 in topB is similar to p49969 but the target sequences differ by one nucleotide (red text).

The macrolide resistance genes mel and mef (E) were located adjacently on Tn7471, which had 99.49% identity to a fragment of transposon Tn6822 (accession MT489699) in S. pneumoniae strain 080217 (accession NZ_JABAHD010000004) (Nikolaou et al., 2020) (Figure 3). Tn7471 was inserted 6 bp within the end of the DNA methylase gene (accession QEA08786) on Tn7100. The transposon carried a truncated 4,036-bp macrolide efflux genetic assembly (mega) element (accession AF274302) consisting of mel, mef (E), and orf7, all sharing 100% sequence identity with Tn6822. Tn7471 also contained the terminal 16 bp of orf3 upstream of mel, while orfs 4–6 of a complete mega element was lacking (Gay and Stephens, 2001; Del Grosso et al., 2004). Downstream of mega was eight genes of the conjugative transposon Tn916, originally found in Enterococcus faecalis (accession U09422) (Franke and Clewell, 1981). The eight genes were orfs 5-10 (incomplete orf6) and xis-Tn and int-Tn genes, associated with excision and integration in conjugative transposition (Storrs et al., 1991). The mega element was inserted into orf6 of Tn916. The junction between mega and Tn916 was located 492 bp downstream of orf7 of mega, where Tn916 started with nt 26 of orf6 (Del Grosso et al., 2004).

FIGURE 3

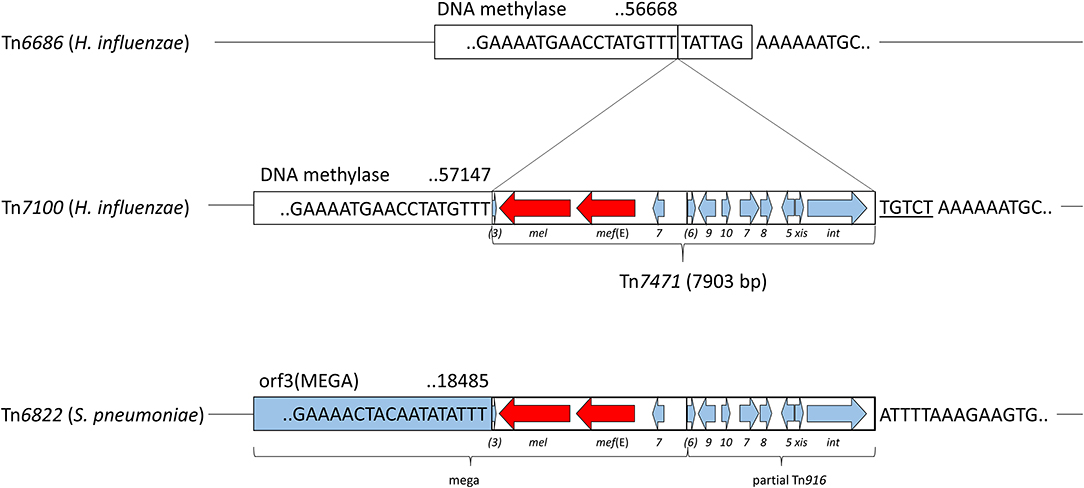

Figure 3. Schematic presentation of the transposable element Tn7471, representing 10.7% of Tn7100. Refer to Figure 1 for location on Tn7100. Tn7471 consists of a 7,903-bp insertion in the DNA methylase gene (QEA08786) and has a 99.49% identity to a fragment of the conjugative transposon Tn6822 (MT489699) in Streptococcus pneumoniae strain 080217 (NZ_JABAHD010000004, bottom). Top; fragment of Tn6686 (MN106411) with a vertical line indicating the insertion site, 6 bp within the end of the DNA methylase gene. Tn7471 contains a truncated macrolide efflux genetic assembly (mega) element (AF274302) with orf3 (incomplete), macrolide resistance genes mef (E) and mel, and orf7 of mega. Furthermore, Tn7471 contains eight genes of the conjugative transposon Tn916 (U09422); orfs 5-10 (orf6 incomplete), and the xis-Tn and int-Tn genes associated with excision and integration in conjugative transposition. The junction between mega and Tn916 is indicated by a vertical line. A tentative 5-bp coupling sequence is indicated on the right flank of Tn7471 (underlined).

Almost all sequence differences (38/40) in Tn7471 compared with Tn6822 occurred in the terminal 109 bp of int-Tn (88.07% identity) or downstream of this gene (85.63% identity). The terminal seven bases in Tn7471 were identical to Tn6822 (TTTGTTT), while the downstream coupling sequence, which is transferred with the transposon from the previous host (Rudy and Scott, 1994), differed between Tn7100 and S. pneumoniae strain 080217.

Conjugative Transfer of Tn7100 Among H. influenzae Strains

Sequence analysis demonstrated that the insertion point of Tn7100 in Hi-228 was located in a tRNA^Leu gene, a common insertion site for ICEs in H. influenzae (Figure 4A) (Dimopoulou et al., 2002). A circular form of Tn7100 was demonstrated in Hi-228 using primers directed outward from the integrated ICE (Table 2). Sequencing of the PCR product confirmed the expected joined right and left end sequences and the correct ends of the ICE (data not shown).

FIGURE 4

Figure 4. (A) Illustration of the insertion point of Tn7100 in Hi-228, which is located in a tRNA^Leu gene. The insertion of Tn7100 results in a complete tRNA^Leu gene (AP022867.1) at the left attachment site (attL) and a complete trnL gene (AF467992.1) at the right attachment site (attR). (B) Illustration of excision, circularization, transfer, and integration of Tn7100 from Hi-228 to the recipient strain, as confirmed by experimental procedures in this study.

To determine the transferability of Tn7100, we performed conjugation experiments. The number of colonies on selective agar plates following mating corresponded to transfer frequencies ranging from 5 × 10⁻⁸ to 4 × 10⁻⁷ (transconjugants/recipients) (Figure 4B). Preliminary confirmatory analysis with the determination of MIC was performed on 28 colonies from selective agar plates. These colonies were resistant to rifampicin (MIC > 32), azithromycin (MIC > 256), and gentamicin (MIC ≥128).

However, molecular confirmatory analysis using real-time PCR showed that only five out of 87 colonies (6%) on selective agar plates were true transconjugants. The true transconjugants were confirmed by Ion Torrent sequencing, revealing the same MLST profile as Rd-Rif (ST47) (Table 1). Conversely, Ion Torrent sequencing of three suspected false transconjugants (based on PCR results) showed that these colonies had the same MLST profile as Hi-228 (ST143) and had acquired rifampicin resistance-associated substitutions in the rpoB gene (D516V or S531F) (Zaw et al., 2018), while plated on selective agar plates (Supplementary Figure S3) (Table 1). These substitutions differed from the substitution in the rpoB gene found in the recipient strain Rd-Rif (H526Y).

We found that Tn7100 was transferable with a conjugation frequency of <5 × 10⁻⁸. Based on the PCR results showing that only 6% of the colonies on the selective plates were true transconjugants, we estimated a conjugation frequency of ~3 × 10⁻⁹ (5 × 10⁻⁸ × 6%).

Fitness Effects of Tn7100

To determine the fitness effect of Tn7100 uptake, we measured exponential growth rates of Rd-Rif and a (true) transconjugant (Figure 5A). Relative growth rates (r_{transconjugant}/r_recipient) showed no significant difference between Rd-Rif and the transconjugant (p = 0.812). Head-to-head competition experiments between Rd-Rif and transconjugant showed that the transconjugant had significantly reduced relative fitness compared with Rd-Rif (w = 0.90, p = 0.002) (Figure 5B). ICE stability throughout the experiment was verified by real-time PCR analysis of colonies from selective agar plates.

FIGURE 5

Figure 5. (A) Growth curves of Rd-Rif and the transconjugant. (B) Results from head-to-head competition experiments between Rd-Rif and the transconjugant, displaying changes in ln(transconjugant/recipient) over time. The average regression (dashed line) is displayed. The negative slope value reflects a fitness cost of Tn7100. This was confirmed by calculations of relative fitness (w) of the transconjugant (w = 0.90, p = 0.002). Error bars indicate ± standard deviation.

Discussion

The five H. influenzae strains investigated in this study were part of a clonal outbreak in Oslo, Norway and expressed resistance toward ampicillin, cefotaxime, chloramphenicol, gentamicin, and azithromycin. To the best of our knowledge, this remarkable MDR profile, caused by a combination of six acquired resistance genes, is previously unreported.

All six resistance genes are carried on a novel ICE, Tn7100, with an overall structure quite similar to that of Tn6686 (Figure 1). Both ICEs contain identical copies of bla_TEM−1B, and the catA2 gene on Tn7100 has 100% identity with the “catA-like” gene present in Tn6686 (Hegstad et al., 2020).

In addition, Tn7100 contains the aminoglycoside resistance genes aph(2″)-lb and aac(6′)-lm, located on the novel transposon Tn7470. To the best of our knowledge, neither genes have been described in H. influenzae. The gene pair, which encodes an aminoglycoside phosphotransferase and acetyltransferase, both mediating aminoglycoside resistance through drug inactivation, appears to be transferred horizontally as a unit (Chow et al., 2001). Notably, Tn7470 is 99.96% identical to a fragment of the carbapenemase-encoding plasmid p49969 in a Czech strain of C. freundii, with only one mismatch in aac(6′)-lm. This observation suggests that aph(2″)-lb and aac(6′)-lm may have been transferred to H. influenzae from Enterobacterales, but the primary origin of Tn7470 remains unknown (Kraftova et al., 2021). Notably, Enterobacterales frequently colonize the respiratory tract in children and adults with chronic respiratory disease (Soler et al., 1998; Robinson, 2004).

The presence of inverted repeats (IRs) at the insertion site in topB suggests that Tn7470 is integrated into Tn7100 by site-specific recombination (Hallet and Sherratt, 1997). The region surrounding the insertion site in topB is relatively conserved, and the slight sequence variation between Tn7100 and p49969 is apparently no hindrance to recombination. Importantly, the protein encoded by the intrinsic topB in the reference strain H. influenzae Rd KW20 has only 42% similarity with the protein encoded by topB on Tn7100, and neither the IR flanking Tn7470 on Tn7100 nor the slightly different IR flanking the corresponding insertion on p49969 are present in the genome of Rd KW20. Acquisition of Tn7470 is, therefore, unlikely in H. influenzae strains lacking a mobile genetic element. Conversely, strains possessing an element encoding IR highly similar to Tn7100 or p49969 may have an increased probability of acquiring Tn7470.

Also located on Tn7100 are the genes mef (E) and mel, encoding a dual efflux pump, causing resistance toward macrolides. Transferable macrolide resistance genes have been rarely described in H. influenzae (Atkinson et al., 2017). The mef (E) and mel genes are associated with the macrolide efflux genetic assembly (mega) element (AF274302), first described in pneumococci (Gay and Stephens, 2001; Ambrose et al., 2005). The genes mef (E) (U83667) and mef (A) (U70055) show 90% identity, while some reports distinguish between the two genes, others simply use the term mef (A) for both (Klaassen and Mouton, 2005). Nomenclature in this study is according to the original publication of mef (E) (Tait-Kamradt et al., 1997) and a minireview (Klaassen and Mouton, 2005). The mef (A) gene was reported in two sequencing-based studies of macrolide-resistant H. influenzae from Japan (Seyama et al., 2017; Hara et al., 2019), whereas mef (E) has not been reported in this species. Sequence analysis of the mef gene on Tn7100 shows 100% identity to mef (E) (U83667), 90% identity to mef (A) (U70055), and 99% identity to the gene reported as mef (A) by Seyama et al. (LC168847.1) (Seyama et al., 2017). Furthermore, the gene reported as mef (A) by Hara et al. (sequence unavailable) (Hara et al., 2019) had a 99% identity with LC168847.1 (Seyama et al., 2017). This indicates that the macrolide resistance genes previously reported as mef (A) in H. influenzae in fact are identical or highly similar to mef (E), also carried by Tn7100. This underlines the importance of a clear nomenclature in this field, and the value of carefully curated databases.

In Tn7100, mef (E) and mel are located on a mega element, inserted into orf6 of Tn916 as previously reported in S. pneumoniae (Del Grosso et al., 2004). Tn916 is the first member of the Tn916-Tn1545 family of conjugative transposons originally associated with tet(M)-mediated resistance to tetracyclines (Roberts and Mullany, 2011). Notably, the truncated mega element in Tn7100 appears to have hijacked the transposition machinery of Tn916 to form the novel, independent transposon Tn7471. The transposon shares >99% identity with fragments of transposons described in pneumococci, such as Tn2010 (Del Grosso et al., 2007) and Tn6822 (Nikolaou et al., 2020). Tn916 typically integrates into a target site characterized by a stretch of A's separated from a T-rich region by 5–7 bases (Rudy and Scott, 1994), which is a precise description of the insertion site of Tn7471 in Tn7100. Furthermore, integration involves the transfer of a 5 or 6-bp coupling sequence, located adjacent to the end of the transposon, from the donor to the recipient. Integration of Tn7471 in Tn7100 appears to have resulted in the replacement of the terminal six bases of the DNA methylase gene with the 5-bp coupling sequence TGTCT. This sequence is different from the coupling sequence associated with Tn6822 in S. pneumoniae strain 080217, excluding the latter as a donor. A BLAST search using Tn7471 as input gave the best match (99.52%) with a Streptococcus oralis strain from Japan (osk_001, accession AP018338) (Yoshizawa et al., 2018). This strain carries a transposon with a tentative 5- or 6-bp coupling sequence (GTCTA/GTCTAA) identical to the sequence starting one nucleotide downstream from Tn7471 on Tn7100, suggesting that Tn7471 may originate from oral streptococci. This hypothesis is supported by a recent investigation of Tn916-like elements in oral streptococci in Norway, which revealed that strains possessing the transposition machinery of Tn916 (xis-Tn and int-Tn) in the absence of tet(M) are frequent (Lunde et al., 2021).

In contrast to the truncated mega element on Tn7100, complete mega elements harboring mef (E) and mel, located on tet(M)-carrying Tn916-like structures, have been reported in H. influenzae from Japan (Seyama et al., 2017) and Haemophilus parainfluenzae from Switzerland and Spain (Endimiani et al., 2017; Sierra et al., 2021). The mega element on Tn7100 also has 99% identity with the corresponding fraction of the first mega element found in Haemophilus parainfluenzae (KJ545575) (Endimiani et al., 2017). Notably, a BLAST search identified an unreported ICE with a highly similar structure to Tn7100 (coverage 82%, identity 99.75%) in H. influenzae strain BgEED16 isolated in Bangladesh (BioProject PRJEB32184, accession CABFLD010000039). The ICE is located on an 85.569-bp contig and differs from Tn7100 mainly by lacking Tn7470 and the Tn10 segment harboring catA2, while the sequence corresponding to Tn7471 and the adjacent coupling sequence is 100% identical to Tn7100. The MLST profile of strain BgEED16 (ST2209) is unrelated to that of Hi-228 (ST143). In summary, this suggests that mega elements containing mef and mel genes may have been transferred from S. pneumoniae or oral streptococci to H. parainfluenzae and H. influenzae and are now spread globally.

This report highlights the emergence and clonal spread of an H. influenzae strain with an unusual MDR profile including transferable, high-level resistance to gentamicin and azithromycin. Although far from first-line therapy in H. influenzae infections, both drugs are important for the management of selected patient groups. Gentamicin in combination with ceftriaxone is the recommended treatment of infective endocarditis with Haemophilus spp. or other species belonging to the HACEK group (Aggregatibacter, Cardiobacterium, Eikenella, and Kingella) (Habib et al., 2015). Gentamicin is also used for topical treatment of eye infections. Importantly, as interpretive criteria for antimicrobial susceptibility testing of Haemophilus spp. against aminoglycosides are neither established by EUCAST (EUCAST, 2022) nor by the Clinical and Laboratory Standards Institute (CLSI, 2021), treatment is likely to be empiric in many cases, and recognition of acquired high-level resistance may be delayed.

Azithromycin is one of the recommended options for prophylaxis or treatment of respiratory H. influenzae infections in patients with underlying diseases, such as cystic fibrosis (Castellani et al., 2018), bronchiectasis (Polverino et al., 2017), COPD (GOLD, 2021), and common variable immunodeficiency (CVID) (Bonilla et al., 2016). Notably, WGS-based detection of resistance genes in paired sputum samples revealed a significant increase in oral streptococci carrying mef and mel genes during azithromycin therapy (Taylor et al., 2019). These genes are likely carried on Tn916-like elements, underlining the potential for inter-species, within-host horizontal spread of macrolide resistance between bacteria sharing the same anatomic niche, as shown in this study. Similar to gentamicin, EUCAST has not defined clinical breakpoints for azithromycin and H. influenzae (EUCAST, 2022). Therapy is, therefore, likely to be empiric in most cases, and acquired resistance may thus go unnoticed.

Our results demonstrated that the enzymes involved in excision and circularization of Tn7100 are functional and that this ICE was transferable to the Rd-derived strain used as the recipient in this study, with a relatively low transfer frequency (~3 × 10⁻⁹). For comparison, ICEHin1056 transfer frequencies range from 10⁻¹ to 10⁻⁹ (Juhas et al., 2007b). It is a weakness of our study that we performed mating experiments with Rd-Rif as the only recipient, and we cannot exclude that using clinical strains of H. influenzae as recipients would have affected the observed transfer frequencies.

To assess the fitness effects of Tn7100, we conducted growth kinetics and head-to-head competition experiments. Competition experiments offer a more precise measurement of fitness, as they allow comparison throughout several consecutive growth cycles (Lenski, 1991). We found that uptake of Tn7100 was associated with significantly reduced relative fitness (p = 0.002). These results indicate that clinical strains carrying Tn7100 will be outcompeted in an antibiotic-free environment. Consequently, in the absence of antibiotic selective pressure, survival and further distribution of such strains might be limited even when the horizontal transfer or clonal spread occurs.

To summarize, Tn7100 is a novel ICE containing four resistance-associated transposons with six different resistance genes, including four genes that are previously unreported or rarely reported in H. influenzae. These genes, encoding resistance to aminoglycosides and macrolides, are carried on the novel transposable elements Tn7470 and Tn7471. The integration of two novel transposable elements into an ICE belonging to the ICEHin1056 family illustrates that the acquisition of an ICE offers a platform from which H. influenzae may acquire new mobile genetic elements containing resistance genes from related or unrelated genera. These results provide important knowledge regarding the role of ICEs in genome dynamics. Although Tn7100 is transferable and mating experiments generated MDR transconjugants, the ICE has a low transfer frequency and imposes a fitness cost on its recipient. Despite this, strain Hi-228 was capable of clonal spread. The increasingly wide range of transferable resistance genes in the H. influenzae supragenome complicates the treatment of infections caused by this pathogen, highlighting the importance of rational antibiotic usage to contain antimicrobial resistance and the emergence of MDR strains.

Data Availability Statement

The datasets presented in this study can be found in online repositories. The names of the repository/repositories and accession number(s) can be found below: https://www.ebi.ac.uk/ena, PRJEB52501; https://www.ebi.ac.uk/ena, OW727395; https://www.ebi.ac.uk/ena, OW736085; https://www.ebi.ac.uk/ena, OW736566; https://www.ebi.ac.uk/ena, OW737369.

Author Contributions

HJ, KH, and DS conceived and designed the study. TR supplied the study with clinical isolates and metadata. IA performed Ion Torrent sequencing and real-time PCR. NZ and DS performed bioinformatic analyses. HJ performed antimicrobial susceptibility testing, conjugation experiments, growth kinetics experiments, head-to-head competition experiments, and statistical analysis. HJ and DS wrote the first draft of the manuscript. All authors contributed to the manuscript revision and approved the submitted version.

Funding

This project received funding from the Vestfold Hospital Trust, the South-Eastern Norway Regional Health Authority (project #2020107), and the Norwegian Surveillance Programme for Antimicrobial Resistance (NORM).

Conflict of Interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Publisher's Note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.

Acknowledgments

The PacBio sequencing service was provided by the Norwegian Sequencing Centre (www.sequencing.uio.no), a National Technology Platform hosted by the University of Oslo, and supported by the Functional Genomics and Infrastructure programs of the Research Council of Norway and the South-Eastern Norway Regional Health Authority.

Supplementary Material

The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fmicb.2022.945411/full#supplementary-material
