- 1State Key Laboratory of Satellite Ocean Environment Dynamics, Second Institute of Oceanography, Ministry of Natural Resources, Hangzhou, China
- 2Key Laboratory of Marine Ecosystem Dynamics, Second Institute of Oceanography, Ministry of Natural Resources, Hangzhou, China
- 3School of Oceanography, Shanghai Jiao Tong University, Shanghai, China
- 4Marine Biogeochemistry Division, GEOMAR Helmholtz Centre for Ocean Research, Kiel, Germany
- 5State Key Laboratory of Marine Environmental Science, Xiamen University, Xiamen, China
- 6Climate Change Cluster, Faculty of Science, University of Technology Sydney, Ultimo, NSW, Australia
- 7Darling Marine Center, University of Maine, Walpole, ME, United States
- 8Department of Oceanography and Marine Geology, Faculty of Fisheries and Marine Sciences and Technology, University of Ruhuna, Matara, Sri Lanka
- 9National Institute of Oceanography and Marine Sciences, National Aquatic Resources Research and Development Agency, Colombo, Sri Lanka
Fast repetition rate fluorometry (FRRf) allows for rapid non-destructive assessment of phytoplankton photophysiology in situ yet has rarely been applied to Trichodesmium. This gap reflects long-standing concerns that Trichodesmium (and other cyanobacteria) contain pigments that are less effective at absorbing blue light which is often used as the sole excitation source in FRR fluorometers—potentially leading to underestimation of key fluorescence parameters. In this study, we use a multi-excitation FRR fluorometer (equipped with blue, green, and orange LEDs) to investigate photophysiological variability in Trichodesmium assemblages from two sites. Using a multi-LED measurement protocol (447+519+634 nm combined), we assessed maximum photochemical efficiency (Fv/Fm), functional absorption cross section of PSII (σPSII), and electron transport rates (ETRs) for Trichodesmium assemblages in both the Northwest Pacific (NWP) and North Indian Ocean in the vicinity of Sri Lanka (NIO-SL). Evaluating fluorometer performance, we showed that use of a multi-LED measuring protocol yields a significant increase of Fv/Fm for Trichodesmium compared to blue-only excitation. We found distinct photophysiological differences for Trichodesmium at both locations with higher average Fv/Fm as well as lower σPSII and non-photochemical quenching (NPQNSV) observed in the NWP compared to the NIO-SL (Kruskal–Wallis t-test df = 1, p < 0.05). Fluorescence light response curves (FLCs) further revealed differences in ETR response with a lower initial slope (αETR) and higher maximum electron turnover rate () observed for Trichodesmium in the NWP compared to the NIO-SL, translating to a higher averaged light saturation EK (= /αETR) for cells at this location. Spatial variations in physiological parameters were both observed between and within regions, likely linked to nutrient supply and physiological stress. Finally, we applied an algorithm to estimate primary productivity of Trichodesmium using FRRf-derived fluorescence parameters, yielding an estimated carbon-fixation rate ranging from 7.8 to 21.1 mgC mg Chl-a–1 h–1 across this dataset. Overall, our findings demonstrate that capacity of multi-excitation FRRf to advance the application of Chl-a fluorescence techniques in phytoplankton assemblages dominated by cyanobacteria and reveals novel insight into environmental regulation of photoacclimation in natural Trichodesmium populations.
Introduction
Fast repetition rate fluorometry (FRRf) is sensitive enough for use in low-chlorophyll a oligotrophic waters and provides a non-destructive and minimally intrusive method for probing photosynthetic processes, including photosystem II (PSII) photochemistry and photosynthetic electron transport (Kolber et al., 1998; Schuback et al., 2021). This technique is now an established tool in global aquatic research efforts to understand environmental regulation of phytoplankton physiology and productivity (Gorbunov et al., 1999, 2001; Suggett et al., 2009a; Hughes et al., 2018a; Schuback et al., 2021). FRRf observations of phytoplankton have been used principally to examine the effects of physiological stress, such as nutrient limitation (Behrenfeld et al., 2006; Schuback et al., 2016; Hughes et al., 2018b). Recently, FRRf has also been used for the characterization of light absorption (Silsbe et al., 2015), for interpreting phytoplankton photophysiological processes in the context of phytoplankton community structure (Carvalho et al., 2020; Gorbunov et al., 2020; Hughes et al., 2020), and for describing primary productivity (e.g., Smyth et al., 2004; Fujiki et al., 2008; Cheah et al., 2011; Wei et al., 2020; Zhu et al., 2016, 2017, 2019; Hughes et al., 2018b; Schuback et al., 2021).
This has even extended to autonomous deployment across all major oceans via research vessels, buoy systems, and glider platforms (Falkowski et al., 2017; Carvalho et al., 2020; Ryan-Keogh and Thomalla, 2020).
As blue light is both high in energy and strongly absorbed by chlorophyll, until recently the majority of fluorometers were equipped with only blue-excitation LEDs (usually with wavelengths between 450 and 470 nm). Critically, measurements of PSII maximum photochemical efficiency (Fv/Fm) and functional absorption cross section of PSII (σPSII)—which are related to photosynthetic performance (see Hughes et al., 2018a; Schuback et al., 2021)—are inherently scaled to the excitation LED of the instrument. However, it has long been known that blue-light equipped FRRf instruments are relatively insensitive to the presence of cyanobacteria—which absorb light in the blue region extremely poorly compared to other phytoplankton groups (Raateoja et al., 2004; Suggett et al., 2004). Cyanobacteria such as Trichodesmium exhibit a very low σPSII at 400–500 nm, instead absorbing strongly in the green or orange/red regions due to their use of phycobilisomes rich in phycocyanin or long-wavelength variants of phycoerythrin (Houliez et al., 2017). As such, FRRf instruments containing only a single blue-excitation LED often fail to adequately drive PSII reaction center closure in cyanobacterial samples (e.g., Hughes et al., 2020), generally resulting in underestimation of electron transport rates (ETRs) (Robinson et al., 2014). To this end, multi-excitation fluorometers have emerged in recent years, facilitating measurement of phytoplankton communities dominated by cyanobacteria, and to date have been successfully utilized in both marine and freshwater systems (Simis et al., 2012; Houliez et al., 2017; Wei et al., 2019; Kazama et al., 2021).
Our interest here is focused on identifying the physiological ecology of Trichodesmium in oligotrophic waters using multiwavelength FRRf measurements. The diazotrophic cyanobacterium Trichodesmium is a major contributor to new nitrogen (N) production in parts of the oligotrophic subtropical and tropical ocean, with large surface accumulations of Trichodesmium reported episodically (Capone et al., 2005). Such Trichodesmium accumulations often result in transient domination of overall phytoplankton primary productivity (Bowman and Lancaster, 1965; Capone et al., 1997; Karl et al., 1997). As such, Trichodesmium plays a critical role in the biogeochemical cycling of C and N in oligotrophic regions.
Trichodesmium exhibits a high PSI:PSII ratio, which minimizes damage to nitrogenase from photosynthetic O2 production at PSII, yet also makes Trichodesmium difficult to detect by chlorophyll fluorescence (Subramaniam et al., 1999). Furthermore, Trichodesmium possess phycobiliproteins with absorption peaks centered at 495, 545, and 565 nm (Fujita and Shimura, 1974). As a consequence of the combination of the phycobiliproteins and a relatively low abundance of PSII, lower values of both Fv/Fm and σPSII have been documented for Trichodesmium when using fluorometers with solely blue-excitation sources (Campbell et al., 1998; Raateoja et al., 2004; Cai et al., 2015). Consequently, consideration of the excitation wavelength is crucial when interpreting in situ photophysiological data (Suggett et al., 2009b).
In this study, we present the results of the first study using an FRR fluorometer equipped with multi-excitation wavelength LEDs to assess the photobiology of natural Trichodesmium populations from two water bodies, the Northwest Pacific (NWP) and North Indian Ocean in the vicinity of Sri Lanka (NIO-SL). The primary objective was to accurately characterize the two photosynthetic parameters describing the physiological state of PSII (Fv/Fm and σPSII) for Trichodesmium. First, we evaluated the performance of FRRf with multi-excitation wavelengths and documented the improvement of retrieving photophysical parameters when using the combined measurement protocol rather than using blue light only. We then compared photophysical parameters of Trichodesmium between and within study regions, evaluating the importance of potential nutrient stress (in this case mainly iron) on driving variations of Fv/Fm and σPSII. Finally, we estimated the carbon uptake rate of Trichodesmium from FRR data, highlighting the possibility of direct measurement of primary production of Trichodesmium in the field from in-situ fluorometric data.
Materials and Methods
Water Sample Collection and Physical and Biochemical Properties
Sampling was conducted aboard the GEOTRACES cruise GP09 of the R/V Tan Kah Kee during the spring (April 25–June 13, 2019) in the NWP, and during an international joint cruise of the R/V Xiangyanghong-6 in January 2020 in the NIO-SL (Figure 1). All shipboard measurements were performed by the same operator, with identical protocols adopted for handling and processing of samples in both NWP and NIO-SL cruises. Routine water samples of biological cast were collected using a rosette equipped with 12 Niskin bottles (10-l capacity; General Oceanics Inc, Miami, FL, United States) and a conductivity-temperature-depth profiler (911+, Sea-Bird Electronics, Bellevue, WA, United States). Sampling was performed in the morning between 5:00 and 8:00 a.m. local time (Table 1). The upper mixed layer depth (MLD) was defined as a density change from the ocean surface of 0.125 sigma units (Huang and Russell, 1994). Incident surface photosynthetically active radiation (PAR, 400–700 nm, measured in μmol quanta m–2 s–1) was measured throughout the cruise period with a quantum scalar irradiance sensor (QSL-2100, Biospherical Instruments Inc, San Diego, CA, United States).
![www.frontiersin.org](https://www.frontiersin.org/files/Articles/813573/fmicb-13-813573-HTML/image_m/fmicb-13-813573-g001.jpg)

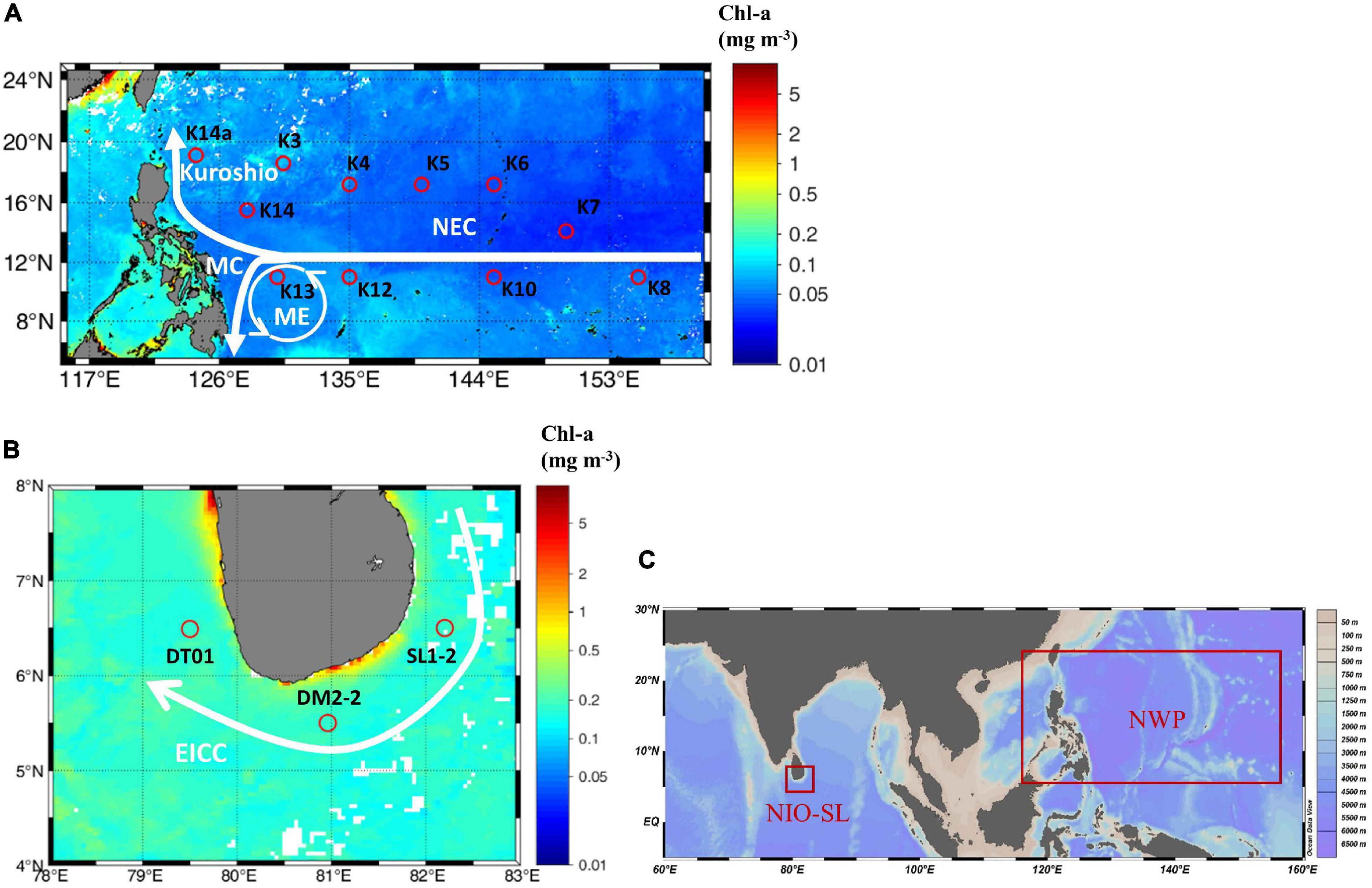

Figure 1. (A) Sampling stations during the GEOTRACES cruise GP09 performed onboard the R/V Tan Kah Kee during the spring (April 25–June 13, 2019) in the Northwest Pacific (NWP), and (B) during an international joint cruise of the R/V Xiangyanghong-6 during January 2020 in the North Indian Ocean in the vicinity of Sri Lanka (NIO-SL). Main currents are also shown, which include Kuroshio, North Equatorial Current (NEC), Mindanao Current (MC), and Mindanao Eddy (ME) in the NWP (Liu et al., 2017) as well as East Indian Coast Current (EICC) in the NIO-SL (Vos et al., 2014). (C) Global locations of two study regions. The figure’s background is Moderate Resolution Imaging Spectroradiometer (MODIS) monthly Level 3 Chl-a data which were downloaded from NASA’s ocean color website (http://oceandata.sci.gsfc.nasa.gov).
![www.frontiersin.org](https://www.frontiersin.org/files/Articles/813573/fmicb-13-813573-HTML/image_m/fmicb-13-813573-t001.jpg)

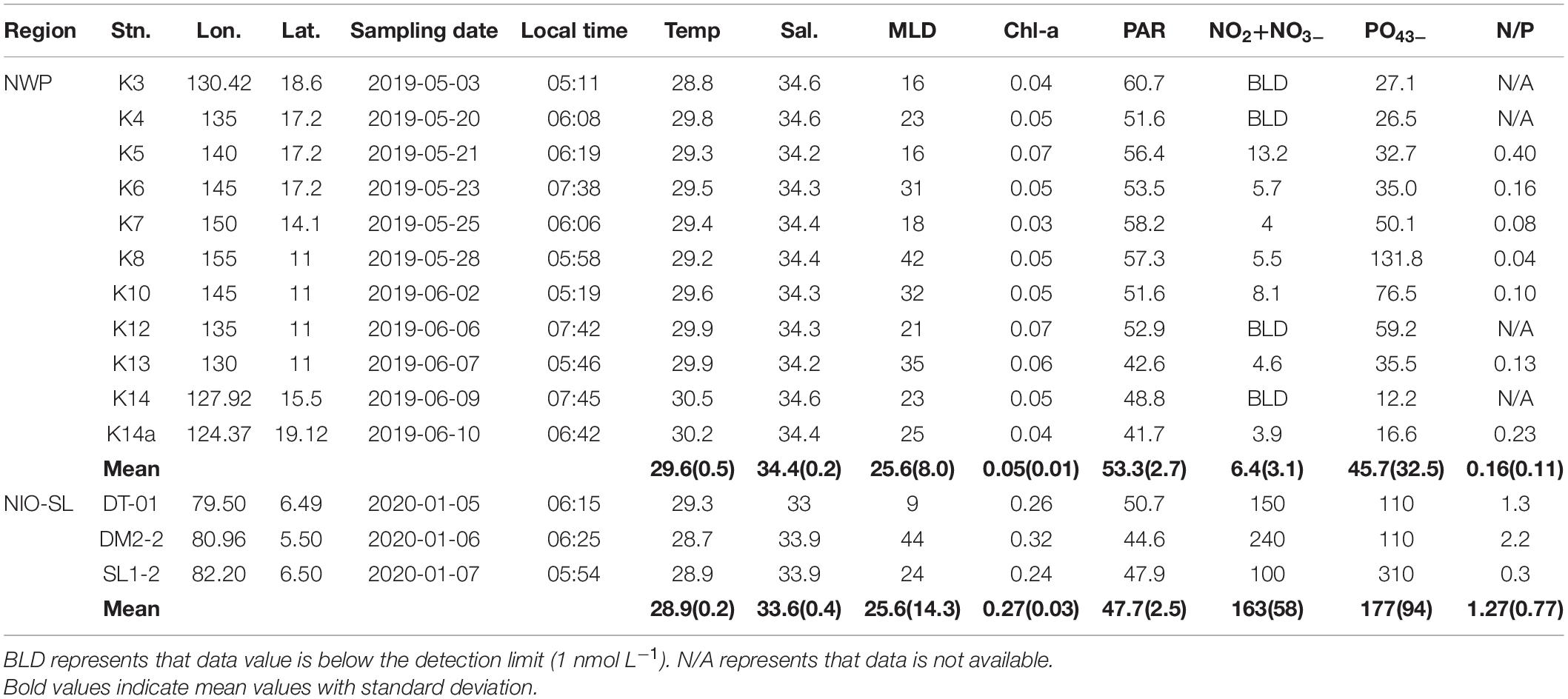

Table 1. Surface values of temperature (Temp, °C), salinity (Sal), mixed layer depth (MLD, m), Chl-a concentration (Chl-a, μg L–1), PAR (mol photon m–2 d–1), nitrite and nitrate (NO2− + NO3–, nmol L–1) and phosphate (PO43–, nmol L–1) in the NWP and NIO-SL.
Nutrient samples were collected in 100-ml high-density polyethylene (HDPE) bottles and were immediately measured onboard. Nanomolar levels of soluble reactive phosphorous were determined according to Ma et al. (2008) with a detection limit of 1.4 nM. Nanomolar levels of nitrate were analyzed using the chemiluminescent method (Garside, 1982) with a detection limit of 2 nM. Total Chl-a concentrations were determined from 300-ml seawater samples filtered onto 25-mm glass fiber filters (Whatman GF/F) under low vacuum (<0.02 MPa). Chl-a was extracted in 90% acetone and stored in darkness for 24 h under -20°C. The Chl-a concentration was determined fluorometrically using a pre-calibrated fluorometer (Turner Trilogy, United States) according to the method described by Welschmeyer (1994). For phytoplankton size structure measurement, we separated each sample to microphytoplankton (>10 μm), nanophytoplankton (3–10 μm), and picophytoplankton (0.7–3 μm) in these three groups based on size-fractionated chlorophyll a (Chl-a) measurements, according to standardized methods used in marine phytoplankton size research (Cermeño et al., 2006). The size-fractionated Chl-a concentration was determined using a 500-ml volume sample, which was filtered sequentially through 10- and 3-μm polycarbonate filters and 0.7-μm pore size GF/F filters. Filtering through 10 μm was done under gravity and for other pore sizes under low vacuum pressure (<0.02 MPa).
Trichodesmium Colony Collection
To examine the variable chlorophyll fluorescence of natural Trichodesmium, samples were obtained with a 200-μm mesh, 1-m-diameter all-plastic net horizontally towed through surface layers when the ship was stationary. The net was kept a distance of 20 m away from the ship, and towing was conducted continuously for 15–20 min. After towing, Trichodesmium colonies were first poured into a 2–l HDPE bottle and then colonies were gently picked up with a micropipette. All colony samples were cleaned by washing three times with 0.2-μm filtered surface seawater in a 50-ml centrifugal tube to ensure that there were few other phytoplankton species in the samples. The colonies of Trichodesmium species were identified and counted using a 1-ml scaled slide and a Leica DM3000B microscope according to the trichome morphological characteristics (as per Jiang et al., 2018).
Absorption Spectra of Trichodesmium
After washing with filtered seawater, approximately 15–20 colonies of Trichodesmium at four stations (K3, K14, DT-01, DM2-2) were gently filtered at the center of a 25-mm GF/F filter and kept under -80°C for further absorption spectra measurements. During laboratory processing, Trichodesmium absorption coefficients (atrico(), m–1) were determined using the quantitative filter technique of Cleveland and Weidemann (1993) as adapted by Wang et al. (2014) and Zhu et al. (2017).
Photophysiology Measurements
Variable chlorophyll fluorescence was measured using a fast repetition rate fluorometer (FastOcean) integrated with a FastAct laboratory system (Act2, Chelsea Technologies Ltd, West Molesey, United Kingdom). The sample chamber of the instrument has three light-emitting diodes (LEDs) that provide flash excitation energy centered at 447 nm (blue), 519 nm (green), and 634 nm (orange). The 447-nm blue band corresponds to the absorption peak of Chl-a while 519 and 634 nm correspond to the absorption peaks of phycoerythrins and phycocyanins (Kazama et al., 2021). Two LED combinations (447 nm only and 447 + 519 + 634 nm) were used for FRRf measurements of all samples. Typically, triple Trichodesmium samples (each containing ca. 5–10 colonies) were measured after 30–60 min dark adaption, and the measurements for all three samples were completed within 1 h. FRRf measurements were corrected for blank fluorescence using 0.2-μm filtrates (Cullen and Davis, 2003). After dark acclimation, 5-ml subsamples with 5–10 Trichodesmium colonies were transferred into the FRRf. The instrument was programmed to deliver a single-turnover protocol with a saturation phase comprising 100 flashlets on a 2-μs pitch and a relaxation phase comprising 40 flashlets on a 60-μs pitch (as per Hoppe et al., 2015; Hughes et al., 2021). Each sample was exposed sequentially to one dark and nine actinic light levels (69, 158, 273, 421, 611, 621, 857, 1,173, and 1,580 mol quanta m–2 s–1) for a total of 1,000 s duration to retrieve a fluorescence-light response curve (FLC). A fluorescence transient was recorded from the average of one acquisition every 10 s (resulting in 10 acquisitions per light step). Each recorded transient was fitted to the biophysical model of Kolber et al. (1998) to determine the minimum fluorescence yield, maximum fluorescence yield, effective absorption, and photochemical efficiency of PSII for darkness (Fo, Fm, σPSII, and Fv/Fm) and for each actinic light level (F′, , , and ). The parameter τES is the time constant of reoxidation of the primary stable electron acceptor QA, and 1/τES (ms–1) is an estimate of the rate of QA reoxidation. The normalized Stern–Volmer quenching coefficient (NPQNSV, McKew et al., 2013) was calculated from these parameters as where was estimated as = Fo/(Fv/Fm +) (Oxborough and Baker, 1997) and = (/. After dark acclimation, we calculated NPQNSV at first light step of zero PAR (NPQNSV) and at saturation light (EK) level (NPQNSV_Ek) during the light curve.
To account for the spectral differences between FRRF-LEDs and the natural light spectra in situ, we employed a σPSII-correction factor (F) according to Eq. (11) following Suggett et al. (2006):
where represents spectral corrected σPSII; and represents the absorption coefficients weighted to the FRRf excitation spectra (either for blue-band or combination wavelengths) and in situ irradiance spectra, respectively. Detail calculations for and can be found in Suggett et al. (2004) and Zhu et al. (2016).
The instantaneous PSII reaction center-normalized electron transport rate (ETRPSII, mol e– [mol PSII]–1 s–1) for each light level was calculated as per Kolber and Falkowski (1993),
where PAR is in units of μmol photons m–2 s–1 and σPSII is the effective absorption cross section of PSII (Å2 PSII–1). ΦRC accounts for the assumption that one electron is produced from each RCII charge separation (Kolber and Falkowski, 1993), and the constant value 6.022×10−3 converts μmol quanta to quanta, PSII to mol PSII, and Å2 to m2 (Suggett et al., 2001). The term qp (dimensionless) is the PSII operating efficiency and accounts for the extent of photochemical energy conversion by PSIIs, determined as ()/().
ETRPSII and PAR data from the FRRf-light response curves were then fit to the photosynthesis-light dependency model of Platt et al. (1980):
where is light-saturated ETR (mol e– [mol PSII]–1 s–1), E is irradiance (μE m–2 s–1), and α = initial slope of the ETR-l curve (mol e– mol RCII–1 s–1 (μmol quanta m–2 s–1)–1).
Statistical Analyses
All correlations were examined using Spearman’s rank correlation coefficient. Kruskal–Wallis t-tests were applied for testing the significant differences between groups of data. All statistical analyses and curve fittings were performed using the open-source statistical software program R (version 3.6.1, R Core Team, 2019). Figures were plotted by Ocean Data View 5 (Schlitzer et al., 2018) and R software.
Fast Repetition Rate Fluorometry-Derived Primary Productivity
We calculated Chl-a specific rates of primary production (PChl, mgC mg Chl-a–1 h–1) from FRRf measurements in a similar fashion to Zhu et al. (2016, 2017) as follows:
where denotes ETRPSII scaled to hourly rates (where the period between t1 and t2 is 60 min), nPSII is the number of PSII reaction centers per Chl-a (mol RCII [mol chl a] –1) (see Suggett et al., 2010; Oxborough et al., 2012), e,C is the electron requirement for carbon fixation (mol e– per mol C) (see Lawrenz et al., 2013), the constant factor 893 converts mol Chl-a to mg Chl-a and mol e– to mmol e–, and 12 converts mmol C to mgC. For this study, we used an assumed value of 0.027 mol RCII (mol Chl-a) –1 for Trichodesmium as per Richier et al. (2012). Here we used previously reported experimental results (Boatman et al., 2018b, see their Figure 4D), to develop a simple light-dependent function describing e,C for Trichodesmium in this study, where e,C = 0.0115PAR + 5 (n = 24, r2 = 0.97)—we revisit the point, together with the choice of nPSII in the discussion.
Results
Physical and Biochemical Environments
Basic physical and biochemical parameters at sampling sites for two study regions are presented in Table 1. The mean value ± standard deviation (SD) of sea surface temperature (SST), surface salinity, MLD, and daily photosynthetically available radiation (PAR) at NWP were 29.6 ± 0.5°C, 34.4 ± 0.2, 25.6 ± 8.0 m, and 53.3 ± 2.7 mol photon m–2 d–1, respectively. Similar data ranges were observed for the NIO-SL area, with mean values of 28.9 ± 0.2°C, 33.6 ± 0.4, 25.6 ± 14.3 m, and 47.7 ± 2.5 mol photon m–2 d–1. Although there was no significant difference in silicate found between two areas (1.5 ± 0.1 vs. 2.0 ± 0.4 μmol l–1, p = 0.2), concentrations of NOx– and PO43– were significantly higher (Kruskal–Wallis t-test, df = 1, p < 0.05) for NIO-SL (163 ± 58 and 177 ± 94 nmol l–1) than for NWP (6.4 ± 3.1 and 45.7 ± 32.5 nmol l–1). The low N-to-P ratios (mean ± SD: 0.16 ± 0.11 for NWP and 1.27 ± 0.77 for NIO-SL) suggest severe N limitation of the overall phytoplankton community in both regions. Mean Chl-a (± SD) in the surface water of NWP was 0.05 (± 0.01) mg m–3, which was significantly lower than that of NIO-SL (0.27 ± 0.03 mg m–3; Kruskal–Wallis t-test, df = 1, p < 0.01; Figures 2A,B). Such low Chl-a in the NWP is typical of an oligotrophic ocean where nitrogen supply is insufficient (Dore et al., 2008). Microscopy revealed that T. thiebautii (likely belonging to Clade I, see Rouco et al., 2016) was the dominant Trichodesmium species in all surface samples taken from both NWP (Supplementary Figures 1A,B) and NIO-SL (Supplementary Figures 1C,D) regions. Size-fractionated Chl-a measurements revealed that picophytoplankton (< 3 μm) dominated in NWP surface samples, with an average fraction of 75 ± 5% (Figure 2C). In the NIO-SL area, picophytoplankton dominated at both DM2-2 and SL1-2, with an average fraction of 81% (Figure 2D). However, DT-01 was dominated by micro-phytoplankton (> 10 μm, 63.6%). Flow cytometry data further confirmed that Prochlorococcus accounted for 96% and 83% of the picophytoplankton group at NWP and NIO-SL, respectively (Supplementary Table 1).
![www.frontiersin.org](https://www.frontiersin.org/files/Articles/813573/fmicb-13-813573-HTML/image_m/fmicb-13-813573-g002.jpg)

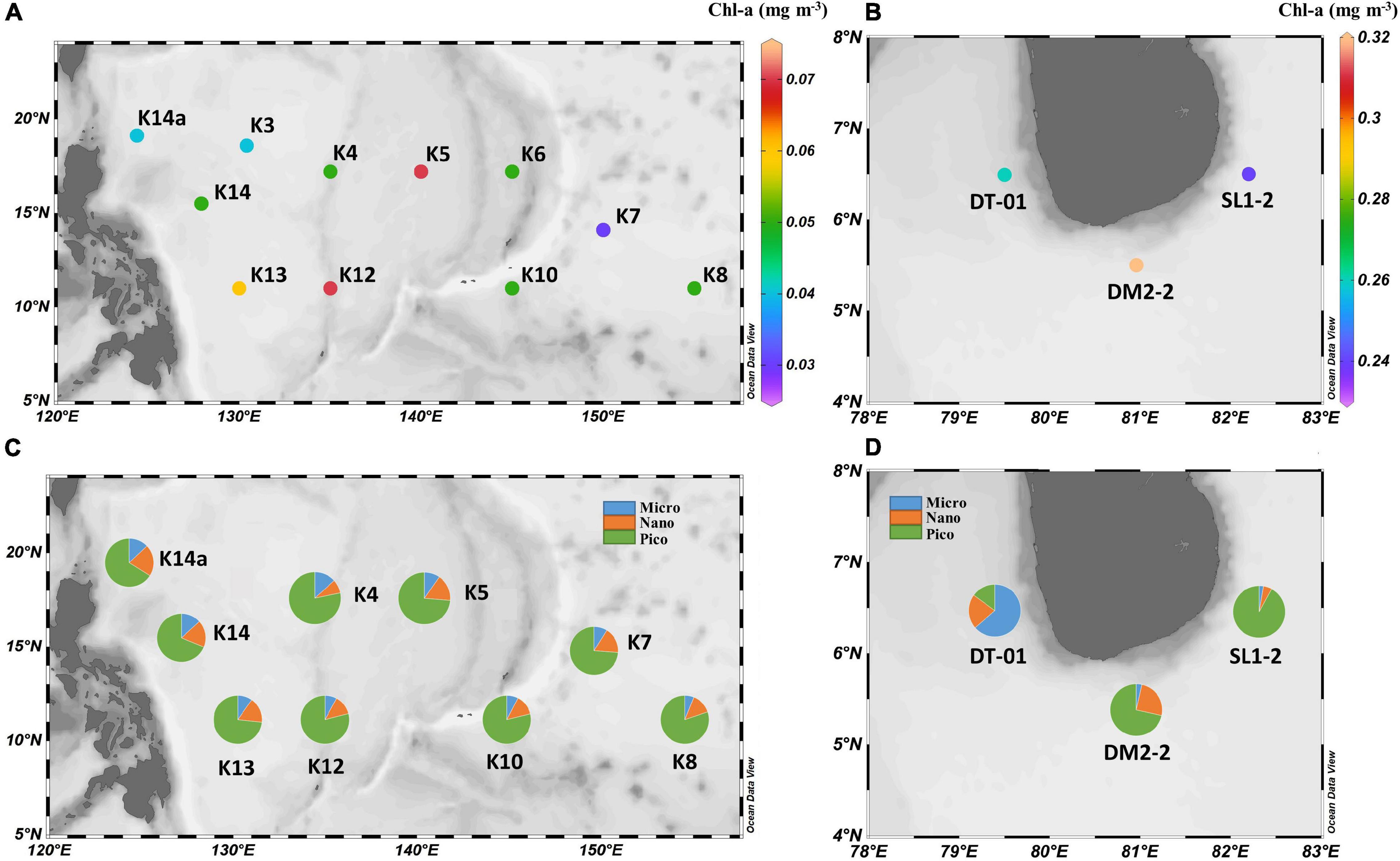

Figure 2. (A,B) Plots of measured Chlorophyll-a (Chl-a) concentration from the surface at each station. (C,D) Plots of surface microphytoplankton (> 10 μm), nanophytoplankton (3–10 μm), and picophytoplankton (0.7–3 μm) community fraction at each station.
Photophysiology of Trichodesmium at Northwest Pacific and North Indian Ocean in the Vicinity of Sri Lanka
The performance of the multi-excitation FRR fluorometer for Trichodesmium measurements was first assessed by comparing photophysiological results between the multiple-wavelength combination (i.e., 447 + 519 + 634 nm combined) and that of the sole blue-excitation LED (447 nm) generated from single-turnover fluorescence induction. In general, very flat induction curves were observed for natural Trichodesmium when blue light only was used as the fluorescence excitation flash (Figure 3), indicating that the blue LED was insufficient to drive complete PSII reaction center closure. Indeed, as shown in Table 2, in NWP the mean value of Fv/Fm derived from blue-band excitation was 60% of the value from excitation combination of three bands (0.31 ± 0.08 vs. 0.51 ± 0.07, Kruskal–Wallis t-test, p < 0.05). In NWP, a significantly lower value of NPQNSV was observed in excitation by the combined LED protocol compared to the blue LED only (1.49 ± 0.36 vs. 2.92 ± 0.99, Kruskal–Wallis test, p < 0.01). Lower average σPSII was found for blue-band excitation compared to the value for combination band excitation after spectral correction (67 ± 17 vs. 79 ± 28 Å2 PSII–1, Kruskal–Wallis t-test, p = 0.18). Although similar trends were visually observed in the dataset of NIO-SL Trichodesmium, no statistical differences were found, likely due to the limited data (Kruskal–Wallis test, p > 0.05). The FRRf data quality with each excitation combination was assessed by the probability of an RCII being closed during the first flashlet of a single turnover saturation phase under dark conditions (RσPSII), and low-quality data were frequently observed when PSII was excited with 447 nm (here we define low-quality data as corresponding to an RσPSII< 0.03; Figure 3). Meanwhile, at most stations, the ETR-light response could not be successfully fitted from FRRf measurement when only the blue band was used for the excitation flash (Table 2). As such, only results from combined measuring protocol (447 + 519 + 634 nm) were analyzed further.
![www.frontiersin.org](https://www.frontiersin.org/files/Articles/813573/fmicb-13-813573-HTML/image_m/fmicb-13-813573-g003.jpg)

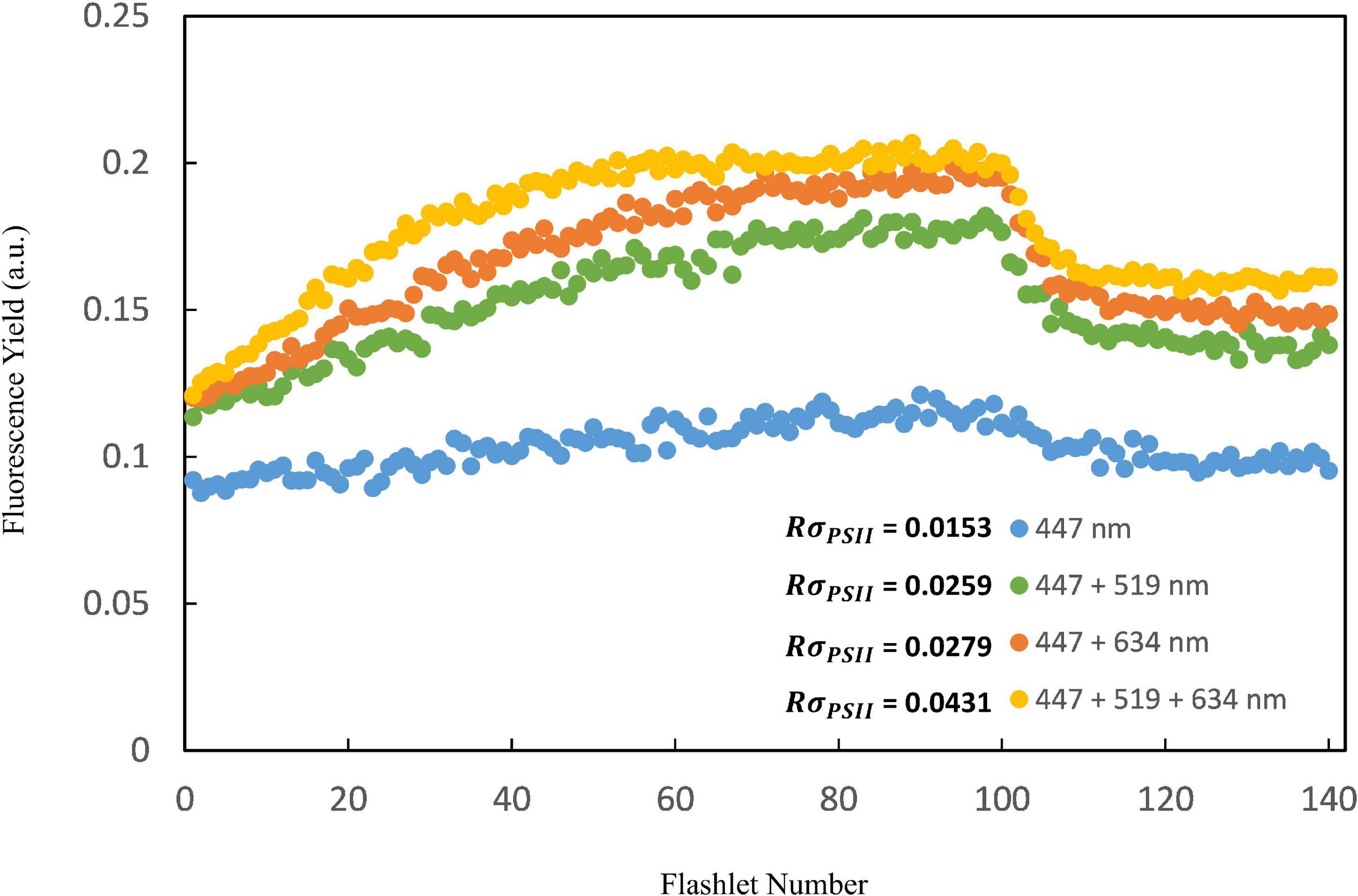

Figure 3. The raw fast repetition rate (FRR) flurometer fluorescence induction kinetic curves of four different lights combinations (blue: 447 nm; blue + green: 447 + 519 nm; blue + orange: 447 + 634 nm and blue + green + orange: 447 + 519 + 634 nm) for the Trichodesmium study (using K14 as an example). Results showed that the FRRf measurement protocol consisting of three excitation wavelengths combined generated the highest quality data (RσPSII > 0.03).
![www.frontiersin.org](https://www.frontiersin.org/files/Articles/813573/fmicb-13-813573-HTML/image_m/fmicb-13-813573-t002.jpg)

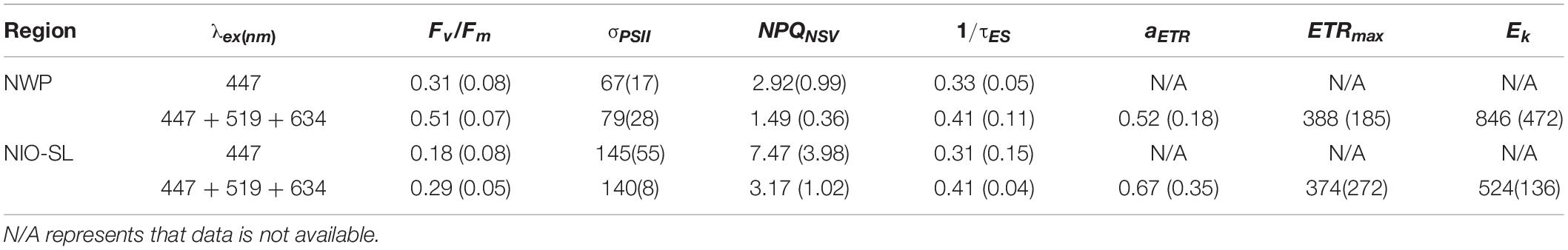

Table 2. Comparison of mean (SD) of photophysiology measurement results of Fv/Fm, σPSII (Å2 PSII–1), NPQ at dark (NPQNSV), 1/τES (ms–1), aETR (mol e– mol RCII–1 s–1 (μmol quanta m–2 s–1)–1), ETRmax (mol e– [mol PSII]–1 s–1), and Ek (mol quanta m–2 s–1) between exciting PSII with 447 nm and with combination band (447 + 519 + 634 nm) in the NWP and NIO-SL.
FRRf-derived photophysiological parameters for Trichodesmium sp. samples collected from the two study areas were compared (see Table 3 and Figure 4). Except for 1/τES, significant differences in Fv/Fm, σPSII, and NPQNSV were found between NWP and NIO-SL. Specifically, after blank correcting (blank values of Fo and Fm were in the range of 0.02–0.05), the Fv/Fm of Trichodesmium in the NWP ranged from 0.42 at station K6 to a maximum of 0.65 at station K13, with a mean value of 0.51 ± 0.07. Significantly lower Fv/Fm values were observed for NIO-SL data compared to NWP and ranged from 0.23 at DM2-2 to 0.36 at DT-01 with an average of 0.29 ± 0.05 (Kruskal–Wallis t-test, df = 1, p = 0.01; Figure 4A). Effective absorption cross sections, σPSII, of Trichodesmium varied from 15 at K10 to 121 Å2 PSII–1, with a mean of 79 ± 28 Å2 PSII–1. This value was only approximately half of the mean σPSII of Trichodesmium in the NIO-SL (140 ± 8, ranged from 132 to 152 Å2 PSII–1; Figure 4B, Kruskal–Wallis test, df = 1, p = 0.01). NPQNSV was ca. twofold higher in the NIO-SL (3.17 ± 1.0) than in the NWP Trichodesmium samples (1.49 ± 0.36; Kruskal–Wallis t-test, df = 1, p = 0.024; Figure 4C). The smallest value of NPQNSV was observed at K13 in the NWP and at DT-01 in the NIO-SL (Table 3). Meanwhile, analysis showed that mean values of NPQNSV_Ek were higher than NPQNSV in both NWP and NIO-SL regions (Table 3).
![www.frontiersin.org](https://www.frontiersin.org/files/Articles/813573/fmicb-13-813573-HTML/image_m/fmicb-13-813573-t003.jpg)

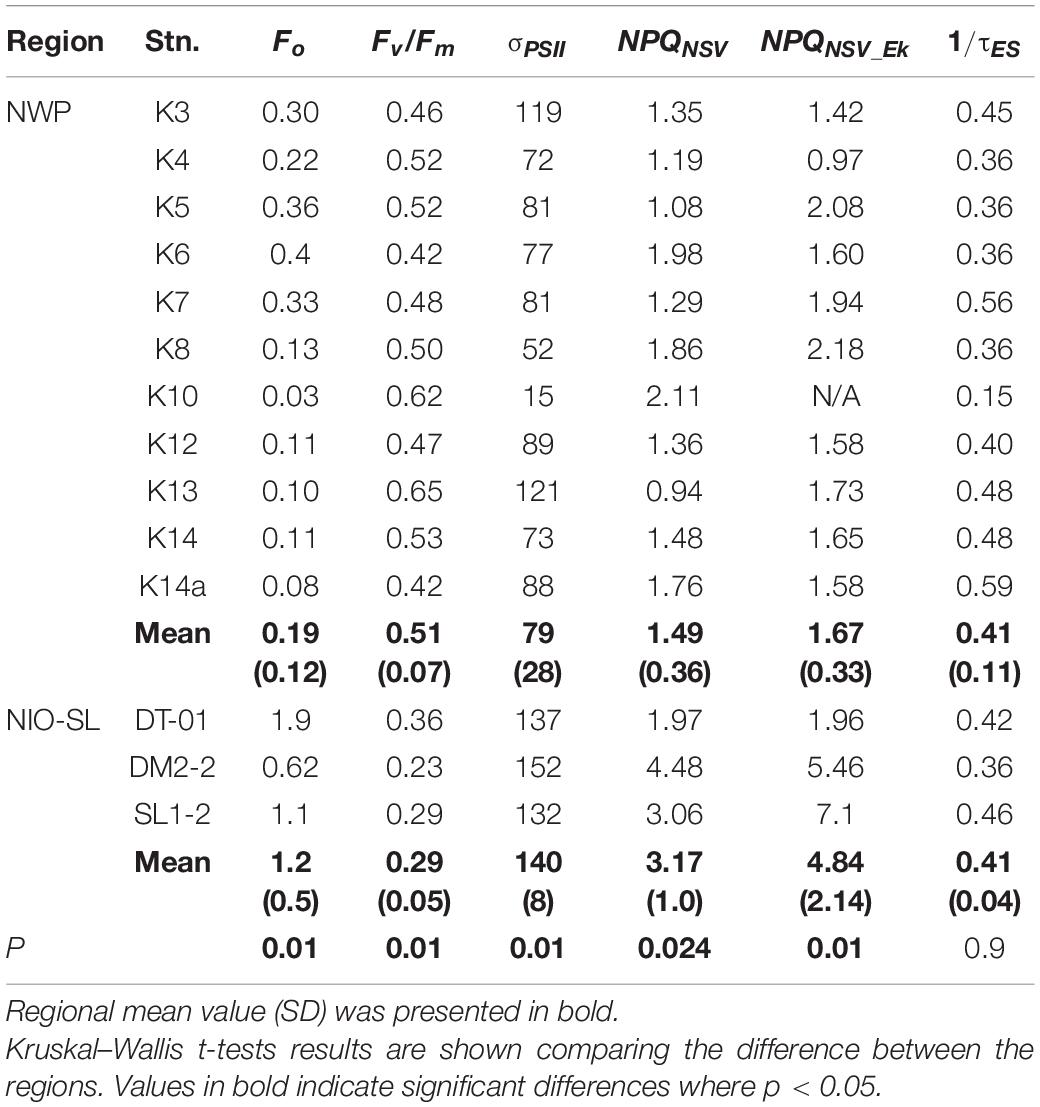

Table 3. Value of photophysiological parameters, Fo (arbitrary units: a.u.), Fv/Fm, σPSII (Å2 PSII–1), NPQ at dark (NPQNSV), NPQ at Ek light (NPQNSV_Ek), and 1/τES (ms–1) at each sampling station measured by FRRf with combination band.
![www.frontiersin.org](https://www.frontiersin.org/files/Articles/813573/fmicb-13-813573-HTML/image_m/fmicb-13-813573-g004.jpg)

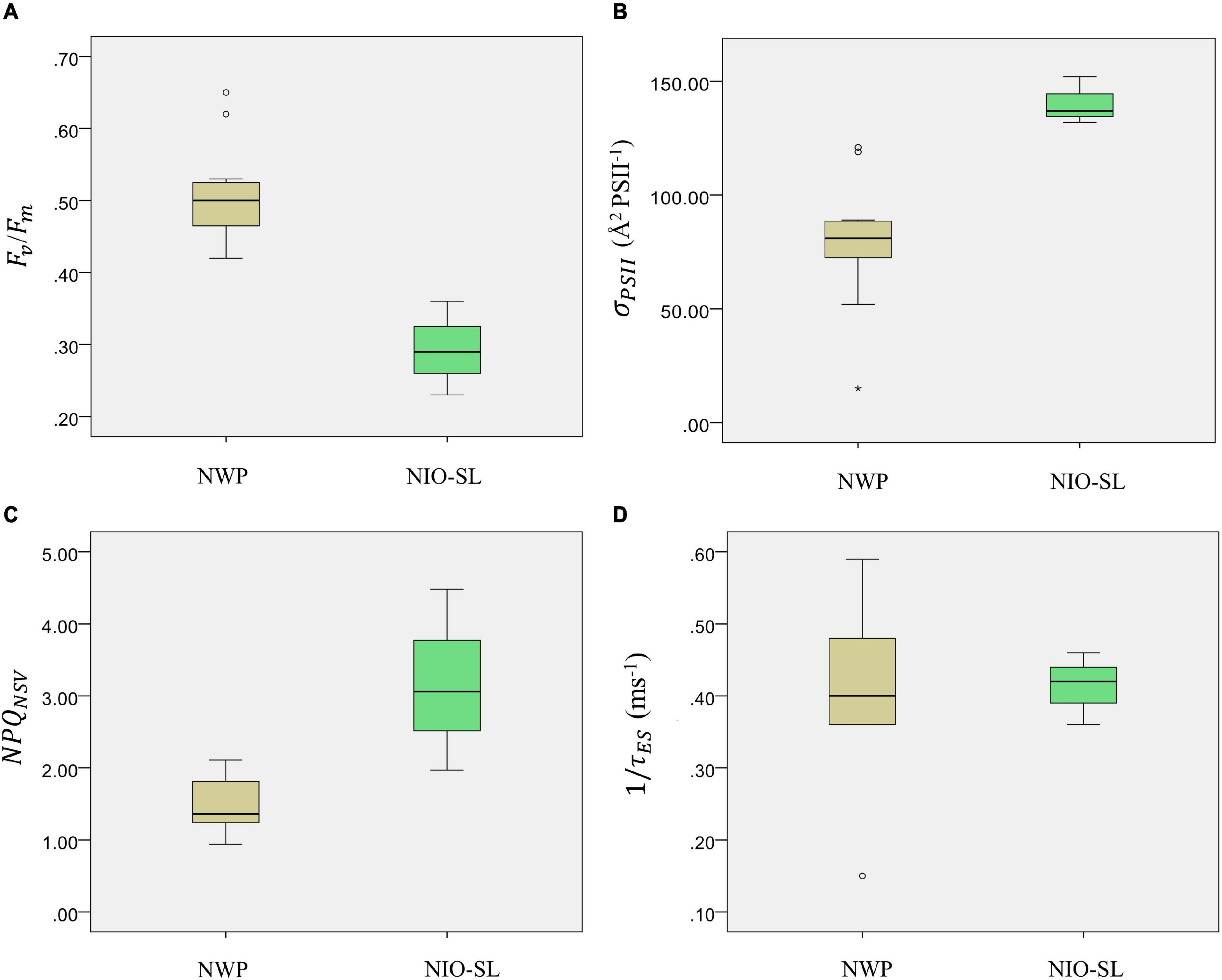

Figure 4. Boxplots of Trichodesmium photophysiological parameters (A) PSII maximum photochemical efficiency, Fv/Fm, (B) functional absorption cross section of PSII, σPSII (Å2 PSII–1), (C) normalized Stern–Volmer non-photochemical quenching NPQNSV and (D) PSII turnover time 1/τES (ms–1) within NWP and NIO-SL regions. * indicates the extreme value.
Derived from ETR-I curves, the initial slope αETR, maximum electron turnover rate , and light saturation of PSII charge separation EK (= /αETR, mol quanta m–2 s–1) of Trichodesmium in the two study areas are presented in Table 4. According to the results, a lower average value of αETR and a higher were observed for Trichodesmium in the NWP than in the NIO-SL, resulting in a higher averaged EK of Trichodesmium in the NWP. However, a Kruskal–Wallis test showed that there were no significant differences in these three variables between the NWP and NIO-SL (df = 1, p = 0.39). The values observed at K13 and DT-01 were quite different from the data of other stations (Table 4), which will be discussed further below. FRRf-retrieved rates of primary productivity (PChl) ranged from 7.8 to 21.1 mgC mg Chl-a–1 h–1 with a mean value of 11.9 ± 4.4 mgC mg Chl-a–1 h–1 (Table 5).
![www.frontiersin.org](https://www.frontiersin.org/files/Articles/813573/fmicb-13-813573-HTML/image_m/fmicb-13-813573-t004.jpg)
Table 4. Value of αETR [mol e– mol RCII–1 s–1 (μmol quanta m–2 s–1)–1], [mol e– [mol PSII]–1 s–1], and EK (mol quanta m–2 s–1) at each sampling station derived from ETR-light curves.
![www.frontiersin.org](https://www.frontiersin.org/files/Articles/813573/fmicb-13-813573-HTML/image_m/fmicb-13-813573-t005.jpg)

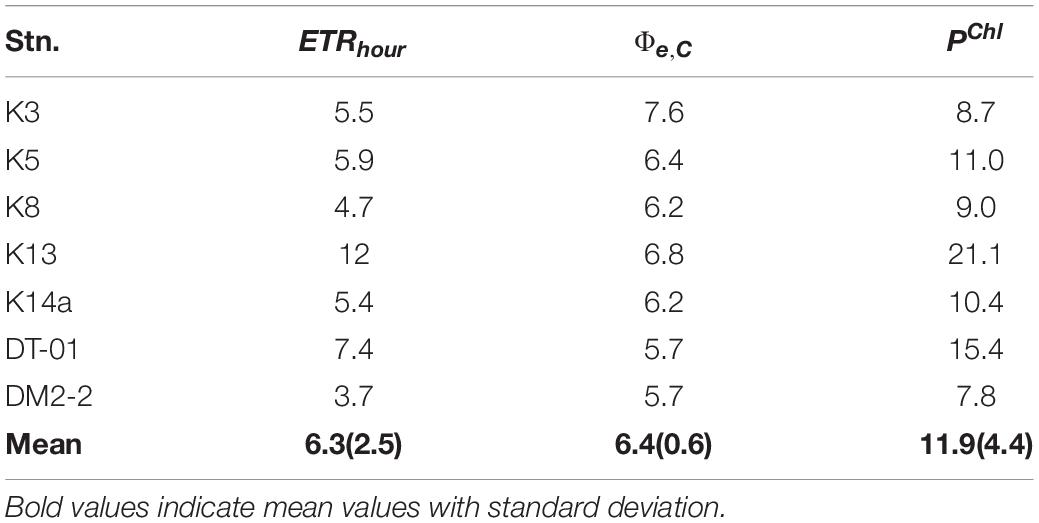

Table 5. Hourly Chl-a specific ETRs (mmol e– mg Chl-a–1 h–1), estimates of electron requirement for carbon fixation (e,C, mol C per mol e–) and primary productivity of Trichodesmium (mgC mg Chl-a–1 h–1) for seven stations in the morning (07:00 a.m.).
Correlation Analyses Within Photophysiological Factors and Between Photophysiological and Environmental Data
After pooling all data, correlations within FRRf-derived photophysiological factors were examined by Spearman analyses. We found that Fv/Fm negatively correlated with both σPSII (n = 14, r = –0.64, p = 0.014; Figure 5A). When K13 was excluded, an inverse relationship between σPSII and Fv/Fm was observed for the NWP dataset as well (n = 10, r = –0.67, p = 0.032; Figure 5B). A strong positive relationship was found between σPSII and 1/τES in the NWP dataset (n = 11, r = 0.63, p = 0.038, Figure 5C). The same analyses were then conducted to examine the correlation of ETR-E curve-derived αETR and , but no significant correlation was found (p = 0.9).
![www.frontiersin.org](https://www.frontiersin.org/files/Articles/813573/fmicb-13-813573-HTML/image_m/fmicb-13-813573-g005.jpg)

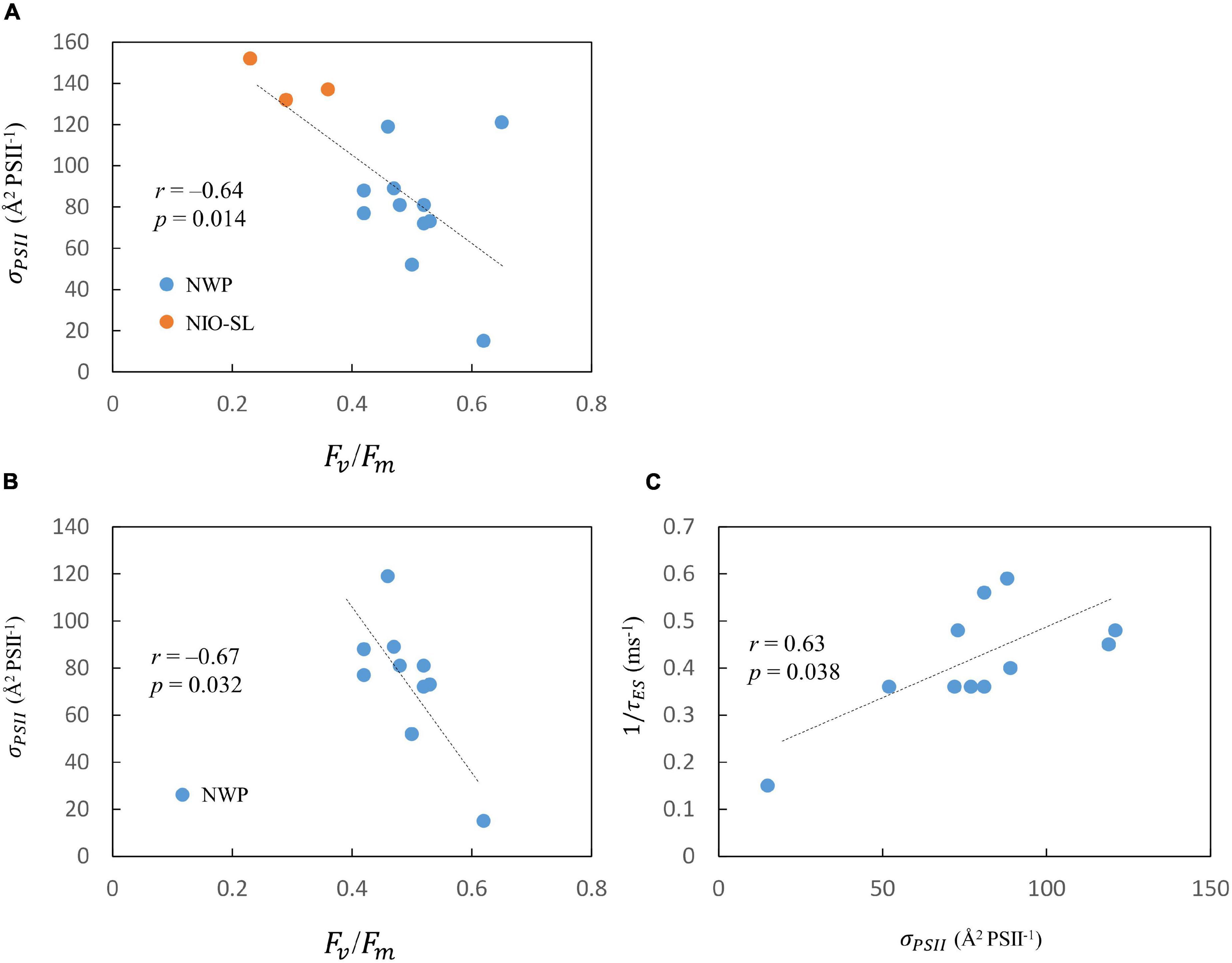

Figure 5. Scatter plots of (A) PSII maximum photochemical efficiency, Fv/Fm, and functional absorption cross section of PSII, σPSII (Å2 PSII–1) for pooled data. Scatter plots of (B) Fv/Fm and σPSII (C) σPSII and PSII turnover time 1/τES for NWP data only.
The Spearman rank correlation coefficients between the photophysiology of Trichodesmium and environmental factors are presented in Table 6. Fv/Fm was positively correlated with temperature (n = 14, r = 0.546, p = 0.043) and light intensity (n = 14, r = 0.601, p = 0.023) but negatively correlated with the N-to-P ratio (n = 10, r = -0.632, p = 0.014). σPSII was positively correlated with Chl-a (n = 14, r = 0.563, p = 0.036) and the N-to-P ratio (n = 10, r = 0.772, p = 0.009). Nutrients are likely to affect the variations in NPQNSV. Both NO2 + NO3– and PO43– had positive correlations with NPQNSV (n = 10, r = 0.648, p = 0.043 and r = 0.565, p = 0.035). For ETR-I curve-derived parameters, EK was found to be positively related to salinity (n = 13, r = 0.6, p = 0.03). Although significant correlations were observed between environmental and photophysiological factors, it is not likely that temperature, salinity, and light intensity are the controlling factors in this study. For example, in fact, Fv/Fm is largely independent of temperature (Geider et al., 1993) and a decrease in Fv/Fm is typically observed in response to increased light intensity due to the NPQ (Suggett et al., 2010). It is thus important to explore the main factors determining the variability of phytoplankton photophysiology, which will be discussed in the next section.
![www.frontiersin.org](https://www.frontiersin.org/files/Articles/813573/fmicb-13-813573-HTML/image_m/fmicb-13-813573-t006.jpg)

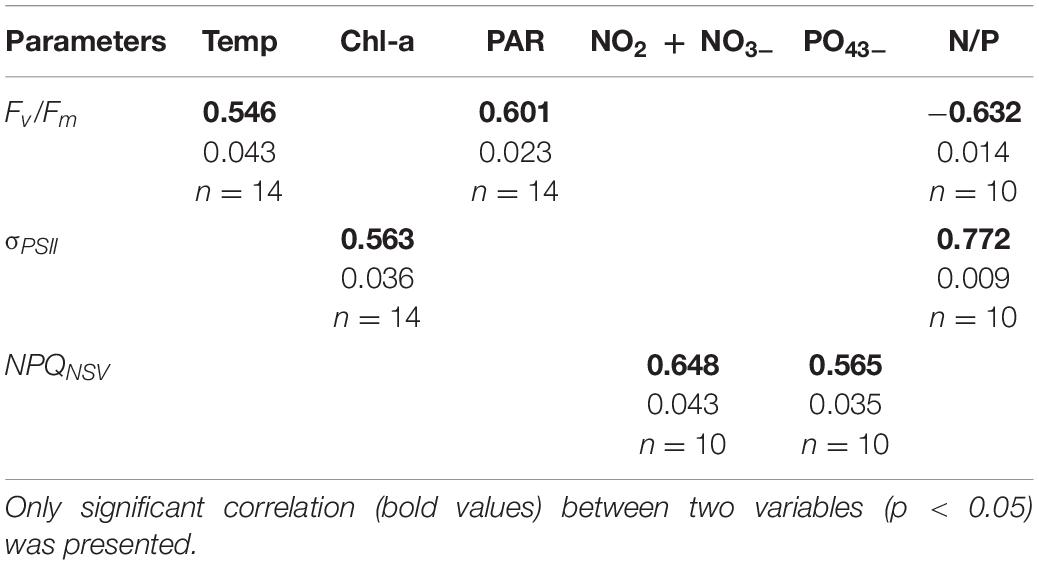

Table 6. Spearman correlation coefficients for correlations between photophysiological parameters and environmental variables.
Discussion
Application of Multi-Excitation Wavelength Fast Repetition Rate Fluorometry Study on Natural Trichodesmium
Eukaryotic phytoplankton possessing pigment–protein complexes with chlorophylls and carotenoids usually exhibit efficient PSII absorption of FRR blue excitation. However, in cyanobacteria, the principal light-harvesting complexes are phycobilisomes, which have absorption peaks centered at 495, 545, and 565 nm (Fujita and Shimura, 1974). The latter two peaks correspond to phycoerythrobilin (PEB) while the first corresponds to phycourobilin (PUB). Suggett et al. (2009b) reported that the PSII action spectrum for cyanobacteria is typically much lower in blue light than in orange light. Raateoja et al. (2004) proposed that FRRf with an excitation light around 475 nm (targeting Chl-a) is not well-suited to studies of cyanobacteria Nodularia spumigena and Aphanizomenon sp., because their effective absorption is restricted to wavelengths beyond 550 nm. However, this is likely not the case for Trichodesmium because this bacterium contains a higher concentration of PUB than PEB (i.e., the cells absorb shorter wavelengths of light). This hypothesis is supported by our absorption spectrum of Trichodesmium, which showed greater absorption at shorter wavelengths in both NWP and NIO-SL samples (Figure 6). This conclusion has also been presented in previous studies (e.g., Subramaniam et al., 1999). Indeed, the relatively higher and lower absorption of PUB found for K14 and DM2-2 samples, respectively, corresponded to their notably higher and lower values of Fv/Fm (0.53 and 0.23, Table 3). Cai et al. (2015) reported that Trichodesmium cells grown under high light showed a higher peak ratio of PUB to PEB, implying increased photoprotection associated with increased PUB (Subramaniam et al., 1999). Observed ratios of PUB to PEB in our data ranged from 1.6 in DM2-2 to 3.4 for K14. This appeared consistent with the higher EK value measured for K14 (998 mol quanta m–2 s–1) compared to that of DM2-2 (341 mol quanta m–2 s–1, Table 4), suggesting that Trichodesmium were acclimated to higher irradiance in the NWP region. Using FRRf excitation at 447 nm (blue light), we observed low photosynthetic activity of Trichodesmium sampled from both areas (i.e., low Fv/Fm). These results suggest that the blue light (<500 nm) absorbed by Trichodesmium antenna pigments does not make a major contribution to the reduction of QA and the PQ pool, or to O2 evolution (Kazama et al., 2021). Subramaniam et al. (1999) suggested that under high light conditions, energy absorbed by PUB at 495 nm does not reach PSII and a large fraction is emitted as fluorescence at 565 nm. The O2 evolution driven by PEB absorption around 550 nm remains largely unaffected, and the energy absorbed by PEB is efficiently transferred to PSII. In our measurements, although there is a significant increase in RsPII when either the 519- or 634-nm LEDs are added to the 447-nm LED, it is only when all three wavelengths are used together that RsPII falls within the optimum range of 0.04–0.05 (K14 data as example, Figure 2). This most likely reflects a poor match between the fluorescence excitation spectrum and the output from the 447-nm LEDs, and a less than perfect match with the 519- and 634-nm LEDs (Oxborough, 2013). Our results provide the first evidence that combining green and orange bands of longer wavelengths as fluorescence excitation is the key to efficient PSII light harvesting and accurate estimation of the physiological responses of Trichodesmium.
![www.frontiersin.org](https://www.frontiersin.org/files/Articles/813573/fmicb-13-813573-HTML/image_m/fmicb-13-813573-g006.jpg)

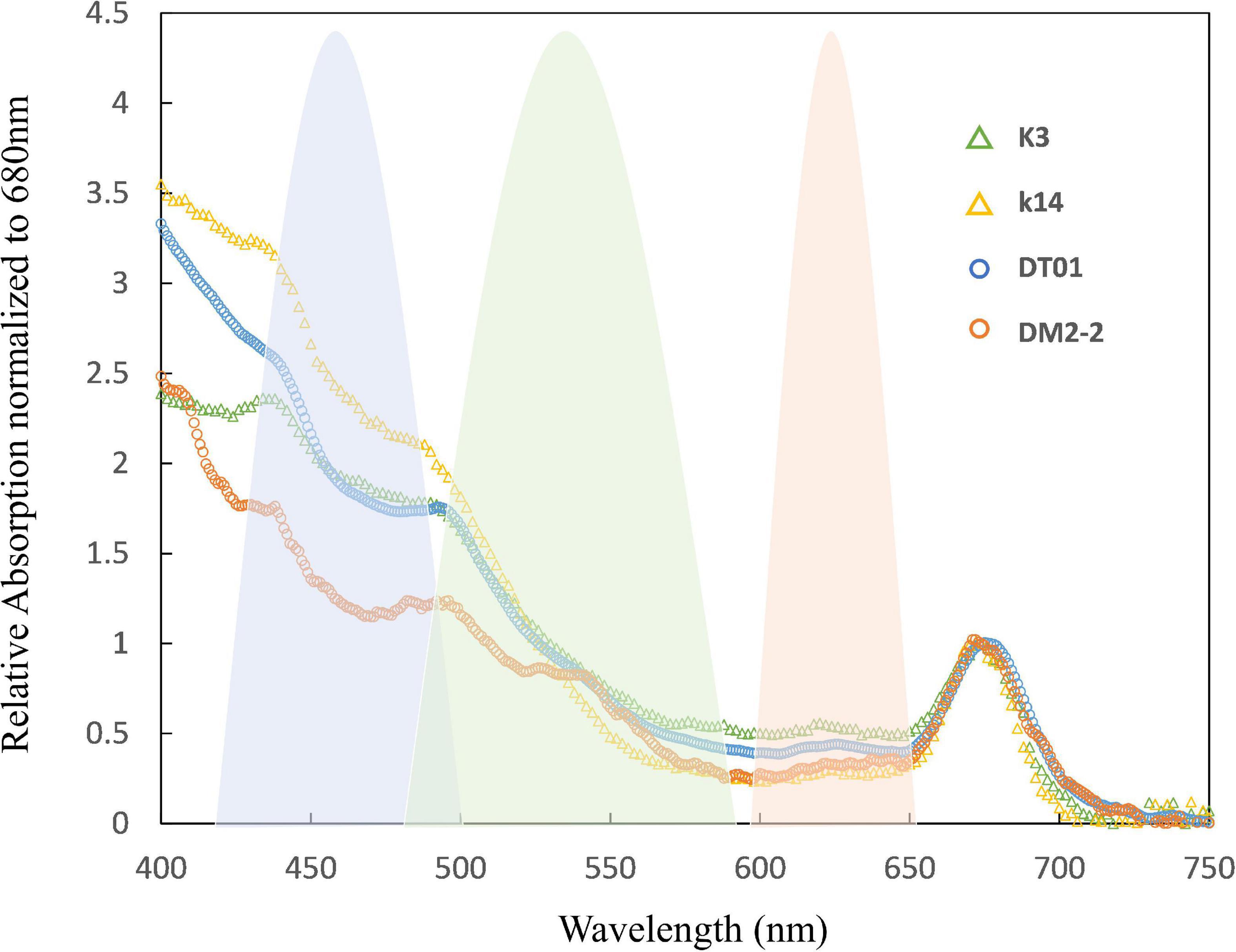

Figure 6. Normalized spectral absorption characteristics of Trichodesmium measured at four sampling stations (K3, K14, DT-01, DM2-2). The blue, green, and orange shades are the excitation spectrum (relative to quanta) of the light source of the FastAct2 (see “Materials and Methods” section).
Photophysiology Parameters Vary in Trichodesmium Under Different Environmental Conditions
The FRRf-derived parameter Fv/Fm represents an estimate of the maximum quantum yield of photochemistry (Kolber and Falkowski, 1993) and usually is considered as a reliable indicator for phytoplankton stress (Kolber et al., 1990; Geider et al., 1993). In the NWP, we observed a relatively high average Fv/Fm of 0.51 ± 0.07. This value is very close to the mean value of 0.5 from laboratory-cultured Trichodesmium grown at 30°C (Breitbarth et al., 2007; [PhytoPAM, blue–green–red LED]) and slightly higher than values for natural populations observed in the North Atlantic by blue LED only (0.37–0.47) (Richier et al., 2012; [FIRe, blue LED]). However, it is important to note that Fv/Fm varies not only among LED colors but also instruments that follow different measurement protocols. For example, higher values of Fv/Fm are observed using instruments where the saturation protocol induces multiple turnover (MT) of PSII (e.g., PAM, Schreiber et al., 1986) compared to single turnover (ST) such as the FRRf in this study (Kromkamp and Forster, 2003).
When comparing results measured with the same type of fluorometer, the Fv/Fm of Trichodesmium measured here are higher than other cyanobacteria, which typically range from 0.1 to 0.4 (Suggett et al., 2009b; FRRf, [blue LED]), although values larger than 0.6 have been observed for some species of nitrogen fixing diazotrophic cyanobacteria (Berman-Frank et al., 2007; FRRf, [blue-green LED]). We observed significantly lower Fv/Fm of Trichodesmium in the NIO-SL (0.29 ± 0.05) compared to the value for Trichodesmium in the NWP (p = 0.01, Table 3), although the nutrient level was higher in the NIO-SL region (Table 1). Trichodesmium are not N-limited as they fix atmospheric nitrogen and provide this to N-limited ecosystems. However, because there is a theoretically unlimited supply of atmospheric N2, Trichodesmium often becomes phosphorus (P) limited (Wu et al., 2000; Hynes et al., 2009; Frischkorn et al., 2018). Meanwhile, because the nitrogenase enzyme is Fe-demanding and PSI:PSII ratios are elevated, Trichodesmium also routinely experience iron limitation (Berman-Frank et al., 2001; Chappell et al., 2012; Walworth et al., 2016). We observed that PO43– was about fourfold higher in the NIO-SL (177 ± 94 nmol l–1) than in the NWP (45.7 ± 32.5 nmol l–1), and a low dissolved Fe concentration (DFe) was found in the NWP area, ranging from 0.09 to 0.26 with a mean value of 0.12 ± 0.05 nmol l–1 (Supplementary Figure 2; see also Browning et al., 2021 describing the same study area). Although we did not measure DFe in the NIO-SL, Twining et al. (2019) reported a concentration of ca. 0.2 nmol l–1 of DFe at the surface of Bay of Bengal and North Indian Ocean, which is similar to the DFe value of NWP. Thus, while Fe stress could prevail in both NWP and NIO-SL surface waters, the higher Fv/Fm in the NWP is likely to suggest that rapid Fe recycling exists there (Kolber et al., 1990; Geider et al., 1993), which is favorable for Trichodesmium growth (Mills et al., 2004; Moore et al., 2008). A significantly higher mean value of Fo was observed for Trichodesmium in the NIO-SL (1.2 ± 0.5) compared to the NWP (0.19 ± 0.12, Table 3), where increased Fo decreases variable fluorescence (Fv) and subsequently Fv/Fm. It is likely most of the variability in Fo is linked to changes in overall chlorophyll-a concentrations (with higher Chl-a increasing Fo; Mean Chl in NIO-SL / NWP = 5.4; Mean Fo in NIO-SL/NWP = 6.3, Tables 1, 3). However, phycobilipigment fluorescence can also elevate Fo in the PSII Chla fluorescence band and thus reduce Fv/Fm (Campbell et al., 1998). This phycobiliprotein contribution to Fo fluorescence could reflect low-yield fluorescence emission from coupled phycobilisomes or a high-yield emission from a small population of uncoupled phycobilisomes, which is related to their mobility in thylakoid membranes (Mullineaux et al., 1997).
A significant difference was also found in σPSIIof Trichodesmium collected from the two regions. A lower average value was observed in the NWP (79 ± 28 Å2 PSII–1) than in the NIO-SL (140 ± 8 Å2 PSII–1; p = 0.01, Table 3). Both values are within the reported range of ∼35–180 Å2 PSII–1 of laboratory-cultured Trichodesmium erythraeum IMS101 (Cai et al., 2015; [blue-green LED]; Boatman et al., 2018a,b; [blue LED]). σPSII broadly shows an inverse relationship with Fv/Fm when all Trichodesmium are pooled together (Figure 4A). Phytoplankton increasing σPSII with decreasing Fv/Fm is considered as a response to decreased growth irradiance, cell size, and increased physiological stress (Kolber et al., 1988; Moore et al., 2005, 2006; Suggett et al., 2009b). While cell size is not the main driver of variation in our surface Trichodesmium study, higher Ek was observed for Trichodesmium in the NWP than in the NIO-SL (Table 4), which is probably reflective of acclimation to higher irradiance for surface Trichodesmium at NWP than it at surface water of NIO-SL. Thus, the difference of in growth irradiance of Trichodesmium at two regions can be one explanation for the inverse relationship of Fv/Fm and σPSII for our Trichodesmium dataset.
Lower Fv/Fm and higher σPSII may also be associated with Fe stress (Behrenfeld and Milligan, 2013; Browning et al., 2014a). Under Fe-limited conditions, photoinactivated PSII reaction centers and/or an excess pool of partially energetically disconnected light-harvesting complexes accumulate within the thylakoid membrane, which could account for the lower values of Fv/Fm (Behrenfeld and Milligan, 2013). Meanwhile, less efficient connectivity between active and photoinacivated PSIIs and/or a higher light-harvesting complex : reaction center ratio could account for the increase in σPSII (Boatman et al., 2018a). In addition, under Fe limitation, nitrogenase activity decreases, thus diminishing a major sink for reductant and energy that is otherwise supplied by respiratory electron flow through the Cyt b6f complex (Boatman et al., 2018a). This consequently restricts electron transport from PSII to the Cyt b6f complex, resulting in a decrease in electron transfer rate (1/τ, Timmermans et al., 2001; Hopkinson et al., 2007). Meanwhile, this potential electron bottleneck at the Cyt b6f complex would be expected to cause a strong plastoquinone (PQ) pool reduction, which consequently derives changes in both Fv/Fm and σPSII (see Behrenfeld and Milligan, 2013).
In addition to the variation in physiological parameters that was observed when comparing different areas, data variation within the same region also suggests that Trichodesmium responds favorably to increased nutrients (i.e., Fe and P). As shown in the “Results” section, the highest values of Fv/Fm (0.65) and σPSII (121 Å2 PSII–1) were found at K13 in the NWP within the Mindanao eddy upwelling zone, which is characterized by its cold anomaly at ∼100 m depth east of Mindanao (Udarbe-Walker and Villanoy, 2001; Figure 7A). Although the surface P and Fe concentrations at K13 did not differ significantly from other stations (Table 1 and Supplementary Figure 2), nutrient pumping from deeper depths likely supported the phytoplankton growth as seen in the shallowing of DCM (∼85 m) at the upwelling station K13 compared to the nearby stations (∼100 m, Figure 7B; Falkowski et al., 1991). However, both highest values of Fv/Fm and σPSII being observed together at K13 are not what would be expected as usually an increase in Fv/Fm follows a decrease in σPSII (Suggett et al., 2009b). A similar result was observed during IronEx II when Behrenfeld et al. (1996) reported that within 24 h of Fe addition, the Fv/Fm and σPSII of prokaryotic-dominated communities increased by a factor of two and four, respectively. Behrenfeld et al. (2006) interpreted these physiological changes as indicative of a re-coupling to PSII of detached iron-stress-induced antenna proteins, resulting in a simultaneous increase of σPSII and lower values of Fo and Fm that resulted in an increase in Fv/Fm. Such a response may be specific to relieving the Fe limitation of prokaryotes (Suggett et al., 2009b). In the NIO-SL dataset, the maximum Fv/Fm of Trichodesmium was found at station DT-01. As with station K13 in the NWP, no significant difference in surface PO43– was found between DT-01 and the other stations (Table 1; but the difference in DFe is unknown). However, the large-size phytoplankton (> 10 μm) dominating at DT-01 (Figure 2D) probably suggests a less nutrient stressed condition, as large phytoplankton often dominated at higher nutrient waters (Ciotti et al., 2002; Cermeño et al., 2006; Roy et al., 2013). Therefore, increased Fv/Fm responding to the alleviation of Fe and P limitation in both NWP and NIO-SL surface water also indicates that at local scales, Fe and P availability may have considerable effects on the variability in PSII characteristics of Trichodesmium.
![www.frontiersin.org](https://www.frontiersin.org/files/Articles/813573/fmicb-13-813573-HTML/image_m/fmicb-13-813573-g007.jpg)

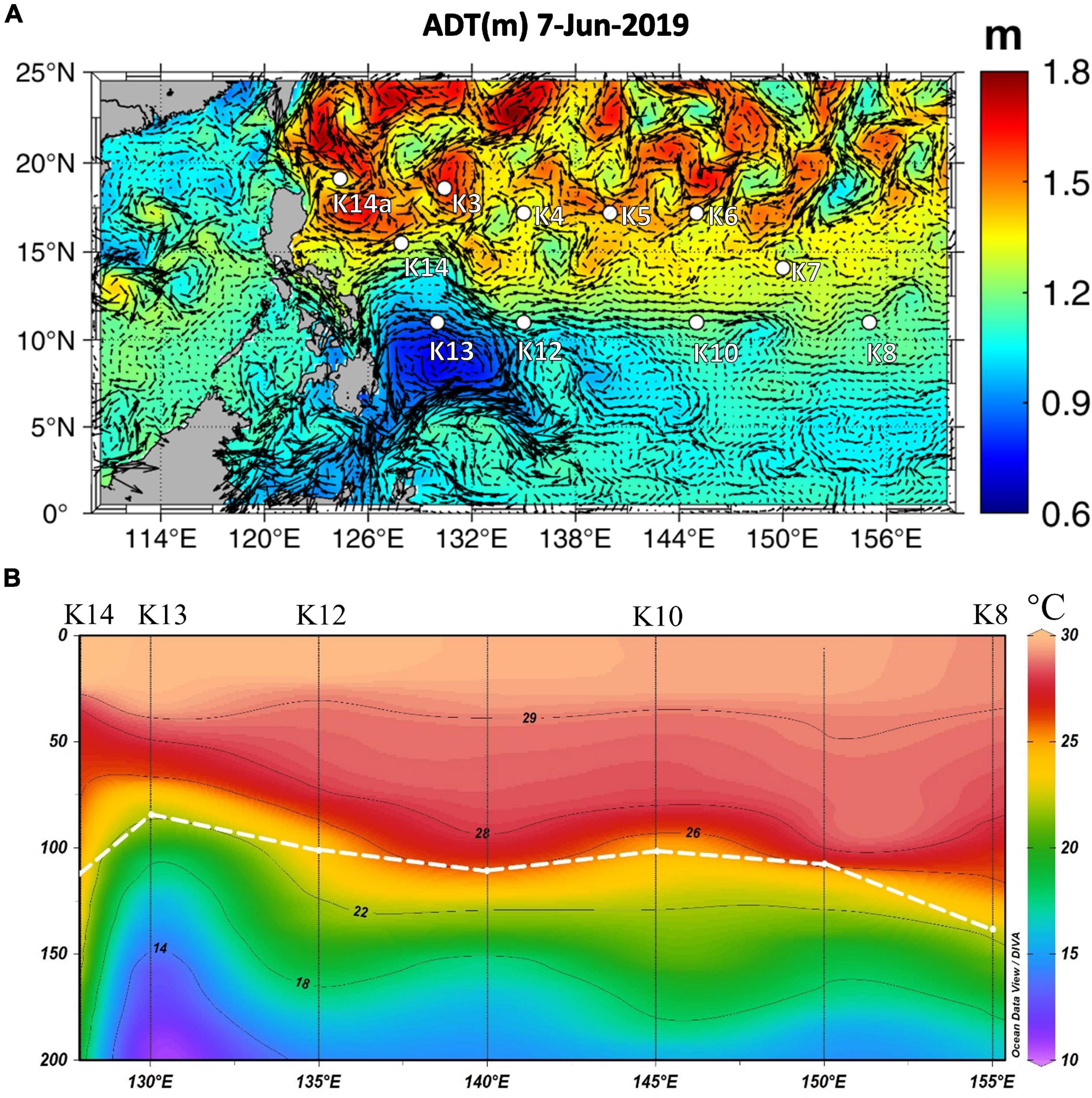

Figure 7. (A) Absolute dynamic topography (ADT) data for time of sampling at station K13 (data downloaded from https://resources.marine.copernicus.eu/). (B) Temperature profile of section from K8 to K14, highlighting upwelling observed at station K13. White dotted line indicates mixed layer depth.
Non-photochemical fluorescence quenching (NPQ) acts to dissipate excitation energy and hence protect RCII from damage (Krause and Weis, 1991; Horton et al., 1996; Alderkamp et al., 2010; Croteau et al., 2021). A tight relationship between NPQ and light intensity has been widely reported (Olaizola et al., 1994; Campbell et al., 1998; Papageorgiou et al., 2007; Ihnken et al., 2011; Schuback et al., 2015). NPQ formation is important for Trichodesmium because these N-fixing cyanobacteria form blooms at the surface of nutrient-poor tropical and subtropical oceans and thus require adequate photoprotection in such high light environments (Gorbunov et al., 2011). We observed higher mean values of NPQNSV for Trichodesmium in the NIO-SL (3.17) than in the NWP (1.49). Increased NPQ may result from quenching within a proportion of the closed RCIIs (Krause and Weis, 1991). However, the higher NPQ observed for Trichodesmium in the NIO-SL does not correspond to smaller σPSII but rather to larger values, suggesting a different mechanism to explain the higher NPQ in the NIO-SL. Nutrients affect PSII variable fluorescence and photoinhibition in natural phytoplankton communities, which could affect NPQ as well. Kulk et al. (2013) reported a significant NPQ decrease during nutrient starvation in Prochlorococcus marinus. In addition, studies have found that elevated Fe stress possibly increases NPQ, which could result from a “bottleneck effect” for electron transport before photosystem I (Browning et al., 2014b; Schuback et al., 2015; Ryan-Keogh and Thomalla, 2020). Thus, we speculate that the higher NPQNSV found for Trichodesmium in the NIO-SL may also result from Trichodesmium growing under more Fe-stressed conditions. When we excluded the difference in growth states and focused only on NWP data, a decrease in σPSII in response to the increase in NPQ was found (Spearman, n = 11, r = –0.565, p = 0.07). This observation agrees well with numerous previous studies that similarly report the existence of a negative correlation between these two parameters (Ihnken et al., 2011; Lavaud et al., 2016). An increase in NPQ with a decrease in σPSII is indicative of NPQ occurring in the PSII light-harvesting antennae, whereby reducing the flux of absorbed energy from phycobilisomes to reaction centers leads to a corresponding decrease in σPSII (Gorbunov et al., 2011).
The initial slope parameter, αETR, and maximum electron turnover rate, , were both derived from ETR-light response curves, describing the light-limited and light-saturated rate of electron transport, respectively (Suggett et al., 2003). The lower αETR and higher observed for NWP Trichodesmium resulted in a higher saturating light intensity, EK (846 ± 472 μmol quanta m–2 s–1), when compared to the NIO-SL (524 ± 136 μmol quanta m–2 s–1). This suggests an acclimation to increased available irradiance for Trichodesmium in the NWP region as mentioned above. Variations of αETR and were observed as well when data were considered at the local scale. Specifically, the largest αETR in the NWP appeared at station K13, whereas in the NIO-SL significantly higher αETR and were found at DT-01. Platt et al. (1992) reported a significant positive response of the initial slope (α) of the photosynthesis-light curve to increase in nitrate concentration during the spring bloom in the western North Atlantic. The photosynthesis rate in saturating light () was also significantly higher during the spring bloom when compared with the oligotrophic phase (Platt et al., 1992). In addition, positive correlations between αETR and with Fe concentration have been reported for cultured Trichodesmium (Boatman et al., 2018a). Therefore, the variations in αETR and of Trichodesmium observed in this study may be associated with Fe supply, and increased Fe availability (e.g., from rapid Fe-recycling) is likely to enhance electron transport especially under low light condition (i.e., higher αETR).
It is important, however, to note that variation of Trichodesmium photobiology between the two study regions observed here could also be explained by factors other than differences in Fe availability. It is well known for example, that Trichodesmium exhibits distinct physiological ecology between different clades or strains (Chappell and Webb, 2010; Hutchins et al., 2013; Delmont, 2021). While we were able to confirm that the same Trichodesmium species (T. thiebautii—likely belonging to clade I) was dominant in both Western Pacific and Indian Ocean samples, further identification to strain level was not possible in the absence of further genomics analysis being conducted. Previous work by Hutchins et al. (2013), for example, has demonstrated up to a sixfold range in carbon affinity between Trichodesmium strains, indicative of strain-specific physiological strategies possibly reflecting adaptive responses to different biogeochemical regimes (Rouco et al., 2016). As such, we cannot rule out the possibility that the presence of different strains of T. thiebautii between the two study regions could have contributed to the observed differences in photobiology as assessed by FRRf.
Fast Repetition Rate Fluorometry-Based Estimation of Primary Productivity for Trichodesmium
Photosynthetic electron transport generates the energy and reductant required for carbon fixation (Hughes et al., 2018a). As such, FRRf-derived electron turnover rates can theoretically be used to quantify Chl-a specific rates of primary productivity (PChl). From our FRRf data, we retrieved PChl values that ranged from 7.8 to 21.1 mgC mg Chl-a–1 h–1 with an average of 11.9 mgC mg Chl-a–1 h–1 (Table 5) and found that on average the NWP region was slightly more productive than the NIO-SL region. Notably, the station exhibiting the highest PChl (K13) also had the highest PSII maximum photochemical efficiency (i.e., Fv/Fm) and the lowest values of non-photochemical quenching (NPQNSV). In contrast, the lowest PChl value recorded (station DM2-2) was accompanied by the lowest Fv/Fm and highest NPQNSVvalues. This observation further suggests that Fe is a main limiting factor for photosynthetic activity (and thus overall productivity) of Trichodesmium (Carpenter et al., 2004; Küpper et al., 2008; Rochelle-Newall et al., 2014).
Our reported range of PChl is somewhat larger than previously reported rates of in-situ productivity in the Pacific Ocean, which ranged from 0.2 to 7.6, mgC mg Chl-a–1 h–1, with an average of 3.3 mgC mg Chl-a–1 h–1 (see Masotti et al., 2007). Whether this discrepancy reflects true differences in productivity between regions/studies or inherent uncertainties in scaling ETR to carbon-based photosynthetic rates is unclear. Deriving PChl from FRRf data requires estimates of both (i) the number of PSII reaction centers per Chl-a (nPSII) and (ii) the proportion of photosynthetic electrons invested into C fixation (the so-called electron requirement for carbon fixation, Φe,C) (Suggett et al., 2010; Oxborough et al., 2012; Lawrenz et al., 2013). Here, we used an estimated value for nPSII of 0.027 as reported for Trichodesmium by Richier et al. (2012), a value which is an order of magnitude greater than typically assumed for cyanobacteria (0.003 RCII per Chl-a; Kolber and Falkowski, 1993). Use of an assumed nPSII value is common in FRRf-based studies due to the complexity of directly measuring PSII content requiring use of oxygen flash yields which are often impractical to perform during field campaigns (Lawrenz et al., 2013). Laboratory studies have shown that nPSII may exhibit physiological plasticity within and between phytoplankton taxa, and as such, our use of an assumed value likely introduces a degree of uncertainty in our PChl values.
Since light intensities were relatively similar across sampling locations at the time of sampling, PChl variability was largely determined by ETR rather than e,C for our dataset (r2 = 0.95, p < 0.01). As such, at face value it seems unlikely our calculated Φe,C could contribute significantly to possible overestimation of PChl values. Daily variation in the ETR-light curve of Trichodesmium can also affect the estimation of PChl (Schuback et al., 2016)—although in this study, instantaneous PAR was lower than saturating light intensity (EK), and thus variation of PChl was largely explained by αETR rather than . However, it is also important to consider that the diazotrophic status of Trichodesmium spp. may complicate the estimation of Φe,C – a parameter that effectively sums the net distribution of photosynthetic electrons between C-fixing and non-C-fixing pathways (Hughes et al., 2018a). Fixing atmospheric N2 is energetically expensive, costing a minimum of 5 e– plus and 16 mol ATP per mol N2-fixed (Boatman et al., 2018b). The additional e– flow and ATP needed for assimilating N2 inevitably diverts electrons away from C fixation and consequently leads to increased Φe,C (Hughes et al., 2018a). In this study, we did, however, calculate Φe,C using an algorithm derived from Trichodesmium grown with N2 as the sole N source (see Boatman et al., 2018b) and thus have likely inherently accounted for such increased redirection of electrons/ATP away from C fixation. Critically, however, the temporal separation between N2 fixation and photosynthesis has previously been observed for Trichodesmium in the field (Berman-Frank et al., 2001), and thus it is likely that Φe,C exhibits variability over the photoperiod. Consequently, the values for PChl reported here should be interpreted with care considering the magnitude of N fixation was not simultaneously quantified. Future efforts to derive PChl for Trichodesmium using FRRf would benefit from parallel measurement of ETR and C fixation (e.g., Hughes et al., 2020) but also quantification of N2-fixation activity in order to better understand separate biological and methodological influence on observed PChl variability.
Concluding Remarks
Trichodesmium is a major contributor to marine N2 fixation, providing bioavailable N for primary production (Richier et al., 2012). While FRRf potentially provides a novel capability to non-invasively probe the photosynthetic activity of Trichodesmium, a major current constraint against widespread application is whether and how applicable this approach is for this and other phytoplankton taxa and/or under certain specific physiological conditions, such as iron limitation (Hughes et al., 2018a). Utilizing multi-wavelength FRRf, we successfully investigated natural Trichodesmium populations in NWP and North Indian Ocean, highlighting a possible role for Fe availability on Trichodesmium regional photobiological characteristics. Our findings further highlight that FRRf instruments equipped with blue LEDs only fail to adequately drive PSII reaction center closure in Trichodesmium samples, resulting in underestimation of Fv/Fm, σPSII, and ETRs (e.g., Raateoja et al., 2004).
We further applied an algorithm to estimate primary productivity of Trichodesmium from FRRf-derived fluorescence parameters. Importantly, however, accurate retrieval of carbon fixation rates for Trichodesmium populations from FRRf data will likely depend on improved knowledge of how nPSII and e,C vary within and between major Trichodesmium clades, and how diel variability of photophysiology affect primary productivity over daily scales (e.g., Berman-Frank et al., 2001).
Data Availability Statement
The original contributions presented in the study are included in the article/Supplementary Material, further inquiries can be directed to the corresponding author/s.
Author Contributions
YZ collected the samples, analyzed the FRRf data, developed the method in this study, and wrote the first draft of this manuscript. YF and ZW helped to collect Trichodesmium samples in the NWP and Chl-a measurements. TB and DH were responsible for the partial FRRf calculation, data analyses, and manuscript revision. QH, RZ, and QM made the contribution on results interpretation and manuscript writing. MW contributed to the FRRf in field measurements and manuscript revision. YF and ZJ assisted with taxonomic identification of Trichodesmium samples. ZJ and LS were also responsible for interpreting nutrient and phytoplankton community results. PD and WP contributed to the FRRf in situ measurements and Trichodesmium sample collection in the NIO-SL. JZ and FC developed the research design and made the contribution on manuscript revision. All authors contributed to the article and approved the submitted version.
Funding
This work was supported by the Project of State Key Laboratory of Satellite Ocean Environment Dynamics (SOEDZZ1905), the Scientific Research Fund of the Second Institute of Oceanography, MNR (JG2012), and the National Programme on Global Change and Air-Sea Interaction (II)—Joint Advanced Marine and Ecological Studies (JAMES), and were partially supported by the Zhejiang Provincial Public Welfare Technology Application Research Program of China under (Grant No. LGF21D060001) and Zhejiang Provincial Natural Science Founds for Distinguished Young Scientists under (Grant No. LR22D060001). Funding from the National Natural Science Foundation of China (#41676160 to YF, #41890801 to RZ, #42076134, #41876198 to ZJ, and #41730536 to FC) was acknowledged.
Conflict of Interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Publisher’s Note
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
Acknowledgments
We thank the captain, crew, technicians, and scientists onboard the R/V Tan Kah Kee (cruise KK1903) and R/V Xiangyanghong-6 (cruise JAMES). Y. Cai, K. Zhou, C. Trick, F. Xu, J. Wu, Q. Liu, and L. Ye are thanked for assistance and discussion. Y. Deng and L. Tian are thanked for laboratory assistance. S. Wang is thanked for measuring and analyzing the absorption spectra of Trichodesmium. L. Wang is thanked for analyzing the nutrient concentrations.
Supplementary Material
The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fmicb.2022.813573/full#supplementary-material
