The Genome of “Candidatus Liberibacter asiaticus” Is Highly Transcribed When Infecting the Gut of Diaphorina citri

The Asian citrus psyllid, Diaphorina citri, is the vector of the bacterium “Candidatus Liberibacter asiaticus” (Las), associated with the devastating, worldwide citrus disease huanglongbing. In order to explore the molecular interactions of this bacterium with D. citri during the vector acquisition process, cDNA libraries were sequenced on an Illumina platform, obtained from the gut of adult psyllids confined in healthy (H) and in Las-infected young shoots (Las) for different periods of times (I = 1/2 days, II = 3/4 days, and III = 5/6 days). In each sampling time, three biological replicates were collected, containing 100 guts each, totaling 18 libraries depleted in ribosomal RNA. Reads were quality-filtered and mapped against the Chinese JXGC Las strain and the Floridian strain UF506 for the analysis of the activity of Las genome and SC1, SC2, and type 3 (P-JXGC-3) prophages of the studied Las strain. Gene activity was considered only if reads of at least two replicates for each acquisition access period mapped against the selected genomes, which resulted in coverages of 44.4, 79.9, and 94.5% of the JXGC predicted coding sequences in Las I, Las II, and Las III, respectively. These genes indicate an active metabolism and increased expression according to the feeding time in the following functional categories: energy production, amino acid metabolism, signal translation, cell wall, and replication and repair of genetic material. Pilins were among the most highly expressed genes regardless of the acquisition time, while only a few genes from cluster I of flagella were not expressed. Furthermore, the prophage region had a greater coverage of reads for SC1 and P-JXGC-3 prophages and low coverage in SC2 and no indication of activity for the lysis cycle. This research presents the first descriptive analysis of Las transcriptome in the initial steps of the D. citri gut colonization, where 95% of Las genes were active.

Introduction

“Candidatus Liberibacter asiaticus” (Las), a Gram-negative bacterium belonging to the α-proteobacteria group (Garnier et al., 1984; Jagoueix et al., 1994), is the main agent associated with huanglongbing (HLB) (Bassanezi et al., 2020). The Las vector insect is the Asian citrus psyllid (ACP) Diaphorina citri Kuwayama (Hemiptera: Psyllidae) (Capoor et al., 1967; Canale et al., 2017) that frequently acquires Las in areas surrounding healthy commercial groves, with the consequent psyllid dispersion causing primary infections (Bergamin Filho et al., 2016) resulting in economic loss due to impacted production (Bassanezi et al., 2020). Owing to the importance of the disease and because there are no curative methods to control HLB, the bacterium and the psyllid are considered to be the main pests in citriculture worldwide (Miranda and Ayres, 2020).

The psyllid may acquire Las from symptomatic plants (Hung et al., 2004; Pelz-Stelinski et al., 2010; Canale et al., 2017; Lopes and Cifuentes-Arenas, 2021) as well as from asymptomatic citrus plants (Lee et al., 2015). Las transmission by psyllids requires a latent period of 16 to 18 days (Canale et al., 2017) and its relationship with the psyllid is persistent and propagative (Hung et al., 2004; Inoue et al., 2009; Ammar et al., 2011a; Canale et al., 2017). The acquisition of bacteria by the psyllid has direct implication on its transmission efficiency and consequently on its dissemination (Inoue et al., 2009; Pelz-Stelinski et al., 2010; Canale et al., 2017). The gut represents the first cell barrier that the Liberibacter needs to cross inside the psyllid before accessing the hemolymph to migrate and infect salivary glands, from where it will be inoculated into plants. Gene expression studies showed a pattern of response in the gut and salivary glands of D. citri to Las infection (Kruse et al., 2017; Liu et al., 2020). There are exploratory studies that report transcriptional modifications in plants due to the presence of Las in Catharanthus roseus (Liu et al., 2019) and in leaves (Fu et al., 2016; Hu et al., 2017) and fruits of Citrus spp. (Martinelli et al., 2012).

The transcriptional analysis of Las is more commonly assessed via RT-qPCR in psyllids and in citrus, with modifications in the expression of genes related to the regulation of transcription, transport, secretion, flagellar assembly, metabolic pathways, and resistance to stress, by the assessment of a group of selected genes (Yan et al., 2013; Prasad et al., 2016; Thapa et al., 2020) or associated with functional studies (Fleites et al., 2014; Jain et al., 2015; Li et al., 2017). Sequencing of cDNA libraries via RNA-Seq has been an important tool in studies of transcriptional modification in bacteria (Croucher and Thomson, 2010; Haas et al., 2012; Creecy and Conway, 2015). Transcriptome analysis of Las genome in citrus and dodder has shown a high correlation in gene expression in both hosts, expected since dodder was parasitizing citrus, and in both hosts, Las encounters similar nutrients and micro-environmental conditions (Li et al., 2021). A predicted model of metabolite usage was created for Liberibacter crescens growing in culture media and for Las in plant and psyllid hosts, using RNA-seq data (Zuñiga et al., 2020). A transcriptome analysis of Bactericera cockerelli indicated a high percentage of “Ca. L. solanacearum” (Lso) expressed genes, particularly of putative genes involved in translation and in post-translation modification, protein turnover, and chaperone functions (Ibanez et al., 2014). Here, “Ca. L. asiaticus” had 95% of genes mapped with reads in the D. citri gut, with pilins, flagella, translation, and cell wall biogenesis genes with marked expression. The Las prophage genes, with their high diversity in Las populations, were mapped mostly to SC1 and type 3 prophages, in both late and early genes, without indication of an active lytic cycle. The transcriptional mapping analysis of Las genes in the gut of D. citri that fed in Las-infected citrus was performed in this study, evidencing the expression of almost all genes of Las as a manner to generate knowledge in the initial phase of the Las infection in the psyllid.

Materials and Methods

Obtention of Samples

The stock colony of Las-free D. citri was maintained in cages in Murraya paniculata L. (Jack) plants, as described by Carmo-Souza et al. (2020). Adults from 7 to 10 days were selected for the Las acquisition step.

Nursery plants of sweet orange [Citrus × sinensis (L.) Osbeck grafted on “Rangpur” lime (C. × limonia Osbeck)] were maintained in 4-L bags in a greenhouse and grown in decomposed pine bark substrate (Plantmax citrus, Eucatex, Paulínia, SP, Brazil). Las infection was confirmed by qPCR (Li et al., 2006), and plants presented symptoms of blotchy mottle. Healthy plants of the same age and under similar growing conditions were used as negative control. The Las isolate employed in this study had a profile of SSR markers and prophages identical to Las 9PA isolate (Silva et al., 2019, 2021).

Plants underwent drastic pruning and were maintained under controlled conditions of temperature of 26°C ± 2°C, relative humidity of 70%, and photoperiod of 14/10 h of light/dark for shoot development and experimentation. Adult psyllids were confined and kept on citrus shoots at the vegetative stage V2/V3 of both healthy and Las-infected sweet orange plants (Cifuentes-Arenas et al., 2018; Lopes and Cifuentes-Arenas, 2021). Prior to the confinement of the insects, shoots were sampled to confirm the presence of Las (Li et al., 2006).

Dissection of psyllids for gut sampling was carried out after different acquisition access periods of 24, 48, 72, 96, 120, and 144 h, equivalent to 1- to 6-day intervals of acquisition. Psyllids from each period were removed from plants and dissected in 70% ethanol with 1% diethyl pyrocarbonate (DEPC) with the aid of a needle under stereoscopic microscope. Three repetitions were performed for each acquisition period in healthy or infected plants, each comprising 100 guts. Guts were immediately transferred to 100 μl of RNA Later (Invitrogen/ThermoFisher Scientific, Waltham, MA, United States, EUA) in ice and then immediately stored at −80°C.

Extraction of Total RNA From Psyllid Gut Samples, Detection of the Presence of “Candidatus Liberibacter asiaticus,” and Treatment With DNase

Extraction of total RNA from dissected psyllid gut samples was performed using the SV RNA Isolation System (Promega, Madison, WI, United States) kit. Samples were resuspended in 30 μl of nuclease-free water and were assessed by spectrophotometry in NanoDrop V 3.8.1 (ThermoFisher Scientific) in relation to total RNA concentration.

The detection of the presence of Las was carried out prior to treating RNA samples with DNase by qPCR (Li et al., 2006), monitoring the presence of Las 16S rDNA (Table 1) and of the wingless gene (Table 1) for D. citri DNA (Manjunath et al., 2008) using hydrolysis probes (PathID qPCR Master Mix, Ambion/ThermoFisher Scientific; Primers and probes by Macrogen, Seoul, South Korea). The target sequence threshold was manually adjusted in the StepOnePlus software version 2.3 (ThermoFisher Scientific). The qPCR was carried out in duplicate and samples were considered positive for the presence of Las when Ct values were equal to or lower than 35.0 and negative when greater than that value. The presence of D. citri DNA produces Ct values equal to or lower than 36.0. Psyllid DNA samples with and without Las were used as positive and negative controls, respectively, besides water control (non-template control).

TABLE 1

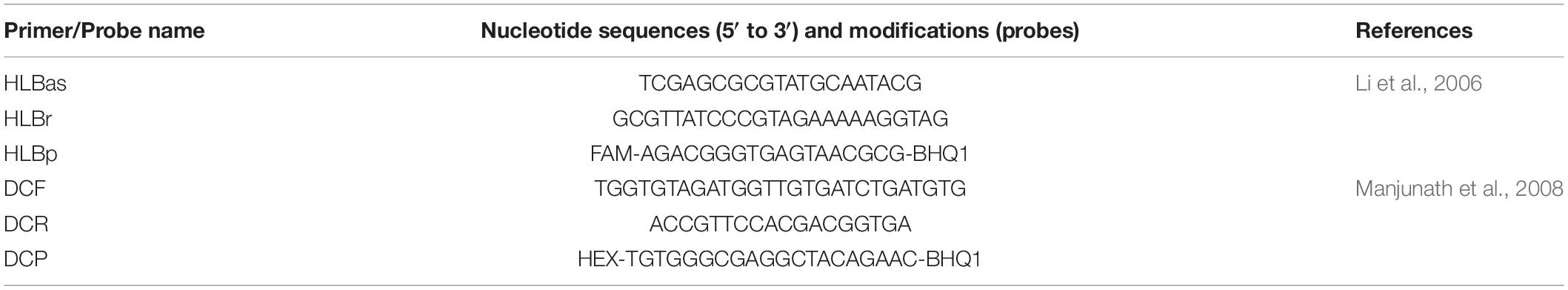

Table 1. Primers and probes to detect 16SrDNA from “Candidatus Liberibacter asiaticus” and wingless gene from Diaphorina citri using qPCR.

Selected total RNA samples were treated with Turbo^TM DNase (2 U/μl) (Ambion/ThermoFisher Scientific). The confirmation of the DNase action to cleave residual DNA was validated by qPCR with the wingless gene for D. citri (Manjunath et al., 2008).

Enrichment of mRNA in Samples and Quality Assessment for Sequencing

At this step, samples were grouped into pools: H = Healthy citrus or Las = Las-infected citrus sources. H I and Las I = 1 and 2 days of feeding on citrus; H II and Las II = 3 and 4 days; H III and Las III = 5 and 6 days. Each period and source had three biological repetitions. Next, samples were subjected to mRNA enrichment with the Ribo-Zero Gold rRNA Removal Kit (Illumina, San Diego, CA, United States). Two microliters of each sample was used to determine mRNA concentration and quality in the Synergy Multi-Detection reader (Biotec Synergy Winooski, EUA; software Gen5). Samples with total mRNA concentrations between 80 and 200 ng were used for metatranscriptome sequencing.

cDNA Sequencing via Illumina Platform

Samples enriched in mRNA were subjected to the cDNA library preparation protocol TruSeq RNA Library Prep Kit (Illumina), according to the paired-end (2 × 100 bp) strategy that consists in fragmenting the mRNA-enriched RNA into sequences of 200 nucleotides, followed by binding with random primers for reverse transcription and building of cDNA libraries. The cDNA was synthesized and purified through magnetic beads and washings with ethanol. Next, ends were repaired and adenosines were added to the 3′ ends of each fragment. Then, adaptors were connected and samples were subjected to PCR amplification. Sequencing of cDNA libraries was carried out on the Illumina HiScanSQ platform (Illumina), at the Centro Multiusuário de Biotecnologia Agrícola of the Departamento de Zootecnia at ESALQ/USP (Piracicaba, SP, Brazil). Readings were obtained from triplicates of the six treatments, for periods I, II, and III for healthy and Las-infected adults, totaling 18 libraries.

Sequencing Analysis and Transcriptome Assembly

Readings obtained from sequencing cDNA libraries were analyzed with the FastQC software (Andrews, 2010) for quality assurance. Remaining adaptors were removed and sequences were trimmed according to the SLIDINGWINDOW 4:22 parameter for the start (LEADING:3) and end (LEADING:3) of readings, which determined the minimum quality score (22) for each group of four nucleotides analyzed in the Trimmomatic 0.36 software (Bolger et al., 2014). Sequences below 25 nucleotides were excluded.

The analysis of Las transcripts abundance in the ACP gut was carried out by counting the number of fragments per kilobase million (FPKM) through the calculation of log2(FPKM) of the reads present in at least two out of the three sequenced libraries for each of the acquisition access periods (Las I, Las II, and Las III). Las strain JXGC (NZ_CP019958; Zheng et al., 2018) was the reference for mapping and counting of reads in Las genome and consequently for determining the transcribed genes. The draft genome of Las strain 9PA from Brazil was not used due to the presence of several gaps in the genome assembly (Silva et al., 2021). Reads mapped to ribosomal RNA, pseudogenes, and tRNAs were disregarded, the latter due to their size. Additionally, in the analysis of SC1 and SC2 prophages, the sequence of the strain Las UF506 (HQ377374.1; Zhang et al., 2011) and that of prophage type 3 (P-JXGC-3) of Las JXGC (KY661963) were used. Those analyses employed the following parameters: mismatches cost: 2; insertion cost: 3; deletion cost: 3; length fraction: 0.8; similarity fraction: 0.8; strand specific: both; maximum number of hits for a read: 2, and were carried out in the CLC Genomics v. 21.0 software (Qiagen, Hilden, Germany).

The functional annotation of transcripts (Cluster of Orthologous Groups of proteins—COGs), generated through mapping genes of Las, was carried out (Tatusov et al., 2000). Three reference genomes were used, of which two were α-proteobacteria: “Ca. L. solanacearum” (strain CLso-ZC1), Rhizobium leguminosarum bv. viciae (strain 3841), and Escherichia coli (O157:H7 strain Sakai). Graphs were plotted with GraphPad Prism version 8.0.0 (Windows GraphPad Software, San Diego, CA, United States) and the Venn diagram was plotted using “Draw Venn Diagram”¹.

Results

Presence of “Candidatus Liberibacter asiaticus” in Gut Samples of Psyllid D. citri

The qPCR analysis of citrus shoots used as food by psyllids confirmed the presence of Las exclusively in infected plants, with an average cycle threshold (Ct) of 20.7 (standard error ± 3.4). The presence of the psyllid DNA was detected in all gut RNA samples, with an average Ct for the D. citri wingless gene of 30.7 (Table 2), corroborating the need for treatment with DNase before cDNA synthesis. The DNA presence, however, enabled the monitoring of the Las DNA presence by qPCR as a way to validate the presence of the bacterium in the dissected guts of D. citri before transcriptome analysis. The presence of Las was detected only in RNA samples from guts of insects that fed on shoots of Las-infected plants (Table 2). In the Las I and Las II libraries, the mean Ct-value for the Las gene 16S rRNA was 30.6 and 30.8, respectively, whereas in Las III libraries, the Ct-value was 27.3. For gut samples of psyllids confined in healthy plants (libraries H I, II, and III), Las DNA was not detected.

TABLE 2

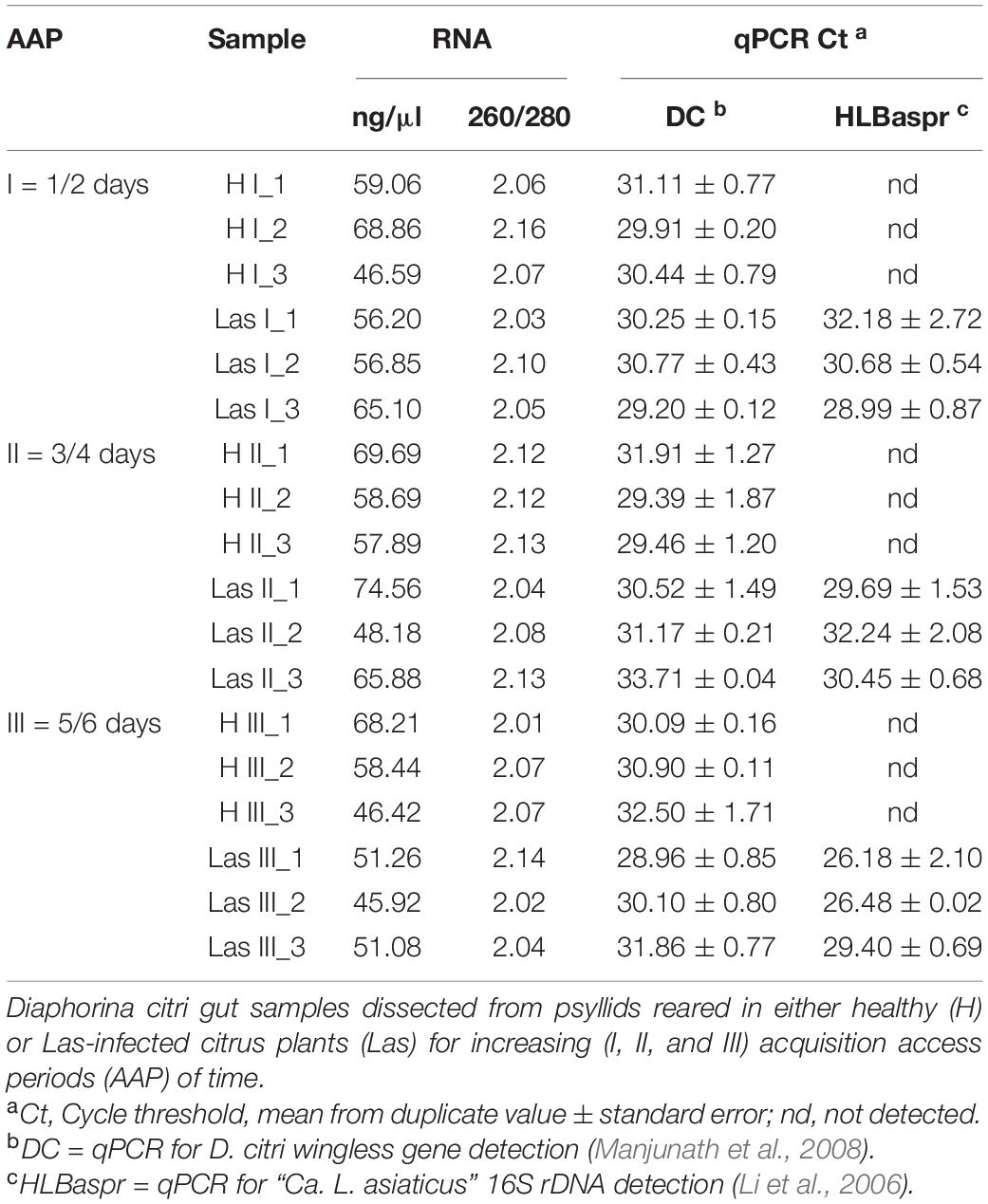

Table 2. Spectrophotometrically measured RNA concentration (ng/μl) and quality (260/280) and detection of Diaphorina citri (DC) and “Candidatus Liberibacter asiaticus” (Las) (HLBaspr) DNA by qPCR in RNA samples prepared from D. citri gut, prior to DNase treatment and library setup.

Mapping of Reads of “Candidatus Liberibacter asiaticus”

The average percentage of mapped reads in the “Ca. L. asiaticus” genome in healthy samples (H I, II, and III) was 0.01, 0.00, and 0.02, respectively, whereas that percentage in libraries set up from guts of psyllids that fed on Las, Las I, II, and III-infected plants was 0.07, 0.16, and 0.53, respectively (Table 3).

TABLE 3

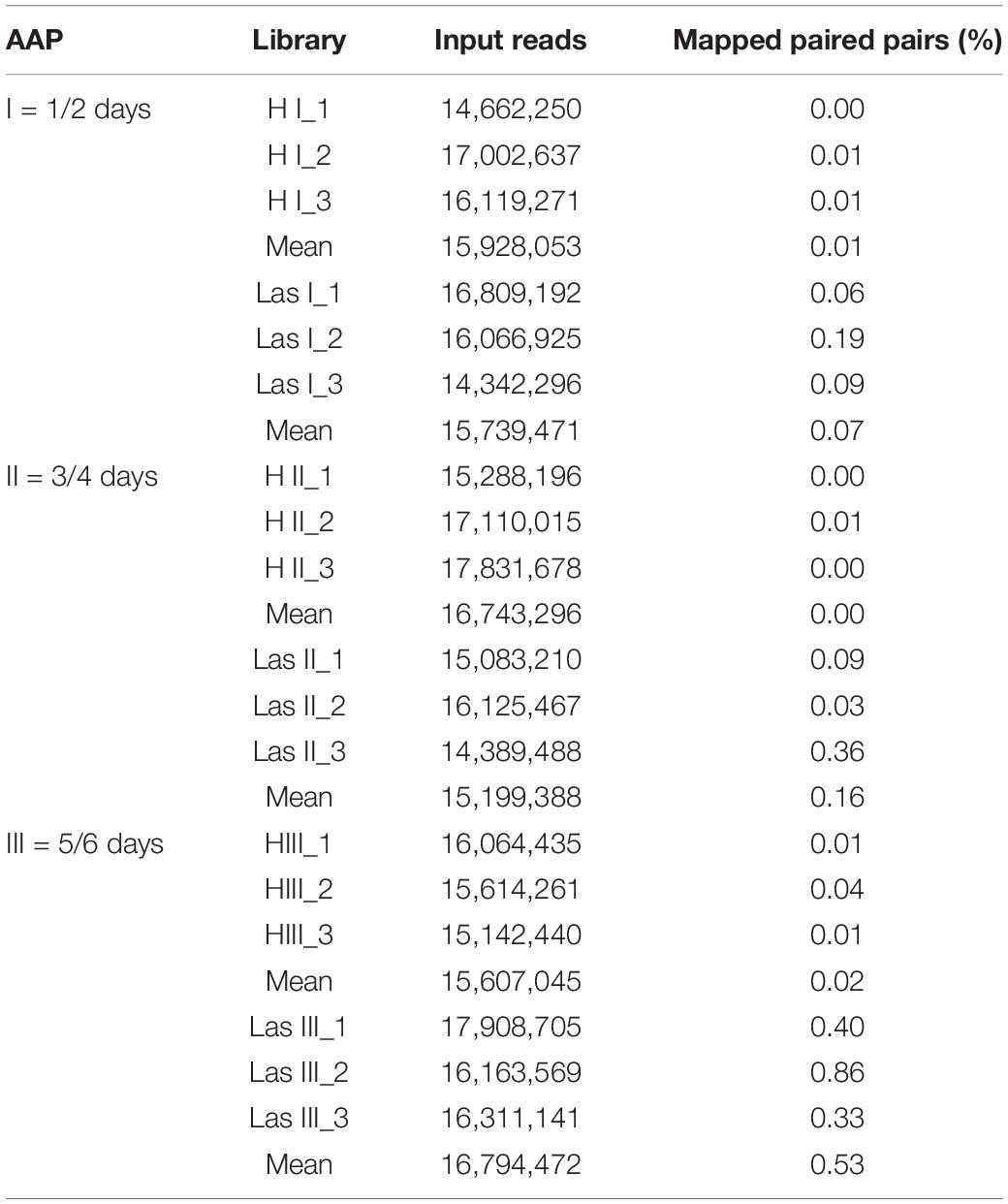

Table 3. Transcript read mapping against “Candidatus Liberibacter asiaticus” (Las) JXGC strain (NZ_CP019958.1) from sequenced libraries prepared with enriched mRNA from Diaphorina citri gut samples, reared either in healthy (H) or in Las infected-citrus shoots (Las), for increasing (I, II, and III) acquisition access periods (AAP).

Reads in Las I libraries mapped against 432 genes of the Las JXGC reference genome, whereas reads in Las II and Las III libraries mapped against 777 and 967 genes, respectively (Figure 1). Out of the genes predicted in the Las JXGC isolate (Zheng et al., 2018), 972 had reads mapped in at least one of the three acquisition access periods (Las I, II, or III) in the gut of psyllids that fed on shoots of Las-infected plants. The transcriptome of all libraries in the three periods assessed corresponds to mapping of 95% of the genes predicted in Las. Out of that total, 406 or 41.8% of mapped genes were shared among libraries from all acquisition periods, whereas 367 genes were mapped only to reads in the Las II and Las III libraries (Figure 1). Reads in the Las I library were the only ones to map against the gene B2I23_RS05235 that codes a YdaU family protein (unknown function with domain DUF1376), showing the specific expression of this gene at the initial stage of the acquisition process. Four other genes (B2I23_RS00005, a prophage helicase; B2I23_RS00270; B2I23_RS02880; and B2I23_RS05570, coding three hypothetical proteins) were mapped only to reads in the Las II library. In the libraries Las III, 169 genes were mapped exclusively in this stage, with COG distribution equivalent to the whole library set. Into that group were 57 hypothetical protein coding genes, two of the three full-length β-subunits of ribonucleotide reductase (RNR) (B2I23_RS03685 and B2I23_RS04305), and 12 genes from the flagellar clusters (Supplementary Table 1). Only 51 of the genes predicted in the Las strain JXGC had no mapped reads in the transcriptome of the gut of infected adult psyllids, showing that these genes are not expressed in the vector gut during the infection process. These comprise two genes coding for the short forms of the β-subunit of RNR B2I23_RS00035 and B2I23_RS04515, one containing the VRR-NUC (B2I23_RS05600) domain, two containing the DUF59 domain (B2I23_RS01860 and B2I23_RS03885), one containing the DUF2815 domain (B2I23_RS05410), one ATPase (B2I23_RS02840), one nuclease (B2I23_RS05420), one primase (B2I23_RS05400), and 35 genes that code hypothetical proteins (Supplementary Table 2).

FIGURE 1

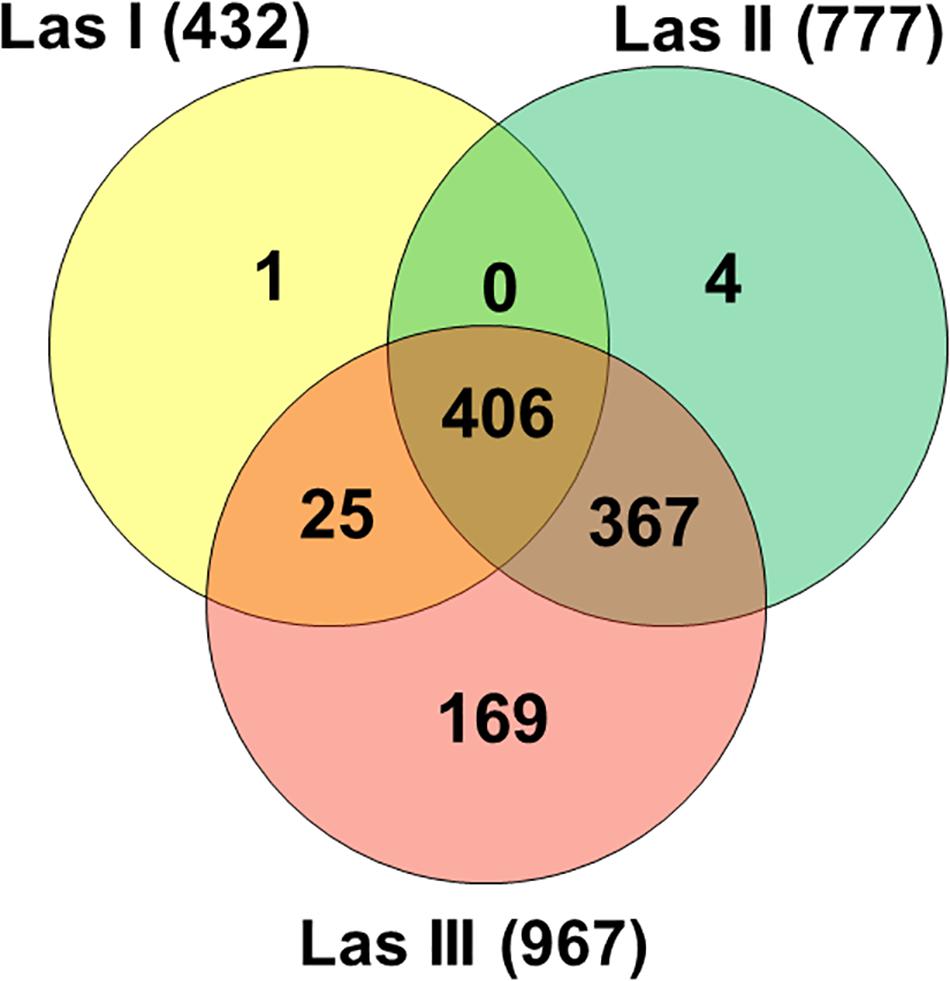

Figure 1. Venn diagram of “Candidatus Liberibacter asiaticus” genes with mapped reads (strain JXGC, NZ_CP019958.1) in Diaphorina citri gut samples after acquisition access periods of 1/2 days (Las I), 3/4 days (Las II), or 5/6 days (Las III).

In the analysis of read abundance for each library and its distribution along the JXGC reference genome, an average of 42.2% of the genes predicted in the genome was obtained for Las I (Figure 2), and in the Las II and Las III libraries, coverage was 76 and 94.5%, respectively (Figure 2). Although the number of genes with mapped reads increased considerably according to the period of time the psyllid remained feeding on the Las-infected plant (Las III > Las II > Las I), the average log2(FPKM) value was slightly reduced from 9.38 in Las I to 8.84 and 8.41 in Las II and Las III, respectively (Figure 2). Only in the Las III library is there a greater number of mapped genes with values higher than the average.

FIGURE 2

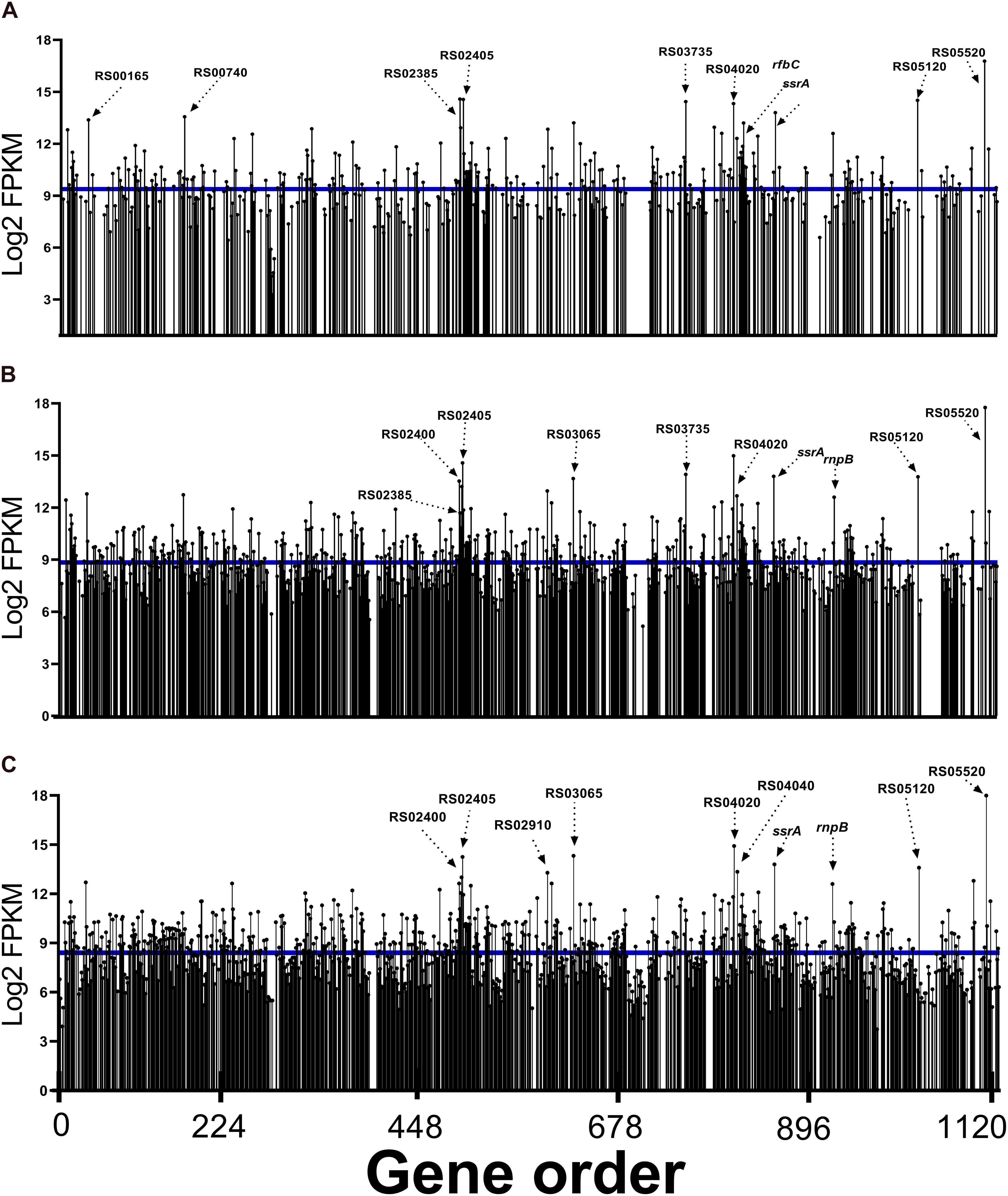

Figure 2. Read abundance mapped to “Candidatus Liberibacter asiaticus” genes (reference strain JXGC, NZ_CP019958.1) expressed in gut samples from Diaphorina citri after acquisition access periods of 1/2 days (Las I) (A), 3/4 days (Las II) (B), or 5/6 days (Las III) (C), mean log2FPKM.

When the top 10 genes with a greater number of reads in each period are analyzed, three are annotated as coding hypothetical proteins: B2I23_RS05520, B2I23_RS05120, and B2I23_RS04020 mapped in all periods (Figure 2).

The transcription of genes flp1 (B2I23_RS02385), flp4 (B2I23_RS02400), and flp5 (B2I23_RS02405) annotated as “Flp family type IVb pilin” was significant in the Las I, II, and III libraries. Besides these three genes, flp2, flp3, and flp7 were also mapped (B2I23_RS02390; RS02395 and RS02410). Reads for B2I23_RS03065, whose annotation is for a membrane protein (“porin family protein”), were also expressive.

Reads for the gene B2I23_RS03735 (“NADH-quinone oxidoreductase subunit C”) were present among the 10 genes with greater representativeness in the Las I and Las II libraries. B2I23_RS04070 (rfbC) that codes the dTDP-4-dehydrorhamnose 3,5-epimerase involved in the synthesis of rhamnose-containing polysaccharides, such as lipopolysaccharides, is highly expressed in Las I. An ATP-dependent Clp protease ATP-binding subunit, clpX (B2I23_RS00740), was mapped in Las I as one of the most expressed genes (Figure 2). Additionally, all genes coding for components of the protease Clp family were expressed in Las III: clpA (B2I23_RS00185), clpS (B2I23_RS00190), endopeptidase La (B2I23_RS00735), clpP (B2I23_RS00745), hslU (B2I23_RS01895), hslV (B2I23_RS01900), lon peptidase (B2I23_RS02370), and clpB (B2I23_RS03845) (Supplementary Table 3).

The other genes mapped with a representative number of reads are involved in ribosome metabolism, such as the transfer-messenger RNA–ssrA (B2I23_RS04260), rnpB–RNAse P (B2I23_RS04605), and ribosomal proteins rpmJ (B2I23_RS00165) and rpsT (B2I23_RS02910) genes. The chaperone gene for the “cold shock domain-containing protein” (B2I23_RS04040) is among the most expressed in Las III.

The classification of genes mapped in the COGs (Tatusov et al., 2000) identified a greater number of genes mapped in the COGs translation (J), replication and repair (L), cell wall/membrane biogenesis (M), energy production (C), and amino acid transport and metabolism (E) (Figure 3).

FIGURE 3

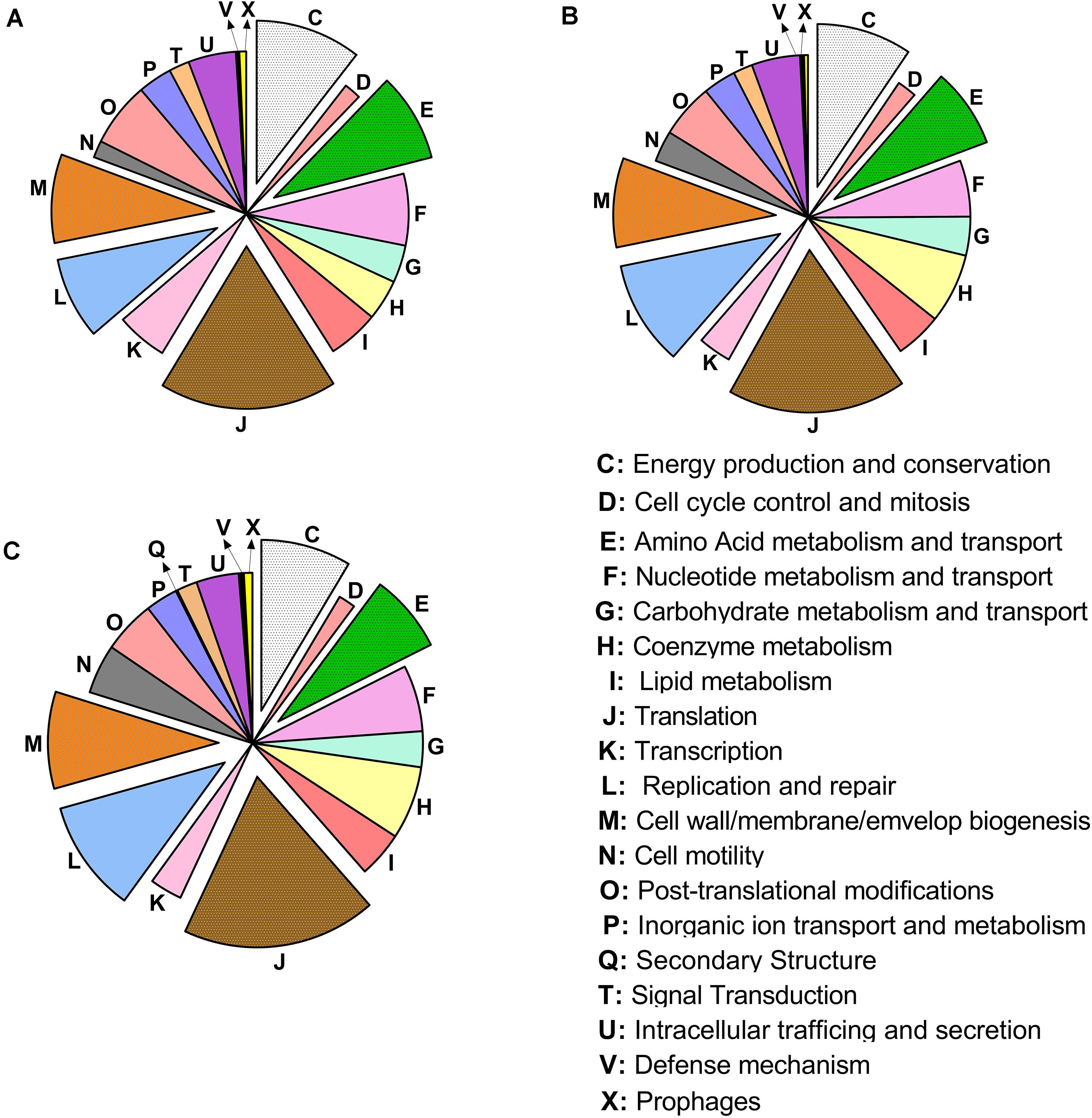

Figure 3. Distribution of the cluster of ortholog groups in “Candidatus Liberibacter asiaticus” (reference strain JXGC, NZ_CP019958.1), measured as mapped reads in Diaphorina citri gut after acquisition access periods of 1/2 days (Las I) (A), 3/4 days (Las II) (B) or 5/6 days (Las III) (C).

When only Las III libraries were analyzed, Clusters I, II, and III that code flagellar proteins (COG N) with average values of log2(FPKM) of 5.53, 6.27, and 6.11, respectively (Figure 4), stand out. The genes motE, flgA, fliE, flgB, and flgC were not mapped (Supplementary Table 1). The sequences predicted for pilins (COG: U) present average values of log2(FPKM) of 12.49, above the average value of Las III. A region with genes for proteins involved in the lipopolysaccharide synthesis (COG: M) presented values of log2(FPKM) of 10.8, also above the average in Las III. The region that includes 21 out of the 54 ribosomal proteins annotated in the Las genome, located in the region 128 kbp to 137 kbp, and others where 14 subunits of NADH-quinone oxidoreductases are annotated in the region 816 kbp to 829 kbp (Figure 4), presented average log2(FPKM) values of 9.0 and 8.4, respectively. The list with FPKM and log2(FPKM) values for all mapped genes from the Las JXGC strain in each library is available as Supplementary Table 3.

FIGURE 4

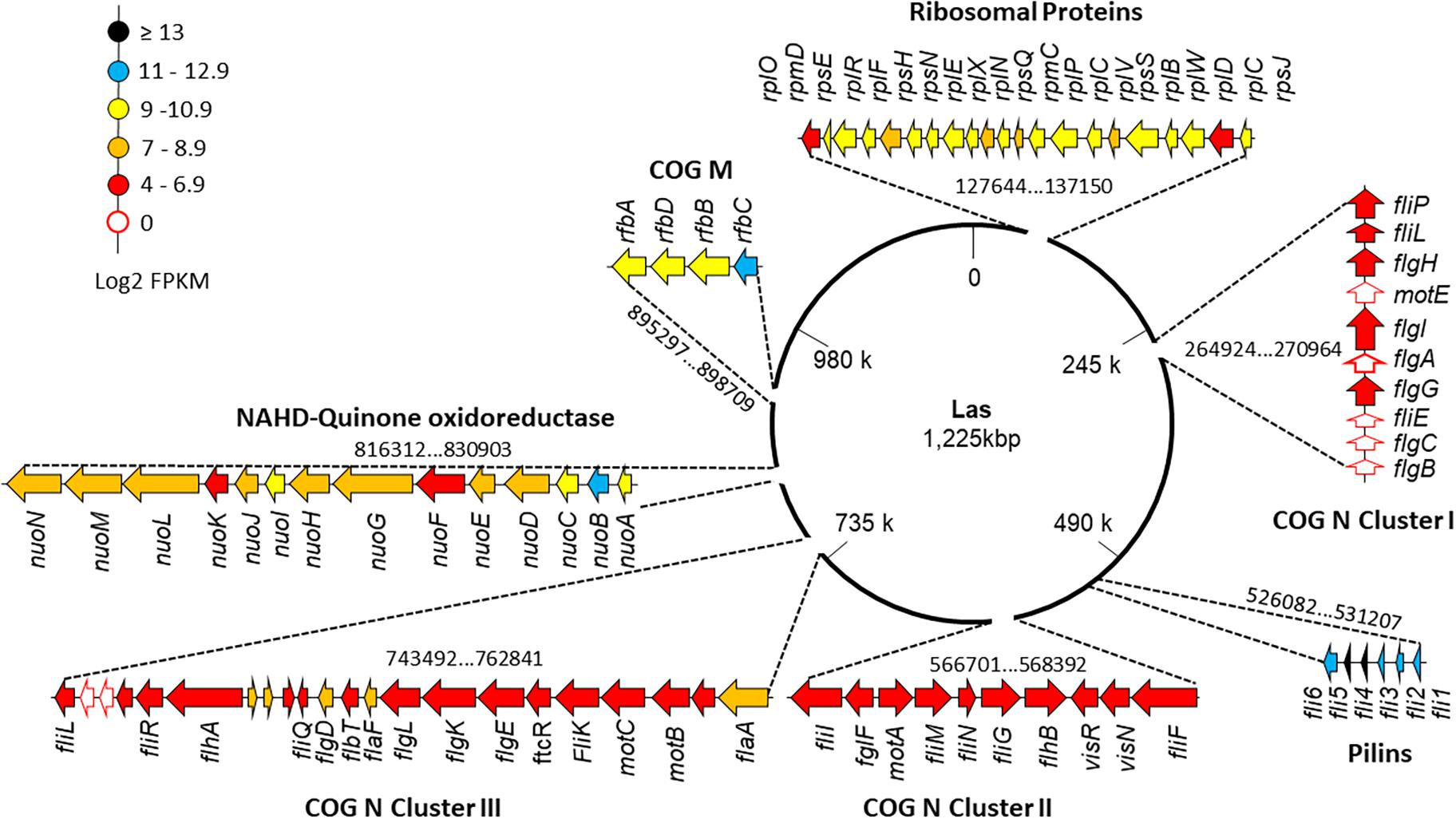

Figure 4. Gene expression level along “Candidatus Liberibacter asiaticus” chromosome of selected clusters of genes. Flagellar clusters (COG N: Clusters I, II, and III), “Flp family type IVb pilins” (COG U), transferases (COG M), ribosomal proteins, and NADH-quinones genes are individually shown and their position in the chromosome is indicated. Read abundance (log2FPKM) taken from Diaphorina citri gut library from the acquisition time 5/6 days (Las III) mapped in strain JXGC (NZ_CP019958.1).

Mapping of Las Prophages SC1, SC2, and P-JXGC-3 in the Gut of D. citri

Reads from Las-infected libraries mapped against the genomes of prophages SC1 (UF506) and type 3 (P-JXGC-3) (Figure 5). In the widely conserved region shared between both prophages, known as early genes and also shared with SC2, the high similarity of gene sequences does not allow for differentiation as to the presence of reads between prophages, except in divergent regions. There were no reads mapped in the SC1/type 3 genes: SC1_gp175/PJXGC_gp25 and SC1_gp185/PJXGC_gp26, both coding hypothetical proteins, and in SC1_gp215/PJXGC_gp32, an endonuclease (VVR-NUC). The other shared genes were mapped, while a few divergent genes were not mapped (Figure 5). The highest number of mapped reads among all libraries was for the hypothetical protein PJXGC_gp17 gene (B2I23_RS05520)/SC1_gp135 (Figure 2).

FIGURE 5

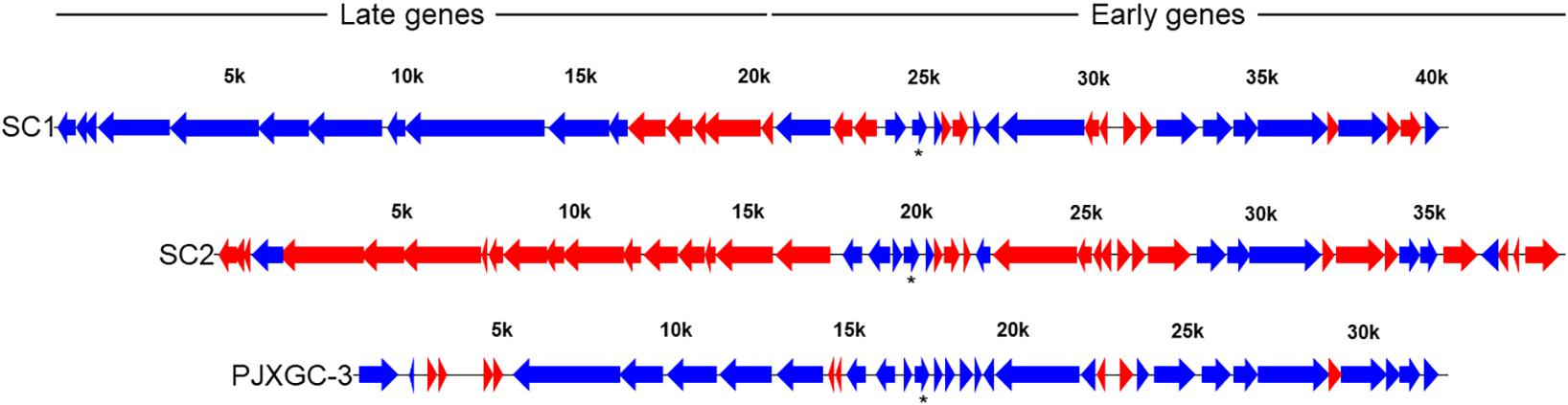

Figure 5. Read mapping against “Candidatus Liberibacter asiaticus” (Las) SC1 (type 1) and SC2 (type 2) prophages from Las UF506 (HQ377374) and P-JXGC-3 (type 3) prophage from Las JXGC (KY661963). Blue arrows indicate genes mapped in at least two libraries while red arrows had no reads mapped. Asterisk is the Las genes with the highest number of mapped reads. Expression level taken from Diaphorina citri gut library from the acquisition time 5/6 days of rearing in Las-infected citrus (Las III).

In prophage late region, read coverage was 68.75% in the SC1 genes and 60% in P-JXGC-3 (Figure 5). In the prophage SC1, the following genes had reads mapped (genes without indication are hypothetical proteins): SC1_gp005, SC1_gp010, SC1_gp015, SC1_gp025 (tail fiber protein), SC1_gp030, SC1_gp035 (endolysin), SC1_gp045, SC1_gp050, SC1_gp060 (colicin IA), SC1_gp080, and SC1_gp085 (major tail subunit). The following genes were not mapped: SC1_gp090 (major capsid protein), SC1_gp095, SC1_gp100, SC1_gp105 (head-to-tail joining protein), and SC1_gp110 (holin). In P-JXGC-3, only the genes PJXGC_gp01, PJXGC_gp02, and PJXGC_gp07 to PJXGC_gp10 that code subunits R and S of the deoxyribonuclease type I site-specific (HsdR) and two subunits of the SAM-dependent DNA methyltransferase, respectively, were mapped. From the SC2 prophage, only SC2_gp020 was exclusively mapped.

Discussion

Diaphorina citri acquires Las during feeding on infected plants (Hung et al., 2004; Inoue et al., 2009; Pelz-Stelinski et al., 2010), while transovarial transmission of Las to vector offspring is reported as low or absent (Hung et al., 2004; Pelz-Stelinski et al., 2010). The obtention of D. citri gut samples with Las requires manipulation of individuals to dissect them while keeping not only the integrity of the organ but also the quality and amount of mRNA necessary, in particular from the bacterium, to reveal genes whose transcription does occur in the psyllid gut. D. citri feeding on young citrus flushes infected by Las, under proper environmental conditions as those used in this study, generates high rates of infective psyllids, also able to transmit Las at high rates as a consequence of the high bacterial titer in the psyllid (Lopes and Cifuentes-Arenas, 2021). Psyllids that fed on Las-infected citrus shoots for a period of 5 to 6 days had 10 times more Las in their guts than those that fed for shorter periods of up to 4 days. The employed methodology enabled us to assess the Las transcriptome in the gut lumen and in association with gut epithelium from D. citri. Meanwhile, lower Ct-values for Las 16SrDNA were observed for the longer feeding time and higher Las read mapping was found in those libraries (Las III > Las II > Las I). For the longer feeding time (Las III, of 5 and 6 days) assessed in Las-infected plants, 0.53% of total reads mapped against Las reference genome JXGC. This value falls in the range observed by other authors, such as the mapping of 0.50% of transcriptome reads of the whole body of B. cockerelli against the Lso genome (Ibanez et al., 2014). Transcriptome analysis of Las was comparatively carried out in citrus and in dodder, with read mapping ranging from 0.11% to 1.44%, respectively (Li et al., 2021), while in adventitious citrus roots in culture media and in alimentary canals of D. citri, 0.28% to 2.51% of reads mapped to Las genome (Zuñiga et al., 2020). In contrast, only 0.01% of reads obtained from infected grapevine mapped against the flavescence dorée phytoplasma (Abbà et al., 2014). Las DNA detection in relation to host DNA is higher in psyllids than in citrus (Selvaraj et al., 2018), and this favors the obtention of Las nucleic acid from psyllids for metagenomic (Duan et al., 2009; Lin et al., 2013) and metatranscriptomic (Zuñiga et al., 2020) analysis.

The gut represents the first cell barrier that Las has to cross to systemically infect the psyllid body (Ammar et al., 2011a) and Las achieves high titer in this organ (Ammar et al.,2011a,b; Ghanim et al., 2017), though most of psyllid organs become infected (Ammar et al.,2011a,b). The transmission efficiency of Las by psyllids is related to the ability of the bacteria to multiply in the psyllid body (Ukuda-Hosokawa et al., 2015), as well as their ability to cross internal barriers in the ACP body, particularly the psyllid gut, hemolymph, and salivary glands (Ammar et al.,2011a,b; Ammar et al., 2016; Cicero et al., 2017; Ghanim et al., 2017). In this regard, the transcriptional status of Las in the gut is critical for psyllid infection and colonization. Reads from psyllids fed on healthy citrus plants (H I, II, and III) have, in addition to hits of psyllids sequences, reads with sequences similar to Las from endosymbiont bacteria, such as in the conserved regions from bacterial ribosomal genes. Depletion of ribosomal RNA prior to library construction allowed mRNA enrichment with the concomitant obtention of a representative number of reads (0.53%) with a Las gene expression coverage of 95%. While part of the reads still mapped to ribosomal genes, as observed in the RNA-Seq of Lso (Ibanez et al., 2014), depletion of such abundant sequences is essential to transcriptomic studies of eukaryote-associated bacteria (Kumar et al., 2015). D. citri has a rich microbial flora, composed of primary syncytium endosymbionts, “Ca. Carsonella ruddi” and “Ca. Profftella armature” (Nakabachi et al., 2013), secondary intracellular symbionts (Subandiyah et al., 2000; Guidolin and Cônsoli, 2013), and a range of extracellular bacteria (Kolora et al., 2015). The gene lysE from Las (B2I23_RS04390) codes for a protein whose function is predicted in amino acid transport and metabolism. That gene was acquired from “Ca. P. armatura” (Nakabachi et al.,2013a,b), indicating not only horizontal gene transference but also similarity between gene sequences from endosymbiotic bacteria with Las in the psyllids. Besides primary endosymbionts, D. citri populations in particular from Brazil have fixed infections by Wolbachia (Guidolin and Cônsoli, 2013; Dossi et al., 2014). Average incidence of Las in D. citri was 65% in São Paulo State/West Minas Gerais State in Brazil (Wulff et al., 2020).

Plant pathogenic Liberibacters infect a range of hosts of economic importance (Garnier et al., 1984; Teixeira et al., 2008; Bové, 2006; Liefting et al., 2008; Munyaneza et al., 2009; Thapa et al., 2020), share features that render their study cumbersome, such as growth restricted to the phloem of infected plants, and are well-adapted to psyllid vectors. The majority of bacteria with reduced genome sizes, as is the case of Liberibacters (Duan et al., 2009; Lin et al., 2011; Wulff et al., 2014; Lin et al., 2015), have lost genes underlying the biosynthesis of compounds readily available from the host, as well as regulatory elements such as sigma factors (Konstantinidis and Tiedje, 2004). Ca. Liberibacter americanus (Lam) is also associated with HLB symptoms and have D. citri as vector, although currently is rare to find in the field (Teixeira et al., 2008; Bassanezi et al., 2020). Genes absent in Lam (Wulff et al., 2014) but found in Las were expressed in the psyllid gut. A relation that can be seen in reduced genomes with adaptive pressure and evolutive process is the loss of redundant and non-functional gene sequences (Mira et al., 2001; Sällsträm and Andersson, 2005), a factor that certainly renders these Liberibacters highly host-dependent for growth. L. crescens is the only Liberibacter available in axenic culture, which makes it suitable to functional studies and growth assays (Leonard et al., 2012; Jain et al., 2015; Jain et al., 2017b; Cruz-Munoz et al., 2019; Zuñiga et al., 2020). In Las strains and other Liberibacters that have their genomes sequenced, type II secretion system, avr and hrp genes, plant cell wall degrading enzymes, and several known virulence determinants also found in other plant pathogenic bacteria are absent (Duan et al., 2009; Lin et al., 2011; Wulff et al., 2014; Lin et al., 2015) but potential Las effectors (Thapa et al., 2020) were expressed in the psyllid gut in our analysis, except for CLIBASIA_04530.

The greater resolution power provided by the transcriptome analysis as compared to RT-qPCR might be used to link diverse cellular processes to gain understanding in active metabolic pathways for Las (Zuñiga et al., 2020). The process of host invasion and colonization by pathogens, leading to multiplication and increased titer, requires gene expression for the synthesis of proteins from housekeeping functions and energy production. A high number of reads mapped to genes coding for ribosomal proteins, NADH-quinone oxidoreductases, and genes for lipopolysaccharides synthesis, collectively indicating metabolic activity of Las during gut infection in D. citri. B2I23_RS03735 codes for subunit C of NADH-quinone oxidoreductase (NuoC). Subunits NuoA to NuoN form the core enzyme of complex I for the bacterial respiratory chain (Spero et al., 2015). The nuoC gene was mapped as one of the most expressed in Las I and Las II, and the 14 genes of the complex I subunits were expressed in Las II and Las III. In most bacterial clades, nuoA to nuoN are expressed as a polycistronic operon (Spero et al., 2015). Yan et al. (2013) assessed the expression of nuoA from this operon and found higher expression in psyllids than in plants. The expression of genes from the complex I by Las during gut colonization indicates that NADH reoxidation maintains the redox state of the cell (Spero et al., 2015).

Overall, 35 genes coding for hypothetical proteins were not mapped in Las in the psyllid gut, whereas 44 genes were not expressed in Lso in the B. cockerelli body (Ibanez et al., 2014). A gene coding for a protein with a VRR-NUC domain was not expressed in either Liberibacter (CKC_RS01050 or B2I23_RS05600). Lack of expression of four out of the five genes preceding the insertion point of the type 3 prophage was observed in Las. Twenty-one of the genes not expressed in psyllid gut were also not expressed in citrus, while only three were not expressed in dodder (Li et al., 2021).

The Clp protease complex degrades unfolded proteins, transcription factors, and phage proteins, besides being involved in regulatory processes (Porankiewicz et al., 1999). The high read mapping to B2I23_RS00740 together with the expression of other genes from the protease complex indicates coordinated expression for proteolysis. B2I23_RS04070 codes for a dTDP-4-dehydrorhamnose 3,5-epimerase (RfbC) that together with RfbABD (Graninger et al., 1999) produces rhamnose containing-polysaccharide, such as those found in Rhizobium spp. (Ghosh and Maiti, 2016). All four genes (rfbABCD, B2I23_RS04070 to B2I23_RS04085) were highly expressed in all time periods, and additional genes for the lipopolysaccharide biosynthesis were gradually expressed from Las I to Las II, with all genes being expressed in Las III, indicating active synthesis of cell envelope components.

Chaperonins such as the cold shock domain-containing protein (B2I23_RS04040) and the hsp20 family protein (B2I23_RS02935) were highly mapped in Las genome in the D. citri gut. Lso in B. cockerelli also had high expression of the gene coding for a cold shock protein (CKC_03300), whose regulation is correlated with pathogenicity factors and adaptation to new environments (Ibanez et al., 2014; Mohamed et al., 2020). GroEL/GroES were expressed in all libraries. Not only the same cold shock domain gene but also chaperonins groEL/groES were among the 20 most expressed genes from Las in citrus (Li et al., 2021).

Six flp family type IVb pilin genes from Las were mapped in the gut libraries. Type IV pili is a virulence factor (Wairuri et al., 2012), and pilins exert a role during interaction with surfaces, notably during superficial adhesion, potentially being involved in biofilm formation. Las flp3 is upregulated in whole psyllid bodies, while visN and visR, two LuxR-type transcriptional regulators, are downregulated (Andrade and Wang, 2019). In contrast to the expression profile observed in whole D. citri bodies, all six pilin genes were highly mapped in the gut, with flp1, flp4, and flp5 among the most mapped genes. Las express four pilins in citrus (Li et al., 2021) and flp1 has the highest number of mapped reads in contrast to that observed in psyllids (Andrade and Wang, 2019). Oppositely, flp4 and flp5 were not expressed in citrus (Li et al., 2021), but were in the psyllid gut. Both visN and visR were mapped in citrus, while in the psyllid gut, the expression of both regulators was only observed in the library Las III. Regulation of flp3 by VisNR might allow Las to switch between forming biofilm and circulative status inside the psyllid hemocoel (Andrade and Wang, 2019). Lso establishes biofilm during gut infection of B. cockerelli (Cicero et al., 2016), and L. crescens forms biofilm in vitro (Naranjo et al., 2019). Whether Las also form biofilm during gut infection is expected but not shown yet.

Las genome codes for three flagellar clusters, even though flagella formation in Las is an open question (Andrade et al., 2019). While at clusters II and III all genes were expressed in Las III, cluster I had five genes not mapped, which might account for the absence of flagella in Las (Andrade et al., 2019), since fliE, flgB, and flgC are not expressed and form the proximal rod together with flgF, which, in turn, was expressed in Las III libraries. Flagella-like structures were found in L. crescens (Andrade et al., 2019) and superficial appendages were found in Lso (Cicero et al., 2016). Andrade et al. (2019) have shown a higher expression level of flagella genes in psyllids than in plants, which is in sharp contrast to what had been observed previously (Yan et al., 2013). The genes motE and flgC were not mapped in citrus also, in addition to fliQ, while flgA, flgB, and fliE had a low expression level (Li et al., 2021), also in agreement with Andrade et al. (2019) and the mapping analysis shown here.

Among the top 10 genes with higher reads mapped, three codes for hypothetical proteins (B2I23_RS04020, B2I23_RS05120, and B2I23_RS05520). In the first genome sequenced from Las, strain psy62, 26% of the coding sequences were annotated as hypothetical proteins (Duan et al., 2009). In the strain Las JXGC, the annotation of hypothetical proteins was reduced to 14% (Zheng et al., 2018), and from this, 72% were located in the genome from 687 kbp to 1219 kbp, a region where the above three hypothetical protein coding genes are located. Also, the P-JXGC-3 prophage is located in that region, whose 64% of genes code for hypothetical proteins, including the most mapped gene B2I23_RS05520. The presence and abundance of reads in genes from the prophage highlight the need to perform functional studies with such genes, as already carried out for some of the Las prophage genes (Fleites et al., 2014; Jain et al., 2015). Prophage presence stood as a hallmark of variation between Las genomes, and indeed the average nucleotide identity for Las isolates is between 99% to 100% (Thapa et al., 2020) except that larger differences among Las strains are located in prophage sequences (Duan et al., 2009; Zhang et al., 2011; Katoh et al., 2014; Zheng et al., 2018), mainly due to the presence or absence of either one of the prophages or parts of them. The lack or the presence of prophages can account for a large fraction of the variation among individuals within a bacterial species (Casjeans, 2003). Prophages in Las were first characterized as SC1 and SC2 (Zhang et al., 2011) and later a third prophage was described (Zheng et al., 2018). There are potential advantages to the prophage-harboring strains during host colonization. Prophages contribute to “Ca. Liberibacter spp.” diversity (Tomimura et al., 2009; Wulff et al., 2014; Jain et al., 2017a), while there is a small proportion of Las strains without prophages (Silva et al., 2019; Zheng et al., 2018, 2021). A higher read mapping was observed in genes from SC1 and P-JXGC-3 prophages and a few mapped to SC2. There are several genes potentially involved in lysogenic conversion in SC2 (Zhang et al., 2011), as well as in plant defense suppression, such as peroxidases coded by SC2_gp095 and SC2_gp100 (Jain et al., 2015). The absence of reads mapping to SC2, at least in the late region that is phage specific, in the current study is in accordance with the absence of a “standard” SC2 in Las strains from Brazil (Silva et al., 2019; Silva et al., 2021), as well as in the Las strain CoFLP1 from Colombia that is a strain from South America with a completely sequenced genome (Wang et al., 2021). Coding sequences for B2I23_RS05520 and B2I23_RS05445 are phage located and among the most mapped genes in Las in the gut of D. citri. While B2I23_RS05445 is exclusive from type 3 prophage, there might be a bias in read mapping for B2I23_RS05520, since this gene has identical copies in SC1 and type 3 prophages, both belonging to the early gene region of high similarity among Las prophages. Both genes were also highly mapped in Las transcriptome from citrus (Li et al., 2021). Genes whose products are involved in phage activity were expressed, such as SC1_gp115 (terminase), SC1_gp195 (exonuclease), SC1_gp210 DNA (polymerase A), and SC1_gp220 (helicase). The absence of reads mapped to SC1_gp090 (major capsid protein) and SC1_gp110 (holin) from Las while in the psyllid gut indicates no production of viral particles. Nevertheless, there is low similarity in the genomic sequence between SC1_gp090 (UF506) and Las strain 9PA (Silva et al., 2021) or the isolate CoFLP (Wang et al., 2021), and even though the Las strain from Brazil is not completely sequenced, the absence of the major capsid protein gene in the strain used is more likely, since neighboring genes are present as is the case of SC1_gp110 (holin) in that strain. The orthologous gene CD16_RS05495 that codes for a major capsid protein from Las strain A4 was expressed in citrus and dodder (Li et al., 2021), in agreement with phage particles being found in periwinkle (Zhang et al., 2011). Read mapping to SC2_gp020 would not be expected if the SC2 prophage is absent in the studied Las strain, but reads were mapped to this exclusive gene. Nonetheless, the presence of only SC2_gp020 from the late region from SC2 might indicate rearrangement among 3′ and 5′ of the SC2 prophage, as observed for the Las strain 9PA, and besides that, genes exclusive to the 5′ of SC2 are also present in Las Brazilian strains (Silva et al., 2019, 2021). The expression of the SC1 prophage late genes was outstanding but not all genes were expressed, indicating specific transcription inhibition in the psyllid, as observed for SC1_gp110 (holin) (Jain et al., 2017a) and adjacent genes.

Read mapping of Las genes indicates a high number of genes being expressed in the initial step of D. citri gut colonization. Such genes should be essential for Las to colonize insect organs, since higher read coverage was observed after longer feeding periods in Las-affected plants. The low percentage of non-expressed genes indicates that the reduced genome of Las is highly active in transcription. Transcriptome studies should help define targets to better understand the interaction of Liberibacter with its hosts and to design strategies to better cope with HLB in the near future.

Data Availability Statement

The data presented in the study is available in the Sequence Read Archive under the accession PRJNA722422 and accession number for each library is provided in Supplementary Table 4.

Author Contributions

FC and NW designed the experiments. JD prepared plants, insects, and samples. BM, FB, and JD processed and analyzed sequencing data. JD and NW interpreted the data and drafted the manuscript. All authors commented on the initial draft and approved the final version of this manuscript. FC, NW, and LP secured the funds.

Funding

Financial support from FAPESP (2015/07011-3) and post-doctoral fellowship to FB (FAPESP 2018/24234-4). Doctorate scholarship to JD from CNPq (141042/2017-6).

Conflict of Interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Acknowledgments

The authors would like to thank Renato de Freitas, Rômulo Y. Carvalho, Abner A. L. Pegoraro, and Odimar Z. Zanardi for providing psyllids and Juan C. Arena-Cifuentes and Sidnei F. Alkimin for their exceptional assistance.

Supplementary Material

The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fmicb.2021.687725/full#supplementary-material

Supplementary Table 1 | The list of exclusive coding sequences mapped only in Las III.

Supplementary Table 2 | The list of genes without mapped reads.

Supplementary Table 3 | The list of coding sequences for each Las library mapped against Las JXGC genome with FPKM values, average and log2FPKM used for analysis.

Supplementary Table 4 | Accession number for each library.
