Jia Zhou1
Timothy R. Cavagnaro1
Roberta De Bei1
Tiffanie M. Nelson2
John R. Stephen1Andrew Metcalfe3
Matthew Gilliham1,4
James Breen5,6,7
Cassandra Collins1,4
Carlos M. Rodríguez López8*- 1School of Agriculture Food & Wine, Waite Research Institute, The University of Adelaide, Adelaide, SA, Australia
- 2Queensland Facility for Advanced Bioinformatics, School of Medicine, Menzies Health Institute Queensland, Griffith University, Southport, QLD, Australia
- 3School of Mathematical Sciences, The University of Adelaide, Adelaide, SA, Australia
- 4ARC Industrial Transformation Training Centre for Innovative Wine Production, Waite Research Institute, Adelaide, SA, Australia
- 5Bioinformatics Hub, School of Biological Sciences, The University of Adelaide, Adelaide, SA, Australia
- 6Robinson Research Institute, The University of Adelaide, Adelaide, SA, Australia
- 7South Australian Health and Medical Research Institute, Adelaide, SA, Australia
- 8Environmental Epigenetics and Genetics Group, Department of Horticulture, College of Agriculture, Food and Environment, University of Kentucky, Lexington, KY, United States
A wines’ terroir, represented as wine traits with regional distinctiveness, is a reflection of both the biophysical and human-driven conditions in which the grapes were grown and wine made. Soil is an important factor contributing to the uniqueness of a wine produced by vines grown in specific conditions. Here, we evaluated the impact of environmental variables on the soil bacteria of 22 Barossa Valley vineyard sites based on the 16S rRNA gene hypervariable region 4. In this study, we report that both dispersal isolation by geographic distance and environmental heterogeneity (soil plant-available P content, elevation, rainfall, temperature, spacing between row and spacing between vine) contribute to microbial community dissimilarity between vineyards. Vineyards located in cooler and wetter regions showed lower beta diversity and a higher ratio of dominant taxa. Differences in soil bacterial community composition were significantly associated with differences in fruit and wine composition. Our results suggest that environmental factors affecting wine terroir, may be mediated by changes in microbial structure, thus providing a basic understanding of how growing conditions affect interactions between plants and their soil bacteria.
Introduction
Wine price differs considerably depending on its quality (e.g., flavor, color, and typicity), which is largely determined by the interactions between the grape and the growing conditions including climate, soil, topography, agricultural management, and the wine making process (Bokulich et al., 2016). These interactions influence the expression of wine’s terroir (Bokulich et al., 2016; Fabres et al., 2017). Research on the drivers of terroir have predominantly focused on abiotic environmental factors, such as climate, soil, viticultural management and wine making process, studied individually (Mira de Orduña, 2010; Vega-Avila et al., 2015; Romero et al., 2016) and simultaneously (Van Leeuwen et al., 2004). Research has been conducted on the association between soil microbiome (fungi and bacteria) and wine’s terroir (Burns et al., 2015; Bokulich et al., 2016. For a recent review see Liu et al., 2019). In Australia, such studies have focused in the characterization of the microbial communities within a single vineyard (Gupta et al., 2019) to those present in vineyards planted in different growing regions (Liu et al., 2020). However, there is still a lack of large studies designed to understand whether vineyard microbiomes exhibit distinct patterns of distribution at small geographic scales (e.g., neighboring vineyards), and how such patterns are associated with a wine’s terroir.
Soil microbiomes, especially bacterial species, have been found to be qualitatively and quantitatively different between vineyard systems (Vega-Avila et al., 2015). Environmental factors, such as topography, climate, soil properties, cultivars and agricultural management, combine to affect soil microbial communities (Castro et al., 2010; Reeve et al., 2010; Lamb et al., 2011). It has been shown that climate and topography, including rainfall pattern and temperature, affect these communities through their impacts on soil (Burns et al., 2015). Soil properties such as soil texture, nitrogen (N) content, phosphorus (P) content, carbon to nitrogen (C:N) ratio, water content, and pH show significant effects on the diversity and composition of microbial communities (Girvan et al., 2003; Frey et al., 2004; Rousk et al., 2010; Fierer and Jackson, 2006). Management practices, land use and varying degrees of stress and disturbance influence the soil microbiome markedly due to specific management objectives (Crowder et al., 2010; Reeve et al., 2010; Sugiyama et al., 2010; Lumini et al., 2011). Although environmental cues are the main drivers of the plant microbiota composition, it is now well established that host factors also contribute to the shaping of these communities. Plant genotypes exert an influence on the structural and functional diversity of soil microbiomes by varying root exudates and rhizodeposition (Broeckling et al., 2008; Dias et al., 2013; Philippot et al., 2013). Additionally, soil-plant compartments (bulk soil, rhizosphere and endorhizosphere) have been found more dominant in shaping fungal communities diversity and composition than spatial variability (Martínez-Diz et al., 2019).
Soil microbiomes interact with the vines, and thus affect wine quality (Burns et al., 2015; Bokulich et al., 2016). The interaction between soil microorganisms and plants includes the facilitation of nutrient uptake/utilization, stabilization of soil structure, reduction of disease prevalence by out-competing soil-borne pathogens or increase of disease prevalence by microbial pathogen invasion (Edwards et al., 2014; Zarraonaindia et al., 2015). Soil microbiomes also contribute to the wine fermentation flora, ultimately affecting wine quality (Compant et al., 2011; Barata et al., 2012; Martins et al., 2013). However, microbial assemblage function is intrinsically difficult to measure and define because of its highly changeable nature (Nannipieri et al., 2003). Additionally, due to the complex interactions between soil microbes, the influence of certain microbial communities can be substituted by other microorganisms with the same ecological function (Nannipieri et al., 2003; Wittebolle et al., 2009; Crowder et al., 2010; Lamb et al., 2011).
The primary aim of this project was to assess if there is a relationship between soil bacteria and terroir. To achieve this, we asked the following questions:
(i) Do wine sub-regions have distinct soil bacterial communities?;
(ii) What environmental conditions and agricultural practices shape soil bacterial community of vineyards?; and
(iii) Do differences in the soil bacterial community correlate with berry and wine characteristics?
In order to answer these questions, we undertook a soil bacteria survey in an iconic wine region, the Barossa in South Australia. The Barossa has a winemaking history of over 160 years and because of its importance as a growing region, has been chosen as a model to investigate terroir previously (Wolf et al., 2003; Edwards et al., 2014; Xie et al., 2017). Besides, the environmental characteristics of the Barossa, including climate, soil and topography have been previously characterized in detail (Robinson and Sandercock, 2014). However, to date, no study has analyzed the soil bacteria of the Barossa wine region or the possible influence on wine properties. Thus, determining how soil bacteria diversity and composition are influenced by environmental factors, and how bacteria differences correlate with differences in fruit/wine composition, will provide a starting point from which to better understand the (potential) functional role of soil microbial communities in terroir.
Materials and Methods
Experimental Design and Plant Material
Twenty-two Barossa vineyards (Supplementary Figure 1), planted with own-rooted Shiraz (Vitis vinifera L.) and representative of the climate, soil and management practices of six Barossa sub-regions (i.e., Eden Valley, Northern Grounds, Central Grounds, Eastern Edge, Western Ridge, Southern Grounds) were selected for this study. Three to four vineyards per sub-region were included and nine vines from three rows from each vineyard were selected for measurement and sampling. Vines within the same row were adjacent to each other. Vines adjacent to missing vines, end of row vines and border rows were excluded from the selection.
Soil Sampling Protocol
Three soil cores (0–10 cm soil layer) were collected using a (20 mm diameter) soil auger from around each individual plant (approximately 10 cm from the trunk) and combined, giving a total nine soil samples per row. A total of 594 soil samples were collected (27 soil samples from each vineyard) on the 2nd of November (Austral Spring) 2015. At this time, vines have broken dormancy and are in a stage of rapid growth. Microbes present in the vineyard soil at this stage will have a more prolonged effect on the vines that those becoming more prominent later in the growing season. Additionally, focusing on the taxa present early in the growing season should reduce the possibility of taxa found to be associated to differences in fruit/wine traits to be in reality driven by the environmental factors that induce those differences. Soil samples were immediately stored at 4°C and returned to the laboratory on the same day of collection. Soil samples from the same row were thoroughly mixed to obtain three samples per vineyard, and a total of 66 samples across the study. Coarse debris was removed from each soil sample using a 2 mm sieve, and each sample was then divided into two sub-samples (approximately 850 cm3 each). The first subsample was air-dried until a constant mass was achieved and used for analysis of soil texture, pH, electrical conductivity, and plant-available (Colwell) P (phosphorus), as described previously (Cavagnaro, 2016). The second subsample was stored at -80°C for DNA extraction and downstream genomic analysis (see below).
Vineyard Physical Characterization
In this study, the climate was characterized on the basis of rainfall and temperature. The influence of topography was studied through elevation above sea level and vineyard orientation. Soil texture was determined following (Giddings, 2015). Soil pH and electrical conductivity were determined on a 1:5 soil/water mixture and then measured using pH/salinity meter (WP-81 Conductivity-Salinity-pH-mV Meter, v6.0, TPS Pty Ltd.). Plant-available phosphorus was extracted and measured using Colwell P method (Rayment and Higginson, 1992) (Supplementary Table 1). The remaining soil, topographic and climatic data was obtained from the Barossa Grounds project (Robinson and Sandercock, 2014) (Supplementary Table 2). Vineyard management information (including irrigation, midrow management, under vine management, planting year, vine density, pruning method, space between rows, row orientation, and canopy management) was collected from participating growers (Supplementary Table 2).
Fruit and Wine Chemical Analysis
Fruit juice pH and total acidity (TA) was measured using an autotitrator (Crison instruments Barcelona, Spain) (Iland et al., 2013). Total soluble solids (TSS) of juice samples were tested with a digital refractometer (BRX-242 Erma inc. Tokyo, Japan). A sample of 50 berries from random bunches on were collected from the same vines selected for soil microbiome analysis and frozen at −20°C for anthocyanin, phenolic and tannin analyses. Total grape tannins were measured by the methyl cellulose precipitable (MCP) tannin assay (Sarneckis et al., 2006) using the protocol of Mercurio et al. (2007). Total anthocyanin and phenolics were determined according the method of Iland et al. (2013) (Supplementary Table 3).
One bottle of commercial wine (2016 vintage) per vineyard was used for the chemical analysis. Wine pH and TA was determined as described by Iland et al. (2013). Final alcohol levels were determined using an Alcolyzer Wine ME (Anton Paar, Graz, Austria). Wine color was determined using the modified Somers assay using a high throughput method in 96 well plates [98]. Wine tannin concentration was determined using the methyl cellulose precipitable (MCP) tannin assay of Mercurio et al. (2007) and is expressed as epicatechin equivalents (mg/L) using an 8-point epicatechin standard curve Sarneckis et al. (2006). The modified Somers assay was used to determine; wine color density (WCD), SO2-corrected WCD, degree of anthocyanin ionization, phenolic substances and anthocyanins (in mg/L) (Supplementary Table 4).
Non-targeted metabolomic analysis of the wine samples was performed using LC-MS/MS. The metabolites were isolated from bottled wine samples using solid-phase extraction (SPE) with Phenomenex Strata-X 33 um 85 Å polymeric reverse-phase 60 mg/3 mL cartridges. A 2 mL aliquot of each sample was evaporated to dryness under nitrogen at 30°C. SPE conditions are presented in Supplementary Table 5. A pooled mix of all samples was prepared and used to monitor instrument performance. The analysis was performed on an Agilent 1200SL HPLC coupled to a Bruker microTOF-Q II in ESI negative mode. The operating conditions are described in Supplementary Tables 5–7.
Following data acquisition, mass calibration was performed on each file using Bruker Daltonic’s DataAnalysisViewer4.1 “Enhanced Quadratic” calibration method (Bruker Singapore, The Helios, Singapore). Each file was exported from DataAnalysis in the mzXML generic file format for further processing. The files were processed using R (statistical programming environment) v3.1.0 and Bioconductor v2.14 under a Debian Linux 64-bot environment. Molecular features were extracted for each file using xcmx package and features that possessed a common mass and retention time across samples were grouped together.
16S rRNA Gene Next Generation Sequencing Library Preparation
DNA extractions from soil 66 samples were carried out at the Australian Genome Research Facility (AGRF) (Adelaide node) using Mo Bio Powersoil kit (Mo Bio Laboratories, Inc.) following the manufacture’s protocol. DNA concentrations were estimated using a Nanodrop 2000 spectrophotometer (Thermo Fisher Scientific, Waltham, MA, United States) and normalized to 5 ng/μl using nanopure water.
We prepared 16S rRNA amplicon libraries by following guidelines for the Illumina MiSeq System. Primers 515F and 806R (Bates et al., 2011; Caporaso et al., 2011) specific for the Bacterial 16S rRNA gene hypervariable “V4” region (expected amplicon and approximate size 390 bp, expected insert and approximate size 259 bp) were used for PCR amplification of extracted DNA and to prepare amplicon libraries. 515F worked as a universal forward primer for all the samples and 806R included 12-base sample specific barcodes to allow downstream de-multiplexing (Supplementary Table 8).
Three replicated PCR reactions were performed for each of the 66 samples. Each of these runs included one negative control as ‘sample67’ with no template DNA added. PCR reactions included 10ng of extracted DNA, 12.5 μl Q5 high-fidelity 2∗master mix (New England Biolabs), 8.5 μl dH2O, 1 μl forward and reverse primers (10 μM) in 25 μl reaction system. The PCR thermocycler (Bio-Rad T100) program was 95°C for 6 min, followed by 38 cycles of 95°C for 30 s, 50°C for 30 s and 72°C for 1 min and 30 s.
Success of PCR reactions was verified by agarose gel (1.5% w/v) electrophoresis. Samples exhibiting poor or no PCR amplification (i.e., yielding faint or no visible bands on the agarose gel) were reamplified by adjusting the amount of DNA template. The triplicate reactions were then pooled into 67 pools. Individual pools were quantified by Qubit fluorometric double stranded DNA assay (Invitrogen, Carlsbad, CA, United States) and then mixed on an equimolar base to generate six pools each with 11 samples (each containing 5 μl of the water control pool). Pools were size-selected to remove unused primers using Agencourt AMPure XP (Beckman Coulter, Brea, CA, United States) following the manufacturer’s protocol and mixed to equimolar concentrations to make one final pool. Library concentration and fragment size were estimated using TapeStation (Agilent, Santa Clara, CA, United States) and sequenced on the Illumina MiSeq platform (300 bp PE) (Illumina, San Diego, CA, United States) at the Australian Genome Research Facility-Adelaide node (AGRF).
Bioinformatics Analysis
Raw Illumina sequencing data was demultiplexed at AGRF-Adelaide node. Forward and reverse sequences were merged using bbmerge (Bushnell et al., 2017). Merged reads passing QC30 filter were analyzed using Quantitative Insight Into Microbial Ecology (QIIME) (QIIME version 1.8.0) (Navas-Molina et al., 2013). Operational taxonomic units (OTUs) were clustered using open-reference picking with the default uclust method (Edgar, 2010) based on 97% sequence similarity to the 16S rRNA Greengenes database (DeSantis et al., 2006; McDonald et al., 2012). OTUs were aligned to the Greengenes core reference database using PyNAST (Caporaso et al., 2010). Ribosomal Database Project (RDP) classifier was used to assign taxonomy (Wang et al., 2007). Both closed-reference OTU picking and open-reference OTU picking were performed for later analyses.
Alpha diversity (within-sample species richness and evenness) was measured using non-phylogenetic (including the observed number of OTUs, the Chao 1 and Shannon index) and phylogenetic (Faith’s Phylogenetic Diversity) indices (Faith, 1992). Phylogenetic beta diversity (between-sample diversity) was calculated using both weighted and unweighted UniFrac (Lozupone and Knight, 2005) and three-dimensional principal coordinates analysis (PCoA) plots were built through Emperor (Vázquez-Baeza et al., 2013). We then constructed a neighbor joining ultrametric tree in QIIME from the beta diversity UniFrac distance matrix. The generated tree file, as well as the Barossa Valley geographical map, vineyard locations and taxa summary files, were input into GenGIS (Parks et al., 2009, 2013) to visualize the relationship between soil bacterial beta diversity and vineyard location. The statistical significance of this relationship was determined using the Mantel test based on 9,999 random permutations and implemented on GenAlex v6.5 (Peakall and Smouse, 2012).
To identify the association of environmental variables and grape and wine properties (Supplementary Tables 1–7) with soil bacterial microbiome, bacterial community dissimilarities were visualized with non-metric multidimensional scaling (nMDS) plots. All correlation analyses were done at species level, however, for simplicity during result visualization we used the highest taxonomical level available for the OTUs identified as significantly correlated to the trait of interest. Variables were fitted to the ordination plots using the function envfit in the package Vegan version 2.5-2 (Oksanen et al., 2013) implemented in R version 3.5.0 (R Core Team,, 2013). Spearman’s rank correlation coefficients were measured between individual taxon abundance and fruit and wine traits using the function rcorr in the package Hmisc. Grape traits included those from sensory, basic chemistry analyses, while wine traits included basic chemistry, wine fermentation products and amino acids concentration. Those traits and taxa with a significant (p-value < 0.05) correlation coefficient larger than 0.80 or lower than −0.80 were deemed as significantly associated.
To identify which variables are important in explaining the composition of the soil microbial community, we performed distance-based redundancy analysis (dbRDA), a form of multivariate multiple regression that we performed directly on a Bray-Curtis dissimilarity matrix of OTUs using the ADONIS function in Vegan. We used automatic model building using the function step in R. The step function uses Akaike’s Information Criterion (AIC) in model choice, which is based on the goodness of fit. The model building proceeds by steps until the ‘best’ fit is identified. If two predictor variables were highly correlated (>0.85) one, typically that which was more difficult to measure, was removed as well as variables with missing replicates (Variables included in the automatic model building are marked with ∗ in Supplementary Tables 2–8). Differential statistic functions within the edgeR package (Chen et al., 2008) was used, as in Weiss et al. (2017) to determine the significantly different taxa between vineyards separated by the main environmental drivers of beta diversity (i.e., soil type and soil phosphorous content). In order to avoid the influence of taxa showing low counts, a minimum threshold was set up at 100 counts per million.
Results
Analysis of Soil Properties
Of the three soil physicochemical properties tested, plant-available phosphorous (P) and electrical conductivity (a measure of soil salinity), differed significantly (Kruskal–Wallis: p-value < 0.05) between sub-regions of the Barossa (Supplementary Table 1). Plant-available P was lowest in the Northern Grounds (11.5 ± 2.7 μg P/g soil) and highest in the Eastern Edge (39.0 ± 14.2 μg P/g soil). Electrical conductivity ranged from 111.0 μS/cm (Northern Grounds, SE = 34.2) to 302.5 μS/cm (Central Grounds, SE = 123.5). Soil pH did not differ between sub-regions, ranging from 6.2 (Eden Valley, SE = 0.4) to 6.8 (Southern Grounds, SE = 0.5).
Barossa Valley Soil Bacteria Community Composition
After quality filtering of the raw sequencing results, an average of 130,949 paired sequences remained per sample. Of these an average of 86,835 paired-end sequences per sample (66.3%) could be joined using bbmerge (Supplementary Table 9).
Both bacterial and archaeal DNA was detected in all soil samples. A total of 98.9% of sequences were classifiable at the phylum level (Figure 1A) and 95.2% at the genus level. Of those classifiable at the phylum level, 96.5% were assigned to one of nine dominant groups (relative abundance ≥1.0%) in the samples namely: Actinobacteria (26.9%), Proteobacteria (26.7%), Acidobacteria (12.0%), Planctomycetes (6.2%), Chloroflexi (5.6%), Firmicutes (5.3%), Gemmatimonadetes (3.9%), Bacteroidetes (3.5%), Verrucomicrobia (2.5%) (Figure 1A). The only dominant Archaea group was Crenarchaeota (4.0%). The overall dominant Bacteria and Archaea groups were consistently present in the six regions, but at different ratios (Figure 1A). The phylogenetic inference of bacteria composition differences between sub-regions showed three clusters with Central and Northern Grounds, and Eden Valley and Western Ridge sharing the more similar microbial profiles (Figure 1A).
Figure 1. Soil bacteria community composition and diversity in 6 Barossa sub-regions. (A) Phylogenetic inference of microbiome composition differences between Barossa sub-regions. Bar plots show bacterial taxa with greater than 2% relative abundance at the phylum level. Neighbor joining tree was generated with weighted UniFrac distances calculated with sequences classifiable at the phylum level (98.9% of total). (B) Alpha diversity: Chao1 diversity comparison, (C) and observed species diversity comparison (Observed number of OTUs). Alpha diversity values were calculated based on rarefied data was established using 16S sequencing reads from 3 soil samples per vineyard.
The number of observed OTUs (Figure 1B) showed significant differences (t-test: p-value < 0.05) between the OTU rich sub-regions (Northern and Central Grounds) and the relatively OTU poor sub-regions (Eden Valley and Western Ridge) (Supplementary Table 10). Similarly, the Chao1 metric showed that Northern and Central Grounds presented higher levels of OTU richness while Eden Valley and Western Ridge had the lowest (Figure 1C). Pairwise comparison of alpha diversity between sub-regions showed significant differences (t-test, p-value < 0.05) between Northern Grounds and Eden Valley and Western Ridge and between Central Grounds and Eden Valley and Western Ridge (Supplementary Table 11). Pairwise Shannon diversity analysis did not show significant differences between any subregion (Supplementary Table 12).
A BIOM file was generated after OTU picking, then OTUs identified in the negative control samples were removed from soil sample OTUs, leaving between 37,176 and 114,777 OTUs per sample (mean = 60,147 OTUs). Data with and without rarefaction were used for alpha diversity and beta diversity analyses. 37,176 OTUs (the lowest amount of OTUs in one sample) were randomly selected from each sample for rarefaction. Dissimilarities in microbial communities between samples (i.e., beta diversity) were calculated as weighted and un-weighted UniFrac distances and both methods showed similar patterns, and so only analyses based on weighted results are shown here. For the most part, the three replicates from within a given vineyard were closely grouped on the ordination plot (Figure 2A), indicating that bacterial communities were consistent within sites. Pairwise analysis of the differences between groups (vineyards and sub-regions) showed that all vineyards and sub-regions are significantly different to each other (Adonis, p-value < 0.001). Mantel test analysis of the association between bacteria compositional differences and geographic distance, showed a small but significant correlation (rxy = 0.315; p-value = 0.0001) (Figure 2B).
Figure 2. Effect of vineyard location on soil microbiome differentiation. (A) PCoA based on Beta diversity of soil bacterial communities calculated using weighted UniFrac distances. Values were calculated based on rarefied data to 37,176 sequences per sample. (B) Relationship between phylogenetic Beta diversity and geographic distance. Unifrac_dist indicates weighted UniFrac distances. Geographic distances were calculated from latitude/longitude coordinates using GenAlex v6.5 geographic distance function implemented as Log(1 + distances in Km). The relationship was tested using Mantel’s correlation coefficient (rxy) with its probability estimate for significance (P) based on 9,999 random permutations and implemented using GenAlex v6.5. (C) Neighbor joining ultrametric tree calculated from Beta diversity weighted UniFrac distance matrix between 22 vineyards located in six sub-regions: Northern Grounds (blue); Southern Grounds (yellow); Central Grounds (green); Eastern Edge (red); Western Ridge (purple); Eden Valley (orange). Tree was overlayed with the Barossa Region elevation map using GenGIS. Beta diversity was established using 16S sequencing reads from 3 soil samples per vineyard.
To further explore dissimilarities among and within regions, neighbor joining analysis was used to cluster samples and to generate a similarity tree in QIIME. This information, along with a geographical map of the regions and their locations, were combined using the GenGIS software package (Parks et al., 2009). This approach showed a low level of clustering of vineyards according to their geographic location (Figure 2C).
Drivers of Soil Bacteria Differentiation
Model selection was used to identify the combination of variables that explained the greatest variation in the soil bacteria. This approach consistently selected soil plant-available phosphorus (P) and soil texture as the main drivers (Model: p-value = 0.001) of soil bacteria in the Barossa vineyards tested (Figure 3). Together, both variables explained 19.7% of the observed variability. Independent pairwise analysis of UniFrac distances of vineyards grouped by these soil characteristics, showed that microbial communities in clay soil types were significantly dissimilar from those in sandy soils (PERMANOVA: p-value < 0.001, Figure 4A). Microbial communities in soils with high plant-available phosphorus (P > 30 mg/kg) were also dissimilar from those with low plant available phosphorous (PERMANOVA: p -value < 0.001, Figure 4B). Three and eight taxa were significantly more abundant in clay and sandy soils, respectively (Figure 4C), while eight taxa were found significantly associated with low plant available phosphorous content, and three associated high levels of plant available phosphorous in soil (Figure 4D).
Figure 3. Main drivers of soil microbiome differentiation between Barossa Region vineyards. The observed important soil factors that affect soil microbial community groups in combinations. CAP plot displays the combination of variables that explained the greatest variation in the soil microbiome through model selection (full results Table 2). The correlation test was carried out on environmental variables following the removal of the highly correlated variables (>0.85) using the function ordisten, in the package Vegan. The variables implemented in the final model were soil phosphorous and soil texture, which explained 19.7% of variation in the soil microbiome. Distance based redundancy analysis (dbRDA) with Bray-Curtis dissimilarity matrix of OTUs was used to examine the influence of these predictor variables using the function capscale in the package Vegan in R.
Figure 4. Identification of microbial genera associated to soil texture and plant-available phosphorous in Barossa Region vineyards. Principal coordinate analysis plots display weighted UniFrac distances of soil samples from 22 vineyards in six sub-regions of Barossa Valley. Venn Diagrams show significantly different (P > 0.01) genera. Plots and diagrams are grouped by (A,C) soil type [clay (red) versus sandy soils (green)], and (B,D) plant-available Phosphorous (P) [P < 30 μg P/g soil (red), P > 30 μg P/g soil (green)]. Beta diversity was established using 16S sequencing reads from 3 soil samples per vineyard.
Envfit analysis identified a number of other environmental factors as individually associated with microbial community composition (Figure 5). Aside from plant available phosphorous (r2 = 0.3706, p-value < 0.001), these variables were: elevation (r2 = 0.3609, p-value < 0.001), growing season rainfall (r2 = 0.2499, p-value < 0.001), mean annual rainfall (r2 = 0.1621, p-value = 0.004), spacing between rows (r2 = 0.1512, p-value = 0.006) and between vines (r2 = 0.1561, p-value = 0.011), and growing season mean temperature (r2 = 0.1113, p-value = 0.022).
Figure 5. Environmental and vineyard management factors significantly associated with soil microbial community composition in Barossa Region vineyards. Non-metric multidimensional scaling plot displays the microbial community composition of 22 vineyards located in six sub-regions: Northern Grounds (blue); Southern Grounds (yellow); Central Grounds (green); Eastern Edge (red); Western Ridge (purple); Eden Valley (orange). Vector arrows indicate the association with environmental variables with p-value < 0.05. Arrow heads indicate the direction and length indicates the strength of the variable and nMDS correlation. Analysis was conducted using 999 permutations with variables deemed significant where p-value < 0.05.
Analysis of the correlation between individual environmental and vineyard management variables and taxa abundance, identified 4 positive (Spearman’s > 0.80, p-value < 0.001) and 3 negative (Spearman’s < −0.80, p-value < 0.001) significant correlations (Supplementary Figure 2). Positive correlations with individual taxa included, pH (order iii1-15 and family Pirellulaceae), elevation (family Isosphaeraceae), and plant age (family Hyphomicrobiaceae); while negative correlations included P (family OPB35), elevation (family Conexibacteraceae), and the spacing between vines on the same row (family Haliangiaceae).
Terroir and Vineyard Soil Bacteria
Twenty four of the 75 grape and wine characteristics included in the study displayed a significant correlation with the soil microbial community composition (Table 1). The strongest associations identified for each of the four groups of traits tested were: 50 berry weight and average color per berry (basic berry properties); total anthocyanins and total phenolics (basic wine chemistry); Glycine and Alanine (wine amino acids); and 2-phenyl ethyl ethanol and acetic acid (wine fermentation products).
Table 1. Fruit and wine characteristics significantly associated with microbial community composition in Barossa Region vineyards.

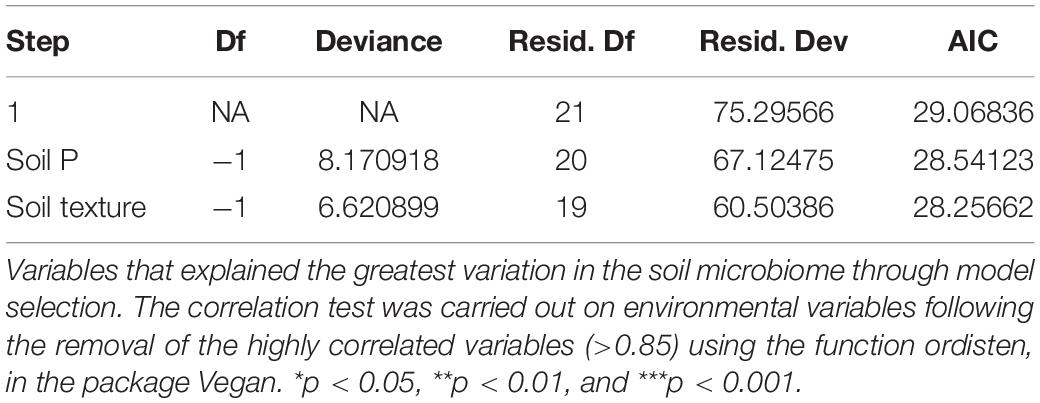

Table 2. Main drivers of soil microbiome differentiation between Barossa Region vineyards.
Significant positive correlation (Spearman’s > 0.80, p-value < 0.05) were identified between the abundance of one taxon (order IS_44) and the average level of total phenolics mg/g berry weight (Supplementary Figure 3A). Similarly, six wine traits showed positive correlations with the abundance of six microbial taxa (Supplementary Figures 3B–F). Briefly, the genus Rhodoplanes (Order Rhizobiales; family Hyphomicrobiaceae) was positively associated with the level of wine total phenolics and the family Chitinophagaceae (Order Chitinophagales) was associated with color density of SO2 corrected wine and with the level SO2 resistant pigments in wine, while the family Kouleothrixaceae (Order Roseiflexales) was positively correlated with wine color density.
Discussion
Previous studies have shown that environmental factors (e.g., climate and soil properties) and crop management may affect microbial populations in vineyards (Burns et al., 2015; Gupta et al., 2019; Liu et al., 2020). To date, the largest number of vineyards included in a single vineyard microbiome study is 15 (Liu et al., 2020). Here the authors made a thorough examination of the contribution of microbial communities to wine regionality at a supra-regional level (up to 400 km) and identified the fungal microbiome as a potential driver of terroir. To better understand how these variables contribute to vineyard microbial communities and how microbial diversity and composition correlate with fruit and wine quality traits at a regional and subregional level, we studied the soil bacteria composition of 22 commercial Shiraz vineyards representative of the Barossa Valley wine region of South Australia, Australia.
Vineyard Soil Bacteria Composition and Diversity
With over 37,176 sequences per sample we reached a sequencing depth deemed sufficient to describe patterns in bacterial alpha and beta diversities (e.g., Caporaso et al., 2010; Lundin et al., 2012). From a species composition point of view, our results indicate that vineyard soil bacteria present similarities across the six sub-regions studied. All soils analyzed presented both bacteria and archaea. A total of 96.5% of the all identified sequences were allocated in one of ten main dominant phyla (relative abundance ≥1.0%). Of these, nine (Actinobacteria, Proteobacteria, Acidobacteria, Planctomycetes, Chloroflexi, Firmicutes, Gemmatimonadetes, Bacteroidetes, and Verrucomicrobia) were Eubacteria, while only one dominant taxon was from Archeabacteria (Crenarchaeota). Although dominant phyla were consistently found in the six regions tested, they were present in different ratios. This finding is similar to earlier work; for example, investigating Pinot Noir vineyards in regions of Victoria and South Australia, Australia, Liu et al. (2020) found the same nine top dominant bacteria groups. However, in Australian agricultural soils, Bissett et al. (2010) found top six dominant soil bacteria groups (>3% occurrence) are slightly different and Cyanobacteria replacing Planctomycetes, Chloroflexi, Gemmatimonadetes, and Verrucomicrobia (Bissett et al., 2010). Interestingly, studies investigating vineyard and agricultural soils outside of Australia found similar results as soil samples from Australian vineyards. Burns et al. (2015) found the same nine top dominant bacteria groups in Napa Valley American Viticultural Area (AVA). Similarly, Liu et al.’s (2014) analysis of agricultural black soils in northeast China found almost the same dominant bacterial groups. However, analysis of non-agricultural soils outside Australia by Lauber et al. (2009) and Faoro et al. (2010) identified the same dominant groups, with the exception of Verrucomicrobia which was replaced by Nitrospira (Faoro et al., 2010) and TM7 and Cyanobacteria replacing Planctomycetes and Chloroflexi (Lauber et al., 2009).
Location, Soil Properties, Climate and Vineyard Management Are Associated With Soil Microbial Community Dissimilarity in the Barossa
Although dominant taxa were constant at a regional level, soil bacteria diversity and composition seemed to be a better factor separating soil bacteria from different sub-regions. The phylogenetic inference of bacteria composition differences between sub-regions showed that OTU richer sub-regions (Northern and Central Grounds) clustered independently from the OTU poorer ones (Eden Valley and Western Ridge).
Previous studies have shown that the major factors determining compositional dissimilarities of soil bacteria between sites are dispersal constraints (which predicts that more distant soils should have greater phylogenetic dissimilarity) and environmental heterogeneity (Fierer, 2008; Liu et al., 2014; Burns et al., 2015). Analysis of the influence of geographical distance on soil bacteria composition differences between Barossa Valley Region vineyards showed a small significant correlation between both parameters. It could be argued that such small contributions to vineyard soil bacteria composition differences could be associated with the relatively small distances between the vineyards in this study (Average distance 11.7 km, minimum distance 0.7 km and maximum distance 26.5 km). However, this correlation was similar to that observed by Burns et al. (2015) when studying 19 vineyards of the Napa Valley AVA that were separated by up to 53 km. This suggests that dispersal constraints contribute to soil bacteria differences at a much smaller scale than previously perceived.
Environmental heterogeneity has been largely claimed to be more important than geographic distance in shaping bacterial community at different geographical scales (Fierer and Jackson, 2006; da et al., 2009; Ranjard et al., 2013; Hermans et al., 2017; Miura et al., 2017). The main contributors to environmental associated variability in soil communities are differences in climatic conditions, topography, soil properties, and cultivation practices (Burns et al., 2015; Mezzasalma et al., 2018). Bacteria composition similarity analysis results did not show a clear clustering of vineyards according to their geographic location, indicating that even at a close geographic distance, environmental heterogeneity is the dominant factor shaping soil bacteria composition. Bissett et al. (2010) pointed that in Australian agricultural soils, the correlations between bacterial communities and both environmental factors and geographic distance depend critically on the taxonomic resolution used to evaluate microbial diversity, as well as life history of the taxa groups being investigated. For example, geographic distance had more influence over community structure of bacteria known to be poor dispersers/colonizers than good dispersers/colonizers (Bissett et al., 2010). Furthermore, previous work on a more detailed analysis on the effect of soil-plant compartment, as previously done for grapevine fungal microbiomes (Martínez-Diz et al., 2019), is adamant to fully understand the diversity and composition of grapevine microbiomes.
To determine which environmental factors contribute to the observed differences in soil microbial communities we used an automatic model building approach. This analysis revealed that when taken in combination, plant-available phosphorous and soil texture were the major contributors to soil bacteria differences between vineyards (approximately 20% of the total observed variability). Gupta et al. (2019) found in an Australian vineyard planted on silty loams over clays with some areas of sandier soils, P and sand percentage showed significant correlations with bacterial community variation. Soil particle size has been previously negatively correlated with bacteria community alpha diversity (Sessitsch et al., 2001) indicating that both variables could be affecting bacteria composition in an, at least partially, independent manner. Moreover, while genera Streptomyces, Rubrobacter (both Actinobacteria) and unclassified MND1, were especially prevalent in clay soils, genera Streptomyces, Pseudomonas and unclassified Sinobacteraceae were found in soils with plant-available phosphorous content higher than 30 μg/g soil. Pseudomonas, are inorganic P solubilizing bacteria (Awasthi et al., 2011; Goswami et al., 2013; Schmalenberger and Fox, 2016). Conversely, P levels negatively correlated with the abundance of the organic P mineralizing taxon OPB35. Pairwise analysis of individual taxa and environmental variables also identified previously reported strong and positive correlations between soil pH and order iii1-15 (acidobacteria-6) and family Pirellulaceae (Rousk et al., 2010; Hermans et al., 2017; Wu et al., 2017).
Previous studies have shown that climatic variables such as rainfall (Wildman, 2015) and temperature (Cong et al., 2015) are major shapers of soil microbial population composition and activity. Our results indicate that cooler and wetter regions (Western Ridge and Eden Valley; mean annual rainfall: mean = 663.18 mm, SD = 0; growing season rainfall: mean = 245.26 mm, SD = 0; mean January temperature: mean = 21.3°C, SD = 0.9; growing season mean temperature: mean = 18.19°C, SD = 0.8) had relatively lower soil microbial diversity, and a higher ratio of dominant species, than the warmer and drier sites (mean annual rainfall: mean = 585.85 mm, SD = 71.60; growing season rainfall: mean = 224.00 mm, SD = 15.56; mean January temperature: mean = 21.6°C, SD = 0.65; growing season mean temperature: mean = 18.68°C, SD = 0.66). Additionally, elevation, which negatively affects air temperature, showed a positive correlation with the families Isosphaeraceae and an unsurprising negative correlation with the thermophilic taxon Conexibacteraceae (Wagner and Wiegel, 2008).
Agricultural lands tend to show similar patterns of dominant bacteria (Lauber et al., 2009; Faoro et al., 2010; Liu et al., 2014; Burns et al., 2015), indicating that microbial community composition can be profoundly affected by cropping practices (Hartman et al., 2018). Our results show that, both spacing between row and vine (Supplementary Table 2), which determine the vineyard’s planting density (between 772 and 1,792 vines/ha in our study), are significantly associated with global differences in soil microbial community. Work in oil palm plantations has shown that planting density affects soil bacteria by altering the level of solar light incidence on soils, which can have dramatic effects on soil temperature and moisture (Tripathi et al., 2016). Pairwise comparisons between agronomical practices and individual taxa showed a negative correlation between spacing among vines on the same row and the abundance of representatives of the Haliangiaceae family. These are mesophilic organisms previously identified to be sensitive to agricultural practices (e.g., Ding et al., 2014; Kim and Liesack, 2015; Wang et al., 2016), which abundance could be favored by lower soil temperatures in densely planted vineyards. This highlights the importance of temperature, shown above, in the formation of soil bacterial communities. However, vine density and the use of under-vine cover crops could also cause different levels of interactions between plant roots and soil microbes. This is particularly prominent when comparing sites with similar topography and soil texture, in which spatial patterns of soil biota are assumed to be structured primarily by plant growth, age, growth form and density (Ettema, 2002). Our results indicate that the abundance of taxa from the bacterial family Hyphomicrobiaceae is positively correlated with the vineyard age. Plant age has previously been linked to differences in soil bacterial communities in annual crops (Marques et al., 2014; Walters et al., 2018) and in wild plant species (Wagner et al., 2016; Na et al., 2017). However, how composition and diversity of rhizosphere communities shift with plant age in perennial, long-living crops has received less attention and needs to be investigated in the future.
Correlations Between Soil Bacterial Communities and Berry and Wine Parameters
Berry parameters were found to be significantly associated with both the composition and diversity of soil bacteria and with the abundance of single taxa. A total of six fruit traits correlated with differences in bacterial community composition and diversity, while one fruit trait (total phenolics in berry) was found significantly associated with the abundance of specific taxa. Plant–microbe interactions are known to modify the metabolome of Arabidopsis thaliana plants grown under controlled conditions (Badri et al., 2013), however, the modulating effect of soil bacteria on the metabolome of commercial crops is unexplored. Unfortunately, the non-intervention nature of this research impedes us determining if the relationships observed between vineyard soil bacteria and fruit traits are causal or simply mere correlations.
Soil microbes have previously been described as a contributor to the final sensory properties of wines by affecting wine fermentation. Soil (Gupta et al., 2019) and grape must (Bokulich et al., 2016; Liu et al., 2020) microbiota were found to be correlated to regional metabolite profiles and was suggested to be potential predictor for the abundance of wine metabolites. In what, to this date, is possibly the most thorough analysis of the contribution of vineyard soil microbiomes to wine regionality, Liu et al. (2020) found that soil and must fungal communities are affected by the vineyard’s edaphic and climatic characteristics and, in turn, associated to wine regionality. Similarly, through the analysis of soil bacterial communities in 22 vineyards, our study identified 18 wine traits correlated with differences in bacterial community composition and diversity, and four correlated with the abundance of specific taxa. Vineyard soils may serve as a bacterial reservoir since bacterial communities associated with leaves, flowers, and grapes share a greater proportion of taxa with soil communities than with each other (Zarraonaindia et al., 2015). Liu et al. (2020) proposed the xylem sap as one mechanisms joining the soil and the fruit microbial communities. Unfortunately, the non-intervention nature of this research, the lack of replicability and the use of commercially produced wines (each of these wines was made commercially by different producers so there is potential for a certain level of winemaking effect), preclude us from determining if the relationships observed between vineyard soil bacteria and fruit/wine traits are causal or simply mere correlations. Future work should be aimed at experimentally testing the true nature of the observed correlations.
Conclusion
Taken collectively our results show that geographic separation between vineyards contributes to bacterial community dissimilarities at a much smaller scale than previously reported. Environmental variables (e.g., climatic, topography, soil properties, and management practices) were the greatest contributor to such differences. Particularly, we found that soil variables are the major shapers of bacterial communities. Also, we show that variables highly affected by soil anthropogenisation (pH, plant available Phosphorous) and agricultural management variables (plant age, planting density) have strong correlations both with the community composition and diversity and the relative abundance of individual taxa. Our results provide an important starting point for future studies investigating the potential influence of bacterial communities on the metabolome of grapevines in general, and on the definition of local Terroirs. Future studies should include the analysis of fungal communities, which has been shown to be strongly associated with wine regionality. It will also be important to study a wider range of soil physicochemical properties, and vineyard floor vegetation, on the soil microbiome.
Data Availability Statement
The datasets generated for this study can be found in online repositories. The names of the repository/repositories and accession number(s) can be found below: https://www.ncbi.nlm.nih.gov/, PRJNA601984.
Author Contributions
TC, JS, AM, MG, JB, CC, and CR conceived and planned the experiments. CC and RDB contributed to the design of the research project, vineyard selection, and fruit and wine chemical characterization. JZ conducted soil physicochemical analysis and the 16S rRNA gene laboratory work. JZ and TN conducted the bioinformatics analysis. JZ and CR took the lead in writing the manuscript. All authors provided critical feedback and helped shape the research, analysis and manuscript.
Funding
This study was funded through a Pilot Program in Genomic Applications in Agriculture and Environment Sectors jointly supported by The University of Adelaide and the Australian Genome Research Facility Ltd. JZ was supported by an Adelaide Graduate Research Scholarship (The University of Adelaide). CR was supported by a The University of Adelaide Beacon Research Fellowship and is currently partially supported by the National Institute of Food and Agriculture, United States Department of Agriculture, Hatch Program number 2352987000. MG was supported by the Australian Research Council through Centre of Excellence (CE1400008) and Future Fellowship (FT130100709) funding.
Conflict of Interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Acknowledgments
We would like to gratefully acknowledge the Barossa Grounds Project and in particular the growers that allowed us to sample material from their properties and supplied information about their vineyards and management strategies. Dr. Kendall R. Corbin contributed to soil sample collection. We are thankful to Dr. Hien To, Dr. Steve Pederson, and Dr. Rick Tearle for assistance with data analysis.
Supplementary Material
The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fmicb.2020.597944/full#supplementary-material
