Xavier Janvier1
Stéphane Alexandre2
Amine M. Boukerb1
Djouhar Souak1
Olivier Maillot1
Magalie Barreau1
Frantz Gouriou3
Catherine Grillon4
Marc G. J. Feuilloley1
Anne Groboillot1*- 1Laboratory of Microbiology Signals and Microenvironment LMSM EA 4312, University of Rouen-Normandy, Normandy-University, Evreux, France
- 2Laboratory of Polymers, Biopolymers and Surfaces UMR CNRS 6270, University of Rouen-Normandy, Normandy-University, Mont-Saint-Aignan, France
- 3Aerothermic and Internal Combustion Engine Technological Research Center, Saint-Etienne-du-Rouvray, France
- 4Center for Molecular Biophysics, UPR CNRS 4301, Orléans, France
The skin constitutes with its microbiota the first line of body defense against exogenous stress including air pollution. Especially in urban or sub-urban areas, it is continuously exposed to many environmental pollutants including gaseous nitrogen dioxide (gNO2). Nowadays, it is well established that air pollution has major effects on the human skin, inducing various diseases often associated with microbial dysbiosis. However, very few is known about the impact of pollutants on skin microbiota. In this study, a new approach was adopted, by considering the alteration of the cutaneous microbiota by air pollutants as an indirect action of the harmful molecules on the skin. The effects of gNO2 on this bacterial skin microbiota was investigated using a device developed to mimic the real-life contact of the gNO2 with bacteria on the surface of the skin. Five strains of human skin commensal bacteria were considered, namely Staphylococcus aureus MFP03, Staphylococcus epidermidis MFP04, Staphylococcus capitis MFP08, Pseudomonas fluorescens MFP05, and Corynebacterium tuberculostearicum CIP102622. Bacteria were exposed to high concentration of gNO2 (10 or 80 ppm) over a short period of 2 h inside the gas exposure device. The physiological, morphological, and molecular responses of the bacteria after the gas exposure were assessed and compared between the different strains and the two gNO2 concentrations. A highly significant deleterious effect of gNO2 was highlighted, particularly for S. capitis MFP08 and C. tuberculostearicum CIP102622, while S. aureus MFP03 seems to be the less sensitive strain. It appeared that the impact of this nitrosative stress differs according to the bacterial species and the gNO2 concentration. Thus the exposition to gNO2 as an air pollutant could contribute to dysbiosis, which would affect skin homeostasis. The response of the microbiota to the nitrosative stress could be involved in some pathologies such as atopic dermatitis.
Introduction
Skin is the largest organ of the human body and acts as an interface with the environment. This complex and natural physico-chemical barrier provides a suitable environment for the development of a wide range of microorganisms such as bacteria, fungi, and viruses. This ecosystem constitutes an essential first line of host defense against injury and infection (Grice and Segre, 2011; Kong and Segre, 2012). Bacteria appear as the most abundant microorganisms on the skin (Oh et al., 2014) and their concentration has been evaluated as 106/cm2 (Grice et al., 2008). In healthy individuals, this bacterial population is harmless or beneficial to the host, providing a protection against pathogens and playing a central role in skin homeostasis (Rosenthal et al., 2011; Baldwin et al., 2017). The diversity, composition, and stability of bacterial skin microbiota are influenced and modulated by intrinsic factors, as age or gender (Flores et al., 2014; Si et al., 2015; Oh et al., 2016) but also environmental factors like hygiene practices or ambient air… (Rosenthal et al., 2011; Kim et al., 2018). Thus, unbalanced microbial state or dysbiosis can be induced resulting in some common skin disorders such as atopic dermatitis, rosacea, psoriasis, or acne (Schommer and Gallo, 2013; Baldwin et al., 2017; Byrd et al., 2018). Among the environmental factors, atmospheric pollutants, including nitrogen dioxide (NO2), are considered to cause significant skin disturbances. Nowadays, it is well established that atmospheric pollutants can affect the skin through direct mechanisms such as generation of free radicals, induction of inflammatory processes or the activation of the aryl hydrocarbon receptor (AhR) (Drakaki et al., 2014; Mancebo and Wang, 2015; Araviiskaia et al., 2019). A new approach consists in considering the alteration of the cutaneous microbiota by pollutants as an indirect action of these pollutants on the skin. Few studies have investigated the effects of pollutants on skin microbiota (He et al., 2006; Burns et al., 2019).
An increase in NO2 atmospheric concentration has been correlated with an increase of lentigo in Caucasian and Asian people (Hüls et al., 2016) and an occurrence of atopic dermatitis in children in Germany (Morgenstern et al., 2008). Anthropogenic emissions of NO2 into the atmosphere are mainly due to road transport and energy production. NO2 is also known to be toxic by inhalation, increasing cardiovascular, and respiratory diseases (Latza et al., 2009). This makes NO2 one of the five atmospheric pollutants of greatest concern to human health. Air quality standards defined by EU ambient air quality directives and World Health Organization (WHO) air quality guidelines establish a limit value of 200 μg/m3 NO2 (0.11 ppm) as hourly average limit. The European Environment Agency sets an alert threshold of 400 μg/m3 (0.21 ppm). However, many urban areas have ambient air quality that regularly exceeds these guidelines (European Environment Agency, 2019). In addition, NO2 peaks concentrations were recorded transiently in tunnel at 1 ppm in Australia (Sydney) (Martin et al., 2016) and in extreme conditions up to 6.9 ppm in France (Rouen) (Morin et al., 2009). These values are probably higher in some areas although all data are not public.
At the cellular level, reactions with NO2 lead to nitrosative stress with the production of reactive nitrogen species (RNS) responsible for alterations of proteins, lipids, and nucleic acids (Pacher et al., 2007; INERIS, 2011). In contrast, and to our best knowledge, the effect of the gaseous NO2 was never evaluated on the skin microbiota.
The aim of this study was to investigate the impact of gaseous NO2 (gNO2) on various commensal bacterial strains. Five representative bacterial species of the cutaneous microbiota covering the principal phyla were selected. In order to mimic the real-life contact of skin bacteria with air gaseous pollutants, a gas exposure device was developed from a prototype designed to investigate the effect of diesel engine exhaust on in vitro cell culture (Asimakopoulou et al., 2011). In daily life, the skin and its microbiota are subjected to low concentrations of NO2 but over very long periods of time, with occasional peaks of pollution. It is therefore very tricky to simulate such exposure. In this work, the real situation was approximated by a simple exposure to high concentrations (10 and 80 ppm) of gNO2 over a short period of time (2 h). The physiological, morphological, and molecular responses of the bacteria to gNO2 were investigated.
Materials and Methods
Bacterial Strains and Culture Conditions
Strains used in this study and their origins are listed in Supplementary Table 1. Staphylococcus aureus MFP03, Staphylococcus epidermidis MFP04, Staphylococcus capitis MFP08, and Pseudomonas fluorescens MFP05 were isolated from the skin of healthy human volunteers (Hillion et al., 2013). S. aureus, S. epidermidis, and S. capitis were used as representative members of the Firmicutes phylum and P. fluorescens as a model of cutaneous proteobacterium. Corynebacterium tuberculostearicum CIP102622, originating from Pasteur institute collection, was included in this study as a member of Actinobacteria, one of the three major phyla of skin microbiota (Grice and Segre, 2011). Bacteria were grown overnight at 28°C for P. fluorescens and at 37°C for other species with shaking (180 rpm). Luria-Bertani (LB) medium was used as culture media for all bacteria and for most experiments, except for C. tuberculostearicum which was cultivated in modified LB medium supplemented with 1% Tween 80 (LBT80 medium) (Becton Dickinson, Heidelberg, Germany). From overnight cultures, fresh medium was inoculated (OD580 = 0.08) to obtain cultures at mid-exponential phase (OD580 ∼ 0.6). A defined volume of bacterial cultures was spread on each cellulose acetate membrane filter (pore size 0.2 μm, diameter 47 mm, Sartorius Biolab Products, Göttingen, Germany) impregnated with LB or LBT80 and pre-disposed on LB or LBT80 agar. Filters were incubated at optimum growth temperature of each testing bacteria during 4.1 generation time, resulting in a single layer bacterial population. This optimal incubation time was determined by preliminary studies. After incubation, filters with bacteria were placed on agar in one-well dishes (127.8 × 85.5 mm, Thermo Scientific Nunc, Roshester, NY, United States) and transferred into the gas exposure device (Figure 1A).

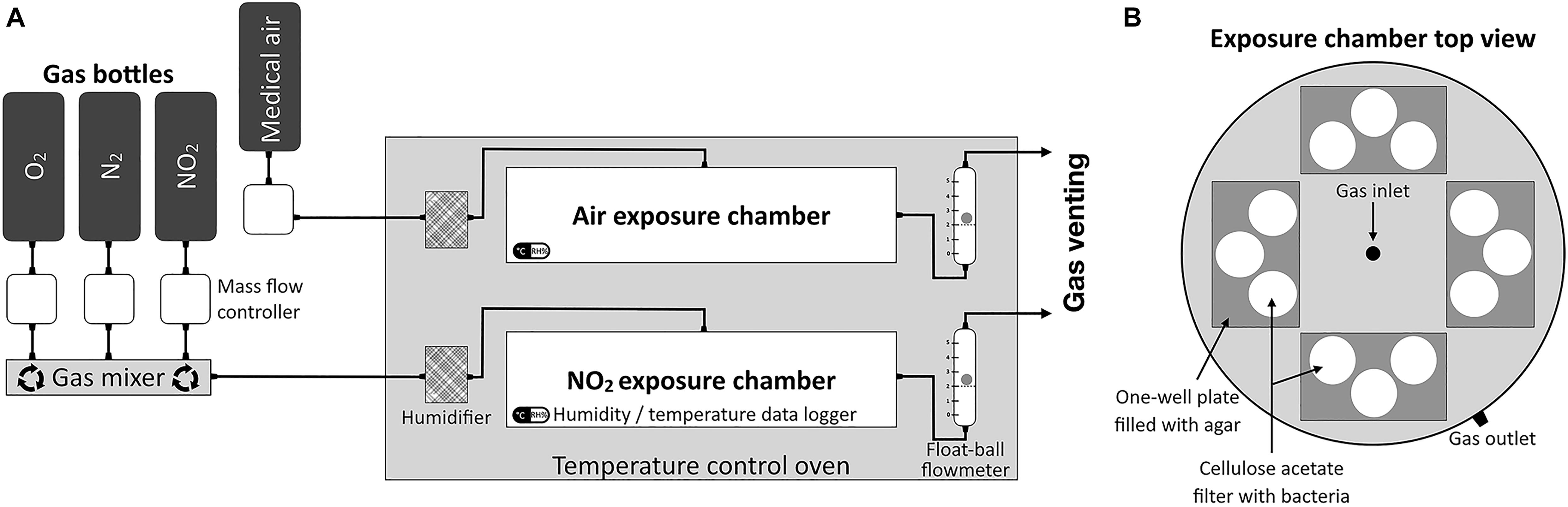

Figure 1. Schematic representation of gas exposure device. (A) NO2, N2, and O2 were mixed in a gas mixer to obtain 80 or 10 ppm of gNO2 and maintain the 20% O2 concentration at a flow rate of 2 L/min in the NO2 exposure chamber. The gas flow passed through a humidifier containing 2% copper sulfate solution (CuSO4) allowing to maintain the relative humidity (RH%) up to 80%. RH% and temperature were controlled using data logger during the 2 h gas exposure. At each chamber outlet, a ball-float flowmeter allowed to monitor the gas flow. (B) Top view of a schematic representation of exposure chamber. Each exposure chamber can contain four agar one-well plates with three cellulose acetate membrane filters each.
Exposure Protocol to Gaseous NO2
The gas exposure device (Ghaffari et al., 2005; Asimakopoulou et al., 2011) consisted of two sterile cylindrical Teflon chambers (Figure 1B), one for gNO2 exposure and another for air exposure. These exposure chambers were used in parallel in a static incubator and maintained at the optimal growth temperature of the bacterial species. In order to mimic the interaction of gas with bacteria on the skin surface, bacteria on cellulose acetate filter were exposed to gNO2 or air under a continuous flow during 2 h. Experiments were realized using gNO2 10 or 80 ppm. NO2, N2, and O2 were provided by different gas bottles (Air Liquide, Mitry-Mory, France) and air by a medical grade air compressor. Gas flow rates were controlled by mass flow regulators (Alicat Scientific, Inc., Tucson, AZ, United States) in order to obtain the desired concentration of gNO2, and 20% of O2, with a global flow rate of 2 L/min. Temperature and relative humidity data were monitored inside the exposure chambers using a data logger (Lascar Electronics, Inc., Erie, PA, United States). After gas exposure, bacteria were resuspended by gentle agitation for 20 s per filter into physiological water and used for the further analysis.
Cultivability
Bacterial numeration was performed by the viable count technique after decimal dilution in physiological water and spreading onto LB or LBT80 agar with incubation at the optimal growth temperature. Results are expressed as CFU/Filter of suspension obtained after exposure. The cultivability was assessed by calculating the base 10 logarithm of the ratio of the count after exposure to air against that after exposure to gNO2 as shown below:
Growth Kinetics
Ninety-six-well Bioscreen microplates (Thermo Fisher Scientific, Roshester, NY, United States) were inoculated with bacterial suspensions in LB or LBT80 at an initial OD580 of 0.08. Bacterial suspensions were directly obtained from bacteria grown on cellulose acetate filters exposed to air or gNO2 and recovered as previously described. Growth kinetics were measured at OD580 under 15 min interval using a Bioscreen C automated microplate reader (Labsystems Oy, Helsinki, Finland) allowing determination of generation time and lag phase length.
Exo-Enzymatic Activities
Exo-enzymatic activities were tested by culture on specific media. The lipolytic activity (lipase production) was investigated on tributyrin agar plates for Staphylococci (Xie, 2012) and rhodamine B agar plates for P. fluorescens MFP05 and C. tuberculostearicum CIP102622 (Kouker and Jaeger, 1987). Esterase production was assayed on trypcase soy agar (TSA) medium (Sigma-Aldrich, St Quentin Fallavier, France) complemented with 1% Tween 80, 1% CaCl2, and 1% phenol red (Plou et al., 1998). Caseinase (protease) activity was tested on TSA with 10% semi-skimmed milk (Riffel and Brandelli, 2006). Determination of the lecithinase (phospholipid hydrolase) activity was performed on TSA with 5% egg yolk agar (McClung and Toabe, 1947).
Motilities Assays
Pseudomonas fluorescens MFP05 was the unique motile species in the series of selected cutaneous bacteria. This bacterial species can move by swimming, swarming, and twitching depending on the surface. These different modes of motility involve flagella, type IV pili, and surfactant secretion (Henrichsen, 1972; Déziel et al., 2001). P. fluorescens swimming was tested by surface inoculation of LB medium-agar 0.3% (wt/vol), swarming by using LB medium-agar 0.6% (wt/vol) and twitching by inoculation in depth LB medium-agar 1% (wt/vol) plates, according to Déziel et al. (2001). The diameter of the migration halo was measured after 24 h of incubation at 28°C.
Biofilm Formation Studies
Biofilm formation was investigated in brain heart infusion (BHI) medium enriched with 2% (wt/vol) glucose for Staphylococci, LB medium for P. fluorescens MFP05 or LBT80 medium for C. tuberculostearicum CIP102622. Bacterial pellets obtained after gas exposure were diluted into 1 ml of fresh medium at OD580 = 0.8 and grown in 24-well glass-bottomed microplates (SensoPlateTM, Greiner Bio-One, Courtaboeuf, France) for 24 h at their respective optimal growth temperatures. After incubation, biofilms were rinsed twice with sterile physiological water in order to eliminate planktonic bacteria and traces of growth media. Biofilms were stained by adding 5 μM of SYTO 9 green fluorescent nucleic acid stain (Invitrogen, Molecular Probes, Carlsbad, CA, United States) prepared in sterile physiological water and incubated at room temperature for 15 min in the dark and then washed again with physiological water. Biofilm images were acquired with a Zeiss LSM710 confocal laser scanning microscopy (CLSM) (Carl Zeiss, Oberkochen, Germany) using laser excitation at 488 nm, emission band pass 500–550 nm, and an ×63 oil immersion objective. At least five image stacks (image taken every micrometer throughout the biofilm depth) from five independent experiments with two replicates for each experimental condition were used. 3D images were generated using the Zen 2.1 software.1 Biofilm average thickness, biovolume, and roughness (Ra) were determined using the COMSTAT2 software2 (Heydorn et al., 2000; Vorregaard, 2008).
Antibiotic Susceptibility Testing
Antimicrobial susceptibility testing was done on Mueller-Hinton II agar (MH-II agar) (Becton Dickinson, Heidelberg, Germany) for all strains except for C. tuberculostearicum CIP102622 which was grown on a modified MH-II agar completed with 1% Tween 80. The disk diffusion technique was used according to the EUCAST (Société Française de Microbiologie, 2019). All tested antibiotic disks (Oxoid, Basingstoke, Hampshire, United Kingdom) are listed in Supplementary Table 2. Antibiotics susceptibility profiles were interpreted on the basis of the EUCAST guide (Société Française de Microbiologie, 2019).
Nitrotyrosine Quantification
3-nitrotyrosine, a nitrosative stress biomarker, was quantified with the nitrotyrosine competitive ELISA kit (Abcam, Cambridge, United Kingdom), usually used for eukaryotic cells. The protocol was adapted for bacteria. After air or gNO2 treatments, bacteria cells resuspended from the filter were centrifuged at 12,000 × g for 10 min and rinsed thrice in a PBS solution. At the third rinsing step, pellets were recovered in 1 ml of 1× sample extraction and transferred into 1 ml vial with 0.1 mm bead glass (Bertin Instruments, Montigny-le-Bretonneux, France). Bacterial lysis was performed at 4°C using a Precellys24 Bead Beater (6,800 rpm, 3 × 30 s, 120 s break) equipped with a Cryolys cooling system (Bertin Instruments, Montigny-le-Bretonneux, France). Samples were centrifugated and the supernatant was used to determine the 3-nitrotyrosine (3-NT) level according to the manufacturer’s instructions.
Evaluation of Bacterial Membrane Integrity
Bacterial membrane integrity was investigated by flow cytometry (CytoFlex S flow cytometer, as previously described) after staining of the bacteria with a combination of fluorescent dyes [SYTO 9 and propidium iodide (PI)] (LIVE/DEADTM BacLightTM Bacterial Viability kit, Invitrogen, Molecular Probes, Carlsbad, CA, United States). Both dyes bind specifically to nucleic acids. Bacterial membranes are permeable to SYTO 9 (green fluorescence) that stains all bacteria, whereas PI (Red fluorescence) only penetrates bacteria with damaged membranes and quenches the SYTO 9 signal. Three populations can be distinguished corresponding to intact green bacteria, permeabilized red and orange bacteria, or unstained cells debris (Léonard et al., 2016). This procedure was impossible to apply with C. tuberculostearicum CIP102622 which, as all Corynebacteria, is known to be difficult to stain with both dyes, probably because of the specific composition of its cell wall (Neumeyer et al., 2013). Then, C. tuberculostearicum CIP102622 was only stained with PI. For each analysis, a positive control was realized using an aliquot of bacterial suspension treated with 100% ethanol for 1 h. SYTO 9 and PI were excited with a 22 mW blue laser (488 nm) and their fluorescence emission were respectively detected at 525/40 nm (green channel) and 690/50 nm (red channel). A total of 200,000 events were recorded at a flow rate of 10 μL.min–1. Data were analyzed using the CytExpert Software.
Flow Cytometry Analysis
Direct analysis by flow cytometry of bacteria without staining provides information regarding the bacterial morphology and structure. The forward scattering (FSC) fraction of light and the fraction of light scattered laterally, known as side scatter (SSC) provide respectively an estimation of the cell size and an analysis of the surface heterogeneity, called granularity (Léonard et al., 2016). Measures were performed on 200,000 events per sample recorded with the CytoFlex S flow cytometer (Beckman coulter Life science, Indianapolis, IN, United States) and the data were analyzed with the internal CytExpert Software.
Atomic Force Microscopy
Atomic Force Microscopy (AFM) imaging was performed by using a Nanoscope III Multimode microscope (Veeco instrument, Santa Barbara, CA, United States) for S. capitis MFP08 or a Nanoscope 8 Multimode microscope (Bruker Nano Surfaces, Santa Barbara, CA, United States) for S. aureus MFP03, S. epidermidis MFP04, P. fluorescens MFP05, and C. tuberculostearicum CIP102622. In all cases, a 100 μm piezoelectric scanner was employed. Imaging was achieved in air using the contact mode for all bacteria except S. aureus MFP03 for which the PeakForce® mode was used. In the contact mode, the cantilevers, characterized by a low spring constant of 0.06 N/m, were equipped with a classical pyramidal NiSi tip. In this condition, all measurements were performed with the feedback loop on (constant force from 10–9 to 10–8 N). In the PeakForce® mode, a tapping cantilever with a spring constant of 40 N/m and a classical Si tip was used. Images were obtained with a peak force tapping frequency of 2 kHz with the auto-amplitude on. All images are presented in the height mode and are top view. Flatten and three points leveling operations were realized using the Gwyddion AFM software.3 Images were also processed using a local contrast filter (kernel size 2 px, blending depth 2, and weight 1) in order to visualize the bacteria surface. Then, the local contrast image was overlayed to the topographic image using the GIMP software4 in order to get more meaningful image.
Statistical Analysis
All experiments were carried out at least three times. For analysis and graphical presentation, GraphPad Prism® Software (V8.3.1, San Diego, CA, United States) was used. Shapiro–Wilk normality test was used to verify normality of the data and a ratio paired t-test or a paired t-test was applied to compare air and gNO2 conditions. To compare the results obtained with the different strains, one-way ANOVA and Tukey’s multiple comparison were performed. To evaluate the correlation between different parameters, a Pearson correlation test was used. A significant difference was considered as (∗) for P < 0.05, (∗∗) for P < 0.01, and (∗∗∗) for P < 0.001.
Results
gNO2 Reduces the Cultivability of Cutaneous Bacteria
The decrease of bacterial cultivability after exposure to gNO2 10 and 80 ppm in comparison to air is presented in Figure 2 and Supplementary Figure 1. A 2 h exposure to gNO2 80 ppm resulted in a mean cultivability loss of 1.36 LOG units for the five strains, with a maximum loss of 1.54 and 1.50 LOG units for C. tuberculostearicum and S. capitis, respectively, and a minimum of 1.11 LOG units for S. aureus. The cultivability decrease varied significantly between strains at 10 ppm (P = 0.0055) and 80 ppm (P = 0.0003). A lower LOG reduction (<1 LOG) was observed for 10 ppm, with an average cultivability loss of 0.47 LOG units and a maximum loss of 0.68 and 0.65 LOG units for C. tuberculostearicum and S. capitis, respectively. Surprisingly, after a 10 ppm exposure, P. fluorescens showed no significant loss of cultivability, unlike the other four bacterial species.

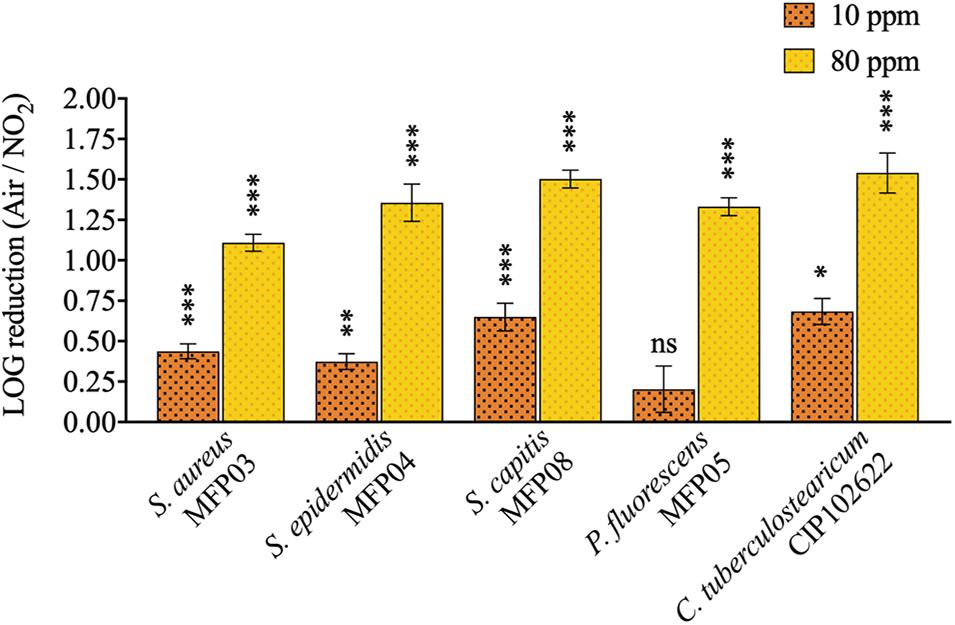

Figure 2. Cultivability loss induced by 10 or 80 ppm gNO2. Results are displayed as LOG reduction, i.e., the base 10 logarithm of the ratio of cultivability (CFU/filter) induced by air and that induced by gNO2 and that induced by air. Error bars show standard error of the mean of independent treatments (n ≥ 3). Statistical significance was calculated by a ratio paired t-test. (∗) for P < 0.05, (∗∗) for P < 0.01, and (∗∗∗) for P < 0.001.
gNO2 Affects the Growth Kinetics of Cutaneous Bacteria
Exposure to gNO2 altered the growth kinetics of S. aureus, S. epidermidis, S. capitis, P. fluorescens, and C. tuberculostearicum (Figures 3A–E, respectively). A 80 ppm exposure increased the lag phase of the five strains, from a minimum of +2.16 h for S. capitis to a maximum of +13 h for S. epidermidis, showing a strain-related effect of gNO2 (P = 0.0165). At 10 ppm, the lag phase increase was less pronounced and even absent in P. fluorescens, but always variable between the strains (P = 0.0098) (Figure 3F). Except for P. fluorescens, the generation time generally tended to increase or remain unchanged, depending on the strain, for both gNO2 tested concentrations (P < 0.0001) (Figure 3G). S. epidermidis, unlike the other Staphylococci, is difficult to grow in LB culture medium. This may explain the high variability of the obtained results as well as the significant increase in generation time and latency phase observed after exposure to gNO2, compared to other species.
Figure 3. Bacterial growth kinetics altered by gNO2. Growth curves of (A) S. aureus MFP03, (B) S. epidermidis MFP04, (C) S. capitis MFP08, (D) P. fluorescens MFP05, and (E) C. tuberculostearicum CIP102622 after air or gNO2 (10 and 80 ppm) exposure. (F) Lag phase increase and (G) NO2/Air ratio of generation time after gNO2 exposure. Error bars show standard error of the mean of independent treatments (n ≥ 3). Statistical significance was calculated by a paired t-test for (F) and a ratio paired t-test for (G). (∗) for P < 0.05, (∗∗) for P < 0.01, and (∗∗∗) for P < 0.001.
Absence of Effect on the Bacterial Motility and Exo-Enzymes Secretion
Pseudomonas fluorescens was the unique motile microorganism selected in the present study. This bacterium is known to be able to use different types of motility according to the culture conditions, namely swimming, swarming, and twitching. Bacteria exposed to gNO2 80 ppm remained capable to migrate using the three types of movement. The diffusion distance and aspect of halo were unchanged (Supplementary Table 3). However, the migration was delayed by 24 h compared to bacteria exposed air.
The lipase, phospholipid hydrolase (lecithinase), protease (caseinase), and esterase exo-enzymatic activities of the five selected cutaneous bacterial strains were tested in the absence or presence of gNO2 80 ppm. These activities were unchanged between control and gNO2 exposed microorganisms although a 24 to 48 h delay was observed for appearance of the phenotype in comparison to bacteria in contact with air (Supplementary Table 4).
gNO2 Affects Differently the Biofilm Formation of Cutaneous Bacteria
The effect of gNO2 80 ppm on biofilm formation was studied by CLSM in order to visualize the different morphological alterations (Figure 4A). Image analysis was leading to calculate the mean biovolume, roughness, and average thickness of the biofilm (Figure 4B). gNO2 had limited effects on S. aureus biofilms formation and only the mean roughness was significantly decreased. Conversely, in the case of S. epidermidis the roughness was not modified by gNO2 but the biovolume and average thickness of the biofilm were increased. S. capitis showed another reaction to gNO2 with a decrease of biofilm biovolume and thickness and an important rise of the roughness. For P. fluorescens no significant effect of gNO2 on the biofilm formation activity was observed. C. tuberculostearicum was also marginally affected by gNO2 with just a decrease of the average thickness.

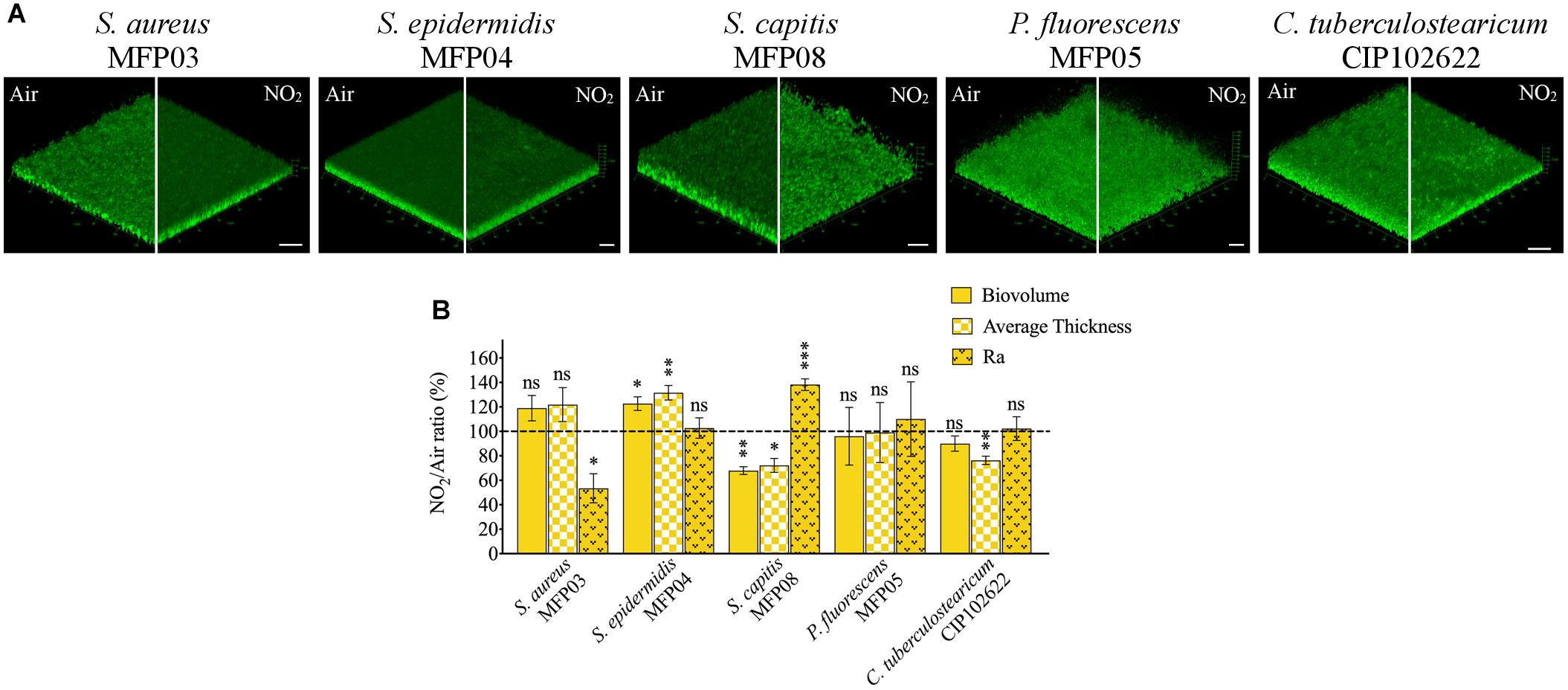

Figure 4. Effect of 80 ppm gNO2 on biofilm formation. (A) CLSM images of 24 h biofilms formed by bacteria after air or 80 ppm gNO2 exposure. For each biofilm, a 3D view along the x, y, and z-axes is displayed. Images show representative data from at least five independent biofilm assays. Scale bars = 20 μm. (B) COMSTAT2 image analyses were performed to determine the ratio (NO2/Air) of biovolume (μm3/μm2), average thickness (μm), and roughness coefficient (Ra). Error bars show standard error of the mean of independent treatments (n ≥ 5). Statistical significance was calculated by a ratio paired t-test. (∗) for P < 0.05, (∗∗) for P < 0.01, and (∗∗∗) for P < 0.001.
Absence of Effect on Antibiotic Susceptibility
The sensitivity of our five bacterial strains to a wide range of antibiotics covering the principal active families was tested as recommended by the EUCAST. No effect of gNO2 80 ppm pretreatment was observed on the antibiotic susceptibility. All antibiotics susceptibility profiles are available in Supplementary Table 2.
gNO2 Increases the Level of 3-Nitrotyrosine in All Treated Bacteria
The level of 3-NT is usually employed as marker of protein damage induced by RNS in eukaryotic cells and results from the action of the peroxynitrite ion (ONOO–) generally generated from nitric oxide (NO) (Pacher et al., 2007; Teixeira et al., 2016). This method was successfully applied to the global evaluation of the effect of gNO2 on bacterial proteins. The level of 3-NT increased significantly for all the bacterial species tested after exposure to gNO2 10 or 80 ppm (Figure 5). For the two concentrations, the effect of gNO2 was species-depended (P = 0.0208 for 10 ppm and 0.0028 for 80 ppm). At gNO2 80 ppm, S. capitis showed a significantly greater increase (5.08 LOG units) compared with S. aureus (P = 0.0232), P. fluorescens (P = 0.0109), S. epidermidis (P = 0.0097), and C. tuberculostearicum (P = 0.0039). At 10 ppm, the least affected strain was P. fluorescens (2.24 LOG units).

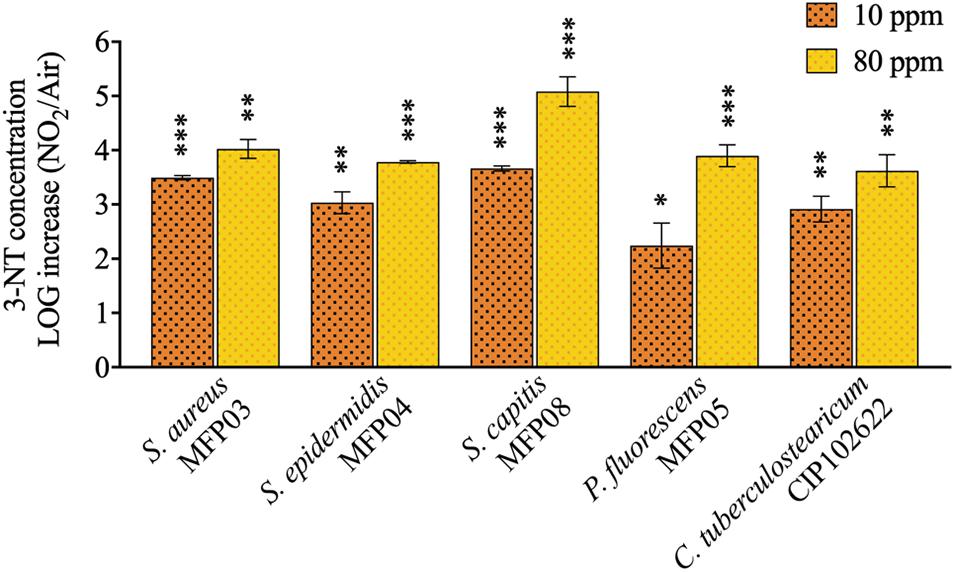

Figure 5. Quantification of 3-NT-modified proteins level induced by 10 or 80 ppm gNO2. Results are displayed as the LOG increase, i.e., the base 10 logarithm of the ratio between the 3-NT concentration induced by gNO2 and that induced by air. Error bars show standard error of the mean of independent treatments (n ≥ 3). Statistical significance was calculated by a ratio paired t-test. (∗) for P < 0.05, (∗∗) for P < 0.01, and (∗∗∗) for P < 0.001.
gNO2 Increases the Bacterial Membrane Permeability
Membrane permeability was assessed by flow cytometry and labeling with SYTO 9 / propidium iodide (PI) or PI alone. The membrane permeability of all strains was strongly increased after exposure to gNO2 10 or 80 ppm (Figure 6). The percentage of bacteria permeable to PI following exposure to air varied between species (P < 0.0001 for 10 ppm and P = 0.0331 for 80 ppm). The increase in permeability caused by gNO2 was therefore evaluated by considering the difference of percentages measured in gNO2 and air exposed bacteria (Table 1). This increase ranged from +61% for S. aureus to +90.1% for S. capitis. In coherence with the loss of cultivability observed at gNO2 80 ppm, a lower increase of permeability was observed for all bacteria exposed to this concentration of gNO2, with a marginal effect on permeability for S. aureus (+1.8%) and P. fluorescens (+0.99%) (Table 1).

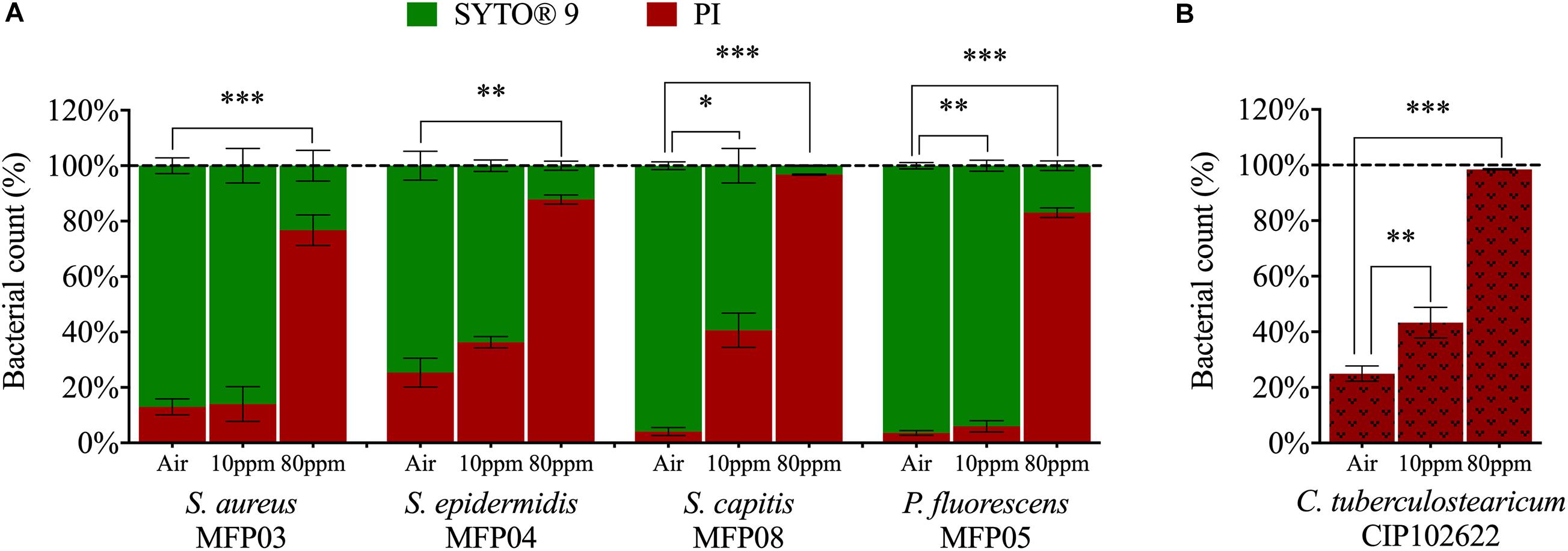

Figure 6. Membrane permeability increase at 10 or 80 ppm gNO2. Percentage of PI-permeable bacteria exposed to gNO2 compared to that exposed to air using (A) the SYTO 9 / PI combination for S. aureus, S. epidermidis, S. capitis, and P. fluorescens or (B) PI only for C. tuberculostearicum due to its unconventional cell wall structure which compromises the labeling with SYTO 9 dye. Error bars show standard error of the mean of independent treatments (n ≥ 3). Statistical significance was calculated by a paired t-test. (∗) for P < 0.05, (∗∗) for P < 0.01, and (∗∗∗) for P < 0.001.
Table 1. Increase of PI-permeable bacteria percentage after gNO2 exposure.
Inter-Species Analyses of the Data
As mentioned above, for all the parameters tested, different effect of gNO2 were observed according to bacterial species considered and the pollutant concentration. Figure 7 summarizes the P-values obtained by the multiple comparison of the strains using the Tukey’s test for all the parameters (except biofilm formation not tested at 10 ppm) and both concentrations. More significant differences appeared at 10 ppm rather that at 80 ppm, probably because 80 ppm induced a saturation effect, masking inter-species variations.

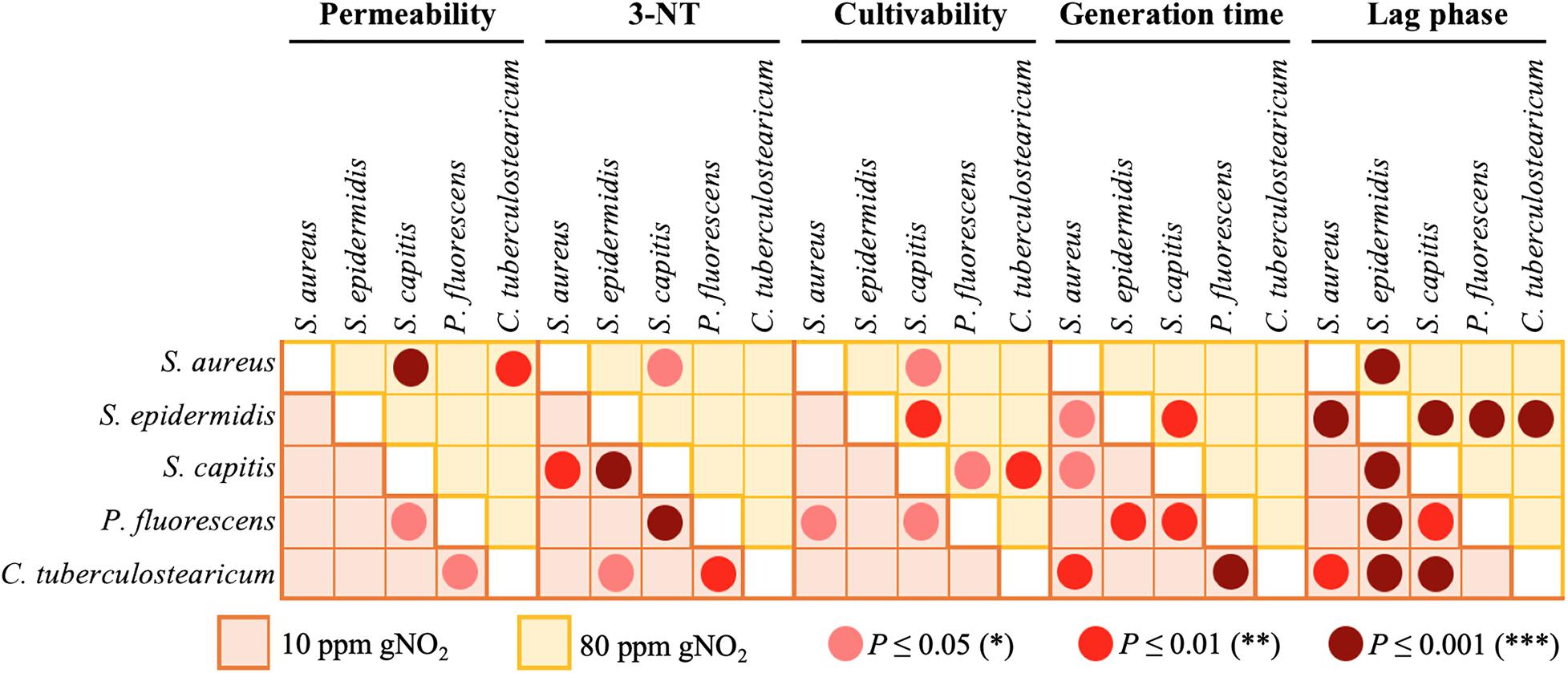

Figure 7. Inter-strain differences. Matrices showing the significance (P-values obtained by multiple comparison of strains using the Tukey’s test following one-way ANOVA) of the inter-strain differences induced by 80 (yellow) or 10 ppm (orange) gNO2 for the permeability, 3NT-level, culitvability, generation time and lag phase duration. The pink, red, and dark red dots indicate the level of P-values significance <0.005, <0.001, and <0.0001, respectively.
Envelope Alteration of the Cutaneous Bacteria by gNO2
Direct analysis by flow cytometer without staining of bacteria after gas exposure was performed for the two gNO2 concentrations: 10 and 80 ppm. Only the 80 ppm concentration induced a modification of the FSC/SSC dot plot clouds (Figures 8A–C). Changes in size and granularity appear differently depending on the species and three different behaviors were observed. In the case of S. aureus (Figure 8A) and the other studied Staphylococci (Supplementary Figures 2A,B), an increase in the mean cell size and complexity was observed. Concerning P. fluorescens, exposure to gNO2 80 ppm induced an increase in mean cell size and a decrease in complexity (Figure 8B). C. tuberculostearicum showed another behavior, characterized by a minor size increase and an absence of cell complexity variation (Figure 8C).

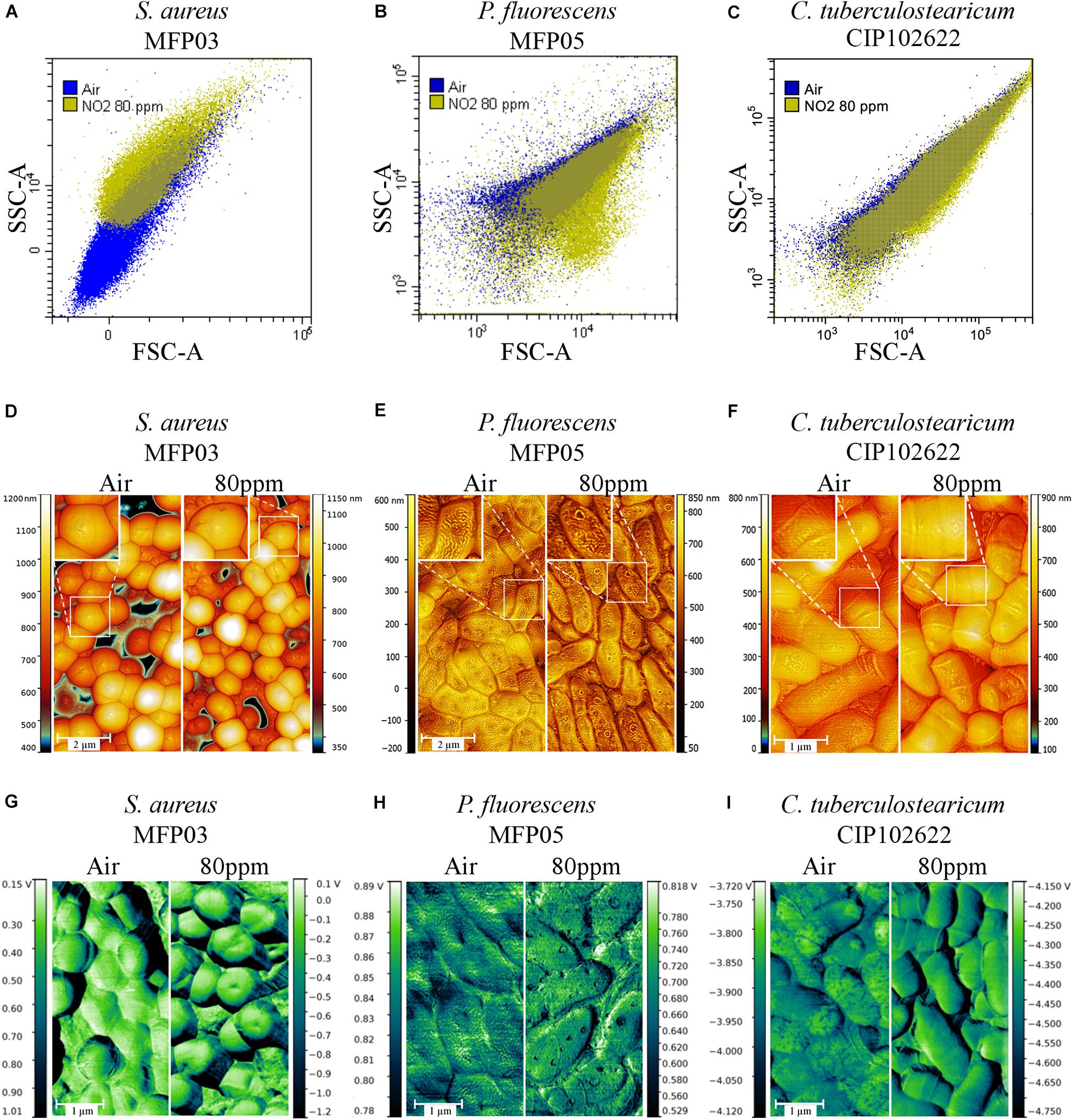

Figure 8. Impact of 80 ppm gNO2 on bacterial structure observed by flow cytometry and AFM. Dot plot overlays of FSC and SSC parameters obtained by flow cytometry analysis for air (blue) exposure and 80 ppm gNO2 (yellow) exposure of (A) S. aureus MFP03, (B) P. fluorescens MFP05, and (C) C. tuberculostearicum CIP102622. Topographic images with overlaid local contrast images of (D) MFP03, (E) MFP05, and (F) CIP102622. Square in the upper left corner of each image corresponds to a zoom on the bacterial surface. (G–I) Representation of the frictional forces of MFP03, MFP05, and CIP102622, respectively.
In order to complete the flow cytometry analysis and visualize possible alterations of the bacterial envelope, an AFM analysis was performed. In topographic images, depression areas were observed on the surface of many S. aureus cells exposed to 80 ppm gNO2 (Figure 8D). Similar alterations were found in higher occurrence in S. epidermidis and S. capitis (Supplementary Figures 3A,B). Another type of alteration, characterized by appearance of pore-like structures, was observed on the surface of P. fluorescens exposed to gNO2 80 ppm. In addition, whereas control bacteria showed wavelet structures, this pattern was totally absent after exposure to gNO2 80 ppm (Figure 8E). Interestingly, no visible surface alteration was observed in gNO2 treated C. tuberculostearicum (Figure 8F). Measurement of frictional forces revealed no difference in S. aureus (Figure 8G) and P. fluorescens (Figure 8H) after gNO2 exposure. In contrast, chemically different surface domains observed in control C. tuberculostearicum disappeared in bacteria exposed to gNO2 (Figure 8I), suggesting that gNO2 induced a rearrangement of the cell wall.
Discussion
Reactive nitrogen species, i.e., molecules generated mainly from NO, are often considered as atmospheric pollutants such as NO2, its main representative in ambient air. However, NO is synthetized in vivo by cells and involved at various biological functions such as innate immunity (Bogdan, 2015) or cell signaling (Martínez-Ruiz et al., 2011) including in bacteria (Williams and Boon, 2019). NO and RNS exert in macrophages antimicrobial effects allowing host protection against pathogens (Bogdan, 2015). Some bacteria are known to resist to NO, partly through detoxification enzymes. Consequently this ability occurring particularly in pathogens is considered by itself as a virulence trait (Richardson et al., 2006). The impact of NO on bacteria is widely described in the literature (Bowman et al., 2011). However, studies on this impact have been generally achieved in liquid phase using chemical donors of NO and more rarely by passing NO gas through in the aqueous mixture. This is essential to keep in mind as the effects on bacteria can be markedly different according the way NO is delivered (Bowman et al., 2011). The effect of NO2 has been much less investigated in bacteria. As there is no chemical donor for NO2, bacteria were mainly plated on agar or membrane surface and directly placed in a gas-swept chamber allowing cell growth in contact with gNO2 (Mancinelli and McKay, 1983; Yu et al., 1999; Ghaffari et al., 2005). Surprisingly enough, the impact of this major air pollutant on cutaneous bacteria was not investigated until now. As exposing the skin of human volunteers to a toxic compound such as gNO2 which is drastically limited by safety and ethic regulations, in a first step it was preferred to evaluate first the effect of gNO2 on bacterial model species of the skin microbiota. Hence, in the present study we decided to investigate the effect of gNO2 using five representative bacterial species of the cutaneous microbiota. In order to mimic the effect of this air pollutant on the microbiota of the skin surface, the contact of gNO2 with bacterial microcolonies previously grown on a membrane carrier appeared particularly well adapted. Two high gNO2 concentrations (10 and 80 ppm) were employed to compensate for the short possible exposure time (2 h) required to avoid artifacts due to dehydration.
In most cases, exposure of S. aureus, S. epidermidis, S. capitis, P. fluorescens, and C. tuberculostearicum to gNO2 led to a significant decrease of cultivability. Similar effects were observed for gNO or gNO2 (Mancinelli and McKay, 1983; Yu et al., 1999), where gNO2 exhibited highest toxicity. Deleterious effect observed after exposure to other toxic compounds such as metals and antibacterial molecules often results in cultivability loss (Izutani et al., 2011; Hobman and Crossman, 2015). In coherence, the impact of gNO2 on skin bacteria was also characterized by an increase of the lag growth phase. The generation time was marginally modified, although Staphylococci showed a general increase and P. fluorescens a significant decrease at 80 ppm. In contrast, identical maximal optical density at 580 nm (OD580) values were reached at the stationary phase. These observations indicate that, at the tested gNO2 concentrations, bacteria were submitted to a non-lethal metabolic stress requiring the induction of specific detoxification pathways and adaptation mechanisms (Bertrand, 2019). Regarding RNS, detoxification processes are particularly numerous and consist partly of enzymes able to consume NO, resulting in protection of NO-sensitive proteins (Poole, 2004). Bacterial physiology was deeply altered following gNO2 exposure as observed with growth metrics. The question then arose as to whether the physiological functions necessary for colonization and maintenance of the skin commensal bacteria were also affected. Indeed, the exo-enzymes produced by commensal bacteria are necessary for microbial growth on host skin substrates (Koziel and Potempa, 2013; Kwaszewska et al., 2014). The enzymatic activities of the five studied cutaneous bacteria, including lipase, phospholipid hydrolase (lecithinase), protease (caseinase), and esterase remained unchanged after exposure to gNO2. However, the delay of response observed for gNO2 exposed bacteria should be correlated to the increase of the lag phase and can correspond to the time required for repairing or induction processes or both. Regarding skin bacterial settlement, motility allows cells to interact dynamically with the cutaneous surface and participates to colonization. In P. fluorescens, no difference of swimming, swarming or twitching motility was observed with gNO2 80 ppm, although a response delay was also noted, as previously for enzymatic activities. A different result was reported in a previous study in which 45 ppm gNO2 were sufficient to reduce the motility of airborne and clinical strains of P. fluorescens (Kondakova et al., 2016). However, it is essential to remember that P. fluorescens is a species-complex particularly wide and heterogeneous phylogenetically and physiologically and this diversity appears closely related to ecological niches (Bodilis et al., 2004; Scales et al., 2014). Thus, important differences may exist between airborne or clinical isolates compared to our cutaneous commensal low virulence strain such as P. fluorescens MFP05 (Hillion et al., 2013). Microcolonies or biofilms also important for skin bacterial colonization, are organized aggregates of microorganisms and constitute a growth pattern associated with surfaces, predominant in the natural environment (Costerton et al., 1999). Although biofilms on skin are often considered to be related to the development of pathogens (Brandwein et al., 2016), commensal bacteria also grow on the skin surface as microcolonies (Somerville and Noble, 1973; Noble, 1975). The biofilm extracellular matrix provides a protection against environmental aggressions (Costerton et al., 1999) that induce stress promoting the conversion of bacteria from planktonic to biofilm mode of development (Jefferson, 2004). S. aureus MFP03 did not react to gNO2 by an increase of biofilm formation. However, the effect of gNO2 on biofilm formation was clearly species dependent, as already observed with NO at low concentration (de la Fuente-Núñez et al., 2013; Arora et al., 2015; Barraud et al., 2015). At the opposite of S. aureus, S. epidermidis reacted to gNO2 by a moderate increase of biofilm formation whereas a significant reduction of the biofilm biovolume and thickness was noted for S. capitis. In this strain, the biofilm roughness was markedly increased suggesting a disorganization of the matrix. The effects of gNO2 on cutaneous P. fluorescens and C. tuberculostearicum biofilm formation were limited in contrast to those observed in airborne P. fluorescens which exhibited a high increase in biofilm thickness (Kondakova et al., 2016). Globally, the impact of gNO2 on exo-enzymes production, motility, and biofilm formation suggests that gNO2 should have limited influence on the initial steps of cutaneous bacteria implantation on skin.
Since gNO2 induced physiological changes visualized by cultivability loss and longer lag phase, it was necessary to examine the mode of action of gNO2 at the molecular level. The absence of impact of gNO2 on antibiotics sensitivity of studied cutaneous bacteria suggests that gNO2 and antibiotics act through different mechanisms. Conversely, under similar conditions of exposure, in clinical and airborne strains of P. fluorescens, gNO2 induces an overexpression of genes encoding for the RND efflux pumps MexEF-OprN causing an increase in resistance to ciprofloxacin and chloramphenicol (Kondakova et al., 2016). In fact, as observed for enzymatic activities, motility, and antibiotic susceptibility, cutaneous bacteria appear to share a common high metabolic resilience to gNO2. In order to further investigate the mechanism of gNO2 action on bacteria, the cytoplasmic level of 3-nitrotyrosine (3-NT) was measured. This compound results usually from the interaction of tyrosine residue with RNS, particularly peroxynitrite (ONOO–), and is a biomarker of protein alteration following nitrosative stress (Pacher et al., 2007; Teixeira et al., 2016). A significant increase in 3-NT level was observed in all studied bacteria, even after exposure to 10 ppm gNO2. It is interesting to note that this dose of gNO2, which affected the growth kinetic and cultivability of most bacterial species, was clearly sub-maximal since the ratio of 3-NT was significantly higher in bacteria exposed to 80 ppm gNO2. Nevertheless, these results indicate that even at the 10 ppm, gNO2 induced significant alterations of bacterial proteins. Thus, from all the tested parameters to evaluate the effect of gNO2, 3-NT level appears as the most sensitive. In addition, flow cytometry revealed an augmentation of membrane permeability under the action of gNO2 in all bacteria. This increase ranged from +61% in S. aureus to +90.1% in S. capitis at 80 ppm of NO2 and was probably sufficient to decrease the transmembrane pressure and affect ion exchanges and transmembrane electric potential. Moreover, a statistical analysis highlighted a significant correlation (P < 0.0095; R2 = 0.5679; Supplementary Figure 4A) between the increase of membrane permeability and 3-NT level. In fact, the raise of tyrosine residues nitration, may be associated to an increase of gNO2 influx into the cells. The high percentage of PI-permeable cells was also correlated to a loss of cultivability after gNO2 exposure (P < 0.0001; R2 = 0.7252; Supplementary Figure 4B). This is logical since permeability is an indicator of viability. The increase of 3-NT level was furthermore linked to the loss of cultivability (P < 0.0118; R2 = 0.5899; Supplementary Figure 4C). Consequently, this loss of cultivability may be attributed to an increase of membrane permeability, as well as the deleterious effects of gNO2 on proteins and other molecules. In view of this increase in membrane permeability, a morphological analysis of bacteria was relevant.
As demonstrated by flow cytometry and AFM, all cutaneous bacterial species used in this study reacted to gNO2 by morphological modifications of their envelope. S. aureus, S. capitis, and S. epidermidis showed similar reactions whereas bacteria of other genera, i.e., C. tuberculostearicum and P. fluorescens, were differently affected. These discrepancies should be related to the structure of the bacterial envelope. Staphylococci have a rigid cell wall, essentially formed of peptidoglycan covalently linked to teichoic acid, which can account for 50% of the total mass and lipoteichoid acid connecting to phospholipids of the plasma membrane (Malanovic and Lohner, 2016; Rohde, 2019). After exposure to gNO2, all Staphylococci reacted the same way by an increase of the mean cell size, surface complexity and the presence of depression areas. In these bacteria, the cell wall is essential to withstand the high internal turgor pressure (25 atm) and any defect leads to a decrease of viability (Giesbrecht et al., 1998). However, probably because of this high-pressure gradient, direct damages of the cell wall are generally associated to blebs and protrusions, as observed after exposure to penicillin (Giesbrecht et al., 1998). Conversely, the morphology of Staphylococci after exposure of gNO2, was more coherent with alterations of cell wall organization associated to a decrease of internal pressure. Similar envelope damage was observed when S. aureus was in contact with ε-poly-lysine, inducing depressions on the surface of cells due to a destruction of the peptidoglycan structure (Tan et al., 2019). C. tuberculostearicum, another Gram-positive bacterium, exhibited no morphological change or surface alteration. However, Corynebacteria have a peculiar complex cell wall comprising, in addition to the peptidoglycan envelope, a mycolic acid layer covered with a thick top layer consisting essentially of carbohydrates (Burkovski, 2013; Rohde, 2019). This envelope is then probably resistant enough to withstand the attack of sub-lethal concentrations of gNO2. Nevertheless, as revealed by measurement of frictional forces, gNO2 altered the organization of C. tuberculostearicum surface, presumably through chemical modification of the top external layer. As a Gram-negative bacterium with a thin layer of peptidoglycan covered by a lipid membrane, the reaction of P. fluorescens to gNO2 was totally different with an increase in mean cell size, a decrease of surface complexity and the appearance of pore-like structures. NO was already shown to modify membrane roughness and leading to pores formation on the surface of Pseudomonas aeruginosa (Deupree and Schoenfisch, 2009). Thus, different damages were observed according to cell wall structure associated with permeability increase in both Gram-positive and Gram-negative bacteria. This is showing that gNO2 affects the peptidoglycan and lipid bilayer membranes as already described with another antimicrobial compound, namely ε-poly-lysine (Tan et al., 2019). Membrane micro-domains or lipid rafts leads to membrane heterogeneity and could participate in the localized disorganization of the lipid bilayer caused by gNO2 (Bramkamp and Lopez, 2015; Lopez and Koch, 2017). This question should require further investigations.
Finally, although all studied cutaneous bacteria were impacted by gNO2, major interspecies differences were observed. S. aureus was remarkably resistant to gNO2 probably through the protection conferred by its cell wall but also by the existence in this species of many NO detoxification systems (Richardson et al., 2006; Grosser et al., 2016). P. fluorescens was also very resistant to gNO2 10 ppm but the mechanism may be different as bacteria of the genus Pseudomonas are Gram-negative and have a large genome which gives them a high metabolic adaptation potential (Scales et al., 2014). At the opposite, C. tuberculostearicum and S. capitis appear particularly sensitive to gNO2. Extrapolation to the whole cutaneous microbiota should be merged considering the complex interactions between microorganisms. However, the significant differential response observed between bacterial species suggests that gNO2 could contribute to a dysbiotic state. It is interesting to note that the trends observed in these different strains corroborate the effects of gNO2 on the skin concerning atopic dermatitis, which is clearly increased by NO2 pollution (Morgenstern et al., 2008). Severe atopic dermatitis flares are associated to S. aureus skin colonization and a concomitant decrease of S. epidermidis (Hon et al., 2016; Byrd et al., 2018). Our results show that the development of S. aureus is favored by gNO2 over other species, particularly in regard of S. epidermidis. In the skin, this imbalance could be amplified by the antagonistic action of S. epidermidis (Pothmann et al., 2019). In this regard, the cutaneous microbiota appears as a new target for pollutants, and its response could contribute to the deleterious effects of gNO2 pollution on the skin.
Data Availability Statement
The raw data supporting the conclusions of this article will be made available by the authors, without undue reservation.
Author Contributions
XJ, SA, AB, DS, OM, and MB contributed to the conception of the approach and conducted experiments. FG and CG provided equipment and contributed to the analysis of the data. XJ, MF, and AG wrote the manuscript. MF and AG coordinated the work. All authors contributed to the article and approved the submitted version.
Funding
This work was supported by the Evreux Porte de Normandie, the Region Normandie (RIN RNAmb), and European Union (FEDER).
Conflict of Interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Acknowledgments
The authors would like to thank GDR CNRS 3711 Cosm’Actifs, the Fédération Sécurité Sanitaire, Bien-être, Aliment Durable, and the Cosmetic Valley world cluster for their key role in promoting research in skin microbiota and for supporting this work.
Supplementary Material
The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fmicb.2020.591839/full#supplementary-material
Footnotes
- ^ https://www.zeiss.com/microscopy/int/downloads/zen.html
- ^ http://www.comstat.dk
- ^ http://gwyddion.net/
- ^ https://www.gimp.org/downloads/
References
Araviiskaia, E., Berardesca, E., Bieber, T., Gontijo, G., Viera, M. S., Marrot, L., et al. (2019). The impact of airborne pollution on skin. J. Eur. Acad. Dermatol. Venereol. 33, 1496–1505. doi: 10.1111/jdv.15583
Arora, D. P., Hossain, S., Xu, Y., and Boon, E. M. (2015). Nitric oxide regulation of bacterial biofilms. Biochemistry 54, 3717–3728. doi: 10.1021/bi501476n
Asimakopoulou, A., Daskalos, M., Chasapidis, L., Akritidis, T., Vlachos, N. D., Papaioannou, E., et al. (2011). Characterization of a multiculture in-vitro cell exposure chamber for assessing the biological impact of diesel engine exhaust. J. Phys.: Conf. Ser. 304:012005. doi: 10.1088/1742-6596/304/1/012005
Baldwin, H. E., Bhatia, N. C., Friedman, A., Prunty, T., Martin, R., and Seite, S. (2017). The role of cutaneous microbiota harmony in maintaining a functional skin barrier. J. Drugs Dermatol. 16, 12–18. doi: 10.25251/skin.1.supp.138
Barraud, N., Kelso, M., Rice, S., and Kjelleberg, S. (2015). Nitric oxide: a key mediator of biofilm dispersal with applications in infectious diseases. Curr. Pharm. Des 21, 31–42. doi: 10.2174/1381612820666140905112822
Bertrand, R. L. (2019). Lag phase is a dynamic, organized, adaptive, and evolvable period that prepares bacteria for cell division. J. Bacteriol. 201:21. doi: 10.1128/JB.00697-18
Bodilis, J., Calbrix, R., Guérillon, J., Mérieau, A., Pawlak, B., Orange, N., et al. (2004). Phylogenetic relationships between environmental and clinical isolates of Pseudomonas fluorescens and related species deduced from 16S rRNA gene and OprF protein sequences. Syst. Appl. Microbiol. 27, 93–108. doi: 10.1078/0723-2020-00253
Bogdan, C. (2015). Nitric oxide synthase in innate and adaptive immunity: an update. Trends Immunol. 36, 161–178. doi: 10.1016/j.it.2015.01.003
Bowman, L. A. H., McLean, S., Poole, R. K., and Fukuto, J. M. (2011). The diversity of microbial responses to nitric oxide and agents of nitrosative stress close cousins but not identical twins. Adv. Microb. Physiol. 59, 135–219. doi: 10.1016/B978-0-12-387661-4.00006-9
Bramkamp, M., and Lopez, D. (2015). Exploring the existence of lipid rafts in bacteria. Microbiol. Mol. Biol. Rev. 79, 81–100. doi: 10.1128/MMBR.00036-14
Brandwein, M., Steinberg, D., and Meshner, S. (2016). Microbial biofilms and the human skin microbiome. NPJ Biofilms Microbiomes 2:3. doi: 10.1038/s41522-016-0004-z
Burkovski, A. (2013). Cell envelope of Corynebacteria: structure and influence on pathogenicity. ISRN Microbiol. 2013:11. doi: 10.1155/2013/935736
Burns, E. M., Ahmed, H., Isedeh, P. N., Kohli, I., Van Der Pol, W., Shaheen, A., et al. (2019). Ultraviolet radiation, both UVA and UVB, influences the composition of the skin microbiome. Exp. Dermatol. 28, 136–141. doi: 10.1111/exd.13854
Byrd, A. L., Belkaid, Y., and Segre, J. A. (2018). The human skin microbiome. Nat. Rev. Microbiol. 16, 143–155. doi: 10.1038/nrmicro.2017.157
Costerton, J. W., Stewart, P. S., and Greenberg, E. P. (1999). Bacterial biofilms: a common cause of persistent infections. Science 284, 1318–1322. doi: 10.1126/science.284.5418.1318
de la Fuente-Núñez, C., Reffuveille, F., Fairfull-Smith, K. E., and Hancock, R. E. W. (2013). Effect of nitroxides on swarming motility and biofilm formation, multicellular behaviors in Pseudomonas aeruginosa. Antimicrob. Agents Chemother. 57, 4877–4881. doi: 10.1128/AAC.01381-13
Deupree, S. M., and Schoenfisch, M. H. (2009). Morphological analysis of the antimicrobial action of nitric oxide on Gram-negative pathogens using atomic force microscopy. Acta Biomaterialia 5, 1405–1415. doi: 10.1016/j.actbio.2009.01.025
Déziel, E., Comeau, Y., and Villemur, R. (2001). Initiation of biofilm formation by Pseudomonas aeruginosa 57RP correlates with emergence of hyperpiliated and highly adherent phenotypic variants deficient in swimming, swarming, and twitching motilities. J. Bacteriol. 183, 1195–1204. doi: 10.1128/JB.183.4.1195-1204.2001
Drakaki, E., Dessinioti, C., and Antoniou, C. V. (2014). Air pollution and the skin. Front. Environ. Sci. 2:11. doi: 10.3389/fenvs.2014.00011
European Environment Agency, (2019). Air Quality in Europe. Available at: https://www.eea.europa.eu/publications/air-quality-in-europe-2019 (accessed February 2, 2020).
Flores, G. E., Caporaso, J. G., Henley, J. B., Rideout, J. R., Domogala, D., Chase, J., et al. (2014). Temporal variability is a personalized feature of the human microbiome. Genome Biol. 15:531. doi: 10.1186/s13059-014-0531-y
Ghaffari, A., Neil, D. H., Ardakani, A., Road, J., Ghahary, A., and Miller, C. C. (2005). A direct nitric oxide gas delivery system for bacterial and mammalian cell cultures. Nitric Oxide 12, 129–140. doi: 10.1016/j.niox.2005.01.006
Giesbrecht, P., Kersten, T., Maidhof, H., and Wecke, J. (1998). Staphylococcal cell wall: morphogenesis and fatal variations in the presence of penicillin. Microbiol. Mol. Biol. Rev. 62, 1371–1414. doi: 10.1128/MMBR.62.4.1371-1414.1998
Grice, E. A., Kong, H. H., Renaud, G., Young, A. C., Nisc Comparative Sequencing Program, Bouffard, G. G., et al. (2008). A diversity profile of the human skin microbiota. Genome Res. 18, 1043–1050. doi: 10.1101/gr.075549.107
Grice, E. A., and Segre, J. A. (2011). The skin microbiome. Nat. Rev. Microbiol. 9, 244–253. doi: 10.1038/nrmicro2537
Grosser, M. R., Weiss, A., Shaw, L. N., and Richardson, A. R. (2016). Regulatory requirements for Staphylococcus aureus nitric oxide resistance. J. Bacteriol. 198, 2043–2055. doi: 10.1128/JB.00229-16
He, Q. C., Tavakkol, A., Wietecha, K., Begum-Gafur, R., Ansari, S. A., and Polefka, T. (2006). Effects of environmentally realistic levels of ozone on stratum corneum function. Int. J. Cosmet. Sci. 28, 349–357. doi: 10.1111/j.1467-2494.2006.00347.x
Henrichsen, J. (1972). Bacterial surface translocation: a survey and a classification. Bacteriol. Rev. 36, 478–503. doi: 10.1128/MMBR.36.4.478-503.1972
Heydorn, A., Nielsen, A. T., Hentzer, M., Sternberg, C., Givskov, M., Ersbøll, B. K., et al. (2000). Quantification of biofilm structures by the novel computer program COMSTAT. Microbiology 146(Pt 10), 2395–2407. doi: 10.1099/00221287-146-10-2395
Hillion, M., Mijouin, L., Jaouen, T., Barreau, M., Meunier, P., Lefeuvre, L., et al. (2013). Comparative study of normal and sensitive skin aerobic bacterial populations. Microbiologyopen 2, 953–961. doi: 10.1002/mbo3.138
Hobman, J. L., and Crossman, L. C. (2015). Bacterial antimicrobial metal ion resistance. J. Med. Microbiol. 64, 471–497. doi: 10.1099/jmm.0.023036-0
Hon, K. L., Tsang, Y. C. K., Pong, N. H., Leung, T. F., and Ip, M. (2016). Exploring Staphylococcus epidermidis in atopic eczema: friend or foe? Clin. Exp. Dermatol. 41, 659–663. doi: 10.1111/ced.12866
Hüls, A., Vierkötter, A., Gao, W., Krämer, U., Yang, Y., Ding, A., et al. (2016). Traffic-related air pollution contributes to development of facial lentigines: further epidemiological evidence from Caucasians and Asians. J. Investig. Dermatol. 136, 1053–1056. doi: 10.1016/j.jid.2015.12.045
INERIS, (2011). Dioxyde D’azote: Données Toxicologiques et Environnementales. Available at: http://www.ineris.fr/substances/fr/substance/cas/10102-44-0/2 (accessed February 20, 2020).
Izutani, N., Imazato, S., Nakajo, K., Takahashi, N., Takahashi, Y., Ebisu, S., et al. (2011). Effects of the antibacterial monomer 12-methacryloyloxydodecylpyridinium bromide (MDPB) on bacterial viability and metabolism. Eur. J. Oral Sci. 119, 175–181. doi: 10.1111/j.1600-0722.2011.00817.x
Jefferson, K. K. (2004). What drives bacteria to produce a biofilm? FEMS Microbiol. Lett. 236, 163–173. doi: 10.1111/j.1574-6968.2004.tb09643.x
Kim, H.-J., Kim, H., Kim, J. J., Myeong, N. R., Kim, T., Park, T., et al. (2018). Fragile skin microbiomes in megacities are assembled by a predominantly niche-based process. Sci. Adv. 4:e1701581. doi: 10.1126/sciadv.1701581
Kondakova, T., Catovic, C., Barreau, M., Nusser, M., Brenner-Weiss, G., Chevalier, S., et al. (2016). Response to gaseous NO2 air pollutant of P. fluorescens airborne strain MFAF76a and clinical strain MFN1032. Front. Microbiol. 7:379. doi: 10.3389/fmicb.2016.00379
Kong, H. H., and Segre, J. A. (2012). Skin microbiome: looking back to move forward. J. Invest. Dermatol. 132, 933–939. doi: 10.1038/jid.2011.417
Kouker, G., and Jaeger, K. E. (1987). Specific and sensitive plate assay for bacterial lipases. Appl. Environ. Microbiol. 53, 211–213. doi: 10.1128/AEM.53.1.211-213.1987
Koziel, J., and Potempa, J. (2013). Protease-armed bacteria in the skin. Cell Tissue Res. 351, 325–337. doi: 10.1007/s00441-012-1355-2
Kwaszewska, A., Sobiś-Glinkowska, M., and Szewczyk, E. M. (2014). Cohabitation—relationships of corynebacteria and staphylococci on human skin. Folia Microbiol. 59, 495–502. doi: 10.1007/s12223-014-0326-2
Latza, U., Gerdes, S., and Baur, X. (2009). Effects of nitrogen dioxide on human health: systematic review of experimental and epidemiological studies conducted between 2002 and 2006. Int. J. Hyg. Environ. Health 212, 271–287. doi: 10.1016/j.ijheh.2008.06.003
Léonard, L., Bouarab Chibane, L., Ouled Bouhedda, B., Degraeve, P., and Oulahal, N. (2016). Recent advances on multi-parameter flow cytometry to characterize antimicrobial treatments. Front. Microbiol. 7:1225. doi: 10.3389/fmicb.2016.01225
Lopez, D., and Koch, G. (2017). Exploring functional membrane microdomains in bacteria: an overview. Curr. Opin. Microbiol. 36, 76–84. doi: 10.1016/j.mib.2017.02.001
Malanovic, N., and Lohner, K. (2016). Gram-positive bacterial cell envelopes: The impact on the activity of antimicrobial peptides. Biochim. Biophys. Acta 1858, 936–946. doi: 10.1016/j.bbamem.2015.11.004
Mancebo, S. E., and Wang, S. Q. (2015). Recognizing the impact of ambient air pollution on skin health. J. Eur. Acad. Dermatol. Venereol. 29, 2326–2332. doi: 10.1111/jdv.13250
Mancinelli, R. L., and McKay, C. P. (1983). Effects of nitric oxide and nitrogen dioxide on bacterial growth. Appl. Environ. Microbiol. 46, 198–202. doi: 10.1128/AEM.46.1.198-202.1983
Martin, A. N., Boulter, P. G., Roddis, D., McDonough, L., Patterson, M., Barco, M. R. D., et al. (2016). In-vehicle nitrogen dioxide concentrations in road tunnels. Atmospheric Environ. 144, 234–248. doi: 10.1016/j.atmosenv.2016.08.083
Martínez-Ruiz, A., Cadenas, S., and Lamas, S. (2011). Nitric oxide signaling: classical, less classical, and nonclassical mechanisms. Free Radic. Biol. Med. 51, 17–29. doi: 10.1016/j.freeradbiomed.2011.04.010
McClung, L. S., and Toabe, R. (1947). The egg yolk plate reaction for the presumptive diagnosis of clostridium sporogenes and certain species of the gangrene and botulinum groups. J. Bacteriol. 53, 139–147. doi: 10.1128/JB.53.2.139-147.1947
Morgenstern, V., Zutavern, A., Cyrys, J., Brockow, I., Koletzko, S., Krämer, U., et al. (2008). Atopic diseases, allergic sensitization, and exposure to traffic-related air pollution in children. Am. J. Respir. Crit. Care Med. 177, 1331–1337. doi: 10.1164/rccm.200701-036OC
Morin, J.-P., Gouriou, F., Preterre, D., Bobbia, M., and Delmas, V. (2009). Évaluation de l’exposition aux polluants atmosphériques des conducteurs de véhicules automobiles par la mise en œuvre de mesures dynamiques dans l’habitacle du véhicule. Arch. Maladies Professionnelles l’Environnement 70, 184–192. doi: 10.1016/j.admp.2008.10.024
Neumeyer, A., Hübschmann, T., Müller, S., and Frunzke, J. (2013). Monitoring of population dynamics of Corynebacterium glutamicum by multiparameter flow cytometry: Population dynamics of Corynebacterium glutamicum. Microb. Biotechnol. 6, 157–167. doi: 10.1111/1751-7915.12018
Noble, W. C. (1975). Skin as a microhabitat. Postgrad. Med. J. 51, 151–155. doi: 10.1136/pgmj.51.593.151
Oh, J., Byrd, A. L., Deming, C., Conlan, S., Kong, H. H., and Segre, J. A. (2014). Biogeography and individuality shape function in the human skin metagenome. Nature 514, 59–64. doi: 10.1038/nature13786
Oh, J., Byrd, A. L., Park, M., Kong, H. H., and Segre, J. A. (2016). Temporal stability of the human skin microbiome. Cell 165, 854–866. doi: 10.1016/j.cell.2016.04.008
Pacher, P., Beckman, J. S., and Liaudet, L. (2007). Nitric oxide and peroxynitrite in health and disease. Physiol. Rev. 87, 315–424. doi: 10.1152/physrev.00029.2006
Plou, F. J., Ferrer, M., Nuero, O. M., Calvo, M. V., Alcalde, M., Reyes, F., et al. (1998). Analysis of Tween 80 as an esterase/lipase substrate for lipolytic activity assay. Biotechnol. Tech. 12, 183–186. doi: 10.1023/A:1008809105270
Poole, R. K. (2004). Nitric oxide and nitrosative stress tolerance in bacteria. Biochem. Soc. Trans. 33, 176–180. doi: 10.1042/BST0330176
Pothmann, A., Illing, T., Wiegand, C., Hartmann, A. A., and Elsner, P. (2019). The microbiome and atopic dermatitis: a review. Am. J. Clin. Dermatol. 20, 749–761. doi: 10.1007/s40257-019-00467-1
Richardson, A. R., Dunman, P. M., and Fang, F. C. (2006). The nitrosative stress response of Staphylococcus aureus is required for resistance to innate immunity. Mol. Microbiol. 61, 927–939. doi: 10.1111/j.1365-2958.2006.05290.x
Riffel, A., and Brandelli, A. (2006). Keratinolytic bacteria isolated from feather waste. Braz. J. Microbiol. 37, 395–399. doi: 10.1590/S1517-83822006000300036
Rohde, M. (2019). The Gram-positive bacterial cell wall. Microbiol. Spectr. 7:21. doi: 10.1128/microbiolspec.GPP3-0044-2018
Rosenthal, M., Goldberg, D., Aiello, A., Larson, E., and Foxman, B. (2011). Skin microbiota: Microbial community structure and its potential association with health and disease. Infect. Genet. Evol. 11, 839–848. doi: 10.1016/j.meegid.2011.03.022
Scales, B. S., Dickson, R. P., LiPuma, J. J., and Huffnagle, G. B. (2014). Microbiology, genomics, and clinical significance of the Pseudomonas fluorescens species complex, an unappreciated colonizer of humans. Clin. Microbiol. Rev. 27, 927–948. doi: 10.1128/CMR.00044-14
Schommer, N. N., and Gallo, R. L. (2013). Structure and function of the human skin microbiome. Trends Microbiol. 21, 660–668. doi: 10.1016/j.tim.2013.10.001
Si, J., Lee, S., Park, J. M., Sung, J., and Ko, G. (2015). Genetic associations and shared environmental effects on the skin microbiome of Korean twins. BMC Genomics 16:992. doi: 10.1186/s12864-015-2131-y
Société Française de Microbiologie, (2019). CASFM / EUCAST. Available at: https://www.sfm-microbiologie.org/wp-content/uploads/2019/02/CASFM2019_V1.0.pdf (accessed April 30, 2020).
Somerville, D. A., and Noble, W. C. (1973). Microcolony size of microbes on human skin. J. Med. Microbiol. 6, 323–328. doi: 10.1099/00222615-6-3-323
Tan, Z., Shi, Y., Xing, B., Hou, Y., Cui, J., and Jia, S. (2019). The antimicrobial effects and mechanism of ε-poly-lysine against Staphylococcus aureus. Bioresour. Bioprocess. 6:11. doi: 10.1186/s40643-019-0246-8
Teixeira, D., Fernandes, R., Prudêncio, C., and Vieira, M. (2016). 3-Nitrotyrosine quantification methods: Current concepts and future challenges. Biochimie 125, 1–11. doi: 10.1016/j.biochi.2016.02.011
Vorregaard, M. (2008). Comstat2 - A Modern 3D Image Analysis Environment for Biofilms. Kongens Lyngby: Technical University of Denmark.
Williams, D. E., and Boon, E. M. (2019). Towards understanding the molecular basis of nitric oxide-regulated group behaviors in pathogenic bacteria. J. Innate. Immun. 11, 205–215. doi: 10.1159/000494740
Xie, W. (2012). Characterization of lipases from Staphylococcus aureus and Staphylococcus epidermidis isolated from human facial sebaceous skin. J. Microbiol. Biotechnol. 22, 84–91. doi: 10.4014/jmb.1107.07060
Keywords: air pollution, nitrogen dioxide (NO2), skin microbiota, Staphylococcus, Pseudomonas, Corynebacterium, AFM (atomic force microscope), 3-nitrotyrosine(3-NT)
Citation: Janvier X, Alexandre S, Boukerb AM, Souak D, Maillot O, Barreau M, Gouriou F, Grillon C, Feuilloley MGJ and Groboillot A (2020) Deleterious Effects of an Air Pollutant (NO2) on a Selection of Commensal Skin Bacterial Strains, Potential Contributor to Dysbiosis? Front. Microbiol. 11:591839. doi: 10.3389/fmicb.2020.591839
Received: 06 August 2020; Accepted: 17 November 2020;
Published: 08 December 2020.
Edited by:
George Tsiamis, University of Patras, GreeceReviewed by:
Ian Antheni Myles, National Institutes of Health (NIH), United StatesMariana Carmen Chifiriuc, University of Bucharest, Romania
Copyright © 2020 Janvier, Alexandre, Boukerb, Souak, Maillot, Barreau, Gouriou, Grillon, Feuilloley and Groboillot. This is an open-access article distributed under the terms of the Creative Commons Attribution License (CC BY). The use, distribution or reproduction in other forums is permitted, provided the original author(s) and the copyright owner(s) are credited and that the original publication in this journal is cited, in accordance with accepted academic practice. No use, distribution or reproduction is permitted which does not comply with these terms.
*Correspondence: Anne Groboillot, anne.groboillot@univ-rouen.fr
