Verticillia cause a vascular wilt disease affecting a broad range of economically valuable crops. The fungus enters its host plants through the roots and colonizes the vascular system. It requires extracellular proteins for a successful plant colonization. The exoproteomes of the allodiploid Verticillium longisporum upon cultivation in different media or xylem sap extracted from its host plant Brassica napus were compared. Secreted fungal proteins were identified by label free liquid chromatography-tandem mass spectrometry screening. V. longisporum induced two main secretion patterns. One response pattern was elicited in various non-plant related environments. The second pattern includes the exoprotein responses to the plant-related media, pectin-rich simulated xylem medium and pure xylem sap, which exhibited similar but additional distinct features. These exoproteomes include a shared core set of 221 secreted and similarly enriched fungal proteins. The pectin-rich medium significantly induced the secretion of 143 proteins including a number of pectin degrading enzymes, whereas xylem sap triggered a smaller but unique fungal exoproteome pattern with 32 enriched proteins. The latter pattern included proteins with domains of known pathogenicity factors, metallopeptidases and carbohydrate-active enzymes. The most abundant proteins of these different groups are the necrosis and ethylene inducing-like proteins Nlp2 and Nlp3, the cerato-platanin proteins Cp1 and Cp2, the metallopeptidases Mep1 and Mep2 and the carbohydrate-active enzymes Gla1, Amy1 and Cbd1. Their pathogenicity contribution was analyzed in the haploid parental strain V. dahliae. Deletion of the majority of the corresponding genes caused no phenotypic changes during ex planta growth or invasion and colonization of tomato plants. However, we discovered that the MEP1, NLP2, and NLP3 deletion strains were compromised in plant infections. Overall, our exoproteome approach revealed that the fungus induces specific secretion responses in different environments. The fungus has a general response to non-plant related media whereas it is able to fine-tune its exoproteome in the presence of plant material. Importantly, the xylem sap-specific exoproteome pinpointed Nlp2 and Nlp3 as single effectors required for successful V. dahliae colonization.
Introduction
Vascular wilts caused by Verticillium spp. are widespread and destructive plant diseases, resulting in enormous economic losses. Haploid Verticillium dahliae, the economically most important representative of the genus, infects over 200 plant species worldwide (Klosterman et al., 2009; Inderbitzin and Subbarao, 2014). In contrast, the allodiploid Verticillium longisporum has a narrow host range that comprises primarily Brassicaceae. During the last several decades, increasing cultivation of the oilseed rape Brassica napus revealed V. longisporum as one of the most devastating pathogens of oilseed rape (Dunker et al., 2008).
Verticillium spp. enter the plant through the root, where the fungus then grows both inter- and intracellular in the root cortex toward the central cylinder and finally colonizes the xylem vessels (Fradin and Thomma, 2006; Eynck et al., 2007). The transpiration stream plays an essential role in supplying water and mineral salts to the aerial tissue of plants (de Boer and Volkov, 2003). The xylem sap is a nutrient-poor environment with plant defense proteins, hormones and low concentrations of amino acids and sugars (Singh et al., 2010; Carella et al., 2016). This makes it a very unique environment, which Verticillium spp. exploit for growth and systematic distribution in the host plant (Floerl et al., 2008; Singh et al., 2010). Factors that contribute to adaptation to the unbalanced amino acid supply include the chorismate synthase encoding gene VlARO2 and the cross-pathway transcription factor Cpc1 (Singh et al., 2010; Timpner et al., 2013). The pathogen requires distinct sets of enzymes during different steps in plant colonization including carbohydrate-active enzymes (CAZymes) and peptidases, as well as small secreted proteins, to establish an infection and overcome the immune response of the plant. Several extracellular proteins including polygalacturonases, pectate lyases, xylanases or lipases presumably contribute to virulence during pathogen−host interactions (Isshiki et al., 2001; Yakoby et al., 2001; Oeser et al., 2002; Voigt et al., 2005; Brito et al., 2006).
The plant immune response depends in part on transmembrane receptor proteins termed pattern recognition receptors. These cell surface localized receptors recognize conserved microbial molecules and structural motifs designated as pathogen-associated molecular patterns; examples include the fungal cell-wall polymer chitin (Sorrell and Chen, 2009). Perception of such patterns elicits a basal defense response which halts colonization by non-adapted pathogens and results in pathogen-associated molecular patterns-triggered immunity. Host-adapted pathogens circumvent these plant defense responses by secretion of specific effector proteins as virulence factors for different phases of the infection cycle (Dodds and Rathjen, 2010). These secreted effectors may act passively or actively to combat plant defense responses (Lo Presti et al., 2015).
Well known examples of fungal effectors include the Avr4 and Ecp6 effectors from the leaf mold fungus Cladosporum fulvum that bind to chitin oligosaccharides via a carbohydrate-binding module or LysM domain, respectively (van Esse et al., 2007; de Jonge et al., 2010; Lo Presti et al., 2015; Volk et al., 2019). Similarly, a chitin scavenging function has also been assigned to Cp1 in V. dahliae strain XH-8. CP1 knockout mutants were affected in cotton virulence (Zhang et al., 2017). This chitin protection leads to the suppression of the pathogen-associated molecular patterns-triggered immunity of the plant and shields the fungal cell wall from plant chitinases that hydrolyze chitin (van Esse et al., 2007; de Jonge et al., 2010; Lo Presti et al., 2015; Volk et al., 2019). Other fungal effectors such as metalloproteases possess enzymatic activity and are able to truncate plant chitinases that attack the fungal cell wall (Naumann et al., 2011; Han et al., 2019). Toxins provide another means for pathogens to attack plant hosts. For example, Nep1-like proteins (NLPs) with the necrosis-inducing Phytophtora protein 1 (NPP1) domain induce immune responses and cell death in host tissues and are conserved among fungi including Verticillium spp. (Gijzen and Nürnberger, 2006; Santhanam et al., 2013). V. dahliae isolates encode up to eight NLP homologs (Zhou et al., 2012; Santhanam et al., 2013) whereas most other fungi generally only possess up to three NLPs (Gijzen and Nürnberger, 2006). Only Nlp1 and Nlp2 show cytotoxic activity in Nicotiana benthamiana leaves and play strain- and host-specific roles in V. dahliae virulence (Zhou et al., 2012; Santhanam et al., 2013). Nlp1 and Nlp2 are required for V. dahliae JR2 pathogenicity on tomato and A. thaliana (Santhanam et al., 2013) whereas the corresponding proteins in V. dahliae V592 did not alter virulence on cotton (Zhou et al., 2012). Plant pathogens additionally require a set of CAZymes that facilitate the breakdown of the plant cell wall (Marton et al., 2018). The genomes of Verticillium species encode a greater number of CAZymes with a strikingly high repertoire of pectin-degrading enzymes compared to the secreted proteins of other plant pathogens (Klosterman et al., 2011; Lo Presti et al., 2015).
As the fungus lives in the vascular tissues during most of its life cycle in the plant, further knowledge about specific secretion responses would enable a better understanding of fungal−plant interactions during the infection process. Once the fungus resides inside the plant, it is inaccessible for pesticides and therefore, the management of Verticillium wilt is very challenging. The most effective and widely used soil fumigants, methyl bromide or metam sodium, are used for high valuable crops, but are not profitable for all crops. Furthermore, these and other banned fungicides, are associated with environmental issues (Klosterman et al., 2009; Yellareddygari and Gudmestad, 2018). Therefore, an indispensable approach for protection is to use resistant plant varieties, but these are not available for most crops. The selection pressure on fungal strains to quickly overcome genetic resistances of the plant makes it even more difficult to develop new resistant varieties (Klosterman et al., 2009; Lo Presti et al., 2015). Consequently, an increased understanding of the infection process for Verticillium spp. is necessary to identify new approaches for disease control.
Until now, it is not known how the effector repertoire of Verticillium spp. is expressed once the pathogen enters the plant. Analysis of Verticillium strains in their vascular environment is technically demanding, and a large number of plants are required to harvest sufficient amounts of xylem sap. Proteomic approaches can be fruitful because comparison of the intracellular fungal proteome in diluted xylem sap and pectin-rich medium resulted in the identification of a disease-related catalase peroxidase, which was only up-regulated in the presence of xylem sap and not in the presence of pectin (Singh et al., 2012).
In this study, we extended the comparative analysis with rapeseed xylem sap and focused on the fungal secretome. V. longisporum secreted proteins that were derived from cultivation in different growth media were identified by a proteomic approach and the protein patterns induced by different environments were compared. Our goal was to obtain a more comprehensive overview of the secreted factors of V. longisporum in response to different substances in its environment that putatively reflect different stages of the infection. We analyzed the exoproteomes of V. longisporum on a broad range of media from water to minimal and complete media. As an additional condition, we applied simulated xylem medium (SXM), which is rich in pectin and which was originally developed to mimic the natural plant growth environment, the xylem sap (Neumann and Dobinson, 2003). All exoproteomes were compared to fungal cultures grown in extracted xylem sap of the V. longisporum host oilseed rape B. napus.
Our results demonstrate that V. longisporum is able to distinguish between the different environments to express different secretome patterns. The pectin-rich medium and xylem sap each triggered distinct protein patterns in comparison to all other tested media. The fungal response to growth in the pectin-rich medium and xylem sap consists of a shared core exoproteome and an additional group of uniquely secreted proteins. A small number of proteins are specifically expressed in xylem sap including CAZymes and other potential virulence factors. Of the factors that were specifically enriched in xylem sap, the NLPs Nlp2 and Nlp3 we demonstrate contributions to plant pathogenicity as virulence factors.
Results
Xylem Sap and Pectin-Rich SXM Trigger Specific Exoproteomic Patterns Compared to Other Growth Media
Verticillium longisporum is a rapeseed pathogenic fungus that is able to grow on a variety of different substrates and colonizes the xylem vessels of plants. This requires the adaptation of the fungus to changing nutrient conditions and other biotic and abiotic factors. We examined how different growth media affected the exoproteome of V. longisporum with a specific focus on identification of distinct patterns triggered by different plant-related contents. For all experiments, V. longisporum was precultured in liquid potato dextrose medium to ensure an equal initial growth state prior to the media-specific induction of secretion. The proteins of the V. longisporum culture supernatants from different media were precipitated and separated by one-dimensional SDS−PAGE thereby resulting in several different patterns in colloidal Coomassie stained gels (Figure 1A). The defined media conditions corresponded to different levels of complexity including nutrient-free water, water with glucose as carbon source, and a more complex nitrogen-rich medium (YNB: Yeast Nitrogen Base). Several plant-related media were included because the natural habitat of the pathogen V. longisporum is inside host plants. These media included the nutrient-limited sucrose medium CDM (Czapek-Dox medium), which was either supplemented with 7% of B. napus xylem sap or plant proteins, 10% vegetable juice (V8 juice) and the pectin-rich SXM, which was developed to mimic fungal growth conditions in plants in vitro (Neumann and Dobinson, 2003; Mandelc and Javornik, 2015). Finally, we also used extracted xylem sap from the rapeseed plant B. napus, which was filtered, excluding proteins larger than 10 kDa but including smaller plant proteins and signal molecules.
![www.frontiersin.org](https://www.frontiersin.org/files/Articles/555289/fmicb-11-01876-HTML/image_m/fmicb-11-01876-g001.jpg)
Figure 1. Exoproteome signatures of V. longisporum in different growth media. V. longisporum 43 was cultivated in complete medium (PDM) for 4 days before the sedimented mycelia and spores were dissolved in different media (dH2O, dH2O + 0.1% glucose, yeast nitrogen base (YNB), 10% vegetable juice (V8), minimal medium (CDM) supplemented with 7% xylem sap or plant proteins, simulated xylem medium (SXM) and extracted xylem sap from B. napus) and cultivated for four more days. (A) Precipitated proteins from the supernatants were separated by one-dimensional SDS–PAGE. The colloidal Coomassie stained exoproteome samples on gel displayed a strong variation between the protein band distributions of all different culture conditions. Lanes M represent the molecular weight marker. Complete lanes of the V. longisporum exoproteomes were subjected to tryptical protein digestion and the resulting peptides were analyzed by LC-MS/MS. (B) Clustering analysis of protein abundances (spectral counts) was facilitated by MarVis-Suite tools and is visualized as one-dimensional self-organizing maps. Rows represent the compared growth conditions. The spectral counts were normalized and color-coded according to the indicated scale. Red indicates increased, dark blue no spectral counts. (C) The principle component analysis plot of the exoproteomes based on the spectral counts was performed with MarVis-Suite software (Meinicke et al., 2008). Each dot represents one independent culture. The compared exoproteome signatures cluster in three groups: a first cluster is formed by all xylem sap culture samples (blue circle); the second cluster contains all SXM culture samples (red circle) and the third cluster consists of all other samples (black circle).
To obtain a more comprehensive analysis, complete lanes of the gels were fractionally subjected to tryptic protein digestion and the resulting peptides were analyzed by liquid chromatography-tandem mass spectrometry (LC-MS/MS). The obtained raw data were channeled through a bioinformatics pipeline based on Proteome Discoverer Software 1.3TM and an in-house genome-wide protein sequence database of V. longisporum. The received spectral counts were compared on single secreted protein level by color-coded one-dimensional self-organizing maps (Figure 1B). These revealed that proteins that were strongly enriched in xylem sap or SXM were not enriched in any other condition. Differences in the exoproteome signatures are also illustrated by sample clustering in a principle component analysis plot (Figure 1C). Exoproteomes of V. longisporum derived from very diverse media including nutrient-free water, V8 juice, CDM or YNB medium show a similar pattern. Supplementation of CDM with B. napus plant proteins or xylem sap with a final concentration of 7% did not result in a different exoproteome pattern, neither did glucose supplementation to water. Therefore, the respective results for these conditions were combined together. In contrast, proteins secreted in pectin-rich SXM or xylem sap each showed a distinct pattern in comparison to the other media conditions. These patterns representing the latter exoproteomes are similar in some features as the clusters lie close to each other on the x-axis, although some differences are present as analyzed further below.
Overall, our analysis illustrates that the fungus has the potential to form a general secretome response to non-plant related environments and, in addition, a similar, but more specialized response to plant-related substances (Figure 1C).
Pectin-Rich Medium and Xylem Sap Elicit Distinct V. longisporum Exoproteome Responses
Similarities and differences of the specific V. longisporum exoproteome responses in the pectin-rich SXM compared to xylem sap were analyzed in more detail. The data set was filtered with a statistical workflow using MarVis-Suite (Kaever et al., 2012). For our approach we focused on the secretome without extracellular vesicles to test whether conventionally secreted proteins are xylem sap specific. Therefore, we filtered for predicted extracellular localization and the possession of a signal peptide. Supplementary Table S1 shows the identities of the 441 proteins from an in-house database with their protein sequences and identified peptides. The list is sorted according to the most specifically enriched proteins in xylem sap (green) and SXM (red), respectively. Proteins that are not considered as specifically enriched are listed at the bottom of the table and belong to the core exoproteome. Putative unconventionally secreted proteins that were detected in xylem sap and SXM are listed in Supplementary Tables S2, S3, respectively.
Clustering analysis of spectral count data of the 441 proteins with MarVis-Suite was visualized as a one-dimensional self-organizing map (Figure 2A). A set of proteins, which have a stable abundance in both conditions is considered as the shared core exoproteome. Proteins that showed different peptide counts in the two growth conditions were considered as differentially enriched (Figure 2A, “enriched in Xylem sap” and “enriched in SXM,” respectively).
![www.frontiersin.org](https://www.frontiersin.org/files/Articles/555289/fmicb-11-01876-HTML/image_m/fmicb-11-01876-g002.jpg)
Figure 2. Comparison of exoproteome signatures for V. longisporum growth in xylem sap and pectin-rich simulated xylem medium. The exoproteome of V. longisporum upon cultivation in simulated xylem medium (SXM) and xylem sap was compared. A list of identified proteins is found in Supplementary Table S1. (A) Clustering analysis of protein abundances (spectral counts) is visualized as one-dimensional self-organizing maps, which was facilitated by the software MarVis-Suite. Upper and lower rows represent the two compared growth conditions. Each column corresponds to spectral counts of one identified protein. The spectral counts were normalized and color-coded according to the indicated scale. Red indicates increased, dark blue no spectral counts. (B–E) BLAST searches of identified V. longisporum proteins in panel (A) against the V. dahliae JR2 and the V. alfalfae VaMs.102 proteomes from Ensembl Fungi were conducted and functional analysis is based on their protein sequences. (B) The Venn diagram displays the number of proteins specifically enriched in xylem sap (blue) and proteins enriched in SXM (red). Similarly enriched proteins in both media form the core exoproteome (violet). (C) The cake diagram shows the functional classification of the 396 identified secreted proteins into main protein groups according to their predicted domains. (D) The functional groups are presented with the number of identified proteins in the different cultivation environments. (E) Classification by CAZyme modules is shown for each cultivation type.
Verticillium longisporum is an allodiploid organism derived from two parental strains, and V. longisporum 43 used in this study is a result of an A1xD1 hybridization event. A1 and D1 are described as so far unknown haploid Verticillium species, of which D1 is closely related to V. dahliae and A1 is distantly related to V. alfalfae (Inderbitzin and Subbarao, 2014). Most genes are encoded in two copies, reflecting the two isogenes of both parental lineages. BLAST searches against the V. dahliae JR2 and the V. alfalfae VaMs.102 proteomes from Ensembl Fungi were conducted. As a consequence, two isogene products were detected for most identified proteins.
The list of proteins was further and thoroughly analyzed manually to functionally classify the candidates. As the Ensembl Fungi annotations are more robust, further analyses are based on the V. dahliae JR2 protein sequences except for candidates with no corresponding hit in V. dahliae. Here, the protein sequences for further analyses were retrieved from the V. alfalfae VaMs.102 proteome from Ensembl Fungi. Putative functions of robust annotated proteins were addressed with InterProScan, the CAZy database and dbCAN2. All details are given in Supplementary Table S4. The Venn diagram in Figure 2B displays the 396 candidates with robust annotations in different groups. Protein extracts from pectin-rich SXM and xylem sap share a core exoproteome of 221 proteins with a similar abundance in both media, but each also induced the secretion of distinct exoprotein patterns. SXM cultivation resulted with 143 secreted proteins in a four-fold higher number of secreted proteins specifically enriched in comparison to xylem sap, where the peptide count of 32 proteins was specifically increased (Figure 2B).
These results show that SXM, which is used to simulate xylem sap in vitro, and xylem sap of B. napus induce distinct secretion responses with different facets. This indicates that the fungus is able to fine-tune its secretion responses.
Verticillium longisporum Secretes a Broad Arsenal of Substrate-Degrading Enzymes in Pectin-Rich Medium and in Xylem Sap
All 396 identified secreted proteins were classified into functional groups according to the predicted domains (Figure 2C and Supplementary Table S4). For 65 identified proteins, classified as hypothetical gene products, no information about structural domains or putative functions could be found (“Unknown”). “Proteins involved in lipid metabolism,” “Pathogenicity factors,” and smaller groups combined as “Others” represent minor groups, whereby “Pathogenicity factors” represent a group of proteins containing domains of well-known effectors. More proteins were sorted to “Proteins involved in redox processes” (9%) or “Peptidases”(16%) whereas the functional classification revealed an overrepresentation of proteins involved in carbohydrate metabolism or catabolism with around 40% of proteins acting on carbohydrates and another 5% of proteins with domains interacting with carbohydrates (Figure 2C and Supplementary Table S5).
Further analysis of proteins from functional groups regarding the induction by different media showed that pectin-rich medium predominantly triggered the secretion of carbohydrate-degrading enzymes, but also peptidases and redox enzymes (Figure 2D and Supplementary Table S5). In the SXM-specific exoproteome no proteins were grouped as “Pathogenicity factors.” Cultivation in xylem sap triggered the unique secretion of carbohydrate-degrading enzymes, pathogenicity factors, peptidases and redox enzymes though the total number of enriched proteins is significantly smaller compared to the SXM-specific secreted proteins.
The majority of identified secreted proteins comprise the CAZymes, which contain protein motifs that have been classified into sequence-related families of CAZyme modules (Lombard et al., 2014). Within the group of all secreted proteins we identified 94 glycoside hydrolases (GHs), 36 polysaccharide lyases (PLs), 21 carbohydrate esterases (CEs), one glycosyltransferase (GT), 19 auxiliary activities (AAs). Of these CAZymes, 19 proteins additionally possess non-catalytic carbohydrate-binding modules (Figure 2E and Supplementary Table S6). In the proteins from the pectin-rich medium condition, the CAZymes are highly represented with 64 proteins whereas in xylem sap only 19 CAZymes are specifically enriched and 88 proteins belong to the core exoproteome (Supplementary Table S6). The core exoproteome exhibits an overrepresentation of CAZyme families with 32 proteins acting on pectin, including members of family GH28 (five proteins), PL1 (16 proteins), PL3 (seven proteins) and CE8 (four proteins). Additionally, the SXM-specific and most enriched CAZyme families comprise 20 pectin-degrading enzymes (families GH28, PL1 and CE12 with ten, six and four proteins, respectively, Supplementary Table S6). Only a few CAZymes were specifically enriched in the xylem sap condition, and these were distributed in different families.
Overall, we found that B. napus xylem sap and pectin-rich SXM, employed as plant-related culture environments, predominantly induced the secretion of carbohydrate-degrading enzymes. Compared to the rapeseed xylem sap condition, SXM triggered an additional set of CAZymes that were specifically enriched after cultivation in this medium.
Xylem Sap Triggers the Secretion of Potential and Known Verticillium Effectors
Compared to the pectin-rich SXM, V. longisporum formed a more specific secretion response in xylem sap with only 32 proteins that are uniquely enriched. This indicates that the fungus can distinguish between xylem sap and the presence of other plant material and accordingly fine-tunes its protein secretion. Furthermore, the proteins secreted in the host xylem sap might be specifically important during plant colonization.
Table 1 displays the xylem sap-specific proteins. The corresponding isogenes are paired up and the best hit in V. dahliae JR2 is given, except for the V. alfalfae specific proteins that were searched against the V. alfalfae VaMs.102 proteome (Ensembl Fungi). Within the identified groups, proteins were ranked according to the quotient of peptide counts identified in xylem sap (XyS) by the number detected in the pectin-rich SXM. Displayed peptide counts were averaged from six replicates. If the number was below 1, it was calculated as 0 and the quotient was given as the average XyS peptide counts (>). The 32 xylem sap-specific proteins comprise 15 “Proteins acting on carbohydrates,” five “Proteins with domains interacting with carbohydrates,” five “Pathogenicity factors,” four “Peptidases,” two “Proteins involved in redox processes” and one with a ubiquitin binding domain that was grouped as “Other” (Table 1).
Several potential virulence factors were identified in the xylem sap-specific response set. Proteins involved in the degradation of carbohydrates are known to contribute to V. dahliae pathogenicity (Gui et al., 2017; Yang et al., 2018). The five proteins comprising domains of already characterized V. dahliae effectors incorporate either NPP1 or cerato-platanin (CP) domains. NPP1 domains are characteristic for necrosis and ethylene inducing protein-like proteins (NLP) of which Verticillium spp. contain up to eight members (Santhanam et al., 2013). Nlp1 and Nlp2 were previously shown to differentially contribute to V. dahliae pathogenicity on different hosts (Wang et al., 2004; Zhou et al., 2012; Santhanam et al., 2013). Our secretome approach identified four isogene products corresponding to two NLPs, Nlp2 and Nlp3. Of the CP domain-containing proteins, one isogene assigned to Cp2 was identified as specifically enriched in xylem sap. V. dahliae possesses two CP proteins of which Cp1 affects virulence on cotton (Zhang et al., 2017). Additionally, four isogenes of two metallopeptidases were found in the xylem sap-specific secretome. Metalloproteases are able to truncate host defense proteins such as chitinases and therefore have the potential to act as virulence factors (Naumann et al., 2011).
These findings show that V. longisporum finetunes its protein secretion response in the host xylem sap, which include known and potential effectors important for plant colonization or infection.
Xylem Sap-Specific Secreted Proteins Are Dispensable for V. dahliae ex planta Development
Verticillium longisporum formed a specific secretion response in xylem sap compared to other media showing that the fungus can distinguish between xylem sap and the presence or absence of other plant material. To investigate whether the xylem sap-specific proteins play a major role in fungal colonization of the plant, the top candidates of the protein groups that have been shown to play critical roles in plant colonization (Fradin and Thomma, 2006; Santhanam et al., 2013; Zhang et al., 2017) were analyzed in this study.
Chosen proteins are highlighted in Table 1 with a given name. The follow up genetic analyses of these proteins were conducted with V. dahliae JR2 because it can be more easily manipulated genetically compared with the allodiploid V. longisporum strain. All candidates from the group “Pathogenicity factors” were included in the follow up experiments. These comprise two NLPs, Nlp2 and Nlp3, and the Cp2 protein. The V. dahliae JR2 homolog of CP1 was tested as well. Cp1 is a virulence factor of V. dahliae strain XH-8 in infections on cotton (Zhang et al., 2017). The peptidases that were identified as specifically enriched in xylem sap were named Mep1 and Mep2 and were both included in our genetic analyses. Of the largest group, proteins involved in carbohydrate degradation, the three most highly abundant candidates, the glucoamylase Gla1, the carbohydrate-binding module-containing protein Cbd1, and the α-amylase Amy1, were further investigated.
For the construction of the corresponding deletion mutants, the open reading frame (ORF) was replaced with either the nourseothricin or hygromycin resistance gene. Correct integration of the deletion cassettes was verified by Southern hybridization (Supplementary Figures S1−S4). To investigate a putative combined effect of proteins in similar groups, the following double deletion strains were constructed as well: NLP2/NLP3, MEP1/MEP2 and CP1/CP2. Ectopic complementation strains were also constructed for the CP1 and CP2 deletion mutants. Phenotypical analysis of all strains revealed no alteration compared to V. dahliae JR2 wildtype (WT) growth and development on solid agar plates such as minimal and complete medium, and simulated xylem medium. Additionally, the strains were tested for the involvement in stress responses with at least one stressor tested for each strain. The stress inducing agent was added to minimal medium. The cell wall perturbing agents SDS and ethanol or the oxidative stressor hydrogen peroxide were used. All single deletion, double deletion and complementation strains exhibited a similar morphological development to V. dahliae WT, which is exemplified by growth on SXM (Figure 3).
![www.frontiersin.org](https://www.frontiersin.org/files/Articles/555289/fmicb-11-01876-HTML/image_m/fmicb-11-01876-g003.jpg)
Figure 3. Exoproteins specifically secreted in xylem sap are dispensable for V. dahliae ex planta phenotype. The same number of spores of V. dahliae JR2 wildtype (WT) and indicated deletion mutant (ΔCP1, ΔCP2, ΔCP1/2, ΔNLP2, ΔNLP3, ΔNLP2/3, ΔMEP1, ΔMEP2, ΔMEP1/2, ΔGLA1, ΔCBD1, and ΔAMY1) and complementation (CP1-C, CP2-C) strains were point inoculated on simulated xylem medium (SXM) plates and incubated at 25°C for 10 days. For ΔAMY1, ΔGLA1, and ΔCBD1 mutants two transformants were spotted. Top-view scans of the colonies show a similar phenotype of all strains.
Overall, these results suggest that Cp1, Cp2, Nlp2, Nlp3, Mep1, Mep2, Gla1, Cbd1, and Amy1, that were found to be enriched specifically in xylem sap cultures, are dispensable for vegetative growth, development and stress response of V. dahliae.
Xylem Sap-Specific CAZymes, Metalloproteases, and Cerato-Platanin Proteins Are Dispensable for V. dahliae JR2 Pathogenicity in Tomato Infections
The functions of the proteins that were specifically enriched after cultivation in xylem sap would be predicted to be important in the interaction with plant substrates in the host xylem sap. Therefore, all V. dahliae single and double deletion strains were tested for their virulence on tomato. 10-day-old tomato seedlings were root-inoculated with the indicated mutant strains, and plants treated with demineralized water were used as mock controls. Disease symptoms were measured 3 weeks after inoculation. The stack diagrams display the percentage of plants exhibiting the respective symptoms (Figures 4, 5). We found that plants infected with GLA1, CBD1, AMY1, MEP2, MEP1/MEP2, CP1, CP2, CP1/CP2 deletion strains or CP1 or CP2 complementation strains showed similar disease symptoms as the WT-infected plants. That is, all fungal infections resulted in a similar stunting phenotype as WT colonization, and plant defense reactions were observed by the discoloration of the hypocotyls in all infected plants. Plants infected with the MEP1 deletion strain show a less severe disease symptom development compared to WT-infected plants whereas the double deletion strain leads to a WT-like infection phenotype. This suggests different functions of the two Mep proteins in virulence. These experiments demonstrate that except Mep1 other tested CAZymes, metalloproteases or cerato-platanin proteins do not affect V. dahliae pathogenicity under the tested conditions.
![www.frontiersin.org](https://www.frontiersin.org/files/Articles/555289/fmicb-11-01876-HTML/image_m/fmicb-11-01876-g004.jpg)

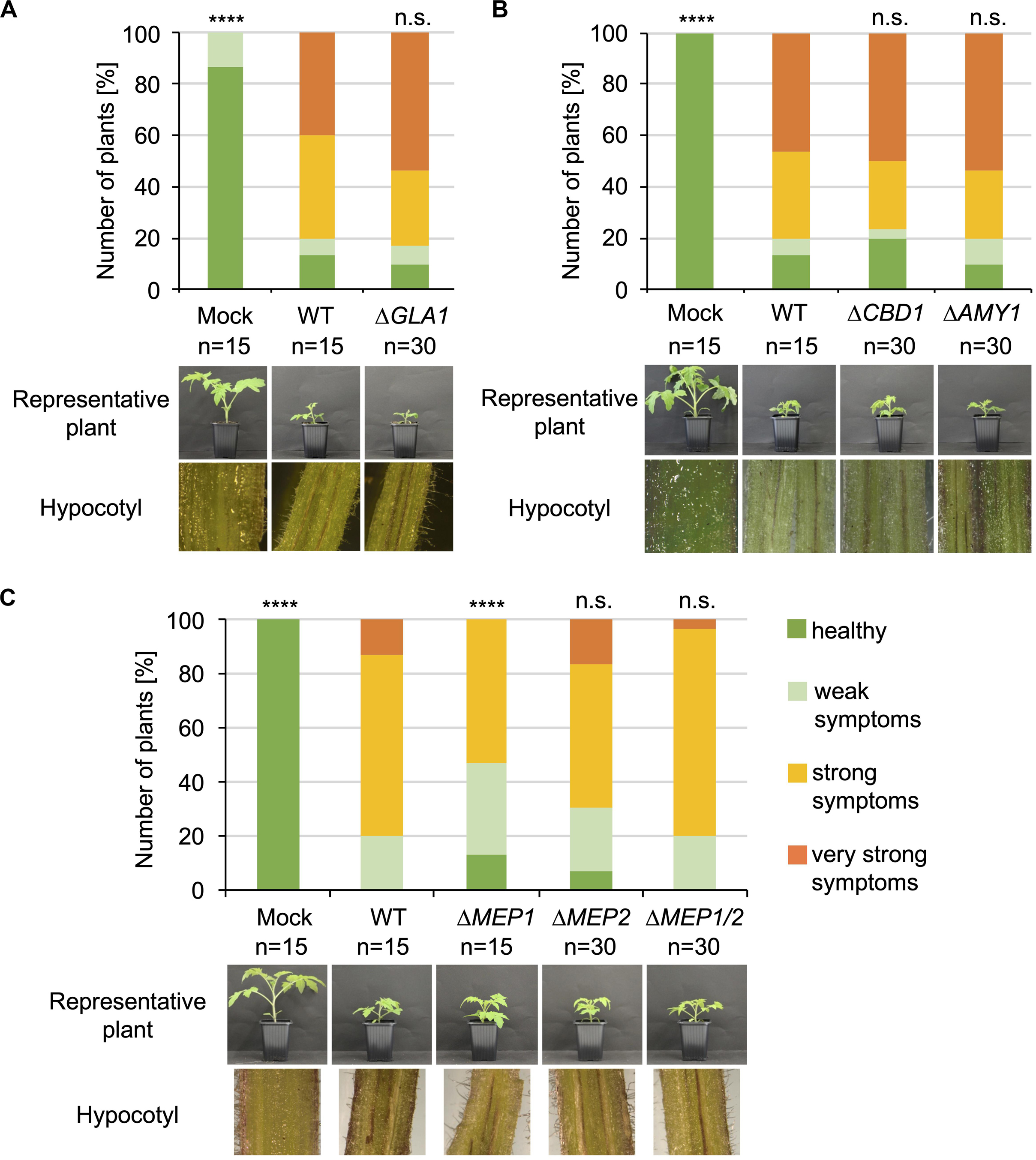

Figure 4. CAZymes and metalloproteases specifically secreted in xylem sap are dispensable for V. dahliae pathogenicity on tomato. 10-day-old tomato seedlings were root-infected with spores of V. dahliae JR2 (WT) and the indicated single and double deletion strains (ΔGLA1, ΔCBD1, ΔAMY1, ΔMEP1, ΔMEP2, and ΔMEP1/2). Uninfected plants (mock) served as control. The disease index was assessed after 21 days. Representative plants and discolorations of the hypocotyls are shown for each infection. The number (n) of plants is shown for each fungal strain or mock treatment. Significant differences compared to WT are indicated and were calculated with the two-tailed Mann-Whitney Test, p-value: ****:p < 0.0001, n.s., not significant. (A) Infections with GLA1 (glycoamylase) deletion strains resulted in the same stunting phenotype as WT infections. The standard deviation of the three measured parameters of the plants (plant height, leaf length, and fresh weight) in the four categories ranging from healthy plants to plants with very strong symptoms was on average 13% within one category and did not exceed 30%. (B) Strains with deletion of CBD1 (carbohydrate-binding domain) or AMY1 (amylase) resulted in a WT-like induction of disease symptoms. The standard deviation in the four categories was on average 9% within one category and did not exceed 27%. (C) Absence of metalloprotease Mep1 results in a slightly less virulent infection phenotype compared to WT whereas absence of Mep2 or both metalloproteases exhibit WT-like V. dahliae infection behavior on tomato. The standard deviation in the four categories was on average 16% within one category and did not exceed 31%.
![www.frontiersin.org](https://www.frontiersin.org/files/Articles/555289/fmicb-11-01876-HTML/image_m/fmicb-11-01876-g005.jpg)

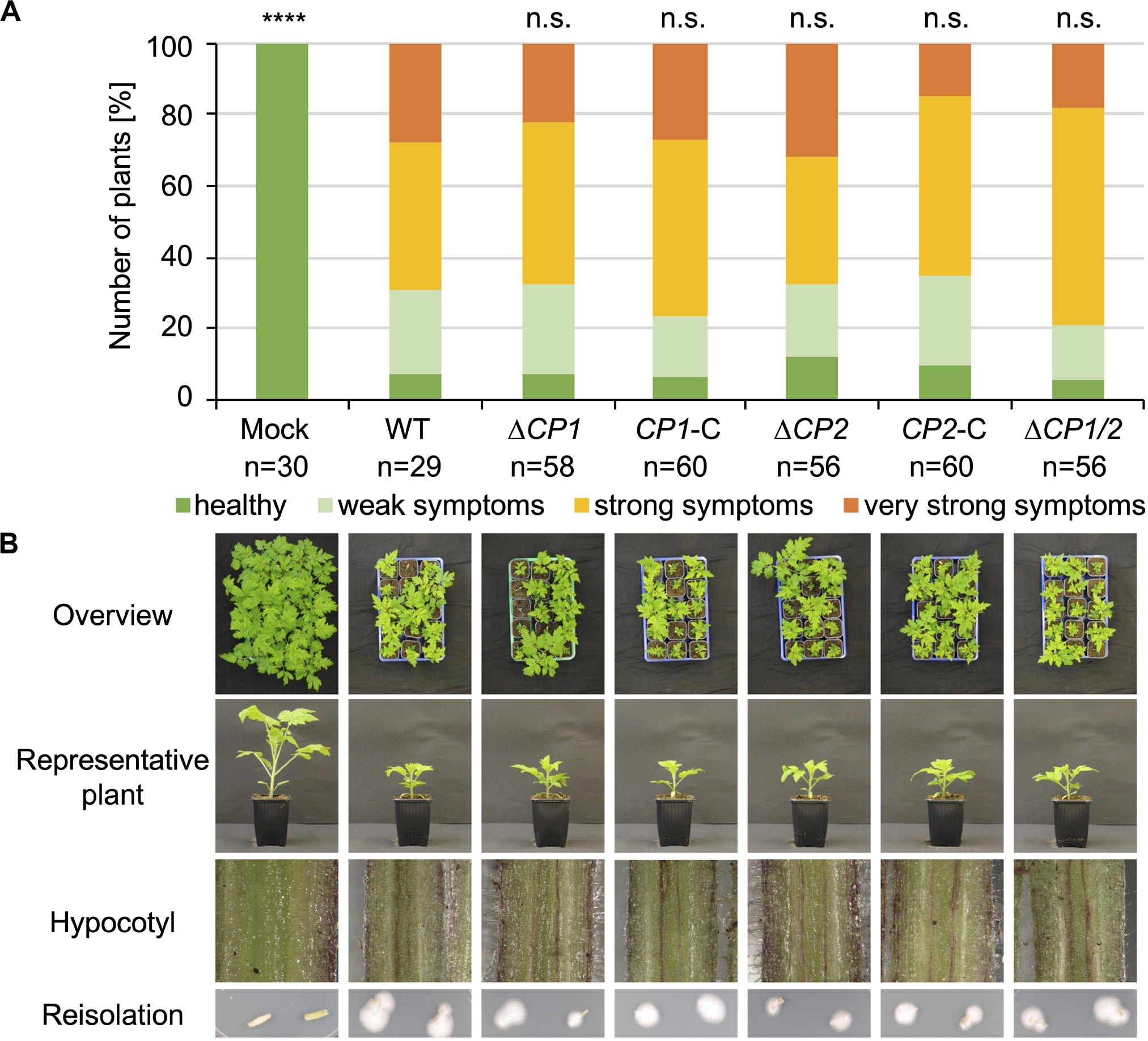

Figure 5. V. dahliae Cp1 and Cp2 are dispensable for virulence on tomato. 10-day-old tomato seedlings were infected by root-dipping in a spore suspension of V. dahliae JR2 (WT) and the indicated deletion (ΔCP1, ΔCP2, and ΔCP1/2) and complementation strains (CP1-C, CP2-C). (A) The stack diagram shows the percentage of plants with the respective disease index 21 days post-inoculation. The number (n) of treated plants is given for each fungal strain. (B) Representative plants, discolorations of the hypocotyls, and the fungal outgrowth of the stems are shown. The experiment was repeated twice. CP1 and CP2 deletion strains infect tomato plants to the same extent as WT and the complementation strains. Significant differences compared to WT are indicated and were calculated with the two-tailed Mann-Whitney Test, p-value: ****: p < 0.0001, n.s., not significant. The standard deviation of the measured parameters of the plants (plant height, leaf length, and fresh weight) in the four categories was on average 17% within one category and did not exceed 31%.
Nlp3-GFP Is Secreted Into the Extracellular Space
As described above, two NLPs were detected in the xylem sap-specific exoproteome. Members of this group are known to contribute to V. dahliae pathogenicity and to exhibit host-specific roles (Wang et al., 2004; Zhou et al., 2012; Santhanam et al., 2013). Nlp1 and Nlp2 contribute to V. dahliae JR2 virulence on tomato and Arabidopsis (Santhanam et al., 2013), whereas corresponding proteins in V. dahliae V592 did not alter virulence on cotton (Zhou et al., 2012). Additionally, Nlp3 did not show any cytotoxic activity on N. benthamiana and has not been further characterized (Santhanam et al., 2013). Because our exoproteome approach identified Nlp2 and Nlp3 as specifically secreted in xylem sap, we subsequently carried out additional analyses of the roles of these proteins.
To monitor the secretion of Nlp3 in liquid media, V. dahliae JR2 and NLP3 deletion strains ectopically overexpressing NLP3-GFP were constructed. These strains were confirmed by Southern hybridization (Supplementary Figure S1). Growth characteristics of the strains expressing NLP3-GFP were analyzed as described for the other deletion strains. Similar to the deletion strains, the NLP3-GFP overexpressing mutants did not show any significant growth variation in comparison to the WT strain under the tested conditions as shown on CDM plates (Supplementary Figure S5). Confocal microscopy of the NLP3-GFP strains confirmed the production of a GFP signal derived by the Nlp3-GFP fusion protein with an intracellular location at vacuoles (Figure 6A). The expression and secretion of the fusion protein was analyzed by western experiments using a 24 h-old SXM culture. Intracellular proteins were extracted from fungal mycelium, extracellular proteins were precipitated from the culture supernatant and subjected to SDS−PAGE. Western analysis of the NLP3-GFP strain confirmed the overexpression and secretion of the fusion protein in pectin-rich medium (Figure 6B). WT and NLP3 deletion strains ectopically overexpressing NLP3-GFP (WT/OE-NLP3-GFP and ΔNLP3/OE-NLP3-GFP, respectively) revealed strong signals for Nlp3-GFP with a size of 52 kDa in extracellular extracts whereas intracellular protein extracts result in faint bands at the size of the fusion protein as well as for free GFP (∼27 kDa). These results correspond to the low GFP intensity in the vacuoles (Figure 6A), which may reflect the amount of protein that is not secreted during overexpression and is, therefore, localized to the vacuoles for degradation. For the control strain V. dahliae JR2 expressing free GFP (WT/OE-GFP), no signal was detected in extracellular space and a strong GFP signal was detected in intracellular extracts. These data corroborate that Nlp3 is primarily a secreted protein and its expression levels neither influence growth nor development.
![www.frontiersin.org](https://www.frontiersin.org/files/Articles/555289/fmicb-11-01876-HTML/image_m/fmicb-11-01876-g006.jpg)

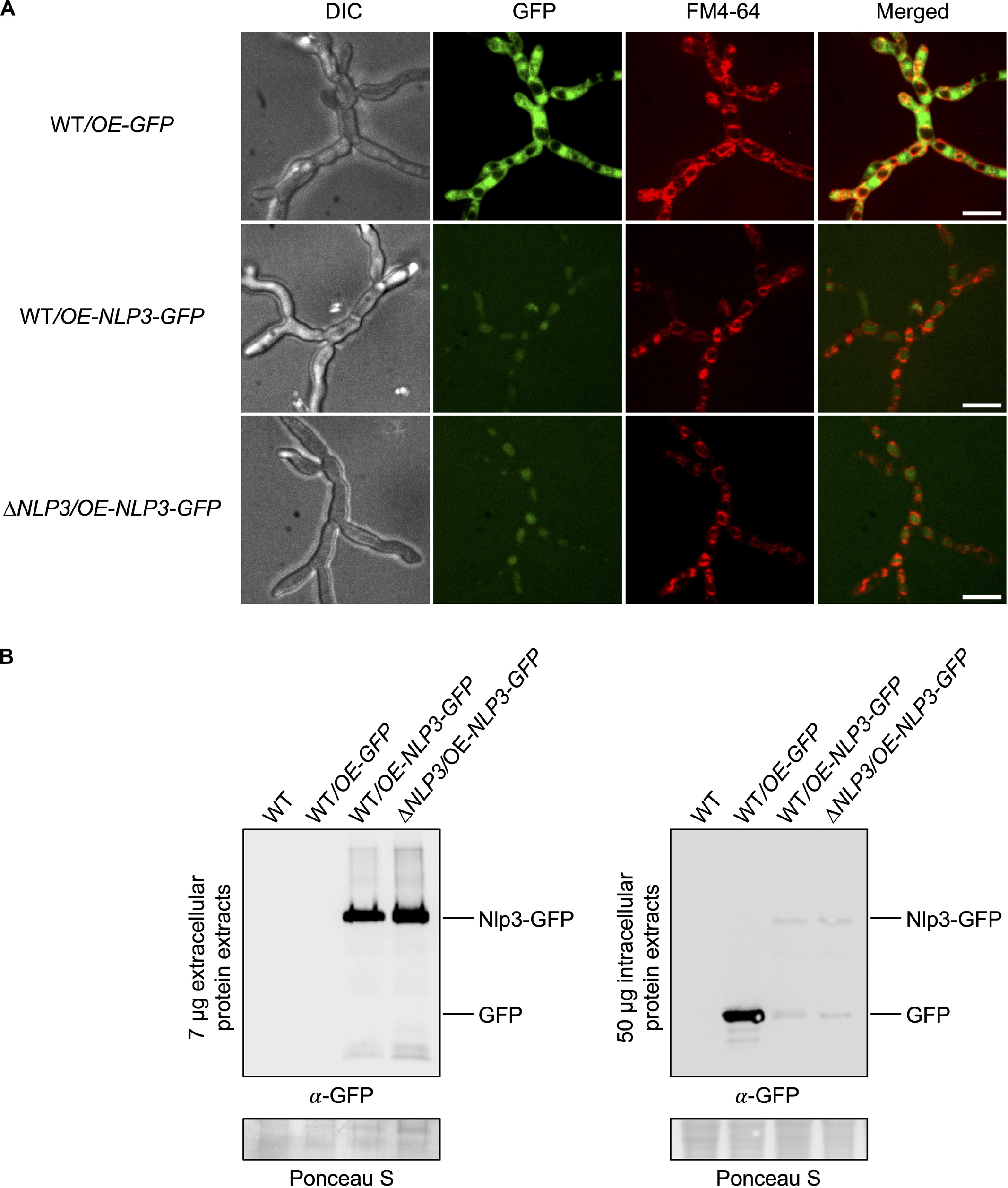

Figure 6. Nlp3-GFP is secreted into the extracellular space. V. dahliae JR2 (WT) ectopically overexpressing GFP (WT/OE-GFP) and WT and NLP3 deletion strains ectopically overexpressing NLP3-GFP (WT/OE-NLP3-GFP and ΔNLP3/OE-NLP3-GFP, respectively) were tested for subcellular localization by fluorescence microscopy in panel (A) and localization and production of the intact full-length fusion protein intra- and extracellular by western hybridization in panel (B). (A) Confocal microscopy of WT/OE-NLP3-GFP and ΔNLP3/OE-NLP3-GFP strains show the accumulation of the GFP signal inside the red-stained vacuoles whereas the strain WT/OE-GFP exhibits GFP signals in the cytoplasm. Spores of the indicated fungal strains were inoculated in 300 μl liquid potato dextrose medium (PDM) in μ-slide 8 well microcopy chambers (Ibidi) and incubated at 25°C overnight. Fungal hyphae were stained with the membrane-selective styryl dye N-(3-triethylammoniumpropyl)-4-(p-diethylaminophenyl-hexatrienyl) pyridinium dibromide (FM4-64). Scale bar = 10 μm. (B) Fungal strains grown in liquid simulated xylem medium (SXM) at 25°C for 24 h. Western hybridization with α-GFP antibody was performed with 7 μg extracellular protein extracts from the culture supernatant and 50 μg intracellular protein extracts. Ponceau S staining served as loading control and WT was used as negative control. Analysis of extracellular proteins in the supernatant of WT/OE-NLP3-GFP and ΔNLP3/OE-NLP3-GFP strains revealed strong signals for Nlp3-GFP with a size of 52 kDa whereas intracellular protein extracts result in faint bands at the size of the fusion protein as well as for free GFP (∼27 kDa). In the control strain WT/OE-GFP a strong GFP signal was detected in intracellular extracts.
Nep1-Like Proteins Nlp2 and Nlp3 Contribute to V. dahliae Virulence on Tomato
Nlp2 only exhibited minor effects in the V. dahliae−tomato system (Santhanam et al., 2013) whereas Nlp3 has not been tested for V. dahliae pathogenicity. We first analyzed the adherence to the root and further root colonization of the NLP3 deletion strain on A. thaliana with fluorescence microscopy. The NLP3 deletion strain expressing free GFP under the control of the gpdA promoter (ΔNLP3/OE-GFP) and the WT control overexpressing GFP (WT/OE-GFP) were used for root inoculation of 3-week-old Arabidopsis seedlings. The root colonization at 3 and 5 days post-inoculation was indistinguishable between WT/OE-GFP and ΔNLP3/OE-GFP (Figure 7A). Initial root colonization was observed at 3 days following inoculation and whole roots were covered with fungal hyphae after 5 days. Both strains were able to colonize the xylem vessels (Figure 7A, white arrows) suggesting that Nlp3 is dispensable for A. thaliana root colonization.
![www.frontiersin.org](https://www.frontiersin.org/files/Articles/555289/fmicb-11-01876-HTML/image_m/fmicb-11-01876-g007.jpg)

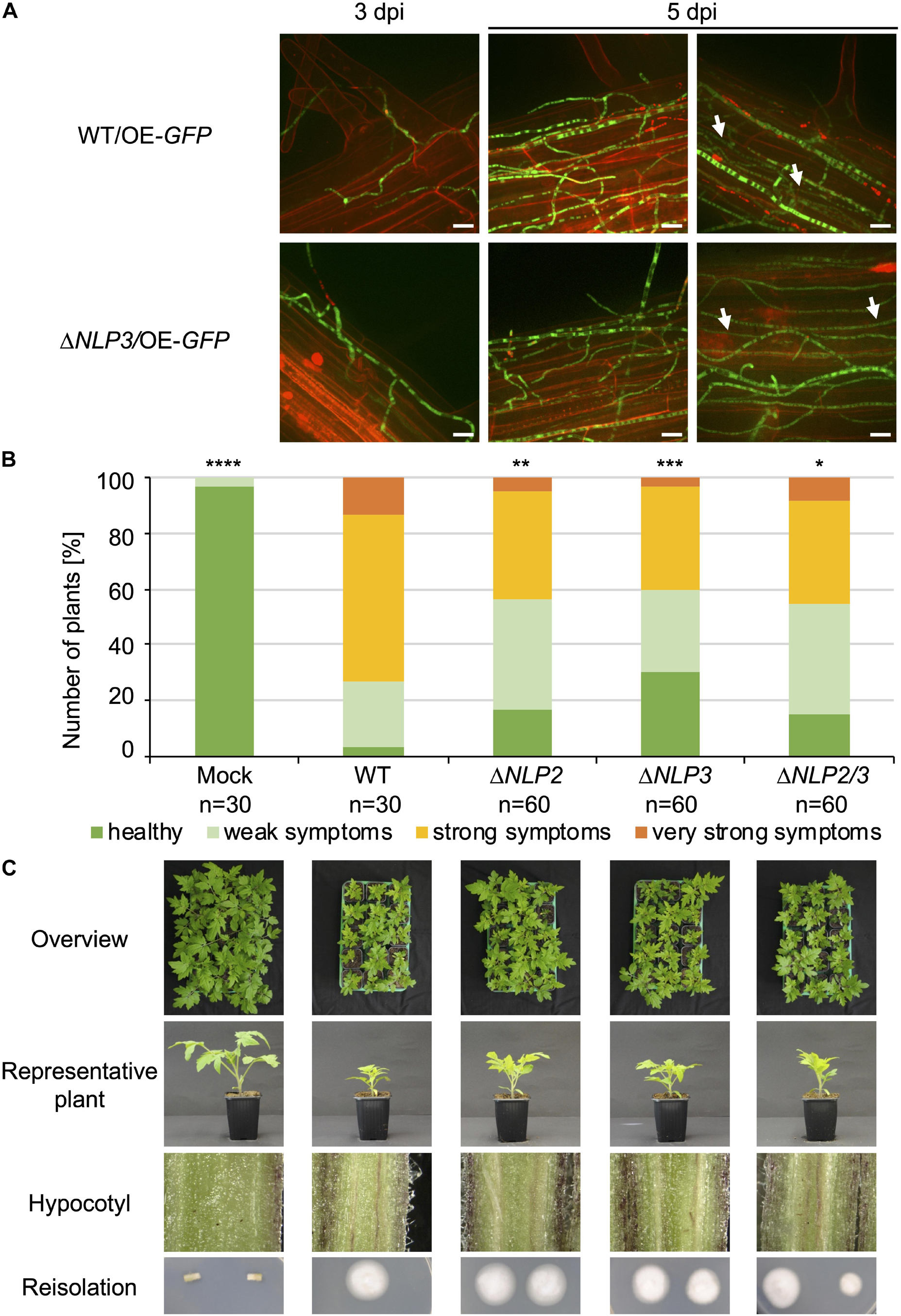

Figure 7. Necrosis and ethylene inducing-like effectors Nlp2 and Nlp3 contribute to V. dahliae virulence on tomato. The NLP3 deletion strain was tested for A. thaliana root colonization and single and double deletion strains of NLP2 and NLP3 were tested for pathogenicity on tomato. Infected plants were incubated in the climate chamber under 16:8 h light:dark at 22–25°C. (A) 3-week-old A. thaliana seedlings were root-infected with spores of V. dahliae JR2 and NLP3 deletion strain overexpressing free GFP (WT/OE-GFP and ΔNLP3/OE-GFP, respectively). At 3 and 5 days post-inoculation (dpi) the colonization of the fungal hyphae was monitored with root cells stained by 0.05% propidium iodide/0.01% silwet solution. The experiment was repeated twice with two individual transformants of ΔNLP3/OE-GFP. Fluorescence microscopy pictures show similar initial colonization of V. dahliae WT/OE-GFP and ΔNLP3/OE-GFP on the root surface at 3 dpi and whole root colonization at 5 dpi. White arrows indicate hyphae growing in the xylem cylinder. Scale bar = 10 μm. (B,C) 10-day-old tomato seedlings were root-infected with spores of V. dahliae JR2 and the indicated single NLP2 (ΔNLP2) and NLP3 (ΔNLP3) and NLP2/3 double deletion strains (ΔNLP2/3). Uninfected plants (mock) served as control. Representative plants, discolorations of the hypocotyls, and the fungal outgrowth of the surface sterilized stems are shown. The disease index was assessed at 21 dpi, which shows that plants infected with NLP2 and NLP3 single and double deletion strains exhibit an intermediate phenotype when compared with mock and WT-infected plants. The number of treated plants (n) is shown for each fungal strain. Significant differences compared to WT are indicated and were calculated with the two-tailed Mann-Whitney Test, p-values: *: p < 0.05, **: p < 0.01, ***: p < 0.001, and ****: p < 0.0001. The standard deviation of the three measured parameters of the plants (plant height, leaf length and fresh weight) in the four categories ranging from healthy plants to plants with very strong symptoms was on average 15% within one category and did not exceed 29%.
Furthermore, the effect on pathogenicity toward tomato was investigated. Tomato infections were carried out as described above. All tested deletion strains were compromised in virulence compared to WT, but the plants nevertheless developed disease symptoms (Figure 7B). All infected plants exhibited stem discolorations and fungal outgrowth was detected from surface sterilized stems (Figure 7C, bottom rows). Symptom development in plants colonized with deletion strains was less severe compared to WT infection. Tray overviews with 15 treated plants, which is a representative number of plants considering fluctuations in the infection success, nicely demonstrate the differences between different strains (Figure 7C, top row). A representative plant also shows the less stunted phenotype of plants treated with NLP2 and NLP3 single and double deletion strains in comparison to WT infected plants (Figure 7C, 2nd row). Translating the disease symptoms into the different categories revealed that about 60% of tested plants exhibited no or only mild symptoms compared to approximately 25% of the WT-treated plants (Figure 7B). Infections with the ΔNLP2ΔNLP3 strain resulted in a similar disease index compared to the single deletion strains and, therefore, showed no additive effect of the two deleted NLP genes.
In conclusion, the infection study demonstrated that NLP2 and NLP3 contribute to V. dahliae JR2 virulence on tomato. Deletion of the genes still resulted in induction of disease symptoms suggesting that the fungal strains are well able to penetrate the plant and that Nlp2 and Nlp3 play primarily a role inside of the plant. This is consistent with the exoproteome approach that identified Nlp2 and Nlp3 as xylem sap-specific secretion proteins, in accordance with a role during later infection steps in the xylem vessels. These experiments show that our proteomic approach successfully identified a xylem sap-specific group that includes proteins that are uniquely required in the xylem sap of the plant. While other tested proteins may have redundant functions, we were able to identify NLPs, which are only secreted in a specific environment, as candidates important for Verticillium infection.
Discussion
Fungi require sensing and adapting mechanisms throughout their life cycle. Different environmental cues induce different secretion responses enabling the pathogen to react to changes in e.g., nutrient supply or host defense responses (McCotter et al., 2016).
Our experiments provide evidence for the ability of the allodiploid V. longisporum to distinguish between different environments and to induce media-dependent secretion responses. V. longisporum secretes a general protein response pattern in various non-plant-related media, which reflects a situation outside of the plant. During cultivation in pectin-rich SXM or plant-extracted xylem sap, the fungus reacts to its surrounding and secretes specific proteins important for the degradation of plant material and the colonization of the xylem. These results imply a complex recognition of plant material in the environment. Further they suggest that SXM lacks the full capacity to mimic the natural growth habitat when compared to our filtered xylem sap.
Xylem sap consists of water, plant defense proteins, hormones and low concentrations of amino acids and sugars that are transported to upper parts of the plant through the transpiration stream (Singh et al., 2010; Carella et al., 2016). The xylem sap is a unique niche for fungal growth due to its low and imbalanced nutrient supply (Singh et al., 2010; Carella et al., 2016). It is important for Verticillium species to recognize this specific environment and adapt to it by secreting colonization-related proteins. In prior studies, we demonstrated that B. napus xylem sap inhibits growth of V. longisporum. No significant changes were observed in fungal protein expression after treatment with uninfected versus infected xylem sap. Cultivation in filtered xylem sap excluding proteins larger than 3 kDa leads to improved fungal growth compared to unfiltered xylem sap. Filtered xylem sap induces higher production of spores, which are required to colonize the host xylem system. These results indicate that the fungus senses signal molecules that induce the adaptation to the environment (Singh et al., 2012). The fungus is able to adapt to the low-nutrient and imbalanced amino acid supply in the xylem sap by activating the cross-pathway (Timpner et al., 2013). In filamentous fungi, this process is controlled by the cross-pathway control transcription factor Cpc1, which is encoded by a homolog of the yeast gene GCN4 (general control non-derepressed) (Mösch et al., 1991; Hoffmann et al., 2001; Timpner et al., 2013). Knockdowns in V. longisporum and knockouts in V. dahliae revealed that Cpc1 is required for growth under amino acid starvation conditions and successful colonization of the host plants (Timpner et al., 2013). These findings show that V. longisporum senses and reacts to its host environment to survive.
Proteomic data from in planta experiments are scarce due to the low fungal protein concentration compared to the plant proteins. Studies with the xylem-colonizing plant pathogen Fusarium oxysporum detected few fungal proteins in the tomato xylem sap proteome upon fungal infection. In total, 14 small, cysteine-rich proteins were identified as Six (secreted in xylem) proteins that determine host specificity (Houterman et al., 2007; Lievens et al., 2009; Schmidt et al., 2013). Additionally, secreted enzymes were identified including oxidoreductases, peroxidases and metalloproteases (Houterman et al., 2007; Schmidt et al., 2013). Members of these enzyme classes are also present in our exoproteome data set indicating similar strategies of xylem colonizing fungi. However, most works concentrate on the plant proteins in the xylem proteome and investigate on the differences to mock-treated plants or to symbiotic interactions (Subramanian et al., 2009; Gawehns et al., 2015; de Lamo et al., 2018). SXM was developed to mimic the in planta environment, but mainly contains amino acids and the complex carbon source pectin (Neumann and Dobinson, 2003). Pectin is found in plant cell walls where it strengthens the wall integrity (Yadeta and Thomma, 2013). The degradation of this complex branched polysaccharide demands the action of several CAZymes (Yang et al., 2018). This situation is reflected in our SXM-derived exoproteome. In the SXM-specific and the core exoproteome we found 64 and 90 CAZymes, respectively, of which the enzymes acting on pectin are especially overrepresented with 32 and 20 proteins. A study on the V. dahliae secretome used minimal medium with cotton root fragments (Zhang et al., 2017). Several secreted proteins were identified including 12 cellulases, five pectate lyases, two chitinases, 13 proteases and one cerato-platanin domain containing protein (Cp1) (Zhang et al., 2017). A number of these proteins were detected in our SXM-specific and core exoproteome. However, no overlap to our xylem sap-specific secretome was detected suggesting that the SXM-induced response of Verticillium spp. is more similar to the presence of root fragments. Our data set was also compared with upregulated fungal genes after V. dahliae root-inoculation of A. thaliana seedlings for 1 day (Scholz et al., 2018). Of these upregulated genes, we identified corresponding proteins in our xylem sap as well as the SXM-derived exoproteomes. Homologs of genes coding for ten out of the 21 V. dahliae/V. alfalfae proteins listed in our xylem sap-specific exoproteome (Table 1) overlap with the upregulated V. dahliae genes induced after A. thaliana root infection (Scholz et al., 2018). This suggests that our xylem sap-specific secretome allows us to pinpoint candidate genes that are expressed in planta upon infection and, therefore, represents a technically easier feasible approach for the identification of secreted proteins.
The impact of compatible and incompatible host-pathogen interactions was studies in several studies. The haploid V. dahliae responds differently in a susceptible and tolerant olive cultivar (Jiménez-Ruiz et al., 2019). In the susceptible cultivar, the fungus significantly induced expression of genes involved in niche-adaptation, pathogenicity and microsclerotia development (Jiménez-Ruiz et al., 2019). Similarly, the transcriptome of two V. dahliae strains with different virulence levels on cotton were analyzed. The strain with reduced virulence exhibited more repressed genes, of which most are related to pathogenesis (Jin et al., 2019). These differences in the host-pathogen interaction indicate that it is possible that the unfiltered xylem sap proteins could induce a more fine-tuned secretion response of the fungus and comparison to xylem sap of infected plants will be interesting, however, the comparison to other studies shows that our filtered xylem sap is closer to mimic the natural plant habitat compared to SXM. Overall, these results corroborate that the fungus senses changes in its environment and responds with different secretion patterns.
In our approach, we focused on the set of proteins that contain a signal peptide and are predicted to be secreted as effector proteins of filamentous fungi, these are typically exported via the conventional Golgi-dependent secretory route (de Jonge et al., 2010; Wang et al., 2018). This allowed the exclusion of putative contaminating intracellular proteins from lysed fungal cells in the extracellular medium. In addition, a number of putatively secreted proteins was detected in V. longisporum culture supernatants after cultivation in SXM and xylem sap (Supplementary Tables S2, S3). These may represent unconventionally secreted proteins. The xylem sap proteome is enriched in unconventionally secreted proteins upon infection with pathogens as Fusarium with tomato as host (Gawehns et al., 2015; de Lamo et al., 2018). The formation of extracellular vesicles derived from Fusarium oxysporum f. sp. vasinfectum induces a phytotoxic response in plants (Bleackley et al., 2020). Studies on the V. dahliae exoproteome induced by cotton-containing medium support that V. dahliae also has other means of exporting proteins than the conventional secretory pathway (Chen et al., 2016; Wang et al., 2018). These unconventional secretion systems are Golgi-independent and include the export of proteins without signal peptides (Wang et al., 2018). Concluding, there are different pathways for protein secretion that allow the export control of different protein sets that impact the host-pathogen outcome. They include conventionally as well as non-conventionally secreted proteins and the knowledge on how these different systems are regulated and coordinated is still lacking.
Another tight and fast adapting control mechanism of gene expression lies in chromatin modifications, which can be induced by environmental changes (Seidl et al., 2016). Such an epigenetic-mediated control has been observed for effector expression in Leptosphaeria maculans. Effector genes often reside in AT-rich regions of the genome. These are associated with heterochromatin and explain the silenced state of effector expression. Upon leaf infection chromatin-mediated repression is abolished and gene expression is upregulated in L. maculans (Soyer et al., 2014; Tan and Oliver, 2017). As V. longisporum responds to the presence of plant-related compounds by inducing specific exoproteome patterns, it will be interesting to shed light on a putative chromatin modification contribution to these unique responses.
Transcriptional regulators can induce the gene expression of several effectors at once. For example, the transcription factors Som1, Vta2 and Vta3, that are required for sequential steps of infection, control similar but also distinct sets of secreted proteins involved in virulence (Tran et al., 2014; Bui et al., 2019). All three proteins are involved in the regulation of, for example, NLP2 (Tran et al., 2014; Bui et al., 2019). The expression of the two cytotoxic NLPs, NLP1 and NLP2, from V. dahliae has been analyzed during host colonization. When colonizing tomato plants, both transcript levels were elevated although only NLP1 expression was increased during colonization of tobacco plants. The in planta expression of NLP1 and NLP2 corresponds to the infection phenotype of the deletion strains (Santhanam et al., 2013). These results confirm the hypothesis of a sensitive control mechanism. It shows that effectors may act host-specifically and are only expressed in suitable hosts supporting the idea of a fine-tuned response.
NLPs can have a cytotoxic effect, which is induced upon binding to plant sphingolipid glycosylinositol phosphorylceramides (Lenarčič et al., 2019). In this study, we identified two NLPs, Nlp2 and Nlp3, as effectors specifically secreted in xylem sap. The NLP2 single deletion strain was shown previously to contribute to V. dahliae virulence (Santhanam et al., 2013). Single as well as double deletions of the corresponding genes resulted in compromised pathogenicity on tomato. Tomato infections with the ΔNLP2ΔNLP3 strain resulted in a similar disease index compared to the single deletion strains. In contrast, the lack of two metalloproteases of Fusarium oxysporum f. sp. lycopersici result in additive effects on pathogenicity. They presumably act on different target sites and together achieve the inactivation of the plant defense protein (Jashni et al., 2015). It is not yet clear why the lack of V. dahliae Nlp2 or Nlp3 results in the same effect as the lack of both proteins and it remains to be elucidated whether they compete for binding the same plant receptor to induce plasma membrane leakage. The study on Nlp1 and Nlp2 showed that the in planta expression profile of the proteins needs to be timely coordinated to influence the pathogenicity phenotype (Santhanam et al., 2013). Therefore, it remains to be shown whether presence or absence of Nlp2 or Nlp3 affect differential expression of the corresponding proteins.
Other xylem sap-specifically enriched candidates did not show an effect on V. dahliae pathogenicity on tomato. This may be due to redundant or greater contributions of the hundreds of secreted Verticillium effectors (Klosterman et al., 2011). Our approach revealed a high number of CAZymes among the V. longisporum secretome representing 171 out of the total 396 identified proteins (Supplementary Table S6). Overall, the V. dahliae genome exhibits a strikingly high repertoire of CAZymes, especially pectin-degrading enzymes (Klosterman et al., 2011). This suggests that proteins with redundant functions are secreted and explains the WT-like infections of V. dahliae strains lacking one of the tested CAZymes (glucoamylase Gla1, putative polysaccharide mono-oxygenase Cbd1 and α-amylase Amy1).
We identified two metalloproteases, Mep1 and Mep2, belonging to two different groups of metalloproteases (M36 and M43, respectively) as xylem sap-specific secreted proteins. Tomato infections with V. dahliae MEP1 deletion strain result in less severe disease symptoms compared to WT infections indicating that Mep1 contributes to V. dahliae pathogenicity. The ΔMEP1ΔMEP2 double deletion strain infected the tomato plants to the same extend as the WT, which suggest that loss of Mep2 compensates the loss of Mep1 and both enzymes fulfill different yet unknown functions in virulence. Metalloproteases promote fungal virulence by degrading host proteins (Brouta et al., 2002; Jashni et al., 2015). Plant chitinases degrade chitin of the fungus, which elicits the plant defense response (Naumann and Price, 2012). V. dahliae possesses the ability to truncate extracellular chitin-binding domain-containing chitinases (Jashni et al., 2015; Han et al., 2019). The V. dahliae proteome comprises two M43 and six M36 peptidases implicating that other metallopeptidases are able to complement the absence of Mep1 and Mep2. Furthermore, synergistic actions of metallo- and serine proteases have been reported in F. oxysporum (Jashni et al., 2015), providing more evidence for the hypothesis of functional redundancy.
We also investigated on the cerato-platanin domain containing proteins Cp1 and Cp2. Cp1 was first identified in the exoproteome of the V. dahliae strain XH-8 when incubated in minimal medium supplemented with cotton root fragments. In this system, Cp1 was required for cotton virulence and is suggested to function as a chitin scavenger to prevent fungal recognition by the plant (Zhang et al., 2017). We detected Cp1 in our core exoproteome and included it in our study to investigate on putative synergistic actions of the two present in the V. dahliae genome. Our results show that Cp1 and Cp2 are dispensable for V. dahliae pathogenicity on tomato. These results indicate that effectors may have strain- and host-specific activities.
To our knowledge, our proteomic study is the first report identifying the differences between the secretion responses of V. longisporum in host xylem sap, the xylem sap mimic SXM and other media. Non-plant related environments elicited a similar broad exoproteome pattern whereas the plant-related media, SXM and xylem sap, induced similar but also distinct responses. These results indicated that the fungus has the capacity to sense differences in the presence of plant-related compounds and therefore rules out SXM as xylem sap mimic. Additionally, our approach identified necrosis and ethylene inducing-like proteins Nlp2 and Nlp3 in the xylem sap-specific secretome. These proteins are required for V. dahliae pathogenicity with roles in later steps of infection and display potential targets for control strategies of Verticillium wilt.
Materials and Methods
Fungal Strains and Growth Conditions
Verticillium strains (Supplementary Table S7) were cultivated in liquid SXM modified from Neumann and Dobinson (2003) as described by Hollensteiner et al. (2017) for conidiospore formation and in liquid potato dextrose medium [Potato Dextrose broth (Carl Roth)] for mycelial growth. Cultures were incubated at 25°C under constant agitation at 115−125 rpm. For long-term storage spores were maintained in closed vials with 25% glycerol at −80°C.
For the exoproteome comparison, V. longisporum 43 (Vl43) was inoculated with 1.5 × 106 spores per 150 ml potato dextrose medium and incubated for 4 days at 25°C and 150 rpm agitation. Each culture was centrifuged and the mycelium and spore sediment was resuspended in 150 ml extracted xylem sap of B. napus; SXM, the minimal medium Czapek-Dox medium (CDM, modified from Smith, 1949) supplemented with 7% extracted xylem sap or plant proteins; H2O and H2O supplemented with 0.1% glucose; YNB (yeast nitrogen base: 1.5 g/l YNB, 5 g/l (NH4)2SO4, 20 g/l glucose, ad 1 l H2O) and 10% vegetable juice (V8, Campbell Soup Company, Sexton et al., 2009). After an additional incubation period of 4 days, proteins of the supernatant were precipitated with TCA/acetone.
Xylem Sap Extraction
Xylem sap was extracted from B. napus (Falcon, Norddeutsche Pflanzenzucht). Seeds were surface sterilized with 70% ethanol and sown on sand. Plants were grown at long-day condition (16 h light: 8 h dark) and 22°C. 7-day-old seedlings were transferred into a soil/sand (1:1) mixture and grown for 42 days. To extract the xylem sap, plants were cut at the height of the first internode and the xylem sap was collected. The xylem sap was filtered through Vivaspin 15R centrifugal concentrators (Sartorius) with a molecular weight cut off of 10 kDa, allowing smaller plant molecules to pass through and excluding larger molecules. This filtered xylem sap was directly used as medium for inoculation. For one experiment, the xylem sap of 500 plants was extracted resulting in approximately 500 ml of pure xylem sap.
Genomic DNA Extraction
For isolation of genomic DNA (gDNA) from fungal powder, the method modified from Kolar et al. (1988) was used. The fine powder was mixed with 800 μl of lysis buffer [50 mM Tris (pH 7.5), 50 mM EDTA (pH 8), 3% (w/v) SDS and 1% (v/v) ß-mercaptoethanol] and incubated at 65°C for 1 h. Before the mixture was centrifuged for 20 min at 13000 rpm, 800 μl phenol were added. The upper aqueous phase was transferred to a new tube. To denature the proteins, 500 μl chloroform were added, mixed and centrifuged for 10 min at 13000 rpm. The upper phase was mixed with 400 μl of isopropanol for precipitation of gDNA and centrifuged for 2 min at 13000 rpm. The sedimented gDNA was washed with 70% (v/v) ethanol. The gDNA was dried at 65°C for approximately 25 min before it was dissolved in up to 100 μl deionized H2O containing 2 μl RNase A (10 mg/ml) and treated at 65°C for 30 min to remove RNA.
Plasmid and Strain Construction
The desired genes and flanking regions for plasmid construction were amplified of V. dahliae JR2 WT gDNA with the Phusion High Fidelity Polymerase, Taq DNA Polymerase (both Thermo Fisher Scientific) or Q5 High Fidelity Polymerase (New England Biolabs). Primers are listed in Supplementary Table S8.
GeneArt Seamless Cloning and Assembly Kit (Thermo Fisher Scientific) was used for the cloning strategy. Plasmids are listed in Supplementary Table S9. E. coli strain DH5α was utilized for cloning reactions and propagation of plasmids. Transformation of E. coli was performed based on a heat shock method (Inoue et al., 1990). A. tumefaciens AGL-1 cells were transformed with the desired plasmids via a freeze-thaw method (Jyothishwaran et al., 2007) and was then utilized for an A. tumefaciens mediated transformation of V. dahliae spores, which was performed based on the method described by Mullins et al. (2001). Details on specific mutant strains in haploid V. dahliae are given in Supplementary Text S1.
Southern Hybridization Analysis
For verification of V. dahliae deletion strains, the corresponding flanking region of the gene was amplified and labeled as probe. Genomic DNAs were restricted with indicated enzymes overnight (Supplementary Figures S1−S4). The mixture was separated on a 1% agarose gel and DNA was transferred to a Hybond-N membrane (GE Healthcare) by blotting. DNA on the membrane was hybridized overnight to the probe. CDP-Star Detection reagent (GE Healthcare) was used to detect chemiluminescence signals according to the manufacturer’s instructions.
Protein Assays and Western Hybridization Analysis
Extracellular proteins from the supernatant of SXM cultures were precipitated with 10% TCA (w/v) in acetone at 4°C overnight. This mixture was centrifuged at 4 000 rpm for 60 min at 4°C. The protein sediment was washed three times with 80% (v/v) acetone, once with 100% (v/v) acetone and then dissolved in 8 M urea/2 M thiourea. Intracellular proteins were extracted from ground mycelium with extraction buffer [300 mM NaCl, 100 mM Tris−HCl pH 7.5, 10% glycerol, 1 mM EDTA, 0.02% NP-40, 2 mM DTT and complete EDTA-free protease inhibitor cocktail (Roche)]. Samples were centrifuged for 20 min at 13 000 rpm at 4°C and the supernatants were transferred into fresh test tubes. Protein concentrations were determined using a Bradford-based Roti-Quant assay (Carl Roth). Protein samples were separated in 12% SDS−PAGE gels, followed by protein transfer onto an Amersham Protran 0.45 μm nitrocellulose membrane (GE Healthcare). The membrane was blocked in 5% (w/v) skim milk powder in TBS-T [10 mM Tris−HCl (pH 8), 150 mM NaCl, 0.05% (w/v) Tween 20] and probed with α-GFP antibody (Santa Cruz Biotechnology). As secondary antibody the horseradish peroxidase-coupled α-mouse antibody (115-035-003, Jackson ImmunoResearch) was applied. Detection of chemiluminescent signals was conducted with horseradish peroxidase substrate luminol based chemiluminescence.
Tryptic Digestion, Mass Spectrometry Analysis, and Protein Identification
For one-dimensional gel analysis, 30 μg of the extracellular protein extract was separated by 12% SDS−PAGE gels. The polyacrylamide gels were incubated 1h in fixing solution (40% (v/v) ethanol, 10% (v/v) acetic acid) and washed twice for 20 min with H2O. Gels were colloidal Coomassie stained [0.12% (w/v) CBB G-250, 5% (w/v) aluminum sulfate-(14−18)-hydrate, 10% (v/v) methanol, 2% (v/v) orthophosphoric acid (85%)]. One lane, which derived from one individual culture, was cut into ten pieces of equal size. The excised polyacrylamide gels were in-gel digested with trypsin (Shevchenko et al., 1996). Resulting tryptic peptide mixtures were separated by a reversed-phase liquid chromatographic column (Acclaim PepMap RSLC column, 75 μm × 15 cm, C18, 3 μm, 100 Å, P/N164534, Thermo Fisher Scientific) to further reduce sample complexity prior to mass analyses with an LTQ Velos Pro mass spectrometer (Thermo Fisher Scientific). To identify matches of the detected peptides, an in-house genome-wide protein sequence database of V. longisporum was used of which the protein sequences are given in Supplementary Tables S1−S3. Analysis was performed by a Thermo Proteome Discoverer (version 1.3) workflow that integrates Sequest and Mascot search engines. For the search an initial precursor mass tolerance of 10 ppm and fragment mass tolerance of 0.8 Da Carbamidomethylcysteine was used as fixed modification. Oxidized methionine was included as variable modification and two missed cleavages were allowed for each peptide. For peptide and protein validation, a 0.5% false discovery rate was set and determined by using peptide validator with a reverse decoy database. The mass spectrometry proteomics data have been deposited to the ProteomeXchange Consortium via the PRIDE (Perez-Riverol et al., 2019) partner repository with the dataset identifier PXD018533.
Resulting lists of identified proteins were semi-quantitatively processed using the MarVis-Suite software (Kaever et al., 2012). To achieve a broad overview of the total secretome, a threshold of at least two peptides in at least two independent cultivations was set as criteria. Only proteins with a WoLF PSORT extracellular localization prediction of above 12 were considered for further characterization (Horton et al., 2007). The principle component analysis plot of the exoproteomes based on the spectral counts was performed with MarVis-Suite software, and each dot represents one independent culture (Meinicke et al., 2008). Experiments were conducted with at least four cultures with all tested growth conditions. Comparison of the SXM and xylem sap-specific exoproteomes revealed a group of 441 proteins of which the protein sequences and details on their abundance as measured by identified peptides are given in Supplementary Table S1. The signal-to-level (s/l) ratio (see MarVis-Suite handbook1) was calculated using as signal the difference between SXM and xylem sap condition averages (or vice versa) and as level the corresponding maximum. Polypeptides with an s/l ratio above 0.3 were considered as candidates with higher intensities in the specific medium and therefore belong to the specifically enriched proteins. Xylem sap-specific proteins are depicted in green and SXM-specific proteins in red. Whereas an s/l ratio below 0.3 was considered not to be specifically enriched and formed the shared core proteome.
The list of proteins was further analyzed and compared to the Ensembl Fungi annotations which are more robust. Candidates with no proper predictions in our preliminary genome-wide protein sequence database of V. longisporum (e.g., stop codons in protein sequences, two genes annotated as one) were revealed by comparison with corresponding V. dahliae JR2 and V. alfalfae VaMs.102 sequences and eliminated from the list. Further analyses are based on the V. dahliae JR2 or the V. alfalfae VaMs.102 protein sequences (Kersey et al., 2018). Domain predictions and associated families were obtained with InterProScan (Jones et al., 2014) and classification of CAZyme families according to the CAZy database2 was specified with dbCAN2 (Zhang et al., 2018) to address putative functions of the proteins. Proteins were considered as putatively secreted with at least one predicted signal peptide by InterProScan or SignalP-5.0 (Almagro Armenteros et al., 2019) or as long as it passed the threshold of 12 as determined by WoLF PSORT (Horton et al., 2007) for the V. longisporum 43, V. dahliae JR2, or V. alfalfae VaMs.102 protein sequence. All details are given in Supplementary Table S4.
A. thaliana Root Infection Assay
A. thaliana (Col-0, N1902; Nottingham Arabidopsis Stock Centre) seedlings were inoculated by root-dipping with a conidia suspension of V. dahliae JR2 and NLP3 deletion strain overexpressing GFP (1 × 107 spores/ml) based on the method described by Bui et al. (2019). 3-week-old seedlings were used for infection. The roots were incubated in spore solutions with 100 000 spores/ml for 35 min. The plates were further incubated in the plant chamber at long day conditions (22−25°C) and colonization on the roots was monitored at indicated time points. The root was incubated in a staining solution (0.0025% (v/v) propidium iodide, 0.005% (v/v) silwet) for 5 min in the dark. Images of infected roots were taken with a Zeiss Observer Z1 microscope equipped with CSU-X1 A1 confocal scanner unit (Yokogawa), QuandtEM:512SC (Photometrics) digital camera and Slidebook 5.0 software package (Intelligent Imaging Innovations).
Tomato Infection Assay
Solanum lycopersicum (Moneymaker, Bruno Nebelung Kiepenkerl-Pflanzenzüchtung) seeds were surface sterilized with 70% (v/v) EtOH, 0.05% Tween 20, sown on sand/soil (1:1) mixture (Dorsilit, Archut). Plants were grown under a photoperiod of 16 h light and 8 h of darkness at 25 and 22°C, respectively. The tomato pathogenicity assays were performed on 10-day-old S. lycopersicum seedlings. The plants were root-inoculated by incubating the roots in 50 ml of 107 spores/ml for 40 min under constant agitation at ∼35 rpm. Mock control plants were treated similarly with dH2O.
The seedlings were transferred to pots containing a sand/soil (1:1) mixture and 3 000 000 spores or 3 ml dH2O for mock plants were added to the soil. For each strain or control 15 plants were infected. Plants were incubated in the climate chamber at long day conditions for another 21 days before disease symptoms were scored. The fresh weight of the aerial parts, the length of the longest leaf and the height of the vegetation point were measured. These parameters were calculated into a disease score ranking relative to uninfected mock plants. The mean values of mock plants of each parameter were set to 100%. All values above 80% were assigned as “healthy,” 60−80% as “mild symptoms,” 40−80% as “strong symptoms,” lower than 40% as “very strong symptoms” and dead plants as “dead.” The scores for each strain were visualized in a stack diagram displaying the number of plants per disease score relative to the total amount of tested plants from all experiments. As another measure the discoloration of the tomato hypocotyl was observed with a binocular microscope SZX12-ILLB2-200 from Olympus. All treated plants were tested for fungal outgrowth 21 days after infection. The tomato stems were surface sterilized in 70% ethanol, followed by 6% hypochlorite solution each for 8 min before two washing steps with dH2O. Stem ends were removed and slices were placed on potato dextrose medium (PDM) plates containing 100 μg/ml chloramphenicol. After incubation of 7 days at 25°C the fungal outgrowth was observed. The pathogenicity assay was performed once with the metalloprotease constructs and once with ΔGLA1, ΔCBD1 and ΔAMY1 strains. Pathogenicity assays with the CP and NLP constructs were repeated twice with similar outcome. Significant differences compared to WT were calculated with the two-tailed Mann-Whitney Test (Supplementary Table S10). For each assay 15 plants were infected with WT and 15 plants were used as mock control. Per transformant 15 plants were infected and scores of identical strains were taken together of two individual transformants.
Accession Numbers and Data Availability
Sequence data for V. dahliae were retrieved from Ensembl Fungi with the following accession numbers: NLP2 (VDAG_JR2_Chr2g05460a), NLP3 (VDAG_JR2_Chr4g05950a), CP1 (VDAG_JR2_Chr7g00860a), CP2 (VDAG_JR2_Chr2g070 00a), MEP1 (VDAG_JR2_Chr8g09760a), MEP2 (VDAG_JR2_ Chr1g21900a), GLA1 (VDAG_JR2_Chr8g11020a), CBD1 (VDAG _JR2_Chr4g04440a), and AMY1 (VDAG_JR2_Chr7g03330a). Protein sequences for V. longisporum are given in Supplementary Table S1 as retrieved from an in-house database or taken from Ensembl Fungi. The mass spectrometry proteomics data are available via ProteomeXchange https://www.ebi.ac.uk/pride/login with identifier PXD018533.
Data Availability Statement
The datasets presented in this study can be found in online repositories. The names of the repository/repositories and accession number(s) can be found below: https://www.ebi.ac.uk/pride/archive/, PXD018533.
Author Contributions
MiL, AnK, RH, HK, SB-S, JK, and GB designed and conceived the study. MiL, AnK, IM, AN, and JS performed and analyzed the experiments. MiL, AnK, RH, IM, AN, HK, OV, KF, AlK, MaL, BM, DB, MH, and GB carried out the formal analysis. RH, HK, OV, KF, IF, BM, DB, MH, JK, and GB supervised the whole project. MiL, AnK, RH, and GB wrote the manuscript. All authors interpreted the results, revised, and approved the final manuscript.
Funding
This research has been funded by the Deutsche Forschungsgemeinschaft DFG BR1502-1 and Grant ZUK 41/1 DFG-GZ A 630 (https://www.dfg.de) to GB and the IRTG 2172 “PRoTECT” program of the Göttingen Graduate Center of Neurosciences, Biophysics, and Molecular Biosciences to MiL, JS, IM, AN, GB, and IF, the Federal Ministry of Education and Research (BMBF “BioFung,” FKZ 0315595, https://www.bmbf.de) to GB, IF, and BM and a CREATE award for the PRoTECT program (https://www.protect-ubc.com) from the Natural Sciences Engineering Council of Canada (https://www.nserc-crsng.gc.ca) to JK. The funders had no role in study design, data collection and analysis, decision to publish, or preparation of the manuscript.
Conflict of Interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Acknowledgments
We thank K. Schmitt from the LCMS Proteinanalytics Service Unit of the Göttingen Center for Molecular Biosciences at the University of Göttingen for her support with handling the mass spectrometry data. We are thankful for the advice and input from K. Heimel. We thank N. Scheiter for technical assistance and A. Hoefer, A. Keyl, and A. Pelizaeus for help with experimental work. We thank V. T. Tran for providing plasmids. We acknowledge the support by the Open Access Publication fund of the University of Göttingen. This manuscript has been released as a pre-print at bioRxiv (Leonard et al., 2020).
Supplementary Material
The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fmicb.2020.01876/full#supplementary-material
FIGURE S1 | Verification of V. dahliae NLP2 and NLP3 deletion or overexpression constructs.
FIGURE S2 | Verification of V. dahliae CP1 and CP2 deletion and complementation strains.
FIGURE S3 | Verification of V. dahliae MEP1 and MEP2 deletion strains.
FIGURE S4 | Verification of V. dahliae GLA1, CBD1, and AMY1 deletion strains.
FIGURE S5 | Expression of NLP3-GFP under control of a constitutively active promoter allows V. dahliae wildtype-like growth on solid media.
TABLE S1 | List of identified proteins in SXM and xylem sap.
TABLE S2 | List of other identified proteins without predicted secretion in xylem sap.
TABLE S3 | List of other identified proteins without predicted secretion in SXM.
TABLE S4 | Annotation of identified proteins in SXM and xylem sap.
TABLE S5 | Functional groups of secreted proteins.
TABLE S6 | CAZyme classification of secreted proteins.
TABLE S7 | Verticillium strains used in this study.
TABLE S8 | Primers used in this study.
TABLE S9 | Plasmids used in this study.
TABLE S10 | Mann–Whitney Test.
TEXT S1 | Additional materials and methods.
