- College of Agro-Grassland Science, Nanjing Agricultural University, Nanjing, China
Trichoderma spp. are proposed as major plant growth-promoting fungi (PGPF) to increase plants growth and productivity. Mowing can stimulate aboveground regrowth to improve plant biomass and nutritional quality. However, the synergistic effects of Trichoderma and mowing on plants growth, particularly the underlying microbial mechanisms mediated by rhizosphere soil chemical compounds, have rarely been reported. In the present study, we employed Trichoderma harzianum T-63 and conducted a pot experiment to investigate the synergistic effect of Trichoderma-inoculation and mowing on alfalfa growth, and the potential soil microbial ecological mechanisms were also explored. Alfalfa treated with Trichoderma-inoculation and/or mowing (T, M, and TM) had significant (P < 0.05) increases in plant shoot and root dry weights and soil available nutrients (N, P, and K), compared with those of the control (CK). Non-metric multidimensional scaling (NMDS) demonstrated that the rhizosphere chemical compounds and soil bacterial and fungal communities were, respectively, separated according to different treatments. There was a clear significant (P < 0.05) positive correlation between alfalfa biomass and the relative abundance of Trichoderma (R2 = 0.3451, P = 0.045). However, Pseudomonas, Flavobacterium, Arthrobacter, Bacillus, Agrobacterium, and Actinoplanes were not significantly correlated with alfalfa biomass. According to structure equation modeling (SEM), Trichoderma abundance and available P served as primary contributors to alfalfa growth promotion. Additionally, Trichoderma-inoculation and mowing altered rhizosphere soil chemical compounds to drive the soil microbial community, indirectly influencing alfalfa growth. Our research provides a basis for promoting alfalfa growth from a soil microbial ecology perspective and may provide a scientific foundation for guiding the farming of alfalfa.
Introduction
Trichoderma species are important plant growth-promoting fungi (PGPF) in soils that have been reported to significantly facilitate plant growth and development (Singh et al., 2015) through numerous mechanisms: increasing solubilization of soil nutrients (Yadav et al., 2009; Kapri and Tewari, 2010), increasing nutrient efficacy and recycling (Azarmi et al., 2011), releasing plant growth stimulatory agents (Contreras-Cornejo et al., 2009) and inducing systemic resistance (Shoresh et al., 2010). Several studies show that Trichoderma-inoculation has significant promotion effects on the growth of many plant species (Howell et al., 2000; Zhang et al., 2013a), including those of pasture fields (Lee et al., 2015; Zhang et al., 2018b). Yuan et al. (2018) has demonstrated that five Trichoderma strains (3 strains of Trichoderma harzianum, 1 strain of Trichoderma longibrachiatum and Trichoderma reesei) substantially facilitate the growth and improve the nutritional quality of orchard grass. Zhang et al. (2018a) also showed that bio-fertilizer could effectively manipulate soil microbial communities, and Trichoderma was a major contributor to improve Leymus chinensis biomass.
Alfalfa (Medicago sativa L.) is the most familiar and widely distributed legume in the world, which is characterized by high yields and nutritive value, palatability and digestibility, and plays a particularly important role in animal husbandry development (Radović et al., 2009). Mowing is a common and beneficial management technique that is primarily employed in alfalfa production to store hay, silage or various dehydrated products (Barać et al., 2012). Additionally, the rapid recovery ability of alfalfa after mowing and its tolerance to environmental stress are also important features, which support and maintain stable yield. Mowing is beneficial to plant regrowth by removing the aboveground biomass, with the new leaves then improving the total biomass and plant nutritional quality (Robson et al., 2007; Jensen et al., 2012). Radović et al. (2009) revealed that the first flower (10% blooms) stage is suitable for mowing to obtain the optimum nutrients and yield of alfalfa. However, the synergistic effects of Trichoderma and mowing on alfalfa growth, particularly the underlying microbial mechanisms that are mediated by rhizosphere chemical compounds, have rarely been studied.
Rhizosphere soil chemical compounds mainly include plant root exudates, breakdown products and microbial metabolites (Pierre et al., 2017). The rhizosphere chemical compounds participate in the communication between plant roots and their associated microorganisms (Oburger and Schmidt, 2016). Plant roots release a series of compounds that are involved in attracting various organisms and forming associations in the rhizosphere. The review of Dessaux et al. (2016) reported that the soil was altered into complex environments by plant roots to support various microbial communities. Accumulated evidence shows that carbon composition in root exudates largely affects soil bacterial and fungal community composition (Salles et al., 2009; Ng et al., 2014). Soil microorganisms that are present in the rhizosphere microbiota can have profound effects on plant growth, nutrition and health in agro-ecosystems (Bonfante and Anca, 2009; Mendes et al., 2011; Berendsen et al., 2012). High soil microbial diversity and appropriate community composition are significant factors in supporting ecosystem productivity (Bell et al., 2005; Chaer et al., 2009). Philippot et al. (2013) also indicated that a suitable soil microflora is one of the most important elements to promote plant growth.
In this study, we explored the synergistic influences of Trichoderma-inoculation and mowing on alfalfa growth and the underlying soil microbial ecological mechanisms. We hypothesized the following: (1) Trichoderma-inoculation and mowing amendment would result in an additive effect on the growth of alfalfa; (2) Trichoderma-inoculation and mowing would significantly alter the rhizosphere chemical compounds; and (3) Rhizosphere chemical compounds would strongly drive the variations in soil microbial communities, correlating with alfalfa growth.
Materials and Methods
Trichoderma Strain and Preparation of Conidia Suspension
The preisolated strain, Trichoderma harzianum T-63 (CCTCC No. AF2018013, China Center for Type Culture Collection) was used throughout our study, which was provided by the Grassland Microecology and Vegetation Restoration Laboratory, Nanjing Agriculture University, Nanjing, China. Supplementary Figure S1 shows the identification of T-63, which was based on internal transcribed spacer (ITS) sequence analysis. Trichoderma. harzianum T-63 was stored at -80°C in potato dextrose agar (PDA) + 30% glycerol and cultured on PDA at 28°C. The preparation of T. harzianum T-63 conidia suspension was according to Zhang et al. (2013b), and the determined concentration was 2.9 × 108 colony-forming units (CFU) ml-1.
Greenhouse Experiment
Seeds and Soil for Experiment
Alfalfa seeds (Medicago sativa L. cv Zhongmu-No. 1) with 98% seed germination rate were used throughout this experiment. The seeds were surface-sterilized according to Hoyos-Carvajal et al. (2009), and then all seeds were removed to plates containing sterile, wet filter paper for germination at 28°C. The soil used in the pot experiment was a healthy soil that collected from Nanjing, Jiangsu Province, which contained 11.6 g kg-1 organic matter, 6.73 g kg-1 organic C, 0.65 g kg-1 total N, 28.4 mg kg-1 available P, 62 mg kg-1 available K, and pH = 6.5. The soil was mixed with 2.0% organic fertilizer (35.4% organic matter, 3.0% N, 2.2% P2O5, and 1.8% K2O) for the following pot experiment.
Experimental Design
Pre-germinated alfalfa seeds were transferred in each plastic pot (3 kg soil), and three seedlings remained after sowing. Four treatments were established in this experiment: (1) Control (no Trichoderma-inoculation and not mowed); (2) T (Trichoderma-inoculation and not mowed); (3) M (mowed and no Trichoderma-inoculation); and (4) TM (Trichoderma-inoculation and mowed). Each treatment had three blocks, and each block contained 10 plastic pots. All the plastic pots were laid out randomly.
Plants were inoculated with Trichoderma for two times at a rate of 100 ml/pot (July 20, 2016 and September 20, 2016). The pots were mowed on September 20, 2016 and October 20, 2016, and vegetation was cut to 10 cm above the soil surface and removed from the pots. All alfalfa plants were grown in a greenhouse with temperatures from 30 to 32°C (day)/24 to 26°C (night), relative air humidity from 60 to 70%, and a photoperiod of 16 h light and 8 h dark, which was located in Nanjing, Jiangsu Province, China; the study was from July to October 2016. The soil was regularly adjusted to maintain 60% water-holding capacity with deionized water during the whole experimental periods to guarantee the growth of alfalfa seedlings.
Soil and Vegetation Samples Collection
Soil and vegetation samples were collected from the four treatments on October 20, 2016. A composite rhizosphere soil sample was collected from the roots of all alfalfa plants of a block; thus, each treatment had three composite samples. All fresh soil samples were sieved through a 2.0-mm mesh and homogenized. Each sample was divided into three subsamples: the first subsample was stored at 4°C for soil chemical compounds analysis; the second subsample was air dried at room temperature for soil property analysis; and the third subsample was stored at -20°C for DNA extraction. At harvest, the shoots were cut and then oven-dried at 65°C for 72 h before weighing. For the treatments with mowing, the aboveground biomass was estimated by adding the biomass removed during mowing to the final harvest. The aboveground biomass in unmowed treatment was assessed at the end of harvest. The shoot dry weight is expressed as total aboveground biomass per plant.
Extraction and Identification of Rhizosphere Soil Chemical Compounds
For each rhizosphere soil sample, the extraction of soil chemical compounds was according to the procedures of Zhang et al. (2018a). In brief, 5.0 g soil and 50 ml of ethyl acetate (1:10 ratio) were placed in a 150 ml Erlenmeyer flask and shaken on a table agitator at 30°C for 2 h. After that, the extracted suspension was filtered (0.45-μm) and concentrated to 500 μl at 35°C using a vacuum rotary evaporator (Yarong Model RE-52A, Shanghai, China). The concentrated solution was analyzed by gas chromatography-mass spectrometry (GC-MS) with the triple quadruple mass spectrophotometer fused silica capillary column BR-5MS 30 m × 0.25 mm × 0.25 μm (Bruker, Germany). The mass spectrometry detector (MSD) was operated in electron ionization mode at 70 eV, with a source temperature of 230°C. The initial oven temperature of 60°C was held for 3 min, increased at a rate of 5°C min-1 to 240°C, held at 240°C for 5 min, further increased a rate of 20°C min-1 to 280°C, and held for 2 additional minutes. A continuous scan from 45 to 500 m/z was applied. Helium was the carrier gas at a linear velocity of 1.0 ml min-1. The chromatographic peaks of the components were compared to entries in the National Institute of Standards and Technology (NIST) database (Version 2.0) to characterize the variation in the chemical composition of each soil sample.
Soil pH and Chemical Properties Measurements
Soil pH was determined with soil and water with the ratio of 1:5 (w/v) using a compound electrode (PB-10; Sartorius, Germany). Soil organic C (SOC) and soil total N (TN) were determined with an Elementar Analyzer (Vario EL III, Germany). Soil available N was measured according to Shi (1996). Soil total P was determined according to Olsen and Sommers (1982), and soil available phosphorus in the soil (Olsen-P) was measured using the molybdenum-blue method (Watanabe and Olsen, 1965). Soil total and available K were extracted with ammonium acetate and measured by flame photometry (Knudsen et al., 1982).
Rhizosphere Soil DNA Extraction
For each rhizosphere soil sample, the total genomic DNA was extracted from 0.5 g of soil with a Power Soil DNA Isolation Kit (MoBio Laboratories Inc., Carlsbad, CA, United States) according to the manufacturer’s instructions. DNA was eluted with 75 μl of elution solution from the kit. The DNA sample concentration and quality (A260/A280 ratio) were measured using a NanoDrop 2000 spectrophotometer (Thermo Scientific, Waltham, MA, United States). Each treatment had three replicates in our experiment.
Quantitative Analysis of Trichoderma With TaqMan Real-Time PCR
The primer pair (ITS1 S: 5′-TACAACTCCCAAACCCAATGT GA-3; ITS1 R: 5′-CCGTTGTTGAAAGTTTTGATTCATTT-3′) (Lopez-Mondejar et al., 2010) and probe 5′-FAM-AACTCTTTTTGTATACCCCCTCGCGGGT-TMR-3′ (FAM: 6-carboxyfluorescein, TAMRA: 6-carboxy-tetramethylrhodamine) (Zhang et al., 2018b) were used to amplify the Trichoderma ITS region. In the real-time PCR amplifications, Premix Ex TaqTM (Takara) had a volume of 20 μl: 10 μl of Premix Ex TaqTM (Takara Bio Inc., Japan), 0.4 μl of Rox Reference Dye II (50 ×), 0.4 μl of each primer (10 μM), 0.8 μl of TaqMan probe (10 pM), 2 μl of template DNA and 6 μl of sterilized double-distilled water. The standard curve of Trichoderma was generated according to Lopez-Mondejar et al. (2010). The PCR was performed on a 7500 Fast Real-Time PCR System (Applied Biosystems, Foster City, CA, United States) with the following program: 95°C for 30 s, 40 amplification cycles of 5 s at 95°C and at 60°C for 45 s. All the quantification results were analyzed with the 7500 system SDS Software version 1.4 (Applied Biosystems), and the results are expressed as log copy numbers per gram of dry soil.
High-Throughput Sequencing and Bioinformatics Analysis
High-throughput sequencing analysis of the 16S rRNA and ITS region was performed to determine soil bacterial and fungal communities, respectively. Each treatment had three replicates sequencing. The universal primers 520F (5′-AYT GGG YDT AAA GNG-3′) and 802R (5′-TAC NVG GGT ATC TAA TCC-3′) were employed to amplify the V4 region of the bacterial 16S rRNA gene, and the primers ITS1F (5′-CTT GGT CAT TTA GAG GAA GTA A-3′) and ITS2 (5′-GCT GCG TTC TTC ATC GAT GC-3) were used to amplify the ITS1 region of the fungal ITS. PCR was performed in a 30 μl reaction system: 15 μl 2 × Master Mix (Thermo 193 Scientific®Phusion High-Fidelity PCR Master Mix, New England Biolabs, United Kingdom), 0.5 μl of each primer, 10 ng template DNA and nuclease-free water up to 30 μl. The PCR conditions were 95°C for 5 min, 27 cycles of 30 s at 95°C, 30 s at 50°C for 16S rRNA or 61°C for ITS, and 45 s at 72°C, with a final extension of 5 min at 72°C. After PCR amplification, the obtained products were purified using a PCR Purification Kit (Axygen Bio, United States) and quantified with PicoGreen®dsDNA reagent (Promega, United States). Then, the purified amplicons were then pooled in equimolar concentrations as a single aliquot and employed for library construction using the NEB Next®UltraTM DNA Library Prep Kit for Illumina (New England Biolabs, United Kingdom). The final quality and concentration of the libraries were checked using Agilent 2100 Bioanalyzer Instruments (Agilent Technologies Co. Ltd., United States) and determined using KAPA Library Quantification Kits (Kapa Biosystems, United States). All of the preparation of the libraries for sequencing was performed on the Illumina MiSeq sequencer at Newgenes Biotechnology Co., Ltd. (Shanghai, China). The raw 16S rRNA and ITS pyrosequencing data were processed using a Quantitative Insights Into Microbial Ecology (QIIME) tool kit (Caporaso et al., 2011) and UPARSE pipeline (Edgar, 2013) according to Shen et al. (2015). The MOTHUR (version 1.25.1) standard operating procedure (SOP) was employed to further analyze the pyrosequencing data (Wang et al., 2007; Schloss et al., 2009).
Statistical Analyses
The data in our study were log-transformed when necessary to satisfy the criteria for a normal distribution and homogeneity of variance. The differences of plant biomass, soil pH, chemical properties and soil chemical compounds were determined by one way analysis of variance (ANOVA) in IBM SPSS 20 (IBM Corporation, New York, United States) and Duncan’s multiple range tests were performed for multiple comparisons. Moreover, the differences are statistically significant at 0.05 probability level in this study. Non-metric multidimensional scaling (NMDS) plots and principal component analysis (PCA) were both performed in R with the vegan package (Version 3.0.2, Oksanen et al., 2013). SEM was employed to test the direct and indirect pathways among Trichoderma abundance, soil available N, P, and K, soil chemical compounds, soil bacterial and fungal communities, and alfalfa biomass. The figures were generated with Sigmaplot 12.0 (Systat Software Inc., CA, United States).
Accession Number
The obtained bacterial 16S and fungal ITS sequences data are available at the National Center for Biotechnology Information (NCBI) Sequence Read Archive (SRA) database under accession numbers SRP151105.
Results
Evaluation of Alfalfa Growth and Soil Properties in Pot Experiment
Alfalfa treated with Trichoderma and/or mowing (T, M, and TM) had significant increases in plant shoot and root dry weights, compared with those of the control (CK). Alfalfa inoculated with Trichoderma and mowing (TM) had the highest dry weight (1.17 g/plant) among all treatments (Figure 1). Specifically, TM, M and T treatments significantly increased alfalfa shoot dry weight by 68.1, 22.4, and 19.5%, respectively, compared with the CK. However, no significant difference was detected in shoot dry weight between T and M treatments. The root dry weight in the TM treatment was significantly higher than that in other treatments (M, T, and CK). Moreover, the root dry weight in the Trichoderma-inoculation treatment (T) was increased significantly by 9.1%, compared with that of the mowing treatment (M).

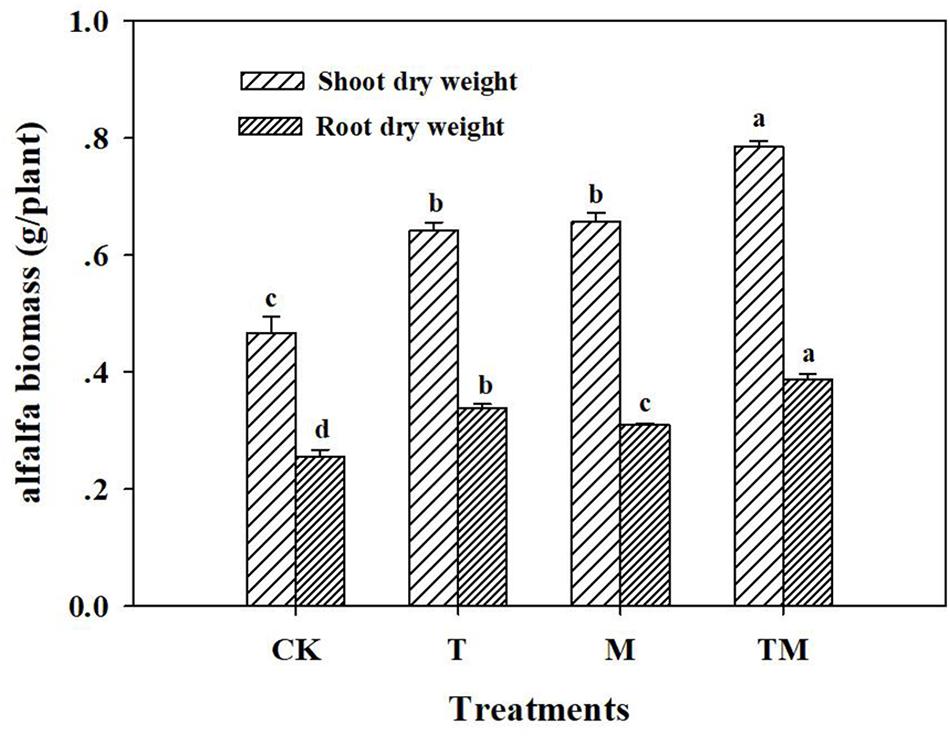

Figure 1. Alfalfa biomass in different treatments. CK: no Trichoderma-inoculation and not mowed; T: Trichoderma-inoculation and not mowed; M: mowed and no Trichoderma-inoculation; TM: mowed and Trichoderma-inoculated. Bars above the histogram represent standard deviations and different letters indicate significant differences according to ANOVA test.
As shown in Table 1, no significant difference was observed in pH, organic matter and soil total nutrients (N, P, and K), while the available nutrients (available N, P, and K) were significantly different among the treatments. Compared with the control (CK), Trichoderma and/or mowing (T, M, and TM) significantly increased soil available nutrients (N, P, and K). Additionally, the contents of available N, P, and K in TM were significantly higher than those in other treatments (M, T, and CK).
Variation in Rhizosphere Soil Chemical Compounds
The GC-MS analysis identified 99 compounds, and 59 chemicals were shared by the four treatments (Supplementary Table S1). The identified chemical compounds with relative abundance of that was significantly different among the four treatments are shown in Table 2 and including 17 alkanes, 1 arene, 3 alcohols, 5 esters, 1 acid, 1 amine, and 1 phenol. No Tetratetracontane, Hexadecane,2,6,10,14-tetramethyl-, 1-Hexacosene, (E,E,E,E)-Squalene, Naphthalene,1,2,3,4-tetrahydro-1,8-dimethyl, Dibutyl phthalate, 2,2′-Methylenebis, Oleamide or 2,4-bis(1-phenylethyl)phenol was identified in the CK. Compared with the control (CK), Trichoderma and/or mowing (T, M, and TM) significantly increased the relative abundances of beta-Sitosterol and 2,2′-Methylenebis. The relative abundances of 1-Hexacosene and 1-Heptadecanol were significantly higher in the rhizodeposits of TM than in those of other treatments.

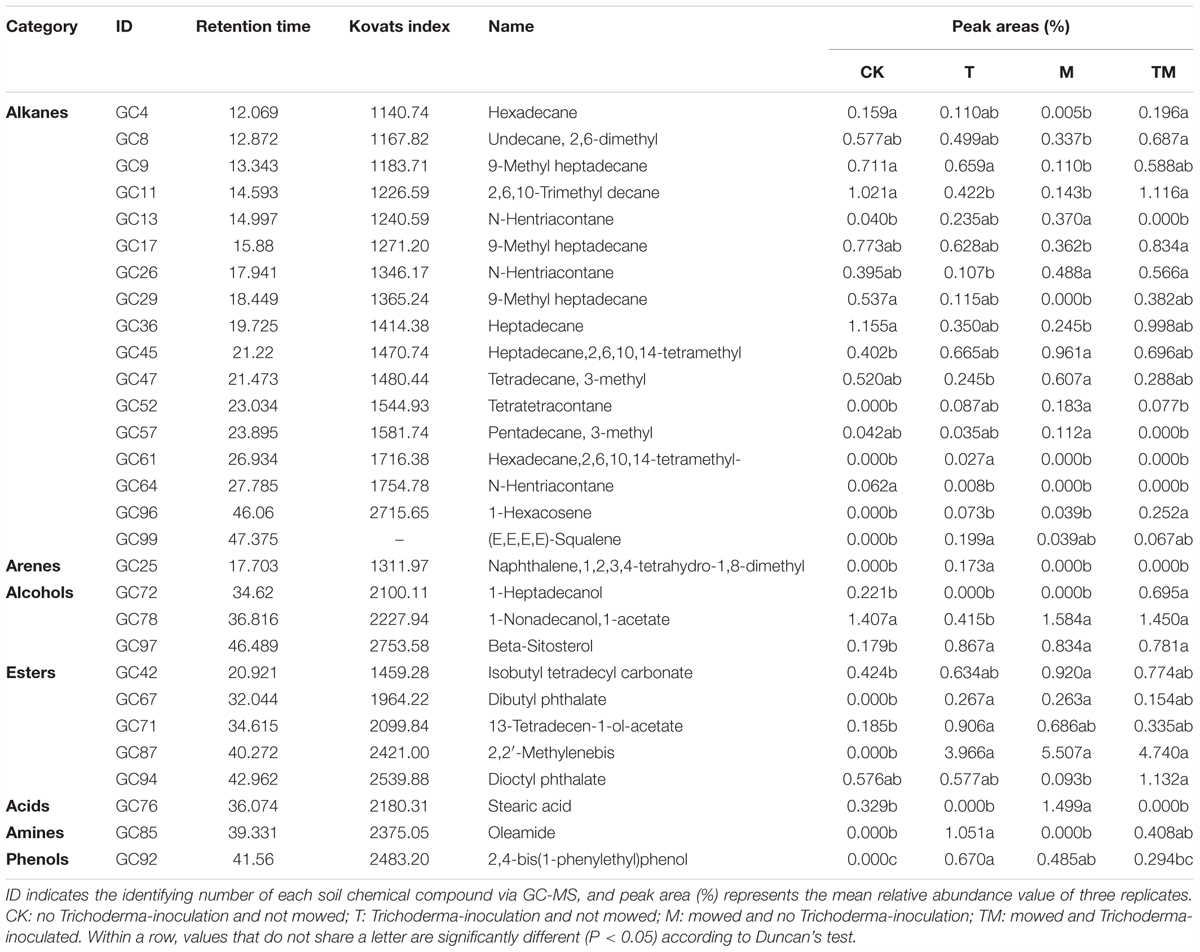

Table 2. Retention time and peak areas (%) of identified soil chemical compounds, indicating relative abundances across treatments.
Rhizosphere Soil Chemical Compounds and Soil Microbial Community Structure
As shown in Figure 2, NMDS plots demonstrate the changes in the rhizosphere soil chemical compounds and soil microbial community structure under different treatments. The stress values were all less than 0.2, and the P-values were lower than 0.05. The rhizosphere soil chemical compounds were significantly (P = 0.004) separated among CK, T, M, and TM plots (Figure 2A). Additionally, the bacterial (P = 0.001) and fungal (P = 0.001) communities also showed significant differences among the four treatments (Figures 2B,C).

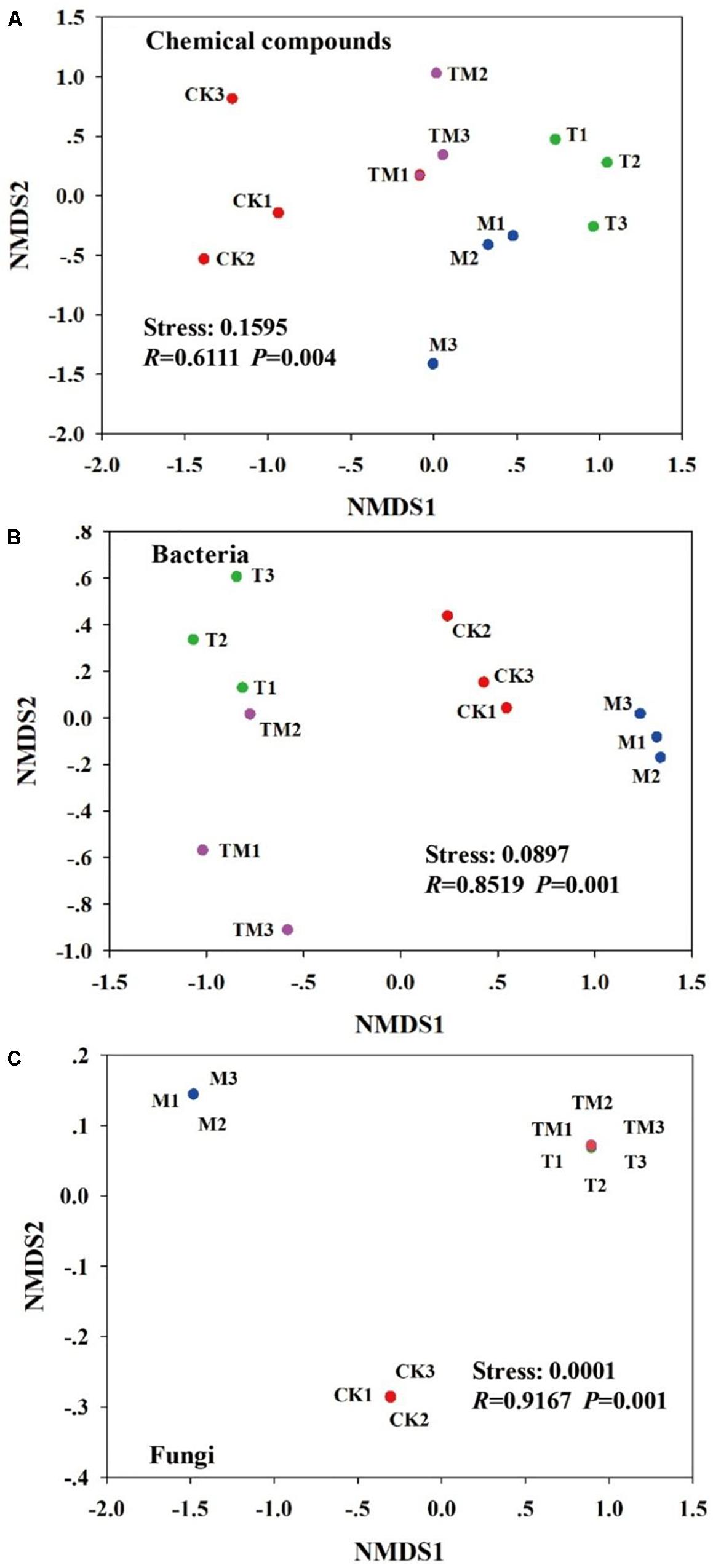

Figure 2. First two non-metric multidimensional scaling (NMDS) axes of the community structure of (A) soil chemical compounds, (B) bacteria, and (C) fungi. Red = CK: no Trichoderma-inoculation and not mowed; Green = T: Trichoderma-inoculation and not mowed; Blue = M: mowed and no Trichoderma-inoculation; Purple = TM: mowed, and Trichoderma-inoculated.
Bacterial and Fungal Community Composition
The dominant phyla of bacterial and fungal communities in rhizosphere soil showed obvious variations among the four treatments (Figure 3). As shown in Figure 3A, the most abundant bacterial phyla were Proteobacteria, Acidobacteria, Bacteroidetes, Actinobacteria, Chloroflexi, Gemmatimonadetes, Verrucomicrobia, Nitrospirae, Planctomycetes, Firmicutes, and WS3, which contribute almost 90% of the bacterial sequences. For soil fungal community composition, the fungal sequences were primarily from three phyla: Ascomycota, Zygomycota, and Basidiomycota (Figure 3B). The relative abundance of Ascomycota increased significantly in M treatment (mowed and no Trichoderma-inoculation), compared with that in other treatments (CK, T, and TM). At the level of genus, a comparison of the relative abundance of the top 50 classified bacterial and fungal genera revealed significant differences among the four treatments (Supplementary Table S2). We focused on analyzing the soil bacterial and fungal genera that had the ability to potentially promote plants growth. These selected genera showed significant differences among the four treatments (CK, T, M, and TM). As show in Table 3, the inoculation of Trichoderma (T) resulted in a significant enrichment of the genera Pseudomonas, Flavobacterium, and Arthrobacter, while the increasing trend could be weaken when mowing was added (TM). The relative abundance of Trichoderma in T and TM treatments were significantly higher than that in CK and M treatments. Moreover, TM treatment had the highest Trichoderma relative abundance.

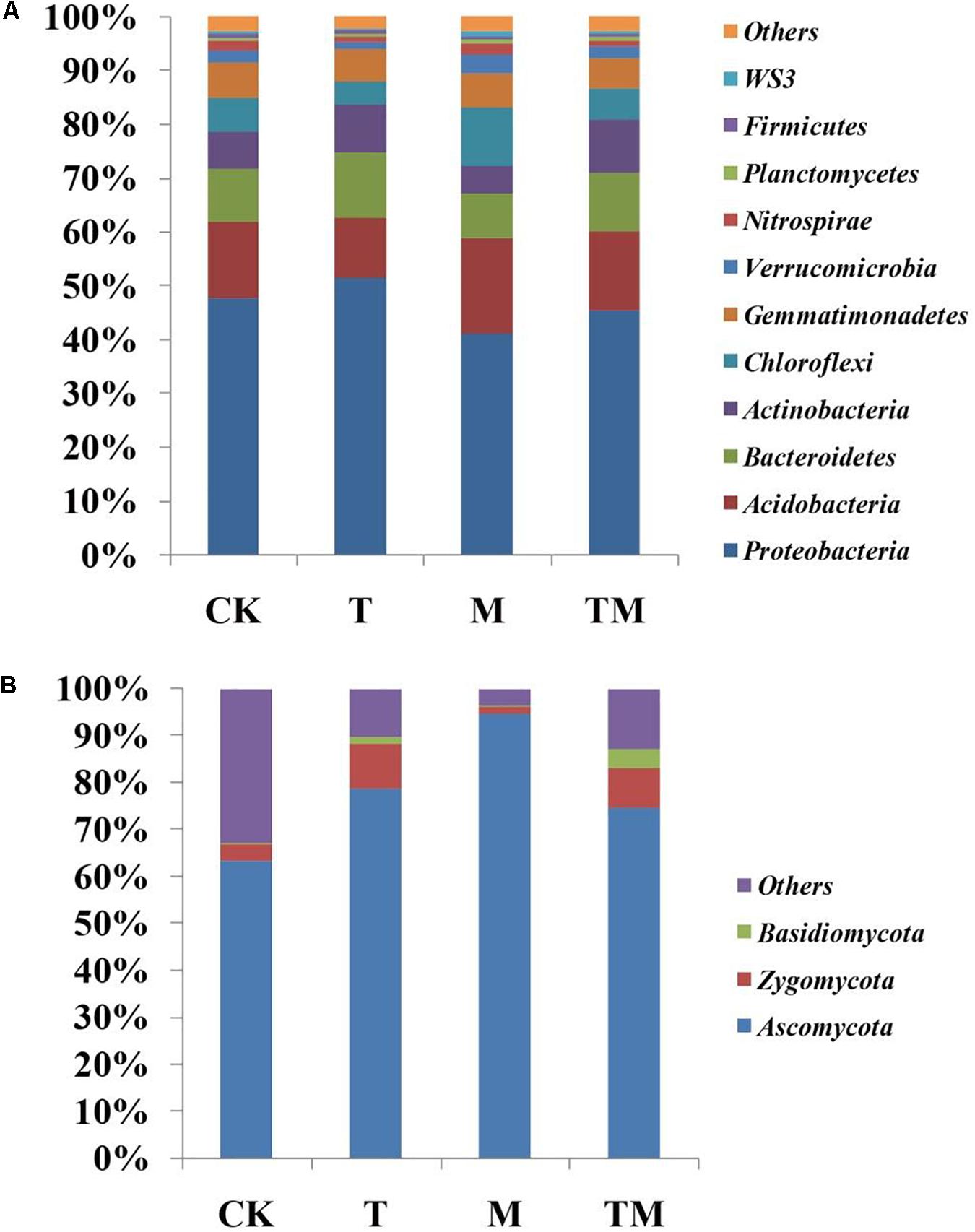

Figure 3. The relative abundance of bacterial phyla (A) and fungal phyla (B) in different treatments. “Others” indicates phyla with extremely low abundance. CK: no Trichoderma-inoculation and not mowed; T: Trichoderma-inoculation and not mowed; M: mowed and no Trichoderma-inoculation; TM: mowed and Trichoderma-inoculated.
Coupling the Abundance of Selected Genera and Alfalfa Biomass
Significant and positive correlation was observed between the biomass of alfalfa and the relative abundance of Trichoderma (R2 = 0.3451, P = 0.045) (Table 3). However, Pseudomonas, Flavobacterium, Arthrobacter, Bacillus, Agrobacterium, and Actinoplanes were not significantly correlated with alfalfa biomass. As shown in the Taq-Man Real-time PCR analysis (Figure 4A), Trichoderma had a good linear relationship (Y = -3.32X + 43.2, R2 = 0.999) with concentrations of the target gene (Trichoderma ITS region). The abundance of Trichoderma was also positively (R2 = 0.5373, P = 0.0067) correlated with alfalfa biomass (Figure 4B).
Figure 4. (A) Standard curves of Trichoderma by real-time PCR; (B) correlations between the number of Trichoderma and alfalfa biomass.
Structure Equation Modeling (SEM) Pathways and Alfalfa Biomass
Supplementary Table S3 shows the structural equation modeling for alfalfa biomass, which showed a strong fit with the data (χ2 = 6.336, DF = 8, P = 0.610, NFI = 0.967, RFI = 0.886, IFI = 1.009, RMSEA = 0.000, Supplementary Table S4). The variance of alfalfa biomass was directly dependent on Trichoderma abundance, available N, P, and K, rhizosphere soil chemical compounds, and soil microbial communities (Figure 5). Among these factors, Trichoderma abundance (path coefficient = 0.677) and soil available P (path coefficient = 0.740) had the strongest direct overall effects on alfalfa biomass. However, soil bacterial community (path coefficient = -0.382) and available K (path coefficient = -0.227) had a negative effect on alfalfa biomass. Trichoderma abundance had a significant negative effect on soil fungal community (path coefficient = -0.839). Soil chemical compounds was directly influenced by soil available P (path coefficient = 1.327) and available N (path coefficient = -0.669). Soil chemical compounds had a positive influence on soil fungal community (path coefficient = 0.295), while no significant influence was observed on soil bacterial community. The soil bacterial community was directly mediated by available N (path coefficient = -1.620), available P (path coefficient = 1.489) and soil fungal community (path coefficient = -1.218).
Figure 5. Structural equation modeling (SEM) for alfalfa biomass. A path coefficient is analogous to a partial correlation coefficient and describes the strength and sign of the relationship between two variables. Negative pathways are shown as blue lines, positive pathways are shown as red lines, and line thickness represents the intensity of influence. Non-significant pathways are shown in gray. The models provided a good fit to our data. The model fits are given in Supplementary Table S3, and significance levels are provided in Supplementary Table S4.
Discussion
In the present study, our results showed that Trichoderma-inoculation and/or mowing significantly improved alfalfa growth, with the best results from the alfalfa treated with the Trichoderma and mowing treatment (TM). Many reports show that Trichoderma-inoculation has significant promotion effects on plants seedlings and crops yields, such as those of cucumber, cotton, tomato, and Leymus chinensis (Howell et al., 2000; Bal and Altintas, 2006; Zhang et al., 2013a, 2018a). Contreras-Cornejo et al. (2009) demonstrate that Trichoderma virens can stimulate plant lateral root growth by secreting indole acetic acid (IAA). The study of Bjorkman et al. (1998) also shows that Trichoderma harzianum has ability to promote root elongation and plants production. Trichoderma-inoculation is adept at promoting the growth of plants shoot and root, whereas mowing is commonly beneficial to stimulate aboveground regrowth, which is consistent with our result that the root dry weight in the Trichoderma-inoculation treatment (T) was significantly higher than that in mowing treatment (M). Several studies (Yadav et al., 2009; Kapri and Tewari, 2010) demonstrate that Trichoderma spp. can increase the solubilization of soil nutrients. Kucuk et al. (2008) also report that the acidification by organic acids released by T. harzianum provides more nutrients, directly influencing plants growth. According to systemic induction theory (Scheffknecht et al., 2006; Ling et al., 2011), because mowing directly affects plants aboveground, roots may also be stimulated to secrete more compounds to solubilize nutrients. Such a scenario well explains our result that TM had the greatest contents of available N, P, and K.
The soil environment was complex; thus the rhizosphere soil chemical compounds (e.g., alkanes, arenes, alcohols, esters, phenols and amines) identified by GC-MS were various (99 compounds). Trichoderma and/or mowing would lead to plants forming different chemical compounds profile. Many of the identified chemical compounds in CK were less abundant than other treatments, and some chemical compounds (e.g., Tetratetracontane, 1-Hexacosene, and 1-Hexacosene) were not detected in CK, which might be because roots could secrete more compounds when suffering from external environment stress (Liu and Xu, 2014). Compared to other treatments, more abundant 1-Hexacosene and 1-Heptadecanol were detected from TM treatment. Raza et al. (2015) demonstrated that the majority of alcohols have antifungal activity. Thus, we proposed that 1-Heptadecanol might suppress pathogen invasion to indirectly protect alfalfa growth. However, there was little evidence to demonstrate the effect of 1-Hexacosene on plants growth. We should further explore the function of different compounds on plants growth in our future research. In this study, both considerable differentiation of the rhizosphere soil chemical compounds composition and microbial structure were observed among the four treatments (CK, M, T, and MT). Thus, the rhizosphere of each treatment formed a specific and distinct resources niche. The compounds released into the rhizosphere by plant roots are crucial in structuring the soil microbiome composition (Lagos et al., 2014; Carvalhais et al., 2015). The application of artificial root secretions to soil samples can also considerably mediate the soil microbiome composition (Paterson et al., 2007; Eilers et al., 2010). A number of studies (Bernard et al., 2007; Paterson et al., 2007) demonstrate that the addition of low molecular weight organic carbon compounds to soil can directly and indirectly increase microbial biomass and cause distinct changes in the composition of bacterial communities. Gu et al. (2016) also show that changes in the root exudation profile shift the composition of rhizosphere bacterial communities. These results are consistent with our study that a corresponding differentiation of bacterial and fungal community compositions are based on rhizosphere chemical compounds differences among treatments. Note that mowing itself can change the secondary metabolism of plants, and also has influence on some plant physiology process (i.e., carbon assimilation) to change the composition of microbes which produced different compounds. Thus, some detected chemical compounds may be of microbial origin in our study. Future experiments should be conducted to clarify the exact origin of the rhizosphere chemical compounds.
Significant differences were observed in soil bacterial and fungal phyla and genera compositions among the four treatments. The dominant bacterial phyla were Proteobacteria, Acidobacteria, Bacteroidetes, and Actinobacteria, which was consistent with previous studies (Janssen, 2006; Lauber et al., 2009). Among these, Proteobacteria was the most dominant bacterial phylum across all samples, which was most likely due to its relatively rapid growth rate (Fierer et al., 2007; DeAngelis et al., 2008). As for the fungal phyla, Ascomycota was the most abundant in the rhizosphere based on deep pyrosequencing analysis of fungal community composition, which is consistent with the results of many reports (Yu et al., 2013; Shen et al., 2015). The inoculated strain T. harzianum belongs to Ascomycota phylum, which mainly account for that the relative abundance of Ascomycota in T was significantly higher than CK. Trichoderma spp. also have been reported as bio-agents and show potent antagonistic effect against a variety of soil pathogens (Howell et al., 2000; Zhang et al., 2013b). According to our results that the relative abundance of Ascomycota in M was significantly higher than TM, we concluded that mowing might have the ability to increase the relative abundance of soil pathogens, and Trichoderma play an antagonistic role in TM. The soil bacterial community compositions vary in different treatments, where the antagonism may take place between the inoculated-Trichoderma and some bacteria (Pan and Jash, 2011). We further focused on determining the variations of some microbial genera (Pseudomonas, Flavobacterium, Arthrobacter, Bacillus, Agrobacterium, Actinoplanes, and Trichoderma) that potentially promote plants growth. Alfalfa biomass had significant correlation with the relative abundance of Trichoderma. However, the relative abundances which are acquired from the high-throughput sequencing are not suitable to quantify when using universal primers, and the relative read abundance of individual species is influenced by other species (Amend et al., 2010). Thus, we further employed Real-time PCR to quantify Trichoderma in rhizosphere soil. The quantitative determination showed that alfalfa biomass was positively correlated with the abundance of Trichoderma, which was consistent with our previous relative abundance result.
The SEM results showed that Trichoderma abundance, available N, P, and K, soil chemical compounds, and fungal and bacterial community explain for alfalfa biomass in the pot experiment. Trichoderma greatly influenced alfalfa biomass, which was primarily due to its characteristic of plant growth promotion in greenhouse or field conditions. The soil available P also had a positive effect on alfalfa biomass, and an increase in available P was directly beneficial to plant growth. This supports our results that the soil available P content was significantly higher in the TM treatment than that in other treatments and that TM had the highest alfalfa biomass. The soil fungal community was most closely associated with changes in soil nutrients (Christian et al., 2008). The inoculation of Trichoderma had a negative influence on the soil fungal community, which was consistent with our result in a previous study (Zhang et al., 2018a). Raaijmakers et al. (2009) revealed that plant root exudates, as the major C source of soil microbes could directly influence their assemblage. According to SEM, we concluded that soil chemical compounds have direct effect on soil fungal community, while indirect influence on soil bacterial community.
Trichoderma-inoculation and mowing synergistically regulated soil available nutrients, rhizosphere soil chemical compounds and soil microbial community, substantially improved alfalfa growth, with Trichoderma abundance and soil available P as the primary contributors. Additionally, Trichoderma-inoculation and mowing altered rhizosphere soil chemical compounds to influence the soil microbial community, indirectly influencing alfalfa growth. Our research provides a basis for promoting alfalfa growth from the perspective of soil microbial ecology and may ultimately enrich promotion theory. Furthermore, studies should be conducted in the future to improve understanding of the functional consequences of Trichoderma-inoculation and/or mowing amendments on the soil microbial community and how these effects result in alteration of soil properties to support plant growth.
Author Contributions
FZ, YH, and YX conceived and designed the experiments. FZ, XX, and YH performed the experiments. FZ and XX analyzed the data. FZ and YX contributed reagents, materials, and analysis tools and wrote the paper. All authors reviewed and contributed to the manuscript.
Funding
This study was funded by the earmarked fund for China Agriculture Research System (CARS-34), the National Natural Science Foundation of China (31602006), the Natural Science Foundation of Jiangsu Province (BK20160735), and the Nanjing Agricultural University Foundation (Y0201600442).
Conflict of Interest Statement
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Supplementary Material
The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fmicb.2018.03241/full#supplementary-material
References
Amend, A. S., Seifert, K. A., and Bruns, T. D. (2010). Quantifying microbial communities with 454 pyrosequencing: does read abundance count? Mol. Ecol. 19, 5555–5565. doi: 10.1111/j.1365-294X.2010.04898.x
Azarmi, R., Hajieghrari, B., and Giglou, A. (2011). Effect of Trichoderma isolates on tomato seedling growth response and nutrient uptake. Afr. J. Biotechnol. 10, 5850–5855. doi: 10.5897/AJB10.1600
Bal, U., and Altintas, S. (2006). Effects of Trichoderma harzianum on the yield and fruit quality of tomato plants (Lycopersicon esculentum) grown in an unheated greenhouse. Aust. J. Exp. Agric. 46, 131–136. doi: 10.1071/EA04003
Barać, S. R., Vuković, A., Milenković, B., and BiberdzIć, M. (2012). Testing results of mower with different cutting devices in alfalfa mowing. Res. J. Agr. Sci. 44, 241–248.
Bell, T., Newman, J. A., Silverman, B. W., Turner, S. L., and Lilley, A. K. (2005). The contribution of species richness and composition to bacterial services. Nature 436, 1157–1160. doi: 10.1038/nature03891
Berendsen, R., Pieterse, C., and Bakker, P. (2012). The rhizosphere microbiome and plant health. Trends Plant. Sci. 17, 478–486. doi: 10.1016/j.tplants.2012.04.001
Bernard, L., Mougel, C., Maron, P. A., Nowak, V., Leveque, J., Henault, C., et al. (2007). Dynamics and identification of soil microbial populations actively assimilating carbon from C-13-labelled wheat residue as estimated by DNA- and RNA-SIP techniques. Environ. Microbiol. 9, 752–764. doi: 10.1111/j.1462-2920.2006.01197.x
Bjorkman, T., Blanchard, L. M., and Harman, G. E. (1998). Growth enhancement of shrunken-2 (sh2) sweet corn by Trichoderma harzianum 1295-22: effect of environmental stress. J. Am. Soc. Hortic. Sci. 123, 35–40.
Bonfante, P., and Anca, I. A. (2009). Plants, mycorrhizal fungi, and bacteria: a network of interactions. Annu. Rev. Microbiol. 63, 363–383. doi: 10.1146/annurev.micro.091208.073504
Caporaso, J. G., Lauber, C. L., Walters, W. A., Berg-Lyons, D., Lozupone, C. A., Turnbaugh, P. J., et al. (2011). Global patterns of 16S rRNA diversity at a depth of millions of sequences per sample. Proc. Natl. Acad. Sci. U.S.A. 108, 4516–4522. doi: 10.1073/pnas.1000080107
Carvalhais, L. C., Dennis, P. G., Badri, D. V., Kidd, B. N., Vivanco, J. M., and Schenk, P. M. (2015). Linking jasmonic acid signaling, root exudates, and rhizosphere microbiomes. Mol. Plant Microbe Interact. 28, 1049–1058. doi: 10.1094/MPMI-01-15-0016-R
Chaer, G., Fernandes, M., Myrold, D., and Bottomley, P. (2009). Comparative resistance and resilience of soil microbial communities and enzyme activities in adjacent native forest and agricultural soils. Microb. Ecol. 58, 414–424. doi: 10.1007/s00248-009-9508-x
Christian, L. L., Michael, S. S., Mark, A. B., and Noah, F. (2008). The influence of soil properties on the structure of bacterial and fungal communities across land-use types. Soil. Biol. Biochem. 40, 2407–2415. doi: 10.1016/j.soilbio.2008.05.021
Contreras-Cornejo, H. A., Macías-Rodríguez, L., Cortés-Penagos, C., and López-Bucio, J. (2009). Trichoderma virens, a plant beneficial fungus, enhances biomass production and promotes lateral root growth through an auxin-dependent mechanism in Arabidopsis. Plant Physiol. 149, 1579–1592. doi: 10.1104/pp.108.130369
DeAngelis, K. M., Brodie, E. L., DeSantis, T. Z., Andersen, G. L., Lindow, S. E., and Firestone, M. K. (2008). Selective progressive response of soil microbial community to wild oat roots. ISME J. 3, 168–178. doi: 10.1038/ismej.2008.103
Dessaux, Y., Grandclement, C., and Faure, D. (2016). Engineering the rhizosphere. Trends Plant Sci. 21, 566–578. doi: 10.1016/j.tplants.2016.01.002
Edgar, R. C. (2013). UPARSE: highly accurate OTU sequences from microbial amplicon reads. Nat. Methods 10, 996–998. doi: 10.1038/nmeth.2604
Eilers, K. G., Lauber, C. L., Knight, R., and Fierer, N. (2010). Shifts in bacterial community structure associated with inputs of low molecular weight carbon compounds to soil. Soil Biol. Biochem. 42, 896–903. doi: 10.1016/j.soilbio.2010.02.003
Fierer, N., Bradford, M. A., and Jackson, R. B. (2007). Toward an ecological classification of soil bacteria. Ecology 88, 1354–1364. doi: 10.1890/05-1839
Gu, Y. A., Wei, Z., Wang, X. Q., Friman, V. P., Huang, J. F., Wang, X. F., et al. (2016). Pathogen invasion indirectly changes the composition of soil microbiome via shifts in root exudation profile. Biol. Fertil. Soils 52, 997–1005. doi: 10.1007/s00374-016-1136-2
Howell, C. R., Hanson, L. E., Stipanovic, R. D., and Puckhaber, L. S. (2000). Induction of terpenoid synthesis in cotton roots and control of Rhizoctoniasolaniby seed treatment with Trichoderma virens. Phytopathology 90, 248–252. doi: 10.1094/PHYTO.2000.90.3.248
Hoyos-Carvajal, L., Orduz, S., and Bissett, J. (2009). Growth stimulation in bean (Phaseolus vulgaris L.) by Trichoderma. Biocontrol 51, 409–416. doi: 10.1016/j.biocontrol.2009.07.018
Janssen, P. H. (2006). Identifying the dominant soil bacterial taxa in libraries of 16S rRNA and 16S rRNA genes. Appl. Environ. Microbiol. 72, 1719–1728. doi: 10.1128/AEM.72.3.1719-1728.2006
Jensen, E., Peoples, M., Boddey, R., Gresshoff, P., Hauggaard-Nielsen, H., Alves, B. J. R., et al. (2012). Legumes for mitigation of climate change and the provision of feedstock for biofuels and biorefineries. A Review. Agron. Sustain. Dev. 32, 329–364. doi: 10.1007/s13593-011-0056-7
Kapri, A., and Tewari, L. (2010). Phosphate solubilization potential and phosphatase activity of rhizospheric Trichoderma spp. Braz. J. Microbiol. 41, 787–795. doi: 10.1590/S1517-8382201000500001
Knudsen, D., Peterson, G., and Pratt, P. (1982). “Lithium, sodium, and potassium,” in Methods of Soil Analysis, Part 2, Chemical and Microbiological Properties, eds A. L. Page, R. H. Miller, and D. R. Kenney (Madison: American Society of Agronomy, Soil Science Society of American), 225–246.
Kucuk, C., Kivanc, M., Kinaci, E., and Kinaci, G. (2008). Determination of the growth and solubilization capabilities of Trichoderma harzianum T1. Biologia 63, 167–170. doi: 10.2478/s11756-008-0045-8
Lagos, L. M., Navarrete, O. U., Maruyama, F., Crowley, D. E., Cid, F. P., Mora, M. L., et al. (2014). Bacterial community structures in rhizosphere microsites of ryegrass (Lolium perenne var. Nui) as revealed by pyrosequencing. Biol. Fertil. Soils 50, 1253–1266. doi: 10.1007/s00374-014-0939-2
Lauber, C. L., Hamady, M., Knight, R., and Fierer, N. (2009). Pyrosequencing-based assessment of soil pH as a predictor of soil bacterial community structure at the continental scale. Appl. Environ. Microbiol. 75, 5111–5120. doi: 10.1128/AEM.00335-09
Lee, J. J., Kim, Y. S., Ham, S. K., Lee, C. E., and Lee, G. J. (2015). Growth and quality improvement of Creeping Bentgrass by two fertilizers containing Trichoderma species. Weed Turf. Sci. 4, 249–255. doi: 10.5660/WTS.2015.4.3.249
Ling, N., Huang, Q. W., Guo, S. W., and Shen, Q. R. (2011). Paenibacillus polymyxa SQR-21 systemically affects root exudates of watermelon to decrease the conidial germination of Fusarium oxysporum sp. niveum. Plant Soil 341, 485–493. doi: 10.1007/s11104-010-0660-3
Liu, Y., and Xu, R. (2014). Effect of growth conditions on reducing properties of maize (Zea mays L.) root exudates. Afr. J. Agr. Res. 9, 1681–1686. doi: 10.5897/AJAR2013.7899
Lopez-Mondejar, R., Anton, A., Raidl, S., Ros, M., and Pascual, J. A. (2010). Quantification of the biocontrol agent Trichoderma harzianum with real-time TaqMan PCR and its potential extrapolation to the hyphal biomass. Bioresour. Technol. 101, 2888–2891. doi: 10.1016/j.biortech.2009.10.019
Mendes, R., Kruijt, M., de, B. I., Dekkers, E., van der Voort, M., Schneider, J. H. M., et al. (2011). Deciphering the rhizosphere microbiome for disease-suppressive bacteria. Science 332, 1097–1100. doi: 10.1126/science.1203980
Ng, E. L., Patti, A. F., Rose, M. T., Schefe, C. R., Wilkinson, K., Smernik, R. J., et al. (2014). Does the chemical nature of soil carbon drive the structure and functioning of soil microbial communities? Soil Biol. Biochem. 70, 54–61. doi: 10.1016/j.soilbio.2013.12.004
Oburger, E., and Schmidt, H. (2016). New methods to unravel rhizosphere processes. Trends Plant Sci. 21, 243–255. doi: 10.1016/j.tplants.2015.12.005
Oksanen, J., Blanchet, F. G., Kindt, R., Legendre, P., Minchin, P. R., O’Hara, R. B., et al. (2013). Vegan: Community Ecology Package. R Package Version 2.0–7.
Olsen, S. R., and Sommers, L. E. (1982). “Phosphorous,” in Methods of Soil Analysis Part 2 Chemical and Microbiological Properties, 2nd Edn, ed. A. L. Page (Madison, WI: American Society of Agronomy, Soil Science Society of America), 403–429.
Pan, S., and Jash, S. (2011). Variability in biocontrol potential and microbial interaction of Trichoderma spp. with soil inhabiting antagonistic bacteria Pseudomonas fluorescens. Indian Phytopathol. 2, 158–164.
Paterson, E., Gebbing, T., Abel, C., Sim, A., and Telfer, G. (2007). Rhizodeposition shapes rhizosphere microbial community structure in organic soil. New Phytol. 173, 600–610. doi: 10.1111/j.1469-8137.2006.01931.x
Philippot, L., Raaijmakers, J. M., Lemanceau, P., and Van, W. H. (2013). Going back to the roots: the microbial ecology of the rhizosphere. Nat. Rev. Microbiol. 11, 789–799. doi: 10.1038/nrmicro3109
Pierre, P., Alex, W., Anne, C., Alexander, E. M., Stephen, A. R., and Jurriaan, T. (2017). Metabolite profiling of non-sterile rhizosphere soil. Plant J. 92, 147–162. doi: 10.1111/tpj.13639
Raaijmakers, J. M., Paulitz, T. C., Steinberg, C., Alabouvette, C., and Moenne-Loccoz, Y. (2009). The rhizosphere: a playground and battlefield for soilborne pathogens and beneficial microorganisms. Plant Soil 321, 341–361. doi: 10.1007/s11104-008-9568-6
Radović, J., Sokoloví, D., and Marković, J. (2009). Alfalfa-most important perennial forage legume in animal husbandry. Biotechnol. Anim. Husb. 25, 465–475. doi: 10.2298/BAH0906465R
Raza, W., Yuan, J., Wu, Y. C., Rajer, F. U., Huang, Q., and Qirong, S. (2015). Biocontroltraits of two Paenibacilluspolymyxa strains SQR-21 and WR-2 inresponse to fusaric acid, a phytotoxin produced by Fusarium species. Plant Pathol. 64, 1041–1052. doi: 10.1111/ppa.12354
Robson, T. M., Lavorel, S., Clement, J. C., and Roux, X. L. (2007). Neglect of mowing and manuring leads to slower nitrogen cycling in subalpine grasslands. Soil Biol. Biochem. 39, 930–941. doi: 10.1016/j.soilbio.2006.11.004
Salles, J. F., Poly, F., Schmid, B., and Le Roux, X. (2009). Community niche predicts the functioning of denitrifying bacterial assemblages. Ecology 90, 3324–3332. doi: 10.1890/09-0188.1
Scheffknecht, S., Mammerler, R., Steinkellner, S., and Vierheilig, H. (2006). Root exudates of mycorrhizal tomato plants exhibit a different effect on microconidia germination of Fusarium oxysporum sp. lycopersici than root exudates from non-mycorrhizal tomato plants. Mycorrhiza 16, 365–370. doi: 10.1007/s00572-006-0048-7
Schloss, P. D., Westcott, S. L., Ryabin, T., Hall, J. R., Hartmann, M., Hollister, E. B., et al. (2009). Introducing mothur: open-source, platform-independent, community-supported software for describing and comparing microbial communities. Appl. Environ. Microbiol. 75, 7537–7541. doi: 10.1128/AEM.01541-09
Shen, Z. Z., Ruan, Y. Z., Chao, X., Zhang, J., Li, R., and Shen, Q. R. (2015). Rhizosphere microbial community manipulated by 2 years of consecutive biofertilizer application associated with banana Fusarium wilt disease suppression. Biol. Fert. Soils 51, 553–562. doi: 10.1007/s00374-015-1002-7
Shi, R. (1996). Agricultural Chemistry Analyses of Soils, 2nd Edn. Beijing: China Agricultural Press, 37–39.
Shoresh, M., and Harman, G. E., and Mastouri, F. (2010). Induced systemic resistance and plant responses to fungal biocontrol agents. Annu. Rev. Pytopathol. 48, 21–43. doi: 10.1146/annurev-phyto-073009-114450
Singh, B. N., Singh, A., Singh, G. S., and Dwivedi, P. (2015). Potential role of Trichoderma asperellum T42 strain in growth of pea plant for sustainable agriculture. J. Pure Appl. Microbiol. 9, 1069–1074. doi: 10.13140/RG.2.1.4845.3201
Wang, Q., Garrity, G. M., Tiedje, J. M., and Cole, J. R. (2007). Naïve Bayesian classifier for rapid assignment of rRNA sequences into the new bacterial taxonomy. Appl. Environ. Microbiol. 73, 5261–5267. doi: 10.1128/AEM.00062-07
Watanabe, F. S., and Olsen, S. R. (1965). Test of an ascorbic acid method for determining phosphorus in water and NaHCO3 extracts from soil. Soil Sci. Soc. Am. J. 22, 677–678. doi: 10.2136/sssaj1965.03615995002900060025x
Yadav, R. L., Shukla, S. K., Suman, A., and Singh, P. N. (2009). Trichoderma inoculation and trash management effects on soil microbial biomass, soil respiration, nutrient uptake and yield of ratoon sugarcane under subtropical conditions. Biol. Fertil. Soils 45, 461–468. doi: 10.1007/s00374-009-0352-4
Yu, L., Nicolaisen, M., Larsen, J., and Ravnskov, S. (2013). Organic fertilization alters the community composition of root associated fungi in Pisum sativum. Soil Biol. Biochem. 58, 36–41. doi: 10.1016/j.soilbio.2012.11.004
Yuan, Y., Wang, Y. C., Zeng, B., Zhang, J. H., and Han, Y. Z. (2018). Effect of five Trichoderma strains on growth and nutritional quality of Orchard grass Pratacultural. Science 35, 391–397.
Zhang, F. G., Huo, Y. Q., Cobb, A. B., Luo, G. W., Zhou, J. Q., Yang, G. W., et al. (2018a). Trichoderma Biofertilizer links to altered soil chemistry, altered microbial communities, and improved grassland biomass. Front. Microbiol. 9:848. doi: 10.3389/fmicb.2018.00848
Zhang, F. G., Huo, Y. Q., Xu, X. X., Hu, J., Sun, X., Xiao, Y., et al. (2018b). Trichoderma improves the growth of Leymus chinensis. Biol. Fertil. Soils 54, 685–696. doi: 10.1007/s00374-018-1292-7
Zhang, F. G., Yuan, J., Yang, X. M., Cui, Y. Q., Chen, L. H., Ran, W., et al. (2013a). Putative Trichoderma harzianum mutant promotes cucumber growth by enhanced production of indole acetic acid and plant colonization. Plant. Soil 368, 433–444. doi: 10.1007/s11104-012-1519-6
