Mycolicibacterium smegmatis, Basonym Mycobacterium smegmatis, Expresses Morphological Phenotypes Much More Similar to Escherichia coli Than Mycobacterium tuberculosis in Quantitative Structome Analysis and CryoTEM Examination

A series of structome analyses, that is, quantitative and three-dimensional structural analysis of a whole cell at the electron microscopic level, have already been achieved individually in Exophiala dermatitidis, Saccharomyces cerevisiae, Mycobacterium tuberculosis, Myojin spiral bacteria, and Escherichia coli. In these analyses, sample cells were processed through cryo-fixation and rapid freeze-substitution, resulting in the exquisite preservation of ultrastructures on the serial ultrathin sections examined by transmission electron microscopy. In this paper, structome analysis of non pathogenic Mycolicibacterium smegmatis, basonym Mycobacterium smegmatis, was performed. As M. smegmatis has often been used in molecular biological experiments and experimental tuberculosis as a substitute of highly pathogenic M. tuberculosis, it has been a task to compare two species in the same genus, Mycobacterium, by structome analysis. Seven M. smegmatis cells cut into serial ultrathin sections, and, totally, 220 serial ultrathin sections were examined by transmission electron microscopy. Cell profiles were measured, including cell length, diameter of cell and cytoplasm, surface area of outer membrane and plasma membrane, volume of whole cell, periplasm, and cytoplasm, and total ribosome number and density per 0.1 fl cytoplasm. These data are based on direct measurement and enumeration of exquisitely preserved single cell structures in the transmission electron microscopy images, and are not based on the calculation or assumptions from biochemical or molecular biological indirect data. All measurements in M. smegmatis, except cell length, are significantly higher than those of M. tuberculosis. In addition, these data may explain the more rapid growth of M. smegmatis than M. tuberculosis and contribute to the understanding of their structural properties, which are substantially different from M. tuberculosis, relating to the expression of antigenicity, acid-fastness, and the mechanism of drug resistance in relation to the ratio of the targets to the corresponding drugs. In addition, data obtained from cryo-transmission electron microscopy examination were used to support the validity of structome analysis. Finally, our data strongly support the most recent establishment of the novel genus Mycolicibacterium, into which basonym Mycobacterium smegmatis has been classified.

Introduction

Mycolicibacterium smegmatis is a rapid-growing bacterium and previously belonged to the genus Mycobacterium as basonym Mycobacterium smegmatis, to which many pathogenic mycobacteria, including M. tuberculosis, a causative agent of tuberculosis, and M. leprae, a causative agent of leprosy, are belonging (Gupta et al., 2018; Oren and Garrity, 2018). Therefore, M. smegmatis has been quite often used as substitute for M. tuberculosis or M. leprae in studies, especially in the field of molecular biology, and there are a number of literature (Bashiri and Baker, 2015; Brown-Elliott and Philley, 2017), more than 15 papers, listed only in 2018 (Angara et al., 2018; Burian and Thompson, 2018; Chandran et al., 2018; Chen et al., 2018; Dal Molin et al., 2018; Ghosh et al., 2018; Goins et al., 2018; Jesus et al., 2018; Kaur et al., 2018; Kumar et al., 2018; Lopez et al., 2018; Marney et al., 2018; Mortuza et al., 2018; Richards et al., 2018; Singh et al., 2018; Tsaloglou et al., 2018; Verma et al., 2018).

We have already reported structome analysis data on Exophiala dermatitidis (Yamaguchi, 2006), Saccharomyces cerevisiae (Yamaguchi et al., 2011), M. tuberculosis (Yamada et al., 2015), Myojin spiral bacteria (Yamaguchi et al., 2016b), Escherichia coli (Yamada et al., 2017), and Myojin amorphous bacteria (Yamaguchi et al., 2018). In these previous studies, samples were prepared through rapid-freezing and freeze-substitution, and fundamental quantitative data of the single cells were provided with examination of serial ultrathin sections by transmission electron microscope (TEM), including cell diameter, length, volume of whole cell and cytoplasm, surface area, and cytoplasmic ribosome number. Because yeast cells have a larger cell volume, they express a higher number of total cytoplasmic ribosomes. However, E. coli has much higher ribosome density despite lower total ribosome number contained in a much smaller cytoplasm. In contrast, M. tuberculosis, Myojin spiral bacteria, and Myojin amorphous bacteria have much lower cytoplasmic ribosome density with lower total ribosome number in a much smaller cytoplasmic volume.

In this study, M. smegmatis structome analysis was done on seven cells, which were contained in serial ultrathin sections that spanned from one end to the other of the cell. The analysis was performed in the same manner so to compare it with M. tuberculosis structome data due to the fact that M. smegmatis of lower pathogenicity has been used as a substitute for the highly pathogenic M. tuberculosis in a large number of molecular biological or molecular genetic experiments. Further to this analysis, it was revealed that M. smegmatis had a significantly larger cell volume, both whole cell and cytoplasm, and significantly higher ribosome number and ribosome density than M. tuberculosis. M. smegmatis is seen to be similar to E. coli, rather than to M. tuberculosis, for these parameters. Upon comparing with M. tuberculosis cells, no significant difference was found in cell length alone.

In addition, as shown in the following text, using exquisite TEM images obtained from serial ultrathin sections, three-dimensional reconstructions were performed. In the reconstruction process, the ribosome distribution in each of the cytoplasm was clearly depicted in addition to the cell profiles. This is the first report on the three-dimensional reconstruction and ribosome-density enumeration of M. smegmatis cells based on TEM examination of serial ultrathin sections as well as ice-embedded whole mount cryoTEM observations.

Materials and Methods

Bacteria

M. smegmatis (ATCC 19420) and M. tuberculosis H37Rv strain (ATCC 27294) were cultured in 50 ml of Middlebrook 7H9 (Becton Dickinson, Sparks, MD, USA), supplemented with oleic acid, bovine albumin (Fraction V), dextrose, and catalase (OADC, Becton Dickinson) enrichment and 0.05% Tween 80 (Sigma-Aldrich) contained in a 125-ml Erlenmeyer flask with a plain bottom (Nalgene, 4112-0125, NY, USA). Cells in the exponential growth phase were used. Aliquots (1 ml) of cultured cells were transferred directly to sterile microcentrifuge tubes without washing with buffer solution and centrifuged at 10,000 × g for 1 min. Normally, 6 ml of cultured cell suspension was used. The supernatants were discarded, and the remaining pellets were collected in two microcentrifuge tubes.

Cryo-Fixation, Rapid Freeze-Substitution, and Epoxy Resin Embedding

The sandwich method was performed as described previously (Yamaguchi, 2006; Yamada et al., 2010, 2015, 2017; Yamaguchi et al., 2011). Briefly, a portion (< 1 μl) of the highly concentrated bacterial pellet, prepared as described above was applied to a glow discharge-treated single-hole copper grid (Veco; hole size, 0.1-mm diameter) (Yamaguchi et al., 2016a) and then sandwiched with another glow discharge-treated single-hole grid. The grids were then picked up with tweezers and frozen by plunging them into mixture of melting propane and ethane cooled with liquid nitrogen with Vitrobot Mark IV (FEI, Thermo Fischer Scientific, USA). The pair of grids was transferred, detached in liquid nitrogen, and immersed quickly in 2% osmium tetroxide/acetone solution and then placed in the device described earlier and cooled. Next, the samples were transferred from the bio-safety facility and placed in a freezer at −85°C for several days, after which they were allowed to come to room temperature over several days in a conventional area of the laboratory. Then, the osmium tetroxide/acetone solution, was discarded, and the samples were washed with absolute acetone three times at room temperature. The samples were then embedded in Spurr's resin using Embedding Capsule Easy Molds (8-mm diameter, Leica/LKB) and polymerized at 70°C for 16 h.

Preparation of Serial Ultrathin Sections and TEM Examination

Nearly 550 serial ultrathin sections with an average thickness of 40 nm were cut with an Ultracut E ultramicrotome (Reichert-Jung Co., Vienna, Austria) equipped with a diamond knife and then picked up using 10 single-slot copper grids with a slot size of 2.0 × 1.0 mm (Maxtaform HF49, Tonbridge, UK). The serial ultrathin sections were then transferred onto a formvar support film mounted on an aluminum rack with 20 pores of 4-mm diameter. Then, the grids with the sections were then dried, detached from the rack with the support of the formvar, and stained with uranyl acetate and lead citrate (Yamaguchi et al., 2009; Yamaguchi and Chibana, 2018). Of the 10 grids prepared, serial 3 grids were subjected to TEM examination. Among these 3 grids, serial ultrathin sections containing 7 cells on one grid were examined by TEM.

The TEM examinations were performed using a JEOL JEM-1230 electron microscope operated at 120 kV equipped with OSIS MegaView G2 (1K × 1K) CCD digital camera system (Olympus, Japan). Serial sections spanning the cell from one end to the other were searched at low magnification. Next, 7 cells in a total of 233 serial ultrathin sections were examined at higher magnification ( × 30,000, × 60,000, or × 80,000). Images were captured using iTEM software (OLYMPUS Soft Imaging Solutions GmbH, Münster, Germany).

Whole-Mount Ice-Embedded CryoTEM Examination

Part of M. smegmatis and M. tuberculosis prepared as described earlier were fixed with 2.5% glutaraldehyde in phosphate buffer (0.1 M, pH 7.4) overnight at 4°C, and rinsed 3 times with distilled water. Two μL of the suspension was applied to a glow-discharged carbon grid with holes (Quantifoil^® copper grids R2/1, Quantifoil MicroTools, Jena, Germany) and mounted in an environmentally controlled chamber at 100% humidity. The excess water was removed by blotting, and the grids were frozen in vitreous ice by plunging them into liquid ethane cooled with liquid nitrogen using a Vitrobot Mark II (FEI, Hillsboro, OR, USA). The grid was then transferred to a JEM-2200FS (JEOL) cryo-TEM equipped with a field emission gun. The microscope was operated at 200 kV acceleration voltage, and samples were cooled during examination with liquid nitrogen in the single-tilt nitrogen cryotransfer holder (Model 626, Gatan Inc., Pleasanton, CA. USA) at−175.9 to −177.8°C. Data were recorded with a 4k × 4k on-axis CCD camera (F415MP, TVIPS, Gauting, Germany), operated in a 2 × 2 hardware binning mode producing 2k × 2k images. Focusing and tracking were performed with a 1k × 1k off-axis CCD camera (Model F114, TVIPS) working in a continuous 1-frame/s animated acquisition mode, combined with a real-time Fourier transform display. Sample preparation after glutaraldehyde fixation and examination with cryoTEM were performed in the National Institute of Physiological Science (Okazaki, Aichi, Japan).

Image Analysis and Ribosome Enumeration

Images were saved as TIFF files and analyzed using ImageJ and Fiji software (Schindelin et al., 2012). Briefly, cell length was calculated by multiplying the number by 55 nm (representing the thickness of each section). The diameter (minor and major axes), perimeter, and thickness of the plasma membrane (PM), outer membrane (OM), and cell envelope of each cell were measured as a pixel value, using the line selection menu in the ImageJ/Fiji window as well as a scale bar recorded on the same negative. Measured pixel values were converted to μm or nm according to the measured pixel value of the scale bar on the corresponding negatives.

The cross-sectional area of each cell was determined using the “Measure” command in the “Analyze” menu of ImageJ/Fiji, by tracing the OM using the polygonal selection menu in the ImageJ window and converting the area result mentioned into μm² by multiplying the square of the ratio of scale (nm) on the scanned negative by its pixel value. The cross-sectional area of each cell's cytoplasm was determined by tracing the PM in a like manner. The OM and PM surface areas (μm²) were calculated as the cumulative area of a trapezium of the cell in each section using the formula for calculating the area of a trapezoid, where the perimeter of the OM and PM in a given section and the previous section were used as the upper base and lower base, respectively, and the section thickness (0.040 μm [40 nm]) was used as the height.

The volume (fl, = μm³) of each cell was calculated as the cumulative volume of three-dimensional bodies having the OM- or PM-lined cross-sectional area as the base and the section thickness [0.040 μm [40 nm]] as the height for the whole cell volume and cytoplasmic volume, respectively. The volume of the periplasm was calculated by subtracting the cytoplasmic volume from the whole cell volume.

Ribosomes in the cytoplasm of the cell cross-section were enumerated using the “Multi-point Tool” in ImageJ/ Fiji (Schindelin et al., 2012). The total number of ribosomes in each cell and the number of ribosomes per 0.1 fl of cytoplasm were calculated based on the volume of each cell determined as described earlier.

3D Reconstruction

Three-dimensional reconstruction was performed using TrackEM2 program contained in Fiji/ImageJ software version 2.0.0-rc-43 /1.50e; Java 1.6.0_65[64-bit] (Fiji, RRID:SCR_002285, ImageJ, RRID:SCR_003070) for seven cells. In addition, 3D reconstruction of Cell 3 was tried with Amira 6.5.0 software (Konrad-Zuse-Zentrum für Informationstechnik Berlin (ZIB), Germany, and FEI SAS, a part of Thermo Fisher Scientific).

Statistics

Compared mean t-test and one-way ANOVA were performed to compare differences in mean values. Statistical analyses were performed using StatPlus:mac, AnalystSoft Inc.—statistical analysis program for Mac OS^®. Version v6 (StatPlus Mac, RRID:SCR_014635).

Results

One-Dimensional Cell Properties

M. smegmatis cells were prepared through rapid-freezing and freeze-substitution to obtain much more exquisite cell images following epoxy resin embedding than those prepared through conventional chemical fixation (Figure 1A). With this preparation protocol, ultrastructures of cell were preserved with extremely high-quality, where not only membrane structures, but also every single ribosome can be examined and enumerated separately. In addition, ice-embedded whole-mount CryoTEM examination was performed (Figure 1B) to obtain cell profiles in the most intact condition. Seven M. smegmatis cells were examined on totally 220 serial ultrathin sections (Figure 2, Videos S1–S6, Table 1). Cell lengths of the seven cells ranged from 2.07 to 7.41 μm with average ± standard deviation (SD) as 3.54 ± 1.83 μm. On the contrary, cell length measured in CryoTEM examination for 61 M. smegmatis cells ranged from 1.08 to 6.27 μm, with average 3.46 ± 1.40 μm, which was similar to serial ultrathin section examination (Table S1).

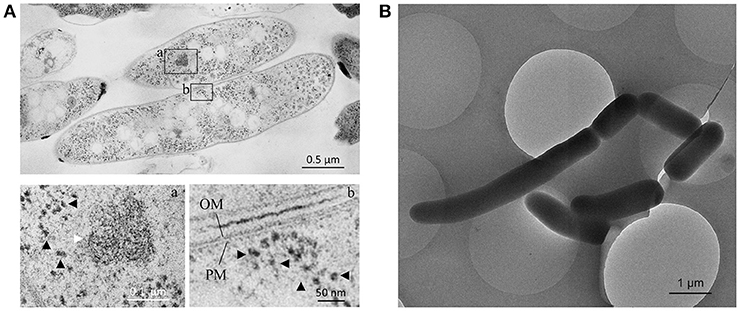

FIGURE 1

Figure 1. Images of ultrathin section and cryo-transmission electron microscopy (TEM) of M. smegmatis cells. (A) Two M. smegmatis cells processed through rapid-freeze and freeze-substitution in an ultrathin section. (a,b) enlarged images of the selected field of view in (A). (a) Condensed DNA fiber (white arrow) and ribosome particles (black arrowhead). In (b) Ribosome particles (black arrowhead) and plasma membrane (PM) and outer membrane (OM). (B) CryoTEM image of M. smegmatis cells with varied cell lengths.

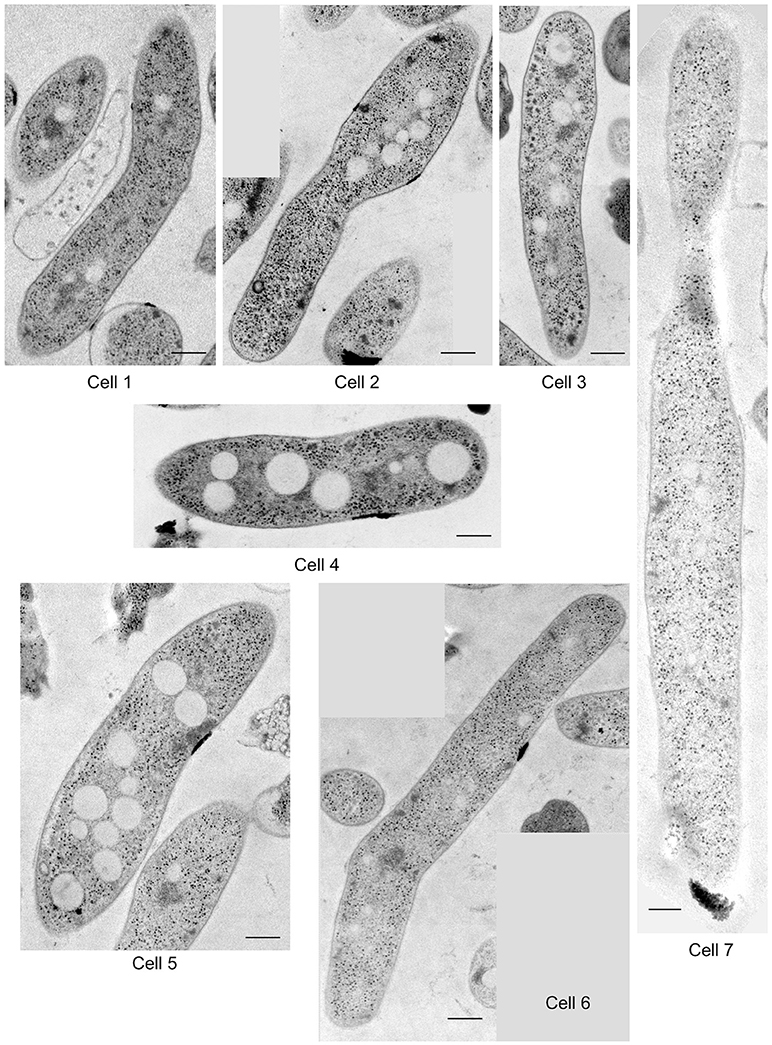

FIGURE 2

Figure 2. One of the representative images of serial ultrathin sections in seven M. smegmatis cells examined in structome analysis. Scale bar = 250 nm.

TABLE 1

Table 1. One-dimensional data of 7 M. smegmatis cells examined on serial ultrathin sections.

Cell diameter measured at OM and PM in serial ultrathin sections ranged from 0.51 to 0.66 and from 0.49 to 0.63, respectively, and the average values were 0.58 ± 0.05 μm and 0.55 ± 0.05 μm, respectively. In cell diameter, seven cells showed similar values to each other. Then, the standard deviations for both were small; less than 10% of averages (Table 1). On the contrary, cell diameter measured in CryoTEM examination ranged from 0.66 to 1.00 μm with an average of 0.77 ± 0.08 μm, which was significantly larger than that of serial ultrathin sections (0.58 ± 0.05 μm, p < 0.000001, Table S1). The aspect ratio of these seven cells was 6.27 ± 3.71.

These data were compared with those of M. tuberculosis and E. coli cells, including data obtained from CryoTEM examination (Table S1). In comparison of cell diameter, both average OM (0.58 ± 0.05 μm) and PM diameter (0.55 ± 0.05 μm) of M. smegmatis was significantly larger than that of M. tuberculosis (0.34 ± 0.03 μm for OM and 0.30 ± 0.02 μm for PM, p < 0.0001, respectively) and significantly smaller than that of E. coli (0.89 ± 0.06 μm, p < 0.0001). Furthermore, average whole cell diameter of M. smegmatis cell in cryoTEM (0.77 ± 0.08 μm) was significantly larger than that of M. tuberculosis (0.60 ± 0.06 μm, p < 0.0001). In cell length, whereas, there was no significant difference between the three species in the serial ultrathin sections, average length of M. smegmatis in cryoTEM (3.46 ± 1.40 μm) was significantly longer than that of M. tuberculosis (2.65 ± 0.74 μm, p < 0.05). In aspect ratio, average aspect ratio of M. smegmatis cells in serial ultrathin sections (6.27 ± 3.71) was significantly higher than that of E. coli (2.84 ± 0.46, p < 0.001), whereas there was no significant difference when compared with that of M. tuberculosis (8.24 ± 3.61, p > 0.3).

In addition, M. smegmatis expresses different morphological phenotypes from M. tuberculosis in Ziehl-Neelsen staining, and Gram staining, (Figure S1). In Ziehl-Neelsen staining, M. smegmatis cells easily lost acid-fastness, and most cells were positive in Gram staining, whereas most M. tuberculosis cells preserved acid-fastness vividly and varied in stainability from cell to cell in Gram staining (Figure S1). Difference in acid-fastness between M. tuberculosis and M. smegmatis is attributable to the differential expression of varied types of mycolic acid. That is, α-cis/cis, methoxy cis, methoxy trans, keto cis, and keto trans mycolic acids are primary contained in the cell wall of M. tuberculosis, whereas the cell wall of M. smegmatis primarily comprises of α-trans/trans, α'-cis, and epoxy trans mycolic acids. The α-trans/trans, α'-cis, and epoxy trans mycolic acids in M. smegmatis have less carbon and shorter chain lengths than those of mycolic acids contained in the cell wall of M. tuberculosis (Bhatt et al., 2005; Marrakchi et al., 2008; Vilvhéze and Kremer, 2017).

Two-Dimensional Cell Properties

Two-dimensional cell properties were measured. Using the perimeter value of OM and PM measured by Fiji/ImageJ, total areas of both surfaces were calculated. In seven M. smegmatis cells embedded in serial ultrathin sections, the average OM and PM surface areas were 5.62 ± 2.19 μm² and 5.10 ± 1.95 μm², respectively (Table 2). Both surface areas of M. smegmatis were significantly larger than that of M. tuberculosis, 3.03 ± 1.33 μm² and 2.67 ± 1.19 μm², respectively (both p < 0.05, Table S2). There were no significant differences in comparison of surface areas between M. smegmatis and E. coli or between M. tuberculosis and E. coli (Table S2).

TABLE 2

Table 2. Two-dimensional data of 7 M. smegmatis cells examined on serial ultrathin sections.

Three-Dimensional Cell Properties

Three-dimensional cell properties of seven M. smegmatis cells were measured and calculated as described in Materials and Methods (Table 3). Average whole cell volume was 0.91 ± 0.37 fl. This value was significantly larger than that of M. tuberculosis (0.29 ± 0.11 fl, p < 0.005, Table S3). Average cytoplasmic volume was 0.77 ± 0.31 fl. This value was also significantly larger than that of M. tuberculosis (0.21 ± 0.09 fl, p < 0.005, Table S3). The OM, PM, and periplasm volume in average were 0.01 ± 0.004 fl, 0.03 ± 0.01 fl, and 0.10 ± 0.07 fl, respectively, and there was no significant difference between M. smegmatis and M. tuberculosis (Table 3 and Table S3). Finally, there were no significant differences in all cell volume categories between M. smegmatis and E. coli. It is suggested that M. smegmatis cells are much more similar to E. coli cells than the cells of M. tuberculosis, which had belonged to the same genus (Table 3 and Table S3).

TABLE 3

Table 3. Three-dimensional data of 7 M. smegmatis cells examined on serial ultrathin sections.

In addition, M. smegmatis express different morphological phenotypes from M. tuberculosis in cord formation as observed on the colonies grown on solid medium (Figure S2). The M. tuberculosis cells on solid medium expressed highly organized cord formation entirely, although the M. smegmatis colony expressed cord formation partially (Figure S2).

Three-dimensional reconstitutions for seven M. smegmatis cells were performed and these support the results obtained from structome analysis that cell length varied from cell to cell (Figure 3, Videos S7–S12).

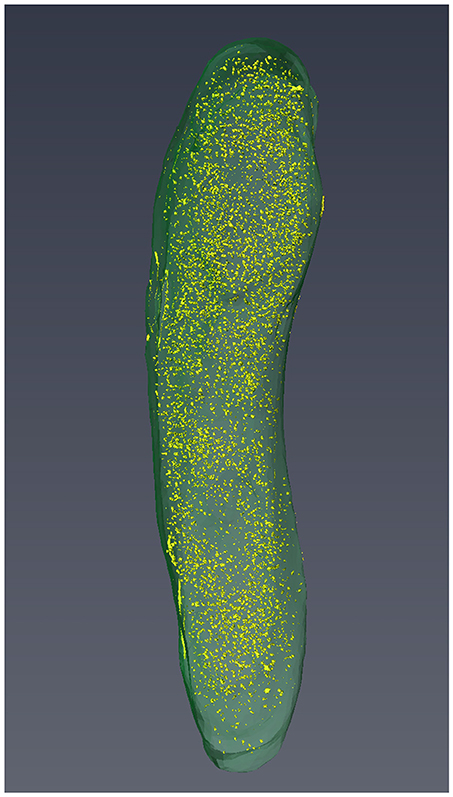

FIGURE 3

Figure 3. The 3D reconstruction of Cell 3 with visualization of cell profile and cytoplasmic distribution of ribosomes.

Ribosome Enumeration

Cytoplasmic ribosome number was enumerated on each serial ultrathin section for seven cells. Total ribosome number per cell ranged from 5,430 to 12,930 with an average of 8,670 ± 2,660 (Table 4). On the contrary, ribosome density per 0.1 fl cytoplasm ranged from 990 to 1,420 with an average of 1,170 ± 180 (Table 4). As shown in Figure 3, ribosomes were evenly distributed throughout the cytoplasmic space in 3D reconstruction. The average total ribosome number of M. smegmatis (8,670 ± 2,660) was significantly larger than those of Myojin spiral bacteria (320 ± 120, p < 0.00001) and M. tuberculosis (1,670 ± 570, p < 0.0002), but significantly smaller than E. coli (26,210 ± 4,020, p < 0.000001), E. dermatitidis (195,000 ± 91,100, p < 0.0005), and S. cereviciae (195,000 ± 54,800, p < 0.000002, Table 5). In addition, average ribosome density of M. smegmatis (1,170 ± 180/0.1 fl cytoplasm) was significantly higher than Myojin spiral bacteria (220 ± 120/0.1 fl cytoplasm, p < 0.000005), Myojin amorphous bacteria (310 ± 40/0.1 fl cytoplasm, p < 0.000005), and M. tuberculosis (720 ± 170/0.1 fl cytoplasm, p < 0.005), but significantly lower than E. coli (2,840 ± 120/0.1 fl cytoplasm, p < 0.000001) and S. cerevisiae (1,950 ± 100/0.1fl cytoplasm, p < 0.000001, Table 5).

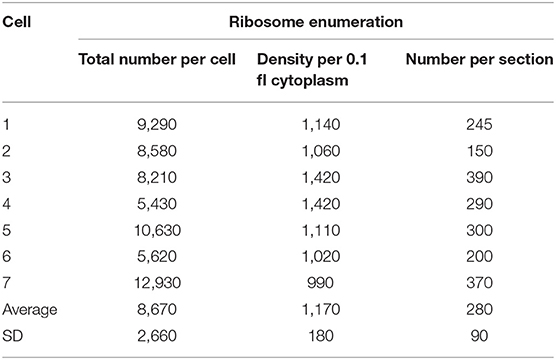

TABLE 4

Table 4. Total ribosome number and cytoplasmic ribosome density of 7 M. smegmatis cells examined on serial ultrathin sections.

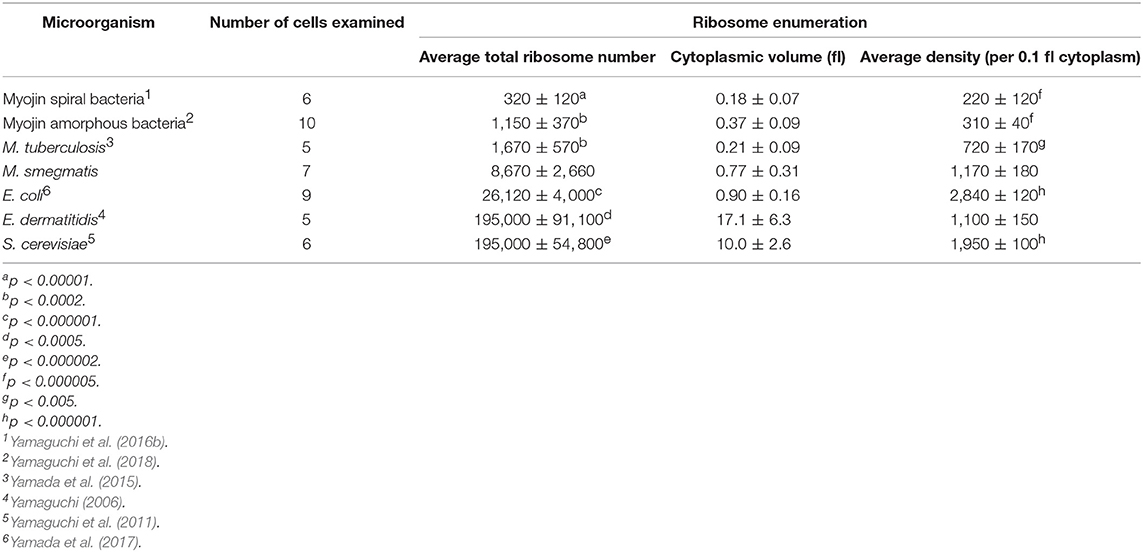

TABLE 5

Table 5. Comparison of total ribosome number and cytoplasmic density in structome-analyzed microorganisms.

Discussion

One-Dimensional Cell Property

As shown in Table S1, the cell diameters of M. smegmatis cells examined with both serial ultrathin sections and cryoTEM were significantly larger than those of M. tuberculosis cells. In addition, cell lengths of M. smegmatis cells examined with cryoTEM were significantly longer than those of M. tuberculosis cells. In comparison with E. coli cells examined with serial ultrathin sections, the average diameter of M. smegmatis cells was significantly smaller than those of E. coli, whereas there was no significant difference in average cell length between M. smegmatis and E. coli.

As discussed in previous literature, cell division of M. tuberculosis cells may occur without recognition of the middle of the cell long axis because the length of the longest cell was much more than twice of the length of the shortest cell (Yamada et al., 2015). This phenomenon is much more obvious in M. smegmatis cells because the length of the longest cell was three times and six times longer than the shortest cell in serial ultrathin sections and CryoTEM examinations, respectively (Table S1). Asymmetric cell divisions in M. smegmatis cell were reported previously. In a single cell time-lapse observation, Aldridge et al. examined the difference in elongation of two poles of the growing single cell, where old, that is, mother's pole elongates faster than new or young pole, which has been generated during the previous division. Then, cells with older growth poles elongate faster than cells with younger growth poles. In addition, the birth length of cells increases as the growth pole matures. Taken together, these data suggest that as the growth pole matures, cells elongate faster and are larger (Aldridge et al., 2012, p.1).

Furthermore, Vijay et al. also examined the time-lapse differential interference contrast microscopy of M. smegmatis cells, and demonstrated that about 20% of the septating M. smegmatis cells in the exponential phase population divided asymmetrically and generated two daughter cells having different cell lengths (Vijay et al., 2014). The authors confirmed the phenomena by TEM examination. Our data confirm these reports. On the contrary, the length of E. coli cells in serial ultrathin sections ranged from 2.05 to 3.04, where the shortest cell length was two-third (Yamada et al., 2017). This result indicates that E. coli divide into equally half, and the examined cell in serial ultrathin sections did not contain cells just divided (Table S1). It revealed that the machinery of cell division in mycobacteria completely differs from that of E. coli.

Two-Dimensional Cell Properties

This is the first report on the surface area of the M. smegmatis cells. The OM and PM cell surface areas of seven M. smegmatis cells ranged from 3.00 to 9.28 μm², with an average of 5.62 ± 2.19 μm² and ranged from 2.77 to 8.48 μm², with an average of 5.10 ± 1.95 μm², respectively. These values are approximately twice of those of M. tuberculosis, and the differences were significant (p < 0.05, Table S2). This suggests that if M. tuberculosis cell surface antigens expressed in M. smegmatis cells, the numbers of antigen molecules in single M. smegmatis cell may double at least compared to those of M. tuberculosis. In the circumstance, the gene(s) from M. tuberculosis transferred M. smegmatis cannot be used as a real substitute of M. tuberculosis because of the difference in substantial number of antigen molecules in a single cell even if the two species belong to the same genus and share a phyletic affinity. There were no significant differences between M. smegmatis and E. coli, suggesting that M. smegmatis cells may be much more similar to E. coli cells morphologically than M. tuberculosis cells.

Three-Dimensional Cell Properties

Average whole cell and cytoplasmic volume of M. smegmatis cells in serial ultrathin sections were 0.91 ± 0.37 fl and 0.77 ± 0.31 fl, respectively (Table 3). These values are approximately three times larger than those of M. tuberculosis, and the differences were significant (p < 0.005, Table S3). It is suggested that M. tuberculosis-gene transferred M. smegmatis cell can contain three times more molecules than the parental M. tuberculosis cell. Based on these results, if in vivo or in vitro experiments are performed using M. tuberculosis-gene transferred M. smegmatis, interpretation of the results should be considered carefully and should not be directly extrapolated to M. tuberculosis infection. In the cell volume analysis in serial ultrathin sections, there were no significant differences between M. smegmatis and E. coli (Table S3).

Together with surface areas of OM and PM described earlier, the volume of OM, periplasm, and PM of M. smegmatis cells were calculated from perimeter and serial ultrathin section thickness in TEM images. Compared with the M. tuberculosis, the volume of the perimeter and PM of M. smegmatis cells were 1.5 times larger than M. tuberculosis, but the differences were not significant. These evidences suggest that single M. smegmatis cells can contain a maximal of 1.5 times more molecules in the periplasm and in the PM than M. tuberculosis cells.

Total Enumeration and Cytoplasmic Density of Ribosomes

Structome analysis data have been already reported in six species, including two yeast species and four bacterial species (Table 5) (Yamaguchi, 2006; Yamaguchi et al., 2011, 2016b, 2018; Yamada et al., 2015, 2017). Because total ribosome number per cell can differ from cell to cell according to the volume of cytoplasm with a large standard deviation, even if the cells would belong to the same strain, the value is not appropriate to be used in comparison between species or strains.

On the contrary, it has been revealed that ribosome density per unit volume of cytoplasm is specific to the species or the strain with an extremely small standard deviation (Table 5) (Yamaguchi, 2006; Yamaguchi et al., 2011, 2016b, 2018; Yamada et al., 2015, 2017). Average total cytoplasmic ribosome number of M. smegmatis cells was 8,670 ± 2,660. This value was significantly more than Myojin spiral bacteria and M. tuberculosis, but significantly less than E. dermatitidis, S. cerevisiae, and E. coli (Table 5). However, average cytoplasmic ribosome density of M. smegmatis cells was 1,170 ± 180 per 0.1 fl cytoplasm, and this value was significantly more than Myojin spiral bacteria, Myojin amorphous bacteria, and M. tuberculosis, but significantly less than S. cerevisiae and E. coli. It is then surprising that there was only a small difference in average cytoplasmic ribosome density between M. smegmatis and yeast E. dermatitidis, which had nearly 200,000 total ribosomes in the cytoplasm (Yamaguchi, 2006, Table 5 and Figure 4). M. smegmatis cells had volume of cytoplasm and ribosome density much more similar to E. coli cells than M. tuberculosis cells. These results supported that M. smegmatis and E. coli have multiple copy number of rrn, gene encoding rRNA, whereas M. tuberculosis has only a single copy (Gonzalez-y-Merchand et al., 1999; Roller et al., 2016).

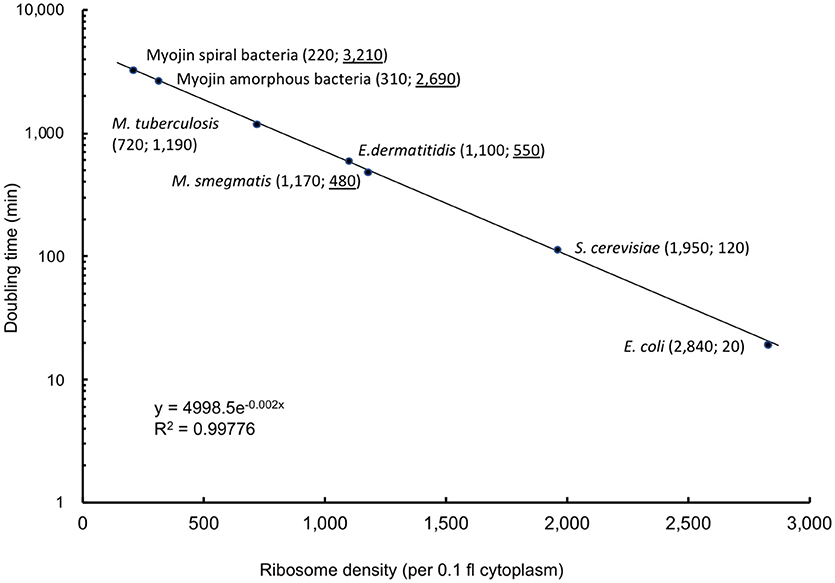

FIGURE 4

Figure 4. Correlation curve between ribosome density per 0.1 fl cytoplasm and doubling time (min). Correlation curve was drawn based on known doubling time and ribosome densities per 0.1 fl cytoplasm enumerated in previous structome analysis of E. coli, M. tuberculosis, and S. cereviciae. Number in parenthesis indicates ribosome density per 0.1 fl cytoplasm (left) and doubling time (min) (right). Underlined doubling time (min) in species with unknown doubling time, Myojin spiral bacteria, Myojin amorphous bacteria, E. dermatitidis, and M. smegmatis were calculated based on the formula y = 4998.5e^−0.002x.

Srivastava et al. established an approach to reconstitute mycobacterial protein translation in E. coli cells in vitro (Srivastava et al., 2016). Authors used M. tuberculosis translation factors (TF), M. smegmatis aminoacyl tRNA synthetases (AARSs) mixture, M. smegmatis tRNAs, M. smegmatis ribosomes, E. coli energy regeneration enzymes, E. coli methionyl tRNA formyltransferase, T7 RNA polymerase, and some small molecules and buffers. When ribosomes of M. smegmatis and tRNA, AARSs, and TF of E. coli were used, the relative reporter activity was nearly 30% of complete E. coli cells. The evidence supports our data that the cytoplasmic ribosome density of M. smegmatis was one-third of that of E. coli (Table 5). However, Srivastava et al. used ribosomes at a molar concentration of 2.4 μM (Srivastava et al., 2016). This value means 1.4 × 10¹¹ ribosomes molecules per 0.1 fl, which is 10⁸ and 10⁷ times more density than the actual ribosome density per 0.1 fl cytoplasm of M. smegmatis and E. coli cells, respectively. It is intriguing that this huge number of ribosomes may be acceptable in experimental conditions.

On the contrary, it has been demonstrated that M. smegmatis ribosomes have a unique structural property in 3D architecture through cryo-TEM mapping (Shasmal and Sengupta, 2012; Yang et al., 2017). Compared with E. coli ribosome proteins, 11 ribosome proteins of M. smegmatis were longer than those of E. coli, with more than 14 amino acid extensions.

As mentioned in our previous paper, there is a close correlation between ribosome density and doubling time (min) (Yamada et al., 2017). According to data obtained from this study, the correlation chart was revised as shown in Figure 4 based on the known doubling time data in E. coli, S. cerevisiae, and M. tuberculosis (Cox, 2004; Papagiannakis et al., 2017).

In E. coli, there are many studies that address the relationship between ribosome number and doubling times (Dennis, 1972; Dennis and Bremer, 1974; Cox, 2003; Bakshi et al., 2012; Milo and Phillips, 2016), which support the results of this study. On the contrary, in M. smegmatis, there are few studies that have examined the relationship between ribosome density and the doubling time. Liu et al. observed ribosome content, not ribosome density, in the ultrathin sections of chemically fixed samples, which were genetically engineered to overexpress Rv2629 (Liu et al., 2017). The data cannot be compared with our data because our samples were prepared through rapid-freezing and freeze-substitution, and ribosome density was calculated by direct enumeration of cytoplasmic ribosome number and volume of cytoplasm in serial ultrathin sectioning spanning a cell from one end to the other end.

Furthermore, Zhu and Dai reviewed the correlation of protein synthesis rate and ribosome content with growth rate in E. coli, mycobacterial species, and S. cerevisiae (Zhu and Dai, 2018). However, because these ribosome quantifications were described as ribosome content derived from a population of microorganisms, and not ribosome density obtained from direct enumeration through TEM examination of serial ultrathin sections in a single cell, quantifications were much less accurate than our structome analysis.

It is possible to estimate doubling time of viable, but non culturable microorganisms from cytoplasmic ribosome density obtained from structome analysis using the formula y = 4998.5e^−0.002x, where x is ribosome density per 0.1 fl cytoplasm and y is doubling time (min), respectively.

Conclusions

It is revealed that although M. smegmatis had belonged to the genus Mycobacterium, M. smegmatis is less similar to M. tuberculosis in the aspect of cell biology with significant differences, including acid-fastness, cell diameter, cell length, surface areas, cell volume, total ribosome number, and ribosome density. Most recently, genus Mycobacterium has been divided into an emended genus Mycobacterium and four novel genera, Mycolicibacterium gen. nov., Mycolicibacter gen. nov., Mycolicibacillus gen. nov., and Mycobacteroides gen. nov. corresponding to the “Fortuitum-Vaccae,” “Terrae,” “Triviale,” and “Abscessus-Chelonae” clades, respectively (Gupta et al., 2018; Oren and Garrity, 2018).

Non pathogenic M. smegmatis has been used as a surrogate of highly pathogenic M. tuberculosis because non pathogenic M. smegmatis can be easily and freely used in the biosafety level 1 laboratory, whereas highly pathogenic M. tuberculosis must be strictly manipulated in the biosafety level 3 laboratory. Single M. smegmatis cells expressing twice the number of M. tuberculosis antigens can elicit excess host cell responses compared with the native M. tuberculosis. The more the antigens that can be contained in their cell surface, the more the host cell response that can be elicited. In addition, M. smegmatis cell contains different mycolic acid species. This means that M. smegmatis cell can contain different antigenic molecules, both in quality and in quantity from M. tuberculosis. Therefore, it is not appropriate to use M. smegmatis as surrogate of M. tuberculosis in the investigation of the pathogenicity or virulence of M. tuberculosis. M. smegmatis has been classified to novel genus Mycolicibacterium, which is different from genus Mycobacterium. This means usage of M. smegmatis as a surrogate of M. tuberculosis is not appropriate. The M. bovis BCG strains are more appropriate to be used as surrogates despite of RD1 deletion, which must be manipulated in the biosafety level 2 facility.

We propose that data obtained from the experiments with M. smegmatis should be interpreted as those from a completely distinct species or genus from M. tuberculosis, and that it is critical to perform structome analysis aiming at the investigation of quantitative single-cell properties and the establishment of species-specific cell properties based on the ultrastructural images.
