Harold Nuñez1†
Ana Moya-Beltrán1,2†
Paulo C. Covarrubias1
Francisco Issotta1
Juan Pablo Cárdenas3Mónica González1
Joaquín Atavales1Lillian G. Acuña1
D. Barrie Johnson4*
Raquel Quatrini1*- 1Microbial Ecophysiology Laboratory, Fundación Ciencia & Vida, Santiago, Chile
- 2Faculty of Biological Sciences, Andres Bello University, Santiago, Chile
- 3uBiome, Inc., San Francisco, CA, USA
- 4College of Natural Sciences, Bangor University, Bangor, UK
The acidithiobacilli are sulfur-oxidizing acidophilic bacteria that thrive in both natural and anthropogenic low pH environments. They contribute to processes that lead to the generation of acid rock drainage in several different geoclimatic contexts, and their properties have long been harnessed for the biotechnological processing of minerals. Presently, the genus is composed of seven validated species, described between 1922 and 2015: Acidithiobacillus thiooxidans, A. ferrooxidans, A. albertensis, A. caldus, A. ferrivorans, A. ferridurans, and A. ferriphilus. However, a large number of Acidithiobacillus strains and sequence clones have been obtained from a variety of ecological niches over the years, and many isolates are thought to vary in phenotypic properties and cognate genetic traits. Moreover, many isolates remain unclassified and several conflicting specific assignments muddle the picture from an evolutionary standpoint. Here we revise the phylogenetic relationships within this species complex and determine the phylogenetic species boundaries using three different typing approaches with varying degrees of resolution: 16S rRNA gene-based ribotyping, oligotyping, and multi-locus sequencing analysis (MLSA). To this end, the 580 16S rRNA gene sequences affiliated to the Acidithiobacillus spp. were collected from public and private databases and subjected to a comprehensive phylogenetic analysis. Oligotyping was used to profile high-entropy nucleotide positions and resolve meaningful differences between closely related strains at the 16S rRNA gene level. Due to its greater discriminatory power, MLSA was used as a proxy for genome-wide divergence in a smaller but representative set of strains. Results obtained indicate that there is still considerable unexplored diversity within this genus. At least six new lineages or phylotypes, supported by the different methods used herein, are evident within the Acidithiobacillus species complex. Although the diagnostic characteristics of these subgroups of strains are as yet unresolved, correlations to specific metadata hint to the mechanisms behind econiche-driven divergence of some of the species/phylotypes identified. The emerging phylogenetic structure for the genus outlined in this study can be used to guide isolate selection for future population genomics and evolutionary studies in this important acidophile model.
Introduction
The genus Acidithiobacillus (Kelly and Wood, 2000), recently assigned to a new class, Acidithiobacillia, of the phylum Proteobacteria (Williams and Kelly, 2013) includes species of Gram-negative, rod-shaped, autotrophic bacteria that are non-sporulating, obligate acidophiles, and catalyze the dissimilatory oxidation of elemental sulfur and reduced inorganic sulfur compounds (Garrity et al., 2005). For many years, this group of bacteria has been exploited in the bioleaching of metal sulfides, the desulfurization of coal, and natural gas, among other uses (Johnson, 2014). Representatives of Acidithiobacillus occur world-wide in a diverse range of natural (acid rock drainage, sulfur springs, etc.) and industrial settings (ore concentrates, pulps, and leaching solutions of the mining industry, etc.), with varying physicochemical characteristics (e.g., redox potentials and concentrations of dissolved solutes). A large number of strains living in these various ecological niches have been described over the years, and more recently also a vast number of sequence clones have been deposited in public databases, spanning a great deal of the inherent diversity of this taxon (Nuñez et al., 2016).
Until relatively recently, the Acidithiobacillus genus comprised only four validated species: A. thiooxidans (Waksman and Joffe, 1922), A. ferrooxidans (Temple and Colmer, 1951), A. albertensis (Bryant et al., 1983), and A. caldus (Hallberg and Lindström, 1994), with all isolates that could oxidize ferrous iron as well as reduced sulfur being considered as strains of A. ferrooxidans. However, in the last two decades, a variety of molecular tools suited for typing and identification of bacteria have been applied to further revise the taxon (reviewed in Nuñez et al., 2016). Acidithiobacillus strains of diverse origins have since been assigned to distinct phylogenetic subgroups and/or genomovars, thought to represent a number of unidentified cryptic species (e.g., Luo et al., 2009; Amouric et al., 2011; Wu et al., 2014). Based on a careful re-evaluation of phenotypic characteristics (e.g., capacity to oxidize molecular hydrogen, temperature, and pH tolerance profiles, tolerance to elevated concentrations of transition metals and chloride, presence of flagella, etc.) and multilocus sequence analyses, three novel iron-oxidizing species have been recently recognized, Acidithiobacillus ferrivorans (Hallberg et al., 2010), Acidithiobacillus ferridurans (Hedrich and Johnson, 2013), and Acidithiobacillus ferriphilus (Falagán and Johnson, 2016), enlarging the genus to a current total of seven species. Provisional recognition of a number of additional (Acidi)thiobacillus species—associated to particular niches—has occurred in the past, e.g., “(Acidi)thiobacilus concretivorus,” the predominant isolate during the acidification associated to the final stage of concrete corrosion (Parker, 1945a,b, 1947) and “Acidithiobacillus cuprithermicus,” described as a novel isolate growing on chalcopyrite obtained from the Tinto River (Fernández-Remolar et al., 2003), though the validity of some proposed novel “species” has often been questioned (e.g., Vishniac and Santer, 1957).
During the last decade, several hundreds of Acidithiobacillus strains have been isolated from all over the world (e.g., Ni et al., 2008) and a large number of 16S rRNA sequence clones have been obtained from environmental studies (summarized in Huang et al., 2016). Evidence is beginning to accumulate that supports both spatial and temporal variations in the occurrence and distribution of Acidithiobacillus species types that dominate acidophilic prokaryotic communities from different environments (e.g., Tan et al., 2009; González et al., 2014) and geographies (e.g., Jones et al., 2016). However, taxonomic assignment of many of these isolates or sequence clones remains, in many cases, elusive, and the existence of potential cryptic species calls for a more exhaustive phylogenetic revision of the taxon.
Using a broader taxon sampling that spans the Acidithiobacillus species complex at a global scale, the 16S rRNA gene as marker and oligotyping as a strategy to differentiate closely related taxa (Eren et al., 2013), we have explored the evolutionary relationships of the different linages within the taxon and attempted to improve the phylogenetic resolution and better define the species boundaries within the sampled repertoire of Acidithiobacillus strains. Inter- and intraspecific levels of divergence were further examined using multilocus sequence analysis (MLSA). Also, occurrence and distribution of lineages and sequence variants in different acidic biotopes were explored by tracing oligotype profiles of sequenced metagenomes available in public databases.
Methods
DNA Extraction, PCR Amplification and Sequencing
General culturing techniques used were as described previously (Acuña et al., 2013). DNA isolation and routine manipulations were carried out following standard protocols (Nieto et al., 2009). All amplicons were generated by PCR using the high fidelity polymerase (Pfu DNA Polymerase, Promega) and amplification parameters recommended by the manufacturer. Primer annealing temperatures for each reaction are indicated in Supplementary Table 1. PCR products were purified using the QIAquick PCR purification kit (Qiagen Inc., USA). Gene sequencing was performed by the Sanger method at Macrogen Inc. (Korea).
Ribosomal Operons and 16S rRNA Gene Sequences
Ribosomal RNA operon sequences of Acidithiobacillus type strains (T) and reference strains (R) were obtained from publicly available genomes deposited in Genbank (A. ferrooxidans ATCC 23270T NC011761, A. ferrivoransR DSM 22755 NC015942, A. caldus ATCC 51756T CP005986 and A. thiooxidans ATCC 19377T NZAFOH00000000. In the absence of a complete or draft genome sequence for the type strain (NO-37) of A. ferrivorans (DSM 17398), strain SS3 (DSM 22755) was used as a reference. The latter was previously confirmed as a strain of the (then) newly-described species, A. ferrivorans (Hallberg et al., 2010). Ribosomal RNA operon sequences for A. ferridurans ATCC 33020T, A. ferriphilus DSM 100412T and A. albertensis DSM 14366T were produced in house by PCR and subsequently sequenced. Accession numbers, annotations and coordinates of each operon are detailed in Supplementary Table 2. Downstream phylogenetic analysis was carried out using 529 16S rRNA gene sequences assigned to the genus Acidithiobacillus, available at GenBank as of July 2016, meeting length and quality requirements (Supplementary Table 3). Sequences for the 16S rRNA gene of 51 additional strains from our laboratory collection obtained by PCR were also included in the analysis (Supplementary Table 3). The PCR primers used are listed in Supplementary Table 1.
16S rRNA Phylogenetic Analysis
Small subunit ribosomal RNA gene sequences of 580 Acidithiobacillus strains and sequenced clones (Supplementary Table 3) were aligned using the MAFFT v7.229 software using the L-INS-I method (Katoh and Standley, 2013). The resulting alignments were trimmed and masked (>50%) manually. Phylogenetic trees were generated by two methods. First, a maximum likelihood tree was reconstructed using PhyML (Guindon and Gascuel, 2003), with the following settings: Tamura–Nei (Tamura and Nei, 1993) was used as substitution model, PhyML estimated the transition/transversion ratio and the proportion of invariant nucleotides and a discrete gamma approximation with k = 4. The topology of the tree and the length of the branches were optimized by PhyML, using Nearest Neighbor Interchange and Subtree Pruning and Regrafting. The phylogenetic tree was assessed using 1000 bootstrap replicates. A second tree was generated using Bayesian analysis with MrBayes v.3.0b4. Bayesian analysis was run for 3,000,000 generations, and trees were saved every 100 generations. Posterior probabilities were calculated after discarding the first 30% of trees (Huelsenbeck and Ronquist, 2001). Trees were visualized and annotated in FigTree (http://tree.bio.ed.ac.uk/software/figtree/).
Oligotyping
Oligotyping of the 16S rRNA gene sequences was performed as described by Eren et al. (2013). A total of 12 positions with the highest entropy along the length of the sequence alignment (1054 nucleotides) were selected (Supplementary Figure 1), which spanned the following variable regions: V2 (46, 47, 62), V3 (257, 263, 264, 266), V4 (417, 418), V5 (588), and V6 (725, 765). Positions are defined with respect to the Escherichia coli 16S rRNA gene sequence. Oligotype (OT) assignment and sequence profiles for each individual strain or sequence clone, is indicated in Supplementary Table 3. Relative abundance, species-specific and lineage assignments of each of the major oligotypes (present in more than 3 individuals) and minor positional sequence variants (present in less than 3 individuals) scored from the raw data, are summarized in Supplementary Table 4.
Multi-locus Sequence Analysis (MLSA)
MLSA markers were selected as described by Nuñez et al. (2014). Internal gene fragments for each marker were amplified by PCR, using primers listed in Supplementary Table 1 and genomic DNA obtained from 32 Acidithiobacillus strains from our laboratory collection, and sequenced. The same markers were derived from 13 publicly available genomes of Acidithiobacillus strains. Sequences were aligned with the MAFFT v7.229 software (Katoh and Standley, 2013) and manually curated, when appropriate. Concatenation of the MLSA markers was done with MEGA 6. The phylogenetic trees were constructed using maximum likelihood and Bayesian analysis. Bootstrap resampling was performed using 1000 replications to estimate the confidence of the tree topologies. Optimal models for nucleotide substitution, DNA polymorphism data, mean G+C contents, Tajimas D, and dN/dS ratios values, were all calculated using MEGA 6. Bayesian trees was constructed using MrBayes v.3.0b4 (3,000,000 generations, trees saved every 100 generations and posterior probabilities calculated after discarding the first 30% of trees (Huelsenbeck and Ronquist, 2001). Trees were visualized and annotated in FigTree (http://tree.bio.ed.ac.uk/software/figtree/). Sequence type assignments for each individual strain are indicated in Supplementary Table 5.
PFGE with SpeI Digestion and Southern Hybridization Analysis
Whole cells (1 × 109 cells/ml) were embedded in agarose blocks as described by Swaminathan et al. (2001). Genomic DNA was digested with 10 U/μl of the restriction endonuclease XbaI (ThermoFischer Scientific) at 37°C for 4 h. The resulting fragments were separated by Pulsed Field Gel Electrophoresis (PFGE) on a CHEF-DR III system (BioRad) in a 1% pulse field certified agarose gel (BioRad) at 6 V/cm and 14°C for 13 h with a pulse interval of 10 s. The gel was transferred by Southern blotting onto a Hybond-XL membrane (General Electric) and hybridized by incubation at 42°C for 1 h to a PCR-generated, biotin-labeled probe spanning a 294 bp internal fragment of the 16S rRNA gene (complementary to hypervariable region V4). The blot was developed with HRP-conjugated antibody and streptavidin to recognize the biotin-labeled probe. Chemiluminescent detection of horseradish peroxidase (HRP) enzyme activity was achieved with Pierce ECL western blotting substrate (Thermo Scientific).
Statistical Analyses
Various packages within the R software (version 3.1.12; http://www.r-project.org) were used for statistical analyses of the data and metadata. Principal component analysis (PCA) was used to evaluate the contribution of different quantitative parameters (as defined in Supplementary Table 3) to the variability of the data.
Results
rRNA Operons in Sequenced Genomes of the Acidithiobacilli
To assess the intra- and inter-specific diversity of Acidithiobacillus spp., the relationships of all known strains and sequence clones deposited in public databases (meta/genomic) were investigated using phylogenetic reconstruction strategies. Firstly, variations in copy number, operon architecture, and sequence were quantitated for each of the type (or reference) strains of the genus. This analysis showed that the number of rRNA operons is highly conserved within the genus (Table 1), with all sequenced strains having two copies of this operon. This was confirmed experimentally by Southern blot hybridization of XbaI digested and PFGE-fractionated genomic DNA (Supplementary Figure 2). Gene context of the operons I and II is distinctive (Supplementary Table 2) and is only partially conserved across the species reflecting lineage specific rearrangements. All operons surveyed have internal transcribed spacer (ITS-1) regions coding for tRNAAla and tRNAIle genes.

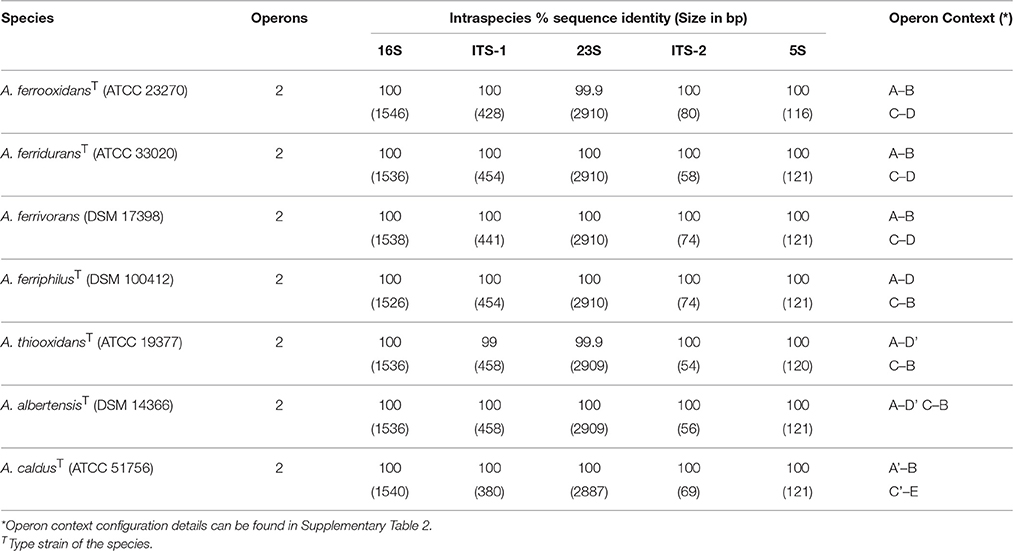

Table 1. Intraspecific comparison of the rRNA operons I vs. II for type/reference strains within the Acidithiobacillus species complex.
Intra-specifically, both operons were identical or nearly identical in size and sequence (Table 1). Inter-specifically, the operons analyzed varied in length by up to 130 bp (ranging from 4958 to 5088 bp), with variations correlating directly with variations in the size of ITS-1 regions (Table 1). Sequence differences among strains were mainly located within the ITS regions, between the tRNAAla and the 23S, and the 16S rRNA gene variable regions. At the level of the 16S rRNA gene, divergence between strains belonging to the currently recognized species showed considerable variation (Table 2). When all 16S rRNA gene sequences were compared, the reference strains showed an overall pairwise identity of 97.6%, with 1447 conserved and 91 variable sites. Most of the differences detected in nucleotide identity were located within the variable regions V3 and V4. Given the intrinsic information content of the 16S rRNA gene and the availability of sequences for this gene in public databases with respect to the ITS regions of the acidithiobacilli (1101 16S rRNA gene sequences versus 137 ITS sequences), only this marker was used in downstream phylogenetic analysis of the Acidithiobacillus species complex.
Table 2. 16S rRNA genes (upper half) vs. MLSA concatenate (lower half) identity matrix for Acidithiobacillus species complex type and reference strains.
Notably, when using the 16 rRNA gene as a marker to revise current species delineation (Table 2), a number of species pairs, namely A. ferrooxidans-A. ferridurans, A. ferriphilus-A. ferridurans, A. ferriphilus-A. ferrivorans, and A. thiooxidans-A. albertensis, exceeded the typical 97% and the conservative 98.7% sequence identity threshold values used as “gold standards” for species differentiation in the absence of DNA-DNA reassociation experiments (Stackebrandt and Goebel, 1994; Stackebrandt and Ebers, 2006).
16S rRNA Gene-Based Phylogeny of Acidithiobacillus Strains and Isolates
To infer the phylogenetic relationships between all available strain and clone sequences of the acidithiobacilli, a comprehensive phylogenetic tree was constructed. For this, 16S rRNA genes were amplified and sequenced from a total of 53 representative strains belonging to the seven described Acidithiobacillus species and 1101 other gene sequences belonging to isolates and uncultured clones, retrieved from GenBank. After filtering for redundancy and sequence length, applying masks to positions with >50% gaps and eliminating ambiguous characters, a final set of 580 sequences was obtained (Supplementary Table 3). This set encompassed 1054 bp of the full 16S rRNA gene sequence and contained 642 variable sites and 275 parsimony informative sites, (97.3% pairwise identity). Within this data set, 74.5% of the sequences had taxonomic assignment to the species level. Thermithiobacillus tepidarius, the type species of the single other family within the order Acidithiobacillales, was included as the outgroup.
The maximum likelihood (ML) phylogenetic tree built for this dataset is shown in Figure 1. An additional tree built using Bayesian inference can be found in the Supplementary Material (Supplementary Figure 3). The ML tree obtained shows a clear separation of all sequenced representatives in 4 distinctive clades including the A. caldus strains (Clade 1; ATCC51756T), the A. ferrooxidans strains (Clade 2; ATCC 23270T), the A. ferridurans-A. thiooxidans-A. albertensis strains (Clade 3; ATCC 33020T, ATCC 19377T, DSM14366T) and the A. ferrivorans-A. ferriphilus strains (Clade 4; DSM 22755, DSM 100412T). Support values for the principal nodes were generally high (>70%). There was limited disagreement in topology between trees built with ML and Bayesian inference (Supplementary Figure 3), with discordance restricted to placement of the A. ferriphilus-A. ferrivorans clade and a few other less strongly supported nodes. Also, sister-clades with diverse node depth became apparent in all four branches of the tree (e.g., subclade within the A. caldus Clade 1). These are further analyzed below.

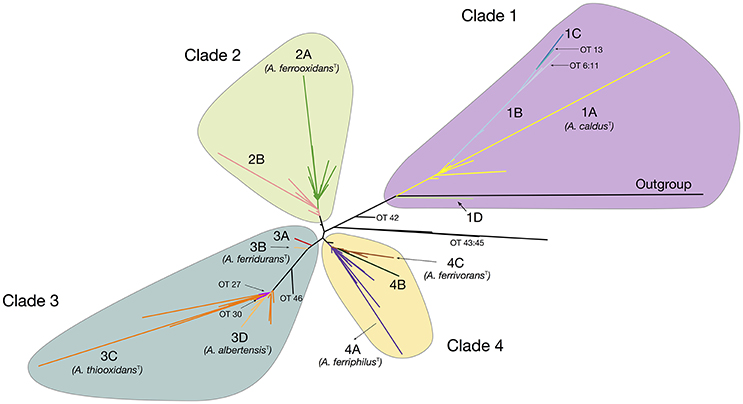

Figure 1. Acidithiobacillus species complex consensus phylogenetic tree built using maximum likelihood inference and 16S rRNA gene sequences of 580 strains and/or sequence clones. Clade's affiliations are as follows: clade 1 (purple, A. caldusT), clade 2 (green, A. ferrooxidansT), clade 3 (turquoise, A. ferriduransT, A. thiooxidansT, A. albertensisT), clade 4 (yellow, A. ferriphilusT, A. ferrivoransT). Subclades 1A through 4C are color coded according to the oligotype (OT) assigned to the strains and sequence clones that conform each cluster. Minor branches of interest are also shown in the tree and the corresponding OTs indicated. Detailed information on the sequences used in the tree construction and clade assignments can be found in Supplementary Table 3.
Sequence Entropy-Based Analysis of the Phylogenetic Structure of the Genus
Oligotyping (Eren et al., 2013) was used to improve resolution of the 16S rRNA gene tree of the Acidithiobacillus strains. This approach utilizes a sequence entropy-based method to identify the most informative nucleotide positions within a surveyed set of sequences. This has proven useful in subspecies-level analysis and is of value for detecting ecologically distinct organisms within closely related taxa (Eren et al., 2015). Using the depurated set of sequences that entered into the phylogenetic analysis, we explored whether there were strong correlations between the clades in the consensus tree representation and their original taxonomic assignments and the oligotypes derived for each sequence (Figure 1). For this purpose, the entropy at each nucleotide position in the sequence alignment was calculated, resulting in 12 information-rich positions spanning variable regions of the 16S rRNA gene V2–V9 (Supplementary Figure 1).
A total of 46 oligotypes (OTs) were derived from the dataset (Supplementary Table 4). Of these, 28 OTs were present in a single or less than 3 sequences and were omitted from further analyses. Poor representation in the dataset of the positional variants of other more abundant OTs could be indicative of randomly-generated diversity emerging from sequencing errors, especially if homogenously distributed around the tree. Interestingly, sequence variability was higher in certain clades and in those clades the positional variants map to larger branches of the tree and or to the tips of the tree. This indicates that a number of these OTs are descendants of recent origin and imply recent diversification of the dominant OT (e.g., OTs 6–13 in Clade 1). A number of the single-sequence OTs mapped to deep branches of the tree (OTs 42–46), and could possibly represent ancestral strains or still cryptic phylotypes.
All of the clades in the tree depicted in Figure 1 were found to group 2–4 principal OTs (defined as having more than 3 representative sequences). Seven of these OT-defined groups (OTs 1, 15, 23, 24, 28, 31, 39) exactly match the tree branches defining currently recognized Acidithiobacillus species (Table 3, Supplementary Table 4). However, additional OTs matching unassigned (or mis-assigned) sequence representatives clustering in coherent subclades or sister clades within the tree were also identified (Figure 1, Table 3). This is the case of subclade 2B in the A. ferrooxidans branch (represented by strain DSM 1927), which accommodates sequences representing 41 strains and/or sequence clones baring a distinctively different oligotype (OT18). Sequences displaying oligotype OT6 (12 in total), OT7 (5 in total), OT12 (9 in total), and OT13 (3 in total), cluster in a shallow branch within the A. caldus clade, despite of the fact that a number of these had been deposited as sequence representatives of A. thiooxidans. These sequences are highly divergent from the 16S rRNA gene sequence of the type strain of A. caldus (95–96.5% % identity) and seem to comprise different (sub)species. A similar scenario applies to a number of other smaller branches within the A. thiooxidans-A. albertensis clade (Clade 3, OT27 and OT30) and the A. ferriphilus-A. ferrivorans clade (Clade 4, subclade 4B) that correlate with specific oligotypes (Table 3). In addition, based on this approach, most of the unassigned sequence representatives deposited in public databases can now be assigned to a species or candidate phylotype (Table 3, Supplementary Table 3).

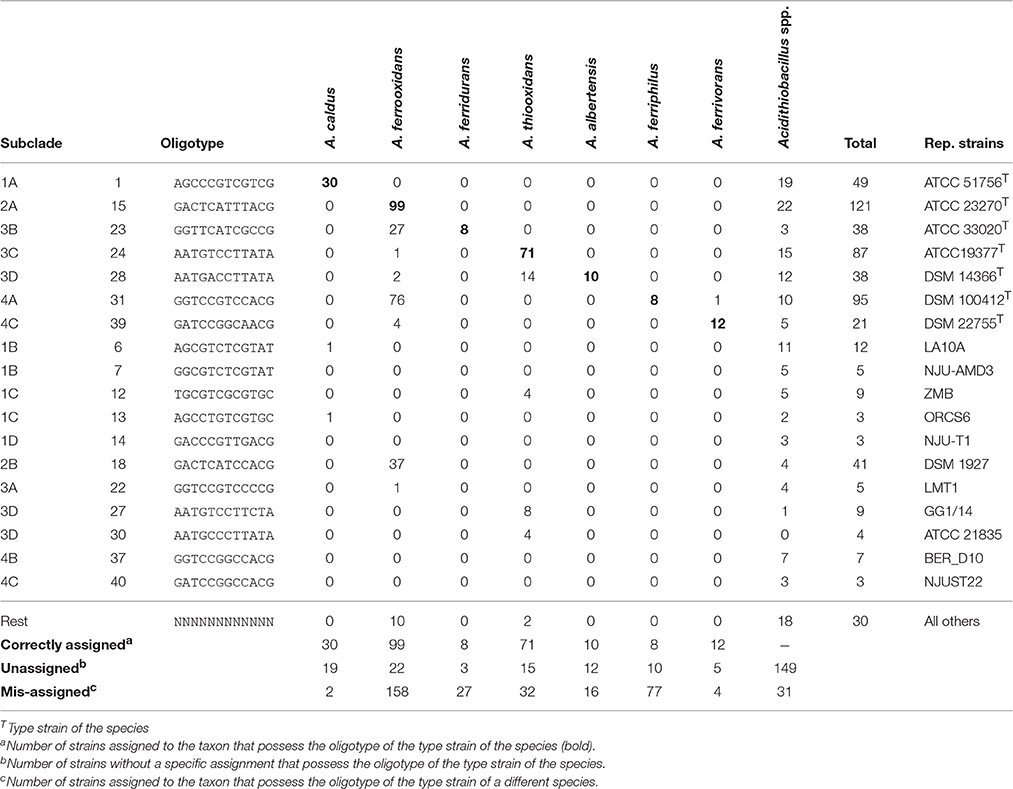

Table 3. Oligotype distribution with respect to original taxonomic assignments and subclades in the consensus tree representation.
Oligotypes Occurrence and Prevalence in Acidic Econiches around the Globe
Following this, we explored whether the diversity uncovered represents the global origins of isolates and clones, or whether it could be explained by niche-specific selective pressures or associated to specific environmental cues. For this, we collected all available metadata published in the literature or deposited in public databases for the strains included in the analysis (Supplementary Table 3) and performed basic statistical analyses. Also, occurrence and relative abundance of the different subclades in publically available targeted metagenomic datasets were scored (Supplementary Table 6), and the derived information was analyzed in the context of strain-specific data.
More than 50% of all Acidithiobacillus strains and sequence clones sampled can be mapped to Asiatic countries (45% of which originated in China), followed by Europe (20%), South (9%), and North America (7%), and Africa and Oceania (accounting for less than 2% each). Similarly, more than 60% of all strains and sequence clones have been obtained from industrial econiches. Both figures imply that some of the tendencies emerging from the data may be obscured by sampling biases. Despite this fact, it is clear that several subclades are ubiquitous worldwide (Figure 2), including the subclades represented by the type strains of A. caldus (subclade 1A), A. ferrooxidans (subclade 2A), A. ferridurans (subclade 3B), and A. ferriphilus (subclade 4A). However, differential patterns of occurrence and/or relative abundance are also evident from the map in Figure 2A and are generally consistent between natural and industrial econiches (Supplementary Figure 4). The strongest apparent tendency is the decrease in the diversity of subclades detectable at increasing latitudes (Figures 2A,B), which is also evident from the subclade assignments derived from targeted metagenomic data (Supplementary Table 6). Prevalence of the A. ferriphilus (4A) subclade in China, the A. ferrooxidans (2A) subclade in European countries and India, the A. thiooxidans (3C) subclade in Europe and Brazil and the A. ferrooxidans–like (2B) subclade in South and North America is notably high. In contrast, subclade 4C represented by A. ferrivorans SS3 and related strains, is restricted to high latitudes and high altitudes (Figure 2B, Supplementary Table 3), being the only Acidithiobacillus type found at the most extreme latitudes. This is in agreement with the psychro-tolerance of known strains from the clade (Hallberg et al., 2010). Further support for this finding emerges from targeted metagenomic data obtained at the coal mine in Svalbard, Norway, and a copper tailing in Ontario, Canada, were every representative of the genus Acidithiobacillus detected matches the 16S rRNA gene oligotype of clade 4C, represented by A. ferrivorans SS3.

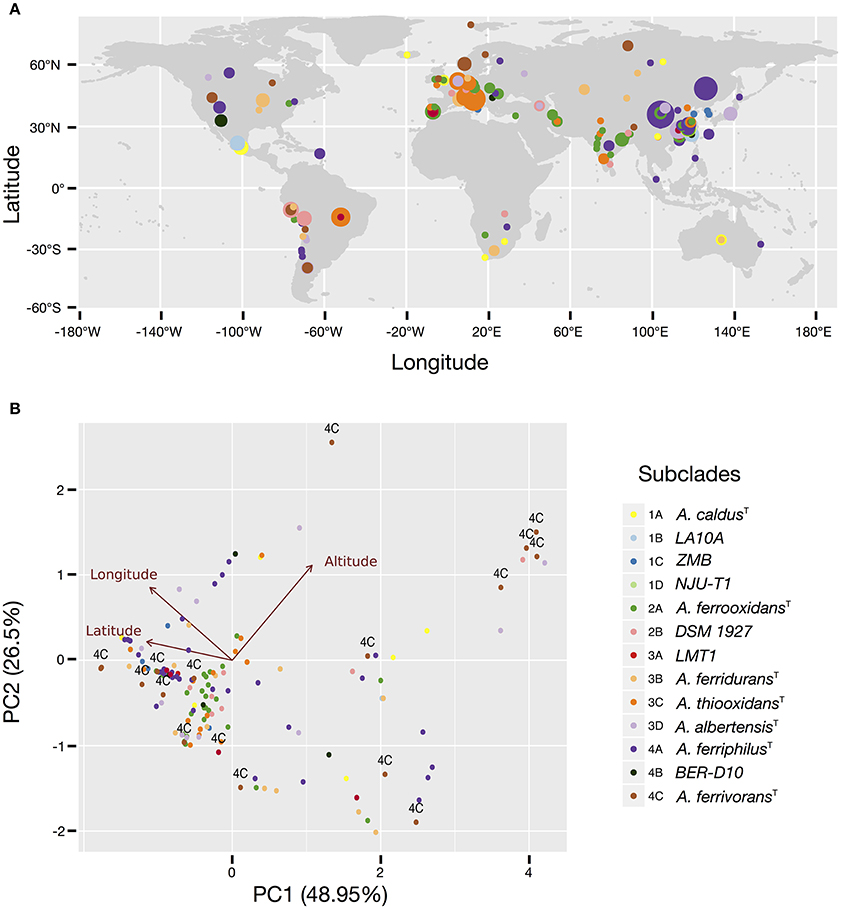

Figure 2. Occurrence and prevalence of the Acidithiobacillus species complex subclades in acidic econiches around the globe. (A) Location and relative abundance of each subclade according to latitude and longitude coordinates. (B) Principal component analysis (PCA) biplot showing arrangement of the isolates and sequence clones according to variations in latitude, longitude and elevation. Individuals are color coded according to the 16S rRNA gene tree subclade they belong to. Taxon assignment of the different subclades is indicated in the figure, by the species name or the name of a representative strain. Arrows represent the relationship (direction and strength) of the parameters with the individuals. The direction of each arrow indicates an increase in that variable.
Evidence for niche-specific diversification of certain clades is also apparent from the available data, as in the case of Clade 1, grouping A. caldus-like strains. While subclade 1A, represented by the A. caldus type strain, is present in different global locations and mostly associated with industrial operations involved in copper and gold recovery or in coal exploitation, subclades 1B and 1C are restricted to copper sulfide mining sites in China and subclade 1D to zinc/lead ores mined in USA (Supplementary Table 3), suggesting that local selection pressures (eventually process-specific) are driving differentiation of ecotypes. Occurrence of the 1D subclade in the targeted metagenomes obtained from the Iron King Mine tailings in Arizona (USA) and dominance of clade 1D over other Acidithiobacillus species in the metagenomes obtained from the Chinese mine tailings in the Tongling region, both of which are heavily polluted with metalloids (Huang et al., 2012; Hayes et al., 2014), could provide further hints on the drivers behind the diversification of the A. caldus linage. The same argument stands for the 1B subclade, which is highly abundant in sulfidic caves from Mexico and also dominate the Acidithiobacillus population in concrete pipes in Ala Moana Park (Hawaii), as assessed by targeted metagenomics (Supplementary Figure 4; Supplementary Table 3). In agreement with this finding, strains originating in Mexico were recently suggested to represent a new species (Jones et al., 2016).
MLSA-Marker Based Phylogeny of Sequences from Strains and Isolates
MLSA was used to gain deeper insight into the genetic structure of the Acidithiobacillus species complex at a higher resolution level. Informative markers were selected using a previously developed scheme for identification of housekeeping genes suitable for MLSA (Nuñez et al., 2014). All 10 genomic sequences of validated Acidithiobacillus spp. available in public databases as of July 2016 were used as input in this analysis (Valdés et al., 2008, 2009, 2011; Liljeqvist et al., 2011; You et al., 2011; Talla et al., 2014; Travisany et al., 2014; Yin et al., 2014; Yan et al., 2015; Latorre et al., 2016). Eight HKG that met the amplicon size requirements of the pipeline were selected for further phylogenetic analysis. Internal gene sequences of the 8 markers were amplified from genomic DNA obtained from an additional set of 35 Acidithiobacillus strains and industrial isolates of diverse geographical origins by PCR, using a high fidelity polymerase. Details on the marker genes, the allelic profiles, and the sequence types (ST) derived from sequence analyses, are summarized in Table 4, and the GenBank accession numbers for the sequences generated in this study are listed in Supplementary Table 5. The concatenate comprised 4086 nucleotides and consisted of 1832 variable sites. The eight protein-coding gene loci showed a mean nucleotide sequence diversity of 34.2%, in contrast with that using the 16S rRNA gene alone, which yielded only 5.4% polymorphic sites. Parsimony informative sites, i.e., positions in the sequence set under comparison that contain at least two types of nucleotides in at least two different sequences, varied form a maximum of 368 (ruvB) to a minimum of 79 (ihfB).
Table 4. Sequence analysis of the MLSA selected markers and the 16S rRNA gene.
Maximum likelihood and Bayesian inference based phylogenetic trees were constructed using a sequence concatenate of all eight markers. Topology of the concatenate-based tree was congruent between methods and with the topology of single-gene trees generated with most informative markers, suggesting that none of the markers utilized was the object of active gene flow (Supplementary Figure 5). Phylogenetic analysis of the concatenate produced 6 major clades supported by bootstrap values of > 93% (Figure 3). Despite some disagreement in the topology of the MLSA-based tree and the 16S rRNA gene-based tree, mostly due to difference in the divergence times between sister clades, all clades identified coincided with the major clades emerging from the 16S rRNA gene phylogenetic analysis (see Figure 1). Discordance occurred in the placement of the A. ferridurans subclade in both trees.

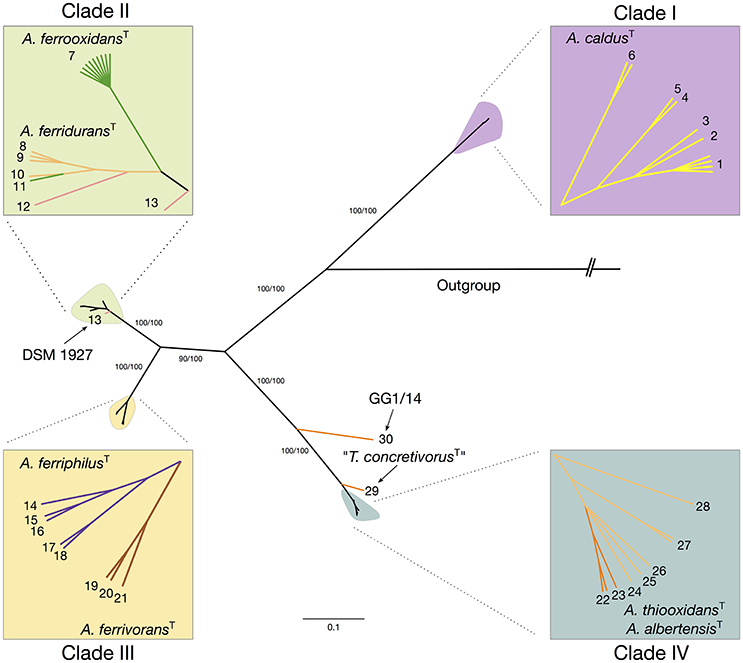

Figure 3. Maximum likelihood tree inferred from the concatenate of eight selected MLSA markers. The ilvE, trx, rpsE, ruvB, rplU, ihfB, hsIV, and fdx gene sequences (4086 bp) from 45 Acidithiobacillus strains representative of available subclades undercovered in the 16S rRNA analysis were concatenated and analyzed using MEGA 6. Numbers at the nodes indicate the bootstrap values of 1000 replicates (%). The bar represents expected nucleotide substitutions per site.
Based on the concatenate alignment, the 45 isolates were resolved into 30 STs (Supplementary Table 5). All clades showed high variability in terms of STs, which may be explained by the non-clonal nature of the strains analyzed, many originated from different sources and environments (Supplementary Table 3). All eight protein-coding loci that comprised the concatenate have nucleotide substitution ratios (dN/dS) well below 1, indicating pressure to conserve the gene sequences (Table 4). Overall, these values indicate that most of the sequence variability identified can be explained by strong negative selection, typical of housekeeping genes. However, inspection of the dN/dS ratios within specific branches of the trees generated with single genes showed positive values in some clades and subclades. Specifically, 7 out of 8 trees showed dN/dS ratios above 1, indicating positive selection for the selected genes analyzed within clade IV. The same holds true for clade III in 3 out of 8 trees. These differences between general ratios and ratios observed at individual branches of the tree, may be explained by the lesser time since divergence of the subclades conforming each of these two clades. MLSA distances between subclades within each clade are near the threshold for species delineation, hinting that events of speciation are still ongoing, supporting the observation of high levels of adaptive evolution on the analyzed markers.
Levels of Diversity within and across Lineages
To further assess the levels of diversity within and across lineages at a higher resolution level, pairwise distances between a set of 45 Acidithiobacillus strains, including the reference strains of all seven validated species of the genus (Table 2; Figure 4), were calculated using the MLSA concatenate as molecular marker. As shown in Table 2, all seven Acidithiobacillus species are supported by MLSA concatenate divergence values larger that the 3% threshold value (meeting the 70% DNA-DNA hybridization threshold) used to differentiate strains into species in other microbial groups (Vandamme and Peeters, 2014).

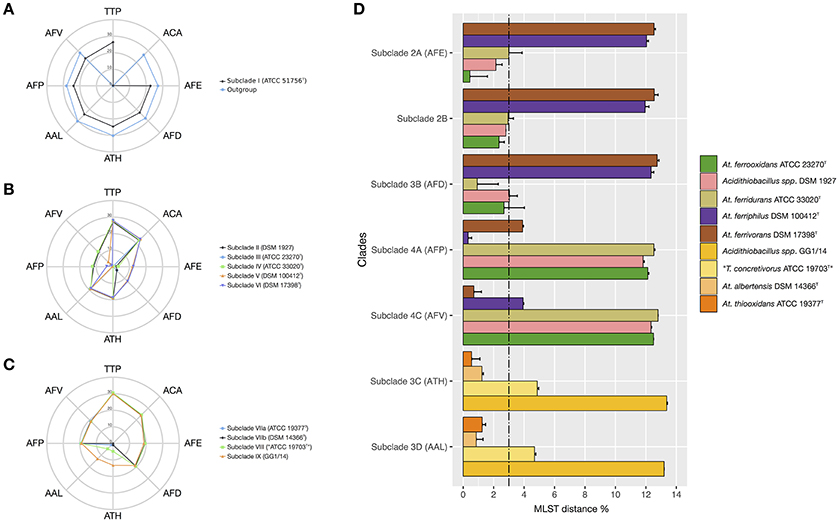

Figure 4. Average nucleotide divergence of the MLSA concatenate (%) between strains conforming each of the MLSA clades against all reference species in the Acidithiobacillus species complex and the outgroup Thermithiobacillus tepidarius. (A) T. tepidarius and Clade I strains: (10 A. caldus strains); (B) Clades II and III strains: A. ferrooxidans (9 strains), A. ferridurans (7), A. ferriphilus (5 strains), A. ferrivorans (3 strains), and the variant lineage represented by strain DSM 1927; (C) Clade IV strains: A. thiooxidans (3 strains), A. albertensis (6 strains), and variant lineages represented by strains ATCC 19703 ex. T. concretivorusT and GG1/14; (D) Average nucleotide divergence of the MLSA concatenate (%) within and between Acidithiobacillus species complex 16S rRNA subclades 2A-2B, 3A-3D; 4A, 4C. For each bar, the standard deviation is indicated. The 3% divergence threshold value is indicated (Vandamme and Peeters, 2014). Abbreviations: Thermithiobacillus tepidarius (TTP), A. caldus (ACA), A. thiooxidans (ATH), A. albertensis (AAL), A. ferrooxidans (AFE), A. ferridurans (AFD), A. ferriphilus (AFP), A. ferrivorans (AFV).
The intergroup average divergence levels varied significantly depending on the lineage considered (Figure 4). Average divergence between A. caldus strains and the rest of the Acidithiobacillus species complex was almost as high as that observed for the related genus Thermithiobacillus tepidarius ATCC 43215T (Figure 4A), raising the question if intrinsic differences are larger than those expected for species of the same genus. In turn, A. ferrooxidans was strongly differentiated from both A. ferriphilus (12.1 ± 0.1% divergence) and A. ferrivorans (12.5 ± 0.0% divergence), but only 3.0% divergent from A. ferridurans.
When additional strains were considered, the average within-group divergence for most lineages emerging from the 16S rRNA gene and/or the MLSA phylogenetic analyses (Figure 4) remained below the 3% threshold, with one exception. A considerable level of intragroup diversity distributed in 3 recognizable subclades was apparent within the A. thiooxidans clade (Figure 3). One subclade spanned the acknowledged species A. thiooxidans and A. albertensis, which were less than 3% divergent between each other. The other two subclades encompassed two potentially new species represented by strains ATCC 19703 (“Thiobacillus concretivorus”) and strain GG1-14, respectively. For these two novel taxons the average sequence divergence of the concatenate toward its nearest neighbor, A. thiooxidansT, was 4.9 ± 0.1% and 13.35 ± 0.05%, respectively. These figures supported their assignment as distinct Acidithiobacillus species. On the other hand, the A. ferrooxidans-like subclade 2B represented by strain DSM 1927, emerging from the combined 16S rRNA gene phylogenetic analysis and the oligotyping analysis, had an intertaxon divergence of 2.8% from the A. ferrooxidans subclade 2A (Figures 4C,D) which did not support recognition of separate species, even though levels of divergence at the MLSA concatenate level and the 16S rRNA gene levels indicated ongoing differentiation.
Discussion
The class Acidithiobacillia currently consists of 9 validly described species arranged within a single order, the Acidithiobacillales. This order contains two genera: Thermithiobacillus, with two validated species [T. tepidarius (Hudson et al., 2014) and T. plumbiphilus (Watanabe et al., 2016) and Acidithiobacillus (Kelly and Wood, 2000)], which currently accommodates seven validated species. Despite the extensive work that has been carried out on the acidithiobacilli, the evolutionary relationships amongst members of this group remain poorly understood. In this study, we have generated the most thoroughly sampled species-level phylogeny to date for this group, using 16S rRNA gene sequence data and a MLSA scheme based on 8 single-copy orthologous genes represented across members of the Acidithiobacillales. Our aim was to produce a robust phylogeny by enabling rooting of the trees and to obtain a better understanding of the evolution of the taxon. In order to span both inter- and intra-species variation we assembled a diverse set of strains and sequence clones (>580) originating from sites throughout the world and encompassing all currently recognized Acidithiobacillus species, as well as neglected candidate species (e.g., “T. concretivorus”). The phylogeny resulting from the 16S rRNA gene data achieved a high coverage of the diversity of the group, while the oligotyping and the MLSA typing approaches enabled a more thorough inspection of the intra-clade diversity for a set of well sampled clades.
Based both on 16S rRNA gene- and the MLSA-based phylogenies, the majority of the sampled diversity clustered together with known reference strains and formed well-defined clades, supporting the seven (species) fundamental units previously described. However, a number of additional lineages (phylotypes) with statistically well-supported nodes also became apparent in either, or in both, analyses, uncovering further inherent diversity for this taxon. This is in agreement with evidence derived from phylogenetic studies encompassing more restricted sets of strains, mostly focused on iron-oxidizing strains of the group (Amouric et al., 2011; Wu et al., 2014 and references therein), which have resulted in recent reclassification of a number of strains of A. ferrooxidans into the new species referred to above. In this work a total of 6 new phylotypes (16S rRNA clades 1B, 1C, 1D, 2B, 3A, 4B, Supplementary Table 4) were identified that are readily distinguishable by phylogenetic clustering and important levels of sequence divergence. Taken as a whole, the evidence suggests that the Acidithiobacillus genus is better defined as a species complex made up of at least 13 phylotypes in diverse stages of differentiation (speciation) that can be distinguished from each other on the basis of divergent phenotypic and/or genotypic characters. Nonetheless, due to the continuous nature of evolution and in some cases the under-sampling of isolates or the scarcity of sequence representatives of certain phylotypes available, several of these phylotypes have remained cryptic and have not yet been adequately framed as discrete units or species.
Recognition of these new lineages has been further obscured by the extensive taxonomic mis-assignment of strains to named species, which has hidden a great deal of the inherent diversity of the Acidithiobacilliae. For many years, knowledge on the taxonomic structure of the Acidithiobacillus species complex has relied on classifications achieved on the basis of morphological and physiological characteristics. Acidophilic rods catalyzing the dissimilatory oxidation of both iron and sulfur have almost always been classified as strains of A. ferrooxidans, while those that only oxidize sulfur have been assigned to A. thiooxidans or A. caldus, depending on the optimal temperature of growth of the isolate. According to our 16S rRNA gene oligotyping results, 35.6% of the isolates, which presumably have been experimentally diagnosed before being assigned to a particular taxon, were actually incorrectly classified (e.g., A. caldus 1B as A. thiooxidans). This indicates that in many cases strains are not thoroughly evaluated in terms of their phenotypic features, and are somewhat arbitrarily assigned to one of these taxons without a systematic assessment of diagnostic characteristics (such as their optimal temperature ranges). Even in the case of sequence clones, where 16S rRNA gene data are the only piece of information available on the individual being sampled, major mistakes in the specific assignment were detected (17.6% of mis-assignments). A certain degree of mis-assignment is expected for data originating before the revision of the taxon, yet many of the mistakes correlate to recent data. In addition, a large number of sequences deposited in public databases (~40%) remain unclassified, while our data strongly support their specific assignments.
According to polyphasic taxonomy, strains of the same species should have similar phenotypes, genotypes, and chemotaxonomic features (Gillis et al., 2005). Currently, genotypic criteria required to differentiate species require strains to have <70% DNA-DNA hybridization similarity, > 5°C Δ Tm, > 5% mol G + C difference of total genomic DNA, and a 16S rRNA gene divergence larger than 1.3% (Stackebrandt and Ebers, 2006). Measurement of all these parameters is seldom achieved for any particular strain, unless phenotypic, molecular and/or available genomic data support a specific reassignment, and confirmation is deemed necessary. From the genotypic standpoint, currently recognized Acidithiobacillus species have been evaluated only in some of these aspects, and in those actually tested thresholds values are not always met, making species delineation further unclear. DNA–DNA hybridization between A. ferrooxidans and either A. thiooxidans (9%, Harrison, 1982), A. ferrivorans (37%, Hallberg et al., 2010), or A. ferridurans (63%, Amouric et al., 2011) meet the 70% gold standard that serves as a boundary to differentiate species. Conversely, mean differences in total G + C content between each of the newly designated iron-oxidizing species and A. ferrooxidans sensu stricto, are in all cases lower than the 5% required to differentiate species. Mean differences in this parameter for the non iron-oxidizing species A. thiooxidans, A. caldus and A. albertensis with respect to A. ferrooxidans (6.8, 5.1, and 2.7 % respectively) have also a certain degree of ambiguity. These differences could result from varying degrees of horizontal gene transfer (HGT), blurring the boundaries at the level of the core genome between bacterial groups. In recent years, evidence has accumulated for the extensive contribution of HGT to the genomic evolution of the Acidithiobacillus species complex (e.g., Bustamante et al., 2012; Acuña et al., 2013; Travisany et al., 2014).
Our 16S rRNA gene sequence data support the differentiation of A. ferrooxidans, A. ferrivorans, A. thiooxidans, and A. caldus, all of which are more than 1.3% divergent with respect to all other currently recognized species in the complex, though this parameter failed to differentiate A. ferrivorans from A. ferridurans, A. ferriphilus from both A. ferridurans and A. ferrivorans, and A. albertensis from A. thiooxidans. Despite this fact, all seven acknowledged species in the complex are individualized as neat clades in the 16S rRNA tree and identified by a principal/predominant oligotype, supporting actual differentiation of these phylotypes. Overall the topology of our 16S rRNA-based tree is similar to those reported previously (e.g., Ni et al., 2008), with differences attributable mostly to the number of sequences, the wider diversity of sequences considered in the analysis and rooting using Thermithiobacillus tepidarius as outgroup. One interesting observation emerging from this deep coverage and rooted 16S rRNA tree is the relationship between species that can and cannot oxidize sulfur. Historically, A. caldus and A. thiooxidans have been considered to be more closely related to each other than to A. ferrooxidans (Goebel and Stackebrandt, 1994). However, the 16S rRNA gene phylogeny constructed herein placed A. caldus far from the rest of the acidithiobacilli and actually much closer to the outgroup species (T. tepidarius). In turn, based on this marker all A. thiooxidans related strains appear to have shared a more recent common ancestor with the iron-oxidizing lineages.
To achieve a more precise delineation of relevant operational units, microbial taxonomists are rapidly turning to genome-wide molecular markers, such as MLSA genes, genomic signatures, or even full sequences (Vandamme and Peeters, 2014). Genome sequences for number of Acidithiobacillus spp. have become available in public databases since 2008, including the type strains of A. ferrooxidans, A. caldus, A. thiooxidans, and A. ferrivorans strain SS3 (Valdés et al., 2008, 2009, 2011; Liljeqvist et al., 2011; You et al., 2011; Talla et al., 2014; Travisany et al., 2014; Yin et al., 2014; Yan et al., 2015; Latorre et al., 2016; Zhang et al., 2016a). However, no genome, complete or draft, has yet been reported for A. ferridurans, A. ferriphilus and A. albertensis. This poor representation of the acidithiobacilli in genomic databases hampers the detailed investigation of the evolutionary relationships of its members through thorough phylogenomic analyses (although efforts in this direction have recently been published; Zhang et al., 2016a,b), and prevents the unraveling of the ambiguities addressed above without further genome sequencing. Therefore, to achieve a high degree of resolution and at the same time restrict our view on the evolution of the taxon to its core genome (preventing biases introduced by HGT and recombination) we used single copy orthologous genes shared by all members of the complex as MLSA markers for further phylogenetic reconstruction. In the absence of robust genomic data, core genes-based MLSA has proven useful in understanding the evolutionary relationships and classification of other complex taxonomic groups (Konstantinidis et al., 2006).
Using MLSA analysis, the type/reference strains of all validated species clustered to discrete branches of the tree, regardless of the tree construction method used. However, at this level of resolution inclusion of some lineages as species of the genus appears unrealistic (A. caldus), and individualization of others (A. thiooxidans-A. albertensis), questionable. MLSA-based phylogenetic analysis divided the strains in 4 groups, all of which encompassed different levels of genetic diversity. The first clade encompassed all sampled A. caldus strains available to us, which happened to pertain exclusively to 16S rRNA tree subclade 1A. Homogeneity of this group of strains from a genomic point of view, was demonstrated previously using species-specific MLSA markers (Nuñez et al., 2014). Notably, none of the strains in our collection was affiliated with the 1B, 1C, or 1D subclades, which are mostly Asiatic or American in origin, and seem to be considerably less common than subclade 1A strains. Strains from the rare subclades that can be traced to natural environments seem to be associated to sulfidic caves (Jones et al., 2016) or geothermal sites (Urbieta et al., 2015). Strains from these subclades are as much as 3.7–5.2% divergent with respect to the type strain of A. caldus (ATCC 51756) at the level of the 16S rRNA gene, indicating that they comprise distinct species or even distinct genera. Divergence between A. caldus and A. thiooxidans is also close to the 5% limit value, generally accepted as boundary to discriminate genera.
According to recent studies, only 10% of the current bacterial species with validly published names conform to the established species or even the genus thresholds (Rossi-Tamisier et al., 2015). These cutoffs were originally established under the assumption that the level of inter-species 16S rRNA gene sequence variation was homogeneous among genera. However, in the light of the variations in the speed of evolution of these genes between phyla (e.g., Clarridge, 2004), their adequacy has been challenged. Our MLSA data support the view that the clade that groups the type strain of A. caldus and other 16S rRNA gene-defined subclades, is almost as divergent with respect to the other Acidithiobacillus species as it is to T. tepidarius. While T. tepidarius is 26.4% divergent from A. caldus, 27.6% divergent (on average) from the iron-oxidizing acidithiobacilli and 30.3% divergent (on average) from the A. thiooxidans clade members, A. caldus diverges from all other Acidithiobacillus species by an average of 24%. These results strongly suggest that this whole lineage should be reassigned to a new genus. However, divergence at the 16S rRNA gene level is above the 94% divergence limits identity cutoff generally used to distinguish genera (Yarza et al., 2008). Clearly, additional criteria will need to be considered to further clarify this situation.
While MLSA supported the distinction of clade II and III lineages (represented respectively by the type/reference strains of A. ferrooxidans and A. ferridurans, and A. ferriphilus and A. ferrivorans), as distinct species, A. thiooxidans and A. albertensis, with a global divergence lower than 3%, generally considered as threshold value for species distinction, appeared almost indistinguishable. A. ferridurans seems to have become distinct from A. ferrooxidans quite recently (3.4% divergence at the level of the 8-gene concatenate) and likewise A. ferrivorans from A. ferriphilus (3.9% divergent), implying some degree of niche-driven specialization or biogeographical isolation. Metadata and targeted metagenomic data suggest that this is indeed the case for the psychrotolerant species, A. ferrivorans, which seems to be mostly restricted to environments experiencing extensive periods of cold temperature, for example at high latitudes or altitudes. Further evidence needs to be generated to explain factors driving A. ferridurans differentiation from A. ferrooxidans. For the moment, metadata are too poor to derive relevant conclusions in this respect, although the greater tolerance of some A. ferridurans strains to extreme acidity, and a greater propensity of growth on hydrogen as sole electron donor with respect to A. ferrooxidans have been proposed as diagnostic characteristics of the species (Hedrich and Johnson, 2013).
In turn, differentiation of A. albertensis from A. thiooxidans seems to be ongoing, as suggested by the nucleotide substitution ratios in the protein-coding loci analyzed. At the level of the single gene trees, the dN/dS ratios for the A. thiooxidans-A. albertensis clade had values > 1, indicating that positive selection is ongoing in this branch. This statement is also supported by clearly distinguishable oligotypes between the two lineages at the level of the 16S rRNA gene, implying probable ecotype level differentiation (e.g., Sintes et al., 2016). Some obvious phenotypic features between the two lineages support this view. In particular, A. albertensis has a bundle of polar flagella that are unique in the genus, while other flagellated bacteria, like A. thiooxidans, only have a single polar flagellum (unpublished). Different types of flagellation have been shown to provide diverse advantages under different environmental conditions (Kearns, 2010). A flagellar bundle in A. albertensis may add propulsion forces for displacement in viscous environments or enable more efficient spreading along surfaces, as shown in other bacteria (Bubendorfer et al., 2014), which may in turn, convey greater fitness to A. albertensis strains under specific mineral leaching conditions. Further efforts to evaluate niche partitions and relative fitness of these two types of mesophilic sulfur-oxidizers need to be carried out to test this hypothesis.
Even if not all new clades represented in the 16S rRNA gene tree were represented in our culture collection, or available to us from our colleagues, a number of them could be tested at higher molecular resolution. MLSA evidence further supported divergence of several of the emergent lineages and currently recognized species, uncovered using the combined 16S rRNA gene and oligotyping strategies. Using the 3% divergence cutoff, lineages represented by A. thiooxidans-like strains ATCC 19703 and GG1-14, and the A. ferrooxidans-like strain DSM 1927, emerge as new candidate species. Interestingly, strain ATCC 19703 was described as a sulfuric acid-forming bacterium isolated from moist corroded concrete exposed to atmospheres containing H2S (Parker, 1945a). Based on morphological, cultural and biochemical properties this strain was considered to be a different species from A. thiooxidans, and was designated as Thiobacillus concretivorus. This new candidate species was described as one of the relevant members in a microbial succession driving the corrosion of concrete sewers (Parker, 1945b, 1947), and strain ATCC 19703 was accepted as the type strain of the species (Sneath and Skerman, 1966). Common features between “T. concretivorus” and A. thiooxidans included their capacity to oxidize thiosulfate, elementary sulfur and hydrogen sulfide (Parker and Prisk, 1953). Distinguishing features included the ability of “T. concretivorus” to utilize nitrate, in addition to ammonium, as a nitrogen source for growth, to occasionally precipitate sulfur from thiosulfate instead of directly forming sulfuric acid as A. thiooxidans (Parker, 1945a) and its higher tolerance to high concentrations of thiosulfate (Parker and Prisk, 1953). In 1957, Vishniac and colleagues questioned the pertinence of these discriminating criteria (Vishniac and Santer, 1957) and after evaluation of the 16S rRNA gene sequence Kelly reassigned all “T. concretivorus” strains to A. thiooxidans (Kelly and Wood, 2000). According to our molecular analyses, strain ATCC 19703 cannot be distinguished from A. thiooxidans on the basis of 16S rRNA gene analysis nor oligotyping. However, MLSA data uncovered a significant divergence (4.8%) between strain ATCC 19703 and the A. thiooxidans subclade that exceeds the currently accepted threshold for species differentiation and points to a genetic distinction between the two groups. Further physiological, chemotaxonomic and genomic analysis should be performed on this strain and its close relatives to resolve this issue.
A much clearer distinction was found at the MLSA concatenate level for strain GG1-14, which is as much as 13.3% divergent with respect to A. thiooxidans, a level of divergence that is comparable to that existing between A. ferrooxidans and A. ferrivorans. This strain was isolated from an acidic (pH 1.9; 25°C) pool on the island of Montserrat (W.I.), but no further physiological or cultural data have been obtained so far that hints on its diagnostic characteristics (Atkinson et al., 2000).
A new lineage, possibly representing a new species, was also found among the iron-oxidizing strains. This lineage, called 2B on the basis of the 16S rRNA gene phylogeny and which groups strains DSM 1927 (strain F221) and CF3 among 39 other isolates and sequence clones, was clearly distinguishable from the A. ferrooxidans subclade 2A and the A. ferridurans subclade 3B, both according to 16S rRNA gene oligotyping and MLSA sequence typing. In agreement with our findings, strain CF3 has been shown to group as a sister branch with respect to the type strain of A. ferroxidans in neighbor-joining phylogenetic trees derived from the same molecular marker (Hedrich and Johnson, 2013). However, according to the same study strain DSM 1927 clusters together with the type strain of A. ferridurans. Branching order of these strains had earlier been shown to be unstable (Lane et al., 1992). Previous studies have also shown divergence between strain CF3 and A. ferrooxidans using rep-PCR (Paulino et al., 2001). At the level of the MLSA concatenate, strains DSM 1927 and CF3 were below the species divergence threshold cutoff with respect to A. ferrooxidans and just above the cutoff with respect to A. ferridurans, suggesting they comprise an intermediate group to both in a presently unclear state of differentiation from both these species. Further, phylogenomic studies should cast light on this matter and better resolve if this is a case of ongoing or achieved differentiation. There are a number of physiological characteristics support differentiation of strain DSM 1927, which was originally isolated from a uranium mine drainage in Austria, from both A. ferrooxidans and A. ferridurans. It is tolerant to uranium (up to 2400 ppm; ~10 mM) and, while it shares 85% DNA-DNA hybridization homology to A. ferrooxidans strain ATCC 19859 (subclade 2A) and has numerous features in common with this strain, strain DSM 1927 was able to tolerate 65°C for 5 min without losing viability in contrast with strain ATCC 19859 which perished in the process (Harrison, 1982). Other studies have shown that colonies of strain DSM 1927 are differently pigmented (gray colored) during aerobic growth on hydrogen, in contrast with those of A. ferridurans ATCC 33020T which were dark brown and A. ferrooxidans ATCC 23270T which remained unpigmented (Hedrich and Johnson, 2013).
Other lineages uncovered by the 16S rRNA gene phylogeny and further supported by the oligotyping data, that could not be evaluated by MLSA in this study and that deserve further attention are subclades 1B, 1C, and 1D, branching close to the A. caldus type strain, subclade 4B branching as a sister clade of A. ferrivorans and subclade 3A branching next to A. ferridurans. Although presently mostly occupied by uncultured clones, all these clades have at least one cultured representative and could be targeted for deeper experimental characterization in order to better span the genetic diversity of the Acidithiobacillus species complex.
Conclusions
The hierarchical relationships among members of the genus Acidithiobacillus, all of which are part of a single order and a single family, have remained poorly understood in the past. Using molecular systematics approaches and an extensive set of strains and sequence clones from diverse global locations, we have revised the inherent diversity of the acidithiobacilli and reconstructed a robust genus-level phylogeny. Results obtained in this study confirm, at a much wider scale, the inherent diversity of this taxon and support the recognition of the acidithiobacilli as a species complex. These phylogenetic analyses, utilizing different molecular markers and typing approaches, suggest that this species complex includes hitherto unrecognized genera and species, and also ecotypes in the process of differentiation. The availability of genome sequences from a larger number of strains spanning the complex should enable future detailed phylogenomic studies to resolve the evolutionary relationships with a greater degree of precision and gain insight into the factors driving population differentiation in extremely acidic environments.
Author Contributions
RQ and DBJ conceived and supervised the study. HN and AM designed and carried out the bioinformatic analyses. PC, JA, and LA performed the molecular biology experiments. MG prepared and maintained the strains. FI and JC supported the sequence and statistical analyses. All authors analyzed the data. HN, AM, and RQ analyzed and interpreted the data and wrote the paper. All authors read and approved the final manuscript.
Funding
FONDECYT 1140048 and 3130376. CONICYT Basal CCTE PFB16 and CONICYT and UNAB graduate study fellowships.
Conflict of Interest Statement
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Acknowledgments
The authors thank Douglas Rawlings, Violaine Bonnefoy, Pablo Ramirez, Mario Vera, Jiri Kucera, and Francisco Remosellez for providing strains of Acidithiobacillus spp.
Supplementary Material
The Supplementary Material for this article can be found online at: http://journal.frontiersin.org/article/10.3389/fmicb.2017.00030/full#supplementary-material
References
Acuña, L. G., Cárdenas, J. P., Covarrubias, P. C., Haristoy, J. J., Flores, R., Nuñez, H., et al. (2013). Architecture and gene repertoire of the flexible genome of the extreme acidophile Acidithiobacillus caldus. PLoS ONE 8:e78237. doi: 10.1371/journal.pone.0078237
Amouric, A., Brochier-Armanet, C., Johnson, D. B., Bonnefoy, V., and Hallberg, K. B. (2011). Phylogenetic and genetic variation among Fe(II)-oxidizing acidithiobacilli supports the view that these comprise multiple species with different ferrous iron oxidation pathways. Microbiology 157, 111. doi: 10.1099/mic.0.044537-0
Atkinson, T., Cairns, S., Cowan, D. A., Danson, M. J., Hough, D. W., Johnson, D. B., et al. (2000). A microbiological survey of Montserrat island hydrothermal biotopes. Extremophiles 4, 305–313. doi: 10.1007/s007920070018
Bryant, R. D., McGroarty, K. M., Costerton, J. W., and Laishley, E. J. (1983). Isolation and characterization of a new acidophilic Thiobacillus species (T. albertis). Can. J. Microbiol. 29, 1159. doi: 10.1139/m83-178
Bubendorfer, S., Koltai, M., Rossmann, F., Sourjik, V., and Thormann, K. M. (2014). Secondary bacterial flagellar system improves bacterial spreading by increasing the directional persistence of swimming. Proc. Natl. Acad. Sci. U.S.A. 111, 11485. doi: 10.1073/pnas.1405820111
Bustamante, P., Covarrubias, P. C., Levicán, G., Katz, A., Tapia, P., Holmes, D., et al. (2012). ICEAfe1, an actively excising genetic element from the biomining bacterium Acidithiobacillus ferrooxidans. J. Mol. Microbiol. Biotechnol. 22, 399. doi: 10.1159/000346669
Clarridge, J. E. III. (2004). Impact of 16S rRNA gene sequence analysis for identification of bacteria on clinical microbiology and infectious diseases. Clin. Microbiol. Rev. 17, 840. doi: 10.1128/CMR.17.4.840-862.2004
Eren, A. M., Maignien, L., Sul, W. J., Murphy, L. G., Grim, S. L., Morrison, H. G., et al. (2013). Oligotyping: differentiating between closely related microbial taxa using 16S rRNA gene data. Methods Ecol. Evol. 4, 1111. doi: 10.1111/2041-210X.12114
Eren, A. M., Sogin, M. L., Morrison, H. G., Vineis, J. H., Fisher, J. C., Newton, R. J., et al. (2015). A single genus in the gut microbiome reflects host preference and specificity. ISME J. 9, 90. doi: 10.1038/ismej.2014.97
Falagán, C., and Johnson, D. B. (2016). Acidithiobacillus ferriphilus sp. nov., a facultatively anaerobic iron- and sulfur-metabolizing extreme acidophile. Int. J. Syst. Evol. Microbiol. 66, 206. doi: 10.1099/ijsem.0.000698
Fernández-Remolar, D. C., Rodriguez, N., Gómez, F., and Amils, R. (2003). Geological record of an acidic environment driven by iron hydrochemistry: the Tinto River system. J. Geophys. Res. 108, 5080. doi: 10.1029/2002JE001918
Garrity, G. M., Bell, J. A., and Lilburn, T. (2005). “Order II. Acidithiobacillales ord. nov,” in Bergey's Manual of Systematic Bacteriology, ed D. Brenner, N. Krieg, J. Staley, and G. Garrity (New York, NY: Springer), 60–62.
Gillis, M., Vandamme, P., De Vos, P., Swings, J., and Kersters, K. (2005). “Polyphasic taxonomy,” in Bergey's Manual of Systematic Bacteriology, ed D. Brenner, N. Krieg, J. Staley, and G. Garrity (New York, NY: Springer), 43–48.
Goebel, B. M., and Stackebrandt, E. (1994). Cultural and phylogenetic analysis of mixed microbial populations found in natural and commercial bioleaching environments. Appl. Environ. Microbiol. 60, 1614–1621.
González, C., Yanquepe, M., Cardenas, J. P., Valdes, J., Quatrini, R., Holmes, D. S., et al. (2014). Genetic variability of psychrotolerant Acidithiobacillus ferrivorans revealed by (meta)genomic analysis. Res. Microbiol. 165, 726. doi: 10.1016/j.resmic.2014.08.005
Guindon, S., and Gascuel, O. (2003). A simple, fast, and accurate algorithm to estimate large phylogenies by maximum likelihood. Syst. Biol. 52, 696. doi: 10.1080/10635150390235520
Hallberg, K. B., González-Toril, E., and Johnson, D. B. (2010). Acidithiobacillus ferrivorans, sp. nov.; facultatively anaerobic, psychrotolerant iron-, and sulfur-oxidizing acidophiles isolated from metal mine-impacted environments. Extremophiles 14, 9: doi: 10.1007/s00792-009-0282-y
Hallberg, K. B., and Lindström, E. B. (1994). Characterization of Thiobacillus caldus sp. nov., a moderately thermophilic acidophile. Microbiology 140, 3451–3456. doi: 10.1099/13500872-140-12-3451
Harrison, A. P. (1982). Genomic and physiological diversity amongst strains of Thiobacillus ferrooxidans, and genomic comparison with Thiobacillus thiooxidans. Arch. Microbiol. 131, 68: doi: 10.1007/BF00451501
Hayes, S. M., Root, R. A., Perdrial, N., Maier, R. M., and Chorover, J. (2014). Surficial weathering of iron sulfide mine tailings under semi-arid climate. Geochim. Cosmochim. Acta 141, 240: doi: 10.1016/j.gca.2014.05.030
Hedrich, S., and Johnson, D. B. (2013). Acidithiobacillus ferridurans sp. nov., an acidophilic iron-, sulfur- and hydrogen-metabolizing chemolithotrophic gammaproteobacterium. Int. J. Syst. Evol. Microbiol. 63, 4018: doi: 10.1099/ijs.0.049759-0
Huang, J. Y., Xu, X. C., Chen, L. W., and Zhou, Y. X. (2012). Heavy metal migration rule in Yangshanchong tailings of Tongling. Adv. Mater. Res. 573–574, 421–426. doi: 10.4028/www.scientific.net/AMR.573-574.421
Huang, L.-N., Kuang, J.-L., and Shu, W.-S. (2016). Microbial ecology and evolution in the acid mine drainage model system. Trends Microbiol. 24, 581. doi: 10.1016/j.tim.2016.03.004
Hudson, C. M., Williams, K. P., and Kelly, D. P. (2014). Definitive assignment by multigenome analysis of the gammaproteobacterial genus Thermithiobacillus to the class Acidithiobacillia. Pol. J. Microbiol. 63, 245–247.
Huelsenbeck, J. P., and Ronquist, F. (2001). MRBAYES: bayesian inference of phylogenetic trees. Bioinformatics 17:754. doi: 10.1093/bioinformatics/17.8.754
Johnson, D. B. (2014). Biomining-biotechnologies for extracting and recovering metals from ores and waste materials. Curr. Opin. Biotechnol. 30, 24. doi: 10.1016/j.copbio.2014.04.008
Jones, D. S., Schaperdoth, I., and Macalady, J. L. (2016). Biogeography of sulfur-oxidizing Acidithiobacillus populations in extremely acidic cave biofilms. ISME J. 10, 2879. doi: 10.1038/ismej.2016.74
Katoh, K., and Standley, D. M. (2013). MAFFT multiple sequence alignment software version 7: improvements in performance and usability. Mol. Biol. Evol. 30, 772. doi: 10.1093/molbev/mst010
Kearns, D. B. (2010). A field guide to bacterial swarming motility. Nat. Rev. Microbiol. 8, 634. doi: 10.1038/nrmicro2405
Kelly, D. P., and Wood, A. P. (2000). Reclassification of some species of Thiobacillus to the newly designated genera Acidithiobacillus gen. nov., Halothiobacillus gen. nov. and Thermithiobacillus gen. nov. Int. J. Syst. Evol. Microbiol. 50:511. doi: 10.1099/00207713-50-2-511
Konstantinidis, K. T., Ramette, A., and Tiedje, J. M. (2006). The bacterial species definition in the genomic era. Philos. Trans. R. Soc. Lond. B. Biol. Sci. 361:1929. doi: 10.1098/rstb.2006.1920
Lane, D. J., Harrison, A. P., Stahl, D., Pace, B., Giovannoni, S. J., Olsen, G. J., et al. (1992). Evolutionary relationships among sulfur- and iron-oxidizing eubacteria. J. Bacteriol. 174, 269–278.
Latorre, M., Ehrenfeld, N., Cortés, M. P., Travisany, D., Budinich, M., Aravena, A., et al. (2016). Global transcriptional responses of Acidithiobacillus ferrooxidans Wenelen under different sulfide minerals. Bioresour. Technol. 200, 29. doi: 10.1016/j.biortech.2015.09.110
Liljeqvist, M., Valdés, J., Holmes, D. S., and Dopson, M. (2011). Draft genome of the psychrotolerant acidophile Acidithiobacillus ferrivorans SS3. J. Bacteriol. 193, 4304. doi: 10.1128/jb.05373-11
Luo, H., Shen, L., Yin, H., Li, Q., Chen, Q., Luo, Y., et al. (2009). Comparative genomic analysis of Acidithiobacillus ferrooxidans strains using the A. ferrooxidans ATCC 23270 whole-genome oligonucleotide microarray. Can. J. Microbiol. 55, 587. doi: 10.1139/w08-158
Ni, Y.-Q., He, K.-Y., Bao, J.-T., Yang, Y., Wan, D.-S., and Li, H.-Y. (2008). Genomic and phenotypic heterogeneity of Acidithiobacillus spp. strains isolated from diverse habitats in China. FEMS Microbiol. Ecol. 64, 248. doi: 10.1111/j.1574-6941.2008.00457.x
Nieto, P. A., Covarrubias, P. C., Jedlicki, E., Holmes, D. S., and Quatrini, R. (2009). Selection and evaluation of reference genes for improved interrogation of microbial transcriptomes: case study with the extremophile Acidithiobacillus ferrooxidans. BMC Mol. Biol. 10:63. doi: 10.1186/1471-2199-10-63
Nuñez, H., Covarrubias, P. C., Moya-Beltrán, A., Issotta, F., Atavales, J., Acuña, L. G., et al. (2016). Detection, identification and typing of Acidithiobacillus species and strains: a review. Res. Microbiol. 167, 555. doi: 10.1016/j.resmic.2016.05.006
Nuñez, H., Loyola, D., Cárdenas, J. P., Holmes, D. S., Johnson, D. B., and Quatrini, R. (2014). Multi locus sequence typing scheme for Acidithiobacillus caldus strain evaluation and differentiation. Res. Microbiol. 165, 735. doi: 10.1016/j.resmic.2014.07.014
Parker, C. D. (1945a). The corrosion of concrete. I. The isolation of a species of bacterium associated with the corrosion of concrete exposed to atmosphere containing hydrogen sulphide. Aust. J. Biol. Med. Sci. 23, 81–90.
Parker, C. D. (1945b). The corrosion of concrete 2. The function of Thiobacillus concretivorus (nov. spec.) in the corrosion of concrete exposed to atmospheres containing hydrogen sulphide. Aust. J. Biol. Med. Sci. 23, 91–98.
Parker, C. D. (1947). Species of sulphur bacteria associated with the corrosion of concrete. Nature 159, 439–440.
Parker, C. D., and Prisk, J. (1953). The oxidation of inorganic compounds of sulphur by various sulphur bacteria. J. Gen. Microbiol. 8, 344–364.
Paulino, L. C., Bergamo, R. F., de Mello, M. P., Garcia, O. Jr., Manfio, G. P., and Ottoboni, L. M. M. (2001). Molecular characterization of Acidithiobacillus ferrooxidans and A. thiooxidans strains isolated from mine wastes in Brazil. Antonie Van Leeuwenhoek 80, 65. doi: 10.1023/A:1012247325537
Rossi-Tamisier, M., Benamar, S., Raoult, D., and Fournier, P.-E. (2015). Cautionary tale of using 16S rRNA gene sequence similarity values in identification of human-associated bacterial species. Int. J. Syst. Evol. Microbiol. 65, 1929. doi: 10.1099/ijs.0.000161
Sintes, E., De Corte, D., Haberleitner, E., and Herndl, G. J. (2016). Geographic distribution of archaeal ammonia oxidizing ecotypes in the Atlantic ocean. Front. Microbiol. 7:77. doi: 10.3389/fmicb.2016.00077
Sneath, P. H. A., and Skerman, V. B. D. (1966). A list of type and reference strains of bacteria. Int. J. Syst. Bacteriol. 16:1. doi: 10.1099/00207713-16-1-1
Stackebrandt, E., and Ebers, J. (2006). Taxonomic parameters revisited: tarnished gold standards. Microbiol. Today. 33, 152–155.
Stackebrandt, E., and Goebel, B. M. (1994). Taxonomic note: a place for DNA-DNA reassociation and 16S rRNA sequence analysis in the present species definition in bacteriology. Int. J. Syst. Evol. Microbiol. 44:846. doi: 10.1099/00207713-44-4-846
Swaminathan, B., Barrett, T. J., Hunter, S. B., Tauxe, R. V., and CDC PulseNet Task Force (2001). PulseNet: the molecular subtyping network for foodborne bacterial disease surveillance, United States. Emerg. Infect. Dis. 7, 382. doi: 10.3201/eid0703.010303
Talla, E., Hedrich, S., Mangenot, S., Ji, B., Johnson, D. B., Barbe, V., et al. (2014). Insights into the pathways of iron- and sulfur-oxidation, and biofilm formation from the chemolithotrophic acidophile Acidithiobacillus ferrivorans CF27. Res. Microbiol. 165, 753. doi: 10.1016/j.resmic.2014.08.002
Tamura, K., and Nei, M. (1993). Estimation of the number of nucleotide substitutions in the control region of mitochondrial DNA in humans and chimpanzees. Mol. Biol. Evol. 10:512.
Tan, G.-L., Shu, W.-S., Zhou, W.-H., Li, X.-L., Lan, C.-Y., and Huang, L.-N. (2009). Seasonal and spatial variations in microbial community structure and diversity in the acid stream draining across an ongoing surface mining site. FEMS Microbiol. Ecol. 70, 121. doi: 10.1111/j.1574-6941.2009.00744.x
Temple, K. L., and Colmer, A. R. (1951). The autotrophic oxidation of iron by a new bacterium, Thiobacillus ferrooxidans. J. Bacteriol. 62, 605–611.
Travisany, D., Cortés, M. P., Latorre, M., Di Genova, A., Budinich, M., Bobadilla-Fazzini, R. A., et al. (2014). A new genome of Acidithiobacillus thiooxidans provides insights into adaptation to a bioleaching environment. Res. Microbiol. 165, 743. doi: 10.1016/j.resmic.2014.08.004
Urbieta, M. S., Porati, G., Segretín, A., González-Toril, E., Giaveno, M., and Donati, E. (2015). Copahue geothermal system: a volcanic environment with rich extreme prokaryotic biodiversity. Microorganisms 3, 344. doi: 10.3390/microorganisms3030344
Valdés, J., Ossandon, F., Quatrini, R., Dopson, M., and Holmes, D. S. (2011). Draft genome sequence of the extremely acidophilic biomining bacterium Acidithiobacillus thiooxidans ATCC 19377 provides insights into the evolution of the Acidithiobacillus genus. J. Bacteriol. 193, 7003. doi: 10.1128/JB.06281-11
Valdés, J., Pedroso, I., Quatrini, R., Dodson, R. J., Tettelin, H., Blake, R., et al. (2008). Acidithiobacillus ferrooxidans metabolism: from genome sequence to industrial applications. BMC Genomics. 9:597. doi: 10.1186/1471-2164-9-597
Valdés, J., Quatrini, R., Hallberg, K., Dopson, M., Valenzuela, P. D. T., and Holmes, D. S. (2009). Draft genome sequence of the extremely acidophilic bacterium Acidithiobacillus caldus ATCC 51756 reveals metabolic versatility in the genus Acidithiobacillus. J. Bacteriol. 191, 5877. doi: 10.1128/JB.00843-09
Vandamme, P., and Peeters, C. (2014). Time to revisit polyphasic taxonomy. Antonie Van Leeuwenhoek 106, 57. doi: 10.1007/s10482-014-0148-x
Waksman, S. A., and Joffe, J. S. (1922). Microorganisms concerned in the oxidation of sulfur in the soil: II. Thiobacillus thiooxidans, a new sulfur-oxidizing organism isolated from the soil. J. Bacteriol. 7, 239–256.
Watanabe, T., Miura, A., Shinohara, A., Kojima, H., and Fukui, M. (2016). Thermithiobacillus plumbiphilus sp. nov., a sulfur-oxidizing bacterium isolated from lead sulfide. Int. J. Syst. Evol. Microbiol. 66, 1986. doi: 10.1099/ijsem.0.000972
Williams, K. P., and Kelly, D. P. (2013). Proposal for a new class within the phylum Proteobacteria, Acidithiobacillia classis nov., with the type order Acidithiobacillales, and emended description of the class Gammaproteobacteria. Int. J. Syst. Evol. Microbiol. 63, 2901. doi: 10.1099/ijs.0.049270-0
Wu, X., Liu, L., Zhang, Z., Deng, F., and Liu, X. (2014). Phylogenetic and genetic characterization of Acidithiobacillus strains isolated from different environments. World J. Microbiol. Biotechnol. 30, 3197. doi: 10.1007/s11274-014-1747-4
Yan, L., Zhang, S., Wang, W., Hu, H., Wang, Y., Yu, G., et al. (2015). Draft genome sequence of Acidithiobacillus ferrooxidans YQH-1. Genom Data 6, 269. doi: 10.1016/j.gdata.2015.10.009
Yarza, P., Richter, M., Peplies, J., Euzeby, J., Amann, R., Schleifer, K. H., et al. (2008). The all-species living tree project: a 16S rRNA-based phylogenetic tree of all sequenced type strains. Syst. Appl. Microbiol. 31, 241. doi: 10.1016/j.syapm.2008.07.001
Yin, H., Zhang, X., Liang, Y., Xiao, Y., Niu, J., and Liu, X. (2014). Draft genome sequence of the extremophile Acidithiobacillus thiooxidans A01, isolated from the wastewater of a coal dump. Genome Announc. 2, e00222–e00214. doi: 10.1128/genomeA.00222-14.
You, X.-Y., Guo, X., Zheng, H.-J., Zhang, M.-J., Liu, L.-J., Zhu, Y.-Q., et al. (2011). Unraveling the Acidithiobacillus caldus complete genome and its central metabolisms for carbon assimilation. J. Genet. Genomics 38, 243. doi: 10.1016/j.jgg.2011.04.006
Zhang, X., Feng, X., Tao, J., Ma, L., Xiao, Y., Liang, Y., et al. (2016a). Comparative genomics of the extreme acidophile Acidithiobacillus thiooxidans reveals intraspecific divergence and niche adaptation. Int. J. Mol. Sci. 17, E1355. doi: 10.3390/ijms17081355
Zhang, X., She, S., Dong, W., Niu, J., Xiao, Y., Liang, Y., et al. (2016b). Comparative genomics unravels metabolic differences at the species and/or strain level and extremely acidic environmental adaptation of ten bacteria belonging to the genus Acidithiobacillus. Syst. Appl. Microbiol. 39, 493. doi: 10.1016/j.syapm.2016.08.007
Keywords: Acidithiobacillus, species complex, phylogenetic structure, diversity, 16S rRNA, MLSA, targeted metagenomics
Citation: Nuñez H, Moya-Beltrán A, Covarrubias PC, Issotta F, Cárdenas JP, González M, Atavales J, Acuña LG, Johnson DB and Quatrini R (2017) Molecular Systematics of the Genus Acidithiobacillus: Insights into the Phylogenetic Structure and Diversification of the Taxon. Front. Microbiol. 8:30. doi: 10.3389/fmicb.2017.00030
Received: 18 October 2016; Accepted: 05 January 2017;
Published: 19 January 2017.
Edited by:
Jesse G. Dillon, California State University, Long Beach, USAReviewed by:
Daniel Seth Jones, University of Minnesota, USAStephanus Nicolaas Venter, University of Pretoria, South Africa
Copyright © 2017 Nuñez, Moya-Beltrán, Covarrubias, Issotta, Cárdenas, González, Atavales, Acuña, Johnson and Quatrini. This is an open-access article distributed under the terms of the Creative Commons Attribution License (CC BY). The use, distribution or reproduction in other forums is permitted, provided the original author(s) or licensor are credited and that the original publication in this journal is cited, in accordance with accepted academic practice. No use, distribution or reproduction is permitted which does not comply with these terms.
*Correspondence: D. Barrie Johnson, ZC5iLmpvaG5zb25AYmFuZ29yLmFjLnVr
Raquel Quatrini, cnF1YXRyaW5pQGNpZW5jaWF2aWRhLm9yZw==
†These authors have contributed equally to this work.
