ORIGINAL RESEARCH article

Front. Med., 07 April 2022
Sec. Geriatric Medicine

Global Research Status and Trends in Venous Thromboembolism After Hip or Knee Arthroplasty From 1990 to 2021: A Bibliometric Analysis

\nWei Song&#x;Wei Song1Tao Ma&#x;Tao Ma1Qianyue ChengQianyue Cheng2Pengfei Wen
Pengfei Wen1*Jiayuan WuJiayuan Wu3Linjie HaoLinjie Hao1Binfei ZhangBinfei Zhang1Yakang WangYakang Wang1Qiuyuan WangQiuyuan Wang4Yumin ZhangYumin Zhang1
  • 1Department of Joint Surgery, Honghui Hospital, Xi'an Jiaotong University, Shaanxi, China
  • 2Xi'an Medical University, Shaanxi, China
  • 3Department of Spine Surgery, Honghui Hospital, Shaanxi, China
  • 4Department of Orthopedics, China-Japan Friendship Hospital, Beijing, China

Background: Venous thromboembolism (VTE) after hip or knee arthroplasty has attracted increasing attention over the past few decades. However, there is no bibliometric report on the publications in this field. The purpose of this study was to analyze the global research status, hotspots, and trends in VTE after arthroplasty.

Methods: All articles about VTE research after hip or knee arthroplasty from 1990 to 2021 were retrieved from the Web of Science Core Collection database. The information of each article including citation, title, author, journal, country, institution, keywords, and level of evidence was extracted for bibliometric analysis.

Results: A total of 1,245 original articles from 53 countries and 603 institutions were retrieved. The USA contributed most with 457 articles, followed by England and Canada. McMaster University in Canada was the leading institution for publications. The journals with the highest output and citation were the Journal of Arthroplasty and the Thrombosis and Haemostasis, respectively. The median number of citations was significantly different among the levels of evidence (F = 128.957, P < 0.001). The research hotspots switched from VTE diagnosis and heparin to factor Xa inhibitors (fondaparinux, rivaroxaban, apixaban) and direct thrombin inhibitors (dabigatran etexilate, ximelagatran), and finally to aspirin, risk factor studies, which can be observed from the keyword analysis and co-cited reference cluster analysis.

Conclusions: This study observed an increasing trend of research articles on VTE after arthroplasty. Publications with higher levels of evidence gained further popularity among researchers and orthopedic surgeons. Additionally, individualized VTE prevention and the development of new, safe, effective, and inexpensive oral agents would be emerging trends in the future.

Introduction

Postoperative venous thromboembolism (VTE) is a major cause of morbidity, mortality, and healthcare costs in patients undergoing knee or hip arthroplasty (1). VTE includes deep vein thrombosis (DVT) and pulmonary embolism (PE). The incidence of any (including asymptomatic) VTE in patients undergoing major orthopedic procedures without prophylaxis is ~40–60% (2). Up to 70% of VTE cases may be asymptomatic, about 6% of DVT and 12% of PE cases die within 1 month after diagnosis (3). To reduce the incidence of VTE, appropriate management strategies and guidelines were developed, such as the Caprini score (4), American Academy of Orthopaedic Surgeons (AAOS) guidelines (5), and American College of Chest Physicians (ACCP) guidelines (6, 7). Recently, the incidence of symptomatic VTE is ~0.45–5.30% after total knee arthroplasty (TKA) and 0.24–1.60% after total hip arthroplasty (THA) (8, 9).

The three physiological factors that may contribute to VTE are known as Virchow's triad, including venous stasis, endothelial injury, and hypercoagulable state. Two or more factors are typically necessary for the development of VTE (10). The VTE event is believed to be initiated during surgeries as a result of direct or indirect vessel wall trauma and intimal damage that induce a hypercoagulable state (11). In clinical studies, several risk factors for VTE have been determined, including but not limited to comorbidities, advanced age, cancer, prolonged immobilization, bilateral procedures, and longer operative time (12). With the rapidly increasing number of joint replacement procedures annually (13), VTE has attracted increasing attention, and publications on VTE research have grown dramatically over the past few decades. This causes challenges in fully understanding, accessing, and identifying relevant information in the field. To facilitate clinicians in assessing the overall success of interventions and to guide future research on VTE, it is necessary to shed light on research trends, hot spots, and high-impact articles, institutions, and authors in the field.

Bibliometric analysis is a novel and powerful method to estimate the characteristics and quality of articles or review an extensive field of knowledge, especially when confronted with an increasing number of publications (14). Such a tool can evaluate the scientific value of articles, show the current status, reveal research hotspots, and predict the trends of a specific area (15, 16). Many fields have published bibliometric analyses in their specialty, such as urological surgery (17), pharmacology (16), orthopedic surgery (15, 18, 19). However, to the best of our knowledge, there is still a lack of bibliometric analysis on VTE after lower extremity joint replacement. This study aimed to identify research trends and hotspots for VTE after hip and knee arthroplasty via integrative analysis of articles published worldwide.

Methods

Data Sources and Search Strategy

Relevant literature was searched from the Web of Science Core Collection (WOSCC) database on August 23, 2021. The search work was completed within 1 day to avoid biases caused by database updates (update: August 22, 2021). The search strategy was shown as follows, TS = [thromb* and (((hip or knee) and (arthroplasty or replacement)) or hemiarthroplasty)], without any language restrictions, and the time-span was set as 1990–2021. The asterisk was used to extend the search, such as “thromb*” will search for thromboembolism, thrombosis, and thromboprophylaxi. Only original articles were reserved and all other categories were excluded.

Data Selection

Articles were screened by two authors independently. Unrelated studies were removed and disagreements were resolved by mutual agreement. Finally, 1,245 articles were then assessed further. The screening process is shown in Figure 1. The following data of each article were collected: publication years, journals, impact factors (IF) obtained from the Journal Citation Report (JCR 2020), titles, authors, countries, institutions, references, keywords, citation counts, citations per year (total citations/the number of years since publication), and levels of evidence evaluated according to guidelines of the Journal of Bone and Joint Surgery (20).

FIGURE 1
www.frontiersin.org

Figure 1. Flowchart of the identification of relevant articles.

Data Analysis

The data were imported into Microsoft Excel 2016 (Microsoft Corp., Redmond, WA, USA), the online analysis platform of literature metrology (https://bibliometric.com), and CiteSpace 5.7.R3 (Drexel University, Philadelphia, PA, USA) for analysis. The online analysis platform was utilized to visualize the analysis of the cooperation network of countries. CiteSpace was used to visualize analyses of the co-occurrence keywords and the cooperation network of institutions and authors, and to further construct a timeline view of co-cited references by which we could clarify the rise and period of certain clustering fields (14). Burst detection was used to identify the keyword bursts which indicate frontier concepts and emerging trends that have drawn the attention of peer investigators (21). As for visual graphs, the colors of the circular node and connections represent the period in which the articles were published. The overall time-span from 1990 to 2021, with 4 years per slice, was divided into 8 different time slices corresponding to 8 different colors.

Graphs were made by OriginPro 9.1 (OriginLab Corp., Northampton, Massachusetts, USA). The analyses were performed by Microsoft Excel, and IBM SPSS 22.0 (IBM Corp., Armonk, NY, USA). Non-normal distributed data were analyzed by the Kruskal-Wallis test. The results were presented as the median (the first and third quartiles). Correlation between variables was tested by Kendall's tau-b test. P < 0.05 was defined as statistically significant.

Results

Publication and Citation

A total of 1,245 articles on VTE after hip and knee arthroplasty were collected from the WoSCC database between 1990 and 2021. Most of these articles were in English (95.3%), followed by German (2.1%) and French (1.4%). From 1990 to 2012, the number of annual articles showed an increasing trend, with the largest number of 73 articles published in 2020, as shown in Figure 2A. More than half of the articles were published in the last decade. When it comes to the citation number, the total number of citations of these articles was 50,743, without self-citations was 41,800. It could be seen from the chart that the annual citations showed an increasing trend and peaked in 2012, followed by a downward trend (Figure 2A).

FIGURE 2
www.frontiersin.org

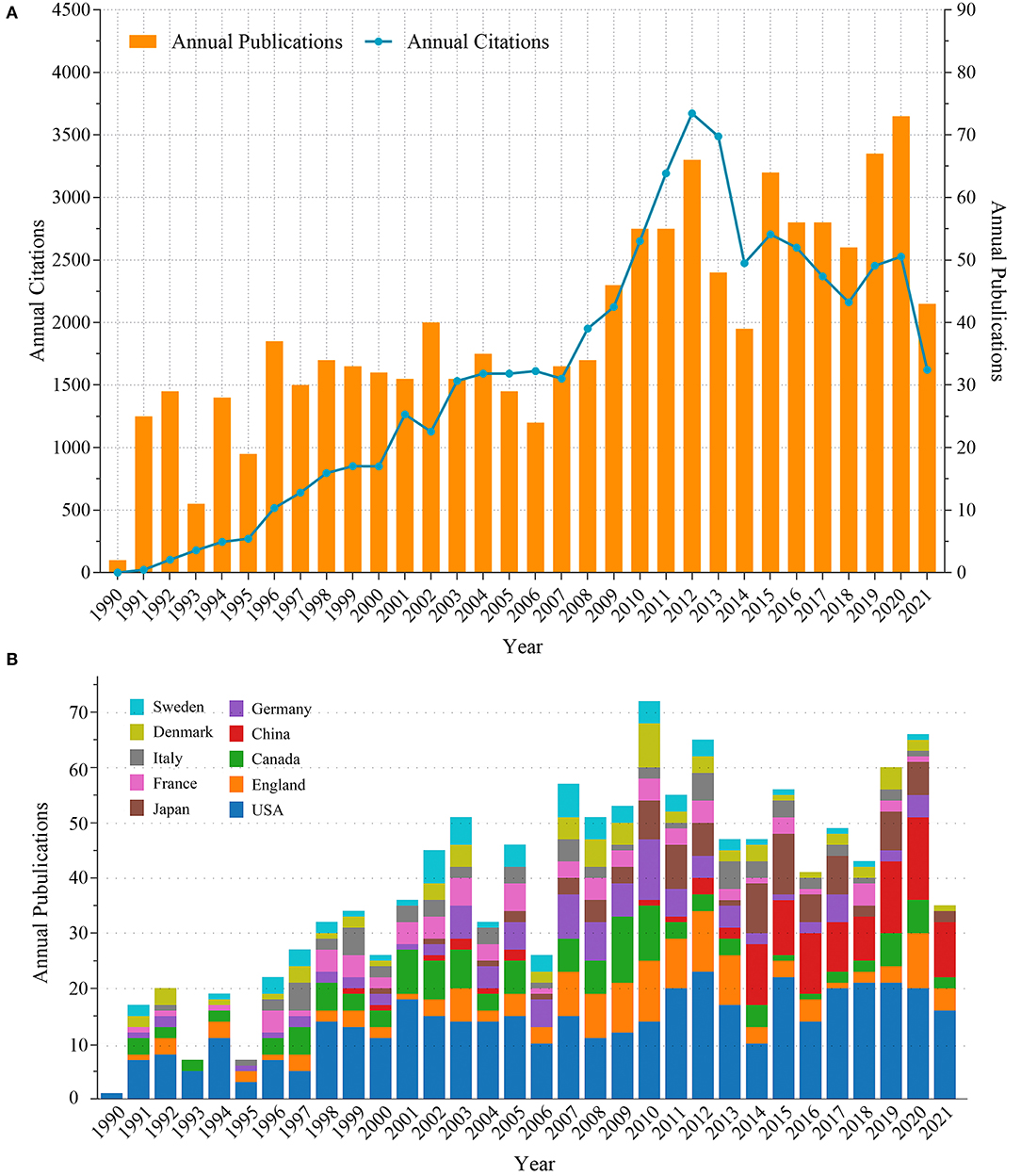

Figure 2. Trends in annual citations and publications (A) and trends in annual article counts in top 10 productive countries (B) on VTE after hip or knee arthroplasty.

Country and Institution

Articles originated from 53 countries. The publications in the top 10 productive countries were demonstrated by years (Figure 2B) and shown in Table 1. The USA was the most productive country in this field, with 457 articles (36.7%), followed by England, Canada, China, Germany, Japan, France, Denmark, Italy, and Sweden. It was apparent from Figure 2B that the production of articles from China has increased rapidly since 2014. However, no clear increasing trend was observed in other countries. The USA has consistently maintained first place in the number of annual articles on VTE after arthroplasty. Furthermore, the cooperation network of countries showed that the collaborations among the USA, Canada, and England occurred frequently, followed by that between England and Denmark, and the USA and Australia (Figure 3A).

TABLE 1
www.frontiersin.org

Table 1. List of top 10 countries according to the total number of publications.

FIGURE 3
www.frontiersin.org

Figure 3. Cooperation network among countries (A), institutions (B), and authors (C) and the graph of co-cited author analysis (D). The nodes in the graph represent institutions or authors, and lines between the nodes represent the collaborative relationships and co-cited relationships. The various colors in the nodes represent the different years, and the larger the node area, the greater the number of publications and co-citations. The nodes with purple rings represent high centrality and are considered to be pivotal points in the study.

A total of 603 institutions have participated in the study of VTE after arthroplasty. Half of the top 10 most prolific institutions were located in the USA, as shown in Table 2. The most prolific institution was the McMaster University from Canada with 61 publications, followed by Sahlgrens University (n = 33), University of Copenhagen (n = 27), and Mayo Clinic (n = 27). The visualized analysis could reveal a network of correlations among institutions (15). The network maps among institutions showed a low density (density = 0.0031) (Figure 3B), indicating that research teams are relatively independent, thereby necessitating further collaborations. McMaster University and the University of Copenhagen had high centrality (0.13 and 0.21, respectively), which suggested that these institutions have a great influence on VTE research.

TABLE 2
www.frontiersin.org

Table 2. List of top 10 contributing institutions and their countries.

Author and Co-cited Author

These articles were contributed by at least 1,321 authors. The researchers and their collaborations were shown in Figure 3C. Table 3 illustrated the top 10 productive authors, i.e., those who authored at least 19 articles. The person leading the ranking was Eriksson BI (Sahlgrens University, Sweden) with 42 articles totalizing 7,915 citations and had the closest cooperation with other authors. Lassen MR from Nordsjaellands Hospital, the second most prolific author, was ranked first in terms of citations. Figure 3D showed the co-cited author network. The authors with the top five co-cited counts were Geerts WH (452), Eriksson BI (381), Turpie AGG (331), Lassen MR (317), and Hull RD (265).

TABLE 3
www.frontiersin.org

Table 3. Top 10 most prolific authors on VTE research after hip or knee arthroplasty.

Journal

During the last three decades, a total of 332 academic journals published research articles on VTE after arthroplasty. The characteristics of the top 10 journals were shown in Table 4, among which the articles were predominantly published in Journal of Arthroplasty (n = 112), and followed by Thrombosis and Haemostasis (n = 68), Journal of Bone and Joint Surgery-British Volume (n = 52), Journal of Bone and Joint Surgery-American Volume (n = 48). Most of the publishers are situated in the USA, followed by England and Germany. In addition, half of the journals in the top 10 list reached an average number of citations >50. Thrombosis and Haemostasis ranked first in total citations, while Archives of Internal Medicine had achieved the highest impact factor and average citations with 19 articles on the list.

TABLE 4
www.frontiersin.org

Table 4. List of top 10 journals with the most publications and their impact factors.

Level of Evidence

There were 300 articles with level I evidence that were cited a median of 32.5 (10, 95) times, 118 articles with level II evidence that were cited a median of 18.5 (4, 42) times, 446 articles with level III evidence that were cited a median of 9 (3, 22) times and 446 articles with level IV evidence that were cited a median of 8 (2, 19) times (Figure 4). The Kruskal-Wallis test showed that the median number of citations was significantly different among the levels of evidence (F = 128.957, P < 0.001). There was a low positive correlation between the level of evidence and citations by Kendall‘s tau-b test (r = 0.232, P < 0.001).

FIGURE 4
www.frontiersin.org

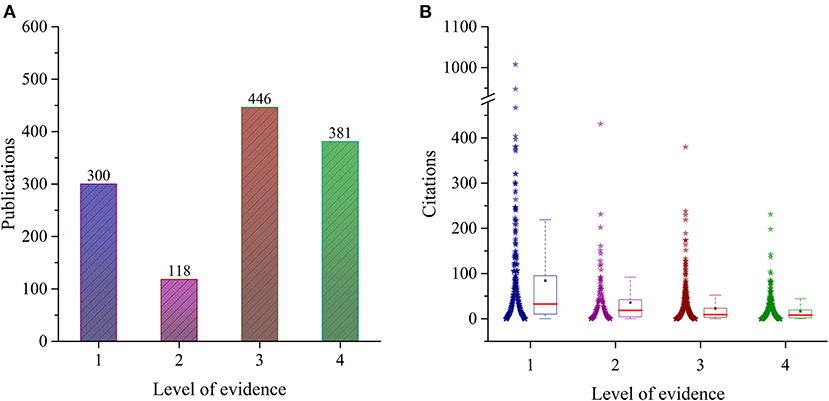

Figure 4. Number of publications (A) and citations (data distribution and interquartile range) (B) in each level of evidence.

Top 10 Cited Articles and Co-cited References Clusters

Table 5 showed the details of the top 10 cited articles with citations ranging from 446 to 1,008. Four articles of these were published in The New England Journal of Medicine (IF = 91.24), and four in The Lancet (IF = 79.32). The main topics can be obtained by analyzing the co-cited references. Figure 5A showed the co-cited reference knowledge map. Furthermore, by analyzing the timeline graph generated by clustering co-cited references (Figure 5B), we can track the changes of researchers' focus on this field over time. The network of co-cited references was divided into 16 co-citation clusters. The labels of each cluster were extracted using a log-likelihood ratio. The silhouettes of clusters were all higher than 0.7, ranging from 0.897 (#11) to 1 (#6), which indicated the high consistency of clustered members. The ranking of the clusters was determined by the number of cited articles in the cluster.

TABLE 5
www.frontiersin.org

Table 5. Top 10 high-cited articles related to venous thrombosis after hip or knee arthroplasty.

FIGURE 5
www.frontiersin.org

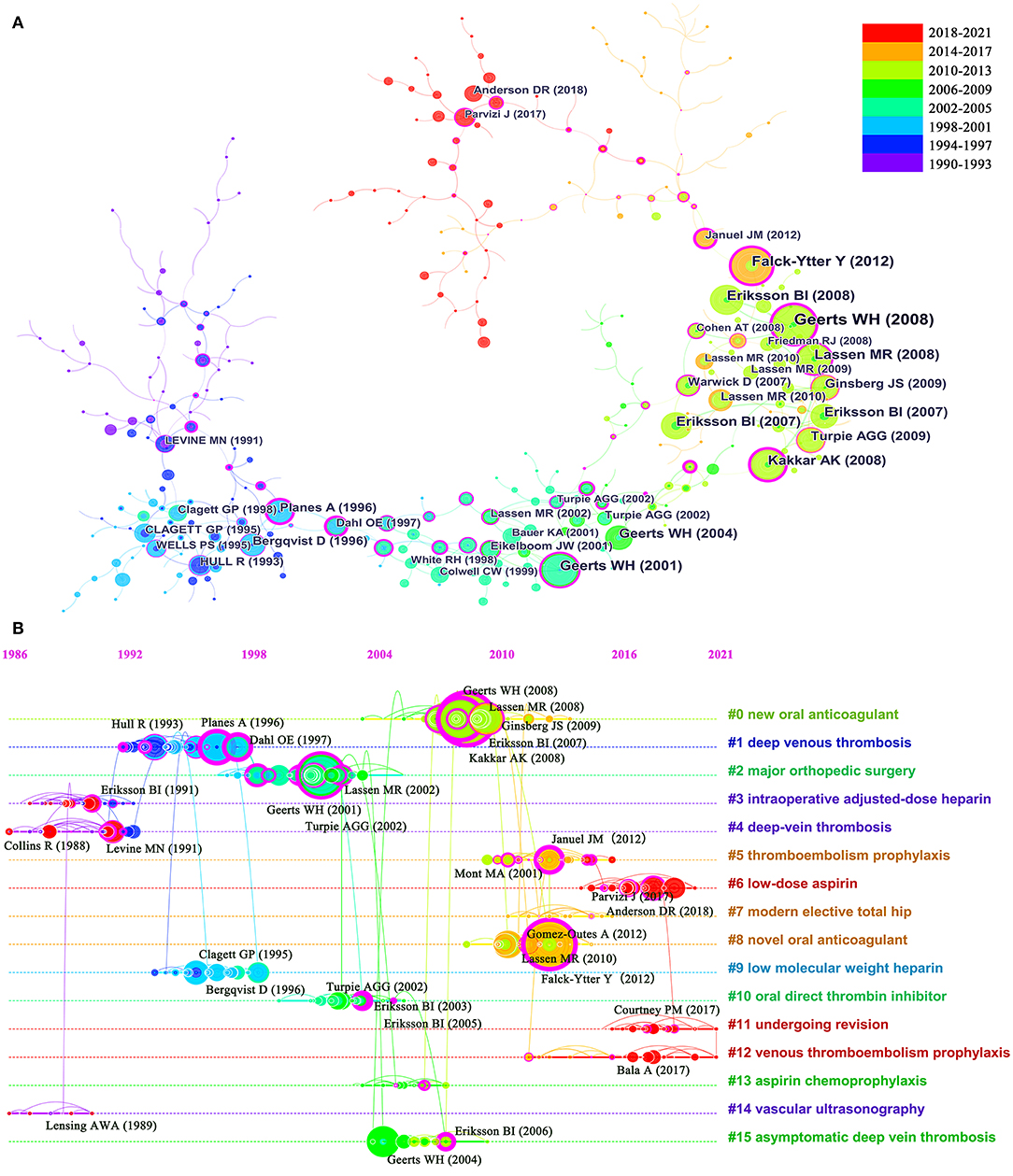

Figure 5. The co-cited reference knowledge map (A) and the timeline graph of co-cited reference clustering (B).

Keywords and Research Interest

Figure 6A showed the co-occurrence keywords knowledge graph. The same meaning words were merged and meaningless words were excluded by CiteSpace. The keywords like “venous thromboembolism,” “arthroplasty,” “prevention,” “deep vein thrombosis,” “low molecular weight heparin,” “enoxaparin,” “pulmonary embolism,” and “risk factor” were the eight keywords used more frequently than 300 in the documents analyzed. A keyword burst was detected based on the analysis of all articles (Figure 6B). The timeline was described as a blue line indicating the beginning year and the ending year, while the period of a burst was marked as a red line indicating the time-span of a citation burst. Keywords with little or no research significance were excluded, and those representatives of the research trends on VTE were focused. Aspirin ranked the highest burst strength (21.40), followed by surgery (21.29), and venous thrombosis (20.51). The latest burst keywords included aspirin, rivaroxaban, risk, complication, and total joint arthroplasty.

FIGURE 6
www.frontiersin.org

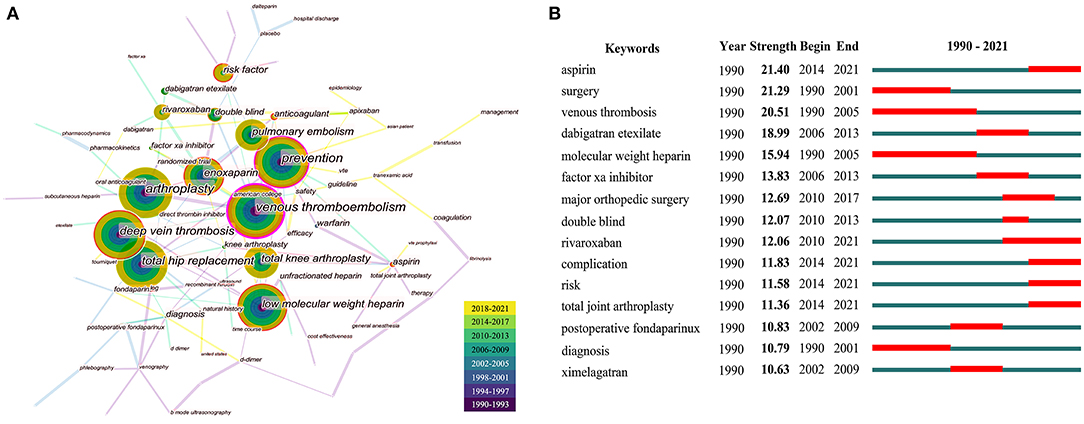

Figure 6. Co-occurrence map of keywords (A) and top 15 keywords with the strongest citation bursts (B).

Discussion

In this study, a bibliometric analysis was performed to visualize the results of global research status on VTE after hip or knee arthroplasty from 1990 to 2021, to reveal changes in research hotspots, and to predict future research trends. Publications on VTE have been numerous and increasing in the past decades (Figure 2). These articles originated from 53 countries and 603 institutions. Accordingly, we think that VTE is a growing research theme and an increasingly important research area worldwide. The USA was the dominant country with the largest number of articles (Table 1). In addition, half of the top 10 most prolific institutions were located in the USA, as shown in Table 2. Besides, in the top 10 most prolific authors (Table 3), four of them were from American institutions. Of note, the two most prolific and most-cited authors were Eriksson BI from Sweden and Lassen MR from Denmark, respectively. The co-cited author network (Figure 3D) showed that the top five co-cited authors were Geerts WH, Eriksson BI, Turpie AGG, Lassen MR, and Hull RD. Authors with high citations and co-citations are generally considered to have made outstanding contributions to the field (14). For beginners, choosing to read these authors' articles would help them to quickly understand the research foundations. Scholars may also choose these institutions or authors for VTE research exchanges and collaborations.

The journals which published the largest number of articles in VTE are bellwethers in orthopedic journals and thrombosis-related journals (Table 4). This trend pointed out that VTE is one of the core topics of orthopedics and thrombosis research. These journals were most favored by researchers around the world, which implies their high reputations and authority within the field of VTE research. Studies published in these prestigious journals are more likely to be recognized and cited. The New England Journal and The Lancet both with high impact factors published the most frequently cited articles in this field by Eriksson BI, Lassen MR, Kakkar AK, and Turpie AGG (2228). Given the wider influence of these journals in their fields to attract readers and citations, scholars will prefer to submit their high-quality works to these journals.

The article's level of evidence rating can be very helpful to orthopedic surgeons in clinical treatment decisions (20). This study found that ~24% of the articles were randomized controlled trials (RCTs) and were rated as level I evidence (Figure 4). In contrast, 36% of the articles were case-control studies and retrospective cohort studies and were rated as level III evidence. In this study, the level I evidence articles were mainly about VTE prophylaxis agents which require rigorous high-ranking evidence studies to clarify their efficacy and safety. Upon statistical analysis, the median number of citations for level I evidence was significantly higher than those for other levels of evidence, demonstrating that articles with higher levels of evidence are favored by VTE researchers and osteopathic physicians. However, the low positive correlation between citations and levels of evidence may be due to less accumulation of citations in articles published recently or the shift in research hotspots to risk factors with level III or IV evidence (29, 30).

Literature with high citation can be considered the most valuable and influential studies in a certain field, hence, new researchers in a particular field could read these papers first before conducting further studies (14, 31). Nine of the top 10 highly cited articles were RCTs with level I evidence, focusing on comparations between rivaroxaban (2224, 28), dabigatran etexilat (25, 32), and apixaban (26, 27, 33) vs. enoxaparin, respectively (Table 5). These three oral agents were found to be more effective than enoxaparin in VTE Prophylaxis after TKA or THA, and there was no statistical difference in the risk of bleeding.

The analysis of co-cited reference clustering and keyword co-occurrence can reflect the research hotspots in the field. Co-cited reference clustering analysis is a process of simplifying co-cited articles to a few clusters based on co-cited networks. The timeline of co-cited reference clustering and keyword burst detection can further track the evolution of research hotspots and predict future research trends (14). In this study, the most frequent keywords included VTE, PE, DVT, arthroplasty, prevention, enoxaparin, low molecular weight heparin (LMWH), and risk factor, indicating that the management of VTE after arthroplasty was of considerable interest to researchers around the world (Figure 6A). In addition, sixteen co-cited article clusters were identified (Figure 5). The serial numbers were arranged according to the cluster size, and they divided the field into different topics in detail. A chronological summary of these clusters and bursting keywords revealed that research hotspots switched from VTE diagnosis (cluster #14) and heparin (cluster #3, #1, #9) to factor Xa inhibitors (fondaparinux, rivaroxaban, apixaban, cluster #0, #8) and direct thrombin inhibitors (dabigatran etexilate, ximelagatran, cluster #10), and finally to aspirin (cluster #6), risk factor studies (cluster #11), and complication (22, 24, 25, 27, 3439). Some topics burst with long durations, such as VTE and LMWH with a time-span of both 15 years, and rivaroxaban lasting from 2010 until now (23, 35) (Figure 6B). Keyword bursts in the early 21st century showed that the scholars mainly focused on factor Xa inhibitors (fondaparinux, rivaroxaban, apixaban) and direct thrombin inhibitors (dabigatran etexilate, ximelagatran) (25, 27, 38). Among the newer burst keywords, aspirin was a hot topic with the highest strength of 21.4 from 2014 to 2021 (8, 3941). The constant shift of research hotspots for VTE prophylaxis indicated that scholars were always seeking more affordable, better tolerated, safer, and more effective oral drugs.

We have to acknowledge that this study has several limitations. First, the databases are continuously updated and only the WOSCC database was analyzed in this study. Therefore, some articles published in other databases may be omitted. Second, similar words such as the abbreviated forms and the plural forms need to be merged during the analysis, which makes the process cumbersome. Finally, some important recent articles may not have insufficient time to accumulate citations, which leads to the fact that recent breakthroughs might not draw enough attention yet. A follow-up study could be conducted in the future to evaluate the influence of these articles in the field.

Conclusions

To our knowledge, this report is the first bibliometric analysis to provide a novel insight into the global evolving research foci and trends on VTE after hip or knee arthroplasty. Our findings suggest that the management of VTE post-arthroplasty has generated a tremendous and increasing research interest over the past few decades, ultimately exerting a critical influence on clinical decision-making. The largest contributions were made by the USA, and we found that the higher level of evidence of a publication got, the more often it would be cited. Particular areas of high research attention included VTE prophylaxis agents (warfarin, LMWH, direct factor Xa inhibitors, direct thrombin inhibitors, and aspirin) and risk factors, based on which keyword trends predict that future research may focus on individualized VTE prevention. Furthermore, new, safe, effective, and inexpensive oral agents need to be further developed. In summary, this study provides a comprehensive analysis of global research status and hotspots, and thus lays the groundwork for future research.

Data Availability Statement

The original contributions presented in the study are included in the article/supplementary material, further inquiries can be directed to the corresponding authors.

Author Contributions

WS and TM: writing-original draft. PW: conceptualization, project administration, and writing-review and editing. WS, TM, QC, and JW: data curation and methodology. LH and BZ: formal analysis and validation. YW and QW: resources and software. All authors have read and approved the submitted version.

Funding

This work was supported by the Youth Cultivation Project of Xi'an Health Commission (Program No. 2020qn18) and the Key Research and Development Program of Shaanxi Province (Program No.2022SF-237).

Conflict of Interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Publisher's Note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.

References

1. Warren JA, Sundaram K, Anis HK, Kamath AF, Higuera CA, Piuzzi NS. Have venous thromboembolism rates decreased in total hip and knee arthroplasty? J Arthroplasty. (2020) 35:259–64. doi: 10.1016/j.arth.2019.08.049

PubMed Abstract | CrossRef Full Text | Google Scholar

2. Rashki Kemmak A, Abutorabi A, Alipour V. Economic evaluation of rivaroxaban versus enoxaparin for prevention of venous thromboembolism after total knee replacement and total hip replacement: a systematic review. Clin Drug Investig. (2020) 40:715–25. doi: 10.1007/s40261-020-00940-4

PubMed Abstract | CrossRef Full Text | Google Scholar

3. Ruppert A, Lees M, Steinle T. Clinical burden of venous thromboembolism. Curr Med Res Opin. (2010) 26:2465–73. doi: 10.1185/03007995.2010.516090

PubMed Abstract | CrossRef Full Text | Google Scholar

4. Cronin M, Dengler N, Krauss ES, Segal A, Wei N, Daly M, et al. Completion of the updated caprini risk assessment model (2013 Version). Clin Appl Thromb Hemost. (2019) 25:1076029619838052. doi: 10.1177/1076029619838052

PubMed Abstract | CrossRef Full Text | Google Scholar

5. Jacobs JJ, Mont MA, Bozic KJ, Della Valle CJ, Goodman SB, Lewis CG, et al. American academy of orthopaedic surgeons clinical practice guideline on: preventing venous thromboembolic disease in patients undergoing elective hip and knee arthroplasty. J Bone Joint Surg Am. (2012) 94:746–7. doi: 10.2106/JBJS.9408.ebo746

PubMed Abstract | CrossRef Full Text | Google Scholar

6. Falck-Ytter Y, Francis CW, Johanson NA, Curley C, Dahl OE, Schulman S, et al. Prevention of VTE in orthopedic surgery patients: antithrombotic therapy and prevention of thrombosis, 9th ed: American College of Chest Physicians Evidence-Based Clinical Practice Guidelines. Chest. (2012) 141:e278S−325S. doi: 10.1378/chest.11-2404

PubMed Abstract | CrossRef Full Text | Google Scholar

7. Geerts WH, Bergqvist D, Pineo GF, Heit JA, Samama CM, Lassen MR, et al. Prevention of venous thromboembolism: American College of Chest physicians evidence-based clinical practice guidelines (8th Edition). Chest. (2008) 133:381S−453S. doi: 10.1378/chest.08-0656

PubMed Abstract | CrossRef Full Text | Google Scholar

8. Shahi A, Bradbury TL, Guild GN III, Saleh UH, Ghanem E, Oliashirazi A. What are the incidence and risk factors of in-hospital mortality after venous thromboembolism events in total hip and knee arthroplasty patients? Arthroplast Today. (2018) 4:343–7. doi: 10.1016/j.artd.2018.02.014

PubMed Abstract | CrossRef Full Text | Google Scholar

9. Januel JM, Chen G, Ruffieux C, Quan H, Douketis JD, Crowther MA, et al. Symptomatic in-hospital deep vein thrombosis and pulmonary embolism following hip and knee arthroplasty among patients receiving recommended prophylaxis: a systematic review. JAMA. (2012) 307:294–303. doi: 10.1001/jama.2011.2029

PubMed Abstract | CrossRef Full Text | Google Scholar

10. Myers D Jr, Farris D, Hawley A, Wrobleski S, Chapman A, Stoolman L, et al. Selectins influence thrombosis in a mouse model of experimental deep venous thrombosis. J Surg Res. (2002) 108:212–21. doi: 10.1006/jsre.2002.6552

PubMed Abstract | CrossRef Full Text | Google Scholar

11. Parvizi J, Ceylan HH, Kucukdurmaz F, Merli G, Tuncay I, Beverland D. Venous thromboembolism following hip and knee arthroplasty: the role of aspirin. J Bone Joint Surg Am. (2017) 99:961–72. doi: 10.2106/JBJS.16.01253

PubMed Abstract | CrossRef Full Text | Google Scholar

12. Yukizawa Y, Inaba Y, Kobayashi N, Kubota S, Saito T. Current risk factors for asymptomatic venous thromboembolism in patients undergoing total hip arthroplasty. Mod Rheumatol. (2019) 29:874–9. doi: 10.1080/14397595.2018.1524959

PubMed Abstract | CrossRef Full Text | Google Scholar

13. Sloan M, Premkumar A, Sheth NP. Projected volume of primary total joint arthroplasty in the U.S. 2014 to 2030. J Bone Joint Surg Am. (2018) 100:1455–60. doi: 10.2106/JBJS.17.01617

PubMed Abstract | CrossRef Full Text | Google Scholar

14. Chen C, Hu Z, Liu S, Tseng H. Emerging trends in regenerative medicine: a scientometric analysis in CiteSpace. Expert Opin Biol Ther. (2012) 12:593–608. doi: 10.1517/14712598.2012.674507

PubMed Abstract | CrossRef Full Text | Google Scholar

15. He J, He L, Geng B, Xia Y. Bibliometric analysis of the top-cited articles on unicompartmental knee arthroplasty. J Arthroplasty. (2021) 36:1810–1818 e1813. doi: 10.1016/j.arth.2020.11.038

PubMed Abstract | CrossRef Full Text | Google Scholar

16. Garcia-Fernandez FJ, Garcia-Fernandez AE, Nava E, Del Pozo JSG, Ikuta I, Jordan J, et al. A bibliometric evaluation of the top 100 cited natalizumab articles. J Neuroimmunol. (2020) 349:577379. doi: 10.1016/j.jneuroim.2020.577379

PubMed Abstract | CrossRef Full Text | Google Scholar

17. He L, Fang H, Wang X, Wang Y, Ge H, Li C, et al. The 100 most-cited articles in urological surgery: a bibliometric analysis. Int J Surg. (2020) 75:74–9. doi: 10.1016/j.ijsu.2019.12.030

PubMed Abstract | CrossRef Full Text | Google Scholar

18. Zhang Y, Wang Y, Chen J, Cheng Q, Zhang B, Hao L, et al. The top 100 cited articles in osteonecrosis of the femoral head: a bibliometric analysis. Biomed Res Int. (2021) 2021:1433684. doi: 10.21203/rs.3.rs-436593/v1

PubMed Abstract | CrossRef Full Text | Google Scholar

19. Yang K, Pei L, Wen K, Zhou S, Tao L. Investigating research hotspots and publication trends of spinal stenosis: a bibliometric analysis during 2000-2018. Front Med. (2021) 8:556022. doi: 10.3389/fmed.2021.556022

PubMed Abstract | CrossRef Full Text | Google Scholar

20. Wright JG, Swiontkowski MF, Heckman JD. Introducing levels of evidence to the journal. J Bone Joint Surg Am. (2003) 85:1–3. doi: 10.2106/00004623-200301000-00001

CrossRef Full Text | Google Scholar

21. Tang F, Dai WB, Li XL, Turghun D, Huang H, Fan YQ. Publication trends and hot spots in femoroacetabular impingement research: a 20-year bibliometric analysis. J Arthroplasty. (2021) 36:2698–707. doi: 10.1016/j.arth.2021.03.019

PubMed Abstract | CrossRef Full Text | Google Scholar

22. Lassen MR, Ageno W, Borris LC, Lieberman JR, Rosencher N, Bandel TJ, et al. Rivaroxaban versus enoxaparin for thromboprophylaxis after total knee arthroplasty. N Engl J Med. (2008) 358:2776–86. doi: 10.1056/NEJMoa076016

PubMed Abstract | CrossRef Full Text | Google Scholar

23. Eriksson BI, Borris LC, Friedman RJ, Haas S, Huisman MV, Kakkar AK, et al. Rivaroxaban versus enoxaparin for thromboprophylaxis after hip arthroplasty. N Engl J Med. (2008) 358:2765–75. doi: 10.1056/NEJMoa0800374

PubMed Abstract | CrossRef Full Text | Google Scholar

24. Kakkar AK, Brenner B, Dahl OE, Eriksson BI, Mouret P, Muntz J, et al. Extended duration rivaroxaban versus short-term enoxaparin for the prevention of venous thromboembolism after total hip arthroplasty: a double-blind, randomised controlled trial. Lancet. (2008) 372:31–9. doi: 10.1016/S0140-6736(08)60880-6

PubMed Abstract | CrossRef Full Text | Google Scholar

25. Eriksson BI, Dahl OE, Rosencher N, Kurth AA, van Dijk CN, Frostick SP, et al. Dabigatran etexilate versus enoxaparin for prevention of venous thromboembolism after total hip replacement: a randomised, double-blind, non-inferiority trial. Lancet. (2007) 370:949–56. doi: 10.1016/S0140-6736(07)61445-7

PubMed Abstract | CrossRef Full Text | Google Scholar

26. Lassen MR, Raskob GE, Gallus A, Pineo G, Chen D, Portman RJ. Apixaban or enoxaparin for thromboprophylaxis after knee replacement. N Engl J Med. (2009) 361:594–604. doi: 10.1056/NEJMoa0810773

PubMed Abstract | CrossRef Full Text | Google Scholar

27. Lassen MR, Gallus A, Raskob GE, Pineo G, Chen D, Ramirez LM, et al. Apixaban versus enoxaparin for thromboprophylaxis after hip replacement. N Engl J Med. (2010) 363:2487–98. doi: 10.1056/NEJMoa1006885

PubMed Abstract | CrossRef Full Text | Google Scholar

28. Turpie AG, Lassen MR, Davidson BL, Bauer KA, Gent M, Kwong LM, et al. Rivaroxaban versus enoxaparin for thromboprophylaxis after total knee arthroplasty (RECORD4): a randomised trial. Lancet. (2009) 373:1673–80. doi: 10.1016/S0140-6736(09)60734-0

PubMed Abstract | CrossRef Full Text | Google Scholar

29. Sloan M, Sheth N, Lee GC. Is obesity associated with increased risk of deep vein thrombosis or pulmonary embolism after hip and knee arthroplasty? A large database study. Clin Orthop Relat Res. (2019) 477:523–32. doi: 10.1097/CORR.0000000000000615

PubMed Abstract | CrossRef Full Text | Google Scholar

30. Courtney PM, Boniello AJ, Levine BR, Sheth NP, Paprosky WG. Are revision hip arthroplasty patients at higher risk for venous thromboembolic events than primary hip arthroplasty patients? J Arthroplasty. (2017) 32:3752–6. doi: 10.1016/j.arth.2017.07.028

PubMed Abstract | CrossRef Full Text | Google Scholar

31. Peng MS, Chen CC, Wang J, Zheng YL, Guo JB, Song G, et al. The top 100 most-cited papers in long non-coding RNAs: a bibliometric study. Cancer Biol Ther. (2021) 22:40–54. doi: 10.1080/15384047.2020.1844116

PubMed Abstract | CrossRef Full Text | Google Scholar

32. Committee RMW, Ginsberg JS, Davidson BL, Comp PC, Francis CW, Friedman RJ, et al. Oral thrombin inhibitor dabigatran etexilate vs North American enoxaparin regimen for prevention of venous thromboembolism after knee arthroplasty surgery. J Arthroplasty. (2009) 24:1–9. doi: 10.1016/j.arth.2008.01.132

PubMed Abstract | CrossRef Full Text | Google Scholar

33. Lassen MR, Raskob GE, Gallus A, Pineo G, Chen D, Hornick P, et al. Apixaban versus enoxaparin for thromboprophylaxis after knee replacement (ADVANCE-2): a randomised double-blind trial. Lancet. (2010) 375:807–15. doi: 10.1016/S0140-6736(09)62125-5

PubMed Abstract | CrossRef Full Text | Google Scholar

34. Lensing AW, Prandoni P, Brandjes D, Huisman PM, Vigo M, Tomasella G, et al. Detection of deep-vein thrombosis by real-time B-mode ultrasonography. N Engl J Med. (1989) 320:342–5. doi: 10.1056/NEJM198902093200602

PubMed Abstract | CrossRef Full Text | Google Scholar

35. Hull R, Raskob G, Pineo G, Rosenbloom D, Evans W, Mallory T, et al. A comparison of subcutaneous low-molecular-weight heparin with warfarin sodium for prophylaxis against deep-vein thrombosis after hip or knee implantation. N Engl J Med. (1993) 329:1370–6. doi: 10.1056/NEJM199311043291902

PubMed Abstract | CrossRef Full Text | Google Scholar

36. Lassen MR, Bauer KA, Eriksson BI, Turpie AG, European Pentasaccharide Elective Surgery Study Steering. Postoperative fondaparinux versus preoperative enoxaparin for prevention of venous thromboembolism in elective hip-replacement surgery: a randomised double-blind comparison. Lancet. (2002) 359:1715–20. doi: 10.1016/S0140-6736(02)08652-X

PubMed Abstract | CrossRef Full Text | Google Scholar

37. Eriksson BI, Dahl OE, Ahnfelt L, Kalebo P, Stangier J, Nehmiz G, et al. Dose escalating safety study of a new oral direct thrombin inhibitor, dabigatran etexilate, in patients undergoing total hip replacement: BISTRO I. J Thromb Haemost. (2004) 2:1573–80. doi: 10.1111/j.1538-7836.2004.00890.x

PubMed Abstract | CrossRef Full Text | Google Scholar

38. Eriksson BI, Dahl OE, Buller HR, Hettiarachchi R, Rosencher N, Bravo ML, et al. A new oral direct thrombin inhibitor, dabigatran etexilate, compared with enoxaparin for prevention of thromboembolic events following total hip or knee replacement: the BISTRO II randomized trial. J Thromb Haemost. (2005) 3:103–11. doi: 10.1111/j.1538-7836.2004.01100.x

PubMed Abstract | CrossRef Full Text | Google Scholar

39. Anderson DR, Dunbar M, Murnaghan J, Kahn SR, Gross P, Forsythe M, et al. Aspirin or Rivaroxaban for VTE Prophylaxis after hip or knee arthroplasty. N Engl J Med. (2018) 378:699–707. doi: 10.1056/NEJMoa1712746

PubMed Abstract | CrossRef Full Text | Google Scholar

40. Undas A, Brummel-Ziedins K, Mann KG. Why does aspirin decrease the risk of venous thromboembolism? On old and novel antithrombotic effects of acetyl salicylic acid. J Thromb Haemost. (2014) 12:1776–87. doi: 10.1111/jth.12728

PubMed Abstract | CrossRef Full Text | Google Scholar

41. Matharu GS, Kunutsor SK, Judge A, Blom AW, Whitehouse MR. Clinical effectiveness and safety of aspirin for venous thromboembolism prophylaxis after total hip and knee replacement: a systematic review and meta-analysis of randomized clinical trials. JAMA Intern Med. (2020) 180:376–84. doi: 10.1001/jamainternmed.2019.6108

PubMed Abstract | CrossRef Full Text | Google Scholar

Keywords: venous thromboembolism (VTE), hip arthroplasty, knee arthroplasty, bibliometric analysis, hotspots, research trends

Citation: Song W, Ma T, Cheng Q, Wen P, Wu J, Hao L, Zhang B, Wang Y, Wang Q and Zhang Y (2022) Global Research Status and Trends in Venous Thromboembolism After Hip or Knee Arthroplasty From 1990 to 2021: A Bibliometric Analysis. Front. Med. 9:837163. doi: 10.3389/fmed.2022.837163

Received: 16 December 2021; Accepted: 21 March 2022;
Published: 07 April 2022.

Edited by:

Lalitha Nayak, Case Western Reserve University, United States

Reviewed by:

Yazan Abou-Ismail, The University of Utah, United States
Irina Churilov, St Vincent's Hospital (Melbourne), Australia

Copyright © 2022 Song, Ma, Cheng, Wen, Wu, Hao, Zhang, Wang, Wang and Zhang. This is an open-access article distributed under the terms of the Creative Commons Attribution License (CC BY). The use, distribution or reproduction in other forums is permitted, provided the original author(s) and the copyright owner(s) are credited and that the original publication in this journal is cited, in accordance with accepted academic practice. No use, distribution or reproduction is permitted which does not comply with these terms.

*Correspondence: Pengfei Wen, wenpengfei@pku.edu.cn

These authors have contributed equally to this work

Disclaimer: All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article or claim that may be made by its manufacturer is not guaranteed or endorsed by the publisher.
