Electrochemical Studies of LbL Films With Dawson Type Heteropolyanion Glassy Carbon Electrode Sensor Modified for Methyl Parathion Detection

Rapid methyl parathion detection was measured using a fabricated glassy carbon electrode (GCE) sensor designed using the layer-by-layer (LBL) method. Multilayer assemblies were developed on the glassy carbon electrode by alternating depositions of anions and cations in which a Dawson Type Polyoxometalate β-K₆[(P₂W₁₈O₆₂·H₂O)]·14H₂O (∼P₂W₁₈ POM) and polyethyleneimine (PEI) stabilized silver nanoparticles (∼PEI-AgNPs) acted as anions and cations, respectively. The redox behavior of P₂W₁₈ POM within LBL assembly was carried out via cyclic voltammetry. This LBL assembly was thoroughly characterized by UV-Visible, FT-IR, XRD, AFM, and SEM techniques. The fabricate GCE sensor was investigated for the electrocatalytic activity to detect methyl parathion. The results clearly showed that the fabricated GCE sensor was successfully synthesized. More interestingly, the current response for detecting methyl parathion was found to be less than 1 ppm, proving that this fabricated GCE sensor may exhibit potential applications in the detection of targeted pesticide.

GRAPHICAL ABSTRACT

GRAPHICAL ABSTRACT

1 Introduction

Pesticides play a vital role in different fields, being used as in the agricultural field for pest and weed control (Hussain et al., 2020) and for harvesting crops (Zheng et al., 2020), in homeland security, as a warfare agent, and also in food security (Facure et al., 2017). Pesticides contain a chemical used to kill unwanted organisms that can be present in different public places, i.e., gardens and agricultural areas (Hassaan and El Nemr, 2020). Among worldwide used pesticides, which are applied to control pests, approximately 36% belong to the organophosphorus pesticide class (Oultaf et al., 2022). Pesticides have the potential to decrease losses in crop production, especially from pests. Therefore, a pesticide is an integral part of crop production (Van Den Berg et al., 2022). Some pesticides exhibit photochemical transformation reactions for producing metabolites that have nontoxic effects on the environment and human health (Aktar et al., 2009). Pesticides have been manufactured all over the world, however, the United States is the top supplier of pesticides with ten billion tons of pesticides’ production per annum. One-third of global crops are spoiled during harvesting, growth, and stowing without pesticides (Parham and Rahbar, 2010). Some pesticides in combined form have specific harmful effects on living organisms such as cancer and endocrine disorders (Sousa et al., 2020), neurological diseases, immune system destruction, ocular or endocrine disruption, and dermal disorders (Negatu et al., 2016). In 1970, organophosphate pesticides were introduced in the market, and they are now the largest class of pesticide. The compounds which contain phosphorous are called organophosphate (OPs) (Febbraio et al., 2011). Organophosphates (OP) have nitro-phenyl groups or halogens (which are electrochemically active compounds). There are some methods for detecting methyl parathion. Among them, traditional methods for detecting MP include analytical methods i.e., gas chromatography-mass spectrometry (GC-MS), liquid chromatography (LC) (Luo et al., 2021), fluorescence, capillary electrophoresis (Attig et al., 2021), and high-performance liquid chromatography (HPLC) (Wolff et al., 2004). These analytical techniques have many disadvantages, such as involving expensive instruments and having complicated steps during sample preparation. Therefore, a sensitive, selective, and accurate method is needed to replace the analytical methods. Modern methods are considered cheaper, have a short detection time, are easy to handle, and are more portable compared to traditional detection methods. Modern detection methods include cyclic voltammetry (Hou et al., 2019), amperometry (Silva Junior et al., 2021), and impedance spectrometry (Kumaravel et al., 2021). Electrochemical sensors have been widely used for the detection of organic species, contaminants in the environment (Iqbal, 2020; Shanmugam et al., 2021; Sher et al., 2021) such as heavy metals (Jin et al., 2014), pesticides (Akyüz et al., 2019), and the composition of medicine. Electrochemical methods can reduce and oxidize analytes simultaneously. These methods have the ability to detect the contaminants with high selectivity and sensitivity (Shoaib et al., 2017; Bahadur et al., 2019; Bilge et al., 2021). In this view, modifying an electrode surface with appropriate nanoparticles that deliver excellent electrocatalytic capability to detect the pesticides on the electrode surface is a beneficial approach to fabricate a chemical sensor with excellent analytical performance. Numerous nano-materials, nano-tubes, and nano-composites have been studied in the reported literatures for the electrochemical detection of pesticides (Bolat and Abaci, 2018; Tian et al., 2018).

Polyatomic anions such as niobium, tungsten, vanadium, and molybdenum are transition metal oxides that may be utilized to build inorganic hybrid materials (27). The general formula of Polyoxometalate is XaMbOcn-; heteroatom X (Co, Si, Mn, P, and Fe, etc.) and metal M (Mo, W, V, and Nb, etc.) (28). Polyoxometalate (POM) are compounds of d-block transition metal coordinated with oxygen atoms (24). POM belongs to the inorganic metal oxides cluster family, and these metal oxides have a negative charge (25). POMs exist in an oxygen-rich complex with controllable size, shape, and charge (26). POMs can accept the numerous electrons giving rise to mixed-valence species and have the ability to connect with d–block transition metals at specific sides. These connections would apply to electronic, optical, and magnetic properties for making new substances (Baaalla et al., 2021). POMs have the dramatic capability to mix with water and some organic solvents, and on solid-state properties, they may be applied as homogenous catalysts (Vila-Nadal et al., 2012). The types of POM include Dawson, Kegging, Anderson, hourglass, and sandwich (Ying et al., 2019; Lan et al., 2020; Tian et al., 2020). POMs have many applications in different fields, such as acting as a photocatalyst for H₂ production (Gao et al., 2021). Protein-based POMs may be used for enhanced anti-bacterial activity in the biological field (Zhao et al., 2020) and in electrochemical studies for the detection of toxic compounds (Kowsalya et al., 2019). POMs may have been used for the fabrication of many types of substrates i.e., glassy carbon electrodes (GCEs) and screen-printed electrodes (SPEs). Various methods have been employed to fabricate POMs, including the layer-by-layer method (LBL) (Yaqub et al., 2022), electrochemical deposition method, Langmuir Blodgett method, and sol-gel process. The LBL method involves multilayer buildup by using both cationic and anionic species with alternate deposition (Ali et al., 2020). LBL method has been found suitable for the deposition of polyelectrolytes, control over film growth, and thickness of the film at the nanometer scale. By using this method the deposited films were mechanically robust and permeable for small molecules (Ammam, 2013).

In this article, we report that the active surface of the electrode with the fabrication of both anionic POM and cationic PEI-AgNPs was done by self-assembled layer-by-layer technique. The multilayer film was prepared by alternating depositions of cationic and anionic species and the composite film was characterized by UV-visible spectroscopy, FT-IR, XRD, AFM, and SEM. This hybrid film was used for the detection/sensing of targeted pesticides (MP) via the cyclic voltammetry technique. It has shown Dawson type Heteropolyoxoanions glassy carbon electrode sensor for detecting pesticides, which have multilayer films prepared by alternate deposition. These multilayer films show excellent electro-catalytic activity for detecting toxic compounds due to their nontoxic effects and eco-friendliness, which make it more applicable for future food safety and industrial and agricultural processes.

2 Materials and Methods

2.1 Chemicals

The parent Dawson Polyoxometalate was synthesized according to the literature (Content et al., 1990). Sodium tungstate (Na₂WO₄·2H₂O) (Sigma), orthophosphoric acid (85%) (H₃PO₄) (MERCK), ammonium chloride (NH₄Cl) (DAEJUNG), potassium chloride (KCl) (DAEJUNG), potassium hydrogen carbonate (KHCO₃) (MERCK), silver nitrate (AgNO₃) (CARIOERBA), polyethyleneimine (PEI) (Sigma Aldrich), and distilled water (Reservoir Elga) are all analytical grade chemicals that were used in the synthesis. Different electrolytes were prepared for electrochemical measurements (0.1M Na₂SO₄), (0.1M Na₂SO₄ + 20 mM CH₃CHOOH) and 0.04M Britton Robinson Buffer. Dawson/PDDA PEI-AgNPs fabricated GCE was prepared for electrochemical measurements (cyclic voltammetry) after purging/degassing of all buffers.

2.2 Preparation of Polyethyleneimine Stabilized Silver Nanoparticles

The current research is shown in Scheme 1. Silver nanoparticles (AgNPs) were prepared by dissolving silver nitrate (16.9 mg) in 10 ml distilled water followed by the addition of 300 µL polyethyleneimine (PEI). The solution container was wrapped entirely with covered aluminum foil and heated at 80°C until a light brown color appeared (40).

SCHEME 1

SCHEME 1. The current investigation is shown in diagram form.

2.3 Electrochemical Procedure

Electrochemical studies were done on Gamry Potentiostat using a 3-electrode system. A glassy carbon electrode was used as a working electrode. Silver-silver chloride (Ag/AgCl) electrode saturated in Potassium Chloride (KCl) was used as a reference electrode. Platinum wire was used as a counter for cyclic voltammetry characterization. Electrolytes were taken in the cell. All three electrodes (modified electrode that acts as working electrode, reference electrode, and counter electrode) were dipped in the cell. A glassy carbon electrode (GCE) was used as a working electrode and polished with alumina powder of 1.0, 0.3, and 0.05 micron, respectively. GCE was dipped in 0.5 ml polydimethyldiaylammomium chloride (PDDA) solution for 30 min and then slightly rinsed with distilled water after removing from PDDA solution. After that, the electrode was dipped in the metal substituted POM for 20 min. PDDA/Dawson POM-based modified electrode was again rinsed with distilled water to remove unwanted material. Then the modified electrode was dipped in 0.5 ml PEI-AgNPs for 20 min. The same procedure was followed to build up sixteen layers on the GCE.

2.4 Instrumentations

Ultra-violet visible characterization of synthesized silver nanoparticles was carried out by using a UV-Visible spectrophotometer (PARKEN ELMER LAMDA 750). Distilled water was used in the whole process. Fourier transform infrared analysis was performed on the Thermo Fisher Scientific FTIR and used for characterizing the synthesized Dawson POM in powder form. Scanning electron microscope (SEM) characterization was carried out by using NOVA NANO SEM at 500 nm. SEM characterized the multilayer formation of synthesized nanoparticles and Dawson POM. Multilayer formation was developed on the glassy carbon electrodes. X-ray diffraction determined the crystalline structure and phase and was carried out using Bruker D8 XRD. The structure of synthesized POM and buildup multilayers film on the active surface of the modified screen-printed electrode (SCPE) was also characterized via XRD. Atomic force microscope gave information about 3-D topography by using AFM-PARK XE7. Built up multilayers of Dawson POM and PEI stabilized AgNPs on SCPE for analysis.

3 Results and Discussions

3.1 Characterization With Physical Methods

3.1.1 UV-Vis Spectroscopy Characterization

Using PEI solution, preparation and stabilization of silver nanoparticles were carried out to make chelate of transition metal ions (silver metal ions) with amino groups in PEI, which were confirmed by UV-vis spectroscopy. As shown in Supplementary Figure S1, the color change from colorless to brown solution confirmed the preparation of PEI-Ag NPs. UV-vis spectrum of PEI- Ag NPs exhibited the absorption (λ_max) peak at 430 nm which is in good agreement with data described in the literature (Kim et al., 2010; Imar et al., 2015; Wen et al., 2017).

3.1.2 FT-IR Studies

FTIR spectra exhibited characteristics vibration bands of Dawson Polyoxometalate compounds in 4000-500 cm⁻¹. The peak values revealed terminal W=O and v (P-O) vibrations, whereas bridge’s vibrations of inter and intra tungstate-oxygen-tungstate (W-Ob-W) bands in the range of 700 and 900 cm⁻¹ were presented in Supplementary Table S1 (43). Supplementary Figure S2 showed the physical appearance of Dawson-type POM. In Supplementary Figure S3, the characterization bands of heteropolyanions are between 700 and 1,100 cm⁻¹, which proved the Dawson structure.

3.1.3 X-Ray Diffraction Analysis

The spectra Supplementary Figure S4 showed that the designed materials were in amorphous form and the main diffraction angles were recorded at 2 thetas (12°, 15°, 24°, 26°, 31°, 32°, 36°, 55°, and 53°) and two thetas (26.7°, 28.55°) for the Dawson POM and fabricated PDDA/P₂W₁₈ POM/AgNPs/SCPE respectively. There was good agreement with the data described in the literature (Modvig et al., 2019). P₂W₁₈ POM and PEI-AgNPs were used for multilayer formations on the screen-printed electrode (SCPE), and XRD characterization showed the amorphous structure of fabrication of PDDA/P₂W₁₈ POM/PEI-AgNPs on the active surface of screen printed electrodes (SCPEs) with multilayers (Zhao et al., 2021).

3.1.4 Scanning Electron Microscope Studies

Changes in films morphology of fabricated samples with P₂W₁₈ POM and PEI-AgNPs deposited on PDDA modified electrodes were examined via scanning electron microscope. SEM image of a modified electrode with POM and PEI- AgNPs (outer layer) deposit film exhibits the aggregates with an average size of 500 nm, as shown in Figure 1A. SEM image of modified electrode PEI stabilized AgNPs and POM (outer layer) deposit film exhibit the construction of identical agglomerates with size is 500 nm, as shown in Figure 1B.

FIGURE 1

FIGURE 1. SEM of multilayer assembly (A) outermost layer is AgNPs, (B) outermost layer is POM at 500 nm.

3.1.5 Atomic Force Microscope Studies

Surface images of Dawson POM and PEI-stabilized AgNPs deposited on screen-printed electrodes were performed by Atomic force microscope (AFM) and are shown in Figure 2. Atomic force microscope images were conducted at intervals throughout the multilayers via deposition method to investigate the variations in the topography during the process. Images of samples such as blank/SCPE (A), PDDA/SCPE (B), PDDA/cobalt substituted Dawson POM/PEI-AgNPs/SCPE with outer layer PEI-AgNPs (C), and PDDA/PEI-AgNPs/cobalt substituted Dawson POM/SCPE with outer layer cobalt substituted Dawson POM (D) were used to find the topography of the multilayers. An AFM image obtained with PDDA/SCPE has a more spherical structure indicative of polymeric film. These structures of all LBL films have a hemispherical shape (Anwar et al., 2014).

FIGURE 2

FIGURE 2. AFM image; (A) Bare/SPE (B) PDDA/SCPE (C) PDDA/P₂W₁₈ POM/PEI-AgNPs/SCPE with outer layer PEI-AgNPs (D) PDDA/PEI-AgNPs/P₂W₁₈ POM/SCPE with outer layer of POM.

3.2 Electrochemical Measurements

3.2.1 Solution Electrochemistry

The electrochemical redox properties of cobalt substituted Dawson POM were recorded in 3 ml acetate buffer (0.1M Na₂SO₄ and 20 mM CH₃COOH) via cyclic voltammetry (CV) technique. One reversible redox pair I-I’ exhibited and redox potential E_1/2 = (Epa + Epc) is—0.650 mV correlated with redox behavior of tungsten-oxo framework of (P₂W₁₈) Dawson type Polyoxometalate in cyclic voltammograms (Imar et al., 2015), which are shown in Figure 3.

${\left[P_2{W}_{18}{O}_{62}\right]}^{6-}+2{\text{e}}^{-}+2H^{+}\mathit{\rightleftharpoons }{\left[H_2{P}_2{W}_{18}{O}_{62}\right]}^{6-}$

${\left[H_2{P}_2{W}_{18}{O}_{62}\right]}^{6-}+2{\text{e}}^{-}+2H^{+}\mathit{\rightleftharpoons }{\left[H_4{P}_2{W}_{18}{O}_{62}\right]}^{6-}$

FIGURE 3

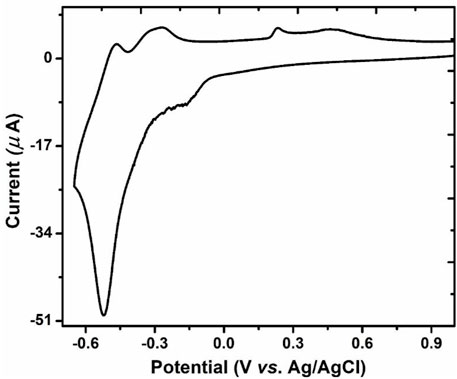

FIGURE 3. CV of GCE, P₂W₁₈ POM containing electrolyte in 0.1 M acetate buffer with scan rate 100 mVs⁻¹.

3.2.2 Multilayer Formations on Glassy Carbon Electrodes

The polydimethyldiallyammonium chloride (8% PDDA) was introduced to prepare glassy carbon electrodes (GCE). A glassy carbon electrode was polished with alumina powder and dipped in 0.5 ml 8% PDDA solution (polycations). CV was recorded in 10 ml acetate buffer pH 3.5 in Supplementary Figure S5A. Multilayer formation depends on cationic and anionic moieties. Multilayers were built up with P₂W₁₈ POM and AgNPs stabilized with polyethyleneimine on PDDA/GCE modified electrode with layer-by -layer (LBL) method and degassing with nitrogen gas before each layer formation. CV was recorded in 0.1 M acetate buffer pH 3.5 at a scan rate of 100 mV/S after formation. In multilayer formation, the outermost layer was P₂W₁₈ Dawson Polyoxometalate, anionic moieties. In Supplementary Figure S5B, the peak of current (uA) increases gradually in the redox couple I, increasing the number of layers and decreasing peak to peak separation in recorded CV. The incorporative AgNPs exhibited a small increase in the current peak during the construction of multilayers. A slight anodic shift was examined for the W-O redox process with layer-by-layer assembly immobilization associated with the POM solution response, which demonstrated the interactions between POM and PEI-stabilized AgNPs within the construction of multilayers (Anwar et al., 2014).

3.2.3 Scan Rate Study

For scan rate study, a glassy carbon electrode was modified with P2W18 POM and PEI-AgNPs. After making multilayers, a scan rate study of fabricated P₂W₁₈ POM/AgNPs/GCE modified electrode was carried out via cyclic voltammetry. 0.1 M acetate buffer, pH 3.5 was used in the 3-electrode system. Figure 4 shows cyclic voltammograms of multilayers of PDDA/POM/AgNPs at 10 to 400 scan rate mVS⁻¹ on GCE. In cyclic voltammograms, redox couples exhibited a gradual change in oxidation and reduction peaks. Scan rate study depends on the anionic moieties (POM as the outermost layer). The current was increased with the increase of scan rate mVS⁻¹.

FIGURE 4

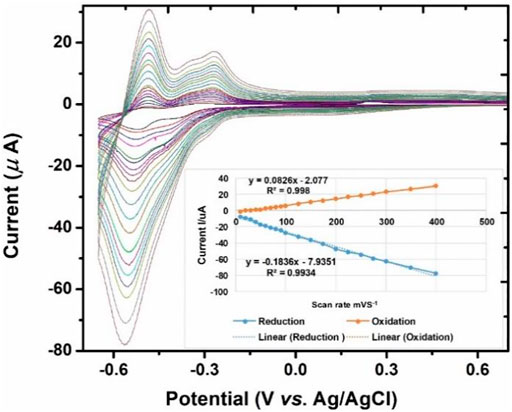

FIGURE 4. CV of PDDA/P₂W₁₈ POM/PEI-AgNPs/GCE in 0.1 M acetate buffer at different scan rates 10 to 400 mVs^-1.

3.2.4 pH Study

The pH study of P₂W₁₈ POM depends on the pH of the buffer. In electrochemical measurements, reduction of P₂W₁₈ POM went together with protonation. Oxidation and reduction peaks of P₂W₁₈ POM vary with the pH of the buffer. Therefore, the electrochemical study was pH-dependent. Three different types of acetate buffers were prepared for pH study. The first acetate buffer was 0.1 M Na₂SO₄ at (pH = 2, 2.5, and 3). The second acetate buffer was 0.1M Na₂SO₄ and 20 mM CH₃COOH at (pH = 3.5, 4, 4.5, and 5). The third was 0.1M Na₂SO₄ and Na₂H₂PO₄ at (pH = 5.5 and 6). All pH studies were carried out via the cyclic voltammetry technique. Figure 5A presents fabricated P2W18 POM/PEI-AgNPs/GCE, which was used for pH studies at a scan rate of 100 mVS⁻¹. It was discovered that film showed the stable redox activity linked with Tungsten-oxo centers within Dawson POM between pH ranges 2 to 6 based on acetate buffers solution. Dawson POM exhibited a redox process and shifted cathodically with the pH increase and the number of protons linked with each redox process. In Figure 5B, the current decreases when the pH value of the electrolyte increases. The resulting slope value of Dawson POM was examined at 0.017 mV/pH due to the addition of proton per monoelectronic redox process in solution (Anwar et al., 2014; Zhou et al., 2021). Calculated E_1/2 values at different pH are presented in Table 1 (Sukirtha and Usharani, 2013).

FIGURE 5

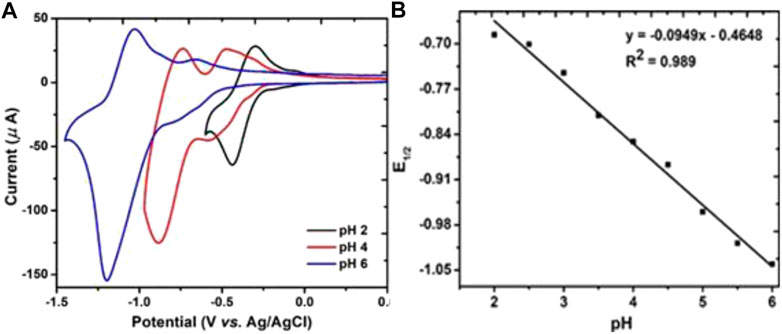

FIGURE 5. (A) Cyclic voltammograms of multilayers assemblies of fabricated P₂W₁₈ POM/AgNPs/GCE in pH 2, 4 and 6 (0.1M Acetate buffer) at scan rate 100mV/S.(B) pH versus reduction potential E_1/2.

TABLE 1

TABLE 1. pH study of fabricated P₂W₁₈ POM/AgNPs/GCE.

3.2.5 Permeability of Layer-By-Layer Films

The permeability of layer-by-layer (LBL) films was investigated through cyclic voltammetry (CV) towards cationic and anionic redox probes, such as potassium ferricyanide K₃[Fe(CN)₆], and characterized by monoelectronic redox process. Redox transformations occurred on the electrode surface or within LBL film after diffusion by the redox probe. Figure 6A exhibited the cyclic voltammogram of bare GCE and fabricated GCE with PDDA, P₂W₁₈ POM, and PEI-AgNPs layer-by-layer film depending on the number of layers and outermost layer (Fay et al., 2005). Fe (CN)₆ can penetrate the multilayers and react at the bare GCE. Repulsion produced between the outer anionic layer and Fe (CN)6 significantly increases the peak-to-peak separation. Fabricated GCE with LBL films led to suppressing the redox probes’ peaks, which created difficulty for the probe for diffusion in the layer-by-layer (LBL) films at the GCE. Surface permeability of fabricated GCE (eight multilayers) with cationic PEI-AgNPs (outermost layer) exhibited redox activity of the anionic probe at the GCE due to electrostatic interactions between the anionic probe and cationic layer (outermost layer).

FIGURE 6

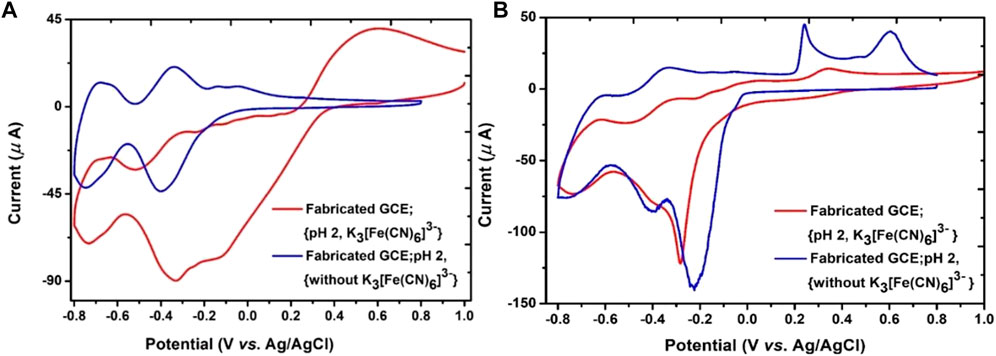

FIGURE 6. (A) Permeability of P₂W₁₈ POM towards K₃Fe (CN)₆ redox probe diffusion. Cyclic voltammograms were recorded at pH 2 acetate buffer, Scan rate 100 mVS⁻¹ before and after added layer. (B) Fabricated GCE (16 multilayers) with the anionic outermost layer. Scan rate 100mV/S.

In Figure 6B, fabricated GCE (16 multilayers) with anionic POM (outermost layer) showed no redox activity due to unfavorable electrostatic repulsion between the anionic probe and outermost layer. The cathodic current increased the redox processes by increasing film thickness determined in the presence of anionic probe, resulting in electrocatalytic reduction due to electron transfer from cationic species (Naseer et al., 2015). The experiment was carried out in 0.1 M acetate buffer at pH 2, 0.1M Na₂SO_4, and 1 mM Potassium ferricyanide K₃[Fe(CN)₆] solution was prepared for permeability at scan rate 100 mV/S (Anwar et al., 2014). A small reduction in current peaks associated with the redox process of the electrode can be investigated with the increase in peak-to-peak separation on fabricated GCE while decreases in peak-to-peak separation can be seen on bare GCE (Imar et al., 2015).

3.2.6 Electrochemical Response of P2W18 Polyoxometalate

The electrochemical performance of P₂W₁₈ Polyoxometalate towards methyl parathion was investigated in 0.04 M Britton Robison Buffer at pH 4.5 via cyclic voltammetry. Chemical mechanism of methyl parathion reduction is given in Figure 7. Figure 8A shows the CV curve of P₂W₁₈ Polyoxometalate in the presence and absence of methyl parathion along with fabricated PDDA/P₂W₁₈ POM/PEI-AgNPs/GCE. With the addition of 20 µL methyl parathion, the reduction peak current increases gradually. The penetration of transition centers with heteropolyanions enhanced the catalytic behavior and generated highly reduced products by the electrons from the reduced W-O framework. These results exhibited a reduced form of HPA that catalyzes the methyl parathion reduction. Catalytic current peak (−0.7V) increased with the increase of MP concentration. Sensitivities were assessed with a linear range of 0.2–2.0 mM. The detection limit was achieved at 29 µM methyl parathion detection at LBL composite PDDA, P₂W₁₈ and PEI-AgNPs and showed the limit of detection was found at 1 ppm (Hou et al., 2019). In Figure 8B, the reduction current peak increases with the addition of the concentration of the analyte. The reduction current peak is directly proportional to the concentration of methyl parathion.

FIGURE 7

FIGURE 7. Chemical mechanism of methyl parathion reduction.

FIGURE 8

FIGURE 8. (A) Methyl Parathion catalysis on the P₂W₁₈ Polyoxometalate LBL composite films. CV of P₂W₁₈ Polyoxometalate-AgNPs multilayer in each step was recorded before adding analyte (black) curve and after adding analyte; (0.2–2.0 mM), pH 4.5, and scan rate 10mV/S. (B) Electro-catalytic for detection of methyl parathion on LBL film of P₂W₁₈ POM with multilayers.

4 Conclusion

This study used a layer-by-layer method for the electrostatic deposition of cationic PEI-AgNPs and anionic POM species. The newly prepared composite film was thoroughly characterized by UV-Vis, FT-IR, XRD, AFM, and SEM techniques. The colorless solution of PEI turned to brown after adding the silver nitrate, which was due to the complex formation of Ag⁺ with the functional group (amino) of PEI, resulting in PEI-AgNPs that was confirmed by the presence of absorption peak at 430 nm in the UV-Vis spectroscopy. FT-IR studies revealed that the peak at 884 cm⁻¹ corresponded to W- O_c -W of Dawson POM. XRD analyses showed that the amorphous structure was formed by applying LBL fabrication of composite films. Surface images of composite films were obtained by AFM, which showed that the structures of all LBL composites films have a hemispherical shape. SEM results showed that composite films exhibited the construction of identical agglomerates with size 500 nm. The results of all the characterizations showed that composite film was successfully synthesized. Furthermore, all electrochemical measurements were studied by using CV. The composite film showed pH-dependent redox behavior within the pH range (2–6) and exhibited excellent stable redox properties towards P₂W₁₈ POM. The LBL composite film was also investigated for its catalytic efficiency towards the detection of methyl parathion. The electrocatalysis exhibited the current response for the detection of methyl parathion and was found at less than 1 ppm. This LBL composite film was fruitfully applied for the detection of pesticide (MP).

Data Availability Statement

The original contributions presented in the study are included in the article/Supplementary Material, further inquiries can be directed to the corresponding authors.

Author Contributions

NAD: Visualization of data, reviewed the original manuscript and critical revision. MY: Interpret the data, writing-original draft preparation. SN: Conception, design of the study, writing-original draft preparation. SJ: Conception, design of the study, acquisition of data. SUH: Visualization of data, reviewed the original manuscript. MJ: Conception, design of the study, acquisition of data, interpret the data. SI: Interpret the data, performed major experimental works, writing-original draft preparation and editing. EBE: Financial funding, visualization of data. FHA: Interpret the data, and critical revision. NA: Reviewed original manuscript, and critical revision. RMA: Reviewed original manuscript, and critical revision. NSA: Visualization of data, CV analysis, writing reviewing and editing. HAI: Conception, visualization of data, performed CV analysis, acquisition of data.

Conflict of Interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Publisher’s Note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.

Acknowledgments

The authors extend their appreciation to the Deanship of Scientific Research at King Khalid University for supporting this work through research groups program under grant number R.G.P.2/120/42. RA would like to acknowledge Taif University Researchers Supporting Project Number (TURSP-2020/209), Taif University, Taif, Saudi Arabia. The authors extend their appreciation to the Research Center at AlMaarefa University for funding this work.

Supplementary Material

The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fmats.2022.877683/full#supplementary-material
