Junlin Wang1,2†
Fuyuan Zeng1,2†
Haiyun Feng1,2Liangchuan Chen1,2
Weijie Zhang1,2Xing Xiao1,2
Sean J. Monaghan3
Jichang Jian1,2
Huanying Pang1,2*Na Wang4- 1Fisheries College, Guangdong Ocean University, Zhanjiang, China
- 2Guangdong Provincial Key Laboratory of Aquatic Animal Disease Control and Healthy Culture and Key Laboratory of Control for Diseases of Aquatic Economic Animals of Guangdong Higher Education Institutes, Zhanjiang, China
- 3Institute of Aquaculture, University of Stirling, Stirling, Scotland, United Kingdom
- 4Chinese Academy of Inspection and Quarantine, Beijing, China
Vibrio alginolyticus, a zoonotic bacterial pathogen, expresses a type III secretion system (T3SS) that is critical for pathogen virulence and disease development. In this study, the mutant HY9901 ΔaraC was obtained from the laboratory and its biological characteristics were analyzed. The swimming ability of ΔaraC decreased and exhibited a 2,600 times reduction in virulence to zebrafish. However, ΔaraC showed no difference in growth and extracellular protease activity compared to wild type. Biofilm-forming ability was improved at 24 h, but no difference was observed at other time points. The results of drug sensitivity testing showed that compared with the wild-type HY9901 strain, ΔaraC was sensitive to amikacin, tetracycline, neomycin, minocycline, and gentamicin. The transcription levels of T3SS effector proteins HopPmaJ, VopS, VcrV, and VopN were analyzed by qRT-PCR. The results showed that ΔaraC had significantly upregulated the mRNA expression of VopS, VcrV, and VopN, but significantly downregulated the mRNA expression of HopPmaJ at each stage compared with HY9901. Western blotting and the β-galactosidase reporter gene experiment also showed that the deletion of araC gene significantly downregulated the expression of HopPmaJ. Finally, the relative percent survival (RPS) rate of grouper inoculated by intramuscular (IM) injection of HY9901 ΔaraC was 61.3% after being challenged with HY9901. Real-time qPCR analysis showed that vaccination of HY9901 ΔaraC could enhance the expression of immune-related genes, including gata-1, il6, IgM, il-1β, and lyz in liver and spleen, indicating that ΔaraC applied as a live-attenuated vaccine effectively induced an immune response in the zebrafish. This study provides evidence for the subsequent development of an effective live-attenuated V. alginolyticus vaccine.
Introduction
Vibrio alginolyticus exhibits characteristics of a halophilic and mesophilic Gram-negative bacterium (Rameshkumar et al., 2014; Yang et al., 2021). It is commonly present in the microfauna of the marine environment and a variety of marine animals. It is one of the main pathogens of fish, shrimp, shellfish, and other mariculture animals (Bunpa et al., 2020). In addition to V. alginolyticus representing a conditional pathogen of fish, it poses a serious threat to human public health and threatens the Chinese aquaculture industry, with reports of it causing human food poisoning, otitis media, septicemia, and other diseases (Li et al., 2009; Bunpa et al., 2018). Due to the large-scale outbreak of V. alginolyticus and the long-term overuse and abuse of a large number of antibiotics and other chemical drugs, drug resistance of Vibrio is increasing daily with major implications to the aquaculture industry (Shahimi et al., 2021).
The mechanism of bacterial drug resistance is complex (Stewart, 2001), and there are limited reports on the pathogenic mechanisms of V. alginolyticus. So far, researchers have not solved this problem. Prophylactic prevention of disease outbreaks caused by V. alginolyticus through vaccination is a key objective for marine aquaculture, to minimize impact to the water environment and human health while improving the survival rate of aquatic animals (Aly et al., 2021). Therefore, understanding key molecules with roles in virulence can enable identification of potential vaccine candidates and can also avoid the bacterial drug resistance problem, which continues to plague the aquaculture industry.
Research on the pathogenic mechanisms of different bacteria have revealed that many Gram-negative bacteria contain many broadly conserved genes, which encode a type III protein secretion system (Hueck, 1998). When V. alginolyticus contacts and infects the host, the Type III secretion system (T3SS) operates through the injection of bacterial effector proteins into the host cells, resulting in the death of those cells (Zhou et al., 2013). In recent years, research relating to the V. alginolyticus T3SS has elucidated the role of T3SS apparatus proteins (Zhou et al., 2013; Pang et al., 2022), chaperone proteins (Wu et al., 2020), effector proteins (Pang et al., 2018), and regulatory proteins (Liu et al., 2016; Zhou et al., 2020). From current knowledge on Vibrio parahaemolyticus and Pseudomonas aeruginosa, the transcription of V. alginolyticus T3SS genes is regulated by ExsA of the AraC/XyIS family of transcription regulators (Yahr and Wolfgang, 2006; Liu and Thomas, 2015; Liu et al., 2016).In addition to activating the expression of virulence-related genes, AraC family members can also activate the expression of carbon metabolism and stress response genes (Yang et al., 2013). AraC is an AraC family transcriptional regulator, However, the function of V. alginolyticus AraC is poorly understood. In Escherichia coli, AraC is active in the form of a dimer and reacts with small effector molecules bound to the N-terminal domain of protein, so as to regulate carbon metabolism (Lowden et al., 2010). Gene araC has the ability to positively regulate L-arabinose metabolism because it can promote the expression of L-arabinose structural genes araA, araB, and araD, and araBAD encodes three metabolic enzymes required for L-arabinose metabolism (Sheppard and Englesberg, 1967; Singer and Englesberg, 1971). Moreover, at the molecular level, the details of AraC protein response to arabinose have been clarified (Schleif, 2000; Yang et al., 2011). HopPmaJ is a known effector protein of V. alginolyticus eliciting pathogenic effect on orange-spotted grouper (Epinephelus coioides). Diseased fish showed symptoms of ulcer, liver, and kidney bleeding and swelling (Pang et al., 2018). Moreover, regulatory protein TyeA can upregulate the expression of HopPmaJ (Wu et al., 2020); thus, in order to further understand the function of AraC in T3SS, we cloned the V. alginolyticus araC gene and analyzed it bioinformatically (MO et al., 2021). We obtained the mutant strain HY9901 ΔaraC and studied its biological characteristics and pathogenicity, and showed that AraC regulates the transcription of T3SS effector proteins. In addition, here we report on the potential of HY9901 ΔaraC mutant as a candidate live-attenuated vaccine against V. alginolyticus in zebrafish and the associated proinflammatory and immunoglobulin-related immune response induced.
Materials and Methods
Bacterial Strains, Plasmid, and Experimental Fish
The bacterial strains, plasmids, and zebrafish used in this study are listed in Table 1. V. alginolyticus HY9901 was isolated from diseased red snapper (Lutjanus sanguineus) (Cai et al., 2007) in Zhanjiang Port, Guangdong Province. Healthy zebrafish (Danio rerio) were purchased from Zhanjiang Aquatic Market. The average length and weight were 3 cm and 0.3 g, respectively. The zebrafish were tested by bacteriological recovery tests and kept in seawater in a circulation system at 28°C for 2 weeks prior to the experiment. The primers were synthesized by Sangon Biotech Co., Ltd.
Table 1 Bacterial strains, plasmids, and experimental fish used in this study.
Construction of In-Frame Deletion Mutant of araC Gene
In-frame deletion was conducted according to the method used previously (Liu et al., 2016). The upstream and downstream homologous arms of araC coding sequence were amplified. Except for BglII and SalI restriction site sequences, the two amplified fragments contained 10-bp overlapping sequences. These products were used as templates for PCR, and the fusion fragments were amplified by primers at both ends of the upstream and downstream homologous arms. The whole fragment was digested with BglII and SalI and connected to the suicide vector pDM4 (enzyme digestion). The obtained plasmid was electroporated into E. coli S17-1 and transferred into V. alginolyticus HY9901 by electroporation. Ampicillin and chloramphenicol were used to screen the monoclonal strains successfully transferred into plasmids on TSA plates. Several insertional mutant single colonies were taken, scribed on an LB plate (4 g/L L-arabinose), and cultured at 28°C for 18 h. Colonies on the plate were selected. Single colonies with the primer araC-up/araC-down were detected using the wild-type V. alginolyticus as the control. After single-colony purification, amplification verification was carried out again, and the sequencing results were verified to determine whether the mutant strain ΔaraC was successfully constructed.
Characterization of the ΔaraC Mutant Vibrio alginolyticus
Genetic Stability Testing of Mutant HY9901 ΔaraC
The insertion mutant ΔaraC was continuously subcultured 30 times on TSB medium. The primers araC-F/araC-R were used to detect the genetic stability of the mutant at the 30th generation.
Growth Curve of Bacteria
Bacterial growth curves were performed according to Shi et al. (2021). Wild strain HY9901 and mutant strain ΔaraC (OD600 = 0.5) were inoculated at a ratio of 1:100 in fresh TSB medium and cultured at 28°C; OD600 was measured every 2 h including 3 replicates per group. After taking the average value, a growth curve was drawn.
Swarming Motility
Bacterial swarming motility was performed according to the method of Pearson (Pearson, 2019). A single colony of HY9901 and the mutant strain ΔaraC were inserted vertically into the LBS (0.3% Agar and 2% NaCl added to the LB medium). The diameter of the swimming circle was measured after 12 h during incubation at 28°C.
Detection of Extracellular Protease Activity
Extracellular protease activity was assessed according to the method of Zhang et al. (2022) with modifications. HY9901 and mutant strain ΔaraC were coated on TSA plates with sterile cellophane, cultured at 28°C for 24 h, washed with PBS, and centrifuged at low temperature for 30 min; 0.22-μm porous membranes were used to filter the supernatant. Protease activity of the supernatant was measured using azocasein trichloroacetic acid colorimetric determination of solution at OD442.
Detection of Biofilm Formation Ability Using Crystal Violet Ammonium Oxalate
The crystal violet staining method was performed according to O’Toole (2011). HY9901 and mutant strain ΔaraC were cultured to OD600 = 0.5; 100 μl/well was inoculated onto sterile 96-well plates and cultured at 28°C for 6 h, 12 h, 24 h, 48 h, and 72 h. After 72 h, the bacterial solution was washed with PBS and dried; 150 μl of methanol was added for fixation and dried; 150 μl/well crystal violet ammonia oxalate solution was added, rinsed with water, and then dried upside down before the addition of 150 μl of ethanol. The absorbance was read at OD570. The experiment was repeated three times.
Detection of Biofilm Formation Ability Using Laser Scanning Confocal Microscope (LSCM)
Biofilm formation was investigated using a laser scanning confocal microscope (LSCM) as described by Miquel Guennoc et al. (2017). HY9901 and ΔaraC (OD600 = 0.5) were diluted 50-fold, added to glass-bottom culture dishes (spec: type 28.2 mm, class diameter: 20 mm) (Wuxi NEST, Wuxi, China), and statically cultured in a 28°C biochemical incubator for 24 h. Both strains were gently washed three times with PBS, and then combined and incubated with 10% SYTO9 green in the dark for 20 min, washed three times with saline, mounted in 40% saline-glycerol, and observed by confocal microscopy (Zeiss, LSM710, Germany). The excitation wavelength was 488 nm, scanned from the bottom to the top of the biofilm, Z-section was 1 μm apart, and biofilm parameters—biomass and maximum thickness—were determined. Three samples were assessed for each strain and the average readout was calculated.
Dose Response Challenge Test (LD50)
The injection concentrations of wild-type strain HY9901 and ΔaraC were 104, 105, 106, 107, and 108 CFU/ml. The water temperature is controlled to 28°C. In the experimental group, each fish was injected with 5 μl of bacterial solution by intramuscular injection. The control group was treated with 5 μl of PBS (Table 3). The fish were observed for 14 consecutive days until the mortality was stabilized.
Antibiotic Susceptibility
Using the paper diffusion method (Cai et al., 2016), HY9901 and ΔaraC (OD600 = 0.5) were coated on TSA plates, pasted with 30 kinds of antibiotic-sensitive paper, and cultured at 28°C for 12 h, and the sensitivity to the antibiotic was measured and evaluated with vernier caliper.
Transcriptome Sequencing
HY9901 and ΔaraC were cultured in DMEM medium at 28°C until OD600 = 0.5, reinoculated into DMEM medium and cultured at 28°C for 12 h. The bacterial solution was centrifuged, and the precipitated cells were collected and dissolved in Trizol (Takara bio, Inc.). Novogene Co., Ltd. conducted a series of experiments, including mRNA extraction, RNA fragmentation, cDNA synthesis, and RNA SEQ library construction.
Expression Analysis of T3SS-Related Genes
RNA of HY9901 and ΔaraC was provided by Novogene Co., Ltd. The T3SS effector genes in this study were hop (Pang et al., 2018), vopN (Tam et al., 2010), vopS (Osorio, 2018), and vcrV (Kinoshita et al., 2020). 16S rRNA is used as an internal reference. The primers are shown in Table 2. Based on the method of Li et al. (2016b), cDNA was synthesized and real-time PCR was used to analyze the expression of T3SS-related genes.
Table 2 Sequences of primers used in this study.
Preparation of Proteins and Western Blot Analysis
In order to detect the effect of AraC deletion on the secretion of effector protein HopPmaJ, we cultured wild strain HY9901 and deletion strain ΔaraC for 12 h with DMEM. The culture was harvested, washed, and mixed evenly with PBS. A sample combination of 5:1 sample to 6× Protein Loading Buffer (#DL101-02, purchased from Trans Gen Biotechnology Co., Ltd.) was boiled and centrifuged to obtain the whole bacterial protein. After SDS-PAGE, proteins were electrophoretically transferred to a PVDF membrane. The membrane was blocked with TBST solution containing 5% skimmed milk and probed with HopPmaJ serum antibody (the prokaryotic expression vector pET28a-hop was constructed and HopPmaJ serum antibody was prepared by Sangon Biotech Co., Ltd., 1:5,000 diluted in TBST solution). The second antibody was HRP-labeled Goat Anti-Rabbit IgG (#A0208, purchased from Shanghai Beyotime Biotechnology Co., Ltd.) (1:8,000 diluted in TBST solution) and colored by ClarityTM Western ECL substrate (#1705061, purchased from Bio-Rad Co., Ltd.). The automatic chemiluminescence image analysis system (TAN 5200) was used to take photos and record the experimental result.
Construction of Single-Copy lacZ Reporter Fusions and β-Galactosidase Assay
The recombinant plasmid of the pME6522-hop promoter region was constructed. A 363-bp DNA fragment was amplified upstream of hop by primer pME-hop-F/pME-hop-R. PCR products were digested with PstI and EcoRI and cloned into plasmid pME6522 to construct pME6522-hop-lacZ. The plasmid was transformed into E. coli S17 to obtain strain S17-hop-lacZ, respectively, and integrated into V. alginolyticus HY9901 and mutant strain ΔaraC through conjugation to obtain lacZ transcription fusion strains hop-lacZ::HY9901 and hop-lacZ::ΔaraC. hop-lacZ::HY9901 and hop-lacZ::ΔaraC (OD600 = 0.5) were inoculated into fresh TSB at a ratio of 1:100 and cultured for 18 h. After collection, the strains were applied separately to β-galactosidase detection kits (#RG0036, purchased from Shanghai Biyuntian Biotechnology Co., Ltd.). This allowed assessment of β-Galactosidase activity to judge the regulatory relationship between AraC and effector protein HopPmaJ.
Safety Assessment
LD50 experiment confirmed that 105 CFU/ml ΔaraC was not lethal to zebrafish (Table 3). The mutant ΔaraC was cultured in TSB, and the concentration was adjusted to 105 CFU/ml with PBS and the water temperature was maintained at 28°C. Two groups (30 tails/group) were injected intramuscularly with 5 μl of ΔaraC (105 CFU ml−1), and PBS was used as negative control and injected in the same volume. Liver and spleen were sampled continuously for 7 days. The ground zebrafish viscera were diluted with PBS and coated on a TCBS plate. They were cultured at 28°C for 18 h and counted.
Table 3 Experiment of LD50.
Vaccine and Challenge
Vaccination was undertaken according to Ding et al. (2019) with modifications. The water temperature was kept at 28°C. Two groups (80 tails/group) were injected intramuscularly with 5 μl of ΔaraC (105 CFU ml−1), and each fish in the control group was injected with 5 μl of PBS. Four weeks post vaccination, each group (n = 30) was randomly assigned and challenged by intramuscular injection of 5 μl of V. alginolyticus HY9901 (1 × 108 CFU ml−1). Fish were monitored for 14 days. RBS was calculated in the light of the formula (RPS (%) = (1 − immunized group mortality/control group mortality) × 100%).
Histological Sections and Pathological Observation of Spleen and Liver of Zebrafish
Histological analysis was conducted to evaluate safety of HY9901ΔaraC as an attenuated vaccine. After 28 days post-immunization, three zebrafish in the control group and the immunized group were randomly selected for sampling, and the spleen and liver tissues were dissected for histopathological observation. The negative control was a PBS-injected control group, and the positive control was the wild strain HY9901-injected group. Organ samples were fixed in 4% paraformaldehyde for 24 h and transferred to 70% ethanol. The samples were processed through an ethanol gradient, transferred to xylene, embedded in paraffin, and sectioned at 5 μm. The sections were sealed after hematoxylin–eosin (H.E.) staining, and observed and photographed under an optical microscope.
Immune Gene Expression of Zebrafish Induced by HY9901ΔaraC Vaccine
After 4 weeks of immunization, the liver and spleen of zebrafish were collected, added with transzol, and homogenized. According to Li et al. (2016b), total RNA was prepared, and reverse transcription, real-time qPCR detected immune-related genes’ expression levels. Primers for il-6, il-6r, il-1β, il-8, igm, gata-1, lyz, rag-1, tlr5, and c/ebpβ are shown in Table 3, and β-actin was used as internal reference.
Ethics Statement
All animal experiments were conducted strictly based on the recommendations in the Guide for the Care and Use of Laboratory Animals set by the National Institutes of Health. The animal experiments were approved by the Animal Ethics Committee of Guangdong Ocean University (Zhanjiang, China).
Biosecurity
The bacteria protocols were approved by the Biosecurity Committee of Guangdong Ocean University (Zhanjiang, China).
Statistical Analysis
The experimental data were analyzed by single-factor analysis of variance (ANOVA) with SPSS19.0 software. ** indicates highly significant difference compared with the control group (p < 0.01). * indicates significant difference compared with the control group (p < 0. 05).
Results
Construction and Verification of HY9901ΔaraC
The 1,109-bp fragment was amplified by the correct deletion mutation clone, and the length of the HY9901 amplified fragment was 1,827 bp. After cloning and purification, it was amplified and verified again, and the PCR products were submitted for sequencing. The sequencing results confirmed that the mutant strain ΔaraC was successfully constructed Figure 1.
Figure 1 Construction and confirmation of the knockout mutant strain HY9901ΔaraC. M: DL2000 marker; Lane 1, the 1,827-bp fragment amplified from genomic DNAs of the strain HY9901; Lane 2, the 1,107-bp fragment amplified from genomic DNAs of ΔaraC using primer pairs of araC-up/araC-down.
Characterization of the araC
Genetic Stability of Mutants
After the mutant ΔaraC was continuously subcultured for 30 generations, primers araC-F/araC-R were used in PCR to amplify mutant strain ΔaraC and the wild strain. The amplified products were detected by 1.5% agarose gel electrophoresis. The results showed that for the wild strain HY9901, a fragment of 711 bp was obtained. The mutant strain ΔaraC was negative for this fragment (Figure 2A), indicating that the deletion strain ΔaraC can be inherited stably when the gene araC is deleted.

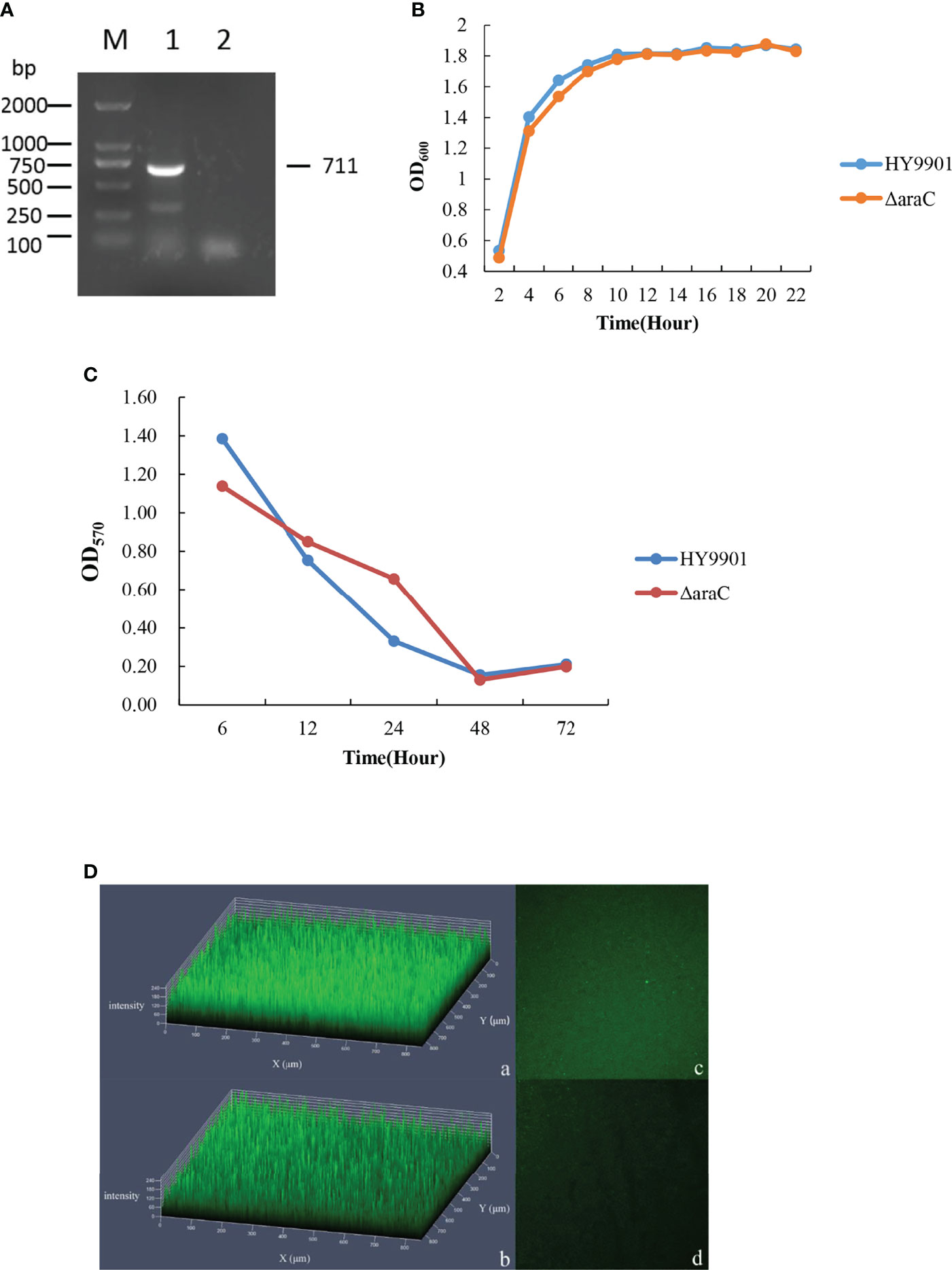

Figure 2 Characterization of the ΔaraC. (A) Genetic stability detection of deletion mutant HY9901ΔaraC. M: DL2000 marker; Lane 1, a fragment of 711 bp is obtained for HY9901 using primer pairs of araC-F/araC-R. Lane 2, the result was negative, and is obtained for HY9901ΔaraC using primer pairs of araC-F/araC-R. (B) Growth rates of HY9901ΔaraC and HY9901. Aliquots of cell culture were taken at various time points and measured for cell density at OD600. (C) Measurement of biofilm by crystal violet ammonium oxalate. (D) Measurement of biofilm by LSCM. a: HY9901ΔaraC 2.5d diagram; b: HY9901 2.5d diagram; c: HY9901ΔaraC 2d diagram; d: HY9901 2d diagram; HY9901 Biofilm thickness: 120 ± 20 μm; HY9901ΔaraC Biofilm thickness: 160 ± 20 μm.
Comparison of Growth Rates of HY9901 and ΔaraC
The growth rate of HY9901 and ΔaraC was similar, and the deletion of araC gene has no effect on the growth of V. alginolyticus (p > 0.05) (Figure 2B). The exponential growth phase of the two bacterial strains was from 0 to 6 h, with growth stationary at 18 h, OD600 ≈ 1.8.
Swarming Motility
HY9901 and ΔaraC were inoculated on the LBS, and the results were as follows: the swarming circle of HY9901 was 39.7 ± 0.4 mm, and that of ΔaraC was 30.8 ± 0.5 mm (Table 4). The swarming circle diameter of HY9901ΔaraC was significantly smaller than that of HY9901 (p < 0.01), indicating that the swarming ability of HY9901 ΔaraC was significantly weakened.
Table 4 Comparison of biological characteristics between HY9901 and HY9901ΔaraC.
Extracellular Protease Activity
Compared with wild strain HY9901, there was no significant difference in the extracellular protease activity of ΔaraC (p > 0.05) (Table 4).
Detection of Biofilm Formation Ability
The biofilm thickness was detected by crystal violet staining (Figure 2C) and confocal scanning (Figure 2D and Table 4). Crystal violet results showed that there were no significant differences in the ability of wild strain HY9901 and mutant strain ΔaraC to form biofilms before 24 h (p > 0.05), The ability of ΔaraC to form a biofilm was stronger than that of wild strain (p < 0.01). There was little difference after 48 h. Confocal electron microscopy (24 h) (Figure 2D) 2.5D results showed that the biofilm of ΔaraC was significantly thicker than that of the wild strain HY9901 (p < 0.01).
LD50 Determination
LD50 results showed that the 50% lethal dose of HY9901ΔaraC was 3,620 times higher than that of the wild strain (Tables 2, 4). The symptoms of body surface hyperemia, abdominal redness and swelling, and slow swimming were observed in the diseased fish. The results showed that the virulence of HY9901 ΔaraC was significantly decreased when compared with the wild strain (p < 0.01).
Antibiotic Susceptibility
According to CLSI standards, the susceptibility of the mutant strain ΔaraC and wild strain HY9901 to 30 kinds of antibiotics was determined by disk diffusion method. Compared with the wild strain, the sensitivity of the ΔaraC strain to amikacin, tetracycline, and neomycin changed from resistant to moderate sensitivity; the sensitivity of the ΔaraC strain to minocycline and gentamicin changed from drug resistant to high sensitivity; and the sensitivity of the ΔaraC strain to chloramphenicol changed from moderate sensitivity to high sensitivity (Table 5).
Table 5 Drug sensitivity test results of the HY9901 and HY9901ΔaraC.
Transcriptome Sequencing Analysis of HY9901 and Strain ΔaraC
Through the transcriptome sequencing analysis of HY9901 and mutant strain ΔaraC, a total of 1,376 differentially expressed genes were screened. Compared with HY9901, 635 genes were upregulated and 741 genes were downregulated in ΔaraC (Table S1). A total of 429 differentially expressed genes were enriched by GO function. The results showed that the differentially expressed genes of mutant strain ΔaraC and HY9901 were mainly related to locomotion, cilium, or flagellum-dependent cell motility and bacterial-type flagellum (Figure 3).
Figure 3 GO enrichment analysis histogram.
T3SS-Related Gene Expression Analysis
qRT-PCR was employed to analyze the transcription levels of T3SS-related effector genes at each time point (6, 12, 24, 48, and 72 h). The results showed that compared with wild strain HY9901, ΔaraC significantly decreased the expression of hopPmaJ (hop) (6, 12, 24, 48, and 72 h) (p < 0.01), but increased the expression of vopN, vopS, and vcrV (6, 12, 24, 48, and 72 h) (p < 0.01) (Figure 4).

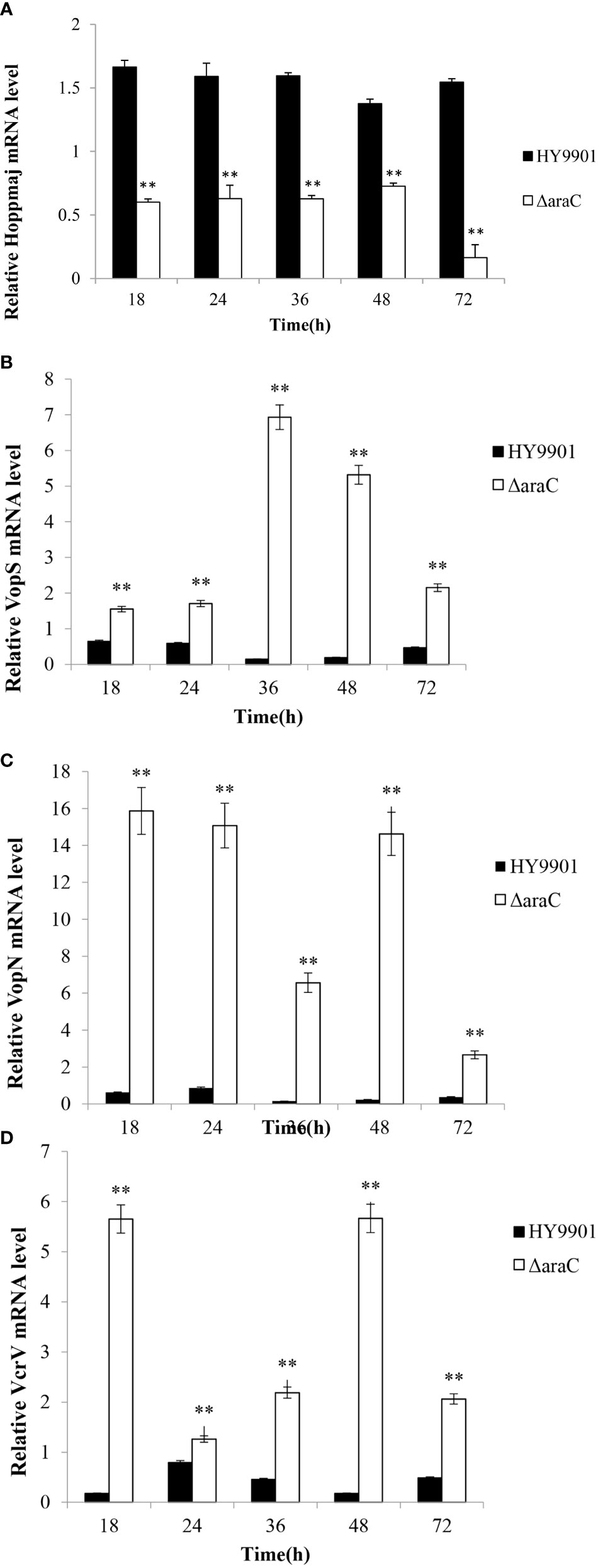

Figure 4 Expression of HY9901 and HY9901ΔaraC T3SS-related genes induced by DMEM. (A) Relative HopPmaJ mRNA level. (B) Relative VopS mRNA level. (C) Relative VopN mRNA level. (D) Relative VcrV mRNA level. *P < 0.05, **P < 0.01.
Expression and Secretion of HopPmaJ Is Regulated by AraC
Western Blot Analysis
The mouse anti-serum to recombinant HopPmaJ rabbit antiserum of V. alginolyticus HY9901 strain was analyzed by Western blot with the whole bacterial protein extracted from HY9901 and ΔaraC. The results showed that the protein recognition and the deletion of araC gene significantly reduced the secretion of HopPmaJ protein (12.78 kDa) (Figure 5A).

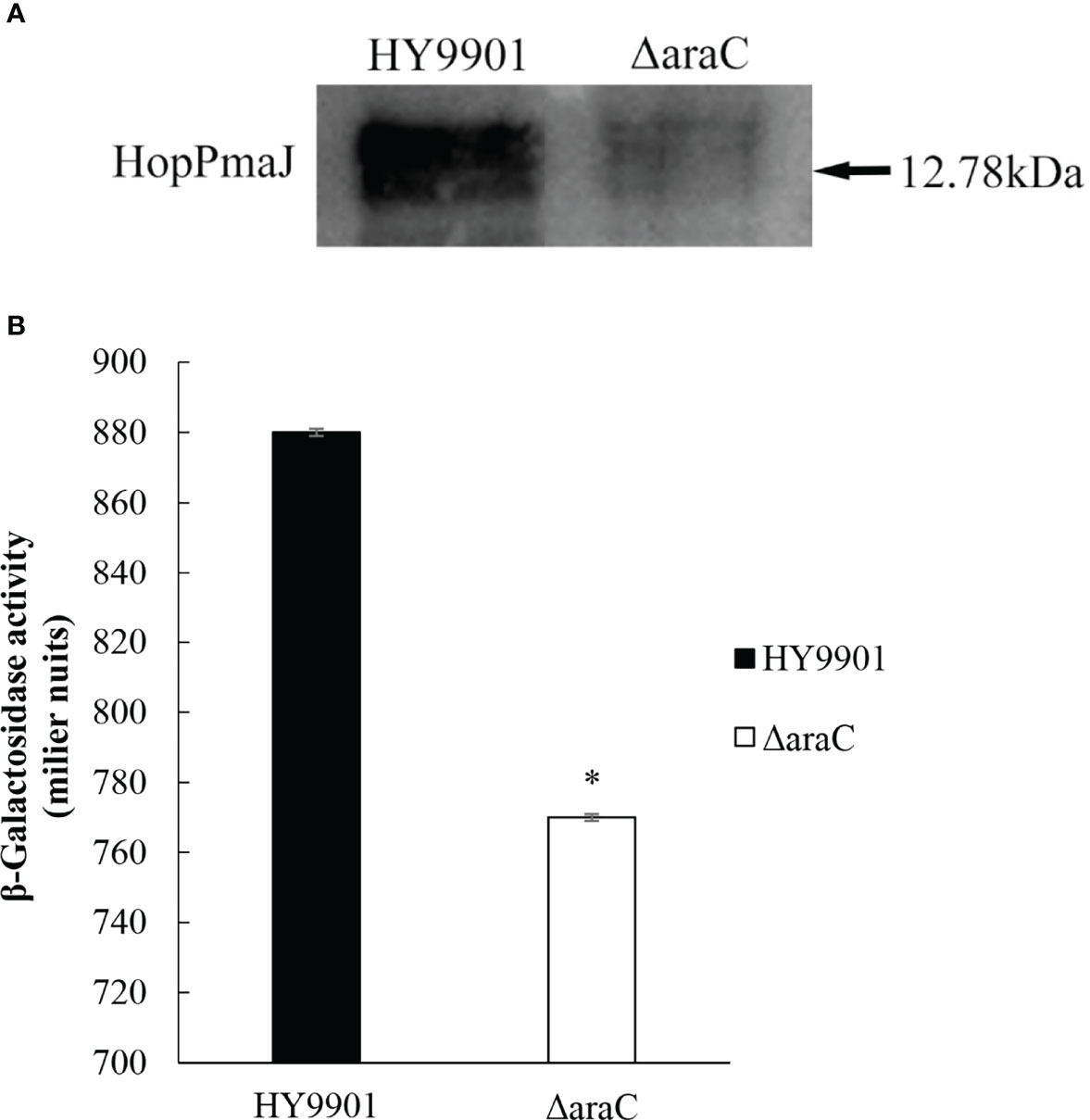

Figure 5 (A) Western blot showing the specificity for the polyclonal antibody against HopPmaJ (12.78 kDa) for the ΔaraC strain (right lane) and wild strain HY9901 (left lane). (B) β-Galactosidase activity from the hop promoter. Promoter activity of hop in HY9901 and ΔaraC. Bacteria were grown in TSB, and levels of β-galactosidase activity were measured (y-axis). The values are the average of three separate experiments, and the standard deviation is indicated by error bars. Asterisks represent statistical difference (p < 0.05).
β-Galactosidase Assay
In this experiment, the recombinant plasmid pME6522-hop-lacZ was introduced into HY9901 and ΔaraC. The lacZ reporter gene fusion experiment was used to study the regulatory relationship between the regulatory factor AraC and HopPmaJ protein (Figure 5B), which can be seen from the results detected in HY9901. β-Galactosidase activity was statistically significantly higher than ΔaraC and has a significant difference (p < 0.05), indicating that AraC can activate the expression of hop gene.
Safety Assessment
The mutant strain ΔaraC can survive in zebrafish. After 2 days of infection, ΔaraC reaches the maximum concentrations in the liver and spleen, then gradually decreases and disappears on the 7th day (Figure 6), indicating that the live-attenuated vaccine is safe for zebrafish.

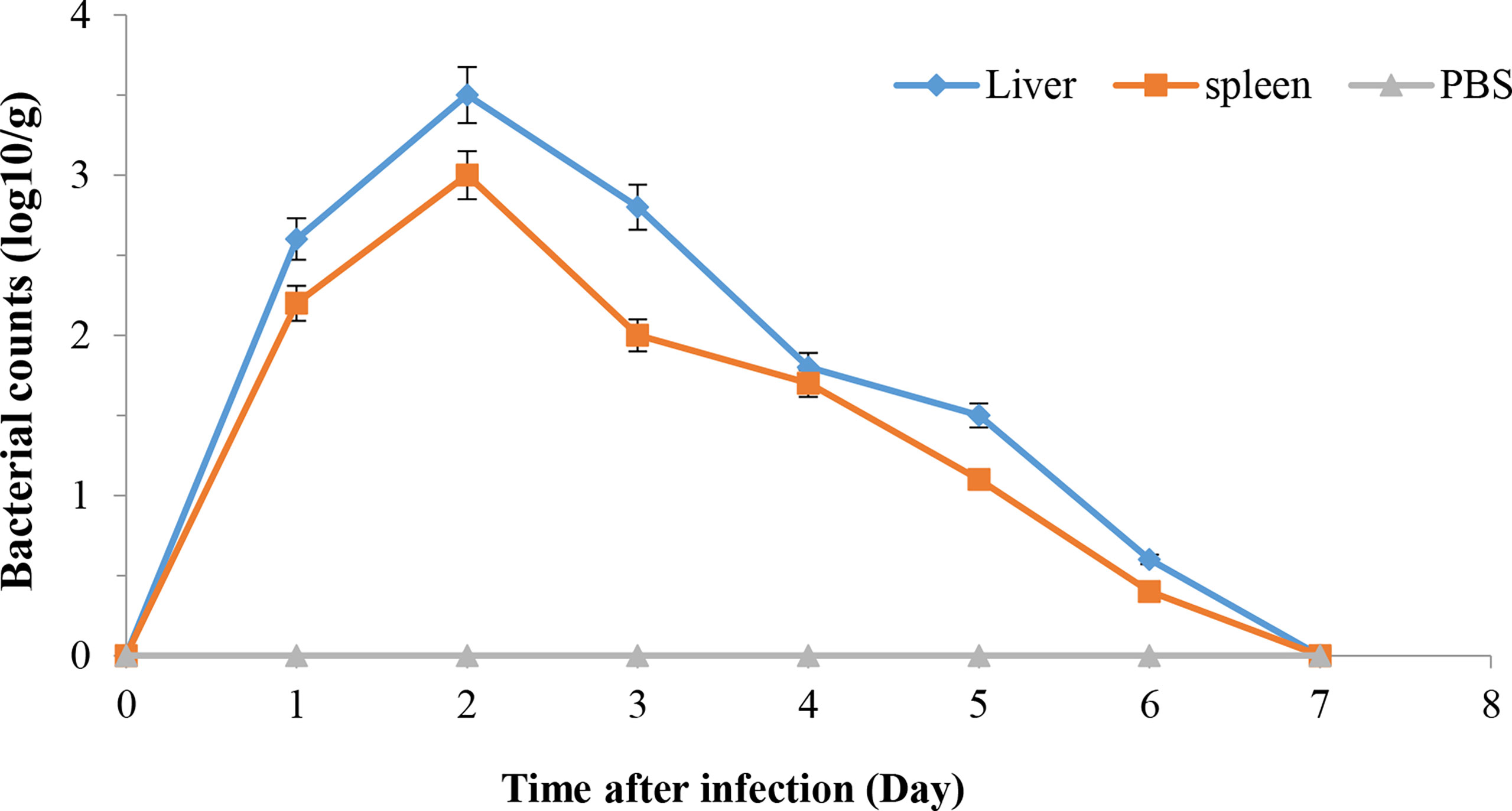

Figure 6 Propagation of HY9901ΔaraC in zebrafish liver and spleen following i.m. injection with 5 μl of 1 × 105 cfu ml−1 ΔaraC. Control fish were i.m. injection with 5 µl of sterile PBS. The number of viable bacteria was shown as the mean ± standard of three samples.
Vaccine Efficacy
Fish vaccinated with ΔaraC were challenged 4 weeks post vaccination with HY9901. Within 14 days, the mortality rate in the control group injected with sterile PBS was 90%, the mortality rate in the injection immunization group was 35%, and the relative percentage survival was 61.3% (Figure 7).

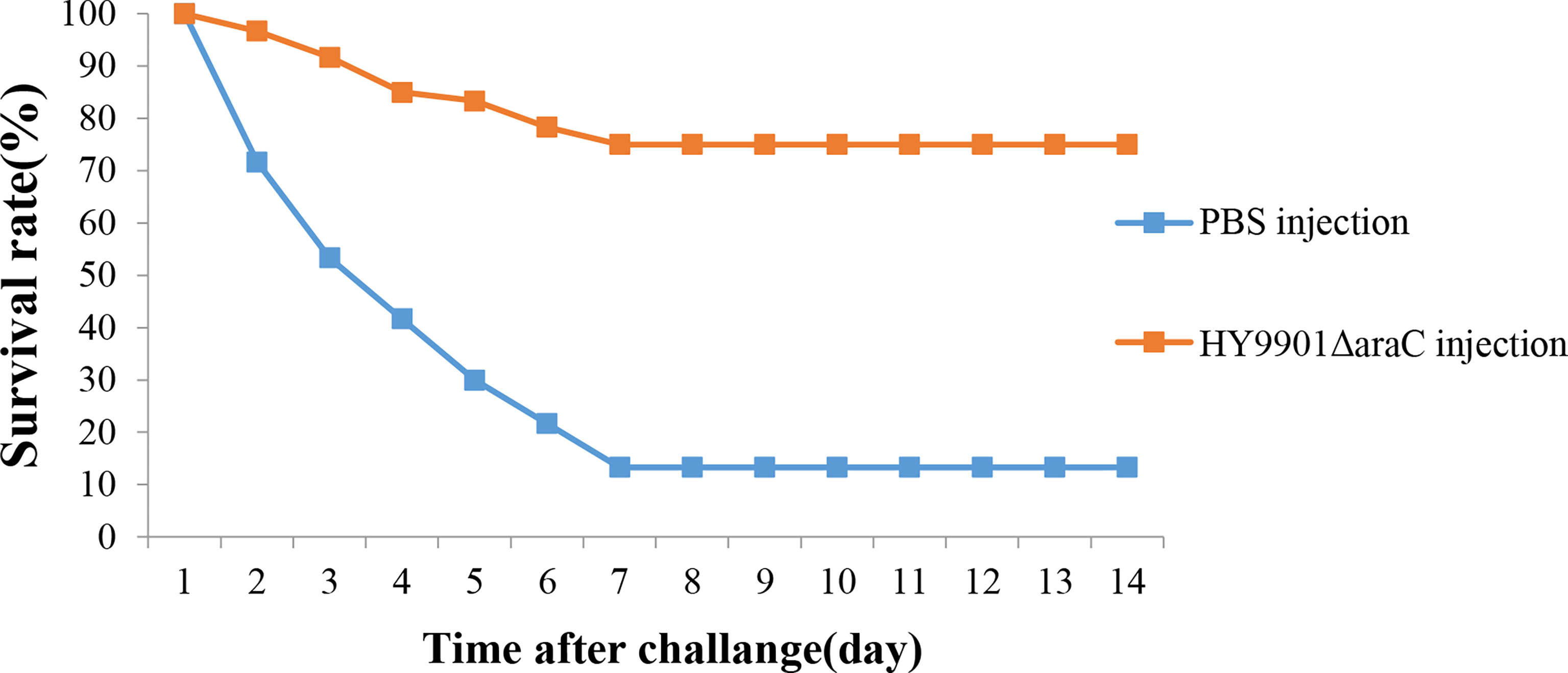

Figure 7 Survival in groups vaccinated with HY9901ΔaraC and PBS following challenge with Vibrio alginolyticus HY9901.
Histological Sections and Pathological Observation of Spleen and Liver of Zebrafish
In the tissue sections, the fish infected with wild strain HY9901 showed symptoms such as hyperemia and blurred lymphocyte boundaries, and a small amount of hyperemia in the liver tissue of the immune group, but not in the negative control group (Figure 8).
Figure 8 Histological sections of spleen and liver of zebrafish. Zebrafish liver tissue section (A1: PBS liver tissue, A2: HY9901 liver tissue, A3: ΔaraC liver tissue); zebrafish spleen tissue section (B1: PBS spleen tissue, B2: HY9901 spleen tissue, B3:ΔaraC spleen tissue). The triangle (▲) represents hyperemia, and the arrow (↗) represents the blurred boundary of lymphocytes in the figure.
Immune Gene Expression of Zebrafish Induced by HY9901ΔaraC Vaccine
Detection of immune gene expression in zebrafish immunized with HY9901ΔaraC live-attenuated vaccine was assessed by qPCR to analyze the transcriptional levels of pro-inflammatory and immunoglobulin-related immune genes. The results showed that the group vaccinated with HY9901ΔaraC had a significantly increased expression of il-6, il-6R, il-1β, il-8, igm, gata-1, lyz, rag-1, tlr5, and c/ebpβ genes in liver and il-6, il-6R, il-1β, igm, gata-1, lyz, rag-1, tlr5, and c/ebpβ genes in spleen compared to control fish injected with PBS (p < 0.01) (Figure 9).

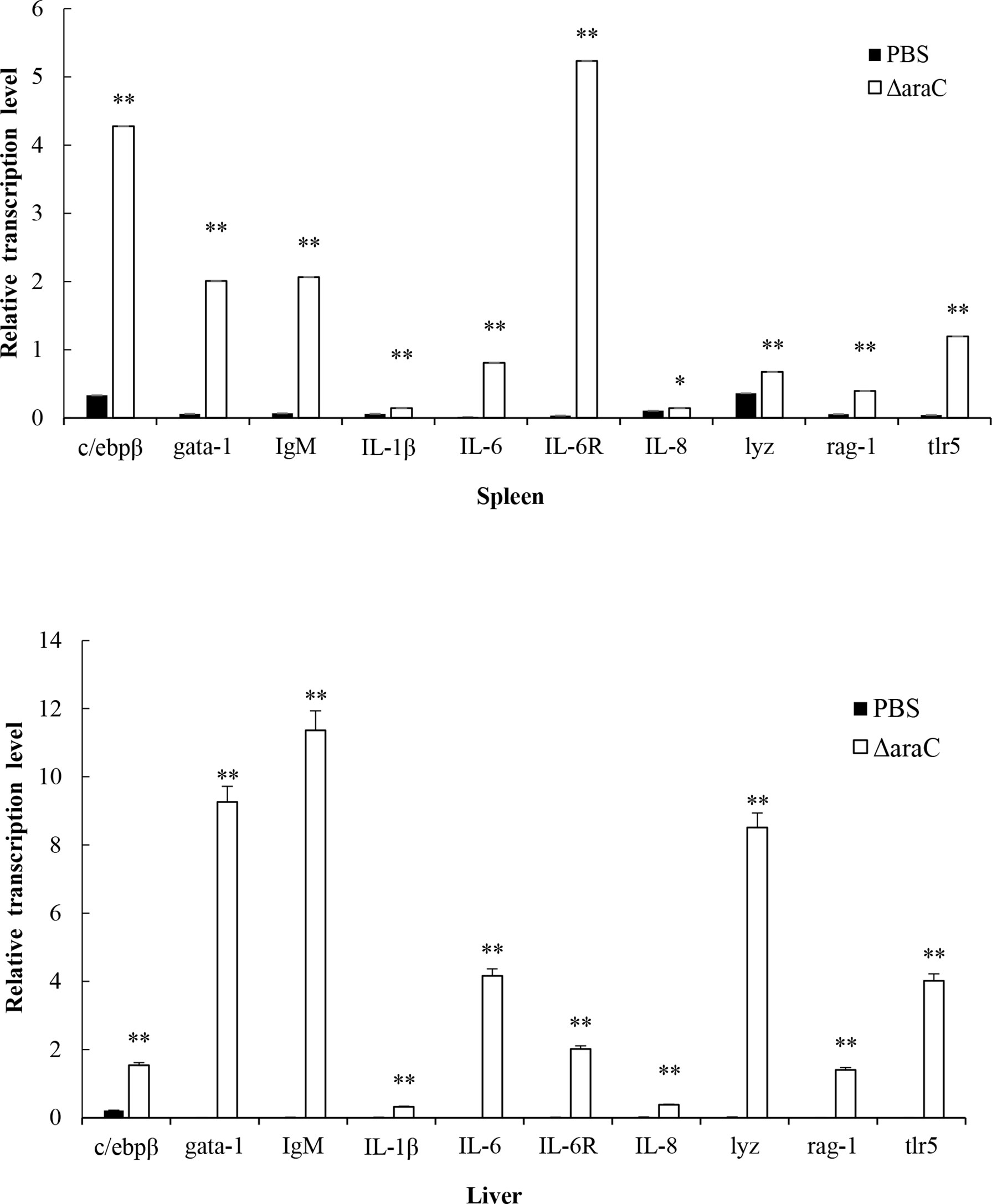

Figure 9 Comparative analysis of the expression of immune-related genes in liver and spleen of zebrafish given the live-attenuated vaccine and unvaccinated zebrafish. The head, kidney, and spleen of grouper were sampled at 1 day before challenge, and the mRNA level of each immune-related gene was normalized to that of β-actin. Bars represent the mean relative expression of three biological replicates and error bars represent standard deviation. *P < 0.05, **P < 0.01.
Discussion
T3SS is an important virulence mechanism of Gram-negative bacteria, which has attracted much attention because it participates in the interaction between bacteria and host. The secretion of T3SS virulence proteins is directly or indirectly regulated by the AraC/XylS family of transcription factors in an environment-specific manner (Hueck, 1998; Hu et al., 2017). In Vibrio cholerae, the overall structure of ToxT is similar to that of AraC protein, and it can directly regulate virulence genes (Li et al., 2016a; Narm et al., 2020), but there is no research on the regulatory function of AraC in V. alginolyticus.
In this study, we obtained the mutant strain ΔaraC of V. alginolyticus, explored its biological characteristics and pathogenicity, and evaluated its potential as a live-attenuated vaccine. The extracellular products (ECPs) produced by V. alginolyticus have a variety of extracellular proteases that represent important virulence factors (Hare et al., 1983). Lee et al. (1996) reported that they isolated an alkaline serine protease from the ECP of V. alginolyticus, which can decompose and destroy the host tissue, resulting in fish disease (Lee et al., 1996). (Zhou et al., 2013) reported that there was no significant difference in growth rate, extracellular protease activity, and biofilm-forming ability after the deletion of vscO gene in V. alginolyticus HY9901 (Zhou et al., 2013). The mutant strain ΔsodB of V. alginolyticus also showed no significant difference in growth rate, but its ability to form biofilm was enhanced (Chen et al., 2019). Biofilms, matrix-encapsulated microbial aggregates, attach to biological or abiotic surfaces, and are resistant to antibiotics (Costerton et al., 1999; Hall-Stoodley et al., 2004). Biofilm formation is the function of self-generated EPS matrix wrapping biofilm cells, which are mainly composed of polysaccharides, proteins, lipids, and extracellular DNA (Flemming et al., 2016). Similarly, as found in this study, there was no significant difference in the growth rate and extracellular enzyme activity of HY9901ΔaraC when compared with the wild-type strain HY9901. These results suggested that gene araC may not affect these characteristics of V. alginolyticus. In addition, only at 24 h was the aggregation ability of biofilm significantly enhanced over that of the wild-type strain HY9901, and it was basically the same at other times. During the pathogenic process of bacteria, density sensing systems can regulate the formation of biofilm (Scutera et al., 2014). Therefore, AraC protein significantly affects the biofilm thickness during the stable period of bacterial growth, which may be related to the phenomenon of density sensing, but this needs further experimental verification.
The most important determinants of V. alginolyticus invasion and colonization are biofilms and motility (He et al., 2011). Bacterial motility is achieved via a moving organelle, the flagella (Sourjik and Wingreen, 2012). The flagellum is a spiral filament composed of flagellin (Abram and Koffler, 1964). The synthesis and movement of Vibrio harveyi flagella are controlled by a quorum sensing system, which inhibits the motility and reduces the toxicity to brine shrimp larvae. This highlights that motility is related to the virulence of Vibrio (Echazarreta and Klose, 2019). There are also many studies on the motility and virulence of V. alginolyticus. For example, the deletion of T3SS chaperone proteins vscO gene will weaken the swimming ability and reduce the virulence to fish by 10 times Zhou et al. (2013). The deletion of the effector protein expressed by hop gene also causes an impairment of swimming ability and decreased the virulence to grouper by 2,600 times (Pang et al., 2018). The deletion of the regulatory protein expressed by tyeA gene lessened the swimming ability and attenuated the virulence to zebrafish by nearly 40 times. In addition, qRT-PCR showed that the deletion of apparatus proteins vscQ gene downregulated the expression of flagellin genes flaA and fliG, and the absence of flagellin will affect the normal growth and movement of flagellum (Millikan and Ruby, 2004), which was the reason why it showed a weak population phenotype and reduced its virulence to zebrafish by 4.6 times (Wu et al., 2020). In this study, ΔaraC significantly reduced its swimming ability and toxicity to zebrafish, and transcriptome data showed that araC gene is closely related to movement, flagellum switch, and flagellum composition. The decline of virulence and swimming ability may be related to bacterial flagella. These results suggest that araC gene may affect the swimming ability and virulence of V. alginolyticus by regulating the expression of flagella-related genes, but its specific regulatory mechanism needs to be further studied.
The regulation of T3SS is mainly achieved through the regulation of the expression and secretion of its effector proteins, which have been demonstrated in many independent studies in vitro and in vivo. In P. aeruginosa, ExsA is the central transcriptional regulator of T3SS (Hovey and Frank, 1995), which controls the expression of secretory apparatus translocation mechanism and secreted effector proteins, and ExsD is the anti-activator of ExsA. McCaw et al. (2002) showed that the deletion of exsD gene significantly promoted the secretion of T3SS and the expression of regulatory protein and effector protein through a lacZ reporter gene fusion experiment during which β-galactosidase activity was assayed (McCaw et al., 2002). In V. parahaemolyticus, ExsA and ExsD are also the main positive and negative regulators of T3SS1 (Zhou et al., 2010). The expression and secretion of T3SS1 are inseparable from ExsA, and EMSA experiments showed that the ExsA protein can directly interact with the promoter sequence of effector protein Vp1687. In addition, the destruction of the regulatory protein exsD gene or the overexpression of exsA will also lead to the constructive expression of T3SS1 gene and the secretion of effector protein Vp1656 (Zhou et al., 2008). Liu et al. (2016) found that V. alginolyticus ExsA plays a positive regulatory role on effector proteins Va1686 and Va1687 (Liu et al., 2016). Zhou et al. (2020) showed that TyeA is the regulatory protein of V. alginolyticus T3SS. In the absence of tyeA gene, the mRNA expression of effector proteins VopS, VopN, and HopPmaj was significantly upregulated (Zhou et al., 2020). In this study, the deletion of araC gene also increased the mRNA expression of VopS, VcrV, and VopN, but reduced the mRNA expression of HopPmaJ. Western blotting and β-galactosidase reporter gene experiments had also verified that AraC could activate the expression of HopPmaJ. AraC may regulate the transcription of T3SS-related genes in some way, so as to increase and reduce the expression of effector proteins of V. alginolyticus. However, the specific regulation mechanism needs to be further evaluated. This study laid a foundation for the follow-up studies of T3SS regulation mechanisms.
The mechanism of bacterial drug resistance is complex; in addition to the antagonistic effects of biofilm on antibiotics (Stewart, 2001), the drug resistance of bacteria can also be obtained through the transmission of drug-resistant plasmid conjugation and transduction (Zhou et al., 2018). Furthermore, gene mutation will spontaneously produce a new resistance characteristic (Levy, 1998) or, from other iron carriers, carry drug resistance genes. In addition, V. alginolyticus also carries drug resistance genes. Raissy et al. (2012) tested 20 strains of V. alginolyticus (from seafood including fish, shrimp, lobster, and crab from cages off the Persian Gulf) for drug sensitivity and PCR detection. The results showed that several strains of V. alginolyticus could possess strB, tetS, and ermB genes, which encode streptomycin, tetracycline, and erythromycin resistance, respectively and some strains did not contain tetS gene. However, resistance to tetracycline may be due to the existence of other genes encoding tetracycline resistance, such as tetA, tetB, tetM, and tetK (Raissy et al., 2012). In this study, the results of drug sensitivity tests showed that V. alginolyticus HY9901 was resistant to most antibiotics, while the deleted strain ΔaraC became sensitive to amikacin, tetracycline, neomycin, minocycline, and gentamicin. We speculated that the deletion mutation of araC gene may lead to new drug resistance characteristics, or AraC protein may regulate the expression of drug resistance genes. The specific drug resistance mechanism needs to be further studied.
Drug resistance carried by bacteria will flow from the food chain into human body via aquatic products (Chen et al., 2020). Human infection with drug-resistant bacteria will limit the choice of antibiotics, resulting in difficult treatment, which poses a threat to human health (Shahimi et al., 2021). Therefore, it is necessary to find alternative methods to control V. alginolyticus strains harmful to aquatic animals. Production of a live-attenuated vaccine provides a promising potential prophylactic tool for controlling bacterial fish diseases (Zhang et al., 2013). Vaccines play a major role by reducing or eliminating the risk of infection caused by antibiotic-resistant strains. This can be achieved by antibody-mediated killing of organisms in the blood (Klugman and Black, 2018). In terms of immune protection and production, live-attenuated vaccines have advantages over inactivated vaccines (Chen et al., 2020). Because zebrafish produces fast and many immune-related genes have been found, it is a model suitable for studying immune defense (Randelli et al., 2008). Zhang et al. (2013) found that zebrafish inoculated with live-attenuated Vibrio anguillarum vaccine induced good proinflammatory cytokine IL-1β response but the expression chemokine IL-8 gene transcription decreased compared with non-inoculated fish. However, following challenge, the expression level of adaptive immune-related genes increased, indicating that live-attenuated vaccine triggered protection by inhibiting the expression of inflammatory factors post-challenge and enhanced adaptive immunity (Zhang et al., 2013). In this study, the relative survival rate of zebrafish immunized with vaccine candidate ΔaraC was 61.3%. Evaluation of vaccine safety showed that vaccination of ΔaraC live-attenuated vaccine did not cause obvious pathological changes or clinical symptoms. Compared with the PBS group, HY9901 ΔaraC immunization significantly increased the expression of gata-1, il6, igm, il-1β, lyz, rag-1, tlr5, and c/ebpβ genes in the spleen and liver, possibly relating to protection in zebrafish.
Conclusions
We analyzed the biological characteristics and pathogenicity of HY9901 mutant strain ΔaraC. The mutant V. alginolyticus strain ΔaraC did not adversely affect growth and extracellular protease production. Furthermore, the biofilm-forming ability did not change significantly, but weakening of the swimming ability was evident, as well as the subsequent virulence to zebrafish. Wild strains and mutant strains were resistant to most antibiotics. qRT-PCR, Western blotting, and β-galactosidase reporter gene experiments showed that AraC could upregulate the expression of the T3SS effector protein HopPmaJ. As a live-attenuated vaccine, it is protective against V. alginolyticus and can induce protective immune responses in zebrafish. These results provide a reference for the study of the regulatory mechanisms of the regulatory protein on T3SS. This study provides further evidence of immune efficacy and safety of live-attenuated bacterial vaccines for potential use in aquaculture. Such data are imperative for evidence-based support for the technology’s application in the prevention and control of fish diseases caused by V. alginolyticus.
Data Availability Statement
The datasets presented in this study can be found in online repositories. The names of the repository/repositories and accession number(s) can be found in the article/Supplementary Material.
Ethics Statement
The animal study was reviewed and approved by the Animal Ethics Committee of Guangdong Ocean University (Zhanjiang, China).
Author Contributions
All the authors have made extensive contributions to the work in this manuscript. JW and HF designed the experiment; JW, FY and HF generated experimental data and wrote manuscripts. HF, LC, WZ, and XX assisted in completing the experiment. HP, SM, JJ, and NW conceived the work and critically reviewed the manuscript. All authors contributed to the article and approved the submitted version.
Funding
This work was supported by the National Natural Science Foundation of China (No. 32073015), the Natural Science Foundation of Guangdong Province (No. 2021A1515011078), the Innovation Program in Postgraduate Education of Guangdong Ocean University (No. 202153), the Undergraduate Innovation Team of Guangdong Ocean University (No. CCTD201802), the Innovation and Entrepreneurship Training Program for College Students (No. CXXL2022005) the Science and Technology Innovation Cultivation Program for College Student (No. pdjh2021b0239), and the Innovation Program in Postgraduate Education of Guangdong Province.
Conflict of Interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Publisher’s Note
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
Supplementary Material
The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fmars.2022.938742/full#supplementary-material
