- 1Royal Belgian Institute of Natural Sciences, Operational Directorate Natural Environment, Marine Ecology and Management, Brussels, Belgium
- 2Marine Biology Research Group, Department of Biology, Ghent University, Ghent, Belgium
Offshore wind farms (OWFs) in the North Sea are proliferating, causing alterations in local ecosystems by adding artificial hard substrates into naturally soft-bottom areas. These substrates are densely colonized by fouling organisms, which may compete for the available resources. While the distribution of some species is restricted to specific parts of the turbine, others occur across depth zones and may therefore face different competitive environments. Here we investigate the trophic niches of seven invertebrate species: three sessile (Diadumene cincta, Metridium senile, and Mytilus edulis), one hemi-sessile (Jassa herdmani) and three mobile species (Ophiothrix fragilis, Necora puber, and Pisidia longicornis) that occur in multiple depth zones. We hypothesized that these species would be trophic generalists, exhibiting trophic plasticity by selecting different resources in different depth zones, to cope with the different competitive environments in which they occur. We analyzed δ13C and δ15N of these species and their potential resources across depth zones. Our results show that most of these invertebrates are indeed trophic generalists which display substantial trophic plasticity, selecting different resources in different zones. Degree of trophic plasticity was not related to mobility of the species. There are two possible explanations for these dietary changes with depth: either consumers switch diet to avoid competition with other (dominant) species, or they benefit from the consumption of a non-limiting resource. Only Diadumene cincta was a trophic specialist that consumed suspended particulate organic matter (SPOM) independent of its zone of occurrence. Altogether, trophic plasticity appears an important mechanism for the co-existence of invertebrate species along the depth gradient of an offshore wind turbine.
Introduction
In many countries across the world, and in Europe in particular, offshore wind farms (OWFs) are increasingly being considered a potentially significant contributor in the quest to reduce CO2 emissions. By 2018, 4149 offshore wind turbines had been installed in European marine waters, producing a total of 15.8 GW, while this capacity is expected to increase up to 70 GW in 2030 (WindEurope, 2018). In the North Sea, new wind farms are continuously being constructed, licensed or scheduled (Soma et al., 2019).
The construction of offshore wind turbines creates a new benthic habitat, adding hard substrate to naturally soft-bottom areas. These hard substrates are colonized by dense hard-bottom assemblages (Wilhelmsson and Malm, 2008; Krone et al., 2013; De Mesel et al., 2015), consisting mainly of filter-feeders (Lindeboom et al., 2011) and other fouling organisms (Slavik et al., 2018) that may compete for food and space (Buss and Jackson, 1981; Dubois and Colombo, 2014; Cresson et al., 2016). Filter-feeders capture suspended food particles that are highly diluted in the water column (Gili and Coma, 1998). These organisms have developed mechanisms to select specific food particles from the available spectrum (Dubois et al., 2007; Dubois and Colombo, 2014) and exploit a variety of resources that may change through space and time (Bode et al., 2006; Richoux et al., 2014). Hence, species within the same feeding guild can have different resource use strategies, limiting competition for food through trophic niche partitioning (Lefebvre et al., 2009; Richoux et al., 2014).
In the North Sea, fouling communities living on wind turbines form a clear vertical zonation pattern along the depth gradient (De Mesel et al., 2015). Despite this general zonation pattern, some species occur in multiple depth zones or along the entire depth gradient of the turbine. These include both sessile organisms, such as the blue mussel Mytilus edulis and the anemone Metridium senile, and mobile species, such as the porcelain crab Pisidia longicornis, the brittle-star Ophiothrix fragilis and the crab Necora puber (Mavraki et al., 2020). The latter are not considered fouling organisms, but their presence is highly linked to the presence of artificial hard substrates (Lindeboom et al., 2011; De Mesel et al., 2015; van der Stap et al., 2016). Pisidia longicornis and O. fragilis can feed on suspended material, such as phytoplankton and pseudofaeces (Warner, 1971; Smaldon, 1972; Sampedro et al., 1997; Allen, 1998), while N. puber also preys on a variety of fouling species, such as amphipods and mussels (Freire and Gonzalez-Gurriaran, 1995). The occurrence of these species in multiple zones does not necessarily imply that they are successfully established in these zones. Temporal dynamics influence the species distribution along the depth gradient. For example, the dominance of the amphipod Jassa herdmani decreases with increasing depth in summer and in winter, while M. edulis can only be found at lower depths during winter (Kerckhof et al., 2010).
The occurrence of certain species in more than one zone suggests that they may be competing both for the available resources and/or for space with the dominant species in those zones. In benthic communities, space has long been considered as the main limiting resource (Buss and Jackson, 1981; Côté et al., 1994; Dubois and Colombo, 2014; Svensson and Marshall, 2015). However, food limitation (henceforth referred to as food or resource limitation in this paper) by co-occurring species is also recognized as an important factor influencing community functioning (Buss and Jackson, 1981; Dubois and Colombo, 2014; Cresson et al., 2016). Resource partitioning and trophic plasticity have been proposed as strategies of co-occurring organisms to limit the effects of trophic competition (Lefebvre et al., 2009; Riera, 2009). Resource partitioning is the division of limiting resources among species as a mechanism to avoid trophic competition (Ross, 1986), while trophic plasticity is the adaptation of organisms to minimize potential competition for food by (partly) shifting their diets (MacNeil et al., 1997; Lefebvre et al., 2009). Resource partitioning often entails some form of trophic specialization, leading – in the case of the invertebrate fauna associated with wind turbines – to the utilization of a narrow range of resources by specific taxa (Van Valen, 1965; Bearhop et al., 2004). Trophic plasticity, on the other hand, is a form of trophic generalism, implying that a species is capable of feeding on a broad food spectrum, but will exploit only a (partly different) part of that spectrum depending on the competitive environment in which it occurs (here, e.g., in the different depth zones) (Hazlett, 1988; Bearhop et al., 2004; Gutt, 2006; Riera, 2009). The scenario of the existence of mainly trophic generalists on offshore wind turbines is plausible, because the species would be able to co-occur in a limited amount of space by exhibiting considerable trophic plasticity (Araújo et al., 2011; Páez-Rosas et al., 2017). In any case, the co-occurrence of multiple invertebrate species on offshore wind turbines could be partly explained by their feeding behavior.
In this study, we sampled invertebrate species that occur across different zones along the depth gradient of a gravity-based offshore wind turbine, its scour protection layer (SPL) and the surrounding soft sediments in the Belgian part of the North Sea (BPNS). We hypothesized that these species would be trophic generalists that are capable of modifying their resource exploitation in different depth zones, implying that trophic plasticity is the key mechanism allowing their wide distribution and survival in a competitive environment. We used stable isotope analysis (SIA) to investigate trophic niches and pathways (Riera, 2009). The isotopic niche of a species can be estimated using SIA and is a proxy for its trophic niche (Newsome et al., 2007; Jackson et al., 2011). We would therefore expect partly different isotopic niches across depth zones within the same consumer species. In addition, we anticipated that such a niche differentiation across depth zones would translate into overall large depth-integrated isotopic niches of these species, as they are expected to be overall trophic generalists (Layman et al., 2007).
Materials and Methods
Study Site
Samples were collected from a gravity-based wind turbine (D6 wind turbine, coordinates: 51°33.04′N – 02°55.42′E) within the C-Power wind farm on the Thornton Bank (BPNS), which is a sandbank located 27 km off the Belgian coast (Brabant and Jacques, 2010). C-Power was the first wind farm that was constructed in the BPNS in spring 2008, when D6 and 5 other gravity-based foundations were installed (Brabant and Degraer, 2010). The tidal range in the area is 4–5 m during spring tide (Van den Eynde et al., 2010) and the water depth varies between ca. 23 and 27 m (Peire et al., 2009). The currents on the Thornton Bank are directed along a north-east – south-west axis (Van den Eynde et al., 2010). The annual primary production by phytoplankton in the area is on average 213 g C m–2, with the spring bloom producing ca. 73% of this annual primary production (Lancelot et al., 2005). We chose this particular location because a wealth of data on fouling assemblages and soft-substrate fauna were available (Coates et al., 2014; De Mesel et al., 2015). Sampling of all the consumers and of most of their potential resources was conducted from the research vessel Simon Stevin in August 2016. Macroalgae from the intertidal were collected from an inflatable boat in August 2017.
Sampling Scheme
Invertebrate organisms living along the depth gradient on the wind turbine, the SPL and the surrounding soft sediment, as well as possible resources from the water column and the intertidal area of the turbine, were collected. Six sampling zones based on macrofaunal zonation patterns (Lindeboom et al., 2011; Krone et al., 2013; De Mesel et al., 2015) and on structural/habitat differences (Baeye and Fettweis, 2015) were chosen for the collection of the consumer organisms: (a) the intertidal, (b) the Mytilus zone (5 m depth), (c) the Jassa zone (∼8.5 m depth), (d) the Metridium zone (15–25 m depth), (e) the SPL (25–27 m depth) and (f) the soft sediment surrounding the turbine (soft substrate – ∼27 m depth) (Figure 1). Scientific divers collected consumer species from the Mytilus, the Jassa and the Metridium zones by scraping (25 × 25 cm frame), from the SPL by collecting rocks (∼15 cm length, 10 cm width and 5 cm height) and from the sediment by using an airlift suction device (surface sampled: 25 × 25 cm, sediment depth: 5 cm). Consumers from the intertidal zone were collected by scraping from an inflatable boat at low tide. Samples were collected during the turn of the tide at neap tide. Finally, large consumers, such as large crustaceans and ophiuroids, were handpicked by scientific divers in the different subtidal zones. All consumers were identified to the lowest taxonomic level possible. Whenever possible, five individuals per species were collected from each zone for the SIA to include intraspecific variation. The individuals were randomly selected to more accurately quantify the width of the trophic niche of the species and ultimately understand the mechanism(s) responsible for species co-existence (Bolnick et al., 2011; Violle et al., 2012). Macrofaunal organisms were starved overnight in filtered sea-water in order to allow them to clear their gut contents. Larger crustaceans were immediately freeze-killed (Zhang et al., 2018) and cheliped tissues were subsequently isolated and retained for SIA.

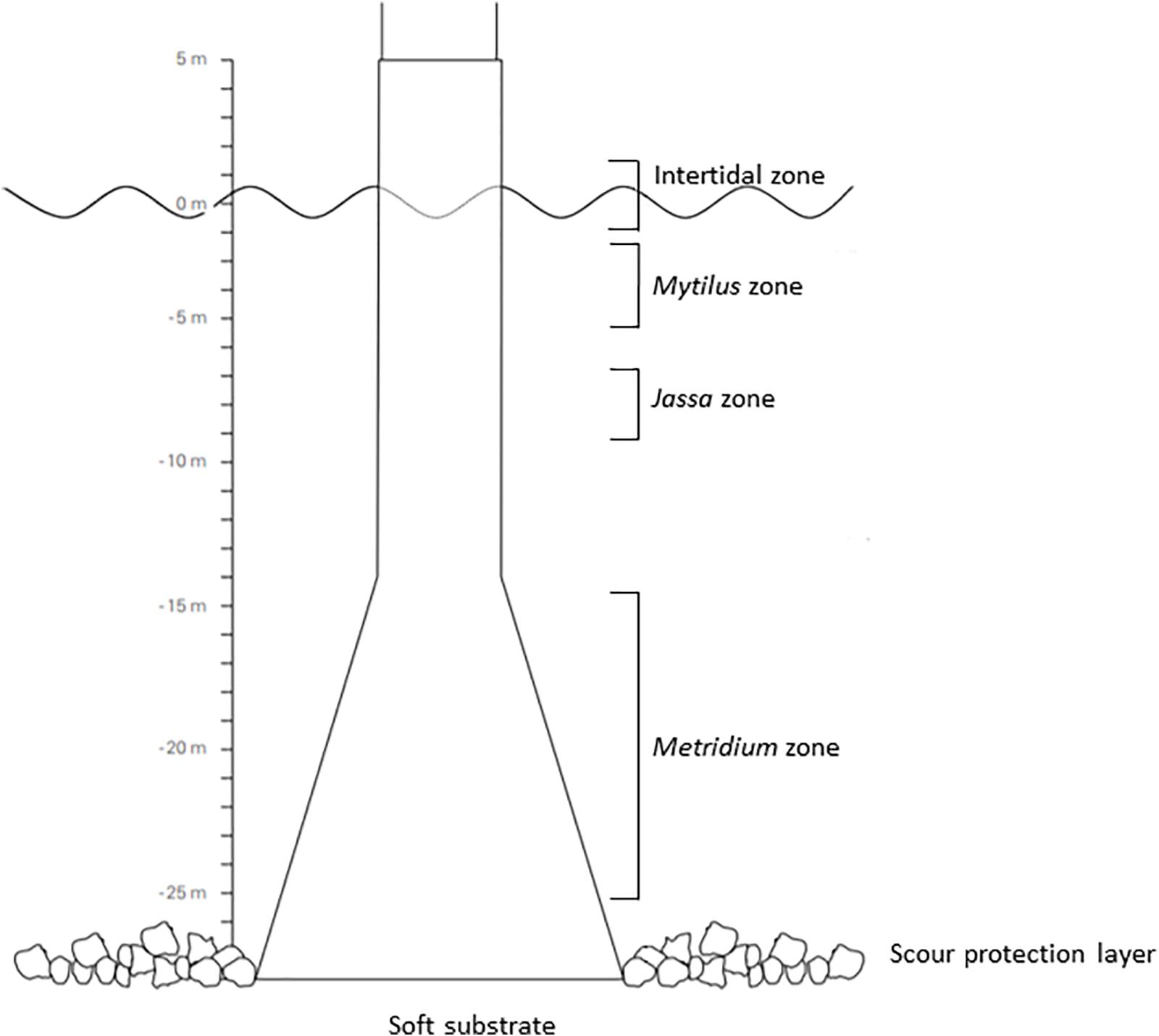

Figure 1. Vertical zonation pattern based on macrofauna and structural/habitat differences along the depth gradient of an offshore wind farm gravity-based foundation (modified by the source: De Mesel et al., 2013).
For the collection of candidate resources, three replicate samples (one 1-L sampling vial for each replicate) of suspended particulate organic matter (SPOM) were collected by scientific divers from the lower (∼1 m above the sea floor – referred to as SPOM-bottom) and the upper (∼3 m below the sea surface – referred to as SPOM-surface) water column. Water samples were initially sieved through a 200 μm sieve to remove large detritus and zooplankton (Lorrain et al., 2003; Banaru et al., 2014), and then filtered through pre-combusted and pre-weighed Whatman GF/F 47 mm filters (mesh size: 0.7 μm) using a vacuum pump. Zooplankton was collected one meter away from the turbine, using a vertical haul of the plankton net (diameter: 0.57 m, mesh size: 200 μm). Subsequently, it was concentrated by sieving over different mesh sizes (800 and 250 μm) and separated into different size groups. The subsamples were kept in filtered sea water for 2–4 h to allow gut clearance (Smyntek et al., 2007). Macroalgae were scraped off from the intertidal both at low (algae-lower) and at high (algae-upper) tide from an inflatable boat. Since the macroalgae on the wind turbine are perennial, they are constantly available to consumers; year-round studies revealed no or only very small inter-annual variation in their isotopic signatures (Bordeyne et al., 2017). Hence, sampling macroalgae in a different year would not have an effect on their isotopic signatures. Epiphytes were scraped off the algae using a sterilized dull scalpel under a stereomicroscope prior to drying to acquire the isotopic signature of the algae (Moncreiff and Sullivan, 2001; Renaud et al., 2015). We additionally included data for sediment organic matter (SOM) that were collected during the same sampling period from the same wind farm area (Toussaint et al., unpublished data), since re-suspended SOM is a potential resource, e.g., for species inhabiting the SPL and the soft substrate.
All samples for SIA (sources and consumers) were stored in a −20°C freezer until further analysis. In total, seven species were sampled in sufficient replicates from more than one depth zones: the sessile filter-feeding species Mytilus edulis, Diadumene cincta, and Metridium senile, the hemi-sessile filter-feeder Jassa herdmani, the mobile filter-feeding species Pisidia longicornis and Ophiothrix fragilis, and the mobile omnivore/predator Necora puber (Table 1).

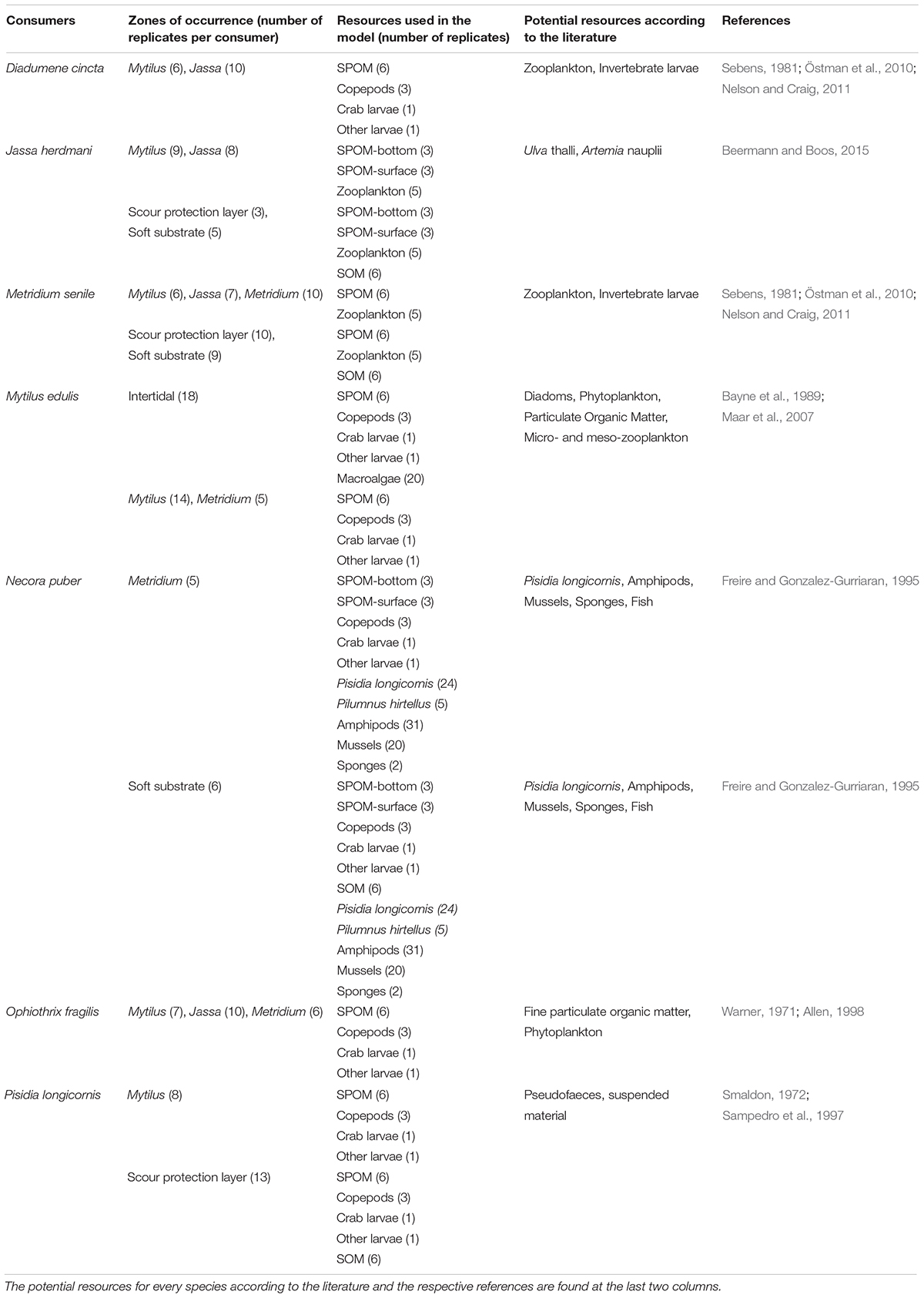

Table 1. The seven dominant species (consumers) sampled in the different depth zones with the relative resources that were used in the mixing model per depth zone after the a posteriori combination of sources.
Sample Preparation
Filters for the analysis of SPOM were thawed, dried overnight at 60°C and prepared for δ13C and δ15N isotope analysis. The preparation included the bisection of the filter; one half was immediately enclosed in a tin (Sn) capsule and the other half was acidified through exposure to hydrochloric acid fumes (HCl 37%) in a desiccator for the removal of the inorganic carbon (Lorrain et al., 2003). The acidified halves of the filters were dried again overnight (60°C) and then enclosed in silver (Ag) capsules. Acidification was necessary to eliminate traces of carbonates, which can significantly affect the δ13C values of the SPOM samples (Lorrain et al., 2003). The non-acidified samples were then analyzed for δ15N, which do not require pre-treatment, since acidification may contribute to some shifts in δ15N (Goering et al., 1990; Vafeiadou et al., 2013).
Entire individuals of the small-sized species Jassa herdmani, Pisidia longicornis, Metridium senile, and Diadumene cincta were processed for SIA after gut content clearance. For the other organisms, specific muscle tissues were sampled: cheliped muscle from Necora puber (Reid et al., 2016), foot from Mytilus edulis (Richoux and Ndhlovu, 2015) and peristomial membrane from Ophiothrix fragilis (Andrade et al., 2016). For each species, individuals of similar size were selected to exclude effects of any size-specific shifts in diet (Cresson et al., 2016). Zooplankton subsamples were first thawed and then analyzed under a stereomicroscope for the separation of the organisms into broad taxonomic groups (Banaru et al., 2014). The largest size class (800–1000 μm) contained mainly crab larvae (referred to as “Crab larvae”) and other unidentified larvae (referred to as “Other larvae”). The smaller size-class (250–800 μm) contained mainly copepods. The different taxonomic groups were further analyzed for SIA. Finally, macroalgae samples were also thawed and analyzed under a stereomicroscope to ensure that epiphytes had been effectively removed.
Individuals, muscle tissues, zooplankton samples and macroalgae were rinsed with milli-Q water to avoid contamination and dried overnight at 60°C, after which they were pulverized using a mortar and pestle and homogenized. Depending on the tissue type, approximately 1 mg of dried tissue was immediately encapsulated in a Sn capsule, weighed and stored in a desiccator until further analysis, or it was first split into two subsamples of equal dry weight (ca 1 mg); one subsample was used for the analysis of δ15N and immediately encapsulated in a Sn capsule without prior treatment, whilst the other was transferred in a Ag capsule, acidified by adding 1% HCl “drop by drop” until elimination of all CO2 from the carbonates in the sample (Jacob et al., 2005), and used for analysis of δ13C. The latter sample was subsequently rinsed with distilled water, dried again and stored dry in multi-well Microtitre plates in a desiccator until further analysis (Pinnegar and Polunin, 1999). When the weight of the organisms was not sufficient to prepare two subsamples, more individuals of the same species and location were pooled in the same sample and formed a “compound” sample replicate. This was mainly the case for the samples that needed acidification. For all the other samples, each consumer individual was treated as a replicate. Only the organisms containing calcareous structures, i.e., Jassa herdmani, Ophiothrix fragilis, Pisidia longicornis, and zooplankton, were acidified.
In total, 206 samples (both resources and consumers – Supplementary Table S1) were analyzed on a PDZ Europa ANCA-GSL elemental analyzer, interfaced to a PDZ Europa 20–20 isotope ratio mass spectrometer (Sercon Ltd., Cheshire, United Kingdom) at the UC Davis Stable Isotope Facility (University of California, United States). The results for carbon and nitrogen isotope ratios were expressed in the standard delta (δ) notation:
where X is 13C or 15N and R is the ratio of 13C/12C or 15N/14N, expressed in ‰. For both sources and consumers, we strived to analyze at least three replicates per species, but for some zooplankton groups this was not possible.
Data Analysis
Seven (one for every species) one-way analyses of variance (ANOVA) were conducted to examine whether the isotopic signatures differed among depth zones. Prior to the ANOVA, the assumptions of homogeneity of variances (Levene’s test) and of normality of the data (Shapiro test) were examined and proved valid. Post hoc multiple comparisons were performed using the Tukey’s Honest Significant Differences (HSD) test.
Furthermore, we used two different approaches to investigate the diet composition of each consumer in the different zones. For each species, we first characterized the isotopic niche by calculating the following metrics: the sample-size corrected standard ellipse area (SEAC) for every consumer species and in every zone combination, the SEAC overlap of a given species between different depths, the Bayesian standard ellipse area (SEAB), as well as the ellipse metrics eccentricity (E) and angle (theta – θ) for every species in the different zones. Then we assessed the potential contribution of each possible resource to the diet of the examined species. SEAC reflects the two-dimensional (δ13C and δ15N) isotopic niche of a group of individuals. It is insensitive to small sample sizes < 10 – Jackson et al., 2011; Demopoulos et al., 2017) and is a proxy of the trophic niche of that group of individuals (Jackson et al., 2011). SEAB provides a range of ellipse surfaces that can be valid given the input data and it was calculated from 104 posterior iterations of SEAB (Jackson et al., 2011). Bayesian inference allows a direct probabilistic interpretation of the differences in SEAB depending on the grouping level (i.e., between the individuals of the same species sampled at different depth zones). Pair-wise comparisons of SEAB estimate the probability that the isotopic niche of a species in one zone is larger than in another zone (Jackson et al., 2011). Eccentricity E is a measure of the circularity of the SEAC and therefore of the variance along the x (δ13C) and y (δ15N) axes. Eccentricity (E) values of the standard ellipse range between 0 and 1, where E = 0 is a perfect circle, while E ∼1 indicates higher elongation of the standard ellipse (Reid et al., 2016). Hence, low E (values ∼0) reflects similar variance on both axes and high E (values ∼1) indicates that the ellipse is more elongated along one of the two axes (Reid et al., 2016). Theta (θ) is a measure of the inclination of the ellipse and is returned as a value between 0 and π (Jackson et al., 2011). It is reported here in an angular range between −90 and +90°, with positive and negative values indicating that δ13C and δ15N are, respectively, directly or inversely proportional (Demopoulos et al., 2017). θ values close to 0 (ellipse dispersed along the x-axis) indicate utilization of multiple resources while θ values close to (-) 90 (ellipse dispersed along the y-axis) indicate that the individuals within a site feed across different trophic positions within (a) basal carbon source(s) (Reid et al., 2016; Demopoulos et al., 2017). The combination of E and θ can distinguish isotopic niche areas, which have similar sizes, but the relationship between δ13C and δ15N among locations (in this case depth zones) and/or species is different (Reid et al., 2016). SEAC, SEAC overlap, SEAB and the ellipse metrics E and θ were calculated using the SIBER (Stable Isotope Bayesian Ellipses in R) package (Jackson et al., 2011).
The contribution of each potential resource to the diet of each species was calculated using the R-package SIMMR (Stable Isotope Mixing Models in R) (Parnell et al., 2013; Parnell and Inger, 2019). Bayesian isotope mixing models are based on the assumption that all dietary resources are included in the analysis (Phillips et al., 2014). Therefore, we attempted to sample as many of the known resources in the area as possible. However, we acknowledge that we probably did not collect all of them. The main advantage of this model is that it takes into account both the mean (μprey) and the standard deviation (σprey) of the prey stable isotope ratios in order to evaluate the likelihood of the proportion of a given prey item in the diet (Moore and Semmens, 2008). We investigated the species-specific variation in resource preferences between zones by running the mixing models separately for each species and zone. This yielded information on the contribution of each resource to the diet of every species in every zone of occurrence. Resources that are not mixed along the depth gradient, such as macroalgae and SOM, were only included as possible resources in those zones where they were available for the consumers, i.e., the intertidal for macroalgae and the soft substrate and SPL for SOM. A trophic enrichment factor (TEF) was added to the model. Applying the relevant TEF is crucial to the design of mixing models (Phillips et al., 2014). Therefore, we ran the model multiple times, using different TEFs applied to similar consumers (Dubois and Colombo, 2014; Richoux et al., 2014; Cresson et al., 2016); based on the results of the different model runs, we chose the same TEFs as reported in Cresson et al. (2016), i.e., 1.28 ± 0.72 for carbon and 3.25 ± 0.67 for nitrogen. The choice was based on the position of the consumers within the convex polygons in the isotope space defined by the resources (Phillips et al., 2014). According to the same authors, if the consumer is positioned within the range of its resources in the δ13C – δ15N isospace, there is at least one solution explaining the consumer’s isotopic values as a combination of the available resources. Since different species feed on different food items, the mixing models only included species-specific and zone-specific relevant food items, as deduced from literature (Table 1). Necora puber is a predator/omnivore and feeds on a combination of primary resources and invertebrate fauna. Isotope values (δ13C and δ15N) for its possible invertebrate prey resources (Table 1) were obtained from Mavraki et al. (2020), who sampled these candidate prey species during the same sampling period and at the same site as reported here.
The power of mixing models to accurately describe diet composition depends both on the actual inclusion of all resources that significantly contribute to a species’ diet, and on the ratio of the number of resources to the number of elements analyzed. Because of these two essentially different sources of potential bias, authors are not unanimous about the “threshold” number of resources above which model predictions become less reliable when based on C and N only. Hence, depending on what source of bias is focused on most, it has been argued that mixing model accuracy already decreases when more than three resources are included (Moore and Semmens, 2008), but also that their discriminatory power only starts to decline from six or seven resources onwards (Phillips et al., 2014). In order to avoid increasing the uncertainty of the mixing model by unnecessarily inflating the number of potential resources for a consumer (Phillips and Gregg, 2003), an a posteriori approach for combining resources was used (Table 1; Phillips et al., 2005). We used matrix plots to test the correlation between the isotopic signatures of potential resources (Parnell et al., 2010, 2013) and we combined the resources that were strongly and positively correlated for each species. Highly correlated resources generally included SPOM-surface and SPOM-bottom and were then combined and renamed to “SPOM”; the zooplanktonic organisms (copepods, crab larvae and other larvae) were often combined and referred to as “Zooplankton.” Finally, algae-upper and algae-lower were combined in a “Macroalgae” resource. All data analyses were conducted in R (R Development Core Team, 2018).
Results
Isotopic Niche Characteristics
Average δ13C values of the resources ranged between −22.3 ± 1.93‰ (SOM) or −22.3 ± 0.3‰ (SPOM-surface) and −16.6‰ (Other larvae), while the average δ15N values ranged between 6.0 ± 0.8‰ (Algae-upper) and 11.4 ± 0.1‰ (copepods) (Figure 2). The isotopic signatures of the consumers (Figure 3) ranged between −23.2 ± 2.5‰ (Ophiothrix fragilis in the Jassa zone) and −17.6 ± 2.2‰ (O. fragilis in the Metridium zone), while the δ15N signatures ranged between 10.8 ± 1.0‰ (O. fragilis in the Jassa zone) and 16.1 ± 0.3‰ (Necora puber in the Jassa zone). Significant differences in the isotopic signatures among the depth zones were observed for the species Mytilus edulis [ANOVA F(2,71) = 9.67, p < 0.05], Metridium senile [ANOVA F(4,79) = 14.11, p < 0.05], Ophiothrix fragilis [ANOVA F(2,43) = 55.95, p < 0.05] and Pisidia longicornis [ANOVA F(1,40) = 51.45, p < 0.05]. For the other species (Jassa herdmani, Necora puber and Diadumene cincta), no statistically significant differences among the depth-zones were found.

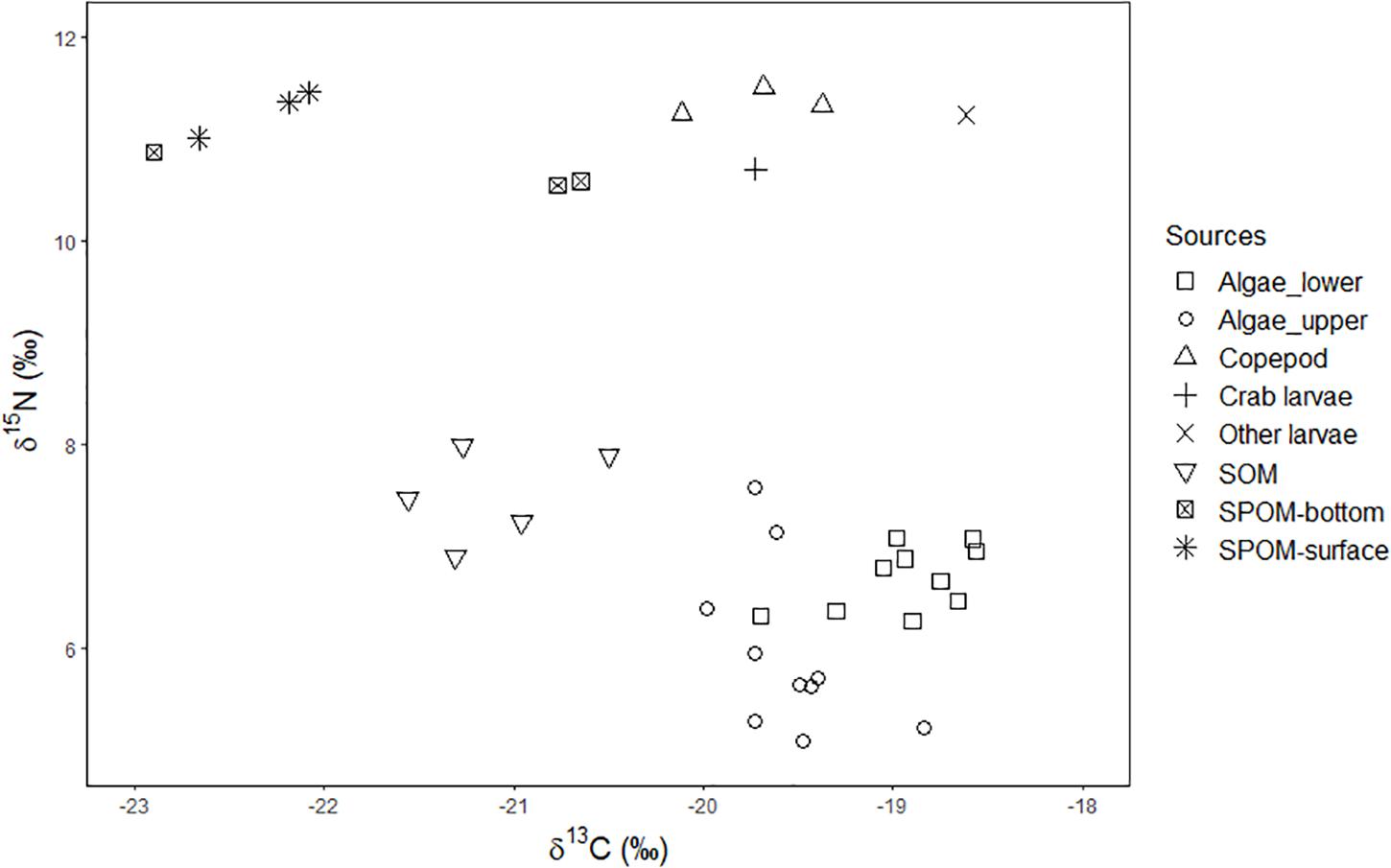

Figure 2. Stable carbon (δ13C) and nitrogen (δ15N) isotopic values (‰) of the resources collected, where SPOM: suspended particulate organic matter and SOM: sediment organic matter. The different symbols represent the different resources.

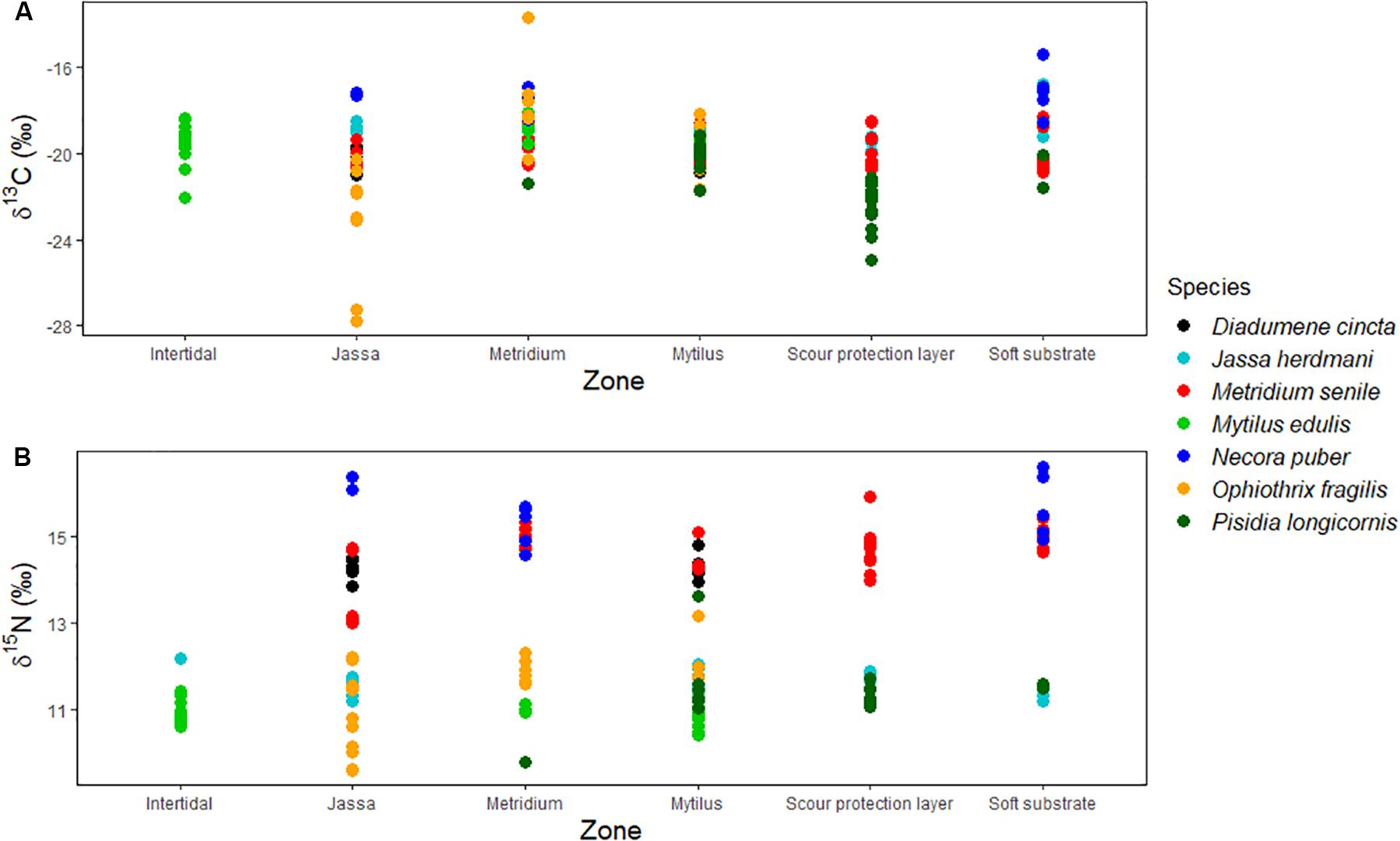

Figure 3. Stable carbon (δ13C – A) and nitrogen (δ15N – B) isotopic values (‰) of the consumers collected in the different depth zones. The different colors represent the different species.
Intra- and inter-specific differences in the SEAC were observed between/among depth zones (Supplementary Table S2). The largest SEAC (8.1‰2) was observed for the brittle star O. fragilis in the Jassa zone, while the smallest SEAC (0.01‰2) was found for the hemi-sessile species J. herdmani in the SPL (Figure 4 and Supplementary Table S2). The extent of overlap of the isotopic niches differed between groups of individuals of the same species occupying different depth zones (Table 2). For P. longicornis, M. senile and O. fragilis, there was little or no overlap between their isotopic niches in the different zones, while for D. cincta and N. puber considerable overlap was observed between the isotopic niches of the occupied zones (Figure 4 and Table 2). Jassa herdmani and M. edulis exhibited intermediate patterns. For Jassa herdmani, the isotopic niche in the SPL did not show any overlap with any of the isotopic niches from the other zones, whereas these other zones had ellipses that showed considerable overlap. For M. edulis, the isotopic niches in its two most important depth zones, i.e., the Mytilus and the Metridium zone, were completely separated, but the isotopic niche in the intertidal zone overlapped with that of the two other zones.

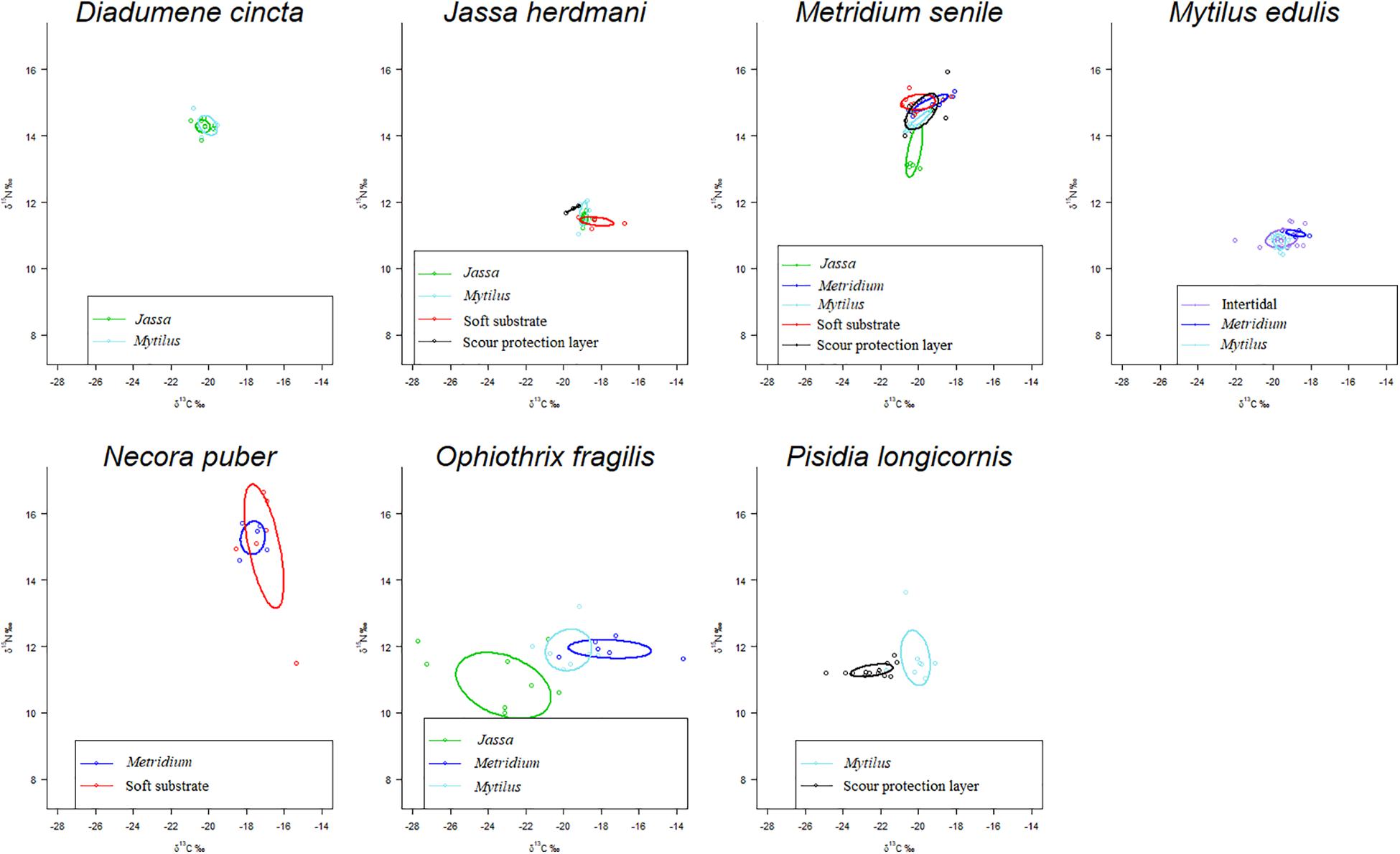

Figure 4. Sample-size corrected standard ellipse areas (SEAC) calculated from δ13C and δ15N values for the seven species under study collected from the different zones. The SEAC include the 40% of the data. The different colors represent different zones.

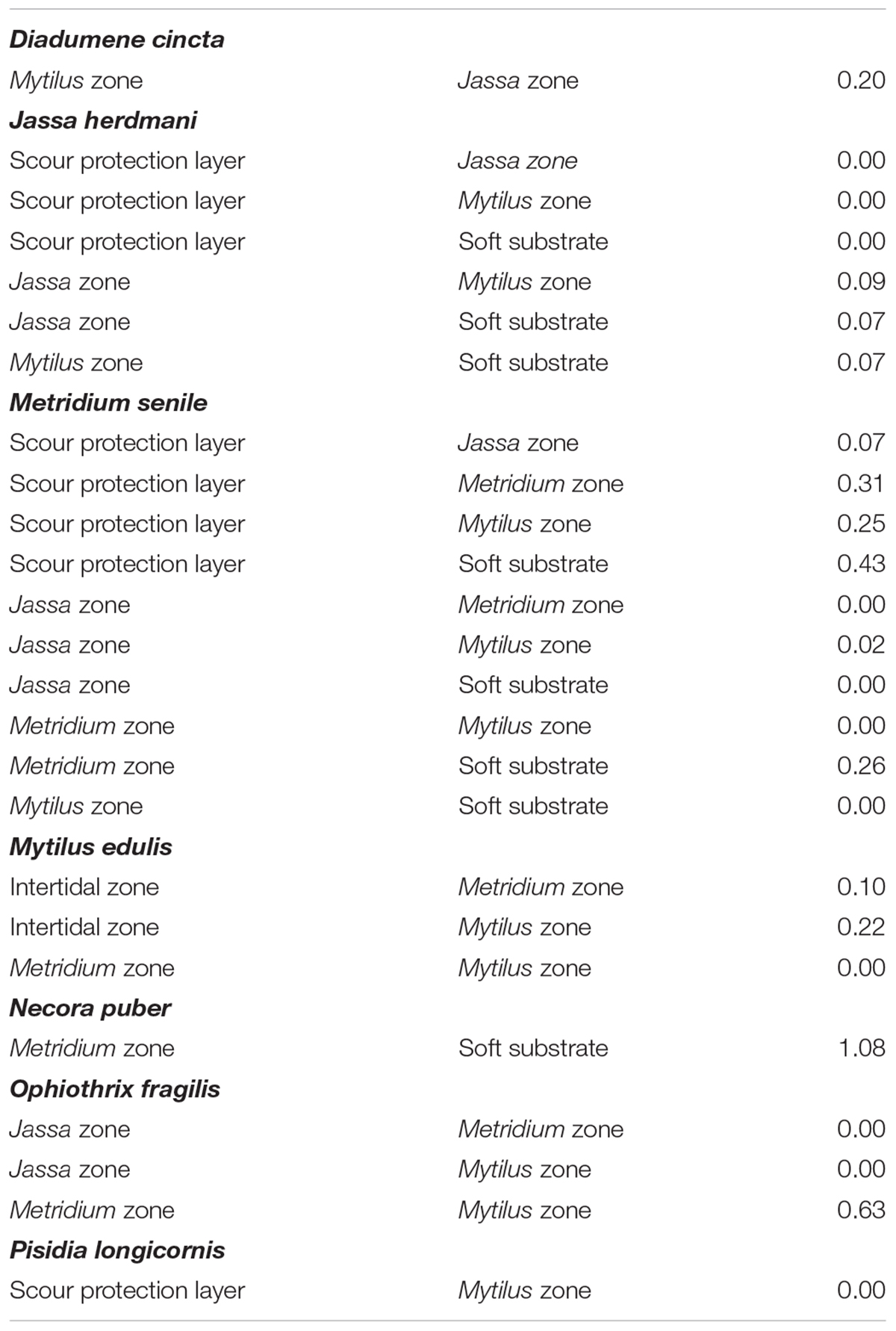

Table 2. Overlaps (‰2) of the sample-size corrected standard ellipse areas (SEAC) between the groups of the same species collected at different zones.
The abovementioned differences in the isotopic niches were further corroborated by the SEAB, which was used to compare the isotopic niche sizes. Differences were observed at the species-specific level, as the SEAB of the mobile species had high probabilities (generally > 0.8) of being larger than those of sessile and hemi-sessile species, with the exception of P. longicornis in the SPL (Figure 5, Table 3, and Supplementary Table S3). The strongest differences were observed between the hemi-sessile species J. herdmani and the mobile species N. puber and O. fragilis (Figure 5). Furthermore, differences were also detected within a species sampled in different zones, i.e., the probability that the SEAB of J. herdmani in the SPL is smaller than in any of the other zones exceeded 0.69 (Supplementary Table S3).

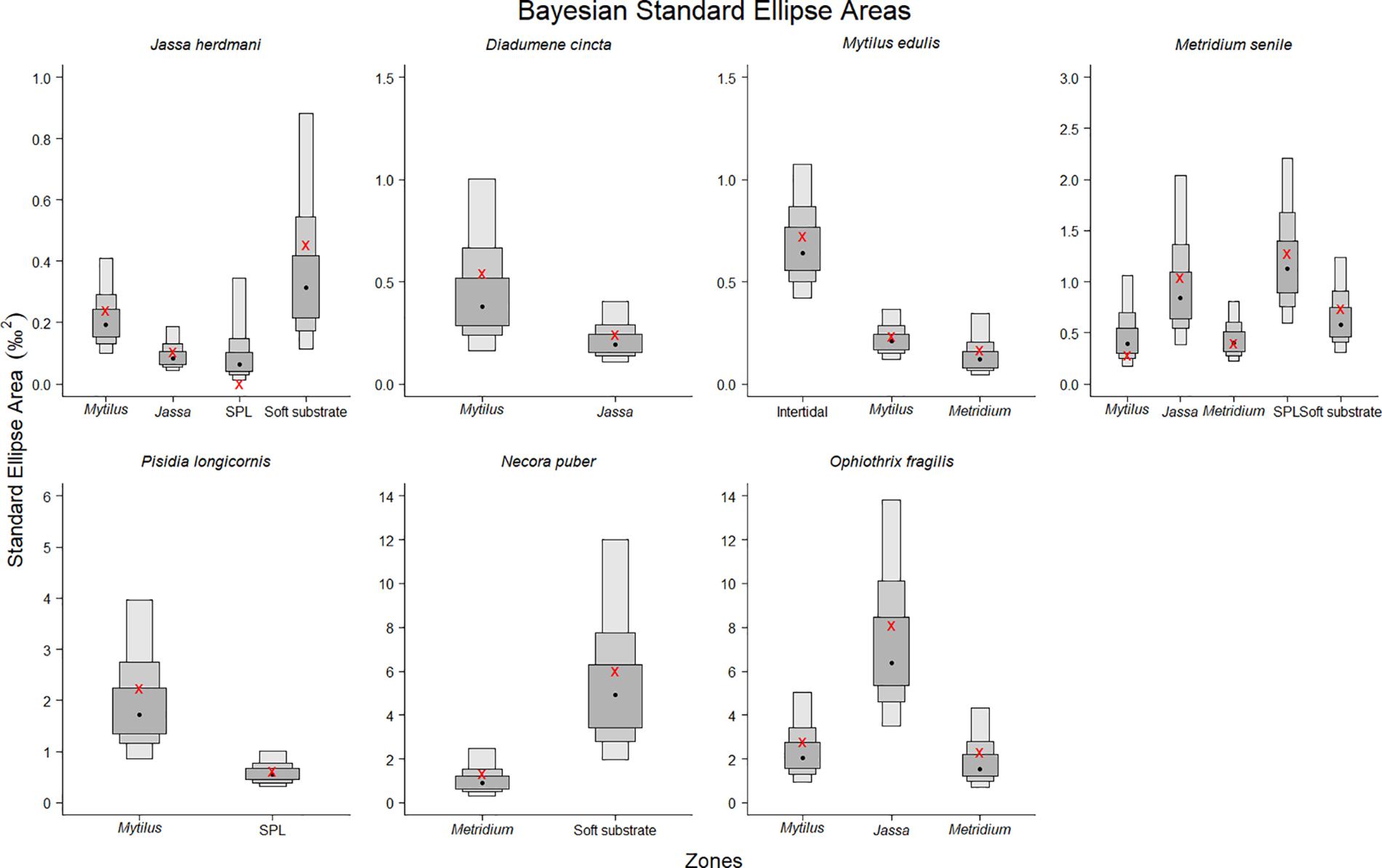

Figure 5. The posterior Bayesian estimates of the standard ellipse area (SEAB) for the seven studied species in the different zones. Shaded density plots represent 50, 75, and 95% credible intervals. SEAB mode is represented by a black circle and SEAC by a red mark. The scale of the y-axis differs per species; smallest scale on the top left and largest scale on the bottom right. SPL is the scour protection layer.

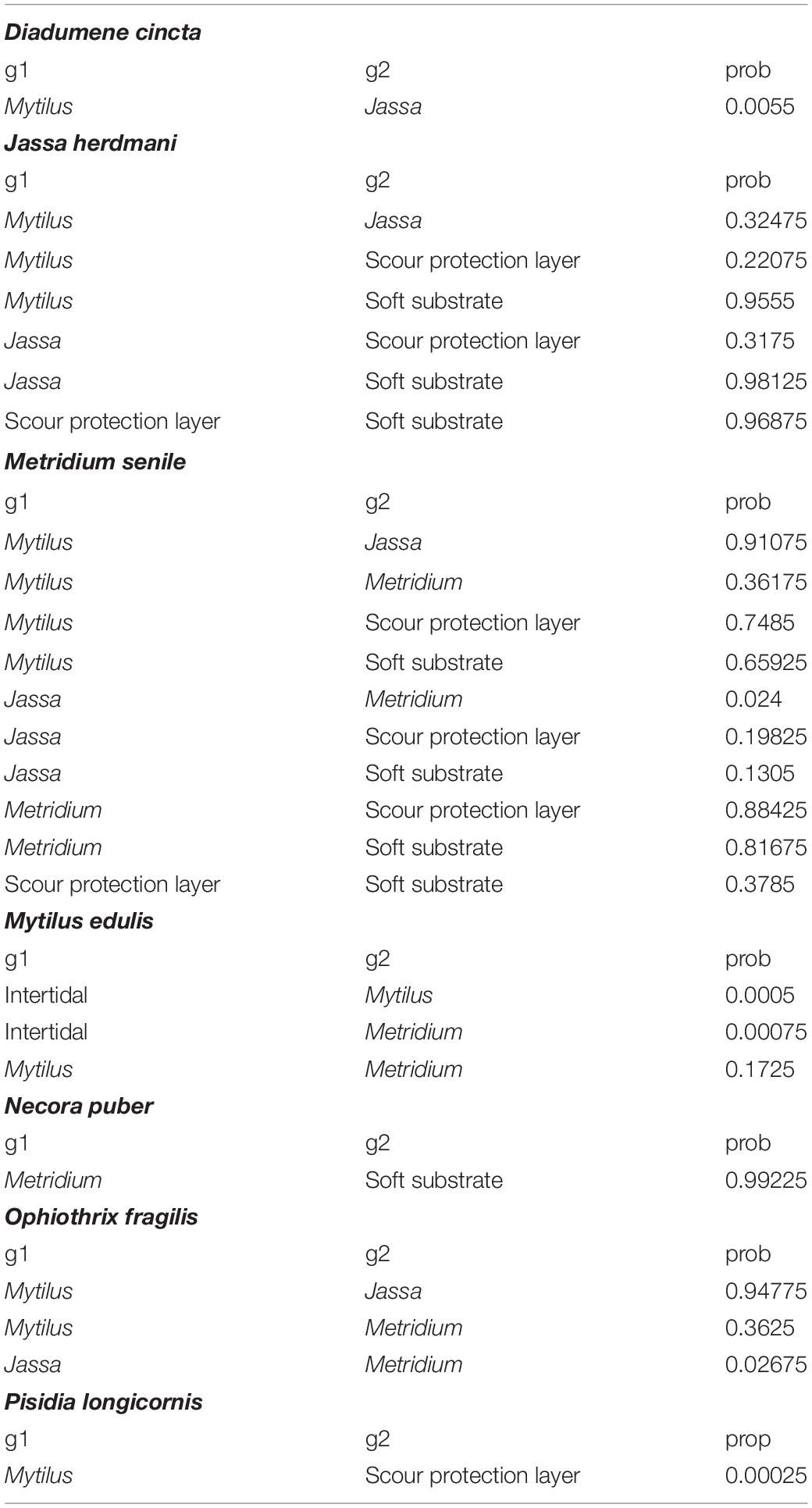

Table 3. Bayesian standard ellipse area (SEAB) probabilities (prob) that the ellipse area of one group (g1) is smaller than the other (g2).
Generally, isotopic niches were elongated (E values close to 1) and stretched along the x-axis (absolute θ values < 45° – Supplementary Table S2). This indicates the exploitation of multiple resources by each species within every zone. However, lower E values were also observed for J. herdmani in the Jassa zone (E = 0.68), for N. puber in the Metridium zone (E = 0.66), for M. edulis in the Mytilus zone (E = 0.79) and for P. longicornis in the Mytilus zone (E = 0.62). For most of the species, there was a general tendency for E values to increase with increasing water depth (Figure 6 and Supplementary Table S2). The θ values were generally < 45°, corroborating the major trends in E values, which also indicated utilization of a range of resources (larger spread along the x-axis). There were nevertheless some exceptions (absolute θ values > 45°) that reflected an isotopic niche stretched along the y-axis. Such exceptions included J. herdmani in the Mytilus zone (θ = 76°), M. senile in the Jassa zone (θ = 68°), N. puber in the soft substrate (θ = −68°) and P. longicornis in the Mytilus zone (θ = −53°).

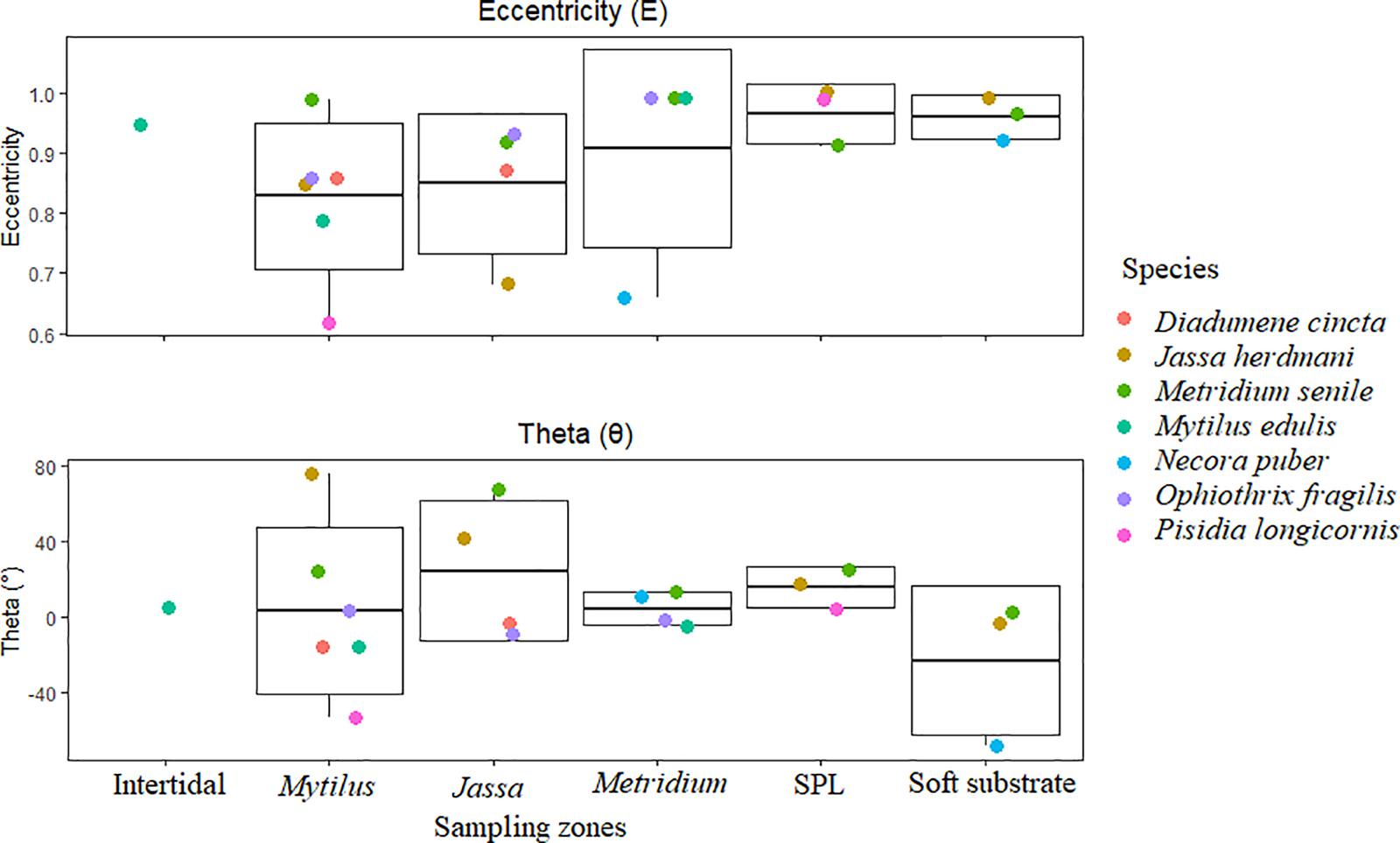

Figure 6. Eccentricity (E – upper graph) and theta (°) (θ – lower graph) values of every species in the different zones (Intertidal, Mytilus, Jassa, Metridium, Scour Protection Layer – SPL and soft substrate). Each boxplot represents the median (middle horizontal line) and the lower and upper quartile (the lower and upper end of the boxplots, respectively) of eccentricity and theta in the different zones, while the whiskers represent the extreme highest and lowest observations. Intertidal was the only zone without enough replicates to generate a boxplot.
Food Resource Contribution per Consumer
The Bayesian stable isotope mixing models (SIMMR) revealed depth-dependent differences in resource utilization of species (Figure 7 and Supplementary Table S4). Diadumene cincta was the only species that did not show any dietary differences between the different zones it occupied, exploiting mainly SPOM in both the Mytilus and the Jassa zones (mean and standard deviation: 63.0 ± 11.2% and 72.0 ± 6.8% contribution to its diet, respectively). Necora puber was the only species that exploited more or less equal shares (usually < 20%) of multiple resources at every depth zone.

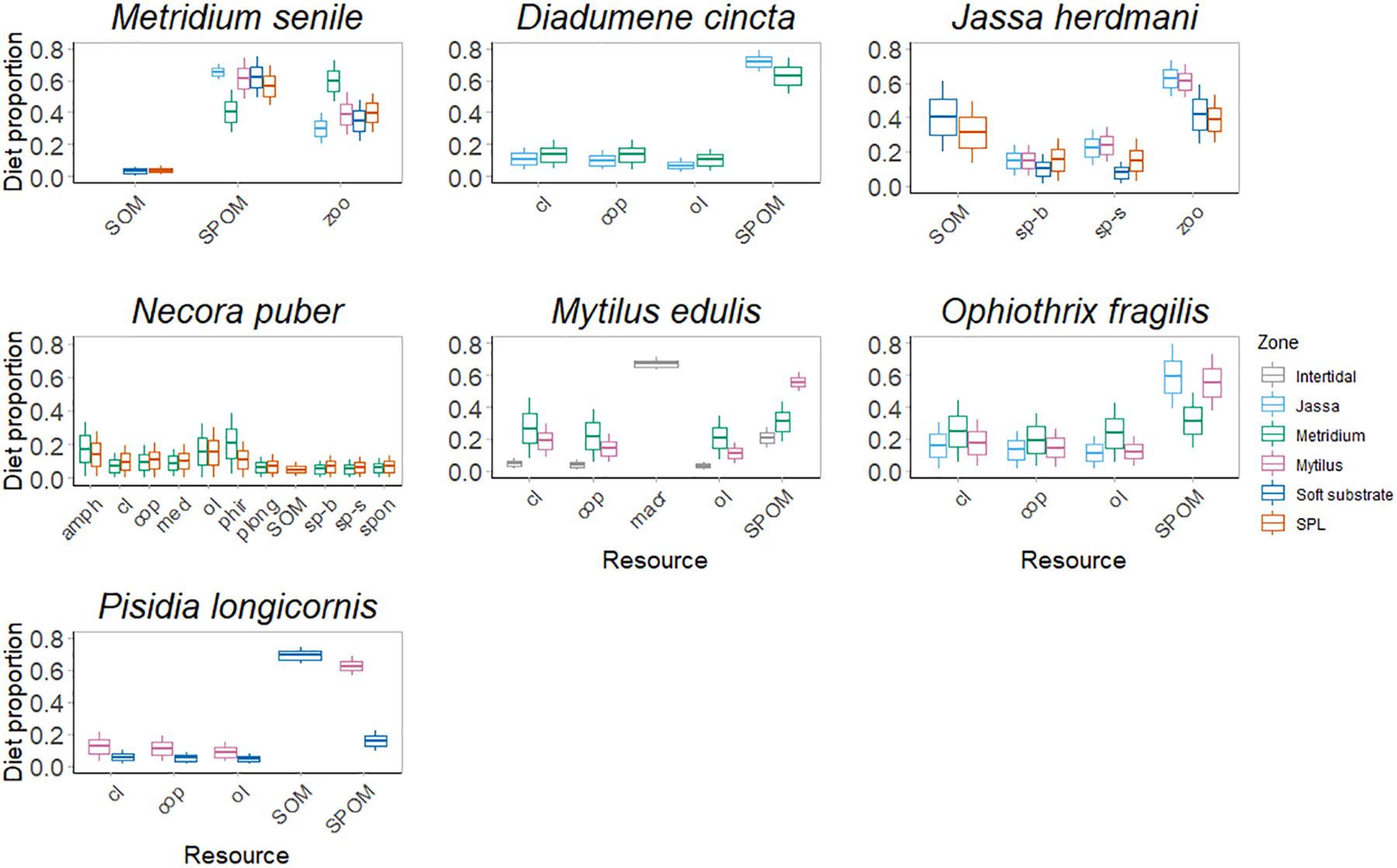

Figure 7. Potential contribution of each resource to the diet of each species in the different zones. The different colors represent the different zones. The colored boxplots represent the 25th percentile, the median and the 75th percentile of the dietary proportions, while the whiskers represent the 1.5 × interquartile ranges (IQR) of the upper and lower quartile. Abbreviations refer to the different resources: cop, copepods; cl, crab larvae; ol, other larvae; zoo, zooplankton; sp-b, SPOM-bottom; sp-s, SPOM-surface; SPOM, suspended particulate organic matter; SOM, sediment organic matter; macr, macroalgae; amph, Amphipoda; med, Mytilus edulis; phir, Pilumnus hirtellus; plong, Pisidia longicornis; spon, Spongidae.
The other consumers showed higher variability in their diets when sampled at different depth zones. Jassa herdmani mainly exploited zooplankton in the Jassa and Mytilus zones, while SOM was an important resource for J. herdmani from the SPL and soft substrate. The brittle star O. fragilis consumed SPOM in the Mytilus and Jassa zones (55.2 ± 17.4% and 59.0 ± 20.1%, respectively), but in the Metridium zone, the contribution of SPOM to its diet was considerably lower (31.6 ± 17.6%). The contributions of crab and other zooplankton larvae to its diet (25.0 ± 19.4% and 23.9 ± 18.3%, respectively) were higher in the Metridium zone. The suspension-feeding crab P. longicornis mainly consumed SPOM (69.0 ± 11.7%) in the Mytilus zone but SOM (69.0 ± 5.4%) in the SPL. Finally, M. edulis mainly fed on macroalgal material in the intertidal (67.2 ± 3.9%), while SPOM was an important resource in the subtidal zones (55.5 ± 5.9% and 30.9 ± 12.3% in the Mytilus and Metridium zones, respectively). However, in the Metridium zone, different resources contributed more or less equally to the diet of M. edulis.
Discussion
Competition may drive species to alter their niche, thus facilitating co-existence (Svanbäck and Bolnick, 2007). The most common mechanism to avoid resource competition is niche variation, where generalist species narrow down their resource use (Van Valen, 1965; Huss et al., 2008). From this point of view – and in contrast to the alternative niche pre-emption theory (May and Arthur, 1972) – a strong competitor is not one that outcompetes other species at using the most favorable food, but one that exhibits high (“dominant”) resource plasticity as a function of its competitive environment (Ashton et al., 2010).
Our results partly confirmed our hypothesis that most species that are found across multiple depth zones at an offshore wind turbine would exhibit depth-specific resource use strategies. This was demonstrated by the significant differences of the isotopic signatures among different depth zones, by the limited overlaps of the isotopic niches of a given species between different depths, and by depth-specific differences in their diet composition. These data support the idea of a considerable trophic plasticity, which was not related to the mobility of the species, since it was observed for both sessile and mobile species. Only the anemone Diadumene cincta proved to be a resource specialist, consuming SPOM irrespective of the zone where it was sampled.
Food Resources and Isotopic Niches
The organisms occurring on offshore wind turbines have access to a wide range of food resources. These resources are generally well-mixed along the depth gradient of ∼27 m (Franco et al., 2010; Braeckman et al., 2014). From the potential resources that we sampled, zooplankton, SPOM, SOM and macroalgae were highly exploited by most of the invertebrate species (excluding Necora puber). The carbon and energy content of these resources differs, with zooplankton being the most energy-rich, followed by macroalgae, SPOM, and finally SOM (Wilson and Parkes, 1998).
The results of our study indicate that the organisms occurring in deeper zones have generally broader trophic niches than those in the upper zones. This implies that these organisms have access to a wide range of sedimentary sources, which are enriched around the base of the turbine foundations. Indeed, the biodeposition of faces and pseudofaeces by filter-feeders (mainly Mytilus edulis) growing on offshore wind turbines enriches the nearby surroundings (Coates et al., 2014), increasing both the availability, diversity and quality range of resources in the SPL and the soft substrate close to the turbines (Mavraki et al., 2020). This may well explain why organisms from deeper zones generally exhibited isotopic niches that were more stretched along the x-axis (high E values and θ < 45°), compared to their conspecifics from shallower zones (Reid et al., 2016; Tabak et al., 2016). Diadumene cincta, M. edulis and O. fragilis mainly had negative θ values indicating that an increase in their δ13C values was associated with a decrease in δ15N, while the other species mainly had positive θ values, implying that δ13C and δ15N covaried positively (Reid et al., 2016).
Trophic Plasticity of Fouling Fauna
The resource utilization patterns shown by the mixing models at least partly confirmed the depth-dependence of feeding strategies indicated by the isotopic niche descriptors (section Food resources and Isotopic Niches). As a direct consequence of these depth-specific feeding strategies, species like M. edulis, M. senile, J. herdmani, O. fragilis, N. puber, and P. longicornis act as resource generalists when considering the entire depth range they occupy on a turbine, while having narrower diets at the scale of single depth zones. This leads to zone-specific isotopic niches (Figure 4), often with limited or no overlap (Table 2). Such switching between resource-use strategies can be an important mechanism to avoid resource competition (Bolnick et al., 2003; Lefebvre et al., 2009), and demonstrates a large degree of trophic plasticity of these species.
The diet of M. edulis in the Mytilus zone consisted mainly of SPOM (55.5 ± 5.9%), which is considered an energy-poor resource (Wilson and Parkes, 1998; David et al., 2006), while it largely obtained carbon from macroalgae (67.2 ± 3.9%) when in the intertidal (Supplementary Table S4). Macroalgae are abundantly present on offshore wind turbines in the North Sea, where they mostly consist of Porphyra spp. and Ulva spp. (Bouma and Lengkeek, 2008). While M. edulis cannot directly graze on macroalgae, it can filter fine particulate macroalgal detritus which becomes suspended due to waves and tidal action (Dubois et al., 2007). In the Metridium zone, by contrast, 70% of the diet of M. edulis consisted of various zooplankton groups (mainly crab larvae and copepods), SPOM still accounting for the remaining 30%. A large dependence of M. edulis on zooplankton is in line with previous studies (Lehane and Davenport, 2002; Wong and Levinton, 2006; Maar et al., 2007), but could result in resource competition with M. senile, which is the dominant species in this zone and feeds mainly on zooplankton. However, we suggest that zooplankton is abundant enough to fulfill the energy demands of both species.
Still, it should be noted that M. edulis feeds on a lower-quality resource in its own zone of dominance. There are two possible explanations for this; either SPOM is much more abundant closer to the sea surface compared to the deeper areas, or there is higher intraspecific competition within the Mytilus zone than there is interspecific competition. Support for the higher availability of SPOM near the surface can be found in the diet of most species (D. cincta, M. edulis, M. senile, P. longicornis, O. fragilis), which exploited SPOM in the Mytilus and Jassa zones, while zooplankton was mainly exploited in deeper zones. Indeed, high surface concentrations of suspended particulate matter have been documented as sediment plumes by aerial photography (Vanhellemont and Ruddick, 2014) and acoustic data (Baeye and Fettweis, 2015) in the OWF areas in the BPNS. These are normally obvious shortly after strong storm events (Pleskachevsky et al., 2005), but the construction of turbines induces their production due to the changes in the hydrodynamics and sediment transport, affecting the turbidity (Baeye and Fettweis, 2015). Plumes are associated with the wakes of single turbines, and their tidal stream and direction change with the tide cycle (Vanhellemont and Ruddick, 2014). The duration of the plumes differs with the tidal cycle and seasonality (Baeye and Fettweis, 2015), but they are persistent, since they are continuously repeating with each current reversal (Vanhellemont and Ruddick, 2014). This indicates that the concentration of SPOM can often be very high near the water surface, and therefore zooplankton densities will be relatively decreased there. Thus, it is possible that the organisms exploit the resource that is ad libitum, shifting their diets synchronously toward this non-limiting resource (Lefebvre et al., 2009). Alternatively, it is possible that M. edulis shows higher intraspecific than interspecific competition in its own zone of dominance, leading to high competition between the M. edulis individuals for the limiting energy-rich resources and finally, to the exploitation of the non-limiting SPOM by the majority of them (Troost et al., 2010).
Metridium senile fed on both zooplankton (59.3 ± 12.9%) and SPOM (40.7 ± 12.9%) in its own depth zone, while in other depth zones, it mainly utilized SPOM (>56%, Supplementary Table S4). The latter strategy may allow it to coexist with J. herdmani in the Jassa zone, where the highly abundant J. herdmani predominantly feeds on zooplankton (Supplementary Table S4). In the Mytilus zone, the feeding strategy of M. senile with a focus on SPOM may bring it in direct competition with M. edulis. There are two possible explanations for this dietary shift; either M. senile avoids competition with J. herdmani in the Mytilus zone, or it is energetically more favorable to feed on SPOM which is probably available in non-limiting quantities (see above), given that most of the species in the Mytilus and Jassa zones (except J. herdmani) primarily relied on SPOM.
Jassa herdmani mainly fed on zooplankton in every depth zone. In the SPL and in soft substrate, the contribution of SOM increased substantially to 30% and more (Supplementary Table S4), but zooplankton remained the predominant resource. However, J. herdmani is not a sediment dwelling organism and its presence there can be explained by individuals that have become dislodged from the turbine (Bouma and Lengkeek, 2012; Mavraki et al., 2020). Their isotopic signatures likely reflect in part their original position along the turbine depth gradient and in another part an opportunistic and little selective use of the most available resource(s) at or near the sediment. In general, our results suggest that J. herdmani is a strong competitor for zooplankton, as evidenced by the higher contribution of zooplankton to its diet than to that of any other consumer in every zone where J. herdmani occurred (Supplementary Table S4). Indeed, other species largely exploited zooplankton in the Metridium zone, where J. herdmani was rare.
Similarly, dietary shifts were also observed for mobile consumer species (Figure 4), suggesting that these do not dwell the turbine and its environment in search of a preferred resource. Pisidia longicornis individuals sampled from the Mytilus zone mainly fed on SPOM (68.5 ± 11.7%), while the diet of individuals from the SPL was dominated by SOM (69.3 ± 5.4%). The size of the trophic niche (SEAC) of P. longicornis was also considerably larger in the Mytilus zone than in the soft sediments (Figure 4 and Supplementary Table S2), which may be a strategy of minimizing competition with M. edulis by broadening its trophic niche while sharing a substantial part of its resources with that species.
Ophiothrix fragilis is a deposit/suspension feeder that mainly consumed SPOM in the Mytilus (55.2 ± 17.4%) and Jassa (59 ± 20.1%) zones, but the contribution of SPOM to its diet dropped by almost half in the Metridium zone, where O. fragilis mainly fed on crab and other larvae (up to 70%). These feeding strategies may bring O. fragilis in direct competition with M. edulis in the Mytilus zone and with M. senile in the Metridium zone. At the same time, it would limit competition between O. fragilis and J. herdmani, a strategy that is further enforced by a pronounced increase in the size of its trophic niche (SEAB, Figure 5) in the Jassa zone. It is nevertheless important to note that niche expansion at the population level may not only follow from a decrease in interspecific competition, but also from an increase in intraspecific competition, because the latter may drive individuals to minimize niche overlap with conspecifics by narrowing their resource use (Svanbäck and Bolnick, 2007; Violle et al., 2012). As such, the considerably larger isotopic niche of M. edulis in the intertidal zone, for instance, may also reflect strong intraspecific competition. Because isotopic niches are calculated at a “population level” (i.e., for a group of individuals) rather than at an individual level, our data can only demonstrate the degree of variation within a population, but not the niche width of individual consumers, and hence cannot prove the ecological mechanism causing the observed variation.
In contrast to O. fragilis, Necora puber, exhibited no or only small differences in trophic niche between the Metridium zone and the soft substrate (Figure 4). In the Metridium zone, N. puber was partly feeding on the small crab Pilumnus hirtellus (20.6 ± 17.9%), while in the soft substrate, no specific dietary preferences were observed. This indicates that N. puber does not narrow its resource range and/or shifts to different food sources depending on the depth zone where it occurs, and exhibits very little trophic plasticity.
Finally, D. cincta was the only trophic specialist observed in our study, and hence, the only species that did not show any trophic plasticity. Diadumene cincta mainly consumed SPOM in both the Mytilus (62.5 ± 11.2%) and the Jassa (71.9 ± 6.8%) zones (Figure 7 and Supplementary Table S4). The specialist diet of this species suggests that it cannot avoid competition with other, more dominant species. Because of their shared reliance on SPOM, trophic competition with M. edulis in the Mytilus zone is likely to occur, but in turn, limited competition is to be expected with J. herdmani, since the latter species predominantly preys on zooplankton.
In general, the seven consumer species investigated here covered three different resource strategies: resource specialization (D. cincta), intermediate dietary shifts with depth (N. puber) and trophic plasticity (all five other consumers). When species are exposed to anthropogenic stress – as may for instance be increasingly the case as a consequence of climate change – flexible and differential resource strategies may provide them with (extra) spatial refuges and thus buffer their populations against costs imposed by the impacts of stressors on their environment (MacDonald et al., 2019). Our results extend the well-recognized importance of trophic plasticity as a major driver of vertical zonation in, for instance, shallow coral-reef (Palardy et al., 2008; Friedlander et al., 2010; Fox et al., 2019) and deep-sea communities (Carney, 2005) to hard-substrate fauna in shallow coastal waters, where zonation patterns are commonly explained in relation to predation, competition for space and food (the latter mostly among suspension feeders), and tolerance to environmental conditions toward the limits of a species’ depth range (Kaiser et al., 2011).
Methodological Considerations
The δ13C values of SPOM and SOM were highly similar, which is in line with a previous study conducted in the area (Franco et al., 2008). This could be explained by the composition of SOM, which partly consists of deposited SPOM particles and partly of the fecal pellets derived from the biodeposition of the fouling organisms (Coates et al., 2014). The δ15N values of SPOM were almost identical to the δ15N values of zooplankton. Such similarities in the δ15N values between SPOM and zooplankton have been previously reported in summer and autumn in the Mediterranean Sea (Banaru et al., 2014). Therefore, SPOM in our samples could contain a range of different particles, each with somewhat different isotopic signatures, that influenced the overall SPOM isotopic values but also the estimates of the contributions of SPOM and SOM to the diet of consumers.
In addition, we probably did not collect all the available potential resources (i.e., diatoms, bacteria, detritus, etc.). A significant contribution of bacteria to the diet of suspension feeding organisms, such as the blue mussel Mytilus edulis (Kreeger and Newell, 1996) and the brittle star Ophiothrix fragilis, might explain the unexpectedly low δ15N values measured for suspension feeding organisms (Cresson et al., 2016). Bacteria represent an important proportion of the organic carbon content in marine food webs (Richoux and Froneman, 2008) and are considered a potential resource both for bivalves (Maar et al., 2007; Mueller et al., 2013; Cresson et al., 2016; Demopoulos et al., 2017) and for O. fragilis (Migne et al., 2012).
Finally, for most of our consumers, the number of resources included in the mixing models was ≤ 5 and thus within an acceptable range (see Phillips et al., 2014), with the exception of N. puber, where we incorporated 11 resources (Figure 7). While this large number of resources may have reduced the power of the diet reconstruction of N. puber, available literature underlines that this species’ diet consists of multiple resources and did not provide clear clues about resources that we could have omitted or pooled (see Table 1). Moreover, the model did not suggest an a posteriori combination of the resources, implying that it can provide a valid solution, by preserving the covariation structure among the source proportions (Phillips et al., 2014).
Conclusion
Our study provides insight into the feeding strategies and dietary composition of invertebrate species associated with offshore wind turbine foundations. A considerable degree of trophic plasticity was observed for both sessile and mobile species, indicating that they exploit at least partly different resources in different depth zones. The isotopic niches of most species were highly horizontally elongated in deeper zones, which suggests that organisms consumed resources with distinct δ13C values that are accumulated in the SPL and the surrounding soft sediments, but also that there was considerable intraspecific variation in diet. Our results suggested that Diadumene cincta was the only trophic specialist, since it predominantly fed on SPOM in both zones where it occurred. All the other species showed zone-specific dietary shifts, which may well represent a way to avoid trophic competition with the dominant species of each zone and/or a strategy to feed on energetically more favorable food sources. Jassa herdmani appeared to be a dominant competitor for zooplankton, since its occurrence in any depth zone coincided with a very limited or no contribution of zooplankton to the diets of the other species in that zone. Trophic plasticity is likely a key mechanism allowing the co-existence of invertebrate organisms within and across depth zones at an offshore wind turbine, in line with other aquatic habitats and communities where trophic plasticity is known to contribute to depth zonation patterns, such as shallow coral reef communities (Palardy et al., 2008; Friedlander et al., 2010; Fox et al., 2019) and deep-sea communities (Carney, 2005).
Data Availability Statement
The datasets (stable isotope data, dates of the sampling campaigns and further details) for this study can be found in the Marine Data Archive of Flanders Marine Institute (https://mda.vliz.be/archive.php).
Author Contributions
ID, TM, SD, and JV conceived this study. NM collected the data, analyzed the data with support of JV and TM and wrote the manuscript with valuable inputs and edits by all the other co-authors.
Funding
This work was part of the FaCE-It project – Functional Biodiversity in a Changing Sedimentary Environment: Implications for biogeochemistry and food webs in a managerial setting – funded by the Belgian Science Policy Office (BELSPO, contract BR/154/A1/FaCE-It).
Conflict of Interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Acknowledgments
We would like to acknowledge the crew of R.V. Simon Stevin for help with sampling at sea; Francis Kerckhof and Jan Ranson for help with the identification of the organisms and the collection of the intertidal samples. The research leading to results presented in this publication was supported by EMBRC Belgium as we are indebted to the scientific divers Patrick Hendricks, Daniel Marsham, Alain Norro, Francesca Pasotti, Bob Rumes, Marc van Espen and David Vuylsteke for their valuable contribution to the collection of the samples.
Supplementary Material
The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fmars.2020.00379/full#supplementary-material
