Kinetic and Metabolic Isotope Effects in Zooxanthellate and Non-zooxanthellate Mediterranean Corals Along a Wide Latitudinal Gradient

Prada, Fiorella; Yam, Ruth; Levy, Oren; Caroselli, Erik; Falini, Giuseppe; Dubinsky, Zvy; Goffredo, Stefano; Shemesh, Aldo

doi:10.3389/fmars.2019.00522

ORIGINAL RESEARCH article

Front. Mar. Sci., 10 September 2019

Sec. Marine Biogeochemistry

Volume 6 - 2019 | https://doi.org/10.3389/fmars.2019.00522

Kinetic and Metabolic Isotope Effects in Zooxanthellate and Non-zooxanthellate Mediterranean Corals Along a Wide Latitudinal Gradient

$\r\nFiorella Prada&#x;$ Fiorella Prada^1†

Aldo Shemesh^2*†

¹Marine Science Group, Department of Biological, Geological and Environmental Sciences, University of Bologna, Bologna, Italy
²Department of Earth and Planetary Sciences, Weizmann Institute of Science, Rehovot, Israel
³The Mina and Everard Goodman Faculty of Life Sciences, Bar–Ilan University, Ramat Gan, Israel
⁴Department of Chemistry “Giacomo Ciamician”, University of Bologna, Bologna, Italy

Many calcifying organisms exert significant biological control over the construction and composition of biominerals which are thus generally depleted in oxygen-18 and carbon-13 relative to the isotopic ratios of abiogenic aragonite. The skeletal δ¹⁸O and δ¹³C values of specimens of Mediterranean zooxanthellate (Balanophyllia europaea and Cladocora caespitosa) and non-zooxanthellate corals (Leptopsammia pruvoti and Caryophyllia inornata) were assessed along an 8° latitudinal gradient along Western Italian coasts, spanning ∼2°C and ∼37 W m^–2 of annual average sea surface temperature and solar radiation (surface values), respectively. Seawater δ¹⁸O and δ¹³C_DIC were surprisingly constant along the ∼850 km latitudinal gradient while a ∼2 and ∼4% variation in skeletal δ¹⁸O and a ∼4 and ∼9% variation in skeletal δ¹³C was found in the zooxanthellate and non-zooxanthellate species, respectively. Albeit Mediterranean corals considered in this study are slow growing, only a limited number of non-zooxanthellate specimens exhibited skeletal δ¹⁸O equilibrium values while all δ¹³C values in the four species were depleted in comparison to the estimated isotopic equilibrium with ambient seawater, suggesting that these temperate corals cannot be used for thermometry-based seawater reconstruction. Calcification rate, linear extension rate, and skeletal density were unrelated to isotopic compositions. The fact that skeletal δ¹⁸O and δ¹³C of zooxanthellate corals were confined to a narrower range at the most isotopically depleted end compared to non-zooxanthellate corals, suggests that the photosynthetic activity may restrict corals to a limited range of isotopic composition, away from isotopic equilibrium for both isotopes. Our data show that individual corals within the same species express the full range of isotope fractionation. These results suggest that metabolic and/or kinetic effects may act as controlling factors of isotope variability of skeleton composition along the transect, and that precipitation of coral skeletal aragonite occurs under controlling kinetic biological processes, rather than thermodynamic control, by yet unidentified mechanisms.

Introduction

Scleractinian corals retain records of the chemical and physical conditions of the local surrounding seawater at the time of skeletal calcium carbonate accretion (McConnaughey, 2003; Allemand et al., 2004; Meibom et al., 2007), thus serving as oceanic recorders with monthly to seasonal resolution (McCulloch et al., 1999; Cohen et al., 2001; Felis et al., 2003). The skeletal carbon and oxygen isotopic ratios reflect temperatures, evaporation, precipitation, light intensity and primary production activity in the surrounding seawater but in a complex, and non-linear way (Levy et al., 2006; Rodrigues and Grottoli, 2006). In particular, skeletal δ¹⁸O is the most commonly used proxy for seawater temperature and salinity (Al-Rousan et al., 2003; Asami et al., 2004; Linsley et al., 2006). In general, the isotopic composition of oceanic water masses changes as a result of water loss by evaporation, that enriches the heavy isotope species in the surface waters, and water inflow by precipitation and/or river discharge, which cause a decrease of δ¹⁸O values of the oceanic water (Craig, 1961), thus revealing a direct relationship between salinity and δ¹⁸O values. Moreover, at constant δ¹⁸O, an composition of seawater increase of 1°C in SST is coupled to a decrease in coral δ¹⁸O of 0.18 to 0.22% (CorreÌge, 2006). Coral skeletal δ¹⁸O and δ¹³C are generally shifted toward lower isotope values compared to aragonite in equilibrium with seawater (Weber and Woodhead, 1970, 1972; Weber, 1974; McConnaughey, 1989a). These so-called vital effects (Urey et al., 1951; Weber and Woodhead, 1972) or physiological effects (e.g., Epstein et al., 1951), may override environmental signals (e.g., Meibom et al., 2003, 2004; Rollion-Bard et al., 2003). However, in some cases, the environmentally controlled fraction that reflects the ambient temperature and isotopic composition of the water can be extracted and used for climatic reconstructions, as performed by Smith et al. (2000) in cold-water corals collected from the Norwegian Sea to the Antarctic.

Vital effects are the result of a biologically controlled calcification process (Wilbur and Simkiss, 1979; Allemand et al., 2004). In scleractinian corals, calcification is thought to occur within a physiologically controlled calcifying fluid (cf) in a semi-confined environment between the coral skeleton and its calicoblastic cell layer^8,9,10. Carbonate chemistry of the calcifying fluid is exquisitely regulated through Ca²⁺-ATPase proton pumps acting as Ca²⁺/H⁺ exchangers (or antiporters), which remove two H⁺ ions from the calcifying fluid in exchange for every Ca²⁺ ion transported from the calicoblastic epithelial cells into the calcifying space (Al-Horani et al., 2003; Zoccola et al., 2004). By this process, calcifying fluid pH can be elevated significantly above ambient. Sources of dissolved inorganic carbon (DIC) can be either from seawater or from coral respiration and can be in the form of: (1) CO₂ freely diffusible across lipid membranes (Sueltemeyer and Rinast, 1996); and (2) bicarbonate (HCO₃^–) requiring specific carrier proteins (Furla et al., 2000; Vidal-Dupiol et al., 2013).

Physiological/vital effects can be attributed to “metabolic” or “kinetic” isotope fractionations. While metabolic effects are caused primarily by respiration and photosynthesis (Weber and Woodhead, 1970; Weber, 1974; Weber et al., 1976; Goreau, 1977a,b; Swart, 1983), kinetic effects associated with the hydration and hydroxylation of carbon dioxide during coral skeletogenesis result in simultaneous isotopic depletion of carbon and oxygen (relative to aragonite isotopic equilibrium; McConnaughey, 1989a,b). The prevailing hypothesis is that photosynthesis preferentially removes the light isotope of carbon from the internal pool of DIC while respiration enriches the pool in the light isotope (Weber and Woodhead, 1970; Weber, 1974; Weber et al., 1976; Goreau, 1977a,b; Swart, 1983). In general, since calcification in symbiotic corals should be on average three times higher during the day (Gattuso et al., 1999), when photosynthetic CO₂ uptake is several times faster than respiratory CO₂ release (McConnaughey, 1989a; McConnaughey et al., 1997), photosynthesis affects δ¹³C up to 11% more strongly than respiration (about 1.5%). Thus, corals in which zooxanthellae are photosynthesizing rapidly will tend to show isotopically enriched skeletons compared to those in which photosynthesis is occurring much slower or does not occur at all (i.e., non-zooxanthellate species; Heikoop et al., 2000). Rollion-Bard et al. (2003) suggested that the observed δ¹⁸O values reflect partial isotopic re-equilibration with water following kinetic CO₂ hydration/hydroxylation reactions while Adkins et al. (2003) proposed a quantitative (carbonate based) model to explain both carbon and oxygen fractionations. Both models allowed a “leak” of seawater to the calcifying sites. Recently, Chen et al. (2018) expanded this model and incorporated carbonic anhydrase activity to better explain the mechanism and the depletion relation between δ¹⁸O and δ¹³C. It is widely recognized that vital effects are not always constant within a genus or species, or even within individual corals, with faster growing individuals or faster growing parts of coral skeletons being generally more depleted in both δ¹⁸O and δ¹³C (e.g., Land et al., 1975; McConnaughey, 1989a; Cohen and McConnaughey, 2003). In fact, it has been observed that biomineralization in corals does not follow classical thermodynamic rules but rather responds to biological kinetic effects, following a mechanism that has not yet been unraveled (Juillet-Leclerc et al., 2018). McConnaughey (1989a) investigated zooxanthellate and non-zooxanthellate coral species from the in an attempt to same growth environment unravel the chemical mechanisms behind vital effects. His results showed that the photosynthetic Pavona had higher δ¹³C than the non-photosynthetic Tubastrea, suggesting that algal preferential uptake of ¹²C leaves the residual inorganic calcification “pool” enriched in ¹³C, thereby increasing the δ¹³C of the skeleton. Moreover, McConnaughey (1989b) concluded that skeleton carbonate precipitation must be fast enough to allow absorption of HCO₃^– and/or CO₃^2–, formed by CO₂ hydration and hydroxylation, before they isotopically re-equilibrate with seawater.

In the Mediterranean Sea, coral-based paleoclimatic studies are limited compared to tropical regions. Temperate seas like the Mediterranean are characterized by pronounced seasonal irradiance, temperature, and nutrient cycles, while high temperature and irradiance, and low nutrients are far less variable in tropical seas (Ferrier-Pagès et al., 2012). The Mediterranean basin is considered an oligotrophic basin (Sournia, 1973), with generally low chlorophyll concentration, with the exception of a large bloom observed in the Liguro-Provencal Region (D’Ortenzio and Ribera d’Alcalà, 2009). Along the western Italian coast, the wind effect, coastal upwelling, and winter layers mixing, determine a decrease in the biomass of phyto- and zooplankton from north to south (D’Ortenzio and Ribera d’Alcalà, 2009). Local currents and rock composition at the Genova site considered in this study generate particular local conditions leading to higher SSTs than expected at that latitude [annual SST of Ligurian Sea = 18°C and Genova–Portofino (GN) = 19°C]. Moreover, the Strait of Messina, where the Scilla site is located, lies at the center of the Mediterranean Sea and is characterized by strong currents, including upwelling of deeper water of Levantine intermediate water origin (Cortese and De Domenico, 1990), which are colder, more salty and nutrient-rich with respect to the Tyrrhenian Surface Waters (Atlantic Water origin). Such environmental differences must be cautiously taken into account when investigating and interpreting the skeletal isotope signal of temperate corals. Stable isotope and trace element composition, in combination with U-series and radiocarbon dating of the zooxanthellate coral Cladocora caespitosa, and of the cold-water corals Desmophyllum dianthus, Lophelia pertusa, and Madrepora oculata have been validated as high-resolution paleoenvironmental proxies (Peirano et al., 2004; Silenzi et al., 2005; Cohen et al., 2006; Montagna et al., 2008; López Correa et al., 2010; Trotter et al., 2011).

The aim of the present study was to investigate the species-specific variation of skeletal δ¹⁸O and δ¹³C and “vital effects” in four Mediterranean scleractinian species along an 8° latitudinal gradient along the Italian coast. We collected and analyzed the colonial zooxanthellate C. caespitosa (Linnaeus, 1767), the solitary zooxanthellate Balanophyllia europaea (Risso, 1826), and the two solitary non-zooxanthellates Leptopsammia pruvoti Lacaze-Duthiers, 1897 and Caryophyllia inornata (Duncan, 1878). We measured the surrounding seawater δ¹⁸O and δ¹³C of DIC to determine the fractionation between coral skeletons and seawater during calcification.

Materials and Methods

Sample Collection and Treatment

Specimens of four coral species and seawater samples were collected between July 2010 and June 2013 from six sites along a wide latitudinal gradient spanning ∼850 km and ∼2°C of average sea surface temperature along the Western Italian coast (44°20′N to 36°45′N; Figure 1 and Table 1). B. europaea and C. caespitosa specimens were randomly collected along a reef with southerly exposure at a depth of 5–7 m. All four coral species occur at all six sites, except for C. caespitosa which was not sampled at Scilla. Leptopsammia pruvoti and C. inornata specimens were randomly collected on the vault of crevices at a depth of 15–18 m, except for the Elba site where C. inornata was collected under the wings of a sunken plane wreck, at a depth of 12–15 m. Coral tissue was removed by immersing the samples in a solution of 10% commercial bleach for 3 days. Corals were dried for 4 days at a maximum temperature of 50°C to avoid phase transitions in the skeletal carbonate (Vongsavat et al., 2006). Samples were inspected under a binocular microscope to remove fragments of substratum and calcareous deposits produced by other organisms. Polyp length (L: maximum axis of the oral disc), width (W: minimum axis of the oral disc), and height (h: oral–aboral axis) were measured using a pair of calipers (cf. Goffredo et al., 2007) and dry skeletal mass was weighed using an analytical balance (±0.1 mg).

FIGURE 1

Figure 1. Map of the Italian coastline indicating the sites where the corals and seawater samples were collected, with pattern of the main currents for the Ligurian Sea and Tyrrhenian Sea (modified from Silenzi et al., 2005; LC: Ligurian–Provencal Current; TC: Tyrrhenian Current). Abbreviations and coordinates of the site in decreasing order of latitude: GN Genova, 44°20′N, 9°08′E; CL Calafuria, 43°27′N, 10°21′E; LB Elba Isle, 42°45′N, 10°24′E; PL Palinuro, 40°02′N, 15°16′E; SC Scilla, 38°01′N, 15°38′E; PN Pantelleria Isle, 36°45′N, 11°57′E.

TABLE 1

Table 1. Solar radiation (SR) values at sea surface and sampling depth temperature (DT) at 6 and 16 m at each site.

Seawater samples for δ¹⁸O (N = 5–8 per site at 6 and 16 m depth; Table 2) were collected by SCUBA in 50 ml plastic bottles, sealed, and kept in a refrigerator at 4°C for 3–6 months prior to analysis. Seawater samples for δ¹³C of dissolved inorganic carbon (DIC; N = 2–5 per site at 6 and 16 m depth; Table 2) were collected by SCUBA in borosilicate-glass bottles, and 1 ml of saturated mercuric chloride (HgCl₂) was introduced to 100 ml of seawater in order to stop all biological activity. The bottles were kept in a refrigerator at 4°C for 3–6 months prior to analysis. Water samples were collected in duplicate.

TABLE 2

Table 2. Linear regression and correlation analysis between skeletal δ¹³C and δ¹⁸O in the four individual species and for each group, zooxanthellate and non-zooxanthellate species.

Carbon and Oxygen Isotopic Compositions

For skeletal δ¹³C and δ¹⁸O analysis, the whole corallite, which represents approximately the past 5–20 years of growth, was ground in a mortar to obtain a fine and homogeneous powder. Skeletal CaCO₃ samples of 220–250 μg were reacted with 100% orthophosphoric acid and CO₂ gas was analyzed using a Finnigan GasBench II connected in line to a Finnigan MAT 252 isotope ratio mass spectrometer. Calibration was maintained by routine analyses of internal and international standards. The long-term precision of our internal laboratory standard is 0.06 and 0.10% for carbon and oxygen, respectively. Oxygen isotopes analysis of sea water (δ¹⁸O_sw) were carried out by equilibrating 0.5 ml of samples with a mixture of 0.5% CO₂ in He at 25°C for 24 h. The samples were analyzed on a Gas Bench II connected in line to a Finnigan MAT 252 mass spectrometer. The results are reported relative to the Vienna Standard Mean Ocean Water (VSMOW) with 0.05% (±1σ) long-term precision of laboratory working standard.

For seawater δ¹³C of DIC (δ¹³C_DIC) analysis, 1 ml of seawater was injected into gas vials pre-flushed with He, then acidified with 0.15 ml H₃PO₄ and left to react for 24 h in 25°C. The samples were analyzed on a Gas Bench II and Finigan MAT 252. The results are reported relative to the international Vienna-PeeDee Belemnite (VPDB) standard with 0.08% long-term precision (±1σ) of NaHCO₃ laboratory standard (chemically pure). The coral δ¹³C_skeleton and δ¹⁸O_skeleton data are reported against VPDB-standard.

Growth Parameters

The mean annual calcification rate (mass of CaCO₃ deposited per year per area unit) was calculated for each specimen by applying the following formula: calcification (mg mm^–2 yr^–1) = skeletal density (mg mm^–3) × linear extension (mm yr^–1) (Lough and Barnes, 2000; Carricart-Ganivet, 2004). Corallite length (L, maximum axis of the oral disc), width (W, minimum axis of the oral disc), and height (h, oral-aboral axis) were measured with calipers and the dry skeletal mass (M) was measured with a precision balance. Corallite volume was calculated using the formula: V = L² × W² × hπ (Goffredo et al., 2007) The skeletal density for each corallite was calculated as M/V and the linear extension as L/age.

The age of each specimen was estimated by applying the Von Bertalanffy growth function, using the asymptotic length and growth constants for each population following Goffredo et al., 2008 for B. europaea, Caroselli et al., 2012b for L. pruvoti, and Caroselli et al., 2016b for C. inornata.

Environmental Parameters

Average monthly values of salinity were obtained using the Copernicus Marine Service Product MEDSEA_REANALYSIS_PHYS_006_004¹, and visualized through the Panoply software version 4.10.4². Monthly at-depth temperatures (DT) at 6 m were obtained from Airi et al. (2014) and at 16 m were obtained from Caroselli et al. (2016a). Monthly values of solar radiation (SR; in W m^–2) were obtained from Caroselli et al. (2016a). Temperature data (°C) were recorded by digital thermometers (i-Button, DS1921G-F5#, Maxim Integrated Products, Dallas Semiconductors) placed at the sampling location (∼ 6 or 16 m depth, depending on the species) for each population. Sea Surface Temperature historical data (SST;°C) were obtained for each site from the National Mareographic Network of the Superior Institute for the Environmental Protection and Research (ISPRA³). Site-by-site, historical at-depth temperatures were estimated by linear regression produced between the temperature data recorded by the digital thermometers and SST. Monthly values of solar radiation (SR; W m^–2) were obtained from the databank of the Satellite Application Facility on Climate Monitoring (CM-SAF/EUMETSAT⁴) and represent values at sea surface. In this study, the average DT and SR of the 6 years preceding sampling (n = 72 monthly temperatures) was considered based on the mean turnover time of populations (calculated as the reciprocal of the instantaneous rate of mortality, Z; Caroselli et al., 2016a,b).

Statistical Analyses

One-way analysis of variance (ANOVA) was used to compare environmental parameters, seawater and coral isotope data among sites. Data were checked for normality using a Kolmogorov-Smirnov’s test and for variance homoskedasticity using a Levene’s test. When assumptions for parametric statistics were not fulfilled, the non-parametric Kruskal-Wallis equality-of-populations rank test was used, including the Monte Carlo correction for small sample size (Gabriel and Lachenbruch, 1969). The Monte Carlo correction solves problems in non-parametric tests for small samples, because it estimates the p-value by taking a random sample from the reference set and studies its permutations (Senchaudhuri et al., 1995). Pearson’s correlation coefficients were calculated to test the relationship between environmental parameters and latitude, between skeletal δ¹³C and δ¹⁸O in the four individual species and for each group, zooxanthellate (B. europaea and C. caespitosa) and non-zooxanthellate (C. inornata and L. pruvoti) species, and between skeletal δ¹³C and δ¹⁸O and skeletal parameters (i.e., net calcification rate, linear extension rate, and skeletal density) in three species (B. europaea, C. inornata, and L. pruvoti). Spearman’s rank correlation coefficient was used to calculate the significance of the correlations between coral δ¹³C and δ¹⁸O and latitude and seawater temperature. Spearman’s rank correlation coefficient is an alternative to Pearson’s correlation coefficient (Altman, 1991). It is useful for data that are non-normally distributed and do not meet the assumptions of Pearson’s correlation coefficient (Potvin and Roff, 1993). Analysis of covariance (ANCOVA) was used to examine differences in δ¹³C and δ¹⁸O regression slopes between species. All analyses were computed using SPSS 20.0.

Results

Solar Radiation, Seawater Temperature, δ¹³C, and δ¹⁸O

Average DT and solar radiation (SR) both varied among sites (DT at 6 m, Kruskal Wallis test, χ = 16.9, n = 6, p < 0.010; DT at 16 m, Kruskal Wallis test, χ = 21.7, n = 6, p < 0.010; SR, Kruskal Wallis test, χ = 18.4, n = 6, p < 0.010). While SR was negatively correlated with latitude (Pearson’s correlation, n = 6, p < 0.010; Figure 2A), DT was not correlated with latitude (Pearson’s correlation, n = 6, p > 0.050; Figure 2B). The 6 years average monthly values of SR ranged from 162.0 W m^–2 at GN to 212.3 W m^–2 at PN (Table 1 and Supplementary Table S1). The 6 years average monthly seawater temperature exhibited an annual cycle in all sites, reaching summer maxima of 21.7–23.7°C and 20.3–22.9°C at 6 and 16 m depth, respectively, and winter minima of 13.4–16.7°C and 13.1–15.6°C at 6 and 16 m depth, respectively (Table 1 and Supplementary Tables S2, S3). The temperature difference between 6 and 16 m depth was not significantly different (average temperature, t-Test, t = 1.208, n = 12, p > 0.050; average minimum temperature, t-Test, t = 0.604, n = 12, p > 0.050; average maximum temperature, t-Test, t = 1.489, n = 12, p > 0.050; Supplementary Tables S2, S3), in the order of 0.4–0.8°C for annual average and both, summer and winter months. The annual amplitude was maximal in Genova (∼8–9°C), and minimal in Scilla (∼6°C: Supplementary Tables S2, S3).

FIGURE 2

Figure 2. The relation between average solar radiation values at sea surface (A), temperature (B), δ¹⁸O_seawater (C), and δ¹³C_DIC (D) with latitude at 6 and 16 m depth in 6 sites along the west coast of Italy (∼850 km transect).

Average annual δ¹⁸O_sw along the Italian western coast was 0.65 ± 0.23% (mean ± SD) at 6 m and 0.71 ± 0.24% at 16 m and ranged between 0.60 and 0.72% at 6 m and between 0.58 and 0.81% at 16 m depth. The average annual δ¹³C_DIC along the transect was 0.99 ± 0.17% at 6 m and 0.99 ± 0.12% at 16 m relative to VPDB and ranged between 0.67 and 1.07% at 6 m and between 0.72 and 1.08% at 16 m depth. No significant differences in average annual δ¹⁸O_sw were found among sites (Kruskal-Wallis test, χ = 1.611, χ = 3.853, n = 40 and n = 38 at 6 and 16 m depth, respectively, p > 0.050; Figure 2C and Table 2) which was remarkably constant along the 850 km North-South transect. Also, average annual δ¹³C_DIC did not exhibit significant differences among sites either (Kruskal-Wallis test, χ = 9.232, χ = 9.357, n = 22 and n = 20 at 6 and 16 m depth, respectively, p > 0.050; Figure 2D and Table 2).

The isotopic value for a biological aragonite precipitated in quasi-equilibrium with ambient seawater along the latitudinal gradient, calculated from Grossman and Ku (1986) for oxygen [T = 20.6 – 4.34(δ¹⁸O_arag – δ¹⁸O_seawater] and Romanek et al. (1992) for carbon (δ¹³C_arag = δ¹³C_DIC + 2.7), using the annual average temperature from all stations at both depths, resulted in 0.51% for δ¹⁸O and 2.7% for δ¹³C (Figure 3). Average δ¹⁸O_seawater and δ¹³C_DIC were not included in the equation as the graph axis is respectively, δ¹⁸O_arag – δ¹⁸O_seawater and δ¹³C_arag – δ¹³C_DIC.

FIGURE 3

Figure 3. Isotopic comparison between Balanophyllia europaea (zooxanthellate), Cladocora caespitosa (zooxanthellate), Leptopsammia pruvoti (non-zooxanthellate), and Caryophyllia inornata (non-zooxanthellate) at 6 sites along the west coast of Italy (∼850 km transect). Regression lines are the best fit to the zooxanthellate and non-zooxanthellate data sets. The black square indicates the estimated aragonite equilibrium value for average annual temperature for the 6 sites along the gradient using Grossman and Ku (1986) for oxygen and Romanek et al. (1992) for carbon. Vertical bar indicates equilibrium values corresponding to maximum and minimum average temperature. r², Pearson’s coefficient of determination; r, Pearson’s correlation coefficient; n, number of individuals.

Skeletal δ¹³C and δ¹⁸O and Growth Parameters

Average skeletal δ¹⁸O and δ¹³C along the gradient was −4.32 ± 0.71% (mean ± SD) and −1.66 ± 0.36%, respectively, in B. europaea, −4.28 ± 0.28% and −1.59 ± 0.19%, respectively, in C. caespitosa, −2.50 ± 1.21% and 0.88 ± 0.50%, respectively, in L. pruvoti, and −3.83 ± 1.14% and −0.09 ± 0.47%, respectively, in C. inornata (Table 3) relative to VPDB. Both skeletal δ¹³C and δ¹⁸O differed among sites in all species (B. europaea, ANOVA, n = 30, p < 0.01, F = 4.904 and F = 5.240, respectively; C. caespitosa, ANOVA, n = 25, p < 0.001, F = 39.601 and F = 24.489, respectively; L. pruvoti, ANOVA, n = 30, p < 0.001, F = 13.212 and F = 8.049, respectively; C. inornata, ANOVA, n = 30, p < 0.001, F = 17.735 and F = 11.225, respectively; Table 3). Skeletal isotope data are presented as δ¹³C_skeleton – δ¹³C_DIC or δ¹⁸O_skeleton – δ¹⁸O_sw in order to account for the isotopic composition of the local seawater in each site. A strong positive correlation between skeletal δ¹³C and δ¹⁸O was observed in all species (Table 4). The slopes within each group, zooxanthellate and non-zooxanthellate, did not differ (B. europaea vs C. caespitosa, ANCOVA, F = 0.382, n = 30 and 25, respectively; L. pruvoti vs C. inornata, ANCOVA, F = 0.492, n = 30 both species; p > 0.050; Figure 3). The slopes did not differ also between the two groups (zooxanthellate vs non-zooxanthellate, ANCOVA, F = 0.994, n = 55 and 60, respectively; p > 0.050; Figure 3). Latitude showed a significant positive correlation with both skeletal δ¹³C and δ¹⁸O in B. europaea (Spearman’s correlation, r² = 0.361 and 0.438, respectively, n = 30, p < 0.001; Figure 4), and C. caespitosa (Spearman’s correlation, r² = 0.360, n = 25, p < 0.010 and r² = 0.214, n = 25, p < 0.050, respectively; Figure 4). Solar radiation showed a symmetrical trend with a negative correlation with both skeletal δ¹³C and δ¹⁸O in B. europaea and C. caespitosa (Supplementary Figure S1). Generally, no significant correlation was found between skeletal δ¹⁸O or δ¹³C and average annual temperature, except for δ¹⁸O of C. inornata which correlated positively (Spearman’s correlation, r² = 0.287, n = 30, p < 0.010; Supplementary Figure S2). Skeletal δ¹³C and δ¹⁸O values of B. europaea were negatively correlated with average minimum temperature (Spearman’s correlation, r² = 0.301, n = 30, p < 0.001 and r² = 0.179, n = 30, p < 0.050, respectively; Figures 5A,B), while skeletal δ¹⁸O of C. inornata was positively correlated with average minimum temperature (Spearman’s correlation, r² = 0.201; n = 30, p < 0.050; Figure 5H). Skeletal δ¹³C and δ¹⁸O values were positively correlated with average maximum temperature in C. caespitosa (Spearman’s correlation, r² = 0.232, n = 25, p < 0.050 and r² = 0.487, n = 25, p < 0.001, respectively; Figures 6C,D) and C. inornata (Spearman’s correlation, r² = 0.182, n = 30, p < 0.050 and r² = 0.397, n = 30, p < 0.001, respectively; Figures 6G,H).

TABLE 3

Table 3. Seawater stable isotope data at 6 and 16 m depth in 6 sites along the west coast of Italy (∼850 km transect).

TABLE 4

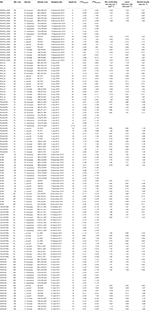

Table 4. Coral aragonite stable isotope data and net calcification rate (mg mm^–2 yr^–1), linear extension rate (mm yr^–1) and bulk skeletal density (mg mm^–3) in Balanophyllia europaea, Leptopsammia pruvoti, and Caryophyllia inornata at 6 sites along the west coast of Italy (∼850 km transect).

FIGURE 4

Figure 4. The relation between skeletal δ¹³C and δ¹⁸O with latitude in B. europaea (A,B), C. caespitosa (C,D), L. pruvoti (E,F), and C. inornata (G,H). r², Spearman’s determination coefficient; r, Spearman’s correlation coefficient; n, number of individuals.

FIGURE 5

Figure 5. The relation between skeletal δ¹³C and δ¹⁸O with average minimum temperature in B. europaea (temperature at 6 m; A,B), C. caespitosa (temperature at 6 m; C,D), L. pruvoti (temperature at 16 m; E,F), and C. inornata (temperature at 16 m; G,H). r², Spearman’s determination coefficient; r, Spearman’s correlation coefficient; n, number of individuals.

FIGURE 6

Figure 6. The relation between skeletal δ¹³C and δ¹⁸O with average maximum temperature in B. europaea (temperature at 6 m; A,B), C. caespitosa (temperature at 6 m; C,D), L. pruvoti (temperature at 16 m; E,F), and C. inornata (temperature at 16 m; G,H). r², Spearman’s determination coefficient; r, Spearman’s correlation coefficient; n, number of individuals.

Generally, no correlation was found between skeletal δ¹³C and δ¹⁸O and net calcification rate, linear extension rate, and skeletal density, in neither of the species, except for linear extension rate in L. pruvoti that showed a positive correlation with both δ¹³C and δ¹⁸O (Pearson’s correlation, r² = 0.288, n = 30, p < 0.010 and r² = 0.146, n = 30, p < 0.050, respectively; Figure 7 and Table 3).

FIGURE 7

Figure 7. The relation between skeletal δ¹³C and δ¹⁸O and net calcification rate (mg mm⁻² yr⁻¹; A,D), linear extension rate (mm yr⁻¹; B,E) and skeletal bulk density (mg mm⁻³; C,F) in B. europaea, L. pruvoti, and C. inornata at 6 sites along the west coast of Italy (∼850 km transect). Net calcification rate, linear extension rate and skeletal density data were taken from Goffredo et al. (2009) and Caroselli et al. (2012a, 2016b). r², Pearson’s coefficient of determination; r, Pearson’s correlation coefficient; n, number of individuals.

Discussion

This study investigated for the first time the skeletal δ¹⁸O and δ¹³C of individual specimens of zooxanthellate and non-zooxanthellate Mediterranean coral species and the stable isotope signature of the surrounding seawater collected along a ∼850 km latitudinal gradient. Previous studies performed on the solitary zooxanthellate B. europaea along the same latitudinal gradient considered in this study showed a reduction of the net calcification rate, which results in a progressive decrease of skeletal bulk density and an increase in skeletal porosity, especially of larger sized pores with increasing seawater temperature (Caroselli et al., 2011; Fantazzini et al., 2013). This determines a decrease of the resistance of the skeleton to mechanical stress (Goffredo et al., 2015). Furthermore, its population stability and abundance decrease with increasing temperature, as evidenced by a progressive lack of juveniles (Goffredo et al., 2007, 2008). On the other hand, the solitary non-zooxanthellate (i.e., asymbiotic) corals L. pruvoti and C. inornata appear insensitive to temperature along the same gradient (Goffredo et al., 2007, 2008, 2009; Caroselli et al., 2011, 2012a,b; Fantazzini et al., 2013). A study conducted along a natural temperature gradient in the Eastern Adriatic Sea on the colonial zooxanthellate coral C. caespitosa showed increases in net calcification rate with SST (Kružić et al., 2012), in contrast with laboratory observations showing that long-term exposure to high temperature led to a decrease in net calcification (Rodolfo-Metalpa et al., 2006). However, none of these studies investigated the species-specific variation of skeletal δ¹⁸O and δ¹³C under different temperature conditions.

In this study, a wide variation in both skeletal δ¹⁸O and δ¹³C (∼2 to ∼4% and ∼4 to ∼9%, respectively) was found among the investigated species which could be attributed to metabolic/kinetic effects, given the relatively limited seawater temperature difference (∼2°C annual average SST, which however, was not correlated with latitude) and the homogeneity of the seawater δ¹⁸O and δ¹³C_DIC measured along the gradient. Seawater δ¹⁸O was remarkably constant along the 850 km transect with a restricted variation in salinity from 37.7 psu in Pantelleria to 38.1 psu in Genova, indicating that evaporation and precipitation and/or river discharges do not vary substantially along the gradient. Average δ¹⁸O_sw values along our gradient (0.65 ± 0.23%) were lower than those measured for surface waters in the Eastern Mediterranean Sea by Pierre et al. (1986) (1.68%) and by Gat et al. (1996) (∼1.38%), probably as a result of higher temperature and salinity values compared to the Western Mediterranean Sea (Sakalli, 2017). Pantelleria seems to show slightly lower δ¹⁸O_sw values along the latitudinal gradient, perhaps as a remnant of Atlantic water surface inflow, prior to increased evaporation, when moving north as Tyrrhenian Current (Paul et al., 2001). We also observed the lower δ¹⁸O_sw values for the shallower sampling depths of 6 m in Elba, Calafuria and Genova, which could be linked to river inflow and salinity, however, we exclude this possibility as the average salinity would have to be lower than in the other locations, which is not the case. Further seawater isotope measurements are needed to verify whether this observation is maintained. The average annual δ¹³C of the DIC also did not vary along the transect, suggesting that local primary production does not control the absolute value and is kept at the same level in coastal waters. Apparently, gas exchange and water mass characteristics override the primary production signal. The well mixed water column and the lack of stratified primary production is evident from the average annual δ¹³C_DIC identity between 6 and 16 m.

At thermodynamic equilibrium, skeletal δ¹⁸O is a function of temperature and δ¹⁸O_seawater from which the coral deposited its CaCO₃. Hence, along the 850 km transect, where δ¹⁸O_seawater shows small variations, changes in coral skeletal δ¹⁸O should reflect changes in seawater temperature (Weber and Woodhead, 1972; Gagan et al., 2000; Kuhnert et al., 2000). The measured yearly average temperature change along the transect is about 2°C, yielding an expected skeletal δ¹⁸O change of about 0.5% according to the coral aragonite temperature dependency (0.22% per 1°C; Epstein et al., 1953; Grossman and Ku, 1986; Böhm et al., 2000). Instead, a ∼2 and ∼4% variation in skeletal δ¹⁸O was observed in the zooxanthellate and non-zooxanthellate species, respectively (Figure 3). The skeletal δ¹³C, which is strongly influenced by photosynthesis (light) and feeding (which directly affects the respired δ¹³C; McConnaughey, 2003), exhibits also a wide range, ∼4% for zooxanthellate corals and ∼9% for the non-zooxanthellate corals. These ranges, as well as the significant correlations between δ¹⁸O and δ¹³C in all species, point either to the metabolic and/or kinetic effects as possible controlling factors of isotope variability of skeleton composition along the transect (McConnaughey, 1989a; Smith et al., 2000; Schoepf et al., 2014). Given the difficulty in distinguish between kinetic and metabolic isotope effects, we applied the correction for kinetic isotope effects for δ¹³C proposed by Heikoop et al., 2000, which however, did not improve the statistics or the interpretation of the data (Supplementary Figure S3) so we assume this correction does not work for our dataset. The full range of the isotope effect is presented in the δ¹⁸O_skeleton – δ¹⁸O_sw vs δ¹³C_skeleton – δ¹³C_DIC plot (Figure 3). The key observations from this plot are:

(1) The isotope range of non-zooxanthellate corals is much larger than that of the zooxanthellate corals in both carbon and oxygen.

(2) Each species encompasses the full range of its group, non-zooxanthellate or zooxanthellate.

(3) The regression lines are almost parallel within each group and did not differ between the two groups (Table 4).

(4) No corals exhibited equilibrium values as calculated for biogenic aragonite.

(5) The isotope range of different specimens on the 850 km transect is almost the same as that observed on a high resolution 2500 μm scale of the cold-water coral D. cristagalli from the Chilean Fjord (Adkins et al., 2003) and on a 4000 μm scale of the cold-water coral L. pertusa from Santa Maria di Leuca (Ionian Sea, Southern Italy; by López Correa et al., 2010). It is also comparable to the SIMS microanalysis δ¹⁸O_skeleton range (Juillet-Leclerc et al., 2018) and the high-density bands of C. caespitosa from a hundred year record in north-western Mediterranean (Silenzi et al., 2005). Bulk analyses on mm scale resolution also exhibit a similar range for Tubastrea and Pavona clavus from the Galapagos (McConnaughey, 1989a).

Calcification rate, linear extension rate and skeletal density were suggested as factors which impact the isotopic composition of calcareous organisms such as corals (Land et al., 1975; Erez, 1978; McConnaughey, 1989a). Our results show that there is no correlation between any of these parameters and the measured isotope composition (Figure 7). This conclusion holds at the species level, regardless of their trophic strategy (i.e., non-zooxanthellate or zooxanthellate), all species being slow growing corals (∼0.7 to ∼3 mm yr^–1; Peirano et al., 1999). This finding contrasts McConnaughey’s (1989a) assumption that rapid skeletogenesis favors strong kinetic effects. However, we cannot exclude the possibility that this result could also be due to the uncertainty associated with the estimated calcification data (see section “Materials and Methods”). The two zooxanthellate corals, B. europaea and C. caespitosa show significant correlations of δ¹⁸O and δ¹³C with latitude (Figure 4) being depleted with decreasing latitude and thus increasing solar radiation (Figure 2 and Supplementary Figure S2). Given that algal photosynthesis can be inhibited by excessive irradiance (Cullen and Neale, 1994; Caroselli et al., 2015; Iluz and Dubinsky, 2015), the depleted skeletal δ¹³C could result from inhibited photosynthesis of the symbiotic zooxanthellae at certain times in summer. This is in agreement with previous studies performed on B. europaea along this gradient, which highlighted negative effects on growth, population dynamics, and reproductive parameters (Goffredo et al., 2007, 2008, 2009, 2015; Caroselli et al., 2011; Fantazzini et al., 2013). Moreover, photosynthesis of zooxanthellae has temperature optima (Al-Horani, 2005), thus the decrease in δ¹³C with increasing minimum temperature in B. europaea could be linked to an inhibition of the photosynthetic process at higher temperatures. C. caespitosa and C. inornata show an increase in δ¹³C and δ¹⁸O with increasing maximum temperature (Figure 6). A possible explanation for the pattern observed in C. caespitosa could be a reduction of the calcification with increasing temperature. Rodolfo-Metalpa et al. (2006) showed that long-term exposure to high temperature led to a decrease in net calcification of C. caespitosa (Rodolfo-Metalpa et al., 2006). However, further studies are needed on the growth of this species along the gradient to validate this hypothesis. Regarding the observed increase in δ¹³C and δ¹⁸O with increasing temperature we were not able to find any suitable explanation.

The discrimination between the “metabolic effects” and “kinetic isotope effects” is difficult. We adopt for this discussion McConnaughey’s (1989a) definition that kinetic isotope effects are characterized by strong linear correlation between skeletal δ¹⁸O and δ¹³C due to discrimination against the heavy isotopes during CO₂ hydration and hydroxylation. Metabolic effects in McConnaughey’s (1989a) involve additional positive or negative modulation of skeletal δ¹³C, reflecting changes in the δ¹³C of DIC reservoir, caused mainly by photosynthesis and respiration. Our results show that the metabolic effect is not confined to affect carbon isotopes solely. The non-zooxanthellate L. pruvoti and C. inornata show twice the δ¹⁸O disequilibrium range compared to the zooxanthellate corals B. europaea and C. caespitosa (Figure 3). This does not support the hypothesis that zooxanthellate and non-zooxanthellate corals attain about the same equilibrium value (McConnaughey, 1989a). The fact that zooxanthellate corals exhibit a narrower range of skeletal δ¹⁸O and δ¹³C, which are confined to the more depleted values, suggests that the photosynthetic activity restricts the corals to a narrow range of isotopic composition, away from isotopic equilibrium for both isotopes. In Adkins’ model, which considers two major pools [CO₂ (aq)] and seawater DIC for the mineralization process, this indicates lower% seawater leak and/or higher pH at the calcifying fluid (Adkins et al., 2003). The wider range and the proximity of the skeletal isotope values to equilibrium values (Figure 3) observed in the non-zooxanthellate compared to the zooxanthellate corals investigated here suggest more seawater leak to the calcifying fluid and lower pH of calcification. This may seem apparently in disagreement with the higher ΔpH (pH of calcifying fluid minus pH of seawater) observed for deep-sea species compared to tropical and temperate aragonitic specie, which however, has been suggested as a mechanism to overcome the severe environmental limitations (low levels of carbonate saturation) of the deep ocean (McCulloch et al., 2012), which certainly do not apply to the shallow water non-zooxanthellate species considered here. Moreover, a larger contribution from ambient seawater to the calcifying fluid in non- zooxanthellate corals is supported by the observed higher porosity in L. pruvoti compared to B. europaea (Caroselli et al., 2011). The higher porosity may allow seawater to reach the calcification sites through vacuole transport through cells, channels between cells and gaps between calcifying tissues, and the skeleton (Furla et al., 1998). The Mediterranean shallow water zooxanthellate and non-zooxanthellate corals investigated in this study fit well the general relation between δ¹⁸O and δ¹³C of deep-sea species, including the observation of the “metabolic carbon offset,” in the order of 1–2% (Adkins et al., 2003). However, the “Maximum membrane carbon flux” inflection point (i.e., at the most depleted carbon values δ¹³C remains constant while δ¹⁸O continues to decrease), observed in deep-sea corals is not found in our data (Adkins et al., 2003).

For a given value of δ¹⁸O, the zooxanthellate Mediterranean species have heavier δ¹³C compared to the non-zooxanthellate corals (Figure 3), in agreement with previous studies suggesting that photosynthesis enriches skeletal δ¹³C (Swart, 1983; McConnaughey, 1989a). Only a limited number of individual non-zooxanthellate corals exhibit skeletal δ¹⁸O equilibrium values while all δ¹³C values in the four Mediterranean species are depleted in comparison to the estimated isotopic equilibrium with ambient seawater. This suggests that temperate corals cannot be used for thermometry-based seawater reconstruction. The weak temperature dependency of B. europaea with average minimum temperature might be the exception (Figure 5). Also, the strong kinetic effect suggested by the high correlation between δ¹⁸O and δ¹³C observed in the zooxanthellate species likely prevents the use of these species as proxies of cloud cover, seasonality, and nutrient/zooplankton levels (e.g., Grottoli and Wellington, 1999; Heikoop et al., 2000; Grottoli, 2002).

Conclusion

The skeletal stable isotopic signatures of individual specimens of zooxanthellate and non-zooxanthellate Mediterranean coral species collected along an 8° latitudinal gradient on the Western Italian coast were assessed. Considering the ∼2°C (annual average SST) temperature difference and the homogeneity of the seawater δ¹⁸O and δ¹³C_DIC measured along the gradient, the wide variation in both skeletal δ¹⁸O and δ¹³C (∼2 to ∼4% and ∼4 to ∼9%, respectively) among species may be attributed to metabolic/kinetic effects. In spite of the extensive effort to differentiate between the “carbonate” model and the “kinetic” model as controlling coral calcification (Adkins et al., 2003; McConnaughey, 2003; Chen et al., 2018), our data show that individual corals within the same species express the full range of isotope fractionation, suggesting strong metabolic contributions in addition to the kinetic isotope effect in these temperate corals. Therefore, we conclude that precipitation of coral skeletal aragonite likely occurs under controlled kinetic biological processes, rather than thermodynamic control alone, following a mechanism that is yet to be unraveled.

Data Availability

The raw data supporting the conclusions of this manuscript will be made available by the authors, without undue reservation, to any qualified researcher.

Ethics Statement

Being non-cephalopod invertebrates, the animals used in this study (Cnidaria, Scleractinia) are not included in the Directive 2010/63/EU of the European Parliament and of the Council of 22 September 2010 on the protection of animals used for scientific purposes. For this reason, no ethical statement is needed.

Author Contributions

ZD, GF, and SG conceived and designed the research. FP, EC, and SG collected the specimens and provided the background data. RY, OL, and AS analyzed the samples. FP performed the statistical analyses. FP, RY, OL, SG, and AS participated in the scientific discussion. All authors contributed to the writing of the manuscript and gave final approval for publication.

Funding

The research leading to these results was supported by the European Research Council under the European Union’s Seventh Framework Programme (FP7/2007-2013)/ERC grant agreement number (249930- CoralWarm: Corals and global warming: the Mediterranean versus the Red Sea). EC was supported by the ALMA IDEA grant of the University of Bologna for the project “STRAMICRO.”

Conflict of Interest Statement

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Acknowledgments

The authors would like to thank the diving centers Centro Immersioni Pantelleria, Il Pesciolino, Bubble Lounge, and Sub Maldive for their logistic assistance in the field. The Scientific Diving School (www.sdseducational.org) provided the technical and logistical support. The De Botton Center for Marine Science at the Weizmann Institute provided partial support.

Supplementary Material

The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fmars.2019.00522/full#supplementary-material

Footnotes

References

Adkins, J. F., Boyle, E. A., Curry, W. B., and Lutringer, A. (2003). Stable isotopes in deep-sea corals and a new mechanism for “vital effects”. Geochim. Cosmochim. Acta 67, 1129–1143. doi: 10.1016/S0016-7037(02)01203-6
