Best Practice Framework and Principles for Monitoring the Effect of Coastal Development on Marine Mammals

Hawkins, Elizabeth R.; Harcourt, Robert; Bejder, Lars; Brooks, Lyndon O.; Grech, Alana; Christiansen, Fredrik; Marsh, Helene; Harrison, Peter L.

doi:10.3389/fmars.2017.00059

REVIEW article

Front. Mar. Sci., 07 March 2017

Sec. Marine Affairs and Policy

Volume 4 - 2017 | https://doi.org/10.3389/fmars.2017.00059

Best Practice Framework and Principles for Monitoring the Effect of Coastal Development on Marine Mammals

$\r\nElizabeth R. Hawkins,$ Elizabeth R. Hawkins^1,2

Robert Harcourt³^*

Lars Bejder⁴

Lyndon O. Brooks^2,5

Alana Grech⁶

Fredrik Christiansen⁴

Helene Marsh⁷

Peter L. Harrison²

¹Dolphin Research Australia Inc., Byron Bay, NSW, Australia
²Marine Ecology Research Centre, Southern Cross University, Lismore, NSW, Australia
³Department of Biological Sciences, Macquarie University, North Ryde, NSW, Australia
⁴Cetacean Research Unit, School of Veterinary and Life Sciences, Murdoch University, Murdoch, WA, Australia
⁵StatPlan Consulting Pty Ltd, Woodburn, NSW, Australia
⁶ARC Centre of Excellence for Coral Reef Studies, James Cook University, Townsville, QLD, Australia
⁷College of Science and Engineering, Centre for Tropical Water and Aquatic Ecosystem Research, James Cook University, Townsville, QLD, Australia

As the world's human population increases along the coastal zone, with major alteration of coastal embayments, increased on-water activities and a plethora of other intrusions into the coastal zone, there is a simultaneous increase in pressures on marine mammals. Growing evidence indicates that many marine mammals are highly susceptible to declines resulting from direct and indirect impacts arising from diverse human activities. Too frequently, assessment of the impact from coastal developments on marine mammals has been inadequate or completely lacking. At worst this has led to catastrophic decline in some populations. Without rigorous ecological assessments along with adaptive management frameworks prior to the initiation of developments, the number of marine mammal populations likely to be adversely impacted will continue to rise. To address these shortcomings, we present a globally applicable best practice framework by; (i) describing guiding principles and; (ii) reviewing appropriate procedures for assessment and monitoring of impacts of coastal developments on marine mammals. The approach outlined is embedded in Environmental Impact Assessment processes as a means by which decision makers and stakeholders can be informed. Recommendations presented are designed to encourage the application of robust scientific evaluation that applies appropriate survey design with sufficient statistical power to detect changes before trigger thresholds are reached. We emphasize that there is an urgent need to ensure assessments are comprehensive, effective and integrated with monitoring and adaptive management actions in order to minimize or effectively mitigate the impacts of human activities on marine mammal populations.

Introduction

Development and transformation of coastal areas by humans has accelerated dramatically in recent times (Lotze et al., 2006) with over 40% of the world's population living close to the coast and further migration to coastal areas predicted (Small and Nicholls, 2003). This pattern of human occupation coupled with the increased demand for resources and trade, places considerable pressure on coastal biota and ecosystems (Lotze et al., 2006). Development along the coastal fringe and catchments relating to infrastructure, industrial, urban, port, shipping, fishing/aquaculture, tourism industries and other activities leads to multiple and diverse alterations in the environment over relatively short (days–months) to long-term (years–decades) time-scales (Castilla, 1999). These alterations can lead to extensive changes in coastal habitats through, for example, increased ambient noise, land reclamation, increased sedimentation, increased nutrient and pollutant loads, changes in environmental processes and the intensification of human activities such as boating and fishing (Frihy, 2001; Evans, 2009; Jefferson et al., 2009). These activities and environmental changes often result in behavioral, physiological and ecological changes to some species and/or extensive changes to their prey and habitat availability, which can cause long-term population effects (Cubero-Pardo et al., 2011). In the absence of effective mitigation, detrimental impacts on wildlife from human activities can cause permanent and irreversible change.

Higher order animals such as marine mammals are particularly vulnerable to exposure from human activities. Such exposure can lead to many direct and indirect impacts including; temporary or permanent movement away from core habitats (Watson-Capps and Mann, 2005; Bejder et al., 2006b), disturbance to critical behaviors resulting in alterations to energy budgets and vital rates (Steckenreuter et al., 2011; Christiansen and Lusseau, 2015), increases in fishing interactions (Read, 2008; Mannocci et al., 2012; Allen et al., 2014), depletion in prey availability and increased competition for resources (Harwood, 2001), entanglement and ingestion of foreign debris (Harcourt et al., 1994; Page et al., 2004), disruption to acoustic communication systems with possible physiological damage to hearing abilities [Temporary Threshold Shift (TTS) and Permanent Threshold Shift (PTS)] (Richardson et al., 1995; Foote et al., 2004; Tyack, 2008; de Souza Albuquerque and da Silva Souto, 2013), increases in injury and mortality from vessel strikes (Wells and Scott, 1997; Laist et al., 2001; Panigada et al., 2006), bioaccumulation of toxins leading to immunosuppressant symptoms (Jepson et al., 2005; Litz et al., 2007; Cagnazzi et al., 2013a), reproductive collapse (Jepson et al., 2016), cerebral impairment (Cook et al., 2015), incidence of disease (Van Bressem et al., 1999) and the introduction of new parasites and pathogens (Delport et al., 2014, 2015). The effect of these impacts upon populations of marine mammals, particularly where cumulative pressures are present, can lead to population-level consequences resulting in long-term shifts in habitat suitability, lower reproductive success, decreased health, increased mortality and population declines (Zhang et al., 2003; Lusseau, 2004; Wang et al., 2006; Bejder et al., 2006b; Pirotta et al., 2013; Cagnazzi et al., 2013b; Christiansen and Lusseau, 2015).

Marine mammals have diverse life histories and occupy a variety of habitats from rivers and estuaries to open ocean. Whilst some are highly mobile and migratory, others occupy specific home ranges for at least some of their life cycle (Brakes and Dall, 2016). Some species exhibit matrilineally learned behaviors which can make their use of space very conservative (Marsh et al., 2011). This results in different responses to disturbances at the levels of species, populations and habitat type (Harwood, 2001; Brakes and Dall, 2016). Many populations of coastal marine mammals have experienced significant declines due to cumulative impacts of human activities and developments, with the most vulnerable being those with small populations and high site fidelity occupying localized areas that are impacted by development (Lusseau et al., 2006; Schipper et al., 2008).

The potential impact of development is illustrated by three recent examples. First, the endangered southern resident orca (Orcinus orca) community of the Northern Pacific has experienced a near 20% population decline between 1995 and 2001 (Krahn et al., 2002; Ford et al., 2010). Second, drastic declines over the past 30 years have also been detected in the now critically endangered Indo-Pacific humpback dolphin (Sousa chinensis) populatin of Taiwan (Wang et al., 2007; Reeves et al., 2008). Third, and worst, is the recent extinction of the Baiji (Lipotes vexillifer) throughout its range (Turvey et al., 2007). Each of these declines has been directly attributed to cumulative pressures from industrial activities and the exposure to threats associated with fisheries interactions, reduction in prey availability, increases in vessel traffic, pollution (including noise) loads and construction activities along with habitat degradation and habitat reduction (Ross, 2006; Wang et al., 2006, 2007; Williams et al., 2006; Turvey et al., 2007; Reeves et al., 2008; Lusseau et al., 2009; Williams and O'Hara, 2010).

These three examples demonstrate the potential severity of the consequences of cumulative, multi-pathway impacts and pressures that human activities and development can place on marine mammal populations inhabiting coastal areas. Accordingly, it is imperative that processes, assessments and management be improved and informed by appropriate, robust and integrated advice. Environmental Impact Assessments (EIA) are an integral component of the decision making process as they quantify the potential adverse consequences of coastal development on biodiversity and identify measures to avoid, mitigate or offset impacts established (Vlachos, 1985). EIAs allow for evaluations to be made prior to the commencement of a project. In addition, EIAs can identify and describe compliance monitoring programs to measure the impact of approved coastal developments and enable adaptive management measures. In many countries, EIA processes have been incorporated into and regulated through legislation such as the National Environmental Policy Act (NEPA) 1970 of the United States, the Canadian Environmental Assessment Act 2012, Environment Conservation Act 1989 of South Africa, the Environmental Quality Act 1974 of Malaysia, the Resource Management Act 1991 of New Zealand and the Environment Protection and Biodiversity Act (EPBC) 1999 of Australia (Gilpin, 1995; Elliott, 2014).

The requirements and governance of EIAs currently provide the primary means to ensure the integrity and preservation of vulnerable species and their habitats. Under EIA legislation, the onus and responsibility is placed on both developers and decision makers to minimize the adverse impacts associated with activities on the environment (Elliott, 2014), particularly areas of critical importance, species of special interest or species of high conservation priority (Jefferson et al., 2009; Tyne et al., 2015). Marine mammals typically trigger the last two criteria. Weighing up the costs and benefits of development projects and subsequent activities presents a challenge to decision makers who must take into consideration the economic, social and environmental impacts that occur during each of the pre-construction, construction, post-construction or operational phases (Wood, 2003). Complexities may also arise due to cross-jurisdictional boundaries and the need for multi-agency involvement and this can increase tensions due to the differing objectives, agendas and interests between these bodies (Grech et al., 2013; Braulik et al., 2015). Political, economic and social pressures can add to this challenge. Historically economic gain has been prioritized over the environment, and developments can occur without sufficient consideration, mediation or offsetting of impacts (Wang et al., 2007; Jefferson et al., 2009).

Decision makers and proponents should be informed by rigorous scientific evaluations that robustly predict the possible effects of development activities on the biota and ecosystems or habitat of concern. These evaluations, for example, can be presented as an Environmental Impact Statement (EIS) that constitutes one component of the EIA process in the Australian Commonwealth (Elliott, 2014). Yet in many cases, where coastal developments and marine mammals “meet,” management and regulatory decisions are made in the absence of sufficient or appropriate data (Grech and Marsh, 2008; Bejder et al., 2012). Inappropriate application of methods may also occur (Bejder et al., 2012). For example, making assumptions regarding the presence and abundance of a dolphin species using a low number of samples obtained from a few opportunistic sightings is not likely to confidently determine the impacts of a coastal development (Tyne et al., 2016).

There is currently little consensus as to the most appropriate approach to evaluate the potential impacts from development projects (pre-approval) on marine mammals through the EIA process nor approaches to monitoring the impacts during the construction and operational phases of an approved development. This is despite such monitoring often being a condition of development approval. We suggest that the optimal approach to providing robust and relevant data for assessing the potential and actual impacts of coastal development projects requires standardized practice. We present a globally applicable framework for the best practice principles for effective monitoring to minimize the impacts of coastal developments and associated activities on marine mammals. The framework consists of guiding principles and reviews procedures for assessment and monitoring. The approach made is embedded in commonly used procedures within EIAs (e.g., Elliott, 2014) and specifically focuses ecological components and expands on those elements most relevant to marine mammals. The social and economic components of EIA are beyond the scope of this paper.

This framework was informed by discussions amongst experts and participants in a workshop held in association with the 20th Biennial Conference on the Biology of Marine Mammals in 2013, along with published literature and the collective experience of the authors. The aim of the framework is to outline approaches that underpin best practice and describe standardized methods to assess the potential and actual impacts of coastal developments on marine mammals. The workshop consisted of eight presentations from seven experts in marine mammal monitoring who provided detailed information on available methods and appropriate application of techniques. These presentations were then workshopped by the 57 attendees from nine countries to assess and monitor impacts for a number of different hypothetical coastal developments (e.g., tourism, port, urban developments, and seismic activities) in the developed and developing world. Discussions focused on appropriate survey design, limitations and recommendations from the attendee's personal experiences. The following sections outline the consensus of these discussions as guiding principles and a review of procedures relevant to the design, assessment and monitoring of marine mammals in relation to the pre, during and post or operational phases of a development project.

Monitoring for a Purpose: Best Practice Framework

Determining the most effective approach to detect and monitor the potential and actual impacts of coastal development on often highly mobile marine mammals in a dynamic coastal environment will be influenced by many different factors. The approach selected will invariably be constrained by available time and resources, locality and form of development. The approach will also need to be customized as appropriate to the distribution, abundance and ecology of species present. Despite these constraints, there are strong underlying principles which are generally applicable, that we discuss below.

Guiding Principles for Assessments

The intent of the principles presented here is to provide guidance during assessment and decision-making processes in regards to impacts of coastal development on marine mammals. These principles are intended to guide industry standards to minimize adverse biological and ecological impacts on marine mammals and trigger management responses when acceptable levels of impact are exceeded. These principles are derived from the extensive experience and expert opinion of the authors and workshop participants combined with those outlined by the International Association for Impact Assessment, a leading network on best practice for impact assessment (Senécal et al., 1999). In agreement with Dolman and Simmonds (2010), we recommend out the outset that EIAs be utilized as an essential tool wherever possible in order to apply appropriate methods and monitoring during different stages of development which can be overseen by management actions.

Ecological assessments and monitoring associated with the determination of the impacts on marine mammals from coastal developments should be designed to meet the following principles:

◦ Avoid biologically significant negative impacts on marine mammal populations, communities, the habitats and ecosystems on which they rely.

◦ Apply appropriate, systematic and rigorous assessment procedures that address the relevant scope of the project during all phases of development and operation.

◦ Present accurate information regarding the likelihood and significance of potential impacts that may arise as a direct result of proposed activities with information about the statistical power and limitations.

◦ Provide scientific advice as a sound basis for decision making and adaptive management responses to avoid and mitigate impacts on the environment and to ameliorate unavoidable impacts.

Ecological Assessment Procedures

With these principles in mind, there are a number of steps in the process of assessing and then addressing the potential risks and impacts from developments that can be followed. Figure 1 presents a conceptual model of these steps building on the general EIA process outlined by Elliott (2014), and expanding on those steps relevant to ecological assessments involving marine mammals. This figure outlines nine steps for designing and evaluating the impact of developments on marine mammals as it relates to the different phases (pre, during and operational). The steps are interdependent as demonstrated by the feedback loops (Figure 1). Initially, EIAs are generally informed by policy and legislation which denote the need for the assessment. The requirements for an EIA are typically defined in the relevant legislation and thus differ between jurisdictions. Where policy determines that an EIA process is necessary, for example, if a project or associated activity may significantly impact marine mammals, particularly vulnerable species and populations, an investigation into the scope of the impacts and risks is required. In some cases, this is presented as an EIS. For example, in relation to the Australian Commonwealth, steps 1–6 in Figure 1 may specifically relate to the EIS component of the EIA and provide essential input into the decision making processes, i.e., whether a project is approved or declined. In the case of an approved project, the initial EIS will then set the direction for monitoring and management (steps 8 and 9) (Elliott, 2014). The following sections break down the different steps in more detail.

FIGURE 1

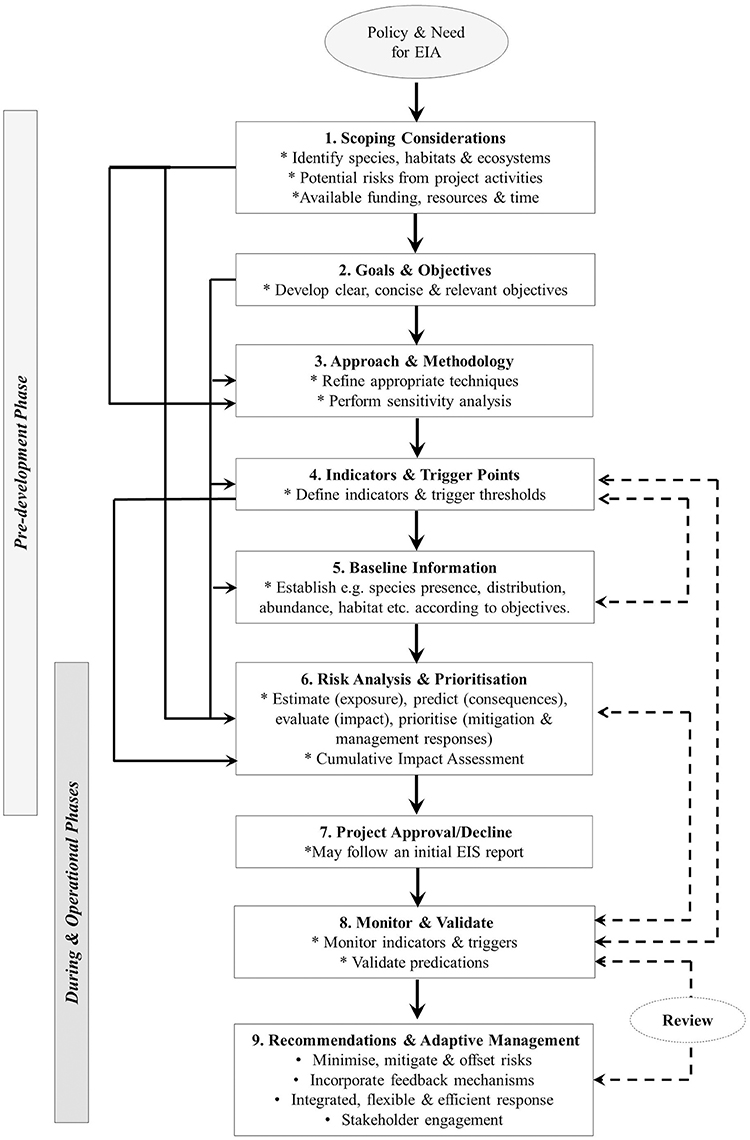

Figure 1. Steps and procedures associated with the design, ecological assessment, and monitoring of environmental impacts relevant to coastal developments on marine mammals and feedback mechanisms with respect to each phase of construction and operation. Note: dashed lines indicate feedback loops.

Scoping Considerations and Identification of Risk Sources

If an EIA is required, the first step involves planning, engagement and establishing available funding and resources. Information on the species, habitats and ecosystems that are likely to be affected by the proposed project activities need to be reviewed and the spatial extent of the impact zone, as well as the time period over which the activity is conducted need to be considered. What species are likely to be present and persist in the impact zone and surrounding areas? What is the current conservation status of these species in the jurisdiction and in the impact zone? Is the site appropriate for development?

Marine mammal species are diverse and some species are far more vulnerable to adverse impacts from particular activities due to their life history parameters, population size, restricted usage areas, site fidelity and/or social system (Hawkins and Gartside, 2008; Wade et al., 2012; Cagnazzi et al., 2013b; Brakes and Dall, 2016; Smith et al., 2016). For example, a small localized population of coastal dolphins that uses habitats in the vicinity of an impact zone to perform critical tasks (e.g., feeding and reproduction) on a daily basis is likely to be more susceptible to associated risks from the activity, such as the bioaccumulation of pollutants, or repeated disturbance to important behaviors, than a migratory species that has transitory exposure to the pollutant or disturbance factor. The likely exposure to and effects of each disturbance factor need to be addressed along with the potential interactions and synergistic effects from project activities. For example, shipping noise is a by-product of port developments. Thus, increased shipping activity and noise during both the construction and operational phases of a development potentially have widespread impacts over long time periods (Erbe, 2012). Furthermore, Dolman and Simmonds (2010) highlight that developments should not occur in protected areas or areas of critical importance to cetacean populations.

Defining Goals and Objectives

Second, the goals and objectives of the monitoring program must be clearly specified. In agreement with Block et al. (2001) it is recommended that these objectives be specific to the project, feasible and achievable and stated clearly. The goals can be broadly expressed in general terms but must be concerned with minimizing the impact of activities associated with the development on the species of interest. The objectives should more explicitly relate to hypotheses to be tested or be a statement of the desired reference conditions. A clear description of the terms of reference and conditions to be met should also be stated (Block et al., 2001). For example, objectives may specify that the project activities will not reduce the area of occupancy of a particular dolphin population.

Approach and Methodology: Choosing Appropriate Methodologies

The third step is to determine the best approach to attain robust and relevant data in the context of the inevitable constraints on resources coupled with the difficulties in studying free-ranging marine mammals. Should the populations, habitats or both be measured and monitored? The appropriate methods for marine mammals will usually address abundance, occupancy, habitat usage, health (i.e., body condition) and behavioral patterns during each phase of operation.

Power analysis can be performed to assist in determining appropriate sampling effort. This is particularly useful when dealing with species that are rare or have low detection probabilities and where budgets are limited (Wilson et al., 1999; Taylor et al., 2007; Tyne et al., 2016). Information from empirical research on the same or similar species can provide Supplementary Data to inform power analysis. Detection probabilities can be influenced by species, sample effort, environmental conditions, time, observers, abundance and sites (Moore and McCarthy, 2016). Determining the probability of detection against costs/budget, time and effort, can assist in determining the necessary trade-offs between these factors to achieve the best outcomes (see Hauser and McCarthy, 2009; Moore and McCarthy, 2016; Tyne et al., 2016). The optimal sampling effort will be driven by the specific objectives and the indicators selected for monitoring.

While empirical information can be used to ascertain the potential presence of a species during the scoping phases of an EIA, establishing actual presence can usually only be determined by onsite sampling. The workshop consensus indicated that survey design include areas where the habitat is believed to be both suitable and unsuitable for the species whilst taking into consideration appropriate spatial and temporal sampling periods to avoid bias. For example, different sampling periods are likely to be necessary if the species is migratory vs. resident.

Application of appropriate methods is essential from the outset to establish the presence and abundance of populations within the impact zone. The sample design will typically use the Before-After-Control-Impact (BACI) quasi-experimental approach (Block et al., 2001). However, it can be difficult to determine if a change in abundance or habitat use of a marine mammal is caused by an impact related to a development or outside influences or a combination of factors (Lotze et al., 2006; Crain et al., 2008). For example, is a decline in abundance in the impact zone a direct result of the project activities or natural variation? Control sites may be useful in helping to separate impacts from natural variation. Underwood (1994) argues that, without at least two control sites, it is almost impossible to gain a clear indication of whether observed changes are attributable to the activities of a project or natural variation. Careful selection of control sites is necessary to ensure that they have very similar environmental components to a “treatment” site and be sufficiently geographically distant to ensure independence (Block et al., 2001). That often little is known about the rate, pattern or extent of movement of coastal marine mammals and that coastal environments may be highly variable, mean that pseudo-experimental study designs of marine mammal populations may rarely yield the standard of evidence that might be expected of a randomized, controlled trial. Their high mobility, cryptic behavior, often low density and marine environment contribute to very high expenditures of funds and sampling effort if estimates for many marine mammals are to be obtained with suitable precision (Taylor et al., 2007). True control sites are extremely difficult to identify for marine mammals and while BACI methods are the norm in experimental research, attempts to set up pseudo experimental designs for populations of highly mobile marine mammals may fail to meet experimental design criteria in view of the potential for movement between similar sites, natural variation in population dynamics parameters and naturally varying environmental conditions. Intensive study of control sites in an effort to replicate an experimental design may not be the most productive application of resources in view of the objectives of a study when the strict conditions expected in experimental design are unlikely to be achieved. We recommend that pseudo experiments only be conducted when suitable controls can be established and power analysis indicates that a design is likely to meet the criteria for statistical and ecological significance.

Table 1 outlines some of the commonly used methods that relate to addressing the key measures of abundance, occupancy, habitat usage, health and behavioral patterns. These methods have a number of advantages and disadvantages which are also listed in Table 1. Below we further discuss methods related to presence and abundance of marine mammals to provide an example of some of the considerations that should be taken into account when comparing different approaches for a commonly required component of assessments.

TABLE 1

Table 1. Appropriate use, advantages and disadvantages of the most commonly applied methodologies for assessing the abundance, presence and absence and behavioral responses of marine mammals to disturbance.

To determine the presence and abundance of populations within a given area, three techniques can be applied: occupancy, mark-recapture and distance-sampling models. An advantage of presence/absence or count surveys is that that are significantly less expensive per unit area than capture-recapture methods and the latter in any case may well not be feasible. Consequently, a relatively large area can be monitored for presence/absence or counts for the same total cost as a smaller area for capture-recapture surveys. While occupancy models (e.g., MacKenzie et al., 2006) may seem to offer a very efficient way to provide a snapshot of marine mammal distribution and the probability that they occupy certain types of habitats throughout their range, a critique of occupancy in continuous habitat by Efford and Dawson (2012) suggest that occupancy models may not always be informative. Occupancy is ill-defined when site sizes are arbitrarily defined in continuous habitat relative to the typically unknown home range sizes of marine mammals and estimates of the probability of occupancy by habitat types may amount to no more than estimates of relative density. In that case, it may be preferable to employ models (e.g., generalized additive models Wood, 2006) to estimate relative density directly.

Furthering this example, one of the challenges of estimating the relative or absolute abundance of marine mammals in the coastal zone is the heterogeneity of the associated detection probabilities. These animals spend much of their time below the surface of the water and often occur in waters in which the in-water visibility can vary in a few minutes within a single transect from clear with the bottom visible and all animals potentially available, to turbid so that only animals at the surface are visible. Many variables may prevent a survey observer from detecting a marine mammal including its diving behavior, weather conditions such as glare and cloud cover, sea state, water turbidity and observer inexperience or fatigue (Marsh and Sinclair, 1989; Pollock et al., 2006). Marsh and Sinclair (1989) recognized that the probability of detecting marine mammals that are present in a survey area has two components: (1) the probability of an animal being near enough to the surface to be seen by an observer (availability bias); and (2) the probability of an animal being detected and counted by an observer, given that the animal is available (perception bias).

Distance sampling (Buckland et al., 2005) is another approach that provides another example for consideration. Distance sampling assumes that all animals on the survey line are detected, i.e., g(0) = 1. However, this assumption is likely to be untrue for diving mammals, making absolute abundance difficult to estimate using survey techniques. Using relative abundance as a robust index of abundance requires the alternative assumption that g(0) is constant. Examples of sophisticated aerial survey methods that deal with non-detectability (availability bias) include a survey of a density surface model on Pantropical spotted dolphins in the Gulf of Mexico (Miller et al., 2013), Hectors' dolphin (MacKenzie and Clement, 2014) and work on the diving patterns of dugong (Pollock et al., 2006; Hagihara et al., 2014). These examples exemplify the challenges that may be faced when selecting the most appropriate survey methods and the research that needs to be done external to a survey to test the underlying assumptions.

Using direct measures and observations of populations is the most straightforward approach to addressing the responses and impacts of activities (Block et al., 2001), but the cost of measuring single-species responses can be high and most likely will exceed available project budgets (Block et al., 2001). Monitoring habitat and prey species as surrogate measures of impacts on populations can be less costly, however, the relationships between habitat and marine mammal species are often largely unknown and may vary between regional areas and over time. Thus, relying solely on monitoring of habitat as a surrogate measure to address the impact of activities on most marine mammals is likely to introduce unwanted sources of uncertainty (Block et al., 2001). By only monitoring habitat variables, e.g., seagrass coverage, impacts such as changes in occupancy, physical health, or vital rates of the population can be missed. A combined approach may prove both effective and economical whereby causal pathways and cumulative assessments can also be more effectively addressed.

Indicators and Trigger Points

A variety of indicators and trigger points can be used for assessing the impacts of coastal development on marine mammals. The indicators and triggers selected will be project specific and informed by the species and its conservation status, habitat type, the ecological relationships between species and habitat features, and the type of development and associated activities. In this context an indicator is a measure that can be related to the vital rates or other factor of concern for a community or population (Scholes and Kruger, 2011; Fleishman et al., 2016). Hence, a critical component to consider when selecting indicators and trigger points is the pathway through which measurable effects (e.g., behavioral changes) can influence vital rates (or other factors of concern). Equally important is the need to identify the parameters required to inform such relationships, and focus research efforts and resources to determine and monitor those parameters.

The type of risk, whether direct or indirect and lethal or sub-lethal, will influence the pathway and number of parameters needed to evaluate the consequences of that risk (Christiansen and Lusseau, 2015). For example, vessel traffic can have both direct and indirect effects on marine mammal populations. Vessel collisions (a direct impact) can injure and kill marine mammals, which at worst may negatively affect population trajectories (Wells and Scott, 1997; Laist et al., 2001; Panigada et al., 2006). To quantify this effect, direct observations, reporting or model simulation can be used. Behavioral and/or physiological disturbance may also influence energetics (energy intake and expenditure), which over time can influence body condition, vital rates, and ultimately population dynamics (Christiansen and Lusseau, 2015; New et al., 2015). In such a scenario, monitoring can focus on select indicators such as behavioral response, body condition and vital rates (e.g., offspring production and survival) to vessel disturbance along with exposure and activity of vessels (e.g., Lusseau, 2004; Christiansen et al., 2013).

Careful consideration of how risks might influence populations is necessary when choosing which indicators to use in assessing impacts of a coastal development. The most useful indicators will be those for which there is sufficient understanding of causal relationships between factors and that can be measured effectively (Newson et al., 2009). For each indicator selected, an acceptable limit of change is then defined to inform the trigger points for monitoring and management responses. A trigger point or threshold in this case refers to the levels or values of change that the activity or project is attempting to achieve or avoid (Block et al., 2001). Defined limits of change preferably originate from knowledge of “true system thresholds” (Scholes and Kruger, 2011). It is recommended that these thresholds are re-assessed as part of the design of monitoring programs and feedback mechanisms. Table 2 lists some examples of the types of indicators and related triggers that result in detrimental impacts to the population of marine mammals. This list is by no means exhaustive and appropriate indicators and triggers will need to be determined based on the specific context of the development and objectives of the assessment with unambiguous levels of change specified to provide clear measures.

TABLE 2

Table 2. Examples of potential triggers and indicators for assessment and monitoring programs associated with determining the impact of coastal developments on marine mammals.

There are very few examples of environmental monitoring using empirically derived trigger points for marine mammals, due to the difficulties in defining a significant or biologically meaningful change and our limited knowledge of the relationships between most species and their habitats (Nie and Schultz, 2012). The slow life histories and delayed response to vital rates in marine mammal species adds an additional monitoring challenge as detection of a problem can arise long after thresholds have been crossed (Brakes and Dall, 2016). In light of these challenges, however, it is nevertheless important to ensure that acceptable/unacceptable changes and associated trigger points are clearly defined to inform pre-planned intervention measures. As Lindenmayer et al. (2013) emphasize, changes in indicators should be rigorously assessed as early as possible to avoid a population decline remaining undetected due to ineffective monitoring or slow and/or limited intervention. For example, survey effort may be required over multiple years to detect declines in populations, however, declines may occur well before sufficient power is ever attained (Taylor et al., 2007; Tyne et al., 2016). Changes to decision-making criteria may be necessary (Taylor et al., 2007) in the absence of sufficient resources or time to obtain acceptable power and precision to detect population trends.

Sensitivity analysis is an alternative to direct measures. Sensitivity analysis can be employed to forecast the probability that changes across time and space will have a certain impact (Tyne et al., 2016). Sensitivity analysis can be used to predict the point at which thresholds of triggers are being approached or crossed and therefore when intervention is required. Rarely are the actual ecological thresholds precisely known and a precautionary approach is necessary when using such predictive measures. Uncertainties may arise due to difficulties in predicting the precise boundaries of acceptable limits and these are reflected in the set safety margins of predictions. Scholes and Kruger (2011) noted that the key measure in predictions is not the point at which the threshold is intercepted, but the earliest point at which the change reaches the lower detectable safety margin. At this point, there should be sufficient notification that a threshold is being approached and early preventative measures can be activated (Scholes and Kruger, 2011).

Levels of acceptable and unacceptable change along with safety margins for indicators are not only informed by statistical inference and ecological values, but also by social and economic values (Scholes and Kruger, 2011). Accordingly, the limits of change may be set on societal values rather than system thresholds or ecological limits alone (e.g., zero mortality for an iconic species). This approach can lead to confusion and debate between stakeholders and management agencies about where the burden of proof lies (Nie and Schultz, 2012). We suggest that thresholds of change should initially be derived using the principle of sustainability, i.e., populations should not decline due to a development, and this is particularly important for threatened species. Any deviation from this—for whatever reasons—should err on the side of doing less harm to the environment.

Obtain Baseline Information

These initial four stages are then followed by the collection of baseline information that establishes pre-exposure measures and a point of reference to compare and evaluate changes over time (Nie and Schultz, 2012). It is essential that baseline information be robust and based on a defensible sampling design that is applied from the outset with sufficient time and budgetary resources to encompass the natural variation inherent in the indicator species at the impact site, e.g., changes in seasonal presence and abundance prior to exposure to the impact. A robust baseline combined with control sites reduces uncertainty and provides confidence in detecting and quantifying impacts specifically from activities associated with the project. Baseline data should be gathered from both control and impact sites prior to the implementation of project activities to enable counterfactual analysis during the constructional and operational phases in line with appropriate experimental designs, e.g., BACI (Block et al., 2001).

Risk Analysis and Prioritization

Risk analysis involves a detailed consideration of the likelihood and consequences of all potential hazards arising from each phase of the project to enable risk mitigation. This process is an integral part of the EIA process and should be completed before a project is approved and well before the construction phase commences. Assessment of risk is largely informed by empirical research and considers the temporal and spatial intensity and duration of any likely hazard. Risk assessment asks questions such as: “What is the likelihood that the marine mammals of interest will be exposed to the hazard?” “What is the consequence of the exposure?” “What is the level of uncertainty in this estimation?” Each of these questions is a key component of the risk analysis procedure and associated risk analysis framework, even though the actual framework will differ between marine mammal species and sites (Figure 2). For example, the exposure of highly mobile species to a coastal development is likely to be less than the exposure of species with localized and small home ranges that overlap with the impact site.

FIGURE 2

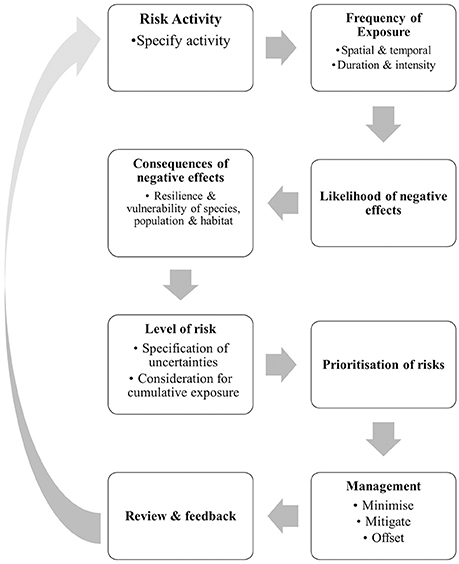

Figure 2. Risk analysis procedures for determining and prioritizing risks associated with coastal development projects on marine mammals.

Mitigation, minimization and offset procedures and actions can be incorporated into the development conditions once the risks have been identified. Both the risks and the corresponding measures to minimize their impacts need to be clearly stated along with the associated limitations and uncertainties to maintain transparency and ensure appropriate management approaches and precautions (Suter, 2006; Grech et al., 2013).

Cumulative Impact Assessments (CIAs), the process of systematically analysing, evaluating or predicting cumulative environmental change (Spaling and Smit, 1993), are an integral tool in EIAs. Cumulative impacts can be assessed by either: (1) a measure of direct or indirect response to cumulative impact (e.g., change in distribution, fecundity, abundance) (Dubé et al., 2006); or (2) a prediction of impact (Halpern et al., 2007). CIAs require information on: the relative magnitude and impact of pressures on the receiving environment; the spatio-temporal distribution of pressures and environmental features; and, the additive, synergistic or antagonistic interactions between multiple pressures (Grech et al., 2015). CIAs also require a holistic approach whereby the interacting pressures from one action (e.g., dredging) are considered in combination with past (e.g., unsustainable fishing), present (e.g., coastal development) and future (e.g., climate change) impacts. While our understanding the effect of cumulative interactions on marine mammals remains incomplete, we recommend that such data limitations be taken into account and that assessments proceed with these limitations, uncertainties and assumptions clearly stated.

Project Approval/Decline

Obtaining a thorough and robust ecological assessment on marine mammals from these aforementioned steps can then assist to provide guidance for decision makers, proponents and stakeholders regarding whether a project should be approved or declined. Combining the ecological, economic and social factors that constitute the overarching EIA, decision makers can then weigh the benefits and costs of a project in its entirety. In the case of an approved project, conditions can then be specified for ongoing monitoring, risk reduction and management procedures. The following steps provide guidance for these where marine mammals are concerned.

Monitor and Validate

Monitoring throughout the construction and operational phases of an approved project is vital where the potential impacts are likely to be substantial or have high levels of uncertainty (Sadler, 1996). Such monitoring is required to: (1) evaluate the impacts and measure indicators; (2) prevent environmental problems; (3) to address unforeseen changes or inadequate mitigation measures; (4) validate predictions; (5) provide feedback mechanisms relating to thresholds and effectiveness of mitigation; and (6) adjust management approaches (Sadler, 1996; Elliott, 2014). Unfortunately, rigorous and robust monitoring is rarely done and poorly-designed monitoring can lead to flawed recommendations. Lindenmayer et al. (2013) stress that monitoring programs should be designed for “rigorous quantification” to ensure the optimal ability to detect changes as early as possible. This approach involves systematic assessment of indicators and measures against thresholds or trigger points that are accompanied by pre-planned interventions and actions that are clearly articulated and integrated into project monitoring and planning.

When will limits of change result in a trigger response and what will be the action response? Figure 3 details the relationships between the monitoring and validation phase, the threshold triggers and management with guidance for decision making using examples and feedback loops. For example, an unacceptable change may be defined as any decrease in the abundance of a small (e.g., ≤100 mature individuals) or already rapidly declining population of site-specific regional population of coastal dolphins. If systematic samples obtained during the construction phase indicated that there was a 2% loss (Perrin et al., 1994), this result would then lead to management intervention and action along with review and modification of management and monitoring procedures. Adaptive management approaches should be flexible enough to not only implement intervention when required, but also to incorporate new learnings from the review process.

FIGURE 3

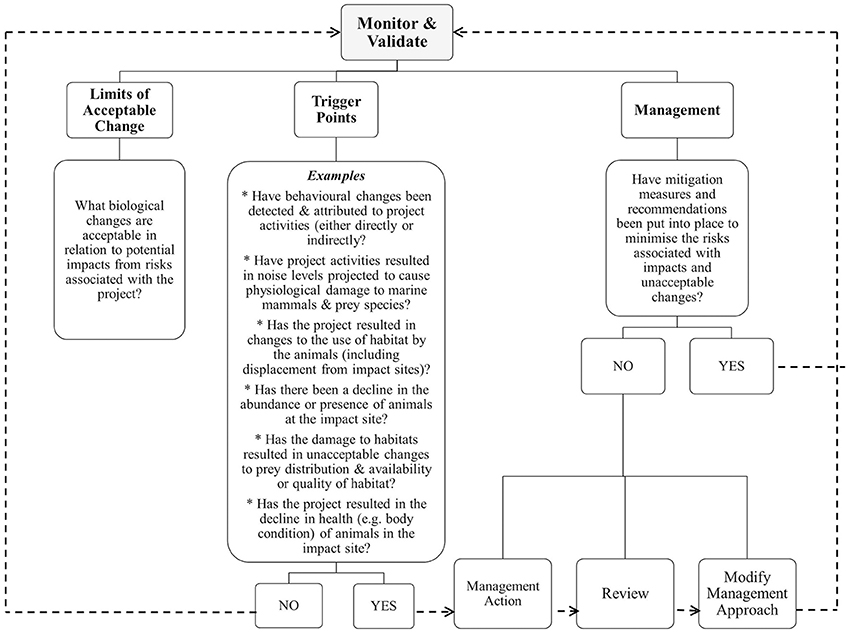

Figure 3. Relationships between monitoring, trigger points as informed by limits of acceptable change and adaptive management actions. Note: dashed lines indicate feedback loops.

Short-term changes may not necessarily reflect long-term impacts and so monitoring programs need to operate for long enough to ensure that population responses can be detected (Block et al., 2001). Detectable changes in behavioral responses that can lead to changes in vital rates of marine mammal populations may be delayed and difficult to detect due to lag effects. The response time-lag differs greatly between species of marine mammals and depends on numerous factors such as life history parameters, behavioral plasticity and resilience (Brakes and Dall, 2016). Therefore, ongoing monitoring programs need to be carefully designed and apply appropriate sampling intervals and longevity to detect changes in vital rates.

Recommendations and Adaptive Management

Adaptive management frameworks are most appropriate to apply in the context of monitoring and minimized the impacts of projects on marine mammals as they allow for integration and flexibility (Higham et al., 2009) and provide a structured approach for systematic and continuous evaluation of: (1) monitoring results against project objectives; (2) measuring the effectiveness of actions in place to minimize or offset impacts; (3) opportunity to adjust management actions to address shortfalls, and (4) integration of new knowledge, at regular and pre-defined intervals (Block et al., 2001; Nie and Schultz, 2012). Regular re-evaluation allows for the predictions of project impacts to be assessed and adjustments made enabling uncertainties to be reduced over time (Block et al., 2001; Higham et al., 2009; Nie and Schultz, 2012).

Management actions need to be well articulated and related to each trigger point. Safety margins around trigger thresholds must be defined in advance along with actions to be taken if the trigger point (or its safety margin) is crossed. Outlining categories that define how close thresholds or trigger points are at a given point in the monitoring program can provide a useful approach to inform management actions. Scholes and Kruger (2011) describe a multi-stage warning system that reflects levels of “potential concern” and incorporates system, management and monitoring response intervals. The system integrates levels of uncertainty within safety margins and predicted timescales where a certain impact may occur. Furthermore, the multi-stage system can theoretically provide early warning systems for unwanted changes, for example, using a “traffic light” warning system, an amber alert indicates that the lower safety margins are being approached, but have not yet been crossed and management intervention can be put into action (Scholes and Kruger, 2011). Similar systems could be developed and applied to marine mammal monitoring, especially in cases where there is high uncertainty to ensure management actions take place before acute effects arise.

In many cases, the outcomes from EIAs and monitoring programs are confidential to the developer and/or the governing agency. This lack of transparency stifles progress in advancing the understanding of impacts of coastal development activities on marine mammal species and hinders the effectiveness of mitigation measures at the development site and other locations. Mistakes are not identified creating tensions between stakeholders and the general public, particularly for controversial projects. We recommend early involvement and consultation with stakeholders to provide for a more informed process. Such integration along with the inclusion of an independent review process, can also improve methodologies in addition to transparency in the decision making process (Grech et al., 2013).

Conclusions

Determining and monitoring the effect of coastal development on marine mammals is challenging for a number of reasons: (1) the impacts of coastal developments often occur at local scales that do not match the ecological scales of marine mammals making it very difficult to identify appropriate controls; (2) the imperative for development rarely allows time for adequate baseline studies; (3) it is difficult to extrapolate the effect of short-term behavioral responses into long-term population impacts; (4) local marine mammal populations tend to be small making it difficult to design monitoring with sufficiently high statistical power to detect change within useful timeframes; (5) most marine mammal species are inherently difficult to study especially experimentally; (6) long-lived marine mammals are susceptible to cumulative impacts and it can be difficult to isolate the effects of coastal development from other impacts. Approaches taken that apply best practice will contribute to addressing these challenges within the logistical bounds of the project where limitations and uncertainties are clearly stated.

We have provided a synthesis and framework that sets a foundation for industry and policy makers in relation to biological components of EIAs, to establish a standard of practice with the aim to minimize harm to marine mammals from coastal developments. It encourages the use of and application of EIAs as an overarching mechanism for which this framework can be applied. We recommend that project objectives be explicit and realistic and the methodologies based on best practice with their limitations and underlying assumptions explicitly acknowledged. While resource allocation for each phase of a project can be limited, it should be sufficient to provide adequate statistical power to apply appropriate survey design to determine the impact of development on populations of marine mammals. Trigger points and indicators must be clearly defined and monitoring needs to be designed to detect trigger thresholds whilst incorporating safety margins that acknowledge the levels of uncertainty. Stakeholder agreement on the limits of acceptable change can be difficult to obtain, however, differences and conflicts need to be addressed and overcome a priori. Decision making and management actions should be transparent and address levels of uncertainty whilst applying precaution where these levels are high and where the impact of a project can affect species and populations of marine mammals.

A large proportion of marine mammal species are classified as data deficient or threatened (vulnerable, endangered or critically endangered) globally. This situation, coupled with the growing evidence of the susceptibility of many marine mammal species to a range of human activities, reinforces the need for at risk or vulnerable coastal marine mammal populations to be appropriately represented and assessed in the EIA process.

Author Contributions

Original concept conceived by HM and PH. Manuscript prepared by EH, critical review, re-drafting and editorial input by RH, PH, LB, LOB, AG, FC, and HM.

Funding

This project was funded by an Australian Marine Mammal Centre grant to Professor HM and Professor PH. Further funding support was provided by the Southern Cross University Marine Ecology Research Centre.

Conflict of Interest Statement

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Acknowledgments

The authors would like to acknowledge Karin Forney, Tim Gerrodette, Robert McCauley and Michael McCarthy, who were key contributors to the workshop and subsequent report and the support of the Society for Marine Mammals for the facilitation of the project workshop at the 20th Biennial Conference on the Biology of Marine Mammals, 2013. The authors thank the 57 workshop participants who provided valuable insights. Additional in-kind support was also received from Dolphin Research Australia Inc.
