Kayla C. Koch
Nidhi Jadon
Iris Thesmar
Gregory N. Tew1,2,3
Lisa M. Minter- 1Department of Polymer Science and Engineering, University of Massachusetts Amherst, Amherst, MA, United States
- 2Department of Veterinary and Animal Sciences, University of Massachusetts Amherst, Amherst, MA, United States
- 3University of Massachusetts Amherst, Amherst, MA, United States
Bone marrow failure (BMF) has become one of the most studied autoimmune disorders, particularly due to its prevalence both as an inherited disease, but also as a result of chemotherapies. BMF is associated with severe symptoms such as bleeding episodes and susceptibility to infections, and often has underlying characteristics, such as anemia, thrombocytopenia, and neutropenia. The current treatment landscape for BMF requires stem cell transplantation or chemotherapies to induce immune suppression. However, there is limited donor cell availability or dose related toxicity associated with these treatments. Optimizing these treatments has become a necessity. Polymer-based materials have become increasingly popular, as current research efforts are focused on synthesizing novel cell matrices for stem cell expansion to solve limited donor cell availability, as well as applying polymer delivery vehicles to intracellularly deliver cargo that can aid in immunosuppression. Here, we discuss the importance and impact of polymer materials to enhance therapeutics in the context of BMF.
1 Introduction
Bone marrow failure (BMF) is characterized by the immune-mediated destruction of hematopoietic stem cells (HSCs) in the bone marrow. This results in a reduced number of hematopoietic precursors and subsequent cytopenias. BMF can be classified into two types: acquired and inherited. Inherited bone marrow failure (IBMF) refers to the failure of bone marrow that is caused by genetic mutations inherited from parents or arising spontaneously. Alongside the common symptoms of aplastic anemia, such as fatigue, bleeding episodes, and recurring bacterial infections, patients with IBMF often exhibit additional features specific to each syndrome (1). On the other hand, acquired bone marrow failure is primarily idiopathic in nature. The first line of treatment is to undergo a hematopoietic stem cell transplantation (HSCT) from a matched sibling donor. The first alternative for patients without a matching sibling donor is a matched unrelated donor (MUD) at the allele level (2). Survival rates after matched sibling or MUD hematopoietic stem cell transplantation (HSCT) for aplastic anemia (AA) are currently reported to be around 80% or even higher. Since AA is a nonmalignant hematologic disorder, the risk of relapse after HSCT is generally low. However, graft-versus-host disease (GVHD) remains a significant cause of morbidity and mortality in AA patients who undergo HSCT. GVHD is a complication after HSCT when the graft’s immune cells recognize the host as foreign and attack the recipient’s cells and tissues. GVHD can affect various target organs, such as the skin and lungs, contributing to long-term complications and further posing risks to the overall health of the patients (3–5). Approximately 60-70% of patients do not find a matching unrelated donor. Therefore, there is an ongoing need for alternative HSCTs options (6, 7). One possibility is to utilize a human leukocyte antigen (HLA)-mismatched unrelated donor whose genetic makeup differs from the patient at one allele. Another option involves utilizing umbilical cord-blood (CB) from unrelated donors, or haploidentical (haplo) familial donors which offers greater flexibility in terms of HLA compatibility (8). Alternative HSCTs can potentially provide a curative solution for certain patients. However, it is important to consider that these alternative methods carry higher risks compared to matched sibling or matched unrelated donor HSCTs. These risks include graft rejection, infectious complications, and GVHD. Factors such as patient age, comorbidities, and specificities related to the alternative HSCT methods are important issues in transplantation decision (9).
Recent advancements in cord-blood transplantation have broadened its potential applications by incorporating techniques such as double cord-blood grafts and ex vivo expansion methods (10). In a study performed by Milano et al. (2016), patients with pre-transplantation minimal residual disease had a higher likelihood of overall survival when they received a transplant from a cord-blood donor compared to receiving a transplant from an HLA-matched unrelated donor. Additionally, the cord-blood group had a lower probability of relapse compared to graft recipients from HLA-matched unrelated donors or HLA-mismatched unrelated donors (11). Although cord blood is a viable option, its availability remains scarce.
Other therapies for BMF also include drugs that can stimulate colony factors, such as sargramostim (Leukine), filgrastim (Neupogen), pegfilgrastim (Neulasta), and epoetin alfa (Epogen/Procrit), all of which are approved by the United States Food and Drug Administration (USFDA). Additionally, newer treatments such as Eltrombopag increase the quantity of red blood cells and enhance hematopoietic stem cells recovery. Apart from utilizing drugs to improve anemia and aid in BM repopulation, it is also crucial to suppress autoreactive immune cells. Immunosuppressive therapies (IST) typically eliminate auto-reactive T lymphocytes, which are the most common cells to attack HSCs. The USFDA has approved two main IST drugs: anti-thymocyte globulin (ATG) and cyclosporine (12, 13). Although immunosuppressive drugs can enhance patients’ life expectancy, many eventually develop resistance to this treatment and experience dose limitations due to toxicity. Despite patients mainly suffering from liver toxicity and kidney failure, infections and pneumonia associated with IST are the leading cause of deaths among BMF patients (12).
HSCT from a related or unrelated donor can lead to high survival rates, it is important to note that these results are dependent on age. Survival outcomes vary based on age, with older patients >40 years experiencing the least favorable results with HSCTs or ISTs. Additionally, there is a reported risk of older patients >34 years developing GVHD. While IST therapy can provide sustained remission, it is associated with a risk of relapse and late clonal abnormalities. The decision should also consider whether the patient has other health issues (comorbidities). If HSCT is likely to interfere with these other health issues, then ISTs would be the preferred line of treatment as they offer sustained remission (9).
In the absence of next generation drug and transplant therapies, polymeric materials have the potential to revolutionize the BMF therapeutic landscape. Polymers can be employed as novel cell culture matrices to successfully expand hematopoietic stem and progenitor cells (HSPCs) (14, 15). Additionally, there are polymer-based delivery vehicles that can efficiently intracellularly deliver diverse cargo, including antibodies to interrupt signaling pathways (16) or gene editing components to impede target gene transcription in pathogenic T cells (17). These strategies present a promising alternative avenue for traditional HSCT and immunosuppression therapies.
2 Polymer materials to enhance current therapeutics
Polymer based materials have been used in diverse biological applications, ranging from therapeutic delivery agents (18), sensors (19), implants (20), and imaging tools (21). Their popularity is mainly attributed to their easily tunable chemistry, architecture, and relatively simple synthesis techniques (22–24). Recent work has shown that three dimensional (3D) polymer matrices are better for cell culturing and expansion than their two dimensional counterparts (i.e. polystyrene plates) (25). Polymer materials are also attractive for intracellular drug delivery applications as they are capable of delivering diverse cargo (antibodies, proteins, genetic material, small molecule therapeutics, etc.) while also generally improving cargo performance (pharmacokinetics) (26–28). Polymer materials have the potential to significantly improve the BMF treatment landscape by facilitating stem cell expansion and intracellular therapeutic agent delivery.
2.1 Stem cell expansion
Hematopoietic stem cell destruction is the hallmark of BMF (1). Symptoms of BMF, such as anemia and infections, can be reduced if the BM niche is repopulated with new HSCs. However, most patients lack compatible donors for HSCT, but cells derived from cord blood tend to be a more universal match (29, 30). Using HSCs derived from cord blood for transplant can help repopulate the BM, reduce the risk of rejection, and decrease disease relapse (11). However, HSCT therapy using cord blood cells is restricted by limited availability of donors (15), as well as by the absolute numbers of stem cells present in each collected sample. Polymer-based expansion methods provide innovative means to overcome these limitations by expanding stem cell populations from cord blood, or other hematopoietic stem cell sources, to potentially increase HSCT access.
3D polymer-based cell matrices have been gaining in popularity for stem cell culture and expansion (31–35). Increasing attention focuses on the numerous tunable variables that can be incorporated in a polymer matrix, such as chemical identities, mechanical properties, and bulk matrix architecture (Figure 1). The diverse structures allow for discrete environmental manipulation and can tolerate cytokine and growth factor loading, which in turn affects cell growth, function, and differentiation (34).

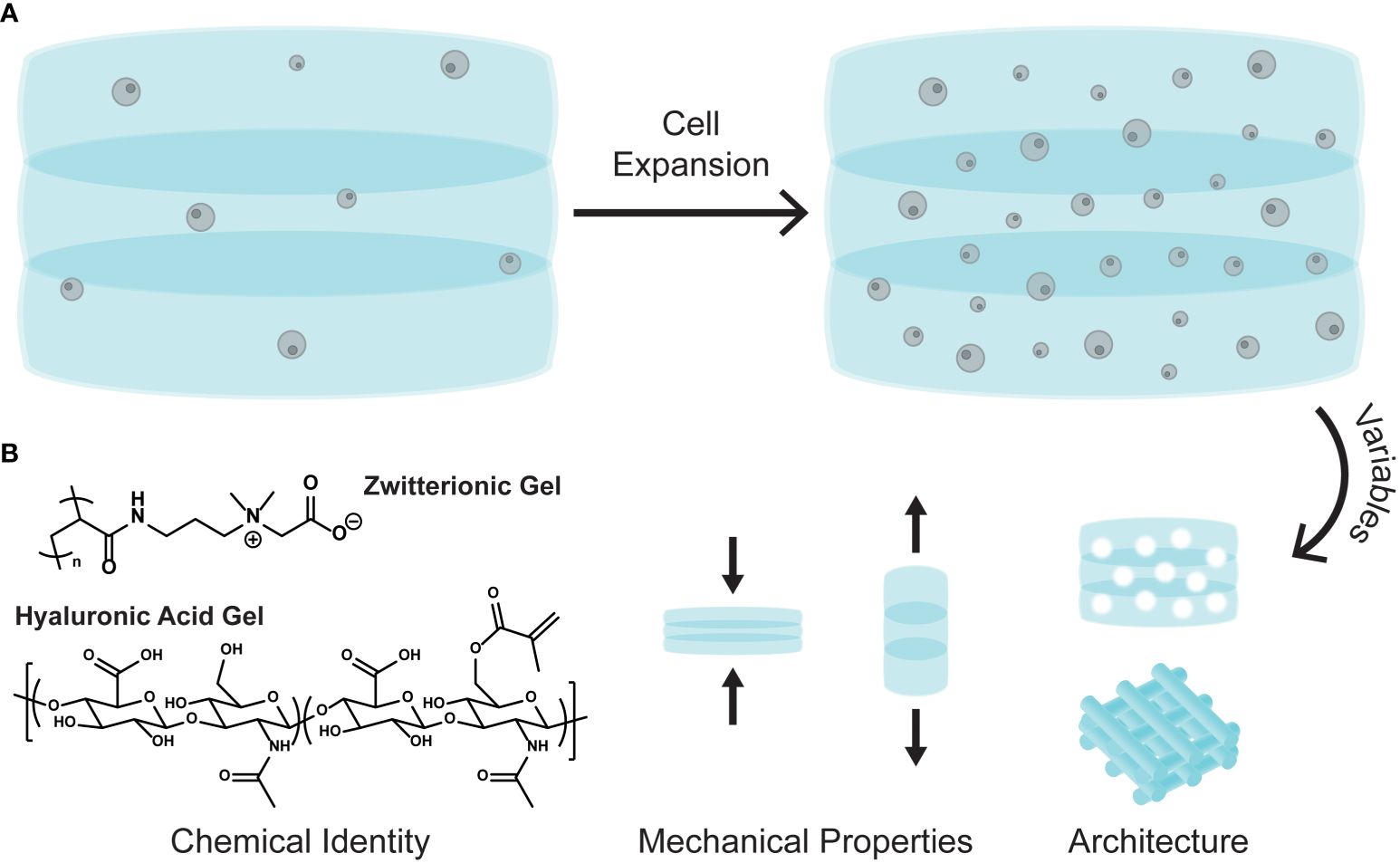

Figure 1 (A) Cartoon schematic of cell expansion in a 3D polymer matrix. (B) The tunable variables of 3D matrices: chemical identity, mechanical properties, and bulk architecture.
A recent study explored the expansion of CD34+ cells isolated from cord blood in a 3D polymer matrix (15). Here the authors use a zwitterionic hydrogel composed of poly(carboxybetaine) and crosslinked using click chemistry and degradable crosslinkers. Their designed zwitterionic gel (ZG), which incorporates both negative and positive charges in a single monomer unit, significantly outperformed gels made from poly(ethylene glycol) (PEG), a common non-charged polymer used for many biological applications. In additional grafting studies, cells cultured in the ZGs showed similar engraftment levels than the non-cultured controls, but with 100-fold fewer cells. The authors ultimately show clinically meaningful expansion both of CD34+ cells isolated from cord blood and bone marrow derived HSPCs in their 3D zwitterionic hydrogel.
Modulating matrix mechanical properties, such as stiffness and elasticity, also plays a significant role in stem cell differentiation and expansion (36). One study demonstrated how polyacrylamide gels with differing Young’s moduli (E, stiffness) affected mesenchymal stem cell differentiation (MSC). For example, softer gels (E = 0.1-1 kPa) promoted neuronal type expression, while stiffer gels (E = 25-40 kPa) promoted osteogenic differentiation (37). Gels can also be synthesized to have dynamic moduli, where the stiffness changes when exposed to certain stimuli, such as light, pH, or temperature. These gels allow for cellular adaptation, being able to differentiate into various cell types by simply changing the matrix modulus (38).
Tuning the bulk matrix architecture offers another variable for control. The woodpile structure (Figure 1B, architecture) is commonly employed in 3D matrices as it can be easily manipulated to include diverse pore sizes and surface areas, both of which are important for cell growth and migration (25). A recent study investigated how gap sizes in a woodpile 3D matrix significantly affected bone marrow derived MSC (BM-MSC) migration (39). Matrices with larger gap sizes (100 μm) promoted the highest BM-MSC migration and increased the number of viable cells. Additionally, 3D cell matrices with submillimeter pore sizes were found to enhance CD34+ cell proliferation more than the nonporous matrices (33).
2.2 Therapeutic agent delivery
Polymers can also be used as intracellular delivery vehicles for drugs and biomacromolecules to aid in cellular manipulation (Figure 2A) (28). They are typically employed to help therapeutic cargo traverse the cell membrane, either by direct conjugation of the vehicle to the cargo, or by non-covalent complexation (40–42). Polymer-based delivery vehicles can also be used to protect the cargo from premature consumption or degradation. This aids in cargo pharmacokinetics, typically by increasing the half-life of the cargo or by increasing the toxicity threshold (27, 43).
Aplastic anemia (AA) is a form of bone marrow failure that is typically inherited, but can also be caused by drugs, such as hepatitis-C (HCV) treatments, and by diseases, such as the human immunodeficiency virus (HIV) virus. It is characterized by the bone marrow being incapable of producing enough blood cells for normal bodily functions. Filgrastim is a granulocyte colony-stimulating factor (G-CSF) used for hematopoietic cell growth and is known to treat neutropenia, aplastic anemia, and aids in myelosuppression after bone marrow transplantation (44–46). However, G-CSF is administered by daily injections, which is painful for patients and increases the risk of infection at the injection site (44). One study has shown the oral delivery of G-CSF mediated by a diethylene triamine penta acetic acid conjugated chitosan and poly(γ-glutamic acid) (γPGA-DTPA) nanoparticle (Figure 2B, chitosan+γPGA-DTPA) (44, 47). They observed increased availability of G-CSF when encapsulated in the nanoparticle and delayed the maximum concentration release by 6 h, indicative of a sustained release rather than a burst release. Additionally, neutropenia rat models were treated with a one-time oral dose of the nanoparticle encapsulated G-CSF (NP-G-CSF) or free-form G-CSF administered by daily injections. Both treatments increased the absolute neutrophil count in the rats, but the NP-G-CSF was only administered once, demonstrating the simplicity and effectiveness of the nanoparticle platform to deliver G-CSF.
Figure 2 (A) Cartoon schematic of polymer delivery vehicles (represented by the box) being able to intracellularly deliver therapeutic cargo, such as gene editing tools (CRISPR/Cas9), small molecule drugs, and antibodies. (B) Examples of polymer delivery vehicles discussed in this mini review.
Alternative ISTs must be utilized to ensure patients have safe and effective immune suppression without the occurrence of drug resistance and dose related toxicity (12). One strategy to achieve immunosuppression is to enhance regulatory T cell (Treg) function. Tregs are T cells that suppress effector cell growth and division, thereby limiting the immune response (48). FOXP3 is the hallmark protein for Treg cell function, whereby elevated levels correlate with enhanced suppressive function by Tregs (48–50).
It has been shown that protein kinase C theta (PKCθ) enhances effector T cell function, while limiting Treg differentiation. Many studies have sought to inhibit PKCθ function by using small molecule inhibitors or by using gene editing technology, such as siRNA. Inhibiting PKCθ yielded more suppressive Tregs and even restored impaired Treg function (51). Alternatively, polymer materials can be used as delivery vehicles for inhibitory biomacromolecules, such as antibodies, providing a simple pathway to achieve similar results. A recent study highlights a designed polymer vehicle to intracellularly deliver an antibody against PKCθ into naïve CD4+ T cells and inhibit its function (16). This polymer mimics the structure of the designed protein transduction domain, Pep-1 (ChariotⓇ), by using a block copolymer architecture with both hydrophobic and cationic blocks (Figure 2B, MePh10-b-dG5) (52). This polymer has also been shown to significantly outperform Pep-1 (53), an analog of the naturally occurring cell penetrating peptide HIV1-TAT (54), and the commercial delivery agent AbDeliverIN™ (55). The MePh10-b-dG5 delivery vehicle successfully delivered an anti-PKCθ antibody, and yielded Tregs with elevated FOXP3 expression and suppressive function (16). The exact mechanism by which these polymers carry cargo across the cell membrane to enhance the therapeutic agent delivery continues to be an area of active investigation.
Gene therapy is another avenue for protein manipulation, typically achieved by viral deliveries, such as lentivirus and extracellular vesicles, or nonviral deliveries, such as microinjection, electroporation, and polymeric vehicles (56). Viral delivery vectors face significant limitations as they pose mutagenetic risks and suffer from poor production yields (57). Microinjection and electroporation are popular nonviral delivery methods for genetic materials, but are harsh on cells, difficult to apply to large cell populations, and not feasible for in vivo work, making these techniques inadequate for clinical applications (56, 58, 59). Polymers such as poly(ethyleneimine), poly(amidoamine), and poly(amino acids), are promising as nonviral alternatives and have been successful at intracellularly delivering DNA, mRNA, and other gene editing technology (26, 60–62).
The CRISPR/Cas9 system has been widely adopted as an efficient and effective gene editing technology (63, 64). Polymeric delivery vehicles can be tailor-made for the desired cargo making them ideal vehicles for intracellular CRISPR/Cas9 delivery. Recently, poly(β-amino esters) (PBAEs) were synthesized to encapsulate the CRISPR/Cas9 system and transfect human CD34+ and CD14+ cells (Figure 2B, PBAE) (17). The transfection efficiency of the CRISPR/Cas9/PBAE nanoparticles (NPs) were >90% and maintained >86% cell viability. The NPs achieved 85% gene editing efficiency, which was measured by CD33 knockout. The edited cells were then injected into mice and the human cell engraftment was measured. Overall, there was no difference in human cell engraftment from the untreated control, both in the peripheral blood and the bone marrow of the mice (17).
3 Concluding remarks and perspective
Polymer materials are becoming increasingly popular to combat BMF because of their diverse chemical libraries, unique architecture, and relatively easy synthesis techniques. Here we have briefly highlighted some recent advances in these materials, serving as 3D cell matrices or as delivery vehicles for therapeutic cargo. Though these advancements are promising, there are other factors that need to be considered. The BM niche is a complex microenvironment that is difficult to accurately mimic synthetically. Incorporating cytokines, growth factors, and other BM niche components complicates the design for recreating a high-fidelity matrix, as well as for effective cell expansion. Improvements are also desperately needed to make these additional components compatible with accessible matrix synthesis techniques, such as 3D bioprinting.
Targeting intracellular pathways that contribute to enhanced Treg suppressive function have been shown to be promising therapeutic strategies. Increased expression of specific proteins like FOXP3, PRMT5, PD-1, and CTLA4 characterize highly suppressive Tregs, and targeting these proteins or their pathways have the potential to optimize outcomes in adoptive Treg therapy (65). These and other proteins and signaling pathways are accessible to polymers with cell penetrating properties that can deliver gene editing tools (i.e. CRISPR/Cas9 or siRNA) or signaling disrupting agents (i.e. inhibitory antibodies). Additionally, the BM microenvironment has several unique enzymes, such as serine protease 57, elastase, neutrophil expressed bactericidal permeability increasing protein, defensin alpha 3, ribonuclease A family member 3, and surface receptors such as olfactory receptor family 10 subfamily Z member 1 (Atlas database). If polymer materials can be modified to specifically target these unique elements, then therapeutic drugs will be ensured to solely reach the BM and thus limits off-target toxicity, which is common in most small molecule therapeutics. Overall, expanding the use of polymer materials promises to improve BMF therapies by enhancing stem cell expansion and as delivery vehicles for therapeutic agents.
Author contributions
KK: Writing – original draft, Writing – review & editing. NJ: Writing – original draft, Writing – review & editing. IT: Writing – original draft, Writing – review & editing. GT: Funding acquisition, Writing – review & editing. LM: Writing – review & editing.
Funding
The author(s) declare that financial support was received for the research, authorship, and/or publication of this article. KK and NJ were supported, in part, by the US Department of Defense (CDMRP W81XWH2010536 to GT). KK was partially supported by the US Department of Education Graduate Assistance in Areas of National Need Fellowship (DoED P200A150276).
Conflict of interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Publisher’s note
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
