Leishmaniasis, a disease caused by parasites of Leishmania spp., endangers more than 1 billion people living in endemic countries and has three clinical forms: cutaneous, mucocutaneous, and visceral. Understanding of individual differences in susceptibility to infection and heterogeneity of its pathology is largely lacking. Different mouse strains show a broad and heterogeneous range of disease manifestations such as skin lesions, splenomegaly, hepatomegaly, and increased serum levels of immunoglobulin E and several cytokines. Genome-wide mapping of these strain differences detected more than 30 quantitative trait loci (QTLs) that control the response to Leishmania major. Some control different combinations of disease manifestations, but the nature of this heterogeneity is not yet clear. In this study, we analyzed the L. major response locus Lmr15 originally mapped in the strain CcS-9 which carries 12.5% of the genome of the resistant strain STS on the genetic background of the susceptible strain BALB/c. For this analysis, we used the advanced intercross line K3FV between the strains BALB/c and STS. We confirmed the previously detected loci Lmr15, Lmr18, Lmr24, and Lmr27 and performed genetic dissection of the effects of Lmr15 on chromosome 11. We prepared the interval-specific recombinant strains 6232HS1 and 6229FUD, carrying two STS-derived segments comprising the peak linkage of Lmr15 whose lengths were 6.32 and 17.4 Mbp, respectively, and analyzed their response to L. major infection. These experiments revealed at least two linked but functionally distinct chromosomal regions controlling IFNγ response and IgE response, respectively, in addition to the control of skin lesions. Bioinformatics and expression analysis identified the potential candidate gene Top3a. This finding further clarifies the genetic organization of factors relevant to understanding the differences in the individual risk of disease.
Introduction
More than 1 billion people living in endemic countries (1–3) are endangered by leishmaniasis, a disease with no reliable vaccine to prevent it in humans. Moreover, treatment of leishmaniasis has serious side effects (4, 5).
The disease is caused by kinetoplastid parasites of the genus Leishmania that are transmitted to mammalian hosts by a bite of the vector, phlebotomine sand flies (Diptera). In the infected mammalian organism, Leishmania parasites invade “professional phagocytes,” including monocytes, macrophages, and neutrophils, and can also reside in dendritic cells and many other cell types such as fibroblasts (6) and adipocytes (7). The disease has three main forms: cutaneous, mucocutaneous, and visceral. The clinical form and the susceptibility to leishmaniasis depend on parasite species, pathogen transmission vector, immune status, nutrition, age, sex, microbiome and genotype of the host, and also on multiple environmental and social factors and co-infections (8–13).
These multiple factors are difficult to control in the analysis of susceptibility to leishmaniasis in humans and are easier to control in animal models, even if they cannot cover all the variabilities of human leishmaniasis. A broad range of disease manifestations such as skin lesions, splenomegaly, hepatomegaly, parasite infiltration into the organs, eosinophil infiltration into the lymph nodes, and increased levels of immunoglobulin E and cytokines in the serum were described in different mouse strains (14–17) and animal models proved to be invaluable in revealing the mechanisms (18–22) and genetic architecture (8, 9, 13, 18) of response to leishmaniasis. In mouse, the most detailed information was obtained in the studies of infection with L. major (8, 9, 13). Genome-wide mapping detected more than 30 quantitative trait loci (QTLs), revealing the multigenic control of disease susceptibility and manifestations (23–25).
Some of these QTLs control different combinations of disease manifestations, but the nature of this heterogeneity is not yet clear. Moreover, the controlling genes are involved in one or more genetic interactions, functioning as a network (13, 25, 26). Although the system of recombinant congenic strains (RCS) allows by mapping in F2 hybrids to localize some QTLs to a short segment up to 1.78 Mb/<1 cM (cora1) (27), the majority of QTLs detected in RCS and other types of crosses are mapped to segments of 20 cM or more (23–25) that have to be further shortened to identify the controlling gene. Only one candidate gene Fli1 controlling the susceptibility to L. major in mouse has been identified until now in a genome-wide search (28).
In this study, we analyzed four out of eight already mapped loci controlling the response to L. major in the RC strain CcS-9 (Table 1) (17, 29) using the advanced intercross line K3FV. The strongest linkage was observed to the Lmr15 on chromosome 15. We prepared interval-specific strains covering the peak of this linkage. The analysis led to the confirmation, precise mapping, and identification of potential candidate genes in the locus Lmr15.
Materials and methods
Mice
We have used in these studies the genetic combinations of genomes of the strain BALB/c that is widely used in research and the strain STS that originated from Swiss albino mice in 1955 (30). The strain STS is resistant to infection with L. major (31), Leishmania tropica (16), and tick-borne encephalitis virus (32). STS is resistant to mammary tumor induction by hypophysial isografts (33) and highly susceptible to the induction of colon tumors by 1,2-dimethylhydrazine (34). STS thymocytes were more resistant to radiation-induced apoptosis than BALB/c thymocytes (35), whereas STS mice were more susceptible to radiation-induced apoptosis in the colon than BALB/c (36). The splenocytes of STS show a higher proliferative response to IL-2 than BALB/c (37) but a lower response to anti-CD3 (37) and ConA (27) than BALB/c. STS exhibited a higher proliferative response in the mixed lymphocyte culture than BALB/c when tested with cells from 11 other mouse strains with 10 MHC types (38).
Advanced intercross line
The advanced intercross line (AIL) K3FV was established from a susceptible strain BALB/c and a resistant strain STS. It contained STS-derived segments on chromosomes 1, 2, 4, 5, 7, 8, 10, 11, 16, 17, and 18. Chromosomal segments containing the Lmr loci detected in F2 hybrids between K3FV and BALB/c were typed using the following markers: D4Nds3, D4Mit108, D4Mit53, D4Mit139, D4Mit7, D4Mit152, D11Mit20, D11Mit139, D11Mit141, D11Mit274, D11Mit26, D11Mit242, D11Nds18, D11Mit37, D16Mit19, D16Mit94, D16Mit155, D17Mit66, D17Mit139, D17Mit20, D17Mit3, D17Mit120, D17Mit38, D17Mit72, and D17Mit129.
For the current analysis, we selected sublines that did not carry STS-derived segments in the Lmr loci on chromosomes 1, 2, 7, 8, 10, and 18. The F4 generation of the (STS×BALB/c) AIL mice with recombination in Lmr24 (chromosome 4), Lmr15 (chromosome 11), Lmr18 (chromosome 16), and Lmr27 (chromosome 17) regions was used in the present study. We used F4 (STS×BALB/c) AIL (K3FV) that was backcrossed to BALB/c mice once (N1—experiment 1) or twice (N2—experiment 2). The length of the obtained individual regions was approximately 5 cM.
F2 hybrids between BALB/c and K3FV (n = 138, 68 males and 70 females) were infected at the age of 8 to 14 weeks (the mean age is 11 weeks; the median age is 11 weeks) and characterized for the immunological and pathological changes after L. major infection. They were tested in two subsequent experimental groups (F2N1, n = 34—experiments 1; F2N2, n = 104—experiment 2). During the experiments, male and female mice were placed in separate rooms and males were caged individually.
Interval-specific congenic strains
The interval-specific congenic strains 6232HS1 and 6229FUD with recombinant haplotype in Lmr15 were produced from the recombinant congenic strains CcS-4 and BALB/c using marker-assisted breeding (39). F2 mice from the cross between CcS-4 and BALB/c were genotyped, and mice that contained STS alleles at Lmr15 and BALB/c alleles at the other STS-derived segments were backcrossed to BALB/c and genotyped again. This resulted in the establishment of the interval-specific strains 6232HS1 and 6229FUD, which carried STS-derived segments on chromosome 11 at the Lmr15 region on the genetic background of BALB/c. Mice were cleaned by embryo transfer.
F2 hybrids between BALB/c and 6232HS1, 150 females, were infected at the age from 9 to 16 weeks (mean age = 12.8 weeks; median age = 12 weeks). Mice were tested in a single experimental group. The microsatellite marker D11Mit316 was used for typing of the Lmr15 region.
F2 hybrids between BALB/c and 6229FUD, 150 females, were infected at the age from 8 to 12 weeks (mean age = 11 weeks; median age = 11.4 weeks). Mice were tested in a single experimental group. The microsatellite marker D11Mit242 was used for typing of the Lmr15 region.
All experiments were approved by the Ethical Committee of the Institute of Molecular Genetics.
Genotyping of AIL and interval-specific mice
DNA was isolated from the tails using a standard proteinase K procedure (40). Microsatellite and single nucleotide polymorphism (SNP) markers (Generi Biotech, Hradec Králové, Czech Republic) were genotyped as described elsewhere (41, 42). The products were electrophoresed in 3% agarose gel containing 80% of MetaPhor® Agarose (Cambrex Bio Science Rockland, Inc., Rockland, ME, USA) and 20% of UltraPure™ Agarose (Invitrogen, Carlsbad, CA, USA) for 20 min to 2 h at 150 V.
Parasites
Leishmania major LV 561 (MHOM/IL/67/LRC-L137 JERICHO II) was maintained in rump lesions of BALB/c females. Amastigotes were transformed to promastigotes using SNB-9 (43), and 107 promastigotes from 6-day-old subculture 2 were inoculated in 50 μl of sterile saline s.c. into mouse rump (25). This procedure results in approximately 17% of metacyclic promastigotes in the inoculum (44).
Disease phenotype
The size of the primary skin lesions was measured weekly using a Vernier caliper gauge. The mice were killed 8 weeks after infection, and body, spleen, and liver weights were recorded. The blood, spleen, skin, lymph nodes, and liver (in interval-specific strains only) were collected for further analysis.
IgE and IFNγ levels
IgE and IFNγ levels in the serum were determined using the primary and secondary monoclonal antibodies (IgE: R35-72, R35-118; IFNγ: R4-6A2, XMG1.2) and standards from Pharmingen (San Diego, CA, USA) (purified mIgE: C38-2 and recombinant mouse IFNγ). The enzyme-linked immunosorbent assay (ELISA) was performed as recommended by Pharmingen. The IFNγ and IgE levels were estimated using the curve fitter program KIM-E.
Measurement of parasite load in the organs
Total DNA was isolated from frozen lymph nodes and liver samples, and parasite load was measured using PCR-ELISA according to the previously published protocol (45). Briefly, total DNA was isolated using a standard proteinase K procedure (40). For the detection of the Leishmania parasite DNA in total DNA, PCR was performed using two primers: digoxigenin-labeled F 5′-ATT TTA CAC CAA CCC CCA GTT-3′ and biotin-labeled R 5′-GTG GGG GAG GGG CGT TCT-3′ (VBC Genomics Biosciences Research, Austria). The 120-bp fragment within the conserved region of the kinetoplast minicircle of the Leishmania parasite was amplified. In each PCR reaction, 50 ng of extracted total DNA was used. As a positive control, 20 ng of L. major DNA per reaction was amplified as the highest concentration of the standard. A 26-cycle PCR reaction was used for the quantification of parasites in the lymph nodes and liver. Parasite load was determined by measurement of the PCR product with the modified ELISA protocol (Pharmingen, San Diego, USA). The concentration of Leishmania DNA was measured using the ELISA Reader from Tecan with the curve fitter program KIM-E (Schoeller Pharma, Prague, Czech Republic) using least squares-based linear regression analysis (45, 46).
RNA isolation and RT-PCR analysis
RNA was prepared by lysing skins and spleens stored at −80°C with the TRI reagent (Sigma-Aldrich, Missouri, United States) and analyzed as described in (47). One microgram of RNA was treated with DNase (Promega, Wisconsin, United States, M6101) and then reverse-transcribed using 100 units of M-MLV Reverse Transcriptase (Sigma, M1302) with 1×MLV reverse transcriptase buffer, 1.4 µM of random hexamers (Thermo Fisher, Massachusetts, United States, N8080127), 2.5 units of ribonuclease inhibitor (Thermo Fisher, 15518012), and 5 mM of each dNTP (Sigma, DNTP100) per sample to obtain cDNA. cDNA was then diluted five times and 3 µl was used for amplification by 45 cycles of PCR: 2 min denaturation at 95°C, 15 s denaturation at 95°C followed by 20 s annealing at 60°C and 30 s extension at 72°C with a single fluorescence acquisition point repeated 45 times, and a melt curve program of 55°C to 95°C with 0.5°C increment with continuous fluorescence acquisition using primers for the genes of interest and SYBR® Green JumpStart™ Taq ReadyMix™ (Sigma-Aldrich, S4438) for quantification. GAPDH was used as an internal control. Reactions were performed in a 384-well plate in Roche light cycler LC480II (Roche Molecular Systems, Inc., Basel, Switzerland). Forward and reverse sequences of primers for the genes of interest were designed by QuantPrime (48) and purchased from Generi Biotech (Hradec Králové, Czech Republic). The sequences of the forward (F) and reverse (R) primers used were as follows: Top3a_F: GTGGCGAAGGCAAAGAAGTTGG; Top3a_R: TCTTCTTGCTGGGCCATCTCTG; Aloxe3_F: AGCCCGCCAAGAATGTTATCGC; Aloxe3_R: TCCTGAAAGCTGCTGACATCCAC; Arhgap44_F: TGACATGAGTGGCGCAGTGTTG; Arhgap44_R: GGGACATCAAAGTGGACGAGATCC; Gapdh_F: AACTTTGGCATTGTGGAAGG; Gapdh_R: GTCTTCTGGGTGGCAGTGAT.
Detection of polymorphisms that change RNA stability and the functions of genes
We have sequenced the genomes of the strains BALB/c and STS using the next-generation sequencing (NGS) system HiSeq 2500 (Illumina, California, United States) (12× coverage) and analyzed them as described in (49, 50). In detail, NGS data were preprocessed using the software Trimmomatic (51), and overlapping pair reads were joined by the software Flash (52). Alignment-reference mouse sequence mm10 (build GRCm38) was performed using the Burrows–Wheeler Aligner (BWA) program (53). Mapped reads were sorted and indexed, and duplicated reads were marked. Local realignment around indels, base recalibration, and variant filtration were performed using the software Genome Analysis Toolkit (GATK) (54). The Integrated Genome Viewer (IGV) (55) was used for the visualization of results. Variant annotation and effect prediction was performed by the software SnpEff (56). Protein variation effect predictions were performed by the software Protein Variation Effect Analyzer (PROVEAN) (57). Analysis of conservation scores was performed using the ConSurf software (58–60).
Statistical analysis
Peaks of linkage (association) for different parameters in the strain K3FV were estimated using an open-source PLINK program (https://zzz.bwh.harvard.edu/plink/plink2.shtml; http://pngu.mgh.harvard.edu/~purcell/plink/) by Shaun Purcell at the Center for Human Genetic Research, Massachusetts General Hospital, and the Broad Institute of Harvard & MIT (61).
Interval-specific congenic strains HS1 and FUD. The role of genetic factors in the control of skin and organ pathology, parasite load in the lymph nodes and liver, and also IgE or IFNγ level in the serum was examined with one-way analysis of variance followed by Bonferroni’s multiple comparison test using GraphPad Prism version 5.04. When necessary, the original values of an analyzed parameter were transformed for normalization of the distribution as described in the legends to the figures.
Results
Analysis using AIL K3FV confirmed the presence of the previously detected Lmr loci
We have tested the association of skin lesions, splenomegaly, hepatomegaly, and IFNγ and IgE levels in the serum to the Lmr loci on chromosomes 4, 11, 16, and 17 using AIL K3FV (Figure 1).
![www.frontiersin.org](https://www.frontiersin.org/files/Articles/1145269/fimmu-14-1145269-HTML-r1/image_m/fimmu-14-1145269-g001.jpg)

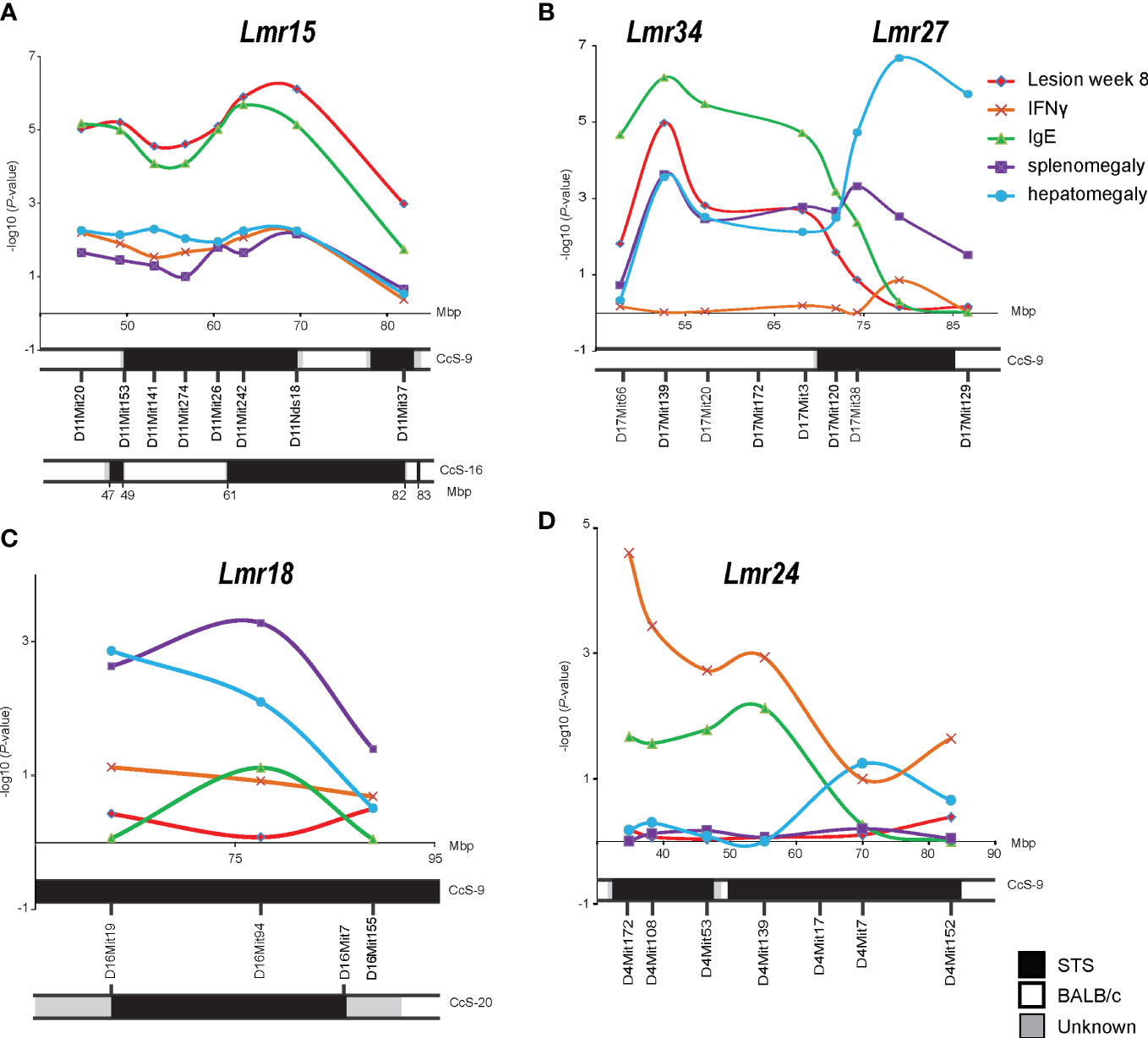

Figure 1 Mapping in the advanced intercross line K3FV. P-values organized by marker chromosomal locations on chromosome 11 (A), chromosome 17 (B), chromosome 16 (C), and chromosome 4 (D). IFNγ – IFNγ level in serum 8 weeks after infection; IgE - IgE level in serum 8 weeks after infection.
The strongest linkage was detected to Lmr15 on chromosome 11, and the peak of linkage to lesion size was observed between D11Mit242 and D11Nds8, whereas the peak of linkage to IgE level was found between D11Mit26 and D11Nds18 (Figure 1A).
We have detected the linkage of skin lesions, splenomegaly, and IgE level to Lmr27 (Figure 1B). However, the AIL K3FV covers not only Lmr27 on the distal part of chromosome 17 but also more proximal segment between 45 and 67 Mbp that is absent in CcS-9. We have detected a linkage to this segment that was associated with the controls of skin lesions, splenomegaly, hepatomegaly, and IgE level in the serum; a peak of linkage was observed around D17Mit139 (52.9 Mbp) (Figure 1B). This newly detected locus was named Lmr34.
Linkage to splenomegaly was detected on chromosome 16 (Lmr18) (Figure 1C), whereas on chromosome 4 (Lmr24), only linkage to IFNγ level reached the significance threshold (Figure 1D).
Analysis of interval-specific congenic strains confirmed the linkage to Lmr15 and revealed the presence of at least two functionally distinct loci
Locus Lmr15 on chromosome 11 was selected for further analysis because the linkage to this locus has been robust and because its control of the phenotype was stable. We have prepared two interval-specific congenic strains, 6232HS1 (HS1) and 6229FUD (FUD) (Figure 2), that overlap in a short segment of 0.77 Mbp spanning from rs62527257 (62.52 Mbp) to D11Mit350 (63.29 Mbp).
![www.frontiersin.org](https://www.frontiersin.org/files/Articles/1145269/fimmu-14-1145269-HTML-r1/image_m/fimmu-14-1145269-g002.jpg)

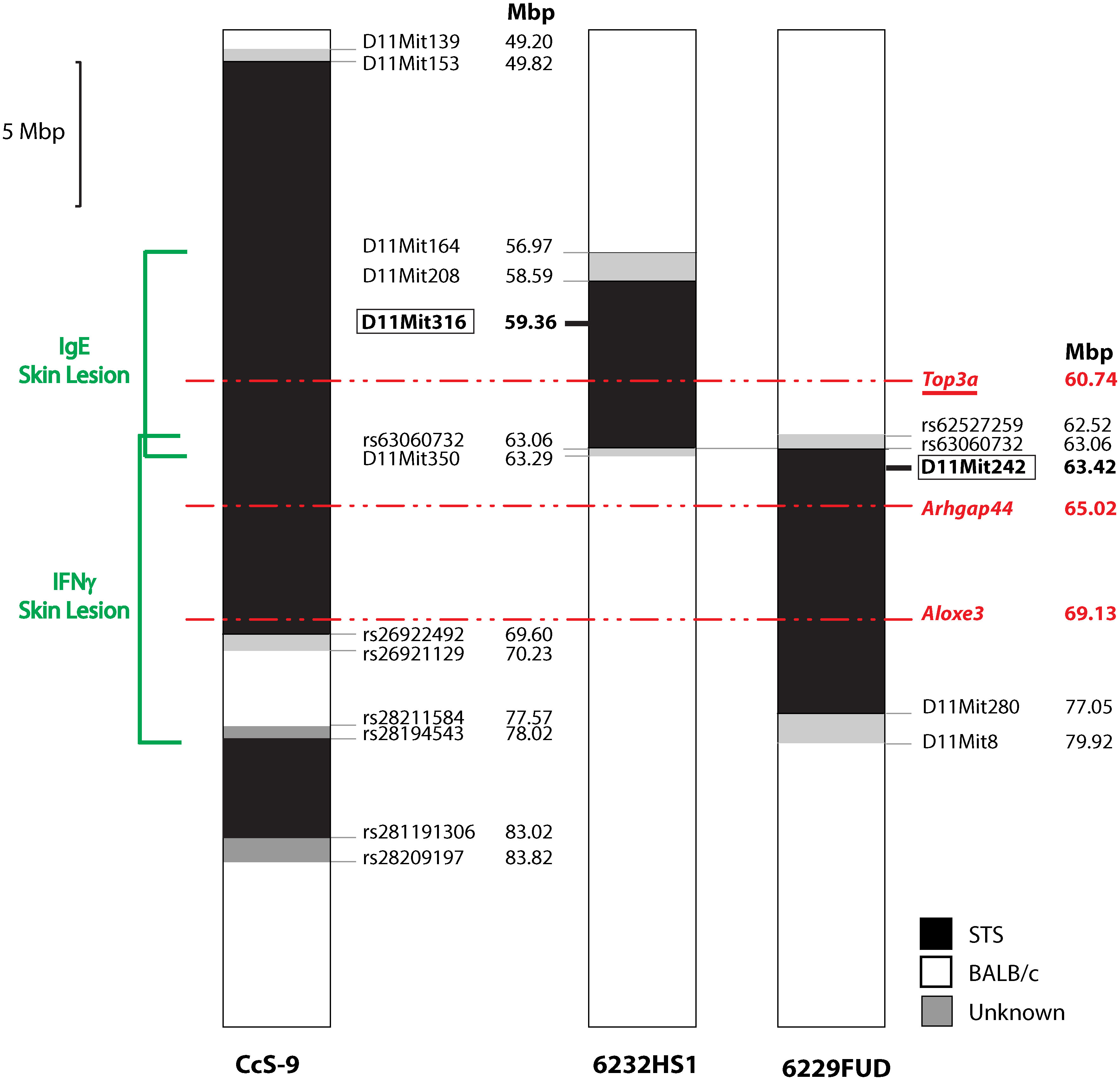

Figure 2 Maps of recombinants in Lmr15 on chromosome 11. The regions of STS and BALB/c are represented as black and white, respectively; the boundary regions of undetermined origins are shaded. Red—potential candidate gene. Red, underlined—gene with alleles exhibiting differential expression.
The strain HS1 carrying more proximal STS segment (maximal length 6.32 Mbp, minimal length 4.47 Mbp) controls skin lesion size (P = 0.013) and IgE level in the serum (P = 0.020) (Figure 3). The linkage to skin lesions was observed in the cross between HS1 females and BALB/c males (P < 0.0001) and in the group comprising both crosses (P = 0.013), and linkage to IgE was observed in the group comprising both crosses (P = 0.020) and in the cross between BALB/c females and HS1 males (P = 0.0375). Larger lesions and higher IgE levels are controlled by the BALB/c allele.
![www.frontiersin.org](https://www.frontiersin.org/files/Articles/1145269/fimmu-14-1145269-HTML-r1/image_m/fimmu-14-1145269-g003.jpg)

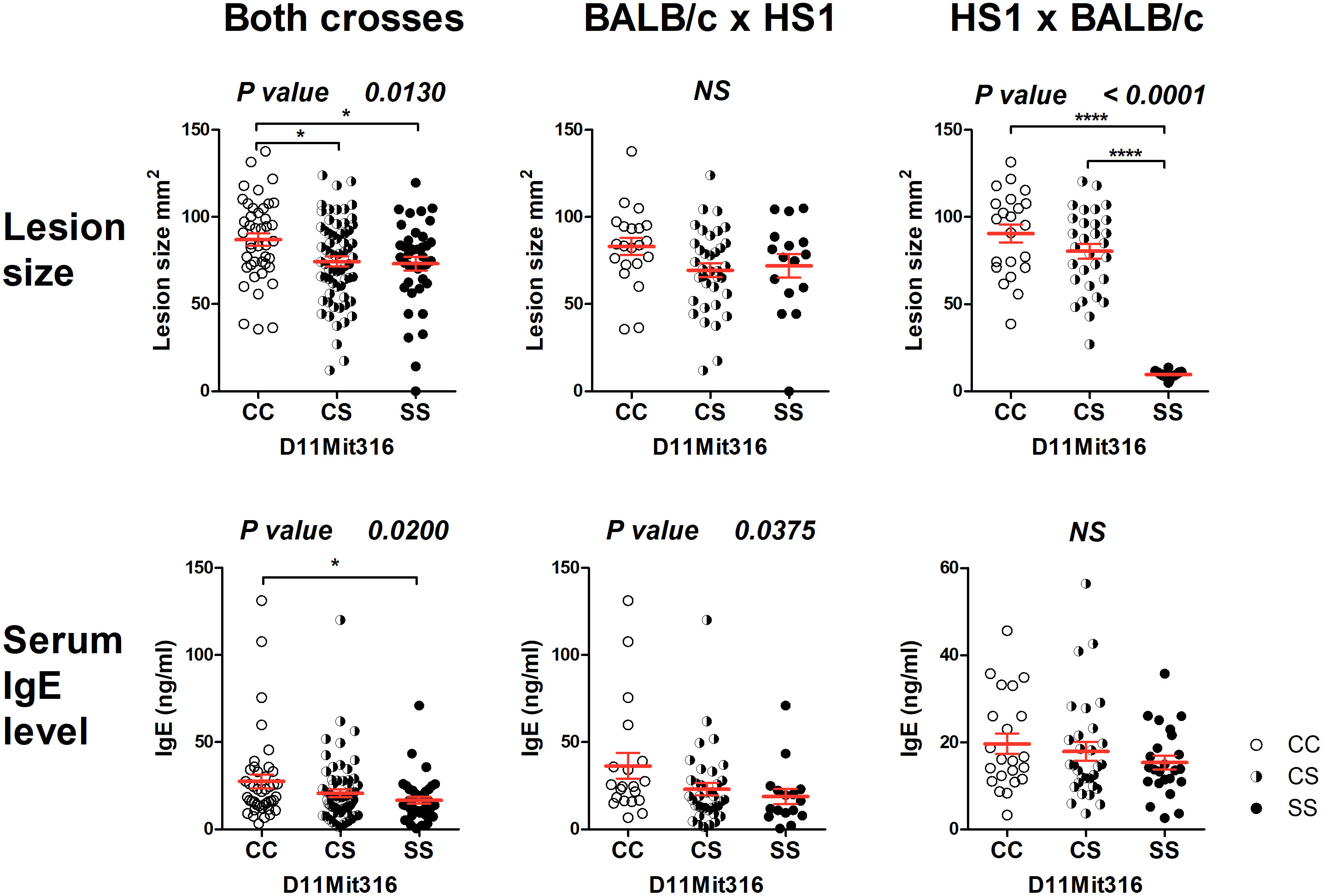

Figure 3 Genetic influence on skin lesions and serum IgE level 8 weeks after infection. Individual F2 hybrid mice between the strains HS1 and BALB/c are shown. Means ± standard error mean (red lines) and P-values were calculated by analysis of variance (ANOVA) followed by Bonferroni’s multiple comparison test. In order to obtain normal distribution of IgE values required for ANOVA, the absolute value of the logarithm of IgE (ng/ml) was used. Values of skin lesions had a normal distribution. The image shows untransformed values. C and S indicate the presence of the BALB/c and STS alleles, respectively. NS, not significant. *P < 0.05; ****P < 0.0001.
The strain FUD carrying the more distal STS-derived segment (maximal length 17.40 Mbp, minimal length 13.99 Mbp) (Figure 2) controls skin lesion size (P = 0.0032) and IFNγ level (P = 0.0021) in the cross between FUD females and BALB/c males. FUD controls IFNγ level also in the group comprising both crosses (0.0295) (Figure 4). Larger lesions were controlled by the C allele, whereas the highest IFNγ levels were observed in heterozygotes.
![www.frontiersin.org](https://www.frontiersin.org/files/Articles/1145269/fimmu-14-1145269-HTML-r1/image_m/fimmu-14-1145269-g004.jpg)

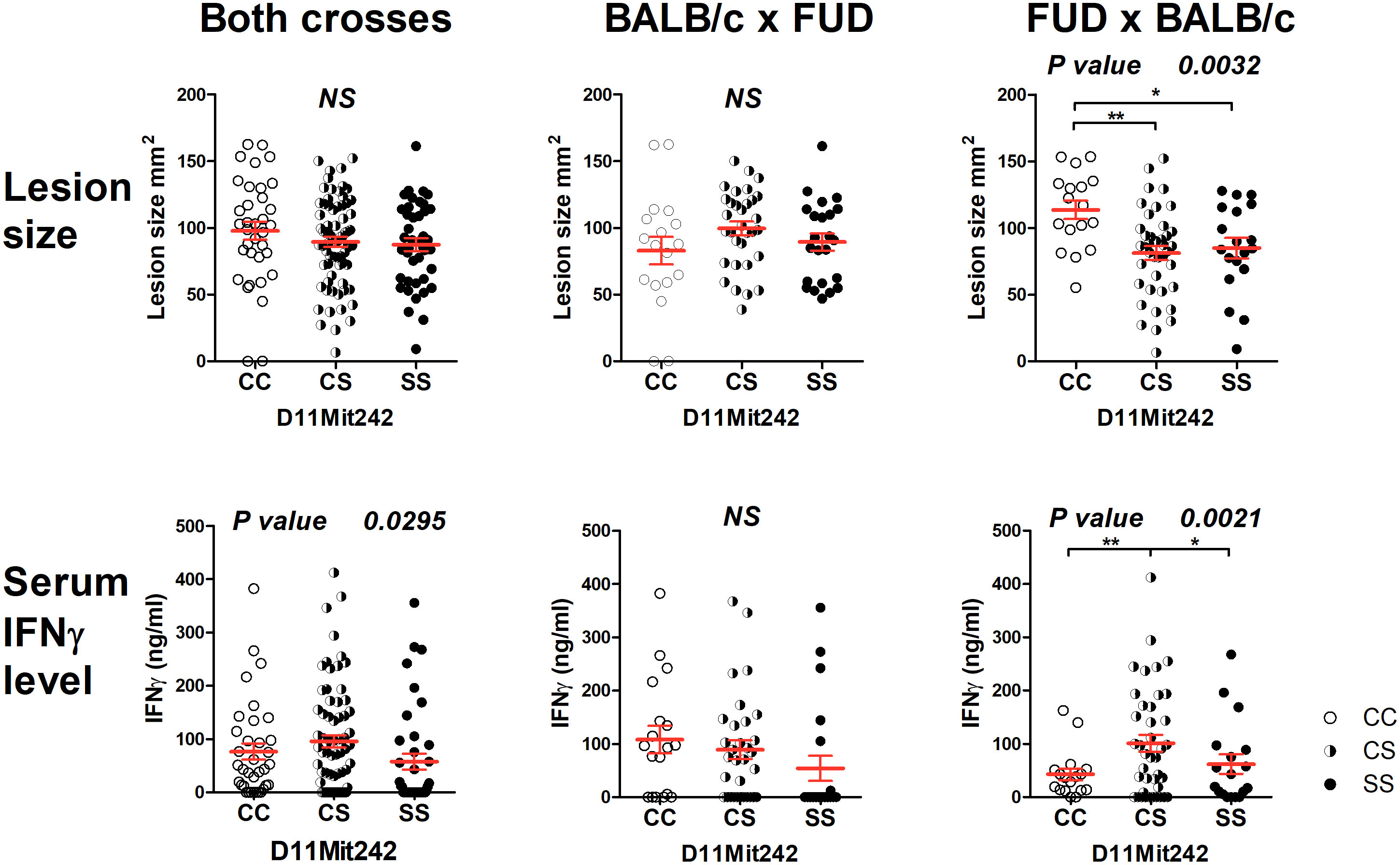

Figure 4 Genetic influence on skin lesions and serum IFNγ level 8 weeks after infection. Individual F2 hybrid mice between the strains FUD and BALB/c are shown. Means ± standard error mean (red lines) and P-values were calculated by analysis of variance (ANOVA) followed by Bonferroni’s multiple comparison test. In order to obtain normal distribution of IFNγ values required for ANOVA, the logarithm of IFNγ (ng/ml) was used. Values of skin lesions had normal distribution. The image shows untransformed values. C and S indicate the presence of the BALB/c and STS alleles, respectively. NS, not significant. *P < 0.05; **P 0.01.
Lmr15 controls parasite load in the lymph nodes and liver in the cross between CcS-9 and BALB/c (29), but we did not observe linkage to parasite load in these organs neither in HS1 or FUD.
Potential candidate genes
Bioinformatics analysis revealed three potential candidate genes (Table 2). One of these genes Top3a [topoisomerase (DNA) III alpha] is localized in the strain HS1, whereas the two other genes, Arhgap44 (Rho GTPase activating protein 44) and Aloxe3 (arachidonate lipoxygenase 3), are situated in the strain FUD (Figure 2).
![www.frontiersin.org](https://www.frontiersin.org/files/Articles/1145269/fimmu-14-1145269-HTML-r1/image_m/fimmu-14-1145269-t002.jpg)

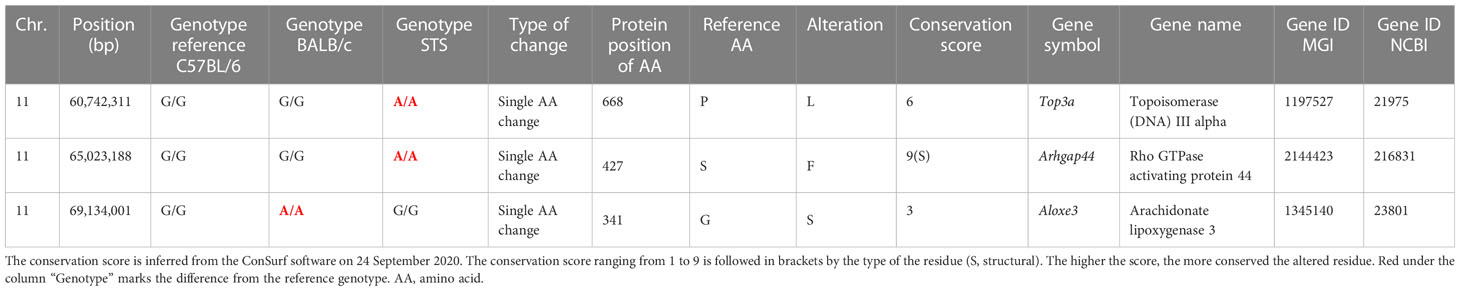

Table 2 List of potential candidate genes controlling the response to Leishmania major in the interval-specific congenic strains HS1 and FUD.
The gene Top3a exhibited differential expression both in the skin and spleen (Figure 5). The CC homozygotes in the marker D11Mit316 exhibited the highest expression, whereas the SS homozygotes exhibited the lowest expression in both crosses and in the cross between HS1 females and BALB/c males, in which linkage to skin lesions was observed (Figure 3). In the spleen, differential expression was observed in both crosses and in the cross between BALB/c females and HS1 males. The lowest expression was observed in heterozygotes.
![www.frontiersin.org](https://www.frontiersin.org/files/Articles/1145269/fimmu-14-1145269-HTML-r1/image_m/fimmu-14-1145269-g005.jpg)

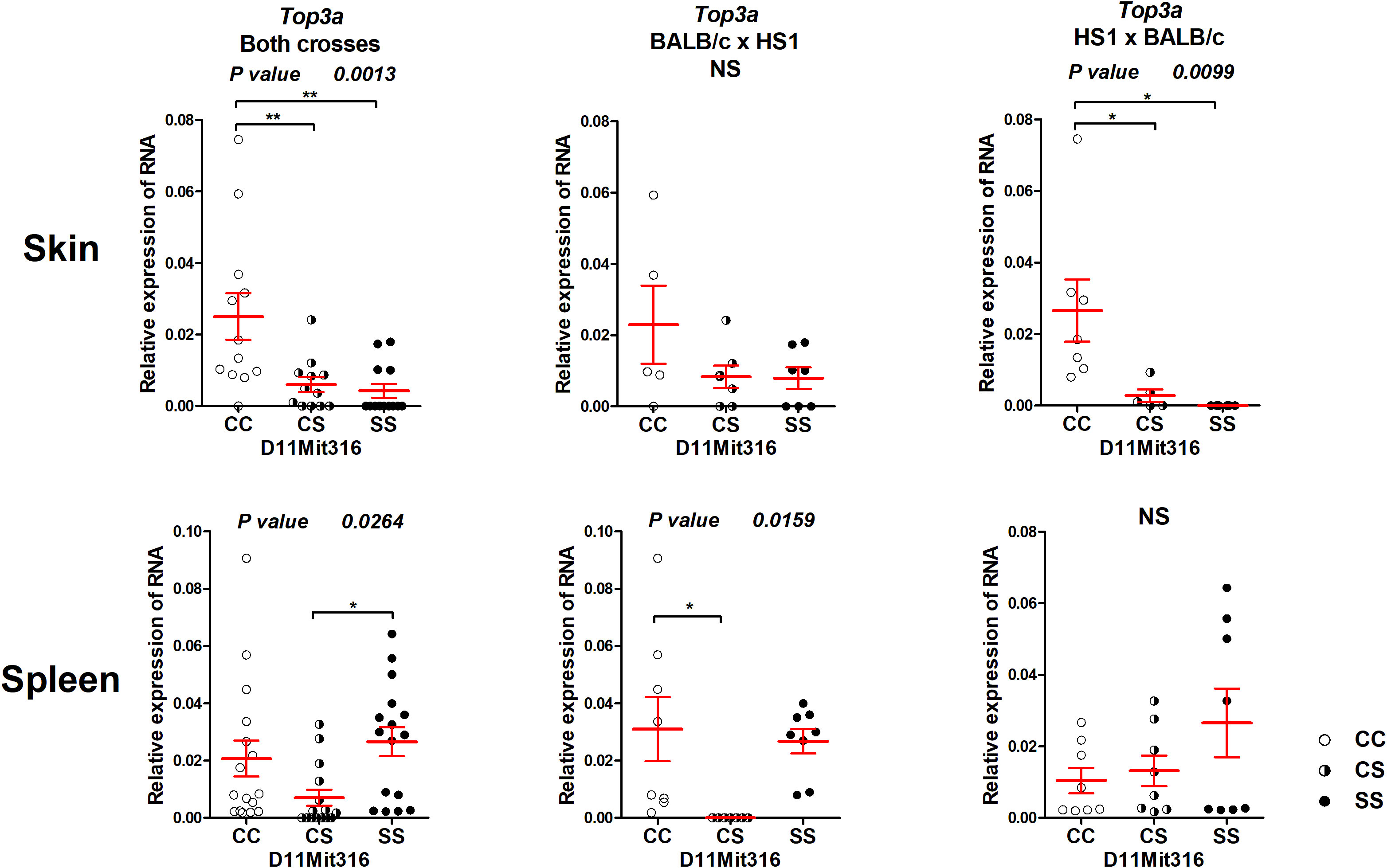

Figure 5 Expression of mRNA of the gene Top3a in the skins and spleens of F2 mice between HS1 and BALB/c 8 weeks after infection. Relative expression of a target gene versus the reference gene Gapdh is shown. C and S indicate the presence of the BALB/c and STS alleles, respectively. NS, not significant. Statistical analysis was performed by ANOVA followed by Bonferroni’s multiple comparison test. P-values are as indicated. Bars represent the average ± SEM. *P < 0.05; **P < 0.01.
No differential expression of the genes Arhgap44 and Aloxe3, situated in the segment FUD, was observed (Figure 6).
![www.frontiersin.org](https://www.frontiersin.org/files/Articles/1145269/fimmu-14-1145269-HTML-r1/image_m/fimmu-14-1145269-g006.jpg)

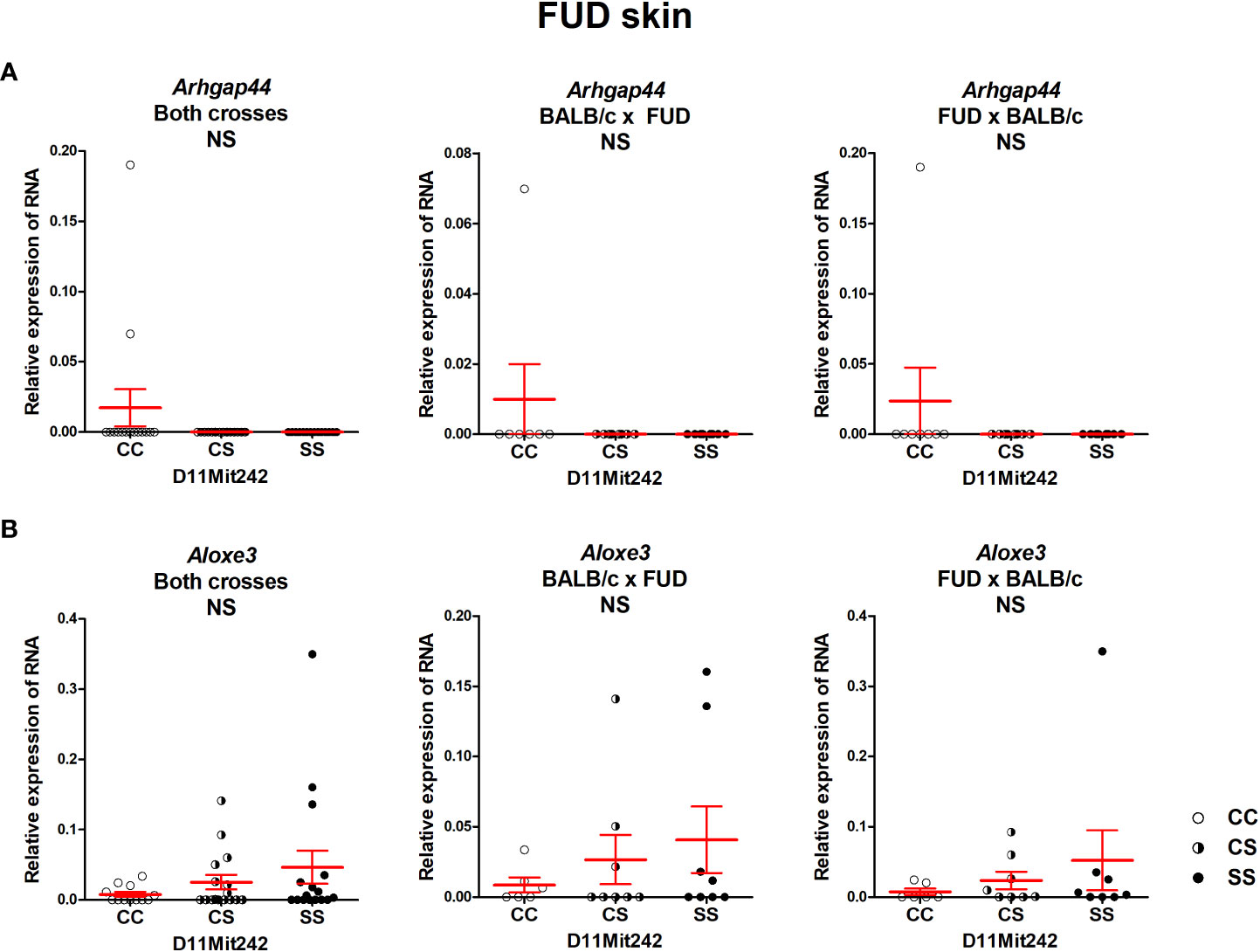

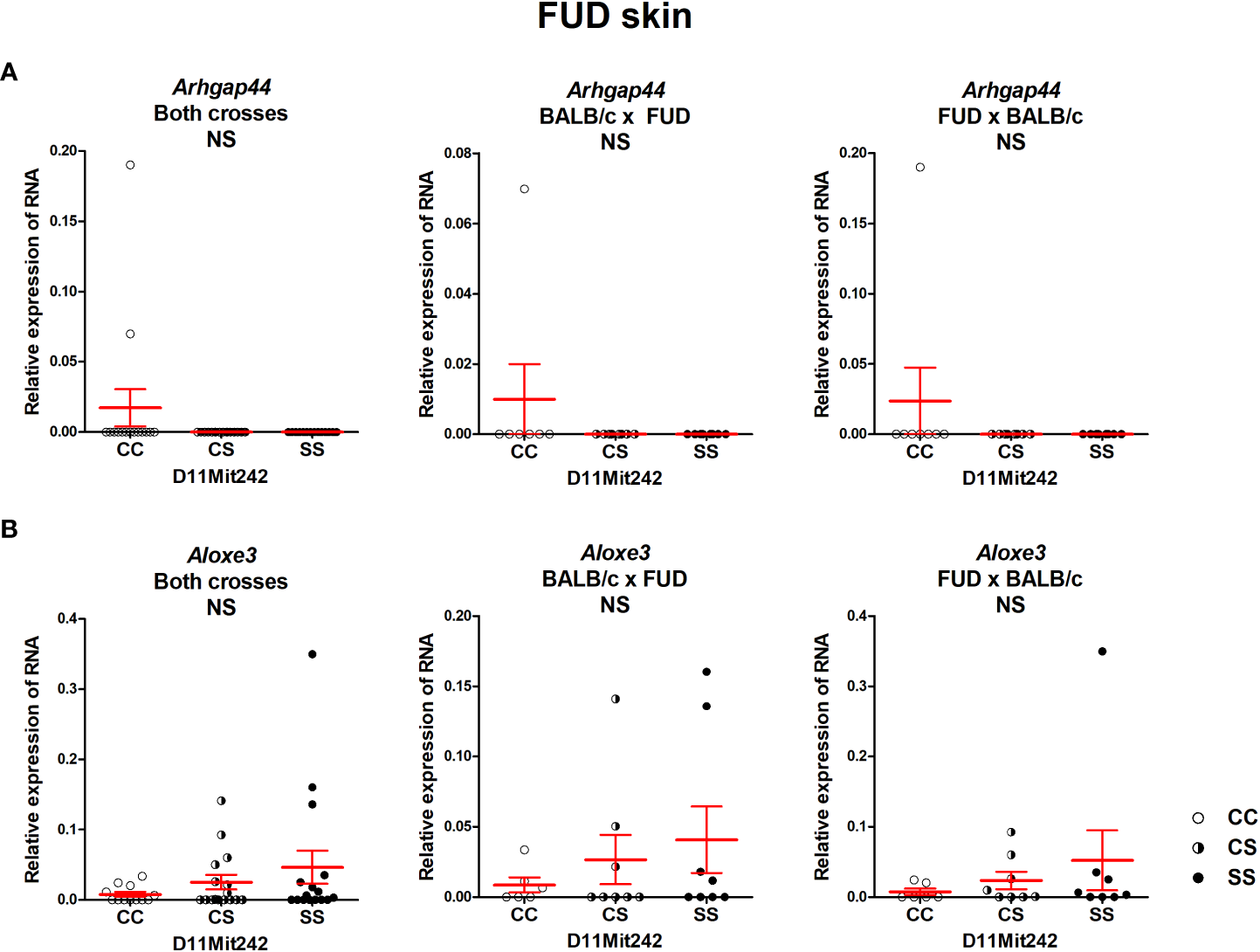

Figure 6 Expression of mRNA of the genes Arhgap44 (A) and Aloxe3 (B) in the skins of F2 mice between FUD and BALB/c 8 weeks after infection. Relative expression of a target gene versus the reference gene Gapdh is shown. C and S indicate the presence of the BALB/c and STS alleles, respectively. NS, not significant. Statistical analysis was performed by ANOVA followed by Bonferroni’s multiple comparison test. Bars represent the average ± SEM.
Discussion
Mapping in AIL confirmed the linkages of the loci Lmr15, Lmr27, Lmr24, and Lmr18 that were previously detected in F2 hybrids between BALB/c and CcS-9 (Table 1). We tested the linkage to skin lesions, splenomegaly, hepatomegaly, and IFNγ and IgE levels in the serum. In the next paragraphs, we will concentrate on the comparison of detection of the five phenotypes of the Lmr15 locus in F2 hybrids and in AIL.
Lmr15 was previously detected on chromosome 11 in two recombinant congenic strains: CcS-9 (17, 29) (maximal length 21.03 Mbp) and CcS-16 (26, 62) (maximal length 23.04 Mbp) (Figure 1). Lmr15 detected in CcS-9 controls skin lesions, splenomegaly, hepatomegaly, and IL-4 and IgE in the serum, as well as parasite load in the lymph nodes and liver and eosinophil infiltration into the lymph nodes (17, 29). The STS-derived segment on chromosome 11 present in the strain CcS-16 (Figure 1) controls hepatomegaly (62) and IFNγ in the serum (26). Analysis of AIL K3FV also confirmed the position of Lmr15. AIL mapping detected on chromosome 11 the linkage to skin lesion size and IgE level in the serum and a weak linkage to splenomegaly, hepatomegaly, and IFNγ. Thus, this linkage is robust and operates across different genetic backgrounds. Partial differences between linkages to phenotypes detected in F2 mapping and in AIL described in this paper might be caused by differences in undetected gene interactions present in F2 hybrids and in AIL.
Top3a is a potential candidate gene controlling skin lesions and IgE level in the segment HS1
The segment HS1 controls skin lesions in pooled crosses and in the cross HS1 × BALB/c (Figure 3). Significant differences in the expression of the potential candidate gene Top3a were also observed in pooled crosses and in the cross HS1 × BALB/c (Figure 5) and are similar to the differences observed in skin lesion size. Top3a is also differentially expressed in the spleen; the pattern of expression is different from those observed in the level of IgE in the serum.
TOP3A belongs to the eukaryotic type IA topoisomerases, TOP3A and TOP3B. Transcription and replication constantly change DNA topology, and topoisomerases are needed to relax supercoiling. TOP3A operates in both the nucleus and mitochondria and is involved in relaxing single-stranded DNA and RNA. TOP3A can couple its activity with different enzymes such as BLM (the Bloom syndrome DNA helicase) in dissolvasome, FANCM (Fanconi anemia group M protein) at replication forks, and PICH (an SNF2 family DNA translocase) during mitosis (63). Both FANCM (64) and BLM (65) are connected with the impairment of immune functions both in mouse and human. TOP3A was described to have a direct influence on T‐cell development in zebrafish (66). Thus, Top3a might be indirectly or directly involved in the immune response against leishmaniasis.
None of the potential candidate genes in the segment FUD exhibited differential expression
The segment FUD controls skin lesions and serum IFNγ level. Bioinformatics analysis indicated two potential candidate genes: Arhgap44 (Rho GTPase activating protein 44) and Aloxe3 (arachidonate lipoxygenase 3). ARHGAP44 acts as a GTPase-activating protein (GAP) that stimulates the GTPase activity of Rho-type GTPases. It functions as a GAP for CDC42 (cell division cycle 42) and RAC1 (Rac family small GTPase 1) (67). CDC42 is involved in multiple cell functions including Th17 cell development (68) and regulation of neutrophil functions (69). ALOXE3 is expressed in the skin and belongs to 2-lipoxygenases that regulate tissue inflammation (70). Thus, both Arhgap44 and Aloxe3 have the potential to modify susceptibility to leishmaniasis, but none of them exhibited differential expression in the skin or spleen. We cannot exclude that they might influence susceptibility by the different activities of polymorphic proteins; however, the proof of this possibility is beyond the scope of this study.
Overlap between HS1 and FUD unlikely controls any tested phenotype
A short overlap between HS1 and FUD (maximal length 0.77 Mbp) contains multiple regulatory elements (71). We did not detect any gene polymorphism that could influence gene functions and/or RNA stability. The distinct control of IgE and IFNγ levels by HS1 and FUD, respectively, implicated that these phenotypes are not controlled by this overlap. A comparison of the influence of C and S alleles on skin lesion size in HS1 and FUD seems to exclude the control of lesions by this segment. In HS1 (cross HS1 x BALB/c), the influence of the C allele is dominant (Figure 3), whereas in FUD (cross FUD x BALB/c), the S allele is dominant to the C allele (Figure 4).
Lmr15 and its co-localization with multiple disease-modifying QTLs
Lmr15 overlaps with several loci involved in immune response, such as Cinda1 (cytokine-induced activation 1) (72), Tria1 (T-cell receptor-induced activation 1) (73), and Mol4 (modifier of LPS-response 4) (74); loci that participate in response to malaria—Char8 (P. chabaudi malaria resistance QTL 8) (75) and control the composition of the microbiome—Micab14 (microbial abundance of Bacteroidales Bacteroidaceae Bacteroides 14) (76), and the susceptibility to autoimmunity comprising Eae6 (experimental allergic encephalomyelitis susceptibility) (77), Eae45 (experimental allergic encephalomyelitis susceptibility 45) (78), and Acigg5 (anti-COL7 IgG2a/c antibody 5) (79). The question whether these loci are controlled by distinct or identical gene(s) could be answered after their identification.
The strong influence of genetic background on the loci Lmr18, Lmr24, and Lmr27
AIL analysis of Lmr15 confirmed both the linkages and phenotypes detected in F2 mapping, although linkages to some phenotypes did not reach the level of significance (Figure 1A; Table 1). The linkages to skin lesion size, IgE and IFNγ levels were further confirmed by recombinant mapping (Figures 3, 4).
In AIL mapping of Lmr18, Lmr24, and Lmr27, the linkages to L. major response were confirmed, but these loci controlled the phenotypes that were different from those detected in F2 mapping (Figures 1B–D; Table 1).
Locus Lmr15 and loci Lmr18, Lmr24, and Lmr27 likely contain genes that are differently influenced by the genetic background. Similar variations in the alterations of gene effects by genetic background have been observed in other experimental designs and in human diseases. The underlying genetic basis is often unknown (80). In some cases, the phenotype of mice is entirely controlled by a mutation at the causative gene/locus, such as Tyr (tyrosinase); in others, for example, Lep (leptin), Lepr (leptin receptor), or Fgfr2 (fibroblast growth factor receptor 2), this background has a dramatic effect on gene function. In more detail, the lack or mutation in Tyr invariantly leads to a white coat in mouse (81). On the other hand, the influence of Fgfr2 on craniosynostosis is observed in C57BL/6, but not in BALB/c genetic background (82). Leptin-deficient BALB/cJ mice have a higher reduction in body weight and adiposity than leptin-deficient C57BL/6J mice, but they developed severe diabetes. C57BL/6J were sterile, whereas BALB/cJ were fertile (83). Lepr deficiency induces hyperglycemia and obesity in C57BL/6J mice but strong diabetes in the closely related strain C57BL/KsJ (84). Thus, a similar situation might take place in the interaction of Lmr18, Lmr24, and Lmr27 with different genetic backgrounds.
Newly detected locus on chromosome 17
AIL mapping detected the new locus Lmr34 on chromosome 17 with a peak of linkage D17Mit139 (52.9 Mbp) that controls IgE level in the serum, skin lesion size, splenomegaly, and hepatomegaly (Figure 1B), which is probably distinct from Lmr1 that spans from 10 to 86 Mbp and is linked to H2 (35 Mbp) (24).
Lmr34 encompasses several genes that participate in responses to L. major [CD70 (CD70 antigen)] (85) and to other Leishmania species [SATB1 (special AT-rich sequence binding protein 1) (86) and DPP9 (dipeptidylpeptidase 9) (87)] or genes that are components of pathways generally involved in response to Leishmania spp. {Kat2b [K(lysine) acetyltransferase 2B] (88), Gtf2f1 [general transcription factor IIF, polypeptide 1] (89), Ticam1 (TIR [Toll/IL-1 receptor] domain containing adaptor molecule 1) (90)}.
CD70 is a component of the IL-12-independent pathway, whereby a subset of dendritic cells induces IFNγ-secreting CD4+ T cells (85). SATB1 is a gene with pleiotropic functions that include tissue repair. Patients suffering from cutaneous leishmaniasis with molecular evidence of persistence of Leishmania (Viannia) species in the nasal mucosa have a higher expression of SATB1 in the nasal mucosa in comparison with patients with cutaneous leishmaniasis in which Leishmania was not detected (86). DPP9 represses the activation of the inflammasome NLRP1(NLR Family Pyrin Domain Containing 1) (87), which is involved in skin inflammation (91) and promotes susceptibility to experimental L. braziliensis infection (92). Kat2b [K(lysine) acetyltransferase 2B] participates in the epigenetic regulation of IL-10 (88). Gtf2f1 (general transcription factor IIF, polypeptide 1) is involved in the pathway regulating CD4+ T-cell quiescence and exhaustion (89). Ticam1 is a component of the TLR pathway that participates in the inflammatory response to Leishmania parasites (90).
Lmr34 overlaps with QTLs controlling the response to other infectious diseases such as Hbnr7 (Heligmosomoides bakeri nematode resistance 7) (peak 43–51.7 Mbp) (93), Ari1 (antibody response to influenza 1, day 7, IgG2a+IgG2c) (peak 47.3–54.7 Mbp) (94), and Plgr1 (plague resistance locus 1) (peak 48 Mbp) (95). This implies the presence either of clusters of functionally related genes or of gene(s) that participates in the control of several infections.
Conclusion
The results indicate multidimensional analysis using RCS, AIL, interval-specific congenic strains, and bioinformatics tools as a novel approach in the fine mapping of genetic susceptibility of diseases.
We confirmed the previously detected loci Lmr15, Lmr18, Lmr24, and Lmr27 and mapped one novel locus Lmr34. Genetic dissection of the effects of Lmr15 on chromosome 11 revealed at least two linked but functionally distinct chromosomal regions controlling IFNγ response and IgE response, respectively, in addition to the control of skin lesions. Bioinformatics and expression studies led to the identification of the candidate gene Top3a that might influence resistance to leishmaniasis and, for the first time, highlighted the potential role of this gene in infection biology. We have also shown that the functional effects of the loci Lmr18, Lmr24, and Lmr27 depend on genetic background. Thus, these experiments led to a better understanding of the genetic architecture of response to leishmaniasis, even if the mouse model is not completely transferable to human leishmaniasis.
Data availability statement
The datasets presented in this study can be found in online repositories. The names of the repository/repositories and accession number(s) can be found below: Genebank (BankIt2665970 chr11_BALB/c_lmr15_seq1 OQ351010, BankIt2665970 chr11_BALB/c_lmr15_seq2 OQ351011, BankIt2666002 chr11_BALB/c_lmr15_seq3 OQ351012, BankIt2666002 chr11_BALB/c_lmr15_seq4 OQ351013, BankIt2666003 chr11_STS_lmr15_seq1 OQ351014, BankIt2666003 chr11_STS_lmr15_seq2 OQ351015, BankIt2666006 chr11_STS_lmr15_seq3 OQ351016, BankIt2666006 chr11_STS_lmr15_seq4 OQ351017).
Ethics statement
The animal study was reviewed and approved by the Institutional Animal Care Committee of the Institute of Molecular Genetics and the Departmental Expert Committee for the Approval of Projects of Experiments on Animals of the Czech Academy of Sciences.
Author contributions
IKr, YS and ML designed the project. IKr and ML wrote the manuscript. IKr, YS, HH, MČ, VV, IKu, JV and MS performed the experiments. IKr, YS, ESG, HS, VV, PD and ML analyzed the data. All authors contributed to the article and approved the submitted version.
Funding
This work was supported by grants GACR 16-22346S and NV19-05-00457 and by the Charles University Research Program COOPERATIO: the scientific project “Medical Diagnostics and Basic Medical Sciences” (in the field of “Medical Genetics”).
Conflict of interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Publisher’s note
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
Abbreviations
AIL, advanced intercross line; C allele, allele (gene variant) derived from the strain BALB/c; Lmr, Leishmania major response (QTL); Mbp, mega base pair; RCS, recombinant congenic strains; S allele, allele (gene variant) derived from the strain STS; QTL, quantitative trait locus.
