Schistosomiasis Drug Discovery in the Era of Automation and Artificial Intelligence

Schistosomiasis is a parasitic disease caused by trematode worms of the genus Schistosoma and affects over 200 million people worldwide. The control and treatment of this neglected tropical disease is based on a single drug, praziquantel, which raises concerns about the development of drug resistance. This, and the lack of efficacy of praziquantel against juvenile worms, highlights the urgency for new antischistosomal therapies. In this review we focus on innovative approaches to the identification of antischistosomal drug candidates, including the use of automated assays, fragment-based screening, computer-aided and artificial intelligence-based computational methods. We highlight the current developments that may contribute to optimizing research outputs and lead to more effective drugs for this highly prevalent disease, in a more cost-effective drug discovery endeavor.

Introduction

Schistosomiasis is a neglected tropical disease (NTD) caused by trematode parasites belonging to the genus Schistosoma. The most clinically-relevant species are S. mansoni, S. japonicum and S. haematobium while S. mekongi, S. guineensis and S. intercalatum have lower prevalence (1, 2). According to the World Health Organization (WHO), approximately 229 million people are infected worldwide, causing around 200,000 deaths annually (2). However, this is probably an underestimation, due to the low sensitivity of the available diagnostic methods to detect low intensity parasite infections (3, 4). It ranks second behind malaria in terms of prevalence and socioeconomic impact, causing the loss of more than 2.6 million disability-adjusted life years (DALYs) (5).

Humans become infected when the cercariae larvae, released by the snail intermediate hosts, penetrate through the skin during contact with contaminated freshwater (1, 6). Then, cercariae access the host circulation and develop into juvenile and adult worms (7). Paired female and male adult schistosomes live in the blood vessels where they produce eggs that are excreted in faeces (S. mansoni, S. japonicum, S. intercalatum, S. guineenses and S. mekongi) or urine (infections by S. haematobium) (6). Eggs become trapped in human tissues causing inflammatory immune reactions (including granulomata) that damage organs resulting in intestinal, hepatosplenic, or urogenital disease (8). The eggs that reach the environment, hatch in the water and release the larval stage miracidia. The Miracidia infect the intermediate hosts and continue the parasite’s life-cycle (9).

Because the development of a schistosomiasis vaccine has proved challenging (10, 11), the treatment and control of schistosomiasis continue to depend, on the almost 50-year-old drug, praziquantel (PZQ) (12, 13). PZQ is generally effective against adult and schistosomula stages of all schistosome species and is well tolerated, causing only mild and transient side effects (14, 15). However, PZQ is ineffective against juvenile schistosomes, which contributes to the failure of the drug to cure the disease and the need for new rounds of treatment (16, 17). Moreover, PZQ is administered as a racemic mixture, wherefore only half of PZQ dose (i.e., R-PZQ stereoisomer) is pharmacologically active. The S-PZQ, besides being pharmacologically inactive, contributes to the bitter taste and the large size of PQZ tablets, both of which decrease patient compliance and are not suitable for children (18, 19). Moreover, PZQ has been used in mass drug administration campaigns for many decades and this may account for a selection pressure that can promote the development of parasitic resistance (20). In fact, reduced PZQ efficacy has been demonstrated both in laboratory and field isolates (21–28). Consequently, there is an urgent need for new antischistosomal drugs.

One of the foremost challenges to the discovery of new anti-schistosomal drugs is the long and complex life cycle of the parasite, which makes screening campaigns technically difficult (29). The phenotypic screening of whole-organisms in vitro and/or in animal models is the approach that is most used for finding hit compounds (i.e., active compounds in vitro based on a defined activity threshold) (30–32), though animal models tend to be costly and time-consuming (33). These assays require the maintenance of the parasites’ life cycle – including both the intermediate (snails) and the definitive hosts (hamsters or mice) – in order to have regular access to parasites. However, these laboratory-based life cycles can only produce a restricted number of adult-stage schistosomes (34). As a consequence, most early compound screening efforts use newly transformed schistosomula (NTS), which are obtained from the mechanically transformed cercariae (35). This can limit the finding of new hits, as the sensitivity to compounds can vary between life cycle stage and gender of the parasite (36, 37).

Screening compounds for anti-schistosomal activity is typically carried out manually where an analyst identifies the 5presence of morphological or behavioral changes in the parasites by microscopy (29). A numerical scale (“severity score”), usually including four (38, 39) or five (29, 40) scores, is used to describe the phenotypes. However, this analysis is subjective, semi-quantitative, time-consuming and the results can vary largely from analyst to analyst (41–43). Nonetheless, severity scoring systems have been successful in identifying hits, defining SAR, and identifying compounds that translate with in vivo efficacy in the mouse model of S. mansoni infection (44).

In this review we focus on innovative approaches to the identification of antischistosomal drug candidates, including the use of automated assays, fragment-based screening, computer-aided and artificial intelligence-based computational methods. We also highlight the current developments that may contribute to optimizing research outputs and lead to more cost-effective drugs for this highly prevalent disease.

Phenotypic Screening

Phenotypic screening consists of testing substances that could possibly cause phenotypic changes considered relevant to a biological system. Phenotypic-based drug discovery (PDD), compared to target-based drug discovery (TDD), has the advantage of presenting a greater probability of identifying compounds which will be translated to in vivo tests since they better mimic the complex environment of living systems. For example, in a cellular assay, a test compound may have to cross cellular membranes and/or resist degradation by metabolic enzymes before interacting with its target(s). These factors may have a significant impact in a compound’s biological activity and are not taken into account in a target-based assay. Hence, a hit coming from a phenotypic screen has much more biological value than one coming from a target-based screen (45, 46). Nonetheless, an important consideration must be given to the higher cases of false negatives in PDD campaigns when compared to TDD. As discussed by Geary and colleagues (33), the false negatives result from the inability of some compounds to reach a proper concentration inside a whole organism, which may hinder the detection of potential schistosomicidal molecules.

PDD approach tends to be more time-consuming and costly to develop and run than TDD (47). This is mainly due to the implementation of higher complexity screening assays, and to other factors such as the parallel use of genetic and small molecules screens, as well as more complicated hit validation and target identification efforts (48). Furthermore, the establishment of structure-activity relationship (SAR) is more challenging due to other concurrent factors, such as membrane permeability and off-target binding, though there are several examples of successful SAR studies using schistosome phenotypic assays in the literature (49–51). Hence, PDD approach is limited in this sense due to unknown mechanism of action, potentially targeting different types of proteins, such as receptors, enzymes, transcription factors and even different signaling pathways (45). Additional assays may be necessary to support the SAR in PDD approaches. On the other hand, the multiplicity of potential targets in PDD can be a source of serendipity (33, 46). In contrast, the prior knowledge of the target in TDD helps to accelerate the interpretation of SAR data. In spite of their differences, it is increasingly known that PDD and TDD must be seen as complementary in the R&D of new drugs (48, 52, 53).

In the following topics we will address some of the main phenotypic assays that have been used for schistosomiasis drug discovery. They consist in labelled (employing fluorescent or luminescent dyes) and label-free assays that are able to detect drug-induced phenotypes in different stages of the parasite, such as schistosomula (NTS), juvenile (1-5 weeks post infection) and adult (6-7 weeks or over post infection) (38).

Luminescence- and Fluorescence-Based Phenotypic Assays

Some methodologies used in schistosome phenotypic screening are based on fluorescent or luminescent dyes commonly employed in cellular viability/cytotoxicity assays (Table 1). Propidium iodide (PI), a DNA intercalator, for instance, is a fluorescent dye that is not able to cross membrane cells and can only stain nucleic acids of cells that have lost their membrane integrity. For this reason, such fluorophore is used to differentiate living and dead cells. Unlike PI, fluorescein diacetate (FDA) can cross biological membranes, and is converted by healthy cells into fluorescein, another fluorescent dye. Peak et al. (54) developed a microplate-based assay to measure schistosomula viability using PI/FDA. In this method, the fluorescence emitted by FDA and PI stained parasites is quantified by a microplate reader and later converted into worm viability using the fluorescence ratio FDA/(PI + FDA). This assay was able to detect the effect of some known schistosomicidal drugs, namely auranofin, gambogic acid and amphotericin b, but failed in measuring the effect of praziquantel and other compounds previously identified as actives by microscopy (55). Braun et al. (56) also used PI and FDA probes in the development of a quantitative HTS (qHTS) fluorescent-based bioassay to identify schistosomula in water samples (56). The results obtained with this method showed no statistically significant differences when compared to visual inspections carried out by manual microscopy.

TABLE 1

Table 1 Summary of some luminescence and fluorescence schistosomal drug assay methodologies.

Mansour et al. (42) used a commercial solution of resazurin (Alamar Blue^®), a redox-sensitive probe, to measure the viability of schistosomula in microplates. This assay is based on the principle that only metabolic active worms can reduce resazurin to resorufin, a fluorescent molecule. During validation, this assay proved to be useful in evaluating the effect of compounds that kill or provoke severe damage to the parasite (e.g., oltipraz), but showed less sensitivity towards those that elicited more subtle effects (e.g., praziquantel) detectable by conventional microscopy.

Lalli et al. (38) developed and validated a luminescence-based method for the evaluation of schistosomula viability by quantifying ATP (38). This assay is carried out using a commercial kit (CellTiter-Glo^®) which contains luciferase and its substrate luciferin as the main components. In principle, metabolic active worms produce ATP which participates in the reaction catalysed by luciferase. As a result, a luminescence signal is produced and registered in a microplate reader. This medium-throughput method is suitable for semi-automated screening of chemical libraries and has several benefits such as speed in screening, reproducibility and non-subjectivity. Guidi et al. (57) used the same luminescence-based technique, combined with HTS, to search for molecules with schistosomicidal activity. As a result, a few compounds capable of impairing the viability of the larval, juvenile, and adult phases were identified, with potency against juveniles higher than PZQ. In addition, changes in egg formation and production are among the phenotypic modifications.

However, despite its success in generating dose-response curves for some known schistomicidal drugs (e.g., gambogic acid and oltipraz) this method was unable to detect the effect of praziquantel and oxamniquine on schistosomula viability. Maccesi et al. (44) also could not detect the biological effect of some schistomicidal compounds using another phenotypic assay. In their work, S. mansoni schistosomula were screened with the 400 compounds of the MMV Pathogen Box in three different institutions. Two of them employed visual scoring (microscopy) to describe drug-induced phenotypes while the other used a colorimetric assay based on the metabolic reduction of XTT to measure parasites viability. In nearly 74% of the cases, all three methods agreed on the classification of the compounds (active/inactive) after 72h of incubation. Nonetheless, unlike the visual methods, the XTT-based assay did not identify PZQ and other compounds (e.g., auranofin, nitazoxanide) as actives against schistosomula. This may be due to the fact that metabolic-based assays were originally designed to be used in cell and unicellular organisms. Its use in multicellular and more complex models are prone to missing important phenotypes (44) found in these organisms, like the dysregulation of the neuromuscular system, a mechanism attributed to PZQ (58).

Panic et al. (39) performed a review of fluorescent and luminescent markers used on S. mansoni drug assays and confirmed Lalli et al. (38) studies of development and validation of a luminescence-based assay (CellTiter-Glo^®). In contrast to resazurin assays, which are also used to determine the viability of Schistosoma parasites, CellTiter-Glo^® was able to determine the IC₅₀ of mefloquine and to detect the schistomicidal activity of some FDA-approved compounds, showing results that correlate with microscopic findings.

The assays described in this topic represent a major advance in schistosomiasis drug discovery. Nonetheless, they show some limitations that must be taken into consideration. Compared to colorimetric methods, such as XTT-based assay, fluorescence/luminescence-based assays require black/white microplates which are more expensive (59). In some cases, a given method may not detect the schistomicidal effect of a compound recognized as active by other techniques, including conventional microscopy (39). Moreover, some test compounds may interfere with the assay (e.g., compounds auto-fluorescence), leading to a misinterpretation of the results (38). Therefore, it is advisable to be cautious when considering the results obtained from a single method, being recommended to corroborate the results using at least one orthogonal assay.

Label-Free Automated Phenotypic Assays for Schistosomiasis Drug Discovery

Label-free automated assays detect phenotypic alterations in schistosomes in the absence of any kind of label (e.g., fluorescent probe). In general, they can be divided into two main groups: image-based (most common) (60–63) and non-image-based methods (64, 65) (Figure 1A). The former use visual information, such as morphology and/or motility of the parasite, to describe a phenotype (Figures 1A, B). In contrast, non-image-based methods, herein exemplified by electrical impedance spectroscopy (65) and microcalorimetry (64), create phenotypic profiles based on worm’s metabolic activity and/or its motility (Figures 1A, C). Image-based and non-image-based assays have been largely employed in drug discovery campaigns to identify new schistosomicidal compounds and calculate their potencies. Some of these methods and their main characteristics (e.g., type of readout, assay format and the number of parasites required per assay) are shown in Table 2 and will be discussed in more detail in the following section.

FIGURE 1

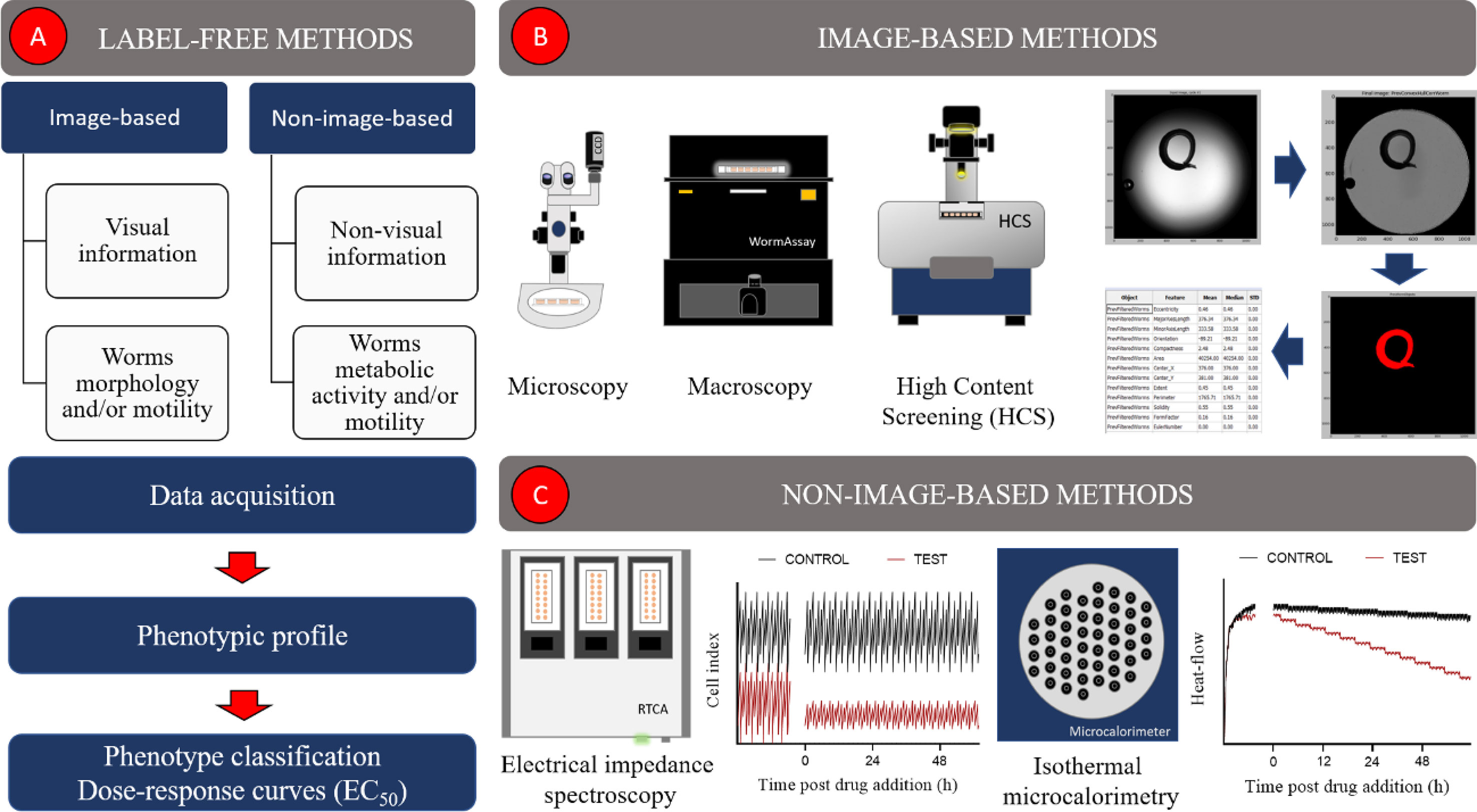

Figure 1 Label-free image-based and non-image-based automated methods used in schistosomiasis drug discovery. (A) Overall description of label-free methods, (B) image-based methods, (C) non-image-based methods.

TABLE 2

Table 2 Label-free automated assays used in schistosomiasis drug discovery.

Image-Based Methods

The automatic quantification of phenotypic features from schistosomes images has been addressed in several ways (60–63, 66, 69, 70, 72). Most assays rely on home-made (60) or commercial (63, 70) systems, equipped with digital cameras/camcorders to acquire images of unstained parasites in microplates. Image analysis is carried out, using either commercial (62, 69, 70) or custom-built (60, 68) software and generally consists of three main steps: image processing, parasite(s) detection and features extraction (Figure 1B). By the end of the analysis, a phenotypic profile, composed of a variable number of features, is created for one (63, 69, 70) or more (60) worms. These profiles can be used to identify schistosomicidal compounds, measure their effect and potency, as well compare their responses to those elicited by other compounds (60, 63, 69, 70).

One common strategy to acquire schistosome images is by video microscopy. Ribeiro and colleagues implemented two assays using this technique to measure the motility of NTS (62) and adult (66) forms of S. mansoni. In these assays, parasites are distributed in microplates and their videos recorded over a few minutes. Image frames are analyzed in ImageJ (73), an open-source software. For NTS analysis, worms are detected as ellipsoid objects and their body length are estimated by the size of the major axis of the ellipses. NTS movements (shortening and elongation of the body) are calculated by the frequency of length changes over time (62). For adult analysis, each image frame is submitted to a series of pre-processing steps (e.g., illumination correction and background removal) before representing the worms as binary objects. Then, the difference in pixels between pairs of consecutive images are measured throughout the entire video. The subtracted pixels represent a change in parasite position over time and are used as a metric to measure worm´ motility (66). These methods were employed to evaluate the effect of different compounds on schistosome NTS/adults worms, such as tyrosine-derived signaling agonists/antagonists (74), natural alkaloids (75–77) and analogs (77, 78), as well as others with biological activity in humans (e.g., NPS-2143, a calcium-sensing receptor antagonist) (77).

McCusker and colleagues (67, 72) also applied video microscopy to record morphological and motility aspects of adult schistosomes. In their assay, 1 min videos of adult worms, distributed in 6-well dishes, are acquired, and saved as images Z-stacks. During image analysis in ImageJ, maximum intensity projections are generated to each Z-stack resulting in a composite image for which pixel integrated pixel values are measured. This metric represents the total movement of the parasite over time and can be used to compare treated and non-treated parasites. This method detected the schistosomicidal effect of non-sedating benzodiazepines (72) and FPL-64176 (67), a human L-type Ca²⁺ channel agonist.

WormAssay is a home-made low-cost solution to screen compounds against adult schistosomes (and other macroscopic parasites) developed by Marcellino et al. (60). This system consists of two devices: an imaging apparatus and a Mac computer (image acquisition control and analysis). The former can be described as a light-tight box containing a high-definition video (HDV) camcorder mounted at the bottom and a hinge lid at the top harboring the microplate chamber. Inside the chamber a white LED strip is used to laterally illuminate the microplate. During acquisition, dark-field videos of 0.5 – 1 min length are recorded from the entire microplate. Image analysis is performed in real-time using a custom open-source free software (Mac application) installed in the computer. The overall motility of worms, measured for each well, is determined by two algorithms: one that calculates the average velocity of moving contours inside the well and another which detects changes in the occupation and vacancy of pixels between a group of frames. WormAssay quantified the effect of several compounds on worm motility, including neuromodulatory drugs (79), phenylpyrimidines (80) and inhibitors of S. mansoni cyclic nucleotide phosphodiesterase 4 (SmPDE4) (81) and proteasome (82). Recently, a modified version of WormAssay software, named WormAssayGP2, was released by Padalino and colleagues (83, 84) and contains minor modifications related to the source code and user interface (85). To date, WormAssayGP2 has been used to detect the schistomicidal activity of putative inhibitors of S. mansoni lysine specific demethylase 1 (SmLSD1) (86) and histone methyltransferase mixed lineage leukemia-1 (SmMLL-1) (84), as well as human ubiquitin-proteasome system (85) inhibitors.

One of the first attempts to describe complex phenotypes is schistosomes was carried out by Singh et al. (87). They developed an automated method to detect, track and classify individual NTS in microscopy videos. Since then, several modifications have been made regarding worms segmentation (88) and phenotypic analysis (63, 68, 89, 90). The algorithms developed in these studies have proved to be useful in quantifying the schistosomicidal activity of PZQ (63), chlorpromazine (63), statins (91) and inhibitors of human polo-like kinase 1 (PLK1) (89, 92). They have also been implemented in the “quantal dose-response calculator” (QDREC), a web server that automatically extracts quantal time- and dose-response information from bright-field images of schistosomes NTS (or other parasites) (68). QDREC quantifies 71 image-based features related to the appearance, shape and texture, of each segmented parasite. These features serve as inputs for supervised machine learning algorithms which classify parasites as “normal” or “degenerate”. The proportion of “degenerate” worms in a well is employed as a metric to estimate the schistosomicidal effect of a given compound and can be used to create dose-response curves. QDREC was validated with 12 schistosomicidal compounds (e.g., statins, PZQ, closantel, niclosamide and sorafenib) showing comparable results with visual annotation for both parasite classification and dose-response curves.

Paveley et al. (70) was a pioneer in implementing automated microscopy, also known as high content screening (HCS), to extract multivariate data from schistosomes. They created an HCS-based automated platform to identify active compounds on NTS of S. mansoni. In this assay, a HCS system collects bright-field images of each well of a 384-wells microplate through two distinct modes: a time-lapse image acquisition (5x6 s interval) using a 4x objective, for motility analysis, and one acquisition of four adjacent images using a 10x objective, for morphology measurements. Image analysis is performed in Pipeline Pilot 8.5 software (Accelrys Inc., San Diego, USA) and includes a series of sequential image operations, such as thresholding, filtering, detecting boundaries prior worm´s segmentation. Morphological (e.g., area, texture, pixel intensity) and motility-related features are quantified for each NTS and summarized into a phenotype (processed through Bayesian models) and a motility score, respectively. The final scores are obtained by averaging the scores of all parasites inside each well. Test compounds are declared “hits” (i.e., actives) if phenotype and motility scores exceed a defined threshold for each metric. This assay was able to detect the anti-worm effect of known schistosomicidal drugs (oltipraz and dihydroartemisinin) (70), several drug candidates from small (93, 94) and large (70, 95) chemical libraries, as well FDA-approved drugs (e.g., kinase inhibitors) (96). This analysis has also been employed by Hoffmann and colleagues (84, 86, 97–100) who measured the schistosomicidal activity of plant-derived compounds [e.g., diterpenoids (97, 99) and triterpenoids (100)] and of potential inhibitors of S. mansoni histone-modifying enzymes (40, 84, 86, 98).

Recently, Chen et al. (61) developed another HCS-based high-throughput assay to extract phenotypic features from treated and non-treated NTS. It consists of a fully integrated platform that can perform multiple automated operations ranging from liquid handling of NTS suspensions to image acquisition/analysis. The latter tasks are carried out as follows: time-lapse bright-field images (30 x 0.66 s interval) are acquired from each well of a U-bottom 96-wells microplate using a 10x objective in a HCS system. During image analysis, each NTS is segmented and classified as “clear” (normal) or “degenerate” (damaged/dying) using 15 phenotypic features based on the appearance of worms (e.g., pixel intensity, area, length). Motility measurements are inferred from the magnitude of a change in a feature over time or how often its sign or direction changes (e.g., when the worm becomes longer than shorter). Two statistical methods are employed to measure significant changes in phenotypes: glass effect size (monoparametric) and Mahalanobis distance (multiparametric). The results are analyzed in “SchistoView”, a graphic interface supported by MySQL database, which allows users to visualize, query and explore NTS data. This method shows several improvements in comparison to the HCS-based assay developed by Paveley et al. (70), including a higher NTS segmentation accuracy, it requires less parasites per assay and quantifies how parasites move instead of simply determine if the movement has occurred or not. In part, these improvements were achieved due to an innovative solution that allows the segmentation of touching objects in bright-field images, a challenging task for image analysis in general. In fact, many techniques implemented in this platform, such as automated liquid handling of 100 µm-sized organisms and statistical analysis of multiparametric data, can be useful to other screening projects. The HCS approach by Chen et al. (61) was successfully used to create the phenotypic profile of known schistosomicidal agents, as well of 1,323 human approved compounds, identifying new potential drug candidates.

HCS has also been applied to screen compounds against adult forms (male and females) of schistosomes. Neves et al. (69) described a HCS-based method to extract morphological and motility measurements from time-lapse bright-field images of S. mansoni. In this assay, schistosomes were distributed in 96-well microplates (1 worm per well) and their images acquired over time (100 x 0.3 s interval) using a 2x objective. Image analysis was carried out in a customized pipeline of the open-source software Cellprofiler (101) comprising a series of image processing modules, including those responsible for detection of wells, illumination correction, parasites segmentation and features extraction. More than 90 features were quantified during this analysis though only two, related to worm motility, were used to describe drug-induced phenotypes. So far, this method has been applied to detect the schistomicidal effect of antidepressant paroxetine (69) as well as putative inhibitors of S. mansoni thioredoxin glutathione reductase (SmTGR) (93, 94).

Non-Image-Based Methods

Electrical Impedance Spectroscopy

Electrical impedance spectroscopy (EIS) is noninvasive and label-free method that has been explored in schistosomiasis drug discovery (65, 71, 102, 103) (Figure 1C). In summary, ESI systems quantify dielectrical properties of samples while applying an alternative current (AC) electrical field using electrodes. EIS measurements can be used to detect phenotypic changes in cells/organisms induced by perturbagens, such as small molecules (104). Smout et al. (102) employed the xCELLigence real time cell analysis (RTCA) system to measure the effect of chemical compounds on the motility of helminths, including adult schistosomes. The experiments are carried out in E-plates, commercial microplates with gold electrodes embedded in the base of the wells that allow monitoring electrical resistance. Later, an improved version of this assay (xCELLigence worm real-time motility assay - xWORM) expanded its applications to detect alterations in the motility of schistosomes cercariae and egg hatching (71). xWORM is a sensitive method and was able to reveal the schistosomicidal effect of natural-derived [phytochemicals (105, 106) and puromycin (107)] and synthetic [forchlorfenuron (108) and polyridylruthenium(II) complexes (109)] compounds. Nonetheless, it is not sensitive enough to detect NTS small movements and requires a relativity larger number of samples compared to conventional microscopy (103). These limitations were addressed by Modena et al. (110) who developed a microfluid impedance-based platform to measure changes in NTS motility. Their system consisted of a microfluidic chip, made of polydimethylsiloxane (PDMS), attached to a glass substrate with patterned electrodes. This method showed high sensitivity towards both viable and non-viable parasites and required a lower number of worms per assay to operate in comparison to microscopy. Later, this concept evolved into a parallelized platform which was able to run four experiments simultaneously (103). More recently (65), the system was reformulated, becoming more automated, performing at a higher throughput (32 experiments run in parallel) and allowing long-term culturing of NTS. This assay was successful in determining the EC₅₀ of mefloquine and oxethazaine which were of the same order of magnitude as those calculated by microscopy (65).

Isothermal Microcalorimetry

Isothermal microcalorimetry (IMC) is a very sensitive technique that measures the heat released or consumed by physical or chemical events under essentially isothermal conditions (111, 112). IMC has been used in different areas of biomedicine, such as in the detection of infection and tumors, antibiotic testing, parasitology and screening for new drugs (111, 113). Manneck et al. (64) developed an IMC-based assay to study the effect of chemical compounds on NTS and adult worms of S. mansoni. In this method, the overall heat production of a suspension of parasites is continuously recorded by the microcalorimeter. After the injection of a schistosomicidal compound it is expected that the heat-flow curves change their behavior indicating compounds effect on worm metabolism and/or motility (Figure 1C). This assay proved to be highly sensitive, capturing subtle effects that were not detected by conventional microscopy and was used to measure the schistosomicidal activity of known anti-schistosome agents (mefloquine, praziquantel) (64, 114), their isomers/racemates (115, 116), as well as mefloquine-related arylmethanols (117) and 3-alkoxy-1,2-dioxolanes (118)

Label-Free Methods: Concluding Remarks

In the previous topics we described the main label-free methods available today for schistosomiasis drug discovery. They represent more automated alternatives for conventional microscopy, overcoming some of its major limitations (e.g., visual phenotypic scoring). These methods vary according to several features, such as equipment/readout (e.g., microscope/image), assay cost (equipment and supplies), automation and screening throughput. They all have their pros and cons and the choice of one over another depends, in many cases, on equipment availability. In low-budget labs, video microscopy and WormAssay represent more affordable solutions for compound screening against schistosomula and/or adult schistosomes, since they require low-cost equipment, and the assays are carried out in regular microplates. On the other hand, HCS-based assays demand a high initial investment but use regular microplates as supplies, operate at a higher throughput and can be readily incorporated into automated platforms. Moreover, HCS systems can be easily coupled with a wide range of objective lens, allowing them to capture images of schistosomula, adults and potentially other parasites forms (e.g., eggs and juveniles). In contrast to image-based, non-image-based methods are less employed in screening campaigns. Overall, they demand expensive (microcalorimeter and RTCA systems) or customized (EIM platform) equipment, more costly supplies (e.g., E-plates), operate at a lower-throughput in comparison with automated microscopy and, in the case of xWORM, it is not able to detect phenotypic changes in schistosomula. Nonetheless, they are highly sensitive, may reveal drug-induced phenotypes which cannot be captured by image-based methods (e.g., metabolic activity), and xWORM already offers protocols for measuring the effect of compounds on schistosome eggs and cercariae. In conclusion, it is our understanding that HCS-based assays represent today the most advanced approaches to schistosomes phenotypic screening due to their ability to describe complex phenotypes of different forms of the parasite at a high throughput.

Target-Based Screening

Target-based drug discovery (TDD) consists of finding ligands for a known biological target, previously identified as having potential relevance in a disease. One of its main advantages is the possibility of knowing characteristics of the target binding site, which allows the optimization of ligands and the development of an efficient structure-activity relationship. Its emergence was made possible by advances in molecular biology and genetics, which allowed the identification of individual biological targets, as well as the possibility of developing compounds that interact with these targets. The genome project, the development of techniques such as RNA interference and gene knockout, advances in structural biology and the development of computational tools were of great importance for the emergence of this alternative to the phenotypic approach in drug discovery (47, 119–121).

Ligand-binding assays are at the core of TDD strategies. In the context of pharmacological screening, the classical assay provides, for example, affinity, potency, and maximum response data of the analyzed molecules. It is also possible to determine the intrinsic activity of ligands (122, 123), through functional binding assays, in addition to assessing the residence time of the ligand to its target molecule (124). In contrast to the classical binding assays, HTS is a strategy that allows for the testing of tens of thousands of compounds per day, for activity against biological targets. Considered one of the most used strategies in TDD, HTS can be performed using different approaches, that can be mainly divided into biochemical assays and cell-based assays (125–127).

Although in-solution assays are commonly used for in vitro screenings, immobilized enzyme reactors (IMER) systems have proved to be a valid alternative drug screening strategy. The immobilization of a target protein to a solid support has the advantage of longer maintenance of the stability of the molecule, and the possibility of extracting the protein from the reaction medium, allowing it to be reused. In addition, IMER can be coupled to different separation systems, such as high performance liquid chromatography (HPLC), which solve the possible problem of product and assayed compounds fluorescing at the same wavelength, since these analytes can be separated and analyzed individually (128). Active anti-cancer compounds (129), enzyme inhibitors (130–133) and G protein-coupled receptors (GPCR) (134) binders have recently been identified using this approach.

After the sequencing and decoding of the S. mansoni genome, several putative drug targets were identified (Table 3), and studies using a the target-based approach emerged (157).

TABLE 3

Table 3 Some classes of molecular targets in Schistosoma sp.

S. mansoni encodes 252 kinases, which have already been shown to have a relevant role in the biology of the parasite (158). S. mansoni polo-like kinase (SmPLK1) is mainly expressed in reproductive organs of the adult parasite, which suggests a contribution of this enzyme to cell division. The screening of a series of analogues compounds, derived from a human PLK1 inhibitor bioactive against S. mansoni parasites, yielded the identification of potent compounds against schistosomula and adults (92). Buskes et al. (49) reported the optimization of a compound, analogous to the tyrosine kinase inhibitor lapatinib which had initially been identified as a potent antitrypanosomal. From this optimization, analogues were selected for a repurposing approach, and screened against S. mansoni parasites. As a result, several potent compounds against the adult form of the parasite were identified and considered promising leads for further assessment as antischistosomal compounds. The main drawback to exploit kinases as drug targets is the difficulty to achieve selectivity among the vastness of homologues present both in schistosomes and humans. One promising route to achieve this selectivity is exploring allosteric binding sites as alternatives to the more conserved active sites.

Targeting histone-modifying enzymes (HMEs) has been a widely explored strategy for the discovery of new drugs to treat parasitic diseases. In S. mansoni, two classes of histone deacetylases (HDAC and sirtuins) have been identified and are considered potential drug targets for the treatment of schistosomiasis (159). Kalinin et al. (135) designed and synthesized a series of compounds, derived from weak human HDAC8 (hsHDAC8) inhibitors, which varied in the size and flexibility of their side chains. These molecules were screened on S. mansoni HDAC8 (SmHDAC8) to assess their ability to inhibit enzyme activity, and a potent and selective SmHDAC8 inhibitor was identified. Crystallographic and docking studies with SmHDAC8 and the compound revealed key interactions between them, which are not observed with the human orthologue hsHDAC8. Another study identified the first S. mansoni sirtuin 2 (SmSirt2) inhibitors with activity in the low micromolar range, potency against larval schistosome and adult worms, and no toxicity to human cells. These inhibitors were previously identified by an in vitro screening of a compound library, comprising potent and specific growth inhibitors of other parasites, such as Leishmania donovani and Trypanosoma cruzi (136).

Another drug target for schistosomiasis is thioredoxin glutathione reductase (TGR), an enzyme responsible for maintaining the redox homeostasis. A high-throughput screening against a compound library comprising 59,360 synthetic compounds was carried out, of which 74 inhibited SmTGR activity by more than 90% at 10 µM. Some of these had potent schistosomicidal activity against the larvae and adult worms (137). After the flood of date coming from the large q-HTS campaign, there was a feeling of certain disappointment since no major pre-clinical or clinical candidate arose from all this effort. However, the work with SmTGR as a drug target is slowly picking up pace again. A recent work selected the most active chemotypes from HTS plus analogues and re-tested against the enzyme. Ninety-seven had SmTGR inhibitory activity confirmed, and five of them killed S. japonicum, S. haematobium and S. mansoni (with LD₅₀ ≤ 10 µM) adult worms, and all other development stages of S. mansoni (138). SmTGR has also been recently explored under the fragment-based drug discovery paradigm, as it will be discussed further ahead in this review.

3-oxoacyl-ACP reductase (OAR) is an enzyme involved in lipid biosynthesis that is absent in mammals. The cloning, expression, and purification of Schistosoma japonicum OAR (SjOAR) was performed by Liu et al. (139), as well as the elaboration of a homology model of the three-dimensional structure of this protein. A library consisting of more than 14,000 small molecules was chosen for an in silico screening against the model of SjOAR, and 30 initial hits were identified. Of these hits, two were shown to have schistosomicidal activity on both juvenile and adult forms, relatively low cytotoxicity, and could significantly inhibit the activity of the purified recombinant enzyme, confirming that SjOAR is the primary target of these compounds.

From a library focused on exploring phosphodiesterases (PDEs) as potential drug targets for several parasites, 265 compounds were obtained and had their antischistosomal activity evaluated (160). In vivo screening revealed that 171 of the compounds had activity against adult parasites. All these hits showed some level of activity in a mouse model, and two of them, when combined with PZQ, managed to a near complete eradication of viable eggs. Despite being structurally related to PDE10 inhibitors, further studies are needed to validate SmPDEs as the targets of these compounds (140). Another important work was carried out by Long and colleagues (81), which undertook considerable efforts to validate S. mansoni PDE4A as a target for a series of benzoxaboroles. From a library of 1085 benzoxaboroles, the authors identified some compounds which induced hypermotility and degeneration of S. mansoni worms. Employing phenotypic assays with transgenic C. elegans, chemical and functional characterization, it was possible to observe a positive correlation between the hypermotile phenotype of the parasite and the inhibition of SmPDE4A, suggesting that this enzyme is a target for the tested bezaxoboroles. In another recent study, inhibitors of SmPDE4A were discovered, using a virtual screening approach. Homology models of the enzyme structure were generated and used to screen a chemical library. 25 hits were selected and tested as inhibitors of the recombinant SmPDE4A, and five of them were able to inhibit its activity (141).

Schistosome aspartic proteases, as well as cysteine proteases, play a major role in life cycle of Schistosoma parasites by breaking down host hemoglobin an essential source of amino acids from the parasite. Studies have shown that reductions in transcript levels of SmCD1, an enzyme of S. mansoni similar to cathepsin D, lead to phenotypic changes in the parasite, such as growth retardation (161). Thus, SmCD1, as well as the orthologue from S. japonicumi (SjCD1), are considered validated targets in antischistosomal drug discovery. A homology modelling study and SAR analysis with peptidomimetic compounds designed against SjCD1 revealed unique structural features for achieving selectivity to this enzyme (144). Recombinant SmCD1 was recently expressed in HEK293 cells, characterized biophysically and biochemically (153). This is an important step towards further exploring this enzyme in TDD, since they can be considered promising druggable targets as demonstrated in the past with the development of HIV-1 protease inhibitors.

With over 10 years of publications, cysteine proteases are some of the oldest targets against schistosomiasis and S. mansoni cysteine protease cathepsin B1 (SmCB1) is one example. The SmCB1 has stood out as an important target for drug development. Some studies have described structural and functional characteristics (152, 162) of how SmCB1 is inhibited. Some of these applied scoring methods based on quantum mechanics (QM) to describe important interactions between vinyl sulfone chemotype inhibitors and SmCB1 (163). Furthermore, these inhibitors were important to map druggable hot spots in SmCB1 (150). The vinyl sulfones inhibitors also showed desirable properties such as activity in phenotypic assays, selectivity for SmCB1 over human cathepsin B and metabolic stability. Besides this new SmCB1 inhibitor class, in a recent publication Jiková et al. (149) showed that azanitriles chemotypes can act as potent covalent inhibitors of SmCB1. Using recombinantly expressed SmCB1, crystal structure determination, QM methods, phenotypic and target-based assays, these authors were able to identify azanitriles with nanomolar range potency. These studies trace an important path to the identification of new molecules with therapeutic potential to treat schistosomiasis, whilst reinforcing the importance of SmCB1 as a valuable S. mansoni drug target.

In addition to enzymes, receptors (164–166) and transporters (62, 166) are also targeted in schistosomiasis drug discovery. Serotonin (5-HT) GPCRs have already been identified in S. mansoni and related to worm movement regulation (66). Marchant et al. (78) characterized the pharmacological profile of the schistosome receptor Sm.5HTR, a GPCR involved in worm movement, and a screening of 143 previously studied compounds was performed, leading to the identification of scaffolds that regulate the activity of this receptor Similarly, a commercial GPCR compound library has been screened against Sm.5HTR, and 23 compounds identified as potential antagonists, with the majority showing selective inhibition of the parasite serotonin receptor (167).

In 2019, a paper published by Park et al. (58) presented important insights regarding the role of praziquantel on schistosome worms. This work showed that PZQ activates a S. mansoni transient receptor potential channel (SmTRPM) showing properties consistent with the observed responses on worms, like nanomolar sensitivity to PZQ, stereoselectivity and sustained Ca²⁺ entry response. The authors were able to identify nanomolar sensitive of SmTRPM to (R)-PZQ isomer (eutomer), which is approximately 50 times more sensitive to (S)-PZQ. Further screening campaigns will be necessary to assess the therapeutic potential of this target. Nevertheless, these findings elevate the SmTRPM as a promising clinical target to treat schistosomiasis.

Fragment-Based Drug Discovery (FBDD)

In the last decades, fragment-based drug discovery (FBDD) has been established as an efficient approach for the identification of new biologically active compounds (168–172). To date, four marketed drugs have been discovered by FBDD (173), including vemurafenib (174), venetoclax (175), erdafitinib (160), and pexidartinib (176), while over 40 fragment-based drug candidates are in different stages of clinical trials (177). In FBDD campaigns, small and less complex compounds, commonly with molecular weight (MW) <300 Da and <20 heavy atoms, are screened against therapeutic targets (178, 179). The use of very small molecules offers advantages over screening larger compounds, including a more efficient sampling of chemical space with fewer compounds (180), higher hit rates (181), and also better physicochemical properties (182, 183). Besides, lower investments are needed, and FBDD projects progress relatively faster between the research and development (R&D) phases (184). As an example, vemurafenib took only six years from hit identification to the approval by the US Food and Drug Association (FDA) in 2011 (171, 174). Therefore, incorporating FBBD into anti-schistosome drug discovery may help to accelerate the identification and development of drug candidates for schistosomiasis and other NTDs (185, 186). FBDD involves steps of library design, screening, and optimization and these steps are discussed in the subsequent sections.

Fragment Library Design

Most early fragment libraries were designed based on the Rule of Three (RO3), i.e. MW ≤300 Da, the number of hydrogen bond donors ≤3, the number of hydrogen bond acceptors is ≤3 and cLogP is ≤3 (178). However, this paradigm has been changing based on incremental experience in FBDD acquired in the last years and considering the facilitation of fragment screening and/or subsequent fragment optimization chemistry (187, 188). Nowadays, several strategies exist, which cover the use of labeled fragments for nuclear magnetic resonance (NMR) spectroscopy, covalent linkage for mass spectrometry, dynamic combinatorial chemistry, X‐ray crystallographic screening of specialized fragments and fragments optimized for easy elaboration (189).

The last two strategies are blended and available to the community through the XChem fragment screening facility at Diamond Light Source in the UK (190). For this facility, a library of chemical compounds poised for expansion called DSPL (191) was designed to allow rapid and low cost follow-up synthesis and to provide quick SAR data through X-ray crystallography. Poised fragments contain at least one functional group which can be synthesized using a robust, well-characterized reaction. Reactions include amide couplings, Suzuki-type aryl-aryl couplings and reductive aminations, amongst others. The library was designed by analyzing all commercially available fragment space (using the ZINC reference library), yielding nearly 30,000 compounds of which a chemically diverse subset of 800 compounds was selected for the poised library. In practice, the available chemical material shows bias towards the most commonly used chemical reactions (192), however, it still the case that the XChem program delivers between 2% and 10% fragment hit rates (soaks yielding bound fragments in the structure) for projects amenable to multi-crystal soaking and screening by crystallography. A remarkable result exemplified by the more than 100 projects screened since 2016, including the successful screening and follow-up of the SARS-CoV-2 M^pro protein, also released as an open science public service (193, 194).

Fragment Screening Strategies

Screening strategies rely on identifying and ranking chemical fragments that bind to the protein target. Methods need to be sufficiently sensitive to measure low affinity interactions and therefore do not typically rely on activity assays. The NMR, surface plasmon resonance (SPR), thermal shift assays (TSA) (also known as differential scanning fluorimetry (DSF) and X-ray crystallography are the most widely used techniques for high throughput fragment screening.

Nuclear Magnetic Resonance

The NMR spectroscopy is the most robust fragment screening method for detecting very weak binding (K_Ds in the µM to mM range). The NMR approach used to identify target-ligand interactions can be based on observation of the target (target-observed) or ligand (ligand-observed) (195). In the case of ligand-observed NMR methods, only the resonance of the nuclei present in the ligands is measured (196). This type of approach includes methods such as saturation-transfer difference (STD), water LOGSY, cross saturation (CS) and transferred-cross saturation (TCS), transferred nuclear Overhauser effect (trNOE), NOE editing/filtering diffusion editing, relaxation editing, use of paramagnetic tags and residual dipolar couplings (197, 198). On the other hand, the target-observed methods provide data on the target nuclei that are directly involved in the interaction with the ligand (197). Among the target-observed methods, there are chemical shift mapping using ¹⁵N-HSQC, backbone amide hydrogen exchange and solvent paramagnetic relaxation enhancement methods. In comparison with other methods, NMR spectroscopy has the advantage of being conducted in solution, which allows the protein to be as close as possible to its native conformation. In addition, NMR enables both the target and the ligand to be structurally characterized serving as quality control assay to verify the structural integrity of the ligand. However, compared to other methods, fragment screening by NMR is relatively slow (199).

Surface Plasmon Resonance

Screening by SPR involves immobilization of the target protein on a gold or silver sensor surface and measurement in the change in reflected light following ligand interaction (200, 201). The method is high throughput and very sensitive (µM to nM range) providing kinetic binding data (K_on and K_off rates), from which, K_Ds are calculated. The main disadvantage of the technique is the potential difficulty of immobilizing proteins in native conformation and therefore it is important to test a reference compound to assess correct binding behavior. The relatively high concentration of immobilized target and fragment affinities can lead to false positives through non-specific binding (202).

Thermal Shift Assays

In the thermal shift assay protein denaturation is monitored by fluorescence either intrinsic tryptophan fluorescence or using dyes that preferentially bind partially or completely denatured proteins (203). Ligand binding is measured indirectly as the increase in thermal stability resulting from interaction with the target protein in the native state (204). This method is easy, fast and inexpensive for fragment screening (185). However, could not be appropriate for all target proteins, because indirect readout of the protein’s denaturation, and chances to generate false positives. Thereby, it is necessary to confirm the identified hits with other methods (205).

X-ray Crystallography

Crystallography is the current method for delivering atomic resolution information and is arguably the method of choice for primary screening if a project is amenable to this approach, i.e., access to high quality purified protein that can be reproducibly crystallized (206). There are two strategies for obtaining protein-fragment complexes, namely, co-crystallization or soaking (207). Co-crystallization is the mixing of the free protein in solution with a ligand prior to crystallization, which allows the small molecule to bind to the protein prior to crystal lattice formation. This is the preferred method if a protein complex with a specific ligand is required. A potential downside is co-crystallization with different small molecules can lower the success rate for crystallization, or introduce changes in resolution and crystal form, burdening the downstream analysis and limiting high throughput. In crystal soaking, false negatives come from protein failing to crystallize, or protein crystals growing without bound compounds. A simpler approach is soaking, where the compound is added, (dissolved or pure), directly to the crystallization drop which already contains crystals. In this method, compounds diffuse through solvent channels in the crystal accessing binding pockets in the protein (208). However, false negatives can still arise through a lack of fragment binding. Compounds may also dissolve crystals by disrupting the crystal lattice. Both co-crystallization and soaking are sensitive to low compound solubility.

Fragment-to-Lead (F2L) Optimization

The fragment hits commonly have weak binding affinities (from mM to high µM range) as a consequence of the reduced number of heavy atoms to form attractive interactions with the target (209). Despite the low MW, the fragment hits form high-quality interactions, i.e., highly energetically favorable interactions that surpass the entropic penalties for binding (210, 211). Thus, fragments constitute starting points that can be optimized iteratively into larger higher-affinity compounds – a process known as fragment-to-lead (F2L) (205, 210). The F2L process is guided by the information of binding mode, growth vectors available, and ligand efficiency (LE) and its derivatives (212, 213). LE is a metric used to describe the average free energy of binding per heavy atom (Equation 1) (214), and LE ≥0.3 is frequently used to select the most promising fragment hits to F2L (183). Three main strategies are used to optimize fragments, including fragment growing, merging, and linking (Figure 2).

FIGURE 2

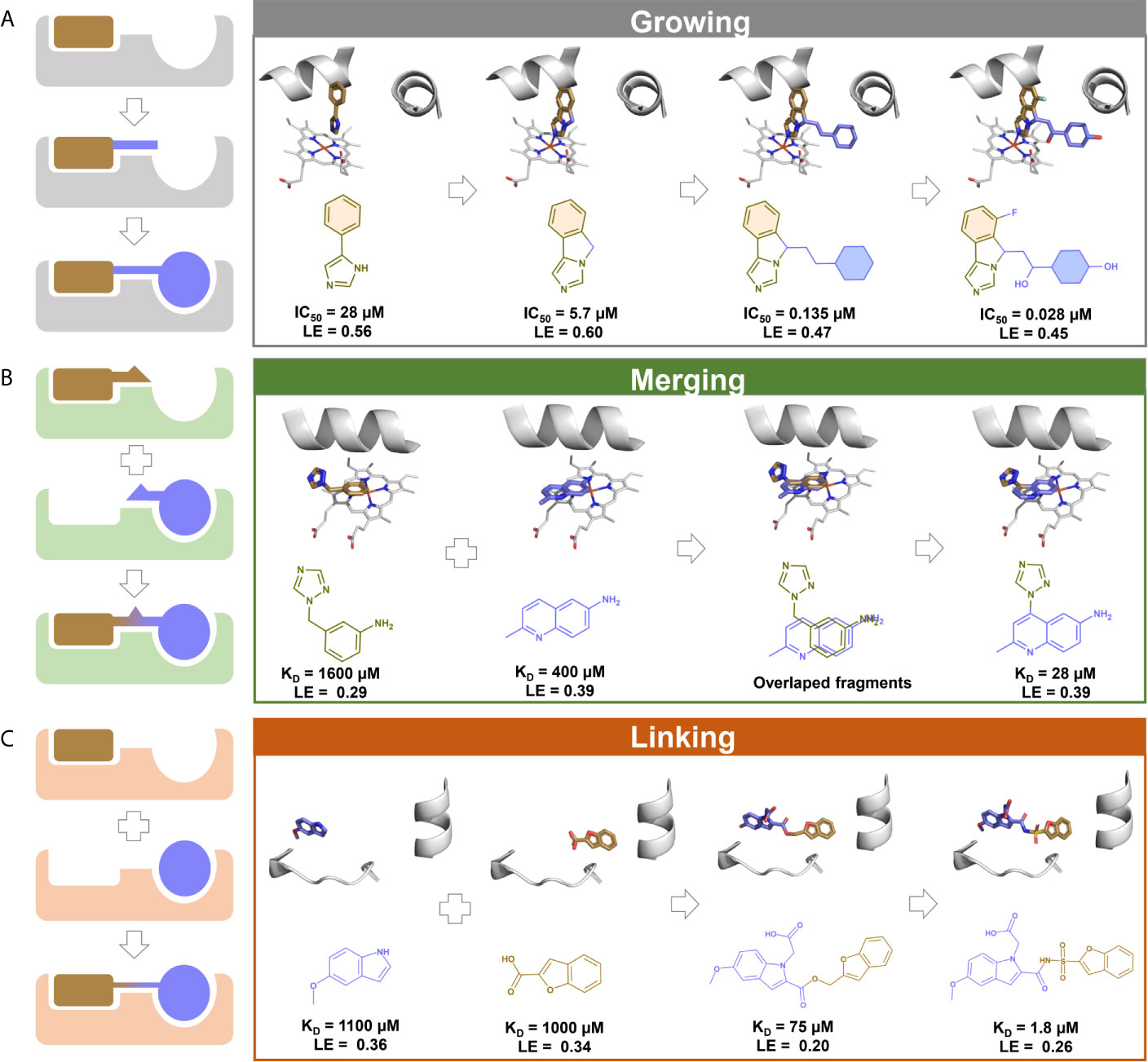

Figure 2 A schematic illustration of fragment optimization strategies. (A) Fragment growing: initial fragment with low affinity is optimized by stepwise addition of functional groups to obtain a larger compound with high affinity. 3D and 2D schemes represents the growing evolution of navoximod, an indoleamine 2,3-deoxygenase 1 (IDO1) inhibitor with antineoplastic properties (solid tumors) (215); (B) Fragment merging: two or more fragments sharing the same pocket are covalently merged to obtain a larger compound with higher affinity. 3D and 2D schemes represent an example of fragment merging to the discovery of inhibitors of the Mycobacterium tuberculosis cytochrome P450 CYP121 (216). (C) Fragment linking: two or more fragments bound independently in proximity are covalently linked with suitable linkers to obtain a larger compound with higher affinity. 3D and 2D schemes represent an example of fragment linking to the discovery of inhibitors of M. tuberculosis pantothenate synthetase (217).

$LE=\frac{\Delta G}{HAC}$ (1) where, ΔG is the free energy of binding and HAC is the heavy atoms count of a compound.

Fragment growing (Figure 2A) is the most commonly applied strategy in F2L (218). The effectiveness of this strategy is shown by its use in F2L process of three out of the four marketed drugs derived from FBDD (173), namely vemurafenib (174), erdafitinib (160), and pexidartinib (176). The fragment growing strategy involves a several steps. Firstly, potential growth vectors are identified in the chemical structure of the fragment hit (212, 219). Then, atoms or chemical groups are added to the fragment hit to explore additional interactions with the binding site and increase the potency (205). Structural information of the binding mode is essential during fragment growing to identify potential sub-pockets to explore and assess the maintenance of the fragment’s original binding mode and additional molecular interactions (198, 220). At each iteration of growing, synthesis and testing, success can be evaluated by LE, monitoring if the extra molecular mass added was beneficial (221).

Fragment merging (Figure 2B) can be applied when two fragments bind in an overlapping position of the binding site and can be merged into a unique and more potent hybrid compound (222, 223). As in fragment linking, both fragments can work additively when merged or even synergistically (224). Here, structural information is also crucial to understand the binding mode (198). Fragment merging is also difficult to achieve and less frequently used because of the challenging task of maintaining the original binding modes of the fragments after merge (225).

Fragment linking consists of the connection of fragments binding to different but adjacent sub-pockets in the binding site by a linker moiety (Figure 2C) (168, 177) and is the most powerful strategy for converting fragments into potent ligands (198). This is due to the potential super additivity effect, where the binding free energy of linked fragments is higher than the sum of binding free energy of the individual fragments (226, 227). The main challenge is the design of a linker group that does not affect the original binding mode of fragment hits (218). As a successful case, the marketed drug venetoclax was optimized by applying the fragment linking method (173, 177).

The SmTGR is a flavoenzyme expressed by schistosomes involved in the detoxification pathways that are pivotal for their survival in the host organism (228–230). Most SmTGR inhibitors are reactive electrophilic compounds, such as metal derivatives or Michael acceptors, presumably targeting the nucleophilic residues (selenocysteine and low pKa redox active cysteines), which may result in low selectivity and toxicity (231, 232). Attempts to obtain crystal structures of SmTGR in complex with such inhibitors have been unsuccessful, reflecting the problem of crystallizing non-homogenous protein preparations resulting from the presence of several redox and nucleophilic centers in the SmTGR, which are the sites of action for electrophilic inhibitor (233).

Given the challenges posed by the redox properties of the enzyme, allosteric and secondary binding sites could be explored, as they present less reactive amino acids which could lead to less toxic and more selective inhibitors. For this reason, Silvestri and coworkers (233) prioritized 1,000 fragment inhibitors of the SmTGR from a quantitative HTS campaign. Then, by X-ray crystallography identified two fragments (1,8-naphthyridine-2-carboxylate and 1-(2-hydroxyethyl)piperazine) that bound in a secondary pocket adjacent to the NADPH binding site (Figure 3), named as “doorstop pocket”. The pockets are separated by the Tyr296 residue, where the aromatic ring of Tyr296 could adopt the closed (Figures 3A, D) and open (Figures 3B, C) conformations. Small molecules bound at the doorstop pocket disturb the well-known and conserved conformational adjustments associated with NADPH binding and enzyme reduction (233). Subsequently, chimeric compounds blending the structural features of the initial fragments into single compounds were synthesized and showed improved SmTGR inhibition activity, ex vivo activity against larval and adult S. mansoni worms at low micromolar concentrations. In addition, the designed compounds tended to have selectivity for SmTGR, as the amino acid residues of the doorstop pocket are not conserved between members of the FAD/NAD-linked reductase family (233). Although strictly this work was not a FBDD campaign (at least not originally designed as one), it was an interesting effort that showed the potential of the fragment-based approach to disclose new binding sites that can be explored to develop novel potent ligands.

FIGURE 3

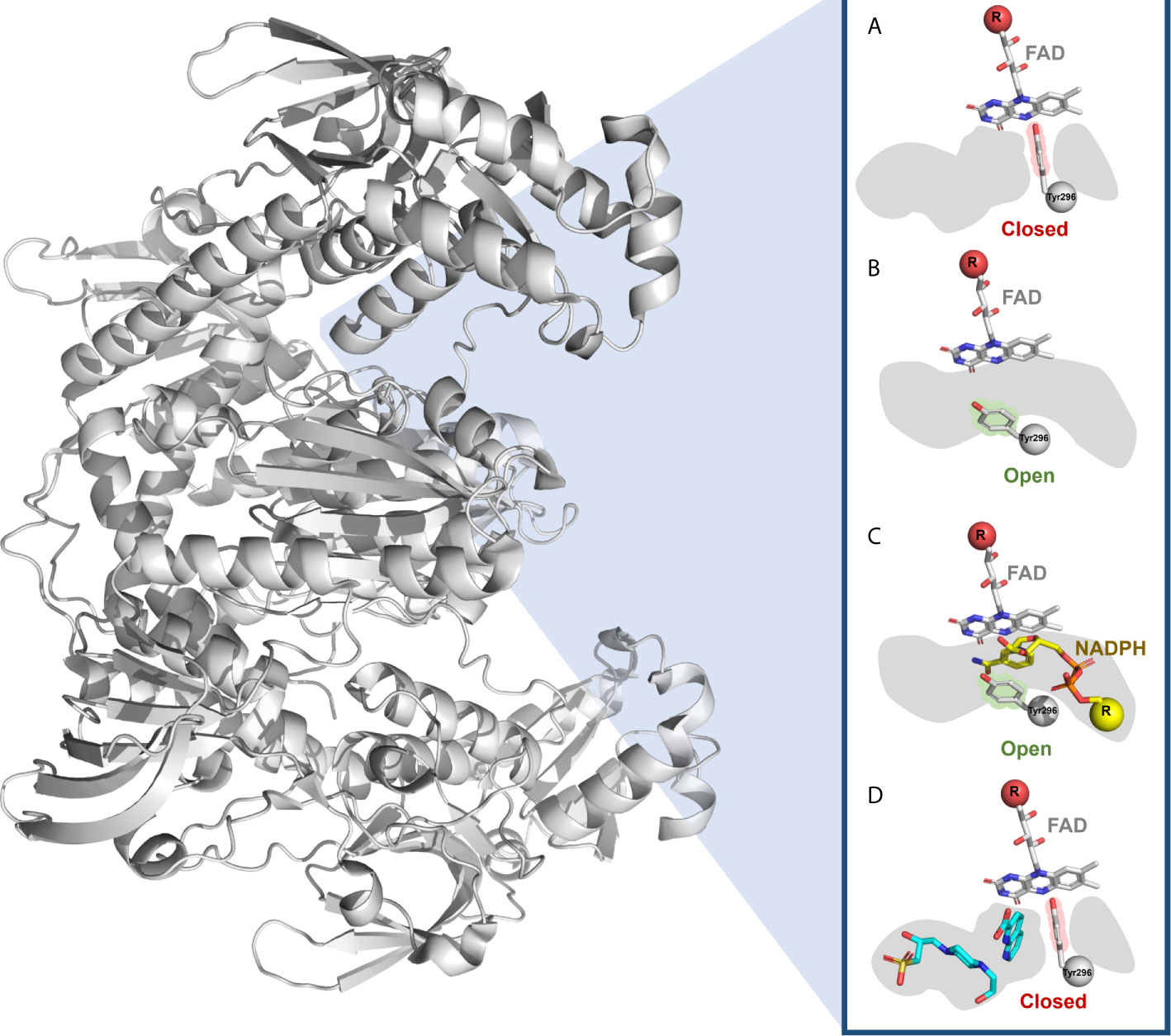

Figure 3 Doorstop pocket of SmTGR adjacent to the NADPH binding site. The Tyr296 of the doorstop pocket is represented in (A) closed and (B) open conformation, as well as in the presence of (C) NADPH and (D) two fragments (1,8-naphthyridine-2-carboxylate and 1-(2-hydroxyethyl)piperazine).

Although FBDD has been established as an efficient approach for the identification of new biologically active compounds for several diseases, very few applications had been reported for schistosomiasis. Thus, FBDD has a great potential for anti-schistosomal drug discovery in the future.

In Silico Approaches for FBDD

In silico approaches have been used in several parts of FBDD pipelines as an alternative or complementary approach, with the benefits of speed and low cost (234, 235). Many fragment libraries are available in the literature (188) and computational methods can be used to design a fragment library with high chemical diversity, synthetically accessible to be easily optimized during F2L, and also select or exclude fragments based on physicochemical properties (236, 237). The biophysical techniques applied for fragment screening are low-to-medium throughput (188), limiting the number of fragments that can practically be screened, and therefore the coverage of chemical space (180, 238). To compensate for this, molecular docking and machine learning can be used to virtually screen a large number of fragments and prioritize the most promising for experimental testing (224, 239–242).

Several in silico methods are also used during the F2L process (243). When no structural information about the binding is available, molecular docking and molecular dynamics are used to predict the binding mode and inform the growing, linking, and merging strategies (244, 245). The fragment hits can also be optimized with the help of de novo, machine learning, and deep learning methods (209, 243). These methods will be discussed in more details in the next sections.

Computer Assisted- and Artificial Intelligence-Based Drug Design

Schistosome Post-Genomic Era

Genes and Proteins Functional Annotation

The “-omics” era for schistosomiasis drug discovery started when the first versions of the S. mansoni (157, 246), S. haematobium (247), and S. japonicum (248) genomes were published. Recently, revised versions of the S. japonicum (249) and S. haematobium (250) genomes were released, enhancing the quality of the available genomics data for these three main trematode responsible for the majority of schistosomiasis cases in the world. The latest genome versions of these trematode species, together with other parasitic worms species, are available online at (https://parasite.wormbase.org/species.html#Platyhelminthes).

Most of the genome of schistosomes (like many other organisms) has yet to be explored experimentally. Consequently, bioinformatic tools and resources have become pivotal for the functional annotation and analysis of genes and their products. There are a wide range of general resources available that host biological information (genomics sequences, transcription data, protein structures, metabolomic data and more, see Table 4) as well as bioinformatic tools to perform analysis to unveil useful information within the data. Databases and webservers such as (but not limited to) InterPro (251), CATH-Gene3D (252, 253), the Conserved Domains Database (CDD) (254), HAMAP (196), PANTHER (255), Pfam (256, 257), PROSITE Patterns and Profiles (258), ProDom (196), PIRSF (196), PRINTS (259), SMART (260), Structure-Function Linkage Database (SFLD) (261), SUPERFAMILY (262, 263), TIGRFAMs (264) are integrated to identify specific motifs and domains to classify the protein of interest. Other resources such as the Kyoto Encyclopedia of Genes and Genomes (KEGG) database (265) provide functional annotation that encompasses molecular-level information about biological systems, integrating molecular datasets resulting from genome sequencing or other large-scale experimental technology. The KEGG website (https://www.genome.jp/kegg/) offers several tools to find data-oriented and organism-specific entry points, as well as analytical tools for diverse ends, such as genome and metagenome functional annotation (BlastKOALA and GhostKOALA respectively), pathway mapping tools (KEGG Mapper), sequence and chemical similarity search (BLAST/FASTA and SIMCOMP respectively).

TABLE 4

Table 4 Databases and webservers for gene and protein functional annotation.

Gene Ontology (GO) model (266) (http://www.geneontology.org) is commonly used for describing genes using a unified and common vocabulary applicable to any organism. GO is a hierarchical way of describing information gathered on genes and proteins at different levels of annotation and is used by many of the databases mentioned above as it provides the top three different categories of high-quality annotation: (i) biological process, (ii) molecular function, and (iii) cellular component; each one referring to the biological objective of the gene/gene product, biochemical activity of the gene/gene product, and place in the cell where the gene product is active respectively (267). The unified annotation/vocabulary provided by GO is dynamic and entirely based on the principle of shared orthology by all eukaryotic organisms. It can be updated as the ontologies become mature through the integration of more experimental results.

As an exemplar of how these tools and resources can be used in the context of Schistosoma is by Padalino and colleagues (40) who identified S. mansoni Lysine Specific Demethylase-1 (SmLSD1) as a druggable epigenetic target, as well as daunorubicin and pirarubicin as potential inhibitors. This was possible using bioinformatics tools, such as Uniprot, PROSITE, InterPro, and Pfam, BLAST in combination with homology modeling, molecular docking, and a whole-organism screening.

Likewise, the latest revised versions of S. haematobium and S. japonicum published by Stroehlein et al. (250) and Luo et al. (249) demonstrate the use of several tools in an extensive way. Luo and colleagues (249) combine tools whose functions range from genome evaluation to RNA, protein prediction and phylogenetic analysis and all of them converge to the evaluation and comparison of the revised genome and the previously published versions. Stroehlein and colleagues (250) used a lesser extent of tools, however a deep comparison between previously published versions of Schistosoma genomes was conducted and a careful data curation was carried out to ensure the quality of the assembled genome.

Since 2017, many efforts in terms of RNA-seq data have been reported in the context of Schistosoma (85, 269–272). A thorough protocol of how to gather, process, reconstruct the transcripts, and identify novel long non-coding RNA (lncRNAs), as well as their expression levels (273). In this protocol, Maciel and Verjovski-Almeida use a set of open-source Unix-based tools combined with several R (274) packages to support the analysis of differential expression of some lncRNAs. Wang and colleagues (85) reported a large RNAi screening against S. mansoni to uncover new therapeutic targets. The authors conducted a GO enrichment to better understand the roles of the essential genes to the parasite development and attachment to substrate. Furthermore, this study demonstrated the essentiality of SmTK25 kinase to maintain the muscular function of the parasite, thus representing a promising therapeutic target.

Phylogenetic Analysis – Computational Phylogenomic Inference Methods

One of the principal methods for integrating and inferring functional annotation is phylogenetics - the study of the evolutionary story of organisms and their relationships with other organisms or group of organisms. The relationships among the organisms are described in a detailed and hierarchical manner through phylogenomic inference methods, which will result in a phylogeny, represented by a phylogenetic tree (275). It is the best way for identifying and confirming whether two or more sequences are orthologs (276).

Phylogenomic inference methods are applied to assign a biological function to an unannotated gene or protein (277). Their overall accuracy is high and theoretically the topology of a generated phylogenetic tree is correct unless highly dissimilar sequences (identity <25%) are present among the aligned sequences (278). The methods are directly dependent on a multiple sequence alignment (MSA), whereby main objective is to align more than two sequences, allowing the identification of conserved motifs, domains and regions in the compared sequences (nucleic or amino acids) (277). Therefore, the quality of a final phylogenetic tree will strongly depend on the MSA quality and accuracy. The most popular tools for phylogenetic analysis are PhyML (279), RAxML/ExaML (280), FastTree (281), and IQ-TREE (281, 282).

There are many methods that can be used to build phylogenetic trees from an MSA. Distance-based methods such as neighbor-joining and Unweighted Pair Group Method with Arithmetic Mean (UPGMA) are the simplest examples which provide a genetic distance calculation between the multiple sequences aligned, but do not give evolutionary information (275, 282, 283). More complex methods, such as maximum parsimony, minimum evolution, and maximum likelihood can be employed considering the Bayes’ theorem for the estimation of an evolutionary model (284, 285).

Maximum parsimony’s principle relies on the sum of the number of minimum possible sites substitutions in each sequence. The sum will constitute the tree length for the investigated topology and the topology with the minimum length is called maximum parsimony tree (279). Minimum evolution is a distance-based method which generates a tree topology based on the lowest value among the values obtained from the sum of all branches (286). This method has a high time-cost mainly when dealing with too many sequences, e.g. protein superfamilies. The Maximum likelihood statistical method is known as the method which produces the most reliable phylogenetic trees in comparison with distance-based methods and the parsimony method (283). A phylogenetic tree is constructed through the maximum likelihood method accordingly to the following steps: (i) generate a starting tree; (ii) rearrange the starting tree through topological substitutions and evaluate the new tree; (iii) replace the starting tree and repeat the step ii if no better tree is identified; on the contrary, terminate the search (283).

For the cited methods, even for those based on distance, the robustness of the tree is assured by a bootstrap resampling technique (275, 282, 287) which is based on the replacement of nucleotides, codons or amino acids and the construction of a new tree with the new sequences. Next, each interior branch of the original tree is compared to the newly branches and, if the branches are different, a bootstrap score 0 is given while a score 1 is assigned to the other branches. The process is repeated a few hundred times, the percentage of times which the bootstrap score 1 was given is calculated, and the topology can be considered correct if the percentage is equal or greater than 95%. In the context of Schistosoma species and other helminths, these types of phylogenetic analysis have been boosted by the availability of a wide range of high quality genomes captured and analyzed within the 50 Helminth Genome Project (https://www.sanger.ac.uk/collaboration/50hgp/) and well as the other genomes and resources found in WormBase (268).

Cheminformatics

Despite all advances achieved in the field of automation of screens, FBDD, and also in the understanding of disease biology in the post-genomic era, delivering new drugs to the market remains a highly complex, expensive and time-consuming process (288, 289). Therefore, there is a need for innovative approaches that could bring new drugs for patients at a lower cost-to-market. In this context, computer-assisted drug design approaches (CADD) has been considered as a potential opportunity (290, 291). Cheminformatics is a field of CADD and has the objective of utilizing computer and information sciences to solve problems in the area of chemistry (292, 293). This involves the design, creation, retrieval, storage, management, organization, analysis, visualization, dissemination, and use of chemical information (294). Over the last few years, the advances in data processing power and the development of new artificial intelligence (AI) tools, has fueled the field of CADD and cheminformatics (295, 296). Moreover, AI tools abilities have increasingly been applied to a wide variety of chemical challenges, from improving computational chemistry to end-to-end drug discovery as well as to synthesis planning/prediction (297, 298).

The developments in phenotypic and target-based screening provide data essential for applying computational tools to accelerate the discovery of new drugs to treat schistosomiasis (299, 300). These advances coupled with data storage in public databases such as PubChem (301–303) and ChEMBL (304) have enabled the compilation, curation, analysis, and application of chemical and biological information to support antischistosomal lead generation and optimization (305–307). Thus, cheminformatics has an important role in schistosomiasis drug discovery through the conversion of data to information and information into knowledge (308, 309), supporting data-driven decisions in lead identification and optimization (310, 311).

In the last years, pivotal advances in cheminformatics-driven drug discovery have been achieved in three main sub-fields: molecular de novo design, virtual screening, and synthesis prediction. Machine learning approaches have also progressively been applied in these areas. Therefore, in the next sections, machine learning approaches will be described and important aspects to schistosomiasis drug discovery will be highlighted.

Machine Learning

Machine learning (ML), mainly supervised methods, is a growing field of AI that uses different algorithms to enable computers to learn from sample data, known as “training data”, without being explicitly programmed for this task (312). ML algorithms are capable of recognizing complex patterns in chemical structures that evade human rationales because of the enormous number of parallel variables that should be addressed in drug design (313). On the other hand, molecular modeling techniques (e.g., docking, molecular dynamics) are based on explicit physical equations derived from molecular mechanics and quantum mechanics theory (314). Consequently, ML techniques are considered to have higher predictive value than classic molecular modeling methods. Combining human and ML -derived models should enable medicinal chemists to make better decisions and move projects forward more quickly (315, 316).

ML has applications in several stages of drug discovery and development, accelerating the overall process (317), including automation of whole-organism assays (70, 94), lead identification and optimization (318), and clinical development, for example in patient recruitment, prediction of diagnosis, prognosis, treatment planning, and clinical trial outcomes (317, 319). ML provides robust methods such as random forest (RF) (320, 321) for learning from large and multi-dimensional chemical data to make predictions and select new chemical entities for experimental testing (322). The generation of ML models for drug design and discovery consists of a multi-step protocol (323). The first step is the data collection of chemical and biological information from the literature and/or databases, followed by preparation and curation of data employing standardized protocols (324–326). Then, descriptors are calculated from molecular representations varying from one-dimension to n-dimensions (327). These molecular descriptors are derived from a logical and mathematical method that converts the chemical information into a useful number (328). The third step is the model training (learning), where a ML technique is applied to establish Quantitative Structure-Activity Relationships (QSAR) between the molecular descriptors and continuous (e.g., pIC₅₀, K_i, etc.) or categorical/binary (e.g., active, inactive, toxic, nontoxic, etc.) experimental bioactivities or properties (329, 330). The models that are developed need to be validated using appropriate metrics to assess their predictive value (331, 332), and then used to predict the biological activity of new compounds (318).

It is worth pointing out that the initial training data underpins ML models generation. The data should be high-quality and in sufficient quantity to lead in models with high performance (295). However, in the current scenario, the data of pharmaceutical industry is scarce, costly, and need substantial resources, which could limit the use of ML for drug discovery (329).

Some guidelines for model generation and validation should be followed to ensure the reliability of the model. In this context, some principles for assessing the validity of ML-based QSARs have been proposed by the Organization for Economic Cooperation and Development (OECD) (333) stating that they should have:

i. A defined endpoint: Ensure clarity in the endpoint being predicted by a given model, since biological property could be determined by different protocols and under different experimental conditions;

ii. An unambiguous algorithm: ensure reproducibility in the ML algorithm that generates predictions of an endpoint from chemical structure.

iii. A defined applicability domain (AD): the AD is defined as the chemical space containing the features of the compounds used to train the ML-based QSAR models (334). The AD offers means to assess the confidence of prediction to unseen compounds (335). The most common methods to define AD use distance-based metrics to calculate the distance of the features between the training set and a new compound being predicted (335–337).

iv. Appropriate measures of goodness-of-fit, robustness, and predictivity: ensure the distinction between the internal performance of a model (as represented by goodness-of-fit and robustness) and the predictivity of a model (as determined by external validation);

v. Mechanistic interpretation, if possible: ensure that some consideration is given to the possibility of a mechanistic association between the descriptors used in a model and the endpoint being predicted (333).

As an example of application of ML to schistosomiasis drug discovery, Zorn and coworkers (338) used data from phenotypic screens against the schistosomula and adult stages of S. mansoni to develop ML models. Firstly, the authors elaborated two rule books and associated scoring systems used to normalize 3,898 phenotypic data points and transform to categorical data. Then, using the Assay Central software, they generated eight Bayesian machine learning models based on each developmental stage of the parasite and four experimental time points (≤24, 48, 72, and >72 h). Subsequently, the generated models were used to predict the activity of compounds from several libraries of commercial vendors. Finally, 40 compounds predicted as active and 16 compounds predicted as inactive were selected and purchased for in vitro phenotypic assays against schistosomula and adult stages of S. mansoni. In this manner, the authors achieved a prediction accuracy for active and inactives of 61% and 56% for schistosomula and adults, respectively. Additionally, the hit rates achieved were 48% and 34% for schistosomula and adults, respectively (338).

Deep Learning

DL is a type of ML that uses a hierarchical recombination of features to extract pertinent information and then learn the patterns represented in the data. In other words, DL uses artificial neural networks (ANNs) with many layers of nonlinear processing units for learning data representations. DL has emerged to deal with the high volume and exponentially growth of sparse data, coming from different sources around the globe (339). Conceptually, DL was conceived in the 1980s, with the development of ANNs, which, at the time, could not out-perform ML algorithms due to the small amounts of data available. As soon as advances in hardware were achieved, in 2010s, with graphic processing units and cloud computing technologies, deep neural networks (DNNs) became more popular and able to be trained and accomplish complex tasks (340).

The basic structure of a classical ANN and DL representations are represented in Figure 4 and are inspired by the structure of the human brain. There are three basic layers in a neural network: the input layer, hidden layer and output layer. Depending on the type of ANN, the nodes, also called neurons, in neighboring layers are either fully connected or partially connected. The major difference between DL and traditional ANN is the complexity of the NNs. Traditional ANNs (Figure 4A) normally only have one hidden layer whereas DL architectures such as Deep Feed Forward Network (Figure 4B) uses larger numbers of hidden layers.

FIGURE 4

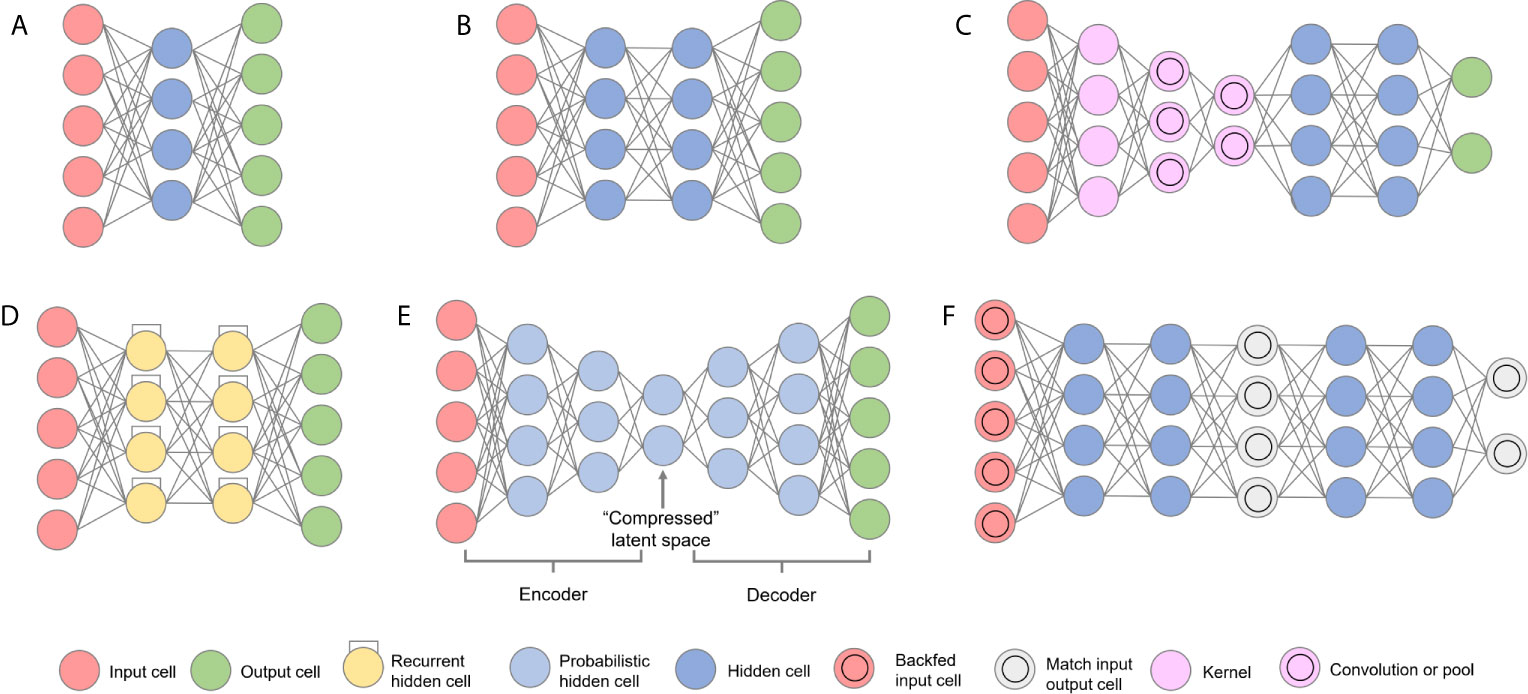

Figure 4 Architecture of several popular neural networks. (A) classical Feed Forward Network; (B) Deep Feed Forward Network; (C) Convolutional Neural Network; (D) Recurrent Neural Network; (E) Variational Autoencoder Network; and (F) Generative Adversarial Network.

Since the advent of QSAR in the 1960s for drug discovery projects, and the use of so called “shallow methods” for the identification of new chemical entities with drug like properties (341), the application of DL methods has been increasing (276, 315, 317–323). The applications of DL can be as diverse as the creativity of those who applies and develops the methods. The possibilities are unlimited in terms of algorithms [see (342)] but are restricted in terms of data quality and chemical space coverage (325). However, DL has broadened even the ability of generating new chemical data, allowing the usage of autoencoders to interpret SMILES data and, within that chemical space, generate new scaffolds sharing a few physicochemical properties with their parental molecules (343). From virtual screening processes to synthesis prediction, DL has been largely used in the field of CADD, and its applications are exemplified in the next sections.

Artificial Intelligence-Assisted Virtual Screening (VS)

As a fundamental part of CADD strategies, virtual screening (VS) is an in silico screening alternative to the experimental HTS approach to search libraries of small molecules and identify those structures which are most likely to have biological activity (344, 345). VS represents a rapid and low-cost and method for screen promising compounds against pathogens, cells and/or specific biological targets (344, 346). A VS campaign is basically a funnel-like process (347) composed of different filters. A large chemical database can be submitted to those different filters and, throughout the process, the compounds presenting undesired properties will be filtered out. In the end of the process, virtual hits with drug-, lead- or even fragment-like properties are presented in a ranked list.

In the last few years, the success of machine and deep learning has enabled the development of VS methods that can extract task-specific features directly from chemical data (295, 296). Convolutional Neural Networks (CNN, Figure 4C) are a subclass of DL that search for recurring spatial patterns in data and compose them into complex features in a hierarchical manner (348, 349). Chemical descriptors have very high dimensionality, and hence training a standard Feedforward network to recognize chemical patterns would require hundreds of thousands of input cells. This can cause many problems associated with the “curse of dimensionality” in neural networks. The CNNs provide a solution to this (350) by utilizing convolutional and pooling layers to help reduce the dimensionality from compound graphs (351). As convolutional layers are trainable but have significantly fewer parameters than a standard hidden layer, they can highlight important parts of the chemical structure and pass each of them forward.

Although DL have important advantages, the most prominent demonstration of DL’s capability are in areas where large amount of data are available, which is not the reality of all drug discovery campaigns (297, 352). In addition, studies demonstrated that simpler ML methods can outperform DL for activity prediction (353).

Deep Generative Models

Regardless of the advances in cheminformatics, the conception of the large majority of new molecules in drug discovery campaigns comes from the inventiveness of medicinal chemists (354). Since the 1990s, de novo methods have been used to design new molecules from scratch, commonly using structure-based approaches and resulting in compounds that are sterically and electrostatically complementary to the binding site of a protein target (355). However, the molecules generated by early de novo design methods were usually synthetically challenging, with poor pharmacokinetic properties, and the generation process required long runtimes (356, 357).

With the progress in deep learning, a variation of the de novo design method called generative modeling has appeared as a promising approach (358). These methods model the underlying probability distribution of chemical features from a training dataset and, thus, learn the essential aspects that characterize molecules (296, 359). Then, new molecules are generated combining these features by sampling the learned distribution of chemical features (360). The most common deep learning architectures for generative models are Recurrent neural networks (RNNs) (361), generative adversary network (GAN) (362), and variational autoencoder (VAE) (Figure 4) (363).

The RNNs (Figure 4D) are commonly trained with a large number of Simplified Molecular Input Line-Entry System (SMILES) strings, which encode chemical structures (364). Then, the RNN predict the probability of the next SMILES character considering a sequence of preceding characters (365). Thereby, the new molecules are generated by RNN character by character until the required number of characters have been produced (360).

The VAEs (Figure 4E) are composed by an autoencoder model that contains an encoder and a decoder network. The encoder translate a higher-dimensional molecular representation (e.g., SMILES) into a lower-dimensional representation, called latent space (366). The decoder translate the latent-space representation back to the higher-dimensional representation to generate new molecules (295, 366, 367). In addition, this network uses probabilistic hidden cells, which applies a radial basis function to the difference between the test sample and the cells’ mean. In this sense, VAE learns the parameters of a probability distribution representing the chemical structure data. Instead of just learning a function representing the chemical space, it gains a more detailed and nuanced view of the chemical structures, sampling from the distribution and generating new chemical structures (359).

GANs (Figure 4F) consist of two specialized networks that “contest” with each other: a generative network and a discriminative network (367). With careful regulation, these two adversaries compete with each other, each’s drive to succeed improving the other. The end result is a well-trained generator that can spit out a new chemical structure with desired biological property. The generative network (usually a CNN) tries to generates new molecules, while discriminative network tries to discern generated molecules as artificial or real (296). Mechanistically, discriminating network receives either training data or generated content from the generative network. How well the discriminating network was able to correctly predict the biological property is then used as part of the error for the generating network. Both networks are trained alternatively aiming the generation of molecules that are indiscernible from the real data (319).

In addition to the deep learning architectures for generative modeling, it is possible to use techniques such as transfer learning and reinforcement learning to fine-tune the models to generate molecules with the desired properties (e.g., activity against a target and physicochemical properties) and also optimize compounds such as fragments (368, 369). The power of these methodologies is the design of new molecules with ideal properties in shorter periods and lower costs (370, 371).

Despite the innovation of generative models, the novelty and accessibility of generated molecules must be evaluated (372–374). Gao and Coley (375) observed that generative models can produce infeasible molecules even with good performance in benchmarks. On the other hand, in a work for the discovery of discoidin domain receptor family member 1 (DDR1) kinase inhibitors (370), Walters and Murcko (366) pointed out that the top inhibitor is very similar to a known DDR1 inhibitor (366, 371).

Synthesis Prediction

The synthetic feasibility of virtual compounds identified in VS campaigns is a key point when considering synthesizing and further optimizing their properties (376, 377). Efforts from several research groups to improve the evaluation of synthetic routes and their inherent accessibility have been published and well-known software has been produced, e.g. SYNCHEM (378), RASA (379), LHASA (376), CAMEO (380), SOPHIA (381), EROS (382), and Reaxys (295, 383). Their main goal is to assess synthetically accessible routes, reaction predictions, and start material selection. To achieve this goal, approaches based on basic rules for organic synthesis, data-driven intelligent systems, sequence-to-sequence, template-based models, knowledge-graph based, and retrosynthetic prediction models have been proposed and published (384–386). To list the main obstacles for reaching a good accuracy in predicting both accessible synthetic routes and retrosynthetic disconnections, we can point out (i) the low number of unsuccessful reactions reported, (ii) the extensive data curation process, which impacts on the data quality and, consequently the predicted outcomes (384, 385). The current state-of-the art relies on treating the task as a text processing problem. Natural Language Processing (NLP) algorithms have been tested, implemented, and shown to provide of promising outcomes. The IBM RXN platform (387) represents a successful application and example of how to deal with chemical reactions as text. The platform uses the simplified molecular-input line-entry system (SMILES) as the source of local and global features potentially involved in a chemical reaction (388).

As well as in FBDD, very few applications of cheminformatics have been reported for schistosomiasis. Thus, cheminformatics also has a great potential for anti-schistosomal drug discovery in the future.

Concluding Remarks and Future Directions

In conclusion, we would like to emphasize that the recent advances in automation of whole organism screening and target-based assays, as well as FBDD, CADD and AI tools integrated in drug design projects, represent a new era in anti-schistosomiasis drug discovery. The phenotypic assay methods described here are more sensitive and faster than traditional microscopy an have enabled the identification of several new antischistosomal candidates. In parallel, significant contributions are coming from the genomics to target-based screening approaches, especially with prospecting and prioritizing biological targets with key/essential roles in parasite survival and/or host-parasite interactions. The automated collection and processing of X-ray crystallography data at synchrotons has transformed fragment-based screening enabling the acquisition of structural data at atomic resolution. The generation of large datasets from advances in the automation of phenotypic screening and target-based approaches has created a fertile ground for drug discovery. These data have enabled the use of artificial intelligence tools, such as machine learning and deep learning, to generate predictive QSAR models for prioritization of VS hits or structural design of novel compounds. These tools can be also used for in silico multi-parameter optimization, for achieving a favorable balance between target potency, selectivity, physicochemical, pharmacokinetic and toxicological properties. Therefore, we see the use of AI tools and QSAR models as a time-, labor-, and cost-effective way to discover hit compounds and to optimize lead candidates in the early stages of drug discovery process. We hope that these new technologies collectively will empower schistosomiasis drug discovery and increase the efficiency of the various processes involved to deliver new drugs to the market.
