Abstract
The aryl hydrocarbon receptor (AHR) is a ligand-activated transcription factor initially identified because of its role in controlling the cellular response to environmental molecules. More recently, AHR has been shown to play a crucial role in controlling innate and adaptive immune responses through several mechanisms, one of which is the regulation of tryptophan metabolism. Indoleamine-2,3-dioxygenase (IDO) and tryptophan-2,3-dioxygenase (TDO) are considered rate-limiting enzymes in the tryptophan catabolism and play important roles in the regulation of the immunity. Moreover, AHR and IDO/TDO are closely interconnected: AHR regulates IDO and TDO expression, and kynurenine produced by IDO/TDO is an AHR agonist. In this review, we propose to examine the relationship between AHR and IDO/TDO and its relevance for the regulation of the immune response in health and disease.
AHR Signaling Pathways
Aryl hydrocarbon receptor belongs to the family of basic-helix–loop–helix/Per–Arnt–Sim transcription factors. It is abundantly expressed in numerous tissues, such as liver, lung, and placenta (1, 2). Interestingly, AHR is highly conserved through evolution (3), highlighting its importance across the animal kingdom. Originally, AHR was studied in the context of the biological response to environmental toxins such as 2,3,7,8-tetrachlorodibenzo-p-dioxin (TCDD). However, it was later found that AHR has an important role in the regulation of immune responses by small molecules provided by the diet, the commensal flora, and metabolism. In its inactive state, AHR resides in the cytosol as part of a complex that includes other proteins such as the 90 kDa heat shock protein (HSP90), the AHR-interacting protein, p23, and the c-SRC protein kinase (4–7). It is thought that HSP90 and p23 protect the receptor from proteolysis and maintain a conformation suitable for ligand binding (8).
Aryl hydrocarbon receptor is activated by ligands binding the PAS-B domain (9), triggering a conformational change that results in the dissociation of AHR from the chaperone proteins and the exposure of its nuclear localization sequence (10). Ligand activation of AHR elicits genomic and non-genomic AHR-dependent signaling pathways. Genomic AHR signaling involves the interaction of AHR with other transcription factors and co-activators to directly regulate the transcription of target genes (7). After ligand activation, AHR translocates to the nucleus where it dimerizes with the AHR nuclear translocator (ARNT) (11) to form an active DNA-binding complex and control the expression of target genes containing xenobiotic response elements (XREs) in their regulatory regions (9). The AHR–ARNT complex can promote or inhibit the expression of its target genes. Moreover, ChIP-seq and microarray studies with different cell types and ligands (12–14) suggest that the AHR target genes in a specific cell are determined by the ligands, and also the identity and developmental stage of the target cells (15).
Non-genomic AHR signaling is more diverse and encompasses, for example, the release of c-SRC from its complex with AHR, resulting in the phosphorylation of c-SRC cellular targets (7). In addition, AHR can promote the degradation of specific target proteins such as estrogen and androgen receptors by the proteasome. This ability to trigger the degradation of specific proteins results from its E3 ligase activity, by which AHR selects proteins for ubiquitination by E2 ubiquitin-conjugating enzymes. The resulting ubiquitinated proteins are then recognized by the 26S proteasome and degraded (16–18). Indeed, following activation AHR itself is eventually exported out from the nucleus and degraded by the 26S proteasome pathway (19–21).
Structure–activity relationship studies showed that AHR’s ligand binding pocket is promiscuous and able to accommodate numerous hydrophobic planar compounds (22). From an historic point of view, AHR can be seen as an endocrine-disrupting chemicals (EDCs) receptor, as it is known that EDCs affect the endocrine system either directly by AHR-dependent changes in gene expression or indirectly via AHR cross-talk with endocrine signaling pathways (23). However, both endogenous and exogenous AHR ligands have been identified. Classical AHR ligands include synthetic aromatic and polycyclic aromatic hydrocarbons (HAHs and PAHs) as well as natural ligands tetrapyrroles, flavonoids, tryptophan derivatives, and dietary carotinoids (24). Interestingly, some of the natural AHR ligands, such as resveratrol (25) and 7-ketocholestrol (26) can act as antagonists rather than agonists. Within the endogenous AHR ligands, tryptophan-derived metabolites have become one of the most interesting and utmost studied group (7). It should be noted that AHR activation in the absence of ligand binding has also been described. Although the relevance of this observation for vertebrates is not completely understood, the ligand-independent activation of AHR might play a physiological role in invertebrates (see below).
AHR Evolution
Aryl hydrocarbon receptor homologs have been identified in most major groups of animals, including the two main clades of protostome invertebrates as well as deuterostomes (27, 28) highlighting the biological importance of AHR throughout the animal kingdom. AHR homologs identified in invertebrates share similarities with their vertebrate counterparts, such as the interaction with ARNT to recognize XRE (29–31). However, invertebrate AHR homologs do not bind known AHR ligands like TCDD or β-naphthoflavone (29, 31). Indeed, it was recently reported that the metabolic response to xenobiotics in Caenorhabditis elegans is not controlled by AHR (32).
In C. elegans, the orthologs of AHR and ARNT are encoded by the AHR-related (ahr-1) and ahr-1 associated (aha-1) genes, respectively. AHR-1 and AHA have HSP90 binding properties comparable to those of their mammalian counterparts (31). AHR-1 shares 38% amino acid identity with the human AHR over the first 395 amino acids. Furthermore, AHR-1 contains a PAS domain with both PAS-A and PAS-B repeats as well as a bHLH domain where specific residues mediating the recognition of mammalian XREs are conserved (31). However, AHR-1 does not have a glutamine-rich transcriptional activation domain similar to the one present in mammals.
Notably, mutations in AHR-1 affect several aspects of neuronal development determining, for example, the fate of GABAergic neurons in the L1 larval stage, regulating both cell and axon migrations as well as specifying the fate of AVM light touch sensory neuron (33–35). In addition, AHR-1 is involved in social feeding (36), in which nematodes form groups on the border of the bacterial lawn (37).
Recent studies have also demonstrated a role for AHR-1 in regulating the synthesis of long-chain unsaturated fatty acids that eventually produce lipid signaling molecules (38). This finding is consistent with findings in mouse models, where ligand activation of AHR has been linked to alterations in gene expression of fatty acid metabolism (39, 40).
The homologs of mammalian AHR and ARNT are encoded by spineless and tango in Drosophila melanogaster (41, 42). In agreement with observations made in C. elegans, spineless does not bind TCDD or β-naphthoflavone (29). In addition, sequence alignments suggest that key residues required for the interaction of mammalian AHR with TCDD are not conserved in spineless (29, 41). Thus, although it is still possible that the localization and/or the activity of spineless are modified by unknown endogenous ligands, it appears that this protein does not bind classical AHR ligands functional in mammalian systems. Moreover, in certain cells spineless appears to be constitutively active (43). Spineless plays a role in several aspects of antenna and leg development (41, 44), photoreceptor cell differentiation (45), and in controlling the morphology of sensory neurons (46).
Not surprisingly, most of our knowledge on mammalian AHR comes from studies on human beings and mice. Key features characterizing mammalian AHR are (1) in contrast to other vertebrates (47) all studied mammalians have a single AHR gene and (2) AHR in mammals is not only involved in the toxic effects of environmental pollutants (48, 49), it also has important roles in development (50–53) and immune responses [reviewed in Ref. (7)]. Indeed, it has been hypothesized that the original function of the AHR might have been developmental regulation and that AHR’s ability to bind HAHs, PAHs, and mediate adaptive responses involving induction of xenobiotic-metabolizing enzymes is a vertebrate innovation (3, 47).
Kynurenine Pathways TDO/IDO and Immune Regulation
Tryptophan metabolites have become one of the most interesting groups of endogenous AHR ligands. Especially kynurenine, an immediate tryptophan metabolite, has been extensively studied in recent years. The metabolic fate of tryptophan is conversion into a range of neuroactive substances, such as serotonin and melatonin. In addition, tryptophan can be catabolized into kynurenine metabolites. Indoleamine-2,3-dioxygenase (IDO1), tryptophan-2,3-dioxygenase (TDO), and recently discovered IDO-related enzyme IDO2 (54) are the first and rate-limiting enzymes converting tryptophan to N-formylkynurenine (55, 56) which is then metabolized to l-kynurenine. Both TDO and IDO1 are thought to be intracellular enzymes (57, 58). Therefore, ATP-binding cassette (ABC) transporter (59), enzyme facilitating cellular entry of tryptophan, is considered to be another rate-limiting factor in tryptophan catabolism (60). l-Kynurenine can be catabolized by three different ways: (1) kynurenine monooxygenase, kynureninase, and 3-hydroxyanthranilic acid oxidase catalyze the synthesis of anthranilic acid, 3-hydroxyanthranilic acid, quinolinic acid, and 3-hydroxykynurenine. (2) Kynurenine aminotransfereases catalyze the synthesis of kynurenic acid. (3) Kynurenine monooxygenase and kynurenine aminotransfereases catalyze the synthesis of xanthurenic acid (Figure 1) [reviewed in Ref. (61)].
Figure 1
In human beings, IDO1 is expressed in various tissues and cell subsets following cytokine stimulation during infection, transplantation, pregnancy, autoimmunity, and neoplasia (62–64). IDO1 is constitutively expressed in many human tumors, creating an immunosuppressive microenvironment as a result of tryptophan depletion and the synthesis of immunosuppressive metabolites such as kynurenine (65, 66). Surprisingly, the expression of IDO1 is controlled by AHR (67) via an autocrine AHR-IL6-STAT3 signaling loop (68). In addition, tryptophan starvation caused by IDO1 activity, together with IDO1-dependent tryptophan catabolism, inhibits the proliferation and activation of antigen-specific T lymphocytes and induces immune tolerance (69–72). In addition, strong evidence suggests that tryptophan catabolism can inhibit T-cell based adaptive immunity by inducing the differentiation of regulatory T cells (Treg) in tumors (62, 73–75). Interestingly, kynurenine is also indicated to promote the differentiation of Tregs (76) while suppressing antigen-specific T-cell responses (77).
In mammals, TDO2 is expressed primarily in the liver (78–80) but can also be detected in other tissues such as the brain (79, 81–83). TDO2 is constitutively expressed and activated in gliomas (84). Recently, lipopolysaccharide was demonstrated to induce TDO2 expression and via consequent production of kynurenine activate AHR-dependent pathways leading to protection against endotoxin challenge (85). In addition, this study also reported that endotoxin tolerance is also mediated by AHR as it was demonstrated that AHR activation by kynurenine elicits the c-SRC dependent phosphorylation of IDO1, which further regulates TGFβ1 production by dendritic cells as well as limits immunopathology triggered by both Salmonella typhimurium and group B Streptococcus (85). Furthermore, TDO2 derived kynurenine has been demonstrated to suppress antitumor immune responses as well as promote survival and motility of tumor cells via AHR in an autocrine manner (84). Note that kynurenic acid can also activate AHR signaling (86).
IDO/TDO Evolution
Unfortunately, not much is know about the kynurenine pathway in nematodes. However, the study of intestinal autofluorescence in relation to tryptophan catabolism revealed that nematodes having a mutated flu-1 gene show altered gut granule autofluoresence as well as decreased kynurenine hydroxylase activity (87). Whereas, flu-2 mutants have reduced kynureninase and gut granule autofluorescence (87). In support of these observations, the C. elegans genome has homologs of kynurenine hydroxylase and kynureninase in the vicinity of flu-1 and flu-2 loci (88).
Additional putative kynurenine pathway related genes have been identified in the C. elegans genome (89) (Figure 2). The knock down of tdo-2, for example, abrogated the gut granule fluorescence (90, 91). Involvement of the C. elegans kynurenine pathway has been demonstrated in neurodegeneration and aging: in a C. elegans model of Parkinson’s disease; RNAi knock down of tdo-2 reduced α-synuclein aggregation-induced toxicity and increased life span (92). However, these effects were proven to be a result of increased tryptophan rather than changed levels of kynurenines (92).

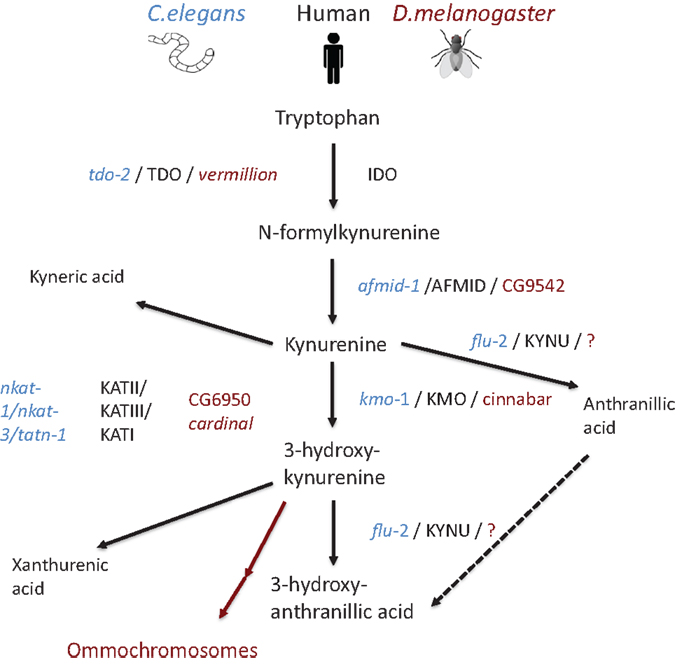

Figure 2
In D. melanogaster, tryptophan catabolism takes place in pigmented eyes (93–95). Remarkably, the role of kynurenine pathway in eye function is conserved from flies to mammals, as it plays an essential role in protecting the lens from ultraviolet irradiation (96). D. melanogaster TDO2 is encoded by vermillion. Flies having the vermillion mutation lack brown pigment in their eyes and have been thought to be deficient for TDO2 activity (93, 94, 97, 98). This was verified when kynurenine pathway and related genes were described in full in 2003 (99). In the same way, as in C. elegans, loss of vermillion function has been demonstrated to be neuroprotective in D. melanogaster model of Huntington’s disease (100). In addition, loss of vermillion function extend the life span of D. melanogaster (101, 102) while resulting gradual memory decline (103). Furthermore, white eye mutants having impaired ABC transport show extended life spans (102). In addition, other D. melanogaster mutants, cardinal and cinnabar, resulting in excess of 3-hydroxykynurenine and neuroprotective kynurenic acid, have been demonstrated to modify the brain plasticity (104).
Conclusion
Aryl hydrocarbon receptor, a member of the dHLH-PAS superfamily, has been identified both in invertebrates and vertebrates, suggesting that the ancestral AHR gene arose over 500 million years ago (3). In vertebrates, especially in mammals, the activity of AHR is mostly regulated by its interactions with ligands. However, in invertebrates (e.g. C. elegans) AHR does not seem to interact with TCDD or any other known ligand (105), and it is constitutively localized in the nuclei of certain cells suggesting ligand-independent activation (34). Similar observations have been made for D. melanogaster’s spineless (29). Although one cannot rule out the possibility that invertebrates require a different kind of AHR ligands than vertebrates, it has been speculated that in early metazoans AHR might have had a ligand-independent roles in development. Thus, the ability of AHR to interact with ligands, bind HAHs and PAHs, and regulate xenobiotic-metabolizing enzymes has been postulated to be a vertebrate novelty (3, 47).
Aryl hydrocarbon receptor signaling modulates development and immune function in mammals (7). Fairly recently, the involvement of tryptophan metabolism has been implicated in regulating both innate and adaptive immune responses. Most importantly, kynurenine produced by TDO or IDO1 during tryptophan catabolism has been identified as an AHR ligand, linking IDO/TDO to AHR. Considering the evolutionary conservation of the kynurenine pathway, it is tempting to speculate that the cross-talk between AHR and IDO/TDO immunoregulatory pathways is a recent evolutionary innovation aimed at providing a mechanism to fine tune the immune response in response to environmental cues provided by the tissue microenvironment. This interpretation suggests that approaches targeting both AHR and IDO/TDO are likely to provide efficient new avenues for the therapeutic manipulation of the immune response.
Statements
Acknowledgments
This project has been supported by the National Multiple Sclerosis Society, the National Institutes of Health, the Sigrid Juselius Foundation, the Paulo Foundation, and the Finnish Multiple Sclerosis Foundation.
Conflict of interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
References
1
DolwickKMSchmidtJVCarverLASwansonHIBradfieldCA. Cloning and expression of a human Ah receptor cDNA. Mol Pharmacol (1993) 44:911–7.
2
DolwickKMSwansonHIBradfieldCA. In vitro analysis of Ah receptor domains involved in ligand-activated DNA recognition. Proc Natl Acad Sci U S A (1993) 90:8566–70.10.1073/pnas.90.18.8566
3
HahnME. Aryl hydrocarbon receptors: diversity and evolution. Chem Biol Interact (2002) 141:131–60.10.1016/S0009-2797(02)00070-4
4
KazlauskasAPoellingerLPongratzI. Evidence that the co-chaperone p23 regulates ligand responsiveness of the dioxin (Aryl hydrocarbon) receptor. J Biol Chem (1999) 274:13519–24.10.1074/jbc.274.19.13519
5
MaQWhitlockJPJr. A novel cytoplasmic protein that interacts with the Ah receptor, contains tetratricopeptide repeat motifs, and augments the transcriptional response to 2,3,7,8-tetrachlorodibenzo-p-dioxin. J Biol Chem (1997) 272:8878–84.10.1074/jbc.272.14.8878
6
PerdewGH. Association of the Ah receptor with the 90-kDa heat shock protein. J Biol Chem (1988) 263:13802–5.
7
QuintanaFJSherrDH. Aryl hydrocarbon receptor control of adaptive immunity. Pharmacol Rev (2013) 65:1148–61.10.1124/pr.113.007823
8
CoxMBMillerCAIII. Cooperation of heat shock protein 90 and p23 in aryl hydrocarbon receptor signaling. Cell Stress Chaperones (2004) 9:4–20.10.1379/460.1
9
FukunagaBNProbstMRReisz-PorszaszSHankinsonO. Identification of functional domains of the aryl hydrocarbon receptor. J Biol Chem (1995) 270:29270–8.10.1074/jbc.270.49.29270
10
IkutaTKobayashiYKawajiriK. Phosphorylation of nuclear localization signal inhibits the ligand-dependent nuclear import of aryl hydrocarbon receptor. Biochem Biophys Res Commun (2004) 317:545–50.10.1016/j.bbrc.2004.03.076
11
ReyesHReisz-PorszaszSHankinsonO. Identification of the Ah receptor nuclear translocator protein (Arnt) as a component of the DNA binding form of the Ah receptor. Science (1992) 256:1193–5.10.1126/science.256.5060.1193
12
AdachiJMoriYMatsuiSMatsudaT. Comparison of gene expression patterns between 2,3,7,8-tetrachlorodibenzo-p-dioxin and a natural arylhydrocarbon receptor ligand, indirubin. Toxicol Sci (2004) 80:161–9.10.1093/toxsci/kfh129
13
HaoNLeeKLFurnessSGBBosdotterCPoellingerLWhitelawML. Xenobiotics and loss of cell adhesion drive distinct transcriptional outcomes by aryl hydrocarbon receptor signaling. Mol Pharmacol (2012) 82:1082–93.10.1124/mol.112.078873
14
LoRMatthewsJ. High-resolution genome-wide mapping of AHR and ARNT binding sites by ChIP-Seq. Toxicol Sci (2012) 130:349–61.10.1093/toxsci/kfs253
15
MurrayIAMoralesJLFlavenyCADinataleBCChiaroCGowdahalliKet alEvidence for ligand-mediated selective modulation of aryl hydrocarbon receptor activity. Mol Pharmacol (2010) 77:247–54.10.1124/mol.109.061788
16
OhtakeFFujii-KuriyamaYKatoS. AHR acts as an E3 ubiquitin ligase to modulate steroid receptor functions. Biochem Pharmacol (2009) 77:474–84.10.1016/j.bcp.2008.08.034
17
OhtakeFBabaAFujii-KuriyamaYKatoS. Intrinsic AHR function underlies cross-talk of dioxins with sex hormone signalings. Biochem Biophys Res Commun (2008) 370:541–6.10.1016/j.bbrc.2008.03.054
18
OhtakeFBabaATakadaIOkadaMIwasakiKMikiHet alDioxin receptor is a ligand-dependent E3 ubiquitin ligase. Nature (2007) 446:562–6.10.1038/nature05683
19
DavarinosNAPollenzRS. Aryl hydrocarbon receptor imported into the nucleus following ligand binding is rapidly degraded via the cytosplasmic proteasome following nuclear export. J Biol Chem (1999) 274:28708–15.10.1074/jbc.274.40.28708
20
MaQBaldwinKT. 2,3,7,8-tetrachlorodibenzo-p-dioxin-induced degradation of aryl hydrocarbon receptor (AHR) by the ubiquitin-proteasome pathway. Role of the transcription activaton and DNA binding of AHR. J Biol Chem (2000) 275:8432–8.10.1074/jbc.275.12.8432
21
PollenzRSBarbourER. Analysis of the complex relationship between nuclear export and aryl hydrocarbon receptor-mediated gene regulation. Mol Cell Biol (2000) 20:6095–104.10.1128/MCB.20.16.6095-6104.2000
22
WallerCLMcKinneyJD. Three-dimensional quantitative structure-activity relationships of dioxins and dioxin-like compounds: model validation and Ah receptor characterization. Chem Res Toxicol (1995) 8:847–58.10.1021/tx00048a005
23
CarlsonDBPerdewGH. A dynamic role for the Ah receptor in cell signaling? Insights from a diverse group of Ah receptor interacting proteins. J Biochem Mol Toxicol (2002) 16:317–25.10.1002/jbt.10051
24
DenisonMSNagySR. Activation of the aryl hydrocarbon receptor by structurally diverse exogenous and endogenous chemicals. Annu Rev Pharmacol Toxicol (2003) 43:309–34.10.1146/annurev.pharmtox.43.100901.135828
25
CasperRFQuesneMRogersIMShirotaTJolivetAMilgromEet alResveratrol has antagonist activity on the aryl hydrocarbon receptor: implications for prevention of dioxin toxicity. Mol Pharmacol (1999) 56:784–90.
26
SavouretJFAntenosMQuesneMXuJMilgromECasperRF. 7-ketocholesterol is an endogenous modulator for the arylhydrocarbon receptor. J Biol Chem (2001) 276:3054–9.10.1074/jbc.M005988200
27
PetersonKJButterfieldNJ. Origin of the Eumetazoa: testing ecological predictions of molecular clocks against the Proterozoic fossil record. Proc Natl Acad Sci U S A (2005) 102:9547–52.10.1073/pnas.0503660102
28
PetersonKJLyonsJBNowakKSTakacsCMWargoMJMcPeekMA. Estimating metazoan divergence times with a molecular clock. Proc Natl Acad Sci U S A (2004) 101:6536–41.10.1073/pnas.0401670101
29
ButlerRAKelleyMLPowellWHHahnMEVan BenedenRJ. An aryl hydrocarbon receptor (AHR) homologue from the soft-shell clam, Mya arenaria: evidence that invertebrate AHR homologues lack 2,3,7,8-tetrachlorodibenzo-p-dioxin and beta-naphthoflavone binding. Gene (2001) 278:223–34.10.1016/S0378-1119(01)00724-7
30
EmmonsRBDuncanDEstesPAKiefelPMosherJTSonnenfeldMet alThe spineless-aristapedia and tango bHLH-PAS proteins interact to control antennal and tarsal development in Drosophila. Development (1999) 126:3937–45.
31
Powell-CoffmanJABradfieldCAWoodWB. Caenorhabditis elegans orthologs of the aryl hydrocarbon receptor and its heterodimerization partner the aryl hydrocarbon receptor nuclear translocator. Proc Natl Acad Sci U S A (1998) 95:2844–9.10.1073/pnas.95.6.2844
32
JonesLMRaysonSJFlemmingAJUrwinPE. Adaptive and specialised transcriptional responses to xenobiotic stress in Caenorhabditis elegans are regulated by nuclear hormone receptors. PLoS One (2013) 8:e69956.10.1371/journal.pone.0069956
33
HuangXPowell-CoffmanJAJinY. The AHR-1 aryl hydrocarbon receptor and its co-factor the AHA-1 aryl hydrocarbon receptor nuclear translocator specify GABAergic neuron cell fate in C. elegans. Development (2004) 131:819–28.10.1242/dev.00959
34
QinHPowell-CoffmanJA. The Caenorhabditis elegans aryl hydrocarbon receptor, AHR-1, regulates neuronal development. Dev Biol (2004) 270:64–75.10.1016/j.ydbio.2004.02.004
35
SmithCJO’BrienTChatzigeorgiouMSpencerWCFeingold-LinkEHussonSJet alSensory neuron fates are distinguished by a transcriptional switch that regulates dendrite branch stabilization. Neuron (2013) 79:266–80.10.1016/j.neuron.2013.05.009
36
QinHZhaiZPowell-CoffmanJA. The Caenorhabditis elegans AHR-1 transcription complex controls expression of soluble guanylate cyclase genes in the URX neurons and regulates aggregation behavior. Dev Biol (2006) 298:606–15.10.1016/j.ydbio.2006.07.017
37
de BonoMBargmannCI. Natural variation in a neuropeptide Y receptor homolog modifies social behavior and food response in C. elegans. Cell (1998) 94:679–89.10.1016/S0092-8674(00)81609-8
38
AarnioVStorvikMLehtonenMAsikainenSReisnerKCallawayJet alFatty acid composition and gene expression profiles are altered in aryl hydrocarbon receptor-1 mutant Caenorhabditis elegans. Comp Biochem Physiol C Toxicol Pharmacol (2010) 151:318–24.10.1016/j.cbpc.2009.12.006
39
BoverhofDRBurgoonLDTashiroCChittimBHarkemaJRJumpDBet alTemporal and dose-dependent hepatic gene expression patterns in mice provide new insights into TCDD-Mediated hepatotoxicity. Toxicol Sci (2005) 85:1048–63.10.1093/toxsci/kfi162
40
SatoSShirakawaHTomitaSOhsakiYHaketaKTooiOet alLow-dose dioxins alter gene expression related to cholesterol biosynthesis, lipogenesis, and glucose metabolism through the aryl hydrocarbon receptor-mediated pathway in mouse liver. Toxicol Appl Pharmacol (2008) 229:10–9.10.1016/j.taap.2007.12.029
41
DuncanDMBurgessEADuncanI. Control of distal antennal identity and tarsal development in Drosophila by spineless-aristapedia, a homolog of the mammalian dioxin receptor. Genes Dev (1998) 12:1290–303.10.1101/gad.12.9.1290
42
SonnenfeldMWardMNystromGMosherJStahlSCrewsS. The Drosophila tango gene encodes a bHLH-PAS protein that is orthologous to mammalian Arnt and controls CNS midline and tracheal development. Development (1997) 124:4571–82.
43
KudoKTakeuchiTMurakamiYEbinaMKikuchiH. Characterization of the region of the aryl hydrocarbon receptor required for ligand dependency of transactivation using chimeric receptor between Drosophila and Mus musculus. Biochim Biophys Acta (2009) 1789:477–86.10.1016/j.bbagrm.2009.06.003
44
StruhlG. Spineless-aristapedia: a homeotic gene that does not control the development of specific compartments in Drosophila. Genetics (1982) 102:737–49.
45
WernetMFMazzoniEOCelikADuncanDMDuncanIDesplanC. Stochastic spineless expression creates the retinal mosaic for colour vision. Nature (2006) 440:174–80.10.1038/nature04615
46
KimMDJanLYJanYN. The bHLH-PAS protein spineless is necessary for the diversification of dendrite morphology of Drosophila dendritic arborization neurons. Genes Dev (2006) 20:2806–19.10.1101/gad.1459706
47
HahnMEKarchnerSIEvansBRFranksDGMersonRRLapseritisJM. Unexpected diversity of aryl hydrocarbon receptors in non-mammalian vertebrates: insights from comparative genomics. J Exp Zoolog A Comp Exp Biol (2006) 305:693–706.10.1002/jez.a.323
48
Fernandez-SalgueroPMHilbertDMRudikoffSWardJMGonzalezFJ. Aryl-hydrocarbon receptor-deficient mice are resistant to 2,3,7,8-tetrachlorodibenzo-p-dioxin-induced toxicity. Toxicol Appl Pharmacol (1996) 140:173–9.10.1006/taap.1996.0210
49
MimuraJYamashitaKNakamuraKMoritaMTakagiTNNakaoKet alLoss of teratogenic response to 2,3,7,8-tetrachlorodibenzo-p-dioxin (TCDD) in mice lacking the Ah (dioxin) receptor. Genes Cells (1997) 2:645–54.10.1046/j.1365-2443.1997.1490345.x
50
BenedictJCLinTMLoefflerIKPetersonREFlawsJA. Physiological role of the aryl hydrocarbon receptor in mouse ovary development. Toxicol Sci (2000) 56:382–8.10.1093/toxsci/56.2.382
51
LahvisGPLindellSLThomasRSMcCuskeyRSMurphyCGloverEet alPortosystemic shunting and persistent fetal vascular structures in aryl hydrocarbon receptor-deficient mice. Proc Natl Acad Sci U S A (2000) 97:10442–7.10.1073/pnas.190256997
52
RoblesRMoritaYMannKKPerezGIYangSMatikainenTet alThe aryl hydrocarbon receptor, a basic helix-loop-helix transcription factor of the PAS gene family, is required for normal ovarian germ cell dynamics in the mouse. Endocrinology (2000) 141:450–3.10.1210/endo.141.1.7374
53
SchmidtJVSuGHReddyJKSimonMCBradfieldCA. Characterization of a murine AHR null allele: involvement of the Ah receptor in hepatic growth and development. Proc Natl Acad Sci U S A (1996) 93:6731–6.10.1073/pnas.93.13.6731
54
BallHJSanchez-PerezAWeiserSAustinCJDAstelbauerFMiuJet alCharacterization of an indoleamine 2,3-dioxygenase-like protein found in humans and mice. Gene (2007) 396:203–13.10.1016/j.gene.2007.04.010
55
ShimizuTNomiyamaSHirataFHayaishiO. Indoleamine 2,3-dioxygenase. Purification and some properties. J Biol Chem (1978) 253:4700–6.
56
TakikawaOKuroiwaTYamazakiFKidoR. Mechanism of interferon-gamma action. Characterization of indoleamine 2,3-dioxygenase in cultured human cells induced by interferon-gamma and evaluation of the enzyme-mediated tryptophan degradation in its anticellular activity. J Biol Chem (1988) 263:2041–8.
57
KudoYBoydCASargentILRedmanCW. Tryptophan degradation by human placental indoleamine 2,3-dioxygenase regulates lymphocyte proliferation. J Physiol (2001) 535:207–15.10.1111/j.1469-7793.2001.00207.x
58
PfefferkornERRebhunSEckelM. Characterization of an indoleamine 2,3-dioxygenase induced by gamma-interferon in cultured human fibroblasts. J Interferon Res (1986) 6:267–79.10.1089/jir.1986.6.267
59
MackenzieSMBrookerMRGillTRCoxGBHowellsAJEwartGD. Mutations in the white gene of Drosophila melanogaster affecting ABC transporters that determine eye colouration. Biochim Biophys Acta (1999) 1419:173–85.10.1016/S0005-2736(99)00064-4
60
SullivanDTBellLAPatonDRSullivanMC. Genetic and functional analysis of tryptophan transport in Malpighian tubules of Drosophila. Biochem Genet (1980) 18:1109–30.10.1007/BF00484342
61
CampbellBMCharychELeeAWMöllerT. Kynurenines in CNS disease: regulation by inflammatory cytokines. Front Neurosci (2014) 8:12.10.3389/fnins.2014.00012
62
CurtiATrabanelliSSalvestriniVBaccaraniMLemoliRM. The role of indoleamine 2,3-dioxygenase in the induction of immune tolerance: focus on hematology. Blood (2009) 113:2394–401.10.1182/blood-2008-07-144485
63
LiuXLiuYDingMWangX. Reduced expression of indoleamine 2,3-dioxygenase participates in pathogenesis of preeclampsia via regulatory T cells. Mol Med Rep (2011) 4:53–8.10.3892/mmr.2010.395
64
Maby-El HajjamiHAmé-ThomasPPangaultCTributODeVosJJeanRet alFunctional alteration of the lymphoma stromal cell niche by the cytokine context: role of indoleamine-2,3 dioxygenase. Cancer Res (2009) 69:3228–37.10.1158/0008-5472.CAN-08-3000
65
MunnDHMellorAL. Indoleamine 2,3-dioxygenase and tumor-induced tolerance. J Clin Invest (2007) 117:1147–54.10.1172/JCI31178
66
PlattenMWickWVan den EyndeBJ. Tryptophan catabolism in cancer: beyond IDO and tryptophan depletion. Cancer Res (2012) 72:5435–40.10.1158/0008-5472.CAN-12-0569
67
VogelCFAGothSRDongBPessahINMatsumuraF. Aryl hydrocarbon receptor signaling mediates expression of indoleamine 2,3-dioxygenase. Biochem Biophys Res Commun (2008) 375:331–5.10.1016/j.bbrc.2008.07.156
68
LitzenburgerUMOpitzCASahmFRauschenbachKJTrumpSWinterMet alConstitutive IDO expression in human cancer is sustained by an autocrine signaling loop involving IL-6, STAT3 and the AHR. Oncotarget (2014) 5:1038–51.
69
FrumentoGRotondoRTonettiMDamonteGBenattiUFerraraGB. Tryptophan-derived catabolites are responsible for inhibition of T and natural killer cell proliferation induced by indoleamine 2,3-dioxygenase. J Exp Med (2002) 196:459–68.10.1084/jem.20020121
70
GrohmannUFallarinoFPuccettiP. Tolerance, DCs and tryptophan: much ado about IDO. Trends Immunol (2003) 24:242–8.10.1016/S1471-4906(03)00072-3
71
MellorALKeskinDBJohnsonTChandlerPMunnDH. Cells expressing indoleamine 2,3-dioxygenase inhibit T cell responses. J Immunol (2002) 1950(168):3771–6.10.4049/jimmunol.168.8.3771
72
SznurkowskiJJZawrockiAEmerichJSznurkowskaKBiernatW. Expression of indoleamine 2,3-dioxygenase predicts shorter survival in patients with vulvar squamous cell carcinoma (vSCC) not influencing on the recruitment of FOXP3-expressing regulatory T cells in cancer nests. Gynecol Oncol (2011) 122:307–12.10.1016/j.ygyno.2011.04.050
73
CurtiATrabanelliSOnofriCAluigiMSalvestriniVOcadlikovaDet alIndoleamine 2,3-dioxygenase-expressing leukemic dendritic cells impair a leukemia-specific immune response by inducing potent T regulatory cells. Haematologica (2010) 95:2022–30.10.3324/haematol.2010.025924
74
CurtiAPandolfiSValzasinaBAluigiMIsidoriAFerriEet alModulation of tryptophan catabolism by human leukemic cells results in the conversion of CD25- into CD25+ T regulatory cells. Blood (2007) 109:2871–7.10.1182/blood-2006-07-036863
75
LevinaVSuYGorelikE. Immunological and nonimmunological effects of indoleamine 2,3-dioxygenase on breast tumor growth and spontaneous metastasis formation. Clin Dev Immunol (2012) 2012:173029.10.1155/2012/173029
76
MezrichJDFechnerJHZhangXJohnsonBPBurlinghamWJBradfieldCA. An interaction between kynurenine and the aryl hydrocarbon receptor can generate regulatory T cells. J Immunol (2010) 1950(185):3190–8.10.4049/jimmunol.0903670
77
PlattenMHoPPYoussefSFontouraPGarrenHHurEMet alTreatment of autoimmune neuroinflammation with a synthetic tryptophan metabolite. Science (2005) 310:850–5.10.1126/science.1117634
78
BritanAMaffreVToneSDrevetJR. Quantitative and spatial differences in the expression of tryptophan-metabolizing enzymes in mouse epididymis. Cell Tissue Res (2006) 324:301–10.10.1007/s00441-005-0151-7
79
HaberRBessetteDHulihan-GiblinBDurcanMJGoldmanD. Identification of tryptophan 2,3-dioxygenase RNA in rodent brain. J Neurochem (1993) 60:1159–62.10.1111/j.1471-4159.1993.tb03269.x
80
YuasaHJTakuboMTakahashiAHasegawaTNomaHSuzukiT. Evolution of vertebrate indoleamine 2,3-dioxygenases. J Mol Evol (2007) 65:705–14.10.1007/s00239-007-9049-1
81
MillerCLLlenosICDulayJRBarilloMMYolkenRHWeisS. Expression of the kynurenine pathway enzyme tryptophan 2,3-dioxygenase is increased in the frontal cortex of individuals with schizophrenia. Neurobiol Dis (2004) 15:618–29.10.1016/j.nbd.2003.12.015
82
MinatogawaYSuzukiSAndoYToneSTakikawaO. Tryptophan pyrrole ring cleavage enzymes in placenta. Adv Exp Med Biol (2003) 527:425–34.10.1007/978-1-4615-0135-0_50
83
SuzukiSTonéSTakikawaOKuboTKohnoIMinatogawaY. Expression of indoleamine 2,3-dioxygenase and tryptophan 2,3-dioxygenase in early concepti. Biochem J (2001) 355:425–9.10.1042/0264-6021:3550425
84
OpitzCALitzenburgerUMSahmFOttMTritschlerITrumpSet alAn endogenous tumour-promoting ligand of the human aryl hydrocarbon receptor. Nature (2011) 478:197–203.10.1038/nature10491
85
BessedeAGargaroMPallottaMTMatinoDServilloGBrunacciCet alAryl hydrocarbon receptor control of a disease tolerance defence pathway. Nature (2014) 511:184–90.10.1038/nature13323
86
DiNataleBCMurrayIASchroederJCFlavenyCALahotiTSLaurenzanaEMet alKynurenic acid is a potent endogenous aryl hydrocarbon receptor ligand that synergistically induces interleukin-6 in the presence of inflammatory signaling. Toxicol Sci (2010) 115:89–97.10.1093/toxsci/kfq024
87
SiddiquiSSBabuP. Kynurenine hydroxylase mutants of the nematode Caenorhabditis elegans. Mol Gen Genet (1980) 179:21–4.10.1007/BF00268441
88
AltschulSFGishWMillerWMyersEWLipmanDJ. Basic local alignment search tool. J Mol Biol (1990) 215:403–10.10.1016/S0022-2836(05)80360-2
89
Van der GootATNollenEAA. Tryptophan metabolism: entering the field of aging and age-related pathologies. Trends Mol Med (2013) 19:336–44.10.1016/j.molmed.2013.02.007
90
CoburnCAllmanEMahantiPBenedettoACabreiroFPincusZet alAnthranilate fluorescence marks a calcium-propagated necrotic wave that promotes organismal death in C. elegans. PLoS Biol (2013) 11:e1001613.10.1371/journal.pbio.1001613
91
CoburnCGemsD. The mysterious case of the C. elegans gut granule: death fluorescence, anthranilic acid and the kynurenine pathway. Front Genet (2013) 4:151.10.3389/fgene.2013.00151
92
Van der GootATZhuWVázquez-ManriqueRPSeinstraRIDettmerKMichelsHet alDelaying aging and the aging-associated decline in protein homeostasis by inhibition of tryptophan degradation. Proc Natl Acad Sci U S A (2012) 109:14912–7.10.1073/pnas.1203083109
93
BaillieDLChovnickA. Studies on the genetic control of tryptophan pyrrolase in Drosophila melanogaster. Mol Gen Genet (1971) 112:341–53.10.1007/BF00334435
94
TartofKD. Interacting gene systems: I. the regulation of tryptophan pyrrolase by the vermilion-suppressor of vermilion system in Drosophila. Genetics (1969) 62:781–95.
95
TearleR. Tissue specific effects of ommochrome pathway mutations in Drosophila melanogaster. Genet Res (1991) 57:257–66.10.1017/S0016672300029402
96
RobertsJE. Ocular phototoxicity. J Photochem Photobiol B (2001) 64:136–43.10.1016/S1011-1344(01)00196-8
97
BeadleGWEphrussiB. Development of eye colors in Drosophila: transplantation experiments with suppressor of vermilion. Proc Natl Acad Sci U S A (1936) 22:536–40.10.1073/pnas.22.9.536
98
SearlesLLVoelkerRA. Molecular characterization of the Drosophila vermilion locus and its suppressible alleles. Proc Natl Acad Sci U S A (1986) 83:404–8.10.1073/pnas.83.2.404
99
Savvateeva-PopovaEVPopovAVHeinemannTRiedererP. Drosophila mutants of the kynurenine pathway as a model for ageing studies. Adv Exp Med Biol (2003) 527:713–22.10.1007/978-1-4615-0135-0_84
100
CampesanSGreenEWBredaCSathyasaikumarKVMuchowskiPJSchwarczRet alThe kynurenine pathway modulates neurodegeneration in a Drosophila model of Huntington’s disease. Curr Biol (2011) 21:961–6.10.1016/j.cub.2011.04.028
101
OxenkrugGF. The extended life span of Drosophila melanogaster eye-color (white and vermilion) mutants with impaired formation of kynurenine. J Neural Transm (2010) 1996(117):23–6.10.1007/s00702-009-0341-7
102
OxenkrugGFNavrotskayaVVoroboyvaLSummergradP. Extension of life span of Drosophila melanogaster by the inhibitors of tryptophan-kynurenine metabolism. Fly (Austin) (2011) 5:307–9.10.4161/fly.5.4.18414
103
SavvateevaEVPopovAVKamyshevNGIliadiKGBraginaJVHeisenbergMet alAge-dependent changes in memory and mushroom bodies in the Drosophila mutant vermilion deficient in the kynurenine pathway of tryptophan metabolism. Ross Fiziol Zh Im I M Sechenova (1999) 85:167–83.
104
SavvateevaEPopovAKamyshevNBraginaJHeisenbergMSenitzDet alAge-dependent memory loss, synaptic pathology and altered brain plasticity in the Drosophila mutant cardinal accumulating 3-hydroxykynurenine. J Neural Transm (2000) 1996(107):581–601.10.1007/s007020070080
105
Powell-CoffmanJAQinH. Invertebrate AHR homologs: ancestral functions in sensory systems. In: PohjanvirtaR, editor. The AH Receptor in Biology and Toxicology. Hoboken, NJ: John Wiley & Sons, Inc (2011). p. 405–11.
