Rajveer Singh1†
Navneet Kaur1†
Umesh Preethi Praba1
Gurwinder Kaur1
Mohammad Jafar Tanin2
Pankaj Kumar1*
Kumari Neelam1
Jagdeep Singh Sandhu1
Yogesh Vikal1*- 1School of Agricultural Biotechnology, Punjab Agricultural University, Ludhiana, India
- 2Department of Plant Breeding and Genetics, Punjab Agricultural University, Ludhiana, India
As a staple food crop, rice has gained mainstream attention in genome engineering for its genetic improvement. Genome engineering technologies such as transgenic and genome editing have enabled the significant improvement of target traits in relation to various biotic and abiotic aspects as well as nutrition, for which genetic diversity is lacking. In comparison to conventional breeding, genome engineering techniques are more precise and less time-consuming. However, one of the major issues with biotech rice commercialization is the utilization of selectable marker genes (SMGs) in the vector construct, which when incorporated into the genome are considered to pose risks to human health, the environment, and biodiversity, and thus become a matter of regulation. Various conventional strategies (co-transformation, transposon, recombinase systems, and MAT-vector) have been used in rice to avoid or remove the SMG from the developed events. However, the major limitations of these methods are; time-consuming, leftover cryptic sequences in the genome, and there is variable frequency. In contrast to these methods, CRISPR/Cas9-based marker excision, marker-free targeted gene insertion, programmed self-elimination, and RNP-based delivery enable us to generate marker-free engineered rice plants precisely and in less time. Although the CRISPR/Cas9-based SMG-free approaches are in their early stages, further research and their utilization in rice could help to break the regulatory barrier in its commercialization. In the current review, we have discussed the limitations of traditional methods followed by advanced techniques. We have also proposed a hypothesis, “DNA-free marker-less transformation” to overcome the regulatory barriers posed by SMGs.
1 Introduction
The green revolution has led to remarkable progress through high-yielding crop varieties worldwide. Food security is the key mandate of agriculture systems to feed the ever-exceeding global human population (expected to be 10 billion by 2050). Rice (Oryza sativa) is one of the major staple food crops worldwide. Asian countries constitute approximately 91% of rice, preceded by South America, North and Central America, Europe, and Oceania (Fraiture et al., 2016). However, its production has faced constant challenges due to the biotic and abiotic stresses that have emerged through climate change (Stallworth et al., 2020; Hernandez-Soto et al., 2021). Rice genetic improvement has been made through conventional breeding, molecular approaches, and genetic and genome engineering techniques to enhance yield potential and resistance to biotic and abiotic stresses (Das and Rao, 2015; Singh et al., 2020). Although molecular breeding is a leading method of crop improvement, including biotic and abiotic stresses (Waseem et al., 2021; Islam et al., 2022), during the continuous domestication and selection, significant genetic diversity has been lost (Singh et al., 2016). Moreover, breeding programs require ample time to transfer certain traits from wild relatives into elite cultivars, generally employing foreground and repeated background selections.
An alternative to these breeding strategies, genome engineering approaches represent a new way to tailor crop architecture in a comparably short time interval. At the beginning of the last decade (in the year 2013) the emergence of a new genome-editing tool, “Cluster Interspaced Short Palindromic Repeat” and its associated Cas9 nuclease (CRISPR/Cas9) has also enabled us to design the genetic architecture of rice for various traits including biotic stresses, abiotic stresses and other qualitative traits (Fiaz et al., 2021). For instance, transgenic rice expressing Dehydration-Responsive Element-Binding (DREB) genes for drought and salt tolerance (Lata and Prasad, 2011), Cry gene for insect resistance (Estiati, 2020) have been developed. Lectin genes such as Allium Sativum leaf lectin (ASAL) for sap-sucking insects (Yarasi et al., 2008) and Cry1Ac::ASAL hybrid fusion protein for multi-insect resistance (Boddupally et al., 2018) have been incorporated into different rice cultivars. Moreover, transgenes have been targeted for bacterial blight, blast, and sheath blight resistance (Sawada et al., 2004; Molla et al., 2020), nutritional traits like Golden rice enriched with beta-carotene (Paine et al., 2005), and many others, which have significantly improved its yield and quality.
Despite the great potential of genome engineering technologies, the journey of genetically engineered crops from labs to fields and finally to commercial release has been scrutinized substantially and blocked due to the socio-ethical concerns associated with their release process. Fraiture et al. (2016) have reported that the status of biotech rice is restricted to laboratory experiments or field evaluation. Garg et al. (2018) also inferred the maximum research in transgenics but minimum utilization at the commercial level. Apart from regulatory concerns of transgene expression (transgenic research) and off-target effects (genome editing research) in engineered rice, the main issue is the use of selectable marker genes (SMGs) placed next to the genetic construct in the transfer-DNA (T-DNA) region of the plasmid. Neomycin phosphotransferase II (npt II) and hygromycin phosphotransferase (hpt) are routinely used antibiotic resistance marker genes (ARMGs) (Hiei et al., 1997; Twyman et al., 2002; Breyer et al., 2014). The ARMGs present in transgenics is of no use but is of regulatory concern for the release and commercialization of transgenic crops (Breyer et al., 2014). The harness of ARMGs in transgenic plants has been questioned over the past few years as horizontal gene transfer from plant to soil bacteria or human intestinal microbes by plant products consumed as food. However, all these apprehensions are merely suppositional issues lacking scientific shreds of evidence (Ramessar et al., 2007; Breyer et al., 2014). The use of ARMGs in Genetically Modified (GM) plants is opposed strictly by many national governments, Non-Governmental Organizations (NGOs), industries, and regulators. The European Union (EU) raises concerns about the use of ARMGs and strictly opposes them in Genetically Modified Organisms (GMOs), as they may adversely affect human health and cause environmental risks (European Parliament Council of the European Union, 2001).
Alternative to selective antibiotics, second-generation non-antibiotic SMGs have also been employed in rice genetic transformation e.g., herbicide resistance gene for bialaphos (bar) (Rathore et al., 1993; Zhao et al., 2007). However, the use of herbicide resistant genes has several limitations related to the environment (Breyer et al., 2014). Additionally, hpt in Golden rice 1 (GR1) was opposed strictly due public perception of it, so new Golden rice 2 (GR2) events were developed by Syngenta. Instead of having an antibiotic marker, the phosphomannose isomerase (pmi) gene was used (Paine et al., 2005). More recently, phosphite oxidoreductase (ptxd) has been utilized as a selection marker in rice (Dormatey et al., 2021; Liu et al., 2021). A battery of scorable marker (positive selection) genes such as gus (ß-glucuronidase), gfp (green fluorescent protein), luc (firefly luciferase) and manA (mannose A) have been employed for screening transgenic rice to overcome the limitations posed by the use of antibiotics and herbicide resistant genes (Sah et al., 2014). A series of systems have been developed to avoid the use of SMGs and their removal from transgenic plants. The SMGs-free system includes co-transformation, site-specific recombinase, transposon-based, MAT (Multi Auto-Transformation) vector, DRB (Double Right Border)-binary vector, and marker-free transformation, which have been discussed in great detail in many reviews (Chong-Pérez and Angenon, 2013; Yau and Stewart, 2013; Breyer et al., 2014). The scope of the current review is not only to account in brief for these systems but also to discuss recently developed marker-free systems and their utility in developing rice free from selectable markers. Thus, it is imperative to study its current regulatory status to understand future visions for the commercialization of marker-free biotech rice.
2 Account on Selectable Marker Genes-Free Engineered Rice
Plant genetic engineering would not have become possible without selectable markers. The selectable markers allow the transformed cells to grow favorably where otherwise they face competition and being overgrown by non-transformed cells. The percent use of specific selectable markers in rice is represented in Figure 1A. The study showed that the most widely used SMG is hpt (74.6%), followed by npt II (12.6%), Bar (4.7%), fluorescence, and isopentyl transferase (ipt) (3.1%), and pmi (1.5%) genes. The decline in the use of the Bar gene as the selectable marker is due to its positional effect and pleiotropic effect on the expression of plant genes (Miki et al., 2009). It is also worth accounting for the technique used in rice as a percentage, based on several publications (1996–2021) (Figure 1B). The co-transformation technique almost accounts for 62.2% of rice transformation, followed by site-specific recombination methods (20.5%), transposon (7.4%), and CRISPR (Clustered regularly interspaced short palindromic repeats)-based methods (7.5%). It is interesting to study the trend of various SMG-free technologies used so far from their beginning in rice. A timeline of diverse SMG-free techniques in rice has been retrieved from literature (1996–2021) and illustrated based on their year-wise use (Figure 1C). The most premier and prevalent technique used in rice is co-transformation was first reported in 1996 (Komari et al., 1996), with the most recent publication in 2018 (Rajadurai et al., 2018). It is anticipated that more publications on this subject will follow in the future. Besides co-transformation, site-specific recombination techniques including Reversible Recombinase system (R/Rs), Cyclic recombinase enzyme (Cre/lox), and Flippase/Flippase recognition target (FLP/FRT) are other methods of excising-out SMG using homologous recombination. These have been widely adopted in rice between 2001 and 2017, starting with R/Rs (2001–2002), but later on, the commonly used recombinase system was largely Cre/lox (2005–2017). However, only a single report on the FLP/FRT system use is available in rice (Woo et al., 2015). Another method of auto-excision used in rice is the transposon-based removal of SMG between 2002 and 2021. The majority of approaches used transposon system Ac/Ds (reported in five publications to date). “Piggyback” transposon from the cabbage lopper moth (discussed in the next section) was used in one study (Nishizawa-Yokoi et al., 2015).
FIGURE 1. Status of selectable markers used for the generation of SMG-free transgenic rice. Representation of various selectable markers contribution (A), Timeline representation of SMG-free techniques used in rice (B), Proportion of different molecular approaches in developing SMG-free engineered rice (C).
With the dawn of CRISPR as a genome editing tool, its flexibility and versatility have allowed us to use it as a tool for removing SMG from engineered plants. Recently, there have been reports of the use of CRISPR/Cas9 to remove selectable markers using homology-directed repair (HDR) based marker excision (Dong et al., 2020), marker-free targeted gene insertion (Tan et al., 2022), and transgene-free Ribonucleoprotein (RNP) based genome editing in rice (Banakar et al., 2020). A comprehensive list of techniques used to produce SMG-free rice is shown in Table 1. The numerical data of these SMG-free techniques during their current and historical use in rice might assist with correlating their efficiency, ease, and even their regulatory aspects.
TABLE 1. Summary of selectable markers and techniques used to create SMG-free engineered rice.
2.1 Traditional Methods to Make Selectable Marker Genes-Free Rice
The foremost concern of SMGs in engineered crops is socio-ethical issues and transgene expression. Even several copies of SMGs may result in the silencing of the essential genes of plants and affect plant metabolism (Rosellini, 2012). The batteries of methods have been developed to make marker-free transgenic crops, including rice, as discussed below.
2.1.1 Co-Transformation
The maximum utilization of co-transformation is due to its simplicity and safety compared to other traditional methods. This method uses two T-DNAs containing the gene of interest (GOI) and the SMG, respectively. The chance of independent integration of GOI and SMG at different loci in the plant genome allows us to eliminate SMG by simple selection in subsequent generations (Breyer et al., 2014). The integration of SMG and GOI independently could be achieved in three ways: 1) using two strains of Agrobacterium, each with T-DNA, one with SMG, and the other with GOI. 2) Using a single Agrobacterium harboring two plasmids having independent SMG and GOI. 3) Using a single plasmid carrying two independent T-DNA regions in a single Agrobacterium. Co-transformation has been employed successfully in many monocots and dicots (Breyer et al., 2014). The best example is GR1, where the hygromycin resistance marker gene was eliminated (Al-Babili and Beyer, 2005). Later on, marker-free Bt transgenic rice was generated (Woo et al., 2015).
The efficiency of co-transformation utilizing a single vector containing two T-DNAs has been linked with a high frequency of (linked co-delivery of) the target gene and marker gene and interference with non-T-DNA sequences (McCormac et al., 2001). The co-transformation method is more efficient compared to other approaches and still it is under utilization in rice to date (Xu et al., 2017; Rajadurai et al., 2018). Another modification of the co-transformation vector system is the use of a DRB binary vector system. A DRB binary vector contains two copies of T-DNA right-border (RB) sequences adjoining a selectable marker followed by a GOI and behind with a copy of the left border (LB) sequence. Two different kinds of T-DNA could be inserted, the first RB contains the SMG and the GOI together, and the second RB contains only the GOI. Consequently, these could segregate away from each other, with the progeny resulting in GOI. Lu et al. (2001) followed this method and obtained positive progeny plants with only GOI for rice ragged stunt virus (RRSV)-derived synthetic resistance gene. Similarly, Xia et al. (2006) utilized the DRB-vector technique to make marker-free and vector backbone-free transgenic rice expressing Xa21 gene for bacterial blight disease.
2.1.2 Site-Specific Recombination
Recombinase systems have also been used widely in various crops. Recombination is a well-known concept in biological systems. It occurs when two homologous sites in DNA molecules that contain a recombinase protein come together (Hirano et al., 2011). Site-specific fusion techniques in plants have been implemented to make marker-free foreign genes (Nanto and Ebinuma, 2008). The various recombinase systems (Cre-lox, FLP-FRT, and R/RS) classified under site-specific recombination are well described (Yau and Stewart, 2013). The Cre/lox system has been used to remove hpt and NPT-II in transgenic rice for the purple endosperm trait (Zhu et al., 2017). The chief limitations of recombinase systems include: 1) it is difficult to achieve 100% excision efficiency; 2) the prolonged presence of recombinase systems in the plant genome could lead to genetic and phenotypic changes making it less appealing than co-transformation; and 3) it has also been reported that chromosomal rearrangements use cryptic-target sites, and there are reports of leftover dispensable sequences of recombinase systems (Breyer et al., 2014; Nishizawa-Yokoi et al., 2015).
2.1.3 MAT-Vector System
MAT vectors use oncogenes (ipt, iaaM/H, rol) of Agrobacterium as selection markers, which control the endogenous levels of plant hormones and help to regenerate transgenic cells over non-transgenic cells (Ebinuma and Komamine, 2001). In this case, the oncogenes are combined with the site-specific recombination system (R/RS) for transformation. Later on, the oncogenes are removed by the R/RS system to generate marker-free transgenic plants (Ebinuma et al., 2005). This system has been used to eliminate the ipt marker gene from the transgenic rice (Endo et al., 2002).
2.1.4 Transposon-Based
Transposon-mediated transgene reintegration was used initially by Goldsbrough et al. (1993) to reposition a Dissociation (Ds) transposon-based GUS reporter gene in transgenic tomato (Solanum lycopersicum). The most characterized transposons belong to the Ac/Ds family. In this method, either GOI or SMG (present in T-DNA) is inserted between the Ds elements. Subsequently, an active transposase recognizes the Ds elements and cleaves either of them from their native position and reinserts them into another chromosomal location after the initial transformation. Later on, the SMG could be sorted out by subsequent selection (Yau and Stewart, 2013). In a few studies, this technique has been used in rice, and recently it has been used to remove selection markers in transgenic rice resistant to blast disease (Li et al., 2021). The major limitation of this technique is that it is labor-intensive to segregate out SMG from GOI, variable transposons efficiency, and they also cause mutations at an unknown site. Apart from the Ac/Ds system, another transposon named “piggyback” was used in excising the hpt gene from rice plants mutated for acetolactate synthase gene (ALS) using homologous recombination (HR)-mediated gene targeting (GT) (Nishizawa-Yokoi et al., 2015).
2.1.5 Marker-Less Transformation
Marker-free transformation refers to transforming without SMGs. It is an ideal way to obtain marker-free GM plants. Although the frequency of recovering transgenic events is lower (2 or 3-fold) than the use of SMGs, it could vary between 1%–25% (Breyer et al., 2014). The marker-free transformation has also been achieved via the pollen-tube pathway, in which exogenous DNA is taken up by egg cells or zygotes after fertilization. The pollen-tube channel has been used in certain crops like cotton, wheat, maize, and rice in China (Yang et al., 2009).
2.2 Recent Methods Adopted to Make Selectable Marker Genes-Free Rice- CRISPR Era
Recently, the most widely used genome editing tool known as CRISPR/Cas9 has also been brought into use to remove or avoid SMG in transgenic rice. Using the CRISPR/Cas9 tool, site-specific DSB is induced at the target site, followed by a repair mechanism either through homology-directed repair (HDR) or non-homologous end joining (NHEJ). Among both, the natural occurrence of HDR is rare and thus requires a donor template to repair DSB (Zafar et al., 2020). The delivery of donor templates is quite challenging due to the difficulties of its delivery and short-time stability in the cell. Therefore, recent efforts have aimed to increase HDR efficiencies, such as geminivirus-based donor template delivery (Wang et al., 2017) and Cas9-VirD2 chimeric protein (Ali et al., 2020). HDR-based SMG excision and marker-free gene insertion have been achieved (discussed next). It is imperative to mention that CRISPR is a more precise, efficient, and less time-consuming technology. Traditional methods, like co-transformation (using two independent T-DNA plasmids), transposon and recombinase systems (which leave cryptic sequences in the host genome) need a large screening population to segregate SMG. In contrast, the CRISPR/Cas9 based SMG-free approach utilizing HDR does not leave any foreign sequences in the genome. Moreover, RNP-based genome editing is considered DNA-free, and thus does not incorporate plasmid DNA sequences in the genome. It has now become possible to get rid of selectable markers as well as transgene cassettes that persisted in the plant genomes. The utilization of CRISPR/Cas9 as an SMG-free tool has been reported in the last few years and is in infancy. However, much is expected from this technology in terms of making SMG-free rice in the future. To date, only a few studies have reported the successful use of CRISPR/Cas9 as an SMG-free technique in rice, as discussed below.
2.2.1 Marker Excision
In addition to Cre/lox and Ac/Ds as auto-excision systems, CRISPR/Cas9-based HDR has been introduced as a marker excision system. Tan et al. (2022) used Pssi-driving CRISPR/Cas9-mediated HDR-based marker-free strategy (PssiCHMF) in rice. The ‘‘pssi” is a rice promoter that drives the high expression of the CRISPR/Cas9-HDR gene construct in shoot tip (containing meristem) and inflorescence to enhance homology-directed marker excision in these tissues. The Cas9 induced double-strand break (DSB) repair pathway allows the deletion of large DNA fragments. The GUS marker gene was targeted for excision using the pYLPssi::Cas9 construct with a pair of 1027-bp homology arms to improve HDR efficiency. It resulted in a 55.6% homozygous excision of marker genes, 82.2% total excision rate, and 73% of the T0 population showed marker excision. It is a more efficient marker excision strategy than the floral or pollen-specific promoter controlled Cre/lox systems.
2.2.2 Marker-Free Targeted-Gene Insertion
Dong et al. (2020) have demonstrated the targeted insertion of carotenoid gene cassette of GR2 (lacking selectable marker gene and T-DNA border sequences) at genomic safe harbors (GSHs) site. GSHs are the regions in the genome that can accommodate transgenes without producing detrimental effects on the host organism due to genome disruption. The GSHs were the five intergenic mutation sites identified by mutant screening, which do not exhibit visible morphological changes compared with parental phenotype. The CRISPR/Cas9-based DSB followed by donor templates assisted HDR at the target location was used to insert the gene cassette. T0 plants were confirmed through polymerase chain reaction (PCR) for the presence of gene cassette and event (48-A7) with a golden color phenotype, which was characterized for the carotenoid using high-performance liquid chromatography (HPLC).
2.2.3 Ribonucleoprotein Based Transformation
Alternative to vector-mediated genome editing, a new method of DNA-free genome editing through RNP complex introduced by Svitashev et al. (2016) in maize by targeting four genes viz., (liguleless1 (LIG), acetolactate synthase (ALS2), and two male fertility genes (MS26 and MS45). Later on, this method was adopted in many plant species such as rice, wheat, pepper, brassica, tobacco, cabbage, apple, banana, etc. (Zhang et al., 2021). The delivery method of the RNP complex in protoplast and zygote utilized polyethylene glycol (PEG) followed by electroporation. However, particle bombardment has been used in rice, wheat, and maize embryos as well as calli (Zhang et al., 2021). In the case of rice, the premier work of RNP-based genome editing has been conducted by targeting the phytoene desaturase (PDS) gene to test the efficiency of different Cas9 variants using particle bombardment in scutellar derived embryos (Banakar et al., 2019; Banakar et al., 2020). In RNP-based genome editing, the RNP complex could be delivered into embryos or calli either alone (SMG-free) or co-delivered with a plasmid containing a selectable marker using standard particle delivery protocol. The detailed protocol for biolistic delivery of RNP complex is discussed in maize, wheat, and rice (Svitashev et al., 2016; Liang et al., 2017; Banakar et al., 2020). The main advantage of co-delivery of RNP complex and a plasmid containing SMG is that the transformed cells grow favorably on antibiotic selection media, and transformation efficiency increases in rice embryo-derived callus (Banakar et al., 2019). Apart from embryo and callus, the primarily and widely used explant for RNP-based genome editing is the protoplast using PEG and electroporation method. The lipofectamine reagent (TransIT-2020- water-soluble cationic lipid) has been used in a few studies to deliver RNP complex in immature embryos and calli (Svitashev et al., 2016; Banakar et al., 2020).
There are prospective reviews on the delivery methods and utilization of RNP-mediated transgene-free genome editing in various crops (Zhang et al., 2021). However, it is imperative to mention that RNP-based genome editing is challenging. It is in its starting phase, and its maximum utilization has only become possible in protoplasts, which are challenging to maintain and culture. Only a few labs have successfully utilized RNP-mediated editing versus vector-mediated genome editing (He et al., 2018). The basic workflow of RNP-based genome editing has been exhibited in various cells/tissues such as embryos, zygotes, protoplast, and callus utilizing different transformation methods (Figure 2). RNP-complex could be delivered through PEG or electroporation in protoplasts and zygotes, whereas in callus and embryo, RNP-complex could be bombarded by particle gun. It is noteworthy that T0 embryo transformed plants will be chimeric, and mutation must be detected in the T1 generation, while protoplasts, zygote, and callus-derived T0 plants will be non-chimeric and screened through restriction digestion and targeted sequencing.

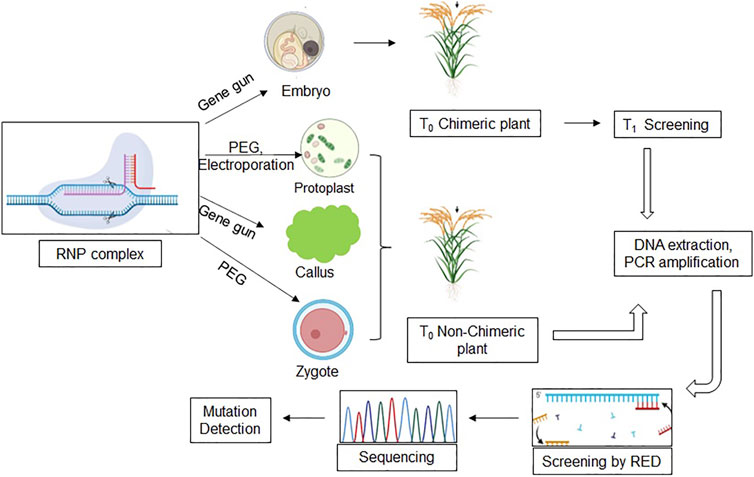

FIGURE 2. A schematic model of the CRISPR-based RNP method. The model summarizes the use of various explants (protoplast, embryo, zygote, and callus) and the protocol used for genome editing to produce SMG-free transgenic rice. RNP, (Ribonucleoprotein) complex; PEG, (Polyethylene glycol); RED, (Restriction enzyme digestion).
2.3 Ribonucleoprotein as a Key to Success for Marker-Free Engineered Plants
The RNP complex is constituted by nuclease and guide RNA is DNA- and SMG-free approach. Earlier, RNP-based edited rice plants have been generated for grain size and grain weight (Toda et al., 2019; Banakar et al., 2020). The fragrance is considered one of the essential grain quality traits in rice as it determines the market price. The aroma in rice is associated with an increased amount of 2-acetyl-1-pyrroline (2AP) controlled by the betaine aldehyde dehydrogenase2 (badh2) gene (Buttery et al., 1983). The sequence alignment of the OsBADH2 gene among non-fragrant and fragrant lines revealed few mutations i.e., 8-bp deletion and three SNPs in exon 7, 7-bp deletion in exon 2, and 803-bp (intronic) deletions between exon 4 and 5 (Shan et al., 2015). These mutations introduce a premature stop codon upstream of key coding regions, making this gene non-functional (badh2) (Hashemi et al., 2013; Shan et al., 2015). A few attempts have been made to introduce aroma in non-aromatic rice through RNAi (Niu et al., 2008) and genome-editing approaches. Recently, Ashokkumar et al. (2020) successfully created novel alleles in rice variety ASD16 by knocking out the OsBADH2 gene through a vector-based CRISPR approach.
In our laboratory, we attempted the editing of the OsBADH2 gene in non-aromatic rice. Basmati rice belongs to aromatic rice that has a pleasant and exquisite aroma with a low yield. However, elite cultivar PR114 lacks aroma in contrast to basmati rice. Its average yield is 6.9 tons per hectare, whereas, Basmati varieties have an average yield of 4.0 tons per hectare. The introduction of aroma in PR114 without disturbing its original genetic constitution will lead to premium quality aromatic high-yielding rice. It would lead to a major revolution for the stakeholders. A total of 1,100 embryos were bombarded by the RNP complex coated gold particles for exon 2 and exon 7 using the protocols outlined by Banakar et al. (2020). In total, 731 embryos were germinated under in vitro conditions on MS synthetic media, and 253 plantlets were transferred to soil. Only 35 plants survived in a glasshouse (Figure 3A), screened using the MSBSP-PCR (Mutation Site-Based Specific Primers-PCR) technique (Guo et al., 2018). Seven putative edited plants were obtained through the MSBSP-PCR (Figure 3B) and were subjected to Sanger sequencing (Figure 3C). The sequences of putative edited plants were aligned against the PR114 reference sequence using Clustal Omega software, which revealed the addition of a nucleotide “A” at 4-bp upstream of PAM sequence in the target site of the edited plant # 11–4 ( Plant no. 11, tiller no. 4; Figure 3D). The alignment of the amino acid sequence of PR114 (Figure 3E) and plant 11–4 using the Expasy online tool showed the frameshift mutation in exon 7 (Figure 3F). The confirmed T0 plant progeny will be raised and screened through molecular and biochemical analysis. To the best of out knowledge, this is the first report on RNP-based OsBADH2 gene editing.
FIGURE 3. Editing of OsBADH2 gene for generation of aromatic rice using RNP approach. Acclimatized T0 edited plants for OsBADH2 gene grown under glasshouse conditions (A), Detection of RNP-based editing in the T0 generation through mutation site based specific primers technique (MSBSP). Encircled lane depicts the mutation (B), A electropherogram showing the result of Sanger sequencing (C), Multiple sequence alignment of putative T0 plants showing the addition of a nucleotide “A” 4-bp upstream of the PAM site (D), The ORF of OsBADH2 exon seven in PR114 (E), The ORF of Osbadh2 exon seven in the edited plant, 11-4 showing change in the last four amino acid sequences indicating the disruption of protein chain (F).
2.4 Regulatory Perspectives
The presence of SMGs, especially hpt, npt II, and Bar genes in transgenic rice is one of the major hurdles in their regulatory approval. The reasons behind their strict regulations are; the spread of their resistance in natural flora and fauna, and unintended changes in plant transcriptome and metabolome (pleiotropic effect) (Chong-Pérez and Angenon, 2013). Newly developed food that is genetically modified (GM) for a particular trait has to go through rigorous testing at molecular, biochemical, and metabolic levels for food and feed safety (including toxicity, allergenicity, and anti-nutrient). This process also makes sure the claims of substantial equivalence to non-GM wild type phenotypes are valid and that the genetically modified food is safe for environmental release (Giraldo et al., 2019). Regulatory concerns related to the presence of SMGs and the importance of their withdrawal from gene cassettes needed for further approval are apparent in a few examples of GM rice events produced in the past. The first best example of transgenic rice is “Xianyou 63”, approved for release by China through co-transformation of two separate plasmids harboring cry1Ab/Ac and hpt selectable marker, respectively. The events developed were passed through the regulatory regime, and molecular characterization revealed the insertion of truncated hpt gene fragments (Lu, 2010). Another case is Golden rice 1 (GR1), harboring gene cassette for beta-carotene and hpt as a selectable marker. Event GR1 was unacceptable due to public concerns about the hpt marker gene. Thus, another event GR2, with a higher accumulation of beta-carotene than GR1, was produced by Syngenta using the pmi gene (Paine et al., 2005).
From its early development, the Golden rice trait (from GR2E event with single gene copy) has been successfully introgressed into elite rice cultivars viz. R64, PSBRc82, and BR29 using backcross breeding (MallikarjunaSwamy et al., 2021). After facing all the regulatory parameters, the GR2E event has been approved for consumption in different continental parts, including Australia, Canada, New Zealand, the Philippines, and the United States (https://www.goldenrice.org/). The regulation of newly developed GMOs comes under three categories. 1) process-based (for example, Europe) where the overall process or technique used to make GMO is regulated, 2) product-based (for example, the United States) where the only final product is regulated, and 3) both at the process as well as product-level regulation (for example, India). The major opponents of Golden rice are the European Union (EU), where regulation is applied to food and feed products and is a process-based regulatory scheme (https://www.ncbi.nlm.nih.gov/books/NBK424533/). Even genome-edited crops using CRISPR/Cas9 were also included in the definition of GMO as per the European Court of Justice (ECJ) in 2018 (Turnbull et al., 2021). In contrast, North America and especially the United States do not have any specific federal laws for the process regulation through which GMOs are produced. The newly developed GM products are directed to specialized regulatory bodies to assess the health, safety, and environmental laws, which are the same as those used for conventional products. In Africa, the two main approaches for seed development include biotechnology and conventional, which contribute to food and nutritional security. The former is regulated under the Biosafety act and later through the Seed act and is often accompanied by National Performance Trials (NPTs) (Akinbo et al., 2021) to ensure harmony in decision making.
2.5 Future Prospects
Research that aims to create SMGs-free transgenic crops has always encouraged plant molecular biologists to adopt new ways to remove selectable markers from the GM plant background. The most widely used method is co-transformation. However, it is laborious to screen a segregating population for SMG-free plants and even could not be possible in vegetatively propagated crops (Breyer et al., 2014). Alternative to the traditional methods, CRISPR/Cas9-based genetic manipulations enable the development of SMG-free crops easily and precisely. The CRISPR/Cas9 method to make SMG-free rice is at the initial stage and few attempts have been made to improve the technique. The CRISPR-based npt II marker degradation in transgenic tobacco has been reported by Rezaei et al. (2021) and programmed self-elimination in rice by He et al. (2018). These techniques could pave the way to making SMG-free engineered plants in the future.
There are a few limitations of the RNP-mediated genome-editing through CRISPR: 1) the low transformation efficiency of RNP; 2) the difficulty of screening plants; and 3) using embryos as an explant shows chimerism in the T0 stage. A novel strategy has been proposed to overcome these limitations. Studies in rice have reported that over ten distinct plasmids could be delivered together into the plant genome by particle bombardment (Chen et al., 1998). The transformation of two plasmids using a biolistic gene gun exhibited a higher frequency (85%) in contrast to a single plasmid (Hilliou et al., 1999). The co-delivery of RNP and plasmid with selectable markers is a highly beneficial technique (Banakar et al., 2019). The RNP complex can edit the target gene without the integration of CRISPR elements into the genome and reduces the number of off-targets due to transient presence. The selectable marker in the plasmid facilitates the easy selection of transformed plants. This technique combines the benefits of the targeted mutation of RNP-mediated transformation and the easy selection process of a selectable marker in a plasmid. He et al. (2018) demonstrated the technique, TKC (Trangene Killer CRISPR), for the elimination of plasmids from the mutated plant using the suicidal gene (BARNASE) under the control of REG2 promoter (expressed during the early embryo development stage).
A combination of two approaches, the co-delivery of the RNP complex along with a gene cassette consisting of a suicidal gene and antibiotic-selectable markers (hpt, npt II, etc.) has been proposed as a new method of genome editing that is DNA and marker-free (Figure 4). In this approach, three scenarios are formed: 1) RNP transformed cells; 2) cells transformed with both RNP and cassette; and 3) cells transformed with only cassette. Transformed cells with RNP-cassette and cassette only would survive during the first screening step using selective media, while transformed plants with RNP only would be lost. In the second round of selection by MSBSP-PCR, the T0 plants with cassette only would be eliminated. The plants with both RNP and cassette would be selected and advance to the next generation. When these screened plants reach the seed setting stage, embryos with cassette would be killed as per the Programmed Self elimination effect, whereas plants with mutated target site lacking cassette would survive. Hence, seeds obtained from the T0 generation would be DNA and marker-free edited plants. We hypothesize that a straightforward and novel approach to making marker-free engineered crops for food security will support developing countries in introducing the product, thus contributing to the prologue of these products all over the world.
FIGURE 4. A hypothetical model for the development of DNA and marker-free genome-edited plants.
Author Contributions
Conceptualization: YV and PK; Literature survey: RS, NK, MT, and UP; Methodology: NK, RS; Illustration preparation: NK, UP, JS, and GK; Analyzed the data: NK and YV; Original draft: RS, NK, UP, and GK; Finalized the manuscript: YV, JS, and KN; All authors approved the final version.
Funding
The guidance and support provided by Dr. Parveen Chhuneja, Director, School of Agricultural Biotechnology, and Dr. Navtej Singh Bains, Former Director of Research, Punjab Agricultural University, Ludhiana, is duly acknowledged.
Conflict of Interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Publisher’s Note
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
Acknowledgments
We are thankful to the Science and Engineering Research Board (SERB), India, Department of Science and Technology (DST), India and Confederation of Indian Industry (CII), India for granting the Prime Minister’s Fellowship for Doctoral Research to RS. The guidance and support provided by Dr. Parveen Chhuneja, Director, School of Agricultural Biotechnology, and Dr. Navtej Singh Bains, Former Director of Research, Punjab Agricultural University, Ludhiana, is duly acknowledged.
