Reinforcement learning based estimation of shortest paths in dynamically changing transportation networks

Finding the shortest path in a network is a classical problem, and a variety of search strategies have been proposed to solve it. In this paper, we review traditional approaches for finding shortest paths, namely, uninformed search, informed search and incremental search. The above traditional algorithms have been put to successful use for fixed networks with static link costs. However, in many practical contexts, such as transportation networks, the link costs can vary over time. We investigate the applicability of the aforementioned benchmark search strategies in a simulated transportation network where link costs (travel times) are dynamically estimated with vehicle mean speeds. As a comparison, we present performance metrics for a reinforcement learning based routing algorithm, which can interact with the network and learn the changing link costs through experience. Our results suggest that reinforcement learning algorithm computes optimal paths dynamically.

1 Introduction

Autonomous transportation is expected to become a prevalent means of public transportation in the near future (Hancock et al., 2019). Such a transportation system demands that algorithms for estimating shortest paths be well-adapted to the continuously changing nature of the traffic network. In a stochastically evolving traffic network, the link costs (vehicular travel times in this study) can dynamically change and are constantly influenced by a range of traffic factors such as traffic congestion, road work, and bad weather, among others. As a result, an autonomous transit system fundamentally depends on the availability of a real-time routing system capable of estimating the shortest path not only before the trip, but also of adaptive rerouting in response to fluctuating link costs.

Over the past decades, the shortest path problem has been extensively investigated with applications ranging from computer networks to transportation networks and many approaches have been explored to examine the effectiveness of search strategies. In this respect, some of the traditional search strategies include uninformed search, informed search, and incremental search (Madkour et al., 2017; Katre and Thakare, 2017; Surekha and Santosh, 2016; Magzhan and Jani, 2013; Zhan and Noon, 1998; Zhan, 1997; Fua and Rilett, 2006; Sunita Kumawat and Kumar, 2021; Pallottino and Scutella, 1998; Huang et al., 2007; Madkour et al., 2017; Katre and Thakare, 2017; Surekha and Santosh, 2016; Magzhan and Jani, 2013; Zhan and Noon, 1998; Zhan, 1997; Fua and Rilett, 2006; Sunita Kumawat and Kumar, 2021; Pallottino and Scutella, 1998; Huang et al., 2007). The above strategies have been shown to be very successful for problem scenarios involving fixed networks with static link costs over time. However, they present several limitations in terms of four criteria that we discuss later in this paper, especially when the traffic network is dynamically changing or has missing information. Another class of search strategies, namely, reinforcement learning (RL) based search, can adapt to changing link costs. RL based methods have been primarily applied in computer networks, and their potential for transportation networks has started to get attention only recently. Applications of reinforcement learning have been reviewed comprehensively in review papers (Farazi et al., 2021), and the most relevant studies are for vehicle routing optimization, known in other terms as traveling salesman problems, yet these studies lack the research on reinforcement learning for finding the shortest path. Therefore, a comparison between traditional and RL-based methods for computing optimal shortest paths should be conducted.

In particular, the method that we develop is based on Q-learning (Sutton and Barto, 2018). For the task of path optimization, Q-learning has been used for communication networks (Boyan and Littman, 1994). There has been use of Q-learning for mobile communication in Vehicular Ad hoc networks (VANETS) wherein a moving vehicle is considered as a mobile node in a wireless network (Li et al., 2014)¹. For transportation networks, there is significant body of work on Q-learning based intelligent traffic signal control (Chin et al., 2012; Ducrocq and Farhi, 2023; Moreno-Malo et al., 2024; Chin et al., 2012; Ducrocq and Farhi, 2023; Moreno-Malo et al., 2024). Moreover, Q-learning has been employed for reducing traffic congestion (Swapno et al., 2024). There is one work related to loop-breaking in route-planning through Q-learning in vehicular networks (Meerhof, 2021). As such the potential of Q-learning to perform path optimization in dynamically changing vehicular/transportation networks remains underexplored.The main contributions of this paper are summarized as below:

• We investigate the performance of traditional shortest path algorithms (such as Dijkstra and ${\text{A}}^{*}$) in simulated transportation network where link costs are dynamically estimated and highly correlated based on the current traffic condition.

• We investigate the use of the reinforcement search strategy, namely, Q-routing (Boyan and Littman, 1994) in the same transportation network and compare its performance to that of other search strategies.

In this paper, a transportation network is simulated using VISSIM traffic microsimulation environment (Fellendorf and Vortisch, 2020). Traffic obstructions are introduced into the network to induce fluctuations in vehicle volumes and speeds. These vehicle speeds are converted into link costs and are used as weights for shortest path algorithms.

2 Related work

The problem of shortest path estimation, which has been widely researched, is a principal and classical challenge in transportation and computer networks. All shortest path algorithms investigated in this paper will treat a transportation network as a directed graph with travel time as non-negative link cost. Shortest path algorithms can be evaluated based on the following four criteria:

• Completeness: determines whether or not the algorithm is guaranteed to find the solution to the problem, if one exists.

• Optimality: evaluates whether the solution provided by the algorithm is the best.

• Time complexity: evaluates how long the algorithm takes to solve the problem. Usually, it is expressed in the big O notation representing the order of growth in computational time as the number of inputs grows.

• Space complexity: evaluates how much memory space the algorithm consumed to reach the final solution.

2.1 Search strategies

Traditional AI literature (Russell and Norvig, 2003) distinguishes three types of search strategies:

• Uninformed search i.e., the algorithm employs no method for estimating how close the search process is to a destination.

• Informed search i.e., the algorithm employs heuristics to direct the search to its destination.

• Incremental search i.e., the algorithm reuses information from previous searches to find updated shortest path solutions faster, thus, eliminating the need to search for the shortest path from scratch.

In addition to the above, RL has also been used for estimating shortest paths by exploring a transportation network wherein the travel times experienced while executing a path are considered as negative rewards.

2.1.1 Uninformed search

Uninformed search strategies refer to a group of search techniques wherein the algorithm has no access to any information regarding how far the goal state is, though the algorithm can check if the current state is a goal state or not. It is also known as blind search. Table 1 summarizes the current uninformed search techniques (Russell and Norvig, 2003), including breadth-first search, depth-first search, depth-limited search, iterative deepening search, uniform cost search, bidirectional search, Dijkstra (Dijkstra, 1959), and their performance criteria. Among uninformed search methods, the Dijkstra algorithm is considered as benchmark both in terms of time and space complexity since its complexity does not depend either on the branching factor or the depth of the solution, but only depends on the number of nodes in the network.

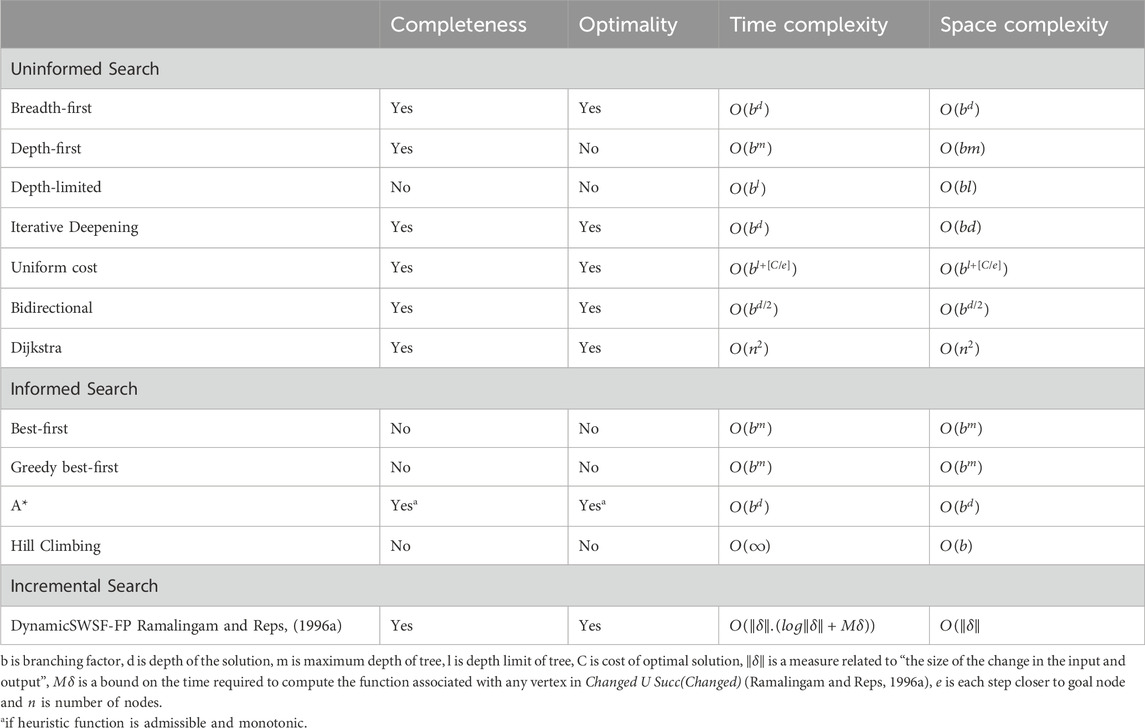

Table 1

Table 1. Uninformed search, informed search (Russell and Norvig, 2003) and incremental search.

2.1.2 Informed (heuristic) search

The primary benefit of heuristic-based strategies is that the search space can be narrowed down. Many shortest path algorithms with a reduced search space have been proposed, such as best-first search (Pearl, 1984), greedy best-first search, hill climbing search, and A* (Hart et al., 1968) as shown in Table 1. These types of search methods attempt to narrow down the search space by utilizing various sources of additional information. Also, the A* algorithm is complete and optimal only if its heuristic function is admissible and monotonic, and many modern algorithms such as D* lite (Koenig and Likhachev, 2002) and LPA* (Koenig and Likhachev, 2001) are based on A*. Therefore, the A* algorithm stands out in the class of informed search because of its completeness and optimality.

2.1.3 Incremental search

Incremental search strategies are applicable for networks in which only a small number of link costs are likely to change at a time. Since these changes affect only a part of the graph, recomputing shortest paths for the entire graph is not necessary. Instead, it is possible to update paths corresponding to only a subset of the graph. As a result, such methods are used to solve dynamic shortest path problems, which require determining shortest paths repeatedly as the topology of a graph or its link costs only change partially. A representative incremental search algorithm is the Ramalingam and Reps’ algorithm (Ramalingam and Reps, 1996b) (RR), also known as the DynamicSWSF-FP algorithm. However, if all the link costs in the graph change, incremental search algorithms are unable to capitalize on previous search results.

2.1.3.1 DynamicSWSF-FP Algorithm

In dynamic transportation networks, often, only a portion of links change in terms of cost between updates. Starting costs for some of the nodes remain unchanged and thus do not need to be recalculated. As such, recomputing all the optimal routes could be wasteful since some of the previous search results can be reused. Incremental search methods, such as the RR algorithm, reuse information from previous searches to find the shortest paths for a series of similar path-planning problems, which is faster than solving each path-planning problem from the scratch. A key aspect about reusing previous search results is determining which costs have been affected by the cost update operation and must be recalculated. The RR algorithm employs two estimates: one that corresponds directly to starting distance in Dijkstra’s algorithm and another one is a right-hand-side value (rhs) for checking the local consistency to prevent path recalculation (Ramalingam and Reps, 1996b).

2.1.4 Reinforcement learning search

The field of RL has grown significantly over the past decades, with applications ranging from robotics (Polydoros and Nalpantidis, 2017), communications (Luong et al., 2019) to gaming AI (Vinyals et al., 2019). Among RL algorithms, Q-routing is a method that was proposed primarily for communication networks but can also be used in transportation systems (Boyan and Littman, 1994). Q-routing is based on Q-learning (Sutton and Barto, 2018) and does not need to know the link costs to start off, and can learn optimal paths over time through experience. In particular, for every node $x$ in the graph, a 2D Q-table, $Q_x(d,y)$, is maintained that contains the cost of transitioning from $x$ to node $y$ (where $y$ is one of the neighbors of node $x$, i.e., $\left.y\in \mathcal{N}(x)\right)$, if the final destination is node $d$. During a training episode, at each step, the next move is chosen based on the current values in the Q-table, the move is executed, and the actual time experienced while executing the move is stored. Based on this experience, a Bellman update of the Q-values is performed as follows:

$Q_x\left(d,y^{*}\right)=Q_x\left(d,y^{*}\right)+\eta \left(\left(\underset{z\in N\left(y^{*}\right)}{min}{Q}_{y^{*}}\left(d,z\right)+t\right)-Q_x\left(d,y^{*}\right)\right)(1)$

where $y^{*}$ is the next move chosen based on current Q-values, i.e.,

$y^{*}=\underset{y\in \mathcal{N}\left(x\right)}{\mathit{argmin}}{Q}_x\left(d,y\right)(2)$

In Equation 1, $z$ belong to the list of the adjacent nodes of $y^{*}$, $\eta$ is the step-size, and the $t$ is the time experienced estimated to go from $x$ to $y^{*}$ which serves as a surrogate for the link cost (reward). In other words, if Q-values are consistent, then $Q_x(d,y^{*})$, where y* is computed using Equation 1, should be equal to the time estimated from $x$ to $y^{*}$ plus the cost associated with the best move thereafter, and the update is proportional to the difference from this desired value.

As shown in Table 2, Q-routing requires less run-time complexity as it is executed more often. During training mode or offline mode, it takes $O(T\ast nb)$ complexity to run the Q-routing algorithm, where T is the number of training loops, n is the number of nodes and b is branching factor. But, time complexity is reduced to $O(1)$ during online mode.

Table 2

Table 2. Reinforcement Learning search.

3 Traffic network simulation

3.1 Traffic network description

A simple transportation network in the form of square grids is used in this study as shown in Figure 1A. The network has 25 nodes and 80 links (each 2-lane and directed).

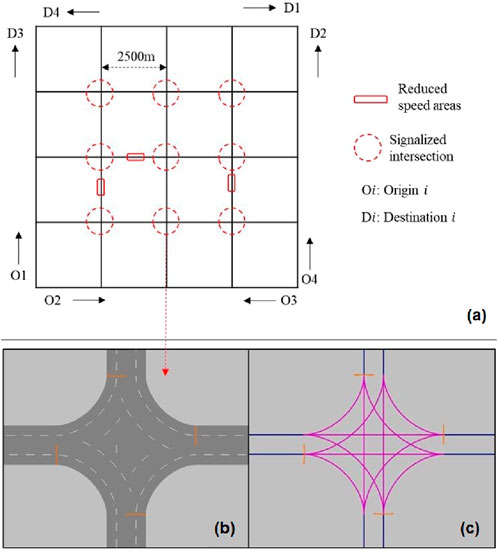

Figure 1

Figure 1. Details of the toy network used in the study. (A) Network shown in the form 5 x 5 square grids. (B, C): Signal heads and feasible movements at each intersection.

We have chosen to simulate a modestly sized network because of the following reasons. Dynamic rerouting of vehicles is highly influenced by accurate link travel cost estimations, which depend on interactions between vehicles. As such, microscopic traffic simulation is critical for capturing localized congestion effects. Smaller “toy networks” are commonly used for developing and validating methodologies [e.g. (Wang et al., 2022; Rampf et al., 2023; Bhavsar et al., 2014; Koh et al., 2020; Wang et al., 2022; Rampf et al., 2023; Bhavsar et al., 2014; Koh et al., 2020)]. Notably, variants of the Q-routing algorithm, such as the one developed in this study, are extensively utilized in large-scale communication networks [e.g. (Mammeri, 2019; Alam and Moh, 2022; Al-Rawi et al., 2015; Mammeri, 2019; Alam and Moh, 2022; Al-Rawi et al., 2015)] and have demonstrated robust performance. Given that transportation networks are typically much smaller and less complex than communication networks, at this time we will be validating the methods on smaller networks and explore larger scales in later studies.

In the 25-node network simulated in the current study, the length of each link is 2,500 m. To better capture heterogeneous flow conditions along these relatively long links, we split them into segments. Based on sensitivity analysis, we determined that a segment length of 25 m provides a reliable representation of link travel times. Further reducing the segment length does not significantly improve accuracy, and hence, links are divided into 100 equal-length segments. While our study uses equal-length segments for simplicity and consistency, we employed a general formula for computing weighted average speeds to account for potential scenarios where varying segment lengths might be necessary. For example, unequal segment lengths could be useful to represent varying geometries, such as curves or bottlenecks, along a link. However, in this study, such complexities were not required, and our approach ensures both computational efficiency and practical applicability.

The network is composed of nine signalized intersections. The signal heads and feasible movements at each intersection are shown in Figures 1B, C. Right turning movements are permitted on red. Through and left turning movements are simultaneously allowed (but controlled by the traffic signal). The node annotations and coordinates are shown in Figure 2. The four signal heads at an intersection are sequentially operated with a cycle length of 240 s (57s green + 3s amber per signal head). All the nine traffic signals are synchronized.

Figure 2

Figure 2. Node numbers and coordinates.

The demand for travel arises at two main origin intersections, $O_1$-$O_2$ and $O_3$-$O_4$, which are located at nodes one and 5. Two main destination intersections, $D_1$-$D_2$ and $D_3$-$D_4$, which are located at nodes 25 and 21 are considered. Coordinates for every intersection of origin and destination can be viewed in Figure 2. The magnitude of travel demand between OD pairs $i,j(Deman{d}_{i,j}\forall i,j\text{such\hspace{0.17em}that\hspace{0.17em}}i\ne j)$ is taken as 500 vehicles per hour. Such a large value of travel demand is considered to ensure a build-up of queue/congestion in the network. Besides main OD pairs that have large travel demand, other random OD pairs are also used to run and evaluate different shortest path algorithms.

The aforementioned network is modeled in PTV VISSIM, which is a microscopic traffic simulator. As the size of a network increases, it becomes very tedious to determine and assign routes (sequence of links) for vehicles between several origin-destination pairs. Also, a predetermined route assignment in a simulation study does not reflect the route choices made by drivers in the real world (Fellendorf and Vortisch, 2020). Hence, the route choices are dynamically made in this study. The ability of VISSIM to compute dynamic stochastic user equilibrium is exploited to determine the routes dynamically. A comprehensive representation of route choice is thus possible. The vehicle composition of 90% cars and 10% heavy vehicles is used. Other parameters for the network simulation are as follows. The desired speed distribution used is shown in Figure 3. For the driving behavior model, the Wiedemann-74 car-following model is employed as it is considered suitable in urban environment. The default Car-following parameters used are:

• Average standstill distance: 2 m

• Additive part of safety distance: 2

• Multiplicative part of safety distance: three

Figure 3

Figure 3. Speed distribution.

VISSIM also has a feature termed “reduced speed areas”, which is used to create temporary or localized congestion (e.g., a traffic incident). Three links are randomly chosen to introduce congestion as shown in Table 3. A simulation step size of 0.1s and a simulation period of 2 h are adopted. After every 100 simulation steps, the state of every vehicle in the network is sampled (and stored for further analysis) by using VISSIM COM. The state of a vehicle includes the link on which a vehicle is located, position on that link, lane occupancy, instantaneous speed, acceleration, and vehicle type.

Table 3

Table 3. Congested links.

The desired speed distribution within the congestion zone is as shown in Figure 4.

Figure 4

Figure 4. Speed distribution within the congestion zone.

3.2 Ground-truth link costs from simulation

To reliably measure ground-truth dynamic links costs we need to keep track of the spatial and temporal variation of link costs (travel times). The state of all the vehicles in the network is extracted from VISSIM after every 100 simulation steps. Every link between nodes i and j is considered to be composed of $n$ segments (need not be of equal length) as shown in Figure 5. The length of the $k$-th segment of link $ij$ is $l_{k,i,j}$ and total length of the link is $L_{ij}$.

Figure 5

Figure 5. Segmentation of a link $ij$

The space mean speed of the segment $k$ at a time step $t(SM{S}_{k,ij}^t)$ can be computed from the extracted states. The cost of traveling on link $ij$ at a time step $t$ is then computed as in Equation 3:

$C_{ij}^t={\displaystyle \underset{\forall k}{\sum w_{k,ij}\times SM{S}_{k,ij\forall ij,t}^t}}(3)$

where, $w_{k,ij}=\frac{l_{k,ij}}{L_{ij}}$ is the weight for segment $k$. Desired speed is considered as the space mean speed of a segment not hosting any vehicle.

4 Algorithm performance

4.1 Algorithm selection

From the related literature, it is clear that Dijkstra and ${\text{A}}^{*}$ are the benchmark candidates and representative algorithms for uninformed and informed search respectively in terms of performance criteria. In communication networks, algorithms such as distance vector routing (Hedrick, 1988) have been employed. Such algorithms rely on continuous signal transmission between nodes to update travel time, thus they are deemed inapplicable in our transportation network where travel time is estimated at each time step based on the number of physically present vehicles. Moreover, link costs in our simulated networks depend on the number of vehicles and their speeds. As the number of vehicles entering a link changes, and vehicle speeds vary, link costs dynamically change at every query time for all links. As a result, the RR algorithms and similar incremental algorithms such as Lifelong planning A* (Koenig and Likhachev, 2001) and D* Lite (Koenig and Likhachev, 2002) based on it cannot benefit from incremental search because the estimate changes dynamically, and thus, local consistency will never be met. Therefore, we chose some of the basic algorithms that best represent their classes, namely, Dijkstra for uninformed search, A* for informed search, and Q-routing for reinforcement learning, and compare their performances in our case study network.

Figures 6–8 show the pseudocode for each algorithm. R1.5 The heuristic function that we use in the ${\text{A}}^{*}$ algorithm is the Manhattan distance function that estimates how close the current node is to the destination based on the nodes’ coordinates. Manhattan distance has been used because it is better represents a real-world scenario with grid-networks.

Figure 6

Figure 6. Dijkstra’s algorithm.

Figure 7

Figure 7. Q-routing algorithm.

Figure 8

Figure 8. A* algorithm.

4.2 Algorithm performance

4.2.1 Static network

We first test the Dijkstra and A* algorithms on our simulated transportation network when there is no vehicle. The purpose of this test is to check the performance of the heuristic function in ${\text{A}}^{*}$. When there is no traffic in the network, the link costs are the link lengths and the network is static. Figure 9 shows the identical performance of ${\text{A}}^{*}$ and the Dijkstra algorithm in terms of the quantile-quantile (Q-Q) plot between the optimal route costs of the two algorithms for the following list of 10 OD pairs: (1,25), (5,21), (10,16), (6,24), (22,4), (4,16), (18,5), (12,20), (17,5) and (22,9).

Figure 9

Figure 9. Q-Q plot between the optimal route costs for ${\text{A}}^{*}$ and Dijkstra over 10 OD pairs.

4.2.2 Dynamic network

When traffic is introduced into the simulated network, the network becomes dynamic and link costs are estimated using methods described in Section 3.2. Dijkstra, ${\text{A}}^{*}$ and Q-routing are tested in this dynamic network. Q-routing parameters are found to be optimal with a learning rate of 0.29 and 200 iterations. Figure 10 shows a graph with route cost for OD =(1,20) for each learning rate. Route cost starts to be minimal for a learning rate of $29\times 10^{-2}$.

Figure 10

Figure 10. Route cost and learning rate for Q-routing.

In the dynamic simulated network, ${\text{A}}^{*}$, Dijkstra, and Q-routing are invoked every 10 s of simulation with all OD pairs, and a few OD pairs are selected for illustrating and comparing route costs. Figure 11,13,12,14 show the cost in terms of sum of the travel times for minimum cost routes for OD = $(\mathrm{1,25}),(\mathrm{5,21}),(\mathrm{4,16})$ and (6,14). It can be seen that the data points for Q-routing overlap with those for Dijkstra. Moreover, Supplementary Appendix A illustrates the Q-Q plots between route costs between ${\text{A}}^{*}$, Q-routing, and Dijkstra for 10 OD pairs: (1,25), (5,21), (10,16), (6,24), (22,4), (4,16), (18,5), (12,20), (17,5), (22,9).

Figure 11

Figure 11. Minimum cost route for OD = (1,25) with Q-routing, Dijkstra (orange ‘+’), and ${\mathrm{A}}^{*}$ (green‘x’).

Based on Figures 11–14, it is clear that the ${\text{A}}^{*}$ algorithm produces non-optimal shortest routes, resulting in larger route costs as compared to those achieved by Dijkstra and Q-routing. This is because the heuristic function for ${\mathrm{A}}^{*}$, used in this simulated network no longer remains admissible as the link costs become dynamic. At any node during the ${\text{A}}^{*}$ run-time, the heuristic function always overestimates the route cost to the destination.

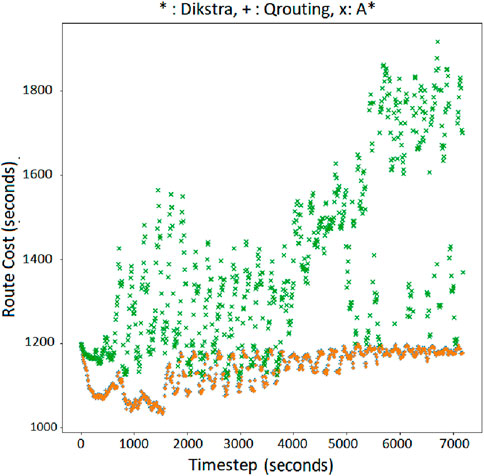

Figure 12

Figure 12. Minimum cost route for OD = 5,21 with Q-routing, Dijkstra (orange ‘+’), and A*(green‘x’).

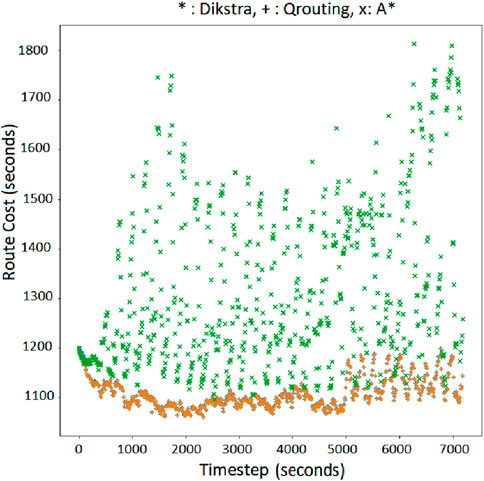

Figure 13

Figure 13. Minimum cost route for OD = 4,16 with Q-routing, Dijkstra (orange ‘+’), and A*(green ‘x’).

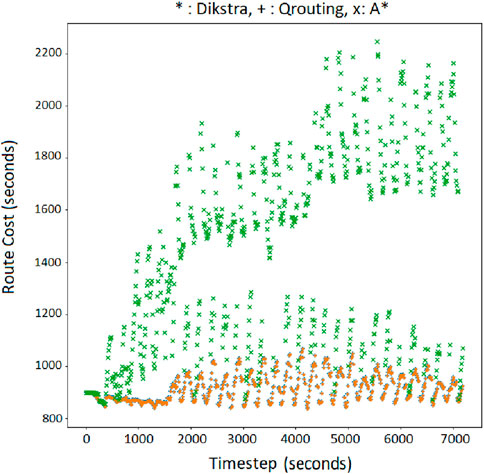

Figure 14

Figure 14. Minimum cost route for OD = 6,24 with Q-routing, Dijkstra (orange ‘+’), and A*(green ‘x’).

On the other hand, Q-routing delivers comparable route costs to Dijkstra during the entire simulation of the network. Following points should be considered while interpreting the plots in Supplementary Appendix Figures A1–A10 of Supplementary Appendix A. In a perfect information setting wherein the true link costs are accessible to the algorithm, it is well known that the Dijkstra algorithm gives the optimal shortest path between any two nodes of a network (Cormen et al., 2022). That is, Dijkstra gives the best-case cost when correct link costs are known. The costs corresponding to the Dijkstra algorithm shown in the plots of Supplementary Appendix Figures A1–A10 are those when Dijkstra was run as if the true costs were known. Although the true costs are not known in a realistic setting, the x-axis coordinates in the aforementioned Q-Q plots represent the theoretical upper bound of the performance for respective OD pairs. Along the y-axis we plot the costs produced by the Q-learning algorithm, wherein Q-learning is performing routing without knowing the costs. Thus, if in the Q-Q plot, the scatter is around the 45° line, it goes on to showing that the Q-learning algorithm, under an imperfect information setting, tends to perform close to an algorithm which gives the theoretical upper bound under perfect information setting. This is our main result, i.e., Q-learning tends to give near optimal result. Further, Supplementary Appendix B visualizes the agreement and differences in shortest routes estimated by Q-routing, Dijkstra and ${\text{A}}^{*}$ for OD =(1,25) pair.

5 Conclusion

In this paper, we have reviewed traditional shortest path finding algorithms, and have investigated RL-based search strategy, Q-routing, in a simulated transportation network. We have presented a comparison of Q-routing algorithms with the performance of two benchmark algorithms, namely, Dijkstra and A* in the network with dynamic link costs.

We have demonstrated the feasibility of Q-routing in a network with dynamically changing link-costs. We have shown that Q-routing estimates the cost route as minimal as Dijkstra’s and can be considered as an alternative optimal algorithm for finding the shortest path. Despite the time involved while learning the link-costs, during offline execution phase, Q-routing, however, may be executed with run-time complexity as equal as Dijkstra’s during online phase or subsequent runs. Also, Q-routing offers more options to expand the number of features used in estimating shortest path with a deep neural network to model an approximation of minimal travel time based on the number of selected features. On the other hand, with the dynamic link costs, the heuristic function of A* becomes less effective, producing suboptimal results. In a broader network scenario, a neural network can allow to learn statistics from from multiple network features such as the number of vehicles that enter the segment, segment length, number of lanes, current time of the day, and current weather conditions on the road. The cost function of the deep RL model might be a weighted combination of the output of the neural network and objective rewards (travel time, distance, operation cost, etc.), and the output of the model is still a policy to make the shortest path decision.

In this study, a number of factors may have limited the range of experimentation, i.e., whether it is possible to construct an A* guiding heuristic function based on estimated travel time, or it is challenging to simulate a city-scaled transportation networks for a more realistic case study. Also, not all algorithms reviewed in this paper are programmed since it is tedious to implement same-class algorithms that are computationally more expensive.

For future work, deep Q-learning (Van Hasselt et al., 2016) using a variety of architectures such as Graph Convolutional Networks (Zhang et al., 2019) and Graph Attention Networks (Veličković et al., 2018), can be integrated into the reinforcement learning based Q-routing to estimate shortest paths directly from network features such as traffic counts and link characteristics, rather than using a tabular-based estimation of minimal cost route and the link costs estimated from space-mean speeds as demonstrated in this paper.

Data availability statement

The raw data supporting the conclusions of this article will be made available by the authors, without undue reservation.

Author contributions

HP: Conceptualization, Data curation, Formal Analysis, Investigation, Methodology, Project administration, Resources, Software, Validation, Visualization, Writing–original draft, Writing–review and editing. SN: Resources, Software, Writing–original draft, Writing–review and editing. BM: Conceptualization, Funding acquisition, Methodology, Resources, Writing–review and editing. EM: Writing–review and editing. AA: Conceptualization, Formal Analysis, Funding acquisition, Investigation, Methodology, Resources, Visualization, Writing–review and editing.

Funding

The author(s) declare that financial support was received for the research, authorship, and/or publication of this article. The authors thank the UK Research and Innovation (UKRI) and the Natural Sciences and Engineering Research Council of Canada (NSERC) for funding this study (Grant Number: ALLRP 548594-2019).

Conflict of interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Generative AI statement

The author(s) declare that no Generative AI was used in the creation of this manuscript.

Publisher’s note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.

Supplementary material

The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/ffutr.2025.1524232/full#supplementary-material

Footnotes

¹The use of the descriptor ‘Vehicular’ in VANETS should not be confused to imply as if they represent transportation or vehicular traffic networks. VANETS are mobile communication networks.
