ORIGINAL RESEARCH article

Front. Environ. Sci., 26 October 2023
Sec. Toxicology, Pollution and the Environment
This article is part of the Research Topic Remediation and Health Risks of Heavy Metal Contaminated Soils View all 14 articles

Heavy metal contamination in rice, pulses, and vegetables from CKDu-endemic areas in Cuttack district, India: a health risk assessment

Shraddha Mohanty
Shraddha Mohanty1*Rabindra Kumar NayakRabindra Kumar Nayak1Bandita JenaBandita Jena1Kshitipati PadhanKshitipati Padhan1Kiran Kumar MohapatraKiran Kumar Mohapatra1Sanjib Kumar SahooSanjib Kumar Sahoo1Prava Kiran DashPrava Kiran Dash1Jyotirmayee DasJyotirmayee Das1Sujit Kumar BeheraSujit Kumar Behera2Anukiran SahuAnukiran Sahu2Jitendra Kumar NayakJitendra Kumar Nayak3Sudipta PadhanSudipta Padhan4Diptanu DattaDiptanu Datta5
  • 1Department of Soil Science and Agricultural Chemistry, Odisha University of Agriculture and Technology, Bhubaneswar, Odisha, India
  • 2Department of Nematology, Odisha University of Agriculture and Technology, Bhubaneswar, Odisha, India
  • 3Department of Agronomy, Odisha University of Agriculture and Technology, Bhubaneswar, Odisha, India
  • 4Department of Plant Protection, College of Horticulture, Birsa Agricultural University, Ranchi, India
  • 5Department of Plant Pathology, Institute of Agricultural Sciences, Siksha “O” Anusandhan (Deemed to be University), Bhubaneswar, Odisha, India

Introduction: Chronic kidney disease of unknown aetiology (CKDu) is an emerging public health concern in India. The present study was carried out to investigate the concentrations of potentially toxic heavy metals (Cd, Pb, Ni, Cr, Hg, and As) in locally grown food crops (rice, pulses, and vegetables) in CKDu prevalent areas of Cuttack district, India.

Methods: Exposure risks from food crops were analysed, including estimated daily intake, hazard quotient, hazard index, and carcinogenic risk.

Result: The overall heavy metal concentrations in the crop samples were in the following order: Pb>Ni>Cd>Cr>As>Hg. The mean concentration of heavy metals in different crops were as follows, ranked from highest to lowest: spinach, rice, okra, mustard, potato, carrot, tomato, green gram, black gram. A statistical multivariate analysis revealed that the primary sources of Cd, Pb, Ni, Cr, Hg, and As in crop samples were both natural and human activities. For lead, target hazard quotient (THQ) values in rice were greater than 1, indicating significant noncarcinogenic health risks to both adults and children.

Discussion: While the majority of the crop samples had Pb levels below the permissible level (10−5), the target carcinogenic risk of Cd was higher than the USEPA threshold value (10−4), showing a cancer risk to adults and children. This study concluded that long-term intake of locally grown food crops may produce a significant health risk to the local inhabitants, and that of regular heavy metal monitoring is strongly recommended in this region.

GRAPHICAL ABSTRACT

1 Introduction

The contamination of soil and crops (grains, fruits, and vegetables) with hazardous metals, viz., cadmium (Cd), lead (Pb), chromium (Cr), nickel (Ni), copper (Cu), and zinc (Zn), is detrimental to the environment owing to their persistent and non-biodegradable nature and is primarily caused by natural and anthropogenic processes (Radwan and Salama, 2006; Shah et al., 2010; Muhammad et al., 2011; Sekomo et al., 2011). Heavy metals are taken up by crops together with other necessary soil nutrients, and the buildup of these metals is typically greater in crops cultivated in polluted soils than in those grown in uncontaminated soils (Jan et al., 2010; Yang et al., 2011; Ratul et al., 2018). Weathering of metal-bearing minerals and volcanic eruptions are natural or geological sources of heavy metals in the environment. Nevertheless, the use of wastewater for irrigation purposes has been found to have a significant effect on the buildup of both inorganic and organic contaminants within the soil (Arora et al., 2008; Rehman et al., 2019). Consequently, these contaminants can be taken up by plants that are subjected to irrigation with such wastewater (Singh et al., 2004; Rashid et al., 2022). Undoubtedly, the utilisation of wastewater for irrigation has resulted in a reduction in the demand on freshwater resources. Heavy metals deposited in food crops have been shown to reach the human body by inhalation and consumption (Mamat et al., 2014; Abuduwaili et al., 2015). These metals, once inside the body, interfere with enzymes, slowing or stopping essential physiological processes. Over time, they can lead to serious health issues, including anaemia, kidney failure, and brain damage (Pappas et al., 2006; Mitra et al., 2022). For example, the consumption of food contaminated with Cd has been linked to both acute and chronic health effects, including kidney damage, poor bone development, hypertension, and even cancer (Raknuzzaman et al., 2016).

Chronic kidney disease of unknown aetiology (CKDu) is a kidney disease that progresses very slowly and is almost asymptomatic until severe and cannot be attributed to diabetes, hypertension, or any other known causes (Gooneratne et al., 2008; Jayasumana et al., 2013). In Cuttack district, India, the disease was identified for the first time in the early 2000s. The male population of the area is more susceptible to the disease compared to the women by a ratio of 3:2. However, young men under the age of 50 who participated in agricultural activities had a higher prevalence of the disease (Varma, 2015; Senapati et al., 2018; ICMR, 2020; Mohanty et al., 2020). Almost every household in the area has been diagnosed with the sickness. The cause of CKDu being endemic to a particular region is still unclear, and many researchers are striving to uncover it as thousands of people suffer from this illness. There are 697.5 million people with chronic kidney disease worldwide, with 115.1 million of them being Indian (Cockwell and lori-Ann, 2020). The key histological characteristics of CKDu are interstitial fibrosis, interstitial mononuclear cell infiltration, and tubular atrophy. These histological changes suggest a role for nephrotoxins in the origins of CKDu (Nanayakkara et al., 2012).

At high exposure levels (more than prescribed limit set by FAO/WHO, 2019; Table 2), cadmium (Cd), lead (Pb), and mercury (Hg) are regarded as nephrotoxins (Ekong et al., 2006; Johri et al., 2010; Soderland et al., 2010; Evans and Elinder, 2011). Metals progressively accumulate in the body through chronic low-level exposure, especially in industrialising countries. Pb, Hg, and Cd are found in air, food, petrol, polluted crops, and seafood (Jarup, 2003; Soderland et al., 2010). Phosphate fertilisers are the main source of heavy metal contamination in soil, as the phosphate minerals contain Cd as a natural impurity. Cd accumulation in plants beyond its permissible limit (0.05 mg/kg) can inhibit nutrient assimilation, carbohydrate metabolism, photosynthesis, and enzymatic activities, which in turn reduce yield (Nazar et al., 2012; Bakhshayesh et al., 2014). Cd deposits irreversibly in the human lungs, liver, and kidneys (Sobukola et al., 2010). It can trigger organ oxidative stress, inflammation, and lipid peroxidation (Prozialeck et al., 2006; Johri et al., 2010). Chronic low Cd exposure can damage renal proximal tubules and lower the glomerular filtration rate (GFR) in animal models (Thijssen et al., 2007). Also it may worsen diabetic kidney disease in humans and animals (Edwards and Prozialeck, 2009). Kidneys and liver produce a specialised protein called metallothionein, which protects the cells from Cd by binding tightly to it. Cancers of the prostate, kidneys, and ovaries have been linked to chronic Cd exposure (Nazar et al., 2012). Lead (Pb) is a hazardous metal that can enter the body via air, food, and water and cannot be eliminated by washing contaminated fruits and vegetables (Abbas et al., 2010). It is added to fuel as an anti-knocking agent; therefore, it is possible that this is another source of the high Pb levels seen in some leafy crops (Zamor et al., 2012). Pb poisoning causes mitochondrial enlargement in renal tubular cells and reduces energy generation (Evans and Elinder, 2011). Occupational exposure to mercury vapour may trigger albuminuria and acute membranous nephropathy (Li et al., 2010). The interrelation between chronic kidney disease (CKDu) and exposure to environmental toxins has been investigated primarily in western nations, with few data available for Asian countries.

No efforts have been made to detect heavy metals in the edible parts of locally grown crops that are consumed frequently by the inhabitants of the study area. Thus, this study examined the risk of six harmful heavy metals (Cd, Pb, Ni, Cr, Hg, and As) in CKDu affected areas of Cuttack district, Odisha. The quantities of heavy metals in rice, pulse, and vegetable crops were measured, and the health risk to nearby populations was estimated based on potential carcinogenic and noncarcinogenic risk factors.

2 Materials and methods

2.1 Study area

This study region in Cuttack, India, extended from 21°24′29″N to 81°40′19″E in latitude and longitude. The study area encompasses 3,432 km2. The majority of the area falls under Narasinghpur block. The Narsinghpur block consisted of 157 villages and 98,000 residents. The average altitude was between 50 and 100 m, and the maximum was 337 m. In the highlands, red soils were found, whereas around the Mahanadi River, younger alluvial soil can be found. Potash and lime are present, but nitrogen, phosphorus, and humus are absent from these recent alluvial soils. The area under study comprises granitic rocks along with khondalite and charnokite minerals, which cover a nearly equal area in hard rock terrain (CGWB, 2013). The details of the sampling site are given in Figure 1.

FIGURE 1
www.frontiersin.org

FIGURE 1. Sampling location in Cuttack district, Odisha.

2.2 Crop sampling

Nine crops, i.e., one cereal (rice), two pulses (green gram and black gram), and six vegetables belonging to three different groups of vegetable crops: root, fruit, and leafy vegetables (potato, carrot, tomato, okra, and spinach), were selected for the study, as these crops were mostly consumed and frequently grown in the study area according to our socioeconomic survey. The description of the examined crops is shown in Table 1. Samples from each site were collected in triplicate. A total of 118 crop samples were collected between January and March 2022. These samples were collected from the fields and taken to the laboratory for further analysis in polythene bags with proper tags. Each sample was washed with double-distilled water to eliminate grime and grease from the surface of the crop samples. Then the samples were cut into small pieces with a stainless steel knife and air-dried for a week to reduce their moisture content. After air drying, samples were stored for 7 days in an oven at 65°C. The moisture content of samples was also determined by using the gravimetric method. After dehydrating the plant samples in an oven, they were grounded to a fine powder using a wooden mortar and pestle. Finally, the samples were stored at room temperature in airtight containers for further analysis (Sharma et al., 2009; Bhatia et al., 2015).

TABLE 1
www.frontiersin.org

TABLE 1. Details of crops under study.

2.3 Heavy metal analysis

Plant samples were weighed precisely at 0.5 g and pre-digested overnight in 5 ml of nitric acid (HNO3) before being digested with 5 ml of diacid (NHO3+HClO4) mixture on a heated plate under a hood until a clear solution was obtained. The recovery of Cd, Pb, Ni, Cr, Hg, As were 96%, 95%, 97%, 95%, 94%, 97%, respectively after digestion. The volume of the digested sample solution was increased to 50 ml with double-distilled water. Inductively coupled plasma optical emission spectroscopy (ICP-OES) (Model Avio 200) was utilised to determine the concentration of heavy metals (Cd, Pb, Ni, Cr, Hg, and As) in the digested and filtered samples by using a standard solution of each metal. Standard solutions were prepared for each element under study. The blank solution, which lacked the crop sample material, was made to calibrate the initial reading and minimise metal contamination in crop samples. The value of metals in unknown sample solutions (ppm) was multiplied by the dilution factor to determine the actual metal concentration in dried plant samples. Metal analysis of plant samples was conducted in accordance with standard procedures and methodology (Singh et al., 1999).

2.4 Quality check

The examination of specimens were conducted for the purposes of ensuring and maintaining quality control. Throughout the analytical procedures, the chemicals and reagents utilised were of analytical-grade quality. Double distilled water (DDW) was utilised in the preparation of the necessary reagents, standards, and analytical samples for processing and dilution purposes. Calibration curves were generated for each heavy metal under investigation. The analysis of blanks was conducted with regular frequency in order to maintain the analytical quality. To prevent any potential contamination in the equipment, procedural cleaning was performed at regular intervals using DDW during the whole analysis. The instrumental detection limit (IDL) values were found to be lower than both the method detection limit (MDL) and method quantification limit (MQL) values, indicating the high sensitivity of the inductively coupled plasma optical emission spectroscopy instrument for estimating heavy metals. Samples prepared for metal analysis included procedural blanks, replicate analyses, standard solutions and certified reference material (CRM) of white cabbage (BCR-679, European Commission Joint Research Centre, Institute for Reference Materials and Measurements). The certified values for Cd, Pb, Ni, Cr, Hg, and As are 1.66 ± 0.07, 37.21 ± 0.12, 27.0 ± 0.8, 11.23 ± 0.2, 6.17 ± 1.4, 3.21 ± 0.5 mg/kg, respectively. The values obtained for different metals viz., Cd, Pb, Cr, Ni, As, Hg were 94%, 92%, 88%, 86%, 84%, 89% of the certified value, respectively.

2.5 Health risk assessment

2.5.1 Estimated daily intakes (EDIs)

Estimated daily intakes (EDIs) of heavy metals (Cd, Pb, Ni, Cr, Hg, and As) (mg/day) were determined by multiplying the average concentration of heavy metals in crops by the weight of these foods consumed by a person. They are computed according to the following formula:

EDI=Cm×Cf×FIR×Ef×DeWb×Tav×103

Where, Cm represents crop metal concentration (mg/kg), Cf represents the conversion factor of crops into dry weight (0.085) (Arora et al., 2008), FIR represents the average food consumption rate that was determined through a questionnaire survey in the study area (total of 378 individuals from the Narasinghpur block were surveyed), and then the data were used to compute the average food consumption rate shown in Table 5, Ef represents the exposure frequency (365 days), De represents the exposure duration (70 years), Tav represents the average time of exposure (365 days × 70) and Wb represents the average body weight of an individual (70 kg for adults and 15 kg for children) (WHO, 1985; USEPA, 2010).

2.5.2 Target hazard quotient (THQ)

The United States Environmental Protection Agency’s (USEPA) risk-based concentration table (USEPA, 2010) was used as the basis for the calculation of non-carcinogenic risks. Using the THQ, which is the ratio of single metal exposure over a given time to a reference dose (Df) for that metal over the same time period, the noncarcinogenic risk of ingesting metals through food crops were evaluated. The THQ can be estimated with the following equation:

THQ=EDIDf

Where, EDI is the estimated daily intake and Df is the reference dose for metals. Df for Cd, Pb, Ni, Cr, Hg, and As is 0.001, 0.0035, 0.02, 0.003, 0.0003, and 0.0003 mg/kg/day, respectively (USEPA, 2006). THQ values more than one indicates harmful noncarcinogenic effect on human health. However, THQ value less than one considered to be safe for consumption (Antoine et al., 2017).

2.5.3 Hazard index (HI)

The hazard index (HI) was developed to quantify the potential noncarcinogenic impacts of multiple heavy metals, and it is based on the risk assessment standards established by the USEPA. (1999). It is the sum of the hazard quotients (USEPA, 2010). The following equation is used to calculate the hazard index:

HI=THQ=THQCd+THQPb+THQNi+THQCr+THQHg+THQAS

If HI is greater than one, then exposure to multiple elements has a negative impact on human health. The extent of the negative effect is considered to be proportional to the total of multiple metal exposures (Proshad et al., 2020).

2.5.4 Carcinogenic risk

The equation described in USEPA risk-based concentration (USEPA, 2006) can be used to estimate the target carcinogenic hazards associated with metals like Cd and Pb, which have been shown to cause cancer in humans. It can be calculated using the following formula:

CR=EDI×CFSO
TCR=CR

Here, CR represents the carcinogenic risk, EDI represents the estimated daily intake, and CSo represents the carcinogenic slope factor for metals (ATSDR, 2010; Feed, 2013; Wei et al., 2020). Cd and Pb have oral cancer slope factors (CPSo) of 0.38 and 0.0085 mg kg-1 day-1, respectively. TCR values below 10−6 correspond to low cancer-causing risks; between 10−5 and 10−4 correspond to moderate cancer-causing risks; and between 10−3 and 10−1 correspond to high cancer-causing risks (Demirezen and Aksoy, 2006; Liu et al., 2006; USEPA, 2015).

2.6 Statistical analysis

IBM SPSS 22.0 software was used to perform statistical analysis of the data. Standard deviations and mean concentrations of metals in rice, pulses, and vegetables were calculated. The potential source of metals in food samples can be interpreted through a multivariate analysis using principal components. KMO values for this particular study is found to be 0.839 indicating the sampling is adequate for conducting factor analysis (Dodge, 2008). In the principal component analysis (PCA), eigen values were extracted to determine the principal components (PC). A dendrogram was constructed using Ward’s method to categorize crops into different groups. From the cluster analysis, similarities and differences between samples with respect to metal content were identified. The rest of the calculations were done in Microsoft Excel 2013.

3 Results and discussion

3.1 Total heavy metal concentration in crops

The total concentration of Cd, Pb, Ni, Cr, Hg, and As in rice, pulses, and vegetables (mg/kg) was assessed, and their values were presented in Table 2 and Figure 2. The overall heavy metal concentrations in the samples were as follows: Pb>Ni>Cd>Cr>As>Hg. Among crop species, the average concentration of metals was as follows: spinach > rice > okra > mustard > potato > carrot > tomato > green gram > black gram. When comparing the metal concentration in crop samples with the permitted limit given by FAO/WHO (2019), it was found that the metal concentration in 89.91%, 100%, 0%, 0%, 10.08%, and 2.52% of samples, respectively, was above the permissible limit for Cd, Pb, Ni, Cr, Hg, and As (Table 2; Figure 2). Heavy metal concentrations were observed to vary significantly between samples due to environmental factors such as temperature, rainfall, crop growth stage, and metal accumulation and absorption capacities (Liu et al., 2006; Pandey and Pandey, 2009; Saha and Zaman, 2013; Garg et al., 2014). Phyto-accumulation of heavy metals, for instance, was shown to be greater in cassava tubers than in leaves (Harrison et al., 2018).

TABLE 2
www.frontiersin.org

TABLE 2. Metal concentration (mg/kg) in crop samples.

FIGURE 2
www.frontiersin.org

FIGURE 2. Heavy metals distribution in crop samples (n = 118) collected from CKDu hotspot of Cuttack district, India.

The average concentration of Pb (mg/kg) in the crop sample followed the decreasing order of spinach (10.51), paddy (7.88), potato (4.45), carrot (3.41), black gram (1.99), mustard (1.93), okra (1.78), tomato (1.68), and green gram (1.31) (Table 2). It was observed that the lead concentration in all samples was higher than the standard value (0.1 mg/kg) (FAO/WHO, 2019), suggesting excessive lead contamination in food crops grown in the study area and potential health risks to consumers. It was clear that spinach, paddy, potato, carrot, black gram, mustard, okra, tomato, and green gram contain 105, 79, 44.5, 34, 20, 19, 18, 17, and 13 times more concentrations of Pb than the MAC (Table 2). Cd and Pb accumulate in the renal cortex and bone, respectively. Metals have decades-long biological half-lives. Due to these long half-lives (Cd > 30 years), sustained, low-level exposure might produce excess accumulation in organs, especially in the kidney, which can disrupt the physiological function of the organ (Sharma et al., 2007; Navas-Acien et al., 2009).

The average Ni concentration in crops varied from 0.29 (tomato) to 1 mg/kg (rice) (Table 2). In crop samples, the concentration of Ni was as follows: rice > green gram > potato > spinach > mustard > carrot > black gram > okra > tomato. The concentration of nickel in all samples was less than the standard amount (10 mg/kg) (JECFA, 2003; FAO/WHO, 2019; WHO, 2011), showing that nickel did not contaminate the food samples (Figure 2).

Cadmium is a hazardous heavy metal present in very low concentrations in the environment. Air and water are known to be the primary sources of Cd exposure (FSANZ, 2003). The average Cd content varied from 0.09 (green gram) to 1.37 (spinach) mg/kg. In crop samples, the average Cd concentration (mg/kg) was as follows: spinach (1.37), potato (1.22), mustard (0.94), carrot (0.58), paddy (0.52), tomato (0.39), okra (0.27), black gram (0.12), green gram (0.09). In accordance with the maximum allowable concentration (MAC), the cadmium concentration in 89.91% of samples was higher than the standard value (0.05 mg/kg) (FAO/WHO, 2019). It was found that spinach, potato, mustard, carrot, paddy, tomato, okra, black gram, and green gram contain Cd concentrations that are 27, 24, 19, 12, 10, 8, 5, 2.5, and 2 times more than the maximum allowable concentration (MAC) (Table 2).

The average Cr concentration varied from 0.12 (spinach) to 0.94 mg/kg (okra) (Table 2). In crop samples, the average Cr content were as follows: okra > green gram > carrot > paddy > black gram > mustard > potato > tomato > spinach. Chromium concentrations in all samples were less than the standard value (2.3 mg/kg) (FAO/WHO, 2019), showing no chromium contamination of food samples (Figure 2).

The mean As concentration (mg/kg) in crop samples was in descending order as follows: potato (0.037), tomato (0.020), paddy (0.019), okra (0.016), green gram, mustard, okra (0.013), and black gram (0.008). According to Table 2, the arsenic concentration of 2.52 percent of the samples were higher than the standard value (0.1 mg/kg) given by FAO/WHO. (2019), which may pose a health risk to consumers. Rapid transfer of As from soil to plant, irrational use of As rich fertilizers and pesticides, and use of contaminated groundwater for irrigation may contribute to the presence of arsenic in crops (Alam et al., 2003; Renner, 2004; Neumann et al., 2010; Bhuiyan et al., 2011; Roberts et al., 2011; Polizzotto et al., 2013).

The average Hg concentration varied from 0 (green gram, carrot, and mustard) to 0.019 mg/kg (okra) (Table 2). Average Hg concentrations in crop samples were as follows: okra > paddy > potato > tomato > spinach > black gram > green gram > carrot > mustard. According to MAC, the Hg concentration in 10% of samples was higher than the standard value (0.01 mg/kg) given by FAO/WHO (2019), indicating a low level of mercury contamination in food samples (Figure 2).

Long-term consumption of food crops contaminated with heavy metals may pose numerous health risks to humans. Therefore, routine monitoring is essential to avoid excess accumulation of these metals in the food chain (Sharma et al., 2009; Kananke et al., 2014; Noor et al., 2022). According to Yana et al. (2012), heavy metals in leafy vegetables come from both soil and smelting waste gases, while those in fruits and roots come from soil and may vary by season (Tani and Barrington, 2005). Chronic exposure to Cd, Pb, As, and Hg causes renal tubular alterations, especially in the proximal convoluted tubule, and, in rare cases, acute renal failure that leads to chronic kidney disease (Gunawardana et al., 2006; Ferraro et al., 2010; Rango et al., 2015; Asraf et al., 2021). Lead is linked to terminal stages, although more research is needed (Ekong et al., 2006; Garcia and Arceo, 2018). In CKDu affected areas of Sri Lanka, Ni, Cd, Cr, and Pb contamination levels in vegetables exceeded FAO/WHO standards for human consumption (Bandara et al., 2010; Kananke et al., 2014; Kananke et al., 2016). In sensitive individuals with hypertension or diabetes, consumption of foods with high Cd may synergistically develop and progress CKD (Kim et al., 2015). The main irrigation source in the study area is the Mahanadi River, which flows adjacent to it and contains contaminated water and detritus. In Mahanadi sediments, Pb and Cd enrichment factors were higher, indicating contamination from many external sources (Nayak et al., 2002; Swain et al., 2021; Samal et al., 2022).

3.2 Correlation coefficient matrix of heavy metals

To determine the relationships between the metals in food samples, statistical analyses were conducted. From the intermetallic interaction in a particulate medium, the source and migration routes of the metals can be predicted (Raknuzzaman et al., 2016; Muhammad et al., 2021). The correlation coefficient matrix of heavy metals in food samples taken from CKDu-endemic regions in the Cuttack district is presented in Table 3. Cd showed significant positive correlations with Pb and Ni (r = 0.277**, r = 0.229**), while significant negative correlations were seen between Cd and Cr (r = −363**). Pb and Cr both showed positive correlations with Ni and Hg, respectively, that were statistically significant (r = 0.280** and r = 0.202*, respectively). According to Abbasi et al. (2013) and Mohammed et al. (2003), the combinations exhibited a strong positive association, showing that the traits were related and may have derived from the same sources. Other connections between the components of the meal sample were not significant.

TABLE 3
www.frontiersin.org

TABLE 3. Pearson correlation coefficient of heavy metals in crop samples.

3.3 Analysis of the source of heavy metals in crops

Principal component analysis (PCA) was performed to determine the possible sources of heavy metals in the food crop collected from the study area (Franco-Uria et al., 2009; Kikuchi et al., 2009; Manea et al., 2020). Table 4 and Figure 3 display the results of PCA. Three principal components were found, and together they accounted for 67.01% of the variations in food crops. The variances explained by the first three PCs for crop samples were 28.40%, 21.11%, and 17.48%, respectively. PC1 has a strong correlation with Cd and Pb, PC2 has a strong correlation with Ni and Cr, and PC3 has a strong correlation with Hg and As. Cd had accumulated in the analyzed crops as a result of the widespread use of phosphate (P) fertilizers in agricultural soils (Mortvedt, 1996; Nziguheba and Smoulders, 2008; Hove et al., 2020); hence, Pb, which was significantly related to Cd in PC1, may also be significantly influenced by irrational use of fertilizers and agrochemicals (Huang et al., 2007; Atafar et al., 2010; Iqbal et al., 2021). Decades of intensive cultivation in the agricultural region and long-term application of fertilizer may be a significant source of heavy metal accumulation in crops. The Mahanadi River, which borders the affected area, contains additional evidence of industrial and anthropogenic contamination in its water and sediments (Behera et al., 2013; Raj et al., 2013; Swain et al., 2021). In conclusion, PC1 and PC3 can be inferred as anthropogenic components, which are more significantly influenced by human actions (fertilizer application) than other components. A significant association between Cr and Ni in PC2 indicated their origin from lithogenic sources as they have been detected in the parent materials of rural soils across the globe, with minimal temporal and spatial variation (Facchinelli et al., 2001; Salonen and Korkka-Niemi, 2007; Spurgeon et al., 2008; Wu et al., 2010; Kladsomboon et al., 2020). Thus, metals in PC1, PC2, and PC3 may derived from a variety of natural and anthropogenic sources, including industrial effluents, agricultural activities, and the granitic bedrock underlying the research region. Also from the dendrogram constructed using Ward’s method, several cluster configurations were identified and food samples belonging to the same cluster shared similar characteristics with respect to their metal contamination level (Figure 4). Within a distance of five on the dendrogram scale, the main clusters of various food items developed, including potatoes, tomatoes, rice, spinach, carrots, mustard, black gram, okra, and green gram.

TABLE 4
www.frontiersin.org

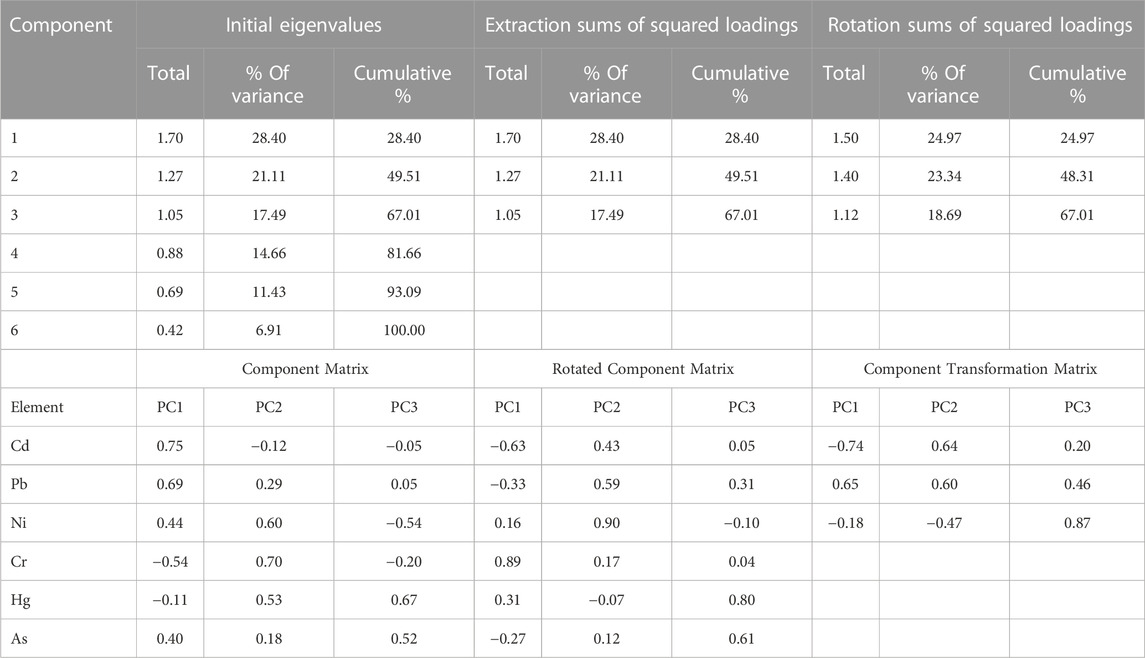

TABLE 4. Total variance explained and component matrices for the heavy metals in crops collected from Cuttack district, India.

FIGURE 3
www.frontiersin.org

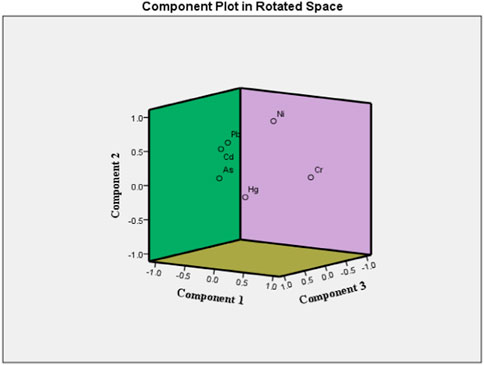

FIGURE 3. Principal component analysis (PCA) of heavy metals in food samples (n = 118) collected from different agricultural fields of Cuttack district, Odisha.

FIGURE 4
www.frontiersin.org

FIGURE 4. Cluster analysis of crop samples (n = 118) collected from Cuttack district, India.

3.4 Health risk assessment

The USEPA has developed several indices (both non-carcinogenic and carcinogenic) to predict the potential health risk posed by long-term exposure to hazardous metals (Ali et al., 2019).

3.4.1 Estimated daily intake (EDI)

The most prevalent route of trace metal exposure for humans is through food (WHO, 1985; Kumar et al., 2019; Saraswat et al., 2023); however, inhalation and skin contact are also possible (ATSDR, 2010). Rice, pulses, and vegetables may make up a significant share of the Indian population’s total diet, and EDI is a significant method for assessing the health hazards associated with heavy metals through the consumption of these food items (Alam et al., 2003; Alsafran et al., 2021). Its calculation is based on the total metal concentration in food and their consumption rate in adults and children; the results are presented in Table 5. If the ratio of EDI to Df is less than Df, the health risk is minimal; if it is between 1 and 5 times the Df, there is a low health risk; five to ten times the Df, there is a moderate health risk; more than ten times the Df, there is a high health risk (Ali et al., 2019; Saxena et al., 2019). Based on the EDI/Df ratio, we determined that the metal content in pulses is between 5 and 10 times higher, posing a moderate health risk, while the metal content in rice and vegetables is greater than 10 times higher, posing a high health risk for consuming these crops grown in this region. Based on these results, we concluded that Cd, Pb, and Ni posed the greatest threat to the health of adults and children living in endemic regions of CKDu in the Cuttack district of India.

TABLE 5
www.frontiersin.org

TABLE 5. Consumption rate (g/person/day), estimated daily intake (EDI) and total estimated daily intake (EDI) (mg/kg bw/day) of heavy metals from rice, pulse and vegetables for adult and children.

3.4.2 Target hazard quotient (THQ)

THQ is linked to a noncarcinogenic health risk, and its value less than 1 is considered as permissible (Rattan et al., 2005). If THQ levels exceed a certain threshold, it will pose a health risk (USEPA, 1989; Bounar et al., 2020). The calculated THQ value was presented in Table 6. In this investigation, for Pb, THQ values in rice were greater than 1. Therefore, their THQ levels may pose a noncarcinogenic risk to the population in this region. From these values, we determined that for Cd and Pb, the THQ values of spinach and mustard were higher than those of other vegetables and pulses under study (Gupta et al., 2019), whereas no such pattern was observed for other elements.

TABLE 6
www.frontiersin.org

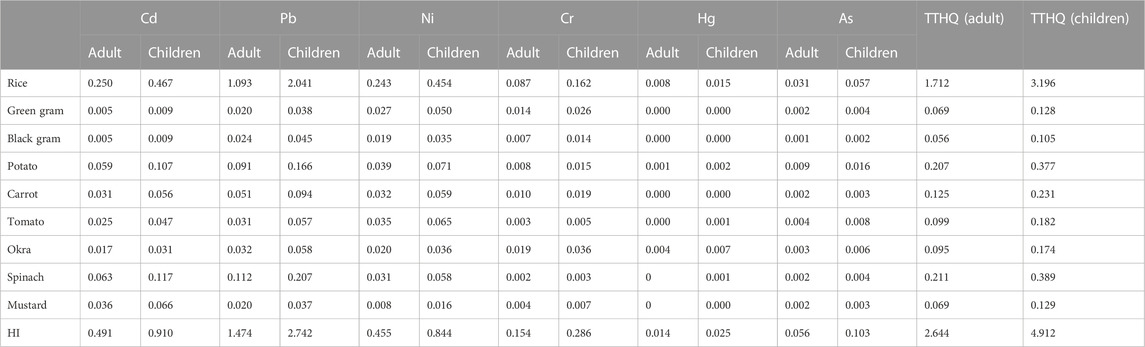

TABLE 6. Target hazard quotient (THQ) (noncarcinogenic risk), hazard index (HI) and total target hazard quotient (TTHQ) of heavy metals from rice, pulses and vegetables for adult and children.

3.4.3 Hazard index (HI)

HI provides a measure of the cumulative impact of harmful metals on human health through consumption of contaminated food crops (Filimon et al., 2021), and the data in Table 6 demonstrated that HI values for rice were higher than the allowed limit. Hence, consumption of rice grown in the study area may be associated with noncancerogenic health risks. The hazard index for adults and children was as follows: rice>spinach>potato>carrot>tomato>okra>mustard>green gram>black gram. In this study, only a limited number of food crops were evaluated to estimate the noncarcinogenic health risk. So, the results only considered a minor portion of the actual threat to the people in the study area.

3.4.4 Target carcinogenic risk (TCR)

Toxic metals are thought to have potential adverse effects on human health, and research suggests that exposure to certain carcinogenic metals, especially over extended periods of time, can raise the risk of developing cancer. TCR is an estimate of the expected malignancy. Then, it also indicates the possibility of cancer-causing hazards developing within an individual. TCR for Cd and Pb via consumption of contaminated food crops, as estimated by EDI and CPSo values, is displayed in Table 7. If TCR values are between 10−6 and 10−5, they are associated with low cancer risks; if they are between 10−5 and 10−4, they are associated with moderate risks; and if they are between 10−3 and 10−1, they are associated with high risks (Ali et al., 2019). The TCR values for Cd in the crop samples were 1.86E-04 and 3.46E-04 for adults and children, respectively (Table 7). Similarly, for Pb, it was 4.39E-05 for adults and 8.16E-05 for children. The cumulative carcinogenic risk of Cd from the foods was greater than 10−4, indicating cancer risk to both adults and children in the study area. In the current study, however, the TCR of Pb is between 10−5 and 10−4, posing a moderate cancer risk (USEPA, 1989; USEPA, 2015; Fonge et al., 2021). Due to the high cadmium content of some local foods, residents of the endemic area may consume more cadmium than is healthy on a daily basis. This can have serious consequences for the kidneys, especially in the young, the elderly, and those with underlying medical conditions. A cross-sectional investigation suggested cadmium as a risk factor for CKDu in Sri Lanka due to its greater urinary excretion and dose-effect connection with CKDu stages. When exposed to nephrotoxins, selenium deficiency and genetic vulnerability may predispose to CKDu (Jayatilake et al., 2013; Gupta et al., 2021). Therefore, the potential carcinogenic hazards posed by food consumption to residents of the CKDu endemic area must not be ignored. Thus, the present research demonstrates unequivocally that the Cuttack populace’s consumption of these foods poses a cancer risk.

TABLE 7
www.frontiersin.org

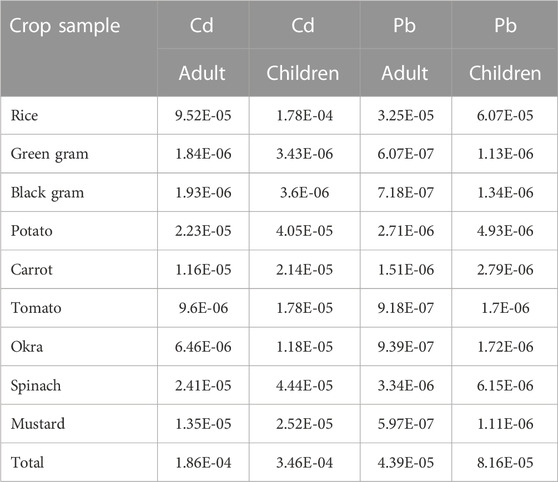

TABLE 7. Carcinogenic risks of Cd and Pb due to consumption rice, pulse and vegetables for adult and children.

4 Conclusion

The current study examined the heavy metal concentration of commonly consumed and locally grown food crops in CKDu-endemic areas of Cuttack district, India. It was found that the levels of Cd, Pb, Hg, and As in rice, pulses, and vegetables exceeded the WHO and FAO permissible levels. Metal concentrations in food samples were as follows: Pb>Ni>Cd>Cr>As>Hg. A multivariate study revealed that Cd, Pb, Ni, Cr, Hg, and As in dietary samples were primarily caused by both natural and anthropogenic activities. EDI for Cd and Pb was increased in both adults and children. THQ for Pb was over the permissible limit, putting consumers at high risk for non-cancerogenic risks associated with Pb. Based on the calculated hazard index for adults and children, it was evident that consuming rice was not safe. While the risk of Pb from the majority of meals was below the permitted level of 10−5, the total carcinogenic risk of Cd was greater than 10−4, indicating a cancer risk to both adults and children in the study area. Longitudinal studies are needed to assess the links between heavy metals like Cd and Pb and kidney impairment due to their extensive prevalence in the environment and the lack of treatment strategies to reduce their effects. Thus, chronic impacts might be determined and environmental monitoring increased to lower chemical concentrations. We recommend combining governmental and private sector efforts with research centres to further study into the disease’s causes and remedies.

Data availability statement

The original contributions presented in the study are included in the article/Supplementary Material, further inquiries can be directed to the corresponding author.

Author contributions

SM and RN: Conceptualization, Methodology, Software; SM and KM: Data curation, Writing–TableOriginal draft preparation. SM, KP, and BJ: Visualization, Investigation. RN and BJ: Supervision: SM, KKM, and SS: Software, Validation: PD, JD, AS, SB, JN, and SP: Writing–Reviewing and Editing. All authors contributed to the article and approved the submitted version.

Acknowledgments

Author SM has received financial support from University Grant Commission (UGC), New Delhi, India in form of Junior Research Fellowship (JRF) during her PhD tenure to conduct this research work.

Conflict of interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Publisher’s note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
