Antibiotics Contaminated Irrigation Water: An Overview on Its Impact on Edible Crops and Visible Light Active Titania as Potential Photocatalysts for Irrigation Water Treatment

Sub-therapeutic levels of antibiotics (ABs) are given to animals and poultry to promote growth and reduce disease. In agricultural environments, ABs reach croplands via animal manure used as fertilizer and/or ABs-contaminated water used for irrigation. The continuous discharge of ABs into the ecosystem raises growing concerns on the ABs contamination of edible crops. Tetracyclines (TCs) are among the most widely used ABs around the world. In this review, we discuss the contamination of irrigation water with TCs, its impact on edible crops, and the potential risks of crop contamination with TCs on human health. We propose solar-mediated photocatalytic degradation using Titania (TiO₂) photocatalyst as a promising method to remove TCs from irrigation water. The photocatalytic activity of TiO₂ can be enhanced by chemical modification to expand its activity under visible light irradiation. Herein, we aim for providing literature-based guidance on developing a visible light–active TiO₂-based system to degrade TCs and other ABs in water streams. We include a summary of recent advances on this topic based on three main modification methods of Titania: metal/non-metal/mixed doping, composite formation, and heterojunction construction. Among the investigated photocatalysts, Fe₂O₃-TiO₂/Fe-zeolite and the N-doped TiO₂/rGO immobilized composite catalysts were found to be very efficient in the degradation of TCs under visible light irradiation (i.e., 98% degradation within 60 min). Most immobilized TiO₂ based composite systems exhibited improved performances and hence we highlight these as efficient, cost effective and ecofriendly photocatalysts for the degradation of TCs in irrigation water.

1 Introduction

Fresh water scarcity is an urgent global issue. Only (4%) of water on earth is fresh, and increasing global population, climate change, urbanization, and over exploitation continue to contaminate this scarce resource (Gothwal and Shashidhar, 2015). Pharmaceutical and organic chemical contamination of water is a critical threat to the natural ecosystem and public health (Zeghioud et al., 2016). Amongst these pharmaceuticals, antibiotics (ABs) are a major concern (Anjali and Shanthakumar, 2019). ABs are natural or synthetic antimicrobial compounds used to treat bacterial infections in humans, animals, and plants by inhibiting or killing bacterial growth (Daghrir and Drogui, 2013; Anjali and Shanthakumar, 2019; Danner et al., 2019). ABs have efficacious applications in human and veterinary medicine; however, sub-therapeutic AB levels are routinely given to animals and poultry to promote growth (Gothwal and Shashidhar, 2015). In agricultural environments, these ABs reach croplands via animal manure used as fertilizer and/or the use of AB-contaminated irrigation water (Anjali and Shanthakumar, 2019; You et al., 2019).

The escalating use of ABs and their continuous discharge into the environment results in frequent detection of ABs in different environments, with concentrations of ng/L–mg/L in wastewater (Pan and Chu, 2017). Wastewater is commonly used for irrigating agricultural lands due to the scarcity of fresh water. There is evidence from greenhouse and field experiments that irrigating crops with ABs-contaminated water leads to crop contamination; studies performed on different edible crops (lettuce, cucumber, spinach, and pepper) using different groups of ABs detected these ABs in plant leaves and roots (Pan and Chu, 2017).

Bioaccumulation of ABs in edible crops and in water environments lead to potential risks to human health. The proliferation of ABs in the environment led to the emergence of antibiotic resistant bacteria and antibiotic resistance genes (Singh et al., 2019). Antibiotic resistance is defined as the ability of the target microbe to resist the action of the antibiotic drug that previously caused cell death. In human health, antibiotic resistant bacteria cause untreatable infections and increased mortality (Chen M. et al., 2019; Singh et al., 2019). Human consumption of ABs-contaminated edible crops and drinking water poses major health risks due to the potential antibiotic resistance transfer to human pathogens (Sponza and Koyuncuoglu, 2019). Current reports indicate that antibiotic resistance is an urgent health-threatening issue, causing 0.7 million deaths/year and estimated to grow to 10 million deaths by 2050 (Singh et al., 2019).

There are currently 250 different antibiotics classified in seven groups (Anjali and Shanthakumar, 2019). Tetracyclines are reported as the second most widely used AB group worldwide (Xu L. et al., 2021). Tetracyclines are a group of ABs that include chlortetracycline, oxytetracycline, tetracycline hydrochloride, and tetracycline (Daghrir and Drogui, 2013). Tetracyclines have gained specific attention due to their wide use in medical, agricultural, and poultry sectors, and due to their poor adsorption in humans and animals and high stability in soil and wastewater (Saadati et al., 2016a). For example (50–80%), of the tetracycline consumed by humans/animals is excreted through urine and feces, and they are stable in wastewater for 34–329 h due to their low volatility and high hydrophobicity (Daghrir and Drogui, 2013; Xu L. et al., 2021). Sources for tetracyclines discharge include pharmaceutical industries, farms, homes, and hospitals. Hence, the occurrence of these ABs in the environment is proportional to the economic status of the country and the size of the livestock and the pharmaceutical industries. On the other hand, TCs discharge into the environment is also a consequence of the inefficiency of the current water treatment technologies used in removing these ABs (Christou et al., 2017; Pan and Chu, 2017). Particularly, tetracyclines are detected in the low (μg/L) level in municipal wastewater, in the high (μg/L) level in hospital wastewater, and in the (ng/L) level in underground, surface, and sea water (Homem and Santos, 2011). Although these concentrations appear low, they still impose risks to human health and the ecosystem via the potential development of antibacterial resistance (Danner et al., 2019).

Numerous studies have worked to develop efficient methods for removing ABs and specifically tetracyclines from water streams to eliminate potential threats to the ecosystem and humans (Saadati et al., 2016a; Minale et al., 2020). Removal technologies include adsorption, conventional technologies (biological processes, coagulation, flocculation, sedimentation, and filtration), membrane processes, chlorination, and advanced oxidation methods such as photolysis, electrochemistry, and photocatalysis (Homem and Santos, 2011; Wei et al., 2020). However, most of the conventional technologies such as the biological methods, filtration, coagulation/flocculation/sedimentation, and membrane processes suffer from the drawbacks of low efficiency, low degradation rate, incomplete mineralization, and high toxicity (Homem and Santos, 2011; Anjali and Shanthakumar, 2019). Solar light–activated photocatalytic degradation of ABs is an efficient, safe, residue-free, economical, and ecofriendly method to remove tetracyclines from wastewater, especially under visible light and ambient conditions (Homem and Santos, 2011; Wei et al., 2020). Various semiconductors and photocatalysts have been investigated for the photocatalytic degradation of tetracyclines including ZnO, TiO₂, WO₃, CdS, Fe₃O₄, g-C₃N₄, ZnS, and Bi₂O₃ (Niu et al., 2013; Zhu et al., 2013; Zhang et al., 2014; Li et al., 2015; Vázquez et al., 2016; Wang T. et al., 2017; Yan et al., 2020). Semiconductors based on Titania (TiO₂) are the most widely studied catalysts due to their low cost, high stability, low toxicity, good activity, and ease of modification (Teoh et al., 2012; Ibhadon and Fitzpatrick, 2013; Koe et al., 2019; You et al., 2019; Zhang et al., 2019). However, the photocatalytic activity and application of TiO₂ is limited to the UV region of the light spectrum (200–400 nm), and further modifications are needed to expand its activity into the visible light region (400–700 nm). Recently, immense efforts have been dedicated for TiO₂ modification to expand its activity to the visible light region, and several modification methods and approaches have been reported (Basavarajappa et al., 2020).

This review discusses the escalating use of ABs; their continuous discharge into the agroecosystems contaminating both the soil and water; and the risks associated with using wastewater for crop irrigation. We present a summary of the latest literature studying the impact of ABs-contaminated irrigation water on the quality of edible crops and potential consequences for human health. Current research indicates that the use of ABs-contaminated irrigation water has potential risks to humans and ecosystems, and highlights an urgent need to develop efficient irrigation water treatment technologies. Here, we focus on tetracyclines degradation under visible light using TiO₂-based photocatalysts, and present a detailed summary of the latest advances in Titania modification to enhance its visible light activity for the photocatalytic degradation of tetracyclines in water. We identify the most efficient catalysts and discuss their advantages and disadvantages. For literature collection, we focused on studies investigating modified Titania-based catalysts for the photocatalytic degradation of tetracyclines under visible light irradiation between 2011 and 2021. We chose to discuss the three most reported modification methods; metal-nonmetal, mixed metal-nonmetal doping, TiO₂-based composite formation, and TiO₂-based heterojunction construction. For TCs presence in the environment, we adopted numerical data from recent studies which assessed the occurrence of TCs in various water media and their bioaccumulation in edible crops.

2 Impact of ABs-Contaminated Irrigation Water on Edible Crops and Potential Risks for Human Health

Fresh water scarcity has led to the reuse of wastewater for crop irrigation. Approximately 20 × 10¹⁰ m² of global agricultural land is irrigated with treated wastewater (Raschid-Sally and Jayakody, 2008). Countries that extensively use reclaimed water for irrigation include Australia, Columbia, United States, and China (Gudda et al., 2020). Conventional water treatment methods (coagulation, flocculation, sedimentation, and filtration) and biological treatment methods are only moderately effective in removing low concentrations of persistent organic contaminants such as antibiotics. Generally, these methods have very low efficiency in removing ABs from wastewater, and the efficiency depends on the physiochemical properties of the AB to be removed and the operating conditions of the treatment system (Pan et al., 2014; Christou et al., 2017). The use of reclaimed wastewater for crop irrigation introduces these organic contaminants into the soil and ultimately to crops.

Antibiotics have been detected in diverse edible crops. For example, in Minnesota, United States, sulfamethoxazole was detected in Lactuca sativa (lettuce) at concentrations of 100–1,200 μg/kg tissue (Christou et al., 2017). In Tianjin, China, tetracycline and sulfamethoxazole were detected in spinach and radish at concentrations of 6.3–330 μg/kg tissue (Hu et al., 2010). In the Pearl River delta, China, tetracyclines were detected in cabbage and Ipomoea aquatica (water spinach) at concentrations of 6.6 and 7.4 μg/kg tissue, respectively (Pan et al., 2014).

Several studies investigated the impact of ABs-contaminated irrigation water on the uptake of the crops of these contaminants. Both greenhouse (pot) and field experiments were reported. Herein, we present results of some of these experiments. In the summer of 2020, we conducted pot experiments to evaluate the accumulation of gentamicin and oxytetracycline in three crops that are consumed fresh, including radish, lettuce, and cucumber (Imad Keniar et al., 2021). The crops were irrigated with 20 mg/L of each of the studied ABs. After harvesting, these ABs were detected in crop extracts using ELISA. The results detected gentamicin accumulation up to 13, 16, and 18 ng/g in cucumber, lettuce, and radish, respectively, whereas oxytetracycline accumulation was less than 3.0 ng/g in all three crops. Azanu et al. (Azanu et al., 2016) evaluated the accumulation of tetracycline and amoxicillin in potted lettuce and carrot irrigated with water containing known concentrations of 0.1–15 mg/L of tetracycline and amoxicillin. ABs were extracted from lettuce leaves and carrot tubers using accelerated solvent extraction, and then analyzed using liquid chromatography-tandem mass spectrometry. Tetracycline was detected in concentrations ranging between 4.4 and 28.3 ng/g in lettuce, and 12–36.8 ng/g in carrots. Whereas, amoxicillin was detected in concentrations ranging between 13.7 and 45.2 ng/g in both crops, which indicated that the amoxicillin uptake by lettuce and carrot was significantly higher than that of tetracycline. Hussein et al. (Hussain et al., 2016) conducted a field study in Lahore, Pakistan, which irrigated wheat, spinach, and carrot using pharmaceutical wastewater. The results showed that each of these crops accumulated 0–1 ng/g tissue of ciprofloxacin, ofloxacin, levofloxacin, oxytetracycline, and doxycycline.

Current data provide clear evidence that the use of ABs-contaminated irrigation wastewater can contaminate the soil and ultimately lead to ABs accumulation in edible crops. The extent of plant uptake of ABs from contaminated water depend on the type and concentration of the AB, its water solubility, sorption potential, and lipophilicity (Azanu et al., 2016). A clear understanding of AB bioaccumulation in crops and their ecotoxicological effects requires greater knowledge of the physiochemical properties of ABs in the soil and the mechanism of their translocation and bioaccumulation in plants (Pan and Chu, 2017). Field studies are necessary to accurately assess ABs uptake by various crops under different environmental conditions, and determine the impact of ABs accumulation in these crops (Pan and Chu, 2017).

Excessive use of treated wastewater in agriculture is increasing the risk of transmitting AB resistant pathogens/genes to the crops, which could potentially be transferred to the human microbiome through the food chain (Gudda et al., 2020). The level of this risk on human health will depend on the level of exposure to these contaminated crops through consumption. Pan et al. (Pan and Chu, 2017) proposed that human exposure to ABs through annual consumption of edible crops grown in manure-amended or wastewater-irrigated soil is likely to be low. For example, assessments of annual human exposure to different ABs through consumption of various crops in China indicated that consumption of corn and rice led to the highest AB exposure. The daily human exposure to tetracyclines, quinolones, and chloramphenicol was assessed as (0.34–2.77 µg) and (11.0–21.8 µg) via consumption of corn and rice, respectively. These values remained lower than the recommended acceptable daily intake (20–200 mg/day) of these ABs. However, a comprehensive analysis of the impact of AB-contaminated edible crops on human health is lacking. This would require well-defined dietary studies to develop human exposure models and further integrate those models with disease outbreak analysis and clinical data. This will help estimate the relationship between the ingestion of AB resistant pathogens and their impact on human defense mechanisms and health (Pan and Chu, 2017; Sanganyado and Gwenzi, 2019).

3 Tetracyclines Occurrence in Water Environments

This review focuses on the tetracyclines group as model ABs. Tetracyclines are one of the most prescribed ABs in human and animal infectious therapies due to their wide antimicrobial spectrum and low cost (Minale et al., 2020; Xu L. et al., 2021). Tetracyclines are extensively utilized as fertilizers and growth promoters in animal husbandry and agricultural industries (Daghrir and Drogui, 2013). Approximately (70%) of locally produced antibiotics are used for non-medical applications in the United States, and 4,200 tons of tetracyclines are utilized only in the agricultural industry (Xu L. et al., 2021). Tetracyclines have poor adsorption in humans/animals and high stability in soil and wastewater (Saadati et al., 2016a). For example (50–80%), of tetracyclines consumed by humans/animals are excreted through urine and feces, and after discharge into aquatic media, they are stable for 34–329 h due to their low volatility and high hydrophobicity (Daghrir and Drogui, 2013; Xu L. et al., 2021). AB contaminants are also persistent in soil and slowly degrade; for example, it took 90 days to degrade (44–75%) of the initial tetracycline concentration in a sterilized soil (Pan and Chu, 2017). Tetracyclines are released into the environment through animal manure, biosolids, sewage discharge, pharmaceutical wastewater, and the use of ABs-contaminated wastewater for irrigation (Pan and Chu, 2017). The AB concentration in each medium is directly related to the pollution source(s) and their distance from the medium. Tetracyclines are detected at low μg/L concentrations in municipal wastewater, at high μg/L concentrations in hospital wastewater, and at ng/L concentrations in underground, surface, and sea water (Homem and Santos, 2011). Although these concentrations seem rather low, they still carry risks for human health and the ecosystem through the development of antibiotic resistant bacteria and antibiotic resistance genes (Danner et al., 2019).

Table 1 presents the maximum detected concentration ranges of tetracycline, oxytetracycline, and chlortetracycline in wastewater, soil, manure, biosolids, and plants in different countries. The highest concentrations of tetracycline and chlortetracycline were detected in wastewater, whereas the highest concentration of oxytetracycline was in manure. The highest tetracycline concentrations detected in wastewater were tetracycline 254.820 μg/L in Korea, chlortetracycline 44.420 μg/L in Korea, and oxytetracycline 1.236 μg/L in South Korea. The highest tetracyclines concentrations detected in soil, manure, and biosolids were 2.683, 183.500, and 0.7436 μg/g of oxytetracycline, in China and United States. The highest tetracycline concentration detected in plant contamination was 0.532 μg/g of chlortetracycline in China.

TABLE 1

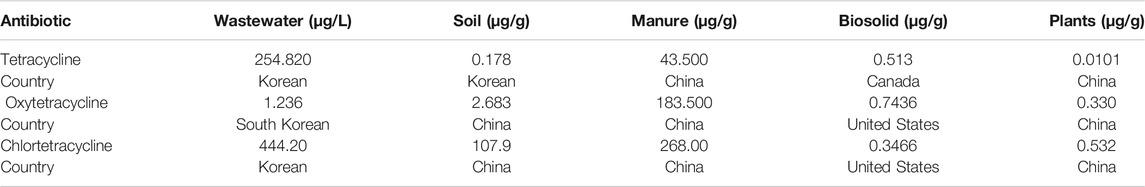

TABLE 1. Maximum detected tetracyclines concentrations in different environments and different countries (Pan and Chu, 2017).

Several studies have investigated ABs contamination of surface water. Table 2 presents the concentrations of tetracyclines in surface water streams in different countries. The predominant tetracycline detected in Ghana (Africa) was chlortetracycline, at concentrations of 0.044 μg/L. In the Wangyang River in China, tetracycline was detected at 25.5 μg/L. In Europe, the highest tetracycline concentration in surface water was detected in the United Kingdom, at a concentration of 1 μg/L. In the United States, the highest concentration of tetracycline 102.7 μg/L was detected in the Poudre River, Colorado. In Australia, the tetracycline concentration in surface water was minimal 0.008 μg/L.

TABLE 2

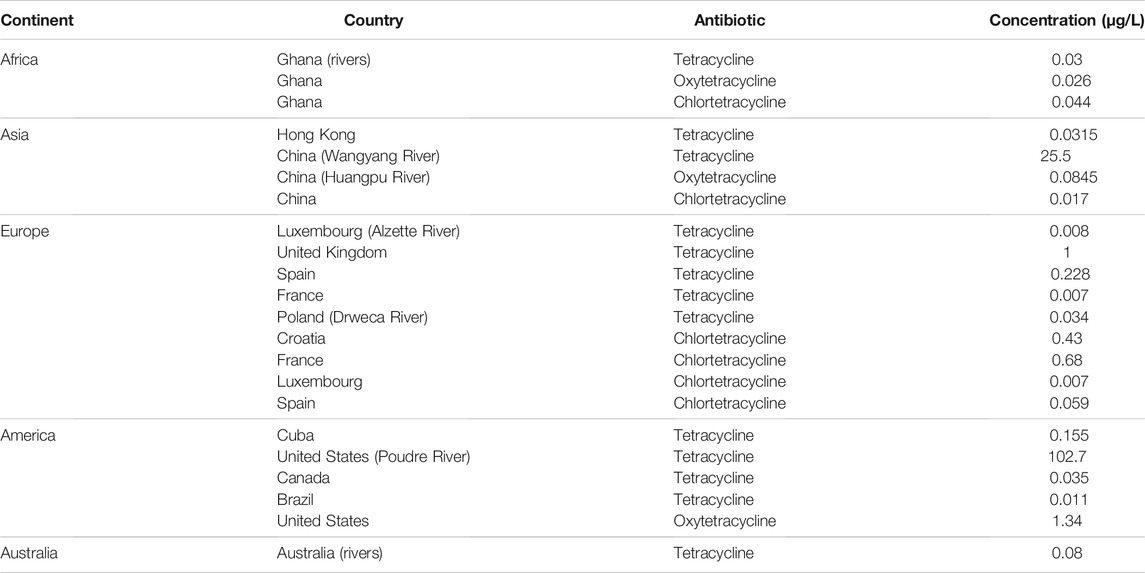

TABLE 2. Maximum tetracyclines concentrations in different surface water streams in different countries (Danner et al., 2019; Singh et al., 2019).

The varying levels of tetracycline contaminants in different countries reflect the scale of production and usage of tetracyclines in each country. This in turn is directly correlated to the economic development and industrial scale of the country. The highest concentrations of tetracyclines were detected in China, which is the biggest producer and consumer of ABs in the world. In 2013, China produced (248,000 tons) of ABs and consumed approximately (162,000 tons) (Zhang et al., 2015). China was the highest consumer of veterinary ABs in the livestock industry, reaching approximately (15,000 tons) in 2010 (Robles Jimenez et al., 2019). China will double its AB consumption in the livestock industry by 2030, when it will reach up to (35,000 tons) (Robles Jimenez et al., 2019). Tetracyclines were not detected in surface water in Lebanon (Mokh et al., 2017), likely due to the low scale of livestock activity. However, the latest Lebanese Ministry of Agriculture survey in 2009 reports rapid growth in livestock productivity (Mokh et al., 2020). Farmers use different groups of ABs to promote growth in cattle and poultry. Studies evaluating the presence of AB residues in cattle and poultry in different regions in Lebanon documented AB bioaccumulation in these animals. For example, a 2008 survey investigated the most widely used ABs in dairy cows from 26 random farms (more than 50% of them were small-scale farms with less than 1,000 cattle), and found wide use of streptomycin, gentamicin, penicillin, kanamycin, and oxytetracycline (Abi Khalil, 2008). Jammoul et al. (Jammoul and El Darra, 2019) evaluated ABs in 80 chicken muscle samples from different regions of Lebanon, and detected contaminating AB residues in (77.5%) of these samples. Ciprofloxacin (quinolones) represented the highest occurrence percentage (32.5%), followed by amoxicillin (lactams) (22.5%) and then tetracyclines (17.5%). The tetracyclines detected in these samples were below the maximum residue limit (MRL) values of 200 μg/kg set by the Food and Agriculture Organization (FAO, 2018). There are no recent studies on AB bioaccumulation in edible crops and water environments in Lebanon.

4 Photocatalytic Degradation as a Potential Treatment for Contaminated Irrigation Water

4.1 Photocatalysis

Antibiotics are stable in natural environments and persist in aquatic media because they are only partly biodegradable and are not completely removed by traditional wastewater treatment methods (only 24–36% removal efficiency) (Zeghioud et al., 2016; Pan and Chu, 2017). Hence, there is an urgent need to develop new technologies to detoxify wastewater streams by degrading these pharmaceuticals (Zeghioud et al., 2016). There are two main technologies to remove ABs from the environment: destructive and non-destructive methods.

Non-destructive methods include adsorption, liquid extraction, and membrane separation. Adsorption relies on solid and liquid phases, and the ability of the pollutant to move from the liquid phase to attach onto the solid adsorbent (Anjali and Shanthakumar, 2019). The adsorption efficiency depends on the properties of the adsorbent, including its surface area, porosity, and pore diameter (Homem and Santos, 2011). Conventional treatments refer to methods that are utilized in water treatment plants, and include biological methods, filtration and coagulation/flocculation/sedimentation. In the biological systems, the organic compound degradation occurs in activated sludge tanks with the absence or presence of oxygen gas (O₂) by monitoring the temperature and chemical oxygen demand. Filtration is the elimination of suspended solids in the feed by passing it over a granular solid medium, like sand, activated carbon, or coal. Coagulation/flocculation/sedimentation use particular chemicals like iron salts, polymers, lime, and alum to facilitate pollutant precipitation, particle sedimentation, and colloid generation to further collect them. (Homem and Santos, 2011). Membrane separation methods include reverse osmosis, nanofiltration, ultrafiltration, and ion exchange. These techniques do not degrade or remove contaminants, but entrap organic pollutants on filters (membranes) that require regeneration or disposal. The organic compounds and salts in contaminated wastewater affect the system performance and cause fouling of the membrane, leading to flux deterioration (Homem and Santos, 2011; Anjali and Shanthakumar, 2019). Ion exchange is based on anion and cation exchange between liquid and solid phases (sorbent/membrane), and is primarily used to improve water quality. It is rarely used to remove ABs from wastewater because this method requires ABs molecules to have ionizable groups (Homem and Santos, 2011).

Destructive methods include biodegradation and chemical oxidation processes (Calvete et al., 2019). Chemical oxidation processes include chlorination and advanced oxidation processes. Chlorination oxidizes organic pollutants into less toxic and biodegradable compounds. This method uses low-cost gases such as chlorine and hypochlorite, and it is routinely used as a pretreatment for wastewater streams polluted with pharmaceutical contaminants that are to be treated in biological systems (Homem and Santos, 2011). Advanced oxidation processes oxidize organic pollutants using intermediate radicals such as hydroxyl radicals to transform them into less toxic and more biodegradable species. The intermediate radicals are very reactive, have lower selectivity than other oxidants, and are generated in the presence of ozone, hydrogen peroxide, ultraviolet radiation, or semiconductor photocatalyst (Homem and Santos, 2011). Examples of advanced oxidation processes include ozonation, fenton, and photofenton oxidation, photolysis, electrochemical technologies, and photocatalysis.

The most studied AB removal technologies include ozonation, fenton/photofenton oxidation, photolysis, photocatalysis, electrochemical oxidation, chlorination, ion exchange, membrane technologies, and adsorption (Anjali and Shanthakumar, 2019; Homem and Santos, 2011). Table 3 presents the advantages and disadvantages of each method. Photocatalysis is considered an environmentally friendly and low cost detoxification technique due to its utilization of solar light and complete mineralization of organic pollutants without generating residual waste or sludge (Sundar and Kanmani, 2020). Complete mineralization of the pollutant converts it into harmless species such as water, carbon dioxide, nitrogen, and other by-products, which in most cases are nontoxic (Zeghioud et al., 2016). The potential toxicity of products generated by photocatalytic degradation can be minimized by achieving high photocatalytic-induced mineralization (>99%) (Libralato et al., 2020). Bouafıa-Chergui et al. (Bouafıa-Cherguı et al., 2016) studied the toxicity of products generated by photocatalytic degradation of tetracycline by TiO₂ under UV light. The toxicity was evaluated by observing variations in the natural luminescent emissions of Vibrio fischeri. The results showed that the photoproduct toxicity increased after 240 min (from 60 to 84% inhibition of luminescence), then decreased to the minimum value after 360 min (35% inhibition of luminescence). This result indicated that total mineralization of tetracycline produced photoproducts with lower toxicity than tetracycline (Bouafıa-Cherguı et al., 2016).

TABLE 3

TABLE 3. Summary of methods for antibiotics removal from wastewater (Homem and Santos, 2011; Anjali and Shanthakumar, 2019).

The main components of photocatalysis systems are the light source, the photocatalyst, and the polluted water (Sundar and Kanmani, 2020). AB degradation via photocatalysis follows five steps, as depicted in Figure 1: 1) diffusion of the organic pollutant from the bulk of the solution to the surface of the catalyst, 2) adsorption of the organic pollutant onto the surface of the catalyst, 3) degradation of the contaminants on the surface of the catalyst, 4) desorption of the resultant products from the surface of the photocatalyst, and 5) diffusion of the products from the surface of the semiconductor toward the bulk of the solution (Ibhadon and Fitzpatrick, 2013). After illumination by UV/visible light, the semiconductor (e.g., TiO₂) molecules form unlinked pairs of electrons ($e^{-}$)/holes ($h^{+}$) due to the excitation of the electrons from the valence band (VB) to the conduction band (CB). These charge carriers may either return to the initial state in the semiconductor, or move to the surface of the catalyst to undergo various redox reactions with water molecules, hydroxide ions, and the pollutant. Figure 2 illustrates the mechanism of photocatalysis, and Eqs 1–6 define the chemical reactions. In these Equations, $\mathrm{Ti}{\mathrm{O}}_2$ represents the catalyst, $\left({\mathrm{e}}^{-}\right)$ represents the conduction band electron, and $\left(h^{+}\right)$ represents the valence band hole (Zeghioud et al., 2016).

$\mathrm{Ti}{\mathrm{O}}_2\stackrel{\mathrm{h}\vartheta }{\to }{\mathrm{e}}^{-}+h^{+}(\mathrm{\lambda }\le 380\mathrm{nm})(1)$

FIGURE 1

FIGURE 1. A schematic of photocatalytic reaction steps.

FIGURE 2

FIGURE 2. Illustration of photocatalytic degradation mechanism.

The positive hole ($h^{+}$) can produce hydroxyl radicals via two paths. The first path is hole transfer to the water molecule; the second path is hole transfer to a hydroxyl ion (Eqs 2, 3, respectively) (Zeghioud et al., 2016).

$h^{+}+{\mathrm{H}}_2\mathrm{O}\to \mathrm{•OH}+{\mathrm{H}}^{+}(2)$

$h^{+} +\mathrm{O}{\mathrm{H}}^{-}\to •\mathrm{OH}(3)$

The positive hole ($h^{+}$) can also oxidize the antibiotic pollutants (P) in water (Eq. 4), followed by the formation of intermediates produced from reactions with the hydroxyl radicals (Eq. 5) (Zeghioud et al., 2016).

$h^{+} +P_{ads}\to P_{ads}\cdot (4)$

$•\mathrm{OH}+{\mathrm{P}}_{\mathrm{ads}}\cdot \to \mathrm{intermediates}/\mathrm{degradation}\mathrm{products}(5)$

$•\mathrm{OH}$ radicals also can react with water pollutants to cause mineralization into water and carbon dioxide (Eq. 6) (Zeghioud et al., 2016).

$•\mathrm{OH+P}\to {\mathrm{H}}_2\mathrm{O+C}{\mathrm{O}}_2\mathrm{+inorganic}\mathrm{acids}(6)$

In the presence of molecular oxygen, the excited electrons interact with the adsorbed oxygen on the catalyst surface (Eq. 7) and produce superoxide radicals $\left({\mathrm{O}}_2^{•-}\right)$. These radicals are capable of preventing the recombination of the electrons with the positive holes (Zeghioud et al., 2016; Ibhadon and Fitzpatrick, 2013) and are converted to hydrogen peroxide and then to hydroxyl radicals as shown in the (Eqs 8–10) (Homem and Santos, 2011). Hydroxyl radicals play a significant role in the degradation of the organic pollutant.

${\mathrm{O}}_2+{\mathrm{e}}^{-}\to {\mathrm{O}}_2^{•-}(7)$

${\mathrm{O}}_2^{•-}+{\mathrm{H}}_2\mathrm{O}\to \mathrm{H}{\mathrm{O}}_2^{•}+\mathrm{O}{\mathrm{H}}^{-}(8)$

$2\mathrm{H}{\mathrm{O}}_2^{•}\to {\mathrm{H}}_2{\mathrm{O}}_2+{\mathrm{O}}_2(9)$

${\mathrm{H}}_2{\mathrm{O}}_2+{\mathrm{e}}^{-}\to \mathrm{O}{\mathrm{H}}^{-}+•\mathrm{OH}(10)$

Many factors influence the efficiency of the photocatalytic degradation of various organic pollutants in water, including the concentrations of the contaminant and the catalyst, the light source and its intensity, the solution pH, the solution turbidity, the presence of other contaminants, and the type of photo-reactor employed (Saadati et al., 2016a). Increasing the initial AB or catalyst concentration increases the rate of degradation until reaching an optimal value, after which the degradation rate decreases (Saadati et al., 2016a). A suitable light source with an appropriate intensity and wavelength is essential to ensure optimum catalyst activation (Liu et al., 2013; Saadati et al., 2016a; Zhang et al., 2019). The effect of pH is a function of the operating conditions and the chemical nature of pollutants and catalyst. The capacity of the catalyst itself to harvest light photons and efficiently utilize the excited electrons in degrading the pollutant is a critical factor that affects system performance (Saadati et al., 2016a). The water turbidity also affects photocatalysis efficiency. For example, high water turbidity in the treated stream can reduce light transmission through the water into the catalyst’s surface, thereby reducing light absorption by the catalyst and subsequent electron activation (Teoh et al., 2012; Divakaran et al., 2021). The presence of salts and other organic pollutants in the water may affect AB adsorption onto the catalyst surface, and can increase water turbidity. Ghoreishian et al. (Ghoreishian et al., 2021) compared the performance of Fe and Sn co-doped-TiO₂ nanofibers for tetracycline degradation in synthetic, river, and tap water samples. The results showed that the highest efficiency was obtained for synthetic pure water (96.96%), followed by tap water (81.85%), and then river water (60.59%). This result clearly indicates that photocatalyst performance can be overestimated by experiments that use pure water in laboratory settings.

The choice of photocatalytic reactor is a function of the reaction system, including the chemical structure and concentrations of pollutants and catalyst, the operating flowrate, temperature, and pressure (Ibhadon and Fitzpatrick, 2013). Slurry reactors are conventional reactors that suspend the heterogeneous photocatalysts in a liquid phase in the reactor. Heterogeneous photocatalysts are preferred over homogeneous photocatalysts in slurry reactors because they offer easier catalyst recovery and high efficiency. Accordingly, catalyst immobilization on solid substrates such as polymers, glass, sand, or reactor walls has been receiving great attention recently to achieve efficient catalyst recovery and sustainable system operation (Ibhadon and Fitzpatrick, 2013; Zeghioud et al., 2016).

4.2 Photocatalytic Degradation of Tetracyclines

Tetracyclines contamination of surface and ground water, hence eventually irrigation water, is due to the inefficient removal capacity of current conventional wastewater plants, leading to residual tetracycline concentrations of up to 2.37 μg/L in the final effluent stream released into the environment (Daghrir and Drogui, 2013). Photocatalytic degradation of tetracyclines using UV, visible, and solar light has been explored for complete tetracycline demineralization (Bouafıa-Cherguı et al., 2016; Chen et al., 2016; Farhadian et al., 2019). Three primary photocatalytic systems have been extensively studied: semiconductor systems such as TiO₂ (Zhu et al., 2013; Niu et al., 2014; Safari et al., 2014) and ZnO (Farhadian et al., 2019); binary composite systems such as Ag-Bi₂WO₆, Ag-BiVO₄-Cu₂O, and AgBr-Ag₃PO₄ (Deng et al., 2017; Shen et al., 2018; Yan et al., 2018; Rasheed et al., 2019); and heterojunctions such as AgI/WO₃, CQDs/Bi₂WO₆, C₃N₄/Bi₂WO₆, and CQDS/ZnO (Di et al., 2015; Wang et al., 2016; Chen et al., 2017; Li J. et al., 2019).

Other common examples on materials used for tetracyclines photocatalytic degradation under both UV and visible light include the application and modification of titania (TiO₂) semiconductors. In these studies, both high performance liquid chromatography (Wang et al., 2011; Cao et al., 2016) or UV–VIS spectrophotometer (Yu et al., 2014; Oseghe and Ofomaja, 2018a; Lyu et al., 2019; Ghoreishian et al., 2020) were used for the analysis of the water samples and for the evaluation of the degradation efficiency of the TCs over the investigated photocatalysts. Photocatalytic tetracycline degradation mediated by TiO₂ is expected to proceed via the formation of intermediates, which eventually completely degrade into CO₂, H₂O, and NH₄⁺. Zhu et al. (Zhu et al., 2013) proposed that TiO₂-mediated tetracycline degradation involved electron transfer, hydroxylation, open-ring reactions, and cleavage of the central carbon.

4.3 TiO₂-Based Photocatalysts for Tetracyclines Degradation

TiO₂ is the most studied and used heterogeneous photocatalyst semiconductor due to its super quantum yield (ratio of emitted photons to absorbed photons), low cost, non-toxicity, hydrophilicity, high photoactivity, interesting charge transport properties, and good chemical and photostability (Ibhadon and Fitzpatrick, 2013; Sommer et al., 2015; Koe et al., 2019; You et al., 2019; Zhang et al., 2019). TiO₂ exists in three polymorphs/crystal forms: anatase, rutile, and brookite. Anatase and rutile forms of TiO₂ are utilized as photocatalysts; however, anatase is preferred due to its superior quantum yield (Koe et al., 2019). A hybrid form of TiO₂ called Degussa (Evonik-Degussa) P-25 consists of a phase-junction mixture of (25%) rutile and (75%) anatase. TiO₂-P25 is widely investigated for photodegradation of organic pollutants due to its availability, stability, reusability, and high oxidation activity compared to other crystal forms of TiO₂ (Ibhadon and Fitzpatrick, 2013; Koe et al., 2019).

TiO₂ has a band gap (E_g) of approximately 3–3.2 eV, which limits its photoactivity to ultraviolet light with a wavelength less than 387 nm (Koe et al., 2019). Table 4 summarizes some applications of Titania for photodegradation of tetracyclines under UV light. In general, Titania achieves very high degradation efficiencies of (95–100%) in relatively short periods of time (45–60 min).

TABLE 4

TABLE 4. Previous work on tetracycline removal by TiO₂ catalyst under UV light.

Despite its promising photocatalytic activities, Titania has some shortcomings that limit its wide application in photocatalysis. For example, due to its wide band gap energy (3.2 eV) TiO₂ can only be activated under UV light which only accounts for (5%) of the solar spectrum. The recombination rate of the charge carriers is significantly high in TiO₂, and this suppresses its AB degradation efficiency. TiO₂ also undergoes agglomeration and aggregation which complicates its recovery and reuse in large-scale applications. Moreover, TiO₂ has low adsorption capacity of nonpolar contaminants due to its polar nonporous surface (Bahadar Khan and Kalsoom, 2019; Li R. et al., 2020).

Further modification of Titania is urgently needed to achieve practical, visible light–induced photocatalytic applications. Many studies have been reported in the literature to enhance Titania properties through modification and/or combination with organic and/or inorganic counterparts (Wang et al., 2011; Chen et al., 2016; Pouretedal and Afshari, 2016; Zhang S. et al., 2017; Zhang F. J. et al., 2017; Chen and Liu, 2017; Jin et al., 2017; Duan et al., 2018; He et al., 2018; Tang et al., 2018; Zheng et al., 2018; Liu M. et al., 2019; Chen Y. et al., 2019; Farhadian et al., 2019; Galedari et al., 2019; Sun et al., 2019; Akel et al., 2020; Zhang T. et al., 2020; Ghoreishian et al., 2020; Liu et al., 2020; Divakaran et al., 2021; Ghoreishian et al., 2021). The following section presents a detailed summary of various methods reported in the literature to achieve visible light sensitization of Titania and its applications for tetracyclines photodegradation.

5 Modification of TiO₂ for Enhanced Visible Light Activity

Researchers have studied TiO₂ modification for more than 30 years to enhance its visible light photocatalytic properties, stability, and reusability using three primary modification methods: 1) hinder the recombination of excited electrons and positive holes; 2) expand titania activity from the UV light spectrum to include visible light (accounts for approximately (43%) of the solar light spectrum) and ultimately solar light; and 3) enhance TiO₂ morphology, surface area, and ease of recovery (Teoh et al., 2012). Recent advances in titania modification include doping with metals and nonmetals, developing hybrid composite systems, and constructing heterojunction photocatalysts (Li and Shi, 2016). Each of these Titania modification methods is discussed in the following sections.

5.1 Metal and Nonmetal Doping of TiO₂

Doping is the introduction of a metallic and/or nonmetallic element (dopant) into the bulk of a semiconductor without modifying its structure or altering its crystallographic form (Teoh et al., 2012; Ibhadon and Fitzpatrick, 2013). The presence of the dopant results in a large dipole moment that can alter the kinetics of the electron transfer process. It lowers the band gap energy and widens the light absorption spectrum by increasing the number of migrating electrons from the valence band to the conduction band of the main semiconductor (Koe et al., 2019). Consequently, optimal doping conditions enable photocatalyst activation under UV and visible light (380 nm < λ < 500 nm) (Ibhadon and Fitzpatrick, 2013). Studies have investigated various dopants for the visible light sensitization of titania, including metal, nonmetal, or mixed metal-nonmetal doping (Li and Shi, 2016). The development of optimum doping conditions must consider the preparation method, the dopant concentration, and the type of dopant to ensure enhanced photocatalytic performance (Marschall and Wang, 2014). Table 5 presents examples of the best performing metal, nonmetal, and mixed metal-nonmetal doping of TiO₂ photocatalysts and their performance in tetracyclines photodegradation under visible light.

TABLE 5

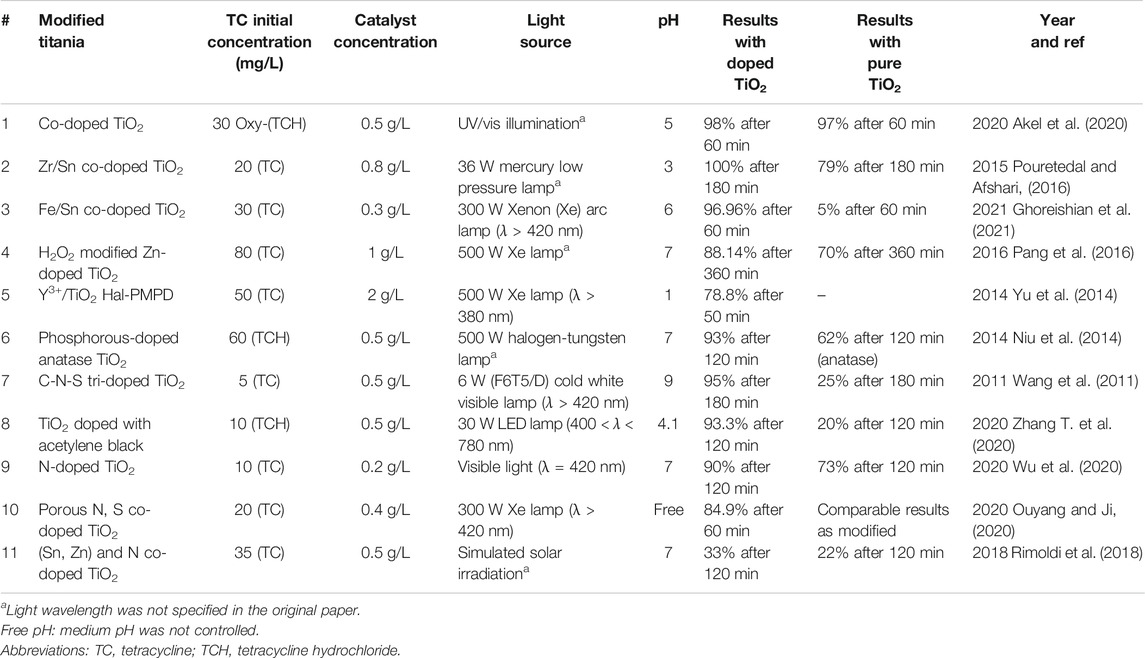

TABLE 5. Previous studies investigating tetracyclines removal by metal, nonmetal, and mixed metal-nonmetal doped TiO₂ catalysts.

5.1.1 Metal Ion Doping of TiO₂

Metal ion dopants of Titania include transition, rare earth, and precious metal ions. Metal doping of Titania is achieved by firing at high temperature or auxiliary deposition techniques (Zhang et al., 2019). Figure 3 illustrates the mechanisms of tetracyclines degradation by metal-doped TiO₂ photocatalysts. Under visible light, electrons in the band gap energy of the doping metal are excited into the metal conduction band, and then move into the conduction band of the bulk catalyst. Simultaneously, Titania electrons are excited by the UV light of the solar light spectrum (Eq. 1). Consequently, these electron/hole pairs lead to a series of oxidation-reduction reactions that produce oxygen and hydroxyl radicals (Eqs 2, 3, 7, 8, 9, 10) which in turn degrade the AB molecules (Eqs 4, 5, 6). An example of an efficient transition metal–doped Titania is cobalt (Co)-doped TiO₂, which has been used with and without immobilization on reduced graphene oxide surfaces for tetracycline and oxytetracycline removal, respectively (Jamali Alyani et al., 2019; Akel et al., 2020). Cobalt-doped Titania was prepared using the reflux method (Co-TiO₂-R) by Akel et al. (Akel et al., 2020), and resulted in (98%) degradation of oxytetracycline hydrochloride (Oxy-TCH) under UV-visible light illumination. The authors attributed the high initial rate of Co-TiO₂-R to its high surface area and enhanced charge transfer and separation properties imposed by impurity levels in the band gap energy; the Co particles entrapped some of the generated $\left(h^{+}\right)$, thereby minimizing the possibility of electron/hole recombination.

FIGURE 3

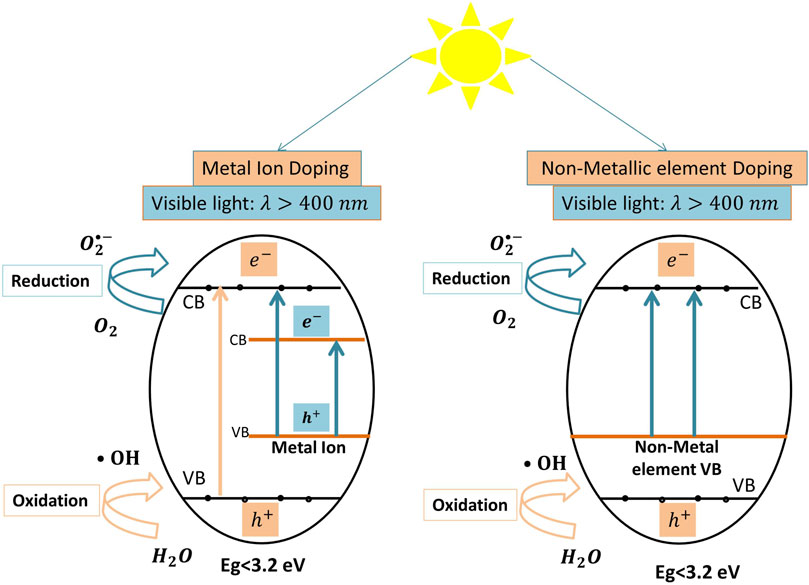

FIGURE 3. The proposed photocatalytic degradation mechanisms of tetracycline both by metal-doped and non-metal doped TiO₂ systems under visible light.

Metal co-doping was recently used to enhance visible light harvesting in TiO₂ catalysts. Co-doping resulted in higher visible light activity than that resulting from single-doping due to a synergistic effect between the two dopants (You et al., 2019). Recent studies investigated bimetallic doping of TiO₂ for tetracyclines degradation using zirconium (Zr) and tin (Sn) (Pouretedal and Afshari, 2016), and iron (Fe) and tin (Sn) (Ghoreishian et al., 2021). Ghoreishian et al. (Ghoreishian et al., 2021) developed highly efficient Fe-Sn co-doped TiO₂ nanofibers (Fe/Sn-TiO₂ NFs). Fe/Sn-TiO₂ NFs were produced using the electrospinning method, and then used for tetracycline degradation under 300 W xenon (Xe) lamp as the visible light source (Ghoreishian et al., 2021). This co-doped TiO₂ catalyst displayed a very high photocatalytic degradation efficiency (96.96%), which was 1.86, 1.8, and 1.56 times higher than the efficiencies of unmodified TiO₂, Fe-doped TiO₂, and Sn-doped TiO₂, respectively. The authors attributed the enhanced performance of the co-doped catalyst to its small crystal size, tunable and low band gap energy, higher adsorption capability, better visible light absorption, enhanced charge carrier separation, and suppressed charge carrier recombination. This co-doped catalyst also displayed high stability and maintained (92%) degradation efficiency after five cycles of use. Total organic carbon (TOC) analysis was used to assess the extent of AB mineralization achieved by the catalyst. The Fe/Sn-TiO₂ NFs achieved (98%) tetracycline mineralization, compared to only (56%) tetracycline mineralization by the unmodified TiO₂ catalyst.

5.1.2 Nonmetal Doping of TiO₂

Nonmetal doping has been investigated for the visible light activation of TiO₂ (Farhadian et al., 2019; Niu et al., 2014; Oseghe and Ofomaja, 2018a; Tang et al., 2018; Chen and Liu, 2016; Wu et al., 2020; Fang et al., 2019; Oseghe and Ofomaja, 2018b). Nonmetal-doped photocatalysts display higher stability and better photoactivity than metal-doped photocatalysts because metal-doping of TiO₂ can, for example in some applications, lower the doped catalyst stability, reduce its activity, and decrease its photo-quantum efficiency due to rapid recombination of the electrons and the holes (Teoh et al., 2012). Nonmetal dopants of TiO₂ include nitrogen (N) (Farhadian et al., 2019; Wang et al., 2011; Tang et al., 2018; Chen and Liu, 2016; Wu et al., 2020), sulfur (S) (Wang et al., 2011), carbon (C) (Zhang T. et al., 2020), and phosphorous (P) (Niu et al., 2014). Nonmetal doping is performed by creating mid-gap energy levels between the valence and conduction bands of the parent catalyst (Zhang et al., 2019; Ibhadon and Fitzpatrick, 2013; Radwan et al., 2018). The nonmetal dopant can enhance the visible light–induced photocatalytic activity of the catalyst because electrons in the newly created energy level can be excited by visible light into the conduction band of the bulk catalyst (Eq. 1). Eventually, these excited electrons settle on the surface of the doped catalyst and generate active radicals via redox reactions (Eqs 2, 3, 7, 8, 9, 10), which consequently attack and mineralize the AB molecules (Eqs 4, 5, 6) (Ibhadon and Fitzpatrick, 2013; Radwan et al., 2018). Importantly, the nonmetal dopant inhibits the recombination of the charge carriers, due to electron entrapment by the oxygen vacancies created in the catalyst (Feng et al., 2018; Basavarajappa et al., 2020). Figure 3 illustrates the mechanism of tetracyclines degradation by nonmetal-doped TiO₂ systems.

Nitrogen is the most-studied nonmetal dopant for enhancing the visible light activity of TiO₂ (Marschall and Wang, 2014). There are several methods to produce N-doped TiO₂, including hydrothermal, microemulsion, chemical vapor deposition, solvothermal, sol-gel, electrospinning, anodic oxidation, sputtering, ball milling, atomic layer deposition, and microwave (Basavarajappa et al., 2020). Several studies have produced N-doped TiO₂ for tetracyclines degradation under visible light (Wang et al., 2011; Chen and Liu, 2016; Tang et al., 2018; Farhadian et al., 2019; Wu et al., 2020). Wu et al. prepared N-doped TiO₂-P25 by treating TiO₂-P25 with NH₃ gas flow at 500°C, and applied the catalyst for tetracycline degradation under visible light (λ = 420). This N-doped TiO₂-P25 displayed higher visible light sensitivity and enhanced photocatalytic performance due to the increased numbers of excited reactive electrons and holes. The authors confirmed that the presence of N in TiO₂ created oxygen vacancies that entrapped the photoexcited electrons, thereby minimizing their recombination effect. The N-doped TiO₂-P25 tetracycline degradation performance (90%) was higher than that of the unmodified TiO₂ (73%), and the doped photocatalyst maintained its stability and degradation efficiency for four consecutive cycles (Wu et al., 2020).

Carbon doping of Titania extends its light absorption into the visible region by acting as a sensitizer or by creating interstitial gap states in the catalyst structure (Palanivelu et al., 2007; Wu et al., 2013). Carbon doping also increases the number of photogenerated charge carriers that degrade organic pollutants in water (Palanivelu et al., 2007). Acetylene black–doped (AcB) and persulfate (PS)-employed TiO₂ (TiO₂/AcB/PS was prepared using the sol-gel method (Zhang T. et al., 2020). Acetylene black lowered the band gap energy of TiO₂ from 3.17 to 2.78 eV, thereby enabling it to be activated under visible light, efficiently minimizing charge carrier recombination, and promoting charge carrier separation. The TiO₂/AcB/PS photocatalyst displayed (93%) tetracycline hydrochloride degradation efficiency, which was higher than that of unmodified TiO₂ (20%), and maintained high degradation efficiency (85%) after five uses (Zhang T. et al., 2020).

Phosphorus (P) doping of TiO₂ enhances the catalytic photoactivity by effectively suppressing charge carrier recombination due to electron entrapment by the oxygen vacancies created in the catalyst (Feng et al., 2018). The presence of a P dopant on TiO₂ decreased its band gap energy and significantly enhanced its visible light–induced photocatalytic degradation of organic pollutants (Gopal et al., 2012). Niu et al. (Niu et al., 2014) used the rapid microwave hydrothermal method to prepare P-doped anatase TiO₂ for tetracycline hydrochloride degradation under 500 W halogen-tungsten lamp. This P-doped TiO₂ displayed (93%) tetracycline degradation efficiency, which was much higher than that of commercial TiO₂-P25 (62%).

Nonmetal element co-doping of TiO₂ has gained enormous interest lately because of its potential to alter the photocatalytic characteristics of the catalyst, such as reducing the band gap energy and enhancing visible light absorption as compared to that of the single-element–doped catalyst (Chen et al., 2007). Co-doping and tri-doping were applied to TiO₂ for enhanced tetracycline degradation. Wang et al. (Wang et al., 2011) used the sol-gel method to prepare C-N-S tri-doped TiO₂ for tetracycline degradation under 6 W white visible light lamp. The C-N-S tri-doped TiO₂ exhibited enhanced degradation performance (95%) compared to that of unmodified TiO₂ (25%). The authors ascribed this improvement to the high surface area of the modified catalyst, the formation of a well-defined TiO₂ anatase phase, the red shift of the light absorption spectrum of TiO₂, the enhanced visible light sensitivity because of the narrowed band gap energy of TiO₂, and the existence of carbon behaving as photosensitizer of TiO₂, which led to synergistic enhancement of tetracycline adsorption.

5.1.3 Mixed Metal-Nonmetal Doping of TiO₂

Mixed metal-nonmetal doping enables optimization of the advantages and minimization of the disadvantages of each doping method. This hybrid method specifically enhances the catalyst photo-efficiency by broadening the photo-activated spectrum toward the visible range. The N-TiO₂ catalyst is most commonly used for tetracyclines degradation under visible light, along with other nonmetal-doped TiO₂ in mixed doping systems (Huo et al., 2016; Chen and Liu, 2017; Rimoldi et al., 2018; Chen Y. et al., 2019; Ghoreishian et al., 2020). Rimoldi et al. (Rimoldi et al., 2018) used the sol-gel method to prepare Sn-, Zn-, and N-doped TiO₂ for tetracycline degradation under simulated solar irradiation. The authors reported that metal co-doping of N-doped TiO₂ induced a further red-shift in the light spectrum (400–600 nm). They attributed this improvement to the generation of intra-gap states in the TiO₂ structure by the introduction of some defects caused by Sn-doping. TiO₂-N was reported to have quasi-spherical crystallites of high crystallinity and corresponding inter-planar distances of anatase TiO₂. For TiO₂-N-Sn crystalline particles (3–6 nm) were detected along with the corresponding inter-planar distances of anatase and brookite TiO₂ and small content of SnO₂ cassiterite. In the TiO₂-NZn, the presence of Zn resulted in the formation of a guest phase of ZnO wurtzite. Particularly, Zn doping resulted in better photocatalytic performance due to its low crystallinity, unique amorphous structure, and high surface area as compared to the Sn-doping alone. The mixed metal-nonmetal Zn/Sn/N-doped TiO₂ exhibited (33%) tetracycline degradation efficiency compared to (22%) tetracycline degradation efficiency of the unmodified TiO₂. This significant increase was attributed to the synergistic effect of the dopants, their ability to widen the light absorption spectrum, and the higher surface area of the catalyst. Although (33%) tetracycline degradation efficiency is relatively low, the selected metal-nonmetal pairs and their concentrations can be optimized to improve photocatalyst performance.

In general, co- or tri-doping of TiO₂ can overcome some of the drawbacks of single doping, and enhance catalyst performance and stability in tetracyclines degradation due to the synergistic effect among the dopants. The choice of the dopant should consider its cost, toxicity, doping conditions, and preparation method. The dopant concentration also needs to be optimized to ensure enhanced performance of the final catalyst (Marschall and Wang, 2014).

5.2 Titania-Based Composites

5.2.1 Immobilized Titania Composites

In addition to enhanced visible light activity, the practical and large scale application of Titania would necessitate catalyst stability and recyclability. Accordingly, many studies have investigated the immobilization of doped-TiO₂ on various polymeric (Chen Y. et al., 2019; Mahdavi et al., 2019), carbonaceous and ceramic supports such as polyphenylenediamine (POPD) (Yu et al., 2014), graphene, reduced graphene oxide (rGO) (Cao et al., 2016; Huo et al., 2016; Wang W. et al., 2017; Zhang F. J. et al., 2017; Tang et al., 2018; Jamali Alyani et al., 2019; Tabatabai-Yazdi et al., 2020), mesoporous carbon (Fang et al., 2019), MOFs (He et al., 2018; Yuan et al., 2021), zeolites (Saadati et al., 2016b; Liu M. et al., 2019), and silica (Yu et al., 2014; Chen and Liu, 2016; Chen and Liu, 2017; Zyoud et al., 2017; Li J. et al., 2019; Chen Y. et al., 2019; Wang et al., 2019). These systems are prepared as composites (Li R. et al., 2020), and the solid support provides three primary advantages: 1) high surface area which increases tetracycline adsorption, 2) enhanced light absorption and electron entrapment which enhances photocatalytic activity, and 3) reduced sintering and aggregation which leads to superior stability. The superior performance of these composite systems is also attributed to the presence of synergistic effects between the dopant and support (Bahadar Khan and Kalsoom, 2019). Table 6 presents examples of immobilized TiO₂-based composite systems and their efficiencies for tetracycline degradation under visible light spectra.

TABLE 6

TABLE 6. Examples of titania-based composites and their tetracyclines degradation efficiencies.

Graphene is a planar form of carbon atoms with a crystal-like honeycomb structure, high specific surface area, good charge carrier transfer, zero band gap energy, and high interfacial adsorbing properties. Graphene immobilization of TiO₂ can shift the light spectrum absorbance of the photocatalyst toward visible light and minimize recombination of the electron/hole pairs (Koe et al., 2019). Zhang et al. (Zhang S. et al., 2017) prepared a 2D sandwich-like TiO₂-reduced graphene oxide (TiO₂-rGO) composite using the Pickering emulsion approach to investigate tetracycline hydrochloride degradation under xenon lamp as a visible light source. The unique mesoporous structure on both sides of the rGO significantly enhanced the tetracycline hydrochloride degradation by increasing the surface area of the catalyst and adsorption of the contaminant, promoting electron transfer, and minimizing recombination of the $\left(e^{-}\right)/\left(h^{+}\right)$ pairs. TiO₂-rGO degraded (96%) of the initial tetracycline hydrochloride concentration, whereas unmodified TiO₂ only degraded (28%) of the tetracycline hydrochloride. The authors suggested that the large number of mesoporous voids increased the number of exposed active sites of TiO₂, decreased the transport route length, and accelerated the electron transfer step. The visible light activity of this graphene-immobilized catalyst was attributed to the addition of rGO, which lowered the band gap energy of TiO₂ to 3.05.

Polymeric supports are nontoxic, low cost, widely available, resistant to UV light, durable, mechanically stable, and photo-stable. The hydrophobic properties of many polymers enables them to promote catalyst adsorption by increasing the pollutant concentration on its outer surface (Arif et al., 2020). Wang et al. (Wang C. et al., 2017) prepared a photocatalytic nanocomposite membrane of Au-doped TiO₂ supported on polydopamine (pDA)-coated polyvinylidene fluoride (PVDF) (Au-TiO₂/pDA/PVDF). The nanocomposite membrane was used to degrade tetracycline under 300 W Xenon lamp as a visible light source. The authors reported that the visible light–induced tetracycline removal efficiency of Au-TiO₂/pDA/PVDF was (51%) higher than that of undoped TiO₂/pDA/PVDF and (26%) higher than that of Au-doped TiO₂. They also reported that pDA acted as a glue to stabilize TiO₂ on the PVDF membrane, and functioned as a photosensitizer to widen the light absorbance spectrum of the catalyst. The authors proposed that the plasmon resonance effect of Au enhanced catalyst activity by accelerating photogenerated electron transfer from Au into the conduction band of the mother catalyst TiO₂.

Ceramics have a large surface area, very good permeability, excellent strength, and high absorptivity (Mohd Adnan et al., 2018). Chen et al. (Chen and Liu, 2017) used the sol-gel method to prepare a magnetically recyclable Ce/N co-doped TiO₂/NiFe₂O₄/diatomite ternary hybrid catalyst (CN-TND) for tetracycline degradation under 150 W xenon lamp as a visible light source. Each of the N and Ce dopants improved the photocatalyst surface properties and suppressed the formation of TiO₂ crystals. The authors observed that Ce/N co-doped TiO₂/diatomite exhibited a slight redshift in its light absorption spectrum. CN-TND had slightly better tetracycline degradation efficiency (98%) than the N-doped TiO₂/NiFe₂O₄/diatomite (95%) degradation efficiency due to the addition of Ce. The presence of ferrite (NiFe₂O₄) enhanced electron transfer and reduced charge carrier recombination. The improved performance of CN-TND was ascribed to the synergistic effect of the Ce and N dopants, which effectively widened the visible light absorption by the catalyst. CN-TND had ferromagnetism properties, was easily recovered from the reaction medium, and was reused five times with minimal loss in activity (0.5%). CN-TND achieved nearly complete tetracycline mineralization with (100%) TOC removal compared to only (52%) removal by the Ce/N co-doped TiO₂.

Microporous structured supports such as zeolites were investigated for TiO₂ modification. Liu et al. (Liu M. et al., 2019) used the hydrothermal method to synthesize a Fe₂O₃-TiO₂/Fe-Zeolite immobilized composite (Fe₂O₃-TiO₂/FeZ). The composite catalyst was tested for oxytetracycline degradation using a 200 W 455 nm LED lamp as a visible light source. The Fe₂O₃-TiO₂/FeZ composite exhibited a higher surface area (1,445 m²/g) than that of zeolite (844 m²/g), and had outstanding adsorption of oxytetracycline (94%) and improved activity under visible light. The visible light photocatalytic degradation efficiency of Fe₂O₃-TiO₂/FeZ was (98%), indicating its improved visible light absorption (400–600 nm), high adsorption of oxytetracycline, and enhanced rate of photogenerated charge carriers. Fe₂O₃-TiO₂/FeZ had good stability after the fourth use and maintained (80%) efficiency.

In addition to zeolites, metal-organic frameworks (MOFs) have been investigated for the immobilization of TiO₂. MOFs are hybrid organic-inorganic, low cost, and environmentally friendly micro-porous materials with unique morphological properties and superior surface areas (Gautam et al., 2020). When combined with semiconductors such as TiO₂, MOFs form hierarchical nanostructures with enhanced photocatalytic properties (He et al., 2018). He et al. (He et al., 2018) applied one-dimensional MOF [Materials Institute Lavoisier 1D (MIL)-100(Fe)] over TiO₂ nanoarrays [1D MIL-100(Fe)/TiO₂] by insitu growth of MIL-100(Fe) on the TiO₂ nanoarrays. The catalyst was tested for tetracycline degradation using a 450 W Xe lamp as a visible light source (He et al., 2018). The growth of 1D MIL-100(Fe) over TiO₂ nanoarrays increased the surface roughness of these nanoarrays, enhanced the visible light absorption of the composite catalyst (<600 nm), and improved the electron/hole separation and the accessibility of active sites. The composite 1D MIL-100(Fe)/TiO₂ photocatalyst achieved (90.79%) tetracycline degradation efficiency compared to only (35.22%) degradation efficiency achieved by unmodified TiO₂ nanoarrays. The composite catalyst was easily recovered and maintained good stability (70%) after the fifth use.

The proposed mechanism of tetracycline degradation by 1D MIL-100(Fe)/TiO₂ is presented in Figure 4. Upon irradiation, electrons in the VB of TiO₂ are excited into its CB (Eq. 1), while MIL-100(Fe) is activated via the direct excitation of FeO as well as ligand-to-metal charge transfer. The electrons and holes react with water and oxygen molecules to produce (•OH) and $\left({\mathrm{O}}_2^{•-}\right)$ radicals (Eqs 2, 3, 7, 8, 9, 10). In the presence of H₂O₂, Fe(III) in MIL-100(Fe) undergoes Fenton-like reactions and reacts with H₂O₂ to further boost the formation of (•OH) radicals as shown in (Figure 4). The formed radicals synergistically degrade TC molecules under visible light (Eqs 4, 5, 6).

FIGURE 4

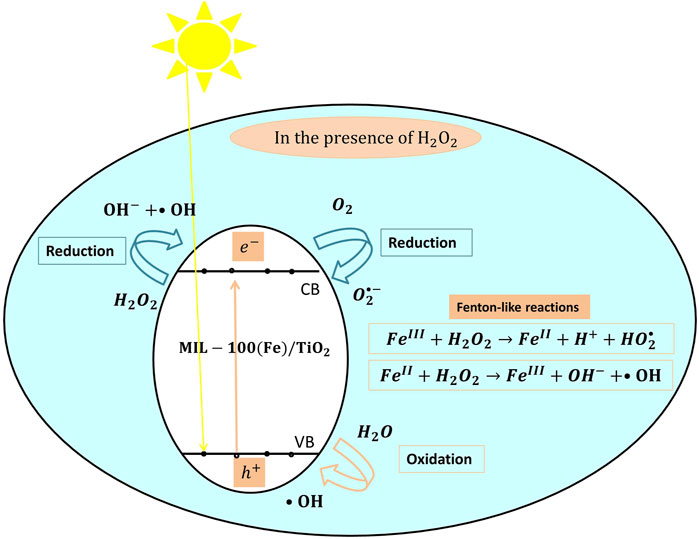

FIGURE 4. The proposed photocatalytic degradation mechanism of tetracycline by 1D MIL-100(Fe)/TiO₂ catalyst under visible light.

5.2.2 Nanostructured Titania Composites

Nanostructured Titania composites enhance the catalyst’s surface area and crystal morphology, and they include TiO₂-based nanospheres, nanosheets, nanowires, nanorods, nanotubes, and nanoparticles (Choi et al., 2014; Bahadar Khan and Kalsoom, 2019). Nanostructured Titania composites also enhance chemical, mechanical, electronic, and optical properties of Titania. Table 6 presents examples of nanostructured TiO₂-based composite systems that have been used for tetracyclines degradation under visible light.

Chen et al. (Chen et al., 2016) used the electrochemical anodic oxidation method to modify immobilized TiO₂ nanobelts (NBs) with Au and CuS nanoparticles, and tested the composite catalyst for oxytetracycline removal using simulated solar light irradiation (35 W Xe lamp). Au-CuS/TiO₂ NBs exhibited enhanced visible light (solar) absorption due the lowest band gap energy (2.65 eV) and the highest visible light absorption intensity (520–620 nm) compared to Au-TiO₂ NBs, CuS-TiO₂ NBs, and TiO₂ NBs. The oxytetracycline degradation efficiency of Au-CuS/TiO₂ NBs after 1 h was as high as (96%), whereas the oxytetracycline degradation efficiencies of Au-TiO₂ NBs, CuS-TiO₂ NBs, and TiO₂ NBs were (85%), (76%), and (66%), respectively. The authors ascribed the improved degradation efficiency of this catalyst to its ability to hinder recombination of photogenerated electron-hole pairs as a result of efficient interfacial charge transfer, and to the increased number of charge carriers participating in photocatalysis. The authors also concluded that visible light absorption was promoted by the plasmon resonance effect of Au, whereas CuS-TiO₂ NBs promoted light absorption in the near-infrared region. Additionally, the authors attributed the improved performance of Au–CuS/TiO₂ to the ideal dispersion of both the Au and CuS on the smooth surface of TiO₂ NBs that formed a uniform surface composite structure. The total organic carbon (TOC) removal efficiency achieved by Au-CuS/TiO₂ NBs was (68%), whereas that of TiO₂ NBs was only (40%).

Lyu et al. (Lyu et al., 2019) used the hydrothermal method coupled with chemical reduction to prepare platinum (Pt)-enhanced amorphous (Am) TiO₂-filled mesoporous TiO₂ crystals (MCs) (MCs@Pt@Am). This catalyst was tested for tetracycline hydrochloride degradation using a 500 W xenon lamp as a visible light source (Lyu et al., 2019). The authors created a new hierarchical porous core-shell structure by filling amorphous TiO₂ in the pores of Pt-doped mesoporous TiO₂ crystals, and reported that the core-shell structured catalyst (Figure 5) exhibited a larger surface area and particle size, higher tetracycline hydrochloride adsorption capacity, and reduced shell thickness as compared to TiO₂ crystals. These properties inhibited recombination of the electron/hole pairs and facilitated the migration of the positive hole into the catalyst surface while Pt-doping reduced the band gap energy of the catalyst and enhanced its visible light absorption. The photocatalytic degradation efficiency of tetracycline hydrochloride by MCs@Pt@Am was (100%), whereas that of amorphous TiO₂-coated mesoporous TiO₂ crystals was (89%), and that of mesoporous TiO₂ crystals was (60%). MCs@Pt@Am degraded (77%) of the initial TOC content, whereas amorphous TiO₂-coated mesoporous TiO₂ crystals degraded only (60%) of the initial TOC concentration.

FIGURE 5

FIGURE 5. SEM image of the core-shell structured platinum (Pt)-enhanced amorphous (Am) TiO₂-filled mesoporous TiO₂ crystals (MCs) (MCs@Pt@Am) photocatalyst, reprinted with permission from Elsevier (Lyu et al., 2019).

All reported composite systems significantly improve TiO₂ catalyst performance for tetracyclines degradation under visible light. These properties arise from the synergistic effects between different moieties of the composite system and from the enhanced surface area and morphology of the photocatalyst. Many studies have successfully constructed and applied immobilized and nanostructured Titania composites for tetracycline degradation under visible light, and we conclude that both approaches are valuable for Titania modification. Although both immobilized and nanostructured Titania composites have high AB degradation efficiency percentages (>90%), immobilized Titania composites are preferred over nanostructured Titania composites due to their ease of recovery and reuse, especially in industrial applications.

5.3 Titania-Based Heterojunctions

Heterojunction construction is another approach for the modification of Titania and the enhancement of its photocatalytic properties (Marcelino and Amorim, 2019; Li R. et al., 2020). Heterojunctions are constructed by forming a direct contact interface between two different semiconductors (Li R. et al., 2020; Yang et al., 2021). The two semiconductors must have different band gaps, a wide band gap (TiO₂) and a narrow band gap, with the minimum band gap energy in the visible light region (Marcelino and Amorim, 2019; Li R. et al., 2020). This condition enhances the visible light absorption and photocatalytic activity of the heterojunction (Li R. et al., 2020). Heterojunctions promote the migration of charge carriers (electrons and holes) from one semiconductor to the other and minimize charge carrier recombination (Marcelino and Amorim, 2019; Li R. et al., 2020). Most TiO₂-based heterojunctions are binary and can be classified based on the mechanism of separation of $\left({\mathrm{e}}^{-}\right)/\left(h^{+}\right)$ pairs: p-n heterojunctions; type I (straddling gap); type II (staggered gap); type III (broken gap); and direct Z-scheme heterojunctions (Li R. et al., 2020; Yang et al., 2021). Table 7 summarizes these systems along with their efficiencies for tetracyclines degradation under various visible light irradiations. As shown in Table 7, binary heterojunctions are the most widely applied composites compared to ternary heterojunctions and homojunctions. Although ternary heterojunctions have very good tetracyclines removal efficiencies under visible light compared to binary heterojunctions, they require the use of an additional semiconductor, which involves additional costs.

TABLE 7

TABLE 7. Examples of titania-based heterojunction photocatalysts.

5.3.1 Binary TiO₂-Based Heterojunctions

Binary heterojunctions are composed of two different semiconductors with different band gap energy levels (Marchelek et al., 2016). Conventional binary heterojunctions include type (I), type (II), and type (III) (Low et al., 2017). Nonconventional binary heterojunctions include p-n heterojunctions and Z-scheme heterojunctions (Li R. et al., 2020). The various conduction and valence level arrangements and mechanisms of these heterojunction catalysts are detailed in the following references (Low et al., 2017; Li R. et al., 2020).

Examples of binary TiO₂-based heterojunctions include TiO₂/BiOCl (Hu et al., 2019) and α-Fe₂O₃@TiO₂ (Zheng et al., 2018). The α-Fe₂O₃@TiO₂ is a type (I) heterojunction where the covalent bond (CB) of the first semiconductor (TiO₂) exists at a higher position than the CB of the second semiconductor (Fe₂O₃), but the valence bond (VB) of Fe₂O₃ is above that of TiO₂. In this type, electrons move from the semiconductor with lower CB (α-Fe₂O₃) into the semiconductor with higher CB (TiO₂). The α-Fe₂O₃@TiO₂ catalyst resulted in (100%) tetracycline hydrochloride degradation efficiency and (98%) TOC removal efficiency in only 120 min using a 300 W xenon lamp (Zheng et al., 2018). The proposed mechanism for the degradation of tetracycline hydrochloride over the Fe₂O₃@TiO₂ includes reduction/oxidation reactions by electron/hole pairs followed by the formation of the radicals (Eqs 2, 3, 7, 8, 9, 10) necessary for tetracycline hydrochloride degradation (Eqs 4, 5, 6).

The TiO₂-coated cubic α-Fe₂O₃ core-shell heterojunction was synthesized using the hydrothermal method. The excellent visible light performance of the catalyst was primarily attributed to the well-matched interface between the cubic α-Fe₂O₃ and TiO₂ shell, the low band gap energy (1.97 eV), and enhanced visible light harvesting. The α-Fe₂O₃@TiO₂ also had enhanced electron transfer through the heterojunction interface, better charge carrier separation, and minimized electron/hole recombination. The α-Fe₂O₃@TiO₂ maintained excellent degradation efficiency (95%) and stability even after the fifth use. The authors reported that the core-shell structure of the TiO₂ shell and the cubic morphology of α-Fe₂O₃ core led to an enhanced electron transfer and minimized electron/hole recombination effect.

Several studies have investigated type (II) TiO₂-based binary heterojunctions. TiO₂@sulfur doped carbon nitride nanocomposite reported by Divakaran et al. (Divakaran et al., 2021) and TiO₂/SnNb₂O₆ nanosheet reported by Jin et al. (Jin et al., 2017) are examples of this type of binary heterojunctions. In type (II), the CB and VB of the first semiconductor (sulfur doped carbon nitride: SCN) are higher than the corresponding CB and VB of the second semiconductor (TiO₂) (Figure 6). This leads to significant charge carrier separation because excited electrons migrate to the second semiconductor and the positive holes move into the first semiconductor. TiO₂@sulfur doped carbon nitride nanocomposite achieved (98.1%) degradation efficiency of the initial tetracycline concentration in 60 min, and the TiO₂/SnNb₂O₆ nanosheet achieved (75.5%) degradation efficiency of tetracycline hydrochloride. Additionally, Gong et al. (Gong et al., 2018) applied Z-scheme CdTe/TiO₂ heterojunction which was able to degrade (78%) of the initial tetracycline hydrochloride concentration after 30 min. A Z-scheme heterojunction has the same CB and VB arrangements of type (II) heterojunction with totally different electron migration route between the first and second semiconductors (Low et al., 2017; Li R. et al., 2020). Upon photo-excitation of electrons, the photo-generated electrons in the second semiconductor combine with the positive holes in the first semiconductor. Consequently, these electron/hole pairs generate the reactive radicals via (Eqs 2, 3, 7, 8, 9, 10) which themselves degrade the TC into CO₂ and H₂O via (Eqs 4, 5, 6).

FIGURE 6

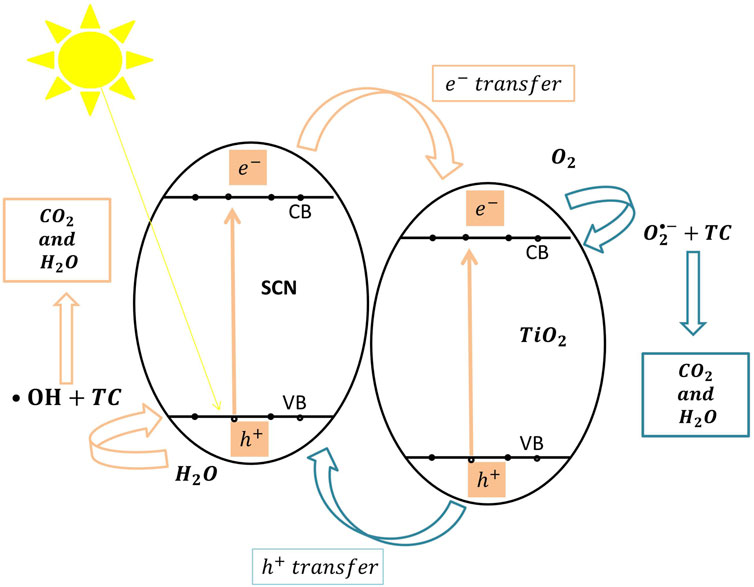

FIGURE 6. The proposed photocatalytic degradation mechanism of tetracycline by TiO₂@sulfur doped carbon nitride nanocomposite catalyst classified as type (II) heterojunction under visible light.

Liao et al. (Liao et al., 2021) prepared a binary p-n junction using BiFeO₃/TiO₂ catalyst, and reported a (72.2%) tetracycline degradation efficiency after 180 min. This catalyst is composed of p-type and n-type semiconductors separated by a charged space region around the interface known as an internal electric field. This electric field minimizes charge carrier recombination by accelerating migration of the excited electrons and positive holes into the CB of the n-type semiconductor and VB of the p-type semiconductor, respectively (Low et al., 2017). In the mechanism proposed by Liao et al., excited electrons in the CB of BiFeO₃ move into the CB of n-type TiO₂ semiconductor and similarly the positive holes in the VB of BiFeO₃ move into VB of n-type TiO₂ ensuring minimized recombination effect of $\left(h^{+}\right)/\left({\mathrm{e}}^{-}\right)$. The rapid migration of the charge carriers in this catalyst is mainly due to the ferroelectric effect of BiFeO₃. While $\left(h^{+}\right)$ oxidizes water molecules into hydroxyl radicals, $\left({\mathrm{e}}^{-}\right)$ reduces adsorbed oxygen molecules into super oxide radicals (Eqs 2, 3, 7, 8, 9, 10). Tetracycline molecules are photocatalytically degraded by these radicals under visible light according to (Eqs 4, 5, 6).

5.3.2 Ternary TiO₂-Based Heterojunctions

Ternary heterojunctions are composed of three coupled semiconductors to form a ternary contact interface, which enhances electron excitation and photo-efficiency (Marchelek et al., 2016). Liu et al. (Liu et al., 2021) used the hydrothermal method to construct a novel ternary composite heterojunction with superior photocatalytic properties, which consisted of a synthesized K-doped g-C₃N₄/TiO₂/CdS (KCNNT@CdS) ternary heterojunction nanocomposite. This nanocomposite photocatalyst was tested for tetracycline degradation efficiency under visible light using a 300 W xenon lamp. This photocatalyst showed excellent visible light–induced tetracycline degradation efficiency (94.2%) as compared to that of unmodified TiO₂ (69.47%). KCNNT@CdS degraded (40.1%) of the initial TOC concentration after 30 min. The authors attributed this performance enhancement to the presence of CdS, which behaved as an electron supplier and promoted charge carrier separation. The presence of TiO₂ itself was crucial to enhance the adsorption of tetracycline molecules on the surface of the composite KCNNT@CdS. The K dopant on the g-C₃N₄ nanosheet enhanced visible light absorption, and the nanostructured morphology of g-C₃N₄ minimized charge carrier recombination and enhanced electron transfer (Liu et al., 2020). KCNNT@CdS maintained excellent stability after four uses. Figure 7 shows the photocatalytic degradation mechanism of the KCNNT@CdS ternary heterojunction system. In this proposed mechanism, CdS behaves as an electron provider for TiO₂ because all excited electrons of CdS migrate into the CB of TiO₂ and then move into the VB of KCNN to combine with the positive holes. Specifically (•OH), $\left(h^{+}\right)$, and $\left({\mathrm{O}}_2^{•-}\right)$, generated according to (Eqs 2, 3, 7, 8, 9, 10) are critical for tetracycline degradation under visible light irradiation.

FIGURE 7

FIGURE 7. The proposed photocatalytic degradation mechanism of tetracycline by the KCNNT@CdS ternary heterojunction catalyst under visible light.

Immobilized TiO₂-based heterojunction systems offer easy catalyst recovery. Carbonaceous nanomaterials function as catalyst supports and can form a heterojunction with TiO₂ at the molecular level, thereby generating a ternary heterojunction. The nanocarbon material in the ternary heterojunction participates in the photocatalytic degradation process by controlling the electron transfer mechanism (Scaria et al., 2020). Liu et al. (Liu M. et al., 2019) prepared a ternary carbon plane/g-C₃N₄/TiO₂ nanocomposite heterojunction by anchoring the carbon plane into g-C₃N₄ and then coupling it with TiO₂, and they tested it for tetracycline degradation under visible light using a 500 W xenon lamp. The authors reported that the presence of the carbon plane was necessary to form the required ternary heterojunction contact in the prepared carbon plane/g-C₃N₄/TiO₂ nanostructured catalyst. The carbon plane/g-C₃N₄/TiO₂ photocatalyst degraded (94.0%) of the initial tetracycline concentration, whereas unmodified TiO₂ only degraded (46%) of the tetracycline. This improved visible light activity of the photocatalyst was ascribed to the heterojunction structure with effective ternary contact that enhanced charge carrier separation and transfer, and the inhibited charge carrier recombination.

5.3.3 TiO₂-Based Homogenous Facet Junctions

Homogenous facet junctions are composed of different crystal planes of the same semiconductor in the same catalyst particle. The exposed surfaces generate a synergistic effect that enables local redox reactions and enhances charge separation and photoexcitation of the electrons (Yang et al., 2021). Zhang et al. (Zhang S. et al., 2020) prepared a homogeneous facet junction composed of {101} and {001} facets that were co-exposed to a TiO₂ hollow sphere (001-HT) facet heterojunction using a gentle sodium fluoride (NaF) treatment. This catalyst was used for tetracycline degradation under visible light using a 300 W xenon lamp. The reported tetracycline degradation efficiency of the 001-HT facet heterojunction photocatalyst (90.1%) was higher than that of the {101} facet-exposed TiO₂ hollow sphere (HT) that was obtained without NaF treatment (80%). The authors attributed the improved photocatalytic degradation of 001-HT to the formation of a {101}/{001} facet heterojunction, which enhanced visible light absorption, extended the life of excited electrons, increased charge carrier migration, and minimized charge carrier recombination. The enhanced visible light absorption of 001-HT was attributed to ligand-to-metal charge transfer (LMCT) due to the formation of coordination complexes between tetracycline molecules and Ti (IV) ions (Figure 8). Higher surface area, larger pore diameter, rougher surface, and bigger crystalline grains were reported for (001-HT) as compared to (HT). The photogenerated electrons in the highest occupied molecular orbital (HOMO) of the tetracycline antibiotic migrate into the CB of TiO₂ hollow sphere while no electron excitation occurs in TiO₂. The transferred electrons reduce the oxygen molecules into super oxide radicals which attack the tetracycline molecules in the aqueous medium and convert them into H₂O and CO₂ (Eqs 4, 5, 6).

FIGURE 8

FIGURE 8. The proposed photocatalytic degradation mechanism of tetracycline by the TiO₂ hollow sphere (001-HT) facet heterojunction catalyst under visible light.

5.4 Recommendations on Most Promising TiO₂ Systems for Tetracyclines Degradation

In summary, all previous studies investigating Titania modifications clearly indicate that a combination of more than one modification method is crucial to achieve superior properties of photoactivity, stability, and ease of recovery for practical applications of the catalyst. For example, metal/nonmetal doping can enhance the visible light absorption of Titania; however, further immobilization of the doped TiO₂ through the formation of composite systems is essential to enhance catalyst morphology, photocatalytic properties, and stability. In metal/nonmetal doping, optimal dopant concentrations are recommended to prevent excess charge carriers, which can promote charge carrier recombination (Sponza and Koyuncuoglu, 2019; Zhang et al., 2019). The construction of heterojunction composites through the formation of a direct interface between Titania and another semiconductor enhances TiO₂ photocatalytic properties by improving the migration rate of charge carriers (i.e., both electron and positive holes) and minimizing their recombination. However, large-scale application of heterojunction photocatalysts is limited due to the complexity of fabrication, high cost, and low recycling efficiency (Li R. et al., 2020; Yang et al., 2021). A conclusion on the optimal modification method requires a complete understanding of the thermodynamics of the surface redox reactions and reaction mechanisms (Basavarajappa et al., 2020).

Based on our literature review, the best performing systems include 1) TiO₂ nanobelts modified with Au and CuS nanoparticles composite (Chen et al., 2016) which degraded (96%) of the initial oxytetracycline concentration in 60 min, indicating excellent degradation efficiency compared to other composites; 2) N-doped TiO₂/rGO composites (Tang et al., 2018) that exhibited superior activity, with (98%) tetracycline hydrochloride degradation efficiency in 60 min due to N-doping and the addition of the rGO support; 3) Fe₂O₃-TiO₂/modified zeolite composite (Liu M. et al., 2019), which also exhibited 98% oxytetracycline degradation in 60 min. We recommend the following TiO₂ modifications to be further considered in future studies for the photocatalytic degradation of TCs and antibiotics in irrigation water:

- Non-metal doping of Titania (C and N) to enhance its activity under visible light, to achieve high stability, and to avoid toxic metal leaching in case of metal doping (Sections 5.1.2, 5.2.2, 5.3.1) (Palanivelu et al., 2007; Teoh et al., 2012; Wu et al., 2013; Marschall and Wang, 2014; Chen and Liu, 2016; Oseghe and Ofomaja, 2018a; Zhang T. et al., 2020; Li C. et al., 2020; Ghoreishian et al., 2020; Wu et al., 2020).

- Metal doping of Titania or composite formation using non-toxic and ferromagnetic element such as iron to enhance its visible light performance and facilitate its recovery in large-scale applications by external magnets due to the acquired ferromagnetic property (Section 5.2.1) (Cao et al., 2016; Wang W. et al., 2017; Chen and Liu, 2017).

- Immobilization of the doped Titania on non-toxic supports such as carbonaceous materials to minimize recovery and maintenance costs in commercial applications and improve degradation efficiency (Sections 5.2.1, 5.3.2) (Cao et al., 2016; Zhang S. et al., 2017; Zhang F. J. et al., 2017; Tang et al., 2018; Liu C. et al., 2019; Fang et al., 2019; Jamali Alyani et al., 2019; Koe et al., 2019; Scaria et al., 2020).

- Formation of doped-Titania nanostructured composites (nanosheets, nanowires, nanobelts) that enhances the catalyst’s surface area and performance and facilitates its recovery and reuse in industrial scale systems (Section 5.2.2) (Choi et al., 2014; Chen et al., 2016; Bahadar Khan and Kalsoom, 2019; Lyu et al., 2019; Li C. et al., 2020).

- Optimization of the synthesis procedures and immobilization steps of the TiO₂ to ensure high and stable efficiency upon continuous reuse and to facilitate the recovery of the deactivated catalyst for proper and safe disposal (Sponza and Koyuncuoglu, 2019; Zhang et al., 2019; Scaria et al., 2020).

- Avoid the construction of complex and expensive heterojunction Titania photocatalysts of low recyclability, because this will create additional costs in large-scale systems and thus lower the overall cost efficiency of the proposed system (Li R. et al., 2020; Yang et al., 2021).

6 The Environmental Impact of the TiO₂ Modified Systems

The environmental impact of the materials used in TiO₂ modification should be considered during the development of visible light–activated TiO₂ based photocatalysts. Safe materials with low toxicity and durable supports should be employed for catalyst immobilization to reduce the release of metals and generating secondary pollutants. These considerations will protect the environment and minimize the costs of system maintenance and catalyst recovery (Marcelino and Amorim, 2019; Li R. et al., 2020). Another important aspect is the leaching of any of these materials, used for TiO₂ modification, into the water medium and eventually into the environment. Usually researchers investigate catalyst recovery and reuse without presenting a study on the possibility of leaching of these materials (Yang et al., 2017). Nevertheless, and specifically in metal doping of TiO₂, some researechers did present leaching studies. For example, Wang et al. studied the leaching of Fe ions from Fe₃O₄/rGO/TiO₂ when used for the degradation of tetracycline hydrochloride. The authors reported only 0.5 mg/L of Fe leaching into the soution, during the first cycle of catalyst use, which they concluded to be negligible. Moreover, after five cylcels of use (Wang W. et al., 2017), the samples were characterized by XRD and FTIR and no structrual changes were detected, confirming the textural and structural stability of the Fe₃O₄/rGO/TiO₂ catalyst. For the CeO₂/TiO₂ binary heterojunction, Pudukudy et al. (Pudukudy et al., 2020) confirmed using FESEM elemental mapping, no Ce leaching after the 7^th use of the catalyst. Similarly, Bi et al. reported that the leached percentages of Mn and Co metals from MnCo₂O_4.5/TiO₂ catalyst were in the range (4–10%). However, it was concluded that leaching reduced the degradation efficiency of TC by only 2.9% after five runs (Bi et al., 2020).

In general, the stability of the catalyst and the leaching probability would very much depend on the water medium and the photocatalytic degradation conditions, such as the pH (Yang et al., 2017). Therefore, in real irrigation water media, it may be expected to have more pronounced leaching of the various used elements compared to laboratory distilled water media. In fact, immobilizing the catalyst on carbonaceous materials like graphene can help minimize metal leaching from titania catalysts (Scaria et al., 2020). Although, as mentioned in the above examples, metal leaching does not seem to be significant in photocatalysis, researchers should study and report the leaching of any of the catalyst’s components during a photocatalytic degradation reaction using analytical techniques such as atomic absorbance spectroscopy and/or inductively coupled plasma (Marcelino and Amorim, 2019). In general, catalysts that may lead to leaching and further polluting and toxifying the water streams should be avoided, to prevent the need for a further water purification step (Bhadouria et al., 2020).

7 Conclusions and Future Research

There is clear evidence for antibiotic contamination of global ecosystems, water, and edible crops. The level of antibiotic contamination depends on the regional production and consumption of these pharmaceuticals. The use of wastewater in irrigation, animal manure, and biosolids in agriculture are important routes for the introduction of ABs into the ecosystem and edible crops. Current technologies for removing/degrading these pharmaceuticals from wastewater, such as conventional methods (biological processes, coagulation, flocculation, sedimentation, and filtration) and membrane methods, are incapable of removing these low-level and persistent organic pollutants from water. The development of innovative and efficient removal/degradation methods is urgently needed. Photocatalytic degradation is a promising method for removing organic pollutants from wastewater before using it for crop irrigation. This review summarized the current knowledge of Titania modification for the photocatalytic removal/degradation of tetracyclines from water. Titania is the most promising and studied semiconductor in this technology due to its low cost, high stability, low toxicity, good activity, and ease of modification (Teoh et al., 2012; Ibhadon and Fitzpatrick, 2013; Koe et al., 2019; You et al., 2019; Zhang et al., 2019). We recommend that a combination of methods is essential to achieve superior catalytic properties of photoactivity, stability, and ease of recovery; these methods include metal-nonmetal doping, construction of a heterojunction interface with a second semiconductor, and immobilization on a stable porous support.

The large-scale application of the proposed visible light active Titania for irrigation water is plausible, however, there still remain many challenges to bring this into application. One of the primary challenges is that the efficiency of these photocatalytic systems in large scale applications remains limited due to various reasons. One of these is the low and non-uniform light transmission into the catalyst surface (Tong et al., 2012). This limitation can be overcome by optimizing the various components of the reaction medium including the photocatalyst, the light illumination, and the reactor design to develop a commercial system for irrigation water treatment (Li and Shi, 2016). Moreover, further research is required to enhance the activation of the photocatalyst over a wide range of wavelengths, including the visible light region. It is also necessary to improve the overall mineralization and quantum efficiencies and the ease of recyclability and reusability of these photocatalysts (Tong et al., 2012). A complete mineralization of the toxic organic compounds is essential to minimize the formation of byproducts, which in some cases could be more toxic than the initial pollutant (Section 4.1) (Calvete et al., 2019). Most of the studies discussed in this review lacked toxicity assessments of intermediate photoproducts. We recommend that researchers conduct toxicity studies along with studies of catalyst performance.

In addition, it is worth noting that most research on the modification of Titania and other semiconductors for AB degradation utilize laboratory-scale reactors containing synthetic solutions of antibiotics in distilled water rather than in real wastewater irrigation samples. However, the observed catalyst efficiency in these laboratory systems is an overestimate and does not reflect the real-world efficiency of the catalyst in contaminated water samples. Similarly, catalyst recovery in large-scale applications is expected to be more challenging than it is in small-scale laboratory experiments (Li R. et al., 2020).

To conclude, we recommend that further research is needed to bring Titania-based photocatalytic degradation of ABs into large scale application. An efficient and easily recyclable catalyst system should be coupled with an optimum reactor design and adequate light source to guarantee a feasible large scale application.

As for the impact on humans, we conclude that human consumption of AB-contaminated water and edible crops leads to health risks because it can potentiate antibiotic resistance in human pathogens. A clear assessment of the risks imposed by antibiotic contaminants on human health is lacking. The ecotoxicological effects of using antibiotic-contaminated irrigation water and/or animal manure fertilizer have not been fully investigated and understood. This would require a clear understanding of the physiochemical properties of the antibiotics in the soil and the mechanisms of their translocation and bioaccumulation in plants (Pan and Chu, 2017). Field studies are required to accurately assess antibiotic uptake by various crops under different environmental conditions, and the impacts of antibiotic bioaccumulation in these plants (Pan and Chu, 2017).

Well-defined dietary studies are urgently needed to evaluate the impact of consumption of antibiotic-contaminated crops from real-world fields on human health (Pan and Chu, 2017). These studies should include participants of different ages consuming different edible crops planted in soil treated with different concentrations of animal manure and irrigated with antibiotic-containing wastewater.
