The Ability of Edible Fungi Residue to Remove Lead in Wastewater

Lead (Pb)-contaminated wastewater is the most common source of heavy metal ion pollution. In this study, agricultural waste edible fungi residue (EFR) was used to adsorb Pb(II) ions in wastewater as a strategy to reduce environmental pollution and minimize poisoning by Pb. The influence of Pb(II) concentration, solution pH, and EFR concentration on the removal efficiency (R) of Pb(II) was investigated with single factor design and response surface analysis. The maximum predicted R for Pb(II) was 76.34% under optimal conditions of Pb(II) concentration of 483.83 mg/L, EFR concentration of 4.99 g/L, and pH of 5.89. The actual experimental value of R reached 76.97% under these conditions. The competition of Pb(II) ions for the available adsorption sites on EFR limited the maximum R. A comparison of Fourier transform infrared spectroscopy before and after the adsorption of Pb(II), indicated that the functional groups of EFR significantly affected the effect of adsorption of heavy metals, and that the adsorption process was primarily affected by functional groups in the range of wavenumbers from 500 to 2,000 cm⁻¹.

Introduction

With the rapid progress of industrialization and the intensification of agricultural development, increasing amounts of heavy metal pollution have become a growing threat toward water and soil (Zhu et al., 2020). Owing to the complexity of its formation, concealment, and irreversibility, heavy metal pollution in water and soil cannot be easily remediated in nature and is difficult to treat (Hu et al., 2015; Oliveira et al., 2019). The problem of water pollution caused by heavy metals is becoming increasingly prominent, and has become a widespread environmental problem.

Among the heavy metal ions, lead (Pb) is considered to be one of the most common contaminants owing to its many uses in industry. In addition, Pb can be enriched and accumulated in crops and aquatic organisms (Jamali et al., 2009), enabling it to enter the human body through the food chain. Pb causes a series of effects on plant physiology and biochemistry when it enters the plant roots, stems, and leaves. Long-term exposure to Pb is known to pose a serious threat to human health owing to carcinogenesis, teratogenesis, and mutation (Wendt and Lee, 2010). Because of this, there is an urgent need to explore effective methods to remediate Pb pollution from wastewater.

The methods to treat heavy metal wastewater primarily include ion exchange, chemical precipitation, electrochemical methods, membrane filtration, and adsorption. The adsorption method for treating heavy metals in wastewater and soil can be operated conveniently, and has a wide range of application prospects (Mia et al., 2017). A variety of adsorbents including graphene oxide (Nguyen-Phan et al., 2011), Ca(OH)₂, Al₂O₃, SiO₂, Fe₂O₃, and other mineral oxides (Kuo et al., 2011; Zhang K. et al., 2016; Zhang and Liu, 2019) have been used to remove heavy metals from wastewater. However, most of the currently used materials are inefficient, expensive, and can cause secondary pollution. Thus, there is a pressing need for new materials that can remove Pb from wastewater. The use of agricultural wastes as adsorbents not only allows for sustainable waste utilization, but also helps to remove toxic heavy metal ions in wastewater (Jin et al., 2018; Liu et al., 2018; Jin et al., 2021; Zhang et al., 2021). The use of waste biomass materials, including cotton stalks and grapefruit peels (Trakal et al., 2016; Fu et al., 2021), as precursors to process various activated carbon adsorbents to remove toxic heavy metals from wastewater is an active area of research.

Edible fungi residue (EFR) is a type of base waste from the cultivation of edible fungus, and it is one of the biomass raw materials that is the subject of study. More than 4 million tons of EFR are produced in China each year, but most is discarded or burned. Only 33% of this waste is utilized. The random disposal of EFR leads to the breeding of mold and pests and increases the number of harmful spores in the air, in addition to causing an enormous waste of resources and serving as a source of environmental pollution. Combustion can only capture approximately 10% of the heat energy. Thus, combustion is an unreasonable use for EFR biomass. EFR has loose and porous physical properties and is rich in sugars, organic acids, enzymes, and related bioactive ingredients (Jin et al., 2020; Wei et al., 2020). Study on the regeneration and comprehensive utilization of EFR has attracted a substantial amount of research interest (Wu et al., 2019).

Currently, the comprehensive utilization of EFR primarily focuses on animal feed, plant nutrients, and the extraction of organic bioactive substances, whereas the studier on EFR in the field of environmental pollution remediation mostly focus on the degradation of organic pollutants such as polycyclic aromatic hydrocarbons (PAHs) (Liu et al., 2019; Zhou et al., 2020) and aflatoxins (Hultberg et al., 2020; Norlia et al., 2020). The mechanism of action of EFR on heavy metals is complex, and its ability to remediate soil pollution varies with the soil texture, degree of heavy metal pollution, plant diversity, and planting regimes (Jiang et al., 2012; Ok et al., 2011). Steinbeiss et al. (2009) found that EFR can reduce the bulk density of soil, increase its water holding capacity, and affect the number and activity of soil microorganisms, thus, alleviating the toxicity of heavy metals to plants and promoting plant growth (Qin et al., 2019; Walker et al., 2004). Han et al. (2020) used EFR as a modifier to significantly improve the physicochemical properties of lead-zinc tailings; and found that it reduced the content of lead-and zinc in the soil and increased the concentration of biomass and chlorophyll of Paulownia fortunei. Moreover, the addition of EFR enhanced the binding between amino acids and heavy metals, increased the hydroxyl spectral content at 3,420 cm⁻¹, and reduced the damage of free radicals to plant cells. EFR has also been founded to change the existing form of Pb in wastewater through adsorption, complexation, ion exchange, redox reaction, and surface precipitation (Hazrati et al., 2020). However, there are very few studies on the treatment of wastewater that contains Pb with EFR, and the mechanism of interaction between EFR and heavy metals remains unclear. In this study, the characteristics of EFR and the adsorption of Pb(II) were analyzed, and the removal of Pb was optimized by determining the response surface.

Materials and Methods

Characteristics of EFR

The EFR materials originate from waste fungal sticks after the cultivation of edible fungi. Fungal sticks are composed of 80–85% of the hardwood of broadleaf trees, such as willow, basswood, or elm, 12–17% wheat bran, and 0.8–1.2% sugar. An elemental analyzer (Elementar Vario El Cube; Elementar Analysensysteme GmbH, Hanou, Germany) was used to determine the elemental composition of EFR that had been naturally air-dried, crushed, and passed through 80 mesh sieves. The carrier gases were O₂ and N₂, and the air pressure was 0.2 and 0.12 MPa, respectively. The temperature for decomposition was 950–1,200°C. The mass percentages of C, H and N in the EFR were 33.900 ± 0.215, 4.779 ± 0.001, and 0.945 ± 0.015%, respectively. The content of S was only 0.353 ± 0.043%.

The specific surface area of EFR was determined by a specific instrument to measure the surface area (BELSORP-mini; BEL, Osaka, Japan), which used N₂ and He as carrier gases. The total pore volume and specific surface area of EFR were 3.3619 × 10^–4 cm³/g and 3.6858 × 10^–1 m²/g, respectively. The average pore diameter of EFR was 3.6485 nm.

Thermo-Gravimetric Analysis

Thermo-gravimetric (TG) and derivative thermo-gravimetric (DTG) curves were obtained at 0.1 mg resolution using an SDT605 thermal analyzer (TA Instruments, New Castle, DE, United States). The furnace was purged with N₂ for 30 min before it was used to establish an inert environment. A total of 50 ml min⁻¹ (99.5% nitrogen, 0.5% oxygen) high purity flow of N₂ was used in the experiment. The temperature was increased from room temperature to 600°C at a rate of 10°C min⁻¹ in the N₂ atmosphere.

Fourier Transform Infrared Spectroscopy

The molecular groups of EFR were characterized by an IR906 Fourier-transform infrared spectroscopy (FTIR) (Ruian Technology Co., Ltd, Tianjin, China). Solid potassium bromide was ground to fine particles under a fluorescent lamp, pressed on a tablet press, and scanned for the background spectrum to eliminate the interference peak error that occurs during the measurement process. After setting the sample information, the EFR was placed in the infrared ray light path for scanning. The scanning range was 4,000–400 cm⁻¹, and the resolution was 0.5 cm⁻¹.

Preparation of Pb(II) Solutions

A Pb(II) stock solution (1,000 mg/L) was prepared using Pb(CH₃COO)₂·3H₂O. The Pb(II) working solutions were obtained by dilution of the Pb(II) stock solution. The pH value was adjusted by adding HCl or NaOH and measured with a digital pH meter (China FE28).

Adsorption Experiments

All the batch experiments were conducted in triangle bottles at 25 ± 2°C. In each triangle bottle, a specified amount of EFR was mixed with a fixed concentration of Pb(II) solution in a shaking table, which was operated at 150 rpm. The main parameters that affect adsorption were varied, including Pb(II) concentration (100–1,000 mg/L), pH (3–7), EFR concentration (0.5–6 g/L), and contact time (10–960 min). The aqueous solution was filtered through a 0.45-micron pore diameter filter membrane at a predetermined time for adsorption to take place. The filtered aqueous solution was subsequently sampled by the removal of 5 ml with a syringe for analysis. The initial and residual concentrations of Pb(II) were determined by an AA-6880F/AAC type atomic absorption spectrophotometer (Shimadzu, Tokyo, Japan) with a wavelength accuracy of ±0.3 nm. The removal efficiency (R%) was determined using Eq. 1 (Al-Jubouri et al., 2016; Alhassani et al., 2020). Each step of the experiment was conducted in triplicate.

$R\%=\frac{C_0-C_{\text{e}}}{C_0}\times 100(1)$

C₀: Pb (II) concentrations before adsorption (mg/L).C_e: Pb (II) concentrations after adsorption (mg/L).

Experimental Design and Optimization

The conditions for the removal of Pb(II)were optimized at 25 ± 2°C and a contact time of 240 min with different initial concentrations of Pb(II) solutions, different pH values, and various doses of adsorbent (EFR). All the key significant factors were prepared in three levels: −1 for the low level, +1 for the high level, and 0 for the average level (Table 1) (Jing et al., 2020).

TABLE 1

TABLE 1. Variables value design of response surface.

Each sample was agitated in a shaker until equilibrium was reached and then filtered. The concentration of heavy metal in the solution was determined using an atomic absorption spectrophotometer. The efficiency of Pb(II) removal was calculated using Eq. 1. After that, a regression analysis was conducted based on the data obtained to establish an empirical model, which was related to the response measured for the independent variables. The model equation is represented as Eq. 2:

$Y=C_0+{\displaystyle \sum C_i{X}_i+{\displaystyle \sum C_i{X}_i^2+{\displaystyle \sum C_{ij}{X}_i{X}_j}}}(2)$

where Y is the predicted response, C₀ is the intercept, Ci is the linear coefficient, and Cij is the interaction coefficient. Three-dimensional response surface curves were drawn using Design Expert 8.0 software to study the interaction between different factors after analysis of variance (ANOVA) (Lu et al., 2016; Lu et al., 2019).

Results and Discussion

Thermal Decomposition Process of EFR

The thermal gravimetric analysis are shown in Figure 1. The mass loss of EFR was similar to that of biomass straw. The ranges of temperature under 100°C acted as the drying step, during which most of the moisture turned into steam and escaped from the EFR. The levels of moisture were not considered in the kinetic analysis. The small loss of mass of EFR occurred between 100 and 170°C, which could be owing to the loss of small amounts of moisture and light volatiles (Munir et al., 2009). Most of the mass loss occurred between 170 and 400°C, which was related to the degradation of hemicellulose, cellulose, and lignin in sequence (TranVan et al., 2014; Yang et al., 2006). There was an obvious DTG peak at approximately 350°C, which was primarily caused by the intense thermal decomposition of cellulose. This was different from the pyrolysis of corn stover, and cotton, sorghum, and soybean stalks in which the distinct DTG peak was readily apparent between 311 and 330°C (Zhang Z. et al., 2016). The temperature corresponded to the distinct DTG peak of EFR, which was higher than that of the biomass straw. This is owing to the fungal sticks of cultivated edible fungi, which were composed of 80–85% hardwood from broadleaf trees. This resulted in more lignin that surrounded the cellulose. The cellulose decomposition of EFR was still more difficult than that of biomass straw, although the content of organic matter was lower compared with the fungal sticks of uncultivated edible fungi, since the original wooden structure of EFR had undergone major changes owing to the continual decomposition of bacteria, archaea, and fungi that used it as nutrients. This primarily led to a looser internal structure and higher porosity, more specifically, a larger specific surface area. At the final stage of 400–600°C, the passive pyrolysis stage, was a slow decomposition process, comparable to “tail” in all curves. In the final stage, the residues were carbonized into stable and complex organic material, that primarily consisted of ash and fixed carbon.

FIGURE 1

FIGURE 1. TG analysis curves for EFR.

Adsorption of Pb(II) at Different Conditions

The R of Pb(II) was investigated at different operation conditions. Figure 2A shows the effect of the concentration of Pb(II) on R over a range of Pb(II) concentrations 100–1,000 mg/L. This experiment was conducted at a pH of 5, EFR concentration of 4 g/L, mixing speed of 150 rpm, contact time of 960 min, and temperature of 25 ± 2°C. The highest R value of 60.68% was detected at 500 mg/L Pb(II) (Figure 2A). An increase in the concentrations resulted in a decrease of R. This can be explained by the fact that there were a limited number of adsorption sites on the surface of the EFR adsorbent. As the concentration of pollutant ions in the aqueous solution increased, the competition for these ions to occupy available adsorption sites intensified (Han et al., 2010; Sajjadi et al., 2019). Thus, the R decreased. Overall, a concentration of 500 mg/L Pb(II) was selected as the best value for subsequent experiments.

FIGURE 2

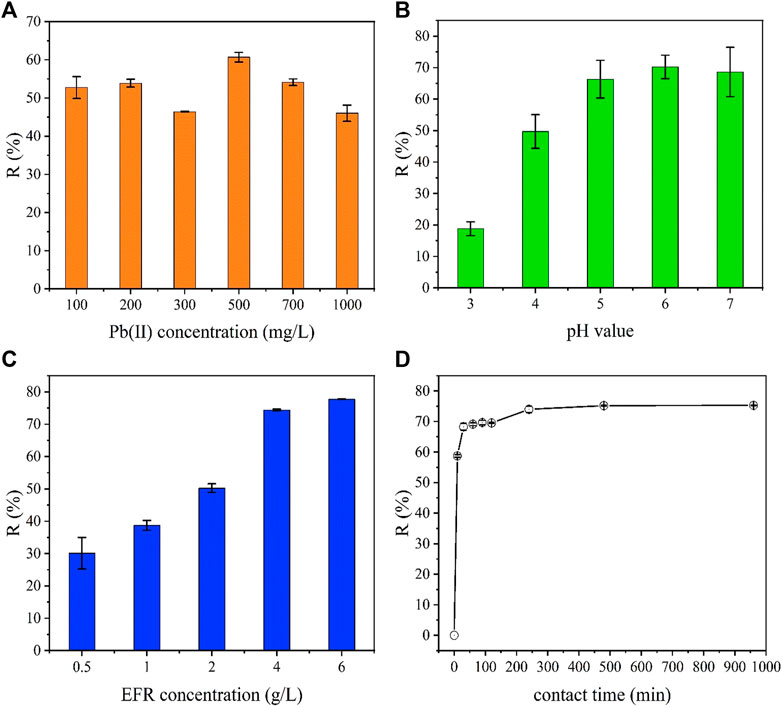

FIGURE 2. R of Pb(II) at different Pb(II) concentration (A), values of pH (B), EFR concentration (C), and contact time (D).

Figure 2B displays the influence of pH on the R of EFR over a range of 3–7, while fixing other variables as follows: Pb(II) concentration of 500 mg/L, EFR concentration of 4 g/L, mixing speed of 150 rpm, contact time of 960 min, and a temperature of 25 ± 2°C. When the solution was acidic, there was significant effect on the R of Pb(II). R initially increased with an increase in the pH, but then R decreased as the pH in solution increased. A maximum R of 70.22% was obtained at pH 6. When the pH value of the solution was lower or higher than 6, the R decreased. This phenomenon can be explained by the charge of EFR and the pollutant. When the pH of solution is < pH_pzc, the surface of the adsorbent would be positively charged. This facilitates electrostatic repulsion between the positively charged surface of the metal ion and EFR adsorbents (Yusuff et al., 2021).

Figure 2C shows the R of Pb(II) as a function of EFR concentration when it varied from 0.5 to 6 mg/L. The other conditions were fixed as the follows: Pb(II) concentration of 500 mg/L, pH of 6, mixing speed of 150 rpm, contact time of 960 min, and temperature of 25 ± 2°C. R was founded to range from 30.11 to 76.75%, as the EFR concentrations increased from 0.5 to 6 g/L. This result originates from an increase in EFR concentration, which indicated that there were more available adsorption sites (Nasseh et al., 2017). The contact time determines the rate of removal and the time that was required to reach the equilibrium status. Figure 2D shows the effect of contact time on the R of Pb(II) at Pb(II) concentration of 500 mg/L, pH of 6, mixing speed of 150 rpm, EFR concentration of 4 g/L, and temperature of 25 ± 2°C. The R increased quickly within the first 30 min, reached 68.28%, and then slowly increased. The equilibrium state occurred within the first 240 min of contact time, but the R value of the equilibrium state was slightly higher than 74.01%. Therefore, a contact time of 240 min was found to be more suitable for the additional adsorption studies. Part of the organic matter is decomposed and utilized during the cultivation of edible fungi, resulting in a larger specific surface area (3.6858 × 10^–1 m²/g) of the waste fungal residue, which is conducive to the removal of heavy metals.

Analysis of Removal Efficiency With Response Surface

A Box-Behnken experimental design (BBD) was used to perform multiple regression analysis. The quadratic polynomial Eq. 3 for the coded values and Eq. 4 for the actual experimental values as a function of variables A (Pb [II] concentration), B (pH), C (EFR concentration). The function of these variables was chosen because they had a large effect on the amount of Pb(II) adsorbed as demonstrated by the single variable experiment results. The responses obtained at different experimental runs are shown in Table 2.

$Y_{Coded}=73.40-3.17A+0.8587B+11.05C-0.9243AB+3.43AC-3.55BC-4.26A^2-3.42B^2-11.04C^2(3)$

$\begin{array}{l}{Y}_{Actual}=-247.73593+0.380974A+53.60653B+29.67834C-0.009243AB+0.017153AC\\ -1.77329BC-0.000426A^2-3.41942B^2-2.76097C^2\end{array}(4)$

TABLE 2

TABLE 2. Box-Behnken experimental design with three independent variables.

The analysis of variance (ANOVA) is shown in Table 3. The p-value of the lack-of-fit was not significant (0.273 > 0.05), indicating that the responses were acceptable for use in this model. The model’s p-values = 0.0002 < 0.05 indicates the model was significant and fitted well into the experimental data. The R² value of 0.9696 suggested that the model could effectively predict the results of adsorption experiments. Table 3 reveals that the linear term of Pb(II) concentration and EFR concentration had a significant effect on R, and the quadratic term of Pb(II) concentration (A²), pH (B²), and EFR concentration (C²) showed a significant effect on R (p < 0.05). A significant interaction between the Pb(II) concentration and EFR concentration (AC) was observed (p < 0.05), along with significance in the interaction between pH and EFR concentration (BC) (p < 0.05). This study that was subsequently used to optimize the conditions predicted a maximum R of Pb(II) of 76.34%, with the optimal conditions of Pb(II) concentration of 483.83 mg/L, pH of 5.89, and EFR concentration of 4.99 g/L.

TABLE 3

TABLE 3. ANOVA for adsorption of Pb(II).

Figure 3 shows the three-dimensional response surface and contour plot for R as function of Pb(II) concentration, EFR concentration, and pH. The response surface of the model was plotted by maintaining one variable unchanged at the central level and varying the other two variables within the experimental range (Lu et al., 2016; Lu C. et al., 2020; Lu C. Y. et al., 2020). The significance and interactions between the variables were identified through the color and shape of contour plots; An example of this type of analysis is the color of two- and three-dimensional contour plots that changed from blue to red to visualize the change in removal efficiency from low to high. In addition, the contour lines are elliptical in shape, which indicates strong interactions between the two variables. There is no interaction when the contour lines are circular (Li et al., 2017). Figure 3A illustrates the three-dimensional response surface and contour plot for R as function of the Pb(II) concentration and pH, while maintaining a constant concentration of the EFR (4 g/L). R continuously increased in parallel with the increase in Pb(II) concentrations and pH until it reached its peak, then decreased as the concentration of Pb(II) and the pH increased. This can be explained by the fact that a limited number of adsorption sites exist on the surface of the used adsorbent, and a pH that is too high or low would inhibit the adsorption properties of EFR. Moreover, the contour plots are circular, indicating that there was no significant interaction between the Pb(II) concentration and the pH. This was also confirmed by the ANOVA results (Table 3; p = 0.5419). Based the three-dimensional response surface plot and two-dimensional contour plot (Figures 3B,C), the interactive effects of Pb(II) concentration, EFR concentration and pH indicated that the concentration of EFR was significant. These results also provided additional confirmation of the ANOVA results (Table 3), in which the p-value of Pb(II) concentration and EFR concentration, and pH value and EFR concentration were 0.0489 and 0.0435, respectively. The experimental result of 76.97% was obtained under the optimal conditions in the Pb(II) adsorption experiments, which was consistent with the predicted value (76.34%) established from the model.

FIGURE 3

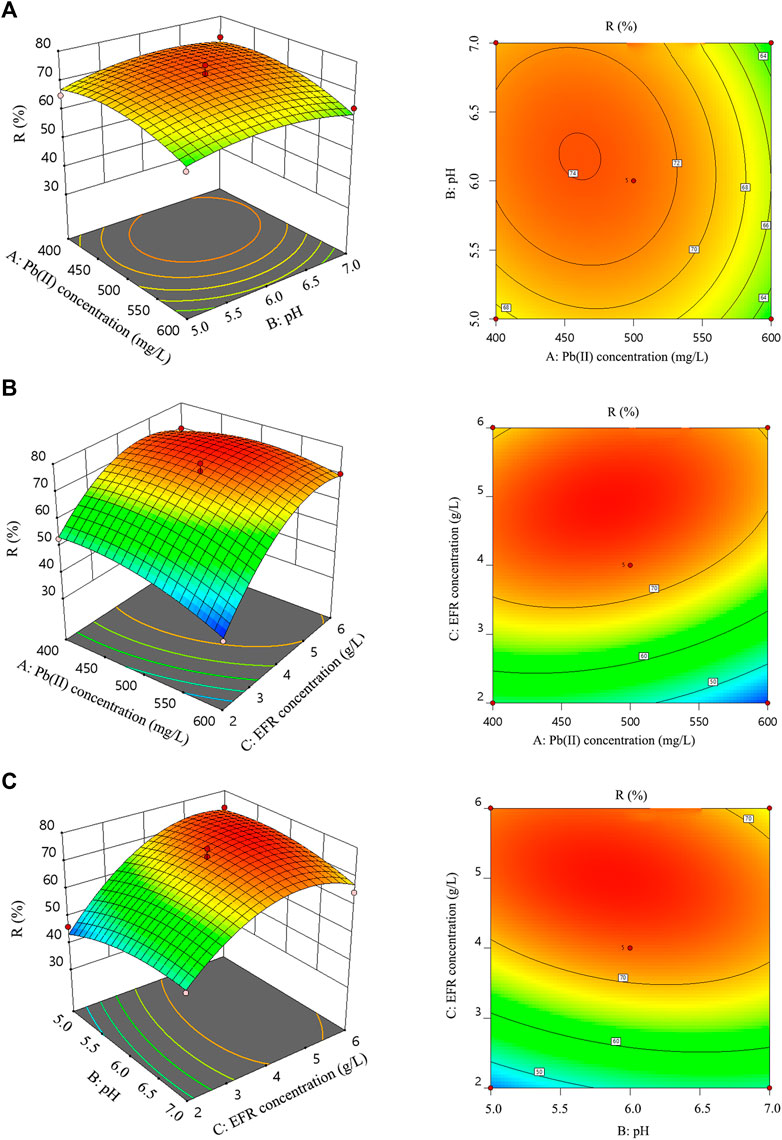

FIGURE 3. The two- and three-dimensional model for Pb(II) adsorption by EFR. The response surface model was obtained by the BBD design with the data shown in Table 2. (A): R of Pb(II) as a function of Pb(II) concentration and pH value; (B): R of Pb(II) as a function of Pb(II) concentration and EFR concentration; (C): R of Pb(II) as a function of pH value and EFR concentration.

Adsorbent Mechanism of EFR for Pb(II) Ions

In FTIR, infrared rays of different wavelengths are used to irradiate substance molecules. Some infrared rays of specific wavelengths are absorbed, leading to absorption peaks that appear at different wavelengths. Together, these form infrared spectra. Different absorption peaks correspond to varying bonds or functional groups. FTIR can be used to rapidly conduct qualitative and quantitative analysis to characterize the EFR adsorbent compared with Pb(II) ions. The FTIR spectra of the EFR before and after adsorption with Pb(II) under optimal removal conditions are shown in Figure 4. There was an obvious peak of absorption at 913 cm⁻¹ for EFR, which is characteristic for the functional group C-O stretch of cellulose, semi-fiber, and lignin (Zhang et al., 2007; Liu et al., 2008). The C-O bond of EFR moved from the original 913 to 842 cm⁻¹ after adsorption with Pb(II), resulting in a 71 cm⁻¹ movement. Several strong peaks were detected before the EFR was adsorbed; The peaks at 1,194, 1,491, 1,979 and 3,845 cm⁻¹ represent the C-CO-C, C-H, C=C, and O-H stretches, respectively (Zhou et al., 2011). A comparison of these two FTIR patterns indicated that the number of peaks (1,194, 1,491, and 1,979 cm⁻¹) significantly decreased. This is because these peaks, and therefore these functional groups, react with the Pb(II) ions during the adsorption process. Interestingly, there was no significant reduction at peak 3,845 cm⁻¹. Taken together, this reveals that the adsorption process of Pb(II) ions to EFR was chemisorption, and the functional groups of EFR in the wavenumbers that range from 500 to 2,000 cm⁻¹ were primarily responsible.

FIGURE 4

FIGURE 4. FTIR patterns of EFR before and after reaction with Pb(II) ions.

Conclusion

The active mechanism of edible fungi residue to adsorb Pb(II) ions was revealed using an elemental analyzer, an instrument that specifically measures surface area, and thermo-gravimetric and Fourier transform infrared spectroscopy analysis. The functional groups of edible fungi residue within a range of wavenumbers from 500 to 2,000 cm⁻¹ are primarily responsible for the adsorption process. In addition, the behavior and efficiency of edible fungi residue toward the removal of Pb(II) in batch-mode experiments showed that the adsorption active sites on the surface of edible fungi residue improved the removal of Pb(II), and that the competition of Pb(II) ions to occupy the available adsorption sites on edible fungi residue were the limiting factor for its ability to serve as an adsorbent. Simultaneously, the response surface was used to optimize the removal of Pb(II). It was demonstrated that a Box-Behnken experimental design model could predict the removal of Pb(II), which effectively explained 96.96% of the variability in adsorption process. The maximum R of Pb(II) (76.34%) was predicted, and experimentally verified. This study has shown that edible fungi residue can be used as an effective adsorbent to remove Pb(II) ions from wastewater.

Data Availability Statement

The original contributions presented in the study are included in the article/supplementary material, further inquiries can be directed to the corresponding author.

Author Contributions

The authors have contributed to this article as follows: Conceptualization, YJ and WY; Methodology, YJ and WY; Formal analysis, YJ; Writing-Original Draft, YJ; Investigation, ZL, GL, XY, and ZZ; Writing-Review and Editing, YL, LL, and WY; Funding acquisition, LL and WY. All authors have read and agreed to the published version of the article.

Funding

This research was funded by the National Natural Science Foundation of China (grant number 31800361), Project of Henan Academy of Sciences (grant numbers 200405006, 210605041) and Undergraduate Innovation and Entrepreneurship Training Program of Henan Province (grant number S202010466033).

Conflict of Interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Publisher’s Note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.

References

Al-Jubouri, S. M., Curry, N. A., and Holmes, S. M. (2016). Hierarchical Porous Structured Zeolite Composite for Removal of Ionic Contaminants from Waste Streams and Effective Encapsulation of Hazardous Waste. J. Hazard. Mater. 320, 241–251. doi:10.1016/j.jhazmat.2016.08.011

PubMed Abstract | CrossRef Full Text | Google Scholar

Alhassani, M. H., Al-Jubouri, S. M., and Al-Jendeel, H. A. (2020). Stabilization of Phenol Trapped by Agricultural Waste: a Study of the Influence of Ambient Temperature on the Adsorbed Phenol. Dwt 187, 266–276. doi:10.5004/dwt.2020.25411

CrossRef Full Text | Google Scholar

Fu, Y., Yang, Z., Xia, Y., Xing, Y., and Gui, X. (2021). Adsorption of Ciprofloxacin Pollutants in Aqueous Solution Using Modified Waste Grapefruit Peel. Energy Sourc. A: Recovery, Utilization, Environ. Effects 43 (2), 225–234. doi:10.1080/15567036.2019.1624877

CrossRef Full Text | Google Scholar

Han, L., Chen, Y., Chen, M., Wu, Y., Su, R., Du, L., et al. (2020). Mushroom Residue Modification Enhances Phytoremediation Potential of Paulownia Fortunei to lead-zinc Slag. Chemosphere 253, 126774. doi:10.1016/j.chemosphere.2020.126774

PubMed Abstract | CrossRef Full Text | Google Scholar

Han, R., Zhang, L., Song, C., Zhang, M., Zhu, H., and Zhang, L. (2010). Characterization of Modified Wheat Straw, Kinetic and Equilibrium Study about Copper Ion and Methylene Blue Adsorption in Batch Mode. Carbohydr. Polym. 79 (4), 1140–1149. doi:10.1016/j.carbpol.2009.10.054

CrossRef Full Text | Google Scholar

Hazrati, S., Farahbakhsh, M., Heydarpoor, G., and Besalatpour, A. A. (2020). Mitigation in Availability and Toxicity of Multi-Metal Contaminated Soil by Combining Soil Washing and Organic Amendments Stabilization. Ecotoxicology Environ. Saf. 201, 110807. doi:10.1016/j.ecoenv.2020.110807

PubMed Abstract | CrossRef Full Text | Google Scholar

Hu, R., Wang, X., Dai, S., Shao, D., Hayat, T., and Alsaedi, A. (2015). Application of Graphitic Carbon Nitride for the Removal of Pb(II) and Aniline from Aqueous Solutions. Chem. Eng. J. 260, 469–477. doi:10.1016/j.cej.2014.09.013

CrossRef Full Text | Google Scholar

Hultberg, M., Ahrens, L., and Golovko, O. (2020). Use of Lignocellulosic Substrate Colonized by Oyster Mushroom (Pleurotus Ostreatus) for Removal of Organic Micropollutants from Water. J. Environ. Manage. 272, 111087. doi:10.1016/j.jenvman.2020.111087

PubMed Abstract | CrossRef Full Text | Google Scholar

Jamali, M. K., Kazi, T. G., Arain, M. B., Afridi, H. I., Jalbani, N., Kandhro, G. A., et al. (2009). Heavy Metal Accumulation in Different Varieties of Wheat (Triticum aestivum L.) Grown in Soil Amended with Domestic Sewage Sludge. J. Hazard. Mater. 164 (2-3), 1386–1391. doi:10.1016/j.jhazmat.2008.09.056

PubMed Abstract | CrossRef Full Text | Google Scholar

Jiang, J., Xu, R.-k., Jiang, T.-y., and Li, Z. (2012). Immobilization of Cu(II), Pb(II) and Cd(II) by the Addition of rice Straw Derived Biochar to a Simulated Polluted Ultisol. J. Hazard. Mater. 229-230, 145–150. doi:10.1016/j.jhazmat.2012.05.086

PubMed Abstract | CrossRef Full Text | Google Scholar

Jin, Y., Teng, C., Yu, S., Song, T., Dong, L., Liang, J., et al. (2018). Batch and Fixed-Bed Biosorption of Cd(II) from Aqueous Solution Using Immobilized Pleurotus Ostreatus Spent Substrate. Chemosphere 191, 799–808. doi:10.1016/j.chemosphere.2017.08.154

PubMed Abstract | CrossRef Full Text | Google Scholar

Jin, Y., Zhang, M., Jin, Z., Wang, G., Li, R., Zhang, X., et al. (2021). Characterization of Biochars Derived from Various Spent Mushroom Substrates and Evaluation of Their Adsorption Performance of Cu(II) Ions from Aqueous Solution. Environ. Res. 196, 110323. doi:10.1016/j.envres.2020.110323

PubMed Abstract | CrossRef Full Text | Google Scholar

Jin, Z., Zhang, M., Li, R., Zhang, X., Wang, G., Liu, X., et al. (2020). Spent Mushroom Substrate Combined with Alkaline Amendment Passivates Cadmium and Improves Soil Property. Environ. Sci. Pollut. Res. 27 (14), 16317–16325. doi:10.1007/s11356-020-08099-3

PubMed Abstract | CrossRef Full Text | Google Scholar

Jing, Y., Li, F., Li, Y., Jin, P., Zhu, S., He, C., et al. (2020). Statistical Optimization of Simultaneous Saccharification Fermentative Hydrogen Production from Corn stover. Bioengineered 11 (1), 428–438. doi:10.1080/21655979.2020.1739405

PubMed Abstract | CrossRef Full Text | Google Scholar

Kuo, J.-H., Lin, C.-L., and Wey, M.-Y. (2011). Effect of Particle Agglomeration on Heavy Metals Adsorption by Al- and Ca-Based Sorbents during Fluidized Bed Incineration. Fuel Process. Technology 92 (10), 2089–2098. doi:10.1016/j.fuproc.2011.06.014

CrossRef Full Text | Google Scholar

Li, Y., Zhang, Z., Jing, Y., Ge, X., Wang, Y., Lu, C., et al. (2017). Statistical Optimization of Simultaneous Saccharification Fermentative Hydrogen Production from Platanus Orientalis Leaves by Photosynthetic Bacteria HAU-M1. Int. J. Hydrogen Energ. 42 (9), 5804–5811. doi:10.1016/j.ijhydene.2016.11.182

CrossRef Full Text | Google Scholar

Liu, C. F., Sun, R. C., Qin, M. H., Zhang, A. P., Ren, J. L., Ye, J., et al. (2008). Succinoylation of Sugarcane Bagasse under Ultrasound Irradiation. Bioresour. Technology 99 (5), 1465–1473. doi:10.1016/j.biortech.2007.01.062

PubMed Abstract | CrossRef Full Text | Google Scholar

Liu, X., Ge, W., Zhang, X., Chai, C., Wu, J., Xiang, D., et al. (2019). Biodegradation of Aged Polycyclic Aromatic Hydrocarbons in Agricultural Soil by Paracoccus Sp. LXC Combined with Humic Acid and Spent Mushroom Substrate. J. Hazard. Mater. 379, 120820. doi:10.1016/j.jhazmat.2019.120820

PubMed Abstract | CrossRef Full Text | Google Scholar

Liu, X., Bai, X., Dong, L., Liang, J., Jin, Y., Wei, Y., et al. (2018). Composting Enhances the Removal of lead Ions in Aqueous Solution by Spent Mushroom Substrate: Biosorption and Precipitation. J. Clean. Prod. 200, 1–11. doi:10.1016/j.jclepro.2018.07.182

CrossRef Full Text | Google Scholar

Lu, C., Jing, Y., Zhang, H., Lee, D. J., Tahir, N., Zhang, Q., et al. (2020a). Biohydrogen Production through Active Saccharification and Photo-Fermentation from Alfalfa. Bioresour. Technol. 304, 123007. doi:10.1016/j.biortech.2020.123007

PubMed Abstract | CrossRef Full Text | Google Scholar

Lu, C. Y., Tahir, N., Li, W. Z., Zhang, Z. P., Jiang, D. P., Guo, S. Y., et al. (2020b). Enhanced Buffer Capacity of Fermentation Broth and Biohydrogen Production from Corn Stalk with Na₂HPO₄/NaH₂PO₄. Bioresour. Technology 313, 123783. doi:10.1016/j.biortech.2020.123783

PubMed Abstract | CrossRef Full Text | Google Scholar

Lu, C., Zhang, H., Zhang, Q., Tahir, N., Hu, J., He, C., et al. (2019). Optimization of Biohydrogen Production from Cornstalk through Surface Response Methodology. j biobased mat bioenergy 13 (6), 830–839. doi:10.1166/jbmb.2019.1921

CrossRef Full Text | Google Scholar

Lu, C., Zhang, Z., Ge, X., Wang, Y., Zhou, X., You, X., et al. (2016). Bio-hydrogen Production from Apple Waste by Photosynthetic Bacteria HAU-M1. Int. J. Hydrogen Energ. 41 (31), 13399–13407. doi:10.1016/j.ijhydene.2016.06.101

CrossRef Full Text | Google Scholar

Mia, S., Dijkstra, F. A., and Singh, B. (2017). Aging Induced Changes in Biochar's Functionality and Adsorption Behavior for Phosphate and Ammonium. Environ. Sci. Technol. 51 (15), 8359–8367. doi:10.1021/acs.est.7b00647

PubMed Abstract | CrossRef Full Text | Google Scholar

Munir, S., Daood, S. S., Nimmo, W., Cunliffe, A. M., and Gibbs, B. M. (2009). Thermal Analysis and Devolatilization Kinetics of Cotton Stalk, Sugar Cane Bagasse and Shea Meal under Nitrogen and Air Atmospheres. Bioresour. Technology 100 (3), 1413–1418. doi:10.1016/j.biortech.2008.07.065

PubMed Abstract | CrossRef Full Text | Google Scholar

Nasseh, N., Taghavi, L., Barikbin, B., and Harifi-Mood, A. R. (2017). The Removal of Cr(VI) from Aqueous Solution by almond green hull Waste Material: Kinetic and Equilibrium Studies. J. Water Reuse Desalination 7 (4), 449–460. doi:10.2166/wrd.2016.047

CrossRef Full Text | Google Scholar

Nguyen-Phan, T.-D., Pham, V. H., Shin, E. W., Pham, H.-D., Kim, S., Chung, J. S., et al. (2011). The Role of Graphene Oxide Content on the Adsorption-Enhanced Photocatalysis of Titanium Dioxide/graphene Oxide Composites. Chem. Eng. J. 170 (1), 226–232. doi:10.1016/j.cej.2011.03.060

CrossRef Full Text | Google Scholar

Norlia, M., Jinap, S., Nor-Khaizura, M. A. R., Radu, S., John, J. M., Rahman, M. A. H., et al. (2020). Modelling the Effect of Temperature and Water Activity on the Growth Rate of Aspergillus flavus and Aflatoxin Production in Peanut Meal Extract agar. Int. J. Food Microbiol. 335, 108836. doi:10.1016/j.ijfoodmicro.2020.108836

PubMed Abstract | CrossRef Full Text | Google Scholar

Ok, Y. S., Usman, A. R. A., Lee, S. S., Abd El-Azeem, S. A. M., Choi, B., Hashimoto, Y., et al. (2011). Effects of Rapeseed Residue on lead and Cadmium Availability and Uptake by rice Plants in Heavy Metal Contaminated Paddy Soil. Chemosphere 85 (4), 677–682. doi:10.1016/j.chemosphere.2011.06.073

PubMed Abstract | CrossRef Full Text | Google Scholar

Oliveira, M. L. S., Izquierdo, M., Querol, X., Lieberman, R. N., Saikia, B. K., and Silva, L. F. O. (2019). Nanoparticles from Construction Wastes: A Problem to Health and the Environment. J. Clean. Prod. 219, 236–243. doi:10.1016/j.jclepro.2019.02.096

CrossRef Full Text | Google Scholar

Qin, J., Xiong, H., Ma, H., and Li, Z. (2019). Effects of Different Fertilizers on Residues of Oxytetracycline and Microbial Activity in Soil. Environ. Sci. Pollut. Res. 26 (1), 161–170. doi:10.1007/s11356-018-3603-9

CrossRef Full Text | Google Scholar

Sajjadi, S.-A., Meknati, A., Lima, E. C., Dotto, G. L., Mendoza-Castillo, D. I., Anastopoulos, I., et al. (2019). A Novel Route for Preparation of Chemically Activated Carbon from Pistachio wood for Highly Efficient Pb(II) Sorption. J. Environ. Manage. 236, 34–44. doi:10.1016/j.jenvman.2019.01.087

PubMed Abstract | CrossRef Full Text | Google Scholar

Steinbeiss, S., Gleixner, G., and Antonietti, M. (2009). Effect of Biochar Amendment on Soil Carbon Balance and Soil Microbial Activity. Soil Biol. Biochem. 41 (6), 1301–1310. doi:10.1016/j.soilbio.2009.03.016

CrossRef Full Text | Google Scholar

Trakal, L., Veselská, V., Šafařík, I., Vítková, M., Číhalová, S., and Komárek, M. (2016). Lead and Cadmium Sorption Mechanisms on Magnetically Modified Biochars. Bioresour. Technology 203, 318–324. doi:10.1016/j.biortech.2015.12.056

CrossRef Full Text | Google Scholar

TranVan, L., Legrand, V., and Jacquemin, F. (2014). Thermal Decomposition Kinetics of Balsa wood: Kinetics and Degradation Mechanisms Comparison between Dry and Moisturized Materials. Polym. Degrad. Stab. 110, 208–215. doi:10.1016/j.polymdegradstab.2014.09.004

CrossRef Full Text | Google Scholar

Walker, D. J., Clemente, R., and Bernal, M. P. (2004). Contrasting Effects of Manure and Compost on Soil pH, Heavy Metal Availability and Growth of Chenopodium album L. In a Soil Contaminated by Pyritic Mine Waste. Chemosphere 57 (3), 215–224. doi:10.1016/j.chemosphere.2004.05.020

PubMed Abstract | CrossRef Full Text | Google Scholar

Wei, Y., Jin, Z., Zhang, M., Li, Y., Huang, S., Liu, X., et al. (2020). Impact of Spent Mushroom Substrate on Cd Immobilization and Soil Property. Environ. Sci. Pollut. Res. 27 (3), 3007–3022. doi:10.1007/s11356-019-07138-y

PubMed Abstract | CrossRef Full Text | Google Scholar

Wendt, J. O. L., and Lee, S. J. (2010). High-temperature Sorbents for Hg, Cd, Pb, and Other Trace Metals: Mechanisms and Applications. Fuel 89 (4), 894–903. doi:10.1016/j.fuel.2009.01.028

CrossRef Full Text | Google Scholar

Wu, Q., Xian, Y., He, Z., Zhang, Q., Wu, J., Yang, G., et al. (2019). Adsorption Characteristics of Pb(II) Using Biochar Derived from Spent Mushroom Substrate. Sci. Rep. 9, 15999. doi:10.1038/s41598-019-52554-2

PubMed Abstract | CrossRef Full Text | Google Scholar

Yang, H., Yan, R., Chen, H., Zheng, C., Lee, D. H., and Liang, D. T. (2006). In-depth Investigation of Biomass Pyrolysis Based on Three Major Components: Hemicellulose, Cellulose and Lignin. Energy Fuels 20 (1), 388–393. doi:10.1021/ef0580117

CrossRef Full Text | Google Scholar

Yusuff, A. S., Owolabi, J. O., and Igbomezie, C. O. (2021). Optimization of Process Parameters for Adsorption of Heavy Metals from Aqueous Solutions by Alumina-Onion Skin Composite. Chem. Eng. Commun. 208 (1), 14–28. doi:10.1080/00986445.2019.1680371

CrossRef Full Text | Google Scholar

Zhang, G. S., Liu, N., Luo, Y., Zhang, H. B., Su, L., Oh, K., et al. (2021). Efficient Removal of Cu(II), Zn(II), and Cd(II) from Aqueous Solutions by a mineral-rich Biochar Derived from a Spent Mushroom (Agaricus Bisporus) Substrate. Materials 14 (1), 35. doi:10.3390/ma14010035

CrossRef Full Text | Google Scholar

Zhang, K., Zhang, D., Zhang, K., and Cao, Y. (2016a). Capture of Gas-phase Arsenic by Ferrospheres Separated from Fly Ashes. Energy Fuels 30 (10), 8746–8752. doi:10.1021/acs.energyfuels.6b01637

CrossRef Full Text | Google Scholar

Zhang, W., Liang, M., and Lu, C. (2007). Morphological and Structural Development of Hardwood Cellulose during Mechanochemical Pretreatment in Solid State through Pan-Milling. Cellulose 14 (5), 447–456. doi:10.1007/s10570-007-9135-y

CrossRef Full Text | Google Scholar

Zhang, Y., and Liu, J. (2019). Density Functional Theory Study of Arsenic Adsorption on the Fe2O3 (001) Surface. Energy Fuels 33 (2), 1414–1421. doi:10.1021/acs.energyfuels.8b04155

CrossRef Full Text | Google Scholar

Zhang, Z., He, C., Sun, T., Zhang, Z., Song, K., Wu, Q., et al. (2016b). Thermo-physical Properties of Pretreated Agricultural Residues for Bio-Hydrogen Production Using Thermo-Gravimetric Analysis. Int. J. Hydrogen Energ. 41 (10), 5234–5242. doi:10.1016/j.ijhydene.2016.01.079

CrossRef Full Text | Google Scholar

Zhou, C., Wu, Q., Yue, Y., and Zhang, Q. (2011). Application of Rod-Shaped Cellulose Nanocrystals in Polyacrylamide Hydrogels. J. Colloid Interf. Sci. 353 (1), 116–123. doi:10.1016/j.jcis.2010.09.035

CrossRef Full Text | Google Scholar

Zhou, J., Ge, W., Zhang, X., Wu, J., Chen, Q., Ma, D., et al. (2020). Effects of Spent Mushroom Substrate on the Dissipation of Polycyclic Aromatic Hydrocarbons in Agricultural Soil. Chemosphere 259, 127462. doi:10.1016/j.chemosphere.2020.127462

PubMed Abstract | CrossRef Full Text | Google Scholar

Zhu, L., Tong, L., Zhao, N., Wang, X., Yang, X., and Lv, Y. (2020). Key Factors and Microscopic Mechanisms Controlling Adsorption of Cadmium by Surface Oxidized and Aminated Biochars. J. Hazard. Mater. 382, 121002. doi:10.1016/j.jhazmat.2019.121002

PubMed Abstract | CrossRef Full Text | Google Scholar
