Opinions on dynamic topology reconfiguration of distribution networks for PV hosting capacity enhancement

This paper investigates on dynamic topology reconfiguration of distribution networks to enhance PV hosting capacity. Firstly, a dynamic topology reconfiguration model of distribution networks considering N-1 security constraints is proposed to accommodate intermittent PV generation, and thus high penetration of renewable resources can be ensured to satisfy operational requirements under both normal and fault conditions with load transfer of feeders. Then, a hosting capacity enhancement strategy is presented to decrease risks of voltage and line overloading with reactive power flexibility of energy storage inverters, and is implemented to enhance the maximum hosting capacity of distributed renewable energy sources. Finally, simulation results have validated the effectiveness of the proposed method for PV hosting capacity enhancement of distribution networks.

1 Introduction

Global low-carbon and environmental concerns have enabled various distributed renewable energy sources (RESs), such as solar photovoltaics (PV), wind and hydro power, to be grid-connected with gradually increasing penetration in distribution networks (Wang S. et al., 2020). However, technical problems such as nodal voltage violation, reverse overload and power quality deviation caused by large-scale distributed RESs have become increasingly prominent (Alam et al., 2015; Hu et al., 2021; Martinenas et al., 2017; Jia et al., 2024). Numerous methodologies to increase hosting capacity of distribution networks, including demand response of flexible loads (Ding et al., 2023; Zhang et al., 2023), standby energy storage systems (Zheng and Jin, 2021; Jia et al., 2022; Zheng et al., 2023), have been reported. Nevertheless, the existing research fails to fully make use of the potential of reactive power regulation of flexible resources. Also, the N-1 security issues have not been considered as boundary conditions for the evaluation of PV hosting capacity. Therefore, this paper focuses on providing insightful perspectives and discussions on the dynamic topology reconfiguration of distribution networks for PV hosting capacity enhancement.

The main contributions of this work can be twofold as listed: (1) A dynamic topology reconfiguration model of distribution networks considering N-1 security constraints is proposed to accommodate intermittent PV generation, and thus high penetration of renewable resources can be ensured to satisfy operational requirements under both normal and fault conditions with load transfer of feeders; (2) A hosting capacity enhancement strategy is presented to decrease risks of voltage and line overloading with reactive power flexibility of energy storage inverters, and is implemented to enhance the maximum hosting capacity of distributed renewable energy sources.

2 Evaluation model of PV hosting capacity considering diversified flexibility resources

This paper proposes a strategy to enhance the PV hosting capacity of distribution networks by considering the reactive power flexibility of energy storage systems (Dubey and Santoso, 2017; Wang et al., 2021). Based on the principle of four-quadrant operation of energy storage converters, the reactive power feasible region of energy storage is obtained using the apparent power and active power as boundaries (Li et al., 2021; Yan et al., 2019). In Figure 1A, the blue rectangle represents the feasible region of the energy storage system’s active and reactive power. Then, using Minkowski summation, the feasible range for the active power and energy of a single electric vehicle are combined to obtain the feasible range for a cluster of electric vehicles. By jointly planning the cluster of electric vehicles and the energy storage system (Masiello et al., 2024; Ju et al., 2023), this strategy aims to reduce the risk of voltage violations and line overloads in the distribution network, thereby improving the PV hosting capacity of distribution networks. The four-quadrant operation of energy storage and the cluster of electric vehicles are illustrated in Figure 1A.

Figure 1

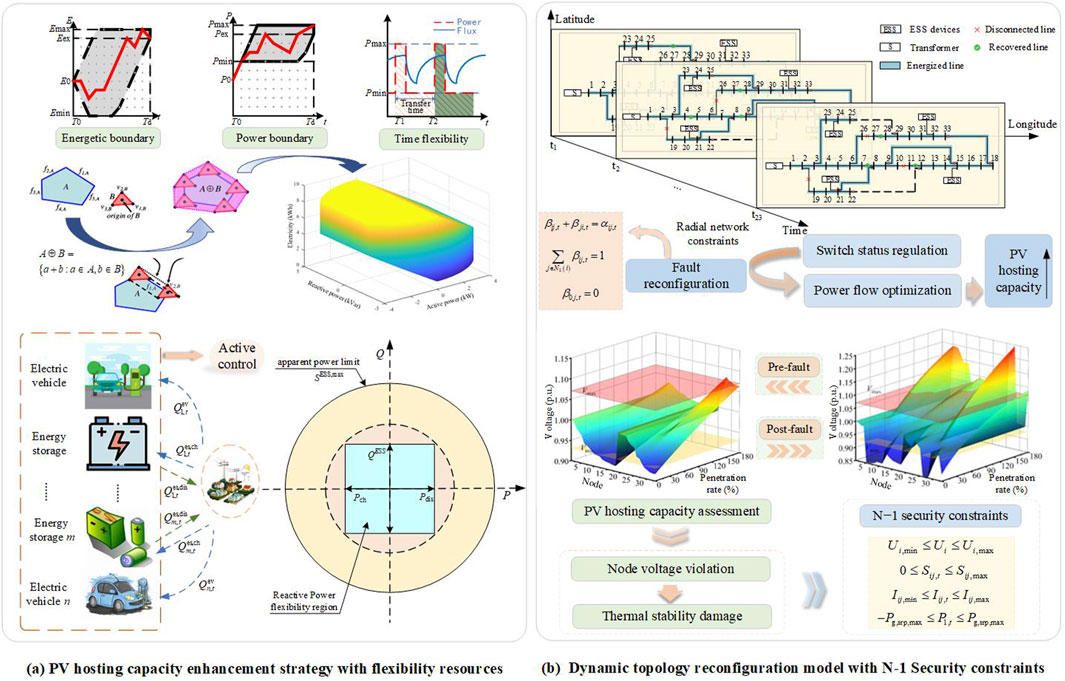

Figure 1. A model of distribution networks for PV hosting capacity enhancement. (A) PV hosting capacity enhancement strategy with flexibility resources. (B) Dynamic topology reconfiguration model with N-1 Security constraints.

To accurately evaluate the maximum hosting capacity of the PV system in distribution networks, the optimization objective is to maximize the total installed capacity of photovoltaic systems connected to distribution networks (Yuan et al., 2024), ensuring grid safety while accommodating the maximum number of distributed PV systems. The objective function is shown in Equation 1:

$\max {\displaystyle \sum _{i=1}^{N_{\text{PV}}}}\Delta P_i^{\text{PV}}(1)$

where $N_{PV}$ represents the total number of nodes for photovoltaic integration, and $\Delta {P_i}^{PV}$ denotes the additional photovoltaic capacity at node $i$.

Power balance constraints are shown in Equations 2–5:

$P_{i,t}^{\mathrm{g}}+P_{i,t}^{\text{pv}}+P_{i,t}^{\text{es},\text{dis}}-P_{i,t}^{\text{es},\text{ch}}-P_{i,t}^{\mathrm{d}}-P_{i,t}^{\text{ev}}={\displaystyle \sum _{j\in i}}{\alpha }_{ij,t}\left(P_{ij,t}+r_{ij}{\stackrel{\sim }{I}}_{ij,t}\right)(2)$

$Q_{i,t}^{\mathrm{g}}+Q_{i,t}^{\text{pv}}+Q_{i,t}^{\text{ess}}+Q_{i,t}^{\text{es},\text{dis}}-Q_{i,t}^{\text{es},\text{ch}}-Q_{i,t}^{\mathrm{d}}-Q_{i,t}^{\text{ev}}={\displaystyle \sum _{j\in i}}{\alpha }_{ij,t}\left(Q_{ij,t}+x_{ij}{\stackrel{\sim }{I}}_{ij,t}\right)(3)$

${\stackrel{\sim }{I}}_{ij,t}\ge \frac{P_{ij,t}^2+Q_{ij,t}^2}{U_{i,t}}(4)$

$P_{i,t}^{\text{PV}}=\left(P_{i,0}^{\text{PV}}+\Delta P_i^{\text{PV}}\right)\cdot r_t^{\text{PV}}(5)$

Line power flow limit constraint is shown in Equation 6:

$0\le {\alpha }_{ij,t}{S}_{ij,t}\le S_{ij,\max }(6)$

Energy storage operation constraints are shown in Equation 7 through Equation 9:

$U_{i,\min }<U_{i,t}<U_{i,\max }(7)$

where $P_{i,t}^{\mathrm{g}}$ and $P_{i,t}^{\text{pv}}$ represent the active power injected by the substation and photovoltaic system at node $i$ at time $t$, respectively; $P_{i,t}^{\text{es},\text{dis}}$ and $P_{i,t}^{\text{es},\text{ch}}$ denote the charging and discharging power of the energy storage system at node $i$ at time $t$, respectively; $P_{i,t}^{\text{ev}}$ and $P_{i,t}^{\mathrm{d}}$ indicate the active power of electric vehicles and other electrical loads at node $i$ at time $t$, respectively; $Q_{i,t}^{\mathrm{g}}$ and $Q_{i,t}^{\text{pv}}$ represent the reactive power injected by the substation and photovoltaic system at node $i$ at time $t$, respectively; $Q_{i,t}^{\text{es},\text{ch}}$ and $Q_{i,t}^{\text{es},\text{dis}}$ represent the reactive power of the energy storage charge and discharge at node $i$ at time $t$, respectively; $Q_{i,t}^{\text{ev}}$ and $Q_{i,t}^{\mathrm{d}}$ denote the reactive power of electric vehicles and other electrical loads at node $i$ at time $t$, respectively; $P_{ij,t}$ and $Q_{ij,t}$ indicate the active and reactive power flows on branch ($i$, $j$) at time $t$, respectively; $r_{ij}$ and $x_{ij}$ represent the resistance and reactance values on branch ($i$, $j$), respectively; ${\stackrel{\sim }{I}}_{ij,t}$ denotes the squared current value on branch ($i$, $j$) at time $t$; $P_{i,0}^{\text{PV}}$ represents the existing photovoltaic capacity at node $i$; and $r_t^{\text{PV}}$ signifies the theoretical output of unit capacity distributed photovoltaic systems at time $t$, with its output curve related to local solar irradiance and generation efficiency (Wang Z. H. et al., 2020). The apparent power for branch ($i$, $j$) is represented by $S_{ij,t}$. The upper and lower limits of the voltage at node $i$ are represented by $U_{i,\max }$ and $U_{i,\min }$, respectively.

Energy storage operation constraints: considering the energy storage power and power operation constraints, the feasible range of energy storage active power is obtained, and the adjustable feasible range of reactive power is obtained under the constraint of apparent power. The energy storage operation constraints are to be satisfied as follows:

$\left\{\begin{array}{l}0\le P_{i,t}^{\text{es},\text{ch}}\le {\beta }_{i,t}^{\text{ch}}{P}_i^{\text{ch},\max }\\ 0\le P_{i,t}^{\text{dis}}\le {\beta }_{i,t}^{\text{dis}}{P}_i^{\text{dis},\max }\end{array}\right.\left(0\le {\beta }_{i,t}^{\text{ch}}+{\beta }_{i,t}^{\text{dis}}\le 1\right)(8)$

$E_{i,t+1}^{\text{ES}}=E_{i,t}^{\text{ES}}+{\eta }_i^{\text{ch}}{P}_{i,t}^{\text{es},\text{ch}}\Delta t-\frac{P_{i,t}^{\text{es},\text{dis}}\Delta t}{{\eta }_i^{\text{dis}}}(9)$

where ${\beta }_{i,t}^{\text{ch}}$ and ${\beta }_{i,t}^{\text{dis}}$ are the charging and discharging state variables of the energy storage battery at node $i$, taking values of 0 or 1, ensuring that charging and discharging cannot occur simultaneously within the same time period. $P_i^{\text{ch},\max }$ and $P_i^{\text{dis},\max }$ are the upper limits for the charging and discharging power of the energy storage battery at node $i$, respectively. ${\eta }_i^{\text{ch}}$ and ${\eta }_i^{\text{dis}}$ represent the charging and discharging efficiencies of the energy storage battery at node $i$, respectively, and $\Delta t$ is the time. $E_{i,t}^{\text{ES}}$ and $P_{i,t}^{\text{es},\text{ch}}$、 $P_{i,t}^{\text{es},\text{dis}}$ represent the remaining capacity and charging/discharging power of the energy storage battery at node $i$ during time period $t$, respectively.

Considering the inherent power and energy limitations of the battery, the feasible domain for characterizing the active power over multiple time periods by the passage of time is shown in Equations 10–17:

$E_{i,t}^{\text{ES},\min 1}=\max \left\{\left(E_{i,t_0}^{\text{ES}}-\frac{P_i^{\text{dis},\max }}{{{\eta }_i}^{\text{dis}}}\left(t-t_0\right)\right),E_i^{\text{ES},\min }\right\}(10)$

$E_{i,t}^{\text{ES},\min 2}=\max \left\{\left(E_{i,t_0}^{\text{ES}}-{{\eta }_i}^{\text{ch}}{P}_i^{\text{ch},\max }\left(t_{\mathrm{d}}-t\right)\right),E_i^{\text{ES},\min }\right\}(11)$

$E_{i,t}^{\text{ES},\min }=\max \left\{E_{i,t}^{\text{ES},\min 1},E_{i,t}^{\text{ES},\min 2}\right\}(12)$

$E_{i,t}^{\text{ES},\max 1}=\min \left\{\left(E_{i,t_0}^{\text{ES}}+{{\eta }_i}^{\text{ch}}{P}_i^{\text{ch},\max }\left(t-t_0\right)\right),E_i^{\text{ES},\max }\right\}(13)$

$E_{i,t}^{\text{ES},\max 2}=\min \left\{\left(E_{i,t_0}^{\text{ES}}+\frac{P_i^{\text{dis},\max }}{{{\eta }_i}^{\text{dis}}}\left(t_{\mathrm{d}}-t\right)\right),E_i^{\text{ES},\max }\right\}(14)$

$E_{i,t}^{\text{ES},\max }=\min \left\{E_{i,t}^{\text{ES},\max 1},E_{i,t}^{\text{ES},\max 2}\right\}(15)$

$P_{i,t}^{\text{ES},\min }=\max \left\{\frac{E_{i,t+1}^{\text{ES},\min }-E_{i,t}^{\text{ES},\max }}{\Delta t},-P_i^{\text{dis},\max }\right\}(16)$

$P_{i,t}^{\text{ES},\max }=\min \left\{\frac{E_{i,t+1}^{\text{ES},\max }-E_{i,t}^{\text{ES},\min }}{\Delta t},P_i^{\text{ch},\max }\right\}(17)$

where $E_{i,t}^{\text{ES},\max }$, $E_{i,t}^{\text{ES},\min }$, $P_{i,t}^{\text{ES},\max }$ and $P_{i,t}^{\text{ES},\min }$ represent the maximum and minimum energy values and the upper and lower limits of active power of the energy storage battery at node $i$ during time period $t$. $t_0$ and $t_{\mathrm{d}}$ denote the initial and final time periods, respectively. $E_{i,t_0}^{\text{ES}}$ is the initial capacity of the energy storage battery at node $i$, and the initial capacity is equal to the final capacity. $E_i^{\text{ES},\max }$ and $E_i^{\text{ES},\min }$ denote the maximum and minimum values of the capacity of the energy storage battery at node $i$. $E_{i,t}^{\text{ES},\max 1}$, $E_{i,t}^{\text{ES},\min 1}$, $E_{i,t}^{\text{ES},\max 2}$, and $E_{i,t}^{\text{ES},\min 2}$ represent the upper and lower bounds of the energy at time $t$ projected backward from the start period and projected forward from the end period, respectively.

Based on the apparent power constraint of the energy storage battery, the feasible domain of reactive power is derived, as shown in Equations 18, 19:

$\left|P_{i,t}^{\text{ES}}\right|\le S_{i,t}^{\text{ES}}\le S_i^{\text{ES},\max }(18)$

$\left\{\begin{array}{l}{Q}_{i,t}^{\text{ES},\min }=0\\ Q_{i,t}^{\text{ES},\max }=\sqrt{{\left(S_i^{\text{ES},\max }\right)}^2-{\left(P_{i,t}^{\text{ES}}\right)}^2}\end{array}\right.(19)$

where $S_{i,t}^{\text{ES}}$ and $P_{i,t}^{\text{ES}}$ represent the apparent power and active power of the energy storage battery at node $i$ during time period $t$. $Q_{i,t}^{\text{ES},\max }$ and $Q_{i,t}^{\text{ES},\min }$ denote the lower and upper limits of the reactive power at node $i$ during time $t$. Thus, the flexibility characterization model for active and reactive power of distributed energy storage resources can derived as shown in Equations 20, 21:

$P_{i,t}^{\text{ES},\min }\le P_{i,t}^{\text{ES}}\le P_{i,t}^{\text{ES},\max }(20)$

$Q_{i,t}^{\text{ES},\min }\le Q_{i,t}^{\text{ES}}\le Q_{i,t}^{\text{ES},\max }(21)$

where $Q_{i,t}^{\text{ES}}$ represents the reactive power of the energy storage battery at node $i$ during time $t$.

The feasible region constraints for the virtual battery power of the clustered electric vehicles are to be satisfied (Zhao et al., 2020; Xin et al., 2024) as shown in Equations 22–25:

$SO{E}_{i,n,t}^{\text{EVmax}}=\min \left\{\left(SO{E}_{i,n,T_0}+P_{i,n}^{\max }\left(t-T_{i,n,0}\right)\Delta t\right),SO{E}_{i,n}^{\max }\right\}(22)$

$SO{E}_{i,n,t}^{\text{EVmin}}=\max \left\{\left(SO{E}_{i,n}^{\text{ex}}-P_{i,n}^{\max }\left(T_{i,n,\mathrm{d}}-t\right)\Delta t\right),SO{E}_{i,n,T_0}\right\}(23)$

$P_{i,n,t}^{\text{EVmax}}=\min \left\{\frac{SO{E}_{i,n,t+1}^{\text{EVmax}}-SO{E}_{i,n,t}^{\text{EVmin}}}{\Delta t},P_{i,n}^{\max }\right\}(24)$

$P_{i,n,t}^{\text{EVmin}}=\max \left\{\frac{SO{E}_{i,n,t+1}^{\text{EVmin}}-SO{E}_{i,n,t}^{\text{EVmax}}}{\Delta t},P_{i,n}^{\min }\right\}(25)$

where $SO{E}_{i,n,t}^{\text{EVmax}}$ and $SO{E}_{i,n,t}^{\text{EVmin}}$ represent the maximum and minimum energy values of the onboard battery for the nth electric vehicle at node $i$ during time period $t$, respectively; $T_{i,n,0}$ and $T_{i,n,\mathrm{d}}$ represent the periods when the nth electric vehicle at node $i$ is connected to and disconnected from the grid, respectively; $P_{i,n}^{\max }$ and $P_{i,n}^{\min }$ represent the maximum and minimum charging powers for the nth electric vehicle at node $i$, with the minimum power defaulting to 0; $P_{i,n,t}^{\text{EVmax}}$ and $P_{i,n,t}^{\text{EVmin}}$ represent the upper and lower limits of the power for the nth electric vehicle at node $i$ during time period $t$.

The flexibility of cluster electric vehicles can be characterized using the Minkowski method by summing the power and energy boundaries of single electric vehicle (Michaelides, 2020), and the comprehensive power and energy boundaries are shown in Equations 26–31:

$SO{E}_{i,t}^{\text{EV}\text{VBmax}}={\displaystyle \sum _{n=1}^{N_i^{\text{EV}}}}SO{E}_{i,n,t}^{\text{EVmax}}{W}_{i,n,t}(26)$

$SO{E}_{i,t}^{\text{EV}\text{VBmin}}={\displaystyle \sum _{n=1}^{N_i^{\text{EV}}}}SO{E}_{i,n,t}^{\text{EVmin}}{W}_{i,n,t}(27)$

$P_{i,t}^{\text{EV}\text{VBmax}}={\displaystyle \sum _{n=1}^{N_i^{\text{EV}}}}{P}_{i,n,t}^{\text{EVmax}}{W}_{i,n,t}(28)$

$P_{i,t}^{\text{EV}\text{VBmin}}={\displaystyle \sum _{n=1}^{N_i^{\text{EV}}}}{P}_{i,n,t}^{\text{EVmin}}{W}_{i,n,t}(29)$

where ${N_i}^{EV}$ represents the number of electric vehicles in the cluster at node $i$; $W_{i,n,t}$ indicates the grid-connected status of the nth electric vehicle at node $i$ at time $t$, taking values of 0 or 1; $SO{E}_{i,t}^{\text{EV}\text{VBmax}}$ and $SO{E}_{i,t}^{\text{EV}\text{VBmin}}$ represent the upper and lower bounds of the battery energy for the integrated virtual battery model at node $i$; $P_{i,t}^{\text{EV}\text{VBmax}}$ and $P_{i,t}^{\text{EV}\text{VBmin}}$ represent the upper and lower bounds of the charging power for the integrated virtual battery model at node $i$.

$SO{E}_{i,n,t+1}^{\text{EVarr}}=SO{E}_{i,n,t+1}^{\text{EVmax}}{W}_{i,n,t+1}\left(W_{i,n,t+1}-W_{i,n,t}\right)(30)$

$SO{E}_{i,n,t+1}^{\text{EVdep}}=SO{E}_{i,n,t+1}^{\text{EVmax}}{W}_{i,n,t}\left(W_{i,n,t}-W_{i,n,t+1}\right)(31)$

where $SO{E}_{i,n,t+1}^{\text{EVarr}}$ and $SO{E}_{i,n,t+1}^{\text{EVdep}}$ are used to represent the battery energy values of the nth electric vehicle at node $i$ at time $\mathrm{t}+1$ when connected to and disconnected from the grid, respectively.

However, due to effect of switching on and off the electric vehicle engine on the power range of the integrated model in successive time periods, the corresponding energy coupling on the time axis cannot be achieved (Li et al., 2017). To address this issue, a random variable $SO{E}_{i,t+1}^{\text{EV}\text{VB},\text{exchange}}$ should be included in the time-coupling equation of the virtual battery model for the electric vehicle cluster. Thus, the virtual battery model for the EV cluster at node $i$ is obtained as shown in Equations 32–35:

$SO{E}_{i,t+1}^{\text{EV}\text{VB},\text{exchange}}={\displaystyle \sum _{i=1}^{N_i^{\text{EV}}}}SO{E}_{i,t+1}^{\text{EVmax}}\left(W_{i,n,t+1}^2-W_{i,n,t}^2\right)(32)$

$P_{i,t}^{\text{EV}\text{VBmin}}\le P_{i,t}^{\text{EV}\text{VB}}\le P_{i,t}^{\text{EV}\text{VBmax}}(33)$

$SO{E}_{i,t}^{\text{EV}\text{VBmin}}\le SO{E}_{i,t}^{\text{EV}\text{VB}}\le SO{E}_{i,t}^{\text{EV}\text{VBmax}}(34)$

$SO{E}_{i,t+1}^{\text{EV}\text{VB}}=SO{E}_{i,t}^{\text{EV}\text{VB}}+P_{i,t}^{\text{EV}\text{VB}}\Delta t+SO{E}_{i,t+1}^{\text{EV}\text{VB},\text{exchange}}(35)$

where $SO{E}_{i,t}^{\text{EV}\text{VB}}$ and $P_{i,t}^{\text{EV}\text{VB}}$ are used to represent the battery energy and charging power variables of the virtual battery model for the cluster of electric vehicles, respectively.

3 Optimal dynamic network reconfiguration strategy for PV hosting capacity enhancement

In this paper, considering the intermittency of PV generation and operational requirements of distribution networks in normal and fault conditions, a dynamic topology reconfiguration model of distribution networks with N-1 safety constraints (Cao et al., 2024), based on network radial constraints (Lei et al., 2020), switching frequency constraints, post-fault switching frequency constraint, branch current constraints, and maximum PV capacity as the objective function is developed. In the context of N-1 security, the model dynamically reconfigures distribution networks by changing the switching state in real time, ensuring the radial shape of distribution networks, solves the load transfer problem after equipment or line fault, and enhances the PV hosting capacity of distribution networks with variable topology. The principle of dynamic topology reconfiguration of distribution networks and N-1 security constraints is shown in Figure 1B.

1) To ensure that distribution networks maintain a radial structure in both normal and fault conditions, a state variable $\mathrm{k}$ is introduced, and the radiality constraints of the network are shown in Equations 36–40) (Lei et al., 2024; Xiao et al., 2017):

${\beta }_{ij,t}^k+{\beta }_{ji,t}^k={\alpha }_{ij,t}^k,l=1,\dots ,m(36)$

${\displaystyle \sum _{j\in N\left(i\right)}}{\beta }_{ij,t}^k=1,i=1,\dots ,n(37)$

${\beta }_{0j,t}^k=0,j\in N\left(0\right)(38)$

${\beta }_{ij,t}^k\in \left\{0,1\right\},i=1,\dots ,n,j\in N\left(i\right)(39)$

$0\le {\alpha }_{ij,t}^k\le 1,l=1,\dots ,m(40)$

where $N_{\mathrm{c}}$ represents the number of N-1 faults, $k=0$ denotes the normal operating state and $1\sim N_{\mathrm{c}}$ denotes the fault state. ${\alpha }_{ij,t}^k$ is the connectivity variable for branch ($i$, $j$) at time $t$, with a value of 1 indicating that the switch is closed and a value of 0 indicating that the switch is open. ${\beta }_{ij,t}^k$ is the node hierarchy identification variable at time $t$, with a value of 1 indicating that $i$ is the parent node of $j$ at time $t$, and a value of 0 indicating otherwise.

2) During the reconfiguration process, excessive switching operations can negatively impact the lifespan of the equipment, as well as lead to increased power outage losses, equipment degradation, and higher maintenance costs. Therefore, reconfiguration process of distribution networks must satisfy the following switching frequency constraints as shown in Equations 41, 42 (Yadav and Jain, 2016):

${\displaystyle \sum _{t=1}^T}\left|{\alpha }_{ij,t}^k-{\alpha }_{ij,t-1}^k\right|\le N_{ij,\max }(41)$

${\displaystyle \sum _{ij\in S_{\mathrm{L}}}}{\displaystyle \sum _{t=1}^T}\left|{\alpha }_{ij,t}^k-{\alpha }_{ij,t-1}^k\right|\le N_{\text{SA},\max }(42)$

where $N_{ij,\max }$ represents the upper limit on the number of switch operations for branch ($i$, $j$) within the total reconfiguration period; $S_L$ denotes the set of branches; and $N_{\text{SA},\max }$ represents the upper limit on the total number of switch operations within the period.

3) After a fault occurs in the equipment or line, in order to ensure that the power supply of distribution networks can be restored quickly during the reconfiguration process, it is necessary to transfer the entire feeder’s load with the minimum number of switching operations. The switching frequency constraint after the fault is shown in Equation 43:

${\displaystyle \sum _{ij\in S_{\mathrm{L}}}}{\displaystyle \sum _{t=1}^T}\left|{\alpha }_{ij,t}^k-{\alpha }_{ij,t}^0\right|\le 2,k=0,1,\dots ,N_{\mathrm{c}}(43)$

4) To ensure the thermal stability of equipment and lines, the current from distributed PV access should not exceed the thermal stability limits of the grid equipment and lines to prevent overload. Therefore, the branch current limitation constraint for the distribution networks is shown in Equation 44:

$I_{ij,\min }^k\le I_{ij,t}^k\le I_{ij,\max }^k(44)$

where $I_{ij,\max }^k$ represents the maximum current carrying capacity of branch ($i$, $j$), and $I_{ij,\min }^k$ denotes its actual current value.

Due to the use of absolute value operators in the constraints (Equations 41–43), variables $s_{ij,t}^k$, $z_{ij,t}^k$ need to be introduced for linearization, as shown in Equations 45–49:

${\displaystyle \sum _{t=1}^T}{s}_{ij,t}^k\le N_{ij,\max }(45)$

${\displaystyle \sum _{ij\in S_{\mathrm{L}}}}{\displaystyle \sum _{t=1}^T}{s}_{ij,t}^k\le N_{\text{SA},\max }(46)$

${\displaystyle \sum _{ij\in S_{\mathrm{L}}}}{\displaystyle \sum _{t=1}^T}{z}_{ij,t}^k\le 2,k=0,1,\dots ,N_{\mathrm{c}}(47)$

$s_{ij,t}^k\ge {\alpha }_{ij,t}^k-{\alpha }_{ij,t-1}^k,s_{ij,t}^k\ge {\alpha }_{ij,t-1}^k-{\alpha }_{ij,t}^k,l=1,\dots ,m_{\mathrm{L}}(48)$

$z_{ij,t}^k\ge {\alpha }_{ij,t}^k-{\alpha }_{ij,t}^0,l=1,\dots ,m_{\mathrm{L}},k=0,1,\dots ,N_{\mathrm{c}}(49)$

4 Discussion and conclusions

The evaluation of distributed photovoltaic hosting capacity in distribution networks has four different scenarios. Scenario 1 is the method proposed in this paper. Scenario 2 involves the active control of flexibility resources such as energy storage and electric vehicles, along with the dynamic reconfiguration of network topology, based on normal operating conditions, and without considering the N-1 contingency state. Scenario 3 does not consider the dynamic reconfiguration of network topology, but includes the active control of flexible resources such as energy storage and electric vehicles. Scenario 4 does not include the active control of flexibility resources or electric vehicles, but considers the dynamic reconfiguration of network topology as well as the normal operating state and the N-1 contingency state. The distributed photovoltaic hosting capacities of the distribution network obtained from the simulation of these four scenarios are shown in Figure 2A.

Figure 2

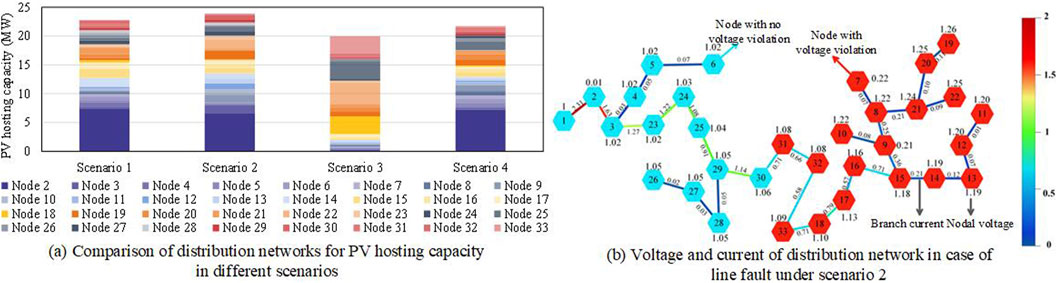

Figure 2. Comparison of results of PV hosting capacity DESS in distribution networks for different scenarios. (A) Comparison of distribution networks for PV hosting capacity in different scenarios. (B) Voltage and current of distribution network in case of line fault under scenario 2.

As shown in Figure 2A, the column in Figure 1 represents the cumulative sum of the PV hosting capacity of each node in different scenarios. Scenario 1 improves the overall photovoltaic (PV) hosting capacity of the distribution networks by 14.27% compared to scenario 3 due to the consideration of dynamic topology reconfiguration of distribution networks to optimize the power flow distribution in distribution networks and alleviate issues of equipment and line overloads. It also shows a 4.92% improvement compared to scenario 4 due to the use of energy storage inverters for reactive power control. Although there is a reduction in the overall PV hosting capacity compared to scenario 2, it ensures the safe operation of the grid under the N-1 fault condition. Therefore, scenario 1 achieves an overall optimal distributed PV hosting capacity, indicating that the combination of dynamic network topology reconfiguration and active control of flexible resources not only enhances the effective utilization of energy, but also improves the distributed PV hosting capacity of distribution networks.

Figure 2B represents a 33-node distribution network, where blue nodes indicate normal voltage, red nodes indicate voltage violation, and branches of different colors represent different current values according to the color swatches on the right side. From Figure 2B, without considering the N-1 contingency state (scenario 2), fault reconfiguration can be performed after a line fault to enable load transfer at the nodes. However, failure to consider the N-1 security leads to voltage violations at certain nodes and overloads in some branches after fault reconfiguration. The N-1 security helps ensure that other lines are not overloaded during a fault, thereby preventing cascading failures. Therefore, the consideration of N-1 contingency in the evaluation of distribution networks for PV hosting capacity enhances the operational safety of the distribution system and effectively avoids safety issues caused by contingency faults.

An evaluation method for the acceptance capacity of distributed photovoltaics, considering the active regulation of flexible resources and dynamic reconfiguration of the distribution network topology, is proposed. The main conclusions are as follows: 1) The dynamic reconfiguration of network topology and the adjustable potential of flexible resources are comprehensively considered. By optimizing power flow paths and improving grid flexibility, real-time improvements in power flow distribution are achieved, leading to a more uniform distribution of photovoltaic power output throughout the grid. The proposed method makes it possible to increase the acceptance capacity of the distribution network by more than 14.2%. 2) In the evaluation process of photovoltaic acceptance capacity in the distribution network, the safety of system operation is improved by considering N-1 contingency scenarios. It is ensured that the optimized photovoltaic capacity can be delivered normally, even when line faults occur, effectively avoiding safety issues caused by anticipated faults.
