OPINION article

Front. Energy Res., 03 June 2024
Sec. Sustainable Energy Systems
This article is part of the Research Topic Emerging Technologies for the Construction of Renewable Energy-Dominated Power System View all 32 articles

Opinions on hosting capacity evaluation of distribution network with zonotope power flexibility aggregation

  • 1College of Electrical and Information Engineering, Hunan University, Changsha, China
  • 2Industrial Training Centre, Shenzhen Polytechnic University, Shenzhen, China
  • 3School of Mathematics, Shandong University, Jinan, China

1 Introduction

The installation of solar photovoltaic (PV) systems has been stimulated by governmental incentive mechanisms and the continual reduction in technology costs in recent years (Chattopadhyay and Alpcan, 2015). However, with the substantial integration of distributed PV systems at high penetration levels (Chen et al., 2019a), reverse power flow in the distribution network has been observed, thus triggering issues such as voltage violations and reverse overloads (Ismael et al., 2019; Wu et al., 2021). Therefore, the evaluation of maximum PV hosting capacity of the distribution network can assist distribution network planners in making decisions regarding PV generation (SUN et al., 2021). The current evaluation method considering safe operation constraints is traditional planning method of optimal power flow (Chen et al., 2016) and random scenario simulation method (Ding and Mather, 2016) which can ensure the randomness of PV configuration. To enhance the PV hosting capacity, strategies such as reactive power control (Astero and Söder, 2018), voltage control using OLTC (Wang et al., 2016), energy storage technologies (Hashemi and Østergaard, 2016), and network reconfiguration (Fu and Chiang, 2018) are continuously proposed. With the increasing proliferation of distributed resources, a promising approach to enhancement is also presented by power aggregation (Müller et al., 2017; Wang and Wu, 2021) and proactive control of diversified flexibility resources along feeders. Therefore, this research aims to provide insightful viewpoints and discussions on the assessment method of the maximum PV hosting capacity of the distribution network based on the aggregation of diversified flexibility resources.

The main contributions of this work can be twofold as listed: (1) A highly constrained zonotope aggregation model for diversified flexibility resources is proposed, and a two-stage adaptive robust framework is employed to innerly approximate the projection region of the high-dimensional original space of diversified flexibility resources; (2)A PV hosting capacity evaluation method with flexibility space boundaries is presented to accommodate distributed PV by maximizing the net load during peak PV output on the load side.

2 Highly constrained zonotope aggregation model of diversified flexibility resources

Due to diversified flexibility resources’ small scale, dispersion, and large number, coordinating their control is highly challenging (Chen and Li, 2021). Aggregating flexibility resources on feeders can fully utilize the potential flexibility, reduce invocation difficulty, and lower computational complexity. Specifically, the process of flexibility aggregation can be described as the projection of the power feasible domain of all flexibility resources onto the total power feasible domain of feeders (Wei et al., 2015; Tan et al., 2019; Chen and Li, 2021). Based on the acquisition of the power feasible domain of all flexibility resources on feeders, upon observation of the strong constraints imposed by the network of the distribution network when the aggregation scale is large (Wang and Wu, 2021), the high-dimensional precise original space of flexibility resources is constituted. The analytical form of computing its dimensionality reduction projection onto the precise power flexibility space of the feeder is highly challenging; thus, most studies are focused on approximation methods (Chen and Li, 2021).

Firstly, the power-adjustable range of individual flexibility resources, including energy storage devices, electric vehicles, and HVAC-like energy storage devices, is described through a virtual energy storage model in this paper (Hughes et al., 2016). Given the discrete scheduling decision cycle with N scheduling points and a time interval of Δt and a quantity of M flexibility resources, we consider Pi,tflx and Ei,tflx representing the power and energy of individual flexibility resources within the scheduling interval tkΔt,k+1Δt, where k=0,...,N1, the corresponding quantification model is established as follews:

Ωi=Pi,tflx,minPi,tflxPi,tflx,maxEi,tflx,minEi,tflxEi,tflx,maxEi,t+1flx=Ei,tflx+Pi,tflxΔt(1)
χ=Ω1,Ω2,...,ΩM(2)

Where iEV,ESS,HVAC, Pi,tflx,max and Pi,tflx,min respectively represent the upper and lower limits of the power of flexibility resource i during time period t; and Ei,tflx,min respectively represent the upper and lower limits of the energy; Ωi denotes the operational feasible region of flexibility resource i, χ denotes the operational feasible region of the whole flexibility resource, which can be described as the convex polytope characterized by the aforementioned set of M constraints.

The linear method outlined in (Bernstein et al., 2018) is employed to derive the network power flow model, whereby the magnitudes of node voltage v, branch current i, and feeder line aggregated active power pagg, can be expressed as the following linear expressions:

v=Dpflx+d(3)
i=Fpflx+f(4)
pagg=Hpflx+h(5)

Where D, d, F, f, H, h, J and j are the system parameters. It is necessary to ensure that node voltages and branch currents are not exceeded, as follows:

v_vv¯i_ii¯(6)

Where v_ and v¯ represent the upper and lower limits of node voltages respectively, and i¯ and i denote the upper and lower limits of branch currents respectively. The convex polytope formed by Eq. 2 is intersected by Eq. 6’s constraints, resulting in irregular polytopes, while the high-dimensional strong constraint primal space Z of flexibility resources is formed by Eqs 16.

Then, the feeder power flexibility space P, representing the dimensionality reduction projection of the high-dimensional constrained space Z, is approximately obtained using the zonotope U as shown in Figure 1A. For the N-dimensional zonotope (Müller et al., 2017), its representation can be established with the central point c, a specific generator matrix G, and a scaling factor β¯. Ng denotes the number of generator vectors. The directions along which the zonotope can be extended are described by the generator matrix G=g1,...,gNgTRN×Ng. The extension range along each generator vector direction is determined by the scaling factor by Eqs 7, 8:

U=paggRN|pagg=c+Gβ,βmaxββmax(7)
G=gi=0,...,0,i1,0,...,0TRNgN+i=0,...,0,1/2i,1/2i+1,0,...,0TRN(8)

Figure 1
www.frontiersin.org

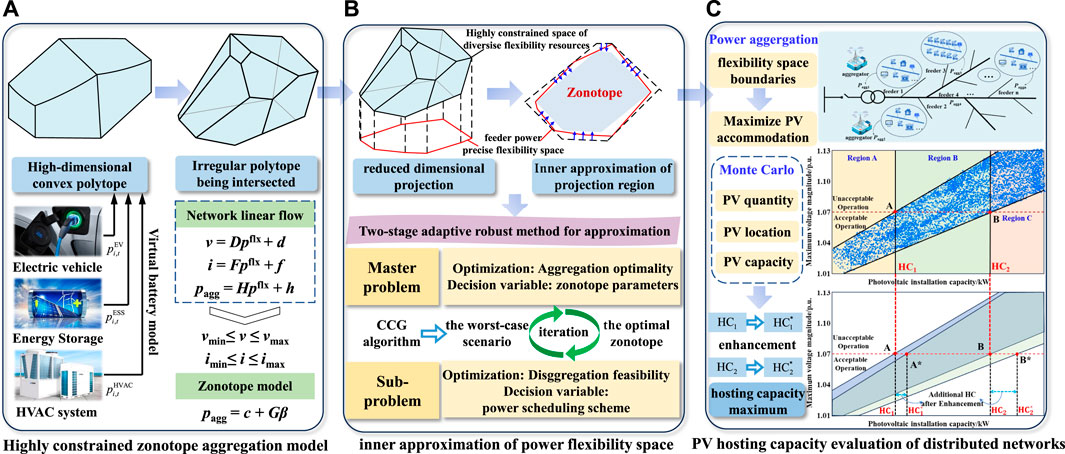

Figure 1. The proposed model, approximation method and PV hosting capacity evaluation. (A) Highly constrained zonotope aggregation model. (B) Inner approximation of power flexibility space. (C) PV hosting capacity evaluation of distributed networks.

The advantage of zonotope projection approximation over ellipsoidal projection (Cui et al., 2021) and cuboidal projection (Chen et al., 2019b) lies in its generator vectors gi and gN+i, which can respectively depict the power and energy constraints of flexibility resources. Therefore, the operationally feasible region of flexibility resources aligns more closely with the characteristics of the zonotope shape.

3 Two-stage adaptive robust method for inner approximation of power flexibility space

The feeder power flexibility space obtained after dimensionality reduction projection becomes more intricate and challenging to obtain. The inner approximation requires ensuring that the approximated flexibility space is optimally bounded internally. Simultaneously, it is imperative to ensure that any aggregated power trajectory within the approximated flexibility space can be realized through scheduling without violating operational constraints, thereby guaranteeing the feasibility of the disaggregation (Chen and Li, 2021).

In this paper, the power flexibility aggregation and disaggregation problem are formulated as a two-stage adaptive robust optimization problem as shown in Figure 1B, where power aggregation is treated as uncertain variables, and the requirement to ensure the feasibility of disaggregation is regarded as adaptive robust constraints (Hua et al., 2024). In the first stage, the objective is to determine the optimal approximation space for the aggregated feeder power. In the second stage, the objective is to ensure the feasibility of disaggregation.

The construction of any S normal vectors, denoted as αsRNs=1,...,S, is performed. The diameter, denoted as ρκ, of the zonotope U in the direction of the normal vectors is calculated by Eq. 9. The problem of determining the diameter, denoted as ρτ, of the feeder power flexibility space P in the direction of the normal vectors can be addressed using Eqs 10, 11. Thus, the similarity between the approximate and the original region is defined as shown in Eq. 12. As its value increases, the zonotope’s approximation to the power flexibility space of the feeder becomes larger (Müller et al., 2017).

ρκ=2αsGβmax(9)
ρτ=maxpaggαspaggεminpaggαspaggε/αs2(10)
s.t.(11)

equation (1)(6)

ηs=ρκρτ(12)

The introduction of ξ as an uncertain variable acting on scaling factors applied to each generator vector of the zonontope, the uncertain set is denoted as C=ξ0ξi1,i=1,...,Ng. An uncertain zonotope region is constructed, with its parameter feasible domain as Q=paggRN:pagg=c+Gβξ,ξC. Therefore, a two-stage adaptive robust power aggregation solution model is established as shown in Eqs 1316.

Obj.maxcβ1Ss=1Sρκρτ+minξU2maxpflxξ0(13)
c+Gβξ=Hpflxξ+h(14)
Epflxξσ(15)
Qpflxξγ(16)

In the first stage, the zonotope parameters cβ are decision variables, and the optimal inner approximation region is so the uncertain set ught using Eq. 13. In the second stage, the power scheduling scheme pflxξ is the decision variable, ensuring the feasibility of disaggregation. Eqs 15 and (16) represent the linear compact form of the highly constrained space of diversified flexibility resources pflx mentioned earlier. Eq. 14 represents the projection of the highly constrained space of diversified flexibility resources pflx onto the lower-dimensional space of feeder aggregated power pagg. The solution of this model can be implemented using the column-and-constraint generation algorithm. This process is not further elaborated in this paper (Hua et al., 2024).

4 PV hosting capacity evaluation of distributed networks with flexibility space boundaries

As the penetration rate of PV systems in distribution networks continues to increase, the occurrence of peak PV output not coinciding with peak load power (Xiong et al., 2020) may lead to phenomena such as reverse power flow and overvoltage in low-voltage distribution networks (Zhang et al., 2018; Li et al., 2020). The increase in node voltages within distribution networks becomes the primary factor limiting the integration of distributed PV systems (Lee et al., 2020). Reference (Cao et al., 2024) ensures magnitudes of each bus are maintained within the safety range due to the load shedding. Therefore, effectively increasing the net load during periods of high PV output on the load side helps mitigate the risk of operational constraints exceeding limits, thereby enhancing the hosting capacity of distributed PV systems (Zhou et al., 2021).

In a low-voltage distribution network with H feeders, pagg,i,t represents the aggregated power of the feeder i at time t, while pagg,i,tmin and pagg,i,tmax represent the upper and lower limits of power at that time, respectively. tpv,0 and tpv,end represent the starting and ending times of PV output. During this period, each feeder utilizes the upper boundary of the aggregated power flexibility space, maximizing distributed PV integration (Ding and Mather, 2016). In subsequent periods, the lower boundary is employed to reduce the load on the distribution network, ensuring its stable and safe operation, as depicted in Eqs (17), (18).

pagg,i,tminpagg.i,tpagg,i,tmax(17)
pagg.i,t=pagg,i,tmax,ttpv,0,tpv,endpagg,i,tmin,ttpv,0,tpv,end(18)

The PV penetration rate range selected in this paper is 0%–300%, with an incremental step size of 10%. Using the Monte Carlo method, the quantity, location, and capacity of PV grid connections are randomly simulated, with the PV grid connection capacity increasing according to the PV penetration rate (Ding and Mather, 2016). The steady-state power flow of the system is then calculated. For each PV penetration rate λPV, multiple samples are drawn to compute the total installed PV capacity and maximum voltage of system nodes for each random scenario. These values serve as the abscissa and ordinate to construct a scatter plot of random simulations, depicted in Figure 1C, where each point represents one simulation result. In the low-voltage distribution network, the voltage per unit value (Vit) of each feeder line must satisfy the constraint given by Eq. 19, and the scatter plot intersects with the upper voltage constraint of 1.07 per unit at points HC1 and HC2.

0.93p.u.Vit1.07p.u.(19)

Two lines parallel to the vertical axis are drawn respectively at points HC1 and HC2 to divide the coordinate graph into three regions: A, B, and C. In region A, points represent scenarios where the capacity of PV systems connected to the distribution network is less than HC1. Regardless of the node in the distribution network where PV systems are connected, the system voltage remains within the permissible range of the supply voltage. In region B, points represent scenarios where the capacity of PV systems connected to the distribution network falls between HC1 and HC2. If the selection of PV integration positions and capacity allocation is unreasonable, it may lead to excessively high or even over-limit system voltage levels. In such cases, the distribution network planner must ensure that the PV systems are appropriately allocated. In region C, points represent scenarios where the capacity of PV systems connected to the distribution network exceeds HC2. Regardless of the installation scheme employed, it will lead to over-limit system voltage. The aggregation and regulation of flexibility resources on the load side result in the accommodation of distributed photovoltaics, leading to the rightward shift of HC1 and HC2, with HC1 increasing to HC*1 and HC2 increasing to HC*2.

5 Case studies

In this section, the enhancement effect of PV hosting capacity by aggregated and coordinated diversified flexibility resources is demonstrated through numerical simulations based on the proposed method. IEEE 33-bus distribution network system is employed as a case study for simulation verification, with a radial configuration and a standard voltage level set at 12.66 kV. All the algorithms are executed with an AMD Ryzen 7 5800H with Radeon Graphics CPU running at 3.20 GHz, and 16.0 GB RAM. The optimization model involved in the proposed method is programmed and solved using the commercial solver Gurobi 10.0.3. The comparison between results of PV hosting capacity and computational time under different algorithms is shown in Table 1.

Table 1
www.frontiersin.org

Table 1. Comparison of PV hosting capacity evaluation method.

As shown in Table 1, it can be seen that the proposed method, compared to the random scenario simulation, can increase the PV hosting capacity by over 9.96%. Due to the necessity of considering flexible resource power aggregation and proactive control, the computational time is comparatively longer. When the scale of flexible resources is large, aggregation can shorten the computational time compared to distributed scheduling. However, our method show a slight decrease in the PV hosting capacity compared to the demand response enhancement method, which is attributed to the approximate feasible domain of the aggregation solution, leading to certain accuracy errors. Overall, the method proposed can effectively assess the PV hosting capacity of the distribution network.

6 Discussion and conclusion

In this paper, the flexibility resource power regulation model, feeder power aggregation model, two-stage robust aggregation solution method, and PV hosting capacity assessment strategy is elaborately investigated. The key findings are summarized as follows: 1) A highly constrained zonotope aggregation model of diversified flexibility resources is proposed, and a two-stage adaptive robust method is introduced to internally approximate the power flexibility space, ensuring the optimality of aggregation and the feasibility of disaggregation; 2) The aggregation and control of flexibility resource power on the load side can accommodate high peak output from distributed PV, thereby enhancing the PV hosting capacity of the distribution network and simultaneously reducing the computational complexity of dispatch decision-making.
