Analysis of D-Q small-signal impedance of back-to-back frequency converter

The back-to-back frequency converter plays a vital role in the formation of the fractional frequency transmission system Despite their numerous advantages, however, impacted by the unique impedance characteristics of power electronics, the wide-band oscillations occur more frequency as well as more common recently, which have posed great challenges to the system operation and raised great concern over the researchers worldwide. To address this issue and properly investigate the impedance characteristics of the back-to-back frequency converter, this manuscript establishes the small-signal impedance of the back-to-back frequency converter with inner current control loop and outer voltage/power control loop in the synchronous reference ($dq$) frame. Then, by using the impedance model and determinant-based General Nyquist Criterion (GNC), the stability assessment and instability cause identification are studied. Finally, the analysis presented in this paper is verified based on frequency and time-domain simulations in the MATLAB/Simulink environment.

1 Introduction

Power electronic is a potential technology, which has made significant advance in the power grid with the progress of science. Over the past few years, new energy power generation especially wind power generation has gradually replaced traditional thermal power generation as the main form Liu et al. (2018); Li et al. (2022). Offshore wind power is a new form of power generation which is different from onshore wind power. When it comes to wind conditions, offshore wind power is better than onshore in the following aspects: strong wind speed, less turbulence, stable wind, and less impact on human life, etc. The fractional frequency transmission system (FFTS) is a new type of transmission method, which changes the 50 Hz frequency power to 50/3 Hz frequency power during transmission. The equivalent impedance of transmission lines can be reduced and the power transmission capacity is improved through this type of system (Li et al., 2019; Pan and Wu, 2022; Wang et al., 2006; Wei et al., 2015; Alam et al., 2023; Wang et al., 2013; Wang et al., 2023; Zhang et al., 2022; Wen et al., 2016; Fang et al., 2018). The development of offshore wind power generation has provided a new application to fractional frequency transmission system. The grid-connected technology for offshore wind power generation mainly uses conventional high-voltage AC transmission (HVAC) near shore and higher-voltage DC transmission (HVDC) over longer distances currently. Hence, the fractional frequency transmission has a broad developmental prospect in the application of offshore wind power grid (Zhang et al., 2017; Luo et al., 2020).

On the other hand, the fractional frequency transmission system contains large amount of power electronics whose interaction with transmission lines and other power electronics may cause serious broadband oscillation problems (Sun et al., 2019; Wang et al., 2014; Wang et al., 2018; Zhang et al., 2020). To deal with the system instability issue, the state-space analysis method is a common practice. However, it encounters the curse of dimensionality and requires access to the detailed information of the whole system. Hence, impedance-based stability assessment method, as an emerging stability analysis method, has been fully applied in analyzing system stability. The aforementioned method assess stability by measured impedance which can effectively protect trade secret and user privacy (Xu et al., 2015; Pinares and Bongiorno, 2016; Wen et al., 2016; Cao et al., 2022).

Different from traditional interlinking converters (Xiong et al., 2016), the back-to-back frequency converter have both industrial and fractional frequency ports and serve as interfacing media to interconnect industrial and fractional frequency grids. If the industrial or fractional frequency impedance is utilized to assess the stability of a grid-tied interlinking converter system, the coupling interaction between the industrial and fractional frequency sides of the interlinking converter cannot be effectively analyzed. In (Zhang et al., 2021), a hybrid AC/DC admittance is proposed. If the converter is stable when operating standalone, the hybrid AC/DC admittance is guaranteed to not contain any right half-plane (RHP) pole. According to the research method of establishing hybrid impedance in (Zhang et al., 2021), a hybrid impedance considering both industrial and fractional frequency ports is proposed in the following manuscript.

In this paper, the small-signal impedance model of the back-to-back frequency converter is established according to the research method posted in Zhang et al. (2022), and the General Nyquist Criterion (GNC) is applied when analyzes the stability of system (Cao et al., 2017; Wen et al., 2017). The small-signal impedance model simplifies the analysis process by making the stability of the system dependent on the parameters of the converter itself and the output impedance of the AC grids connected to both ports (Liao and Wang, 2020). The simulation is verified by MATLAB/Simulink software to prove the correctness of the established model, and the stability analysis of the grid-tied interlinking converter system is carried out by the established impedance model.

The rest of this paper includes four sections. Section 2 shows the main circuit diagram and corresponding controller system of the back-to-back frequency converter. Section 3 shows the establishment of the back-to-back frequency converter small-signal model. Then, by using the determinant-based GNC, Section 4. Assesses the stability of a grid-tied interlinking converter system. Section 5 presents simulation results to verify the proposed model. Section 6 is the conclusion.

2 Main circuit diagram and corresponding controller system

Figure 1 shows the circuit diagram of a back-to-back frequency converter along with its controller system, including an inner current control loop and an outer voltage/power control loop. With respect to Figure 1, the back-to-back frequency converter consists of two AC/DC converters and a DC intermediate link. The left-hand-side AC/DC converter takes charge of the industrial frequency side while the right-hand-side AC/DC converter is responsible for the fractional frequency side. These two AC/DC converters are coupled together through the DC intermediate link whose equivalent capacitor is $C_{dc}$. Notice that the main circuit structure and the variables belonging to the industrial and fractional frequency sides are symmetrical. To distinguish the variables belonging to the industrial frequency side from the variables of the fractional frequency side, the subscripts $i$, $i$ = 1 or 2 is introduced to denote the variables belonging to the industrial frequency side and fractional frequency side, respectively. Each side of the converter connects to the point of common coupling (PCC) via a filter, whose inductance and resistance are $L_i$ and $R_i$. $u_{abci}$, $v_{abci}$, and $i_{abci}$ represent the three-phase voltage at the PCC, the terminal voltage of the converter, and the line current injected to the converter, respectively. The current reference directions for both sides are indicated by the arrows in Figure 1.

FIGURE 1

FIGURE 1. The main circuit of a back-to-back frequency converter with feedback and PLL.

With respect to Figure 1, The dynamics of each side of the converter is governed by.

${\overrightarrow{v}}_{abci}={\overrightarrow{u}}_{abci}-L_i\frac{d{\overrightarrow{i}}_{abci}}{dt}-R_i{\overrightarrow{i}}_{abci}(1)$

where ${\overrightarrow{u}}_{abci}$, ${\overrightarrow{v}}_{abci}$, and ${\overrightarrow{i}}_{abci}$ represent the column vector of $u_{abci}$, $v_{abci}$, and $i_{abci}$, respectively. As the control is conducted in the synchronous reference frame (SRF). By transforming $u_{abci}$, $v_{abci}$, and $i_{abci}$ to the SRF, their $d-\text{axis}$ ($q-\text{axis}$) components are denoted as $u_{di}$ ($u_{qi}$), $v_{di}$ ($v_{qi}$), and $i_{di}$ ($i_{qi}$), respectively. $d_{di}$ and $d_{qi}$ represent the modulation signal in $dq$ SRF. The dynamics of the converter is expressed in $dq$ SRF as

$v_{di}=u_{di}-\left(L_{i}s+R_i\right)i_{di}+{\omega }_i{L}_i{i}_{qi}$

$v_{qi}=u_{qi}-\left(L_{i}s+R_i\right)i_{qi}-{\omega }_i{L}_i{i}_{di}(2)$

where ${\omega }_i$ represents the angular frequency and the symbol $s$ is differential symbol in the frequency domain. On this basis, the inner current control loop established in $dq$ SRF is expressed by

$v_{di}=u_{di}+{\omega }_i{L}_i{i}_{qi}-k_{PIi}\left(i_{di\text{ref}}-i_{di}\right)-\frac{k_{IIi}}{s}\left(i_{di\text{ref}}-i_{di}\right)$

$v_{qi}=u_{qi}-{\omega }_i{L}_i{i}_{di}-k_{PIi}\left(i_{qi\text{ref}}-i_{qi}\right)-\frac{k_{IIi}}{s}\left(i_{qi\text{ref}}-i_{qi}\right)(3)$

where $i_{di\text{ref}}$, $i_{qi\text{ref}}$, $k_{PIi}$, and $k_{IIi}$ represent the $d-\text{axis}$ current reference, the $q-\text{axis}$ current reference, the proportional and integral gains of the current controller, respectively.

While the inner current control loops of the industrial and fractional frequency sides are consistent, their outer control loops are different. Notice that a stable DC voltage of the intermediate DC link is the suppressed premise for the security and steady operation of the back-to-back frequency converter. To this end, by labeling the reactive power injected to the PCC of the industrial frequency side as $Q_1$ and the DC voltage of the intermediate DC link as $v_{dc}$, the outer control loop of the industrial frequency port is expressed by

$i_{d1ref}=k_{PV}\left(v_{dc\text{ref}}-v_{dc}\right)+\frac{k_{IV}}{s}\left(v_{dc\text{ref}}-v_{dc}\right)$

$i_{q1ref}=-k_{PQ1}\left(Q_{1\text{ref}}-Q_1\right)-\frac{k_{IQ1}}{s}\left(Q_{1\text{ref}}-Q_1\right)(4)$

where $v_{dc\text{ref}}$, $Q_{1\text{ref}}$, $k_{PV}$ ( $k_{PQ1}$ ), and $k_{IV}$ ( $k_{IQ1}$ ) represent the DC voltage reference, the reactive power reference, the proportional and integral gains of the DC voltage controller (reactive power controller), respectively.

The outer control loop of the fractional frequency side changes with different control objectives. For example, when the fractional frequency port is connected to wind farms or photovoltaics, the fractional frequency side of the back-to-back frequency converter is controlled as a V/f mode. In contrast, when the fractional frequency port is connected to hydropower stations, the fractional frequency side of the back-to-back frequency converter can be controlled by P/Q control mode. Note that the control mode does not impact the following system stability analysis. Without loss of generality, the fractional frequency port is controlled by a P/Q control mode within this manuscript. Correspondingly, the outer control loop of the fractional frequency side is expressed by

$i_{d2ref}=k_{PP2}\left(P_{2\text{ref}}-P_2\right)+\frac{k_{IP2}}{s}\left(P_{2\text{ref}}-P_2\right)$

$i_{q2ref}=-k_{PQ2}\left(Q_{2\text{ref}}-Q_2\right)-\frac{k_{IQ2}}{s}\left(Q_{2\text{ref}}-Q_2\right)(5)$

where $P_2$ ( $Q_2$ ), $P_{2\text{ref}}$ ( $Q_{2\text{ref}}$ ), $k_{PP2}$ ($k_{PQ2}$) and $k_{IP2}$ ( $k_{IQ2}$ ) represent the active (reactive) power injected to the PCC of the fractional frequency side, the active (reactive) power reference, the proportional and integral gains of the active (reactive) power controller, respectively.

3 Establishment of the back-to-back frequency converters small-signal model

3.1 Small-signal model of main circuit

To analysis the stability of a hybrid industrial/fractional frequency.

System, the traditional approach is to treat the hybrid industrial/fractional frequency system as a single industrial (fractional) frequency system. However, the coupling interaction between the industrial and fractional frequency sides cannot be effectively analyzed in this way. To thoroughly address such issue, a hybrid impedance taking both industrial and fractional frequency sides of the converter into consideration is proposed in the following manuscript.

Impacted by the dynamics of synchronization, the system has two frames: one is the system $dq$ frame, the other one is the controller $dq$ frame. For the sake of illustration, the superscripts $s$ and $c$ denote the variables in the system and controller frames, respectively. On this basis, considering both sides of the converter, the small-signal model of main circuit is expressed by

${\mathbf{Y}}_{\text{ac}}\left[\begin{array}{c}{\stackrel{\sim }{u}}_{d1}^s\\ {\stackrel{\sim }{u}}_{q1}^s\\ {\stackrel{\sim }{u}}_{d2}^s\\ {\stackrel{\sim }{u}}_{q2}^s\end{array}\right]-{\mathbf{Y}}_{\text{ac}}\left[\begin{array}{c}{\stackrel{\sim }{v}}_{d1}^s\\ {\stackrel{\sim }{v}}_{q1}^s\\ {\stackrel{\sim }{v}}_{d2}^s\\ {\stackrel{\sim }{v}}_{q2}^s\end{array}\right]=\left[\begin{array}{c}{\stackrel{\sim }{i}}_{d1}^s\\ {\stackrel{\sim }{i}}_{q1}^s\\ {\stackrel{\sim }{i}}_{d2}^s\\ {\stackrel{\sim }{i}}_{q2}^s\end{array}\right](6)$

where ${\stackrel{\sim }{u}}_{di}^s$ ( ${\stackrel{\sim }{u}}_{qi}^s$ ), ${\stackrel{\sim }{v}}_{di}^s$ ( ${\stackrel{\sim }{v}}_{qi}^s$ ), and ${\stackrel{\sim }{i}}_{di}^s$ ( ${\stackrel{\sim }{i}}_{qi}^s$ ) represent the small-signal perturbation of $u_{di}^s$ ($u_{qi}^s$), $v_{di}^s$ ( $v_{qi}^s$ ), and $i_{di}^s$ ( $i_{qi}^s$ ), respectively. ${\stackrel{\sim }{d}}_{di}^s$ ( ${\stackrel{\sim }{d}}_{qi}^s$ ) represent the small-signal perturbation of $d_{di}^s$ ( $d_{qi}^s$ ). ${\mathbf{Y}}_{\text{ac}}$ denotes the main circuit admittance of the converter and it is written as

${\mathbf{Y}}_{\text{ac}}={\left[\begin{array}{cccc}s{L}_1+R_1& -{\omega }_1{L}_1& 0& 0\\ {\omega }_1{L}_1& s{L}_1+R_1& 0& 0\\ 0& 0& s{L}_2+R_2& -{\omega }_2{L}_2\\ 0& 0& {\omega }_2{L}_2& s{L}_2+R_2\end{array}\right]}^{-1}(7)$

3.2 Influence of PLL

Phase-locked loop (PLL) plays a key role in locking the phase angle of PCC phase voltages and therefore, ensuring that the converter stays synchronized with the grid (Fang et al., 2018). In a steady state, the controller $dq$ frame is aligned with the system $dq$ frame. When small-signal perturbations are added to the system, a small phase deviation denoted as $\Delta {\stackrel{\sim }{\theta }}_i$ emerges between the system and controller $dq$ frames as shown in Figure 2. The relationship between the converter current in the system and controller frames is expressed by

$\left[\begin{array}{c}{I}_{d1}^c+{\stackrel{\sim }{i}}_{d1}^c\\ I_{q1}^c+{\stackrel{\sim }{i}}_{q1}^c\\ I_{d2}^c+{\stackrel{\sim }{i}}_{d2}^c\\ I_{q2}^c+{\stackrel{\sim }{i}}_{q2}^c\end{array}\right]=\left[\begin{array}{cccc}\mathit{cos}\left(\Delta {\stackrel{\sim }{\theta }}_1\right)& \mathit{sin}\left(\Delta {\stackrel{\sim }{\theta }}_1\right)& 0& 0\\ -\mathit{sin}\left(\Delta {\stackrel{\sim }{\theta }}_1\right)& \mathit{cos}\left(\Delta {\stackrel{\sim }{\theta }}_1\right)& 0& 0\\ 0& 0& \mathit{cos}\left(\Delta {\stackrel{\sim }{\theta }}_2\right)& \mathit{sin}\left(\Delta {\stackrel{\sim }{\theta }}_2\right)\\ 0& 0& -\mathit{sin}\left(\Delta {\stackrel{\sim }{\theta }}_2\right)& \mathit{cos}\left(\Delta {\stackrel{\sim }{\theta }}_2\right)\end{array}\right]\left[\begin{array}{c}{I}_{d1}^s+{\stackrel{\sim }{i}}_{d1}^s\\ I_{q1}^s+{\stackrel{\sim }{i}}_{q1}^s\\ I_{d2}^s+{\stackrel{\sim }{i}}_{d2}^s\\ I_{q2}^s+{\stackrel{\sim }{i}}_{q2}^s\end{array}\right](8)$

FIGURE 2

FIGURE 2. The system and controller $dq$ frames.

By approximating cos $\left(\Delta {\stackrel{\sim }{\theta }}_i\right)$ and sin $\left(\Delta {\stackrel{\sim }{\theta }}_i\right)$ with the first term of their Taylor series expansions, the relationship between the converter current in the system and controller $dq$ frames is further derived as

$\left[\begin{array}{c}{I}_{d1}^c+{\stackrel{\sim }{i}}_{d1}^c\\ I_{q1}^c+{\stackrel{\sim }{i}}_{q1}^c\\ I_{d2}^c+{\stackrel{\sim }{i}}_{d2}^c\\ I_{q2}^c+{\stackrel{\sim }{i}}_{q2}^c\end{array}\right]=\left[\begin{array}{cccc}1& \Delta {\stackrel{\sim }{\theta }}_1& 0& 0\\ -\Delta {\stackrel{\sim }{\theta }}_1& 1& 0& 0\\ 0& 0& 1& \Delta {\stackrel{\sim }{\theta }}_2\\ 0& 0& -\Delta {\stackrel{\sim }{\theta }}_2& 1\end{array}\right]\left[\begin{array}{c}{I}_{d1}^s+{\stackrel{\sim }{i}}_{d1}^s\\ I_{q1}^s+{\stackrel{\sim }{i}}_{q1}^s\\ I_{d2}^s+{\stackrel{\sim }{i}}_{d2}^s\\ I_{q2}^s+{\stackrel{\sim }{i}}_{q2}^s\end{array}\right](9)$

Similarly, the relationships between the modulation signal and voltage in the system and controller $dq$ frames are expressed by

$\left[\begin{array}{c}{D}_{d1}^s+{\stackrel{\sim }{d}}_{d1}^s\\ D_{q1}^s+{\stackrel{\sim }{d}}_{q1}^s\\ D_{d2}^s+{\stackrel{\sim }{d}}_{d2}^s\\ D_{q2}^s+{\stackrel{\sim }{d}}_{q2}^s\end{array}\right]=\left[\begin{array}{cccc}1& -\Delta {\stackrel{\sim }{\theta }}_1& 0& 0\\ \Delta {\stackrel{\sim }{\theta }}_1& 1& 0& 0\\ 0& 0& 1& -\Delta {\stackrel{\sim }{\theta }}_2\\ 0& 0& \Delta {\stackrel{\sim }{\theta }}_2& 1\end{array}\right]\left[\begin{array}{c}{D}_{d1}^c+{\stackrel{\sim }{d}}_{d1}^c\\ D_{q1}^c+{\stackrel{\sim }{d}}_{q1}^c\\ D_{d2}^c+{\stackrel{\sim }{d}}_{d2}^c\\ D_{q2}^c+{\stackrel{\sim }{d}}_{q2}^c\end{array}\right](10)$

$\left[\begin{array}{c}{U}_{d1}^c+{\stackrel{\sim }{u}}_{d1}^c\\ U_{q1}^c+{\stackrel{\sim }{u}}_{q1}^c\\ U_{d2}^c+{\stackrel{\sim }{u}}_{d2}^c\\ U_{q2}^c+{\stackrel{\sim }{u}}_{q2}^c\end{array}\right]=\left[\begin{array}{cccc}1& \Delta {\stackrel{\sim }{\theta }}_1& 0& 0\\ -\Delta {\stackrel{\sim }{\theta }}_1& 1& 0& 0\\ 0& 0& 1& \Delta {\stackrel{\sim }{\theta }}_2\\ 0& 0& -\Delta {\stackrel{\sim }{\theta }}_2& 1\end{array}\right]\left[\begin{array}{c}{U}_{d1}^s+{\stackrel{\sim }{u}}_{d1}^s\\ U_{q1}^s+{\stackrel{\sim }{u}}_{q1}^s\\ U_{d2}^s+{\stackrel{\sim }{u}}_{d2}^s\\ U_{q2}^s+{\stackrel{\sim }{u}}_{q2}^s\end{array}\right](11)$

Under steady-state conditions, the relationship of variables in two frames is shown as follows:

$U_d^c\left(U_q^c\right)=U_d^s\left(U_q^s\right),I_d^c\left(I_q^c\right)=I_d^s\left(I_q^s\right),D_d^s\left(D_q^s\right)=D_d^c\left(D_q^c\right)(12)$

As Figure 3 shows, the PLL output angle is

$\Delta {\stackrel{\sim }{\theta }}_i={\stackrel{\sim }{u}}_{qi}\cdot \left(k_{PPLLi}+k_{IPLLi}/s\right)/s(13)$

where $k_{PPLLi}$ and $k_{IPLLi}$ denote the proportional and integral gains of the PLL. By substituting (13) into (11) and canceling the steady-state values, $\Delta {\stackrel{\sim }{\theta }}_i$ is further expressed by

$\Delta {\stackrel{\sim }{\theta }}_i=G_{PLLi}\left(s\right){\stackrel{\sim }{u}}_{qi}^s(14)$

FIGURE 3

FIGURE 3. The structure of PLL.

Define $G_{PLLi}\left(s\right)$ as

$G_{PLLi}\left(s\right)=\frac{k_{PPLLi}s+k_{IPLLi}}{s^2+U_{di}^s{k}_{PPLLi}s+U_{di}^s{k}_{IPLLi}}(15)$

By substituting for $\Delta {\stackrel{\sim }{\theta }}_i$ from (14) into (9), (10), and (11) and defining ${\mathbf{G}}_{\mathbf{PLL}}^{\mathbf{i}}$, ${\mathbf{G}}_{\mathbf{PLL}}^{\mathbf{d}}$, and ${\mathbf{G}}_{\mathbf{PLL}}^{\mathbf{u}}$ as

${\mathbf{G}}_{\mathbf{PLL}}^{\mathbf{i}}=\left[\begin{array}{cccc}0& I_{q1}^s{G}_{PLL1}& 0& 0\\ 0& -I_{d1}^s{G}_{PLL1}& 0& 0\\ 0& 0& 0& I_{q2}^s{G}_{PLL2}\\ 0& 0& 0& -I_{d2}^s{G}_{PLL2}\end{array}\right](16)$

${\mathbf{G}}_{\mathbf{PLL}}^{\mathbf{d}}=\left[\begin{array}{cccc}0& -D_{q1}^c{G}_{PLL1}& 0& 0\\ 0& D_{d1}^c{G}_{PLL1}& 0& 0\\ 0& 0& 0& -D_{q2}^c{G}_{PLL2}\\ 0& 0& 0& D_{d2}^c{G}_{PLL2}\end{array}\right](17)$

${\mathbf{G}}_{\mathbf{PLL}}^{\mathbf{u}}=\left[\begin{array}{cccc}1& U_{q1}^s{G}_{PLL1}& 0& 0\\ 0& 1-U_{d1}^s{G}_{PLL1}& 0& 0\\ 0& 0& 1& U_{q2}^s{G}_{PLL2}\\ 0& 0& 0& 1-U_{d2}^s{G}_{PLL2}\end{array}\right](18)$

(9), (10), and (11) are further expressed by

$\left[\begin{array}{c}{\stackrel{\sim }{i}}_{d1}^c\\ {\stackrel{\sim }{i}}_{q1}^c\\ {\stackrel{\sim }{i}}_{d2}^c\\ {\stackrel{\sim }{i}}_{q2}^c\end{array}\right]={\mathbf{G}}_{\mathbf{PLL}}^{\mathbf{i}}\left[\begin{array}{c}{\stackrel{\sim }{u}}_{d1}^s\\ {\stackrel{\sim }{u}}_{q1}^s\\ {\stackrel{\sim }{u}}_{d2}^s\\ {\stackrel{\sim }{u}}_{q2}^s\end{array}\right]+\left[\begin{array}{c}{\stackrel{\sim }{i}}_{d1}^s\\ {\stackrel{\sim }{i}}_{q1}^s\\ {\stackrel{\sim }{i}}_{d2}^s\\ {\stackrel{\sim }{i}}_{q2}^s\end{array}\right](19)$

$\left[\begin{array}{c}{\stackrel{\sim }{d}}_{d1}^s\\ {\stackrel{\sim }{d}}_{q1}^s\\ {\stackrel{\sim }{d}}_{d2}^s\\ {\stackrel{\sim }{d}}_{q2}^s\end{array}\right]={\mathbf{G}}_{\mathbf{PLL}}^{\mathbf{d}}\left[\begin{array}{c}{\stackrel{\sim }{u}}_{d1}^s\\ {\stackrel{\sim }{u}}_{q1}^s\\ {\stackrel{\sim }{u}}_{d2}^s\\ {\stackrel{\sim }{u}}_{q2}^s\end{array}\right]+\left[\begin{array}{c}{\stackrel{\sim }{d}}_{d1}^c\\ {\stackrel{\sim }{d}}_{q1}^c\\ {\stackrel{\sim }{d}}_{d2}^c\\ {\stackrel{\sim }{d}}_{q2}^c\end{array}\right](20)$

$\left[\begin{array}{c}{\stackrel{\sim }{u}}_{d1}^c\\ {\stackrel{\sim }{u}}_{q1}^c\\ {\stackrel{\sim }{u}}_{d2}^c\\ {\stackrel{\sim }{u}}_{q2}^c\end{array}\right]={\mathbf{G}}_{\mathbf{PLL}}^{\mathbf{u}}\left[\begin{array}{c}{\stackrel{\sim }{u}}_{d1}^s\\ {\stackrel{\sim }{u}}_{q1}^s\\ {\stackrel{\sim }{u}}_{d2}^s\\ {\stackrel{\sim }{u}}_{q2}^s\end{array}\right](21)$

3.3 Controller and PWM modulation

Based on the converter modulation process, the terminal voltage of the converter is related to the modulation signal in the system $dq$.

Frame as

$\left[\begin{array}{c}{v}_{d1}^s\\ v_{q1}^s\\ v_{d2}^s\\ v_{q2}^s\end{array}\right]=\frac{V_{dc}}{2}\left[\begin{array}{c}{d}_{d1}^s\\ d_{q1}^s\\ d_{d2}^s\\ d_{q2}^s\end{array}\right](22)$

By canceling the steady-state values and considering small-signal perturbations, (22) is derived as

$\left[\begin{array}{c}{\stackrel{\sim }{v}}_{d1}^s\\ {\stackrel{\sim }{v}}_{q1}^s\\ {\stackrel{\sim }{v}}_{d2}^s\\ {\stackrel{\sim }{v}}_{q2}^s\end{array}\right]=\frac{V_{dc}}{2}\left[\begin{array}{c}{\stackrel{\sim }{d}}_{d1}^s\\ {\stackrel{\sim }{d}}_{q1}^s\\ {\stackrel{\sim }{d}}_{d2}^s\\ {\stackrel{\sim }{d}}_{q2}^s\end{array}\right]+\frac{{\stackrel{\sim }{v}}_{dc}}{2}\left[\begin{array}{c}{D}_{d1}^s\\ D_{q1}^s\\ D_{d2}^s\\ D_{q2}^s\end{array}\right](23)$

where ${\stackrel{\sim }{v}}_{dc}$ represents the small-signal perturbation of $v_{dc}$ .

Note that the industrial frequency side is coupled together with the fractional frequency side through the DC intermediate link. Once a disturbance occurs on one side, it will propagate to the other side through the DC voltage of the intermediate DC link. According to the basis of energy conservation and neglecting the switching losses caused by PWM modulation, it is noted that the sum of the reactive power of the three-phase circuit is zero, so that between the DC and AC sides of the converter, there is

$v_{dc}{i}_{dc}=\frac{3}{2}\left(v_{d1}{i}_{d1}+v_{q1}{i}_{q1}\right)+\frac{3}{2}\left(v_{d2}{i}_{d2}+v_{q2}{i}_{q2}\right)(24)$

By canceling the steady-state values and considering small-signal perturbations, ${\stackrel{\sim }{v}}_{dc}$ can be expressed by ${\stackrel{\sim }{v}}^s$ and ${\stackrel{\sim }{i}}^s$ as follows:

$\begin{array}{ll}\hfill C_{dc}s{V}_{dc}{\stackrel{\sim }{v}}_{dc}& =\frac{3}{2}\left(-L_1{I}_{d1}^{s}s-2R_1{I}_{d1}^s+U_{d1}^s\right){\stackrel{\sim }{i}}_{d1}^s+\frac{3}{2}\left(-L_1{I}_{q1}^{s}s-2R_1{I}_{q1}^s+U_{q1}^s\right){\stackrel{\sim }{i}}_{q1}^s+\frac{3}{2}{I}_{d1}^s{\stackrel{\sim }{v}}_{d1}^s+\frac{3}{2}{I}_{q1}^s{\stackrel{\sim }{v}}_{q1}^s\hfill \\ \hfill & +\frac{3}{2}\left(-L_2{I}_{d2}^{s}s-2R_2{I}_{d2}^s+U_{d2}^s\right){\stackrel{\sim }{i}}_{d2}^s+\frac{3}{2}\left(-L_2{I}_{q2}^{s}s-2R_2{I}_{q2}^s+U_{q2}^s\right){\stackrel{\sim }{i}}_{q2}^s+\frac{3}{2}{I}_{d2}^s{\stackrel{\sim }{v}}_{d2}^s+\frac{3}{2}{I}_{q2}^s{\stackrel{\sim }{v}}_{q2}^s\hfill \end{array}(25)$

Together with (23) and (25), the small-signal perturbation of the converter terminal voltage is derived as

$\left[\begin{array}{c}{\stackrel{\sim }{v}}_{d1}^s\\ {\stackrel{\sim }{v}}_{q1}^s\\ {\stackrel{\sim }{v}}_{d2}^s\\ {\stackrel{\sim }{v}}_{q2}^s\end{array}\right]={\mathbf{G}}_{\mathbf{d}\mathbf{2}\mathbf{v}}\left[\begin{array}{c}{\stackrel{\sim }{d}}_{d1}^s\\ {\stackrel{\sim }{d}}_{q1}^s\\ {\stackrel{\sim }{d}}_{d2}^s\\ {\stackrel{\sim }{d}}_{q2}^s\end{array}\right]+{\mathbf{G}}_{\mathbf{i}\mathbf{2}\mathbf{v}}\left[\begin{array}{c}{\stackrel{\sim }{i}}_{d1}^s\\ {\stackrel{\sim }{i}}_{q1}^s\\ {\stackrel{\sim }{i}}_{d2}^s\\ {\stackrel{\sim }{i}}_{q2}^s\end{array}\right]+{\mathbf{G}}_{\mathbf{u}\mathbf{2}\mathbf{v}}\left[\begin{array}{c}{\stackrel{\sim }{u}}_{d1}^s\\ {\stackrel{\sim }{u}}_{q1}^s\\ {\stackrel{\sim }{u}}_{d2}^s\\ {\stackrel{\sim }{u}}_{q2}^s\end{array}\right](26)$

where ${\mathbf{G}}_{\mathbf{d}\mathbf{2}\mathbf{v}}$ and ${\mathbf{G}}_{\mathbf{u}\mathbf{2}\mathbf{v}}$ are represented as follows, ${\mathbf{G}}_{\mathbf{i}\mathbf{2}\mathbf{v}}$ is shown at the bottom of this page.

${\mathbf{G}}_{\mathbf{d}\mathbf{2}\mathbf{v}}=\left[\begin{array}{cccc}{V}_{dc}/2& 0& 0& 0\\ 0& V_{dc}/2& 0& 0\\ 0& 0& V_{dc}/2& 0\\ 0& 0& 0& V_{dc}/2\end{array}\right](27)$

${\mathbf{G}}_{\mathbf{u}\mathbf{2}\mathbf{v}}=\left[\begin{array}{cccc}\frac{3I_{d1}^s{D}_{d1}^s}{4C_{dc}s{V}_{dc}}& \frac{3I_{q1}^s{D}_{d1}^s}{4C_{dc}s{V}_{dc}}& \frac{3I_{d2}^s{D}_{d1}^s}{4C_{dc}s{V}_{dc}}& \frac{3I_{q2}^s{D}_{d1}^s}{4C_{dc}s{V}_{dc}}\\ \frac{3I_{d1}^s{D}_{q1}^s}{4C_{dc}s{V}_{dc}}& \frac{3I_{q1}^s{D}_{q1}^s}{4C_{dc}s{V}_{dc}}& \frac{3I_{d2}^s{D}_{q1}^s}{4C_{dc}s{V}_{dc}}& \frac{3I_{q2}^s{D}_{q1}^s}{4C_{dc}s{V}_{dc}}\\ \frac{3I_{d1}^s{D}_{d2}^s}{4C_{dc}s{V}_{dc}}& \frac{3I_{q1}^s{D}_{d2}^s}{4C_{dc}s{V}_{dc}}& \frac{3I_{d2}^s{D}_{d2}^s}{4C_{dc}s{V}_{dc}}& \frac{3I_{q2}^s{D}_{d2}^s}{4C_{dc}s{V}_{dc}}\\ \frac{3I_{d1}^s{D}_{q2}^s}{4C_{dc}s{V}_{dc}}& \frac{3I_{q1}^s{D}_{q2}^s}{4C_{dc}s{V}_{dc}}& \frac{3I_{d2}^s{D}_{q2}^s}{4C_{dc}s{V}_{dc}}& \frac{3I_{q2}^s{D}_{q2}^s}{4C_{dc}s{V}_{dc}}\end{array}\right](29)$

The back-to-back frequency converter is controlled by an outer voltage/power controller. For the power flow control case, as shown in Zhao and Guo (2009), the active and reactive power are obtained by calculating the voltage and current in $dq$ SRF as

$P=\frac{3}{2}\left(i_d{u}_d+i_q{u}_q\right)$

$Q=\frac{3}{2}\left(i_d{u}_q-i_q{u}_d\right)(30)$

By doing linearization to (30) and considering (25), the small-signal representation of the DC voltage and power is described as (31).

$\left[\begin{array}{c}{\stackrel{\sim }{v}}_{dc}\\ {\stackrel{\sim }{Q}}_1\\ {\stackrel{\sim }{P}}_2\\ {\stackrel{\sim }{Q}}_2\end{array}\right]={\mathbf{G}}_{\mathbf{PQ}}^{\mathbf{u}}\left[\begin{array}{c}{\stackrel{\sim }{u}}_{d1}^c\\ {\stackrel{\sim }{u}}_{q1}^c\\ {\stackrel{\sim }{u}}_{d2}^c\\ {\stackrel{\sim }{u}}_{q2}^c\end{array}\right]+{\mathbf{G}}_{\mathbf{PQ}}^{\mathbf{i}}\left[\begin{array}{c}{\stackrel{\sim }{i}}_{d1}^c\\ {\stackrel{\sim }{i}}_{q1}^c\\ {\stackrel{\sim }{i}}_{d2}^c\\ {\stackrel{\sim }{i}}_{q2}^c\end{array}\right](31)$

Where ${\mathbf{G}}_{\mathbf{PQ}}^{\mathbf{u}}$ and ${\mathbf{G}}_{\mathbf{PQ}}^{\mathbf{i}}$ are small-signal transfer functions of DC voltage and power calculations. ${\mathbf{G}}_{\mathbf{PQ}}^{\mathbf{u}}$ is represented as follow and ${\mathbf{G}}_{\mathbf{PQ}}^{\mathbf{i}}$ is shown at the bottom of this page.

${\mathbf{G}}_{\mathbf{i}\mathbf{2}\mathbf{v}}=\left[\begin{array}{cccc}\frac{3\left(-L_1{I}_{d1}^{s}s+U_{d1}^s-2R_1{I}_{d1}^s\right)D_{d1}^s}{4C_{dc}s{V}_{dc}}& \frac{3\left(-L_1{I}_{q1}^{s}s+U_{q1}^s-2R_1{I}_{q1}^s\right)D_{d1}^s}{4C_{dc}s{V}_{dc}}& \frac{3\left(-L_2{I}_{d2}^{s}s+U_{d2}^s-2R_2{I}_{d2}^s\right)D_{d1}^s}{4C_{dc}s{V}_{dc}}& \frac{3\left(-L_2{I}_{q2}^{s}s+U_{q2}^s-2R_2{I}_{q2}^s\right)D_{d1}^s}{4C_{dc}s{V}_{dc}}\\ \frac{3\left(-L_1{I}_{d1}^{s}s+U_{d1}^s-2R_1{I}_{d1}^s\right)D_{q1}^s}{4C_{dc}s{V}_{dc}}& \frac{3\left(-L_1{I}_{q1}^{s}s+U_{q1}^s-2R_1{I}_{q1}^s\right)D_{q1}^s}{4C_{dc}s{V}_{dc}}& \frac{3\left(-L_2{I}_{d2}^{s}s+U_{d2}^s-2R_2{I}_{d2}^s\right)D_{q1}^s}{4C_{dc}s{V}_{dc}}& \frac{3\left(-L_2{I}_{q2}^{s}s+U_{q2}^s-2R_2{I}_{q2}^s\right)D_{q1}^s}{4C_{dc}s{V}_{dc}}\\ \frac{3\left(-L_1{I}_{d1}^{s}s+U_{d1}^s-2R_1{I}_{d1}^s\right)D_{d2}^s}{4C_{dc}s{V}_{dc}}& \frac{3\left(-L_1{I}_{q1}^{s}s+U_{q1}^s-2R_1{I}_{q1}^s\right)D_{d2}^s}{4C_{dc}s{V}_{dc}}& \frac{3\left(-L_2{I}_{d2}^{s}s+U_{d2}^s-2R_2{I}_{d2}^s\right)D_{d2}^s}{4C_{dc}s{V}_{dc}}& \frac{3\left(-L_2{I}_{q2}^{s}s+U_{q2}^s-2R_2{I}_{q2}^s\right)D_{d2}^s}{4C_{dc}s{V}_{dc}}\\ \frac{3\left(-L_1{I}_{d1}^{s}s+U_{d1}^s-2R_1{I}_{d1}^s\right)D_{q2}^s}{4C_{dc}s{V}_{dc}}& \frac{3\left(-L_1{I}_{q1}^{s}s+U_{q1}^s-2R_1{I}_{q1}^s\right)D_{q2}^s}{4C_{dc}s{V}_{dc}}& \frac{3\left(-L_2{I}_{d2}^{s}s+U_{d2}^s-2R_2{I}_{d2}^s\right)D_{q2}^s}{4C_{dc}s{V}_{dc}}& \frac{3\left(-L_2{I}_{q2}^{s}s+U_{q2}^s-2R_2{I}_{q2}^s\right)D_{q2}^s}{4C_{dc}s{V}_{dc}}\end{array}\right]$

${\mathbf{G}}_{\text{PQ}}^{\mathbf{i}}=\left[\begin{array}{cccc}\frac{3\left(-L_1{I}_{d1}^{s}s+U_{d1}^s-2R_1{I}_{d1}^s\right)}{2C_{dc}s{V}_{dc}}& \frac{3\left(-L_1{I}_{q1}^{s}s+U_{q1}^s-2R_1{I}_{q1}^s\right)}{2C_{dc}s{V}_{dc}}& \frac{3\left(-L_2{I}_{d2}^{s}s+U_{d2}^s-2R_2{I}_{d2}^s\right)}{2C_{dc}s{V}_{dc}}& \frac{3\left(-L_2{I}_{q2}^{s}s+U_{q2}^s-2R_2{I}_{q2}^s\right)}{2C_{dc}s{V}_{dc}}\\ \frac{3U_{q1}^s}{2}& \frac{-3U_{d1}^s}{2}& 0& 0\\ 0& 0& \frac{3U_{d2}^s}{2}& \frac{3U_{q2}^s}{2}\\ 0& 0& \frac{3U_{q2}^s}{2}& \frac{-3U_{d2}^s}{2}\end{array}\right](33)$

${\mathbf{G}}_{\mathbf{PQ}}^{\mathbf{u}}=\left[\begin{array}{cccc}\frac{3I_{d1}^s}{2C_{dc}s{V}_{dc}}& \frac{3I_{q1}^s}{2C_{dc}s{V}_{dc}}& \frac{3I_{d2}^s}{2C_{dc}s{V}_{dc}}& \frac{3I_{q2}^s}{2C_{dc}s{V}_{dc}}\\ \frac{-3I_{q1}^s}{2}& \frac{3I_{d1}^s}{2}& 0& 0\\ 0& 0& \frac{3I_{d2}^s}{2}& \frac{3I_{q2}^s}{2}\\ 0& 0& \frac{-3I_{q2}^s}{2}& \frac{3I_{d2}^s}{2}\end{array}\right](32)$

According to (3), the small-signal representation of the inner current control loop is described as

$\left[\begin{array}{c}{\stackrel{\sim }{v}}_{d1}^c\\ {\stackrel{\sim }{v}}_{q1}^c\\ {\stackrel{\sim }{v}}_{d2}^c\\ {\stackrel{\sim }{v}}_{q2}^c\end{array}\right]=-{\mathbf{G}}_{\mathbf{ci}}\left(\left[\begin{array}{c}{\stackrel{\sim }{i}}_{d1ref}\\ {\stackrel{\sim }{i}}_{q1ref}\\ {\stackrel{\sim }{i}}_{d2ref}\\ {\stackrel{\sim }{i}}_{q2ref}\end{array}\right]-\left[\begin{array}{c}{\stackrel{\sim }{i}}_{d1}^c\\ {\stackrel{\sim }{i}}_{q1}^c\\ {\stackrel{\sim }{i}}_{d2}^c\\ {\stackrel{\sim }{i}}_{q2}^c\end{array}\right]\right)+{\mathbf{G}}_{\mathbf{dei}}\left[\begin{array}{c}{\stackrel{\sim }{i}}_{d1}^c\\ {\stackrel{\sim }{i}}_{q1}^c\\ {\stackrel{\sim }{i}}_{d2}^c\\ {\stackrel{\sim }{i}}_{q2}^c\end{array}\right](34)$

Where ${\mathbf{G}}_{\mathbf{ci}}$ is the current controller matrix, ${\mathbf{G}}_{\mathbf{dei}}$ is the decoupling matrix.

${\mathbf{G}}_{\mathbf{ci}}=\left[\begin{array}{cccc}{k}_{PI1}+\frac{k_{II1}}{s}& 0& 0& 0\\ 0& k_{PI1}+\frac{k_{II1}}{s}& 0& 0\\ 0& 0& k_{PI2}+\frac{k_{II2}}{s}& 0\\ 0& 0& 0& k_{PI2}+\frac{k_{II2}}{s}\end{array}\right](35)$

${\mathbf{G}}_{\mathbf{dei}}=\left[\begin{array}{cccc}0& {\omega }_1{L}_1& 0& 0\\ -{\omega }_1{L}_1& 0& 0& 0\\ 0& 0& 0& {\omega }_2{L}_2\\ 0& 0& -{\omega }_2{L}_2& 0\end{array}\right](36)$

According to (4) and (5), the small-signal representation of the outer voltage/power control loop is described as

$\left[\begin{array}{c}{\stackrel{\sim }{i}}_{d1ref}\\ {\stackrel{\sim }{i}}_{q1ref}\\ {\stackrel{\sim }{i}}_{d2ref}\\ {\stackrel{\sim }{i}}_{q2ref}\end{array}\right]={\mathbf{G}}_{\mathbf{cPQ}}\left(\left[\begin{array}{c}{\stackrel{\sim }{v}}_{dcref}\\ {\stackrel{\sim }{Q}}_{1ref}\\ {\stackrel{\sim }{P}}_{2ref}\\ {\stackrel{\sim }{Q}}_{2ref}\end{array}\right]-\left[\begin{array}{c}{\stackrel{\sim }{v}}_{dc}\\ {\stackrel{\sim }{Q}}_1\\ {\stackrel{\sim }{P}}_2\\ {\stackrel{\sim }{Q}}_2\end{array}\right]\right)(37)$

where ${\mathbf{G}}_{\mathbf{cPQ}}$ is the voltage/power controller matrix.

${\mathbf{G}}_{\mathbf{cPQ}}=\left[\begin{array}{cccc}{k}_{PV}+\frac{k_{IV}}{s}& 0& 0& 0\\ 0& -\left(k_{PQ1}+\frac{k_{IQ1}}{s}\right)& 0& 0\\ 0& 0& k_{PP2}+\frac{k_{IP2}}{s}& 0\\ 0& 0& 0& -\left(k_{PQ2}+\frac{k_{IQ2}}{s}\right)\end{array}\right](38)$

3.4 Small-signal model of the back-to-back frequency converter

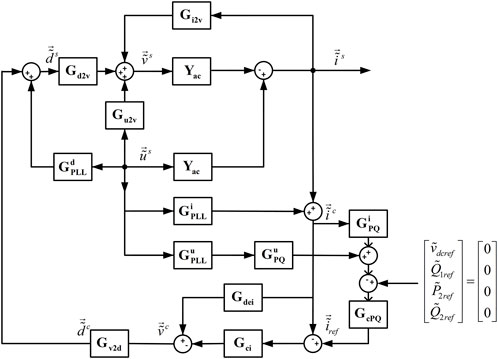

The small-signal model of the back-to-back frequency converter with inner current control loop and outer voltage/power control loop is shown in Figure 4, where ${\overrightarrow{\stackrel{\sim }{u}}}^s$ ( ${\overrightarrow{\stackrel{\sim }{u}}}^c$ ), ${\overrightarrow{\stackrel{\sim }{v}}}^s$ ( ${\overrightarrow{\stackrel{\sim }{v}}}^c$ ), ${\overrightarrow{\stackrel{\sim }{i}}}^s$ ( ${\overrightarrow{\stackrel{\sim }{i}}}^c$ ), ${\overrightarrow{\stackrel{\sim }{d}}}^s$ ( ${\overrightarrow{\stackrel{\sim }{d}}}^c$ ), and ${\overrightarrow{\stackrel{\sim }{i}}}_{ref}$ represent the column vector of ${\stackrel{\sim }{u}}^s$ ( ${\stackrel{\sim }{u}}^c$ ), ${\stackrel{\sim }{v}}^s$ ( ${\stackrel{\sim }{v}}^c$ ), ${\stackrel{\sim }{i}}^s$ ( ${\stackrel{\sim }{i}}^c$ ), ${\stackrel{\sim }{d}}^s$ ( ${\stackrel{\sim }{d}}^c$ ), and ${\stackrel{\sim }{i}}_{ref}$, respectively. In addition, define the normalization matrix ${\mathbf{G}}_{\mathbf{v}\mathbf{2}\mathbf{d}}$ as

${\mathbf{G}}_{\mathbf{v}\mathbf{2}\mathbf{d}}=\left[\begin{array}{cccc}2/V_{dc}& 0& 0& 0\\ 0& 2/V_{dc}& 0& 0\\ 0& 0& 2/V_{dc}& 0\\ 0& 0& 0& 2/V_{dc}\end{array}\right](39)$

FIGURE 4

FIGURE 4. Small-signal model of the back-to-back frequency converter with inner current control loop and outer voltage/power control loop.

Solving the equations represented by Figure 4, the output impedance of the back-to-back frequency converter is

${\mathbf{Z}}_{\mathbf{ACAC}}={(\mathbf{I}-{\mathbf{G}}_{\mathbf{u}\mathbf{2}\mathbf{v}}-{\mathbf{G}}_{\mathbf{d}\mathbf{2}\mathbf{v}}{\mathbf{G}}_{\mathbf{PLL}}^{\mathbf{d}}-{\mathbf{G}}_{\mathbf{dei}}{\mathbf{G}}_{\mathbf{PLL}}^{\mathbf{i}}-{\mathbf{G}}_{\mathbf{ci}}{\mathbf{G}}_{\mathbf{PLL}}^{\mathbf{i}}-{\mathbf{G}}_{\mathbf{ci}}{\mathbf{G}}_{\mathbf{cPQ}}\left({\mathbf{G}}_{\mathbf{PQ}}^{\mathbf{v}}{\mathbf{G}}_{\mathbf{PLL}}^{\mathbf{v}}{\mathbf{G}}_{\mathbf{PQ}}^{\mathbf{i}}{\mathbf{G}}_{\mathbf{PLL}}^{\mathbf{i}}\right))}^{-1}$

$\left({\mathbf{Z}}_{\text{ac}}+{\mathbf{G}}_{\mathbf{i}\mathbf{2}\mathbf{v}}+{\mathbf{G}}_{\mathbf{dei}}+{\mathbf{G}}_{\mathbf{ci}}+{\mathbf{G}}_{\mathbf{ci}}{\mathbf{G}}_{\mathbf{cPQ}}{\mathbf{G}}_{\mathbf{PQ}}^{\mathbf{i}}\right)(40)$

where $\mathbf{I}$ is a identity matrix, ${\mathbf{Z}}_{\mathbf{ac}}$ is the inverse matrix of ${\mathbf{Y}}_{\mathbf{ac}}$ .

4 Stability analysis using the proposed model

For Single Input Single Output (SISO) systems, the traditional Nyquist stability criterion can be used to discriminate the stability. However, for Multiple Input Multiple Output (MIMO) systems, the traditional Nyquist stability criterion cannot be applied. The General Nyquist Criterion (GNC) is a generalization of the Nyquist stability criterion to MIMO systems. For MIMO systems, the characteristic equations of the system are established, and the stability criterion is performed by drawing the generalized Nyquist curve.

One line diagram representation of the back-to-back frequency converter system under study is shown in Figure 5. $R_s$ ( $L_s$ ) and $R_f$ ($L_f$) are the equivalent resistance (inductance) of industrial and fractional frequency grids, respectively. In this system, the back-to-back frequency converter is connected to the PCCs and the grids are connected to PCCs through inductors and resistors. To analysis the system stability, the method proposed in Sun (2011) is applied. Sun (2011), the system can be divided into two parts from the PCCs, namely, the grids and the converter.

FIGURE 5

FIGURE 5. One line diagram of the converter system.

As reported by Wen et al. (2015), when using impedance-basis stability analysis for a grid-tied converter system, Nyquist stability criterion is based on the impedance ratio of the grid-side impedance and the converter impedance as

$\mathbf{L}={\mathbf{Z}}_{\mathbf{g}}\cdot {\mathbf{Z}}_{\mathbf{ACAC}}^{-\mathbf{1}}(41)$

${\mathbf{Z}}_{\mathbf{g}}$ denotes the impedance of the grid, which can be expressed by

${\mathbf{Z}}_{\mathbf{g}}=\left[\begin{array}{cccc}s{L}_s+R_s& -{\omega }_1{L}_s& 0& 0\\ {\omega }_1{L}_s& s{L}_s+R_s& 0& 0\\ 0& 0& s{L}_f+R_f& -{\omega }_2{L}_f\\ 0& 0& {\omega }_2{L}_f& s{L}_f+R_f\end{array}\right](42)$

Since the grid voltage can be assumed to be stable without the converter and the converter to be stable when the grid impedance is zero, the grid-tied converter system is stable if the satisfies the GNC. According to the GNC, system stability can be determined by checking whether the Nyquist diagram encircles point.

5 Simulation result

5.1 Verification of the back-to-back frequency converter small-signal model

Based on the theoretical derivation of the small-signal impedance of the back-to-back converter, the circuit model of the converter is established in the MATLAB/Simulink environment and the small-signal impedance measurement can be performed. To obtain the value of the small-signal impedance of the back-to-back converter, four linearly independent small-signal voltages and small-signal currents are measured as shown in Wen et al. (2015). The first sinusoidal perturbation signal with certain frequency is generated on the $d-\text{axis}$ while keeping the $q-\text{axis}$ perturbation null at industrial frequency port. The system responses ${\stackrel{\sim }{u}}_{dqi1}$ and ${\stackrel{\sim }{i}}_{dqi1}$, namely, the small-signal voltage and current of both PCCs (PCC of both industrial and fractional frequency ports) are measured. A second perturbation sequence can be carried out then but perturbing the $q-\text{axis}$ instead while the $d-\text{axis}$ components being zero at industrial frequency port. The third and the fourth perturbation sequence are generated by adding two linearly independent perturbations at fractional frequency port. Then, we can get four sets of linearly independent voltage and response current, these are

$\left[\begin{array}{c}{\stackrel{\sim }{u}}_{d11}\\ {\stackrel{\sim }{u}}_{q11}\\ {\stackrel{\sim }{u}}_{d21}\\ {\stackrel{\sim }{u}}_{q21}\end{array}\right],\left[\begin{array}{c}{\stackrel{\sim }{u}}_{d12}\\ {\stackrel{\sim }{u}}_{q12}\\ {\stackrel{\sim }{u}}_{d22}\\ {\stackrel{\sim }{u}}_{q22}\end{array}\right],\left[\begin{array}{c}{\stackrel{\sim }{u}}_{d13}\\ {\stackrel{\sim }{u}}_{q13}\\ {\stackrel{\sim }{u}}_{d23}\\ {\stackrel{\sim }{u}}_{q23}\end{array}\right],\left[\begin{array}{c}{\stackrel{\sim }{u}}_{d14}\\ {\stackrel{\sim }{u}}_{q14}\\ {\stackrel{\sim }{u}}_{d24}\\ {\stackrel{\sim }{u}}_{q24}\end{array}\right];\left[\begin{array}{c}{\stackrel{\sim }{i}}_{d11}\\ {\stackrel{\sim }{i}}_{q11}\\ {\stackrel{\sim }{i}}_{d21}\\ {\stackrel{\sim }{i}}_{q21}\end{array}\right],\left[\begin{array}{c}{\stackrel{\sim }{i}}_{d12}\\ {\stackrel{\sim }{i}}_{q12}\\ {\stackrel{\sim }{i}}_{d22}\\ {\stackrel{\sim }{i}}_{q22}\end{array}\right],\left[\begin{array}{c}{\stackrel{\sim }{i}}_{d13}\\ {\stackrel{\sim }{i}}_{q13}\\ {\stackrel{\sim }{i}}_{d23}\\ {\stackrel{\sim }{i}}_{q23}\end{array}\right],\left[\begin{array}{c}{\stackrel{\sim }{i}}_{d14}\\ {\stackrel{\sim }{i}}_{q14}\\ {\stackrel{\sim }{i}}_{d24}\\ {\stackrel{\sim }{i}}_{q24}\end{array}\right](43)$

Hence, the measured impedance of the back-to-back frequency converter can be derived as

${\mathbf{Z}}_{\mathbf{ACAC}}={\left[\begin{array}{cccc}{\stackrel{\sim }{i}}_{d11}& {\stackrel{\sim }{i}}_{d12}& {\stackrel{\sim }{i}}_{d13}& {\stackrel{\sim }{i}}_{d14}\\ {\stackrel{\sim }{i}}_{q11}& {\stackrel{\sim }{i}}_{q12}& {\stackrel{\sim }{i}}_{q13}& {\stackrel{\sim }{i}}_{q14}\\ {\stackrel{\sim }{i}}_{d21}& {\stackrel{\sim }{i}}_{d22}& {\stackrel{\sim }{i}}_{d23}& {\stackrel{\sim }{i}}_{d24}\\ {\stackrel{\sim }{i}}_{q21}& {\stackrel{\sim }{i}}_{q22}& {\stackrel{\sim }{i}}_{q23}& {\stackrel{\sim }{i}}_{q24}\end{array}\right]}^{-1}\left[\begin{array}{cccc}{\stackrel{\sim }{u}}_{d11}& {\stackrel{\sim }{u}}_{d12}& {\stackrel{\sim }{u}}_{d13}& {\stackrel{\sim }{u}}_{d14}\\ {\stackrel{\sim }{u}}_{q11}& {\stackrel{\sim }{u}}_{q12}& {\stackrel{\sim }{u}}_{q13}& {\stackrel{\sim }{u}}_{q14}\\ {\stackrel{\sim }{u}}_{d21}& {\stackrel{\sim }{u}}_{d22}& {\stackrel{\sim }{u}}_{d23}& {\stackrel{\sim }{u}}_{d24}\\ {\stackrel{\sim }{u}}_{q21}& {\stackrel{\sim }{u}}_{q22}& {\stackrel{\sim }{u}}_{q23}& {\stackrel{\sim }{u}}_{q24}\end{array}\right](44)$

Using the system and control parameter values listed in Table.

Table 1 and Table 2, the Bode diagram of the converter is plotted in Figure 6. The blue lines show the calculated impedance based on (40), whereas the red dots are the measured impedance. It can be figured out that the red dots match to the impedance curves, verifying the effectiveness and accuracy of the back-to-back frequency converter small-signal model. Notice that when the small-signal disturbance voltage is added, a corresponding small-signal disturbance current is generated and the whole converter remains in stable operation. Hence, the small-signal impedance can be measured only when the converter can operate independently and stably.

TABLE 1

TABLE 1. Parameters of converter on the industrial frequency port.

TABLE 2

TABLE 2. Parameters of converter on the fractional frequency port.

FIGURE 6

FIGURE 6. Bode diagram of the back-to-back frequency converter small-signal impedance.

5.2 Verification of the stability analysis

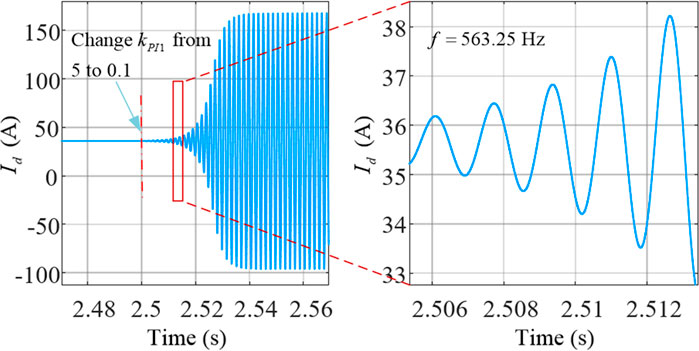

Figure 7 Shows the time-domain simulation results of the back-to-back frequency converter. In the simulation, the converter system is stable from 0 to 2.5 s. At 2.5 s, the proportional gain of inner current controller at industrial frequency port $k_{PI1}$ decreases from 5 to 0.1, the $d-\text{axis}$ current at industrial frequency port as shown in Figure 7 Starts to oscillate. The whole system becomes unstable.

FIGURE 7

FIGURE 7. $d-\text{axis}$ current waveform at industrial frequency port with different inner current controller parameters.

Applying GNC to impedance ratio $\mathbf{L}$, the stability conditions of the system can be seen in Figure 8. When $k_{PI1}$ is 0.1, system’s characteristic loci encircles the critical point $\left(-1,j0\right)$, which indicates the system is unstable. Changing the flow direction of active power and keeping the other parameters unchanged, the stability condition can be seen in Figure 9. It can be figured out that none of the system’s characteristic loci encircles the critical point $\left(-1,j0\right)$. The comparison reveals that when the power flow is reversed, the stability of the system obtains very different results.

FIGURE 8

FIGURE 8. Nyquist diagrams of the system minor-loop gain $\mathbf{L}$ with $k_{PI1}=0.1$ and positive power flow direction.

FIGURE 9

FIGURE 9. Nyquist diagrams of the system minor-loop gain $\mathbf{L}$ with $k_{PI1}=0.1$ and negative power flow direction.

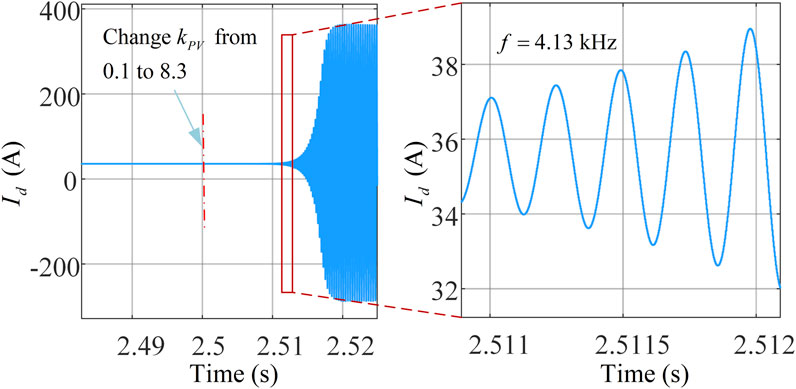

The proportional gain of the outer DC voltage controller can also affect the stability of the system. Figure 10 shows the time-domain simulation results of the back-to-back frequency converter. In the simulation, the converter system is stable from 0 to 2.5 s. At 2.5 s, the proportional gain of outer DC voltage controller at industrial frequency port $k_{PV}$ increases from 0.1 to 8.3, the $d-\text{axis}$ current at industrial frequency port as shown in Figure 10 Starts to oscillate. The whole system becomes unstable.

FIGURE 10

FIGURE 10. $d-\text{axis}$ current waveform at industrial frequency port with different DC voltage controller parameters.

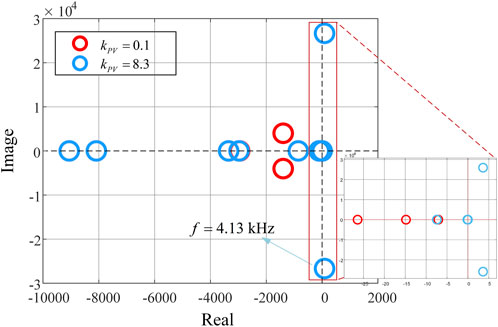

Applying GNC to impedance ratio L, stability conditions can be seen in Figure 11. The closer the pole is to the imaginary axis, the more unstable the system is. When $k_{PV}$ is 0.1, the closed-loop system does not contain any right half-plane (RHP) pole as the red circle shown in Figure 11, which means the system is stable. When $k_{PV}$ is 8.3, as the blue circle shown in Figure 11, the system closed-loop transfer function contains 2 RHP poles, which indicates the system is unstable. And it can be figured out that the oscillation frequency calculated in Figure 11 and Figure 10 match well, which further verifies the accuracy of the small-signal model proposed in Section 3.

FIGURE 11

FIGURE 11. The pole distribution map of the closed-loop system with different DC voltage controller parameters.

6 Conclusion

This paper focuses on the analysis of the back-to-back frequency converter with inner current control loop and outer voltage/power control loop. Firstly, the small-signal impedance model of the converter used for fractional frequency transmission system is proposed. Then, the stability analysis of the grid-tied interlinking converter system is conducted which divides the system into two parts: the grids connected to both ports of the converter and the converter. The stability of the whole system is determined by the open-loop transfer function based on the small-signal impedance model, and according to the GNC, the stability can be obtained by judging whether system’s characteristic loci encloses point $\left(-1,j0\right)$ on the complex plane. Therefore, the stability of the whole system is related to parameters of the converter itself and parameters of the grid, which can protect user privacy and trade secret. The factors affecting the stability are studied and the influence on the stability is explored for the current controller parameter, the power flow direction, and the DC voltage controller parameter. Finally, the validity and accuracy of the small-signal impedance model and stability analysis are validated by time-domain simulation performed in MATLAB/Simulink environment.
