Performance analysis and modeling of bio-hydrogen recovery from agro-industrial wastewater

Significant volumes of wastewater are routinely generated during agro-industry processing, amounting to millions of tonnes annually. In line with the circular economy concept, there could be a possibility of simultaneously treating the wastewater and recovering bio-energy resources such as bio-hydrogen. This study aimed to model the effect of different process parameters that could influence wastewater treatment and bio-energy recovery from agro-industrial wastewaters. Three agro-industrial wastewaters from dairy, chicken processing, and palm oil mills were investigated. Eight data-driven machine learning algorithms namely linear support vector machine (LSVM), quadratic support vector machine (QSVM), cubic support vector machine (CSVM), fine Gaussian support vector machine (FGSVM), binary neural network (BNN), rotation quadratic Gaussian process regression (RQGPR), exponential quadratic Gaussian process regression (EQGPR) and exponential Gaussian process regression (EGPR) were employed for the modeling process. The datasets obtained from the three agro-industrial processes were employed to train and test the models. The LSVM, QSVM, and CSVM did not show an impressive performance as indicated by the coefficient of determination (R2) < 0.7 for the prediction of hydrogen produced from wastewaters using the three agro-industrial processes. The LSVM, QSVM, and CSVM models were also characterized by high prediction errors. Superior performance was displayed by FGSVM, BNN, RQGPR, EQGPR, and EQGPR models as indicated by the high R² > 0.9, an indication of better predictability with minimized prediction errors as indicated by the low root mean square error (RMSE), mean square error (MSE), and mean absolute error (MAE).

Introduction

The agro-industrial often required a huge amount of water for the processing of its agricultural feedstocks to value-added products (Freitas et al., 2021; Martinez-Burgos et al., 2021). This invariably results in a substantial amount of wastewater usually obtain from the process (Libutti et al., 2018). The wastewater generated from agro-industrial processing is increasing at an alarming rate throughout the world (Zaharia et al., 2021). As shown in Figure 1, agro-industrial processing of animals, oil palm, cassava, milk, cheese whey, and vinasse generated a billion liters of wastewater globally as reported Martinez-Burgos et al. (Martinez-Burgos et al., 2021) Wastewater from agricultural and industrial processes often contains high levels of nutrients like phosphorus and nitrogen, which encourage the growth of microorganisms and aquatic plants as well as microalgae (Robles et al., 2020). As a result of eutrophication, the water bodies that receive these effluents become unsuitable for various purposes because they destabilized the ecosystems. To forestall the environmental and health effects of the enormous amount of wastewater from agro-industries, the circular economy concept that utilizes innovative integrated processes of energy recovery and the treatment of wastewater could be developed (Dutta, Arya, and Kumar, 2021).

FIGURE 1

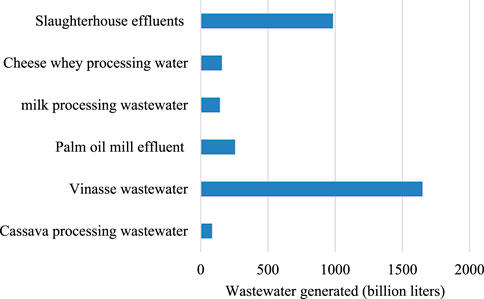

FIGURE 1. Agro-industrial wastewater generated from various processes (Martinez-Burgos et al., 2021).

Several studies have delved into the application of the circular economy concept to harness the opportunities from agro-industrial wastewater. Omran and Baek (Omran and Baek, 2022), reported that agro-industrial biowaste can be valorized to produce green nanomaterials suitable for use in the treatment of wastewater. The potential of producing bio-hydrogen from various agro-industrial wastewater has been reported by Marone et al. (2017) and Kumar et al. (2022). A combination of dark fermentation and microbial electrolysis displayed a promising alternative for maximizing the conversion of agro-industrial wastewaters and byproducts into bio-hydrogen, as demonstrated by the findings. Marone et al. (2017) investigated the possibility of producing bio-hydrogen from microbial electrolysis cells utilizing palm oil mill effluent. The study revealed that factors such as the incubation temperature, initial pH, and influent dilution rate significantly influence the bio-hydrogen production from the palm oil mill effluent. The use of fermentation liquid of waste-activated sludge for biohydrogen production in a microbial electrolysis cell has been reported by Khongkliang et al. (2019). The study demonstrated that bio-hydrogen may be recovered from activated sludge by integrating microbial electrolysis cells with active sludge disposal. The recovery of biohydrogen from the conversion of acidogenic effluents in a microbial electrolysis cell has been reported by Lenin Lenin Babu et al., 2013. The study revealed that applied potential conditions in a microbial electrolysis cell are a huge potential for simultaneously producing hydrogen and wastewater treatment.

Although, several experimental studies have established the potential of bioenergy recovery from agro-industrial wastewaters, nevertheless how the various parameters influenced and relate to the various bioenergy recovered from the wastewater is still understudied. A huge amount of data is often generated from the experimental runs capturing the process parameters and the output. A data-driven modeling approach can be adopted to explore the relationship that exists between these input parameters and the targeted output (Sharabiani et al., 2022). As shown in Table 1, various machine learning algorithms such as support vector machine (SVM), Gaussian process regression (GPR) and artificial neural networks (ANN), boost regression, and random forest regression, have been widely employed for modeling different processes involving wastewater treatment. SVM has been reported to be robust in modeling microbial lipid fermentation from cellulosic ethanol wastewater as reported by Zhang, Chao, and Zhang, (2020). As indicated by R² of 0.9959 obtained for the data training, the findings show that the SVM model has a great potential to optimize fermentation conditions and could be a useful tool in the future. The modeling of microalgae-based wastewater treatment using SVM was investigated by Hossain et al. (2022). A global optimal treatment condition was achieved as indicated by the high removal efficiency of nitrogen and phosphate from microalgae-based wastewater. Hosseinzadeh et al. (2022) reported the modeling of biohydrogen recovery from wastewater using SVM. The SVM displayed a significant ability to predict hydrogen production from the wastewater with an R² of 0.885. GPR has been employed to model full-scale wastewater treatment and carbon-based material adsorption of organic pollutants from wastewater (Hvala and Kocijan, 2020; Hosseinzadeh et al., 2022). GPR and ANN were effective in modeling the prediction of antibiotics removal from industrial wastewater (Hamza et al., 2022). The GPR was reported to offer a good prediction of the treatment of the wastewater effluent from full-scale wastewater (Hvala and Kocijan, 2020). Bagheri et al. (Bagheri et al., 2015) and Dewasme (Dewasme, 2020) reported the use of ANN for modeling the prediction of sludge in the wastewater treatment plant and key-component estimation from brewery wastewater treatment plant. The training and validation of the ANN models demonstrated a nearly perfect agreement between the experimental and ANN predicted values. Other machine learning algorithms such as Ada Boost Regression, Gradient Boost Regression, and Random Forest Regression have also been employed for modeling the prediction of effluent quality parameters, and sludge bulking of the wastewater treatment process (Sharafati, Asadollah, and Hosseinzadeh, 2020; Elmaadawy et al., 2021; Han, Dong, and Qiao, 2021). To the best of the authors’ knowledge the use of SVM (incorporated with various kernel functions), GPR (incorporated with various kernel functions), and Bi-layer neural network (BNN) for the modeling the effect of various parameters on bio-hydrogen recovery from agro-industrial wastewater has not been reported in the literature. Data is fed into the kernel, and it performs the necessary transformations. This study therefore employed SVM and GPR incorporated with various kernel functions as well as BNN for modeling bio-hydrogen recovery from three agro-industrial wastewater namely dairy wastewater, chicken processing wastewater, and palm oil mill effluent.

TABLE 1

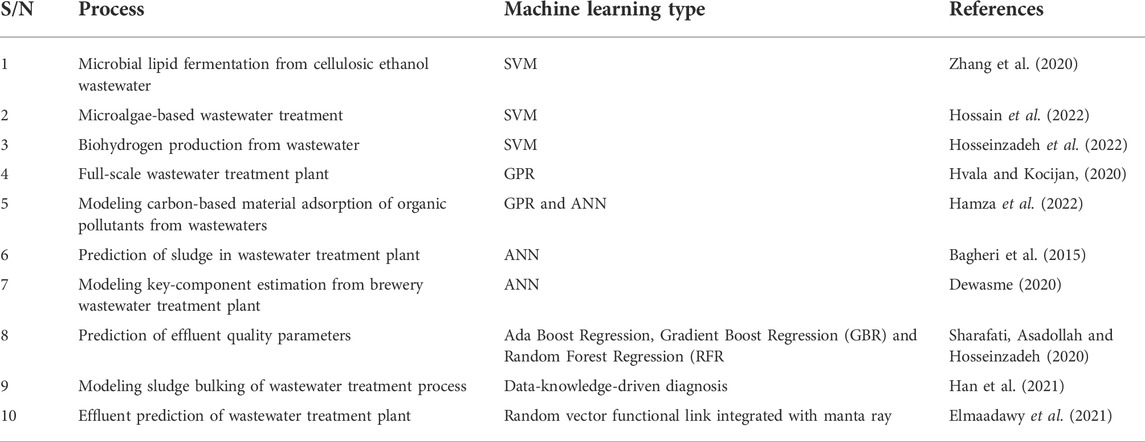

TABLE 1. Summary of related studies on the application of various machined learning models of wastewater processes.

Experimental details of biohydrogen production and model development

Experimental on biohydrogen production from wastewaters

The biohydrogen under consideration was produced from dairy wastewater, chicken processing wastewater, and palm oil mill effluent. A detailed description of the processes involved in bio-hydrogen production from dairy wastewater, chicken processing wastewater, and palm oil mill effluent has been reported by Gadhe et al. (Gadhe, Sonawane, and Varma, 2013), Thirugnanasambandham et al. (Thirugnanasambandham, Sivakumar and Prakasmaran, 2015), and Kadier et al. (Kadier et al., 2021). The relationship between maximal biohydrogen production from a given concentration of substrate, pH, COD/Nitrogen ratio, and COD/Phosphorus ratio was investigated (Gadhe, Sonawane and Varma, 2013). For the chicken processing wastewater, the effect of current density, hydraulic retention time, and electrode surface area on the biohydrogen production from the chicken processing wastewater in an electrochemical reactor was investigated (Thirugnanasambandham, Sivakumar and Prakasmaran, 2015). Also, the effect of process variables such as temperature, initial pH of the palm oil mill effluent, and the influent COD concentration on bio-hydrogen production in microbial electrolysis cell was investigated (Kadier et al., 2021). A total of 64 datasets comprised of the various process variables and targeted output was employed to train and validate the machine learning algorithms.

Model development

The stages involved in the model development are represented in Figure 2. The stages include the data acquisition from the experimental runs, data preprocessing, model configuration, model training, model validation, and model deployment for the prediction of the hydrogen produced from wastewater. After the data acquisition from the experimental runs, it ensured that the data are preprocessed for any missing values or outliers. The model configuration entailed the setting of the various models that would be employed for the modeling the prediction of the hydrogen. Thereafter, the models are trained with a portion of the data to ensure that the relationship between the predictors and the targeted variable is well learned. While the remaining portion of the data is employed to validate the trained model. The performance of the model is tested before deployment for predicting hydrogen production.

FIGURE 2

FIGURE 2. Schematic representation of the steps involved in the modeling process.

Eight machine learning algorithms namely LSVM, QSVM, CSVM, FGSVM, BNN, RQGPR, EQGPR, and EQGPR were configured for modeling the non-linear relationship between the various input parameters to the wastewater treatment processes and the biohydrogen produced from the wastewater. The effect of kernel functions such as linear, quadratic, cubic, and fine Gaussian on the performance of the SVM was investigated (Leong et al., 2021). While the effect of kernel functions such as rotational quadratic, squared exponential, and exponential on the performance of the GPR was also investigated. Altogether, a total of eight different models were considered (Zeng, Ho and Yu, 2020).

The main objective of the SVM is to use various forms of kernel functions to project nonlinearly separable samples onto a higher-dimensional environment. Kernel functions are frequently referred to as “generalized dot products” since they compute the dot product of two vectors $X$ and y in a (very high-dimensional) feature space (Zanaty and Afifi, 2020). Kernel functions are important in SVM for bridging the gap between linearity and nonlinearity. In the higher dimensional space, the linear model $f\left(X,\psi \right)$ for SVM is as follows:

$f\left(X,\psi \right)={\displaystyle \sum }_{i=\mathit{1}}^n{\psi }_i{g}_i\left(X\right)+b(1)$

$g_i\left(x\right)$denotes a set of linear transformations, the bias term is denoted by b.

The polynomial kernel function which includes, quadratic, and cubic compares input samples not just on their individual properties, but also on their combinations. The polynomial kernel represented in Eq. 2 produces enlarged features using n original features and d polynomial degrees (Koschwitz et al., 2018).

$k\left(X_i,X_j\right)={\left(X_i{.X}_j+1\right)}^d(2)$

SVM regression analysis may be utilized to circumvent the challenges of utilizing linear functions in the high-dimensional feature space, and the optimization issue is turned into dual convex quadratic algorithms (D Koschwitz et al., 2018). Errors larger than or equal to the threshold are penalized by applying the loss function to the regression. As a result, the sparse representation of the decision rule provides considerable advantages in terms of algorithmic and representational efficiency.

Just like the SVM, the GPR is a robust machine learning algorithm that can be applied to modeling bioenergy recovery from agro-industry wastewater (Gao et al., 2018). The fact that GPR is non-parametric means that it may be used to handle a broad range of supervised learning problems, even though only a limited amount of information is provided. Any subset of the GPR’s random variables can be said to be jointly Gaussian as represented in Eq. 3 (Bang, Yoon and Jeon, 2020).

$p\left(x\right)=\frac{1}{{\left({\left(2\pi \right)}^d\right)∆\left|\sum \right|)}^{1/2}}{e}^{\left(-\frac{1}{2}{\left(x-\mu \right)}^T{(\sum }^{-1}\left(x-\mu \right)\right)},x={\left[x_i\dots x_j\right]}^T\in {\mathbb{R}}^d(3)$

In Eq 3, d depicts the number of random variables, μ represents the vector of mean values, Σ is the covariance matrix of the random variables, $x$ is a set of random variables between i and j. Given observed training data, GPR uses this data to compute the parameters of a posterior Gaussian distribution for targets over the test points $x$. A Gaussian distribution may be thought of as being predicted at each test point.

The BNN consists of the hidden and the output layer. Input signals into the BNN are combined linearly, and the activation function is used to transform the output (Zhu, Duong and Liu, 2020). The BNN configurations are made up of layers of neurons that feed each other’s output till the ultimate output is reached. Training the network means learning the relationship between the inputs and the targets that the network is presented with (Martinez et al., 2020). At each iteration (epoch), the difference between the target data and the network output was computed, and the network weights were updated until a low mean standard error (MSE) was achieved. The MSE of the targeted output on the training set is computed as weights are provided to the training set at each epoch. Every epoch, the MSE of the validation set is computed and training is stopped when the MSE of the validation set rises.

The configuration of the SVM, GPR, and BNN was performed using a regression learner application in the Mathlab environment. K-fold cross-validation was to prevent data overfitting. For this study, 2-fold cross-validation was employed. Each data sample is divided into a certain number of groups by a single parameter called k in this technique. In applied machine learning, cross-validation is used to measure the model’s ability to learn from new data. A small sample may be utilized to get an idea of how well the model will perform when it is applied to data that was not included in the training process. The performance of each of the models was evaluated using mean square error (MSE), root mean square error (RMSE), mean absolute error (MAE) and coefficient of determination (R²) defined in Eqs 4–7 (Ayodele et al., 2020).

$MSE={\displaystyle \sum }_{i=1}^n\left(\frac{{\left(z_{pi}-z_{ai}\right)}^2}{n}\right)(4)$

$RMSE={{\displaystyle \sum }_{i=1}^n\left(\frac{{\left(z_{pi}-z_{ai}\right)}^2}{n}\right)}^{1/2}(5)$

$MAE=\frac{{\displaystyle \sum }_{i=1}^n\left|z_{pi}-z_{ai}\right|}{n}(6)$

$R^2=1-\frac{{\displaystyle \sum }_{i=1}^n{\left(z_{pi}-z_{ai}\right)}^2}{{\displaystyle \sum }_{i=1}^n{\left(z_{pi}-{\overline{z}}_{ai}\right)}^2}(7)$

where $z_{pi}$, $z_{ai}$ are the predicted and actual outputs for each data set $i$, respectively, $n$ is the number of observed datasets, ${\overline{z}}_{ai}$ is the mean actual output.

Results and discussion

Parametric analysis of input and target variables

Three different wastewaters from a dairy, chicken processing, and palm oil mill were investigated for the possibilities of biohydrogen production. The hydrogen from the dairy wastewater was produced from the batch fermentation process considering the effect of COD/nitrogen ratio, COD/phosphorus ratio, and substrate concentration. The relationship between the various input variables and the hydrogen produced from the dairy wastewater is represented in Figure 3. In Figure 3A, a non-linear relationship exists between the COD/N ratio, substrate concentration, and hydrogen production. An increase in the COD/N ratio resulted in a corresponding increase in hydrogen production which is consistent with the work of Liu et al. (2022) for hydrogen production from herbal wastewater. The presence of nitrogen in the wastewater medium helps to facilitate the breaking down of the organic matters in wastewater to release biohydrogen (Goswami et al., 2021). It can be seen that hydrogen production from dairy wastewater is promoted using substrate concentrations ranging from 5 to 15 g COD/L (Gadhe, Sonawane and Varma, 2013). A decline in hydrogen production has been observed at a substrate concentration >15 g COD/L. In Figure 3B, an increase in the pH of the fermentation medium produces an increase in hydrogen production. Higher hydrogen production is favoured at 5.6. Similarly in Figure 3C, an undulating effect of COD/P ratio on hydrogen production is observed. A higher concentration of phosphorus in the fermentation facilitated microbial decomposition of the substrates to release hydrogen.

FIGURE 3

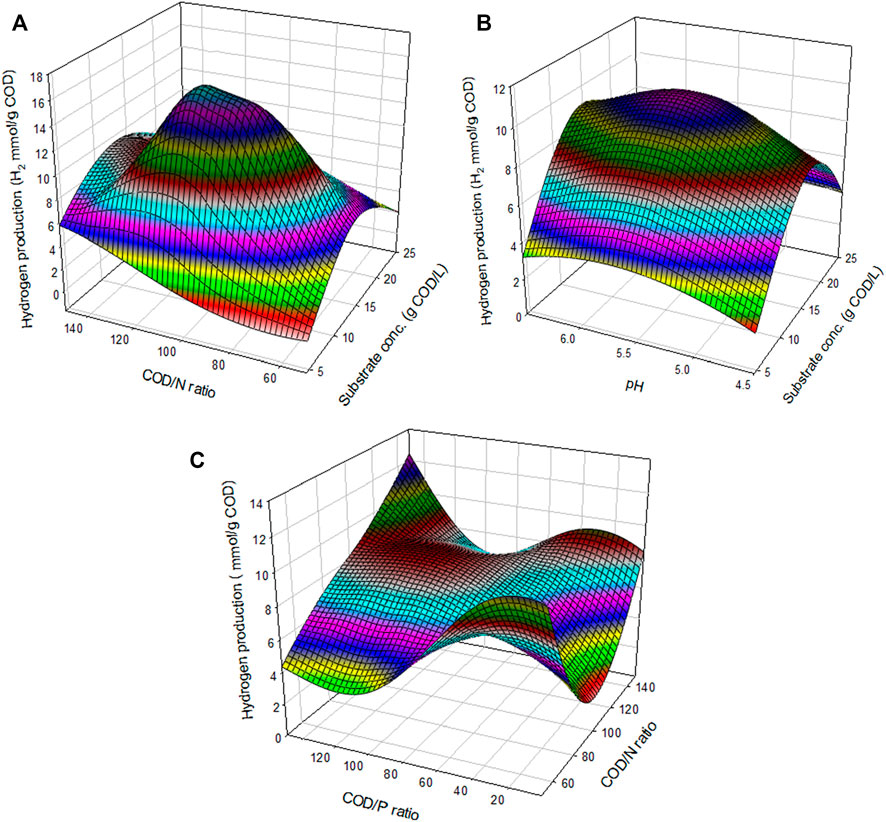

FIGURE 3. Non-linear relationship between (A) COD/N ratio and substrate concentration (B) pH and substrate concentration and (C) COD/P ratio and COD/N ratio on hydrogen produced from dairy wastewater.

Figure 4 displays the relationship between the various input variables like hydraulic retention time, current density, electrode surface area, and hydrogen produced in an electrochemical reactor. The relationship depicted in Figure 4A revealed that the hydrogen produced from the electrochemical reactor is favoured at high current density and low retention time (Sharma and Li, 2010; Kirkaldy et al., 2018). Whereas, using an electrode surface of 3.8 m² produces maximum hydrogen (Figure 4B). A decline in hydrogen production is observed at an electrode surface area >3.8 m². In Figure 4C, increasing the hydraulic retention time promotes an increasing hydrogen production as a result of the interaction with the electrode surface area.

FIGURE 4

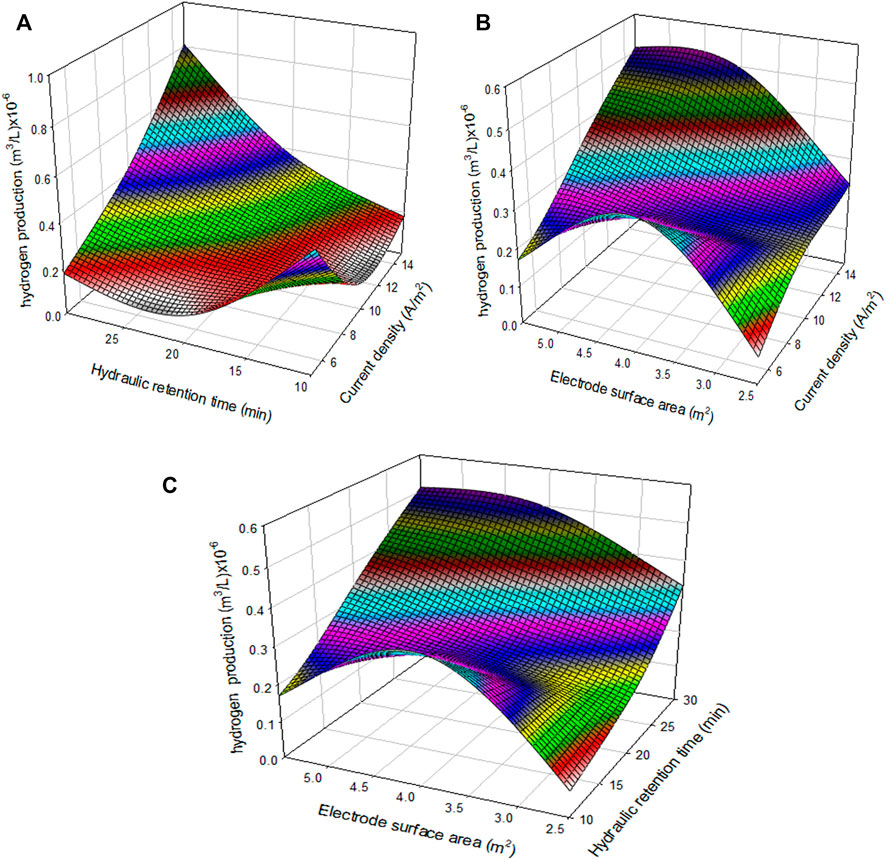

FIGURE 4. Non-linear relationship between (A) hydraulic retention time and current density (B) electrode surface area and current density and (C) electrode surface area and hydraulic retention time on hydrogen produced from chicken processing wastewater.

The relationship between the input variables on the hydrogen produced from palm oil mill effluent using microbial fermentation is represented in Figure 5. The increase in batch reactor temperature from 28 to 36 °C favours an increase in the hydrogen production from the palm oil mill effluent as shown in Figure 5A (Norfadilah et al., 2016). For the interaction between the two variables (temperature and pH), hydrogen production is favoured at pH of 5.5. Using a higher amount of substrate concentration also promotes a high volume of hydrogen production as shown in Figures 5A, B (Cisneros-Pérez et al., 2015). It can be seen that the highest hydrogen production of 280 × 10⁻⁶ m³/L is obtained with the interaction between the substrate concentration and pH (Figure 4B) as well as substrate concentration and temperature (Figure 5C).

FIGURE 5

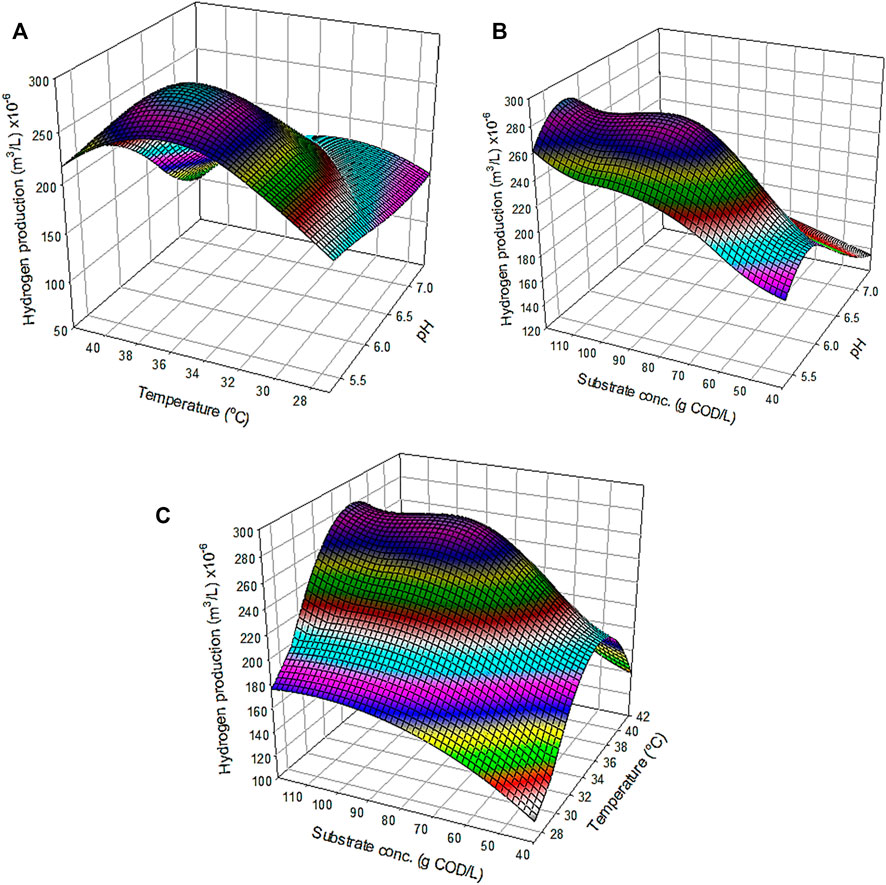

FIGURE 5. Non-linear relationship between (A) Temperature and pH (B) Substrate concentration and pH and (C) Substrate concentration and Temperature time on hydrogen produced from palm oil mill effluent wastewater.

Performance analysis of the models

The production of hydrogen from the dairy wastewater, chicken processing, and palm oil mill effluent was modeled using eight machine learning algorithms namely, LSVM, QSVM, CSVM, FGSVM, BNN, RQGPR, SEGPR, and EGPR. The performance of the eight models in modeling hydrogen production from dairy wastewater is depicted in Figure 6. Figure 6A represents the performance of the models as a function of comparison between the actual and the predicted hydrogen production. As shown in Figure 6A, the SVM did not show impressive performance in modeling the prediction of the hydrogen production from the dairy wastewater. There is a huge deviation between the actual and the predicted values of hydrogen production even with the incorporation of the linear, quadratic and cubic kernel functions. However, it is interesting to note that the performance of the SVM increases with an increase in the degree of polynomial from linear to fine Gaussian. As shown in Figure 6B, higher RMSE, MSE, and MAE were obtained for the LSVM, QSVM, and CSVM compared to the QSVM. Also, lower R² values of 0.11, 0.40, and 0.74 were obtained for the LSVM, QSVM, and CSVM, respectively compared to 0.94 obtained for the FGSVM. The performance of the FGSVM compared to the LSVM, QSVM, and CSVM could be attributed to its unique advantage. The fine Gaussian kernels are universal kernels, which implies that when used in conjunction with adequate regularisation, they ensure the creation of an optimum predictor that minimizes both the estimate and approximation errors of a predicted value (Bang, Yoon and Jeon, 2020). The FGSVM however displayed a lesser performance when compared to other models like the BNN, RQGPR, SEGPR, and EGPR. As shown in the dispersion plots, the predicted hydrogen production from the BNN, RQGPR, SEGPR, and EGPR models is in close agreement with the actual values. This can also be confirmed by the low values of the RMSE, MSE, and MAE as well as the high R² in Figures 6B, C. The prediction of the hydrogen production from the dairy wastewater resulted in R² of 0.999, 0.960, 0.960, and 0.990, respectively.

FIGURE 6

FIGURE 6. (A) Dispersion plot of actual and predicted hydrogen produced from the dairy wastewater (B) error analysis of the various models and (C) performance of each of the models in terms of R².

Figure 7 depicts the performance of the eight models in terms of the dispersion plot which compares the actual and the predicted hydrogen production, the error analysis, and the R² analysis. As shown in Figure 7A, the predicted hydrogen produced from the chicken processing wastewater by the LSVM, QSVM, CSVM, and FGSVM is a variant of the actual values. This is evident in the high values of the RMSE, MSE and MAE obtained for the prediction of the hydrogen as depicted in Figure 7B. The R² values of 0.140, 0.280, 0.440, and 0.670 obtained for LSVM, QSVM, CSVM, and FGSVM, respectively imply that only the short range of the dataset can be generalized by the models. A better performance was obtained using the BNN, RQGPR, SEGPR, and EGPR, as indicated by the proximity of the predicted and the actual hydrogen production from the chicken processing wastewater as indicated in Figure 7A. Very low RMSE, MSE, and MAE were obtained for the BNN, RQGPR, SEGPR, and EGPR models compared to the SVM-based models. The R² values of 0.999, 0.990, 0.990, and 0.990 obtained for the BNN, RQGPR, SEGPR, and EGPR models, respectively are indications of better generalization of the models.

FIGURE 7

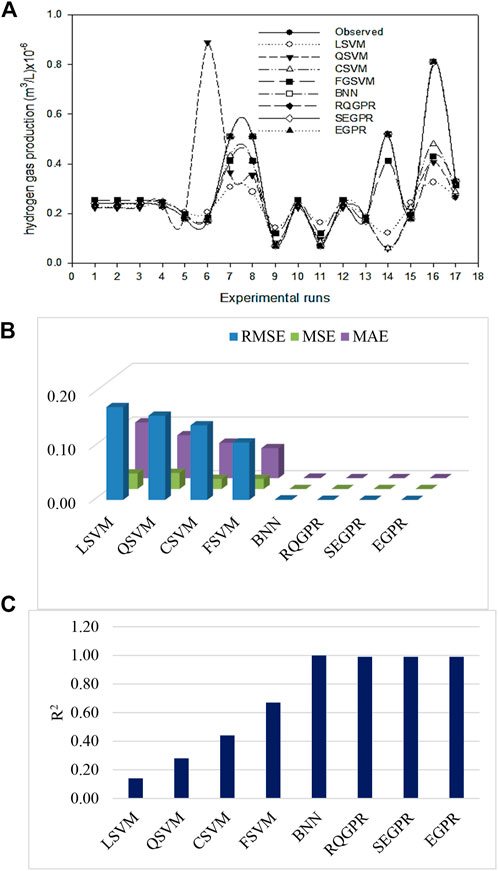

FIGURE 7. (A): Dispersion plot of actual and predicted hydrogen produced from the chicken processing wastewater (B) error analysis of the various models and (C) performance of each of the models in terms of R².

Figure 8 represents the performance of the eight models as a function of the dispersion plots, the error analysis, and the R². As established in the previous sections, the LSVM, QSVM, and CSVM did not show impressive performance in modeling the hydrogen production from the palm oil mill effluent as indicated in Figure 8A. The predicted hydrogen production obtained by LSVM, QSVM, and CSVM models largely deviate from the actual values obtained from the experimental runs. A large error analysis was obtained for the prediction of hydrogen production as indicated in Figure 8B. The R² values of 0.15, 0.28, and 0.51 obtained for LSVM, QSVM, and CSVM, respectively are an indication of the low generalization ability of the models. However, the incorporation of the fine Gaussian kernel functions into the SVM showed a significant improvement as indicated by R² of 0.97. This can be attributed to the robustness of the fine Gaussian kernel functions in the generalization of non-linear functions. Better performance in modeling hydrogen production is obtained using the BNN, RQGPR, SEGPR, and EGPR as indicated by Figure 8A The predicted and the actual hydrogen production from the wastewater are in close agreement. The models predicted the hydrogen production with minimum errors as depicted in Figure 8B. An R² of 0.999 obtained for each of the BNN, RQGPR, SEGPR, and EGPR models depicted in Figure 8C indicated that a large proportion of the datasets can be generalized with minimum error.

FIGURE 8

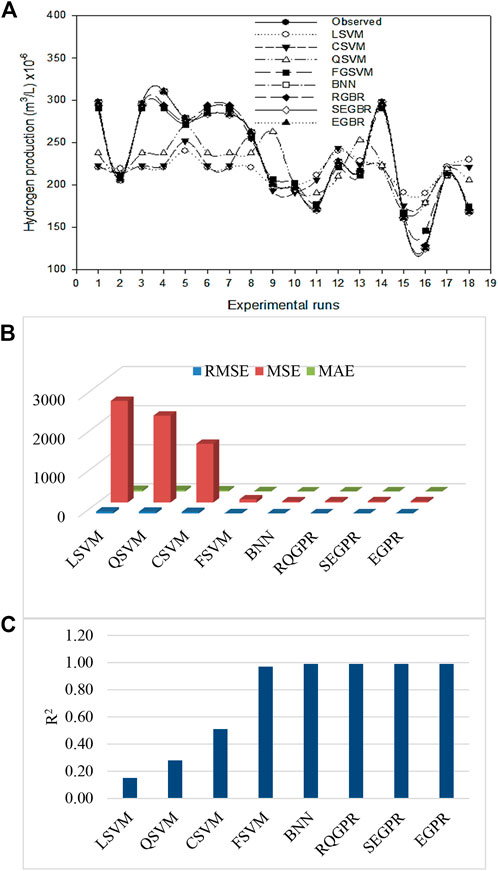

FIGURE 8. (A): Dispersion plot of actual and predicted hydrogen produced from palm oil mill effluent (B) error analysis of the various models and (C) performance of each of the models in terms of R².

Comparison of the best models with literature and practical implications of the study

The comparison between the four best models in this study namely BNN, RQGPR, SEGPR, and EGPR, and those reported in the literature for similar processes are summarized in Table 2. The four models are robust in modeling the prediction of biohydrogen from dairy wastewater, chicken processing water, and palm oil mill effluent. This is evidenced by the high R² values (>0.9) and low RMSE values. An indication that the predicted biohydrogen produced from the various processes is consistent with the values obtained from the experimental runs. It implies that the models’ algorithms efficiently learn the non-linear relationship between the various input variables and the biohydrogen produced from the wastewaters. The performances of the BNN, RQGPR, SEGPR, and EGPR are comparable with other machine learning algorithms such as random forest, Adaptive neuro-fuzzy inference system (ANFIS) (Hosseinzadeh et al., 2022), Backpropagation neural network (BPNN) (Sridevi, Sivaraman and Mullai, 2014), multilayer perceptron neural network (MLPNN) (Yogeswari, Dharmalingam and Mullai, 2019) and SVM (Raji et al., 2022). The modeling of biohydrogen production from industrial wastewaters, distillery wastewater, confectionery wastewater, and fermentative medium results in an accurate prediction with high R² and low RMSE. Generally, studies have shown that machine learning algorithms are highly efficient in modeling processes with a non-linear relationship between the input and the targeted variables. With the help of the machine learning algorithms, biohydrogen production from the various wastewaters can be optimized in real-time thereby improving the process efficiency as well as enhance energy and material utilization. The historical data from the processes can be employed to continuously improve the process performance and optimize desired products.

TABLE 2

TABLE 2. Comparison of the best models with literature.

Conclusion

The potential of producing bio-hydrogen from agro-industrial wastewater has been established in this study. Dairy, poultry processing, and palm oil mill wastewaters all have promising potential for bio-hydrogen generation. Hydrogen was produced from a variety of wastewater sources, and the datasets acquired from the experimental investigations were used to model the relationship between the input factors and the desired result. Eight machine learning models were used in the study, all of which demonstrated promising results when tasked with learning the non-linear connection between the input and the goal variables. The LSVM, QSVM, and CSVM models performed poorly in terms of generalizing the datasets and making predictions about hydrogen production as shown by the low R² values. Predictions of hydrogen production was improved using the SVM with fine Gaussian kernels. The BNN, RQGPR, SEGPR, and EGPR models however outperformed the SVM-based models. Each of the BNN, RQGPR, SEGPR, and EGPR models performed exceptionally well in predicting hydrogen production from the dairy, chicken processing, and palm oil mill, with an R² > 0.9. Indicated by low RMSE, MSE, and MAE values, the models can generalize well for the task of predicting hydrogen recovered from agro-industrial effluent with as little error in their predictions as possible. In the event of a scaleup, the included BNN, RQGPR, SEGPR, and EGPR algorithms may aid in increasing the efficiency of the process. The impacts of input and output variables on process safety, material utilization, and energy efficiency may be monitored if their interdependencies are understood.
